MP612/MP612c/MP622/MP622c Digital Projector Mainstream Series User Manual

Welcome

Important safety instructions .................................... 5

Introduction ............................................................... 9

Projector features .................................................................9

Shipping contents ...............................................................10

Standard accessories ..................................................................................... 10

Optional accessories .....................................................................................10

Projector exterior view........................................................11

Front/upper side ........................................................................................... 11

Rear side ........................................................................................................ 11

Under view ....................................................................................................11

Controls and functions .......................................................12

Projector .......................................................................................................12

Remote control.............................................................................................. 14

Positioning your projector....................................... 16

Choosing a location ...........................................................16

Obtaining a preferred projected image size.......................17

How to determine the position of the projector for a given screen size ... 18

How to determine the recommended screen size for a given distance .....18

Connection ............................................................... 20

Connecting a computer or monitor ..................................20

Connecting a computer ............................................................................... 20

Connecting a monitor .................................................................................. 21

Connecting Video source devices ......................................22

Connecting a Component Video source device .......................................... 23

Connecting an S-Video source device..........................................................24

Connecting a composite Video source device............................................. 25

Operation.................................................................. 26

Start up ...............................................................................26

Utilizing the power-on lock function ................................27

Setting a password ........................................................................................27

If you forget the password ...........................................................................27

Entering the password recall procedure.......................................................28

Changing the password ................................................................................ 28

Disabling the power-on lock function ........................................................28

Switching input signal ........................................................29

Adjusting the projected image............................................30

Table of contents2

Adjusting the projection angle .................................................................... 30

Auto-adjusting the image ............................................................................ 30

Fine-tuning the image size and clarity ........................................................ 30

Correcting keystone ..................................................................................... 31

Magnifying and searching for details

on the projected picture .................................................... 31

Selecting the aspect ratio ................................................... 32

Optimizing the image......................................................... 33

Selecting a picture mode ............................................................................. 33

Using Wall Color ......................................................................................... 34

Fine-tuning the image quality in user modes ............................................. 34

Setting the presentation timer .......................................... 36

Hiding the image ................................................................ 38

Locking control keys ......................................................... 38

Freezing the image ............................................................. 38

Utilizing FAQ function ..................................................... 39

Operating in a high altitude environment ....................... 39

Personalizing the projector menu display......................... 40

Shutting down the projector ............................................. 40

Menu operation.................................................................. 41

Menu system ................................................................................................ 41

Using the menus ........................................................................................... 44

Display menu ................................................................................................ 45

Picture menu................................................................................................. 46

Source menu ................................................................................................. 47

System setup: Basic menu ........................................................................... 47

System setup: Advanced menu .................................................................... 48

Information menu ........................................................................................ 50

Maintenance............................................................. 51

Care of the projector ......................................................... 51

Cleaning the lens .......................................................................................... 51

Cleaning the projector case ......................................................................... 51

Storing the projector .................................................................................... 51

Transporting the projector .......................................................................... 51

Lamp information .............................................................. 52

Calculation of lamp hour ............................................................................ 52

Warning message ......................................................................................... 52

Replacing the lamp ...................................................................................... 53

Temperature information ........................................................................... 55

Indicators ...................................................................................................... 56

Troubleshooting....................................................... 58

Table of contents 3

Specifications............................................................ 59

Projector specifications ......................................................59

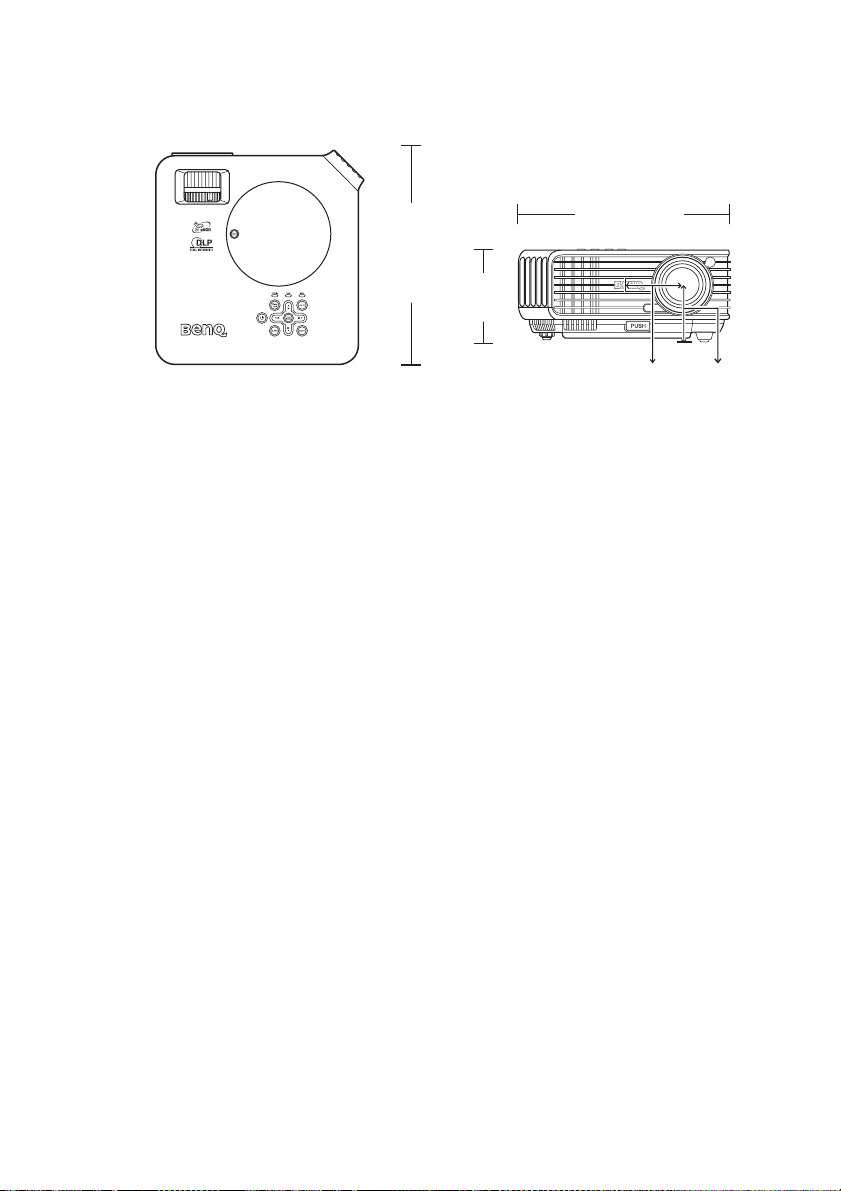

Dimensions..........................................................................60

Timing chart........................................................................61

Warranty and Copyright information .................... 62

Regulation statements.............................................. 63

Table of contents4

Important safety instructions

Your BenQ projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you operate your projector. Save it for future reference.

2. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

4. Always open the lens shutter or remove the lens cap when the projector lamp is on.

5. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).

3. Refer servicing to qualified service personnel.

6. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press BLANK on the projector or remote control.

Important safety instructions 5

Safety Instructions (Continued)

7. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

8. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause them to break on rare occasions.

10. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

11. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts. The only user serviceable part is the lamp which has its own removable cover.

Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

9. Never replace the lamp assembly or any electronic components unless the projector is unplugged.

Important safety instructions6

Safety Instructions (Continued)

12. Do not place this projector in any of the following environments.

- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

- Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector's life span and darkening the image.

13. Do not block the ventilation holes.

- Do not place this projector on a blanket, bedding or any other soft surface.

- Do not cover this projector with a cloth or any other item.

- Do not place inflammables near the projector.

If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

14. Always place the projector on a level, horizontal surface during operation.

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back. Using the projector when it is not fully horizontal may cause a malfunction of, or damage to, the lamp.

- Locations near fire alarms

- Locations with an ambient temperature above 40°C / 104°F

- Locations where the altitudes are higher than 3000 m (10000 feet).

3000 m

(10000 feet)

0 m

(0 feet)

15. Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage to the projector.

Important safety instructions 7

Safety Instructions (Continued)

16. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

17. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call BenQ to have the projector serviced.

18. This product is capable of displaying inverted images for ceiling mount installation.

Use only BenQ's Ceiling Mount Kit for mounting the projector and ensure it is securely installed.

Ceiling mounting the projector

We want you to have a pleasant experience using your BenQ projector, so we need to bring this safety matter to your attention to prevent possible damage to person and property. If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed. If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws. You can purchase a BenQ projector ceiling mount kit from the place you purchased your BenQ projector. BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

19. When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a

product defect.

Important safety instructions8

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features.

• Wall color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process.

• Selectable password protected function

• Up to 11 sets of picture modes providing multiple choices for different projection purposes

• High quality manual zoom lens

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• High brightness projection lamp

• Ability to display 16.7 million colors

• Multi-language On-Screen Display (OSD) menus

• Switchable normal and Economic modes to reduce the power consumption

• Built-in speaker provides mixed mono audio when an audio input is connected

• Powerful AV function to provide high quality video image

• Component HDTV compatibility (YP

• The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input source contrast/brightness settings, and is directly proportional to projection distance.

• The lamp brightness will decline over time and may vary wi thin the lamp manufacturers specifications. This is normal and expected behavior.

bPr)

Introduction 9

Shipping contents

The projector is shipped with the cables required for connection to a PC or video equipment. Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Projector Soft carry case Remote control with

Quick start guide User manual CD Warranty Card* Safety manual*

batteries

Power cord VGA cable

*The warranty card and safety manual are only supplied in some specific regions. Please consult your dealer for detailed information.

Optional accessories

1. Spare lamp kit

2. Ceiling mount kit

Introduction10

3. Presentation Plus

4. RS232 cable

Projector exterior view

Front/upper side

1 2

Rear side

See "Connection" on page 20 for details.

11 12

1. External control panel (See "Projector" on page 12 for details.)

2. Lamp cover

3. Vent (heated air exhaust)

4. Lens cover

5. Quick-release button

7 8

6. Focus ring and Zoom ring

7. Front IR remote sensor

8. Projection lens

9. AC power cord inlet

10. Rear IR remote sensor

11. RS232 control port

12. RGB signal output socket

13. RGB (PC)/Component video (YPbPr/ YCbCr) signal input socket

Under view

14. Video input socket

15. S-Video input socket

16. Audio socket

17. Kensington anti-theft lock slot

18. Rear adjuster foot

19. Quick-release foot

20. Speaker grill

21. Rear adjuster foot

Introduction 11

Controls and functions

Projector

1 2

10 11

12 9

1. Focus ring Adjusts the focus of the projected image. See "Fine-tuning the image size and

clarity" on page 30 for details.

2. Zoom ring Adjusts the size of the image. See "Fine-

tuning the image size and clarity" on page 30 for details.

3. Power indicator light Lights up or flashes when the projector is

under operation. See "Indicators" on page

56 for details.

4. MENU/exit Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using the menus" on page 44 for details.

5. Power

Toggles the projector on or off. See "Start up" on page 26 and "Shutting

down the projector" on page 40 for

details.

6. BLANK Used to hide the screen image. To restore the image, press any button on the projector or remote control. See "Hiding

the image" on page 38 for details.

7. Left/ Starts the FAQ function. See "Shutting

down the projector" on page 40 for

details.

8. Keystone/Arrow buttons ( / Up, /

Down)

Manually corrects distorted images resulting from an angled projection. See

"Correcting keystone" on page 31 for

details.

9. Right/ Activates panel key lock. See "Panel Key

Lock" on page 48 for details.

When the On-Screen Display (OSD) menu is activated, the #7 to #9 buttons are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menus" on

page 44 for details.

Introduction12

10. Temperature warning light Lights up red if the projector's

temperature becomes too high. See

"Indicators" on page 56 for details.

11. Lamp indicator light Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators"

on page 56 for details.

12. AUTO Automatically determines the best picture timings for the displayed image. See "Auto-adjusting the image"

on page 30 for details.

13. SOURCE Sequentially selects the input signal D-

Sub/Comp. (Component Video), Video, or S-Video. See "Switching

input signal" on page 29 for details.

14. MODE/enter Depending upon which input signal is

selected, selects an available picture setup mode. See "Selecting a picture

mode" on page 33 for details.

Enacts the selected On-Screen Display (OSD) menu item. See "Using the

menus" on page 44 for details.

Introduction 13

Remote control

2 3

1. Power Toggles the projector on or off. See "Start up" on page 26 and "Shutting

down the projector" on page 40 for details.

2. Freeze Freezes the projected image. See "Freezing

the image" on page 38 for details.

3. Left/ Starts the FAQ function. See "Utilizing

FAQ function" on page 39 for details.

4. BLANK Used to hide the screen image. To restore

the image, press any button on the projector or remote control. See "Hiding

the image" on page 38 for details.

5. DIGITAL ZOOM buttons (+, -) Magnifies or reduces the projected image size. See "Magnifying and searching for

details on the projected picture" on page 31 for details.

6. MENU/exit Turns on the On-Screen Display (OSD)

menu. Goes back to previous OSD menu, exits and saves menu settings.

See "Using the menus" on page 44 for details.

7. Keystone/Arrow buttons ( / Up, /

6 7 8

8. AUTO

9. Right/

Down)

Manually corrects distorted images resulting from an angled projection. See

"Correcting keystone" on page 31 for

details.

Automatically determines the best picture timings for the displayed image. See

"Auto-adjusting the image" on page 30 for

details.

Activates panel key lock. See "Panel Key

Lock" on page 48 for details.

When the On-Screen Display (OSD) menu is activated, the #3, #7 and #9 buttons are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menus"

on page 44 for details.

10. SOURCE Sequentially selects the input signal D-

Sub/Comp. (Component Video), Video, or S-Video. See "Switching input signal"

on page 29 for details.

11. MODE/enter Depending upon which input signal is selected, selects an available picture setup mode. See "Selecting a picture mode" on

page 33 for details.

Enacts the selected On-Screen Display (OSD) menu item. See "Using the menus"

on page 44 for details.

12. Timer On Activates or displays an on-screen timer

based on your own timer setting. See

"Setting the presentation timer" on page 36 for details.

13. Timer Setup Enters presentation timer setting directly. See "Setting the presentation timer" on

page 36 for details.

Introduction14

Remote control effective range

Infra-Red (IR) remote control sensors are located on the front and the back of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensors to function correctly. The distance between the remote control and the sensors should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensors on the projector that might obstruct the infra-red beam.

• Operating the projector from the front

• Operating the projector from the rear

Replacing the remote control battery

1. Pull out the battery holder.

Please follow the illustrated instructions. Push and hold the locking arm whilst pulling out the battery holder.

2. Insert the new batter y in the holder. Note the positive polarity should face outward.

3. Push the holder into the remote control.

• Avoid excessive heat and humidity.

• There may be battery damage if the battery is incorrectly replaced.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used battery according to the battery manufacturer’s instructions.

• Never throw a battery into a fire. There may be danger of an explosion.

• If the battery is dead or if you will not be using the remote control for a long time, remove

the battery to prevent damage to the remote control from possible battery leakage.

Introduction 15

Positioning your projector

Choosing a location

Your projector is designed to be installed in one of four possible installation locations:

1. Table in front of screen;

2. Ceiling in front of screen;

3. Table at rear of screen;

4. Ceiling at rear of screen.

1. Front Table Select this location with the projector placed near the

floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

2. Front Ceiling Select this location with the projector suspended

upside-down from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mounting Kit from your dealer to mount your projector on the ceiling.

Set

Front Ceiling in the System Setup: Basic >

Projector Position menu after you turn the projector on.

3. Rear Table Select this location with the projector placed near the

floor behind the screen.

Note that a special rear projection screen is required.

Set Rear Table in the System Setup: Basic > Projector Position menu after you turn the projector on.

4. Rear Ceiling Select this location with the projector suspended

upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location.

Set Rear Ceiling in the System Setup: Basic > Projector Position menu after you turn the projector on.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Positioning your projector16

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting, and the video format each factors in the projected image size.

4:3 is the native aspect ratio of this projector. To be able to project a complete 16:9 (widescreen) aspect ratio image, the projector can resize and scale a widescreen image to the projector's native aspect width. This will result in a proportionally smaller height equivalent to 75% of the projector's native aspect height.

4:3 aspect image in a 4:3 aspect display area

Thus, a 16:9 aspect image will not utilize 25% of the height of a 4:3 aspect image displayed by this projector. This will be seen as darkened (unlit) bars along the top and bottom (vertical 12.5% height respectively) of the 4:3 projection display area whenever displaying a scaled 16:9 aspect image in the vertical center of the 4:3 projection display area.

When determining the position of your projector, you should consider its intended use and input signal aspect ratios. All inputs (other than composite Video being fed a 16:9 aspect signal) will display in a 4:3 aspect ratio (and will require an additional 33% display height than that of the scaled 16:9 aspect image projection area).

IMPORTANT: Do not select a permanent projector position based upon a 16:9 projection if you will ever need to select an input (other than composite Video being fed a 16:9 aspect signal).

The projector should always be placed horizontally level (like flat on a table), and positioned directly perpendicular (90° right-angle square) to the horizontal center of the screen. This prevents image distortion caused by angled projections (or projecting onto angled surfaces).

The modern digital projector does not project directly forward (like older style reel-to-reel film projectors did). Instead, digital projectors are designed to project at a slightly upward angle above the horizontal plane of the projector. This is so that they can be readily placed on a table and will project forward and upwards onto a screen positioned so that the bottom edge of the screen is above the level of the table (and everyone in the room can see the screen).

If the projector is mounted on a ceiling, it must be mounted upside-down so that it projects at a slightly downward angle.

You can see from the diagram on page 19, that this type of projection causes the bottom edge of the projected image to be vertically offset from the horizontal plane of the projector. When ceiling mounted, this refers to the top edge of the projected image.

If the projector is positioned further away from the screen, the projected image size increases, and the vertical offset also increases proportionately.

When determining the position of the screen and projector, you will need to account for both the projected image size and the vertical offset dimension, which are directly proportional to the projection distance.

BenQ has provided a table of 4:3-aspect-ratio screen sizes to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset).

16:9 aspect image scaled to a 4:3 aspect

display area

Positioning your projector 17

How to determine the position of the projector for a given screen size

1. Select your screen size.

2. Refer to the table and find the closest match to your screen size in the left columns labelled '4:3 Screen Diagonal'. Using this value, look across this row to the right to find the corresponding average distance from screen value in the column labelled 'Average'. This is the projection distance.

3. On that same row, look across to the right column and make note of the vertical Offset value. This will determine the final vertical offset placement of the projector in relation to the edge of the screen.

4. The recommended position for the projector is aligned perpendicular to the horizontal center of the screen, at the distance from the screen determined in step 2 above, and offset by the value determined in step 3 above.

For example, if you are using a 120 inch screen, the average projection distance is 4667 mm and with a vertical offset of 183 mm.

If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. See "Correcting keystone" on

page 31 for details.

How to determine the recommended screen size for a given distance

This method can be used for situations where you have purchased this projector and would like to know what screen size will fit in your room.

The maximum screen size is limited by the physical space available in your room.

1. Measure the distance between the projector and where you want to position the screen. This is the projection distance.

2. Refer to the table and find the closest match to your measurement in the average distance from screen column labelled 'Average'. Check that your measured distance is between the min and max distances listed on either side of the average distance value.

3. Using this value, look across that row to the left to find the corresponding screen diagonal listed in that row. That is the projected image size of the projector at that projection distance.

4. On that same row, look across to the right column and make note of the vertical Offset value. This will determine the final placement of the screen in relation to the horizontal plane of the projector.

For example, if your measured projection distance was 4.5 m (4500 mm), the closest match in the Average column is 4593 mm. Looking across this row shows that a 3000 mm (3 m) screen is required. If you can only obtain imperial sized screens, the listed screen sizes on either side of the 3 m screen are the 9' and 10' screens.

Checking the min and max projection distance values for these screen sizes, indicates that the 4.5 m measured projection distance will need to be reduced to fit the 9' size screen, or increased to fit the 10' size screen. The projector can be adjusted (using the zoom control) to display on these different screen sizes at those projection distances. Be aware that these different screens have different vertical offset values.

Positioning your projector18

Maximum zoom

Minimum zoom

Screen

Center of lens

Offset

Projection distance

4:3 Screen Diagonal Distance from Screen in mm Vertical Offset in mm

Feet Inches mm Min length

(with max.

zoom)

4 48 1219 1778 1867 1956 73

1500 2187 2297 2406 90 5 60 1524 2222 2333 2444 91 6 72 1829 2667 2800 2933 110

2000 2916 3062 3208 120 7 84 2134 3111 3267 3422 128 8 96 2438 3556 3733 3911 146

2500 3645 3828 4010 150 9 108 2743 4000 4200 4400 165

3000 4347 4593 4812 180

10 120 3048 4444 4667 4889 183

3500 5104 5359 5614 210

12 144 3658 5334 5601 5867 219

4000 5833 6124 6416 240

15 180 4572 6667 7000 7333 274

5000 7291 7655 8020 300

18 216 5486 7999 8399 8799 329

6000 8749 9186 9624 360

25 300 7620 11111 11667 12222 457

Averag e Max length

(with min.

zoom)

There is 3% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowa nce for this project or's optical c haracteristi cs. This will help you determine the exact mounting position so that it best suits your installation location.

Positioning your projector 19

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector (see

"Shipping contents" on page 10). They are commercially available from electronics stores.

Connecting a computer or monitor

Connecting a computer

The projector provides a VGA input socket that allows you to connect it to a laptop or desktop computer.

To connect the projector to a laptop or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.

2. Connect the other end of the VGA cable to the D-SUB/COMP IN signal input socket on the projector.

3. If you wish to make use of the projector (mixed mono) speaker, take a suitable audio cable and connect one end of the cable to the audio output socket of the computer, and the other end to the Audio socket of the projector.

The final connection path should be like that shown in the following diagram:

Laptop or desktop computer

Audio cable

VGA cable

Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connection20

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the RGB signal output socket on the projector to an external monitor with a VGA cable following the instructions below:

1. Connect the projector to a computer as described in "Connecting a computer" on page

20.

2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the D-Sub input socket of the video monitor.

3. Connect the other end of the cable to the D-SUB OUT socket on the projector.

The final connection path should be like that shown in the following diagram:

Laptop or desktop computer

VGA cable

The D-Sub output only works when an appropriate D-Sub input is made to the projector.

Connection 21

Connecting Video source devices

You can connect your projector to various Video source devices that provide any one of the following output sockets:

• Component Video

•S-Video

•Video (composite) You need only connect the projector to a Video source device using just one of the above

connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Best video quality

The best available video connection method is Component Video (not to be confused with composite Video). Digital TV tuner and DVD players output Component Video natively, so if available on your devices, this should be your connection method of choice in preference to (composite) Video.

See "Connecting a Component Video source device" on page 23 for how to connect the projector to a component video device.

Better video quality

The S-Video method provides a better quality analog video than standard composite Video. If you have both composite Video and S-Video output terminals on your Video source device, you should elect to use the S-Video option.

See "Connecting an S-Video source device" on page 24 for how to connect the projector to an S-Video device.

Least video quality

Composite Video is an analog video and will result in a perfectly acceptable, but less than optimal result from your projector, being the least video quality of the available methods described here.

See "Connecting a composite Video source device" on page 25 for how to connect the projector to a composite Video device.

Connecting Audio

The projector has a built-in mono speaker which is designed to provide basic audio functionality accompanying data presentations for business purposes only. It is not designed for, nor intended for stereo audio reproduction use as might be expected in home theatre or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speaker.

If you have a separate sound system, you will most likely want to connect the audio output of your Video source device to that sound system, instead of to the mono audio projector. The audio connections illustrated in the following sections are provided for informational purposes only. You need not connect audio to the projector if there is an alternate sound system available, or if audio is not required.

Connection22

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take a Component Video to VGA (D-Sub) adaptor cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue; and red to red.

2. Connect the other end of the Component Video to VGA (D-Sub) adaptor cable (with a D-Sub type connector) to the D-SUB/COMP IN socket on the projector.

The final connection path should be like that shown in the following diagram:

A/V device

Audio cables

Component Video to VGA (D-Sub) adaptor cable

If you connect the projector to a High Definition TV (HDTV) tuner, the following standards are supported:

• 480i • 480p

• 576i • 576p

• 720p (50/ 60 Hz) • 1080i (50/ 60 Hz)

• The projector is only capable of play ing mixed mono audio, even if a stereo audio input is

connected. See "Connecting Audio" on page 22 for details.

• Component Video is the only video output that delivers native 16:9 aspect ratio picture.

• If the selected video image is not displayed af t er the projector i s turned on and the cor rect

video source has been selected, check that the Video source device is turned on and operating correctly. Al so che ck that the signal cables have been connected correctly.

Connection 23

Connecting an S-Video source device

Examine your Video source device to determine if it has an unused S-Video output socket available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an S-Video source device:

1. Take an S-Video cable and connect one end to the S-Video output socket of the Video source device.

2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.

The final connection path should be like that shown in the following diagram:

A/V device

Audio cables

S-Video cable

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is

connected. See "Connecting Audio" on page 22 for details.

• If the selected video image is not displayed af te r the proje ctor is turned on and t he correct

video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

• If you have already made a Component Video connection between the projector and this

S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting Video source devices" on page 22 for details.

Connection24

Connecting a composite Video source device

Examine your Video source device to determine if it has a set of unused composite Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an composite Video source device:

1. Take a Video cable and connect one end to the composite Video output socket of the Video source device.

2. Connect the other end of the Video cable to the VIDEO socket on the projector.

The final connection path should be like that shown in the following diagram:

A/V device

Audio cables

Video cable

• The projector is only capable of play ing mixed mono audio, even if a stereo audio input is

connected. See "Connecting Audio" on page 22 for details.

• If the selected video image is not displayed af t er the projector i s turned on and the cor rect

video source has been selected, check that the Video source device is turned on and operating correctly. Al so che ck that the signal cables have been connected correctly.

• You need only connect to this device using a composite Video connection if Component

Video and S-Video inputs are unavailable for use. See "Connecting Video source devices"

on page 22 for details.

Connection 25

Operation

Start up

1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the Power indicator on the projector lights orange after power has been applied.

2. Slide the lens cover open. If it is closed, it could become deformed due to the heat produced by the projection lamp.

3. Press Powe r on the projector or remote control to start the projector. As soon as the

lamp lights up, a "Power On Tone" will be heard. The Power indicator light flashes green and stays green when the projector is on. The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before energizing the lamp.

4. If you are prompted for a password, press the arrow buttons to enter a six digit password. See "Utilizing the power-on lock function" on page 27 for details.

5. Switch all of the connected equipment on.

6. The projector will start to search for input signals. The current input source being scanned displays in the upper left corner of the screen. If the projector doesn't detect a valid signal, the 'No Signal' message will continue displaying until an input source signal is found.

Yo u ca n a ls o p re ss SOURCE on the projector or remote control to select your desired input signal. See "Switching input signal" on page 29 for details.

If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen. Please cha nge to an i nput signal which is compatible with the projector's resolution or set the input signal to a lower setting. See "Timing chart" on page 61 for details.

Operation26

Utilizing the power-on lock function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the

menus" on page 44.

WARNING: You will be inconvenienced if you activate the power-on lock functionality and subsequently forget the password. Print out this manual (if necessary) and w rite the p assword you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

Once a password has been set, the projector cannot be used unless the correct password is entered every time the projector is started.

1. Open the OSD menu and go to SYSTEM SETUP: Advanced > Security Settings. Press Mode/enter. Highlight Power On Lock and select On by pressing Left or Right.

2. A prompt will display on the screen.

3. As pictured to the right, the four arrow buttons ( Up, Right, Down,

Left) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow buttons to enter six digits for the password.

Once the password is set, the OSD menu returns to the Security Settings page.

IMPORTANT: The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right af te r the password is entered so that it is available to you should you ever forget it.

Password: __ __ __ __ __ __ Keep this manual in a safe place.

4. To leave the OSD menu, press Menu/exit.

INPUT PASSWORD

BackMENU

If you forget the password

If the password function is activated, you will be asked to enter the six digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the INPUT PASSWORD message follows. You can retry by entering another sixdigit password, or if you did not record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 28 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Password Error

Please try again.

Operation 27

Entering the password recall procedure

Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen. Write down the number and turn off your projector. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

RECALL PASSWORD

Please write down the recall code , and contact BenQ Customer Center.

Recall code:

0 2 1 2

Changing the password

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings > Change Password menu.

2. Press Mode/enter. the message 'INPUT CURRENT PASSWORD' displays.

3. Enter the old password.

i. If the password is correct, another message 'INPUT NEW PASSWORD' displays.

ii. If the password is incorrect, the password error message displays lasting for three

seconds, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press Menu/exit to cancel the change or try another password.

4. Enter a new password.

IMPORTANT: The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in adva nce or right a f ter t he p as sword is entered so that i t is available to you should you ever forget it.

Password: __ __ __ __ __ __ Keep this manual in a safe place.

5. Confirm the new password by re-entering the new password.

6. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.

7. To leave the OSD menu, press MENU/exit.

Password Changed

Exit

Disabling the power-on lock function

To disable password protection, go back to the SYSTEM SETUP: Advanced > Security Settings > Power On Lock menu after opening the OSD menu system. Select Off by pressing

Left or Right. The message 'INPUT PASSWORD' displays. Enter the current

password.

i. If the password is correct, the OSD menu returns to the Security Settings page

with 'Off' shown in the row of Password. You will not have to enter the password next time when turning on the projector.

ii. If the password is incorrect, the password error message displays lasting for three

seconds, and the message 'INPUT PASSWORD' displays for your retry. You can press Menu/exit to cancel the change or try another password.

Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Operation28

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

Please decide if you want to activate the quick auto search function by performing the following steps.

1. Press Menu/exit on the projector or remote control to turn on the OSD menu.

2. Go to SOURCE > Quick Auto Search menu.

3. Press Left or Right on the projector or remote control to select On or Off.

4. Press MENU/exit to exit and save the settings.

• After activating Quick Auto Search, the projector will perform automatic source search once you press SOURCE on the projector or remote control.

i. Press SOURCE on the projector or

remote control. A source selection bar displays.

ii. Press Up or Down until your

desired signal is selected and press Mode/enter.

iii. The projector will start automatic

source search by detecting your selected signal first.

iv. The information of the first detected

source will display at the upper left corner of the screen for 2 seconds.

• If you turn off Quick Auto Search, you can manually cycle through the available input sources by performing the following steps.

i. Press SOURCE on the projector or remote control. A source selection bar

displays.

ii. Press Up or Down until your desired signal is selected and press Mode/

enter.

iii. Once detected, the selected source information will display at the upper left

corner of the screen for 2 seconds. If there is multiple equipment connected to the projector, you can press the button again to search for another signal.

• The brightness level of the projected image will change accordingly when you switch between different input signals. Data (graphic) "PC" presentations using mostly static images are generally brighter than "Video" using mostly moving images (movies).

The input signal type effects the options available for the Picture Mode. See "Selecting a

picture mode" on page 33 for details.

• The native display resolution of this projector is in a 4:3 aspect ratio. For best display picture results, you should select and use an input source which outputs at this resolution. Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See "Selecting the aspect ratio" on page 32 for details.

D-Sub / Comp.

Video

S-Video

Operation 29

Adjusting the projected image

Adjusting the projection angle

The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector:

1. Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position.

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes.

Be careful when you press the adjuster button as it is close to the exhaust vent where hot air comes from.

2. Screw the rear adjuster foot to fine tune the horizontal angle.

To retract the foot, hold up the projector while pressing the quick-release button, then slowly lower the projector. Screw the rear adjuster foot in a reverse direction.

If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. To correct this situation, adjust the value of Keystone in the DISPLAY menu, on the projector control panel, or remote control. See "Correcting keystone" on page 31 for details.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

The screen will be blank while AUTO is functioning.

Fine-tuning the image size and clarity

1. Adjust the projected image to the size that you need using the zoom ring.

Operation30

2. Then sharpen the image by rotating the focus ring.

Correcting keystone

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen.

To correct this, besides adjusting the height of the projector, you will need to manually correct it following ONE of these steps.

1. Press or on the control panel of the projector or remote control to display the status bar labelled Keystone. Press to correct keystoning at the top of the image. Press to correct keystoning at the bottom of the image.

2. Press Menu/exit on the projector or remote control. Go to DISPLAY

adjust the values by pressing or on the projector or remote control.

For example,

Keystone

> Keystone and

• Press on the projector or remote control.

• Press on the projector or remote control when you are in the Picture >

Keystone menu.

• Press on the projector or remote control.

• Press on the projector or remote control when you are in the Picture > Keystone menu.

Keystone

-6

Magnifying and searching for details on the projected picture

If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture.

•Using the remote control

1. Press D. ZO OM + to display the Zoom bar. The center of the picture will be magnified when the key is pressed again. Press the key repeatedly until the picture size is suitable for your need.

2. Use the directional arrows ( , , , ) on the projector or remote control to navigate the picture.

The picture can only be navigated after the picture is magnified. You can further magnify the picture while searching for details.

Operation 31

3. To restore the picture to its original size, press AUTO . You can also press D. ZOOM -. When the key is pressed again, the picture is further reduced until it is restored to the original size.

• Using the OSD menu

Press Menu/exit and then press Left or Right until the Display menu is highlighted.

2. Press Down to highlight Digital Zoom.

3. Press Mode/enter and press Up to magnify the picture to a desired size.

4. Press Mode/enter to activate the Pan functionality.

5. Use the directional arrows ( , , , ) on the projector or remote control to navigate the picture.

6. To reduce size of the picture, press Mode/enter to switch back to the zoom in/out functionality, and press AUTO to restore the picture to its original size. You can also press Down repeatedly until it is restored to the original size.

Selecting the aspect ratio

The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, which is the default for this projector, and digital TV and DVDs are usually in 16:9 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input source.

You can change the projected image ratio (no matter what aspect the source is) by entering DISPLAY > Aspect Ratio. Select an aspect ratio to suit the format of the video signal and your display requirements. There are four aspect ratios available:

In the pictures below, the black portions are inactive areas and the white portions are acti ve areas.

1. Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is either in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

Real: The image is projected as its original resolution, and resized to

fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector towards the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.

3. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.

4. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

16:9 aspect ratio is only sourced through the Component Video input when being fed an appropriate 16:9 aspect signal. See "Connecting a Component Video source

device" on page 23 and "Obtaining a preferred projected image size" on page 17 for details.

Operation32

Optimizing the image

Selecting a picture mode

The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input source picture type.

To select a operation mode that suits your need, you can follow one of the following steps.

•Press Mode/enter on the remote control or projector repeatedly until your desired mode is selected.

• Go to the Picture > Picture Mode menu and press

Left/ Right to select a desired mode.

The picture modes available for different types of signals are listed below.

PC Signal Input

1. Dynamic Mode (Default): Maximizes the brightness of the projected image. This

mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

2. Presentation Mode: Is designed for presentations. The brightness is emphasized in this

mode to match PC and notebook coloring.

3. sRGB/Photo Mode: Maximizes the purity of RGB colors to provide true-to-life images

regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.

4. Cinema Mode: Is appropriate for playing colorful movies, video clips from digital

cameras or DVs through the PC input for best viewing in a blackened (little light) environment.

5. User 1/User 2 Mode: Recalls the settings customized based on the current available

picture modes. See "Setting the User 1/User 2 mode" on page 33 for details.

YPbPr/S-Video/Video Signal Input

1. Dynamic Mode: Is suitable for playing gamebox-based video games in a normal living

room lighting level environment.

2. Standard Mode (Default): Is appropriate for viewing colorful movies, video clips

from digital cameras or DVs.

3. Cinema Mode: Is suitable for enjoying dark movies or DVD movies best viewed in a

blackened (little light) home cinema or lounge room environment.

4. User 1/User 2 Mode: Recalls the settings customized based on the current available

picture modes. See "Setting the User 1/User 2 mode" on page 33 for details.

Setting the User 1/User 2 mode

There are two user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the User 1/2) as a starting point and customize the settings.

1. Press Menu/exit to open the On-Screen Display (OSD) menu.

2. Go to the PICTURE > Picture Mode menu.

Operation 33

3. Press Left/ Right to select User 1 Mode to User 2 Mode.

4. Press Down to highlight Reference Mode.

5. Press Left/ Right to select an picture mode that is closest to your need.

6. Press Down to select a menu item to be changed and adjust the value with Left/ Right. See "Fine-tuning the image quality in user modes" below for details.

7. When all settings have been done, highlight Save Settings and press Mode/enter to

store the settings.

8. The confirmation message 'Setting Saved' displays.

Using Wall Color

In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture’s color to prevent possible color difference between the source and projected pictures.

To use this function, go to the DISPLAY > Wal l C o l or menu and press Left/ Right to select a color which is the closest to the color of the projection surface. There are several precalibrated colors to choose from: Light Yellow, Pink, Light Green, Blue, and Blackboard.

Fine-tuning the image quality in user modes

According to the detected signal type, there are some user-definable functions available when User 1 or 2 mode is selected. You can make adjustments to these functions based on your needs.

1. Adjusting brightness

Adjust the values by pressing Left/ Right on the projector or remote control.

The higher the value, the brighter the image. And lower the setting, darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

-30

+70

2. Adjusting contrast

Adjust the values by pressing Left/ Right on the projector or remote control.

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

-30

+70

3. Selecting a color temperature

Adjust the values by pressing Left/ Right on the projector or remote control.

There are four color temperature* settings available.

Operation34

1. T1: With the highest color temperature, T1 makes the image appear the most bluish white than other settings.

2. T2: Makes images appear bluish white.

3. T3: Maintains normal colorings for white.

4. T4: Makes images appear reddish white.

*About color temperatures:

There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the “color temperature”. A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

4. 3D Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.

If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc. You can project any image from the disc on the screen and enter the Color Management menu to make adjustments.

To adjust the settings:

1. Go to the PICTURE menu and highlight 3D Color Management.

2. Press Mode/enter and the 3D Color Management page displays.

3. Highlight Primary Color and press eLeft orfRight to select a color from among Red, Yellow, Green, Cyan, Blue, or Magenta.

4. Press d to highlight Hue and press eLeft orfRight to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors. Please refer to the illustration to the right for how the colors relate to each other.

For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

5. Press d to highlight Saturation and adjust its values to your preference by pressing eLeft orfRight. Every adjustment made will reflect to the image immediately.

RED

Magenta

Yellow

BLUE

GREEN

Cyan

Operation 35

For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

6. Press d to highlight Gain and adjust its values to your preference by pressing eLeft orfRight. The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately.

7. Repeat steps 3 to 6 for other color adjustments.

8. Make sure you have made all of the desired adjustments.

9. Press Menu/exit to exit and save the settings.

5. Other adjustments

You can find other image quality fine-tune selections in the PICTURE menu as well. See

"Picture menu" on page 46 for details.

Setting the presentation timer

Presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function:

1. Press Timer Set up on the remote control or go to the SYSTEM SETUP: Basic > Presentation Timer menu and press Mode/

enter to display the Presentation Timer page.

Presentation Timer

Timer period Timer display Timer position Timer counting direction Sound reminder

On Off

2. Press Down to highlight Timer Period and decide the timer period by pressing Left/ Right. The length of time can be set from 1 to 5 minutes in 1-minute

increments and 5 to 240 minutes in 5-minute increments.

If the timer is already on, the timer will restart whenever the Timer Period is reset.

3. Press Down to highlight Display Timer and choose if you want the timer to show

up on the screen by press

ing Left/ Right.

Always Top-left

Count down

Off

Back

Selection Description

Always Displays the timer on screen throughout the presentation time. 1 min/2 min/3 min Displays the timer on screen in the last 1/2/3 minute(s). Never Hides the timer throughout the presentation time.

Operation36

4. Press Down to highlight Timer Position and set the timer position by pressing Left/ Right

5 min

Upper left lower left upper right lower right

5 min

5. Press Down to highlight Timer Counting Direction and select your desired counting direction by pressing Left/

Right.

Selection Description

Count Up Increases from 0 to the preset time. Count down Decrease from the preset time to 0.

6. Press Down and decide if you want to activate sound reminder by pressing Left/

. If you select Ye s , a double beep sound will be heard at the last 30 seconds of

Right

counting down/up, and a triple beep sound will be produced when the timer is up.

7. Press Down and press Left/ Right to select On. Press Mode/enter to confirm.

8. A confirmation message displays.

NOTICE

Are you sure to turn on the

Highlight Ye s and press Mode/enter to confirm. You will see the message “Timer is On” displaying on the screen. The timer

presentation timer?

Yes

start counting at the time the timer is on.

To cancel the timer, perform the following steps.

1. Enter the SYSTEM SETUP: Basic > Presentation Timer menu and select Off. Press Mode/enter to confirm.

2. A confirmation message displays. Highlight Ye s and press Mode/enter to confirm. You will see the message “Timer is Off ” displaying on the screen.

How to use the TIMER On button?

The button is a multi-functional key.

• If the presentation timer is off, pressing this button displays a

confirmation message. You can decide whether to activate the timer or not by following the on-screen instruction.

• If the timer is already on, pressing this button displays a

confirmation message. You can decide whether to restart, continue or turn off the timer by following the on-screen instruction.

Operation 37

Hiding the image

In order to draw the audience's full attention to the presenter, you can use BLANK on the projector or remote control to hide the screen image. Press any button on the projector or remote control to restore the image. The word 'BLANK' appears at the lower right corner of the screen while the image is hidden. When this function is activated with an audio input connected, the audio can still be heard.

You can set the blank time in the

Basic > Blank Timer

the image automatically after a period of time when there is no action taken on the blank screen.

Once BLANK is pressed, the projector enters Economic mode automatically. Do not block the projection lens from projecting as this could cause the blocking object to

become heated and deformed or even cause a fire.

menu to let the projector return

SYSTEM SETUP:

Locking control keys

To prevent unauthorized changes in the settings or accidental button pushes, panel key lock can be activated to disable all panel key functions except POWER.

1. Press Right/ on the projector or remote control or go to

Key Lock

Right on the projector or remote control.

2. A confirmation message displays. Select Yes to confirm.

To release panel key lock, press and hold Right/ for 3 seconds on the projector or remote control.

You can also use the remote control to enter

SETUP: Basic > Panel Key Lock

message displays. Select Yes to confirm.

• Buttons on the remote control are still in use when panel key lock is enabled.

• If you press POWER to turn off the projector without disabling panel key lock, the

projector will still be in locked status the next time it is turned on.

SYSTEM SETUP: Basic > Panel

, and select On by pressing Left/

SYSTEM

and press Left/ Right to select Off. A confirmation

Freezing the image

Press the FREEZE button on the remote control to freeze the image. The word 'FREEZE' will display in the upper left corner of the screen. To release the function, press any button on the projector or remote control.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen onscreen.

Operation38

Utilizing FAQ function

The Information menu contains possible solutions to problems encountered by users regarding image quality, installation, special feature operation and service information.

1. To enter the Information menu, press Left/

on the projector or remote contorl.

2. Press Up or Down to select FAQ- Image and Installation or FAQ-Features and Service.

3. Press Mode/enter.

4. Press Up or Down to select the a problem and press Mode/enter for possible solutions.

5. Press Menu/exit to exit the OSD.

Yo u ca n a ls o p re ss Menu/exit to open the OSD menu and enter the Information > FAQ-Image and Installation and Information > FAQ-Features and Service menus.

Operating in a high altitude environment

We recommend you use the High Altitude Mode when your environment is between 1500 m –3000 m above sea level, and temperature is between 0°C–35°C.

Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on under such condition.

To activate the High Altitude Mode, go to SYSTEM SETUP: Advanced > High Altitude

Mode, select On by pressing Left/ Right on the projector or remote control. A

confirmation message displays. Highlight Yes and press

WARNING

We recommend you use the High Altitude Mode by selecting it whenever your environment is higher than 1500 m.

Do you want to turn the High Altitude Mode on?

Mode/enter.

Yes

Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Operation 39

Personalizing the projector menu display

The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance.

• Menu Display Time in the SYSTEM SETUP: Advanced > Menu Settings menu sets the length of time the OSD will remain active after your last button press. The time length

ranges from 5 to 30 seconds in 5-second increments. Use Left/ Right to select a suitable time.

• Menu Position in the SYSTEM SETUP: Advanced > Menu Settings menu sets the OSD position in five locations. Use Left/ Right to select a preferred position.

• Language in the SYSTEM SETUP: Basic menu sets your familiar language for the OnScreen (OSD) Menus. Use Left/ Right to select your language.

• Splash Screen in the SYSTEM SETUP: Basic menu sets a preferred logo screen to be displayed during projector start-up. Use Left/ Right to select a screen.

Shutting down the projector

1. Press Power and a

confirmation message will display prompting you.

If you don't respond in a few seconds, the message will

POWER OFF

Press button again to power off

Press any button to cancel

disappear.

2. Press Powe r a second time.

The Power indicator light flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.

To protect the lamp, the projector will not respond to any commands during the cooling process.

3. Once the cooling process finishes, a "Power Off

Ring Tone" will be heard. The Power indicator light is a steady orange and fans stop. Disconnect the power cord from the wall socket.

• Do not unplug the power cord before the projector shutdown sequence is complete or during the 90second cooling down process.

• If the projector is not properly shut down, to protect the lamp, when you attempt to re-st art the projector, the fans will run for a few minutes to cool down. Press Power again to start the projector after the fans stop and the Power indicator light turns orange.

Operation40

Menu operation

Menu system

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

Main menu Sub-menu Options

Off/Light yellow/Pink/Light Green/Blue/Blackboard

PC source: Dynamic/ Presentation/sRGB/Cinema/User 1/User 2 Video source: Dynamic/ Standard/Cinema/User 1/User 2

PC source: Dynamic/ Presentation/sRGB/Cinema Video source: Dynamic/ Standard/Cinema

T1/T2/T3/T4

DISPLAY


SOURCE

Wall Color Aspect Ratio Auto/Real/4:3/16:9

Keystone Position Phase H. Size Digital Zoom

Picture Mode

Reference Mode

Brightness Contrast Color Tint Sharpness Brilliant Color B1/B2 Color

Temperature

Primary color R/G/B/C/M/Y

3D Color Management

Save Settings Quick Auto Search On/Off

Hue Saturation Gain

Operation 41

SYSTEM SETUP: Basic

SYSTEM SETUP: Advanced

Timer period 1~240 minutes Timer display Always/1 min/2 min/3 min/Never

Timer position

Presentation Timer

Language

Projector Position

Auto Power Off

Blank Timer Panel Key Lock On/Off Timer Controller Splash Screen Black/Blue/BenQ

Quick Cooling Off/On High Altitude Mode Off/On

Audio Settings

Menu Settings

Lamp Settings

Security Settings Reset All Settings

Timer counting direction

Timer audible reminder

On/Off

Mute Off/On Volume Power on/off ring

tone Menu display time

Menu position Lamp mode Normal/Economic

Reset lamp timer Equivalent lamp hour Change password Power on lock On/Off

Bottom-right/Top-right/Bottomleft/Top-left

Count down/Count up

On/Off

Front table/Rear table/Rear ceiling/Front ceiling

Disable/5 min/10 min/15 min/20 min/25 min/30 min

Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/12 hr

Off/On 5 sec/10 sec/15 sec/20 sec/25

sec/30 sec Center/Top-left/Top-right/Bottom-

right/Bottom-left

Operation42

FAQ-Image and Installation FAQ-Features and Service Current System Status

Information

• Source

• Picture Mode

• Resolution

• Color System

• Equivalent Lamp Hour

Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

Operation 43

Using the menus

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

There are 17 different OSD menu languages. See "System setup: Basic menu" on page 47 for details.

Below is the overview of the OSD menu.

Main menu icon

Main menu

Highlight

Sub-menu

Current input signal

DISPLAY

Wall Color Aspect Ratio Keystone Position Phase H. Size

Digital Zoom

S-VIDEO

50 50

The following example describes the adjustment of Keystone.

1. Press Menu/exit on the projector or remote control to turn the OSD menu on.

DISPLAY

Wall Color

Aspect Ratio Keystone

Position

Phase H. Size

Digital Zoom

S-VIDEO

Disable

Auto

50 50

Exit

2. Use Left/ Right to select the DISPLAY menu.

3. Press Up/ Down to select Keystone.

DISPLAY

Wall Color Aspect Ratio Keystone Position

Phase H. Size

Digital Zoom

Disable

Auto

ENTER

4. Press Mode/enter to display the keystone correction page.

5. Based on the image shape displayed on the screen, press the keystone buttons ( / Up,

image to a rectangular or square one.

6. Press Menu/exit on the projector or remote control to leave and save the settings.

Disable

Auto

ENTER

Exit

Status

Press Menu/ exit to the previous page or to exit.

KEYSTONE

Back

/Down) to adjust the

S-VIDEO

Exit

Operation44

Display menu

FUNCTION

(default setting/ value)

Wall Color

(Off)

Aspect Ratio

(Auto)

Keystone

(0)

Position

(0)

Phase

(depends on the selected input source)

H. Size

(depends on the selected input source)

Digital Zoom

(100%)

DESCRIPTION (default setting/value)

Correct the projected picture’s color when the projection surface is not white.

There are four options to set the image's aspect ratio depending on your input signal source.

See "Selecting a picture mode" on page 33 for details.

Corrects any keystoning of the image. See "Correcting keystone" on page

31 for details.

Displays the position adjustment page. To move the projected image, use the directional arrow buttons. The values shown on the lower position of the page change with every button press you made until they reach their maximum or minimum.

Adjusts the clock phase to reduce image distortion.

Adjusts the horizontal width of the image.

Magnifies or reduces the projected image.

After the image is magnified, you can press Mode/enter to activate the Pan functionality for searching the details of the projected image by using the directional arrow buttons on the projector or remote control.

See "Magnifying and searching for details on the projected picture" on

page 31 for details.

Operation 45

Picture menu

Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen.

FUNCTION

(default setting / value)

Picture Mode

(PC: Dynamic; YPbPr/ S-Video/ Video: Standard)

Reference Mode

Brightness

Contrast

Color

(0)

Tint

(0)

Sharpness

(15)

Brilliant Color

(B2)

Color Temperature

3D Color Management

Save Settings

DESCRIPTION

Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See "Selecting a picture

mode" on page 33 for details.

Selects an picture mode that most suits your need for the image quality and further fine-tune the image based on the selections listed on the same page below.

Adjusts the brightness of the image.

See "1. Adjusting brightness" on page 34 for details.

Adjusts the degree of difference between dark and light in the image.

See "2. Adjusting contrast" on page 34 for details.

Adjusts the color saturation level -- the amount of each color in a video image. Lower setting produces less saturated colors; setting to the minimum value makes the image black and white. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusts the red and green color tones of the image. The higher the value, the more greenish the image becomes. The lower the value, the more reddish the image becomes.

Adjusts the image to make it look sharper or softer.

Adjusts white peaking while maintaining correct color presentation.

When Brillian Color is set as B1, the color temperature adjustment will not function.

There are four color temperature settings are available.

See "3. Selecting a color temperature" on page 34 for details.

See "4. 3D Color Management" on page 35 for details.

Saves the settings made for User 1 or 2 mode.

Operation46

Source menu

FUNCTION

(default setting / value)

Quick Auto

DESCRIPTION

See "Switching input signal" on page 29 for details.

(On)

System setup: Basic menu

FUNCTION

(default setting / value)

Presentation Timer

(Off)

Language

Projector Position

(Front Table)

DESCRIPTION

Reminds the presenter to finish the presentation within a certain time

frame. See "Setting the presentation timer" on page 36 for details.

Timer period (15 min.)

Sets a preferred length of time for presentation.

Timer display (Always)

Sets whether to display the timer on screen.

Timer position (Top-Left)

Sets the position where the timer displays on screen.

Timer counting direction (Count down)

Sets the timer counting direction.

Timer audible reminder (Off)

Sets whether to activate sound reminder when the time is up.

Sets the language for the On-Screen Display (OSD) menus.

Use Left/ Right on the projector or remote control to select your desired language. There are 17 languages for your choice: English (default), French, German, Italian, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese, Korean, Swedish, Dutch, Turkish, Czech, Portuguese, Thai, and Polish.

The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. Contact your dealer for the ceiling mount bracket (optional accessory) if you need to install the projector on your ceiling. See "Choosing a location" on page 16 for details.

Operation 47

This function allows the projector to turn off automatically if no input signal is detected after a set period of time. Press Left/ Right on the

Auto Power Off

(Disable)

Blank Timer

(Disable)

Timer Controller

(Disable)

Panel Key Lock

(Disable)

Splash Screen

(BenQ logo)

projector or remote control to set the duration before the projector is turned off.

The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

Sets the image blank time when the Blank feature is activated, once elapsed the image will return to the screen. See "Hiding the image" on

page 38 for details.

Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 12 hours.

Disables or enables all panel key functions except POWER on the projector and buttons on the remote control. See "Locking control keys"

on page 38 for details.

Allows you to select which logo screen will display during projector startup. Three options are available: BenQ logo, Black screen, or Blue screen.

System setup: Advanced menu

FUNCTION

(default setting / value)

Quick Cooling

(On)

High Altitude Mode

(Off)

Audio Settings

Operation48

DESCRIPTION

Enables or disables the Quick Cooling function. Selecting On enables the function and projector cooling time will be shortened from a normal 90second duration to approximately 30 seconds.

A mode for operation in high altitude areas.

See "Hiding the image" on page 38 for details.

Mute (Off)

Toggles the projector audio between on and off.

Vo lu m e (5)

Adjusts audio volume level.

Power on/off ring tone (On)

Toggles the ring tones during startup and after the cooling process finishes between on and off.

Menu Settings

Lamp Settings

Security Settings

Menu display time (15 sec)

Sets the length of time the OSD will remain active after your last button press. The range is from 5 to 30 seconds in 5-second increments.

Menu position (Center)

Sets the On-Screen Display (OSD) menu position.

Lamp mode (Normal)

Toggles the projector lamp between Normal and Economic modes. Using Economic mode reduces system noise and power consumption by 20%. If the Economic mode is selected, the light output will be reduced and result in darker projected images.

Setting the projector in Economic mode also extends the lamp timer automatic shutdown feature. See "Calculation of lamp hour" on page 52 for details on how the total lamp hour is calculated.

Reset lamp timer

Once the lamp is renewed, select Reset to return the lamp timer to '0'.

Equivalent lamp hour

Displays the number of hours the lamp has been used.

Change password

You will be asked to enter the current password before changing to a new one. See "Utilizing the power-on lock function" on page 27 for details.

Power on lock (Off)

Limits use of the projector to only those who know the correct password. When the function is activated for the first time, you have to set a password for it. See "Utilizing the power-on lock function" on page 27 for details. Once the password is set and this function is selected, the projector is password-protected. Users who do not know the correct password can not use the projector.

The password can be entered by using either the buttons on the projector or the remote control.

Reset All Settings

You will be inconvenienced if you activate the power-on lock functionality and subsequently forget the password.

Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

The password will display as asterisks on-screen when being input.

Returns all settings to the factory preset values.

The following settings will still remain: Projector Position, Language,

Security Settings, High Altitude Mode, Phase, User I, User II, Position, H. Size.

Operation 49

Information menu

This menu shows you the current operating status of the projector.

Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen.

FUNCTION DESCRIPTION

FAQ-Image a nd Installation

FAQ-Features and Service

Current System Status

Displays possible solutions to problems you may encounter.

Source

Shows the current signal source.

Picture mode

Shows the selected mode in the PICTURE menu.

Resolution

Shows the native resolution of the input signal.

Color system

Shows input system format, NTSC, PAL, SECAM, or RGB.

Equivalent lamp hour

Displays the number of hours the lamp has been used.

Operation50

Maintenance

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.

• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Never rub the lens with abrasive materials.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 40 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.

• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 59 or consult your dealer about the range.

• Retract the adjuster feet.

• Remove the batteries from the remote control.

• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent.

Maintenance 51

Lamp information

Calculation of lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:

Total (equivalent) lamp hour

= 1 (hours used in Economic mode) + 4/3 (hours used in normal mode)

See "Lamp mode (Normal)" on page 49 for more information on Economic mode.

The lamp hour in Economic mode is calculated as 3/4 of that in normal mode. That is, using the projector in Economic mode helps to extend the lamp hour by 1/3.

Warning message

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after turning the power back on, please contact your dealer. See "Indicators" on

page 56 for details.

The following Lamp warning displays will remind you to change the lamp.

Message Status

Notice

Order Replacement Lamp

Lamp > 3000 Hours

The lamp has been in operation for 3000 hours. Install a new lamp for optimal performance. If the projector is normally run with "Economic Mode" selected (See "Lamp mode (Normal)" on page 49), you may continue to operate the projector until the 3950 hour lamp warning appears.

Maintenance52

Notice

Replace Lamp Soon

Lamp > 3950 Hours

The lamp has been in operation for 3950 hours. A new lamp should be fitted to avoid the inconvenience when the projector runs out of lamp time.

Notice

The lamp has been in operation for 4000 hours.

It is strongly recommended that you replace the

Replace Lamp Now

Lamp > 4000 Hours Lamp usage time exceeded

lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished. If the lamp is not replaced beforehand, it must be replaced after 3000 hours usage.

Notice

Lamp-usage time exceeded

Replace lamp (refer to User's manual) Then reset lamp timer

The lamp MUST be replaced before the projector will operate normally.

Replacing the lamp

• To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.

• To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

• To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.

• To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.

• This lamp contains mercury . Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.

• T o assure optimal perfor mance from the pr ojector, it is recommended that you purch ase a BenQ projector lamp for lamp replacement.

• If lamp replacement is performed while the projector is suspended upside-down from the ceiling, make sure that no one is underneath the lamp socket to avoid any possible injury or damage to the human eyes caused by fractured lamp.

1. Turn the power off and disconnect the projector from the wall socket. If the lamp is

hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.

2. Turn the projector over. Then use a coin to

turn the screw counterclockwise until the lamp cover loosens.

Maintenance 53

3. Remove the lamp cover from the projector.

• Do not turn the power on with the lamp cover removed.

• Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries.

4. Loosen the screw that secures the lamp.

5. Lift the handle so that it stands up. Use the

handle to slowly pull the lamp out of the projector.

• Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.

• Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.

• Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.

6. As shown in the figure, lower the new lamp

first into the connector on the projector and align the two holes on the projector.

7. Tighten the screw that secures the lamp.

• Loose screw may cause a bad connection, which could result in malfunction.

• Do not over tighten the screw.

8. Ensure the handle is fully laid flat and locked in

place.

Maintenance54

9. Replace the lamp cover on the projector.

10. Use a coin to turn the screw clockwise until the lamp cover is secured.

• Loose screw may cause a bad connection, which

could result in malfunction.

• Do not over tighten the screw.

11. Restart the projector.

Do not turn the power on with the lamp cover removed.

12. After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Advanced > Lamp Settings menu. Press ENTER. The Lamp Settings page displays. Highlight Reset Lamp Timer. A

Notice

Reset Lamp Timer?

Reset

warning message displays asking if you want to reset the lamp timer. Highlight Reset and press ENTER. The lamp time will be reset to '0'.

Do not reset if the lamp is not new or replaced as this could cause damage.

Cancel

Temperature information

When the Temperature warning light is on, it is warning you of the following possible problems:

1. The internal temperature is too high.

2. The fans are not working.

Turn the projector off and contact qualified service personnel for further help. For more detailed information, please refer to "Indicators" on page 56.

Maintenance 55

Indicators

Illustration

• Blank -: Light OFF

•: Light flashing

•: Light ON

Light Status & Description Power Temp Lamp Power events

O O O

Lamp events

The projector has just been connected to a power outlet.

Stand-by mode.

Powering up.

Normal operation.

1. The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process. Or

2. The projector needs to cool for 90 seconds after the power is turned off.

The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.

The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer

for assistance.

1. The projector needs 90 seconds to cool down. Or

2. Please contact your dealer for assistance.

O: Orange light

•

• R: Red light

• G: Green light

Maintenance56

Light Status & Description Power Temp Lamp Thermal events

R O

O R

O R O

R O

The projector has shutdown automatically. If you try to re-start the projec tor, it will shutdown again. Please contact your dealer

for assistance.

Maintenance 57

Troubleshooting

The projector does not turn on.

Cause Remedy

Plug the power cord into the AC inlet on the There is no power from the power cable.

Attempting to turn the projector on again during the cooling process.

No picture

Cause Remedy

The video source is not turned on or connected correctly.

The projector is not correctly connected to the input source device.

The input signal has not been correctly selected.

The lens cover is still closed. Open the lens cover.

Blurred image

Cause Remedy

The projection lens is not correctly focused.

The projector and the screen are not aligned properly.

The lens cover is still closed. Open the lens cover.

projector, and plug the power cord into the

power outlet. If the power outlet has a switch,

make sure that it is switched on.

Wait until the cooling down process has

completed.

Turn the video source on and check that the

signal cable is connected correctly.

Check the connection.

Select the correct input signal with the Source

key on the projector or remote control.

Adjust the focus of the lens using the focus

ring.

Adjust the projection angle and direction as

well as the height of the unit if necessary.

Remote control does not work

Cause Remedy

The batteries are out of power. Replace the batteries with new ones. There is an obstacle between the

remote control and the projector. You are too far away from the

projector.

Remove the obstacle.

Stand within 8 meters (26 feet) of the

projector.

The password is incorrect

Cause Remedy

You do not remember the password.

Troubleshooting58

Please see "Entering the password recall pro-

cedure" on page 28 for details.

Specifications

Projector specifications

All specifications are subject to change without notice.

General

Product name Digital Projector Digital Projector Model name MP612/MP612c MP622/MP622c

Optical

Resolution 800 x 600 SVGA 1024 x 768 XGA

Display system 1-CHIP DMD Lens F/Number F=2.4 to 2.48, f= 20.7 to 22.8 mm Lamp 200W lamp

Electrical

Power supply Power consumption 285W (Max)

Mechanical

Dimensions 239 mm (W) x 106.3 mm (H) x 251 mm (D)

Weight 5.51 lbs (2.5 Kg)

Input terminal

Computer input

RGB input D-sub 15-pin (female) x 1

Video signal input

S-VIDEO Mini DIN 4-pin port x 1

VIDEO RCA jack x1 HDTV signal input D-sub <--> Component RCA jack x3, through RGB input Audio signal input Audio in Mini jack stereo port

Output

RGB output D-sub 15-pin (female) x 1

Speaker (mixed mono) 2 watt x 1

Environmental Requirements

Operating temperature 0°C ~ 40°C at sea level Operating relative humidity 10% ~ 90% (without condensation) Operating altitude • 0–1499 m at 0°C–35°C

AC100–240V, 3.1A, 50–60 Hz (Automatic)

• 1500–3000 m at 0°C–30°C (with High Altitude Mode on)

Specifications 59

Dimensions

239 mm (W) x 106.3 mm (H) x 251 mm (D)

Unit: mm

239

251

106.3

64.5 66.3

Specifications60

Timing chart

Supported timing for PC input

Horizontal

Resolution

Frequency (kHz)

31.469 59.940 25.175 VGA_60

640 x 480

720 x 400 31.469 70.087 28.3221 720 x 400_70

800 x 600

1024 x 768

1280 x 768 47.77 60.09 80.768 SXGA_60 1280 x 800 49.65 59.96 83.458 SXGA_60

1280 x 1024 63.981 60.020 108.000 SXGA_60

37.861 72.809 31.500 VGA_72

37.500 75.000 31.500 VGA_75

43.269 85.008 36.000 VGA_85

37.879 60.317 40.000 SVGA_60

48.077 72.188 50.000 SVGA_72

46.875 75.000 49.500 SVGA_75

53.674 85.061 56.250 SVGA_85

48.363 60.004 65.000 XGA_60

56.476 70.069 75.000 XGA_70

60.023 75.029 78.750 XGA_75

68.667 84.997 94.500 XGA_85

Vertical Frequency (Hz)

Pixel Frequency (MHz)

Mode

Supported timing for Component-YP

Signal Format

480i(525i)@60Hz 15.73 59.94

480p(525p)@60Hz 31.47 59.94

576i(625i)@50Hz 15.63 50.00 576p(625p)@50Hz 31.25 50.00 720p(750p)@60Hz 45.00 60.00 720p(750p)@50Hz 37.50 50.00

1080i(1125i)@60Hz 33.75 60.00 1080i(1125i)@50Hz 28.13 50.00

Horizontal Frequency (kHz)

bPr input

Vertical Frequency (Hz)

Supported timing for Video and S-Video inputs

Horizontal

Video mode

Frequency (kHz)

NTSC 15.73 60 3.58

PAL 15.63 50 4.43

SECAM 15.63 50 4.25 or 4.41

PAL-M 15.73 60 3.58

PAL-N 15.63 50 3.58

PAL-60 15.73 60 4.43

NTSC4.43 15.73 60 4.43

Vertical Frequency (Hz)

Color subcarrier Frequency (MHz)

Specifications 61

Warranty and Copyright information

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be inbetween 10% and 90%, temperature in-between 0°C and 40°C, altitude lower than 10000 feet, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

Copyright 2007 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.

Warranty and Copyright information62

Regulation statements

FCC statement

CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the distance between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

EEC statement

This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electronic Magnetic Compatibility) and fulfills these requirements.

WEEE directive

Disposal of Waste Electrical and Electronic Equipment by users in private households in the European Union.

This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste equipment by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment. For more information about recycling of this equipment, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.

Regulation statements 63

Benq MP612, MP612C, MP622, MP622C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of contents

Important safety instructions

Introduction

Projector features

Shipping contents

Standard accessories

Optional accessories

Projector exterior view

Front/upper side

Rear side

Under view

Controls and functions

Projector

Remote control

Positioning your projector

Choosing a location

Obtaining a preferred projected image size

How to determine the position of the projector for a given screen size

How to determine the recommended screen size for a given distance

Connection

Connecting a computer or monitor

Connecting a computer

Connecting a monitor

Connecting Video source devices

Connecting a Component Video source device

Connecting an S-Video source device

Connecting a composite Video source device

Operation

Start up

Utilizing the power-on lock function

Setting a password

If you forget the password

Entering the password recall procedure

Changing the password

Disabling the power-on lock function

Switching input signal

Adjusting the projected image

Adjusting the projection angle

Auto-adjusting the image

Fine-tuning the image size and clarity

Correcting keystone

Magnifying and searching for details on the projected picture

Selecting the aspect ratio

Optimizing the image

Selecting a picture mode

Using Wall Color

Fine-tuning the image quality in user modes

Setting the presentation timer

Hiding the image

Locking control keys

Freezing the image

Utilizing FAQ function

Operating in a high altitude environment

Personalizing the projector menu display

Shutting down the projector

Menu operation

Menu system

Using the menus

Display menu

Picture menu

Source menu

System setup: Basic menu

System setup: Advanced menu

Information menu

Maintenance

Care of the projector

Cleaning the lens

Cleaning the projector case

Storing the projector

Transporting the projector

Lamp information

Calculation of lamp hour

Warning message

Replacing the lamp

Temperature information

Indicators
