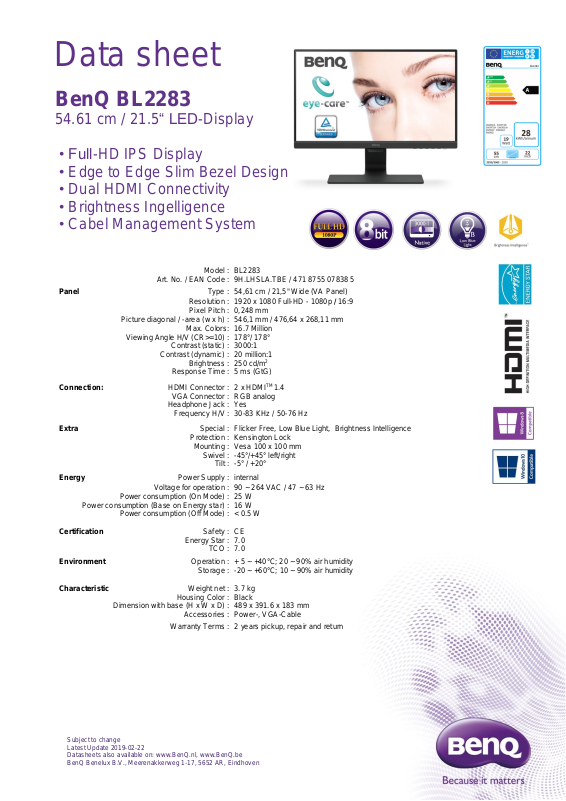

Benq 9H.LHSLA.TBE Product Data Sheet

Data sheet

Model :

Art. No. / EAN Code :

BL2283 9H.LHSLA.TBE / 471 8755 07838 5

Panel

Type :

54,61 cm / 21,5" Wide (VA Panel)

Resolution :

1920 x 1080 Full-HD - 1080p / 16:9

Pixel Pitch :

0,248 mm

Picture diagonal / -area (w x h) :

546,1 mm / 476,64 x 268,11 mm

Max. Colors:

16.7 Million

Viewing Angle H/V (CR>=10) :

178°/ 178°

Contrast (static) :

Contrast (dynamic) :

3000:1 20 million:1

Brightness :

250 cd/m2

Response Time :

5 ms (GtG)

Connection:

HDMI Connector :

2 x HDMI

1.4

VGA Connector :

Headphone Jack :

RGB analog Yes

Frequency H/V :

30-83 KHz / 50-76 Hz

Extra

Special :

Flicker Free, Low Blue Light, Brightness Intelligence

Protection :

Kensington Lock

Mounting :

Swivel :

Vesa 100 x 100 mm

-45°/+45° left/right

Tilt :

-5° / +20°

Energy

Power Supply :

internal

Voltage for operation :

90 ~ 264 VAC / 47 ~ 63 Hz

Power consumption (On Mode) :

Power consumption (Base on Energy star) :

Power consumption (Off Mode) :

25 W 16 W < 0.5 W

Certification

Safety :

Energy Star :

TCO :

7.0

Environment

Operation :

+ 5 ~ +40°C; 20 ~ 90% air humidity

Storage :

-20 ~ +60°C; 10 ~ 90% air humidity

Characteristic

Weight net :

3.7 kg

Housing Color :

Black

Dimension with base (H x W x D) :

489 x 391.6 x 183 mm

Accessories :

Power-, VGA-Cable

Warranty Terms :

2 years pickup, repair and return

BenQ BL2283

54.61 cm / 21.5“ LED-Display

• Full-HD IPS Display

• Edge to Edge Slim Bezel Design

• Dual HDMI Connectivity

• Brightness Ingelligence

• Cabel Management System

Subject to change Latest Update 2019-02-22 Datasheets also available on: www.BenQ.nl, www.BenQ.be

BenQ Benelux B.V., Meerenakkerweg 1-17, 5652 AR, Eindhoven
