BENDIX BW7250, UHB800-CAM-ID User Manual

Truck and Trailer S-Camshaft Quick Identification Guide

Heavy Duty Components

UHB800-CAM-ID June 2002

CAMSHAFT QUICK IDENTIFICATION GUIDE

UHB800-CAM-ID

CAUTION! The items in this catalog are listed for use only in the

applications and interchanges that appear in the catalog. Other use could result in property damage or serious personal injury. Always refer to the vehicle, trailer, or component manufacturer's service manual when performing vehicle maintenance.

NOTE: The data listed herein is correct to the best of our knowledge and belief, having been compiled from reliable and official sources of information.

However, we cannot assume any responsibility for possible errors.

If any errors are found, or you have suggestions on ways to improve future catalogs, we want to hear from you. Please complete the Catalog Comment Form in the back of this catalog. Thank you for your assistance.

UHB800-CAM-ID

CAMSHAFT QUICK IDENTIFICATION GUIDE

How to use this Quick Identification Guide

1. Measure camshaft length. Measure from under the cam head to the beginning of the lock ring groove.

2. Locate camshaft length in the Camshaft Quick Identification Guide. Camshafts are listed in order of length, from shortest to longest.

3. After finding camshafts in the Cam Length column, determine camshaft head style, using the Head Styles chart and head width dimensions.

4. Narrow your final selection by Diameter at Spline End and Number of Splines, Diameter at Spider and any other information listed.

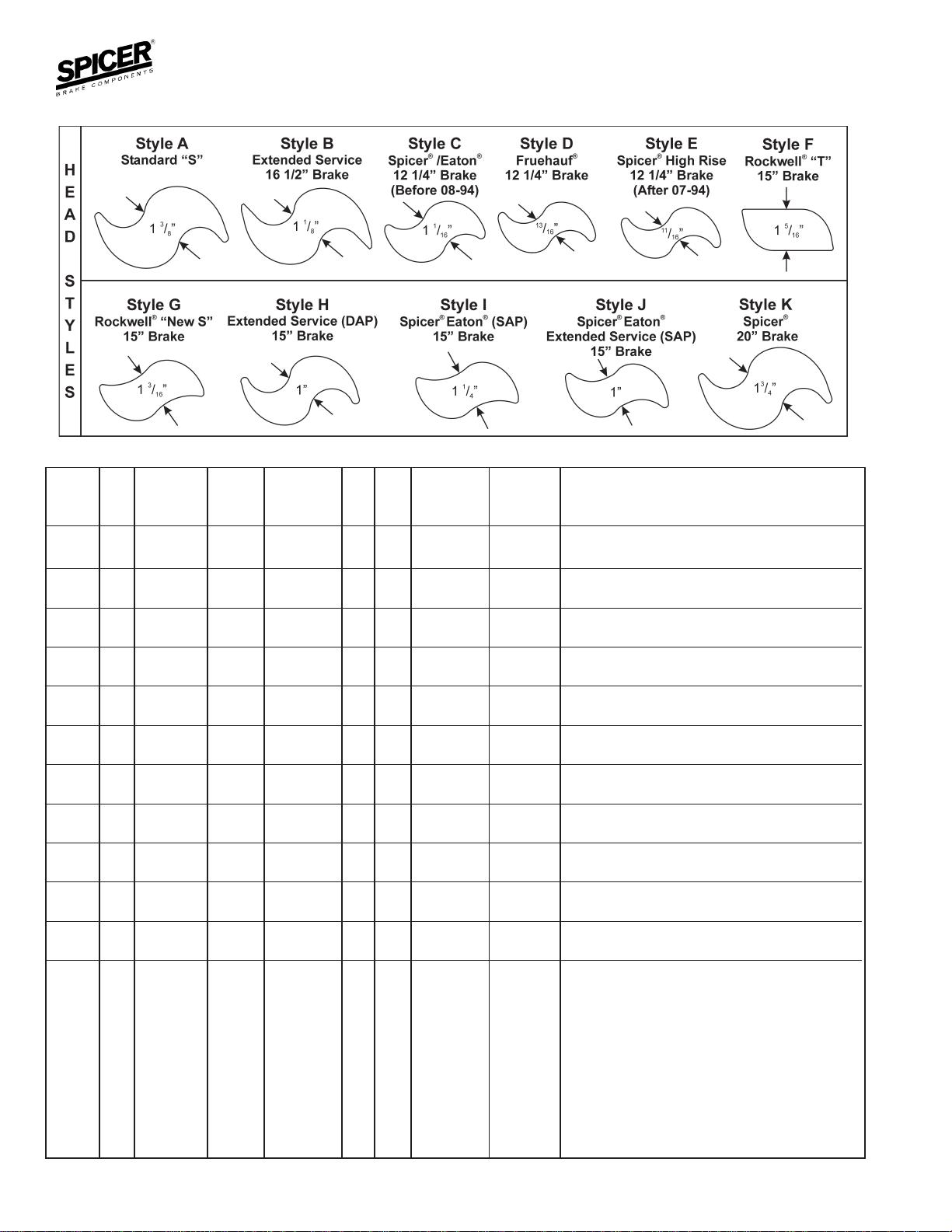

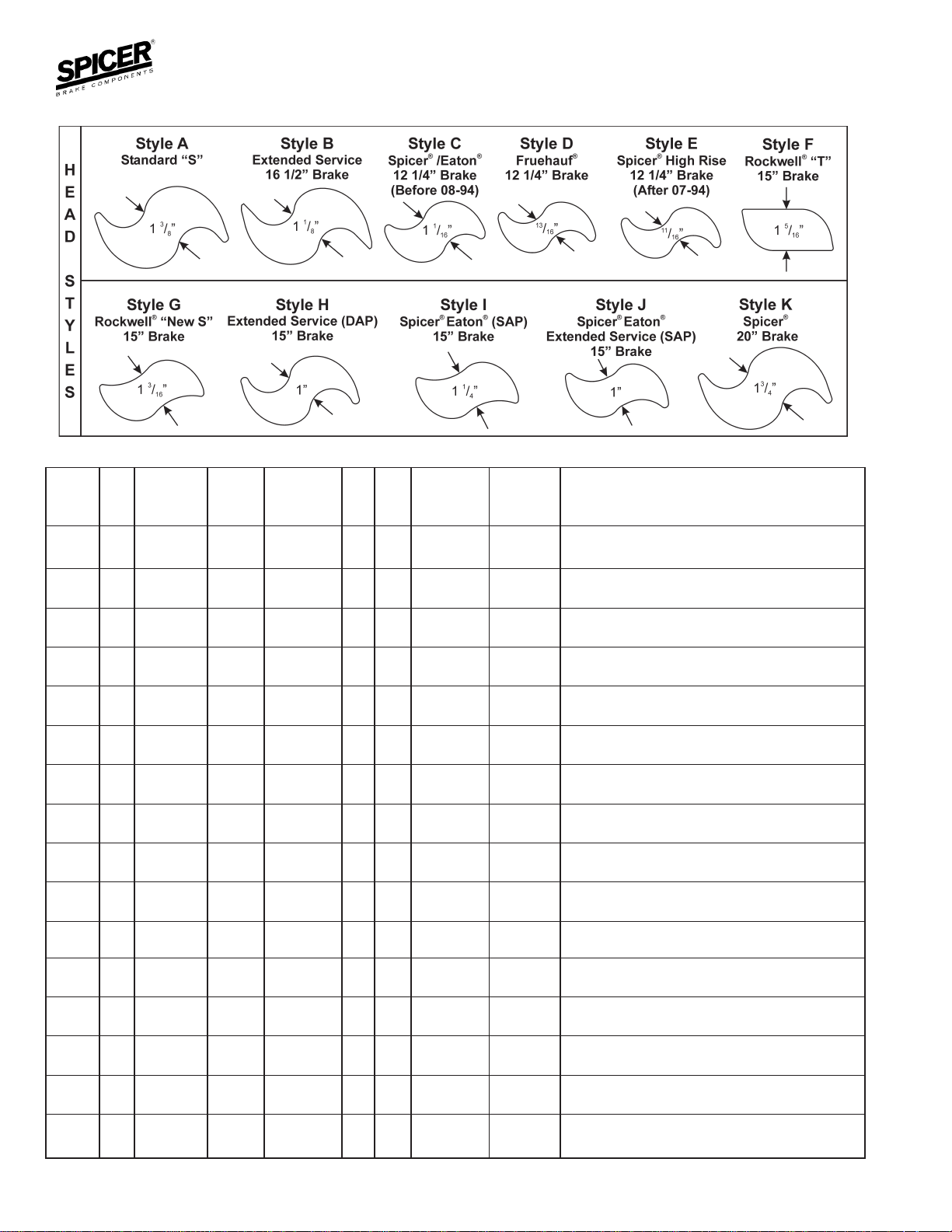

These graphics are for identification purposes only. Dimensions in actual camshafts may vary slightly.

Diameter

Cam Head End & No. at Part Axle Brake Brake

Length Style of Splines Spider Number Side Type* Manufacturer Size Notes

4 7/8"A1 1/2" - 10 1 1/2" 17-600 RH T Spicer 16 1/2" Spicer Custom Trunnion Suspension;

5 3/32"A1 1/2" - 10 1 1/2" 18-792 RH D Rockwell 16 1/2"

5 13/64"A1 1/2" - 10 1 1/2" 18-992 RH S Rockwell 14 1/2" "W" Brake

5 3/8"A1 1/2" - 10 1 1/2" 18-990 RH S Rockwell 14 1/2" "W" Brake

5 1/2"A1 1/2" - 10 1 1/2" 17-602 RH T Spicer 16 1/2" Spicer Custom Trunnion Suspension;

5 23/32"I1 1/4" - 10 1 1/4" 18-910 RH S Wagner 15"

5 25/32"F1 1/2" - 10 1 1/2" 18-840 RH S Rockwell 15" "T" Series Brake

6 1/8"A1 1/2" - 10 1 1/2" 17-604 RH T Spicer 16 1/2" Spicer Custom Trunnion Suspension;

6 1/4"A1 1/2" - 10 1 1/2" 18-986 RH D Rockwell 14 1/2" "W" Brake

6 3/8"A1 1/2" - 10 1 1/2" 18-800 RH D Rockwell 16 1/2"

6 3/4"A1 1/2" - 10 1 1/2" 17-606 RH T Spicer 16 1/2" Spicer Custom Trunnion Suspension;

at Spline Diameter Spicer

17-601 LH 1 1/16" tip

18-793 LH

18-993 LH

18-991 LH

17-603 LH 1 1/16" tip

18-911 LH

18-841 LH

17-605 LH 1 1/16" tip

18-987 LH

18-801 LH

17-607 LH 1 1/16" tip

*Axle Type: S = Steer, D = Drive, T = Trailer

CAMSHAFT QUICK IDENTIFICATION GUIDE

UHB800-CAM-ID

These graphics are for identification purposes only. Dimensions in actual camshafts may vary slightly.

Diameter

Cam Head End & No. at Part Axle Brake Brake

Length Style of Splines Spider Number Side Type* Manufacturer Size Notes

6 15/16"B1 1/2" - 28 1 1/2" 18-670 RH D Spicer 16 1/2" "XL" and “XLII” Brakes; 5", 6" and 7" Brakes

7 1/8"G1 1/4" - 24 1 1/4" 18-902 RH S Rockwell 15" “Q” Brake; 2" Offset Backing Plate

7 3/8"A1 1/2" - 10 1 1/2" 17-608 RH T Spicer 16 1/2" Spicer Custom Trunnion Suspension;

7 9/16"F1 1/2" - 10 1 1/2" 18-842 RH S Rockwell 15" "T" Series Brake

7 5/8"A1 1/2" - 10 1 1/2" 17-610 RH T Spicer 16 1/2" Spicer Custom Trunnion Suspension;

7 5/8"I1 1/4" - 10 1 1/4" 18-760 RH S Eaton 15" Single Anchor Pin (SAP)

7 5/8"J1 1/4" - 10 1 1/4" 18-960 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

7 21/32"F1 1/4" - 10 1 1/4" 18-1129 LH S Rockwell 15" "T" Series Brake

7 21/32"G1 1/4" - 10 1 1/4" 18-954 RH S Rockwell 15" "T" Series Brake; New Style S-Head

7 23/32"B1 1/2" - 28 1 1/2" 18-500 RH D Rockwell 16 1/2" “Q Plus” Brake

7 23/32"A1 1/2" - 28 1 1/2" 18-796 RH D Rockwell 16 1/2"

7 23/32"G1 1/4" - 24 1 1/4" 18-904 RH S Rockwell 15" “Q” Brake; 2" Offset Backing Plate

7 3/4"A1 1/2" - 28 1 1/2" 18-640 RH D Spicer 16 1/2" 5", 6", and 7" Brakes

7 27/32"A1 1/2" - 10 1 1/2" 18-988 RH D Rockwell 14 1/2" "W" Brake

7 7/8"A1 1/2" - 10 1 1/2" 18-802 RH D Rockwell 16 1/2"

7 15/16"A1 1/4" - 10 1 1/4" 18-620 RH S Spicer 15"

at Spline Diameter Spicer

18-671 LH

18-903 LH

17-609 LH 1 1/2" tip

18-843 LH

17-611 LH 1 1/2" tip

18-761 LH

18-961 LH Pin (SAP)

18-1130 RH

18-955 LH

18-501 LH

18-797 LH

18-905 LH

18-641 LH

18-989 LH

18-803 LH

18-621 LH

*Axle Type: S = Steer, D = Drive, T = Trailer

UHB800-CAM-ID

CAMSHAFT QUICK IDENTIFICATION GUIDE

Diameter

Cam Head End & No. at Part Axle Brake Brake

Length Style of Splines Spider Number Side Type* Manufacturer Size Notes

7 15/16"I1 1/4" - 10 1 1/4" 18-762 RH S Eaton 15" Single Anchor Pin (SAP)

7 15/16"F1 1/4" - 10 1 1/4" 18-856 RH S Rockwell 15" "T" Series Brake

7 15/16"G1 1/4" - 24 1 1/4" 18-890 RH S Rockwell 15" “Q” Brake; 1 1/2" Offset Backing Plate

7 15/16"G1 1/4" - 10 1 1/4" 18-950 RH S Rockwell 15" "T" Series Brake; New Style S-Head

7 15/16"J1 1/4" - 10 1 1/4" 18-962 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

8 1/32"F1 1/2" - 10 1 1/2" 18-844 RH S Rockwell 15" "T" Series Brake

8 1/16"B1 1/2" - 28 1 1/2" 18-502 RH D Rockwell 16 1/2" “Q Plus” Brake

8 1/16"A1 1/2" - 10 1 1/2" 18-854 RH D Rockwell 16 1/2"

8 1/8"A1 1/4" - 10 1 1/4" 18-622 RH S Spicer 15"

8 1/8"A1 1/2" - 28 1 1/2" 18-642 RH D Spicer 16 1/2" 5", 6" and 7" Brakes

8 1/8"A1 1/2" - 28 1 1/2" 18-860 RH D Rockwell 16 1/2"

8 11/64"I1 1/4" - 10 1 1/4" 18-764 RH S Eaton 15" Single Anchor Pin (SAP)

8 3/16"A1 1/2" - 10 1 1/2" 18-704 RH S Bendix 15" Brazilian Brake

8 3/16"J1 1/4" - 10 1 1/4" 18-964 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

8 7/32"F1 1/2" - 10 1 1/2" 18-846 RH S Rockwell 15" "T" Series Brake

8 3/8"J1 1/4" - 10 1 1/4" 18-966 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

8 15/32"G1 1/4" - 24 1 1/4" 18-892 RH S Rockwell 15" “Q” Brake; 1 1/2" Offset Backing Plate

8 1/2"A1 1/2" - 28 1 1/2" 18-644 RH D Spicer 16 1/2" 5", 6" and 7" Brakes

8 1/2"F1 1/2" - 10 1 1/2" 18-848 RH S Rockwell 15" "T" Series Brake

8 1/2"F1 1/4" - 10 1 1/4" 18-858 RH S Rockwell 15" "T" Series Brake

8 1/2"G1 1/4" - 10 1 1/4" 18-952 RH S Rockwell 15" "T" Series Brake; New Style S-Head

8 17/32"A1 1/2" - 28 1 1/2" 18-824 RH D Rockwell 16 1/2"

8 17/32"G1 1/4" - 24 1 1/4" 18-894 RH S Rockwell 15" “Q” Brake; 1 1/2" Offset Backing Plate

8 9/16"B1 1/2" - 28 1 1/2" 18-504 RH D Rockwell 16 1/2" “Q Plus” Brake

8 9/16"A1 1/2" - 10 1 1/2" 18-726 RH D Eaton 16 1/2"

at Spline Diameter Spicer

18-763 LH

18-857 LH

18-891 LH

18-951 LH

18-963 LH Pin (SAP)

18-845 LH

18-503 LH

18-855 LH

18-623 LH

18-643 LH

18-861 LH

18-765 LH

18-705 LH

18-965 LH Pin (SAP)

18-847 LH

18-967 LH Pin (SAP)

18-893 LH

18-645 LH

18-849 LH

18-859 LH

18-953 LH

18-825 LH

18-895 LH

18-505 LH

18-727 LH

*Axle Type: S = Steer, D = Drive, T = Trailer

CAMSHAFT QUICK IDENTIFICATION GUIDE

UHB800-CAM-ID

These graphics are for identification purposes only. Dimensions in actual camshafts may vary slightly.

Diameter

Cam Head End & No. at Part Axle Brake Brake

Length Style of Splines Spider Number Side Type* Manufacturer Size Notes

8 9/16"I1 1/4" - 10 1 1/4" 18-766 RH S Eaton 15" Single Anchor Pin (SAP)

8 9/16"A1 1/2" - 10 1 1/2" 18-804 RH D Rockwell 16 1/2"

8 9/16"J1 1/4" - 10 1 1/4" 18-968 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

8 5/8"A1 1/4" - 10 1 1/4" 18-624 RH S Spicer 15"

8 5/8"B1 1/2" - 10 1 1/2" 18-940 RH D Eaton 16 1/2" Extended Service Brake (ES™)

8 21/32"F1 1/2" - 10 1 1/2" 18-882 RH S Rockwell 15" "T" Series Brake

8 3/4"A1 1/4" - 10 1 1/4" 18-626 RH S Spicer 15"

8 7/8"A1 1/2" - 10 1 1/2" 17-612 RH T Spicer 16 1/2" Spicer Custom Trunnion Suspension;

8 7/8"F1 1/2" - 10 1 1/2" 18-880 RH S Rockwell 15" "T" Series Brake

8 15/16"A1 1/2" - 10 1 1/2" 18-728 RH D Eaton 16 1/2"

8 15/16"I1 1/4" - 10 1 1/4" 18-768 RH S Eaton 15" Single Anchor Pin (SAP)

8 15/16"J1 1/4" - 10 1 1/4" 18-970 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

9 1/32"A1 1/2" - 28 1 1/2" 18-646 RH D Spicer 16 1/2" 5", 6", and 7" Brakes

9 1/16"A1 1/2" - 28 1 1/2" 18-850 RH D Rockwell 16 1/2"

9 1/16"B1 1/2" - 28 1 1/2" 18-506 RH D Rockwell 16 1/2" “Q Plus” Brake

9 3/32"A1 1/2" - 10 1 1/2" 18-794 RH D Rockwell 16 1/2"

at Spline Diameter Spicer

18-767 LH

18-805 LH

18-969 LH Pin (SAP)

18-625 LH

18-941 LH

18-883 LH

18-627 LH

17-613 LH 1 1/2" tip

18-881 LH

18-729 LH

18-769 LH

18-971 LH Pin (SAP)

18-647 LH

18-851 LH

18-507 LH

18-795 LH

*Axle Type: S = Steer, D = Drive, T = Trailer

UHB800-CAM-ID

CAMSHAFT QUICK IDENTIFICATION GUIDE

Diameter

Cam Head End & No. at Part Axle Brake Brake

Length Style of Splines Spider Number Side Type* Manufacturer Size Notes

9 1/8"F1 1/2" - 10 1 1/2" 18-884 RH S Rockwell 15" "T" Series Brake

9 3/16"I1 1/4" - 10 1 1/4" 18-770 RH S Eaton 15" Single Anchor Pin (SAP)

9 3/16"J1 1/4" - 10 1 1/4" 18-972 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

9 1/4"A1 1/4" - 10 1 1/4" 18-628 RH S Spicer 15"

9 1/4"A1 1/2" - 28 1 1/2" 18-862 RH D Rockwell 16 1/2"

9 1/4"F1 1/4" - 10 1 1/4" 18-872 RH S Rockwell 15" "T" Series Brake

9 1/4"G1 1/4" - 24 1 1/4" 18-896 RH S Rockwell 15" “Q” Brake; 1 1/2" Offset Backing Plate

9 1/4"G1 1/4" - 10 1 1/4" 18-956 RH S Rockwell 15" "T" Series Brake; New Style S-Head

9 5/16"G1 1/4" - 24 1 1/4" 18-906 RH S Rockwell 15" “Q” Brake; 2" Offset Backing Plate

9 5/16"H1 1/2" - 28 1 1/2" 18-936 RH S Rockwell 15" “Q Plus” Brake; Dual Anchor Pin (DAP)

9 7/16"B1 1/2" - 28 1 1/2" 18-508 RH D Rockwell 16 1/2" “Q Plus” Brake

9 7/16"H1 1/2" - 28 1 1/2" 18-938 RH S Rockwell 15" “Q Plus” Brake; Dual Anchor Pin (DAP)

9 15/32"G1 1/4" - 24 1 1/4" 18-898 RH S Rockwell 15" “Q” Brake; 1 1/2" Offset Backing Plate

9 31/64"A1 1/2" - 10 1 1/2" 18-782 RH D Rockwell 16 1/2"

9 1/2"A1 1/4" - 10 1 1/4" 18-630 RH S Spicer 15"

9 1/2"A1 1/2" - 28 1 1/2" 18-864 RH D Rockwell 16 1/2"

9 17/32"F1 1/4" - 10 1 1/4" 18-874 RH S Rockwell 15" "T" Series Brake

9 17/32"G1 1/4" - 24 1 1/4" 18-900 RH S Rockwell 15" “Q” Brake; 1 1/2" Offset Backing Plate

9 17/32"G1 1/4" - 10 1 1/4" 18-958 RH S Rockwell 15" "T" Series Brake; New Style S-Head

9 9/16"I1 1/4" - 10 1 1/4" 18-772 RH S Eaton 15" Single Anchor Pin (SAP)

9 9/16"J1 1/4" - 10 1 1/4" 18-974 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

9 3/4"A1 1/2" - 28 1 1/2" 18-888 RH D Rockwell 16 1/2"

9 25/32"I1 1/4" - 10 1 1/4" 18-774 RH S Eaton 15" Single Anchor Pin (SAP)

9 13/16"A1 1/2" - 10 1 1/2" 18-730 RH D Eaton 16 1/2"

9 13/16"F1 1/4" - 10 1 1/4" 18-876 RH S Rockwell 15" "T" Series Brake

at Spline Diameter Spicer

18-885 LH

18-771 LH

18-973 LH Pin (SAP)

18-629 LH

18-863 LH

18-873 LH

18-897 LH

18-957 LH

18-907 LH

18-937 LH

18-509 LH

18-939 LH

18-899 LH

18-783 LH

18-631 LH

18-865 LH

18-875 LH

18-901 LH

18-959 LH

18-773 LH

18-975 LH Pin (SAP)

18-889 LH

18-775 LH

18-731 LH

18-877 LH

*Axle Type: S = Steer, D = Drive, T = Trailer

CAMSHAFT QUICK IDENTIFICATION GUIDE

UHB800-CAM-ID

These graphics are for identification purposes only. Dimensions in actual camshafts may vary slightly.

Diameter

Cam Head End & No. at Part Axle Brake Brake

Length Style of Splines Spider Number Side Type* Manufacturer Size Notes

9 13/16"G1 1/4" - 10 1 1/4" 18-948 RH S Rockwell 15" "T" Series Brake; New Style S-Head

9 7/8"B1 1/2" - 28 1 1/2" 18-672 RH D Spicer 16 1/2" "XL" and “XLII” Brakes; 5", 6" and 7" Brakes

9 7/8"J1 1/4" - 10 1 1/4" 18-976 RH S Eaton 15" Extended Service Brake (ES™); Single Anchor

9 15/16"G1 1/4" - 24 1 1/4" 18-908 RH S Rockwell 15" “Q” Brake; 2" Offset Backing Plate

10 3/16"A1 1/2" - 10 1 1/2" 18-732 RH D Eaton 16 1/2"

10 3/16"B1 1/2" - 28 1 1/2" 18-930 RH D Rockwell 16 1/2" “Q Plus” Brake

10 1/4"A1 1/2" - 28 1 1/2" 18-710 RH D Rockwell 16 1/2"

10 1/4"A1 1/2" - 10 1 1/2" 18-784 RH D Rockwell 16 1/2"

10 13/32"B 1 1/2" - 28 1 1/2" 18-510 RH D Rockwell 16 1/2" “Q Plus” Brake

10 15/32"A 1 1/2" - 28 1 1/2" 18-648 RH D Spicer 16 1/2" 5", 6" and 7" Brakes

10 15/32"B 1 1/2" - 28 1 1/2" 18-674 RH D Spicer 16 1/2" "XL" and “XLII” Brakes; 5", 6" and 7" Brakes

10 1/2"B1 1/2" - 28 1 1/2" 18-512 RH D Rockwell 16 1/2" “Q Plus” Brake

10 1/2"A1 1/2" - 10 1 1/2" 18-734 RH D Eaton 16 1/2"

10 1/2"A1 1/2" - 28 1 1/2" 18-826 RH D Rockwell 16 1/2"

10 9/16"A1 1/2" - 10 1 1/2" 18-806 RH D Rockwell 16 1/2"

10 9/16"B1 1/2" - 10 1 1/2" 18-982 RH D Eaton 16 1/2" Extended Service Brake (ES™)

at Spline Diameter Spicer

18-949 LH

18-673 LH

18-977 LH Pin (SAP)

18-909 LH

18-733 LH

18-931 LH

18-711 LH

18-785 LH

18-511 LH

18-649 LH

18-675 LH

18-513 LH

18-735 LH

18-827 LH

18-807 LH

18-983 LH

*Axle Type: S = Steer, D = Drive, T = Trailer

+ 16 hidden pages
