Bendix® EC-14™ AntiLock Controller Assembly
MOUNTING HOLES (4)
SD-13-4784
30 PIN WIRE
HARNESS CONNECTOR
DIAGNOSTICS
WINDOW
DESCRIPTION
GENERAL
Bendix trailer antilock systems utilizing the EC-14
electronic controller assembly provide axle braking control
for buses, trucks, and truck trailers. By controlling "wheel
lock-up" during aggressive braking, the trailer retains a high
degree of stability and steerability while braking, and vehicle
stopping distance may be reduced.
In order to provide axle control antilock, the EC-14™ controller
is used in combination with the following components:
• Four individual wheel speed sensors.
• One combination modulator-relay valve.
• One stand alone modulator valve.
• Antilock condition lamp (dash mounted).
PHYSICAL
The EC-14™ controller electronics, which regulate the function
of the antilock system, are contained in a die cast aluminum
housing and are environmentally protected by silicone
FIGURE 1 - EC-14™ ANTILOCK CONTROLLER ASSEMBLY
™
encapsulation. The metal housing, coupled with the design
of the digital electronics, is intended to provide a high degree
of protection from radio and electromagnetic interference.
A diagnostics display window with 9 light emitting diodes
(LEDs) and a magnetically actuated Reset switch is
incorporated in the housing for troubleshooting and
diagnostic purposes.
Two electrical connectors are currently used on the EC-14
controller, one for connection to the antilock system
components (30 pin, Packard Electric, 150 series "Metripack”) and one for connection to a combination
modulator-relay valve (4 pin, Molex).
MOUNTING
The EC-14™ controller is specifically designed to be mounted
to a modulator-relay valve assembly , such as the Bendix
M-12™ modulator (reference SD-13-4772). When the
EC-14™ controller is mounted on a modulator assembly the
™
®
1
FIGURE 2 - MC-14™ ANTILOCK BRAKE SYSTEM
2
DIAGNOSTIC
WINDOW
™
M-12
MODULATOR
ASSEMBLY
EC-14
MODULATOR
EXHAUST
™
CONTROLLER
WIRE HARNESS
CONNECTOR
SERVICE
PORT
SOLENOID
EXHAUST
SUPPLY (2)
DELIVERY PORTS (4)
FIGURE 3 - MC-14™ MODULATOR CONTROLLER ASSEMBLY
resulting assembly receives a different designation. For
example, when the EC-14™ antilock controller is mounted
on the M-12™ modulator the resulting assembly is known
as a MC-14™ modulator controller (see Figure 3).
EC-14™ CONTROLLER INFORMATION
INPUTS AND COMMAND OUTPUTS
GENERAL
The EC-14™ controller receives information from several
components in the antilock system and, based on these
inputs, issues commands or delivers information. Some
portions of the EC-14™ controller both receive and deliver
commands and information.
INPUTS
Wheel Speed Information is provided to the EC-14
controller via a wiring harness from individual speed sensors
located in the trailer wheels or axle housing. Working in
conjunction with an exciter or tone ring, the speed sensors
provide information to the EC-14™ controller in the form of an
AC signal which varies in voltage and frequency as the speed
of the wheel increases or decreases.
™
The EC-14™ controller is designed to receive wheel speed
information, from various wheel speed sensor models, at
the rate of 100 pulses per wheel revolution. The EC-14
controller is able to simultaneously receive, and individually
interpret, speed signals from four wheel speed sensors (2
axles).
Vehicle Power is supplied to the EC-14™ controller from
the from the ignition switch through a fuse or circuit breaker.
The electrical ground for the EC-14™ controller is the vehicle
chassis.
A Stop Light Switch connection to the EC-14™ controller
is provided and serves to “signal” the EC-14™ controller of all
brake applications. Although the stop light switch connection
enhances the EC-14™ antilock controller performance, a loss
of the stop light switch “signal” will not prevent antilock
operation.
OUTPUTS
Modulators, like the Bendix® M-12™ and M-21™ or M-22™,
are the means by which the EC-14™ antilock controller is
able to modify driver applied air pressure to the service
brakes. The EC-14™ controller is able to simultaneously
and independently control two modulator assemblies.
™
3
DEUTSCH 2 PIN
CONNECTOR
PACKARD 2 PIN
CONNECTOR
STRAIGHT WS-20
™
WHEEL SPEED SENSOR
FIGURE 4 - WS-20™ WHEEL SPEED SENSORS & CONNECTORS
SPEED SENSOR
MOUNTING
BLOCK
100 TOOTH SPEED
SENSOR EXCITER
RING
WS-20™ WHEEL
SPEED SENSOR
(90 DEG.)
90° WS-20™ WHEEL
SPEED SENSOR
BRAKE DRUM
FIGURE 4A - WS-20
4
HUB ASSEMBLY
™
WHEEL SPEED SENSOR INSTALLATION
SUPPLY
PORT
3 PIN WIRE
HARNESS
CONNECTOR
MOUNTING
3 PIN WIRE
HARNESS
CONNECTOR
SUPPLY
PORT
DELIVERY
PORT
HOLE
EXHAUST
M-22™ MODULATOR M-21™ MODULATOR
FIGURE 5 - M-21™ & M-22™ MODULATORS
The EC-14™ controller is designed to be mounted directly
on a modulator relay valve assembly like the M-12
modulator. The two separate components (EC-14™ controller
and M-12™ modulator) become a single assembly. The
M-12™ modulator is a combination valve consisting of a
standard relay valve and solenoid assembly. The M-12
modulator replaces the standard relay valve used to speed
up the application and release of the vehicle’s rear axle
brakes. An internal, four pin, wiring harness connects the
EC-14™ controller to the M-12™ modulator solenoid assembly .
For additional information and service procedures see Bendix
Service Data Sheet SD-13-4772.
In addition to the M-12™ modulator, the EC-14™ controller
also controls a single, external modulator like the M-21™ or
M-22™. Connected to the EC-14™ controller via a wire
harness, the M-21™ or M-22™ modulator is essentially a
high capacity, on/off air valve that incorporates a pair of
electrical solenoids for control. The solenoids provide the
electric-air link between the antilock controller electronics
and the air brake system. Unlike the M-12™, the M-21™ or
M-22™ modulator is not combined with a service relay valve.
For additional information and service procedures see Bendix
Service Data Sheet SD-13-4793.
A Dash Light and its electrical relay is connected to, and
controlled by , the EC-14™ controller and serves as a means
of advising the driver of the condition of the antilock system.
MOUNTING
EXHAUST
HOLE
A connection to the Engine or T ransmission Ret arder is
™
provided on the EC-14™ controller which allows the EC-14
controller to temporarily “disable” the retarder during certain
modes of operation. While the EC-14™ controller is capable
of this function, and connections are provided, it is not always
™
used. Use of the retarder disable function is not essential
but highly recommended for vehicles equipped with a retarder .
The Data Link function enables the EC-14™ controller to
“report” its operating condition to a specialized, external
computer in response to certain commands it receives. The
EC-14™ controller data link configuration conforms to S.A.E.
standard J1708 and the protocol, or coded language used,
conforms to S.A.E. standard J1537. There are two
connections to the EC-14™ controller devoted to the data
link. While the EC-14™ controller is capable of this function,
and connections are provided, it is not always used. Use of
the data link is not essential for the EC-14™ controller to be
functional.
OPERATION
OPERATIONAL PHILOSOPHY
The Bendix® EC-14™ controller provides axle braking control
by using four speed sensors and two modulators. By
monitoring the rate of deceleration during braking, and
subsequently adjusting the brake application pressure to
each axle, the EC-14™ controller is able to provide improved
braking while maintaining vehicle stability .
™
5
Rear Axle Brakes - The vehicle’s rear axle brakes are
controlled by the MC-14™ modulator controller (EC-14
controller and M-12™ modulator). Like the standard service
relay valve it replaces, the M-12
™
modulator delivers brake
application pressure to the service chambers on the rear
axle equally. Two speed sensors on the rear axle “report”
changes in acceleration and deceleration to the EC-14
controller. If required, the EC-14™ controller adjusts the
application pressure to the rear axle service brakes, via the
M-12™ modulator, based on the wheel behavior “reported”
to it by the speed sensors. In the case of vehicles equipped
with tandem rear axles (6x2, 6x4), the speed sensors are
installed on the axle that is most likely to lose traction first.
The MC-14™ modulator controller controls all service brakes
on the tandem equally .
The EC-14™ controller utilizes a “Select Smart” brake control
philosophy for the rear axle brakes. This means that the
™
EC-14
controller will initially adjust application pressure to
all rear axle service chambers based on the speed information
from the first wheel to approach a locked condition. The
initial pressure adjustment will attempt to prevent all wheels
on the axle(s) from locking. If a substantial braking difference
is detected between the two wheels on the axle equipped
with the speed sensors, the EC-14
™
controller will override
the first air pressure adjustment and allow one wheel to
lock. Both wheels including the locked wheel will continue
to be monitored for speed and braking difference changes
that would require pressure adjustments.
Steering Axle Brakes - The steering axle brakes are
controlled by the EC-14™ controller and the M-21™ or M-22
modulator. Although connected to the EC-14™ controller via
a wire harness, the M-21™ or M-22™ modulator is not an
integral part of the MC-14™ modulator controller assembly .
Brake application air passes through the M-21™ or M-22
modulator on its way to the front axle service chambers
from the foot valve.
Two speed sensors on the front axle “report” changes in
acceleration and deceleration to the EC-14™ controller.
The EC-14™ controller uses a “Select Low” brake control
philosophy for the front axle brakes. It will attempt to prevent
wheel lock by adjusting application pressure to both front
axle service chambers based on the speed information from
the first wheel to approach a locked condition. The M-21™ or
M-22™ modulator provides the EC-14™ controller with the
means of adjusting front axle service application pressure
when required.
the same as standard service relay valve and applies air to
™
the rear axle service brakes. Because the M-21™ or M-22
modulator does not have a relay valve function, service air
passes through it to a quick release valve and from there to
the front axle service chambers. The service brakes are thus
applied.
™
If the speed sensors do not detect an impending wheel lock
up, the EC-14™ controller does not initiate any corrective
action and the vehicle comes to a stop in a normal fashion.
ANTILOCK CONTROLLED BRAKE
APPLICATION - SYSTEM FULLY OPERATIONAL
If a service brake application is made and the speed sensors
detect an impending wheel lockup on an axle, the EC-14
controller will immediately begin modification of the brake
application using the antilock modulator(s) at the affected
axle(s).
Solenoid valves contained in the modulator are energized
and de energized by the EC-14™ controller in order to modify
the brake application. When a solenoid coil is energized its
shuttle moves, and depending upon the function of the specific
solenoid, it either opens or closes, thereby causing the
exhaust or re-application of air pressure to the brake chamber.
The solenoids in either the M-12™ or M-21™ modulator are
controlled independently by the EC-14™ controller. By
opening and closing the solenoid valves in the appropriate
modulator, the EC-14™ controller is actually simulating what
the driver does when he “pumps the brakes”.
™
It must be remembered however that unlike the driver, the
EC-14™ controller is able to “pump” brakes on either the
front or rear axle(s), or both, independently and with far greater
speed and accuracy .
™
ANTILOCK SYSTEM OPERATION COMPONENT FAULT STRATEGY
The Bendix® EC-14™ controller handles equipment faults
using a conservative fail-safe philosophy . Any single electrical
problem with a component devoted to antilock braking,
results in simultaneous illumination of the antilock condition
lamp on the dash and a troubleshooting LED on the EC-14
controller. Depending upon the type of problem and its
position of occurrence the EC-14™ controller can continue
antilock function at a lower performance level, disable all of
the antilock on the vehicle or only a portion. When antilock
is disabled, the brakes on the affected axle(s) revert to
standard air braking.
™
™
™
NON-ANTILOCK BRAKE APPLICATION
During normal braking, the brake valve simultaneously
delivers air to the control port of the M-12™ modulator on the
rear axle(s) as well as to and through the M-21™ or M-22
modulator on the front axle. The M-12™ modulator functions
6
Complete antilock system shut down will occur if:
• Electrical power is below or above the 10 to 17 volt
operating range.
™
• A controller fault is detected.
• Two or more faults, regardless of where, are detected.
• An M-12
™
modulator malfunction on the rear axle(s).
• Only front axle antilock will be disabled if a problem with
the M-21™ or M-22™ modulator is detected.
A problem in a single speed sensor will not result in disabling
of the antilock system. If a speed sensor malfunction is
detected by the EC-14™ controller, the remaining speed
sensor on the axle will be used to continue antilock operation
on the axle but at a slightly degraded level of performance.
With the failed component approach described, the antilock
system will attempt to provide the vehicle with the best
possible braking and stability even after a problem has
occurred. It should be remembered that the driver will be
advised of any degraded antilock operation via the dash lamp
and that standard air braking will still be available on those
brakes where the antilock has been disabled.
ANTILOCK WIRING
GENERAL NOTES
The wires that carry information and power into and out of
the EC-14™ controller are grouped and terminate at a
connector which plugs into the EC-14™ controller. The wiring
harnesses and connectors are weather proof and the wires
that enter the connector are sealed to the connector. The
wire gauge used in the wire harnesses is specific to the
task performed.
When diagnosing wiring in the antilock system the following
general rules apply and should be followed where applicable:
1. It is generally advisable to replace a wire harness rather
than repair individual wires in the harness. If a splice
repair must be made, it is important that the splice be
properly soldered with a rosin flux (not acid based) and
the splice made water proof.
2. Do not pierce wire insulation when checking for continuity.
Check for power, ground or continuity by disconnecting
the connector and testing the individual pins or sockets
in the connector(s).
3. Always check the vehicle handbook for wire and
connector identification. Individual wire identification will
differ depending upon the type of connectors in use, the
vehicle manufacturer, and the system features in use.
4. While the retarder disable and serial link connections (3
total) are present on all EC-14™ controllers they are not
always used.
PREVENTATIVE MAINTENANCE
GENERAL
Important: Review the warranty policy before performing
any intrusive maintenance procedures. An extended warranty
may be voided if intrusive maintenance is performed during
this period.
Because no two vehicles operate under identical conditions,
maintenance and maintenance intervals will vary . Experience
is a valuable guide in determining the best maintenance
interval for any one particular operation.
Visually check for physical damage such as broken air lines
and broken or missing parts.
Perform the tests and inspections presented at the
prescribed intervals. If the EC-14™ controller fails to function
as described, it should be repaired or replaced with a genuine
Bendix unit, available at any authorized parts outlet.
Every 3 months or 25,000 miles, or 900 operating hours:
1. Check all wiring and connectors to ensure they are
secure and free from visible damage.
2. Although the EC-14™ controller incorporates a self check
diagnostics, the LED display should be inspected to
ensure that they are functional. With the tractor ignition
on and a brake application held applied, hold a magnet
(800 gauss; capable of picking up 3 ounces) on the
Diagnostic Window Reset Switch and note all of the
LEDs illuminate. If one or more of the LEDs do not
illuminate and the antilock condition lamp on the trailer
indicates the system is functioning properly, the nonilluminated LED(s) should be noted for future reference.
Although the diagnostic capabilities will be limited, the
system will continue to function as designed.
3. Road test the trailer by making an antilock stop from a
vehicle speed of 20 miles per hour. When an antilock
stop is made, the modulator solenoids pulsate and an
audible burst of air can be heard. The wheels should
not enter a prolonged "lock" condition.
WARNING! PLEASE READ AND FOLLOW
THESE INSTRUCTIONS TO AVOID
PERSONAL INJURY OR DEATH:
When working on or around a vehicle, the following
general precautions should be observed at all times.
1. Park the vehicle on a level surface, apply the
parking brakes, and always block the wheels.
Always wear safety glasses.
2. Stop the engine and remove ignition key when
working under or around the vehicle. When
working in the engine compartment, the engine
should be shut off and the ignition key should be
removed. Where circumstances require that the
engine be in operation, EXTREME CAUTION should
be used to prevent personal injury resulting from
contact with moving, rotating, leaking, heated or
electrically charged components.
3. Do not attempt to install, remove, disassemble or
assemble a component until you have read and
thoroughly understand the recommended
procedures. Use only the proper tools and observe
all precautions pertaining to use of those tools.
7
FIGURE 6 - MC-14™ ANTILOCK WIRING SCHEMATIC
8
4. If the work is being performed on the vehicle’s air
brake system, or any auxiliary pressurized air
systems, make certain to drain the air pressure from
all reservoirs before beginning ANY work on the
vehicle. If the vehicle is equipped with an AD-IS
air dryer system or a dryer reservoir module, be
sure to drain the purge reservoir.
5. Following the vehicle manufacturer’s
recommended procedures, deactivate the electrical
system in a manner that safely removes all
electrical power from the vehicle.
6. Never exceed manufacturer’s recommended
pressures.
7. Never connect or disconnect a hose or line
containing pressure; it may whip. Never remove a
component or plug unless you are certain all
system pressure has been depleted.
8. Use only genuine Bendix
®
replacement parts,
components and kits. Replacement hardware,
tubing, hose, fittings, etc. must be of equivalent
size, type and strength as original equipment and
be designed specifically for such applications and
systems.
9. Components with stripped threads or damaged
parts should be replaced rather than repaired. Do
not attempt repairs requiring machining or welding
unless specifically stated and approved by the
vehicle and component manufacturer.
10. Prior to returning the vehicle to service, make
certain all components and systems are restored
to their proper operating condition.
™
EC-14
CONTROLLER
GASKET
™
M-12
MODULATOR
MOUNTING
BRACKET
Removing the EC-14™ Controller and M-12™ Modulator:
1. Identify and remove all air lines connected to the
™
modulator.
M-12
™
2. Disconnect the electrical connector from the EC-14
controller.
3. Note and mark the mounting position of the MC-14
modulator-controller assembly on the vehicle. Loosen,
remove and save the nuts on the mounting hardware
that attaches the MC-14™ modulator controller bracket
to the vehicle. Remove the MC-14™ modulator controller
assembly from the vehicle.
4. Remove as much contamination as possible from the
exterior of the assembly making sure to keep the
contamination away from the open ports.
5. Note and mark the position of the EC-14
relative to the M-12
™
modulator. Remove and ret ain the
four hex cap screws that secure the EC-14™ controller
to the M-12™ modulator . Carefully separate the EC-14
controller from the M-12™ modulator enough to expose
the wire harness that connects both units electrically.
Disconnect the wire harness by separating the four pin
connector at the EC-14™ controller. Peel the gasket from
the EC-14™ controller or M-12™ modulator and retain for
reuse. Note: Use a new gasket if damaged during
removal or if a new gasket is immediately available.
INSTALLING THE EC-14™ CONTROLLER
ASSEMBLY
1. After noting the positioning marks made prior to
disassembly, reconnect the M-12™ modulator wire
harness to the EC-14™ controller, position the gasket
on the EC-14™ controller then secure the EC-14
controller to the M-12™ modulator using the four cap
screws. Torque the cap screws to 50-80 Ibs. in.
2. Mount the assembled MC-14™ modulator controller on
the vehicle and orient it in the position marked prior to
removal.
3. Reconnect all air lines.
4. Reconnect the electrical connector to the EC-14
controller.
5. T est the MC-14™ modulator controller for operation and
air leakage prior to placing the vehicle in service.
6. Perform the “Initial Start up Procedure” in the
Troubleshooting section to assure proper antilock
system operation.
™
controller
™
™
™
™
™
FIGURE 7 - MC-14™ MODULATOR CONTROLLER
REMOVING EC-14™ CONTROLLER ASSEMBLY
Locate the EC-14™ controller on the trailer and determine if
it is mounted on a modulator (e.g. M-12™ modulator) or is
remote mounted to a trailer frame member using a bracket.
Use the appropriate removal procedure below .
DIAGNOSING AND LOCATING A SYSTEM
PROBLEM
GENERAL
The EC-14™ controller contains self test and diagnostic
circuitry that continuously checks for proper operation of
9
FIGURE 8 - EC-14™ CONTROLLER DIAGNOSTIC WINDOW
the entire antilock system including wiring continuity . A dash
lamp, controlled by the EC-14™ controller, advises the driver
of the condition of the entire antilock system. The condition
of specific antilock components is provided to the mechanic
by a series of labeled, light emitting diodes (LED’s) displayed
through a “window” in the EC-14™ controller housing. No
special tools or equipment are needed to read or interpret
the EC-14™ controller diagnostics window. It should be noted
that the diagnostics display is separate from the antilock
condition lamp on the dash. With this separation, the driver
is aware of any problems that occur, but is not concerned
with in-depth diagnostic information.
A special feature of the EC-14™ controller diagnostic system
is its failure latching. Intermittent problems, particularly in
the wheel speed sensing area can be difficult to diagnose.
When the controller senses an erroneous condition, whether
in the controller electronics, the modulator or speed sensing
areas, it stores the condition in non-volatile memory , disables
the antilock function if necessary, illuminates the dash
mounted antilock condition lamp and the appropriate
diagnostic LEDs on the EC-14™ controller . The malfunction
condition is truly stored and is not cleared by loss of power
to the EC-14™ controller. The LEDs will re-light when power
is restored and remain illuminated until the problem is
corrected. After the actual problem is corrected, maintenance
personnel can clear or reset the EC-14™ controller
diagnostics by passing a small magnet over the RESET
point in the diagnostics window.
DIAGNOSTIC LEDS
LED o FRONT Red LED
LED o MID Red LED (SEE NOTE)
LED o REAR Red LED
LED o RIGHT Red LED
LED o LEFT Red LED
LED o MOD Red LED
LED o SENS Red LED
LED o ECU Red LED
LED o VOLT Green LED
¦ ¦ ¦ RESET No LED
Note: The MID LED shown in the chart above is not used
in the diagnostic process for the EC-14™ controller
however, it will light when a magnet is placed on the
RESET switch in the diagnostic window .
"FRONT" LED
This Red LED illuminates and latches on in order to indicate
the location of a problem component or its wiring. It will light
in conjunction with either the RIGHT or LEFT LED and the
SENS LED when indicating a speed sensor problem. The
FRONT LED will also light in conjunction with the MOD LED
to indicate that the front modulator (M-21™ or M-22™) or its
wiring has malfunctioned.
"MID" LED
This red LED is not used in troubleshooting the EC-14
controller and should light only when a magnet is held on
the RESET switch.
™
There are nine LEDs plus a magnetically actuated reset
switch in the EC-14™ controller diagnostic window. The first
five LEDs locate a problem to a specific area of the trailer
while the last four indicate the problem component or its
wiring. The LEDs are computer controlled and are either ON
or OFF depending upon their monitor function. (Note: Right
and left, front and rear are determined from the driver's seat.
Left front is therefore the corner closest to the driver .)
10
"REAR" LED
This red LED illuminates and latches on in order to indicate
the location of a problem component or its wiring. It will light
in conjunction with either the RIGHT or LEFT LED and the
SENS LED when indicating a speed sensor problem. The
REAR LED will also light in conjunction with the MOD LED
to indicate that the rear modulator (M-12™) or its wiring has
malfunctioned.
"RIGHT" LED
"RESET"
This red LED illuminates and latches on in order to indicate
the location of a problem component or its wiring. It will
light in conjunction with either the FRONT or REAR LED
and SENS LED. This LED should not light when a MOD
LED is on.
"LEFT" LED
This red LED illuminates and latches on in order to indicate
the location of a problem component or its wiring. It will
light in conjunction with either the FRONT or REAR LED
and SENS LED. This LED should not light when a MOD
LED is on.
"MOD" LED
This red LED illuminates and latches on to indicate a
permanent or intermittent open or short circuit in the
solenoids of one of the two modulators or the wiring
connecting them to the system. The MOD LED will illuminate
in conjunction with either the FRONT or REAR LED.
"SENS" LED
This red LED illuminates and latches on to indicate
permanent or intermittent problem. The faults indicated are;
open or shorted wheel speed sensor, open or shorted wheel
speed sensor wiring, wheel speed signal not present or does
not conform to design criteria. The SENS LED will illuminate
in conjunction with either the FRONT or REAR and either
the RIGHT or LEFT LED.
"ECU" LED
This red LED, when illuminated, indicates that the controller
itself has failed. It is latched on for all EC-14™ controller
faults except low voltage. For voltages less than 9 vdc, the
LED illuminates to indicate the controller is inoperative,
however when the voltage again exceeds 9 vdc the LED will
go out by itself.
Beneath the RESET area of the window display is a
magnetically sensitive switch that is used to reset the
diagnostic system. The device will respond to a magnet
which has strength sufficient to lift a three (3) ounce weight.
Holding a magnet against the RESET will cause all LEDs to
light during the time the magnet is against it.
TROUBLESHOOTING
GENERAL
While the EC-14™ controller diagnostic display locates a
specific problem area, it is still necessary to confirm whether
the problem resides in the component itself or the wiring.
Basically the troubleshooting procedure that follows is
devoted to narrowing the problem to either the wiring or a
specific antilock component. It should be noted that all
troubleshooting begins by observing the antilock status
lamp on the dash while performing the "Initial Startup Procedure" and following the directions contained in
the procedure.
IMPORTANT - TROUBLESHOOTING TIPS
1. Record all findings and the action taken during the
troubleshooting process. The record sheet should be
filed in the trailer maintenance folder for future reference
and comparison.
2. No voltage or resistance tests are performed into
the EC-14™ controller. All voltage and resistance tests
are performed by beginning at the wire harness half of
the connector and moving away from the EC-14
controller toward an antilock system component
(modulator, wheel speed sensor , etc.).
™
"VOLT" LED
This green LED illuminates and remains on during vehicle
operation to indicate that vehicle power is reaching the
controller. If vehicle power is out of range for proper operation
(below 10 vdc or above 17 vdc) this LED will flash until power
is brought into range. This LED may also flash indicating
that a “marginal” low voltage condition existed at the time of
an antilock event.
11

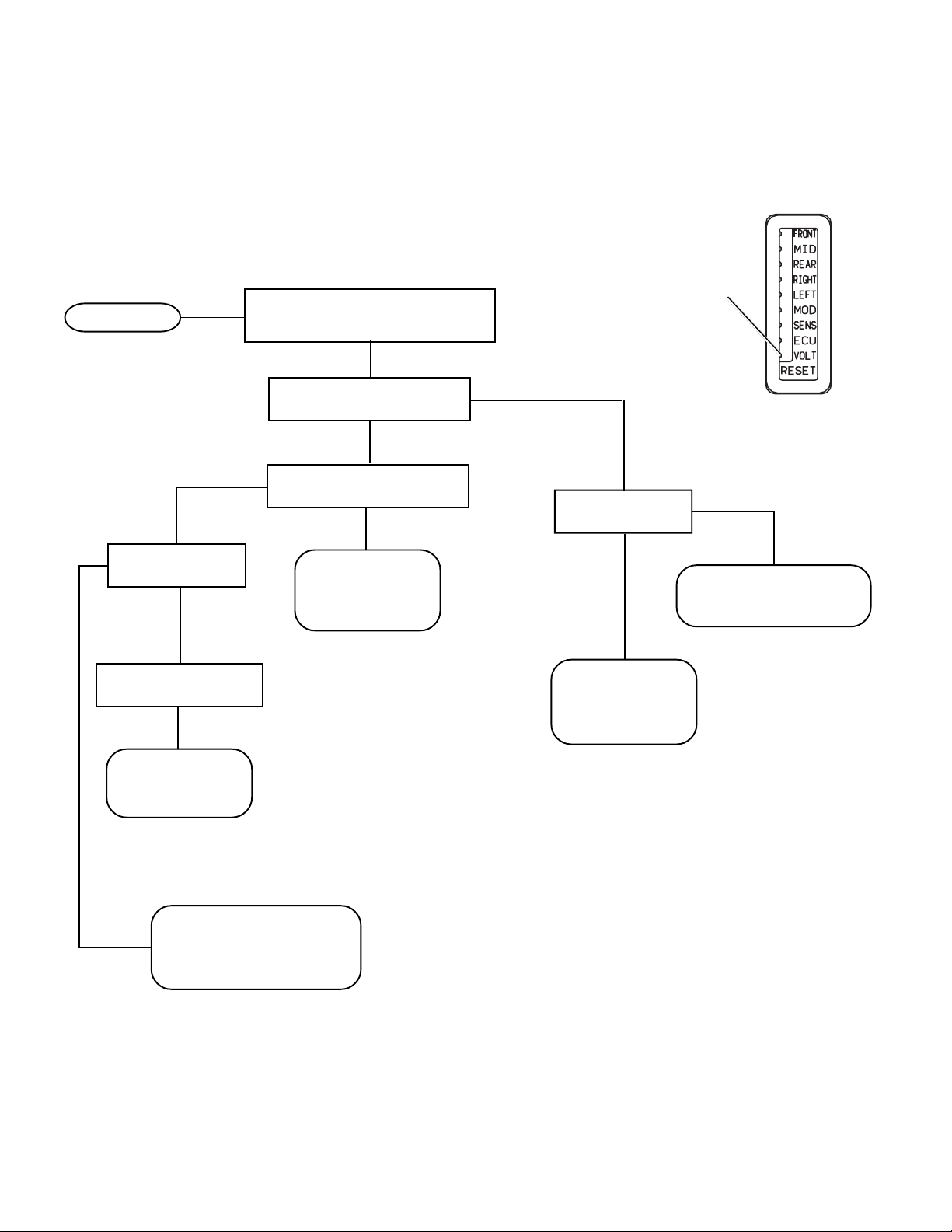

START HERE
TROUBLESHOOTING
INITIAL START-UP PROCEDURE
Turn ignition ON and observe dash
antilock condition lamp.
Note: If brakes are applied when
ignition is turned on, a short
exhaust of air will be heard at front
and rear modulators.
AMBER ST ATUS LAMP
BLINKS ONCE,
THEN GOES OUT :
SYSTEM - OK
AMBER DASH LAMP OFF:
SYSTEM - OK
Is dash lamp illuminated?
YES
Dash lamp does not blink, comes on
and remains illuminated?
NO
Dash lamp comes on, flashes and stays on.
Increase vehicle speed to above 10 mph for at
least 30 seconds and observe the dash lamp.
Dash lamp remains on?
NO
NO
YES
YES
Go to Section I
“Dash Lamp Testing”
Go to Section II
“Inspection for Illuminated
LEDs”
Go to Section III
“Inspection for
illuminated LEDs”
12
The system is functioning normally.
Make notes of the parts replaced or repaired
and steps taken.
TROUBLESHOOTING
SECTION I
DASH LAMP TESTING

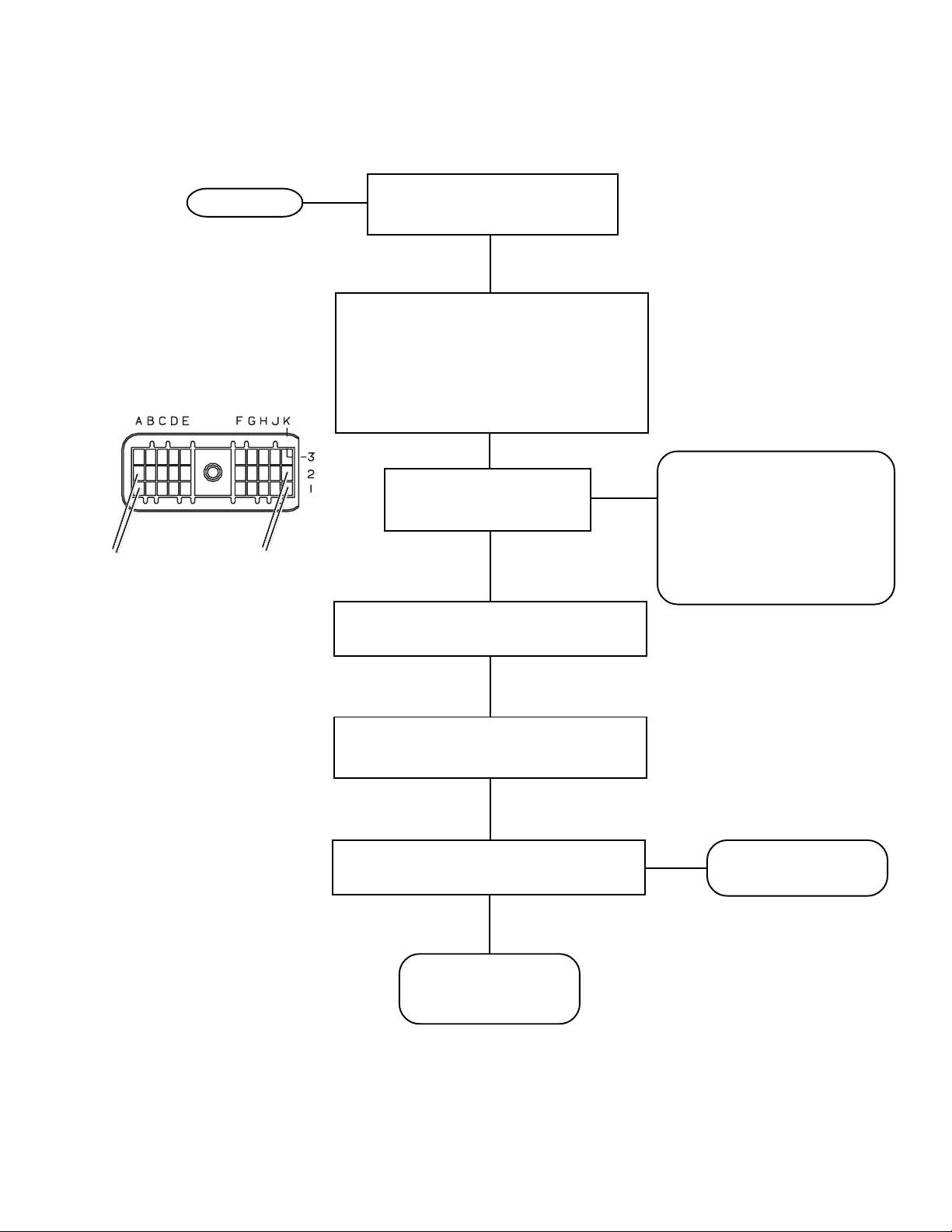

1A & 2A
GROUND
START HERE
3F
DASH LAMP
RELA Y
EC-14™ Controller
Wire Harness
Connector
Disconnect 30 pin wire harness
connector from EC-14
and observe the dash lamp.
Is dash lamp illuminated?
With ignition on, measure voltage between
lamp relay (Pin 3F) and ground (Pins 1A, 2A).
Voltage should be same as battery voltage.
Is voltage correct?
Check wiring harness and relay for shorts to
ground. Reconnect and check/replace the
following:
1. Dash light bulb.
2. Relay power wire.
3. Relay.
After replacing each component test
the dash lamp.
™
YES
YES
controller
NO
NO
Replace the EC-14
controller
Go to Section II
“Inspection for Illuminated
LEDs”
™
Repeat the “Initial Start-up
Procedure”
13
START HERE
TROUBLESHOOTING
SECTION II
INSPECTION FOR ILLUMINATED LEDs
CHECK
“VOLT” LED
ON?
FLASHING?
Inspect EC-14™ controller and record
presence of illuminated LEDs
Are any red LED’s
illuminated?
NO
Record the condition of
all red LEDs
Go to Section IV
“Inspection for
Illuminated LEDs”
YES
NO
Check closely: is green
LED illuminated?
YES (ON)
Is green LED Flashing?
YES
Go to Section V
“Testing for Power
to the EC-14
controller”
™
NO (OFF)
Are any red LED’s
illuminated?
NO
Go to Section V
“Testing for Power
to the EC-14
controller”
™
YES
Replace EC-14™ controller.
Repeat the “Initial Start-up
Procedure.”
14
Go to Section IX
“Testing for False Failure
Indication - Caused by Dash
Lamp Relay”
START HERE
TROUBLESHOOTING
SECTION III
INSPECTION FOR ILLUMINATED LEDs
CHECK
“VOLT” LED
ON?
FLASHING?
Inspect EC-14™ controller and record
presence of illuminated LEDs
NO
Are any red LEDs
illuminated?
YESNO
Record the condition of
all red LEDs
Go to Section IV
“Inspection for
Illuminated LEDs”
Check closely: Is green
LED Illuminated?
YES (ON)
Is green LED flashing?
YES
Go to Section V
“Testing for Power
to the EC-14
controller”
™
NO (OFF)
Are any red LEDs
illuminated?
NO
Go to Section V
“Testing for Power
to the EC-14
controller”
™
YES
Replace EC-14™ controller.
Repeat the “Initial Start-up
Procedure.”
Check
red LEDs
Go to Section X
“Testing For False Failure
Indication - Caused by Wheel
Speed Components”
ARE
ANY
ILLUMINATED?
15
TROUBLESHOOTING

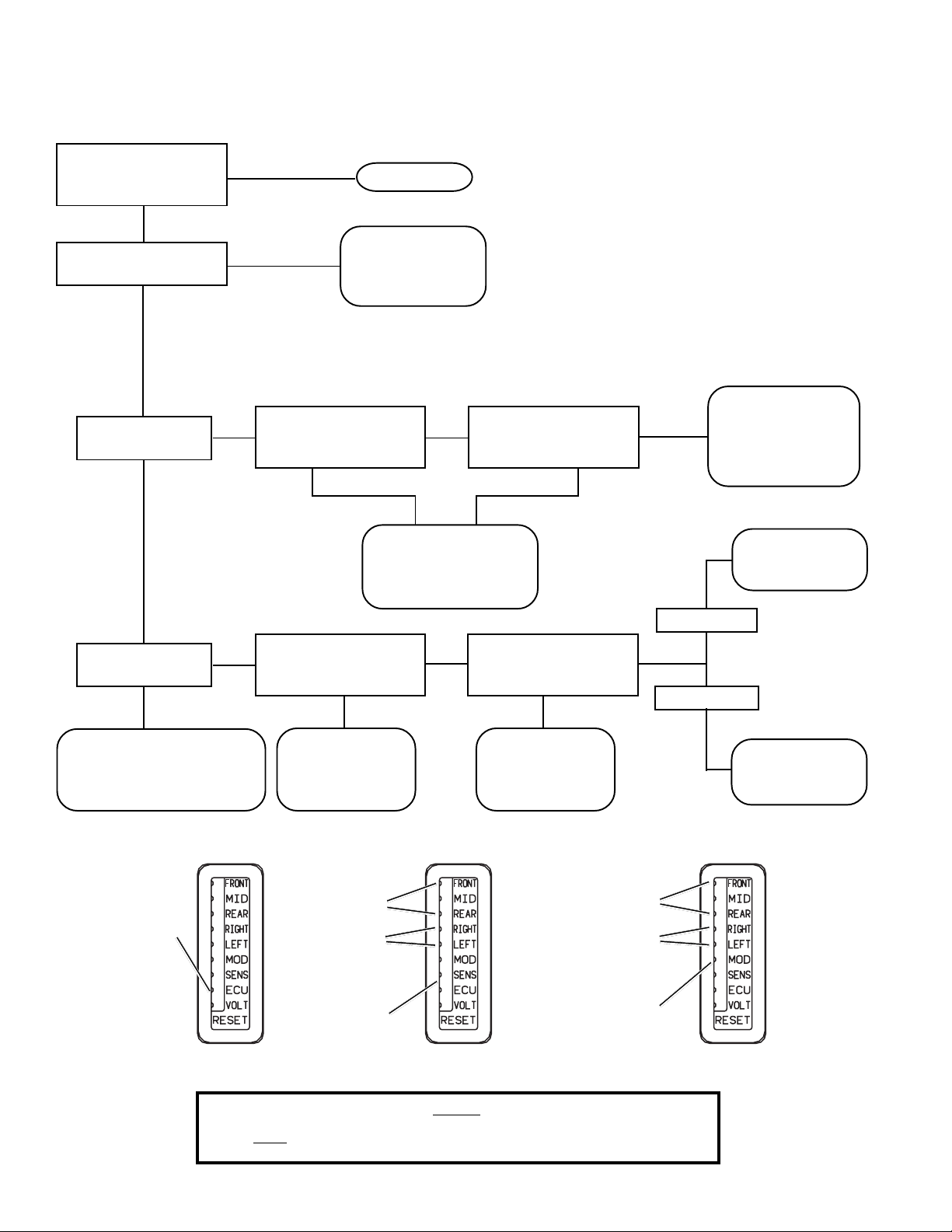

SECTION IV
INSPECTION FOR ILLUMINATED LEDs
Note red “ECU” LED in
™
EC-14
controller
diagnostics window
Is this LED illuminated?
NO (OFF)
Is red “SENS” LED
illuminated?
NO
Is red “MOD” LED
illuminated?
NO
YES (ON)
YES
Is the red “RIGHT” or
“LEFT” LED illuminated?
See Note 1 below
NO
YES
Is the red “RIGHT” or
“LEFT” LED illuminated?
START HERE
Go to Section V
“Testing for Power
to the EC-14
™
controller”
YES
“REAR” LED illuminated?
Replace the EC-14
controller and repeat the
“Initial Start-up
Procedure”
NO
“REAR” LED illuminated?
YES
Is the red “FRONT” or
See Note 1 below
NO
™
Is the red “FRONT” or
See Note 1 below
NO
YES
“REAR” LED
YES
“FRONT” LED
Note the three
illuminated LEDs and
go to Section VIII
“Testing the Wheel
Speed Sensor”
Go to Section VII
“Testing the Rear
Modulator”
If any other red LEDs are
illuminated, replace the EC-14
controller and repeat the “Initial
Start-up Procedure”
CHECK
“ECU” LED
ON?
1. If both of these LEDs are illuminated, replace the EC-14™ controller.
16
Replace EC-14
™
controller.
Repeat the “Initial
Start-up Procedure.”
SEE NOTE 1
SEE NOTE 1
ON?
™
“SENS” LED
TESTING
NOTE
Replace EC-14
™
controller.
Repeat the “Initial
Start-up Procedure.”
SEE NOTE 1
SEE NOTE 1
Go to Section VI
“Testing the Front
Modulator”
TESTING
“MOD” LED
ON?
TROUBLESHOOTING
SECTION V
TESTING FOR POWER TO THE EC-14
™
CONTROLLER
1A & 2A
GROUND
START HERE
EC-14™ Controller Wire
Harness Connector
1K, 2K
POWER
Turn ignition off, disconnect wire
harness connector from EC-14
™
controller
Turn ignition on and measure voltage between
power and ground pins on wire harness
connector:
1A to 1K.
1A to 2K.
2A to 1 K.
2A to 2 K.
Is voltage same as battery
NO
voltage? Must be between
11 and 17 volts.
YES
Turn ignition off, reconnect wire harness to
™
EC-14
controller, turn ignition on
Reconnect connector to EC-14
™
controller. Check the vehicle wiring
for continuity. Refer to the vehicle
service manual and check the
battery voltage. Repair or replace
as necessary and repeat the “Initial
Start-up Procedure.”
Perform a magnetic reset by passing a magnet
over the “RESET” in EC-14
™
controller
diagnostic window then remove magnet
Is green “VOLT” LED still flashing or red
“ECU” LED still on?
YES
Replace the EC-14
™
controller. Repeat the
“Initial Start-up Procedure.”
NO
Repeat the “Initial Start-up
Procedure.”
17
TROUBLESHOOTING
SECTION VI A
TESTING FOR THE FRONT MODULATOR
START HERE
Turn ignition off, disconnect wire
harness connector from EC-14
™
controller.
Probe connector with volt/ohm meter and not that proper
resistance values are obtained for modulator being tested.
Resistance values here for Bendix® M-21™ modulator.
Hold to Source (2G to 1G): .................... Read 3.5 to 5 Ohms
Exhaust to Source (2F to 1G): ............... Read 3.5 to 5 Ohms
Exhaust to Hold (2F to 2G): ................... Read 7 to 10 Ohms
Source to Power (1G to 1K, 2K): ........... No Continuity
Source to Ground (1G to 1A, 2A): .......... No Continuity
Hold to Power (2G to 1K, 2K): ............... No Continuity
Hold to Ground (2G to 1A, 2A): .............. No Continuity
Exhaust to Power (2F to 1K, 2K):........... No Continuity
Exhaust to Ground (2F to 1A, 2A): ......... No Continuity
1A & 2A
GROUND
EC-14™ Controller Wire
Harness Connector
2F
EXHAUST
1G
SOURCE
1K, 2K
POWER
2G
HOLD
Are resistance values correct?
NO
Go to Section VI B and
continue testing
YES
Inspect connector and reconnect to EC-14
controller. Turn ignition on and pass magnet
™
over “RESET” on EC-14
controller. Remove
magnet and note reaction of red LEDs
Repeat the “Initial Start-up
Procedure.” If testing has
Are any red LEDs
illuminated?
YES
Are same red LEDs
illuminated?
NO
returned to this step
twice, replace the EC-14
controller and retest.
YES
Replace EC-14™ controller.
Repeat the “Initial Start-up
NO
Go to Section IV
“Inspection for Illuminated
Red LEDs” and retest
™
™
Procedure”
18
START HERE
from Section VI A
TROUBLESHOOTING
SECTION VI B
TESTING FOR THE FRONT MODULATOR
Go to modulator, inspect wiring connector. Disconnect
connector and test resistance between pins on modulator.
Resistance values here for Bendix® M-21™ modulator.
Hold to Source (C to B):......................... Read 3.5 to 5 Ohms
Exhaust to Source (A to B): .................... Read 3.5 to 5 Ohms
Exhaust to Hold (A to C):........................ Read 7 to 10 Ohms
Test each pin to vehicle ground and note no continuity
Connector on M-21
Front Modulator
A
EXHAUST
B
SOURCE
™
C
HOLD
RESETTING
EC-14™ CONTROLLER
Are resistance values correct?
YES
Reconnect connector to modulator. Turn ignition
on and pass magnet over “RESET” on EC-14
controller and remove. Note reaction of red LEDs
Are any red LEDs
illuminated?
YES
Are same red LEDs
illuminated?
NO
NO
YES
NO
™
Replace the front (M-21™)
modulator
Repeat the “Initial Start-up
Procedure”
Repair or replace
modulator wire harness
MAGNET
HERE
Go to Section IV
“Inspection for Illuminated
red LEDs” and retest
19
START HERE
TROUBLESHOOTING
SECTION VII
TESTING FOR THE REAR (M-12
Turn the ignition off. Separate the EC-14
from the M-12
connector between the two components and test
resistance on the modulator connector.
Black to black: ........................................ 9 to 12 Ohms
White to white: ....................................... 9 to 12 Ohms
™
modulator. Disconnect the four pin
™
) MODULATOR
™
controller
WHITE
WHITE
M-12™ MODULAT OR
WIRE HARNESS
CONNECTOR
RESETTING
™
EC-14
CONTROLLER
BLACK
BLACK
Is resistance in range?
NO
YES
Reconnect EC-14
™
controller to M-12
™
modulator. Turn ignition on and pass magnet
over “RESET” on EC-14
™
controller and
remove. Note reaction of red LEDs
Are any red LEDs
NO
illuminated?
YES
Are same red LEDs
YES
illuminated?
NO
Replace the M-12™ modulator
solenoid assembly
Repeat the “Initial
Start-up Procedure”
Replace EC-14™ controller.
Repeat the “Initial Start-up
Procedure.”
MAGNET
20
HERE
Go to Section IV
“Inspection for Illuminated
Red LEDs”
TROUBLESHOOTING
SECTION VIII PART A
TESTING THE WHEEL SPEED SENSOR
START HERE
EC-14
MAGNET
HERE
Pass magnet over “RESET”
on EC-14
magnet and observe the LEDs
RESETTING
™
CONTROLLER
™
controller. Remove
A. Remove connector(s) from EC-14
between appropriate speed sensor signal (+) and signal return (-).
Resistance for Bendix
2500 ohms. Refer to vehicle maintenance manual if other than the WS-20
speed sensor is in use. If resistance not correct, disconnect connector at
speed sensor. Inspect connector, then check resistance between pins on
sensor. If resistance is not correct (between 1500-2500 ohms for the Bendix
WS-20™ speed sensor), replace sensor, otherwise proceed to step B.
B. Check “gap” between speed sensor and exciter or tone ring. (Gap for Bendix
WS-20™ speed sender is between 0 - .015 inches.) If sensor gap must be
adjusted, check for loose or worn wheel bearings before re-gapping sensor.
Refer to vehicle maintenance manual for worn bearings.
C. If sensor gap is correct check wheel bearing for free play to verify it complies
to manufacturer’s recommendations.
D. Make certain exciter or tone ring is in place and inspect condition. Check for
missing or damaged teeth and that it runs true and perpendicular to sensor
face.
E. Check wiring harness and connectors that run to sensor.
F. Check for dragging brakes (over-adjusted, trapped air in actuator, out-of-
round drums, faulty return springs, parking brake system faults, etc.) and
correct. Retest.
Are any red LEDs
YES
Go to Section VIII Part B
illuminated?
NO
Turn ignition off and check the following:
™
controller and measure resistance
®
WS-20™ speed sensor should be between 1500-
and begin testing
™
®
®
EC-14™ Controller Wire Harness Connector
3C
RT. REAR
2C
LFT . REAR
3D
RT. REAR
3E
LFT . REAR
3H
LFT.
FRONT
RT. FRONT
T esting Speed Sensor Resistance
2H
3J
LFT . FRONT
3K
RT. FRONT
“Inspection for Illuminated
Reconnect EC-14™ controller connector, turn
ignition on and pass magnet over “RESET” on
EC-14™ controller and remove. Observe LEDs
YES
Go to Section IV
Red LEDs” and retest
Are any red LEDs
illuminated?
NO
Repeat the “Initial Start-up
Procedure”
21
TROUBLESHOOTING
SECTION VIII PART B
TESTING THE WHEEL SPEED SENSOR
START HERE
from Section VIII A
Same LEDs illuminated?
YES
NO
Ignition off. Remove connector from EC-14™ controller.
Measure resistance between the appropriate speed
signal pins on the connector. Resistance for Bendix
WS-20™ speed sensor is between 1500-2500 Ohms.
Refer to vehicle manual for the resistance values if
other than WS-20™ speed sensor is in use.
YES
Is the resistance correct?
NO
Disconnect connector at speed sensor.
Inspect the connector, then check the
resistance between two pins on sensor.
Is resistance between 1500-2500 Ohms for
the Bendix® WS-20™ speed sensor?
NO
Reconnect connector at speed sensor and
™
EC-14
EC-14
controller. Pass magnet over “RESET” on
™
controller. Remove magnet and observe LEDs
Go to Section IV “Inspection
for Illuminated LEDs”
®
Replace the EC-14
YES
Replace the sensor
™
controller
MAGNET
HERE
RESETTING
EC-14
™
CONTROLLER
Are any LEDs illuminated?
YES
Are same red LEDs illuminated?
YES
Repair or replace the speed
sensor wiring harness
™
EC-14
Controller Wire Harness Connector
3C
RT. REAR
2C
LFT . REAR
NO
Repeat the “Initial Start-up
Procedure”
NO
Repeat the “Initial Start-up
Procedure”
3H
3D
RT. REAR
3E
LFT . REAR
LFT.
FRONT
RT. FRONT
LFT . FRONT
2H
Testing S peed Sensor Resistance
3J
3K
RT. FRONT
22
TROUBLESHOOTING
SECTION IX
TESTING FOR FALSE INDICATION CAUSED BY DASH LIGHT RELAY
START HERE
NO
Are all LEDs illuminated?
YES
Replace the EC-14
™
controller
EC-14
MAGNET
HERE
3F Lamp Relay
TESTING
™
CONTROLLER
LEDs
Remove magnet from EC-14™ controller, turn ignition
off and disconnect the wiring harness connector(s)
™
from EC-14
lamp wire between EC-14
controller. Check continuity of warning
™
controller wiring harness
connector pin 3F and terminal on lamp relay.
Is continuity detected?
NO
YES
Reconnect EC-14™ controller wire harness
connector, turn ignition on and check for
vehicle power at the lamp relay coil
NO
Is power detected?
YES
Connect the opposite end of relay
coil to vehicle ground and not
reaction of dash lamp
Repair or replace wire harness,
™
reconnect EC-14
controller wire
harness and repeat the “Initial
Start-up Procedure”
Check dash wiring and
connectors, and consult the vehicle
manual for troubleshooting
information. Repair or replace as
necessary and repeat the “Initial
Start-up Procedure”
EC-14™ Controller
Wire Harness Connector
WIRE 3F FROM
MC-14
™
MODULATOR
CONTROLLER
™
MC-14
MODULATOR
CONTROLLER
TESTING THE LAMP RELAY
CHECK FOR
POWER HERE
Is dash lamp on?
YES
Replace the relay and repeat
“Initial Start-up Procedure”
GROUND THIS
COIL
RELAY
MODULATOR
LAMP
CONTROLLER
WIRE
MC-14
Repeat the “Initial Start-up
NO
Procedure.” If testing has
returned to this step twice
™
replace the EC-14
controller
and retest.
COIL
RELAY
™
LAMP ON?
BAD RELAY
VEHICLE POWER
VEHICLE POWER
23
TROUBLESHOOTING
SECTION X
TESTING FOR FALSE INDICATION CAUSED BY WHEEL SENSOR COMPONENTS
START HERE
TESTING EC-14
™
CONTROLLER LEDs
ALL LEDS
ILLUMINA TED
Hold a magnet on RESET of the
™
EC-14
controller and note LEDs
Are all LEDs
illuminated?
YES
Remove magnet
Turn the ignition off. Refer to Section VII
Part A “Testing the wheel sensor” and
perform tests and inspections “B”
through “F” in the large box.
Run vehicle at 10 MPH or more for 30
seconds or more. Bring vehicle to a
stop and turn off ignition.
NO
Replace the
™
EC-14
controller
24
HOLD
MAGNET
HERE
Repeat “Initial Start-up
Procedure.” If testing has
returned to this step twice,
replace the EC-14
™
controller. Retest.
BW1670 © 2004 Bendix Commercial Vehicle Systems LLC All rights reserved. 5/2004 Printed in U.S.A.
Loading...
