Belson BSA-3750-DVD Schematic

Page 1
C.E.C BELSON/DPTO.TECNICO/BSA-3750/Ed.01
Page 2
DVD - DivX Player - BSA3750
2
Table of Contents
1.Genernal Section 3
Precautions 3
Test Equipment / Jigs
2.Servise and Special Functions 9
3.Layout of PCBs and Circuit Diagrams 9
4.IC Block Diagrams 18
4
5.Exploded View and Spare Parts Lists
36
Page 3
DVD - DivX Player - BSA3750
3
1. General Sections
Cautions and Warnings
Product Safety Notice
Parts marked with the symbol characteristics. Use ONLY replacement parts recommended by the manufacturer. It is recommended that the unit be operated from a suitable DC supply or batteries during initial check out procedures.
Leakage Current Check/Resistance Check
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 240 K ohms, the unit is defective.
WARNING: DO NOT return the set to the customer until the problem or located is corrected.
Protection of Eyes from Laser Beam
To protect eyes from invisible laser beam during servicing DO NOT LOOK AT THE LASER BEAM
Laser Caution
This Digital Video Disc Player employs a Laser System. To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser radiation emits when open and interlocks are defeated. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This CD Changer must be adjusted and repaired only by qualified service personnel.
in the schematic diagram have critical
!
DO NOT STARE INTO BEAM.
Laser symbol:
THIS IS COMPACT DISC PLAYER IS CLASSIFIED AS A CLASS 1 LASER PRODUCT. THE LASS 1 LASER PRODUCT LABEL IS LOCATED ON THE REAR EXTERIOR.
Precautions
1. ESD Precautions in Repairing
1.1 Do not apply excessive pressure on the mechanical parts (moving parts), including the Pickup Block, as extremely high mechanical precision or required in these parts.
1.2 When soldering the microprocessor and signal processing IC’s, use a ceramic soldering iron or a soldering iron whose metal part is grounded since they are not resistant to static electricity.
1.3 When removing the solder or soldering the laser shorting lands for the Pickup Block, use a ceramic soldering iron or a soldering iron whose metal part is grounded since the laser diode or not resistant to static electricity.
2. DVD Loading Unit Precautions when handling the Mechanism Block
2.1 Do not loosen any screws in the Pickup Block.
Page 4
DVD - DivX Player - BSA3750
4
2.2 Do not adjust any screws in the Mechanism Block except for “Tilt Adjust Screws”, as they are adjusted precisely at the factory.
2.3 Replacement of the Pickup Block is impossible. Always replace the Traverse Ass’y when the Pickup Block needed to be replaced. Do not touch the lens or lens holder of the Pickup Block.
2.4 The Guide Rails of the Pickup Block are greased. Take care when handing.
2.5 When you try to slide the Pickup Block, do not press or pull it directly. Always turn the dive gears with your fingers.
2.6 Be sure that the anti-slipping rubber on the turntable or clean. If there is dust or it is greasy, clean the part with the liquid that contains 50% each of alcohol and water. When removing the Mechanism P.C.B. Ass’y, you need to short-circuit the laser diode shorting lands beforehand.
Test Equipment / Jigs
Variable isolating transfomer, Dual channel oscilloscope, Digital multimeter
Specification
1 Chassis
Laser concept 2 laser for DVD and VCD
2 Disc formats
DVD+R Yes DVD-R Yes DVD+RW Yes DVD-RW Yes CD-R Yes CD-RW Yes
3 Media formats
DVD-Video Yes Audio CD Yes Video CD
VCD 1.0,1.1,2.0 S-Video CD Yes CD-ROM DivX,MPEG4,MP3, JPEG, Kodak Picture CD,WMA
4 Player features
Parental control Yes, numerical lock Screen saver Yes Picture mode select Yes Video strobe Yes Video filter Yes File browser DivX, MP3, JPEG, Kodak Picture CD,WMA
5 Player functions
Play/stop/pause Yes/Yes/Yes
Page 5
DVD - DivX Player - BSA3750
5
Next/previous(skip) Yes/Yes Fast forward/reverse Yes/Yes (DVD,MP3,WMA : 2X / 4X / 6X / 8X ,
VCD,CDDA:1X / 2X / 3X / 4X, DivX: 2X / 4X / 8X / 16X
) Zoom DVD/VCD 2X/3X/4X,JPEG 1.5X/2X/1/2/1/4 Slow motion forward /reverse YES/YES(DVD,VCD:1/2,1/4,1/8) Perfect still picture Yes Frame advance /reverse Yes/Yes Repeat CD /DVD DVD: title -chapter-A/B;VCD,CD: A/B-repeat one-repeat
all Random play CDDA, MP3,WMA Program play CDDA,DVD,JPEG,MP3,WMA Last memory( resume) Yes
6 Region Code
Region code changed by request.
7 OSD
OSD style standard OSD language English, German, Dutch, French, Italian, Spanish, Portugu-
ese Subtitle Language English, German, Dutch, French Welcome Logo and OSD back
ground
8 Audio out
Digital Audio decoder Dolby digital AC-3, MPEG 2, PCM, MP3 Digital Audio output Dolby digital AC-3, DTS, MPEG, PCM 48/96 KHz Analog Audio output Dolby Prologic II (down mix), Stereo; Dolby digital AC-3;
Audio D/A converter Virtual surround Sound Yes Digital sound process Yes Frequency range DVD 48/96
kHz Frequency range CD 44.1 kHz 4 Hz-20 kHz Dynamic range 1 kHz ≥80 Db(weighted) Crosstalk ≥80 dB(weighted) Signal noise ≥90 dB(weighted)
-
Provided by Customer
5.1CH
24 Bit/96kHz
4 Hz-22 kHz/ 4 Hz- 44 kHz
9 Video out
Video D/A converter Progressive Video out PAL / NTSC PAL Yes, 625 lines / 50Hz / 4.43 MHz
10 Bit / 54 MHz
Page 6
DVD - DivX Player - BSA3750
6
NTSC Yes, 525 lines / 60 Hz / 3.58 MHz Norm converter ( PAL-NTSC,
NTSC-PAL) Video resolution Frequency response 5MHz < -3 dB Signal noise rate luminance >60 dB (weighted) Signal noise rate chroma >60 dB unweighted
10 Connections rear
Euro-AV Yes, scart Cinch Video Yes, 1× output Cinch Audio Yes, 6× output S-Video ( Y-C) Yes, 1× output Digital Audio out coaxial Yes, 1× Digital Audio out optical Yes, 1× progressive scan out Yes, 3xoutput Power Supply
11
Power voltage AC 110-240V 50/60 Hz Max. power consumption Approx. max. 10W Power switch Yes Power supply plug Yes
Yes
525 lines
12 Cabinet
Dimensions in cm (W× H ×D) net
Dimensions of carton in cm (W× H ×D)
13 Design
Design mirror-like front panel as per the sample provided by Hu-
Cabinet keys POWER ,PLAY, PAUSE, STOP, OPEN/CLOSE, PREV,
Logo ACCORDING TO REQUEST Label Model no. label and production serial number label will be
14 Remote Control
Type Batteries Yes, 2×R03P AAA (no mercury) IR code standard
Approx. 43.0×4.8×25.7
Aprrox. 47.1x10.8x36.8
alu
NEXT
sticked at rear panel
standard
15 Display
Type
VFD
Page 7
DVD - DivX Player - BSA3750
7
A
A
A
C
L
G
G
F
B
F
D
E
M
16 Packaging
1 set /carton ACCORDING TO REQUEST 54 cartons/ slip-sheet
17 Loadability
For 20’ Container For 40’ Container
1296 sets
2592 sets For 40 HC Container 2880 sets
18 Supplied Accessories
Euro-AV cable (Scart-cable) Yes Power cord Yes Remote control Yes Batteries Yes Instruction Manual ACCORDING TO REQUEST Warranty info Yes
19 Safely Conformity changed by request with payment
CE CE report is available for Hualu's model no.:DVD4360
Dissassembly Instructions
Fig. 1
Fig. 2
Page 8
DVD - DivX Player - BSA3750
8
J
Fig.3 Fig. 4
Fig. 5
1. Cabinet Upper Part
- Undo the 8 screws A (Fig. 1)
- Bend the upper part of the cabinet from the rear side (Fig. 1) off the base plate, and then detach the cabinet upper part from the unit.
2. Front Panel
- Undo the 2 screws J (Fig. 3)
- Undo the 2 screws F (Fig. 2)
- Undo the 2 locking lugs G (Fig. 2) and then remove the front panel.
- Unplug the connectors if necessary.
3. VFD Driver and Key Control Board Units
- Remove the front panel (Point 2)
- Undo the 4 screws I (Fig. 4)
- Remove the VFD Driver and Key Control Board units.
4. Power Supply Board
- Undo the 4 screws B (Fig. 2).
- Undo the 1 screw L (Fig. 1).
- Remove the Power Supply Board from the unit.
- Unplug the connectors if necessary.
5. Main Board
- Undo the 7 screws E (Fig. 2).
- Remove the main board.
- Unplug the connectors if necessary.
6. Output Board
- Undo the 2 screws M (Fig. 2)
- Undo the 4 screws C (Fig. 1).
- Remove the output board.
- Unplug the connectors if necessary.
7. Drive Mechanism
- Undo the 4 screws D (Fig. 2)
- Lift the drive mechanism at its back part, slide it to the rear, and then remove it.
- Unplug the connectors if necessary.
8. Opening the Tray of a Defective Unit
- Turn the toothed wheel H (Fig. 5) in direction of the arrow until the tray moves then pull out the tray completely.
- Remove the DVD/CD from the defective drive unit if necessary.
Page 9
DVD - DivX Player - BSA3750
9
2. Service and Special Functions
Software Upgrade
You can download the upgrade software “bank30.rom“ from Web using an Internet browser.
- Copy the “bank30.rom” on the drive of your PC.
- Create a software upgrade CD.
- Use only a new CD-R / CD-RW (not a erased one).
- Give the CD name of your choise (e.g. version and unit name).
- Burn the “bank30.rom“ on the CD-R / CD-RW.
- Insert the upgrade CD, the unit will be upgraded automatically.
- After upgrade, the disc tray will opened, remove the upgrade CD.
Attention: if a failure should occur during the software upgrade, it may happen that the
unit’s function and a restart of the upgrade function are no longer possible. If this should
be the case,
- Power off the unit with pressing ON/OFF button on the front panel (do not remove the upgrade
CD).
- During pressing still the NEXT button on the front panel, press down the ON/OFF button to power
on the unit, the unit will be upgraded automatically.
- After upgrade, the disc tray will opened, remove the upgrade CD.
Initialization of the Set
You can restore all the custom settings to the basic settings.
- Press SETUP button to open the main menu.
- Select the PREFERENCES line with 5or 6 and activate with OK button.
- Select the DEFAULTS line with 5or 6 and press OK button to confirm.
- Select the RESET with 4 and press OK button to reset the unit to its basic settings.
- Press SETUP to exit the menu.
3. Layout of Circuit Diagrams and PCBs
Main Board
Page 10
DVD - DivX Player - BSA3750
10
M29W800DT
32/64MBIT SDRAM
SERIAL EEPRO
M
reserved 5
0
4.25
114.75
121.
5
bypass
1
4.25
0
PLL0
108
0 1
162
1
11
NA
0
135
S-CHI
P
0
NA
3.75
PLL2
1
Frequency
0
4
148.
5
4
1
121.5
0
101.25
reserved
1 2 7bypass
0
6
DEFAULTPLL1
5.
5
DEFAULT
1
4.75
4.
501
MULTI
0
S-CHIP
114.75
1
1
128.25
108
3.
5
4.
5
NA
94.
5
0
0
PLL3
0
CLK SOURCE1CRSTAL OSC
DCLK INPUT
Vibratto-II
Y G
B
C
CVBS CVBS
YDAC
B
5DAC
U
S-VIDEO + RG
B
Y
CVBS
CDAC
U
VDAC
C
Y
CVBS + S-VIDEO
or
CVBS + YUV
CVBS
CVBS + RG
B
VIDEO OUTPUT TABLE
V
G
CVBS
R R
CVBS + YUV
V
UDAC
SLDC
DEFCT
SPDON
FLASHVCC
SLEGN
LA16
LA11
LA19
DB6
DB1
LD1
LA12
VCC33V
LA13
TESTAD
SCL
TWS
DOE#
MA8
MA1
LD6
LA
4
LA18
SCLK
LA6
DB12
MA2
MA6
LA3
SCSJ
LD1
LA1
MA5
MA11
MA4
LA17
LA
2
TR1
DB3
LD
0LA6
LA7LA19
LA14
RFO
SBAD
MA0
LA1
SDATA
FOCUS
LD5
LA15
LA10
DB14
DB10
DB5
MA7
LA0
LA
5
LA11
LA8
DIN
DSCK
VFD_CLK
MA10
LD5
LD2
LA10
SPINDLE
LD3
LA
5LA3
RAS2#
MA9
MA0
RAS0#
MA8
FEI
SDA
DQM
DB15
DB13
DB9
MA6
MA2
LOE#
LD
0
CAS#
RAS1#
MA10
LD7
RESET#
SVREF15
LA17
LA12
DB11
RESET#
LA
9
TRACK
LD
4
LA14
LA
9
TBCK
DWE#
MA5
LA7
VFD_CS
IR
DB8
MA3
DB4
DB0
LD3
LD7
LD6
LD2
LA
4LA2LA0
LA18
MA4
DB2
MA9
LD4
DA
TEI
CEI
VFD_DAT
CS0#
MA7
MA3
LCE#
LA
8
MA1
DB7
MA11
LA13
LA15
LA16
DIP
MIRR
LA13
DSCK
DMA3
WRLL#
LA4
DB15
RESET#
DEFCT
LD4
LCS3#
FDAC
1
SLDC
TR1
TBCK
LA0
LA3
LA6
LA10
LA11
LA17
DB1
DB
3
DB
0
DMA1
SPDIF
FDAC
1
DQM
TSD0
COMP
LD1
LD0
LCS2#
LA21
DB10
DB
6
TR2
RBCK
UDAC1
VS33_PL2
LOE#
LA7
DB8
XSDATA
TR2
SVREF15
LD7
LA15
DB12
DB
5
UDAC1
LA5
LA12
DB11
DMA1
0
TSD
1
TW
S
GNDV
RSET
VREF
VD33_PL1
RWS
LD3
VDAC
1
DCLK
TESTAD
LA14
DB14
YDAC1
SPDON
XSCSJ
LA2
LA18
LA19
DB13
DB
4
SVREF09
SVREF21
CDAC1
LD5
LA8
DB2
DMA9
SVREF15
CDAC1
VDAC1
LA1
DB9
XOUT
MCL
K
VCC33V
LA9
LA16
DB7
DMA8
XSCLK
TSD2
LD6
LD2
XIN
LA20
LA20
LA20
LCS3#
LCS2#
LCS3#
LOE#
WRLL#
LA21
YDAC1
AUX4
DMA4
DMA5
DMA6
DMA7
DMA0
DMA2
CAS#
CS0#
RAS0
#
RAS1
#
RAS2
#
DOE#
DWE#
DMA1
1
VFD_CLK
GNDIRVFD_DA
T
VFD_CS
WRLL#
SCARTCTL0
SCARTCTL0
RFGND
SPINDLE3
SDEFCT 3
SPDON 3
CD_DVDCT3
SLDC 3
FOCUS3
SVREF153
TRACK3
SLEGN3
MIRR3
TEI3
RFO3
CEI3
DIN3
FEI3
DIP3
SBAD3
SCSJ3
SDATA3
SCLK3
INSW3
HOMESW3
CLOSE3
OUTSW3
OPEN3
UDAC
CDAC
YDAC
VDAC
FDAC
SPDIF
TBCK
MCLK
TSD2
TSD1
TSD0
TWS
IRDL
SCARTCTL2
MOCTL
RESET#
SCARTCTL1
STANDBY
ZERO13
led3
AUX4
led4
PLL33V
RF33V
VCC33
VCC
GND
VCC33
GND
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
VCCV
GND
GND
GND
GND
VCC
VCCV
GND
VCC
GNDV
GND
VCC20
VCC33V
RFGND
RFGND
RFGND
VCC33
GND
VCC
GND
PLLGND
RFGND
VCC20
GNDV
VCC
GND
VCC33
VCC33
VCC33
VCC33
VCC
FLASHVCC
GND
GND
GND
GNDV
GNDV
GND
GND
GNDV
GNDV
GND
GND
GNDV
GND
R10
4.7K
L1 1.8UH
RR16 10K
TP14LA5
RR24 6.8K
CC11
4700P
RR13 33K
CC37
33P
TP15LA6
CC17
6800P
CC20
1U
C2
330PF
TP34LCS3#
U1
ES66x8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
VD33
XIN
XOUT
DCL
K
DMA0
DMA1
DMA2
DMA3
VS33
VD33
DMA4
DMA5
DMA6
DMA7
DMA8
DMA9
DMA1
0
VS33
VD33
DMA1
1
DCAS
DCS0
DCS1
DRAS0
DBANK0/ DRAS1
VSS
VDD
DBANK1/ DRAS2
DCKE/DOE/TDMTSC
DWE
DB0
DB
1
DB
2
VS33
VD33
DB
3
DB
4
DB
5
DB6
DB
7
DB15
DB14
VS33
VD33
DB13
DB12
DB11
DB10
DB
9
DB
8
DSCK
VS33
VD33
DQM
LA21
LA20
LA19
LA18
LA17
LA16
VS33
VD33
LA15
LA14
LA13
LA12
LA11
LA10
LA9
VS
S
VDD
LA8
LA7
LA6
LA5
LA4
LA3
VS33
VD33
LA2
LA1
LA0
LCS0
LCS1
LCS2
VSS
VD
D
LCS3
LWRLL
LOE
LD0
LD1
LD2
LD3
VS33
VD33
LD4
LD5
LD6
LD7
RSD/TDMDR
RBCK/TDMCLK
RWS/TDMF
S
VD33_PLL
VS33_PL
YUV1/VREF
YUV3/COMP YUV4/RSET YUV7/FDAC YUV6/VDAC
VD33_D
A
VS33_DA
YUV5/YDAC YUV2/CDAC YUV0/UDAC
TWS/SEL_PLL2
TSD0/SEL_PLL0
TSD1/SEL_PLL1 VS33 TSD
2
TSD
3
MCL
K
TBC
K
SPDIF/SEL_PLL3
SPDIFIN VD33 VS33
XSWBLCLK
XSWBL
XSLG
XSIP2 XSIP1
XSFLAG[0] XSFLAG[1] XSFLAG[2]
XSFLAG[3] VSS VDD
XSTEXI
XSTESTAD
XSSBAD
XSFEI
AVSS_AD
XSCEI
XSTEI
XSRFR
P
AVDD3_A
D
XSVREF[21] XSVREF[09] XSVREF[15]
XSIREF
AVDD3_D
S
XSIPIN XSRFIN XSRFIP
XSDSSLV
AVSS_DS
AVSS_PL
XSPDOFTR1
XSFDO
XSFTROPI
AVDD3_PL
XSPLLFTR1
XSPLLFTR2
XSVREF0
XSAWRC
AVSS_DA
XSRFRPCTR
XSTRAY
AVDD3_D
A
XSSPINDLE
XSFOCUS
XSSLEG
P
XSSLEGNXSTRACK
XSTESTDA
XSFGIN
XSPHO
I
SXCSJ
XSDATA
XSCLK
XSDFCT
XSLDC
XSSPDO
N
VD33
VS33
XGPIO[9]
XGPIO[8]
XGPIO[7]
XGPIO[6]
XGPIO[5]
XGPIO[4]
EAUX03
EAUX02
EAUX01
EAUX00
VSS
VDD
AUX0
AUX1
AUX2/ HSYNC
AUX3/ VSYNC
AUX4
AUX5
AUX6
AUX7
RESET
VS33
CC3
1000P
L3 1.8UH
CC31
0.015U
CC10
1U
R6
4.7K
C14
27PF
CC30
560P
TP16LA7
CC23
560P
RR2 3.3K
C8 0.1U
C11
330PF
R41 33
RR3 3.3K
TP17LA8
R16
75 OHM
C86
15PF
CC2
1000P
U7 EM6353
1
2
3
RESET
VCC
GND
TP1 LD0
CC32
0.015U
CC27
0.1U
C1
330PF
C12
330P
F
R14 0 OHM
U3
24C01A/24C02
1
2
3
4
5
6
7
8
S0S1S2
GND SDA
SCL
WC
VCC
CC5
0.1U
R39 33
TP19LA10
D1
BAT54S
3
1
2
R200
4.7k(open)
C5
330PF
CC24
0.1U
R38 33
TP23LA14
R5
75 OHM
R12
75 OHM
R37 33
RR5 10K
TP25LA16
R49 33
RR17 5.1K
R36 33
TP21LA12
Y1
27M
RR6 68K
RR20 6.8K
C6
330P
F
TP27LA18
CC14
0.1U
CC7
C
JJ6
HDR9-100
123456789
R1
OPEN
R25 OPEN
CC21
0.047U
R17 open
CC8 4.7U
CC33
560P
CC4
1000P
R2
OPEN
R48 0(OPEN)
R7
4.7K
RR28 33
CC28
0.015U
R33 0
R27 0
CC25
47P
CC18
C
R34 0
R28 0R
CC26
0.1U
R3
OPE
N
TP18LA9
RN4
10x
4
1
8
2
7
3
6
4
5
RR27 33
TP22LA13
RN5
10x
4
1
8
2
7
3
6
4
5
CC36
33P
TP24LA15
CC19
C
R30 33
TP20LA11
R4
OPEN
CC12
1U
L4 1.8UH
R31 33
TP26LA17
C15
1000PF(OPEN)
TP5 LD4
CC22
0.1U
R19 0 OHM
R24
1K
R20 0 OHM
FB1
FERB
U5
4Mx16 SDRAM (9ns)
1
2
4
6
5
7
3
8
10
12
11
13
9
15
16
17
18
19
35
22
23
24
25
26
14
28
29
30
31
32
33
34
36
37
38
39
40
43
42
44
46
45
47
49
48
50
52
51
53
41
20
21
27
54
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
VCCQ
DQML
WE
CAS
RAS
CS
A11
A10
A0A1A2
A3
VCC
VSS
A4A5A6A7A8
A9
NC
CKE
CLK
DQMH
NC
VCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
VSSQ
DQ14
DQ15
VSS
BA0
BA1
VCC
VSS
TP6 LD5
RR26 33
CC35
33P
U6 V6300(open)
1
2
3
4
5
NC
GND
NC RES
VDD
R22 0
RR12 R
L2 1.8UH
R13 390
TP7 LD6
RR8 1K
C9
330PF
RR14 1.2K
R8
4.7K
R32 OPEN
R15
75 OHM
TP33LOE#
RN3
10x
4
1
8
2
7
3
6
4
5
TP8 LD7
RR4 3.3K
TP29LA20
R47 100K
C10
330P
F
FB2
FER
B
RR23 5.1K
TP2 LD1
TP31RESET#
TP9 LA0
CC9
C
R23
1K
TP3 LD2
D5
BAT54S
3
1
2
CC16
C
C3
330PF
RN2 10x4
1
8
2
7
3
6
4
5
TP10LA1
R35 4.7K
RR1 3.3K
R18 0
R11
75 OHM
RN1 10x4
1
8
2
7
3
6
4
5
CC1
1000P
TP4 LD3
C13
27PF
U2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
A15
A14
A13
A12
A11
A10A9A8NCNC
W
RP
VPP
DU/WP
NCNCA1
7
A7A6A5A4A3A2A1 A0
E
GND
G
DQ0
DQ8DQ1DQ9DQ
2
DQ10
DQ
3
DQ11
VC
C
DQ
4
DQ12
DQ
5
DQ13
DQ
6
DQ14
DQ
7
DQ15/A_1
GN
D
BYTE
A16
C4
330P
F
RR7 20K
C7 0.1U
TP11LA2
D4
BAT54S
3
1
2
TP32WRLL#
R29 OPEN
R26 OPEN
TP28LA19
TP12LA3
TP30LA21
FB3
3.3UH(OPEN
)
RR21 6.8K
D3
BAT54S
3
1
2
CC13
0.1U
TP13LA4
CC6
4700P
RR25 6.8K
R9
4.7K
L5 1.8UH
D2
BAT54S
3
1
2
Main Board (M1)
Page 11
DVD - DivX Player - BSA3750
11
TRACK+
MVCC
SLED+
SLED-
LOAD+/DCMO
+
TRACK-
LOAD-/DCMO
-
MGND
FOCUS
+
FOCUS-
FOCUS
- TRACK-
RF50V
SBA
SVREF15
SCLK
CDMDI
SCSJ
PVC
F
CE
RF50V
FE
E
SDATA
DVDMDI
TE
DVD-D
DVD-B
DVD-A
CDLDO
RF50V
CDLD
DVDLD
DVDLDO
RFGN
D
RF50V
RF50V
LINK
MEVO
LOAD+/DCMO
+
CLOSE
DCLOAD+
SVREF15
MGND
LOAD-/DCMO-
DCLOAD-
RFGN
D
MVCC
MVCC
CD_DVDC
T
RF50V
TRACK+
E
CD_DVD
TRACK-
VR_DV
D
DVD-B
F
CDLDO
DVD-A
FOCUS-
DVDMDI
VR_DVD
VR_C
D
CDMDI
PVC
DVD-C
DVDRF
DVD-D
VR_C
D
DVDLDO
CD_DVD
FOCUS+
DVD-C
DVDRF
LOAD-/DCMO-
SLED-
SLED+
DCLOAD
+
DCLOAD
-
LOAD+/DCMO+
SLEGN2
TRACK 2
FOCUS2
SDATA 2
DIN 2
MIRR 2
SCSJ 2
SLDC 2
SCLK 2
SDEFCT 2
DIP 2
RFO 2
TEI 2
FEI 2
CEI 2
SBAD 2
MOCTL
SPINDLE 2
SVREF152
CLOSE 2
OPEN2
SPDON2
RESET#
CD_DVDCT2
HOMESW 2
OUTSW 2
INSW 2
RF33V
RF50V
RF50V
RF50V
RF50V
RFGND
RFGND
RFGND
RFGND
RFGND
RFGND
MGND
MGND
MGND
MGND
MGND
MGND
MGND
MGND
RFGND
MVCC
MVCC
MVCC
MVCC
VCC
GND
MGND
RFGND
RFGND
RFGND
RFGND
RF50V
RF50V
RFGND
MGND
MGND
MGND
MVCC
QQ7
2SK3018
2
3
1
CC39
0.1U
CC58
0.22U
CC49
0.1U
CC45
0.01U
QQ5
2SK3018
2
3
1
JJ4
2.0MM
1
2
3
4
5
6
12345
6
CC64
100U/16V
RR47 12K
RR46
33
RR49 3.3K
CC70
0.1U
LL2 FB (0805)
CC68
4700P
UU1
ES6603
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
DVDFR
P
DVDRFN
A2B2C2D2CPCNDCBACD_D
CD_C
CD_B
CD_A
CD_F
CD_
E
VPB
VC
DVDLD
CDLD
DVDPD
CDPD
VNB
LDON
MIRR
MP
MB
MLPF
MI
N
MEVO
RFDC
RFSI
N
ATO
P
ATO
N
AIN
AIP
VPA
RFAC
BYP
DI
N
DI
P
FNP
FNN
VNA
ME
V
RX
SDEN
SDATA
SCLK
V33
LCP
LC
N
MNTR
CE
FE
TE
PI
V25
V125
TP
H
DFT
LINK
RR41 33K
CC56
0.1U
CC75
0.1U
RR38 R
RR50
1K
RR29 12K(1%)
RR35 0
CC44
0.1U
QQ2
2SB1132
1
3
2
CC65
100P
TP37
LINK-
CC85
0.1U
LL1 FB (0805)
QQ6
2N3904
2
1
3
RR59 1(0805)
CC29
0.1UF
CC41
470P
RR62 1(0805)
RR60 1(0805)
CN1
SANYO-DV3
4
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
LD-GND
DVD-LD
(N.C.)
HFM-Vcc
MP
D
CD-LD
DVD-VR
CD-VR
(N.C.)
E
Vcc
Vc(Vref)
GND
F
B
A
RF
CD/DVD SW
D
C
T-
T+
F+
F-
RR42 10K
CC40
0.1U
CC52
680P
RR71
OPE
N
RR36 1K
RR43 47K
CC60
160P
CC72
0.1U
+
CC73
100U/10V
CC47
820P
RR68
R
CC67
100
P
DD1 IN4148
1
RR45 33K
RR48 47K
CC51
680P
CC76
C
UU2
BA5954FP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
29
30
VINFC
CFCERR
1
CFCERR2VINSL+
VINSL-
VOSL
VNFFC
VC
C
PVCC1
PGND
VOSL
-
VOSL+VOFC-
VOFC+
STBY
BIA
S
VINT
K
CTKERR1
CTKERR2
VINL
D
PREGND
PVCC
2
VNFTK
PGND
VOLD-
VOLD
+
VOTK-
VOTK+
GND
GND
CC63
100U/16V
RR15
18K
RR61 1(0805)
CC48
100U/16V
CC66
1000P
RR67
4.7K
CC62
0.01U
CC54
680P
RR72
22K
TP35
MNTR
RR40 10
RR70
1.5K
RR10
10K
CC61
33000P
CC57
0.1U
+
-
UU3B
TL3472
5
6
7
8
4
CC50
680P
CC59
1000P
RR69
10K
QQ8
2N3904
2
1
3
QQ1
2SB1132
1
3
2
RR66
22K
DD2
IN4148
1
RR64
1.5K
DD3 IN4148
1
RR63
10K
LL3 FB
1
2
JJ3
2.0MM
1
2
3
4
5
12345
RR65 1M
CC46
0.1U
RR9 10K
CC55
100P
RR73 0
CC53
0.047U
CC15
4700P
RR39 10
CC42
0.1U
TP38
MIRR
UU4
BA6287F ROHM
1
2
3
4
5
6
7
8
OUT
1
VM
VCC
FIN RI
N
VREF
OUT2
GND
RR11
100K
CC38
0.1U
CC43
470P
TP36
DEFCT
CC77
0.1U
Main Board (M2)
Page 12
DVD - DivX Player - BSA3750
12
A
A
B
B
C
C
D
D
E
E
4
4
3
3
2
2
1
1
SDRAM
WM8746/da1196
WM8720(wm8726/da1132)
'normal_intlev = 1'
ES60x8
24C0
1
open
open
open
TWS
TBCK
MCLK-
TSD0-
TSD0-
TWS
TSD2
TSD1
MCLK-
L
TBCK
R
ZERO
1
3.3VB
KAR
L
R
AVCM
MCLK-
TBCK
TWS
TSD0-
ZERO
TBCK
TWS
TSD0
MCLK
AOUT2L
AOUT1L
AOUT0L
ZERO
TSD2
AOUT2R
AOUT1R
AOUT0R
TSD1
KAR
ZERO1
VCCA
VCCA
VCC33V
GND
VCC33
VCC33
RF50V
MVCC
PLL33V
RF33V
RFGND
GNDA
GNDA
GND
VCC
VCC
GNDA
-12V
VCC
VCCA
VCCA
GND
VCC20
VCC33
VCC33
VCC33
GND
VCC20
GND
GND
VCC
GND
VCC
FLASHVCC
GNDA
VCC
VCCA
GND
+12V
GNDA
VCC33
-12V
GNDA
+12V
VCCA
VCCA
C27
0.1UF(open)
B27
47UF
B33
0.1UF
B48
0.1UF(open)
R205
33(open)
R204
33
B41
0.1UF
L10
FB
1
2
B40
0.1UF
B49
0.1UF(open)
B23
0.1UF
CC83
1U
L8
FB
1
2
B14
0.1UF
R202 33(OPEN)
B16
0.1UF
B19
0.1UF
R203 33
B30
0.1UF
B34
0.1UF
B12
10UF
JP2
HEADER 6(open)
12345
6
Q20
8050
2
1
3
B36
10UF
B4
0.1UF
B21
0.1UF
Q2
AMS1117(open)
3
2
1
IN OUT
ADJ
C18 10UF(open)
B2
100UF
B39
0.1UF
C28
10UF(open)
B50
0.1UF(open)
B11
0.1UF
B20
0.1UF
L6
FB
1
2
B56
0.1UF
C21 10UF(open)
CC80
100U/16V
R69
412(1%)(open)
B31
0.1UF
C16 10UF
CC82
100U/25V
B6
0.1UF
B35
0.1UF
B42
0.1UF
B38
0.1UF
B26
100UF
U8
WM8728
3
7
1
18
17
16
6
4
8
9
14
11
12
20
15
19
2
5
10
13
BCKIN
DVDD
LRCIN
SDIDEM
MUTEB
MODE
DGND
MCLK
VOUTR
AGND
VREFP
VOUTL
VMID
LATI2S
CSBIWL
SCKDSD
DIN
ZER0
AVDD
VREFN
R70
250(1%)(open)
B29
0.1UF
B57
10UF
LL5
FB
1
2
LL4
FB
1
2
C90
27PF
B17
0.1UF
CC78
100U/16V
B8
0.1UF
CC81
1U
C22
10UF
Q21
8050
2
1
3
B43
0.1UF
B55
0.1UF
C23
0.1UF
R206 4.7k
FB4
FB
1
2
B15
0.1UF
B54
10UF(open)
C91
27PF
R61 33 OHM(open)
L7
FB
1
2
B9
0.1UF
B7
0.1UF
Q1
2SC3327(open)
1
2
3
R60 33 OHM(open)
B25
10UF
R54 10K(open)
R53 33 OHM
JJ7
HEAD12-100
123456789
101112
U9
DA1196/WM8746(open)
1
11
12
13
14
9
8
10
2
3
4
5
6
7
15
28
20
24
26
22
18
27
25
23
21
19
17
16
DVDD
DGND
LATCH/12S
SCLK/IWL
SDIN/DM0
MUTE
MODE
LRCLK2
MCLK
BCLK
LRCLK
DIN0
DIN1
DIN2
AVDD1
AVDD2
AGND1
AGND2
GR0
GR1
GR2
OUT0R
OUT0L
OUT1R
OUT1L
OUT2R
OUT2L
CAP
C89
0.1UF
C17 10UF
B22
0.1UF
C88
0.1UF
B24
10UF
B18
0.1UF
C87
10UF
B53
10UF
R52 33 OHM
B37
0.1UF
B13
0.1UF
C25 10UF(open)
L9
FB (0805)
1
2
B44
10UF(open)
LL6
FB
1
2
B10
10UF
B28
0.1UF
C19 10UF(open)
B32
0.1UF
B51
0.1UF(open)
Main Board (M3)
Page 13
DVD - DivX Player - BSA3750
13
A
A
B
B
C
C
D
D
E
E
4
4
3
3
2
2
1
1
6V------AV 16:9
12V------AV 4:3
0V------CVBS
3V------RGB
0V------TV
open
QUIET
COAX
C_OUT
QUIET
Ls_OUT
Rs_OUT
QUIET
QUIET
QUIET
LFE_OUT
QUIET
SCARTCTL1
LED3
BLANK
SWITCH
SCARTCTL2
RS
LS
SUB
CC
FR
FL
QUIET
GND
RS
GND
CVBS
COAX
GND
GND
SUB
GND
UDAC
GND
CC
VCC
GND
BLANK
SWITCH
CDAC
YDAC
GND
OP
FLLSFR
GND
OP
AUX4
AOUT2L
AOUT0R
AOUT1L
LED4
KAR
AOUT0L
AOUT2R
SPDIF
AOUT1R
KAR
STANDBY
RESET#
ZERO
SCARTCTL2
LED3
SCARTCTL1
FDAC
CDAC
VDAC
YDAC
UDAC
IRDL
AUX4
GNDA
GNDA
-12VA
GNDA
GNDA
-12VA
GNDA
-12VA
GNDA
GNDA
GNDA
GNDA
GNDA
VCC
GNDA
-12VA
GNDA
+12VA
GNDA
GNDA
GNDA
+12VA
GNDA
GNDA
VCC33
-12VA
GNDA
+12VA
-12VA
GNDA
GNDA
GNDA
-12VA
GNDA
GNDA
GNDA
GNDA
+12VA
+12VA
GNDA
-12VA
+12VA
GNDA
+12VA
GND
GNDA
GNDA
GNDA
GND
GND
VCC
+12V
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
-12VA
GNDA
VCC33
GNDA
+12V
+12VA
GNDA
-12VA
-12V
VCCA
GND
GND
VCC
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GND
GND
GND
VCC33
GND
GND
VCC33
GND
C46
150PF(open)
R87
11K(open)
1
R108
11K(open)
1
D26
IN4148(open)
1
R131 10(open)
Q35
8550(open)
2
1
3
C49
0.1UF
C62
22PF(open)
R140 18K
1
R130
0 OHM
1
R125
470(open)
C81
22PF
R77
1K(open)
1
V+
V-
U14-2
OPA2134UA(open)
5
6
7
8
4
R85
100K(open)
1
R422
33 OHM(open)
R71
1K(open)
1
R201
4.7K(open)
1
Q18
3904
1
2
3
R114 10(open)
C82
22PF
C72
10UF
C61
10UF
R127
1K(open)
R102
68 OHM
1
R96
0 OHM(open)
1
U13B
7404
3
4
R84
47
1
R414
1M2(open)
C83
22PF(open)
R90 18K(open)
1
R91
2K
1
C54
1000PF(open)
C39
1000PF(open)
C52
22PF(open)
D11 IN4148
1
Q8
2N3906
1
2
3
D10
IN4148
1
R98
100K(open)
1
C73
10UF(open)
Q17
2SC3326
1
2
3
R75
11K(open)
1
R94
100K
1
R132 10K(open)
1
C77 150PF
R103
1K(open)
1
D12 IN4148
1
R92
33 OHM
1
C69
10UF(open)
C68
10UF(open)
V+
V-
U15-1
OPA2134UA
3
2
1
8
4
R72
0 OHM(open)
1
C37
220uF/16V
1
C58
0.1UF(open)
V+
V-
U15-2
OPA2134UA
5
6
7
8
4
U13F
7404
13
12
C41
0.1UF
C36
22PF(open)
R74
150
1
Q4
2SC3327(open)
1
2
3
C44
22PF(open)
U13D
7404
9
8
R79
150
1
C74
22PF
C66
0.1UF(open)
R109 3.3K(open)
1
R139
1K
1
C78 1000PF
C70
10UF
C51
22PF(open)
R101 3.3K(open)
1
R88 3.3K(open)
1
Q10
2SC3327(open)
1
2
3
C67
0.1UF(open)
R121 3.3K
1
C32
10UF(open)
V+
V-
U12-1
OPA2134UA(open)
3
2
1
8
4
Q13
3906
1
2
3
R83 1M
1
V+
V-
U12-2
OPA2134UA(open)
5
6
7
8
4
R106
0 OHM(open)
1
Q3 8050
1
2
3
R138 3.3K
1
R100
11K(open)
1
R73
100K(open)
1
R116
100K
1
Q33
2N3904(open)
2
1
3
R89
1K(open)
1
R129
1K
1
C63
22PF(open)
C50
10UF(open)
Q34
2N3904(open)
2
1
3
C64 150PF(open)
C40
220uF/16V
1
R117
100K(open)
R81
1K(open)
1
R135
100K(open)
C59
10UF(open)
R76 3.3K(open)
1
Q19
3904
1
2
3
R105
1K(open)
1
C34
0.1UF
R122
1K
1
R80
10M
1
C80
10UF(open)
R141 1K
1
R104 18K(open)
1
C84
150PF
R126 1K
1
C47
220uF/16V
1
C85 1000PF
U13E
7404
11
10
R142 1K
1
C71
1000PF(open)
C60
10UF(open)
Q12
2SC3326
1
2
3
R124 1K
1
Q15
3904
1
2
3
V+
V-
U14-1
OPA2134UA(open)
3
2
1
8
4
R86
100K
1
R82
0 OHM(open)
1
R136
2.2K
1
R93
91 OHM
1
R113
0 OHM
1
C48
1000PF(open)
R133
2.2K
1
R95
1K(open)
1
R128
470(open)
JJ1
20PIN
1234567891011121314151617181920212223242526272829
30
Q16
9014(open)
1
2
3
R118
2.2K
1
R115 10K9open)
1
C65
0.1UF
C45
22PF(open)
C42
470uF/25V
1
R119
75
1
R110
1K(open)
1
C75
22PF
C55
10UF(open)
C43
10UF(open)
U13A
7404
1
2
R78 18K(open)
1
Q5 8550
1
2
3
C57
0.1UF(open)
R123 18K
1
R134
100K
1
C53
150PF(open)
R97
150
1
R415
100K(open)
Q6
2SC3327(open)
1
2
3
C38
150PF(open)
C79
10UF
R416
1OK(open)
C76
22PF(open)
C56
0.1UF
R137 11K
1
R417
10K(open)
R120 11K
1
R111 18K(open)
1
R418
10K(open)
C33
10UF
1
Q14
9014(open)
1
2
3
Q11
2SC3327(open)
1
2
3
R112
1K
1
Q7
2N3906
1
2
3
C273
39NF(open)
C35
22PF(open)
R99
2K
1
Q9
2N3906
1
2
3
U13C
7404
5
6
R107
100K(open)
1
C274
1NF(open)
Main Board (M4)
Page 14
DVD - DivX Player - BSA3750
14
Main Board
View of Component Side
Page 15
DVD - DivX Player - BSA3750
15
1 2 3 4 5 6 7 8
A
B
C
D
87654321
D
C
B
A
1 2
CON602
POWER S
W
1 2
CON601
AC INPUT
FUSE601
T1.6AL/250
V
C602
0.1u/250V
C6010.1u/250V
F601
LC20-001
D601 1N4001
D603 1N4001
D604 1N4001
D602 1N4001
D608 FR10
7
R612 120K/1
W
R603
3.3M(OPEN)
C607
472/1KV(OPEN
)
+
C603
68uF
/400V
C608
472/1KV
R610
4.7K
R609
6.8K
R602
56K(OPEN)
R611 1K
C606 100nF
C605
470P
C604
560P(OPEN)
Q601
BC337-40(OPEN
)
+
C610 10uF/50V
+
C609 10uF/50V
R6041R6051R606
1(OPEN)
R601 75
K
D607 FR10
4
D605 FR10
4
R608 22K
D606
BZX79C16V
D617
FR10
4
D616
FR107
D615
FR107
D613
FR107
D610
IN5822
+
C61
7
220uF
/25V
+
C621 100uF/50
V
+
C616
220uF/25V
+
C620 220u/25V
+
C61
8
220uF
/25V
+
C62
5
220uF
/25V
+
C614
2200uF/16V
+
C627
1000uF
/16V
L603
5.6u
L605
5.6
u
L602
10u
R617 1K
R616
5.6
K
R615
5.1
K
R607
10
0
D619
BZX79C9V
1
R619 33K
U603 TL43
1
C611 100nF
REG
4
RC
3
GND
2
VCC
1
Drain
8
Source
6
AUX
5
U601
TEA1523
P
U602
PC817
CY603
222/2KV
CY601 102(open)
CY602 102(open)
D614
FR157(open)
L604
5.6u(open)
D618
RL20
5
D620
RL205
+
C62
2
470uF/25V
+
C619 470uF/25V(open)
+
C62
4
470uF/25V(open
)
+
C615
2.2u/50V(open)
D612
FR107(open)
T601
0
D611
FR104(OPEN)
Q602
BC337-40(open)
Q604 BC337-40(open
)
Q603 BC327-40(open)
R618
3.3K(open)
R620
470(open)
R621
33K(open)
+
C623
470uF/25V(open)
1 2 3 4 5 6 7 8 9 10 11 12
JS601
12 HEADE
R
1 2 3 4 5 6
JS602
HEADER 6
+12
v
-12v GNDA VCCA
GN
D
GN
D
3.3V SVCC SGND
+9V
MGND
VC
C
PSB 5VSB GN
D
FL
-
FL
+
VE
E
j601
0 ohm
cadd601 560P(open)
j602
0 OH
M
!
!
Component_1
!
!
!
!
!
! !
!
!
C630
100NF(open)
C631 220nF
R630 10K
CY604
0 OH
M
R631
10 OH
M
ZX601
ope
n
X602
X601
Power Supply Board
Power Supply Board
View of component Side
Page 16
DVD - DivX Player - BSA3750
16
5
5
4
4
3
3
2
2
1
1
D
D
C
C
B B
A A
C717 1NF
FB721
FERB
C718 1NF
C720 22PF
C716 1NF
C719 1NF
C714 22PF
FB706
FERB
J703
AUDIO
1
2 3
4
5 6
7
8
9
GND SUB-WOOFER CENTER GND R-SURROUND L-SURROUND GND R L
FB703
FERB
C712 1NF
C715
0.1UF
C711 1NF
FB715
FERB
C706 100PF
C709 22PF
C710 22PF(open)
FB707
FERB
FB717
FERB
C708 100PF
FB713
FERB
FB704
FERB
C703 100PF
FB714
FERB
C71322PF
FB705
FERB
FB719
FERB
C704 1NF
C705 1NF
JS701
20pin
1
2
3
4 5
6
7
8 9
10
11 12
13
14
15 16
17
18 19
20
21
22 23
24
25 26
27
28
SUB GND
CC
GND
RS
GND
LS
GND
FR
GND
FL
GND CVBS YDAC CDAC UDAC
GND
VCC COAX
OP
GND UDAC YDAC CDAC
GND
SWITCH
BLANK
FDAC
J701
CVBS+SVIDEO
1
2
3
4 5
6
7
8
9
GND GND GND
Y C
GND
CVBS
GND GND
FB718
FERB
J705
FIBER
1
2
3
VIN
VCC
GND
FB702
FERB
J702
SCART
1
2 3
4
5 6
7
8
9
10
11
12
13 14
15
16 17
18
19
20 21
AOR AIR AOL AGND BGND AIL B SWITCH GGND CLKOUT G DATA RGND DATAGND R BLANK VGND BLANKGND VOUT VIN SHIELD
FB720
FERB
J704
VIDEO+COAX
1
2
3
4 5
8
GND SIG GND Pr Pb Y
FB709
FERB
C707
22PF(open)
C702 22PF
W703
FERB
FB716
FERB
C701
220UF/16V
R701
4 OHM
1
2

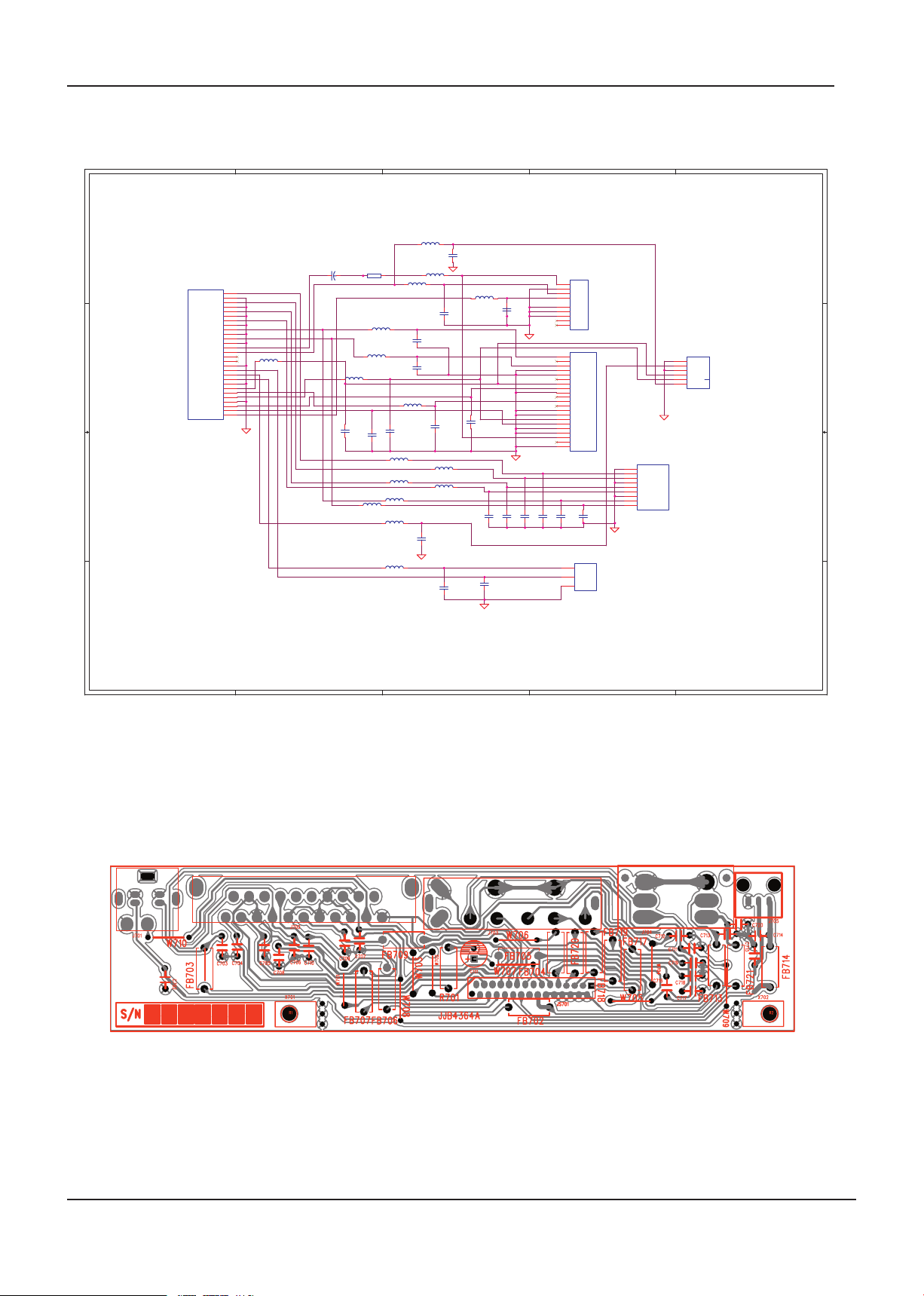

Output Board
Output Board
View of Component Side
Page 17
DVD - DivX Player - BSA3750
17
1
2
3
4
5
A
B
C
D
6
5
4
3
2
1
D
C
B
A
F1
1
F1
2
NP
3
1G
4
2G
5
3G
6
4G
7
5G
8
NC
9
NC
10
NC
11
NC
12
NC
13
P1
14
P2
15
P3
16
P4
17
P5
18
P6
19
P7
20
P8
21
P9
22
P10
23
P11
24
P12
25
P13
26
P14
27
P15
28
P16
29
NC
30
F2
31
F2
32
U501 VFD_0504
OUT
1
GND
2
Vs
3
GND
4
GND
5
U502 IR_1
SW1
1
SW2
2
SW3
3
SW4
4
DOUT
5
DIN
6
VSS1
7
CLK
8
STB
9
KEY1
10
KEY2
11
KEY3
12
KEY4
13
VDD1
14
SEG1/KS1
15
SEG2/KS2
16
SEG3/KS3
17
SEG4/KS4
18
SEG5/KS5
19
SEG6/KS6
20
SEG7
21
SEG8
22
SEG9
23
SEG10
24
SEG11
25
SEG12/GRID11
26
VEE
27
SEG13/GRID10
28
SEG14/GRID9
29
SEG15/GRID8
30
SEG16/GRID7
31
GRID6
32
GRID5
33
GRID4
34
GRID3
35
GRID2
36
GRID1
37
VDD2
38
LED4
39
LED3
40
LED2
41
LED1
42
VSS2
43
OSC
44
U503
UPD16312
R502 47K
R501
10R
R508 10K
R507 10K
+
E501 16V100uF
+
E502
6.3V47uF
C502
0.1uF
D502 1N4148
D503 1N4148
D504 1N4148
R504
4.7K
R505
4.7K
R506
4.7K
SW501
STO
P
SW502
PREV
SW503
NEXT
SW506
OPEN/CLOSE
SW505
PLAY
SW504
PAUS
E
VCC
F1F2
VEE
VCC
VCC
IR
STB
CL
K
Din/out
KS1
KS
2
KS
3
KS1
KS
2
KS3
D501
LED(OPEN
)
R503 470R(OPEN)
VCC
R510 10
K
R509 10K
R511 10K(OPEN)
LED3
DIN/OUT ST
B
GN
D
CL
K
VC
C
GN
D
VE
E
F1
F2
IR
1
2
3
4
5
6
JP50
2
6PIN
1
2
3
4
5
6
7
JP50
1
7PIN
LED3
6

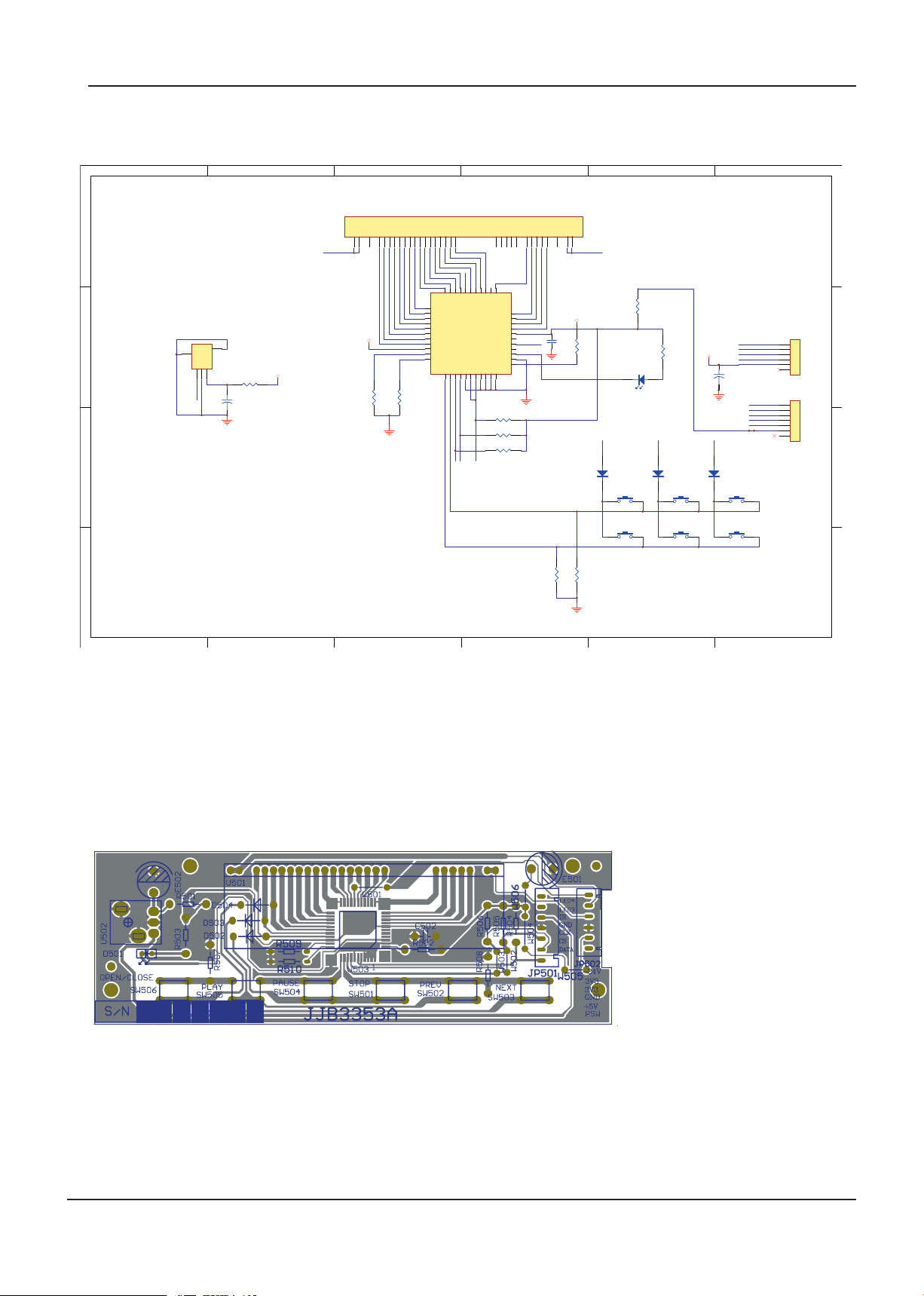

Key Control and VFD Driver Board
Key Control and VFD Driver Board
View of Component Side
Page 18
DVD - DivX Player - BSA3750
18

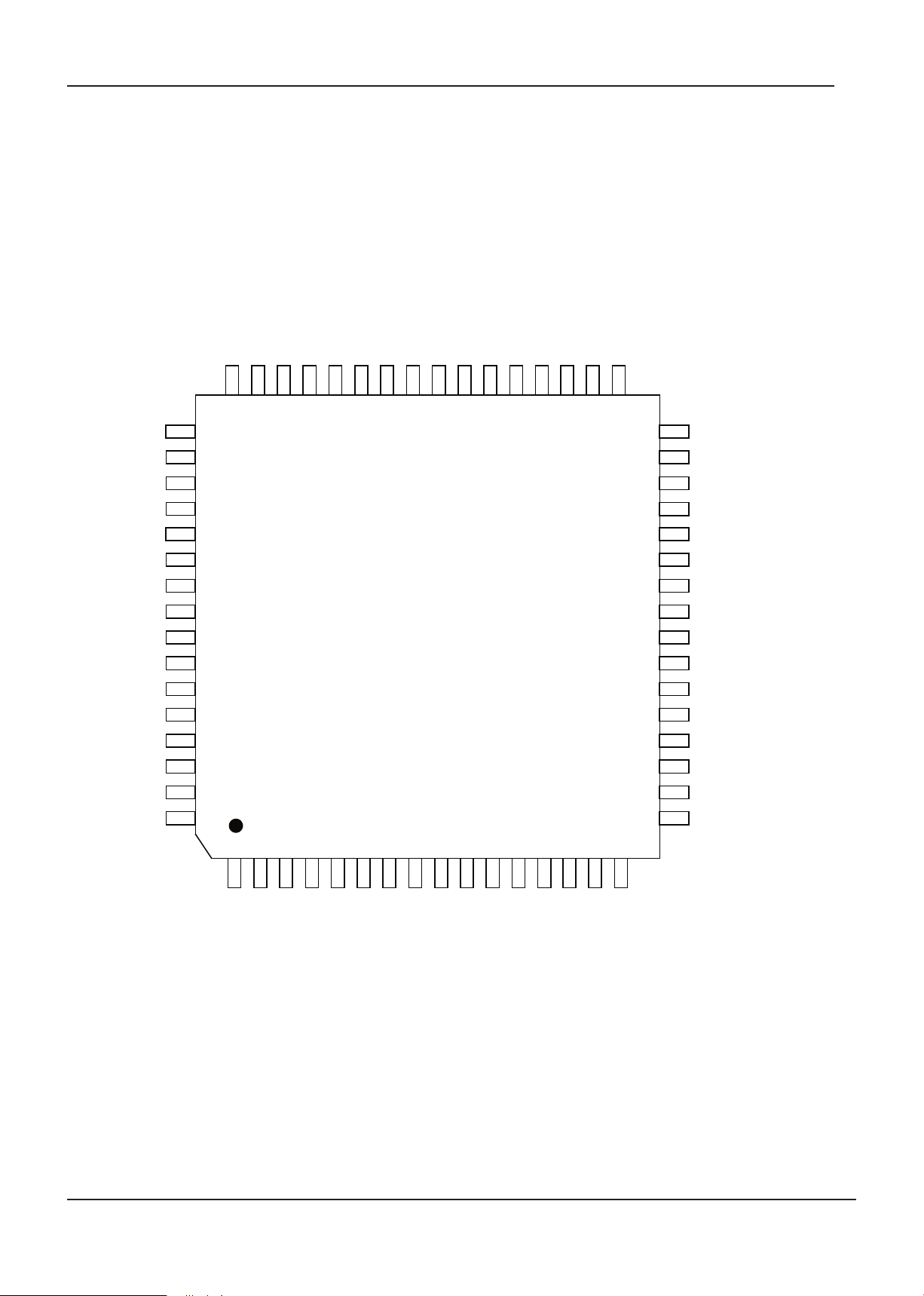

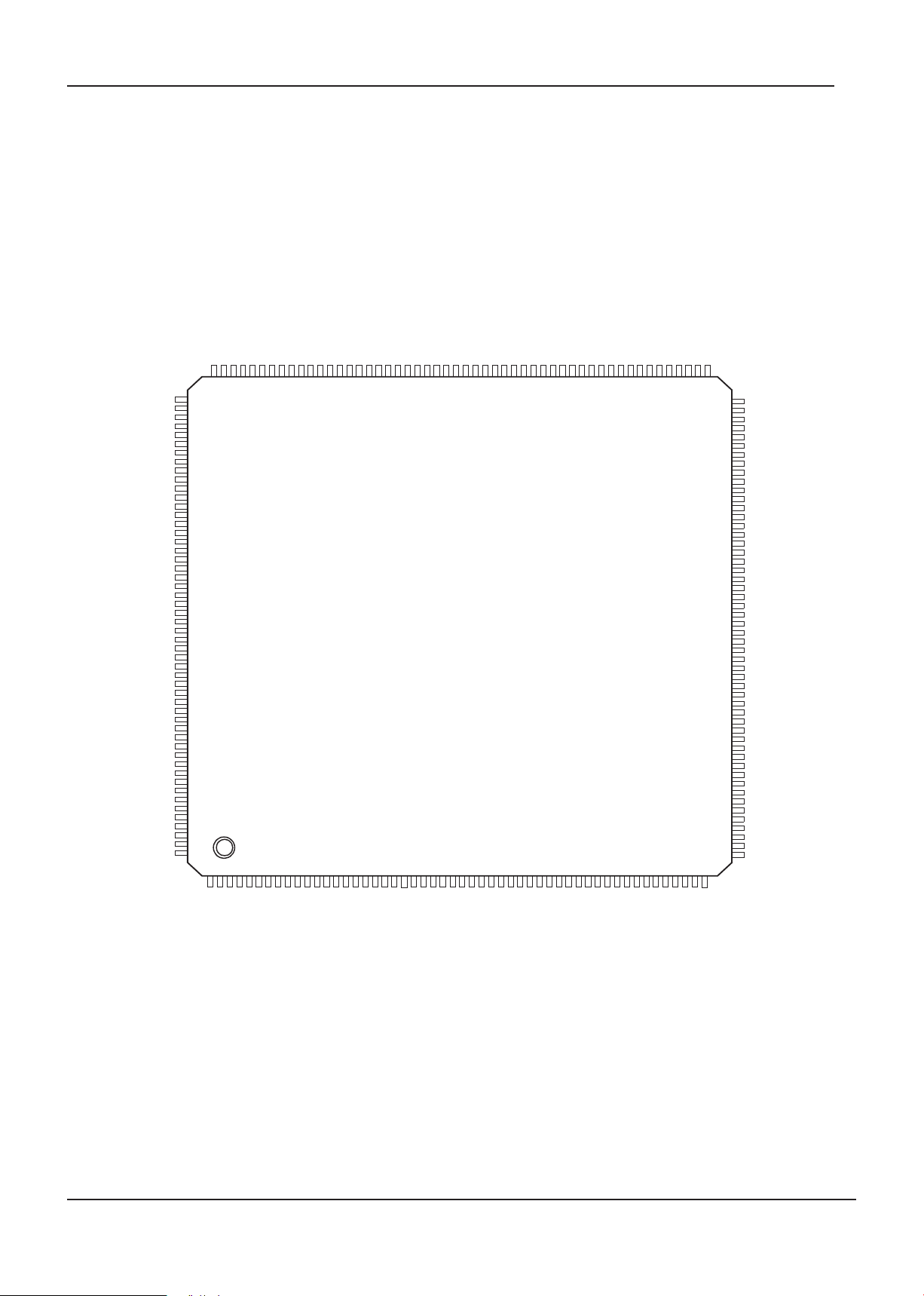

ES6603 Device Pinout
ES6603S
1 1 3
2 6
2 3 4 5 6 7 8 9 10 11 12
25
24
23
22
21
20
19
18
17
1 4 15 1 6
2 9
3 1
3 2
2 8
2 7
3 0
5 5
56
57
58
59
60
61
62
63
64
5 2
5 0
4 9
5 3
5 4
5 1
4 8 3 647 46 45 44 43 42 41 40 39 38 37 3 5 34 33
RX
ME
V
VNA
FNN
FNP
DIP
DIN
BYP
RFAC
VP
A
AIP
AIN
ATON
ATOP
RFSIN
RFDC
SDEN
SDATA
SCLK
V33
LC
P
MNTR
CE
FE
TE
PI
V25
V125
TPH
DF
T
LINK
LC
N
MEVO
MIN
MLPF
MB
MP
MIRR
LDON
VN
B
CDPD
DVDPD
CDLD
DVDLD
VC
VP
B
CD_E
CD_F
DVDRFP
DVDRFN
A2
B2
C2
D2
CP
D
C
B
A
CD_
D
CD_
C
CD_B
CD_A
CN
4. IC Block Diagrams
ES6603
ES6603 PINOUT The figure below depicts the ES6603 device pinout. The pound symbol(#) indicates an active-low signal.
Page 19
DVD - DivX Player - BSA3750
19
ES6603 Pin Descriptions List
Name Pin Numbers I/O Definition
DVDRFP, DVDRFN
1, 2
I Differential RF signal attenuator inputs.
A2, B2, C2, D2 3:6 I
AC coupled photo detector interface inputs for the differential phase detector (DPD) from the main beam photo matrix.
CP, CN 7, 8
ó Differential phase tracking low-pass filter pins. Connect CP to CN via capacitors.
D, C, B, A 9:12 I Photo detector interface inputs from the main beam photo matrix.
CD_D, CD_C, CD_B, CD_A
13:16
I CD photo detector interface inputs from the main beam photo matrix.
CD_F, CD_E
17, 18
I CD photo detector interface inputs from the CD side beam photo detector; used for
CD tracking detection.
VPB 19 P Servo block power supply.
VC 20 O Reference voltage out (VPB/2). Outp
ut impedance is less than 50 .
DVDLD 21
O DVD APC output; controls laser power for DVD.
CDLD 22
O CD APC output; controls laser power for CD.
DVDPD 23 I DVD APC input.
CDPD 24
I CD APC input.
VNB 25 G Servo block ground.
LDON 26
I APC On/Off control. A high level activates LD output. (open is low)
MIRR 27 O Mirror detect output.
MP, MB 28, 29 I Mirror top and bottom hold pins.Connected to VPB pin 19 via capacitors.
MLPF 30 I Mirror low-pass filter pins. Connected to VPB pin 19 via a capacitor
.
MIN
31 I RF input signal for mirror. AC coupled inputs for the mirror detection circuit from
MEVO pin 32.
MEVO 32 O
RFDC bottom envelope out. Pull-In or bottom clamped RF envelope signal output for mirror detection.
LINK 33 I,O
Linking Signal In/Mirror Monitor Out. In the linking area, the mirror and tracking error outputs are disabled when this pin goes high. When the monitor output signal is selected by the Control H register, mirror-related signals can be observed.
DFT 34 O
Defect output. When the Pull-In signal level is below the detection level, or when the RF signal level is below the detection level, the DFT output goes high. The defect output is selected by the serial port.
TPH 35 I Pull-In top hold. Connected to VPB pin 19 via a capacitor.
V125 36 O 1.25V servo block reference voltage output.
V25 37 P 2.5V servo output reference power supply.
PI 38
O
Pull-In signal out. The summing signal output of A, B, C, D, or CD_A, CD_B, CD_C, or CD_D. Reference to V25/3.
TE 39 O Tracking error output reference to V125 pin 36.
FE 40 O Focusing error output reference to V125 pin 36
.
ES6603 PIN DESCRIPTION The table below lists the pin descriptions for the ES6603. The poundsymbol (#) indicates an ac­tive-low signal.
Page 20
DVD - DivX Player - BSA3750
20
ES6603 PIN DESCRIPTION
CE 41 O Center error output reference to V125 pin 36
.
MNTR 42 O Monitor out signal. Output is selectable by register settings
.
LCN, LCP
43, 44 I Lens shift offset cancellation low-pass filter pins. Connect LCN to LCP via a capac
-
itor
.
V33 45 P 3.3V output buffers power supply.
SCLK 46 I Serial clock from ES66x8.
SDATA 47 I/O
Serial data I/O.
SDEN 48 I Serial data enable. Enabled by an active-high signal.
RX 49 I Reference resistor. Connected to ground via a 12.0k , 1% resistor..
MEV 50 I RFDC bottom envelope. Connected to VPA pin 58 via a capacitor
.
VNA 51 G RF block and serial port ground
.
FNN, FNP 52, 53
O Differential outputs of equalizer/filter.
DIP, DIN 54, 55
I Differential analog inputs to the RF single-end output buffer and full wave rectifier.
BYP 56 I AGC amplifier gain bypass. Tied to VPA via a capacitor.
RFAC 57 O Single-ended RF output.
VPA 58 P RF block and serial port power supply
.
AIP, AIN 59, 60
I Differential AGC amplifier inputs.
ATON, ATOP 61, 62
O Differential attenuator outputs.
RFSIN 63 I Single-ended RF signal attenuator input.
RFDC 64 O Single-ended RF summing output.
ES6603 Pin Descriptions List (Continued)
Name Pin Numbers I/O Definition
Page 21
DVD - DivX Player - BSA3750
21
ES6603 DEVICE INTERFACES
ES6603 Device Interfaces
Name
Pin Numbers I/O Definition
AGC Interface
59, 60 I Differential AGC amplifier inputs [AIP] and [AIN].
Automatic Laser Power Control (APC) Interface
21 O APC laser power control for DVD [DVDLD].
22
O APC laser power control for CD [CDLD].
23
I APC photo diode in for DVD [DVDPD].
24
I APC photo diode in for CD [CDPD].
26
I APC input on/off control [LDON].
CD/DVD Photo Detector Interface
3:6 DVD differential phase detector matrix inputs [A2], [B2], [C2], and [D2].
9:12 I DVD single-ended phase detector matrix inputs [A], [B], [C], and [D]
.
13:16 I CD photo detector interface inputs [CD_A], [CD_B], [CD_C] and [CD_D].
17, 18 I CD side beam photo detector tracking outputs [CD_E] and [CD_F].
Embedded Servo DSP Interface
26
I APC input on/off control [LDON] from embedded servo DSP.
33 I/O Linking signal and mirror monitor control I/O [LINK].
34 O Defect output [DFT] to embedded servo DSP
.
38 O Pull-In signal [PI] to embedded servo DSP
.
39 O Tracking error [TE] to embedded servo DSP
.
40 O Focusing error [FE] to embedded servo DSP
.
41 O Center error [CE] to embedded servo DSP..
46 I Serial clock [SCLK] from embedded servo DSP.
47 I/O Serial data I/O [SDATA] for embedded servo DSP.
48 I Serial data enable [SDEN] from embedded servo DSP
.
Filtering and Reference Voltage
7, 8 I Diff
erential phase tracking low-pass filters [CP] and [CN].
20 O DC bias reference voltage [VC].
30 I Mirror low-pass filter [MLPF].
36 O Servo block reference voltage [V125].
43, 44 I Lens shift offset cancellation low-pass filters [LCP] and [LCN].
64 O Single-ended RF summing output reference [RFDC].
Power and Ground
19 P Servo block port power supply [VPB].
25 G Servo block ground [VNB].
37 P 2.5V reference voltage servo output power supply [V25].
45 P 3.3V output buffers power supply [V33].
51 G RF block and serial port ground [VNA].
58 P RF block and serial port power supply [VP
A].
AGC and Filter Interface
1,2 I Differential RF signal attenuator inputs [DVDRFP] and [DVDRFN].
52, 53 O Differential normal filter outputs [FNP] and [FNN].
54, 55 I Differential analog RF buffer inputs [DIP] and [DIN].
57 O Single-ended RF output [RFAC].
63 I Single-ended RF signal attenuator input [RFSIN].
61, 62 O Differential attenuator outputs [ATO
P] and ATON].
The table below lists the device interfaces for the ES6603.
Page 22
DVD - DivX Player - BSA3750
22

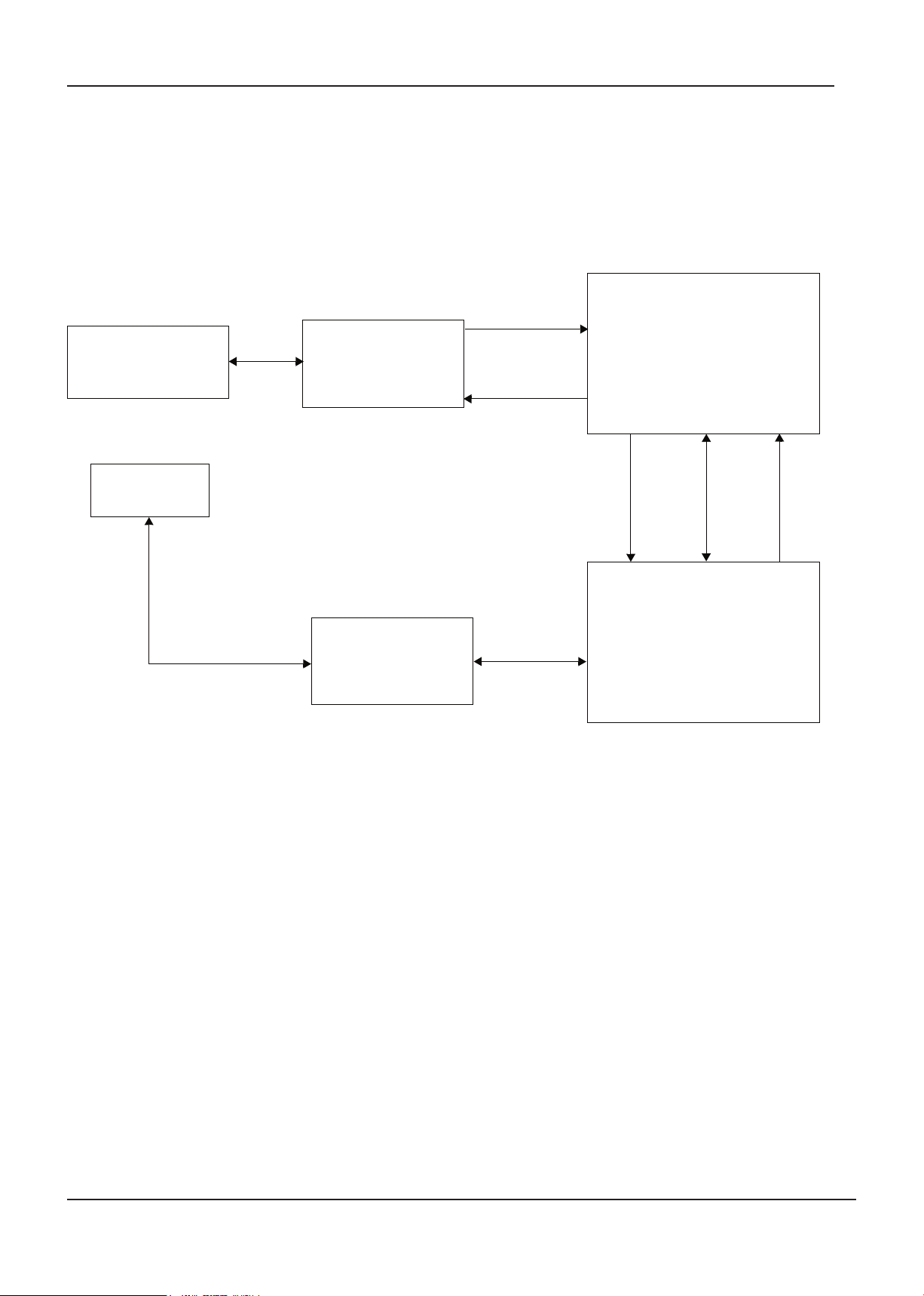

ES6603/ES66x8 Block Diagram
CD/DVD PICKUP
CD/DVD
MOTOR DRIVER
PHOTO DETECTOR
AND LASER POWER
ES660
3
AFE
ES66X8
DVD PROCESSOR
W/SERVO DSP
FE, CE,
TE, PI,
MEVO
LDON,
SCLK,
SDEN
LINK,
SDATA
CDPD
DVDPD
A:D
,
A2:D2,
CD_A:CD_
F
CDLD
DVDLD
SPINDL
E
FOCUS
TRACK
OPEN/CLOSE
LOA
D
MOTOR
SYSTEM BLOCK DIAGRAM
A sample system block diagram featuring the ES6603 and the ES66x8 Vibratto-II DVD processor with embedded servo DSP is depicted in the figure below.
Page 23
DVD - DivX Player - BSA3750
23

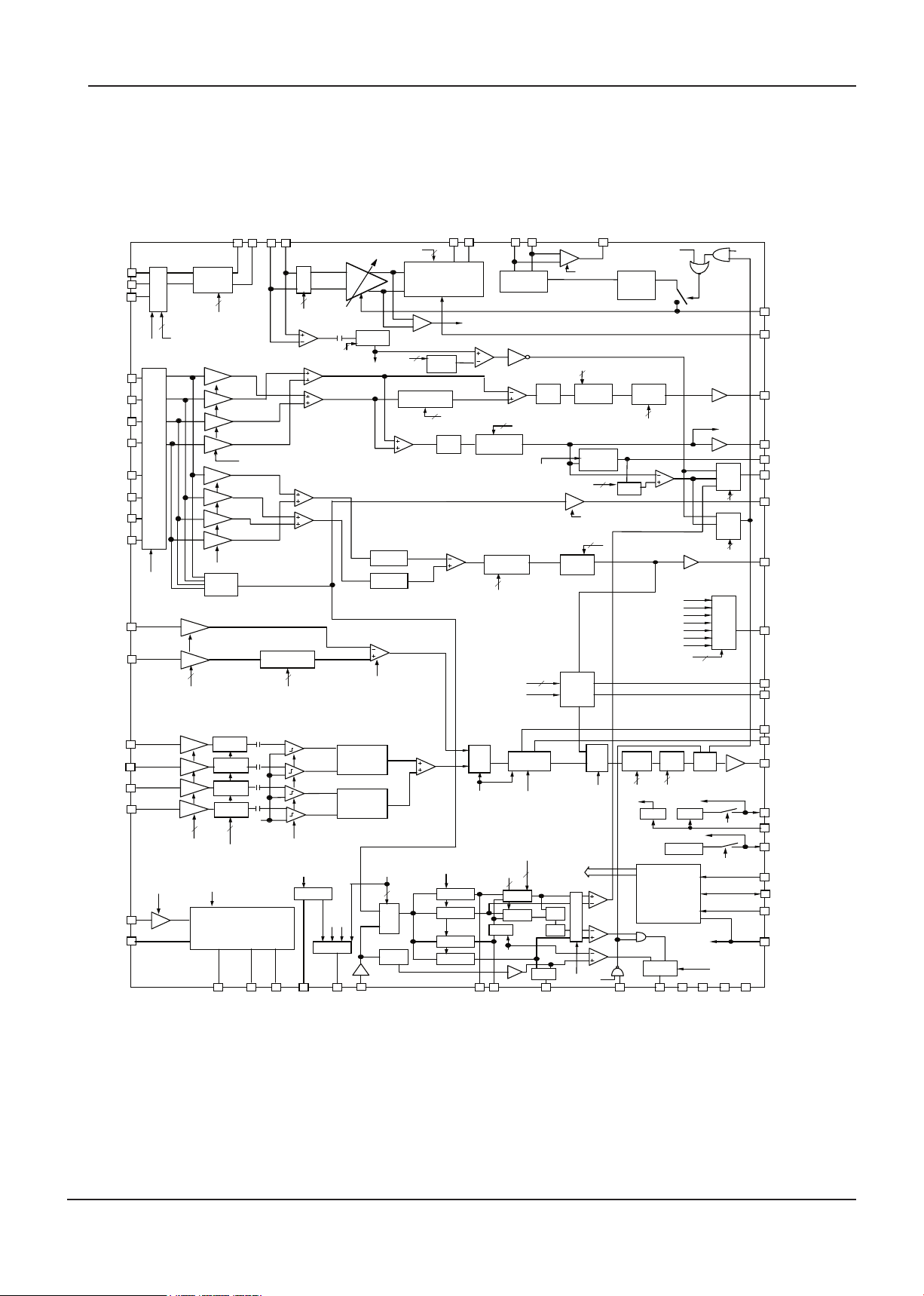

BLOCK DIAGRAM
ES6603 Block Diagram
DVDRFP
DVDRFN
BYP
FULL WAVE
RECTIFIE
R
DIN
AGC
CHARGE
PUMP
PROGRAMMABLE
EQUALIZE
R
FILTER
DIFFERENTIATOR
FNP
FN
N
AGC
RX
A
B
C
D
GCA
GCA
GCA
GCA
3
A +
D
B +
C
FE
PI
SU
M
Amp.
RFAC
RFSIN
MUX
LP
F
TE
MUX
CD/DVD
A2
B2
C2
D2
EQ
EQ
EQ
EQ
PHASE
DETECTOR
PHASE
DETECTOR
Comp.
GCA
GCA
GCA
GCA
3
CD_E
CD_F
CE
CN
CP
DFT
RFDC
MIN
DV DL D
CD LD
MLP F
MP
MB
DVDPD
CDPD
LD H/L
Dual APC
MIRR
SDEN
SCLK
SERIAL PORT
REGISTER
V125
VC
VCI for servo input
SIGR b
3
APC SEL
DVD/CD
VP A
VP B
VNA
VNB
RFCR b7-6
2
2
IMPU
T
BIAS
LPF
Buff
TE
RS
T
+-3d
B
V33
V33 for Output buff
ME V
ME VO
Offset cance
l
PIOR b4-0
PI off
set
5
CP/CN
Low Imp
AGC HOLD
INPUT IMP SE
L
LPF
Clamp
& En
v
Level
DA
C
2
GCA
GCA
GC
A
TRCR2 b3-0
3B
4
SEL
CD_A
CD_B
CD_C
CD_D
GCA
GCA
GCA
GCA
w/LPF
AGCO
70kH
z
70kH
z
for TE,FE & CE output ref.
PII
+/- 4d
B
MU
X
w/LP
F
w/LP
F
w/LP
F
RFCR b2-0
3
3
SSOU
T
B +
D
A +
C
A
B
C
D
CD/DVD
CDR b4
CCR b5
INPUT SE
L
INPUT IMP SE
L
RFCR b2-0
TRCR2 b6-4
DPD EQ
TRCR b
6
DPD COMP HYS O
N
PDCR b3
TRCR2 b7
PDCR b3
CTCR b3-0
CO gai
n
CBR b1-0
RFCR b3
CAR b3-2
SIGDET
RFCR b5-4
FCCR b6-0 FBCR b6-
0
CAR b1-0 Env/Clam
p
(CDR
b5=1)
6dB is added @high
gain mode
(CDR
b5=1)
12dB is added @high gain
mode
CONTROL
Signal
s
To
each block
CDR b3
VC
2
Offset
cance
l
CER b4-
0
CE offse
t
4
GCA
0-
+8dB,4bit
4
Offset
cansel
CCR b4-0
FE offse
t
5
GCA
+/- 6dB 4bit
4
ATOP
ATON
ATT
4
SIGR b7-
4
ATT
AIN
AI P
Offset cance
l
TRCR
b5-0
TR offse
t
6
GCA
3
CFR b7-5
TR Gai
n
GCA
FOCR b7-4
FS gai
n
4
+/- 4dB
MNTR
MON
SE
L
CDR b6 HLDEN
FE
SEL
CE
V2
5
V125
V25/
3
3
Tenvb
PIOR b7-
5
CBR b5-
4
TE MASK sel
LDON
TOPHLD
TOPHLD
V25
V25/2
TOP HLD
BTM ENV
BTM HLD
TOP ENV
ATT
ATT
MUX
PI
TE
MUX
VC
PII
AG CO
Tenvb
MRCR2 b7 -0
droop rate
control
4D
SU
M
MUX
offset
MUX
Vref
Btm clam
p
& clip
MUX
MU
X
Btm Env
CBR b3-2
TOPHLD
2
DAC
COMP
CTCR b7 BCA DET
TPH
2
DIP
LCN
LCP
SUB
CFR b4 CEFD
B
CFR b2-0
CE-ATT
LP
F
AT
T
Pol.
sel
Buf(-12dB)
3
GCA
CGR b5-4
Gain
LINK
CDR b7 LINKEN
CFR b3 CEPOL
CCR b7
DISK DET
SDATA
FOCR b3-0
FO Gai
n
RESUM
2
14
CDR b5 High gain
AGC BT M ENV
CTCR b5-4 MEVO SEL
2
CHR b7-6
Mirr Defec
t
Comp ATT
2
MRCR b6-4
Mirr Com
p
ATT Leve
l
3
@high
gain mode
SIGR b2-
0
(CDR
b5=1)
12dB is added
(CDR b5=1) @high
gain mode
SIGR b2-
0
12dB is added
CGR b1
OUTPUT INHIBIT
CGR b0
OUTPUT INHIBIT
CDR b2
V25/3
for PI output ref.
The major subsystem of the ES6603 are shown in the figure below.
Page 24
DVD - DivX Player - BSA3750
24
1
2 3 4 5 6 7 8
9
10111213141516171819202122232425262728293031323334353637383940414243444546474849505152
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208
SLEG
N
AVDD3_DA
PHOI
FGIN
TESTD
A
TRACK
FD
O
DCS1#
DCS0#
DB
4
DRAS0
#
DB
5
IREF
RFIP
DSSL
V
RFIN
VREF09
VREF15
VD33
VS33
WBLCLK
SPD_DOBM/S
EL_PLL3
SPDIF_IN
VREF21
LCS1#
VD
D
VD33
LA0
LCS3#
LD7
DB1
DB
2
VD33
DB
3
DWE#
DSCK_EN/DOE#
VSS
DB
0
VS3
3
VD33
VID_XI
VID_XO
CL
K
DMA0
DMA1
VD33
DMA2
DMA8
VS3
3
DMA4
DMA5
DMA6
DMA7
DMA1
0
VS3
3
DMA9
DMA3
VD33
DMA1
1
DCAS#
VD
D
DRAS1
#
DB15
DB14
VS3
3
DB6DB
7
LD1
VD33_P
L
VS33
RWS
RSD
DB13
DB12
DB11
DB10
DB
9DB8
DSCK
RBCK
LD5
VD33
LD3
LOE
#
VS33
LA
5
LA4
LA8
VS
S
LA10
LA14
VD33
LA16
LA18
LA20
LD6
LD4
VS33
LD2
LWRLL#
LA
3
LA
6
LA
7
VD
D
LA9
LA11
LA15
VS33
LA17
LA19
LA21
LD0
VS
S
LCS0#/PIXOUT_CL
K
LCS2#
LA
1 LA2 VD33
LA12 LA13
DQ
M
VD33
IPIN
AVDD3_D
S
AVDD3_A
D
RFRP
VD
D
VSSFLAG
3
FLAG2FLAG1FLAG0IP
1
WB
L
CE
I
TE
I
AVSS_AD
FE
I
SBAD
TESTAD
TEXI
IP
2
TBCK
MCLK
TSD3
TSD2
VS33
TWS/SEL_PLL
2
UDAC/YUV0/PIXOUT0
CDAC/YUV2/PIXOUT2
TSD0/SEL_PLL0
TSD1/SEL_PLL1
YDAC/YUV5/PIXOUT
5
VS33_D
A
VD33_D
A
VDAC/YUV6/PIXOUT
6
FDAC/YUV7/PIXOUT
7
RSET/YUV4/PIXOUT
4
COMP/YUV3/PIXOUT
3
VREF/YUV1/PIXOUT
1
VS33_P
L
LG
TRAY
RFRPCT
R
AVSS_DS
SCSJ
SDATA
RESET#
EAUX2
EAUX3
AVSS_PL
PDOFTR
1
PLLFTR2
SCLK
VD33
GPIO
7
EAUX1
I2CDATA/AUX0
C2PO/AUX4
FTROPI
VREF0
DFCT
VS33
GPIO
6
EAUX0
I
2
C_CLK/AUX1
AUX5
AVDD3_P
L
AWRC
LDC
GPIO
9
GPIO
5
VS
S
OW#/HSYNC#/AUX
2
AUX6
PLLFTR1
AVSS_DA
SPDO
N
GPIO8
GPIO
4
VD
D
IOR#/VSYNC#/AUX3
IR/AUX
7
SPINDLE
FOCUS
SLEG
P
VS33
ES6688A
DRAS2#
ES6688/6698
The figure below depicts the ES6688/98 device pinout.
Page 25
DVD - DivX Player - BSA3750
25
ES6688A Pin Description
Names Pin Numbers I/
O Definitions
VD3
3
1, 10, 19, 35, 44,
53, 62, 79, 96, 126,
18
5
P I/O power supply.
VID_XI 2 I Crystal input.
VID_XO 3 O Crystal output
.
CLK 4 I System clock.
DMA[11:0] 5:8 11:17, 20 O DRAM address bus.
VS33
9, 18, 34, 43, 52,
61, 78, 95, 119, 127,
186, 20
8
G Ground for I/O power supply
.
DCAS# 21 O DRAM column address strobe (active-low).
DCS[1:0]# 22, 23 O DRAM chip
select (active-low).
DRAS[2:0]# 24, 25, 28 O DRAM row address strobe (active-low)
.
VSS 26, 70, 86, 137, 197 G Ground for core power supply.
VDD 27, 71, 87, 138, 198 P Core power supply.
DSCK_EN
29
O DRAM clock enable output.
DOE# O DRAM output enable (active-low)
.
DWE# 30 O DRAM write enable (active-low).
DB[15:0] 31:33, 36:42, 45:50 I/O DRAM
data bus.
DSCK 51 O Output clock to DRAM.
DQM 54 O Data input/output mask
.
LA[21:0]
55:60, 63:69, 72:77,
80:8
2
O RISC port address bus
.
LCS0
#
83
O RISC port chip select (active-low).
PIXOUT_CLK O CCIR656 output pixel clock.
LCS[3:1]# 84, 85, 88 O RISC port chip select (active-low).
LWRLL# 89 O RISC port low-byte write enable (active-low).
LOE# 90 O RISC port output enable (active-low).
LD[7:0] 91:94, 97:100 I/O RISC port data
bus; (5V tolerant input).
RSD 101 I Audio receive serial data; (5V tolerant input).
RBCK 102 I Audio receive bit clock; (5V tolerant input).
RWS 103 I Audio receive frame sync; (5V tolerant input).
VD33_PL 104 P Power for PLL blocks
.
VS33_PL 105 G Ground for PLL blocks.
ES6688/98 DEVICE INTERFACES
The table below lists the device interfaces for the ES6688/98.
Page 26
DVD - DivX Player - BSA3750
26
VREF
10
6
I Internal voltage reference to video DAC.
YUV1 O YUV pixel 1 output data.
PIXOUT1 O CCIR656 output pixel 1.
COM
P
10
7
I Compensation input
.
YUV3 O YUV pixel 3 output data
.
PIXOUT3 O CCIR656 output pixel 3.
RSET
10
8
I DAC current adjustment resistor input.
YUV4 O YUV pixel 4 output data.
PIXOUT4 O CCIR656 output pixel 4.
FDAC
10
9
O Video DAC output. Refer to description and matrix for UDAC pin 115.
YUV7 O YUV pixel 7 output data.
PIXOUT7 O CCIR656 output pixel 7.
VDAC
110
O Video DAC output. Refer to description and matrix for UDAC pin 115.
YUV6 O YUV pixel 6 output data.
PIXOUT6 O CCIR656 output pixel 6.
VD33_DA 111 P Power for I/O power supply for VDAC
.
VS33_DA 112 G Ground for I/O power supply for VDAC.
YDAC
113
O Video DAC output. Refer to description and matrix for UDAC pin 115.
YUV5 O YUV pixel 5 output data.
PIXOUT5 O CCIR656 output pixel 5.
CDAC
11
4
O Video DAC output. Refer to description and matrix for UDAC pin 115.
YUV2 O YUV pixel 2 output data.
PIXOUT2 O CCIR656 output pixel 2.
ES6688A Pi
n Description (Continued)
Names Pin Numbers I/
O Definitions
Page 27
DVD - DivX Player - BSA3750
27
UDAC
11
5
O Video DAC output.
F: CVBS/chroma signal for simultaneous mode
.
Y:
Luma component for YUV and Y/C processing. C: Chrominance signal for Y/C processing. U: Chrominance component signal for YUV mode
.
V: Chrominance component signal for YUV mode.
YUV0 O YUV pixel 0 output data
.
PIXOUT0 O CCIR656 output pixel 0.
TW
S
11
6
O Audio transmit frame sync output.
SEL_PLL2 I System and DSCK output clock frequency selection is
made at the rising edge of RESET#. The matrix below lists the available clock frequencies and their respective PLL bit settings.
Strapped to VCC or ground via 4.7-k&! resistor; read-
only during reset.
ES6688A Pi
n Description (Continued)
Names Pin Numbers I/
O Definitions
Value
F DAC
(pin 109)
V DAC
(pin 110)
Y DAC
(pin
1130
C DAC
(pin 114)
U DAC
(pin 115)
0 CVBS/Chroma CVBS1 Y C N/A
1 CVBS/Chroma CVBS1 Y C CVBS2
2 CVBS/Chroma N/A Y C N/A
3 CVBS/Chroma CVBS1 N/A N/A CVBS2
4 CVBS/Chroma CVBS1 N/A N/A N/A
5 CVBS/Chroma CVBS1 Y Pb Pr
6 CVBS/Chroma N/A Y Pb Pr
7 N/A
SYNC G B R
8 CVBS/Chroma Chroma Y Pb Pr
9 CVBS CVBS1 G B R
10 CVBS CVBS1 G R B
11 N/A SYNC G R B
12 CVBS/Chroma N/A Y Pr Pb
13 CVBS/Chroma
CVBS1 Y Pr Pb
14 Chroma Y G R B
SEL_PLL2 SEL_PLL1 SEL_PLL0 Clock Type (MHz)
0 0 0 CLK
⋅ 4.5
0 0 1 CLK ⋅ 5.0
0 1 0 Bypas
s
0 1 1 CLK
4.0
1 0 0 CLK
4.25
1 0 1 CLK
4.75
1 1 0 CLK
5.5
1 1 1 CLK
6.0
Page 28
DVD - DivX Player - BSA3750
28
TSD0
11
7
O Audio transmit serial data port 0.
SEL_PLL0 I Refer to the description and matrix for SEL_PLL2, pin 116.
TSD1
11
8
O Audio transmit serial data port 1.
SEL_PLL1 I Refer to the description and matrix for SEL_PLL2, pin 116.
TSD2, 3 120, 121 O Audio transmit serial data ports 2 and 3.
MCLK 122 I/O Audio master clock for audio DAC
.
TBCK 123 O Audio transmit bit clock.
SPD_DOBM
12
4
O S/PDIF output.
SEL_PLL3 I Clock source select. Strapped to VCC or ground via 4.7-k&!
resistor; read only
during reset
.
SPDIF_IN 125 I S/PDIF input; (5V tolerant input).
WBLCLK 128 O DVD-RAM wobble detector circuit clock source to preamp.
WBL 129 O DVD-RAM wobble output.
LG 130 O DVD-RAM land/groove flag.
IP2 131 I DVD-RAM header position index 2.
IP1 132 I DVD-RAM header position index 1.
FLAG[3:0] 133:136 O To monitor servo status.
TEXI 139 I High-speed tracking error input.
TESTAD 140 I Test AD input.
SBAD 141 I Sub-beam addition input signal.
FEI 142 I Focus input error signal.
AVSS_AD 143 G Analog ground for ADC block.
CEI 144 I Center error input signal.
TEI 145 I Tracking error input signal
.
RFRP 146 I RF ripple/envelope input signal
.
AVDD3_AD 147 P Analog power supply for ADC block.
VREF21 148
O 2.1V reference voltage.
VREF09 149
O 0.9V reference voltage.
VREF15 150
O 1.5V reference voltage.
IREF 151 I Servo data PLL interface reference current generator. Connect a resistor
between this pin and ground to set reference current
.
AVDD3_DS 152 P Analog power supply for data slicer block.
ES6688A Pi
n Description (Continued)
Names Pin Numbers I/
O Definitions
SEL_PLL3 Clock Source
0 Crystal oscillator
1 CLK input
Page 29
DVD - DivX Player - BSA3750
29
IPIN 153 I Inverting input of data slicer.
RFIN 154 I Analog RF signal input after
passing through equalizer (minus).
RFIP 155 I Analog RF signal input after
passing through equalizer (plus).
DSSLV 156 O Data slicer level output.
AVSS_DS 157 G Analog ground for data slicer block.
AVSS_PL 158 G Analog ground for data PLL block.
PDOFTR1 159 O Servo data
PLL phase detector filter pin number 1.
FDO 160 O Servo data
PLL output node of frequency detector charge pump.
FTRO
PI 161 I Servo data PLL input node of loop filter OP circuit.
AVDD3_PL 162 P Analog power supply for data PLL block
.
PLLFTR1 163 I Servo data
PLL loop filter pin number 1.
PLLFTR2 164 I Servo data
PLL loop filter pin number 2.
VREF0 165 O Servo data
PLL reference voltage output.
AWRC 166 I/O Auto wide range control VCO signal from/to AWRC DAC.
AVSS_DA 167 G Analog ground for DAC part.
RFRPCTR 168 I/O Central level of RFRP
.
TRAY 169 O Output voltage level for tray buffer IC.
AVDD3_DA 170 P Analog power supply for DAC part.
SPINDLE 171 O Output voltage level for spindle buffer IC.
FOCUS 172 O Output voltage level for focus buffer IC
.
SLEGP 173 O Output
voltage level for Sledge buffer IC (plus).
SLEGN 174 O Output
voltage level for Sledge buffer IC (minus).
TRACK 175 O Output voltage level for tracking buffer IC
.
TESTDA 176 O Test DA output
.
FGIN 177 I Spindle hall
sensor input.
PHOI 178 I Sledge photo interrupt signal input.
SCSJ 179 O Chip selection signal to RF chip (serial data enable).
SDATA 180 I/O Data signal from/to RF chip.
SCLK 181 O Serial clock source to RF chip
.
DFCT 182 I Defect flag input signal.
LDC 183
O Laser diode on/off control output.
SPDON 184 O Spindle power driver on/off control output.
GPIO9-7, 5 187-189, 191 O General-purpose
open-collector output used for servo control; Pull up to VCC via
a 4.7-k&! resistor.
GPIO6, 4 190, 192 I/O General-purpose input/output used for servo control; (5V tolerant input)
.
n Description (Continued)
Names Pin Numbers I/O Definitions
Page 30
DVD - DivX Player - BSA3750
30
EAUX3 193 O Extended auxilliary port with open-collector output used for servo control; Pull up
to VCC via a 4.7-
k&! resistor.
EAUX2-0 194-196 I/
O Extended auxilliary ports; (5V tolerant input).
I
2
CDATA
19
9
I/O I
2
C data I/O; (5V tolerant input).
AUX0 I/O Auxiliary port (open collector); (5V tolerant input).
I
2
C_CLK
20
0
I/O I
2
C clock I/O; (5V tolerant input).
AUX1 I/O Auxiliary port (open collector); (5V tolerant input).
IOW#
20
1
O I/O Write strobe (LCS1) (active-low).
HSYNC# I/O Horizontal sync (active-low); (5V tolerant input).
AUX2 I/O Auxiliary port; (5V tolerant input).
IOR#
20
2
O I/O Read strobe (LCS1) (active-low).
VSYNC# I/O Vertical sync (active-low); (5V tolerant input).
AUX3 I/O Auxiliary port; (5V tolerant input).
C2PO
20
3
I Error correction flag from CD; (5V tolerant input).
AUX4 I/O Auxiliary port; (5V tolerant input).
AUX5, 6 204, 205 I/O Auxiliary ports; (5V tolerant input).
IR
20
6
I Infrared remote control input; (5V tolerant input).
AUX7 I/O Auxiliary port; (5V tolerant input).
RESET# 207 I Reset input (active-low); (5V tolerant input).
ES6688A Pi
n Description (Continued)
Names Pin Numbers I/
O Definitions
Page 31
DVD - DivX Player - BSA3750
31
ES6688A Device Interfaces
Name Pin Numbers I/O Definition
Audio Port Interface
101 I Audio receive serial data input (RSD); (5V tolerant input).
102 I Audio receive bit clock input (RBCK); (5V tolerant input).
103 I Audio receive frame sync input (RWS); (5V tolerant input).
116 O Audio transmit frame sync
output (TWS).
117,
118, 120,
121
O Audio transmit serial data outputs (TSD[3:0]).
122 I/O Audio DAC master clock (MCLK).
123 O Audio transmit bit clock output (TBCK).
124 O Sony/Philips Digital Interface audio output (SPD_DOBM).
125 I Sony/Philips Digital Interface audio input (SPDIF_IN); (5V tolerant input).
Auxiliary Port Interfac
e
193 O Extended auxilliary ports (EAUX3).
194-19
6 I/O Extended auxilliary ports (EAUX2-0); (5V tolerant input).
199, 20
0 I/O Open collector auxilliary ports (AUX1, 0); (5V tolerant input).
201-20
6 I/O Primary auxiliary port I/Os (AUX7-2); (5V tolerant input).
Clock Interface and Rese
t
2 I 27-MHz crystal clock input (VID_XI)
.
3 O 27-MHz crystal clock output (VID_XO).
4 I System clock (CLK).
29
O DRAM clock enable output (DSCK_EN).
51 O Output clock (DSCK) to video memory (DRAM).
116:118 I Clock frequency select PLL outputs (SEL_PLL[2:0]).
207 I Reset input (active-low) (RESET#); (5V tolerant input)
.
Display
Interface
106:110, 113:115 O Pixel data outputs (YUV[7:0]).
201 I/O Horizontal sync (HSYNC#); (5V tolerant input).
202 I/O Vertical sync (VSYNC#); (5V tolerant input).
CCIR656 Output Port Interface
106:
110, 113:115 O CCIR656 output pixels [7:0]; [PIXOUT[7:0]].
83
O CCIR656 output pixel clock [PIXOUT_CLK].
EPROM/Flash ROM and RISC Port Interface
55:60, 63:69,
72:77, 80:8
2
O RISC port address bus (LA[21:0]) to EPROM or Flash memory
.
83:85
O RISC port chip select outputs (LCS[2:0]#) to EPROM or Flash memory.
89
O
RISC port low-byte write enable output (LWRLL#) to EPROM or Flash memory.
90 O RISC port output enable (LOE#) to EPROM and Flash memory
.
91:94, 97:100 I/O
RISC port data bus (LD[7:0]) to EPROM or Flash memory; (5V tolerant input).
Page 32
DVD - DivX Player - BSA3750
32
Filter and Reference Voltage Interface
106 I Video DAC reference voltage input (VREF)
.
107 I Compensation input (COMP)
.
Front Panel Display
Interface
206 I Infrared remote control input (IR); (5V tolerant input).
General-Purpose
187-189, 191 O General-purpose open collector output (GPIO9-7, 5); Pull up to VCC using
a 4.7-k&! resistor
.
190, 19
2 I/O General-purpose I/O (GPIO6, 4); (5V tolerant input).
I
2
C Bus Interface
199 I/O
I2C data I/O (I2C_DATA); (5V tolerant input).
200 I/O
I2C clock I/O (I2C_CLK); (5V tolerant input).
Power an
d Ground
1,
10, 19, 35, 44,
53, 62, 79, 96,
126, 18
5
P I/O power supply (VD33).
9,
18, 34, 43, 52,
61, 78, 95, 119,
127, 186, 20
8
G I/O ground (VS33).
26, 70, 86, 137,
197
G Ground for core power (VSS).
27, 71, 87, 138,
198
P Core power supply (VDD)
.
104 P Power supply for PLL block (VD33_PL).
105 G Ground for PLL block (VS33_PL).
111 P Power supply for video DAC (VD33_DA).
112 G Ground for video DAC (VS33_DA).
143 G Analog ground for ADC (AVSS_AD).
147 P Analog power supply for ADC (AVDD3_AD).
152 P Analog power supply for data slicer (AVDD3_DS).
157 G Analog ground for data slicer (AVSS_DS).
158 G Analog ground for data PLL (AVSS_PL).
162 P Analog power supply for data PLL (AVDD3_PL).
167 G Analog ground for DAC (AVSS_DA).
170 P Analog power supply for DAC (AVDD3_DA).
Serial
Port Interface 203 I C2PO error correction flag from CD (C2PO); (5V tolerant input).
Serv
o Data Slicer
Interface
153 I Inverting input of data slicer (IPIN).
154 I Analog RF signal input after passing through equalizer (minus) (RFIN)
.
155 I Analog RF signal input after passing through equalizer (plus) (RFIP).
156 O Data slicer level output (DSSLV).
ES6688A Device Interfaces (Continued
)
Name Pin Numbers I/O Definition
Page 33
DVD - DivX Player - BSA3750
33
Servo DAC Interface
166 I/O Auto wide range control VCO signal from/to AWRC DAC (AWRC)
.
168 I/O Central level of RFRP (RFRPCTR).
169 O Output voltage level for tray buffer IC
(TRAY).
171 O Output voltage level for spindle buffer IC (SPINDLE).
172 O Output voltage level for focus buffer IC (FOCUS).
173 O Output voltage level for Sledge buffer IC (plus) (SLEGP)
.
174 O Output voltage level for Sledge buffer IC (minus) (SLEGN)
.
175 O Output voltage level for tracking buffer IC (TRACK).
176 O Test DA output (TESTDA).
Servo Comparator Interface
139 I High-speed tracking error input (TEXI).
Servo ADC Interfac
e
140 I Test AD input (TESTAD).
141 I Sub-beam addition input signal (SBAD).
142 I Focus input error signal (FEI).
144 I Center error input signal (CEI).
145 I Tracking error input signal (TEI).
146 I
RF ripple/envelope input signal (RFRP).
148 O 2.1V reference voltage (VREF21)
.
149 O 0.9V reference voltage (VREF09)
.
150 I 1.5V reference voltage (VREF15)
.
Servo PLL Interfac
e
151
I
Servo data PLL interface reference current generator. Connect a resistor between this pin and ground to set reference
current (IREF).
159 O Servo data PLL phase detector filter pin number 1 (PDOFTR1).
160 O Servo data PLL output node of frequency detector charge pump (FDO)
.
161 I Servo data PLL input node of loop filter OP circuit (FTROPI).
163 I Servo data PLL loop filter pin number 1 (PLLFTR1)
.
164 I Servo data PLL loop filter pin number 2 (PLLFTR2)
.
165 O Servo data PLL reference voltage output (VREF0).
ES6688A Device Interfaces (Continued
)
Name Pin Numbers I/O Definition
Page 34
DVD - DivX Player - BSA3750
34
Servo Control and Data Interfac
e
133:136 O To monitor servo status (FLAG[3:0]).
177 I Spindle hall sensor input (FGIN).
178 I Sledge photo interrupt signal input (PHOI).
179 O Chip selection signal to RF chip (serial data enable) (SCSJ).
180 I/O Data signal from/to RF chip (SDATA).
181 O Serial clock source to RF chip (SCLK)
.
182 I Defect flag input signal (DFCT).
183 O Laser diode on/off control output (LDC).
184 O Spindle power driver on/off control output (SPDON).
187-189, 191
O
General-purpose open collector output used
for servo control (GPIO9-7, 5);
Pull up to VCC using a 4.7-k&! resistor
.
190, 192 I/O
General-purpose input/output used for servo control (GPIO6, 4); (5V tolerant input).
Servo DVD-RAM Interface
128 O DVD-RAM wobble detector circuit clock source to preamp (WBLCLK).
129 O DVD-RAM wobble output (WBL).
130 O DVD-RAM land/groove flag (LG).
131 I DVD-RAM header position index 2 (IP2).
132 I DVD-RAM header position index 1 (IP1).
System Memory Interface
5:8,
11:17, 20 O DRAM address bus (DMA[11:0]).
21 O Memory column address strobe output (DCAS#).
22, 23
O DRAM chip select outputs (DCS[1:0]#).
24, 25, 28 O Memory row address strobe output (DRAS[2:0]#).
29 O Memory output enable (DOE#).
30 O Memory write enable output (DWE#).
31:33, 36:42,
45:50
I/O Memory data bus (DB[15:0]).
51 O Output clock to DRAM (DSCK).
54 O Memory data I/O mask output (DQM).
Video DAC Interface
109 O CVBS/chroma signal (FDAC) for simultaneous mode
.
110 O Composite component signal (VDAC) for YUV mode.
113 O Luma component signal (YDAC) for YUV mode and Y/C processing
.
114 O Chrominance component signal (CDAC) for Y/C processing.
115 O Chrominance component signal (UDAC) for YUV mode
.
ES6688A Device Interfaces (Continued
)
Name
Pin Numbers I/O Definition
Page 35
DVD - DivX Player - BSA3750
35

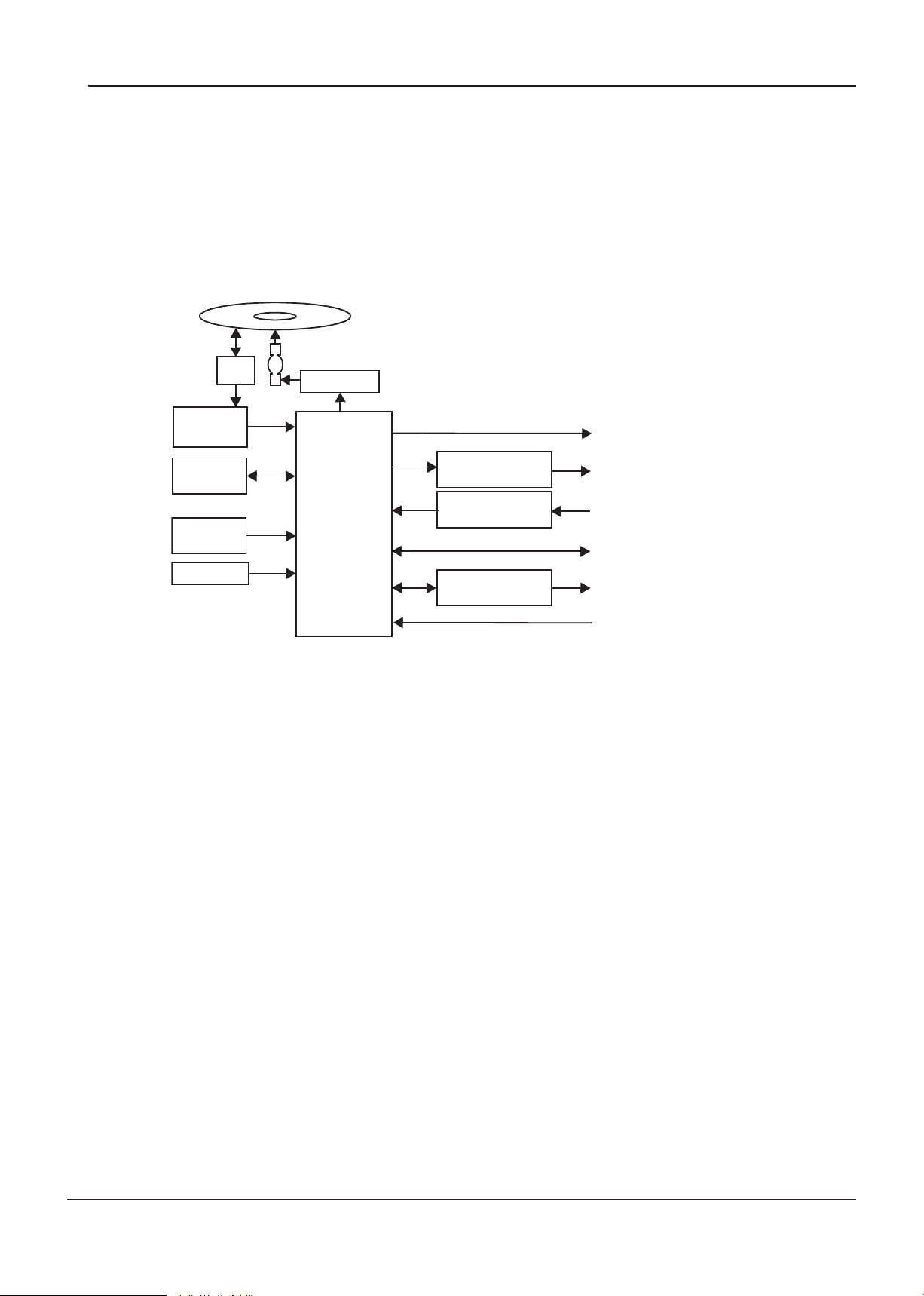

Figure 2 ES6688A Vibratto-II System Block Diagram
ES6688A
SDRAM
(8
/16-MB)
RF Amp
VFD Driver
Audio DAC
T
V Display
Speakers
Vide
o
EEPROM
A/V Receiver
Vibratto-II
VFD Panel
Audio AD
C
Microphone In
S/PDIF
ROM/Flash
Motor Driver
OPU
Motor
DVD/CD
IR Remote
ES6603
SYSTEM BLOCK DIAGRAM
A sample system block diagram for the ES66x8 Vibratto-II DVD player board design is show in the figure below.
Page 36
DVD - DivX Player - BSA3750
36
5
2
3
4
5
5
5
5
5
5
5
5
6
6
6
6
6
7
7
7
7
8
8
8
8
8
8
9
9
9
10
10
11
11
12
12
13
13
13
14
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
5. Exploded View and Spare Parts Lists

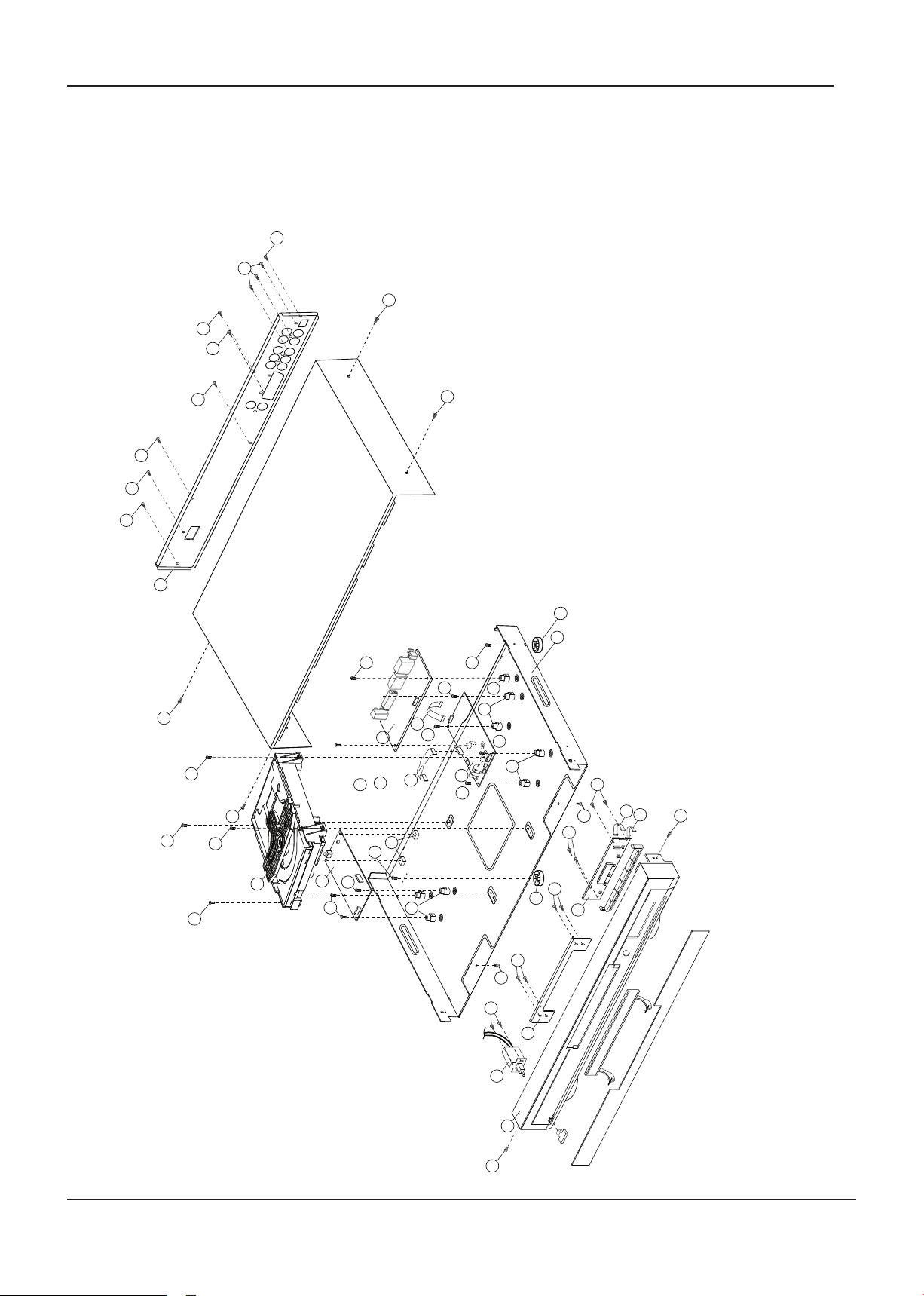

Exploded View
Page 37
DVD - DivX Player - BSA3750
37
Spare Parts Lists
Structure Parts List
Note: 1. When replacing any of components, be sure to use only manufactures specified parts shown in the parts list.
2. Important safety notice: Components identified by “ ! “ mark have special characteristics important for safety.
Ref.
No.
1 JKM3350-1 Top Cover 1
2 JMZ0001A Thermoplastic tube 2
3 JMZ0001B Thermoplastic tube 1
4 JSB0002 POWER Switch 1
5 JWV0005 Power wire ( 2P) 1
6 JGR4360 Rear side panel 1
7 JMK4350-2 Chassis 1
8 JKA2302 Foot 2
9 JMN0002 Clip 3
10 JMN2301 Stanchion 7
11
12 JGM2301 Power board Rubber 2
13 JWV12P2.5A Connecting wire (12pin) 1
14 JWJ30P1.0T80 Flexible flat cable(30P) 1
15 JYP3350P-2 Front Panel 1
16 JGK4350-BSA Logo nameplate 1
17 JMN3350 Bracket 1
18 JWV7P2.5A Connecting wire (7pin) 1
19 JWV6P2.5B Connecting wire (6pin) 1
20 JMG3350 Foot rubber mat 2
21 JQL0011D adhesive tape (double side) 1
22 DV34
23 KZG-D01
24 JWJ24P0.5T190
25 JWV6P2.0Y160
26 JWV5P2.0T140
27 JMG1313
28 JMR0002
29 BA2.6×8 30 FM3×6 Screw 4
31 PA3×8 Screw 10
32 PWB3×8 Screw 2
33 PWB3×8-B Screw 8
34 PWM3×6 Screw 9
35 PWM3×8 Screw 4
36 PWM3×11 Screw 2
37 PWM3×15 Screw 7
PART NUMBER
JMN2302 Stanchion 2
Optical pickup unit 1
Holder of mechanism 1
Flexible flat cable(24P)
Connecting wire (6 pin, pitch=2.0mm, L=160mm) 1
Connecting wire (5 pin, pitch=2.0mm, L=140mm) 1
Board Rubber 2
Mechanism mat 2
Screw 2
Part Name & Description Pcs Remarks
1
Page 38
DVD - DivX Player - BSA3750
38
Electric Parts List
Note:
1. When replacing any of components, be sure to use only manufactures specified parts shown in the parts list.
2. Important safety notice: Components identified by “!” mark have special characteristics important for safety.
3. This product uses a laser diode. Refer to caution statements.
4. Capacity valuse are in microfarads (µF) unless specified otherwise, P=Pico-farads (pF), F=Farads (F); Resistance vallues are in ohms, unless specified otherwise, 1K=1,000(OHM),1M=1,000K(OHM).
POS. NO PART NUMBER DESCRIPTION Pcs Remarks
JEP4364A Output Board Module 1
JEP3353A Operate Board Module
JEP4360P Power Board Module 1
JEP4361A
Decode Board Module 1
JEP4364A Output Board Module 1
JJB4364A-1 PCB 1
C701 ECA1CHG221 Aluminum electrolytic capacitor 220uF 1
C702,C709,C714,C713,C720 HLT1HC220K05F3D Capacitor,ceramic 22pF 5
C703,C706,C708 HLT1HS101K05F3D Capacitor,ceramic 100pF 3
C715 HLS1HF104Z07F3D Capacitor,ceramic 100nF 1
1
C711,C712,C704,C705,C716, C717,C718,C719
HLK1HB102K05F3D Capacitor,ceramic 1000pF 8
FB702,FB703,FB704,FB705, FB706,FB707,FB709,FB713 ,FB714,FB721,W703,W704,
EN9589 Ferrite bead 17 W705,FB717,FB718,FB719, FB720
JS701 JJS30P1.0S Connector 30P 1.0mm 1
X701,X702 VJR0978 Earthing strip 2
J701 ASW-03 Terminal (CVBS+S-VIDEO) 1
J702 CS-106 Terminal (SCART) 1
J703 AV6-8.4-13/PB Terminal (5.1 channel Audio) 1
J704 AV4-8403A Terminal (Coaxial + YPbPr) 1
J705 TPK-TX178A Terminal (Optical) 1
W701,W702,W706,W707, W708,W709,W710
Z-W6NL-H10 Jumper 10mm 7
R701 ERD25TJ3R9B Resistor 1/4W 3.9Ω ±5% 1
JEP3353A Operate Board Module
JJB3353A PCB
E501,E502 ECEA1AKA101-H5 Aluminum electrolytic capacitor 100uF 2
C502 HLS1HF104Z07F3D Capacitor,ceramic 100nF 1
JP502 JJU6P2.5A Connector 6P 2.5mm 1
JP501 JJU7P2.5A Connector 7P 2.5mm 1
D502,D503,D504 1N4148 Diode 3
U502 AT136BT-12DW 36KHz IR Receiver 1
R501 ERD25TJ100D Resistor 10Ω ±5% 1
1
1
Page 39
DVD - DivX Player - BSA3750
39
R502 ERD25TJ473D Resistor 47K ±5% 1
R504,R505,R506,R507,R508, R509,R510 ERD25TJ103D Resistor 10K ±5% 7
SW501,SW502,SW503, SW504,SW505,SW506 EVQPAE05R Light Touch Button 6
U501 HNV05SS32 VFD 1
JMG2302 VFD rubber mat 2
W502,W503,W505,W506 Z-W6NL-H5 Jumper 5mm 4
W501,W504 Z-W6NL-H7.5 Jumper 7.5mm 2
U503 D16312 IC 1
JEP4360P Power Board Module 1
JJB3302A PCB 1
C609 C610
C627
C614
C616 C618 C620 C625 C617
C622
C621
C603
C601 C602
C605
C606
C631 C611
C608
CY603
CON602
CON601
D601 D602 D603 D604 1N4007-H02-1 Diode 4
D605 D607 D617 FR104-H02-1 Diode 3
D606 BZX55C16V Zener diode 1
D608 D613 D615 D616 FR107-H02-1 Diode 4
D610 1N5822-M26 Diode 1
D618 D620 RL205-H14 Diode 2
D619 BZX55C9V1 Zener diode 1
F601 JLF0001 Choke 1
J603 Z-W6NL-H7.5 Jumper 7.5mm 1
ECA1HHG100 Aluminum electrolytic capacitor 10uF
ECA1CHG102 Aluminum electrolytic capacitor 1000uF
ECA1CHG222 Aluminum electrolytic capacitor 2200uF
ECA1EHG221 Aluminum electrolytic capacitor 220uF
ECA1EHG471 Aluminum electrolytic capacitor 470uF
ECA1HHG101 Aluminum electrolytic capacitor 100uF
HPW680M2GN30 Aluminum electrolytic capacitor 68uF
AC275V-104K Capacitor, 275V104
HLK1HB471K05F3D Capacitor,ceramic 470pF
HLS1HF104Z07F3D Capacitor,ceramic 100nF
HCM08051HY5V224ZB3 Capacitor,ceramic 220nF
ECKA3A472MBP Capacitor,ceramic 4.7nF
HJE222M12H3 Capacitor,ceramic 2.2nF
JJS0002
K2AA2B000004 AC inlet
AC Connector 2P pitch=7.92mm
2
1
1
5
1
1
1
2
1
1
2
1
1
1
1
J601 J602 J605 J607 J608, CY604 Z-W6NL-H10 Jumper 10mm 6
JS601
JS602
L602
L603 L605
R601
R604 R605
JJU12P2.5A Connector 12P 2.5mm
JJU6P2.5A Connector 6P 2.5mm
ELC10D100E Inductor 10uH
ELEAA5R6JA Inductor 5.6uH
ERD25TJ753B Resistor 75K ±5%
ERD25TF1R0B Resistor 1Ω±5%
1
1
1
2
1
2
Page 40
DVD - DivX Player - BSA3750
40
CC48,CC63,CC64,CC78,CC80
ECA1CM101
Aluminum electrolytic capacitor 47uF
5
R607
R608
R609
R631
R610
R615
R616
R611 R617
R612
R619
R630
T601
U601 TEA1523P IC 1
U602 H11A817C300 IC 1
U603 AZ431BZ-A IC 1
X601 X602
ZA601 ZA602
FUSE601 JSF0002 Fuse 1
CY601,CY602 HJE102M09H3
ZX601 RMCC001-1
U3 24C01 IC 1
QQ2,QQ1 2SB1115-T
UU2 BA5954 IC 1
UU4 BA6287F IC 1
D1,D2,D3,D4,D5 BAT54RSLT1
B2,B26,CC73 ECA1AM101 Aluminum electrolytic capacitor 100uF 3
B27 ECA1AM470 Aluminum electrolytic capacitor 47uF 1
ERD25TJ101B Resistor 100Ω±5%
ERD25TJ223B Resistor 22K ±5%
ERD25TJ682B Resistor 6.8K ±5%
ERD25TJ100B Resistor 10Ω±5%
ERD25TJ472B Resistor 4.7K ±5%
ERD25TF512B Resistor 5.1K ±1%
ERD25TF532B Resistor 5.3K ±1%
ERD25TJ102B Resistor 1K ±5%
ERX2SJ563H
ERD25TJ333B Resistor 33K ±5% 0.25W
ERD25TJ103B Resistor 10K ±5% 0.25W
JTP2301 Transformer
VJR0978
EYF52BC Fuse socket
JEP4361A
Resistor 56K ±5% 1
Earthing Strip 2
Capacitor, 1nF/400V
Earthing Strip
Decode Board Module
SMT transistor
SMT diode
1
1
1
1
1
1
1
2
1
1
1
2
2
1
2
5
C37,C40,C47 ECA1CM221 Aluminum electrolytic capacitor 220uF 3
B10,B12,C16,C17,B24,B25, C33,B36,B57,C61,C70,C72, C79,C18,C19,C21,C25,C28, B44,B54,C59,C60,C68,C69, C32,C43,C50,C55 ECA1EM100 Aluminum electrolytic capacitor 10uF 28
CC82 ECA1EM101 Aluminum electrolytic capacitor 100uF 1
C42 ECA1EM471 Aluminum electrolytic capacitor 470uF 1
CC8 ECA1EM4R7 Aluminum electrolytic capacitor 4.7uF 1
CC55,CC65,CC67 ECJ1VB1C101K SMT capacitor 100pF 3
CC45,CC62 ECJ1VB1C103K SMT capacitor 0.01uF 2
CC10,CC12,CC20,CC81,CC83
C86 ECJ1VB1C150Z SMT capacitor 15pF 1
C77,C84,C38,C46,C53,C64 ECJ1VB1C151Z SMT capacitor 150pF 6
ECJ1VB1C105Z SMT capacitor 1uF 5
Page 41
DVD - DivX Player - BSA3750
41
CC28,CC31,CC32 ECJ1VB1C153K SMT capacitor 0.015uF 3
CC60 ECJ1VB1C161K SMT capacitor 160pF 1
CC58 ECJ1VB1C224K SMT capacitor 0.022uF 1
C1,C2,C3,C4,C5,C6,C9,C10, C11,C12,
CC61 ECJ1VB1C333K SMT capacitor 0.033uF 1
CC6,CC11,CC15,CC68 ECJ1VB1C472K SMT capacitor 470pF 4
CC53,CC21 ECJ1VB1C473K SMT capacitor 0.047uF 2
CC17 ECJ1VB1C682K SMT capacitor 680pF 1
CC47 ECJ1VB1C821Z SMT capacitor 820pF 1
CC41,CC43 ECJ1VB1H471K SMT capacitor 470pF 2
CC23,CC30,CC33 ECJ1VB1H561K SMT capacitor 560pF 3
CC50,CC51,CC52,CC54 ECJ1VB1H681K SMT capacitor 680pF 4
C74,C75,C81,C82,C36,C35,C 44,C45,C52,C51,C62,C63
C14,C13 ECJ1VC1H240G SMT capacitor 24pF 2
CC35,CC36,CC37 ECJ1VC1H330J SMT capacitor 33pF 3
CC25 ECJ1VC1H470J SMT capacitor 47pF 1
B4,B6,B7,B8,B9,B11,B13,B1 4,B15,B16,B17,B18,B19,B20 ,B21,B22,B23,B28,CC29,B29 ,B30,B31,B32,B33,C34,B34, B35,B37,B38,B39,B40,C41 ,B41,C49,B55,C56,B56,C65, CC5,C7,C8,CC13,CC14,CC 22,CC24,CC26,CC27,CC38, CC39,CC40,CC42,CC44,CC46, CC49,CC56,CC57,CC70,CC72, CC75,CC77,CC85,c27,B48,B49 ,B50,B51,C57,C58,C66,C67
CC1,CC2,CC3,CC4,CC59,C C66,C78,C85,C39,C48,C54, C71
L1,L2,L3,L4,L5 ELJEA1R8KF SMT inductor 1.8uH 5
ECJ1VB1C331Z SMT capacitor 330pF 10
ECJ1VC1H220J SMT capacitor 22pF 12
ECJ1VF1C104Z SMT capacitor 0.1uF 70
ECUV1H102JCV SMT capacitor 1000pF 12
U7
RR29,RR47
,R123,R140,R78,R90,R104, R111
R121,R138,R76,R88,R101,R 109
R137,R120,R75,R87,R100,R 108
R22,R27,R34,RR35,RR73,R1 4,R19,R20,R28,R130,R113,R 72,R82,R96,R106
RR40,RR39,R18 ERJ3GEYJ100V
EM6353BX1SP3B-
4.4
ERJ3EKF1202V
ERJ3EKF1802V
ERJ3EKF3301V
ERJ3EKF9101V
ERJ3GEY0R00V
IC 1
SMT resistor 12K 0.1W ±1%
SMT resistor 18K 0.1W ±1%
SMT resistor 3.3K 0.1W ±1%
SMT resistor 9.1K 0.1W ±1%
15
SMT resistor 0Ω 0.1W
SMT resistor 10Ω 0.1W ±5%
2
6
6
6
3
Page 42
DVD - DivX Player - BSA3750
42
RR8,R23,R24,RR36,RR50,R1 12,R122,R124,R126,R129,R1 39,R141,R142,R71,R77,R81, R89,R103,R95,R105,R110
ERJ3GEYJ102V
21
SMT resistor 1K 0.1W ±5%
RR5,RR9,RR10,RR16,RR42, RR63,RR69, R54
RR11,R47,R86,R94,R116,R1 34,R73,R85,R98,R107
R83,RR65 ERJ3GEYJ105V
R80
RR14 ERJ3GEYJ122V
R74,R79,R97 ERJ3GEYJ151V
RR70,RR64 ERJ3GEYJ152V
RR15 ERJ3GEYJ183V
R91,R99
RR7 ERJ3GEYJ203V
R118,R133,R136
RR72,RR66,RR41,RR45 ERJ3GEYJ223V
RR26,RR27,RR28,R30,R31,R 36,R37,R38,R39,R41,RR46,R 49,R52,R53,R92,R60,R61
RR1,RR2,RR3,RR4,RR49, ERJ3GEYJ332V
RR13 ERJ3GEYJ333V
R13 ERJ3GEYJ391V
R84 ERJ3GEYJ470V
R6,R7,R8,R9,R10,R35,RR67 ERJ3GEYJ472V
RR43,RR48 ERJ3GEYJ473V
RR17,RR23 ERJ3GEYJ512V
R102
RR20,RR21,RR24,RR25 ERJ3GEYJ682V
RR6
R5,R11,R12,R15,R16,R119 ERJ3GEYJ750V
R93
RR59,RR60,RR61,RR62 ERJ6GEYJ1R0V
UU1 ES6603S IC 1
U1 ES6688FA IC 1
RN1,RN2,RN3,RN4,RN5
Y1 HC49S27.000M Crystal Oscillator 1
U5 IS42S16400A-7T SDRAM 1
CN1 JJS24P0.5AL
JJ1 JJS30P1.0S Connector 30P 1.0mm 1
JJ7 JJU12P2.5A Connector 12P 2.5mm 1
JJ3 JJU5P2.0A Connector 5P 2.0mm 1
ERJ3GEYJ103V
SMT resistor 10K 0.1W ±5%
ERJ3GEYJ104V
ERJ3GEYJ106V
ERJ3GEYJ202V
ERJ3GEYJ222V
ERJ3GEYJ330V
ERJ3GEYJ680V
ERJ3GEYJ683V
ERJ3GEYJ910V
EXB38V100JV SMT Resistor Array 10Ω ×4 5
JJB2401A-003 PCB 1
SMT resistor 100K 0.1W ±5%
SMT resistor 1MΩ 0.1W ±5%
SMT resistor 10MΩ 0.1W ±5%
SMT resistor 1.2K 0.1W ±5%
SMT resistor 150Ω 0.1W ±5%
SMT resistor 1.5K 0.1W ±5%
SMT resistor 18K 0.1W ±5%
SMT resistor 2K 0.1W ±5%
SMT resistor 20K 0.1W ±5%
SMT resistor 2.2K 0.1W ±5%
SMT resistor 22K 0.1W ±5%
SMT resistor 33Ω 0.1W ±5%
SMT resistor 3.3K 0.1W ±5%
SMT resistor 33K 0.1W ±5%
SMT resistor 390Ω 0.1W ±5%
SMT resistor 47Ω 0.1W ±5%
SMT resistor 4.7K 0.1W ±5%
SMT resistor 47K 0.1W ±5%
SMT resistor 5.1K 0.1W ±5%
SMT resistor 68Ω 0.1W ±5%
SMT resistor 6.8K 0.1W ±5%
SMT resistor 68K 0.1W ±5%
SMT resistor 75Ω 0.1W ±5%
SMT resistor 91Ω 0.1W ±5%
SMT resistor 1Ω 0.125W ±5%
Connector 24P 0.5mm
10
17
8
2
1
1
3
2
1
2
1
3
4
5
1
1
1
7
2
2
1
4
1
6
1
4
1
Page 43
DVD - DivX Player - BSA3750
43
JJ4 JJU6P2.0A Connector 6P 2.0mm 1
JJ6 JJU7P2.5A Connector 7P 2.5mm 1
FB1,FB2,FB4,LL1,LL2,L9,LL3 ,LL4,LL5,LL6,L6,L7,L8
QQ6,QQ8,Q15,Q18,Q19
DD1,DD2,DD3,D10,D11,D12
U2 M29W800DT-70N1 FLASH 1
U15,U12,U14 OPA 4558 IC 3
U13 PC74HCTO4T IC 1
Q7,Q8,Q9,Q13 SMD-2N3906 SMT transistor 4
Q17,Q12,Q1,Q4,Q6,Q10,Q11
QQ7,QQ5 SMD-2SK3018 SMT transistor 2
Q3,Q20,Q21
Q5
UU3 TL3472 IC 1
U9 WM8746 IC 1
JLB0004
KST3904-MTF SMT transistor
LL4148-13 SMT transistor 6
SMD-2SC3326 SMT transistor 7
SMD-8050 SMT transistor 3
SMD-8550 SMT transistor 1
SMT ferrite bead
13
5
Page 44
DVD - DivX Player - BSA3750
ACCESSORY PARTS LIST
Note:
1. When replacing any of components, be sure to use only manufactures specified parts shown in the parts list.
2. Important safety notice: Components identified by “ ! “ mark have special characteristics impor­tant for safety.
Ref.
No.
1 R03P-AAA Battery 2
2 JAK4360-BSA-1 Remote control 1
3 JFX0003 Scart cable 1
4 RJA0055-1K Power cable 1
5 JPF0001 Accessory bag 1
6 JQC4360-BSA Guarantee 1
7 JQT4360-BSA-1 User Manual 1
8 JQL0010P Adhesive Tape 0.15
9 CZT1002-J Adhesive Tape 1.4
10 JPF0002-1 Set bag 1
11
JPG4360B-BSA Packing case 1/3
12 JPN3350A Cushion (left) 1
13 JPN3350B Cushion (right) 1
14 PRNC0020 Cushion (front) 1
PART NUMBER
Part Name & Description Pcs Remarks
44
Loading...
