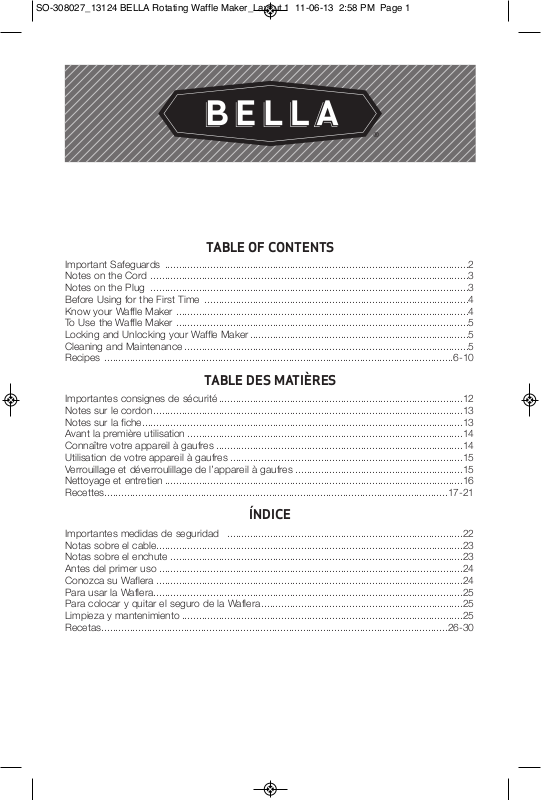

BELLA 13124 User Manual [en, es, fr]
TABLE OF CONTENTS
Important Safeguards ...........................................................................................................2
Notes on the Cord ................................................................................................................3
Notes on the Plug ................................................................................................................3
Before Using for the First Time .............................................................................................4
Know your Waffle Maker .......................................................................................................4
To Use the Waffle Maker .......................................................................................................5
Locking and Unlocking your Waffle Maker .............................................................................5
Cleaning and Maintenance ....................................................................................................5
Recipes ...........................................................................................................................6-10
TABLE DES MATIÈRES
Importantes consignes de sécurité......................................................................................12
Notes sur le cordon .............................................................................................................13
Notes sur la fiche.................................................................................................................13
Avant la première utilisation .................................................................................................14
Connaître votre appareil à gaufres .......................................................................................14
Utilisation de votre appareil à gaufres ..................................................................................15
Verrouillage et déverroulillage de l’appareil à gaufres ...........................................................15
Nettoyage et entretien .........................................................................................................16
Recettes.........................................................................................................................17-21
ÍNDICE
Importantes medidas de seguridad ...................................................................................22
Notas sobre el cable............................................................................................................23
Notas sobre el enchute .......................................................................................................23
Antes del primer uso ...........................................................................................................24
Conozca su Waflera ............................................................................................................24
Para usar la Waflera.............................................................................................................25
Para colocar y quitar el seguro de la Waflera.......................................................................25
Limpieza y mantenimiento ...................................................................................................25
Recetas..........................................................................................................................26-30
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 1
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read all instructions carefully.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of fire, electric shock and injury to persons,
DO NOT IMMERSE CORD, PLUG OR APPLIANCE in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Turn unit off and unplug unit when not in use and before cleaning.
To disconnect, turn unit off, grasp plug, and pull from wall. Never yank on cord.
6. Allow cooling before putting on or taking off parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions or is dropped or damaged in any manner. Bring the appliance
to a qualified service agent for examination, repair or electrical or mechanical
adjustment to avoid hazard.
8. The use of accessory attachments not recommended or sold by the appliance
manufacturer may cause fire, electric shock, or injury to persons.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces,
including the stove.
11. Do not allow appliance to come into contact with any materials that are flammable
such as draperies, walls, etc.
12. Do not place on or near a hot gas or electric burner or in a heated oven.
13. When finished baking waffles, set the heat setting to lowest setting and remove plug
from wall outlet.
14. Do not use this appliance for other than intended use.
15. Do not clean with metal scouring pads; pieces can break off the pad and touch
electrical parts, creating a risk of electrical shock.
16. Extreme caution must be used when moving an appliance containing hot oil
or other hot liquids.
17. This appliance is for household use only.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
2
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 2
NOTES ON THE CORD
The provided short power-supply cord (or detachable power-supply cord) should be used
to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
Do not use an extension cord with this product.
NOTES ON THE PLUG
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk
of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not
fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
Do not modify the plug in any way.
PLASTICIZER WARNING
CAUTION: To prevent Plasticizers from migrating to the finish of the counter top or table top
or other furniture, place NON-PLASTIC coasters or place mats between the appliance
and the finish of the counter top or table top. Failure to do so may cause the finish to darken;
permanent blemishes may occur or stains can appear.
ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your appliance may not operate
properly. It should be operated on a separate electrical circuit from other appliances.
3
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 3
BEFORE USING FOR THE FIRST TIME
- Remove all parts included in the box.
- Wash all the parts thoroughly (refer to Cleaning and Maintenance section
for more information).
Note: your Waffle Maker may emit a small amount of smoke and/or odor when you use it
for the first time. This is normal and harmless, however we recommend that you do not eat
the first waffle you make with the Waffle Maker.
KNOW YOUR WAFFLE MAKER
Product may vary slightly from illustration
* Drip tray included to collect overflow of batter and crumbs.
Feet in closed position Feet in open position
Blue Ready Light
B
lue Ready Light
Handle
C
ontrol Knob
Red Power Light
Drip Tray*
4
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 4
5
TO USE THE WAFFLE MAKER
1. Plug the cord into your 110 - 120 V AC wall outlet. The Red Power Light will turn on
indicating the appliance is ready for preheating.
2. Set the Control Knob to your desired setting. The higher your setting, the darker
your waffles will be. Experiment with the setting and different waffle batters to determine
your ideal Waffle Maker settings.
Note: The Red Power Light will remain on until the appliance is unplugged.
3. The Blue Ready Light will turn off and the Waffle Maker will begin to preheat.
The Blue Ready Light will turn on when the appliance reaches proper cooking
temperature. This should take approximately 3 to 5 minutes. Once heated,
ready times will be faster.
4. When the Blue Ready Light turns on, open the Waffle Maker, and apply a light layer
of vegetable oil or melted shortening to the heating plates. Spread the waffle batter
evenly onto the lower heating plate.
5. Close the Waffle Maker and rotate the handle 180º clockwise (right) until it locks
for cooking.
6. When the Blue Ready Light turns on again, rotate the handle 180º counter-clockwise (left)
to unlock and then carefully open the Waffle Maker.
7. If the waffles are not dark enough, close the Waffle Maker, rotate to lock,
and then wait another 30 seconds. Repeat as needed.
8. When you are satisfied with your waffles, use a non-metallic utensil to remove them
from the heating plates.
9. To make more waffles, close the Waffle Maker until the Blue Ready Light comes on,
then repeat from step 4.
10. When you are finished, turn the appliance off and then unplug it from the wall outlet.
After it has sufficiently cooled, the heating plates may be wiped clean.
LOCKING AND UNLOCKING YOUR WAFFLE MAKER
Your Waffle Maker is unlocked only when the Control Knob is facing up. You can only
open the Waffle Maker in the unlocked position.
CLEANING AND MAINTENANCE
1. Always turn off the appliance, unplug it, and allow it to cool down before cleaning.
2. You can easily remove any excess oils or crumbs without disassembling the appliance.
3. Never submerge the appliance in water or place it in the dishwasher.
4. Use only plastic or wooden utensils on the heating plates. Metal may damage the plates.
5. Use a soft cloth on the heating plates and occasionally a metal polish intended for
stainless steel on the outer housing. Never use abrasive scouring pads or steel wool.
6. Do not use the Waffle Maker for anything other than making waffles.
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 5
6
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
WAFFLE BASE MIX
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CHOCOLATE CHIP WAFFLES
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CHOCOLATE CARAMEL WAFFLES
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CHOCOLATE PEANUT BUTTER WAFFLES
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
BLUEBERRY WAFFLES
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CINNAMON APPLE WAFFLES
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
BACON SWISS WAFFLES
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
RECIPES
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 6
7
This easy to make waffle mix can be made in so many ways with only a few
ingredients from your pantry. Try both savory and sweet recipes for a unique way
to serve this classic breakfast favorite at anytime of the day!
WAFFLE BASE MIX
3 cups all-purpose flour
2 tbsp. baking powder
1 tsp. salt
1/2 cup sugar
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Mix all ingredients together and store in an airtight container until ready to use.
TIP:
1. Add 4 tbsp. of melted butter, 2 eggs and 1/2 cup buttermilk to make classic
buttermilk waffles!
2. Add 1/4 cup of your favorite jam flavor to batter before cooking.
3. Layer waffles with fresh fruit, toasted nuts, honey, flavored
syrups or yogurt for a delicious breakfast or treat.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CHOCOLATE CHIP WAFFLES
1 1/2 cups Classic Waffle Base
4 tbsp. melted butter
2 eggs
1/2 cup buttermilk
1/4 cup chocolate chips
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
1. In a mixing bowl, combine all ingredients and whisk
until mixture is smooth and contains no lumps.
2. In preheated waffle iron, ladle in about 1/3 cup for each waffle
and cook until waffles are golden brown (about 3-4 minutes).
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Makes 4 waffles.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 7
8
CHOCOLATE CARAMEL WAFFLES
1 1/2 cups Classic Waffle Base
4 tbsp. melted butter
2 eggs
1/2 cup buttermilk
2 tbsp. chocolate chips
2 tbsp. caramel chips
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
1. In a mixing bowl, combine all ingredients and whisk
until mixture is smooth and contains no lumps.
2. In preheated waffle iron, ladle in about 1/3 cup for each waffle
and cook until waffles are golden brown (about 3-4 minutes).
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Makes 4 waffles.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CHOCOLATE PEANUT BUTTER
WAFFLES
1 1/2 cups Classic Waffle Base
4 tbsp. melted butter
2 eggs
1/2 cup buttermilk
2 tbsp. chocolate chips
2 tbsp. peanut butter (microwaved to slightly melt until creamy – do not overheat)
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
1. In a mixing bowl, combine all ingredients and whisk
until mixture is smooth and contains no lumps.
2. In preheated waffle iron, ladle in about 1/3 cup for each waffle
and cook until waffles are golden brown (about 3-4 minutes).
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Makes 4 waffles.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 8
9
BLUEBERRY WAFFLES
1 1/2 cups Classic Waffle Base
4 tbsp. melted butter
2 eggs
1/2 cup buttermilk
1/4 cup blueberries
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
1. In a mixing bowl, combine all ingredients and whisk
until mixture is smooth and contains no lumps.
2. In preheated waffle iron, ladle in about 1/3 cup for each waffle
and cook until waffles are golden brown (about 3-4 minutes).
Tip:
Top with sliced strawberries for a berry-delicious breakfast!
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Makes 4 waffles.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CINNAMON APPLE WAFFLES
1 1/2 cups Classic Waffle Base
4 tbsp. melted butter
2 eggs
1/2 tsp. cinnamon
1/2 cup buttermilk
1/4 cup applesauce
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
1. In a mixing bowl, combine all ingredients and whisk until mixture is smooth
and contains no lumps.
2. In preheated waffle iron, ladle in about 1/3 cup for each waffle
and cook until waffles are golden brown (about 3-4 minutes).
Top with your favorite breakfast fruit, cream or syrup.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Makes 4 waffles.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 9
10
BACON SWISS WAFFLES
1 1/2 classic waffle base
4 tbsp. melted butter
2 tbsp. olive oil
1/2 cup milk
2 eggs
1 cup shredded swiss cheese
8 slices of bacon, crumbled
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
1. In a mixing bowl, combine all ingredients and whisk until mixture is smooth
and contains no lumps.
2. In preheated waffle iron, ladle in about 1/3 cup for each waffle and cook until
waffles are golden brown (about 3-4 minutes). Top with butter
and shredded swiss cheese if desired.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Makes 4 waffles.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
SO-308027_13124 BELLA Rotating Waffle Maker_Layout 1 11-06-13 2:58 PM Page 10
Loading...
