Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.
Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.
The user manual will help you use the product in a fast and safe way.
•Read the manual before installing and operating the product.
•Make sure you read the safety instructions.
•Keep the manual in an easily accessible place as you may need it later.
•Read the other documents given with the product.
Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
C Important information or useful hints.
ARisk of injury and damage to the property.
BRiskPackagingof electricmaterialsshock. of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.
Contents |
|
|
|
1. Safety and environment |
3 |
instructions |
1.1. General safety. . . . . . . . . . . . . . . . . . . .3 1.1.1 HC warning. . . . . . . . . . . . . . . . . . . . . . .5 1.1.2 For models with water dispenser5 1.2. Intended use . . . . . . . . . . . . . . . . . . . . .5 1.3. Child safety. . . . . . . . . . . . . . . . . . . . . . .5
1.4.Compliance with WEEE Directive and Disposing of the Waste Product .6
1.5.Compliance with RoHS Directive.6
1.6. Package information . . . . . . . . . . . . .6
2 Your appliance |
7 |
3 Installation |
8 |
3.1. Appropriate installation location 8 3.2. Installing the plastic wedges . . . .8 3.3. Adjusting the feet. . . . . . . . . . . . . . . .9 3.4. Electrical connection. . . . . . . . . . . . .9 3.5. Reversing the doors . . . . . . . . . . . .10 3.6. Reversing the doors . . . . . . . . . . . . 11
4 Preparation |
12 |
4.1. Things to be done for energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2. Initial use . . . . . . . . . . . . . . . . . . . . . . . 12
5 Operating the product |
13 |

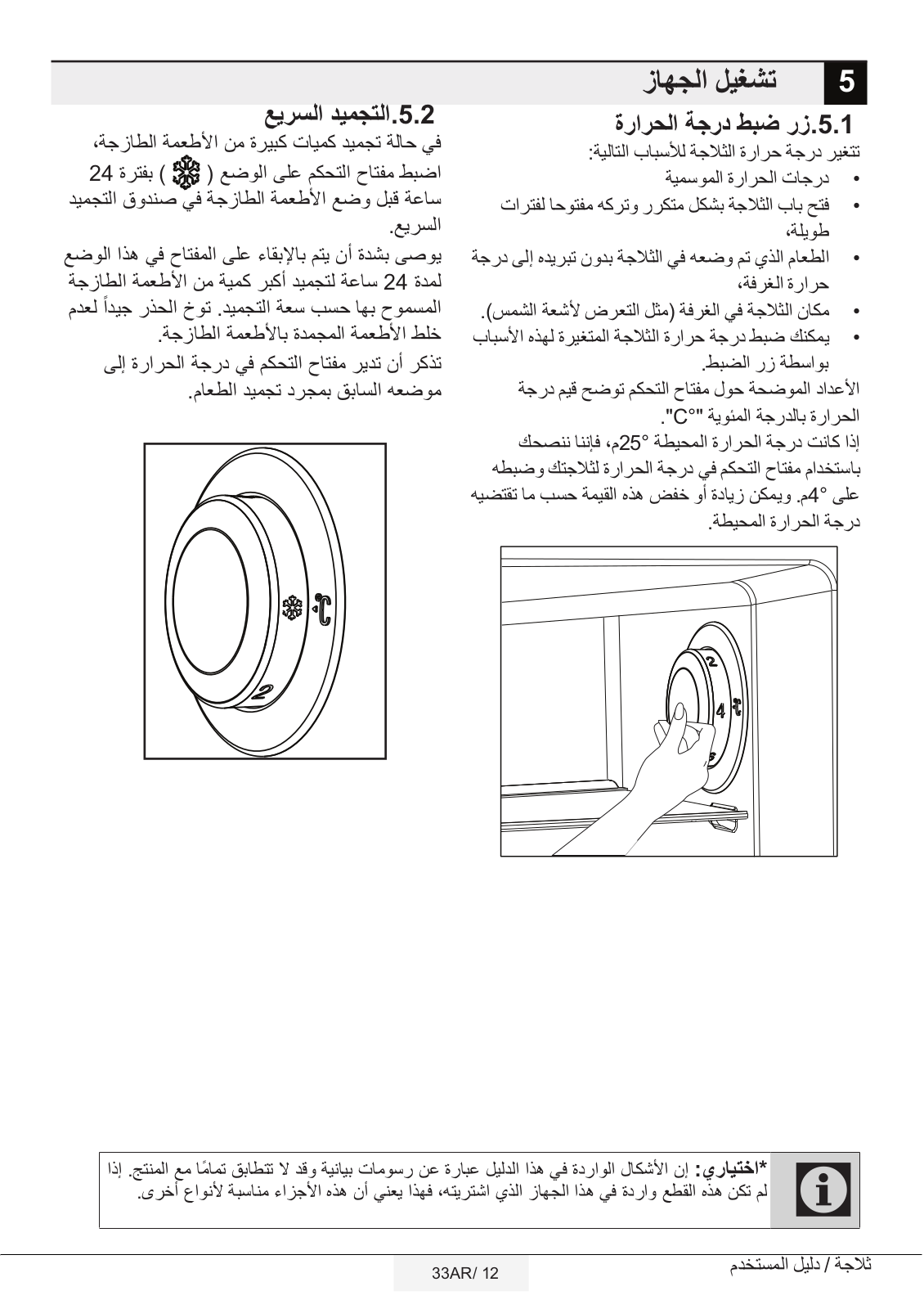

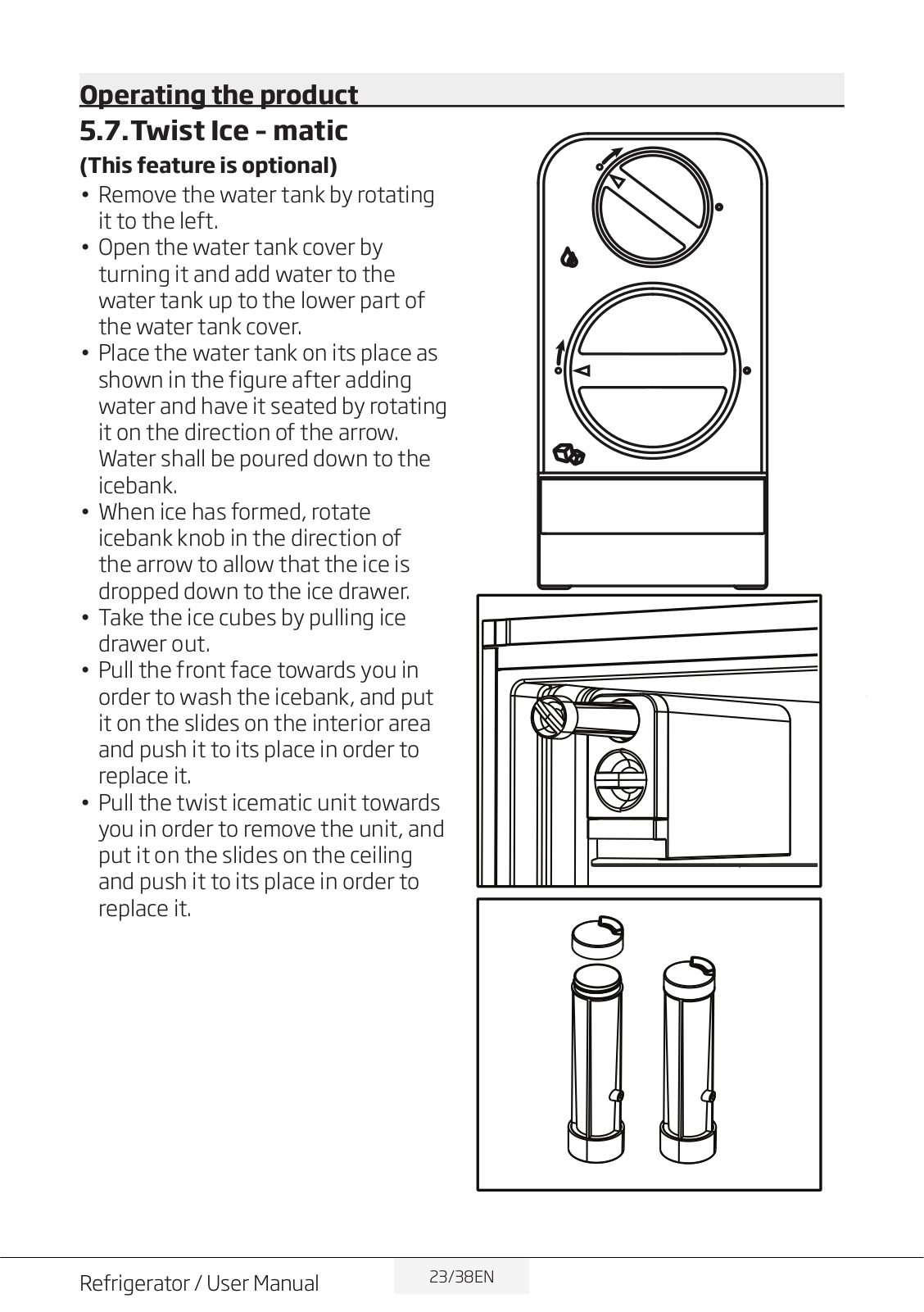

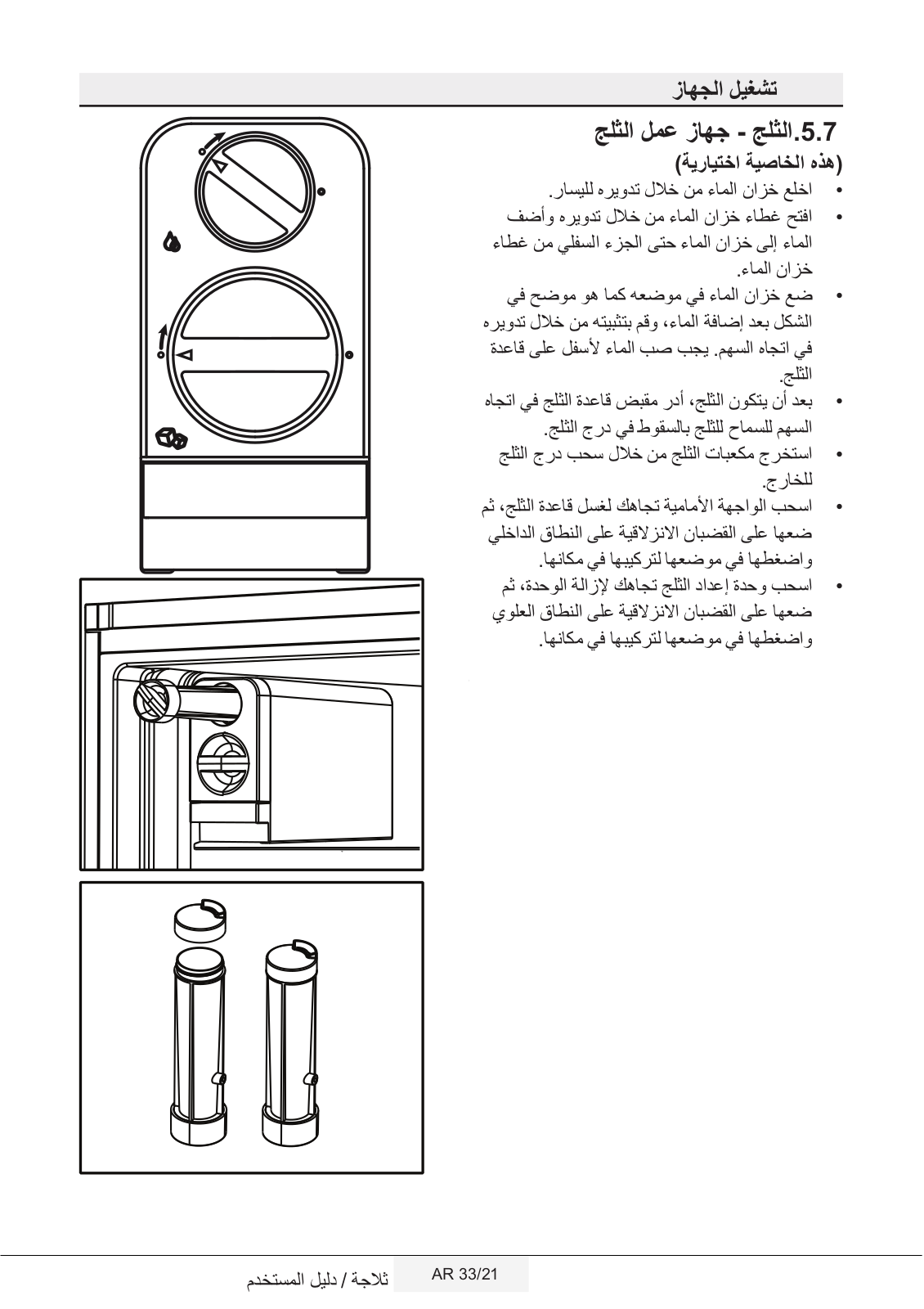

5.1. Temperature setting button. . . 13 5.2. Fast freeze . . . . . . . . . . . . . . . . . . . . . 13 5.3. Vacation function . . . . . . . . . . . . . . 14 5.4. Indicator panel . . . . . . . . . . . . . . . . . 15 5.5. Indicator panel . . . . . . . . . . . . . . . . . .17 5.6. Indicator panel . . . . . . . . . . . . . . . . . 20 5.7. Twist Ice – matic . . . . . . . . . . . . . . . 23 5.8. Ice container . . . . . . . . . . . . . . . . . . . 24 5.9. Egg holder. . . . . . . . . . . . . . . . . . . . . . 24 5.10.Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 5.11. Crisper . . . . . . . . . . . . . . . . . . . . . . . . . 24

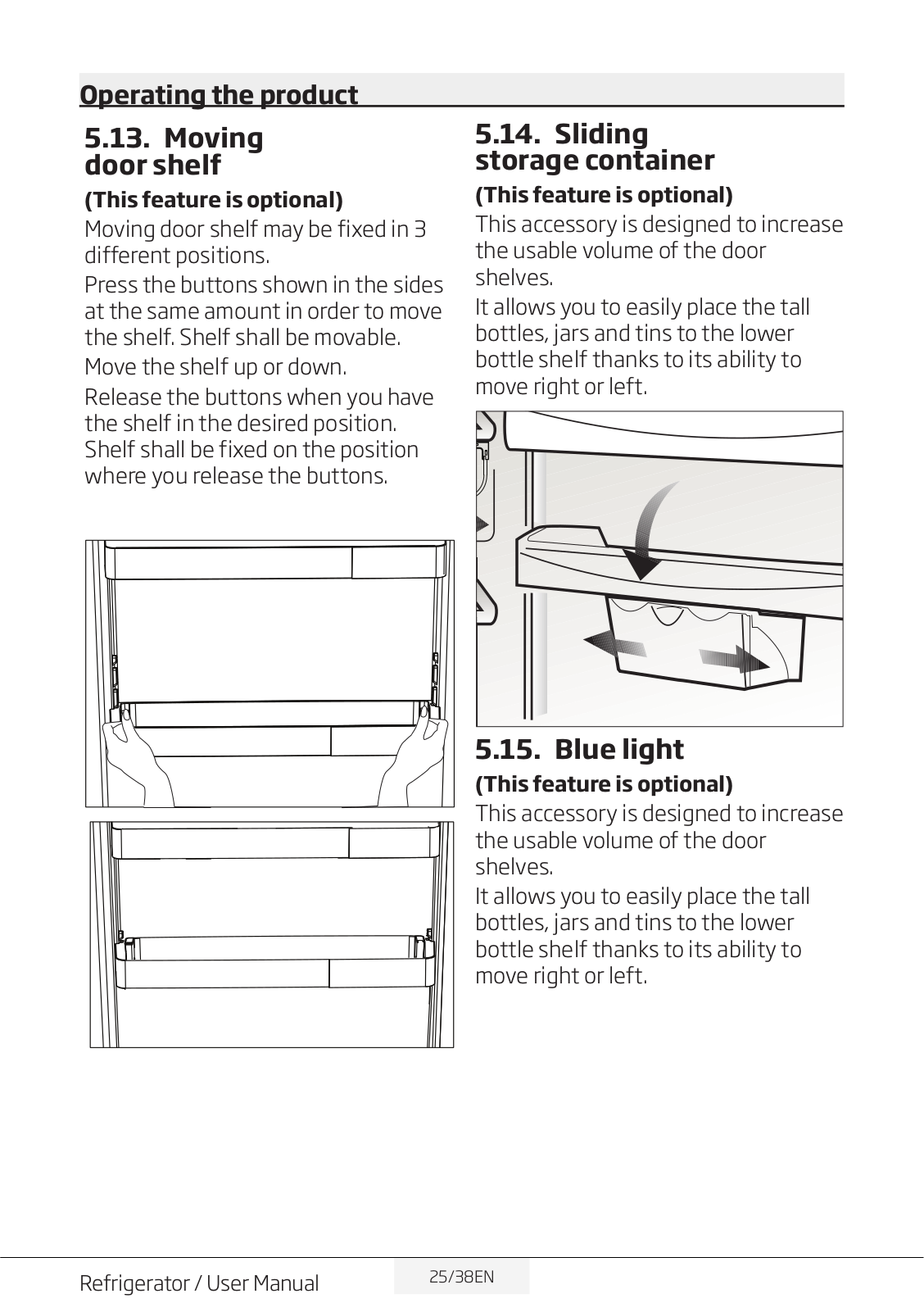

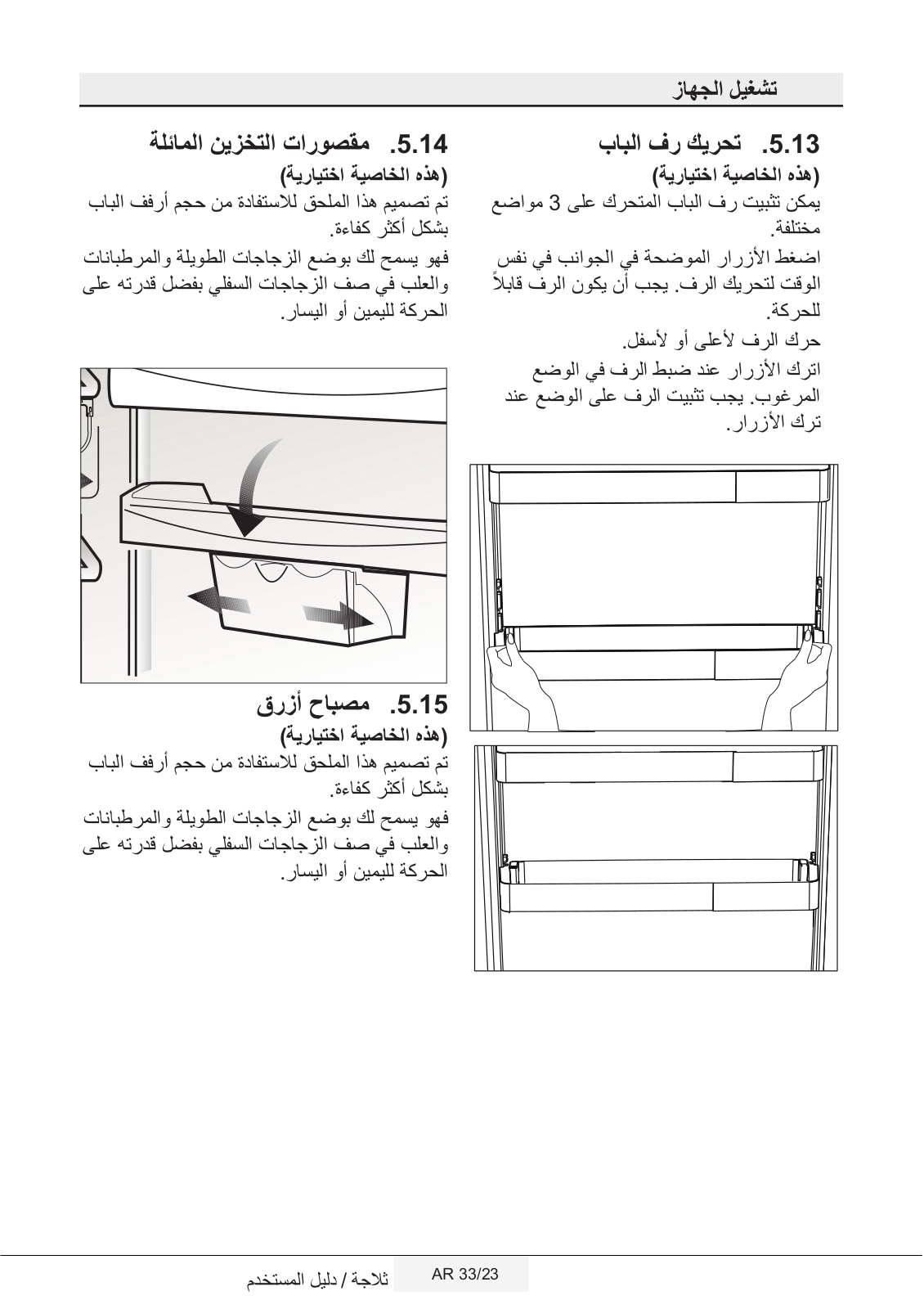

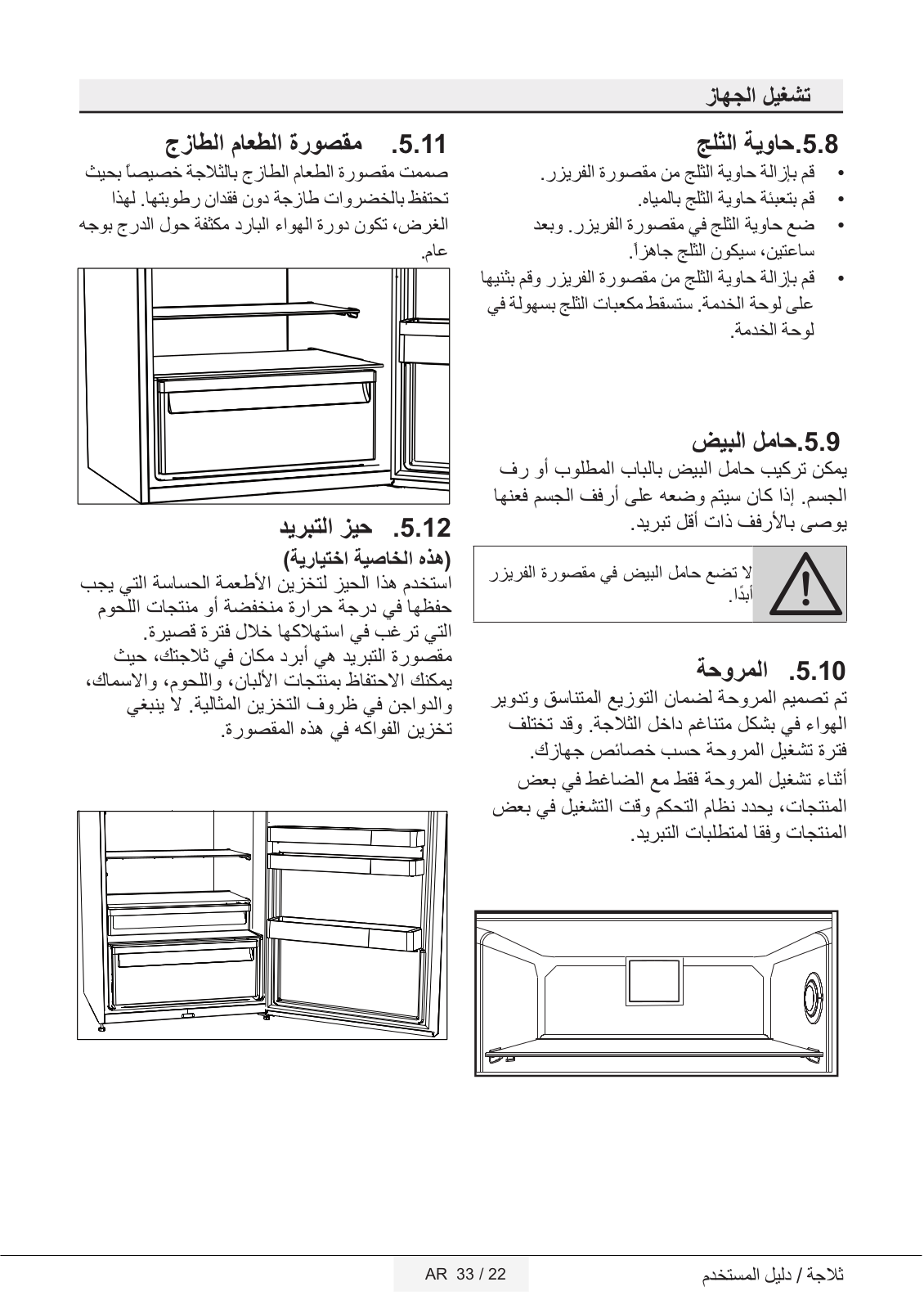

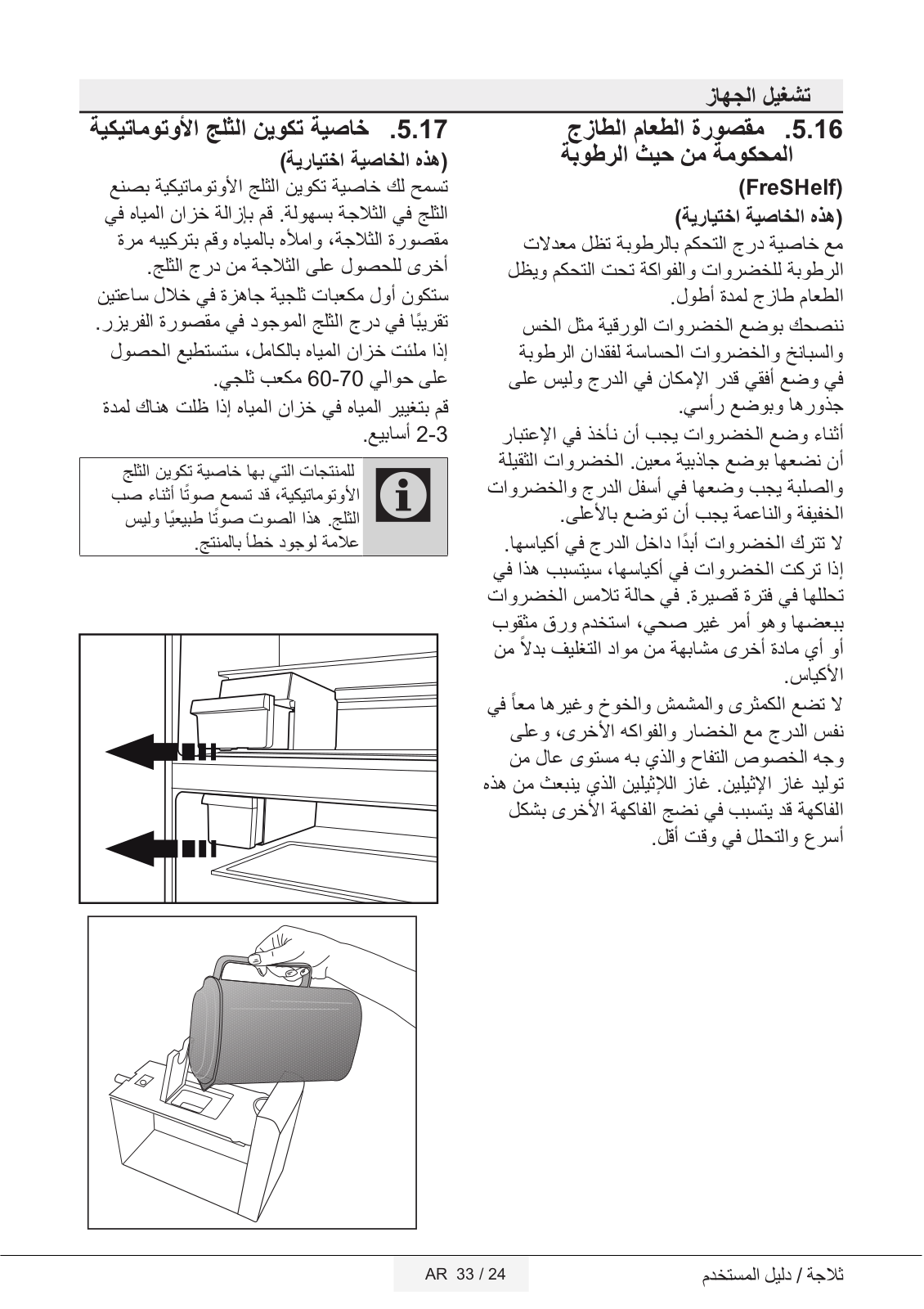

5.12 Chiller compartment . . . . . . . . . . . 24 5.13.Moving door shelf. . . . . . . . . . . . . . 25 5.14.Sliding storage container . . . . . . 25 5.15.Blue light . . . . . . . . . . . . . . . . . . . . . . . 25 5.16.Humidity controlled crisper. . . . 26 5.17.Auto Icematic . . . . . . . . . . . . . . . . . . 26

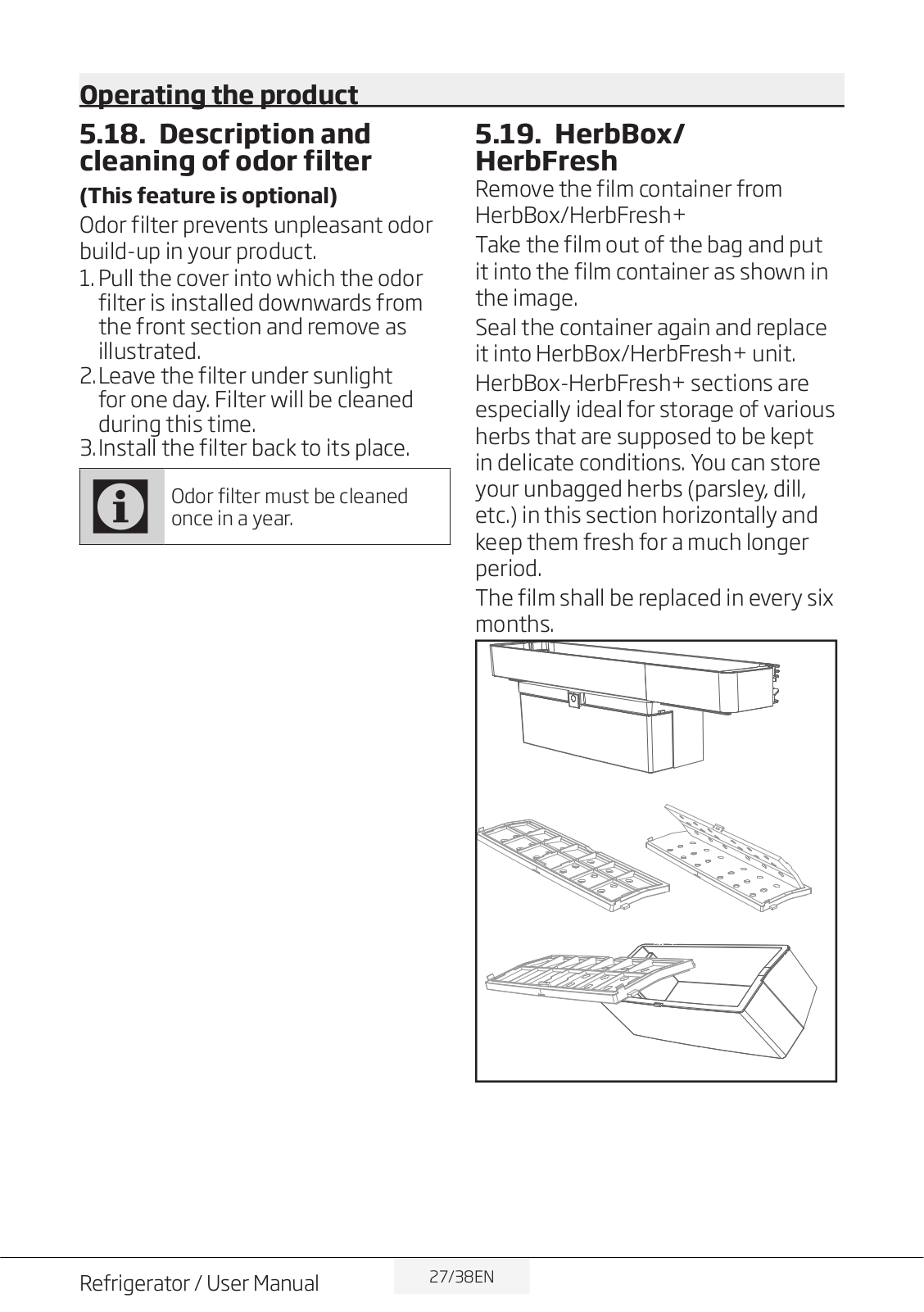

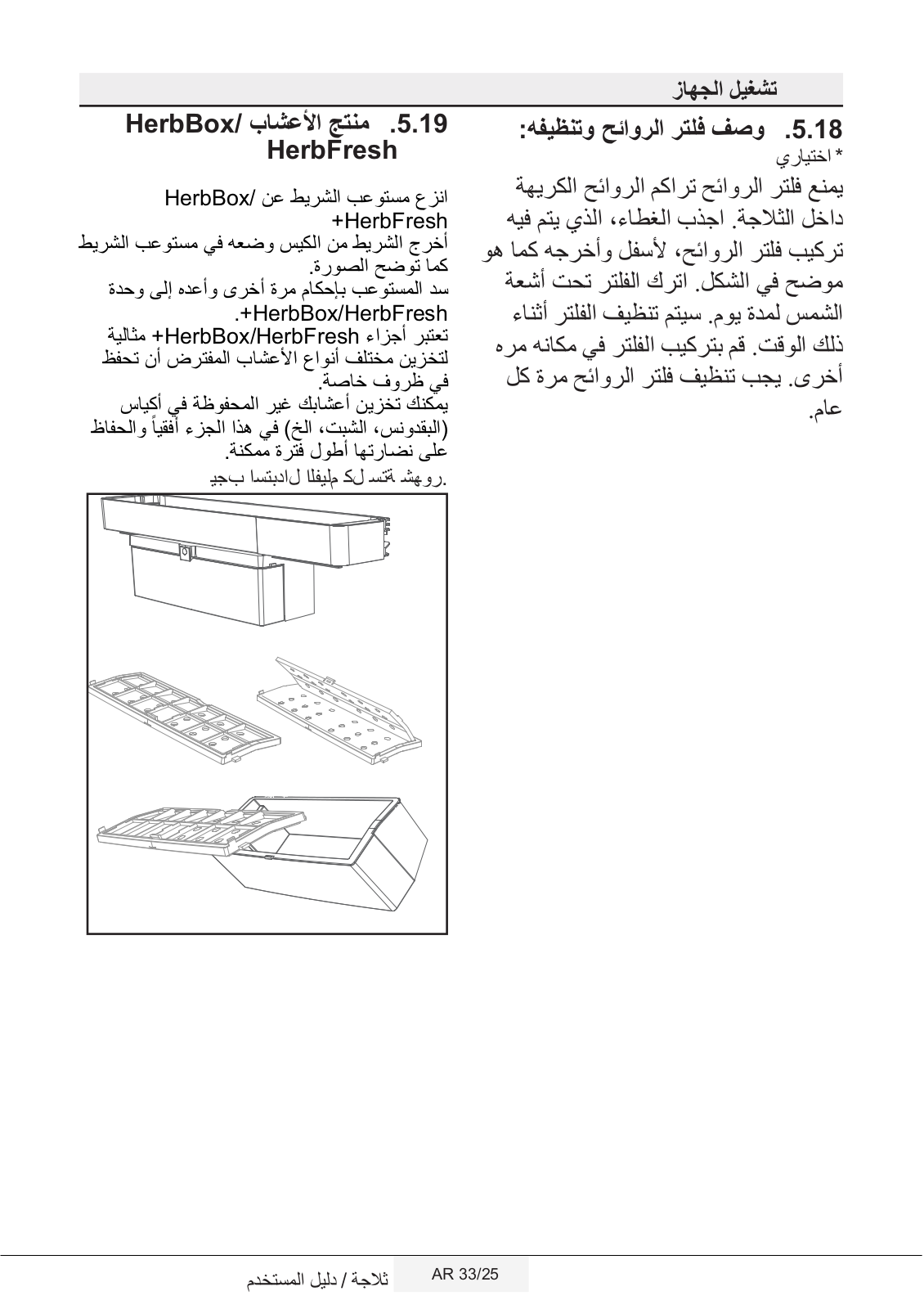

5.18. .Description and cleaning of odor filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

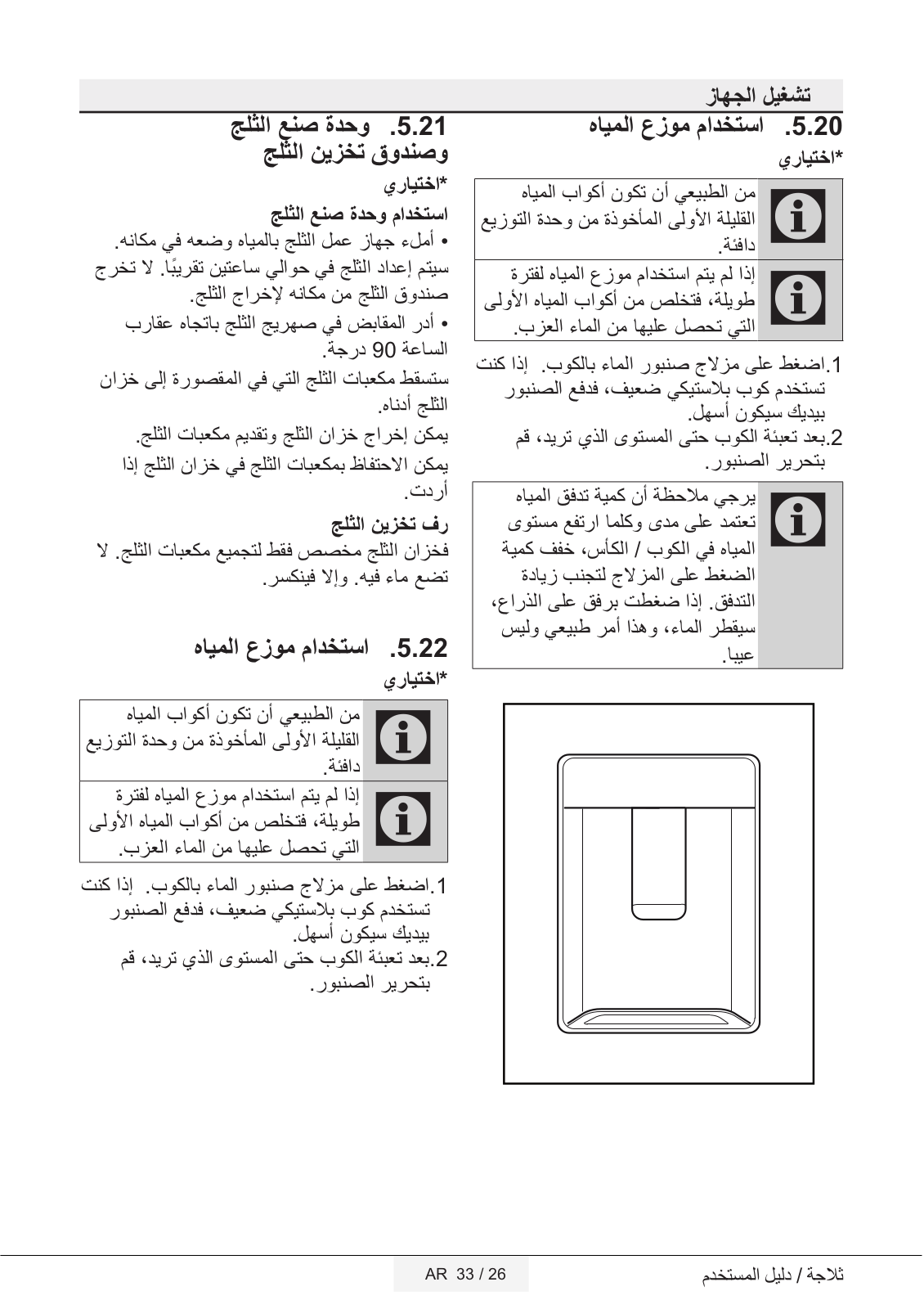

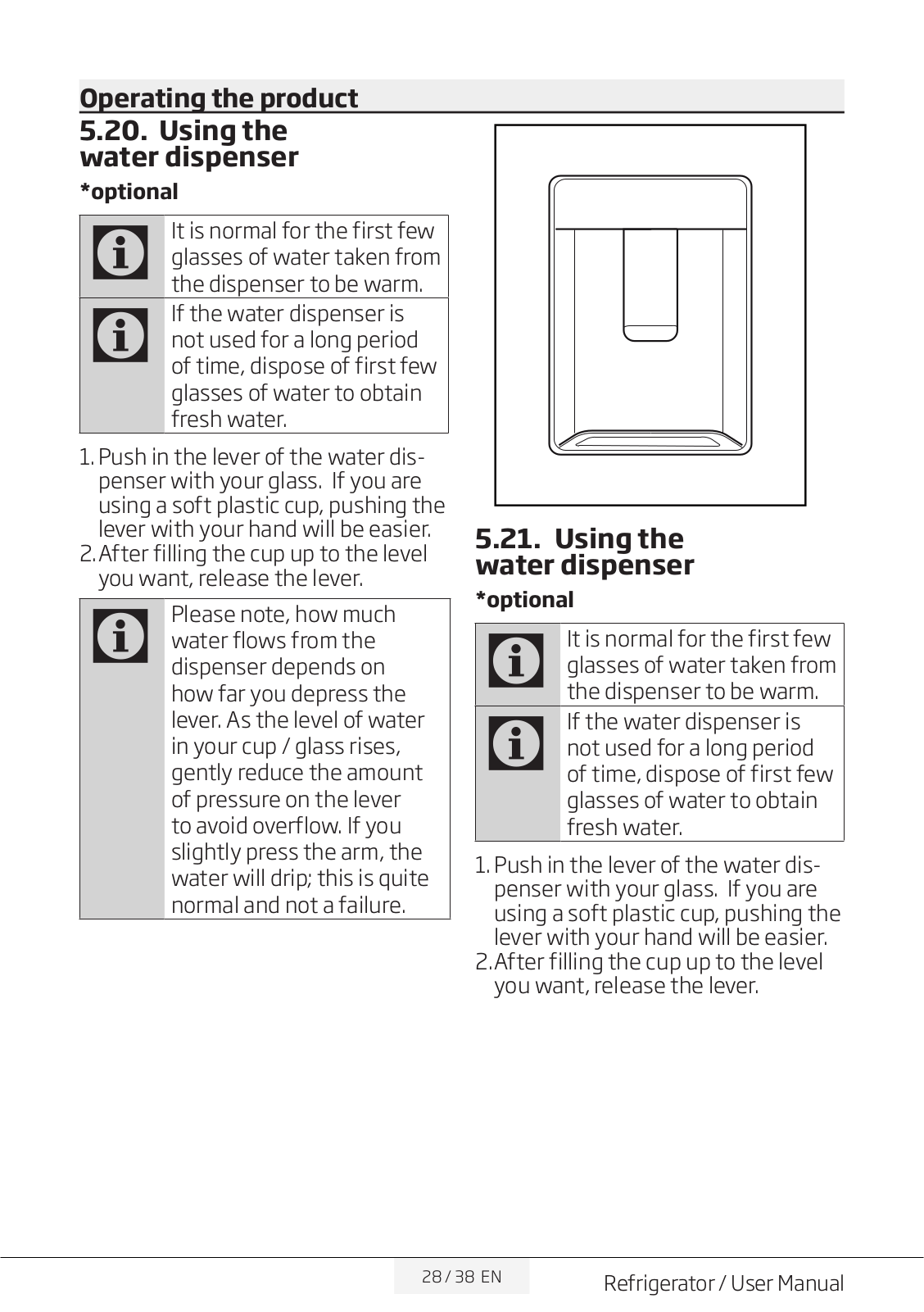

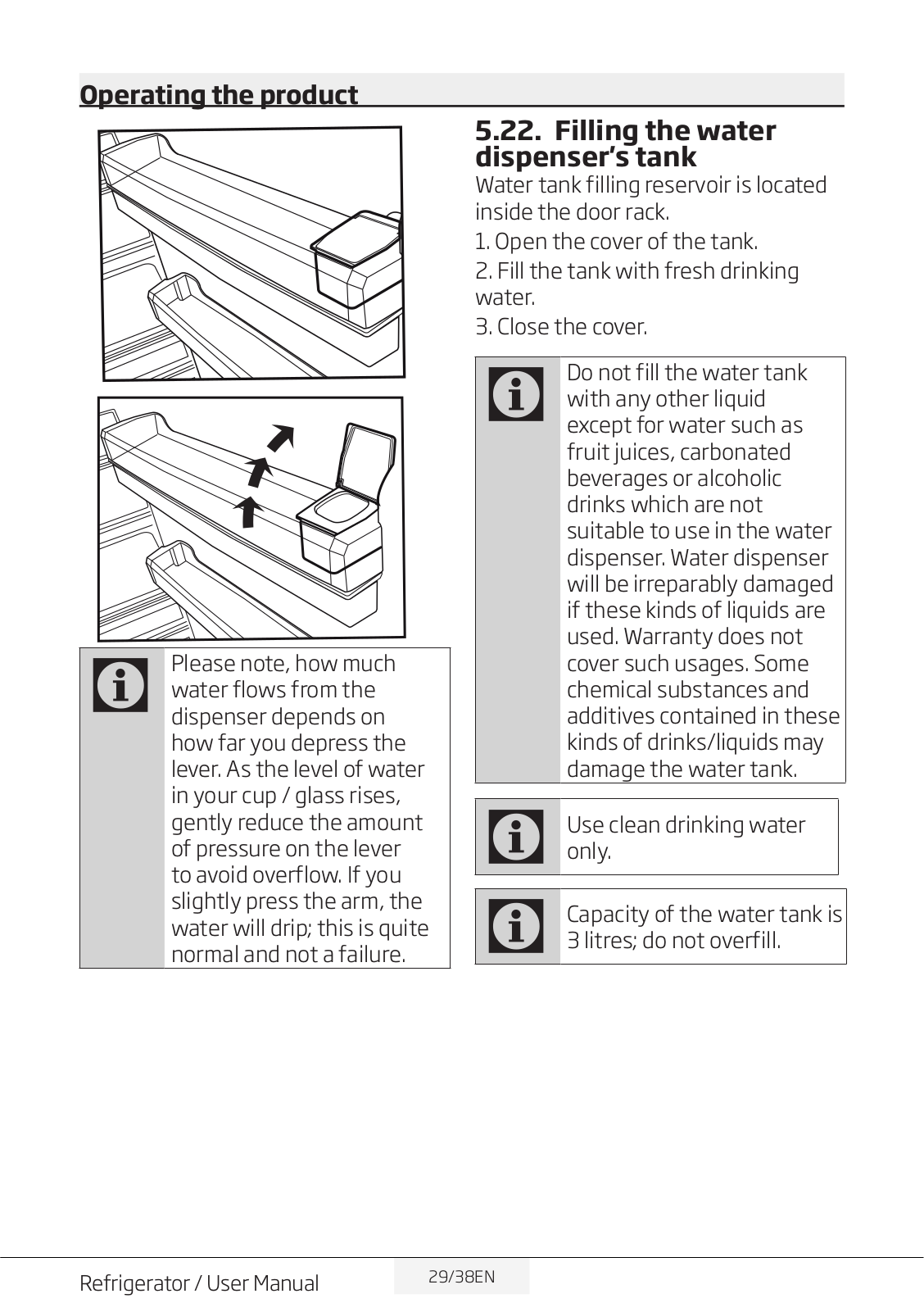

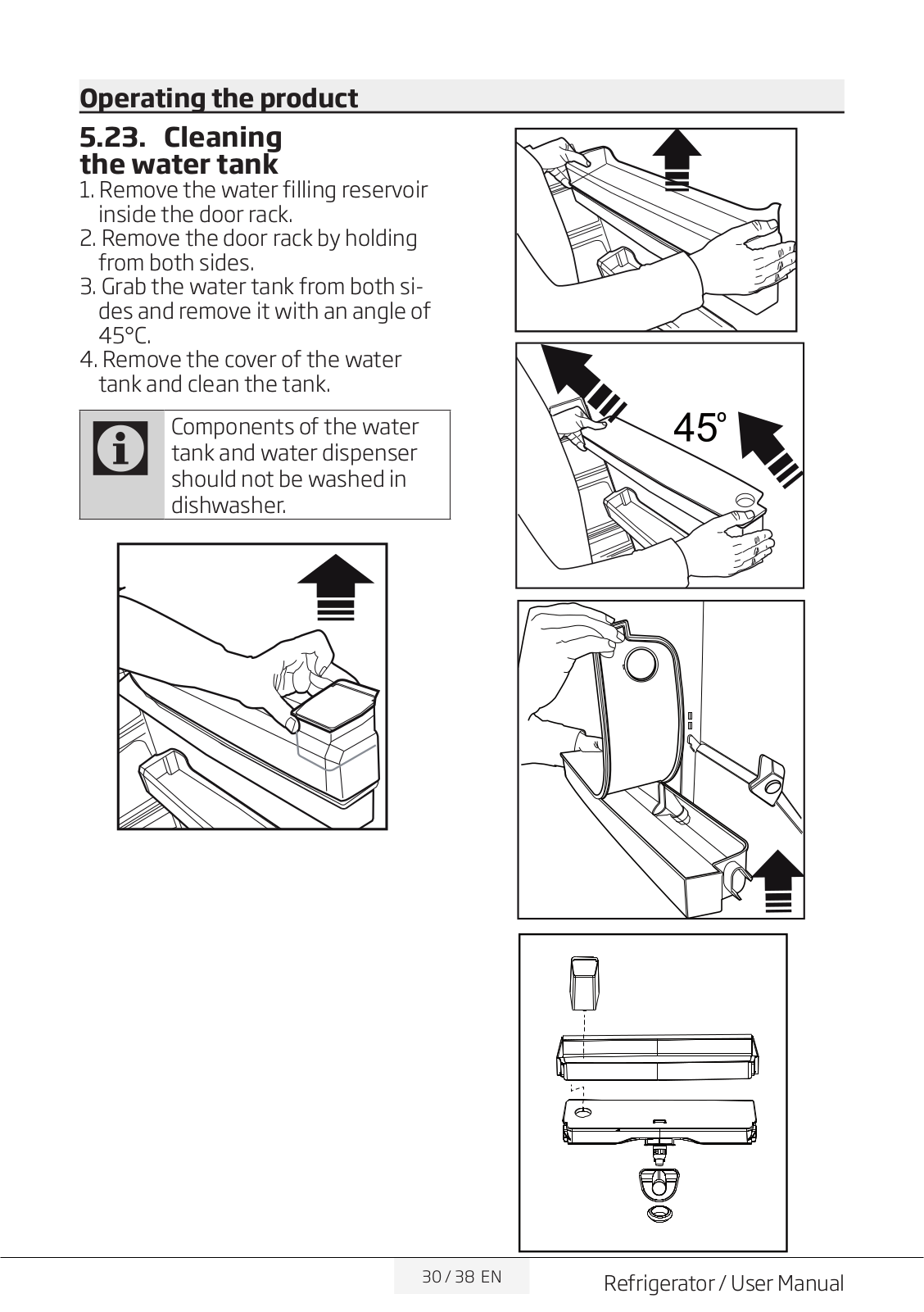

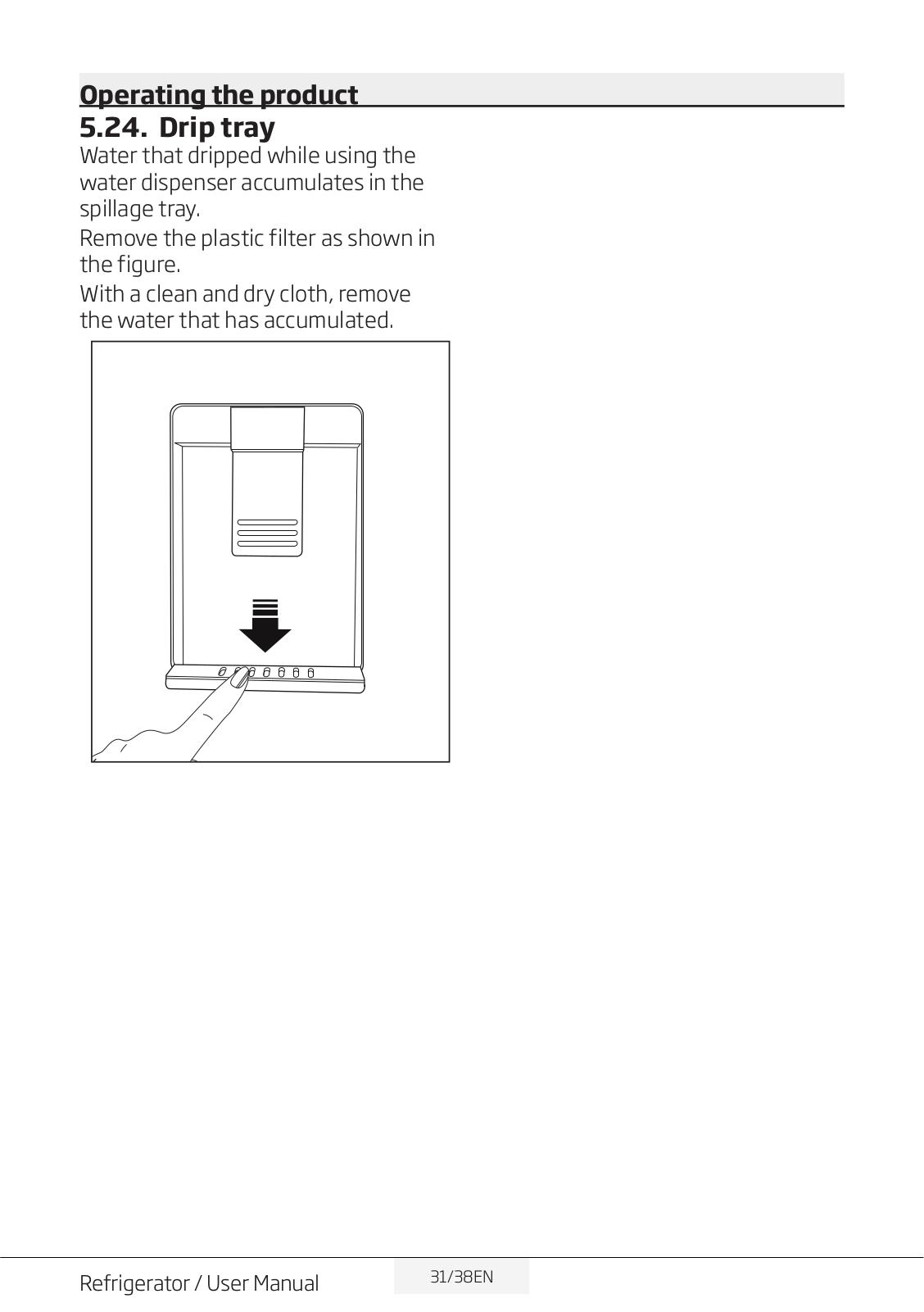

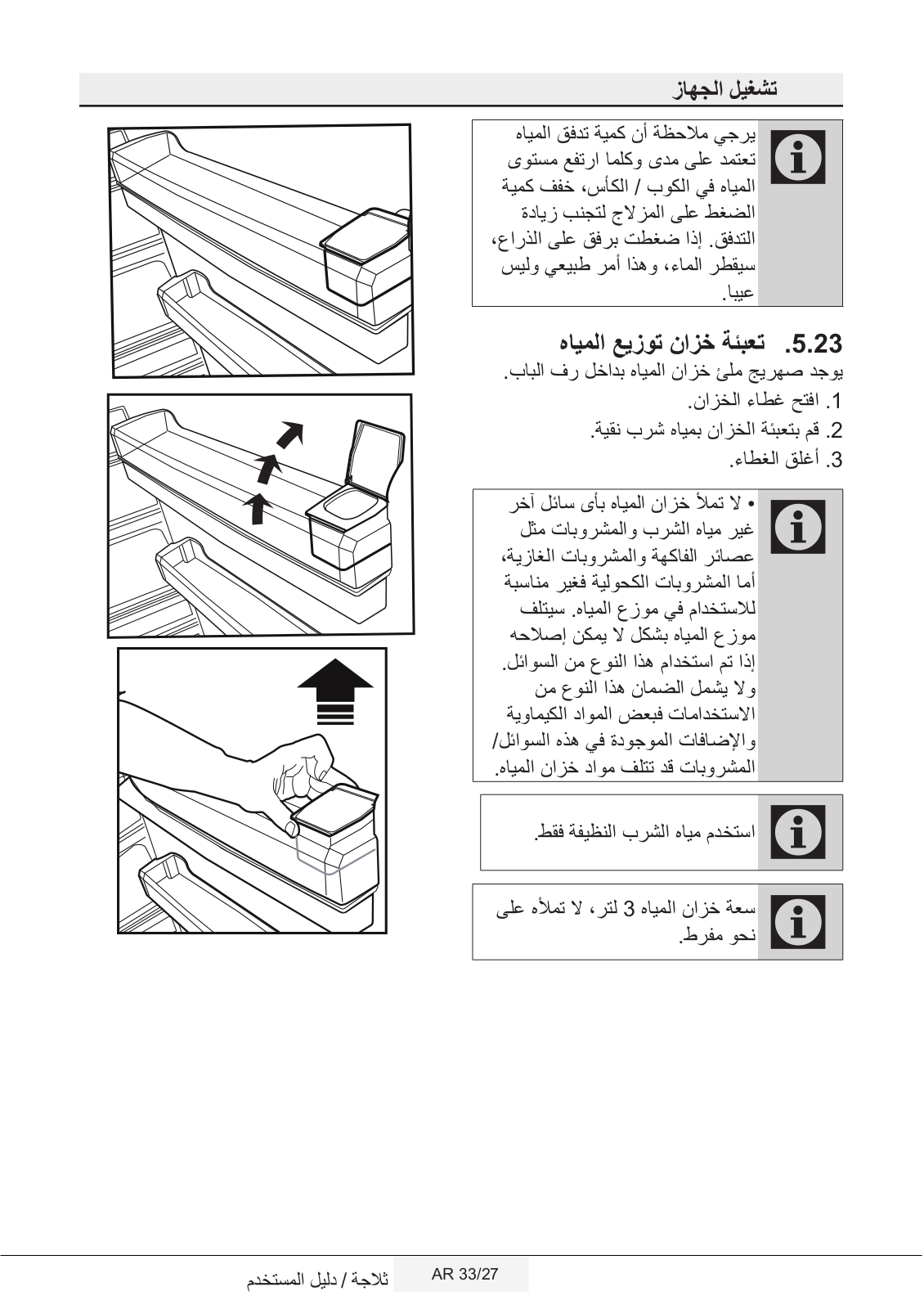

5.19.HerbBox/HerbFresh . . . . . . . . . . . 27 5.20.Using the water dispenser . . . . 28 5.21.Using the water dispenser . . . . 28 5.22.Filling the water dispenser's tank29 5.23. Cleaning the water tank . . . . . . 30 5.24.Drip tray. . . . . . . . . . . . . . . . . . . . . . . . 31 5.25.Freezing fresh food. . . . . . . . . . . . 32

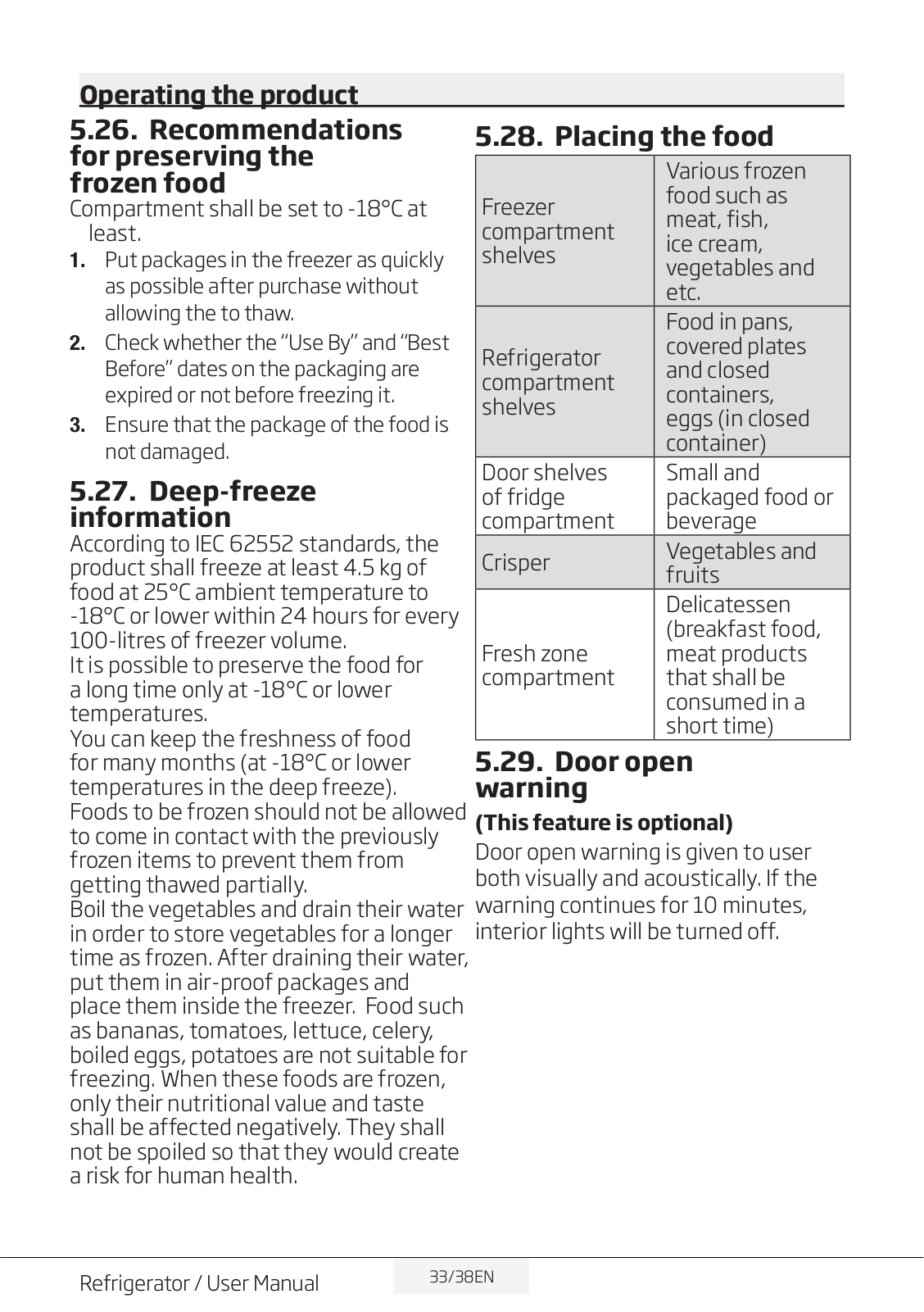

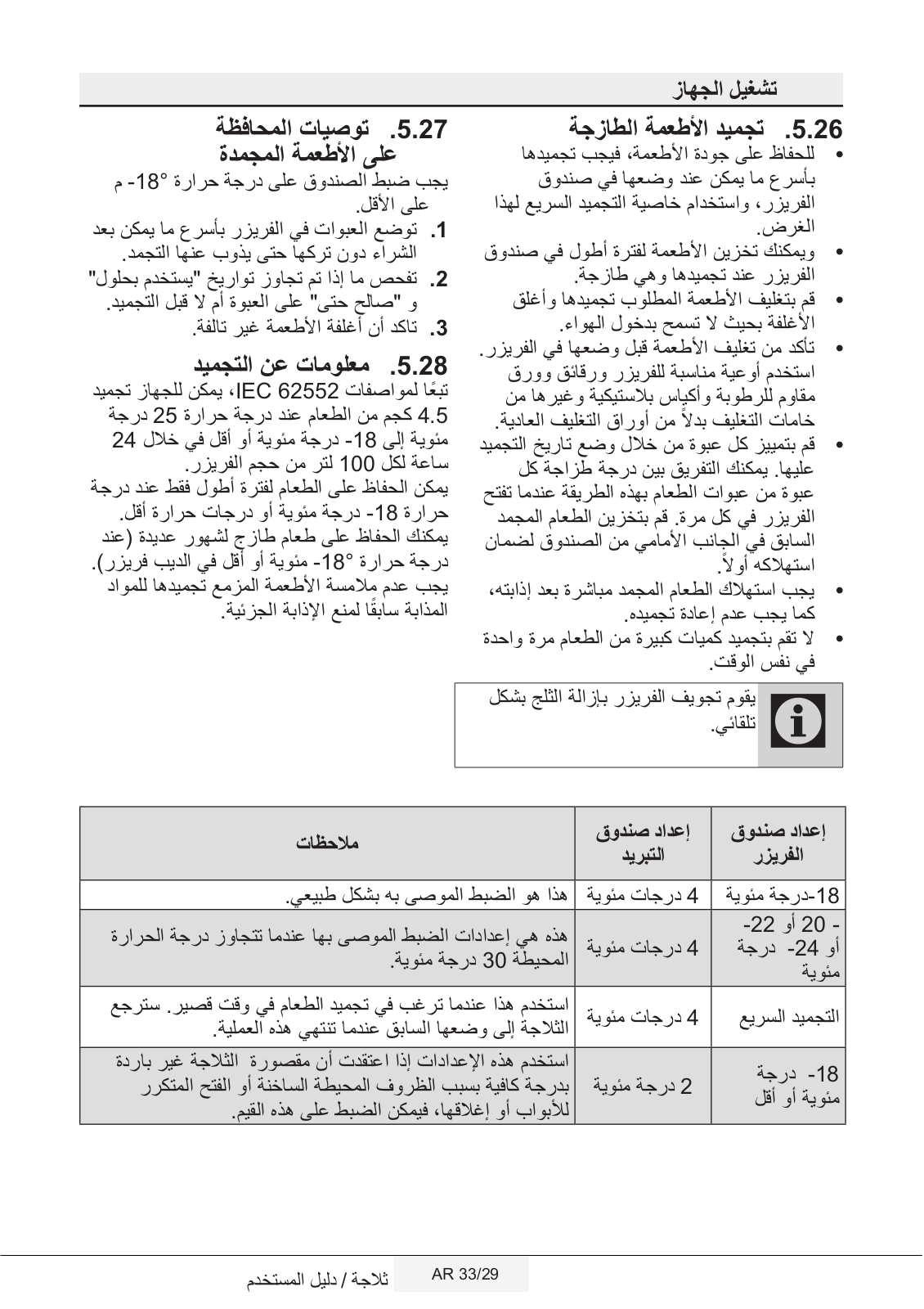

5.26.Recommendations for preserving the frozen food. . . . . . . . . . . . . . . . . 33

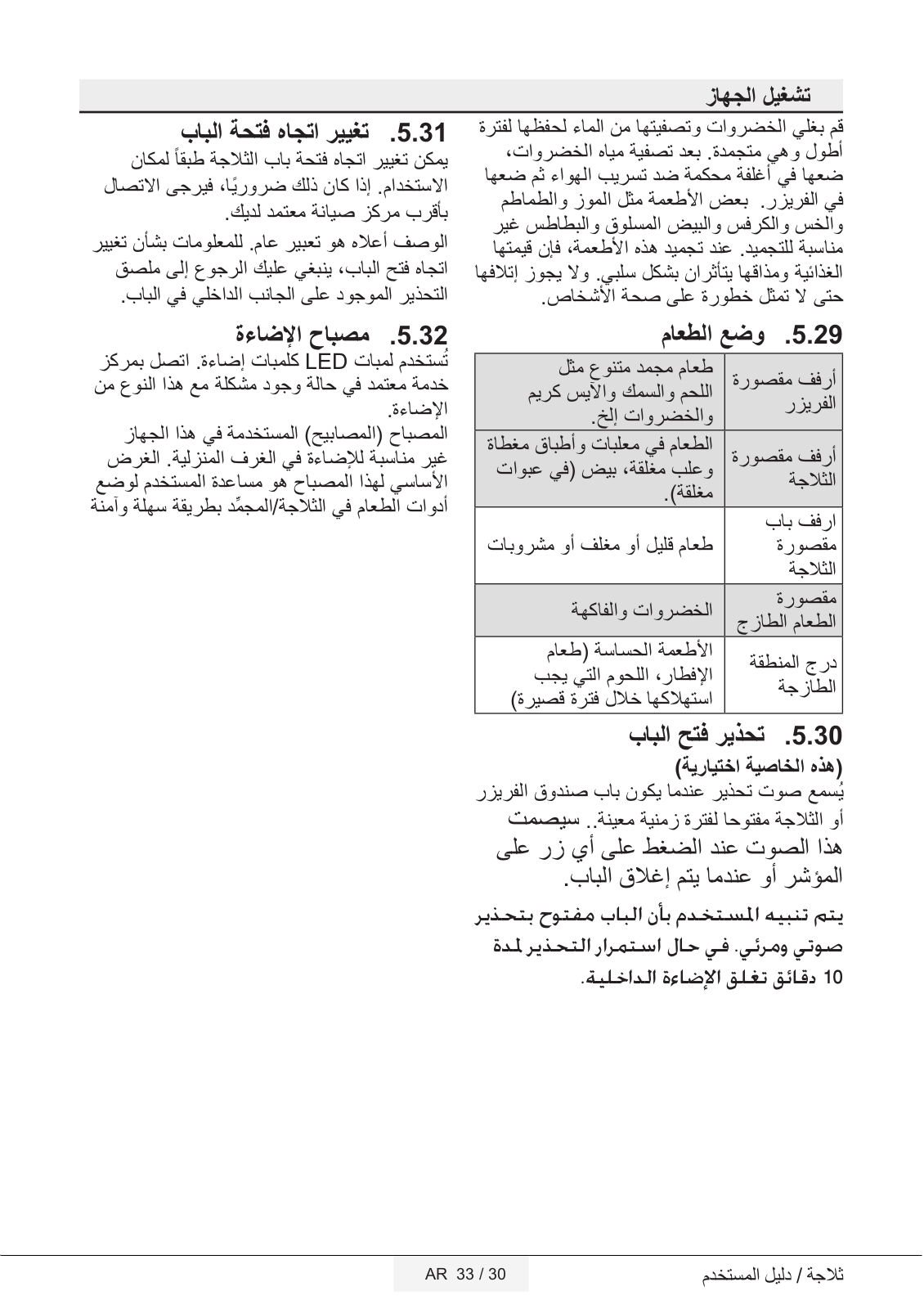

5.27.Deep-freeze information . . . . . . 33 5.28.Placing the food . . . . . . . . . . . . . . . 33 5.29.Door open warning . . . . . . . . . . . . 33

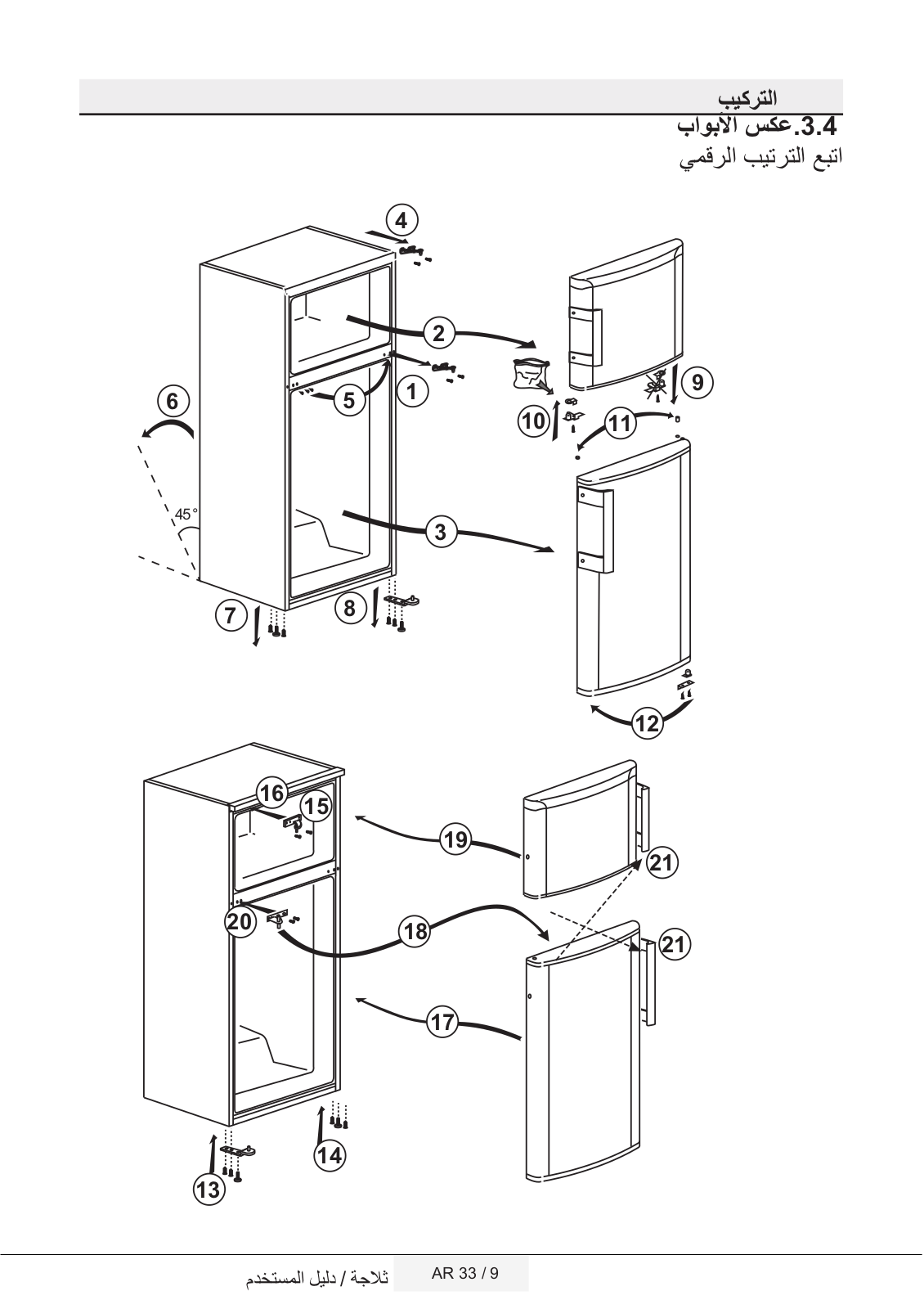

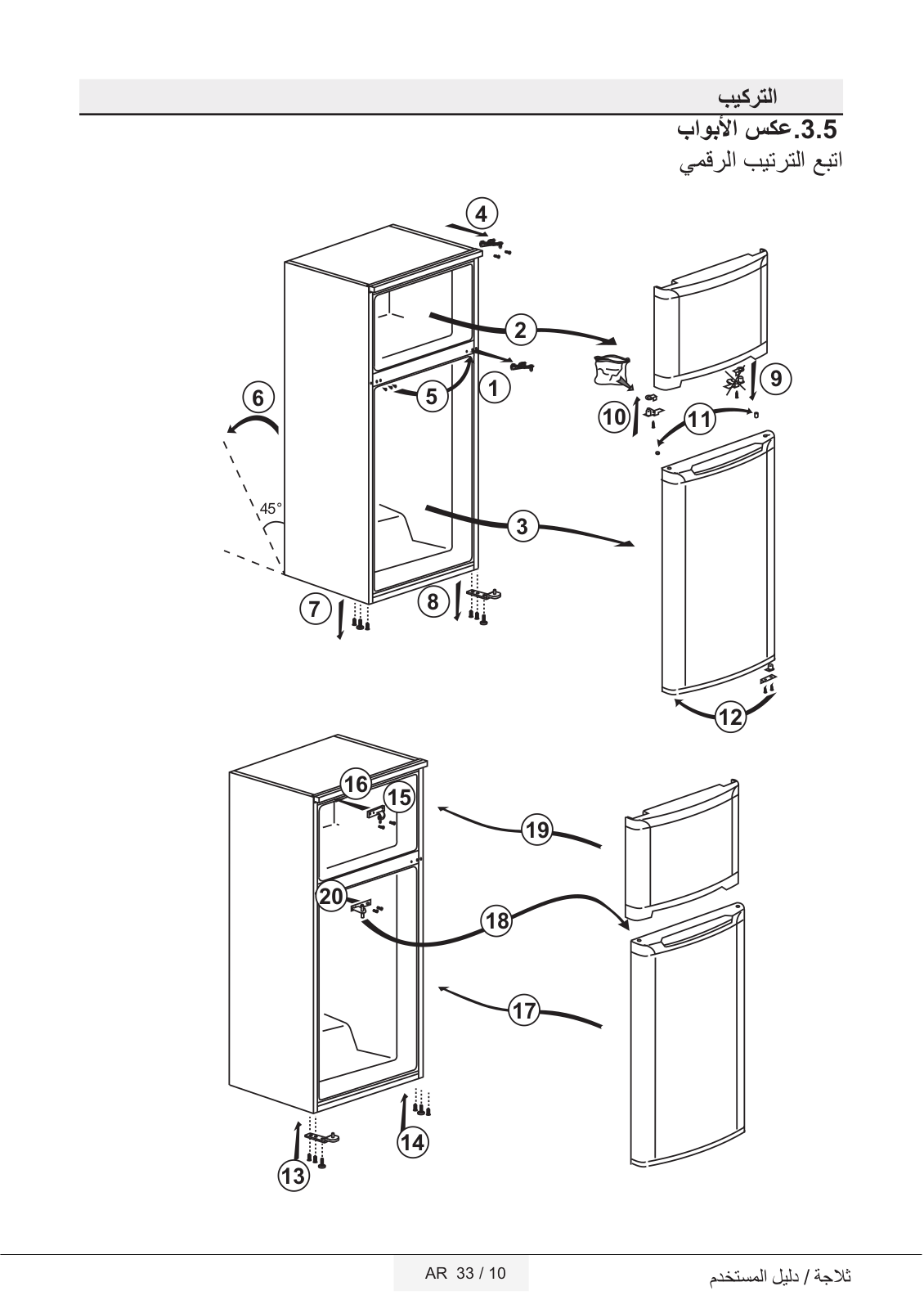

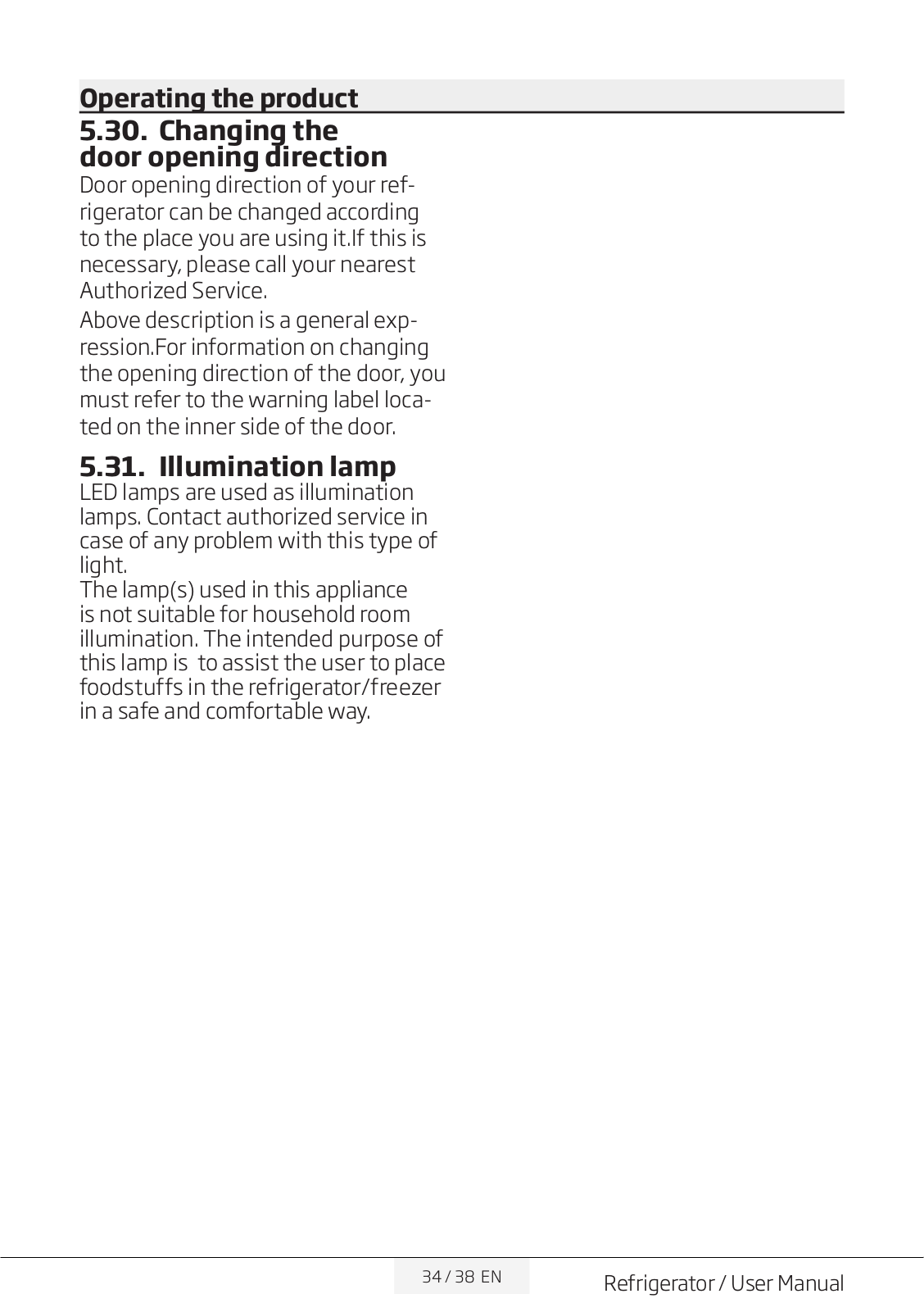

5.30.Changing the door opening direction. . . . . . . . . . . . . . . . . . . . . . . . 34
5.31.Illumination lamp. . . . . . . . . . . . . . . 34

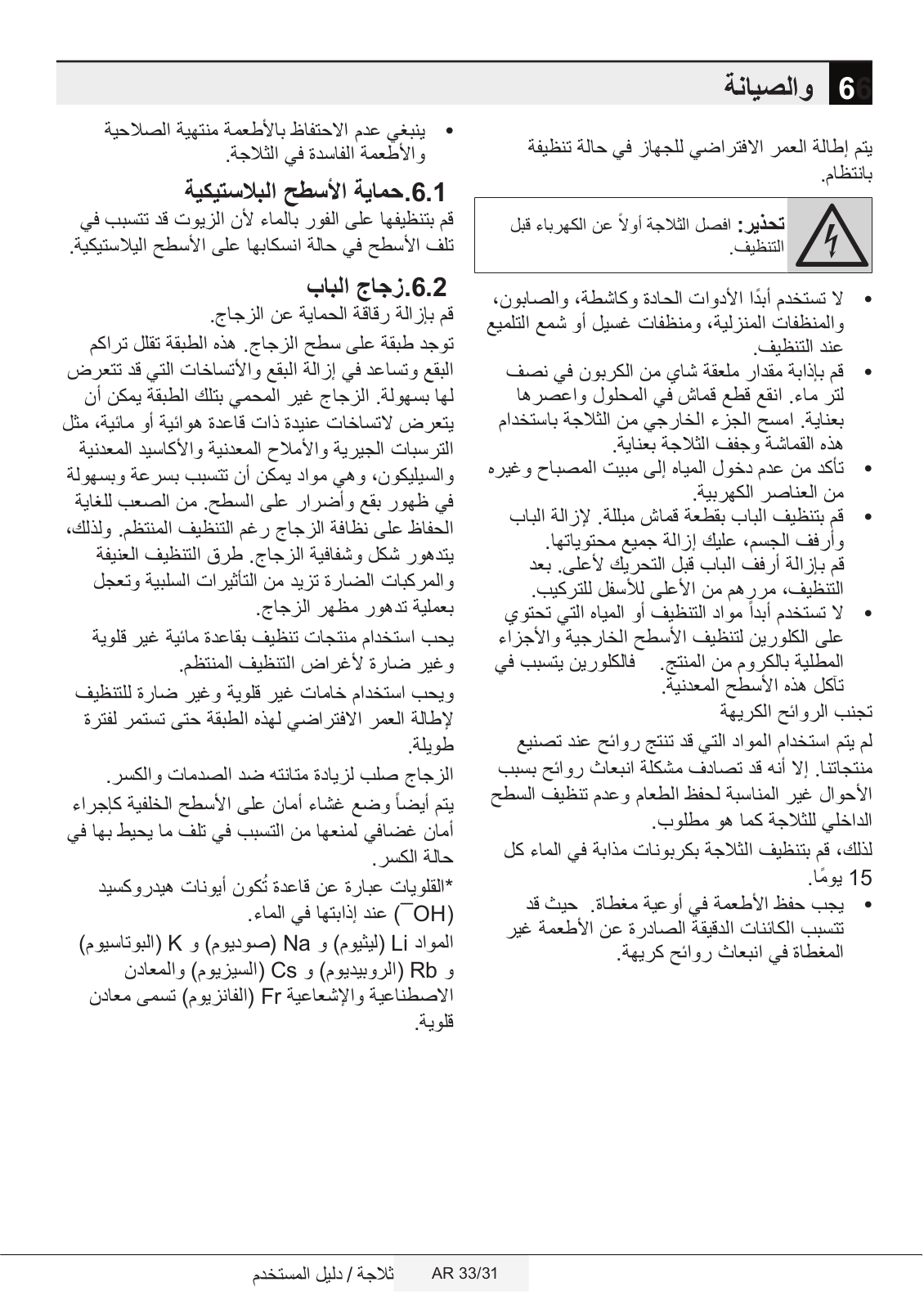

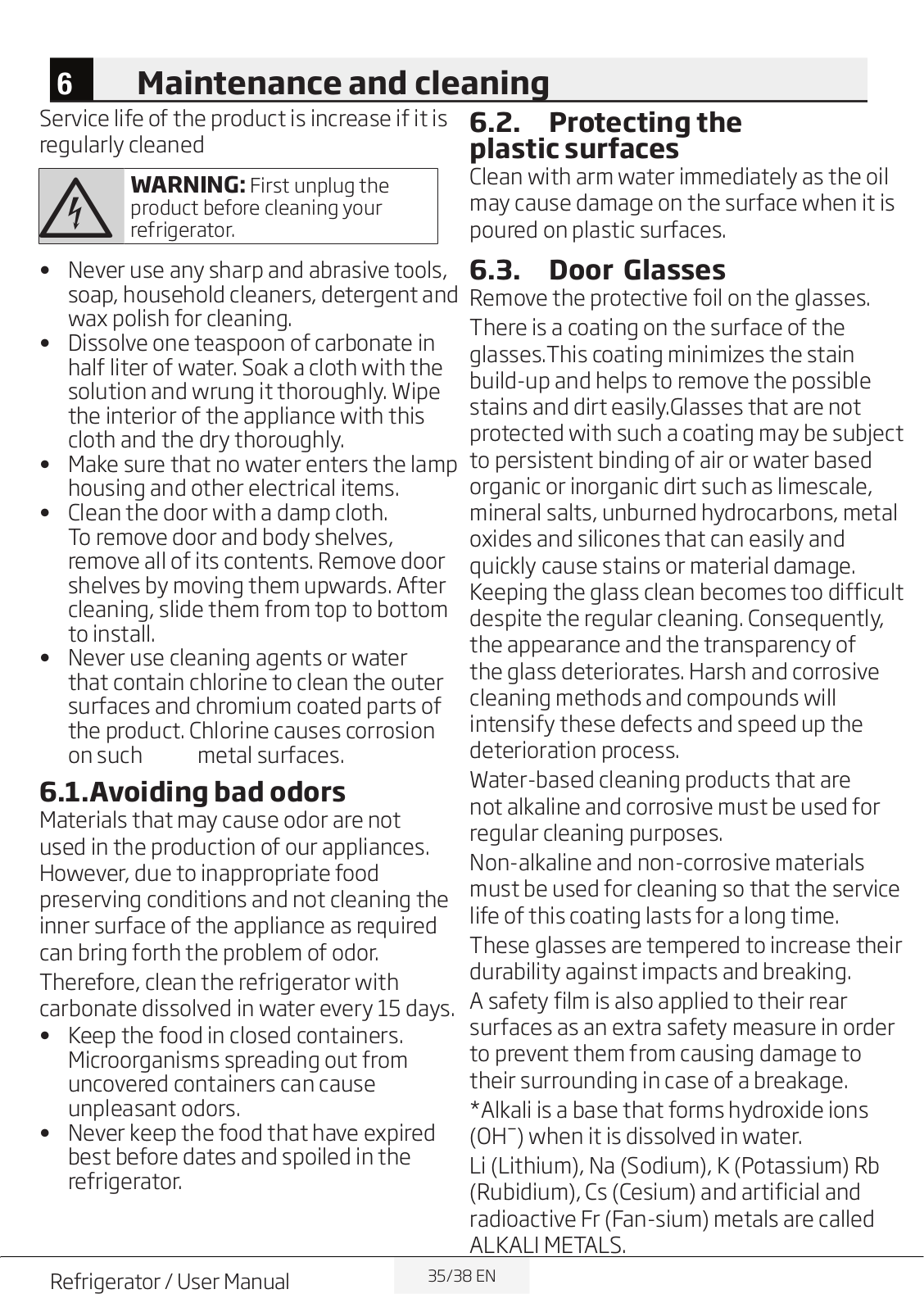

6 Maintenance and cleaning 35
6.1. Avoiding bad odors. . . . . . . . . . . . . 35 6.2. Protecting the plastic surfaces 35 6.3. Door Glasses . . . . . . . . . . . . . . . . . . 35

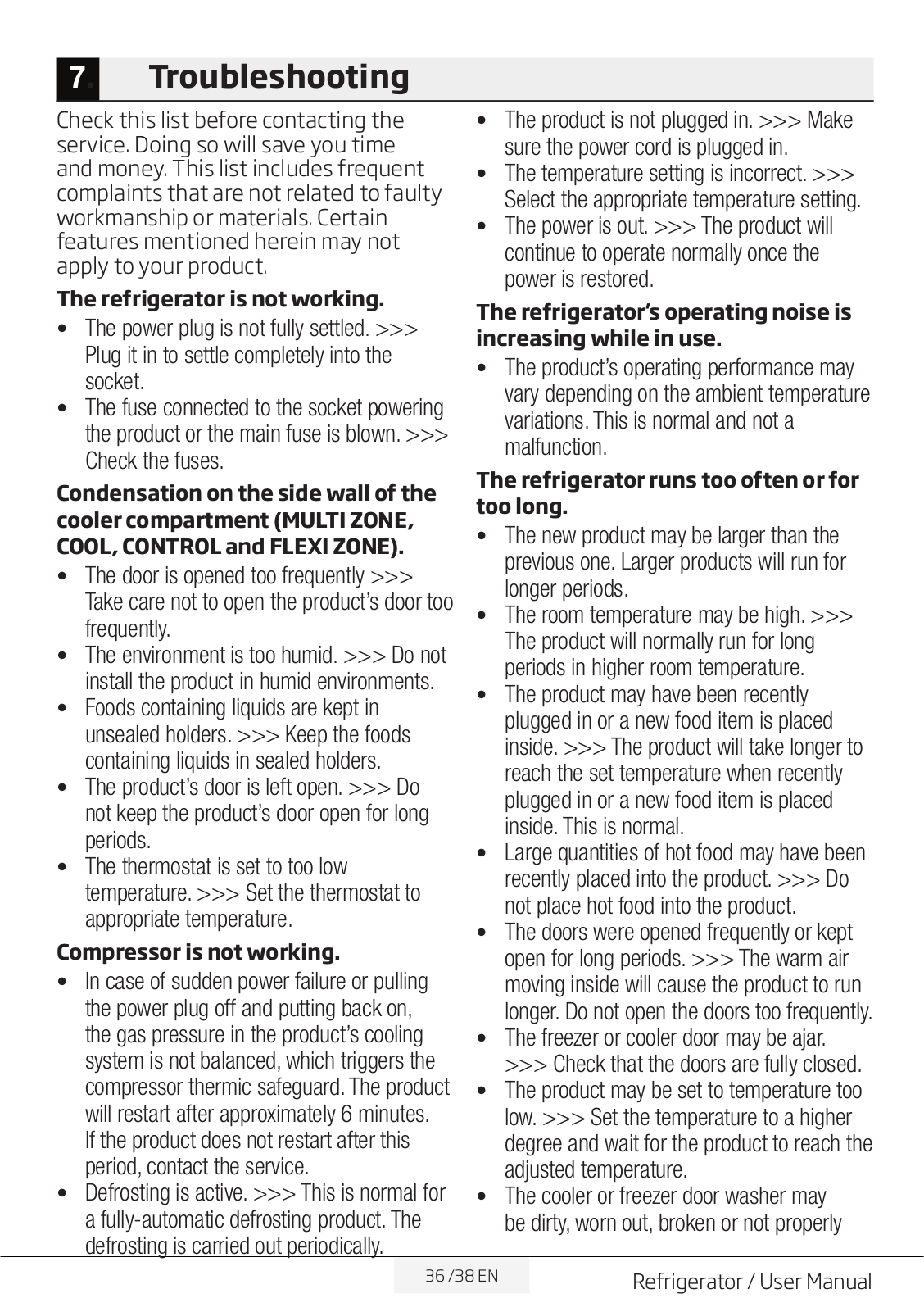

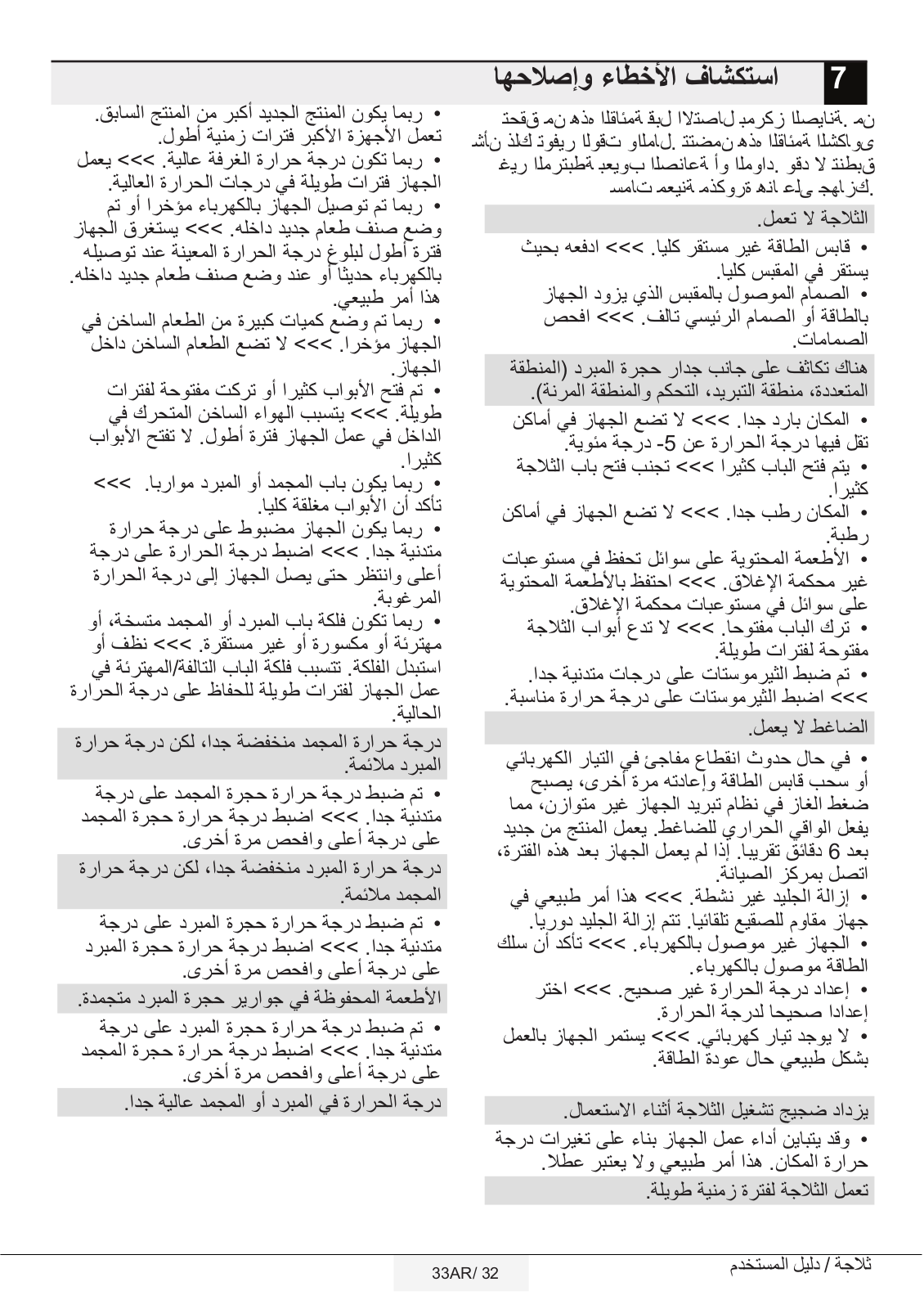

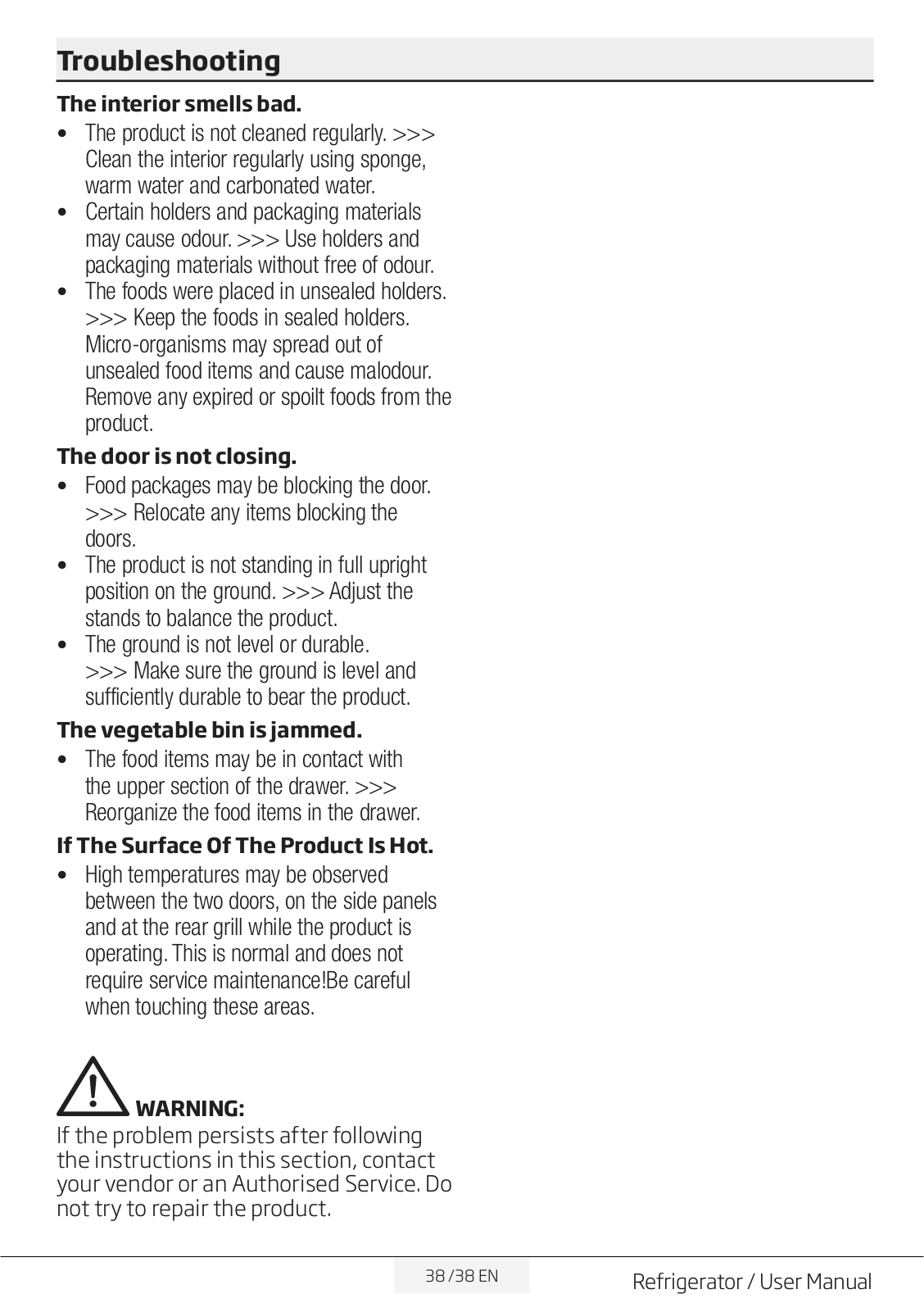

7. Troubleshooting 36
|
2 /38 EN |
Refrigerator / User Manual |
|
|

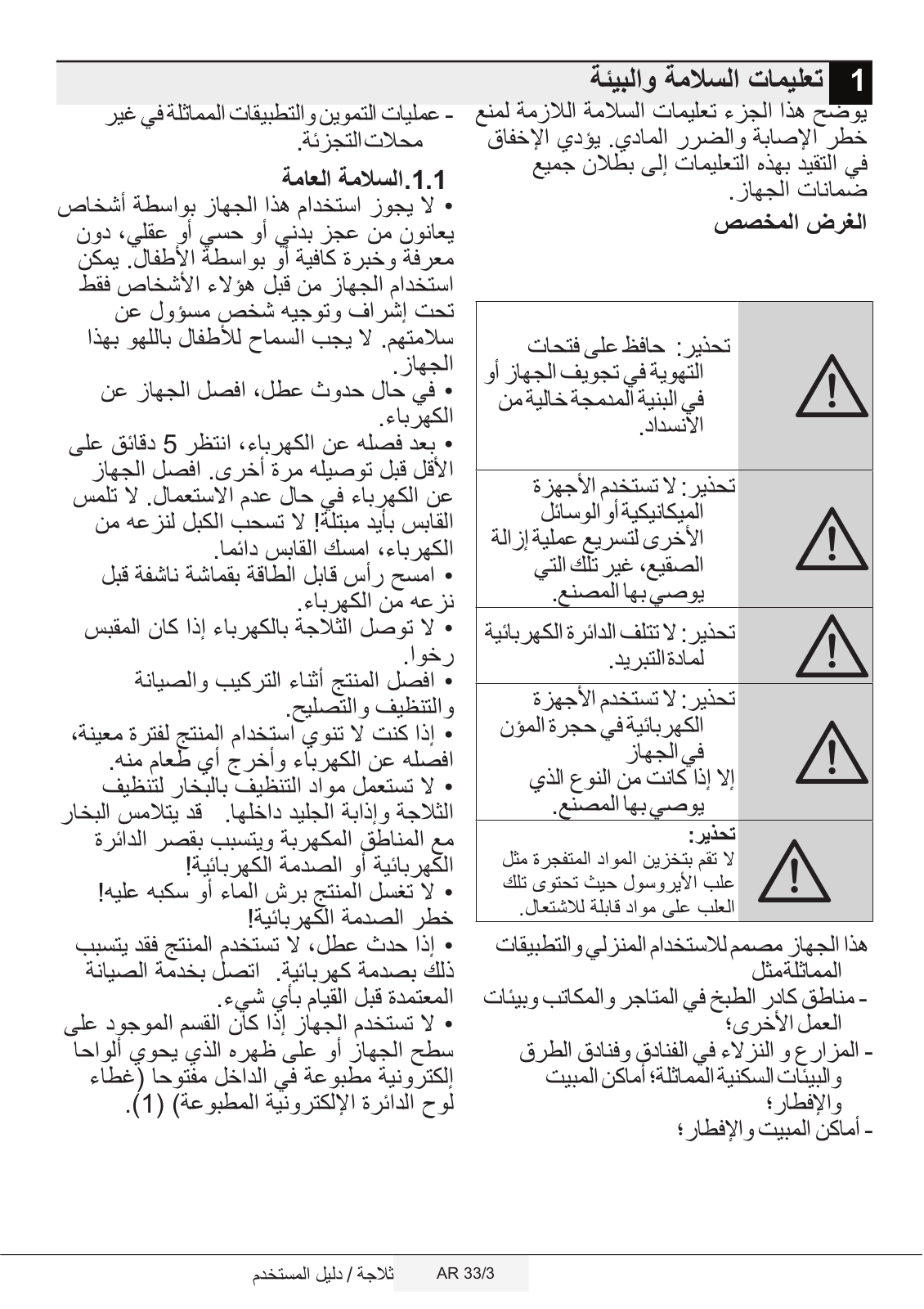

1. |
Safety and environment instructions |
|
||||
|
This section provides the safety |
|
residential type environments; |
|||||
|
instructions necessary to prevent |
– bed and breakfast type |
||||||
|
the risk of injury and material |
|
environments; |
|||||
|
damage. Failure to observe these |
|
– catering and similar non-retail |
|||||
|
instructions will invalidate all |
|
applications. |
|||||
|
types of product warranty. |
|
1.1.General safety |
|||||
|
Intended use |
|
||||||
|
|
• This product should not be |
||||||
|
|
|
|
|
used by persons with physical, |
|||
|
|
|
WARNING: |
|
||||
|
|
|
Keep ventilation openings, |
sensory and mental disabilities, |
||||
|
|
|
without sufficient knowledge |
|||||
|
A in the appliance enclosure |
|
||||||
|
|
and experience or by children. |
||||||
|
|
|
or in the built-instructure, |
|
The device can only be used by |
|||
|
|
|
clear of obstruction. |
|
||||
|
|
|
|
such persons under supervision |
||||
|
|
|
WARNING: |
|
||||
|
|
|
|
and instruction of a person |
||||
|
|
|
Do not use mechanical |
|
responsible for their safety. |
|||
|
|
|
devices or other means |
|
Children should not be allowed |
|||
|
|
|
to accelerate the |
|
to play with this device. |
|||
|
A defrostingprocess, |
|
• In case of malfunction, unplug |
|||||
|
|
|
other than those |
|
the device. |
|||
|
|
|
recommended by the |
|
• After unplugging, wait at least |
|||
|
|
|
manufacturer. |
|
5 minutes before plugging in |
|||
|
|
|
WARNING: |
|
again. |
|||
|
|
|
Do not damage the |
|
• Unplug the product when not |
|||
|
A refrigerant circuit. |
|
in use. |
|||||
|
|
|
|
|
|
• Do not touch the plug with wet |
||
|
|
|
WARNING: |
|
||||
|
|
|
|
hands! Do not pull the cable to |
||||
|
|
|
Do not use electrical |
|
||||
|
|
|
|
plug off, always hold the plug. |
||||
|
|
|
appliances inside |
|
||||
|
|
|
|
• Do not plug in the refrigerator if |
||||
|
|
|
the food storage |
|
||||
|
|
|
|
the socket is loose. |
||||
|
A compartments of |
|
||||||
|
|
• Unplug the product during |
||||||
|
|
|
the appliance, unless |
|
installation, maintenance, |
|||
|
|
|
they are of the type |
|
||||
|
|
|
|
cleaning and repair. |
||||
|
|
|
recommended by the |
|
||||
|
|
|
|
• If the product will not be used |
||||
|
|
|
manufacturer. |
|
||||
|
|
|
|
for a while, unplug the product |
||||
|
|
|
|
|
|
and remove any food inside. |
||
This appliance is intended to be |
|
• Do not use the product when |
||||||
used in household and similar |
|
the compartment with circuit |
||||||
applications such as |
|
cards located on the upper back |
||||||
– staff kitchen areas in shops, |
|
part of the product (electrical |
||||||
offices and other working |
|
card box cover) (1) is open. |
||||||
environments; |
|
|
|
|
||||
– farm houses and by clients |
|
|
|
|
||||
in hotels, motels and other |
|
|
|
|
|
|||
|
3/38 EN |
|
|
|||||
|
|
Refrigerator / User Manual |
|
|
|
Instructions for safety and environment
1
1 |
•Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
•Do not wash the product by spraying or pouring water on it! Danger of electric shock!
•In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorized service before doing anything.
•Plug the product into an earthed socket. Earthing must be done by a qualified electrician.
•If the product has LED type lighting, contact the authorized service for replacing or in case of any probælem.
•Do not touch frozen food with wet hands! It may adhere to your hands!
•Do not place liquids in bottles and cans into the freezer compartment. They may burst out!
•Place liquids in upright position after tightly closing the lid.
•Do not spray flammable substances near the product, as it may burn or explode.
•Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
•Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
•Exposing the product to rain, snow, sunlight and wind
will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
•Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
•Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
•Take care not to trap the power cable.
4 / 38 EN |
Refrigerator / User Manual |
|
Instructions for safety and environment
|
|
|
|
prevention equipment in |
|
|
|
|
|
||
|
|
|
|
your installation. Consult |
|
|
|
|
|
Professional plumbers if you |
|
|
|
|
|
are not sure that there is no |
|
|
|
|
|
water hammer effect in your |
|
|
|
|
|
installation. |
|
|
|
|
|
• Do not install on the hot |
|

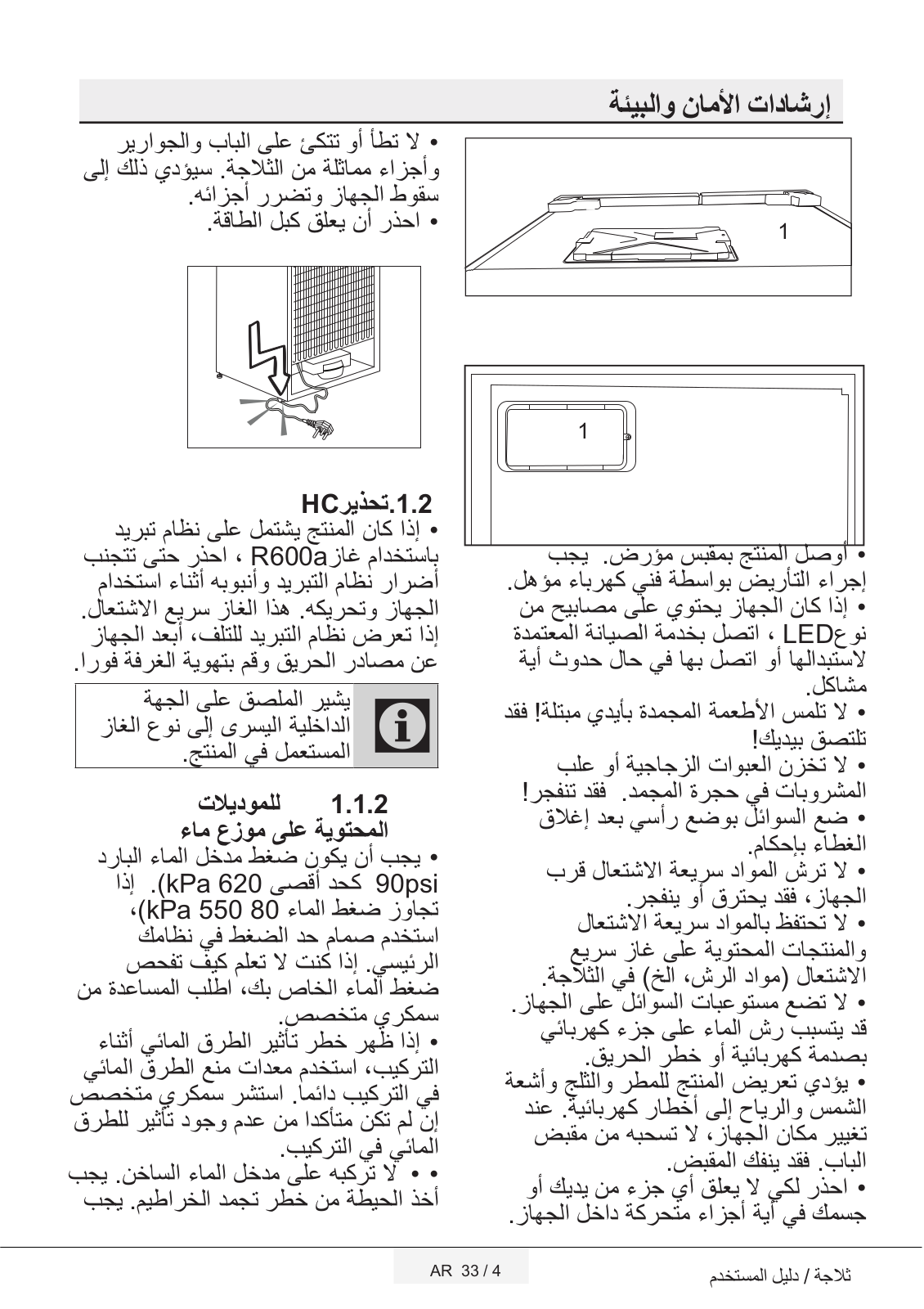

1.1.1 HC warning |
water inlet. Take precautions |
||||
against of the risk of |
|||||
If the product comprises a |
freezing of the hoses. Water |
||||
cooling system using R600a |
temperature operating |
||||
gas, take care to avoid |
interval shall be 33°F (0.6°C) |
||||
damaging the cooling system |
minimum and 100°F (38°C) |
||||
and its pipe while using and |
maximum. |
||||
moving the product. This gas |
• Use drinking water only. |
||||
is flammable. If the cooling |
1.2.Intended use |
||||
system is damaged, keep the |
|||||
• This product is designed for |
|||||
product away from sources |
|||||
home use. It is not intended |
|||||
of fire and ventilate the room |
|||||
for commercial use. |
|||||
immediately. |
|||||
• The product should be used |
|||||
C |
The label on the inner |
to store food and beverages |
|||
left side indicates the |
only. |
||||
type of gas used in the |
• Do not keep sensitive |
||||
|
|
product. |
products requiring controlled |
||
|
|
|
|
temperatures (vaccines, |
|
1.1.2 For models with |
heat sensitive medication, |
||||
water dispenser |
medical supplies, etc.) in the |
||||
• Pressure for cold water inlet |
refrigerator. |
||||
shall be maximum 90 psi (6.2 |
• The manufacturer assumes |
||||
bar). If your water pressure |
no responsibility for any |
||||
exceeds 80 psi (5.5 bar), use |
damage due to misuse or |
||||
a pressure limiting valve in |
mishandling. |
||||
your mains system. If you |
• Original spare parts will |
||||
do not know how to check |
be provided for 10 years, |
||||
your water pressure, ask for |
following the product |
||||
the help of a professional |
purchasing date. |
||||
plumber. |
1.3.Child safety |
||||
• If there is risk of water |
• Keep packaging materials |
||||
hammer effect in your |
out of children’s reach. |
||||
installation, always |
• Do not allow the children to |
||||
use a water hammer |
play with the product. |
Refrigerator / User Manual |
5/38 EN |
|
|
|
Instructions for safety and environment
•If the product’s door comprises a lock, keep the key out of children’s reach.

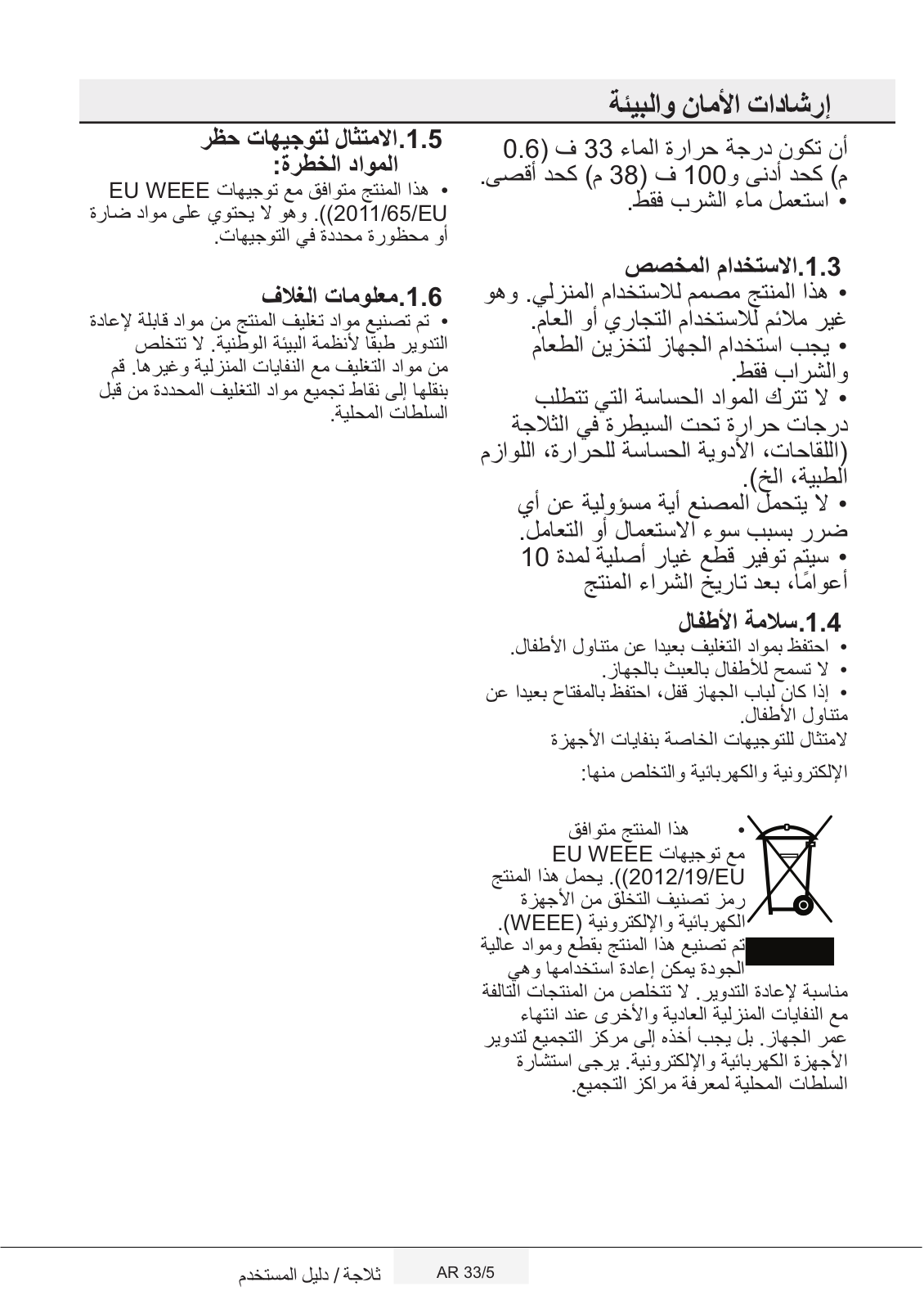

1.4.Compliance
with WEEE Directive and Disposing of the Waste Product
This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).
This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal
domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.
1.5.Compliance with RoHS Directive
• This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.
1.6.Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
6 / 38 EN |
Refrigerator / User Manual |
|

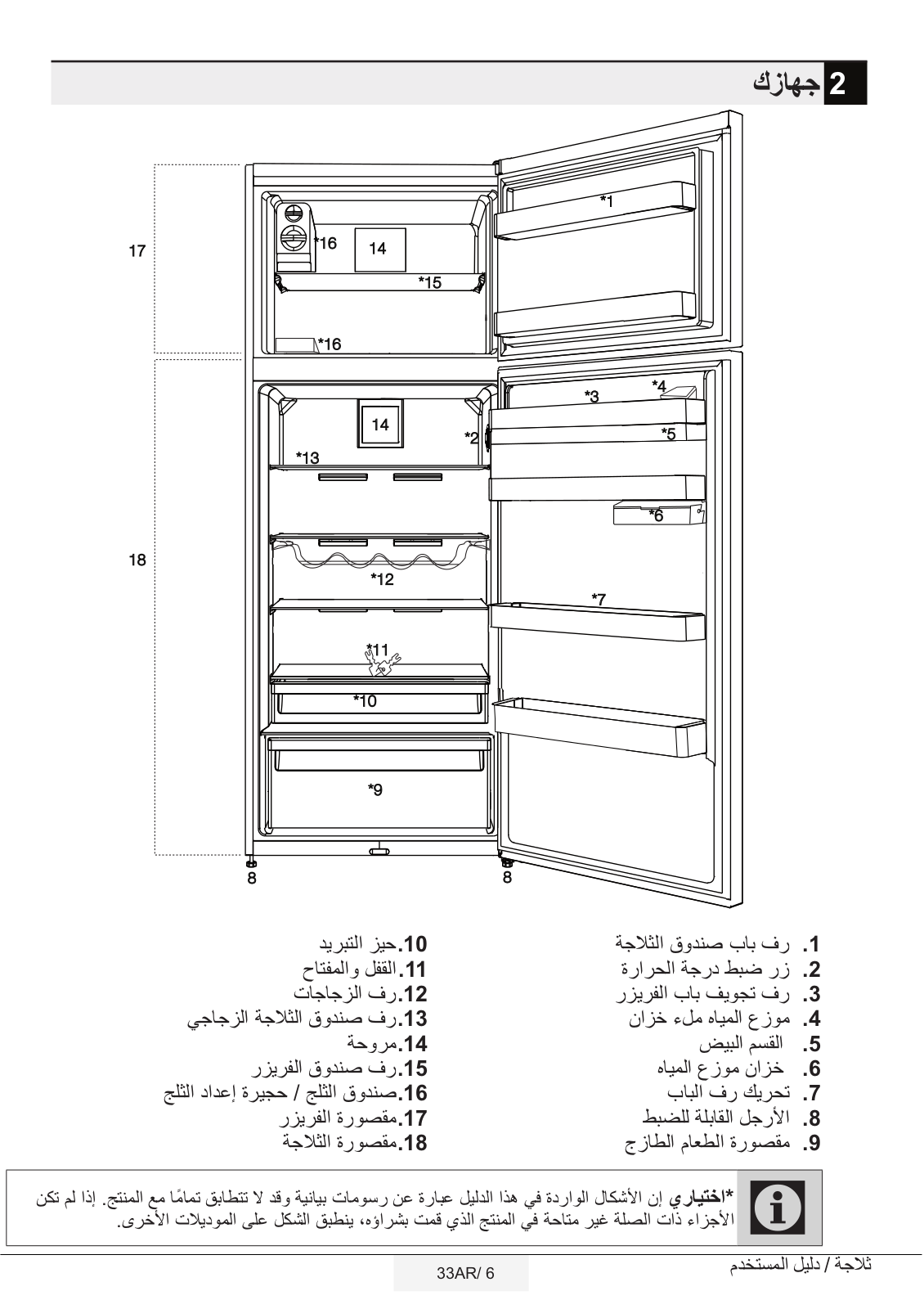

2 Your appliance
17 |
*16 |
14 |
|
|
|
||
|
|
|
*15 |
|
*16 |
|
|
|
|
14 |
*2 |
|
|
|
|
|
*13 |
|
|
18 |
|
|
|
|
|
*12 |
|
|
|
*11 |
|
|
|
*10 |
|
|
|
*9 |
|
|
8 |
|
|
*1
*3 *4
*5
*6
*7
8 |
1. |
Fridge - compartment door shelf |
10. |
Chiller compartment |
2. |
Temperature setting button |
11. |
Lock and key |
3. |
Water dispenser filling tank |
12. |
Bottle shelf |
4. |
Egg section |
13. |
Fridge - compartment glass shelf |
5. |
Water dispenser reservoir |
14. |
Fan |
6. |
Storage container under the door shelf |
15. |
Freezer compartment shelf |
7. |
Moving door shelf |
16. |
Icebox / Ice-making compartment |
8. |
Adjustable feet |
17. |
Freezer compartment |
9. |
Crisper |
18. |
Fridge compartment |
C*optional:Figures in this user manual are given as an example and may not match the product exactly. If the relevant parts are not available in the product you purchased, the figure applies to other models.
Refrigerator / User Manual |
7/38 EN |
|

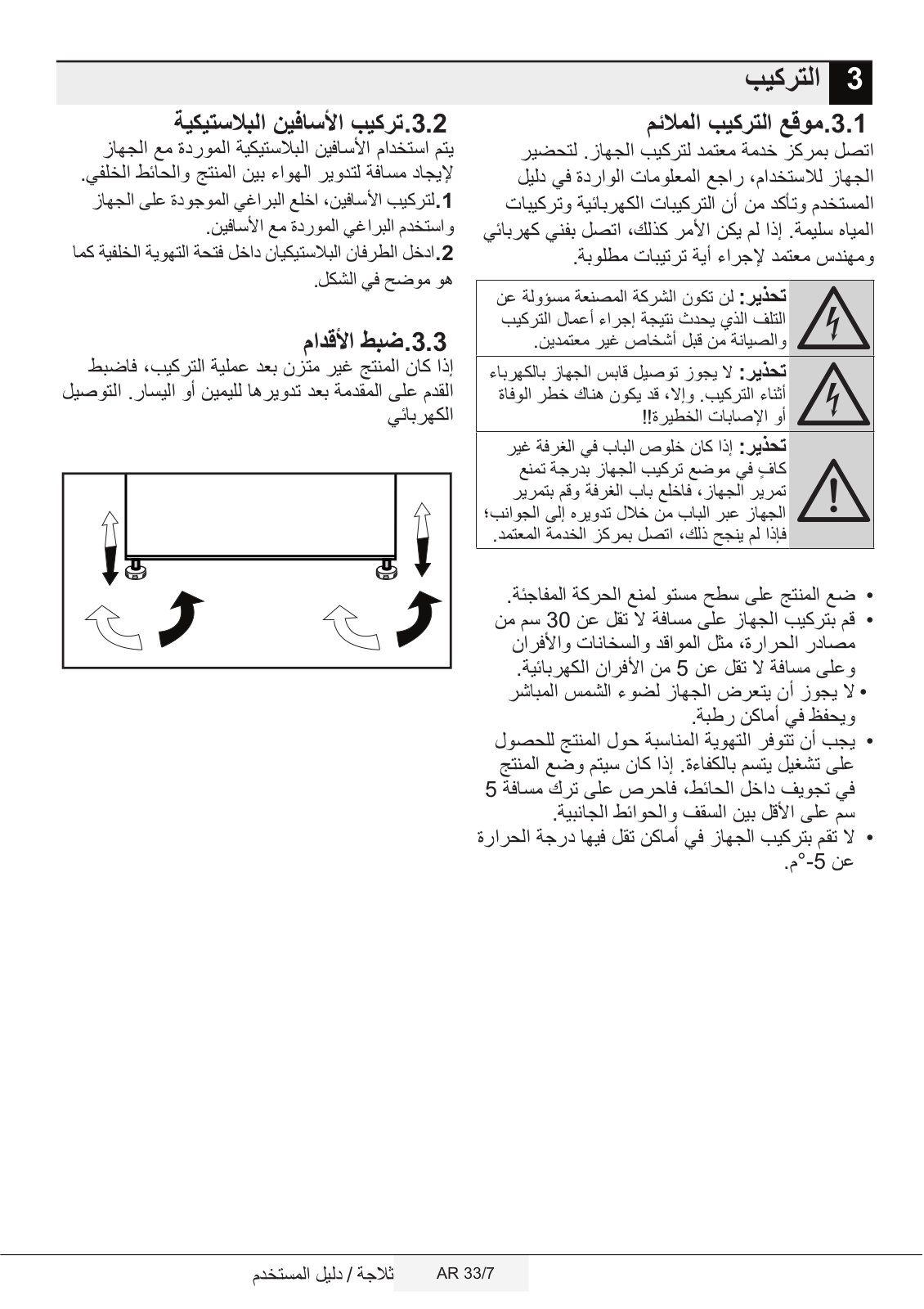

3 Installation
3.1.Appropriate installation location
Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.
BWARNING: Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
BWARNING: Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!
WARNING: If the door clearance of the room where the product shall be place is so tight to prevent
Apassing of the product, remove the door of the room and pass the product through the door by turning it to its side; if this does not work, contact the authorized service.
•Placetheproductonanevenfloor surface to prevent jolts.
•Installtheproductatleast30cm away from heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrical ovens.
•Productmustnotbesubjectedto direct sun light and kept in humid places.
•Appropriateairventilationmustbe provided around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 5 cm distance with the ceiling and side walls.
•Donotinstalltheproductinplaces where the temperature falls below -5°C.
3.2.Installing the plastic wedges
Plastic wedges supplied with the product are used to create the distance for the air circulation between the product and the rear wall.
1.To install the wedges, remove the screws on the product and use the screws supplied together with the wedges.
2.Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure.
|
8 /38 EN |
Refrigerator / User Manual |
Installation
3.3.Adjusting the feet
If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left.
Hot Surface Warning!
Side walls of your product is equipped with refrigerant pipes to improve the cooling system. Refrigerant with
Chigh temperatures may flow through these areas, resulting in hot surfaces on the side walls. This is normal and does not need any servicing. Please pay attention while touching these areas.

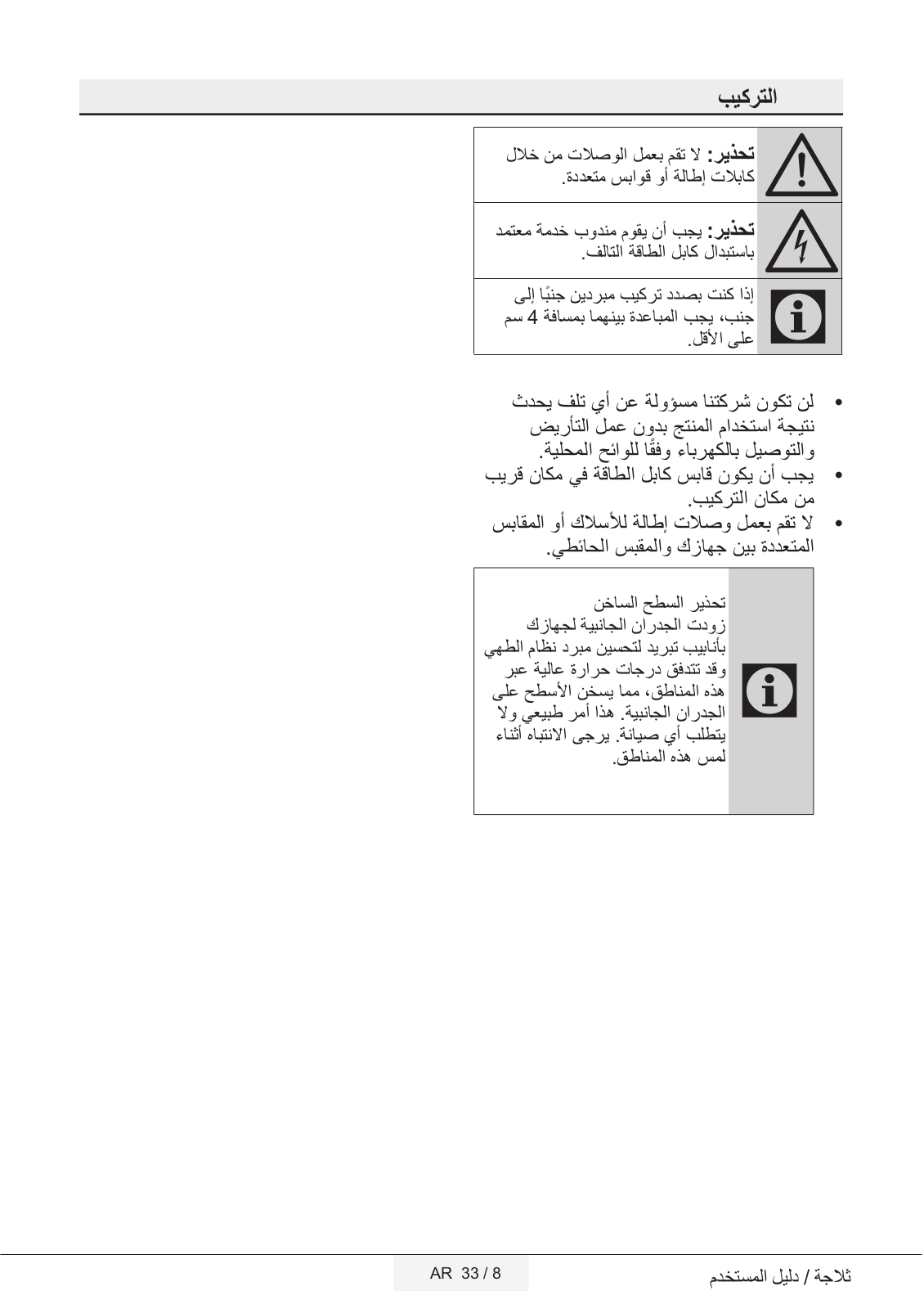

3.4. Electrical connection
AWARNING:Do not make connections via extension cables or multi-plugs.
BWARNING: Damaged power cable must be replaced by the Authorized Service Agent.
If two coolers are to be Cinstalled side by side, there
should be at least 4 cm distance between them.
•Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations.
•Power cable plug must be within easy reach after installation.
•Do not extension cords or cordless multiple outlets between your product and the wall outlet.
Refrigerator / User Manual |
9 /38 EN |
|
|
|
|
|
|
Installation
3.5.Reversing the doors
Proceed in numerical order .
4
2
6 |
5 |
1 |
|
45°
3
7 |
8 |
16 15
19
20 |
18 |
|
17
14 13
|
9 |
10 |
11 |
12
21
21
10 / 38 EN |
Refrigerator / User Manual |
|
Installation
3.6.Reversing the doors
Proceed in numerical order .
4
|
|
2 |
|
|
6 |
5 |
1 |
9 |
|
|
||||
10 |
11 |
|||
|
|
|||
45° |
|
3 |
|
|
|
|
|
||
7 |
8 |
|
|
|
|
|
|
12 |
16 15
19
20
18
17
14 13
Refrigerator / User Manual |
11 /38 EN |
|
|
|
|
|
|

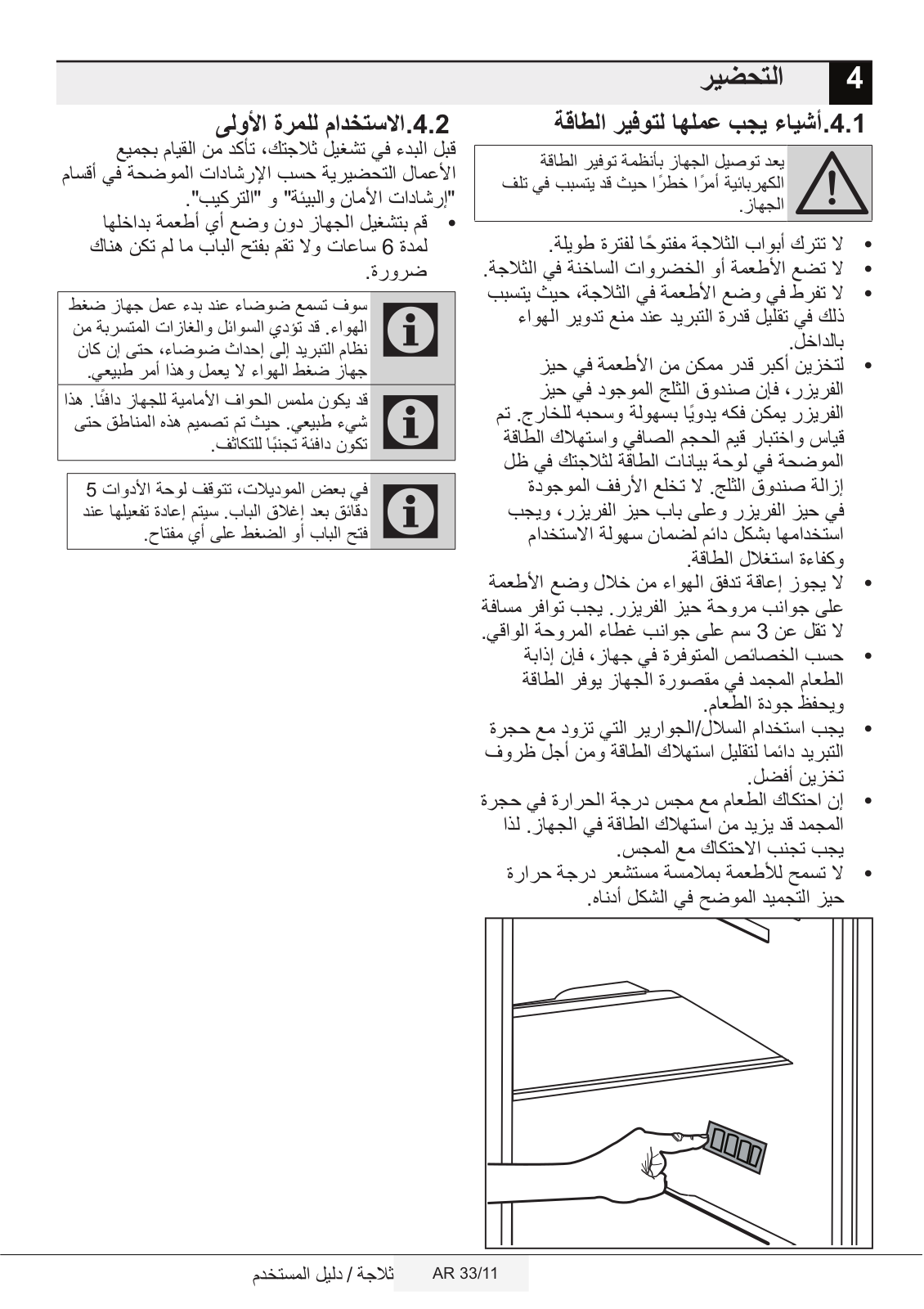

4 Preparation
4.1. Things to be done for energy saving
Connecting the product to electric Aenergy saving systems is risky
as it may cause damage on the product.
•Do not leave the doors of your refrigerator open for a long time.
•Do not put hot food or drinks in your refrigerator.
•Do not overload the refrigerator, cooling capacity will fall when the air circulation inside is hindered.
•In order to store maximum amount of food in the freezer compartment, the icematic, available in the freezer
compartment and easily removable by hand, shall be taken out. Net volume and energy consumption values declared on the power data plate of your refrigerator are measured and tested by removing the icematic. Do not remove the shelves inside the freezer compartment and on the door of freezer compartment shall not be removed and they shall always be used they provide ease of use and efficiency in energy consumption.
•Airflow should not be blocked by placing foods on the sides of the freezer compartment fan. A minimum distance of 3 cm shall be provided on the sides of protective fan cover.
•The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.
•Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.
•Depending on the features of your product, thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.
•Do not allow contact of the food with the fridge compartment temperature sensor shown in the figure below.
4.2. Initial use
Before starting to use your refrigerator, ensure that all preparations are made in accordance with the instructions in sections "Instructions for safety and environment" and "Installation".
• Run the product without putting any food for 6 hours and do not open its door unless certainly required.
CYou will hear a noise when the compressor starts up. The liquids and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
CFront edges of the product may feel warm. This is normal. These areas are designed to be warm to avoid condensation.
CIn some models, the instrument panel automatically turns off
5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.
|
12 /38 EN |
Refrigerator / User Manual |
5 Operating the product
5.1.Temperature setting button
The interior temperature of your refrigerator changes for the following reasons;
•Seasonal temperatures,
•Frequent opening of the door and leaving the door open for long periods,
•Food put into the refrigerator without cooling down to the room temperature,
•The location of the refrigerator in the room (e.g. exposing to sunlight).
•You may adjust the varying interior temperature due to such reasons by using the setting button.
•The numbers around the control knob indicate the temperature values in “°C”.
•If the ambient temperature is 25°C, we recommend you to use the temperature control knob of your refrigerator at 4°C. This value may be increased or decreased as required in other ambient temperatures.
5.2.Fast freeze
If large amounts of fresh food are going to be frozen, adjust the temperature
control knob to ( ) max. 24 hours before putting the fresh food in the fast freeze compartment.
It is strongly recommended to keep the knob at this position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food.
Refrigerator / User Manual |
13/38 EN |
|
Operating the product
Remember to turn the temperature |
• When the setting operation is |
||
control knob back to its previous |
completed, you may press the |
||
position once food has frozen. |
temperature control knob and have |
||

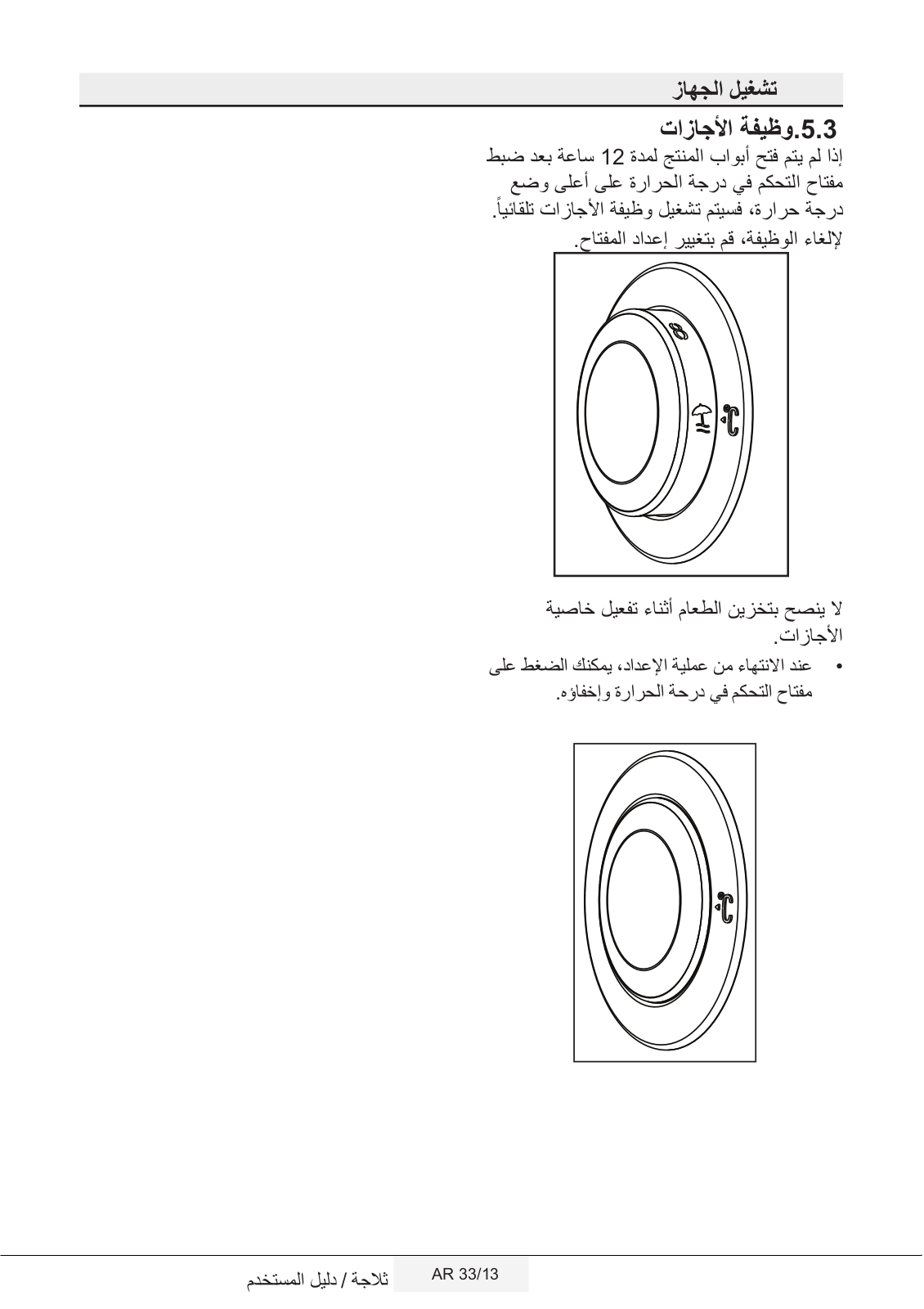

5.3.Vacation function |
it hidden. |
||
If the doors of the product are |
|
||
not opened for 12 hours after the |
|
||
temperature control knob is switched |
|
||
to the hottest position, then the |
|
||
vacation function will be activated |
|
||
automatically. |
|
||
|
|
|
|
|
|
|
|
To cancel the function, change the knob setting.
It is not recommended to store food in cooler compartment when the vacation function is active.
|
14 / 38 EN |
Refrigerator / User Manual |
Operating the product

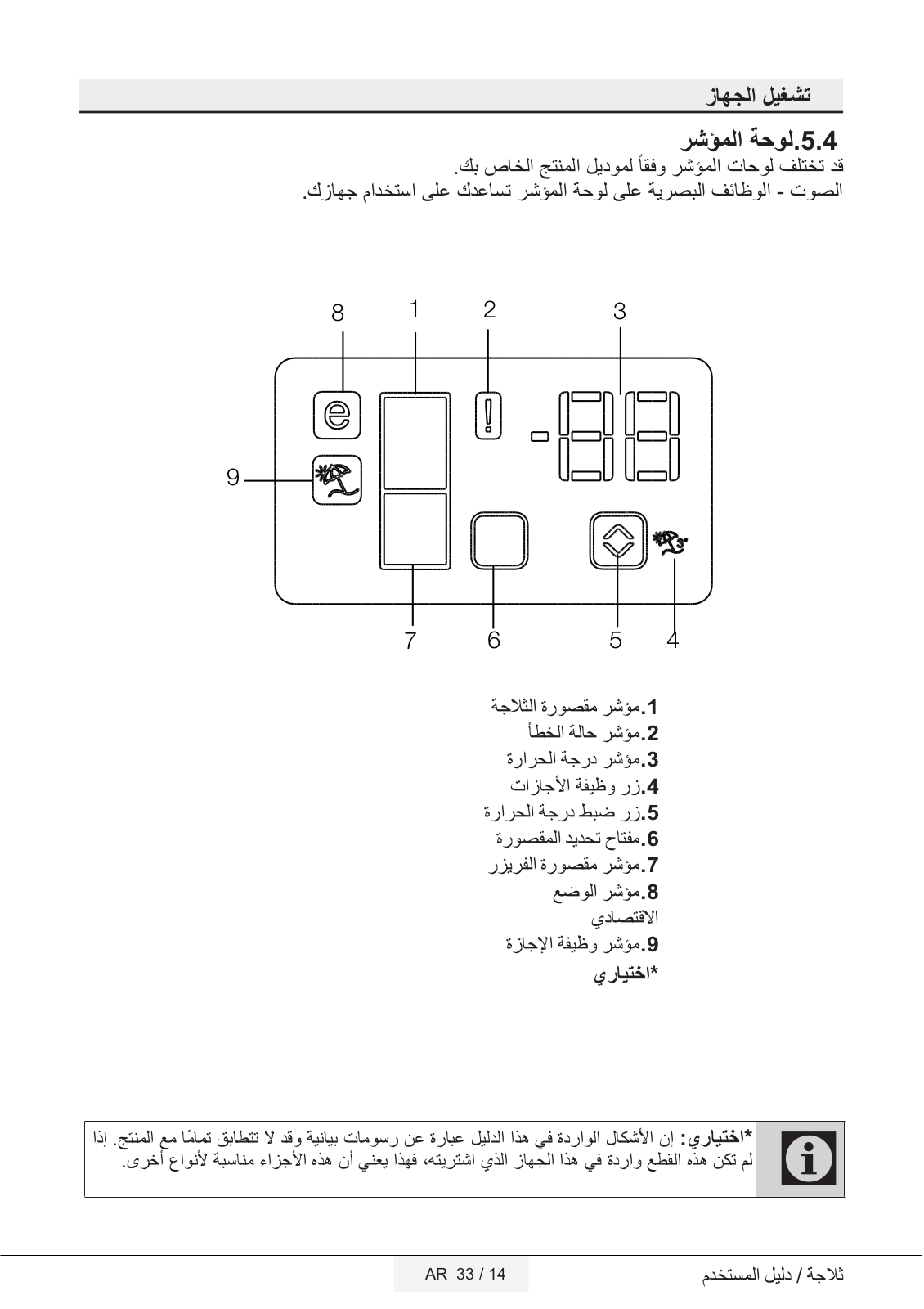

5.4. Indicator panel
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.
8 |
|
|
|
|
1 |
|
2 |
|
|
3 |
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9
7 |
6 |
5 |
4 |
1.Fridge Compartment Indicator
2.Error status indicator
3.Temperature indicator
4.Vacation function button
5.Temperature setting button
6.Compartment selection button
7.Freezer compartment indicator
8.Economy mode indicator
9.Vacation function indicator
*optional
C *Optional: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.
Refrigerator / User Manual |
15/38EN |
|
Operating the product |
|
|
|

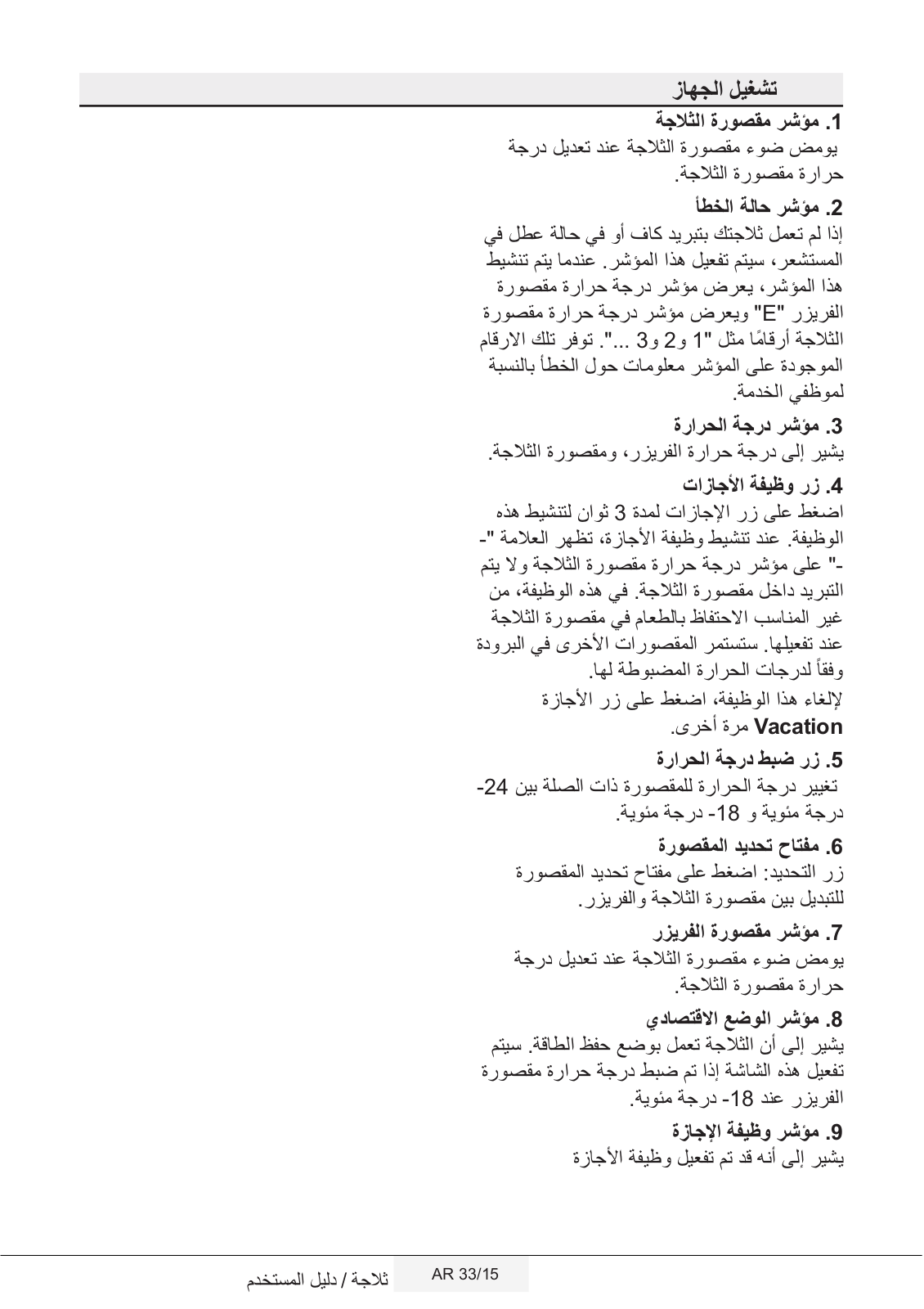

1. Fridge compartment indicator |
6. Compartment selection button |
|
Fridge compartment light is |
Selection button: Press compartment |
illuminated while the fridge |
selection button to switch between |
|
compartment temperature is set. |
fridge and freezer compartments. |
2. Error status indicator
If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated.
When this indicator is activated, “E” is displayed on the freezer
compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.
3. Temperature indicator
Indicates freezer, fridge compartment temperature.
7.Freezer compartment indicator
Fridge compartment light is illuminated while the freezer compartment temperature is set.
8.Economy mode indicator
Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18°C.
9.Vacation function indicator
Indicates that vacation is activated.
4. Vacation function button
Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling
is performed on the fridge compartment. It is not suitable to keep the food in the fridge
compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.
To cancel this function press Vacation button again.
5. Temperature setting button
Changes the temperature of the relevant compartment between -24°C... -18°C and 8°C...1°C.
|
16 / 38 EN |
Refrigerator / User Manual |
Operating the product

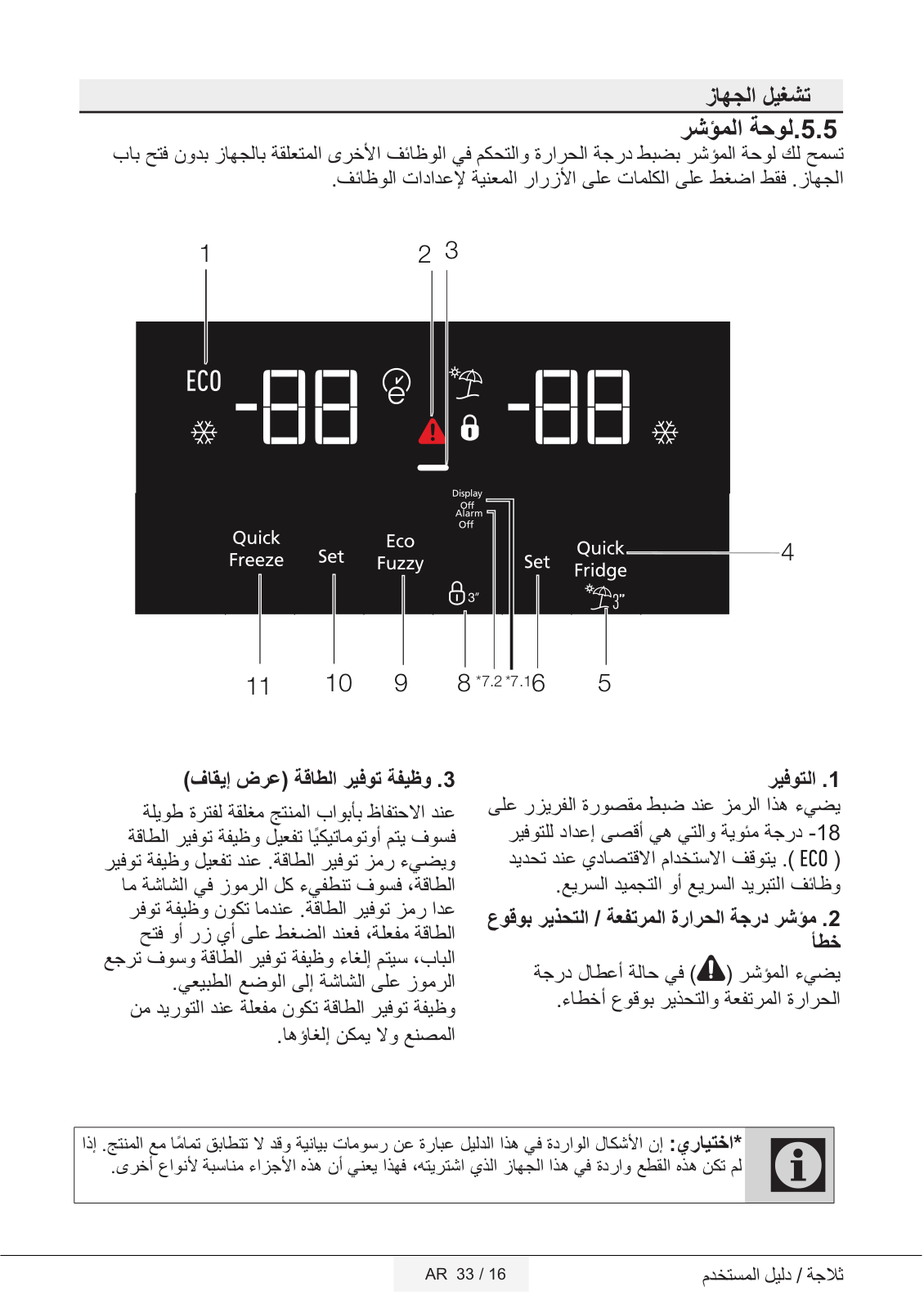

5.5.Indicator panel
Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.
12 3
4
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11 |
10 |
9 |
8 *7.2*7.16 |
5 |
1. Economy
This symbol is illuminated when the freezer compartment is set to -18°C'ye as the most economical setting value ( ). Economy indicator is turned off when quick cooling or quick freeze functions are selected.
2. Power failure/High temperature / error warning indicator
This indicator illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment press the alarm off button to clear the warning.
C *Optional: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.
Refrigerator / User Manual |
17/38EN |
|
Operating the product
3.Energy saving function (display |
performed on the fridge compartment. |
|||
off) |
It is not suitable to keep the food |
|||
If the product doors are kept closed |
in the fridge compartment when |
|||
this function is activated. Other |
||||
for a long time energy saving function |
||||
compartments shall be continued to be |
||||
is automatically activated and energy |
||||
cooled as per their set temperature. |
||||
saving symbol is illuminated. When |
||||
To cancel this function press Vacation |
||||
energy saving function is activated, |
||||
all symbols on the display other than |
function button again. |
|
||
energy saving symbol will turn off. When |
6. Fridge compartment temperatu- |
|||
the Energy Saving function is activated, |
re setting |
|
|
|
if any button is pressed or the door is |
When the button is pressed, you may |
|||
opened, energy saving function will be |
set the temperature of the fridge |
|||
canceled and the symbols on display will |
compartment to 8,7,6,5,4,3,2 and 1 |
|||
return to normal. |
respectively ( |
). |
|
|
Energy saving function is activated |
7.1 Energy saving (display off) |
|||
during delivery from factory and |
||||
Pressing this button ( |
) will light up |
|||
cannot be canceled. |
||||
the energy saving sign ( |
) and the |
|||

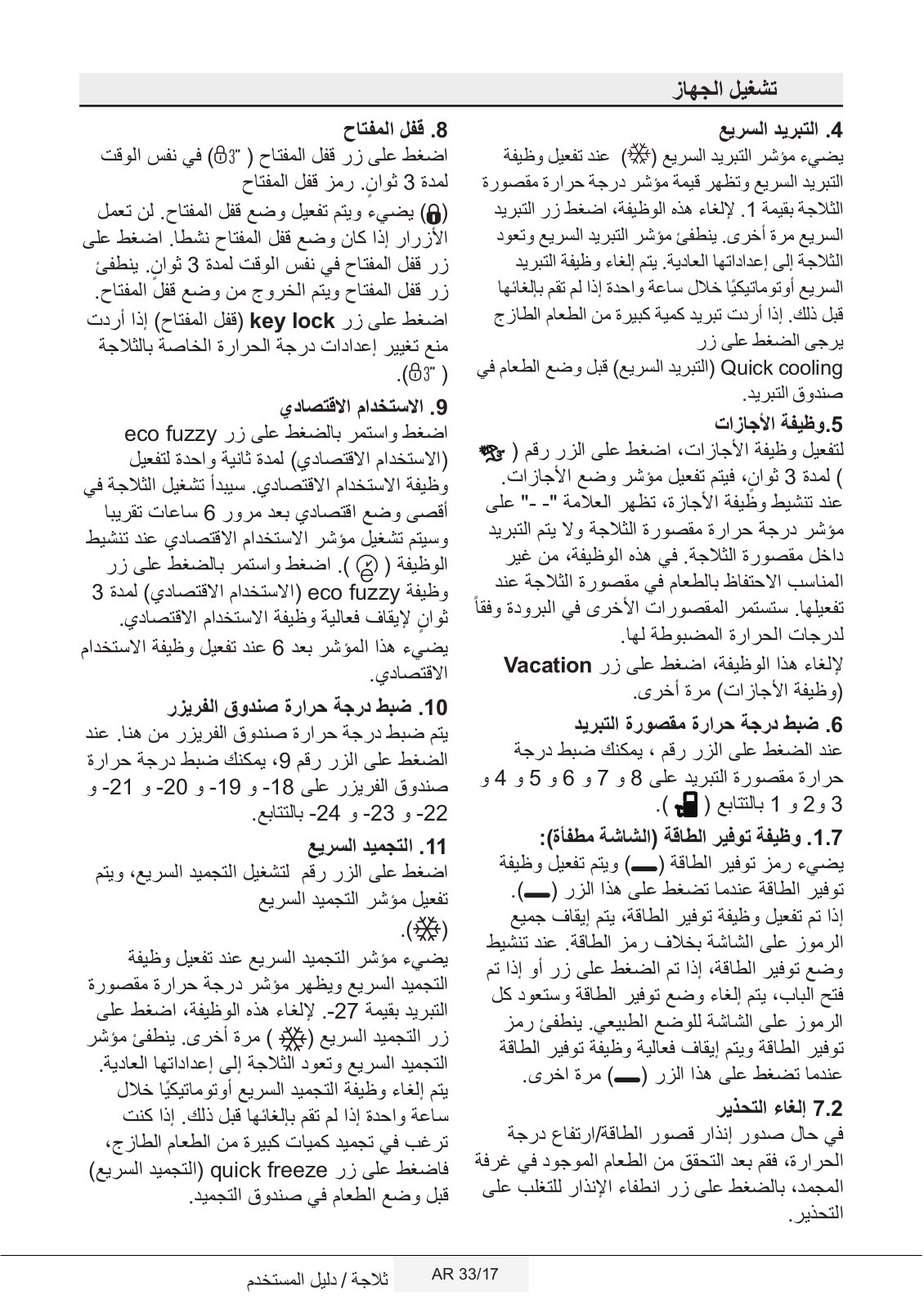

4. Quick cool |
||||
Energy-saving function will activate. |
||||
Quick cooling indicator ( ) is |
Activating the energy-saving function |
|||
illuminated when quick cooling |
will turn off all other signs on the |
|||
function is activated and fridge |
display. When the energy-saving |
|||
compartment temperature indicator |
function is active, pressing any button |
|||
value is displayed as 1. To cancel this |
or opening the door will deactivate the |
|||
function press Quick cooling button |
energy-saving function and the display |
|||
again. Quick cooling indicator will |
signals will return to normal. Pressing |
|||
turn off and refrigerator will return |
this button ( |
) again will turn off the |
||
to its normal settings. Quick cooling |
energy-saving sign and deactivate the |
|||
function is canceled automatically in |
energy-saving function. |
|
||
1 hour if you do not cancel it before. |
7.2 Alarm off warning: |
|
||
If you want to cool large amounts of |
|
|||
In case of power failure/high temperature |
||||
fresh food, press the Quick cooling |
||||
button before putting the food into |
alarm, after checking the food located in |
|||
the fridge compartment. |
the freezer compartment press the alarm |
|||
5. Vacation function |
off button to clear the warning. |
|||
In order to activate vacation function, |
8. Key lock |
|
|
|
press the button ( ) for 3 seconds, |
Press key lock button ( |
) |
||
and the vacation mode indicator |
simultaneously for 3 seconds. Key lock |
|||
activates. When the vacation function |
symbol |
|
|
|
is activated, “- -” is displayed on the |
( ) will light up and key lock mode will |
|||
fridge compartment temperature |
be activated. Buttons will not function |
|||
indicator and no active cooling is |
if the Key lock mode is active. Press |
|
18 / 38 EN |
Refrigerator / User Manual |
Operating the product
key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.
Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator ().
9. Eco fuzzy
Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active ( ). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function.
This indicator is illuminated after 6 hours when eco fuzzy is activated.
10. Freezer compartment temperature setting
Temperature setting for freezer compartment is performed here. When button no. 9 is pressed, you may set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23 and -24 respectively.
11. Fast freeze
Press button for fast freeze operation, quick freeze indicator
( ) shall be activated.
Quick freeze indicator is illuminated when quick freeze function is activated and fridge compartment temperature indicator is displayed as -27. To cancel this function press quick freeze button ( ) again. Quick freeze indicator will turn off and
refrigerator will return to its normal settings. Quick freeze function is canceled automatically in 24 hour if you do not cancel it before. If you
want to freeze large amounts of fresh food, press the quick freeze button before putting the food into the freezer compartment.
Refrigerator / User Manual |
19/38EN |
|
Operating the product

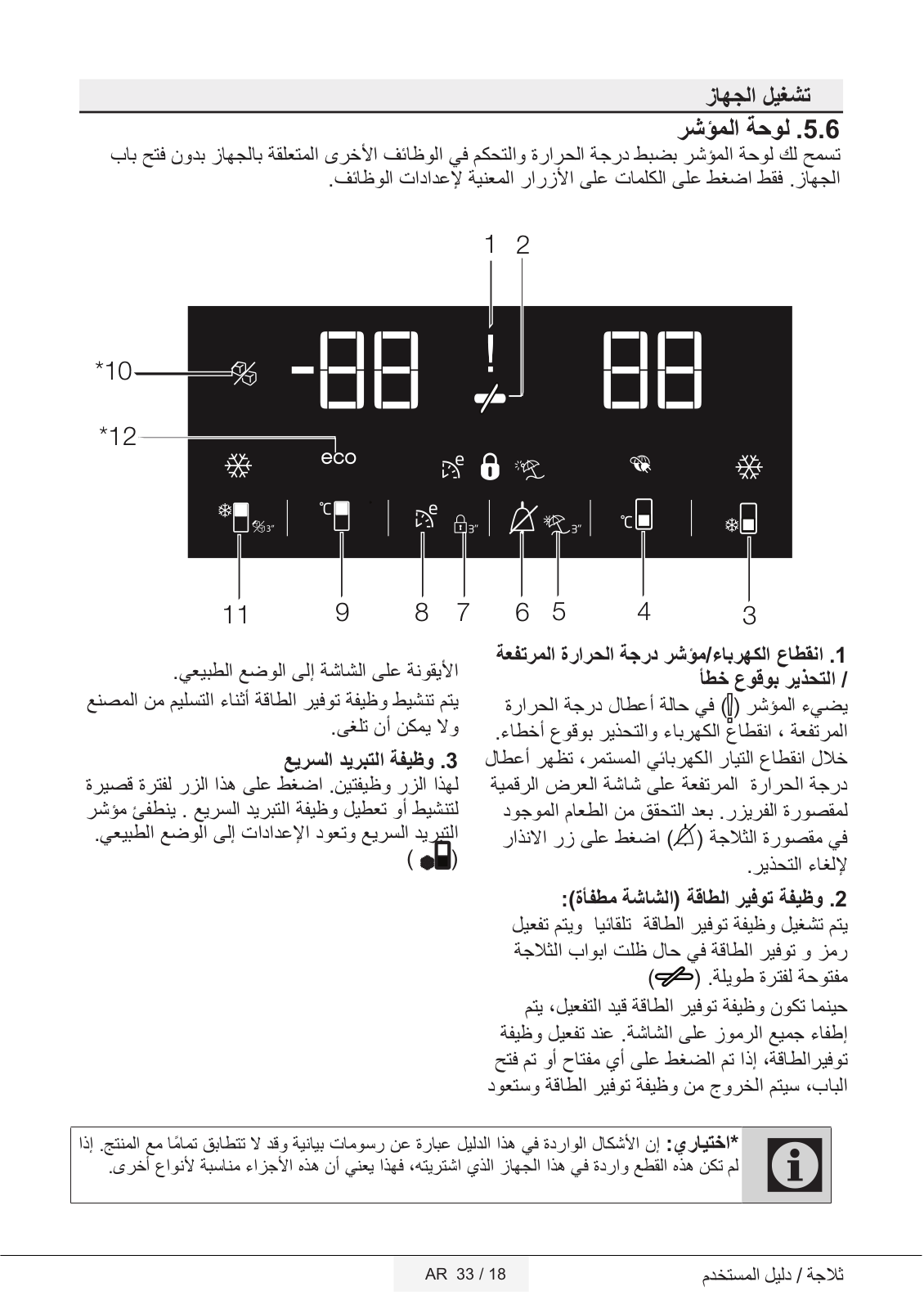

5.6. Indicator panel
Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.
1 2
*10
*12
11 |
9 |
8 |
7 |
6 |
5 |
4 |
3 |
1. Power failure/High temperature / error warning indicator
This indicator ( ) illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer
compartment () press the alarm off button to clear the warning.
2. Energy saving function (display off):
If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. ()
When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.
C *Optional: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.
|
20 / 38 EN |
Refrigerator / User Manual |

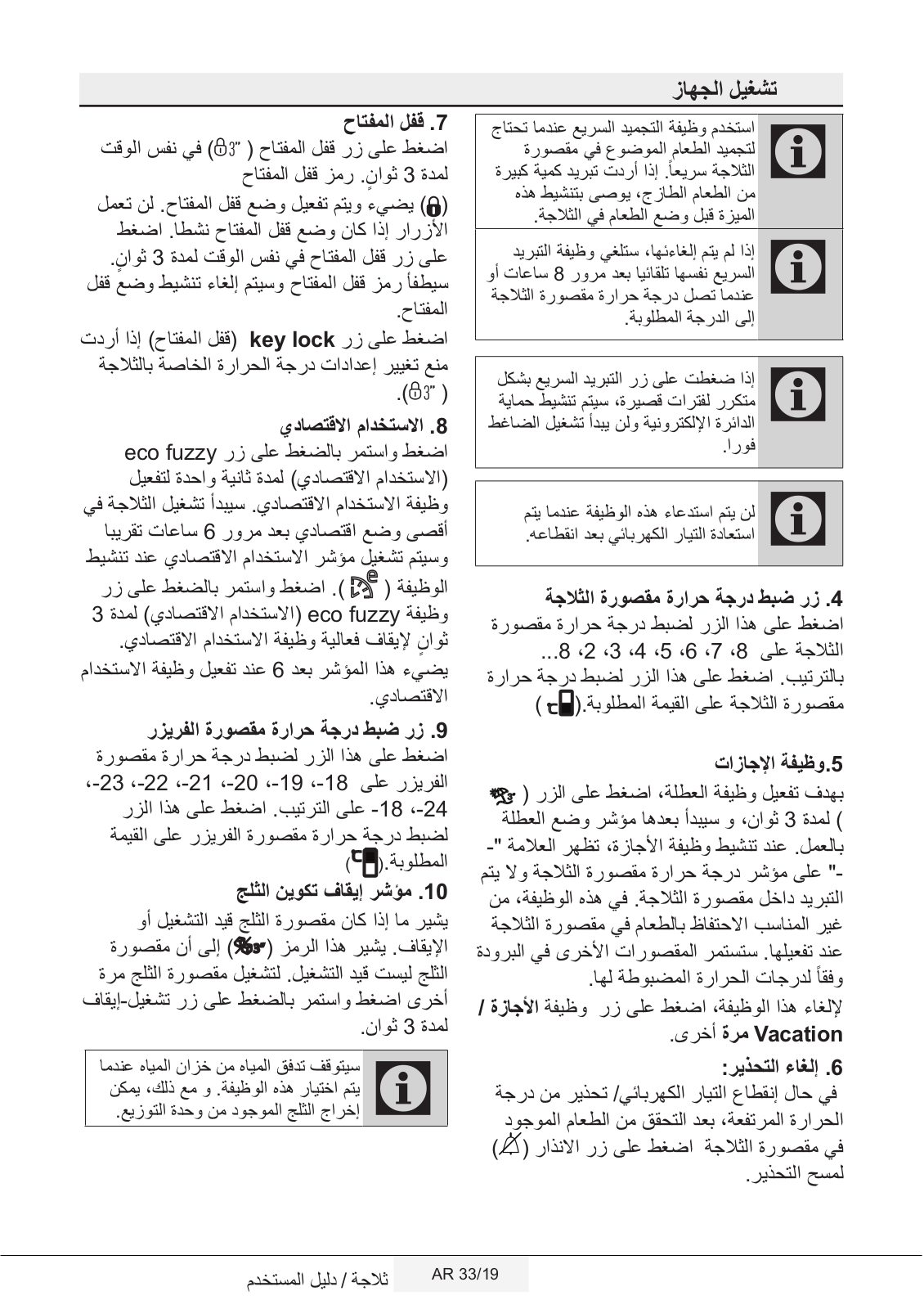

Operating the product
Energy saving function is activated during delivery from factory and cannot be canceled.
3.Quick fridge function
The button has two functions. To |
|
activate or deactivate the quick cool |
|
function press it briefly. Quick Cool |
|
indicator will turn off and the product |
|
will return to its normal settings. ( |
) |
CUse quick cooling function when you want to quickly cool the food placed in the fridge compartment. If you want to cool large amounts of fresh food, activate this function before putting the food into the product.
CIf you do not cancel it, quick cooling will cancel itself automatically after 8 hours or when the fridge compartment reaches to the required temperature.
CIf you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.
CThis function is not recalled when power restores after a power failure.
4. Fridge compartment temperature setting button
Press this button to set the temperature of the fridge compartment to 8, 7,6, 5,4,3, 2, 8...
respectively. Press this button to set the fridge compartment temperature to the desired value. ()
5.Vacation Function
In order to activate vacation function, press the this button ( ) for 3 seconds, and the vacation mode
indicator () will be activated. When the vacation function is activated,
“- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.
To cancel this function press Vacation function button again.
6. Alarm off warning:
In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off
button () to clear the warning.
7. Key lock
Press key lock button () simultaneously for 3 seconds. Key lock symbol
( ) will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button
simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.
Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator ().
Refrigerator / User Manual |
21/38EN |
|
Operating the product
8. Eco fuzzy |

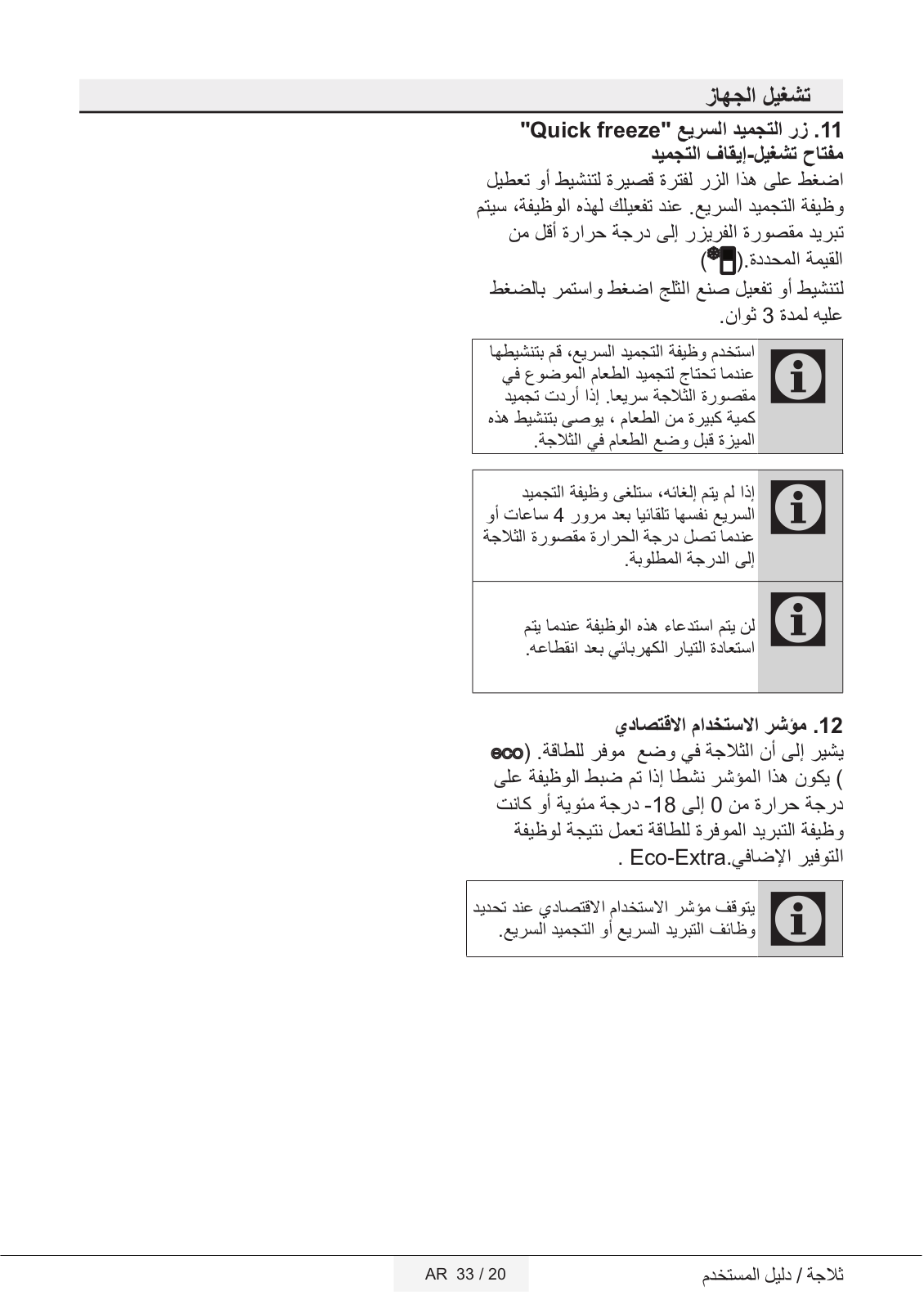

11. Quick freeze function button/ |
|
|||
Press and hold eco fuzzy button |
icematic on-off button |
|
|||
for 1 seconds to activate eco fuzzy |
Press this button to activate or |
|
|||
function. Refrigerator will start |
deactivate the quick freezing |
|
|||
operating in the most economic |
function. When you activate the |
|
|||
mode at least 6 hours later and the |
function, the freezer compartment |
|
|||
economic usage indicator will turn |
will be cooled to a temperature lower |
|
|||
on when the function is active ( |
than the set value. ( ) |
|
|||
). Press and hold eco fuzzy function |
To turn on and off the icematic press |
|
|||
button for 3 seconds to deactivate |
and hold it for 3 seconds. |
|
|||
eco fuzzy function. |
|
|
|
|
|
|
C |
Use the quick freeze function |
|
||
This indicator is illuminated after 6 |
|
|
|||
|
when you want to quickly |
|
|||
hours when eco fuzzy is activated. |
|
freeze the food placed in fridge |
|
||
9. Freezer compartment |
|
|
compartment. If you want to |
|
|
|
|
freeze large amounts of fresh |
|
||
temperature setting button |
|
|
food, activate this function |
|
|
Press this button to set the |
|
|
before putting the food into |
|
|
temperature of the freezer |
|
|
the product. |
|
|
compartment to -18,-19,-20,-21, |
|
|
|
|
|
|
|
If you do not cancel it, Quick |
|
||
-22, -23,-24, -18... respectively. |
|
|
|
||
|
|
Freeze will cancel itself |
|
||
Press this button to set the freezer |
|
Cautomatically after 4 hours or |
|
||
compartment temperature to the |
|
|
when the fridge compartment |
|
|
desired value.( ) |
|
|
reaches to the required |
|
|
10. Icematic off indicator |
|
|
temperature. |
|
|
|
|
|
|
||
Indicates whether the icematic is on |
|
|
This function is not recalled |
|
|
or off. ( )If On, then the icematic |
|
Cwhen power restores after a |
|
||
is not operating. To operate the |
|
|
power failure. |
|
|
icematic again press and hold the On- |
|
|
|
|
|
|
|
|
|
||
Off button for 3 seconds. |
12. Economic usage indicator |
|
|||
|
|
Indicates that the product is running |
|
||
C |
Water flow from water tank |
|
|||
will stop when this function is |
in energy-efficient mode. ( )This |
|
|||
selected. However, ice made |
|
indicator will be active if the Freezer |
|
||
|
previously can be taken from |
|
|
||
|
|
Compartment temperature is set to |
|
||
|
the icematic. |
|
|
||
|
|
-18 or the energy efficient cooling |
|
||
|
|
|
|
||
|
|
|
is being performed due to Eco-Extra |
|
|
|
|
|
function. |
|
|
|
|
|
|
|
|
|
|
|
C |
Economic usage indicator is |
|
|
|
|
turned off when quick cooling |
|
|
|
|
|
or quick freeze functions are |
|
|
|
|
|
|
selected. |
|
|
22 / 38 EN |
Refrigerator / User Manual |
