Please read this manual first!

Recycling

Dear Customer, We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips. A Warning against dangerous conditions for life and property. B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of

hazardous substances.

CONTENTS

1 Your Refrigerator 4

2 Important Safety Warnings 5

Intended use .....................................5

General safety ...................................5

Child safety ........................................ 7

HCA Warning ....................................7

Things to be done for energy saving .. 8

3 Installation 9

Points to be considered when re-

transporting your refrigerator .............9

Before operating your refrigerator ...... 9

Disposing of the packaging .............10

Disposing of your old refrigerator ..... 10

Placing and Installation .................... 10

Adjusting the legs ............................ 11

Placing and Installation .................... 12

4 Preparation 13

5 Using your refrigerator 14

Indicator Panel ................................. 14

Door Open Warning ......................... 16

Humidity control in the crisper .........17

Egg tray ........................................... 17

Sliding Body Shelves ....................... 17

Blue light .........................................18

Chiller compartment ........................ 18

Icematic and ice storage container .. 18 Description and cleaning of odor

filter: ................................................ 19

Water dispenser .............................. 20

6 Maintenance and cleaning 22

Protection of plastic surfaces .......... 22

7 Recommended solutions for the problems 23

7 8 7*91011

*13

*19

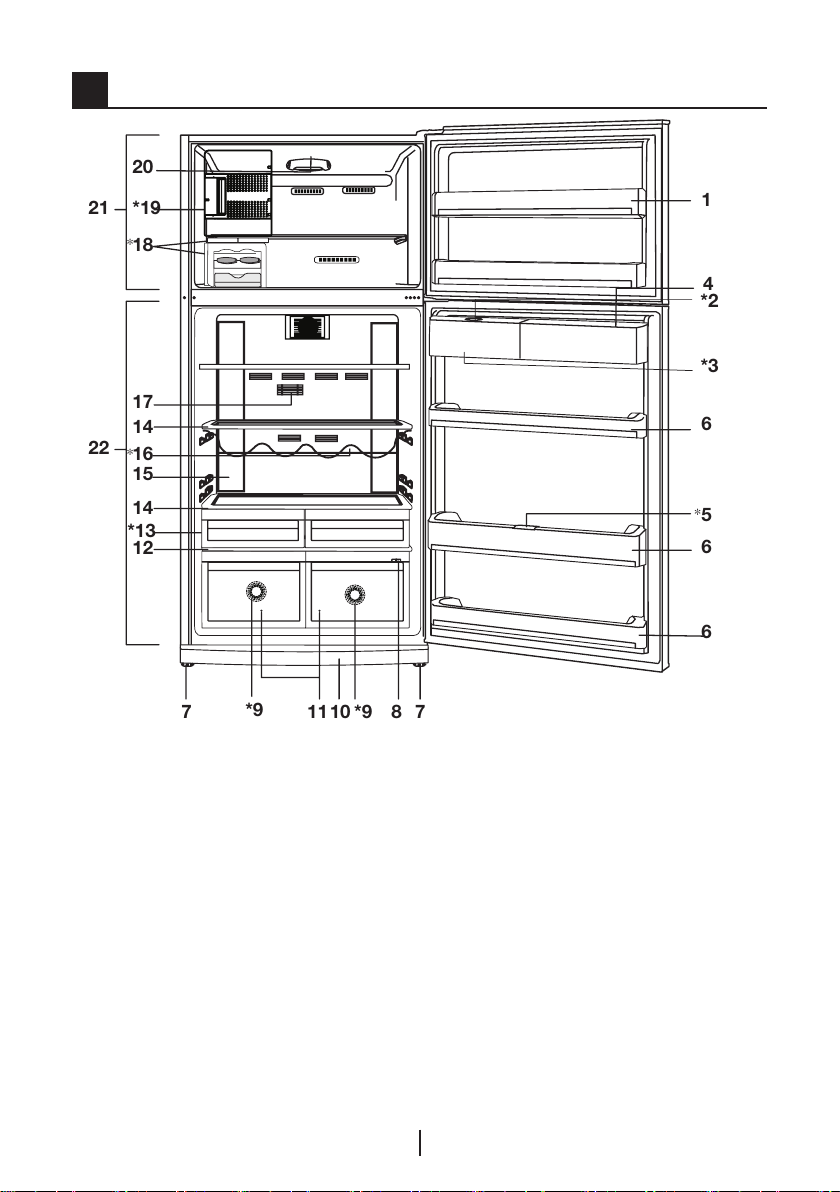

1 Your Refrigerator

Freezer compartment door 2- Water dispenser tank filler cap 3-

Water dispenser tank 4-

Egg holder 5-

Bottle holder

6- Fridge compartment door shelves 7-

Adjustable front legs 8-

Crisper or chiller compartment adjustment slider 9-

Blue light

10- Ventilation lid

* OPTIONAL

shelves

11- Crispers 12-

Crisper cover

13-

chiller compartment

14-

Fridge compartment glass shelves 15- Fridge compartment interior light 16- Wine rack 17- Odor filter (Carbon) 18- Icematic 19- Fresh Freeze compartment 20- Freezer compartment interior light 21-

Freezer compartment 22-

Fridge compartment

C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used – indoors and in closed areas such as

homes;

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

outdoors.

General safety

• When you want to dispose/scrap

the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

• Consult your authorized service for

all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

• For products with a freezer

compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

• For products with a freezer

compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand;

they may stick to your hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the parts on your

refrigerator such as the door as a means of support or step.

• Do not use electrical devices inside

the refrigerator.

• Do not damage the parts, where

the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

• Do not cover or block the ventilation

holes on your refrigerator with any material.

• Electrical devices must be repaired by only authorised persons. Repairs

performed by incompetent persons create a risk for the user.

• In case of any failure or during

a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling

off the plug.

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances in the refrigerator.

• Do not use mechanical devices

or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• This product is not intended to be

used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

• Do not operate a damaged

refrigerator. Consult with the service agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth system in your house complies with standards.

• Exposing the product to rain, snow,

sun and wind is dangerous with respect to electrical safety.

• Contact authorized service when

there is a power cable damage to avoid danger.

• Never plug the refrigerator into

the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

• This refrigerator is intended for only

storing food items. It must not be used for any other purpose.

• Label of technical specifications is

located on the left wall inside the refrigerator.

• Never connect your refrigerator to

electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the

refrigerator, do not look at the blue light with optical tools.

• For manually controlled refrigerators,

wait for at least 5 minutes to start the refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the product when it is given to others.

• Avoid causing damage on power

cable when transporting the

refrigerator. Bending cable may cause

fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

• Do not plug the refrigerator if the wall

outlet is loose.

• Water should not be sprayed directly

on inner or outer parts of the product for safety purposes.

• Do not spray substances containing

inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

• Never place containers filled with

water on top of the refrigerator, otherwise this may cause electric shock or fire.

• Do not overload your refrigerator

with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise

temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

• If not to be used for a long time,

refrigerator should be unplugged. A possible problem in power cable may cause fire.

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• Refrigerator may move if adjustable

legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it may be snapped.

• When you have to place your product

next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

Child safety

• If the door has a lock, the key should

be kept away from reach of children.

• Children must be supervised to

prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

For products with a water dispenser;

Pressure of water mains should be

minimum 1 bar. Pressure of water mains should be maximum 8 bars.

• Use only potable water.

Things to be done for energy saving

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

refrigerator.

• Do not overload your refrigerator so

that the air circulation inside of it is not prevented.

• Do not install your refrigerator

under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

• Pay attention to keep your food in

closed containers.

• For products with a freezer

compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

• Thawing frozen food in fridge

compartment will both provide energy saving and preserve the food quality.

3 Installation

B Please remember that the

manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.

2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget…

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator

check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

2. You can install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

3. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

4. Plug the refrigerator into the wall outlet. When the fridge door is open the fridge compartment interior light will come on.

5. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in

compliance with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal

to your mains voltage.

• Extension cables and multiway plugs

must not be used for connection.

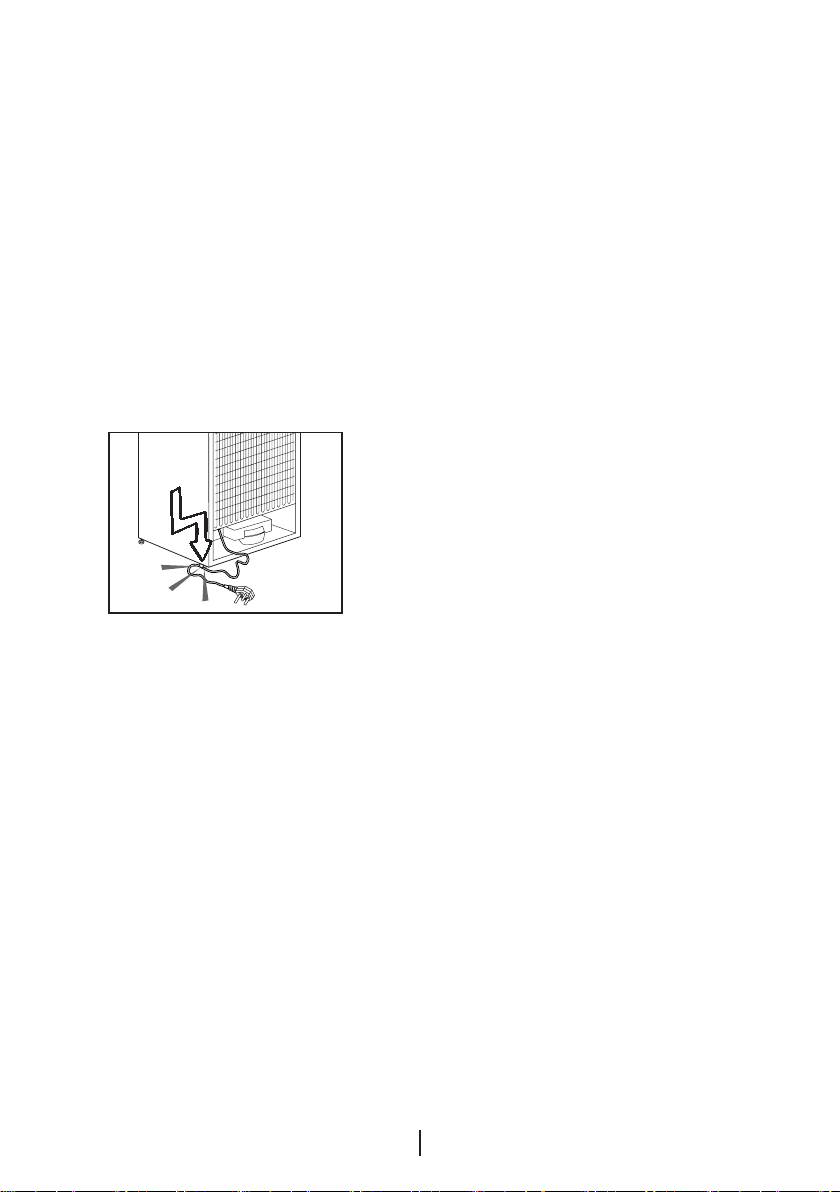

B A damaged power cable must be

replaced by a qualified electrician.

B Product must not be operated before

it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

• You may consult your authorized

dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator,

cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

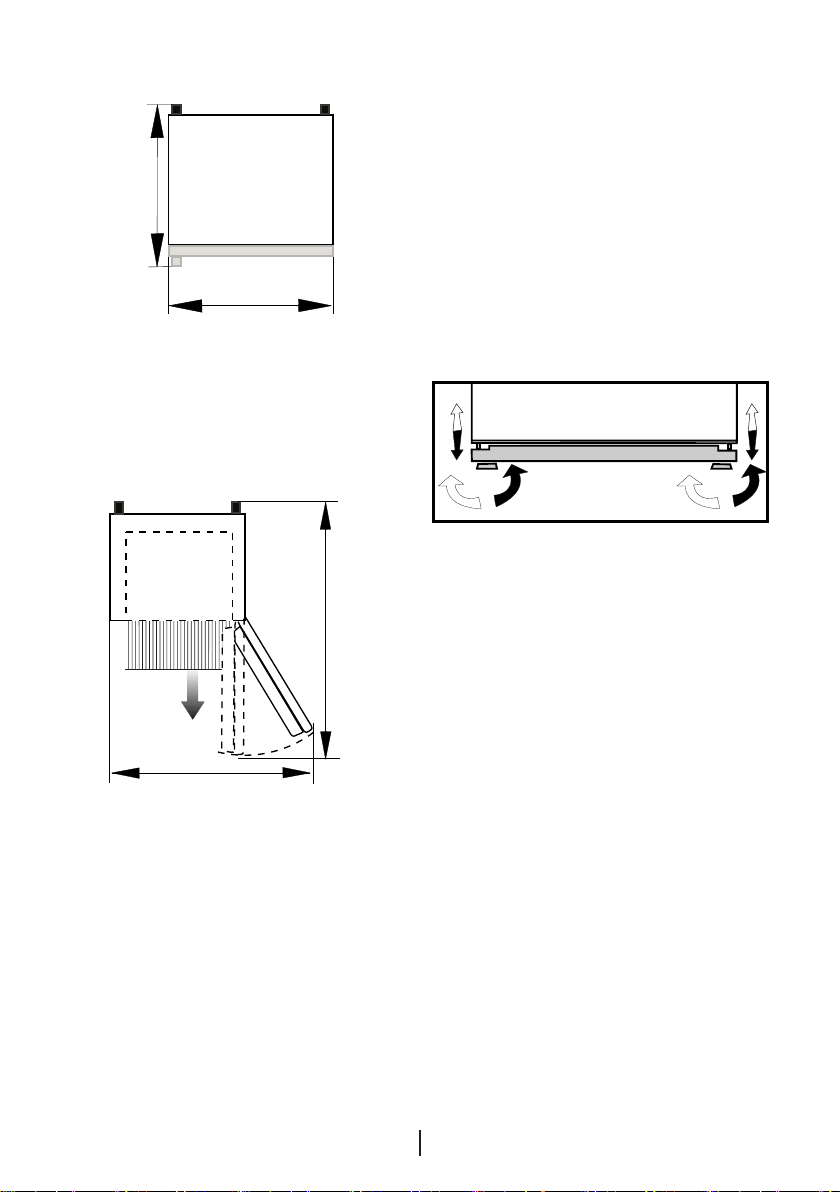

Placing and Installation

1. Install your refrigerator to a place

that allows ease of use.

2. Keep your refrigerator away from

heat sources, humid places and direct sunlight.

3. There must be appropriate air

ventilation around your refrigerator in order to achieve an efficient operation.

If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall.

If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4. Place your refrigerator on an even

floor surface to prevent jolts.

5. Do not keep your refrigerator in

ambient temperatures under 10°C.

Dimensions of your refrigerator

80 cm

84 cm

Usage area measures

Following figure shows the required place to allow you use your refrigerator most efficiently.

143.5 cm 134 cm

154 cm

Adjusting the feet

If your refrigerator is unbalanced; You can balance your refrigerator by

turning the front legs as shown in the illustration below. The corner where the leg exists is lowered when you turn it in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

142 cm

Placing and Installation

A If the entrance door of the room

where the refrigerator will be installed is not wide enough for the refrigerator to pass through, than call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.

2. Keep your refrigerator away from

heat sources, humid places and direct sunlight.

3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation.

If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall.

If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor surface to prevent jolts.

5. Do not keep your refrigerator in ambient temperatures under 10°C.

4 Preparation

C Your refrigerator should be installed at

least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

C The ambient temperature of

the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.

C Please make sure that the interior

of your refrigerator is cleaned thoroughly.

C If two refrigerators are to be installed

side by side, there should be at least 2 cm distance between them.

C When you operate your refrigerator

for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened

frequently.

- It must be operated empty without

any food in it.

- Do not unplug your refrigerator. If

a power failure occurs out of your control, please see the warnings in

the “Recommended solutions for

the problems” section.

C Original packaging and foam

materials should be kept for future transportations or moving.

5 Using your refrigerator

8 15

9 14 *16 13 17 11 7 10

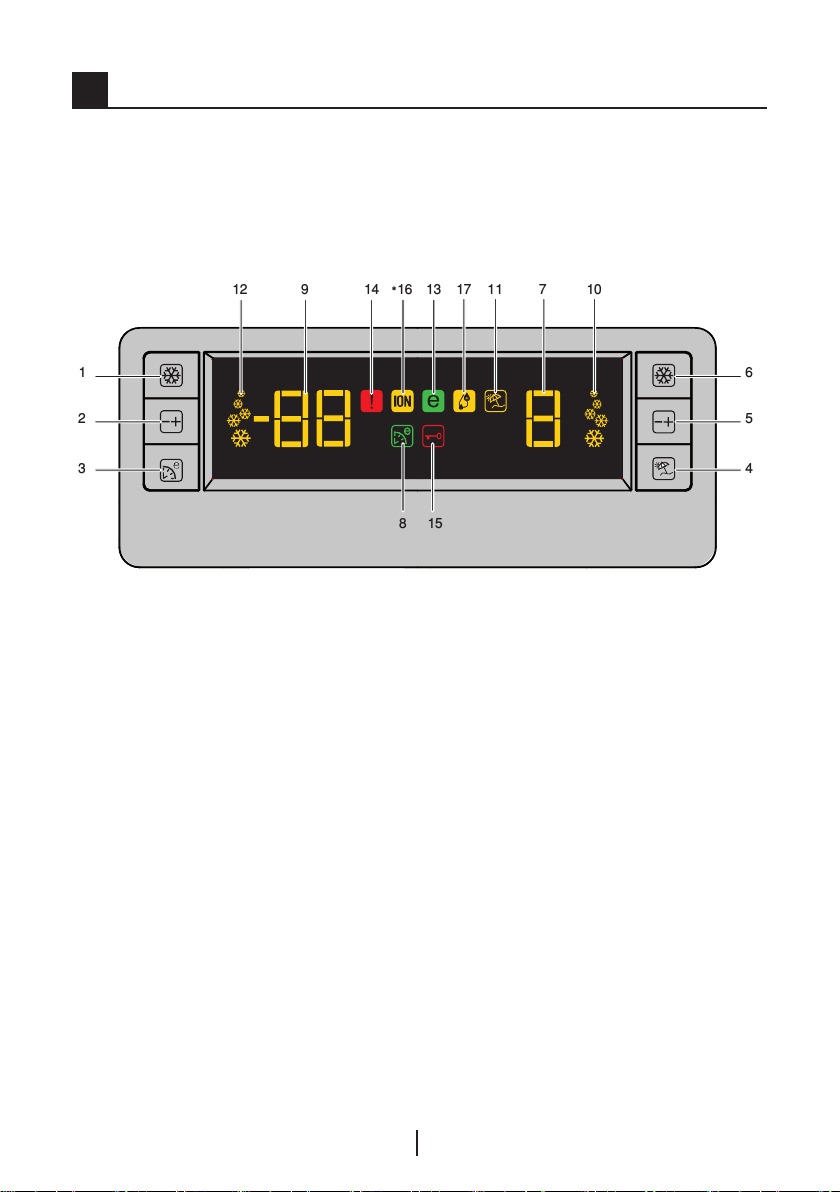

Indicator Panel

This touch-control indicator panel allows you to set the temperature without opening the door of your refrigerator. Just touch the relevant button with your finger to set the temperature.

1. Fast Freeze Button

2. Freezer Compartment Temperature

Setting Button

3. Eko-Ekstra Button

4. Vacation Button

5. Fridge Compartment Temperature

Setting Button

6. Quick Cool Button

7. Fridge Compartment Temperature

Indicator

* OPTIONAL

8. Eco Extra Function Indicator

9. Freezer Compartment Temperature

Indicator

10. Quick Cool Function Indicator

11. Vacation Function Indicator

12. Quick Freeze Function Indicator

13. Economy Mode Indicator

14. Error Status Indicator

15. Key Lock Indicator

16. Ionizer Indicator Light

17. Humidity Indicator

1- Fast Freeze Button

Press this button briefly to activate the Fast Freeze function. Press this button again to deactivate the selected function.

2- Freezer Compartment Temperature Setting Button

Press this button to set the temperature of the freezer compartment to -18, -20, -22, -24,

-18... respectively. Press this button to set the desired temperature for the Freezer Compartment.

3- Eko-Ekstra Button

Press this button briefly to activate the Eco Extra function.

4- Vacation Button

Press this button briefly to activate the Vacation function. To stop ice formation, press the same button for 3 seconds.

5- Fridge Compartment Temperature Setting Button

Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2, 8... respectively. Press this button to set the desired temperature for the Fridge Compartment.

6. Quick CoolButton

Press this button briefly to activate the Quick Cool function. Press this button again to deactivate the selected function.

7- Fridge Compartment Temperature Indicator

Indicates the temperature set for Fridge Compartment.

8- Eco Extra Function Indicator

Indicates that the Eco Extra function is active. If this function is active, your refrigerator will automatically detect the least usage periods and energyefficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

9- Freezer Compartment Temperature Indicator

It indicates the temperature set for Freezer Compartment.

10- Quick Cool Function Indicator

Indicates that the Quick Cool function

is active. Use this function when

you place fresh food into the fridge compartment or when you need to cool your food quickly. When this function is active, your refrigerator will run for 2 hours without stopping.

Press the relevant button again to deactivate this function.

11- Vacation Function Indicator

Indicates that the vacation function is active. If this function is active, “- -” appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

+ 34 hidden pages
