Congratulations on your choice of a quality Appliance which has been designed to give you service for many years.

WARNING ! IMPORTANT !

DO NOT connect your appliance to the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.

• If you are discarding an old refrigerator with a lock or latch fitted to the door, disable the lock/latch, ensure that it is left in a safe condition to prevent the entrapment of young children.

• This fridge/freezer must only be used for its intended purpose i.e the storing and freezing of edible foodstuff.

• Do not dispose of the appliance on a fire. At BEKO, the care and protection of our environment is an ongoing commitment. This appliance which is among the latest range introduced is particularly environment friendly. Your appliance contains non CFC / HFC natural substances in the cooling system (Called R600a) and in the insulation (Called cyclopentane) which are potentially flammable if exposed to fire. Therefore, take care not to damage, the cooling circuit / pipes of the appliance in transportation and in use. In case of a damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.

• We suggest you contact your local authority for disposal information and facilities available.

• We do not recommend use of this appliance in an unheated, cold room. (E.g.: garage, conservatory, annex, shed, out-house etc.) See Installation Instructions on page 4 for further information.

• To obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions.

• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

• Ensure that the plug remains readily accessible. Do not use multiple adapter bar or

extension cable.

• Failure to observe these instructions may invalidate your right to free service during the guarantee

period.

WARNING- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING- Do not damage the refrigerant circuit. WARNING- Do not use electrical appliances inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

• We suggest you keep these instructions in a safe

place for easy reference.

Combi Fridge Freezer

PERFORMANCE

Energy efficiency class Energy consumption - Kwh/year

Net storage - vol fresh food ltrs (cu.ft.) Net storage - vol frozen food ltrs (cu.ft.)

Total net vol - ltrs (cu.ft.) Frozen food compartment rating

Conservation time from failure Freezing capacity fresh food - kg (lb) / 24 hrs.

Climate class Operating noise level dB(A)

CDA 646

342

175 lt. (6.2) 110 lt. (3.9)

285 lt. (10.1)

4 STAR

19 h.

5 (11)

CONTENTS PAGE

SAFETY FIRST / ELECTRICAL REQUIREMENTS

TRANSPORTATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

4-5

GETTING TO KNOW YOUR BEKO FRIDGE / FREEZER

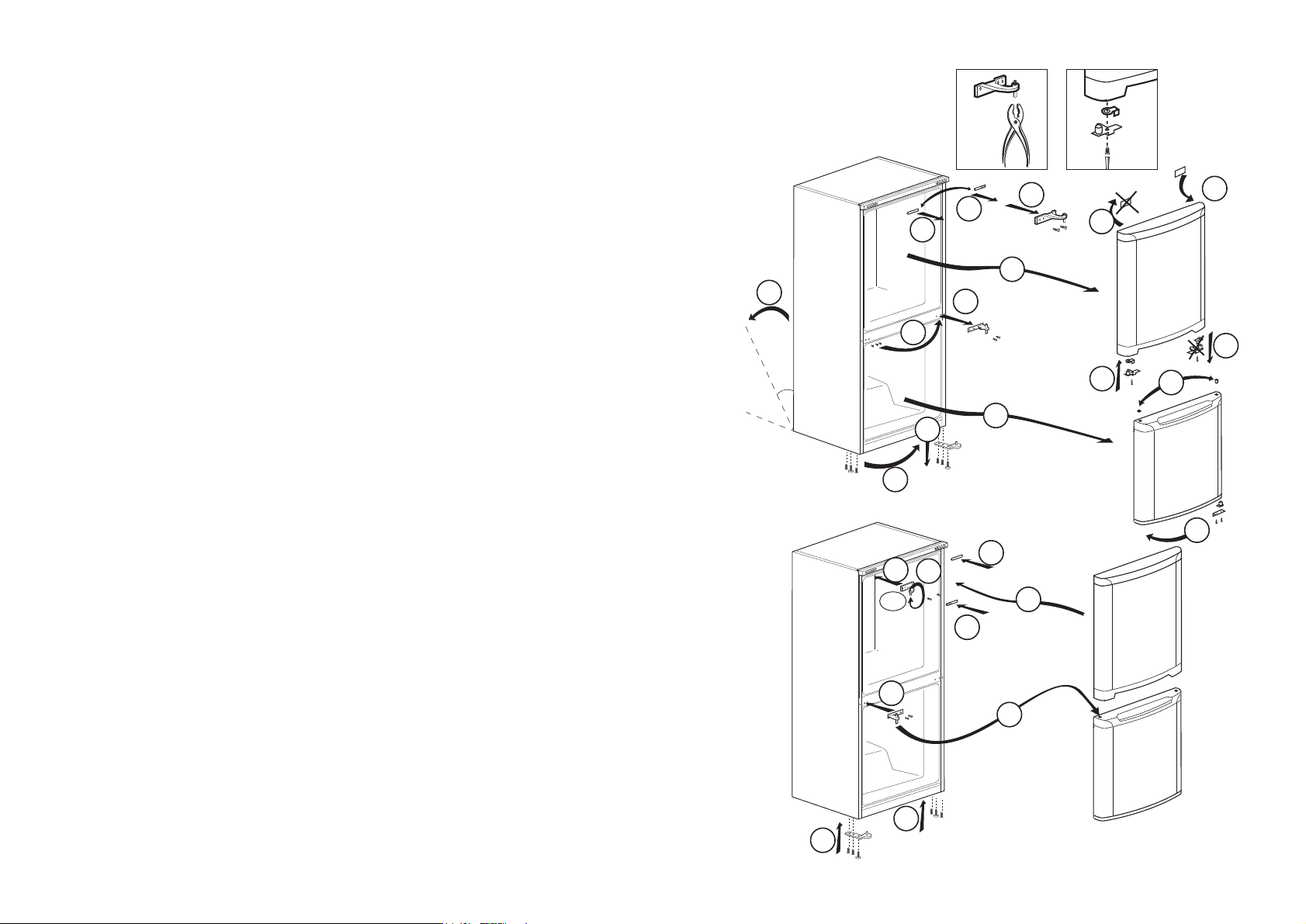

REVERSING THE DOORS

7-8

SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE / FREEZER

TEMPERATURE CONTROL AND ADJUSTMENT

STARTING

STORING FROZEN FOOD

FREEZING FRESH FOOD

MAKING ICE CUBES

DEFROSTING

CLEANING AND CARE

REPLACING THE INTERIOR LIGHT BULB

DO'S AND DON'TS

ENERGY SAVING TIPS

PROBLEM SOLVING

GUARANTEE DETAILS

HOW TO OBTAIN SERVICE

ELECTRICAL REQUIREMENTS

Before you insert the plug into the wall socket make sure that the voltage and the frequency shown in the rating plate inside the appliance corresponds to your electricity supply. Rating label is on the left hand side of fridge inner liner. We recommend that this appliance be connected to the mains supply via a suitable switched and fused socket. The appliance must be positioned so that the plug is accessible. Should the mains lead of the appliance become damaged or should it need replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained from a BEKO Authorised Service Agent.

WARNING! THIS APPLIANCE MUST BE EARTHED

If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. Destroy the old plug which is cut off as a plug with bared cord could cause a shock hazard if inserted into a socket elsewhere in the house. The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse need to be replaced an ASTABEAB approved BS 1362 fuse of the same rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover the plug must not be used until a replacement fuse cover has been fitted. Colour of the replacement fuse cover must be the same colour as that visible on the pin face of the plug. Fuse covers are available from any good electrical store.

IMPORTANT! FITTING A DIFFERENT PLUG

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: (See diagram).

1. Connect the green-yellow or green (Earth) wire to the terminal in the plug marked 'E' or with the symbol or coloured green and yellow or green.

GREEN & YELLOW

GREEN

BLUE

BLACK

32mm.

22mm.

6mm.

BROWN

RED

6mm.

FUSE

12mm.

FITTED WITH

2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.

CORD GRIP

BS 1362 13A FUSE ALWAYS

CARTRIDGE FUSE

FIT BS 1362 REPLACEMENT

TRANSPORTATION INSTRUCTIONS

1. The appliance should be transported only in a vertical upright position. The

packing as supplied must be intact during transportation.

2. If during the course of transport the appliance has to be transported

horizontally, it must only be laid on its right hand side when standing in the front of the appliance. After bringing it to upright position,it must not be operated for at least 4 hours to allow the system to settle.

3. Failure to comply with the above instructions could result in damage occuring

to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.

4. The appliance must be protected against rain, moisture and other

atmospheric influences.

5. When positioning your appliance take care not to damage your flooring,

pipes, wall coverings etc. Do not move the appliance by pulling by the door or handle.

6. Empty any water in the drain tray before moving. See section ‘Defrosting’ and ‘Care & cleaning’ for further information.

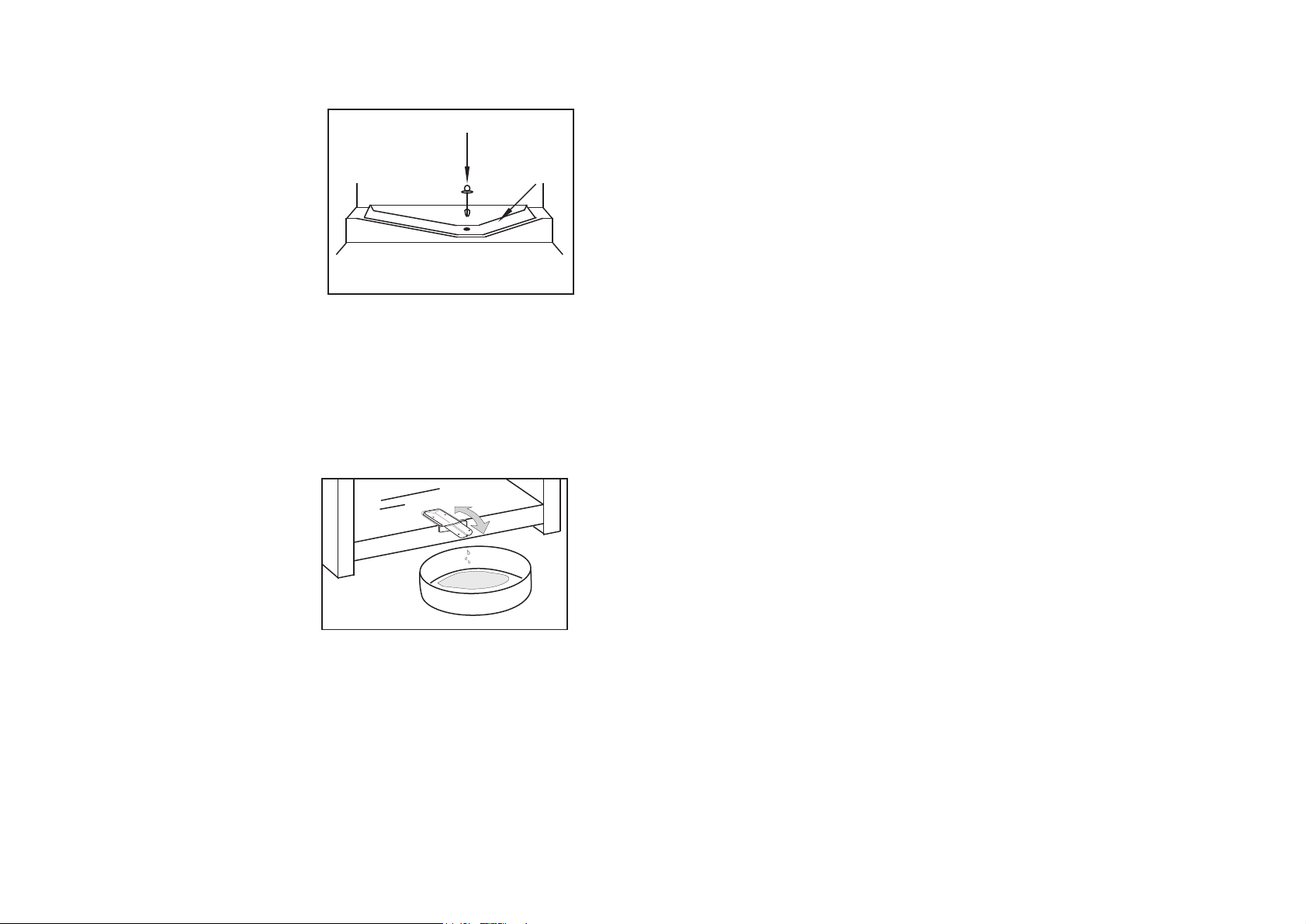

7. Make sure that the defrost water pipe at the back of the product is fixed to the plastic evaporating pan on the top of the compressor, to avoid defrost water spillage on the floor.

IMPORTANT : Care must be taken while cleaning / carrying the appliance to avoid touching the bottom of the condenser metal wires at the back of the appliance as you might injure your fingers and hands.

Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

"IMPORTANT: Make sure that mains cable is not caught under the appliance during and after carrying / moving the appliance, to avoid the mains cable becoming cut or damaged."

Do not allow children to play with the appliance or tamper with the controls. BEKO plc declines to accept any liability should the instructions not be followed.

IMPORTANT INSTALLATION INSTRUCTIONS

1. The space in the room where the appliance is installed must not be smaller

than 10 cubic metres.

2. Do not put your fridge freezer in a cold room where the temperature is likely

to go below +5 degrees C (41 degrees F) during night time and/or especially in winter.

3. Connect the brown (Live) wire to the terminal in the plug marked 'L' or coloured red. With alternative plugs a 13 A fuse must be fitted either in the plug or adaptor or in the main fuse box. If in doubt contact a qualified electrician.

This fridge freezer has been designed to operate in ambient temperatures between +5 and +32 degrees C (41 and 90 degrees F) Therefore if the appliance is installed in an unheated/cold room (eg: conservatory/annex/ shed/garage etc) then the appliance will not operate causing the freezer compartment to run warmer and as a result the storage time of frozen food may be reduced.

3. Do not place the appliance near cookers, radiators or in direct sunlight as this will cause your appliance to work harder. If installed next to a source of heat or freezer, maintain the following minimum side clearances:

From Cookers 50 mm (2")

GETTING TO KNOW YOUR COMBI BEKO FRIDGE / FREEZER

From Radiators 300 mm (12")

From Freezers 25 mm (1")

4. Make sure that sufficient room is provided around the appliance to ensure free air circulation. Fit the Two plastic wall spacers

supplied with the appliance rotating 1/4 turn to the condenser at the back of the appliance (See Diagram).

5. The fridge/freezer should be located on a

smooth surface. The two front feet

can be adjusted as required. To ensure

that your appliance is standing

upright adjust the two front feet by turning

clockwise or anti-clockwise, until

the product is in firm contact with the floor.

Correct adjustment of feet avoids

excessive vibration and noise.

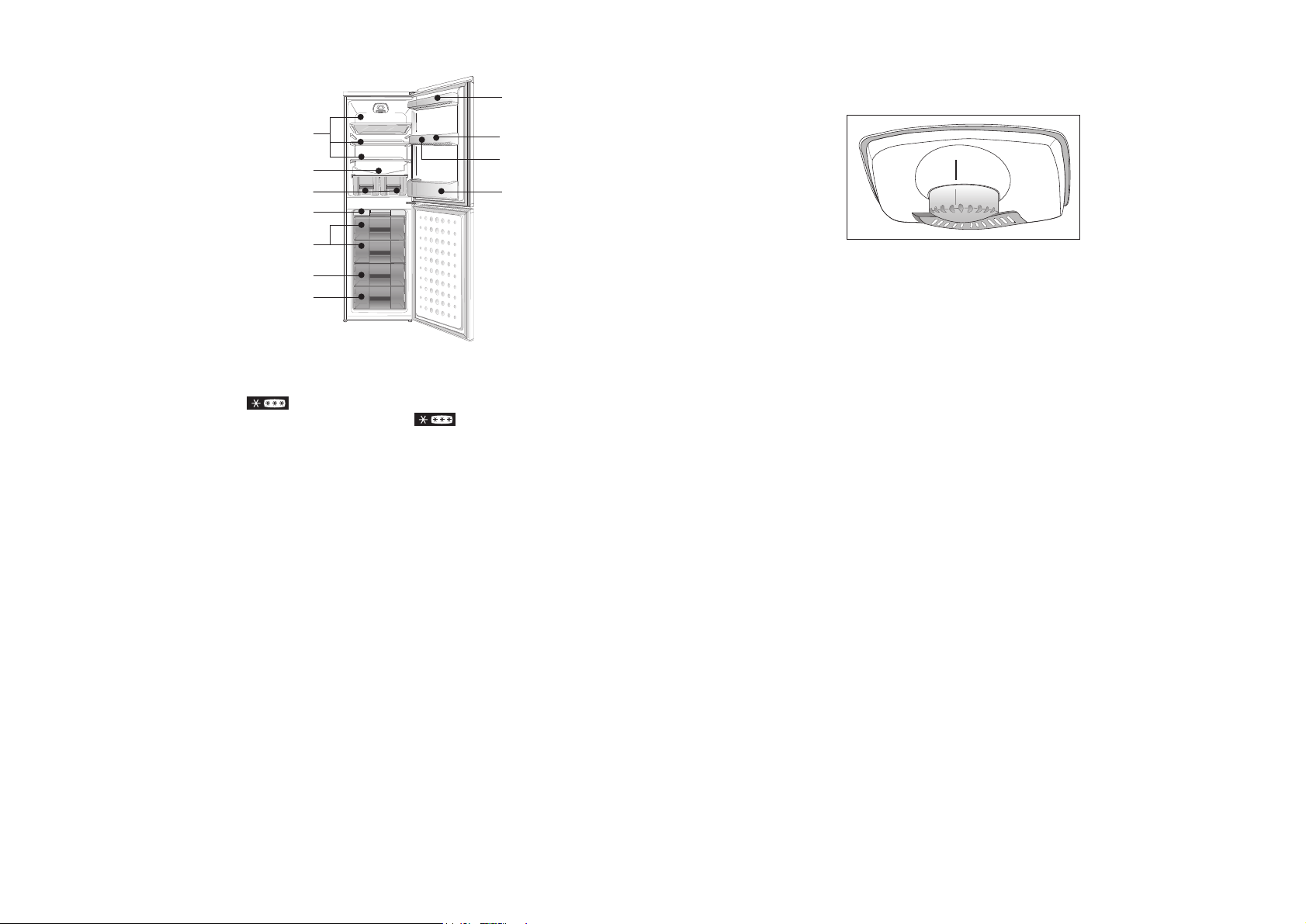

THERMOSTAT KNOB

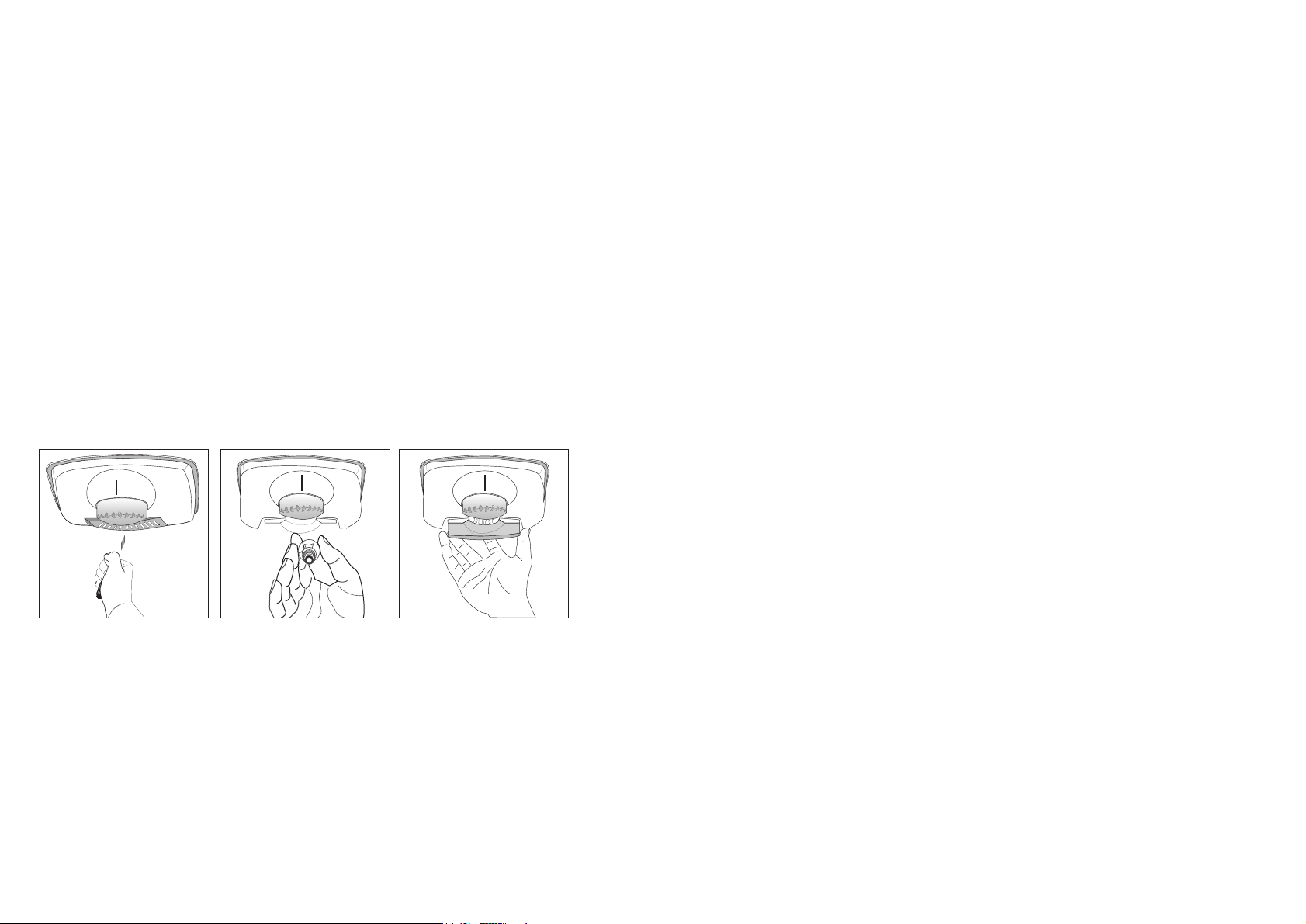

INTERIOR LIGHT

INTERIOR

LIGHT BUTTON

CABINET SHELVES

DEFROST WATER

COLLECTION CHANNEL

ICE BANK

FAST FREEZE

COMPARTMENT

FROZEN FOOD

STORAGE DRAWERS

EGG TRAY

SALAD

CRISPER

6. Refer to cleaning and care section to prepare your appliance for use.

A special receptacle is supplied to store the mains plug during transit. The receptacle is fixed at the back of the cabinet, on the side of the compressor. (See diagram) Gently remove the plug from the receptacle. Never pull the mains cord, you may damage the appliance. In the case of transportation, ensure you locate the plug in the receptacle provided to avoid transit damage.

ADJUSTABLE

FEET
