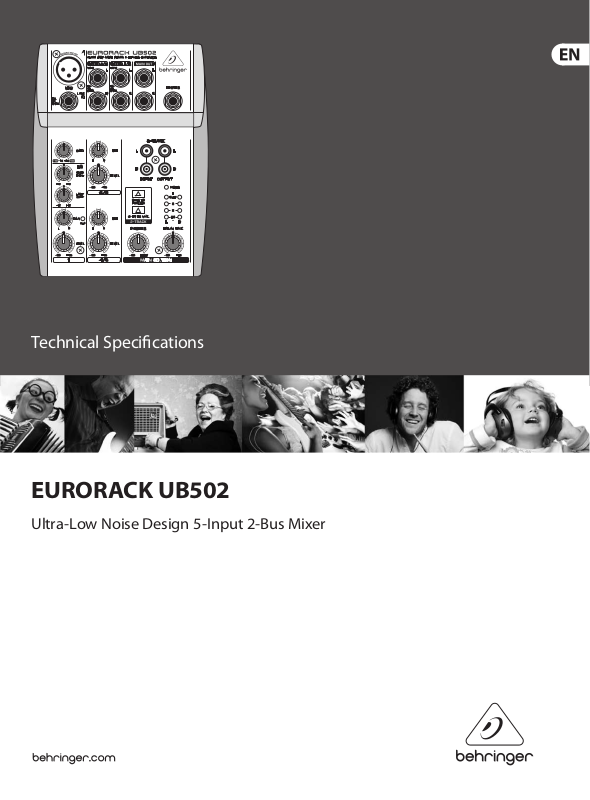

Technical Specications
EURORACK UB502
Ultra-Low Noise Design 5-Input 2-Bus Mixer
2 EURORACK UB502 Technical Specifications
EURORACK UB502
Ultra-Low Noise Design 5-Input 2-Bus Mixer
Ultra-low noise design, highest possible headroom, ultra-transparent audio
State-of-the-art, IMP "Invisible" Mic Preamp with 130 dB dynamic r ange for 24-bit, 192 kHz sampling rate inpu ts
Eective, extremely musical 2-band EQ and clip LED on mono channel
5 balanced high-headroom line inputs
Main mix outputs plus sep arate headphone and 2-track output
2-track input s assignable to main mix or headphone output s
External power supply for noise-free audio and superior transient response
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Specications
Mono Inputs
Microphone Inputs (IMP “Invisible” Mic Preamp)
Type XLR connec tor, elec tronically
balanced,
discrete input circuit
Mic E.I.N.1 (20 Hz - 20 kHz)
@ 0 source resis tance -134 dB / 135.7 dB A-weighted
@ 50 source resis tance -131 dB / 133.3 dB A-weighted
@ 150 source resistance -129 dB / 130.5 dB A-weighted
Frequency Response
<10 Hz - 150 kHz -1 dB
<10 Hz - 200 kHz -3 dB
Gain range +10 dB to +60 dB
Max. input level +12 dBu @ +10 dB GAIN
Impedance approx. 2.6 k b alanced
Signal-to-noise ratio 110 dB / 112 dB A-weighted
(0 dBu In @ +22 dB GAIN)
Distortion (THD + N) 0.005% / 0.004% A-weighted
Line Input
Type ¼" TRS jack, electronically balanced
Impedance approx. 20 k b alanced,
approx. 10 k unbalanced
Gain range -10 dB to +40 dB
Max. input level +22 dBu @ 0 dB GAIN
Fade-Out Attenuation2 (Crosstalk Attenuation)
Main fader closed 90 dB
Channel muted 89.5 dB
Channel fader muted 89 dB
Frequency Response (Mic In Main Out)
<10 Hz - 90 kHz +0 dB / -1 dB
<10 Hz - 160 kHz +0 dB / -3 dB
Stereo Inputs
Type ¼" TRS jack, electronically balanced
Impedance approx. 20 k
Max. input level +22 dBu
3 EURORACK UB502 Technical Specifications
Equalizer
EQ Mono Channels
LOW 80 Hz / ±15 dB
MID 2.5 kHz / ±15 dB
HIGH 12 kHz / ±15 dB
EQ Stereo Channels
LOW 80 Hz / ±15 dB
MID 2.5 kHz / ±15 dB
HIGH 12 kHz / ±15 dB
Send / Return
Aux Sends
Type ¼" TS jack, unbalanced
Impedance approx. 120
Max. outpu t level +22 dBu
Stereo Aux Returns
Type ¼" TRS jack, electronically balanced
Impedance approx. 20 k b alanced /
approx. 10 k unbalanced
Max. input level +22 dBu
Outputs
Main Mix System Data3 (Noise)
Main mix @ -∞, -106 dB / -109 dB A-weighted
channel fader @ -∞
Main mix @ 0 dB, -95 dB / -98 dB A-weighted
channel fader @ -∞
Main mix @ 0 dB, -84 dB / -87 dB A-weighted
channel fader @ 0 dB
Power Supply
Power Consumption 13 W
Mains Voltage
USA/Canada 120 V~, 60 Hz, MXUL5 adapter
U.K./Australia 240 V~, 50 Hz, MXUK 5 adapter
Europe 230 V~, 50 Hz, MXEU5 adapter
Japan 100 V~, 60 Hz, MX JP5 adapter
Physical / Weight
Dimensions (H x W x D) approx. 1 ⁄ x 5 ¼ x 7"
approx. 47 x 134 x 177 mm
Weight (net) approx. 2.53 lbs / 1.15 kg
1
Equivalent Input Noise
2
Measuri ng condition s: 1 kHz rel. to 0 dBu; 20 H z - 20 kHz; line inpu t; main outpu t; unity gain .
3
20 Hz - 20 kHz ; measured at mai n output. Cha nnels 1 - 4 unity g ain; EQ flat; all c hannels on main mi x; channels ¹⁄₃ as far left a s
possible; channels ²⁄₄ as far ri ght as possible ; reference = +6 d Bu.
Main Outputs
Type ¼" TRS jack, unbalanced
Impedance approx. 120 unbalanced
Max. outpu t level +22 dBu
Control Room Outputs
Type ¼" TS jack, unbalanced
Impedance approx. 120
Max. outpu t level +22 dBu
Headphones Output
Type ¼" TRS jack, unbalanced
Max. outpu t level +19 dBu / 150 (+25 dBm)
