X32 DIGITAL MIXER

40-Input, 25-Bus Digital Mixing Console with 32 Programmable
MIDAS Preamps, 25 Motorized Faders, Channel LCD’s,
FireWire/USB Audio Interface and iPad/iPhone Remote Control

Version 5.0, 2013- 01-03

2 X32 DIGITAL MIXER Preliminary User Manual

Table of Contents

Legal Disclaimer .............................................................3

Limited Warranty ...........................................................3

Introduction....................................................................4

1. Operational Overview ...............................................5

2. Callouts .....................................................................12

2.1 Channel Strip ......................................................................12

2.2 Input Channel Banks ....................................................... 13

2.3 Display and Monitoring..................................................14

2.4 Group/Bus Banks .............................................................. 15

2.5 Scenes, Assign, Mute Groups ....................................... 16

2.6 Rear Panel Connections .................................................16

3. Hook-Up Diagrams ..................................................18

4. FX Descriptions ........................................................20

5. Topic Guide ..............................................................26

5.1 Starting up, shutting down,

and rmware updates .............................................................26

5.2 Default setup for connecting to monitoring

and P.A. systems ........................................................................26

5.3 How do I connect a microphone,
process its signal and send it out to the

P.A. system?.................................................................................26

5.4 How do I add one of the 8 internal

eects to the sound? ...............................................................27

5.5 How do I use an outboard eectsprocessor? ........ 27

5.6 How do I set up live stage monitoring? ....................27

6. XUF FireWire400/

USB Interface Operation Guide...................................33

6.1 Conguring the XUF card

for use in theconsole ..............................................................33

6.2 Conguring the PC to Interface

withtheXUF Card ....................................................................36

6.3 XUF Specications ............................................................38

7. X32 Main Display .....................................................39

7.1 O ve r v ie w ..............................................................................39

7.2 Home Screen ...................................................................... 42

7.3 Meters Screen .................................................................... 46

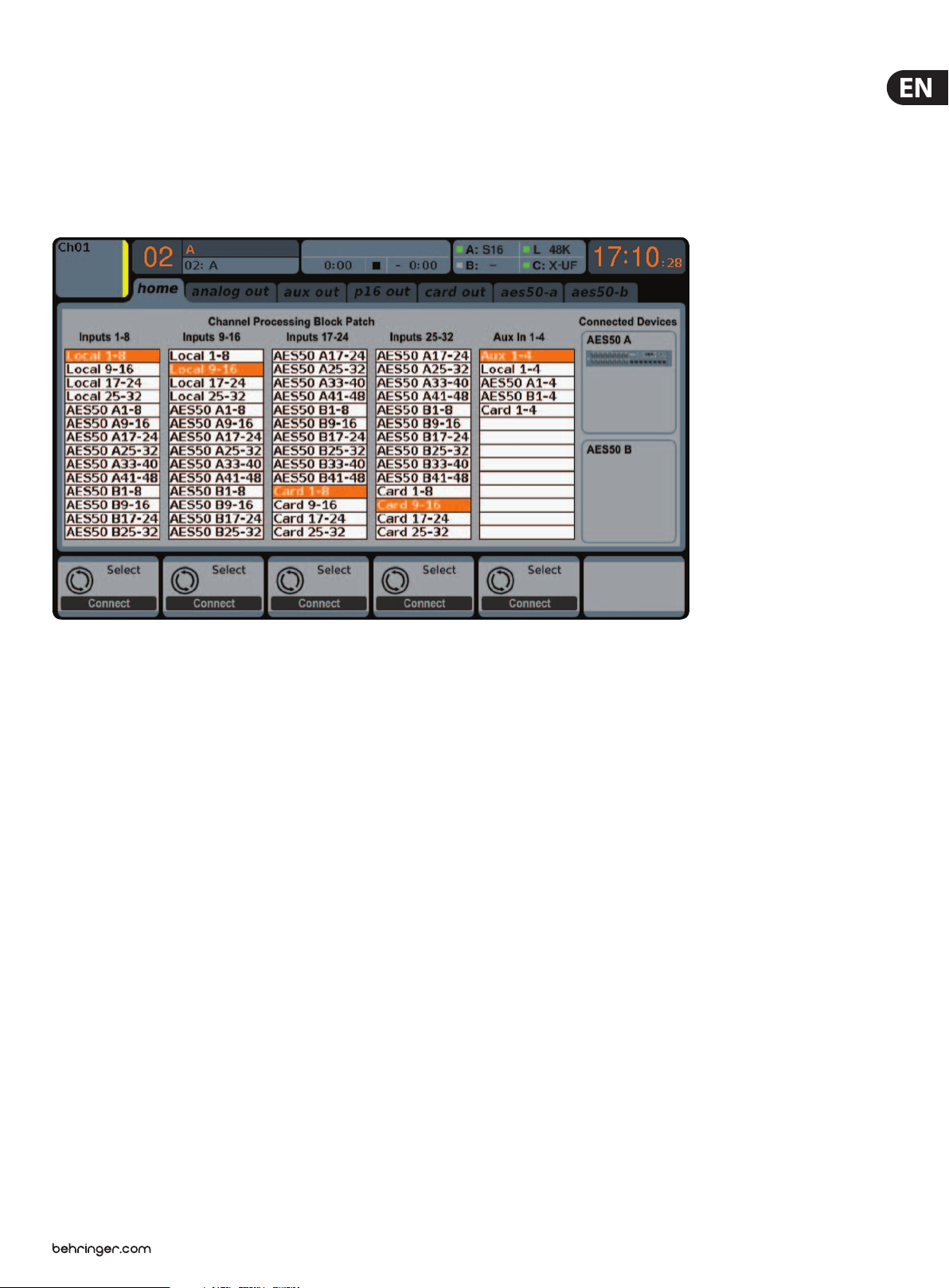

7.4 Routing Screen...................................................................47

7.5 Setup Screen .......................................................................51

7.6 Libraries Screen .................................................................54

7.7 Eects Screen ..................................................................... 55

7.8 Mute Group Screen ..........................................................56

7.9 Utility Screen .......................................................................57

7.10 Monitor/Talkback Screens: ..........................................58

7.11 USB Screen .........................................................................60

7.12 Assign Screen ..................................................................62

7.13 Scenes Screen ...................................................................63

Block Diagram ..............................................................65

8. Specications ...........................................................66

Dimensions ...................................................................68

5.7 Everything you ought to know about

Solo and monitor sources ......................................................28

5.8 Using Mute Groups ..........................................................29

5.9 Mix Buses, Sub Groups and DCA Groups .................29

5.10 User Assignable control section ................................29

5.11 How do I share signals over

AES50Supermac network? .................................................30

5.12 What kinds of Utilities are available? .......................30

5.13 How do I set up a Matrix for a delay

column/toweror a remote zone mix? ...............................31

5.14 Using the X32 in recording and production

studioenvironments ............................................................... 31

5.15 Remote control ................................................................32

5.16 Recording a 2-track directly with theconsole ......32

5.17 Saving and recalling scenes ........................................32

3 X32 DIGITAL MIXER Preliminary User Manual

9. Do not defeat the safety purpose of the polarized

TO BIND MUSICGROUP BY ANY EXPRESS OR IMPLIED

Important Safety
Instructions

Terminals marked with this symbol carr y
electrical current of su cient magnitude

to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼" TS or twist-locking plugs pre-installed. Allother
installation or modi cation should be performed only
by quali edpersonnel.

This symbol, wherever it appears,

alertsyou to the presence of uninsulated

dangerous voltage inside the
enclosure-voltage that may be su cient to constitute a
risk ofshock.

This symbol, wherever it appears,

alertsyou to important operating and

maintenance instructions in the
accompanying literature. Please read the manual.

Caution

To reduce the risk of elec tric shock, donot

remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
quali ed personnel.

Caution

To reduce the risk of  re or electric shock,

do not expose this appliance to rain and
moisture. The apparatus shall not be exposed to dripping
or splashing liquids and no objects  lled with liquids,
suchas vases, shall be placed on the apparatus.

Caution

These service instructions are for use

by quali ed service personnel only.
Toreduce the risk of elec tric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by quali ed
servicepersonnel.

or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safet y. Ifthe
provided plug does not  t into your outlet, consult an
electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.

11. Use only attachments/accessories speci ed by
themanufacturer.

12. Use only with the
cart, stand, tripod, bracket,
or table speci ed by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or
when unused for long periods of time.

14. Refer all servicing to quali ed service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.

15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.

16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.

UNDERTAKING OR REPRESENTATION. THIS MANUAL
IS COPYRIGHTED. NO PART OF THIS MANUAL MAY
BE REPRODUCED OR TRANSMITTED IN ANY FORM
OR BY ANY MEANS, ELECTRONIC OR MECHANICAL,
INCLUDING PHOTOCOPYING AND RECORDING OF ANY
KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS
WRITTEN PERMISSION OF MUSICGROUPIPLTD.

ALL RIGHTS RESERVED.
© 2013 MUSICGroupIPLtd.
Trident Chambers, Wickhams Cay, P.O. Box 146,
Road Town, Tortola, British Virgin Islands

LIMITED WARRANTY

For the applicable warranty terms and conditions
and additional information regarding MUSIC Group’s
Limited Warranty, please see complete details online at
www.music-group.com/warranty.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.

LEGAL DISCLAIMER

TECHNICAL SPECIFICATIONS AND APPEARANCES
ARE SUBJECT TO CHANGE WITHOUT NOTICE AND
ACCURACY IS NOT GUARANTEED. BEHRINGER,
KLARKTEKNIK, MIDAS, BUGERA, AND TURBOSOUND
ARE PART OF THE MUSIC GROUP MUSICGROUP.COM.
ALL TRADEMARKS ARE THE PROPERTY OF THEIR
RESPECTIVE OWNERS. MUSICGROUP ACCEPTS NO
LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED
BY ANY PERSON WHO RELIES EITHER WHOLLY OR
IN PART UPON ANY DESCRIPTION, PHOTOGRAPH
OR STATEMENT CONTAINED HEREIN. COLORS AND
SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT.
MUSIC GROUP PRODUCTS ARE SOLD THROUGH
AUTHORIZED FULLFILLERS AND RESELLERS ONLY.
FULLFILLERSAND RESELLERS ARE NOT AGENTS OF
MUSICGROUP AND HAVE ABSOLUTELY NO AUTHORITY

4 X32 DIGITAL MIXER Preliminary User Manual

Introduction

Welcome to the X32 User Manual! After years of intense development, we are
proud to oer a mixer that combines tremendous power and exibility with a
very user-friendly layout and intuitive workow that allow you to get up-and­running right away.

The X32 is the fully-integrated centerpiece of BEHRINGER’s digital mixing,
audio networking and processing ecosystem. It combines a control surface
with streamlined workow, extensive I/O and signal processing into a compact
desktop form factor. Employing motorized faders and rotary encoders along
with a daylight-viewable TFT screen, the control surface is designed to allow
immediate access to critical functions with total and automatic recall of settings.
Extensive on-board I/O includes 40 A/D and 24 D/A Cirrus Logic converters,
96bidirectional channels over SuperMAC AES50, stereo AES/EBU out, 16 channels
of BEHRINGER’s Ultranet personal monitoring and 32 x 32 channels for recording
over Firewire or USB.

Abundantanalogconnectivity is provided via 32 MIDAS-designed digitally­controllable microphone preamps, 6 line-level auxiliar y in- and outputs, 16 XLR
outputs, stereo monitoring outs on XLR/TRS and dual phones outputs. Each of
the 32 microphone inputs can accept balanced or unbalanced mic or line-level
level signals and include switchable phantom power, 72 dB gain range and max
+23 dBu level before clip. A separate external mic input and the internal talkback
mic allow communication to various destinations.

Dual AES50 Ethernet jacks that employ KLARK TEKNIK SuperMAC technology
contribute 96 x 96 signals to the total count of 168 x 168 accessible sources and
destinations. Motorized faders, recallable mic preamps, programmable routing and
the ability to save and recall entire scenes make set or program changes quick and
simple. A top panel USB connector enables system data to be stored or a board mix
to be recorded direc tly to external ash or harddrives.

A virtual FX rack oers 8 true-stereo (16 mono) multi-eects processors,
with37FX modelsthat eliminate the need for any additional outboard gear.
4high-quality eects such as delay, chorus and reverb can run concurrently with
8 channels of 31-band graphic equalization.

The built-in XUF USB 2.0/FireWire 400 interface card enables streaming of up to
32 tracks to and from a computer for recording, mixingandmastering purposes.

The X32 integrates seamlessly withother X32 consoles, the S16 digital stage box
and the P-16 personal monitoring system for complete live, studio and installed
sound solutions. Control the mixer from a distance with the free iPad app or with
editingand remote controlsoftware connected via Ethernet. The X32’seaseof
use, intuitiveworkow, diverse feature set and integration with other equipment
make it an ideal centerpiece for installedand productionsound in any setting.

Continue through this User Manual to learn all about the functionality
that this powerful mixer has to oer! We also recommend that you check
behringer.com tomake sure you have the latest rmware installed as we release
frequentupdates.

The Input section is home for 16 high-resolution 100 mm motorized faders,
providing control over channels 1-16, 17-32, Aux inputs / USB playback /
FXreturns. A separate section of 8 motorized faders controls DCA groups 1-8,
busmasters 1-8 and 9-16 as well as matrices 1-6.The master “X-channel”
sectionallows instant editing of the currently selected channel’s gain,
dynamics,EQ and other functions. A customassignablesection allows certain
control functions to be mapped direc tly toa set ofdedicated knobs and buttons.

A main 7"-wide, high-contrast color display provides information forediting
pertinent parameters of the active function or eect. Relevant parameters are
quickly recalled to the display for editing via “view” buttonsin each sub-section.
Each channel also features a small, customizable LCD screen for track name,
number,colorand source graphic.

5 X32 DIGITAL MIXER Preliminary User Manual

1. Operational Overview

(1) (3)

VIEW

VIEW

VIEW

–

6

10

10

10

5

5

5

0

0

0

–

5

–

5

–

5

–

10

–

10

–

10

–

20

–

20

–

20

–

30

–

30

–

30

–

40

–

40

–

40

–

50

–

50

–

50

–

60

–

60

–

60

–

00

–

00

–

00

(2)

(4) (5)

Mixer Operational Overview

This chapter will give you an overview of the basic operations of the mixer,
allowing you to get up and running quickly. While reading through the
information, we encourage you to experiment with the console’s dierent
screens and controls. The console’s user interface was designed to be extremely
to navigate through and learn. Morespecic details about various functions can
be referenced later in the manual.

VIEWVIEWVIEWVIEWVIEWVIEW

VIEW

VIEW

General user interface operation

The X32 user interface is divided into ve majorsec tions:

(1) Channel Strip

(2) Input Channels

(3) Display and Monitoring

(4) Group/Bus/Main Channels

(5) Scenes/Assign/Mute Groups

View buttons rule

Throughout the top panel of the console, youwillnd small buttons labeled
View. Press these buttons to immediately switch the console’s large color display
(known as the Main Display) to show information related to the section whose
View button you have just pressed.

For example, if you are editing the equalizer and feel like seeing a large display
of the EQ frequency response curve or corresponding EQ parametervalue,
simplypress the adjacent View button in the EQ section. If you need to check
where the talkback signal is being routed, simply press the View button next to
the Talk button and the main display will show the details.

With the View button approach of the X32 console, there is almost never a need
to drill down through multiple menu pages, since the View buttons will always
take you directly to the relevant screen.

Tip: The Setup/Global tab on the main display allows preferences for the behavior
of View and Select buttons to be adjusted.

Customizing the X32 through the Utilities page

Press the Utility button, located to the right of the main display, to bring up
useful func tions in a “context-sensitive” manner. For example:

• When you are adjusting the equalizer of a console channel,

pressingtheUtility button will oer copying, pasting, loading or saving
ofequalizersettings

• Pressing the Utility button while editing a channel’s Preamp/Conguration

screen will present a naming screen where you can customize the channel’s
appearance on both the main display as well as the small channel display

• On the Routing pages, pressing the Utility button will oer loading or saving

dierent presets of routing scenarios

• In the Scenes menu, pressing the Utility button oers copying, loading,

saving or naming consolescenes

Sometimes there is more to say

Dir 05
Dir 06

Key In
Source

Select

Some of the individual pages on the main display contain
more adjustable parameters than can be controlled by
the 6 rotary push encoders located beneath it. In these

1 2

cases there is a small page number indication, e.g. “1/2”.
Simplypress the Layer Up/Down buttons to switch
betweenlayers.

6 X32 DIGITAL MIXER Preliminary User Manual

VIEW

VIEW

VIEW

Channel Strip

The X32’s channel strip oers dedicated controls for the most important processing
parameters of the currently selec ted channel. To adjust controls for a given channel
strip, simply press the Select but ton on the desired input or outputchannel.

Certain sections of the channel strip (such as the low cut lter, noise gate, EQ and
compressor) contain a respectively labeled button that can be pressed to switch
the specic eect on and o. Thebutton illuminates to show the eect is ac tive,
and goes dark when bypassed.

Within the channel strip, the rotary control knobs are surrounded by an amber
LED collar that indicates the parameter’s value. Whenever this backlit knob is
turned o, it indicates that this specic control/parameter is not available for
the selected channel type. For example, if an output bus is currently selected,

VIEWVIEWVIEWVIEW

theLED collar and the gainknob are turned o, because there is no input gain to
be controlled on an output bus.

The channel strip consists of the following sub-sections:

• Cong/Preamp

• Gate, Dynamics

• Equalizer

• Bus Sends, Main Bus

Each of these subsections correspond to the processing steps of the currently
selected channel, and they each have their own View button that, when pressed,
switches the Main Display to a page displaying all related parameters for
thatsubsection.

10

10

5

5

0

0

–

–

5

5

–

–

10

10

–

–

20

20

–

–

30

30

–

–

40

40

–

–

50

50

–

–

60

60

–

–

00

00

Input Channel Banks

You will nd a select button on top of every channel that is used to direct the
control focus of the user interface, including all channel related parameters
(channel strip and main display), tothat channel. Please note that at any time,
there is exactly onechannel selected (either Input Ch 1-32, Aux1-8, FXReturns
1L-4R, Mix Bus 1-16, Main LR/C, orMatrix 1-6). DCA Groups (digitally controlled
amplier) cannot be selected because they control a number of assigned
channels rather than one specic channel.

The Input Channels section of the console is locatedon the left hand side, and
oers 16 separate input channel strips. These 16 channel strips represent three
separate layers of inputs for the console, including:

10

5

0

–

5

–

10

–

20

–

30

–

40

–

50

–

60

–

00

• Input Channels 1-16

• Input Channels 17-32

• Auxiliary Inputs 1-6/USB playback/FX Returns 1L-4R

Press any of the correspondingly labeled layer buttons on the left side of the
console to switch the input channel bank to any of the three layers listed above.
The button will illuminate, reminding you which layer is active.

A fourth layer (Bus Masters) is also oered, allowingyou to adjust the levels of
the 16 Mix Bus Masters, which is useful when you wish to include Bus Masters
into DCA Group assignments.

7 X32 DIGITAL MIXER Preliminary User Manual

On each fader strip you will nd a motorized 100mm level fader, Mute and Solo
buttons, aGate indicator, an input level meter, Compressorindicator, and the
channel selectbutton.

Each of the 16 input channels has an individual (andcustomizable) color LCD
screen that can display a channel number, nickname, and even a graphical
channel icon. In the event that a channel’s input source has been changed to an
input signal that diers from the default setup, the LCD displaywill also indicate
the name of the actual input source.

Ch01

Aux5

PC

Soundcard

Exampl e: Channel 01 has the nickn ame Soundcard an d is fed from Aux inpu t 5.

Ch01

FatSnare

OpeningScene

01 15:33

02: next 0:00 - 0:00

home

cong

gate dyn eq sends main

A: S16 A: 48K
B: - C: XUF

Main Display Area

The main color display presents information about various sections of the
console. It can be switched to dierent screens using the console’s View buttons,
as well as any of the 8 buttons on the right side of the display.

The top section of the main display permanently covers useful status information.
The top left corner shows the selected channel number, its nickname and the
selected icon. The next block shows the current scene number and name in
amber, as well as the next upcoming scene. The center section displays the
playback le name along with elapsed and remaining time and a recorder status
icon. Thenext block to the right has 4 segments to show the status of AES50
ports A and B, the Card slot and the audio clock synchronization source and
sample rate (topright). Small green square indicators show proper connectivity.
The right most block shows the console time that can be set under Setup/Cong.

When working with any given screen, press the Page keys located on the display
bezel to switch to dierent screen pages.

Editing parameters or settings on each of the screens is done using the 6
associated push-encoders along the bot tom edge of the display.

: 15

• Whenever there is a continuous control or list entry, you can turn the

corresponding knob forediting, which is indic ated by various circularicons

• When there is a switch or toggle function on one of these knobs, you will see

a broad rectangular button along the lower edge of the eld. Pressing the
encoder changes the on/o state of the corresponding function. When the
rectangular button in the display is dark grey, thecorresponding function is
o/inactive; whenit is amber, the function is on/active

Monitoring and Talkback

There are two separate Level controls in this section, one for the headphone
outputs located on either side of the console, and a second one for the monitor
outputs located on the rear panel.

Press the section’s View button to edit various monitoring preferences, such as
the input source forthe phones bus and the monitor outputs.

This section also contains independent Talkback buttons (A and B). Press the View
button to edit the Talkback preferences for the Talkback A path and Talkback B
path separately. This screen also contains settings for the optional goose-neck
lamp and the console’s internal test-tone generator.

Group/Bus Channel Banks

VIEW

–

6

This section of the console oers eight channel strips, divided into the
followinglayers:

• Eight DCA (digitally controlled amplier) groups

• Mix Bus masters 1-8

• Mix Bus masters 9-16

• Matrix Outputs 1-6, and the main center bus

VIEW

This section also contains a main LR output fader, which is independent and
always available no matter which channel bank or layer is active.

When using the DCA Groups layer, the DCA Groups can be soloed and muted,
butthey cannot be selected. To edit the DCA group names, icons and colors,
navigate to the Setup/DCA Groups page on the main display.

When using any of the output bus layers, notethat the bottom LEDs on the
meters in this section illuminate when the respective bus is fed from pre-fader
sources of the selected channel.

8 X32 DIGITAL MIXER Preliminary User Manual

VIEW

Various Assignments (DCA groups, mute groups,
custom assignable controls)

• Assigning DCA Groups

Thanks to the two distinct fader groups (inputs on the lef t, outputs on the right),
the task of assigning channels or buses to a virtual DCA Group is a breeze on the X32.
Simply hold the respec tive DCA Group Select but ton on the right-hand side of the
console, whilepressing the select buttons for all the input channels that you wish to
assign to said DCA Group. You can also press the DCA Group Select button in order
to check which channels are already assigned to it. Theassigned channel Select
buttons will light up.

• Assigning Mute Groups

The mute group assignment process is similar to the above, but is designed
with an additional precaution in order to prevent accidental muting of channels
during a show. To assign input/output channels to one of the six mute groups
(controlledby the buttons located to the right of the Main LR fader) you need
to rst switch on the Mute Grp button next to the main display. While holding
the desired Mute Group button, select the desired input and output channels,
whichwill now be assigned to the Mute Group. When you are done with
assignment, switcho Mute Grp at the display, andthe 6 Mute Group buttons
will work asintended.

• Custom Assignable Controls:

The Assign section of the console oers three banks: A, B, and C. Each set of
controls oers 4rotary controls and 8 switches/buttons, allowingfor freely
customizable access to 36random functions on the X32.

To make a custom assignment:

• Press the View button in the Assign section to edit the assignments

• Select the set of controls you wish to edit (A, B or C)

• Select the control 1-12 you wish to assign

• Select the parameter you wish to control and assign the function

Usually this is used to control a specic channel’s parameter, like the lead
vocalist ’s reverb send level.

The Jump-to-Page control is a special target type that does not alter any
audio parameter, but rather brings you directly to any specied display page.
Buttonsthat had been used for Jump-to-Page previously can easily be reassigned
to the current display view by holding the respective set button (A, B or C)
depressed while pushing the desired assignable button. This method is more
convenient than reassigning the jump function through the Assign menu.

The “Sends on Faders” Function

The X32 console features a very useful function thatcan be accessed by pressing
the dedicated Sends on Faders button, located between the twofader sections.

The Sends on Faders function aids with level setting of channels sent to any of
the 16 Mix Buses. Itis only for channels assigned to Mix Buses 1-16, anddoes
NOT work for DCA groups, main or matrix buses. The Sends on Faders function
works in two convenient ways to cover the most obvious situations in a live
soundenvironment :

When preparing a monitor mix for a specific musician

• Select the monitor bus (1-8, 9-16) that feeds the talent’s stage monitor

• Press the Sends on Faders button; itwillilluminate

• Select one of the three input channel layers (CH1-16, CH 17-32,

Line-Aux/FX Ret)

• As long as the Sends on Faders is active, allfaders in the input channels

section (locatedon the left side of the console) correspond to the send levels
to the selected (monitor) mix bus

When checking/editing where a selected input signal is (to be) sent to

• Select the input channel in the left section

• Press the Sends on Faders button; itwillilluminate

• Select either bus channel layer 1-8 or 9-16

• The bus faders (located on right side of the console) now represent the

send levels from the selected input channel (located on the left side of
theconsole)

The option to use Sends on Faders in both ways, selecting an input or an output
channel, is a special feature of the X32.

9 X32 DIGITAL MIXER Preliminary User Manual

Ch01

01

01:

home

Inputs 1-8 Inputs 17-24Inputs 9-16

Local In 1-8
Local In 9-16
Local In 17-24
Local In 25-32
AES50 A1-8
AES50 A9-16
AES50 A17-24
AES50 A25-32
AES50 A33-40
AES50 A41-48
AES50 B1-8
AES50 B9-16
AES50 B17-24
AES50 A25-32

Local In 1-8
Local In 9-16
Local In 17-24
Local In 25-32
AES50 A1-8
AES50 A9-16
AES50 A17-24
AES50 A25-32
AES50 A33-40
AES50 A41-48
AES50 B1-8
AES50 B9-16
AES50 B17-24
AES50 A25-32

analog out

Channel Processing Block Patch

aux out

Local In 1-8
Local In 9-16
Local In 17-24
Local In 25-32
AES50 A1-8
AES50 A9-16
AES50 A17-24
AES50 A25-32
AES50 A33-40
AES50 A41-48
AES50 B1-8
AES50 B9-16
AES50 B17-24
AES50 A25-32

0:00 - 0:00

p16 out

Inputs 25-32 Aux In 1-4

Local In 1-8
Local In 9-16
Local In 17-24
Local In 25-32
AES50 A1-8
AES50 A9-16
AES50 A17-24
AES50 A25-32
AES50 A33-40
AES50 A41-48
AES50 B1-8
AES50 B9-16
AES50 B17-24
AES50 A25-32

A: S16 A: 48K
B: - C: XUF

card out aes50-a aes50-b

Aux 1-4
Local 1-4
AES50 A1-4
AES50 B1-4
Card 1-4

Routing I/O

The X32 console features 32 analog rear-panel XLR inputs with microphone­preamps, as well as 16rear-panel XLR Outputs and 6 TRS Aux Sends and Returns.
In addition, there are two AES50ports, eachfeaturing 48 input and output
channels, andacard slot for 32 channels of input and outputtoand from a
connected computer via USB2.0 orIEEE1394.

Input Signals can be attached to the console’s internal audio processing engine in
blocks of 8signals from any one of the aforementioned inputsources

13:45

Connected Devices

AES50 A

AES50 B

: 19

Note: All signal blocks patched to the audio processing will be connected to the
corresponding input channels automatically.

10 X32 DIGITAL MIXER Preliminary User Manual

Ch01

Analog Output

Output 01
Output 02
Output 03
Output 04
Output 05
Output 06
Output 07
Output 08
Output 09
Output 10
Output 11
Output 12
Output 13
Output 14

01

01:

analog out

home aux out

Edit Output Assignment

MixBus

Select Select Select Select

0:00 - 0:00

CategoryCurrent Setting

OFF
Main (LRC)
Mix Bus
Matrix
Direct Out
Monitor

p16 out

Processed Output Signal Tap

OFF
Main L
Main R
Main C/M
Main Bus 01
Main Bus 02
Main Bus 03
Main Bus 04
Main Bus 05
Main Bus 06
Main Bus 07
Main Bus 08
Main Bus 09

A: S16 A: 48K
B: - C: XUF

card out aes50-a aes50-b

Pre EQ
Post EQ
Pre Fader
Post Fader

Output Signals can be freely assigned from anyinternal signal to any of the
following outputs:

• 16x analog local XLR outputs (with adjustable digital delay for

time-alignment of speakers)

• 6x auxiliary sends on ¼" TRS outputs + 2x AES/EBU outputs

• 16x personal monitoring using the console’s P-16 Bus output connector

14:09

Set DelayAssign

0.3

0.10

0.3

Delay

Delay

Delay

: 37

ft
m
ms

0.3

ms

Any and all of the above signals can also be mirrored in blocks of 8 signals on
either one of

• 48x channels on AES50 port A

• 48x channels on AES50 port B

• 32x channels on USB/Firewire interface card

Ch01

01

01:

home gate dyn eq sends main

clip

-6

48V

-12

Reverse

-18

-24

-30

Link Lo Cut

-36

-42

+0.0

-48

-54

Gain

Gain
+0.00

dB

Link

cong

2.0

dB

Lo Cut

Lo Cut

Lo Cut

Hz

20

Hz

0:00 - 0:00

In

Source
OFF
Input 01
Input 02
Input 03
Input 04
Input 05
Input 06

Source

Input

Select

Delay

0.3

0.10

0.03

Delay

Delay

t

Delay

0.3

A: S16 A: 48K
B: - C: XUF

Insert Position

Pre PostIns

ft
m
ms

ms

Ins Pos

Insert

PRE

Input Channels 1-32 are pre-congured to use the rst 32 input signals,
butcan be patched to use any other available signal on the audio engine as well,
including mix bus/sub group outputs. Changes of the Channel Source can be
made on the Preamp Congpage.

14:11

OFF
InsFX 1L
InsFX 1R
InsFX 2L
InsFX 2R
InsFX 3L
InsFX 3L

Insert

Connect

Insert

InsF

: 37

Aux Return Channels 1-8 are pre-congured to use the 6 aux input signals,
andthe two USB playback outputs, but can be patched to use any other available
signal of the console as well.

FX Return Channels 1L-4R control the 4 stereo output signals of side-chainFX1-4.

11 X32 DIGITAL MIXER Preliminary User Manual

LeOnde.mp3

00.05.00 00.00.00

home gate dyn eq sends main

clip

-6

-12

-18

Link

-24

-30

-36

-42

-48

-54

Gain

00.00

dB

Link Bus Sends

cong

Bus Conguration Bus Insert Position

13:44:43 MyProj.prj

29 November 2010 Scene01

Channel Sends

All Channel Sends

Pre Conguration

...

Inputs
Pre EQ
Pre Fader
Post Fader
Sub Grou

Send Pos. Insert Pos. Insert

Inputs

∑

Insert PostPre

Pre

Insert

The conguration of Mix Bus Channels 1-16 can be pre-set (in the Setup/Global
page) or can also be congured on an individual, per-channel basis. Thebus
processing includes (in this order):

• Insert point (swappable between post-EQ and pre-EQ operation)

• 6-band fully parametric EQ

• Compressor/expander (swappable between post-EQ and pre-EQ operation)

• Bus sends to 6 matrices (post-fader)

• Main LR panning

• Mono/Center level

Main Bus Channels LR/C are always available and independent from Mix Buses.
The processing steps for this signal path include (in this order):

• Insert point (swappable between post-EQ and pre-EQ operation)

Insert

Ins 01
Ins 02
Ins 03

Ins 04
...

FX 01
FX 02

Connect

Matrix Channels 1-6 are fed exclusively by MAINLRC and Mix Bus 1-16 signals.
The processing steps include (in this order):

• Insert point (swappable between post-EQ and pre-EQ operation)

• 6-band fully parametric EQ

• Compressor/expander (swappable between post-EQ and pre-EQ operation)

Effects Processing 1-8

The X32 console contains eight true-stereo internal eects engines.

• FX 1-4 can be congured as side chain or inser t eects, while FX 5-8 can only

be used in insert points of channels or buses

• The returns of side chain FX 1-4 can always be controlled using the 3rd bank

(layer) of the input channels - Aux/USB/FX Returns. Note that the return
signals of FX 1-4 have separate faders for left and right

• 6-band fully parametric EQ

• Compressor/expander (swappable between post-EQ and pre-EQ operation)

• Bus sends to 6 matrices (post-fader)

• The FX Home screen allows selection of the FX 1-4 input sources and

selecting the eects type/algorithm for each of the 8 FX slots of the
virtualrack

• The subsequent tabs FX 1-FX 8 of the FX screen allow editing all parameters

of the chosen eec ts processor

12 X32 DIGITAL MIXER Preliminary User Manual

2. Callouts

2.1 Channel Strip

(1)

VIEW

VIEW

(3)

(2)

(1) PREAMP – Adjust the preamp gain for the selected channel with the

Gainknob. Press the 48 V button to apply phantom power for use with
condenser microphones and press the button to reverse the channel’s
phase. The meter displays the selected channel’s level. Press the Low Cut
button and select the desired high-pass frequency to remove unwanted
lows. Press the View button to access more detailed parameters on the
MainDisplay.

(2) GATE/DYNAMICS – Press the Gate/Ducker button to engage the noise gate

and adjust the threshold accordingly. Press the Comp/Exp button to engage
the compressor and adjust the threshold accordingly. When the signal level
in the meter drops below the selected Gate threshold, the noise gate will
silence the channel. When the signal level reaches the selected Dynamics
threshold, the peaks will be compressed. Press the View buttons to access
more parameters on the Main Display.

(4)

VIEW

(5)

(6)

VIEWVIEWVIEWVIEW

(4) BUS SENDS – Quickly adjust the bus sends by selecting one of the 4 banks,

followed by one of the 4 knobs. Press the View button for more detailed
editing and routing.

(5) USB RECORDER – Connect a thumb drive to install rmware updates and to

record performances. See the Topic Guide sec tion for details.

(6) MAIN BUS – Press the Mono Bus or Stereo Bus to assign the channel to the

main mono or stereo bus. When Stereo Bus is selected, the Pan/Bal adjusts
the left-to-right positioning. Adjust the overall send level to the Mono Bus
with the Level knob. Press the View button for more editing options.

(3) EQUALIZER – Press the Equalizer button to engage this section.

Selectone of the 4 frequency bands with the High, High Mid, Low Mid,
and Low knobs. Press the Mode button to cycle through the types of EQ
available. Selectthe specic frequency to be adjusted with the Freq knob,
andadjust the bandwidth of the EQ with the Q knob. Finally, boost or cut
the selected frequency with the Gain knob. Press the View button for more
editingoptions.

13 X32 DIGITAL MIXER Preliminary User Manual

2.2 Input Channel Banks (7) LAYER SELECT – Select either the channels 1-16, channels 17-32,

Aux In/USB/FX Returns, or Bus Masters layer with these 4 buttons.

(9)

Thecurrently active layer will light.

(8) DAW REMOTE – Press this to enable DAW remote control.

(8)

(7)

(10)

(11)

(12)

(13)

(14)

(9) SELECT – Press this button to select an input or bus (depending which layer

is active) and allow it to be edited by the Channel Strip and Main Display.

(10) CHANNEL METER – This displays the signal level of the input or bus

(depending which layer is active). The Gate and Comp LEDs light to indicate
that noise gate and/or compression are active.

(11) SOLO – Press this button to send the channel to the Solo Bus.

(12) MINI DISPLAY – Information such as channel number,

nickname,inputsource and graphical icon are displayed on this
colorLCDscreen.

(13) MUTE – Press this button to mute the channel.

(14) FADER – Use this to adjust the channel volume or bus send in ’Sends on

Faders’ mode. The faders will automatically display the current status as
layers and functions are changed.

14 X32 DIGITAL MIXER Preliminary User Manual

2.3 Display and Monitoring

(20)

(21)(19)(18)

(24)

(25)

(26)

(27)

VIEWVIEW

(15)

(15) PUSH ENCODERS – These 6 controls adjust the parameters presented at

the bottom of the Main Display. The editable function will show a circular
icon in the display when continuous control is available. The function will
show a broad rectangular icon to indicate that a switch or toggle can be
accessed by pushing the encoder.

(16) LAYER BUTTONS – Some screens in the Main Display have more than

6editable parameters which can be accessed by pressing the Layer Up or
Down buttons.

(17) PAGE SELECT BUTTONS – Use these to scroll through the available screens

or to conrm/decline certain actions.

(18) MAIN/SOLO METERS – The main stereo output level is displayed here

along with the solo level of all channels whose Solo button is active.

(19) CATEGORY SELECT BUTTONS – Press one of these buttons to jump directly

to the subject you wish to edit or congure.

(20) MONITOR LEVEL – Adjust the level of the Monitor outputs with this knob.

(16) (23)

(17) (22)

(21) PHONES LEVEL – Adjust the volume of the headphone outputs,

locatedinside the lef t and right side caps.

(22) MONITOR MONO – Press this button to monitor the audio in mono.

(23) DIM – Press this button to reduce the monitor volume. Press the

View button to adjust the amount of attenuation along with all other
monitoring-related functions.

(24) LAMP INPUT – Connect a standard 12 V, 5 Watt gooseneck lamp here.

(25) TALKBACK INPUT – Connect a talkback mic via standard XLR cable to

thisinput.

(26) TALK LEVEL – Adjust the level of the talkback mic with this knob.

(27) TALK A /B – Select the destination for the talkback mic signal with these

buttons. Press the View button to edit the talkback routing for A and B.

15 X32 DIGITAL MIXER Preliminary User Manual

2.4 Group/Bus Banks (28) GROUP/BUS LAYERS – Select between DCA groups 1-8, Buses 1-8 or 9-16,

or Matrices 1-6 and the main center bus with these buttons. The currently

(29)

(30)

(31)

(32)

(36)

(37)

(38)

active layer will light.

(29) SENDS ON FADERS – Press this button to activate the Sends on Faders

function. See the Topic Guide for more details.

(30) SELECT – Press this button to select a DCA or bus (depending which layer

isactive) and allow it to be edited by the Channel Strip and Main Display.

(31) GROUP/BUS METER – This displays the signal level of the DCA or bus

(depending which layer is active). The Pre LED indicates that the bus is
sourced pre-fader, while the Comp LED indicates that compression is active.

(28)

(33)

(34)

(35)

(39)

(40)

(32) SOLO – Press this button to solo the DCA or bus.

(33) MINI DISPLAY – Information such as matrix/bus number,

nickname, input source and graphical icon are displayed on this color
LCDscreen.

(34) MUTE – Press this button to mute the DCA or bus.

(35) FADER – Use this to adjust the bus level. The faders will automatically

display the current status as layers and functions are changed.

(36) MAIN SELECT – Press this button to select the main bus for editing.

(37) CLEAR SOLO – Press this button to release all sources assigned to the

solobus.

(38) MAIN SOLO – Press this button to solo the main bus.

(39) MAIN MUTE – Press this button to mute the main bus.

(40) MAIN FADER – This fader adjusts the output of the main bus.

16 X32 DIGITAL MIXER Preliminary User Manual

2.5 Scenes, Assign, Mute Groups (41) MUTE GROUPS – Press one of these buttons to activate one of the mute

groups. See the Topic Guide for details.

(46)

VIEW

(42) SET SELECT BUTTONS – Press one of these buttons to activate one of the

3layers of custom assignable controls.

(43) CUSTOM ASSIGN BUTTONS – Assign these 8 buttons to various

parameters for instant access to commonly used functions. See the
TopicGuide fordetails.

(45)

(44)

(43)

(42)

(41)

2.6 Rear Panel Connections

(47) (48)

(44) ASSIGN DISPLAYS – These displays provide quick reference to the

assignments of the active layer of custom controls.

(45) CUSTOM ASSIGN KNOBS – Assign these 4 knobs to various parameters for

instant access to commonly used functions. See the Topic Guide for details.

(46) SCENES BUTTONS – Use these buttons select and activate saved scenes.

Seethe Topic Guide for details.

VIEW

(49)

(50) (51)

(47) MONITOR / CONTROL ROOM OUTPUTS – Connect a pair of studio

monitors using XLR or ¼" cables.

(48) OUTPUTS 116 – Send audio to external equipment using XLR cables.

Outputs 15 and 16, by default, carry the main stereo bus signals.

(49) POWER SWITCH – Turn the power on and o with this switch.

(50) XUF USB/FW CARD – Transmit up to 32 channels of audio to and from a

computer via USB 2.0 or FireWire 400 cables.

(51) REMOTE CONTROL – Connect to a PC for remote control via USB or

Ethernetcable.

17 X32 DIGITAL MIXER Preliminary User Manual

(50) (51)

(56)

(52) (53) (54) (55)

(52) MIDI IN/OUT – Send and receive MIDI commands via 5-pin DIN cables.

(53) AES/EBU OUT – Send digital audio via 3-pin AES/EBU XLR cable.

(54) ULTRANET – Connect to a BEHRINGER P-16 personal monitoring system via

Ethernet cable.

(55) AES50 A/B – Transmit up to 96 channels in and out via Ethernet cables.

(56)

(57)

(56) INPUTS 132 – Connect audio sources via XLR cables.

(57) AUX IN/OUT – Connect to and from external equipment via

¼"orRCAcables.

18 X32 DIGITAL MIXER Preliminary User Manual

2-TRACK HARD DISK RECORDER

P-16 D

3. Hook-Up Diagrams

B215D

F1320D

B3031A

B1800D-PRO

Laptop

FCB1010 MIDI Pedal

19 X32 DIGITAL MIXER Preliminary User Manual

GTX30

DI Box

Keyboard

XM8500

HPX6000

(Sidecap output)

P-16 D

2-TRACK HARD DISK RECORDER

S16 Digital Snake

iPod

FX2000

P-16 M

20 X32 DIGITAL MIXER Preliminary User Manual

4. FX Descriptions

FX Descriptions

Here is a list and brief description of the eects available on the X32.
WhenStereoand Dual versions of an eect are oered, use the Stereo version
when the left and right signal are to be altered together (e.g. on linked stereo
channels or buses), or Dual when you want to dial dierent settings for the left
and right signal. See the Topic Guide for instructions on how to add eects to a
channel orbus.

Stereo Precision Limiter

Stereo Precision Limiter allows you to set a precise volume limit,
ensuringdistortion-free, optimal signal integrity. Use X32’s Stereo Precision
Limiter to boost quiet signals or preventing clipping while preserving the level of
“hot”signals.

AUTOGAIN activates an additional long-term gain correction, allowing automatic
gain scaling of varying input level ranges. STEREO LINK applies limiting to both
channels equally when activated. INPUT GAIN provides up to 18 dB of gain to
the input signal prior to limiting. OUTPUT GAIN sets the nal gain level of the
processed signal. SQUEEZE adds compression to the signal to add punch and a
slight distortion depending on the amount you dial in. ATTACK sets the attack
time, ranging from 0.05 mS to 1 mS. RELEASE adjusts the release time from

0.05mS to 1.04 seconds. KNEE adjusts the sof t limiting threshold point from hard
limiting (0 dB) to maximum soft limiting (10 dB).

Triple Delay

Sometimes called a 3-Tap Delay, the Triple Delay provides three delay stages with
independent frequency, gain, and pan controls. Create time-based echo eects
with the Triple Delay to increase the sense of stereo separation.

TIME BASE sets the master delay time, which is also the delay time for the rst
stage. GAIN BASE sets the gain level of the rst stage of the delay. PAN BASE sets
the position of the rst delay stage in the stereo eld. LO CUT sets the frequency
at which the source signal can begin passing through the delay. HI CUT sets the
frequency at which the source signal no longer passes through the delay. X-FEED
indicates that stereo cross-feedback of the delays is active. MONO activates
a mono mix of both channels for the delay input. FEED adjusts the amount of
feedback. FACTOR A controls the amount of delay time in the second stage of
the delay. GAIN A controls the gain level of the second delay stage. PAN A sets
the position of the second delay stage in the stereo eld. FACTOR B controls the
amount of delay time in the third stage of the delay. GAIN B controls the gain
level of the third delay stage. PAN B sets the position of the third gain stage in the
stereo eld.

Ambience

Stereo Delay

Stereo Delay provides independent control of left and right delay (echo)
timesand features high and low pass lters for enhanced tone shaping of the
delayed signals. Use the Stereo Delay to give your mono signals a wide presence
in the stereo eld.

The MIX control lets you blend the source signal and the delayed signal.
TIMEadjusts the master delay time up to three seconds. LO CUT adjusts the low
frequency cut, allowing lower frequencies to remain unaected by the delay.
HI CUT adjusts the high frequency cut, allowing higher frequencies to remain
unaected by the delay. FACTOR L sets the delay on the lef t channel to rhythmic
fractions of the master delay time. FACTOR R sets the delay on the right channel
to rhythmic frac tions of the master delay time. OFFSET LR adds a delay dierence
between the lef t and right delayed signals. The FEED LO CUT/HI CUT adjusts lters
in the feedback paths. FEED L and FEED R control the amount of feedback for
the left and right channels. MODE sets the feedback mode: Mode ST sets normal
feedback for both channels, X crosses feedbacks between left and right channels.
M creates a mono mix within the feedback chain. 

Ambience creates a customizable virtual acoustic space in which to place the
elements of a mix. Use Ambience to add warmth and depth without coloring the
direct sound. (Inspired by the Lexicon Ambience Algorithm)

PRE DELAY sets the time before the reverb follows the source signal.
DECAYadjusts the time it takes for the reverb to completely dissipate.
SIZEcontrols the room size emulation. DAMPING controls the high frequency
decay within the reverb tail. DIFFUSE controls the initial echo density. Level sets
the volume output of the aected signal. LO CUT adjusts the low frequency cut,
allowing lower frequencies to remain unaected by the reverb. HI CUT adjusts
the high frequency cut, allowing higher frequencies to remain unaected by the
reverb. MOD adjusts the level of reverb decay modulation. TAIL GAIN adjusts the
volume of the reverb tail.

Reverse Reverb

Reverse Reverb takes the trail of a reverb, turns it around, and places it in front
of the sound source. Use the swelling crescendo of the Reverse Reverb to add an
ethereal quality to vocal and snare tracks. (Inspired by the Lexicon 300/480L)

Adjusting the PRE DELAY knob adds up to 200 milliseconds of time before the
reverb follows the source signal. The DECAY knob adjusts the time it takes for
the reverb to completely dissipate. RISE controls how quickly the eect builds

21 X32 DIGITAL MIXER Preliminary User Manual

up. DIFF(USION) controls the initial reection density. SPREAD controls how the
reection is distributed through the envelope of the reverb. The LO CUT knob
sets a low frequency beneath which the source signal will not pass through the
reverb. The HiSvFr/HiSvGn knobs adjust a Hi-Shelving lter at the input of the
reverb eect.

Gated Reverb

This eect was originally achieved by combining a reverb with a noise gate.
Ourgated reverb creates the same impression by a special shaping of the reverbtail.

Gated Reverb is especially eective for creating a 1980s-style snare sound or to
enlarge the presence of a kick drum. (Inspired by the Lexicon 300/480L)

PRE DELAY controls the amount of time before the reverberation is heard following
the source signal. DECAY controls the amount of time it takes for the reverb to
dissipate. ATTACK controls how fast the reection density builds up. DENSITY shapes
the reverb decay tail. The higher the density, the greater the number of sound
reections. SPREAD controls how the reection is distributed through the envelope
of the reverb. The LO CUT knob sets the frequency beneath which the source signal
will not pass through the reverb. The HiSvFr/ HiSvGn knobs adjust a Hi-Shelving lter
at the input of the reverb eect. DIFF(USION) controls the initial reection densit y.

Plate Reverb

Hall Reverb

Classic Hall Reverb simulates the reverberation that occurs when sound is
recorded in medium to large-sized concert halls. Use the Hall Reverb to give your
mix a lush, three-dimensional quality that will make your per formance sound
larger than life. (Inspired by the Lexicon Hall)

The PRE DELAY slider controls the amount of time before the reverberation is
heard following the source signal. DECAY controls the amount of time it takes for
the reverb to dissipate. SIZE controls the perceived size of the space being created
by the reverb eect. The DAMP slider adjusts the decay of high frequencies within
the reverb tail. DIFF(usion) controls the initial reection density. SHAPE adjusts
the contour of the reverberation envelope. 

Vintage Room

Vintage Room simulates the reverberation that occurs when sound is recorded in
a small room. When you want to add a bit of warmth and just a touch of reverb,
X32’s Vintage Room breathes life into close-miced guitar and drum tracks.
(Inspired by the Quantec QRS)

A plate reverb was originally created by sending a signal through a transducer
to create vibrations on a plate of sheet metal which were then picked up as an
audio signal. Our algorithm simulates that sound with high initial diusion and a
bright colored sound. X32’s Plate Reverb will give your tracks the sound heard on
countless hit records since the late 1950s. (Inspired by the Lexicon PCM-70)

PRE DELAY controls the amount of time before the reverberation is heard
following the source signal. DECAY controls the amount of time it takes for the
reverb to dissipate. SIZE adjusts the size of the virtual room created by the reverb
eect. The DAMP knob adjusts the decay of high frequencies within the reverb
tail. DIFF(USION) controls the initial reection density. The LO CUT knob sets the
frequency beneath which the source signal will not pass through the reverb.
The HI CUT knob sets the frequency above which the source signal will not pass
through the reverb. The BASS MULT(IPLIER) knob adjusts the decay time of the
bass frequencies. XOVER controls the crossover point for bass. MOD DEPTH and
SPEED control the intensity and speed of the reverb tail modulation.

The VU meter displays the input and output levels. Set the early reection times
for the left and right channel with ER DELAY L and ER DELAY R. ER LEVEL sets the
loudness of the early reection level. REV DELAY controls the amount of time before
the reverberation is heard following the source signal. HI/LOW MULTIPLY adjusts the
decay time of the high and bass frequencies. TIME shows the duration of the reverb
eect. ROOM SIZE adjusts the size of the room eect being created incrementally
from small to large. HIGH CUT sets the frequency above which the source signal
does not pass through the reverb. DENSITY manipulates the reection densit y in the
simulated room. (This slightly changes the reverb decay time). LOW CUT sets the
frequency below which the source signal does not pass through the reverb.

Vintage Reverb

Based on the legendar y EMT250, X32’s Vintage Reverb delivers shimmering
bright reverb that won’t drown out or overpower your live or recorded tracks.
UseVintage Reverb to sweeten vocals and snare drums without sacricing clarity.

When layer 1 is selected, the rst slider on the lef t sets the reverb time from
4milliseconds to 4.5 seconds. Slider 2 controls the low frequency multiplier
decay time. Slider 3 controls the high frequency multiplier decay time. Slider 4
controls the amount of modulation in the reverb tail. When layer two is selected,
slider1adjusts the pre delay. Slider 2 selects the low cut frequency. Slider 3
selects the Hi Cut frequency. Slider 4 adjusts the output level of the reverb.

22 X32 DIGITAL MIXER Preliminary User Manual

When Layer 1 is selected, the far left encoder push button allows you to select
between virtual front and rear outputs. Rear is suitable for drums due to it being
less reective. Front is well-suited for vocals and other dynamic instruments.
TheVintage button enables the simulation of the input transformers.

Stereo/Dual Tube Stage/Overdrive

Tube Stage/Overdrive is a versatile eect capable of emulating a variety of
modern and classic tube preamps. Available in stereo and dual-mono versions,
use Tube Stage/Overdrive to dial in warm and fuzzy sounds from subtle to
fullysaturated.

DRIVE adjusts the amount of harmonics being driven by the eect. EVEN and ODD
adjust the amount of even and odd harmonics. GAIN adjusts the output gain of
the eect. LO CUT sets the input frequency below which the source signal will not
pass through the eect. HI CUT sets the input frequenc y above which the input
signal will not pass through the eect. BASS GAIN/FREQ adjust a low shelving
lter at the output of the eect. TREBLE GAIN/FREQ adjust a high shelving lter at
the output of the eect.

Stereo Imager

Chorus / Stereo Chorus

Chorus samples the input, slightly detunes it and mixes it with the original
signal to produce a somewhat thicker, shimmering sound. Use it to thicken up
background vocals, or to double the sound of brass and woodwind instruments.

Where as DELAY L/R set the total amount of delay for the left and right channel,
WIDTH determines the amount of modulated delay. SPEED sets the modulation
speed. MIX adjusts the balance of the dry and wet signals. You can further sculpt
the sound by trimming some of the low and high end from the eected signal
with the LO and HI CUT knobs. Additionally, the PHASE knob can tweak the
phase oset of the LFO between lef t and right channel and the SPREAD knob
adjusts how much of the left channel is mixed into the right and vice versa.
Finally,theWAVE knob blends between the “Danish-style” digital triangular
chorus sound and the classic analog sine wave.

Flanger / Stereo Flanger

A Stereo Imager is typically used to control the placement of a signal within the
stereo eld during mixdown or mastering. Modeled after the BEHRINGER Edison
rack unit, X32’s Stereo Imager will lend a professional quality to your live and
recording performances.

The BALANCE knob allows you to emphasize the mono or stereo components
of the input signal. The mono and stereo signals can be panned independently
with the MONO PAN and STEREO PAN knobs. OUT GAIN is used to compensate for
level changes resulting from the eect. The phase can also be shifted using the
shelving knobs. Select the frequency and bandwidth (Q) using the corresponding
knobs, then adjust the gain with the SHV GAIN knob.

Rotary Speaker

Rotary Speaker emulates the sound of a Leslie rotating speaker. X32’s Rotary
Speaker provides more exibility than its electro-mechanical counterpart,
andcan be used with a variety of instruments, and even vocals, to create a
whirling, psychedelic eect.

The LO SPEED and HI SPEED knobs adjust the rotational speed of the
SLOWandFAST Speed selection, and can be toggled with the FAST button.
TheACCEL(eration) knob adjusts how quickly the speed increases and decreases
from the Slow mode to the Fast mode. The rotation eect can also be disengaged
with the STOP button, which will stop the movement of the speakers.

The Flanger emulates the phase-shifting sound (comb-ltering)
originallycreated by applying pressure against the ange of the reel on a tape
recorder. This eect creates a unique “wobbly” sound that is quite dramatic when
used on vocals and instruments.

The controls of this eect are nearly identical to the Chorus eect block.
Additionally, the FEEDBACK can be adjusted with positive and negative amounts
and also band-limited with the FEED HC (high-cut) and FEED LC (low-cut) knobs.

Stereo Phaser

A Stereo Phaser, or phase shifter, applies multiple STAGES of modulated lters to
the input signal to create a “notch” in the frequency response, and then applies
a MIX with the original for a “swirling” eect. Use X32’s Stereo Phaser to add a
“spaced-out” sound to vocal or instrument tracks.

SPEED adjusts the LFO rate and DEPTH sets the LFO modulation depth.

The BASE knob adjusts the frequency range of the modulated lters.
Theresonance is adjusted with the RESO knob. The WAVE knob shapes the
symmetry of the LFO waveform and PHASE dials in an LFO phase dierence
between the lef t and right channel. The modulation source can also be the signal
envelope, which produces vowel-like opening and closing tones. The ENV MOD
knob adjusts how much this eect takes place (positive and negative modulation
is possible), and the ATTACK, HOLD and RELEASE knobs all tailor the response of
this feature.

DISTANCE adjusts the distance between the Rotary speakers and the
virtualmicrophone.

23 X32 DIGITAL MIXER Preliminary User Manual

Tremolo / Panner

Stereo Tremolo creates an up and down volume change at a constant and even
tempo just like the guitar amps of yesteryear. Use X32’s Stereo Tremolo to add a
unique “surf-music” texture to a vocal or instrument track.

SPEED adjusts the LFO rate and DEPTH sets the amount of modulation.
PHASEcanbe used to set an LFO phase dierence between the left and right
channel, which can be used for panning eects. The WAVE knob blends the LFO
waveform between triangular and square shape. The signal envelope, shaped by
ATTACK, HOLD and RELEASE, can be used to modulate the LFO speed (ENV SPEED)
and the LFO modulation depth (ENV DEPTH).

Stereo / Dual Pitch

Pitch shifting is often used in two dierent ways. One is to set the Mix knob lower
and only use the Cent knob to make a small oset in pitch between the wet and
dry tones. This results in a “voice doubling” eect that thickens the overall sound
in a more subtle way. The extreme use of the eect is to turn the Mix knob fully­clockwise so the entire signal is eec ted. This way, the signal can be shifted into
other keys up to an octave above or below the original. When used on a voice,
this results in a “chipmunk” sound or a low Darth Vader eect.

When the SEMI and CENT knobs are set at 12:00, the pitch is not altered.
Makingadjustments by semitone will have a very pronounced eect,
whereaschanges to the CENT knob will be very minor. The DELAY knob creates a
time dierence between the wet and dry sound. The LO and HI CUT knobs allow
the eected signal to be band-limited. The Dual Pitch eect allows the left and
right channels to be adjusted independently, and allows GAIN compensation and
panning of the two channels.

Wave Designer

Wave Designer is a powerful tool for adjusting signal transients and dynamics,
such as attack and sustain. Use it to make a snare drum really “crack” in the
mix or level out volume inconsistencies of slap bass tracks. (Inspired by the SPL
Transient Designer)

Adjusting the ATTACK knob can add punch or tame overly dynamic signals.
Increasing the SUSTAIN knob acts in a similar way as a compressor, allowing the
peaks to carry longer before decay. The eect can also be used to reduce the
sustain for a more staccato sound. The GAIN knob compensates for level changes
caused by the eect.

Stereo Exciter / Dual Exciter

Exciters increase presence and intelligibilit y in live sound applications, and are
indispensable for adding clarity, air and harmonic overtones in the recording
studio. This eect is particularly useful for lling out the sound in dicult rooms
and for producing a more natural live/recorded sound. (Inspired by the famous
Aphex Aural Exciter)

Set the frequency of the side-chain lter with the TUNE knob, and further shape
the lter slope with the PEAK and ZERO FILL knobs. Turning the TIMBRE knob
left of center adds more odd harmonics, while turning it right of center adds
more even harmonics. Adjust the harmonic content added to the signal with
the HARMONICS knob, and blend in the eected signal with the MIX knob.
Engagethe SOLO MODE to isolate only the audio resulting from the eect so you
can hear exactly what you’re adding to the mix.

Stereo Enhancer / Dual Enhancer

Stereo / Dual Guitar Amp

Modeled after the Tech 21 SansAmp, the Stereo / Dual Guitar Amp simulates the
sound of plugging into a real guitar amp. From shimmering cleans to saturated
crunch, X32’s Stereo / Dual Guitar Amp allows an electric guitar player to sound
great without using an amp on stage.

The PREAMP knob adjusts the amount of input gain prior to the band-specic
distortion adjustment. BUZZ adjusts the low-end breakup, PUNCH adjusts
the midrange distortion, and CRUNCH tailors the high-frequency content and
distortion for smooth or cutting notes. The DRIVE knob simulates the amount
of power amp distortion from a tube amp. The LOW and HIGH knobs allow
EQ adjustment independent of distortion content, and the overall output is
controlled by the LEVEL knob. The CABINET simulation can be bypassed if the
guitarist is already using a real cab, which allows the eect to function like a
boost or distor tion pedal. The Dual Guitar Amp allows the left and right channels
to be adjusted independently.

X32’s Enhancers are so called “Psycho EQs”. They can enhance the signal
spectrum in bass, midrange and high frequencies but they dier from traditional
equalizers. When you need to generate maximum punch, clarity and detail,
without turning up the overall volume, our enhancers are the solution.
(Inspiredby the SPL Vitalizer)

Adjust the BASS, MID and HI GAIN knobs to add or reduce content in those
spectrums. The BASS and HI FREQuencies can be specically selected, while the
MID Q (bandwidth) can be adjusted instead. The OUT GAIN knob compensates for
changes in level resulting from the eect, and the SPREAD knob (Stereo version
only) emphasizes the stereo content for a wider mix. Engage the SOLO MODE
to isolate only the audio resulting from the eect so you can hear exactly what
you’re adding to the mix.

24 X32 DIGITAL MIXER Preliminary User Manual

Mood Filter

The Mood Filter uses an LFO generator and an auto-envelope generator to control
a VCF (voltage-controlled lter), as well as a side chain function where the
channel B signal controls the envelope of channel A. When applied to electronic
instruments, the Mood Filter can be used to emulate the natural sound of
acoustic instruments. (Inspired by the MiniMoog)

This lter can be modulated with the signal’s envelope using the ENV MOD
(withpositive and negative amounts), ATTACK and RELEASE knobs, or the LFO
can modulate the lter. The WAVE knob selects between 7 dierent wave forms
– triangular, sine, saw plus, saw minus, ramp, square, and random. The PHASE
can be oset by up to 180 degrees. The SPEED knob adjusts the rate of the LFO
and the DEPTH adjusts the amount of LFO modulation. Adjust the resonance of
the lter until self-oscillation with the RESO(nance) knob. BASE adjusts the range
of the lter from 20 Hz to 15 kHz. The MODE switch selects between low pass
(LP), high-pass (HP), band-pass (BP) and Notch. Use the MIX knob to blend the
eected signal with the dry sound. With the 4 POLE switch engaged, therewill
be a steeper slope than the OFF (2 pole) setting. The DRIVE knob adjusts the
level and can also introduce an overdrive eect (as with real analogue lters)
ifpushed hard. In Sidechain mode, only the left input signal is processed and
fed to both outputs. The envelope of the right input signal can be used as a
modulationsource.

Chorus + Chamber

Taking up only one FX slot, the Chorus + Chamber eect combines the shimmer
and doubling characteristics of a studio-grade Chorus with the sweet sound of a
traditional Chamber reverb. (Reverb is Inspired by the Lexicon PCM 70)

The BALANCE knob adjusts the balance between chorus and reverb. Low
frequencies can be excluded with the LO CUT knob, and the MIX knob adjusts
how much of the eect is added to the signal. SPEED, DELAY and DEPTH adjust
the rate, delay, and modulation depth of the chorus. The LFO PHASE between lef t
and right channel can be oset by up to 180 degrees, and WAVE adjusts the LFO
waveform from a sine wave to triangular wave. The PREDELAY knob determines
the hesitation before the reverb aects the signal. The DECAY knob adjusts how
quickly the reverb fades. The SIZE controls how large or small the simulated
space is (room, cathedral, etc.). The DAMPING knob determines the decay of high
frequencies within the reverb tail.

Flanger + Chamber

Delay + Chamber

Here we have combined Delay and Chamber reverb, so a single device can provide
a variety of delay settings, plus add just the right type and amount of reverb to
the selected signal. This device only uses one FX slot. (The Reverb is Inspired by
the Lexicon PCM 70)

Use the BALANCE knob to adjust the ratio between delay and reverb.
Lowfrequencies can be excluded with the LO CUT knob, and the MIX adjusts
how much of the eect is added to the signal. The TIME knob adjusts the delay
time for the left channel delay, and the PATTERN sets the delay ratio for the
right channel delay. Adjust the FEEDBACK and trim some high frequencies with
the FEED HC (high-cut) knob. The XFEED knob allows you to send the delay
sound to the reverb eect, so instead of running completely parallel, the reverb
eects the echos to a selected degree. The PREDELAY knob determines the
hesitation before the reverb aects the signal. The DECAY knob adjusts how
quickly the reverb fades. The SIZE controls how large or small the simulated
space is (room,cathedral, etc.). The DAMPING knob determines the decay of high
frequencies within the reverb tail.

Add the mind-bending, lter-sweeping eect of a state-of-the-ar t Flanger to
the elegant sweetening of a traditional Chamber reverb—all in one FX slot.
(Reverbis Inspired by the Lexicon PCM 70)

The BALANCE knob adjusts the ratio between anger and reverb. Low frequencies
can be excluded with the LO CUT knob, and the MIX knob adjusts how much of
the eect is added to the signal. SPEED, DELAY and DEPTH adjust the rate, delay,
and modulation depth of the anger. FEEDback can be adjusted with positive and
negative amounts. The PHASE can be oset by up to 180 degrees. The PREDELAY
knob determines the hesitation before the reverb aects the signal. The DECAY
knob adjusts how quickly the reverb fades. The SIZE controls how large or small
the simulated space is (room, cathedral, etc.). The DAMPING knob determines the
decay of high frequencies within the reverb tail.

25 X32 DIGITAL MIXER Preliminary User Manual

Delay + Chorus

This combination eect merges a user-denable Delay (echo) with a studio­quality Chorus sure to fatten up even the “skinniest” track. Uses only one FX slot.
(Inspired by the TC Electronic D-Two)

The TIME knob adjusts the delay time, and the PATTERN knob sets the delay ratio
for the right channel and negative values activate a cross feedback between
the two channels. The FEEDHC knob adjusts the delay high-cut frequenc y,
whilethe FEEDBACK knob adjusts the number of repeats. The X-FEED knob allows
you to send the delay sound to the chorus eect. The BALANCE knob adjusts
the ratio between delay and chorus. SPEED, DELAY and DEPTH adjust the rate,
delay,andmodulation depth of the chorus. The right channel LFO PHASE can be
oset by up to 180 degrees, and WAVE adjusts the chorus character by shaping
the LFO waveform from sine wave to triangular wave. Use the MIX knob to blend
the eected signal with the “dry” sound.

Delay + Flanger

Dual / Stereo TruEQ

The TruEQ incorporates a special algorithm that compensates for the gain
adjustment overlapping eect that adjacent frequency bands have on one
another. On a standard EQ, when neighboring bands are boosted together,
theresulting eect is magnied beyond what is visible from the positioning of
thesliders.

Graphic equalizer without frequency response corre ction.

This handy dynamic duo blends the “woosh” of soaring jet planes with classic
Delay, and can be adjusted from mild to wild. This combination eect only takes
up one FX slot. (Inspired by the TC Electronic D-Two)

The TIME knob adjusts the delay time, and the PATTERN knob sets the delay ratio
for the right channel and negative values activate a cross feedback between
the two channels. The FEEDHC knob adjusts the delay high-cut frequenc y,
whilethe FEEDBACK knob adjusts the number of repeats. The X-FEED knob
allows you to send the delay sound to the anger eect. The BALANCE knob
adjusts the ratio between delay and anger. SPEED, DELAY and DEPTH adjust the
rate, delay, andmodulation depth of the anger. The right channel LFO PHASE
can be oset by up to 180 degrees, and FEED (positive and negative amounts)
adjuststhe feedback eect. Use the MIX knob to blend the eected signal with
the “dry”sound.

Dual / Stereo GEQ

This compensated EQ will produce an adjustment that is identical to the actual
positioning of the sliders.

Graphic equalizer with frequency response correc tion.

These are standard graphic equalizers that provide 31 bands of adjustment
between 20 Hz and 20 kHz. A master volume slider compensates for changes in
volume caused by the equalization. A maximum boost or cut of 15 dB is available
for each band.

26 X32 DIGITAL MIXER Preliminary User Manual

5. Topic Guide

5.1 Starting up, shutting down,
and rmware updates

We recommend switching the X32 on before any active sound reinforcement
system is connected. The function called “Safe Main Levels”, located in the
Setup/General Preferences screen, automatically turns down the main LRC bus
levels when booting the console, and also prevents any scene loading actions
from aecting (specically turning up) the main levels.

Synchronization and Sample Rate settings can also be adjusted on the
Setup/Cong page, but please note that changing the sample rate will require a
console reboot.

◊ Please Note: Settings under ‘Link Preferences’, ‘Panning Mode’,

and ‘DCA groups’ are stored with the Scene data while all other settings
made on the Setup/Config page are not stored in any preset and will
not be initialized either. Please verify before using the X32 that the
sample rate is set correctly and if the synchronization source is selected
appropriately. If set to external synchronization via one of the two
AES50 ports, while no clock source is actually connected or switched on,
then the corresponding small square icon in the main display’s top row
would be red rather than green. In normal state you should only see
1-4 green squares in the top section depending on the units connected.

Note that if the X32 console has previously been in use by somebody else, and you
feel unsure about its actual status, you can reset it to default settings in either of
two convenient ways:

1. While the console is booting up and the “X32” logo appears on the screen,
press and hold the “Scenes / UNDO” button, keeping it depressed until the
console is fully operational and the Home screen is displayed. The console
will now be in the exact same state as it was when rst shipped from the
factory. However, you can immediately revert back to the status the console
was in before being switched o by pressing the Scenes/UNDO button.

2. You can also reset the console any time af ter booting by pressing
“Setup/Cong” -> “Initialize”.

The X32 regularly stores the console’s status to its onboard ash memory,
sothere is usually nothing wrong with switching it o, and you do not have to
explicitly save the current status. However, when a large number of parameters
have been recently changed, storing all of them to ash can take up to 1 minute,
in a “worst-case” scenario. In order to prevent any errors by losing power during
this type of storage operation, we recommend using the “Safe Shutdown”
function from the Setup/Global page, an operation similar to un-mounting a
USBthumb-drive from your PC.

Updates:

The X32 rmware can easily be updated by plugging a USB stick into the top
panel USB connector after a rmware update le has been downloaded and
stored on the root level of the attached drive. Simply insert the USB drive while
the console is turned o, then power on the console. While booting, the X32 will
run a fully automatic rmware update, which might take 2-3 minutes longer than
the regular boot sequence.

The USB socket is not suitable for other non-memory USB devices like keyboards,
mice, lamps, etc.

5.2 Default setup for connecting to monitoring and P.A. systems

The X32 comes pre-congured with the local XLR inputs connected to input
channels 1-32, and XLR outputs 1-14 connected to the mix bus masters 1-14.
Busmasters 13-16 are connected to the eects inputs FX1-4. The Main LR (stereo)
signal is normally put out on XLR outputs 15/16.

The Monitoring outputs on ¼" and XLR connectors, and the t wo Phones outputs
(in the side-cap handles) always carry either the Monitor Source signal or any solo
signal, whenever a solo button is active. Press the View button in the Monitor
section to check or change the solo and monitoring preferences.

1. Power up the X32 console rst, before any connected power amps or
speakers are switched on.

2. Connect cables to XLR outputs 15 and 16 on the rear panel, connecting the
other ends of the cables to the inputs of your P.A. system. These normally
carry the main stereo bus left and right.

3. All buses or input channels that are to be put out on the main PA system
must have their Stereo Bus switches on. Use the selected channel’s pan
control to place the signal within the main stereo eld, and the channel’s
fader to set the volume.

4. Use the rear panel Monitoring outputs to connect monitor speakers or, ifyou
prefer, use the ¼" outputs in the sidecaps to connect your head phones.
Youwill either hear the monitor source signal, which is Main Stereo by
default, or any channel with its solo button being active.

5.3 How do I connect a microphone, process its

signal and send it out to the P.A. system?

1. Press the Select button of a desired input channel (for example, channel 1 on
the “Channels 1-16” input layer) and make sure the channel fader is down.

2. In the channel processing section in the upper left hand corner, make sure
the phantom power is switched o.

3. Connect a microphone to XLR input 1 on the X32’s rear panel.

4. Press the 48V button to switch phantom power on for channel 1
(if the microphone requires it, such as a condenser microphone).

5. Use the Gain control to adjust the gain level as necessary, using the input
meter as a guide.

6. Switch on and adjust the Low Cut lter as needed to remove rumble or
windnoise.

7. Adjust the channel equalizer controls to sculpt the sound quality of the
microphone signal.

8. Adjust the channel Gate and Compressor controls as desired. Note that by
pressing the “view” button in the compressor or gate section, the main
screen will switch to the compressor or gate display for the selected channel,
oering additional compressor or gate controls beyond the dedicated
top-panel controls.

9. Turn on the “Stereo Bus” switch in order to route the selected signal to
the main LR, then adjust the Pan control to place the signal within the
stereoeld.

10. Adjust the Channel 1 fader to the 0 dB region, then slowly turn up the main
LR fader until you hear the mic signal amplied through your P.A. system.

27 X32 DIGITAL MIXER Preliminary User Manual

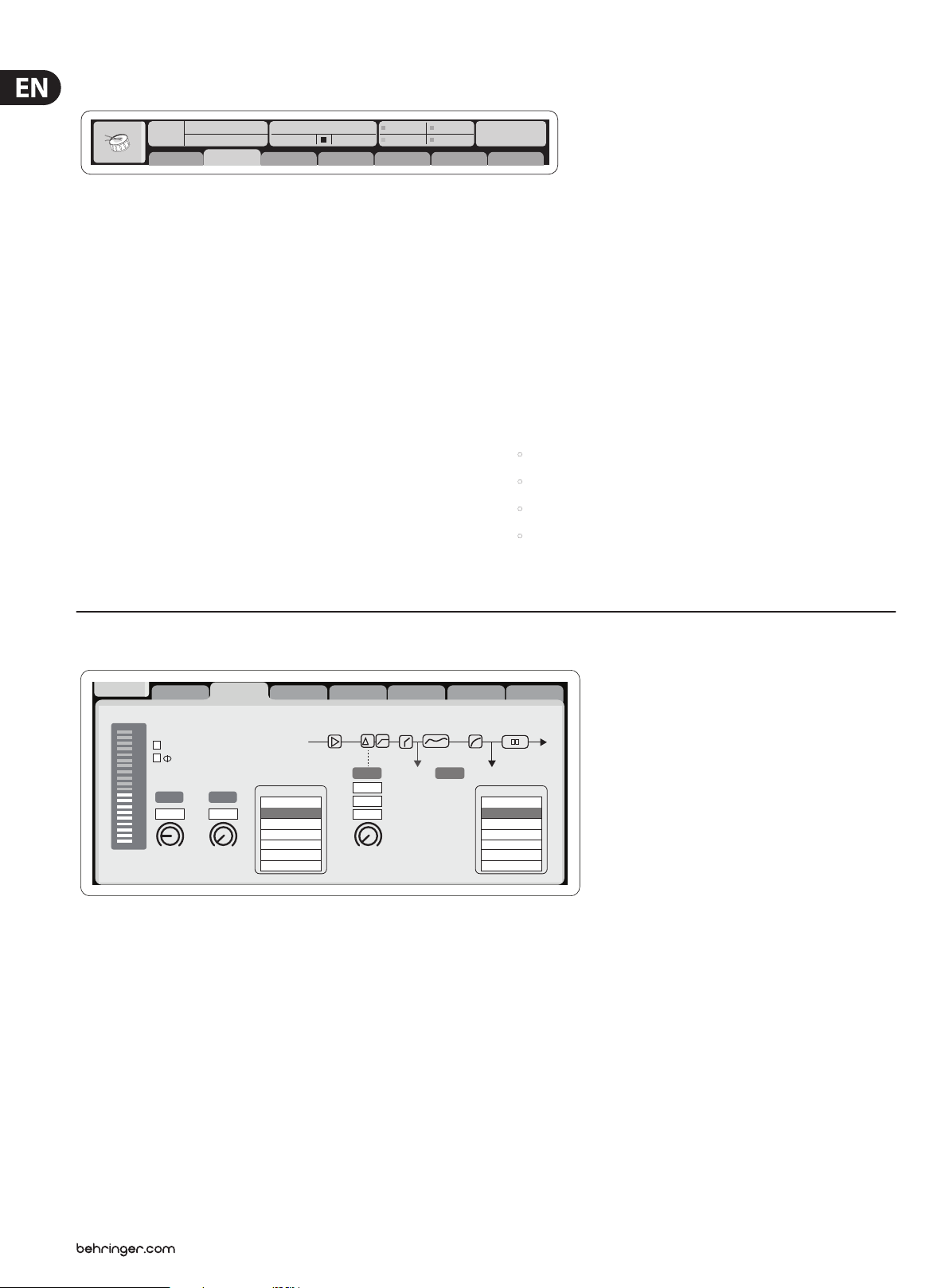

5.4 How do I add one of the 8 internal eects
to the sound?

There are two types of eects that are commonly used:

• “Eects Loop” (side chain) style eects, where multiple channels all send

varying amounts of their signal to a common eect, such as a reverb,
delay,or chorus.

• “Insert” style eects that are inserted in to the signal path of a single

channel of audio. Examples would be a graphic EQ, lter, exciter,
ortubeemulator.

To apply an “Eects Loop” style eect:

• Press the “FX” menu button. The main screen will show the FX home screen

where dierent eects processors are assigned to the 8 processing slots.

• Adjust rotary encoder #6 to highlight the rst eects processor; it will be

surrounded by an orange outline.

• Adjust rotary encoder #1 and rotary encoder #2, selecting your desired bus

as the source for both the left and right inputs of the rst eect processor.
Bydefault, FX 1 is sourced from Bus 13.

• Adjust rotary encoder #5 to select a specic eect processor,

suchas “Ambience”.

• Select the fader bank button labeled “RTN” on the left side of the console.

Bring the faders labeled FX1L and FX1R up to 0 dB in case they are not set to
this value by default. In the initial setup, these returns are stereo linked and
automatically send to the main LR bus, but it is also possible to send them to
the other buses as well. For this, press the HOME button next to the screen
while the return is selected, then go to the SENDS tab with the PAGE SELECT
right button and adjust the send levels for the return to the other buses,
oruse the dedicated BUS SENDS controls.

• Adjust rotary control #6 to select the specic processor you have applied the

eect to, in this case “Ins FX 5L”. Press the encoder to connect the selec ted
insert eect.

• The Precision Limiter is now applied as an insert on the selected channel.

Sending more than one channel through the same inser t eect is, of course,
prohibited. There will be a warning when you try to insert an eec t slot that
has already been used as an insert on any other channel. Both sides of a dual
type eect can be used as inserts on dierent channels or buses.

5.5 How do I use an outboard
eectsprocessor?

In some situations, you may wish to use a loop-style eect provided by an
external eect processor, as opposed to using one of the eight built-in processors.
To do so:

• Press the ROUTE button, page right to the “Aux Out” screen, and adjust the

rst and fourth encoders to tie a rear panel ¼" aux out, such as Aux Out 1,
toan available mix bus, such as Mix Bus 2.

• Patch rear panel Aux Output 1 to the input of your external eects processor.

• Patch the output of the external eects processor to rear panel Aux Input 1.

• Select the “Aux In/FX/USB” layer, select the “Aux 1” channel, and make sure

the stereo button is lit so that the Aux 1 return signal is assigned to the main
LR bus.

• Move the Aux 1 channel fader to 0 dB.

• Adjust the settings on the external eects processor to taste.

5.6 How do I set up live stage monitoring?

Setting up a live stage monitor mix using conventional monitors:

• Back on the EFFECTS page, press the PAGE SELECT right button to switch the

screen to the editor for the Ambience processor. The screen will switch to an
editor page for the rst processor. Adjust the rotary encoders to tailor the
eect to your liking.

• To apply the eect to assorted input channels, select an input channel,

thenadjust its “Bus Send 13” knob to taste. As the bus send level is
increased, more of the channel signal will be sent to the Ambience
eect. Repeat this process with other channels you wish to send to the
Ambienceprocessor.

To apply an “insert” style eect:

• Press the “EFFECTS” menu button.

• As the eects on the left side are also able to handle complex send eects

like reverb, the slots on the right side shall be used for insert eects like
limiter, graphic EQ, etc. You can also use insert eects on the left side,
butthis will limit your use of reverbs and other processor-intensive eects.

• Adjust rotary encoder #6 to highlight one of the eects processors on the

right side; it will be surrounded by an orange outline.

• Adjust rotary encoder #1 and rotary encoder #2, selecting “Insert” as the

source for both the lef t and right inputs of the eect processor.

• Adjust rotary encoder #5 to select a specic eect processor, such as

“precision limiter”.

• Select the specic input or output channel you wish to use the inserted

eect on.

• Press the HOME button, then the PAGE SELECT right button to navigate to the

selected channel’s “Cong” screen.

1. Press the ROUTE button and page right to the Analog Out page.

2. Adjust the rst encoder to select a rear panel analog output (e.g. Output 1),
then adjust the four th encoder to select a mix bus (e.g. Mix Bus 1). Whenthe
source and destination have been selected, press the 4th encoder to
complete the assignment.

3. Adjust the 5th encoder to set up the monitor send as pre-fader, or pre/post
EQ. This will prevent the monitor mix from changing when the front-of­house mix is adjusted.

4. Connect a cable from rear panel analog Out 1 to the input of:

a) A powered stage monitor

b) An external amplier feeding a passive stage monitor

c) A transmitter for a set of wireless in-ear monitors

5. On the bank of output faders on the right hand side of the console, selectthe
monitor bus (1-8, 9-16) (in this case Bus 1) and adjust the fader to 0 dB
initially. You can change the overall output level on this bus anytime later,
ofcourse.

6. To adjust the mix sent to the monitor, select an input channel, then adjust
its “Bus Send 1” knob. Repeat for the other input channels to complete the
monitor mix.

The monitor mix can also be adjusted using the X32’s “Sends on Faders” func tion:

1. On the bank of output faders on the right hand side of the console,
selectthemonitor bus (1-8, 9-16) that feeds the talent’s stage monitor
(inthis case Bus 1).

2. Press the “Sends on Faders” button. You will see the button illuminate.

28 X32 DIGITAL MIXER Preliminary User Manual

3. Select one of the three input channel layers (CH1-16, CH17-32,
Line-Aux/FXRet)

4. Adjust the 32 channels of input faders on the left side of the console.
Theynow act as “virtual aux send knobs” for the Mix Bus 1 feeding the
stagemonitor, allowing you to quickly adjust the overall monitor mix using
the faders.

Setting up a live stage monitor mix using the S16 Digital Stage Box:

1. Connect the S16 stage box to AES50 port A on the rear panel of the console
using a standard Cat 5 Ethernet cable.

2. On the stage, connect a cable from Output 1 of the S16 stagebox to the input
of the stage monitor.

3. Press the ROUTE button and page right to the AES50 A page.

4. Adjust the rst encoder to select “Out 1-8” for the rst 8 outputs of the
AES50 A bus, then press the encoder to make the connection.

5. Analog Outputs 1-8 on the X32 are now routed to the rst 8 outputs of the
AES50 A connector, which in turn feeds the 8 analog outputs of the S16 stage
box connected to the AES50 A connector.

6. Adjust the monitor mix that feeds Mix Bus 1, as described above.

Setting up a live stage monitor mix using the P16 Ultranet Bus:

1. Connect an Ultranet personal monitor mixer (or P16 distribution amplier)
to either the P16 connector on the rear panel of the X32, or to the P16
connector on an S16 stage box that is connected to the X32 console.

2. Press the ROUTE button and page right to the P16 page.

3. Adjust the rst and fourth encoders to pair specic audio slots on the P16 bus
with direct outs of various console channels, pressing the four th encoder to
complete each connection.

4. Any personal mixer connected to the P16 bus will now receive up to 16
individual audio channels, allowing its user to craft their own unique
monitor mix.

5. When using the P16 connector on an S16 connected to AES50 port A,
pressthe ROUTE button and page right to the AES50 A page, then adjust
the fth encoder to select ‘P16 1-8’, then press the encoder. Adjust the sixth
encoder to select ‘P16 9-16’, then press the encoder. Note: The P16 signals on
the S16 are sourced from AES50 channels 33-48.

Communicating with talent on stage:

1. Press the “view” button in the Talkback section.

2. Adjust the fourth encoder to set the destination of the talkback microphone,
pressing the encoder to set the connections. The talkback mic can be routed
to any of the individual mix buses that are feeding a monitor system.

3. Adjust the third encoder to set the volume of the talkback mic.

4. Press the second encoder to choose between the onboard talkback mic and
an external one connected to the top panel.

5. Press the talkback A button to activate the talkback microphone to
communicate with the stage talent. The talkback button can be set to
latching or non-latching using the push action of the 5th encoder.

5.7 Everything you ought to know about Solo and monitor sources

The X32 console allows you to monitor audio sources on a set of headphones or
monitor speakers when operating the console from a front-of-house position.

1. Connect a set of headphones to the ¼" phones jacks located in either of the
console’s side panels.

2. Alternatively, connect a set of monitors to the XLR or ¼" monitor outs on the
rear panel.

3. Press the “view” button in the monitor section.

4. Adjust the 6th encoder to select the audio source for the monitor bus,
forexample LR PFL (LR Pre-Fader Listen). This will output the main LR
pre-fader signal to the monitors when no Solo button is selected on any of
the channels or buses.

5. Adjust the rst encoder to set the level of the monitor signal.
Then, adjust the level of the connected headphones and/or monitor
usingtheir respective level controls on the X32 top panel.

6. Press the Solo button on any input or output channel to send that channel’s
audio to the solo bus. This operation will not aect the mix that the audience
is hearing, nor the monitor mix heard by the talent. Input channels take
priority over DCAs, DCAs take priority over buses, and buses take priority
over main LRC/mono.

7. Press the “Clear Solo” button above the master faders to quickly clear the
solo status of any and all channels. This is particularly useful when solo is
active on a channel that is not present on the current input layer and you
wish to quickly clear its solo status.

8. When monitoring a stereo signal, press the top panel “Mono” button to
listen to the monitor bus in mono. Press the “Dim” button to listen to the
monitor signal at a lower level.

The solo bus also has various preferences that can be set using the second
encoder, allowing you tailor its operation to your specic working style.
Examplesinclude:

1. Use “Exclusive” if you want the act of pressing another solo button to
automatically disengage the previous solo. This is useful if you know you
will never want to solo more than one channel of material at the same time.
Inthis mode you can press several Solo buttons at the same time to solo the
corresponding channels together.

2. Use “Solo Follows Select” if you want the solo selection to automatically
follow any channel that you have selected. This allows you to quickly hear
the audio of that channel in your headphones when you select it to adjust
EQ, compression, etc. Remember that you need to solo a channel rst before
this function is active.

3. Use “Select Follows Solo” when you want the reverse to occur: Any channel
that is soloed will automatically become the currently selected channel,
allowing you quickly make adjustments for any channel you have soloed.

4. Use the “Channel Solo AFL” to listen to the channel signal after the fader and
stereo PAN.

5. Use “Mix Bus Solo AFL” to listen to the mix bus signal after the fader and
stereo PAN.

6. Use “DCA Group AFL” if you want to put the contents of a soloed DCA group into
after-fader listen mode when the solo button is pressed on a DCA channel.

7. “Use Master Fader” option lets you adjust the solo signal on the monitor/
headphones with the Master fader on the console. Note: The master output
level cannot be changed in this mode. This mode has primarily been
designed for using the X32 as a pure monitor console where the main bus is
not used for your PA system.

29 X32 DIGITAL MIXER Preliminary User Manual

5.8 Using Mute Groups

The X32 has 6 separate “mute groups”. Individual channels can be assigned
to these mute groups, allowing you to mute multiple channels with a single
buttonpush.

This is particularly useful in theater contexts, where groups of microphones
(suchas the ones belonging to a group of background performers) may need
to be muted and unmuted often. By assigning them to a mute group, you can
quickly mute/unmute a large group of channels, which is much faster than
muting/unmuting each channel one by one.

1. Press the MUTE GRP button.

2. While holding the desired Group button (located on top panel’s lower
right-hand corner), press the SELECT keys for any channels you wish to
assignto that mute group.

3. When you are done assigning channels to the mute group, press the MUTE
GRP button next to the display again. The channel SELECT buttons will now
work normally again.

4. Press the corresponding mute group button, on the console top panel to
mute that specic mute group and all channels belonging to it.

5.9 Mix Buses, Sub Groups and DCA Groups

On a live sound console such as the X32, channels can be combined into a single
output channel in two ways.

as desired in the FOH mix by adjusting DCA fader 1. However, if you then notice
that background vocalist #3 is a little too soft in the “blend” of background
vocals, you can adjust the level fader on their specic channel.

To create a DCA group on the X32 console:

1. Press the GROUP DCA 1-8 button on the output fader layer.

2. Hold the respective DCA Group Select button on the right-hand side of
theconsole.

3. While still holding down the DCA Group Select button, press the SELECT
buttons for all the input channels, aux channels, fx return channels, and bus
masters that you wish to assign to said DCA Group. Those channels are now
assigned to the DCA group.

4. You can also press the DCA Group Select button in order to check which
channels are already assigned to it; the assigned channel SELECT buttons will
light up.

5. To adjust the level of a DCA group, simply adjust its respective fader.

DCA groups can also have custom names, colors, and icons assigned to them
tohelp you remember what groups of signals are assigned to each of the
8DCAgroups.

1. Press the SETUP button, then page right to the DCA GROUPS page.

2. Adjust the rst encoder to select the DCA group you wish to customize,
thenpress the encoder to edit.

A “Bus” is a combined collec tion of channel signals where each channel feeding
the bus can be done so with a variable level. One typical use of a bus would be
an eects loop (where for example, dierent channels feeding the bus and the
reverb eect associated with it, do so at dierent levels, so that a snare drum
has a small amount of reverb applied while a lead vocal has a large amount of
reverb). Another use of a bus would be to feed a stage monitor. By feeding the
monitor mix with a bus, dierent channels can feed the monitor bus at diering
levels, allowing creation of a custom monitor mix that is “just right” for the talent
on stage.

A “Group” is similar to a Bus, except that all channels feeding the group do so at
a ”unity gain” level, with their respec tive levels the same as their levels feeding
the main mix bus. Thus, a group is best used to control the levels of a group of
signals using a single fader, such as controlling the level of an entire group of
drum microphones.

To quickly divide up which of the 16 mix buses are congured as regular buses,
and which are congured as groups, press the SETUP button and page right to the
CONFIG page. Adjust the fth encoder to select between dierent combinations
of buses and groups for the 16 mix outputs of the console. This setting can later
be changed individually for each of the 16 mix buses either on the SETUP page
of the corresponding mix bus or individually per channel on the SEND page of
the selected channel. You can feed the signal of any mix bus either directly to
the main bus or back to any input channel if you want to apply loop type eects
or send to a monitor mix. All mix buses are available as SOURCE on a channel’s
CONFIG page.

Lastly, the X32 oers a “DCA Group”. This is similar to a normal group, except
that the signals of the underlying channels are not actually combined into a
single audio path. Instead, channels are assigned to a DCA group (short for
“DigitallyControlled Amplier” ) and when a single fader representing the
DCAgroup is moved, it has the eect of adjusting the level of all the underlying
channels assigned to that DCA group.

DCA groups are useful in situations where you have a collection of similar
signals, and you want to be able to quickly adjust their overall level, but also
easily adjust the individual levels of the individual channels assigned to the DCA
group. Forexample, say you have a concert that employs 4 separate background
vocalists. By assigning them all to DCA group 1, you can adjust their overall level

3. On the editing pop-up window that appears, use the various encoders to
select a color, icon, and preset or custom name for the selected DCA.

4. Press the sixth encoder to exit the editing screen.

By contrast, conventional “groups” are useful when you have a group of signals
that you wish to combine into a single signal, perhaps to send that combined
signal to a single eect processor. For example, a common method for making
drums sound punchy and aggressive in a rock and roll mix would be to combine
all of the drum channels to a single stereo group, then process that group signal
through a compressor, and then nally bring the mono or stereo compressed
drum group back into the mix. This approach would not be possible with a DCA
group, because the DCA is not actually combining the audio signals, it is merely
linking the levels of all of the underlying channels digitally.

5.10 User Assignable control section

The X32’s assignable controls section lets you take the adjustments you make
most often, and assign them to a group of dedicated controls that are assignedto
just those func tions, and nothing else. The assignable controls oer 8 buttons
and 4 knobs, with dedicated LCD screens to remind you of the currently
assignedfunction.

For example, you could program one of the knobs to control the aux send on the
vocal channel feeding an internal reverb eect. Then, if you ever want to make
the vocalist sound more “wet” or “dry” during dierent songs in a set, you can
simply reach for that knob and it will always provide a quick and convenient place
to make that adjustment.

Additionally, the assignable controls are divided into “A”, “B”, and “C” groups,
so you can actually program in 3 dierent sets of controls, oering a total of
36dierent functions.

Setting up the assignable controls is easy:

1. Press the “view” button in the assignable controls section. The main screen
will switch to a view that lets you make assignments for the custom controls.

2. The main screen will show assignments for all 3 sets of custom controls
(A, B, and C) on one page. Rotate any of the rst ve encoders to move the
orange “focus” box to the specic set of custom controls you wish to assign.

30 X32 DIGITAL MIXER Preliminary User Manual

3. Press any of encoders 1-5 to switch to the edit screen for the specic custom
control that you have highlighted. The main screen will switch to an editing
screen where you can assign a console parameter to the custom control.

4. Adjust the various encoders on the editing screen to make a custom control
assignment, then press the encoders to make the actual assignment you
have selected.

5. When you are nished, you will see that the LCD screen located in the
custom controls section reec ts the assignment you have made in both
screen color and text.

6. You are now free to use and enjoy the custom assignments you have made.

5.11 How do I share signals over

AES50Supermac network?

In many live sound situations, a single mixing console is used to cover both the
front of house (FOH) mix that the audience hears, as well as all the individual
“monitor mixes” that are sent to stage wedges or transmitters for in-ear
monitorsystems.

However, in larger live sound situations, it is common to operate two separate
consoles, one that covers the FOH mix, and a second, completely independent
console that covers just the monitor mixes that are sent to the talent. This makes
a lot of sense, because the FOH engineer can concentrate 100% on the audience
mix, while a completely dierent monitor engineer can dedicate himself to the
thankless task of crafting great monitor mixes for the dierent musicians.

With an analog console, operating separate FOH and monitor consoles can be
quite expensive, because the original stage microphone signals have to all be
“split” into two copies, using an expensive multi-channel microphone splitter.
The splitters ends one set of mic signals to the FOH console and the other set to
the monitor console. Microphone splitters are a specialized piece of equipment
and ones that work reliably and sound good are very expensive.

The X32 family of products, however, makes using separate FOH and monitor
consoles easy and aordable. This is due to the fact that the microphone
signals, once digitized, can be easily duplicated and sent to multiple locations,
using a single o-the-shelf Cat-5 Ethernet cable. Now, an expensive and bulky
microphone splitter can be replaced by a couple of low-cost S16 digital stage
boxes, and running separate FOH and monitor consoles is within reach of even
the most modest production.

This is an example for using 2 consoles and 2 stage boxes (possible are up
to 3 per AES50 port) in a monitor/FOH setup:

1. Connect the AES50 A port on the rst S16 to the AES50 A port on the X32
on-stage console via Cat-5.

7. On the FOH X32 console, press the ROUTING switch next to the display.
OntheHOME tab select “AES50 A 1-8” as source for “Inputs 1-8”,
“AES50 A 9-16” for“Input 9-16”, and accordingly for channels 17-32.

8. To get the main out from the FOH back to one of the stage boxes to feed
the PA, the main outs of the console which are routed per default to OUT 15
and OUT 16 have to be routed through the on-stage X32 console. To achieve
this, select the AES50 A tab and set Out 1-8 to “OUT 9-16”. On the on-stage
console, choose the AES50 A tab and set Output 1-8 to ”AES50 B 1-8”.
TheMain Outputs of the FOH console are now available on the rst S16 on
OUT 7 and OUT 8 to connect your main PA system.

9. Ready to rock!

5.12 What kinds of Utilities are available?

The X32 console provides various utilities that make the console much easier
and more fun to use, while providing a great deal of exibility and power.
ExamplesInclude:

Channel Customization: Various input and output channels can have custom
colors, names, and icons assigned to them, which are then shown in the color
LCD screens located on each channel strip. Using these functions, you will always
know exactly what source and destination is tied to the channel, with no need
for board tape and sharpie pens. For example, an input channel could be labeled
“kick drum” while the channel for a mix output could be labeled “Joey’s monitor”.

• Press the SELECT button for a channel you wish to assign a custom label,

icon, and color for.

• Press the home key, then page right to the CONFIG page. You can also press

the VIEW button next to the LOW CUT pot to go to the CONFIG page.

• Press the UTILITIES button.

• Adjust the various encoders to selec t a color, icon, and type in a name for the

selected channel. The X32 also provides a long list of preset names for typical
input sources and output destinations, saving time and eort.

Copy/Paste: The X32 also provides a “copy and paste” function that allows you
to take settings you have congured for one channel, and copy those settings to
another channel.

• Press the SELECT button for a channel whose settings you wish to copy.

• Press the HOME button, then the UTILITY button.

• Press the 5th encoder to copy all settings of the selected channel into the

copy buer.

• Press the SELECT button for a channel who you wish to paste the settings into.

2. Connect the AES50 B port on the rst S16 unit to the AES50 A port on the
second S16 via Cat-5.

3. Connect the AES50 A port of the FOH X32 unit to the AES50 B port of the
on-stage X32 via Cat-5.

4. Now the conguration of the monitor console has to be set. Keep in mind
that in this conguration, the on-stage console will be the one controlling
the input gains of the mic preamps, so a good and intensive soundcheck
should be done.

5. Press the ROUTING switch next to the display on the on-stage console.
On the HOME tab select “AES50 A 1-8” as source for “Inputs 1-8”,
“AES50A9-16” for “Input 9-16”, and accordingly for channels 17-32.

6. To route the channels through the on-stage console to the FOH console,
switch to the AES50 B page and set “Output 1-8” to “AES50 A 1-8”,
“Output9-16” to “AES50 A 9-16”, etc.

• Adjust the rst encoder to select which aspects of the channel you wish to

copy from the source channel (i.e. the one in the paste buer).

• Press the 6th encoder to “paste” the copied settings into the currently

selected channel.

Store / Load Presets: The X32 allows you to save and load presets of channel
settings, as well as settings made in the internal eects processor. These stored
settings can later be recalled as needed. Since the stored les can also be stored
and recalled to an attached USB drive, this means that you can save your favorite
channel settings and eects on one console, and then quickly and easily recall
and use them on a completely dierent X32 console.

• Press the SELECT button for a channel whose settings you wish to store.

• Press the HOME button, then the UTILITY button.

• Press the 3rd encoder to store all settings of the selected channel. A new

screen will appear where you can apply a custom name to the saved preset.

31 X32 DIGITAL MIXER Preliminary User Manual

• To load a preset from the UTILITIES screen, adjust the rst encoder to selec t

which aspects of the selected channel you wish to recall, then press the 2nd
encoder. A conrmation screen will pop-up, asking you to conrm you wish
to load a preset to the currently selected channel. Use the page lef t/right
buttons to conrm or cancel.

• Press the LIBRARY button to go straight to the “libraries” screen, where you

can scroll through a list of stored preset libraries.

• Use the 5th and 6th encoders to import/export presets to/from an attached

USB drive.

5.13 How do I set up a Matrix for a delay
column/toweror a remote zone mix?

The X32 console oers 6 separate “Matrix” outputs that allow an extra level
of functionality when routing any of the 16 mix buses out of the console.
TheseMatrix outputs are particularly useful when working with separate “zones”
of speakers, such as a delayed group of speakers in an alternate location.

1. Press the SELECT button for a mix bus you wish to assign to a matrix output.

2. Page right to the SENDS page, where you can adjust the 6 encoders to
send the selected mix bus to the 6 matrix outputs, at the desired levels.
Alternatively use the controls in the BUS SENDS section.

3. When sending a group of mix outputs into a matrix send, you may wish
to adjust where in the signal path the insert point for a mix output occurs,
andalso re-congure the order that the mix output’s EQ and compressor
occurs. To adjust these setting, press the SELECT button for the desired mix
output, and on the HOME screen that appears, use the 3rd and 4th encoder
to adjust these settings.

4. Press the MATRIX button on the console, then press the SELECT button on
the rst output fader. The main screen will display settings for the matrix
1output allowing you to do all your EQ and dynamics settings for this bus.

In general, time alignment is very important in larger venues, because when
groups of speakers are placed at varying distances to the audience, the sound
from them arrives at the listener’s ears at dierent times. By applying a digital
delay to the speakers that are CLOSER to the listeners, it has the result of delaying
the sound to align it, in time, with the sound from further speakers whose
signal take longer to reach the listener. By performing this “time-alignment”,
thelive sound mix from the dierent speakers are presented as a more clear and
cohesive audio signal, without the comb-ltering or anging sound you might
otherwiseexperience.

5. To attach an output to the matrix you have set up, press the ROUTING
button, then page right to the ANALOG OUT page, then use the 1st and 4th
encoders to assign the matrix output to your rear-panel analog output of
choice. Adjust the amount of delay if necessary with the 6th encoder for each
outputindividually.

5.14 Using the X32 in recording and
production studioenvironments

While the X32 is primarily targeted at a live sound environment, it also can work
as an extremely full-featured and power ful studio console as well.

• The console contains extremely clean and detailed microphone preamps,

allowing you to capture up to 32 separate microphones for recording even a
very large ensemble.

• High-end analog to digital converters for each channel preserve the audio

quality as it is recorded to assorted DAW software.

• With the X32’s built-in XUF card, individual channels of audio can be sent,

inthe digital domain, to a studio DAW computer, using USB 2.0 and/or
Firewire. With this card, the X32 becomes the “world’s biggest computer
audio interface” allowing up to 32 channels of microphones to be sent into
the DAW software, while at the same time allowing up to 32 individual
channels of DAW tracks to return back to the console for mixing “out of
thebox”.

• With the X32’s full recall of all preamp and monitor settings, the console

makes a great solution for the modern home and projec t studio, where
multiple projects are worked on in “stages” and previous settings need to
be quickly and easily recalled. For example, if a band returns the following
week to pick up where they lef t o, a single “load project ” command can
return the console to exactly where it left o, in terms of mic gain set tings
for the dierent instruments, as well as various dierent monitor mixes for
the dierent performers.

• With its onboard MIDI ports, the X32 console can work as a large-format

control surface for many popular DAW platforms. The X32’s motorized faders
can control the onscreen DAW faders, while each channel’s mute and solo
buttons can control their onscreen counterparts. This makes it possible
to quickly work with the ner nuances of a DAW mix, much better than
adjusting channel levels one at a time with the mouse.

• Since the X32 console works with the aordable S16 digital stagebox,

thecombined system makes a great solution for routing audio signals
between a separate studio and control room. The S16 and various Ultranet
personal monitor mixers can be set up in the studio, while the console
itself is set up in the control room. A single Cat-5 Ethernet cable is all that
is needed to connect the 16-32 channels of audio from 1-2 S16 boxes and
all of the Ultranet mixers, a much better alternative than a thick, noisy,
andexpensive analog snake. In more modern homes and apartments
that have Cat-5 cabling running through the walls as part of a pre-built
“structured wiring” package, the S16/Ultranet mixers and X32 console can
even be set up in dierent rooms, with no need to run a long cable or leave
any doors partiallyopen!

6. In some situations, you may wish to create a matrix mix that is actually a
mix of some output buses and the main LR output. To do so, simply press
the SELECT button above the master fader, then press the HOME button,
thenpage right to the SENDS page. On the SENDS page you can tap the signal
from the main LR bus and send it to the 6 matrix outputs, the same way you
have with any of the 16 mix outputs.

32 X32 DIGITAL MIXER Preliminary User Manual

5.15 Remote control

The X32 hosts an Ethernet port on its rear panel which can be used to connect
and remote control it over a network via the XiControl on an iPad or the X-remote
application on a PC. To be able to do this the X32 has to be set up properly.

• Press the SETUP button next to the screen.

• Go to the Network tab.

• Use encoder 1 to choose between IP address, Subnet mask and Gateway.

Adjust the address elds with the encoders 2-5 and assign the selected
numbers with encoder #6.

• Set an IP address which ts your network, normally 192.168.0.X.

The IP address should be free within the network.

• Set your subnet mask according to your network,

normally255.255. 255.0

• Set your gateway, if required.

Now get your iPad or remote PC into the same network and open the X-Remote.

PC:

• On the X-remote, choose setup on the right side and the network tab.

Enter the IP address of the X32 in the network and press connect.

• If the software has connected to the X32 you can also synchronize them

in 2 directions. Console -> PC means all settings in the X32 will be
loaded into the X-Remote. PC -> Console means that all settings in the
X-Remote will be written to the console.

XiControl:

• For the XiControl remote, open the program on your iPad (make sure the

iPad is connected to the same network as the console).

• On the startup screen, a popup should appear. Enter the IP of the

console, press “Go Online”, et voilà: you are connected and can control
the X32 with your iPad.

Remarks:

Due to the FAT format of the stick, the le size will be limited to 2 GB, which is
about 3 hours of stereo recording. Please test the recording capability of your USB
device before you do the “real stu” as some sticks may not be suppor ted or be
too slow. We also recommend you defragment your USB device prior to recording.
The recording will be done as 16-bit WAV le with the selected sample frequency
of the console.

Please also note that it is possible that the specications of USB storage devices
may be changed by the manufacturer without any change in physical appearance
or notication.

5.17 Saving and recalling scenes

Follow the steps below to save and recall scenes in the console, allowing dierent
congurations to be recalled at a later time.

• Adjust all settings of the console so that all elements of the mix are

asdesired.

• Press the “view” button located in the top panel’s “Scenes” section. The Main

Display will show various controls for saving and recalling console scenes.

• Press the rotary control labeled “save” to save the console’s current

conguration to the next available empty scene and label it with a
customname.

• Adjust the console to the next desired conguration, and repeat the process

above as needed, saving additional scenes to additional empty slots.

• To recall a scene, use the “prev” and “next” buttons, located in the top

panel’s Scenes section, to navigate the scene list to the desired scene on the
Main Display.

• When the desired scene is highlighted in the scenes list on the Main Display,

press the red “GO” button and the console will switch to the highlighted
scene. All console parameters will switch to the state they were in when
saved to the scene that was just recalled.

5.16 Recording a 2-track directly with
theconsole

The X32 oers the possibility to record a 2-track of your mix (or any other
selection of signals) directly onto a USB-stick /external USB hard disk:

• Plug a FAT-formatted (FAT12, FAT16, FAT32) USB stick into the USB port

next to the main display.

• Press the VIEW button next to the USB port and the home screen of the

recorder will show up with a nice emulation of an old tape deck.

• On the cong tab you can select the source for the recording, default is

main L and R.

• Press RECORD (encoder #5) to record your mix.

• To adjust the volume during playback, press the AUX IN / USB FX RETURN

button next to the fader section and adjust the volume with the AUX
7/8faders.

33 X32 DIGITAL MIXER Preliminary User Manual

6. XUF FireWire400/

USB Interface Operation Guide

Host system requirements for XUF FireWire/USB
interface expansion card

Check the BEHRINGER website at behringer.com for updates of XUF rmware
or system requirements. Please nd the recommended hardware/software
minimum congurations in the specications section.

The BEHRINGER XUF High-Performance 32-Channel
24-Bit FireWire/USB Audio Interface

The XUF card provides 32 channel, bi-directional audio I/O via FireWire 400 and
USB 2.0 to Mac or Windows PC. The simultaneous 32-in, 32-out audio channels
enable extremely powerful studio and live applications. You can run virtual live
sound checks or 32-track high-quality studio recordings, whileat the same time
remote operating your DAW via HUI/MackieControl emulation. Thehigh speed
24-bit signal transmission and ultra-low latency ASIO drivers and CoreAudio
compatibility even allow inserting audio plugins on your PC to perform advanced
outboard processing.

FireWire/USB

After the console has fully booted up, you can access the Setup/Card screen to
view the current channel count conguration. Use this screen to determine
whether the FireWire or the USB interface is to be used, and if the maximum
channel count is set appropriately.

6.1 Conguring the XUF card for use in
theconsole

The console will automatically detect the XUF card during the regular boot cycle,
and it will display the card’s presence in several instances.

The green square in front of “C: XUF” indicates that the card is installed and
working properly.

34 X32 DIGITAL MIXER Preliminary User Manual

32 in / 32 out

This mode obviously allows the full potential of the interface to be tapped.
Notethat the computer needs to be able to handle that amount of concurrent I/O
stream without any glitches. Depending on its speed and memory conguration,
someoptimization for audio recording might be required.

It is also possible to run a vir tual sound check of all 32 input channels by recording
them directly to a computer during a brief line check. The performers can leave
the stage while you play back the recorded instruments from the hard drive and
tweak the sound accordingly.

STANDARD MODE: When console channel inputs are set to Card,
channelGaincontrol will be a digital trim for the inter face card signal only,
without access to any head amp. Please consider this if you intend to pass all
signals through a connected PC for plug-in processing. A compromise can be to
run only 24channels (3 blocks of 8) through the PC via XUF and use the remaining
block of 8 channels to access the head amps.

The Card outputs may use any of the available sources in the console
(local or AES50) for recording independently.

35 X32 DIGITAL MIXER Preliminary User Manual

16 in / 16 out

If you don’t actually need more than 16 concurrent input and output tracks to
be exchanged between the console and your PC, then this mode might be more
appropriate for you. First, it will slow the required bandwidth on the inter face
down. Second, there will be no excessive I/O tracks in your DAW conguration
that might clutter your setup. Third, it allows you to run a fully-featured
zero-latency overdub setup, which would be impossible if signals were run

through the computer. In this case, the 16 input signals are put on channels
1-16, whilethe tape (card) returns are put on channels 17-32. The monitoring is
directly fed from Ch1-16 as usual, including all processing and eects. It remains
independent from any computer audio latency, even though you can hear back all
the recorded tracks without any repatching.

32 in / 8 out

This mode is tailored to suit a typical studio and overdub recording situation,
withmany input channels but only a few output channels for monitoring of
previously recorded takes.

8 in / 32 out

This is a useful mode for utilizing the excellent audio engine and eects
processing of the console during nal mixdown of your project. All 32 tracks
would be fed from your DAW into the console where all the magic happens.
Thenonly 2-8 tracks of the complete mixdown would be sent back to the DAW.

36 X32 DIGITAL MIXER Preliminary User Manual

6.2 Conguring the PC to Interface
withtheXUF Card

Please watch behringer.com for further advice on the software conguration of
XUF interface card.

WINDOWS: There is an ASIO high-performance driver available for

download, which is essential for low-latency audio on
Windows computers.

MACOS: The XUF is CoreAudio compatible and thus work s with

low-latency on Mac computers without any additional
driverinstallation.

The 'Devices' screen displays the card name and serial number. You can rename
the card if necessary.

Windows ASIO Driver

Download the X32 ASIO driver installer les from behringer.com. There is one
zip archive for USB and one for FireWire driver installation. Unpack the one you
intend to use, or both, on your local hard drive. Double-click on Setup.exe in the
corresponding unpacked folder and follow the instructions on the screen.

Driver Control Panels

Once the driver is installed, you can open the control panel by double-clicking on
the small tray icon. These screens will allow conguring the XUF expansion card
in the X32 as an audio interface for your computer.

The 'Input Channels' screen allows you to name each input channel for more
organized mixing.

37 X32 DIGITAL MIXER Preliminary User Manual

The 'Output Channels' screen allows you to name each output channel for more
organized mixing.

The 'Synchronisation' screen allows manual selection of the sample rate and
clocksource.

38 X32 DIGITAL MIXER Preliminary User Manual

The 'Settings' screen allows the stream, ASIO, and WDM sound buers to be set.
Any detected drop outs will be documented as well, in which case a larger buer
should be selected.

6.3 XUF Specications

Expansion Card Features:

Interface MIDI

IEEE1394/FireWire 1 in x 1 out 32, 16 or 8 32, 16 or 8

HighSpee d USB 2.0 1 in x 1 out 32, 16 or 8 32, 16 or 8

DAW remote contr ol Generic, HUI and Mackie Control emulation (via USB or FireWire)

Expansion Card Performance Modes (Channels):

Interface Minimum round-trip latency

IEEE1394/FireWire <7 ms*

HighSpee d USB 2.0 <12 ms *

* depends on system performance and application

Recommended Minimum Hardware:

Windows PC - Core 2 Duo CPU, 2 GHz

- USB 2.0 or IEEE1394 FireWire 400 port

- 1 GB RAM

Mac - 1.5 GHz CPU

- USB 2.0 or IEEE1394 FireWire 400 port

- 512 MB RAM

Audio input channels
24-Bit, 4 4.1/48 kHz

Audio output channels
24-Bit, 4 4.1/48 kHz

Recommended Operating Systems:

Windows: XP 32-Bit SP2 or higher, Win7 32-bit, Win7 64-bit

(XUFASIO drivers supplied)

MacOSX: 10.5 Leopard, 10.6 Snow Leopard,

10.7 Lion (CoreAudio compatible)

TIP: When using XUF under Mac OS and FireWire, the CoreAudio engine might
not always display the XUF as a MIDI interface automatically. In case you wish to
use the DAW remote control feature via FireWire, we recommend doing a manual
scan from the AUDIO/MIDI Setup dialog.

39 X32 DIGITAL MIXER Preliminary User Manual

7. X32 Main Display

7.1 Overview

7.1.1 Display and Navigation Controls

The controls in this section are used in conjunc tion with the color screen, in order
to navigate and control the graphical elements it contains.

By including dedicated rotary controllers that correspond to adjacent controls on
the screen, as well as including cursor buttons, the user can quickly navigate and
control all of the color screen’s elements.

Color Screen: This color screen contains various displays that give visual
feedback for the operation of the console, and also allow the user to make various
adjustments not provided for by the dedicated hardware controls.

Rotary Encoders: These six rotary encoders are used to adjust various color
screen elements located directly above them. Each of the six rotary encoders
can be pushed inward to activate a button press function. This function is useful
when controlling color screen elements that have a dual “on/o” type state that
is best controlled by a button, as opposed to a variable state that is best adjusted
by a rotary control.

Screen selection buttons: These 8 illuminated buttons allow the user to
immediately navigate to any of 8 master screens that address dierent sections
of the console. The 8 sections that can be navigated to with these buttons are:

1. Home

7.1. 2 Console Screens

The color screen of the X32 oers a wealth of visual feedback and hands
on control for the console. Whereas the dedicated top panel controls oer
immediate hands-on adjustments for the most important operations of a
channel, the color screens oer similarly immediate visual feedback for a selected
channel, as well as more global areas of the console.

The screens are divided into three main areas:

1. Global Screen Elements

2. Main Display

3. Rotary Encoder Elements

2. Meters

3. Routing

4. Setup

5. Library

6. Eects

7. Mute Group

8. Utility

Page Select Buttons: These two buttons allow for left-right navigation among
the dierent “pages” contained within a screen set. A graphical tab display shows
which page you are currently on.

Layer Up/Down Buttons: On some screens, there are more parameters present
than can be adjusted by the 6 encoders underneath. In these cases, use the layer
up/down buttons to navigate through any additional layers contained on the
screen page.

L/R Meter: This dual 24-segment meter displays the audio signal level output
from the main bus of the console.

M/C SOLO Meter: This dual 24-segment meter displays the audio signal level
output from the mono bus of the console. When one or more channels are
currently soloed, the meter switches to displaying the level of the currently
soloed signal(s).

40 X32 DIGITAL MIXER Preliminary User Manual

01:

01

0:00 - 0:00

B: - C: XUF

: 37

14:11

Global Screen Elements

Ch01

FatSnare

OpeningScene

01 15:33

02: next 0:00 - 0:00

home

cong

gate dyn eq sends main

A: S16 A: 48K
B: - C: XUF

The “global” screen elements are located at the top of the screen, laid out in a
horizontal row. They always remain visible no matter what specic screen the
user has currently navigated to, because they displays console parameters that
are always important to keep in view at all times.

These screen elements include, from lef t to right:

Channel Indicator: Displays various elements of the currently
selected,including:

1. The number of the specic input or output channel that is currently selected

2. The custom channel name (if one has been assigned)

3. Channel color (if one has been assigned)

4. Channel icon (if one has been assigned)

Show Indicator: This number, presented in a large orange colored font,
displaysthe currently loaded show.

Scene Name/Number: Thus number, displayed in a smaller black colored font,
indicates the number of the currently loaded scene.

USB Recorder File: Displays the name of the active le that is currently being
recorded or played back.

: 15

AES50-A: Displays, by name, what AES50 based equipment is connected to the
console’s AES50-A port. The green LED lights solid when a valid AES50 connection
is present.

AES50-B: Displays, by name, what AES50 based equipment is connected to the
console’s AES50-B port. The green LED lights solid when a valid AES50 connection
is present.

Word Clock/Sample Rate Indicator:

1. Displays the current sample rate of the console.

2. The green LED illuminates when a valid internal or external clock is present.

3. Displays the current source of the clock:

• L: Internal Clock

• A: AES50 port A

• B: AES50 port B

• C: XUF

Clock: Displays the current time of day in hours:minutes:seconds.

Main Content

home gate dyn eq sends main

clip

-6

48V

-12

Reverse

-18

-24

-30

Link Lo Cut

-36

-42

+0.0

-48

-54

Gain

cong

Insert Position

Delay

0.3

0.10

0.03

Delay

t

Pre PostIns

ft
m
ms

In

Source
OFF
Input 01

2.0

dB

Lo Cut

Hz

Input 02
Input 03
Input 04
Input 05
Input 06

The main content of the screen is displayed in the middle of the screen and is
divided up into dierent sections of information, depending on the specic
screen being shown at any given time.

Information shown in the main content portion of the screen consists of
twotypes:

1. Display-only content: This type of content is a visual indication only and
cannot be adjusted by the user. An example would be the graphical response
curve of an equalizer or the response graph of a compressor.

2. Adjustable content: Content that displays an adjustable parameter,
controlled by a dedicated top-panel control. For example, the “home” tab of
the “home” screen displays a knob graphic for input gain (trim). This control
is adjustable by turning the dedicated “gain” control on the top panel of the
console, in the Channel Strip section of the top panel.

Insert
OFF
InsFX 1L
InsFX 1R
InsFX 2L
InsFX 2R
InsFX 3L
InsFX 3L

The most important information for any screen category will be located on it’s
“home” page. However, most screens contain alternate pages of information that
are also useful. They are represented by dierent “tabs” that can be seen towards
the top of the screen. Each tab is named to describe the functions it represents.
Navigate to these alternate tabs by pressing the Page Select left and right keys.

41 X32 DIGITAL MIXER Preliminary User Manual

Rotary Encoder Elements:

Lo Cut

Lo Cut

20

Hz

Source
Input

Select

Delay

Delay

Ins Pos

0.3

ms

PRE

Insert

Link

Gain

+0.00

dB

The bottom of most screens contain 6 slots of information that are always paired
with the 6 hardware rotary encoders located directly underneath each slot.
Thehardware encoders are used to adjust parameters displayed in these slots,
and operate in the following manner:

1. Parameters displayed in the top half of each slot are most often “continuous”
type parameters, and are adjusted by rotating the corresponding encoder
located directly below the bottom of the screen.

• For example, in the “home” tab of the Home screen, the “gain”

parameter of the selec ted input (located in slot 1) is adjusted with the
rst encoder.

7.1. 3 Navigation Methods

Following is an overview of how to navigate to the dierent console screens,
screen tabs, and sets of encoder parameters.

1. Press any of the assorted “View” but tons on any section of the console
top panel to switch the screen to the content that is tied to those
hardwarecontrols.

Insert

InsF

Connect

2. Parameters displayed in the bottom half of each slot (outlined in dark grey)
are most often “on/o” style parameters, and are adjusted by pushing the
encoder inward, using it as a button.

• For example, in the “home” tab of the Home screen, the “link”

parameter of the selec ted input (located in slot 1) is adjusted with the
rst encoder’s push action.

3. If a given screen contains more parameters than ts into the 6 slots, thena
2nd set of slots is made available. Navigate to the next set of slots by
pressing the Layer down key, and the bottom-of-screen content will change
to display the next set of 12 parameters to be adjusted. Press the Layer up
key to return to the original set of 12 parameters.

2. Alternatively, press any of the eight hardware buttons located to the right­hand side of the screen to switch the screen to eight other areas that are not
covered by the assorted “View” buttons.

3. On any given screen, press the Page Select left/right keys to navigate among
the various screen “tabs” within a screen category.

4. On any given screen, press the Layer up/down keys to navigate among the
various sets of encoder parameters located at the bottom of each screen.

Dedicated Screens

The eight screens described in the following section are all “dedicated” screens.
They are accessed by pressing one of the eight dedicated buttons located to the
right of the screen itself. This is in contrast to the “View” based screens, whichare
navigated to by pressing the “View” button in various sections of the console
toppanel.

42 X32 DIGITAL MIXER Preliminary User Manual

7. 2 Home Screen

The home screen contains a high-level overview of the selected input or output
channel, and oers various adjustments not available through the dedicated
top-panel controls:

The home screen contains the following separate tabs:

1. Home: General signal path for the selected input or output channel

2. Cong: Allows selection of signal source/destination for the channel,

conguration of insert point, and other settings

3. Gate: Controls and displays the channel gate eect beyond those oered by

the dedicated top panel controls

4. Dynamics: Controls and displays the channel dynamics eect (compressor)

beyond those oered by the dedicated top panel controls

5. EQ: Controls and displays the channel equalizer eec t beyond those oered

by the dedicated top panel controls

6. Sends: Controls and displays for channel sends, such as sends metering and

send muting

7. Main: Controls and displays for the selected channel’s output

7.2 .1 Home Screen: Home Tab

The home tab of the home screen displays a general signal path for the currently
selected input or output channel. It visually displays various parameters of the
input, gate, insert point, equalizer, dynamics, output path, and buses.

The home tab contains the following parameters (divided into t wo pages)
thatcan be adjusted using the six rotary-push encoders.

Page 1

1. Adjust the 1st encoder to control the input gain (trim) of the channel.

2. Tap the 1st encoder to link the channel with its adjacent channel.

3. Adjust the 2nd encoder to set the threshold of the channel noise gate.

4. Tap the 2nd encoder to toggle the channel noise gate in/out of the
signalpath.

5. Adjust the 3rd encoder to toggle the channel’s insert point between
pre-fader and post-fader status.

6. Tap the 3rd encoder to toggle the channel insert in/out of the signal path.

7. Adjust the 4th encoder to toggle the channel dynamics between pre-EQ and
post-EQ status.

8. Tap the 4th encoder to toggle the channel EQ in/out of the signal path.

9. Adjust the 5th encoder to set the threshold of the channel compressor.

10. Tap the 5th encoder to toggle the channel compressor in/out of the
signalpath.

11. Adjust the 6th encoder to pan the selected channel within the main
stereooutput.

12. Tap the 6th encoder to assign the selected channel to the main
stereooutput.

Page 2

1. Adjust the 1st encoder to select the console channel currently controlled by
the home screen.

2. Tap the 1st encoder to toggle +48V phantom power on/o for the currently
selected input.

3. Tap the 2nd encoder to toggle phase ip on/o for the currently
selectedchannel.

4. Adjust the 3rd encoder to select which of the 8 DCA groups the currently
selected channel will be assigned to.

5. Tap the 3rd encoder to assign the currently selected channel to the selected
DCA group.

6. Adjust the 4th encoder to select which of the 6 mute groups to assign the
currently selec ted channel to.

7. Tap the 4th encoder to assign the currently selected channel to the selected
mute group.

8. Tap the 5th encoder to toggles solo on/o for the currently selec ted channel.

9. Adjust the 6th encoder to adjust the fader level for the currently
selectedchannel.

10. Tap the 6th encoder to toggle mute on/o for the currently selected channel.

43 X32 DIGITAL MIXER Preliminary User Manual

7.2.2 Home Screen: Cong Tab

The conguration tab allows selection of signal source/destination for the
channel, conguration of inser t point, and other settings, as well as conguration
of the channel delay.

The cong tab contains the following parameters that can be adjusted using the
six rotary-push encoders:

1. Adjust the 1st encoder to control the input gain (trim) of the channel.

2. Tap the 1st encoder to allow linking of the channel with adjacent channel.

3. Adjust the 2nd encoder to set the low-cut frequency of the channel.

4. Tap the 2nd encoder to toggle the low-cut lter in/out of the signal path.

5. Adjust the 3rd encoder to scroll among all of the possible sources for
thechannel.

6. Tap the 3rd encoder to select the currently highlighted source and assign it
to the channel.

7. Adjust the 4th encoder to set the amount of digital line delay applied to
thechannel.

*Note – this is not an echo eec t

8. Tap the 4th encoder to toggle the delay in/out of the signal path.

9. Adjust the 5th encoder to toggle the channel insert between pre and post
EQ/compressor.

10. Tap the 5th encoder to toggle the channel inser t in/out of the signal path.

11. Adjust the 6th encoder to scroll among the signal path choices for the
insertpoint.

12. Tap the 6th encoder to assign the selected signal path to the insert point.

7.2 .3 Home Screen: Gate Tab

The gate tab displays all aspects of the channel noise gate and allows for very
deep control of the gate eect. Whereas the top panel’s dedicated gate section
allows control of the gate’s threshold and in/out status, the gate tab oers many
more controls. This tab can also be accessed direc tly by pressing the “View”
button in the top panel Gate section.

The gate tab contains the following parameters, divided among two pages,
thatcan be adjusted using the six rotary-push encoders:

Page 1

1. Adjust the 1st encoder to set the input threshold of the gate.

2. Tap the 1st encoder to toggle the noise gate in/out of the signal path.

3. Adjust the 2nd encoder to set the range of a “ducking” eect applied to
thechannel.

4. Tap the 2nd encoder to toggle the ducker eect in/out of the signal path.

5. Adjust the 3rd encoder to set the attack time of the onset of the noise
gateeect.

6. Adjust the 4th encoder to set the hold time of the noise gate eect.

7. Adjust the 5th encoder to set the release time of the noise gate,
controllinghow quickly the gate opens up and lets the signal through.

Page 2

1. Encoders 1 and 2 function the same on pages 1 and 2.

2. Adjust the 4th encoder to set the frequency of the key lter that can be used
to trigger the noise gate.

3. Tap the 4th encoder to toggle the key lter on/o, allowing a specic
frequency to control the gate.

4. Adjust the 5th encoder to set the steepness of the EQ slope used in the
keylter.

5. Tap the 5th encoder to send the key source to the solo bus, allowing the key
source to be monitored and evaluated.

6. Adjust the 6th encoder to select the specic key source to be used.
Choicesinclude “self” (the channel’s own signal) as well as any other
input/output of the console.

7. Tap the 6th encoder to assign the selected key source to the gate.

44 X32 DIGITAL MIXER Preliminary User Manual

7.2 .4 Home Screen: Dynamics Tab

The dynamics tab displays all aspects of the channel compressor and allows for
very deep control of the eect. Whereas the top panel’s dedicated compressor
section allows control of the threshold and in/out status, the compressor tab
oers many more controls. This tab can also be accessed directly by pressing the
“View” button in the top panel Dynamics section.

The dynamics tab contains the following parameters that can be adjusted using
the six rotary-push encoders:

Page 1

1. Adjust the 1st encoder to set the input threshold of the compressor.

2. Tap the 1st encoder to toggle the compressor in/out of the signal path.

3. Adjust the 2nd encoder to set the ratio of the compressor.

4. Tap the 2nd encoder to switch the channel dynamics eect between
compression and expansion.

5. Adjust the 3rd encoder to set the attack time of the compressor eect.

6. Tap the 3rd encoder to switch the compressor bet ween Peak and RMS
(root-mean-squared) mode, where the average level of the signal is
evaluated more than any specic peak of the channel material.

• PEAK: A peak sensing compressor responds to the instantaneous level

of the input signal. While providing tighter peak control, peaksensing
might yield very quick changes in gain reduction, more evident
compression, or sometimes even distortion. This mode is very suitable
for control/limiting of dynamic material.

• RMS: In this mode, the compressor applies an averaging function on the

input signal before its level is compared to the threshold. Thisallows
a more relaxed compression that also more closely relates to our
perception of loudness. Sharp dynamic transients will be less aected in
this mode. This mode is good for controlling levels in a mix.

7. Adjust the 4th encoder to adjust the “hold” time of the compressor.

• “Hold” time is a parameter not often found on commercial units, but is

very handy. If a compressor is set to use a very fast attack/release time,
audible distortion can occur, because the compressor is trying to work
on individual waveform cycles of the signal instead of sound envelope
as a whole. The “hold” parameter works around this issue by providing
a short delay. This delay prevents the compressor from releasing until a
certain time has passed.

• Linear: In this mode, the rate of gain change is constant (as set by the

timing controls). Therefore, the greater the signal dynamic excursion,
the longer the compressor will take to complete a gain change.
Also,since the total time that the compressor spends in attack or decay
is proportional to the size of the gain excursion, the harmonic content
of the compression artifacts will seem to reduce in frequency content.
The louder the signal excursion is. This type of compressor is useful
for generating dynamic sound eects because the sonic character of
the compression is much more aected by time control settings and
program material than the exponential type.

9. Adjust the 5th encoder to set the release time of the compressor.

10. Adjust the 6th encoder to set the makeup gain of the compressor,
usefulwhen the compression eect has reduced the overall signal level of
the channel too much.

Page 2

1. Encoders 1 and 2 function the same on pages 1 and 2.

2. Adjust the 3rd encoder to set the steepness of the compressor “knee”
between ve separate settings. Adjust this control to switch between a
“harder” sounding or more transparent compression eect.

3. Tap the 3rd encoder to move the compressor eect before or after the
equalizer in the channel signal path.

4. Adjust the 4th encoder to set the frequency of the key lter that can be used
to trigger the compressor.

5. Tap the 4th encoder to toggle the key lter on/o, allowing a specic
frequency to control the compressor.

6. Adjust the 5th encoder to set the steepness of the EQ slope used in
thecompressor.

7. Tap the 5th encoder to send the key source to the solo bus, allowing the key
source to be monitored and evaluated.

8. Adjust the 6th encoder to select the specic key source to be used.
Choicesinclude “self” (the channel’s own signal) as well as any other
input/output of the console.

9. Tap the 6th encoder to assign the selected key source to the compressor.

8. Tap the 4th encoder to switch between Linear and Logarithmic modes for the
compressor. Following are some brief denitions of these dierent modes:

• LOG: This mode is used in many well-respected compressors and is the

natural result of more recent analogue units employing logarithmic
side chains and resistor/capacitor time constants. The exponential/
dB law has some interesting characteristics. Firstly, the time taken to
complete a compression event tends to stay the same however large
the dynamic signal excursion is. Also, since the peak rate of gain change
increases with dynamic excursion, the resulting harmonic content due
to compression tends to follow the loudness of the program in a way
the ear expects. This helps to mask the eects of the compression and
thus provides the most forgiving solution, being tolerant to diering
timing settings and program material. This makes it the best choice
for general compression use and overall dynamic control of complex
musical program.

45 X32 DIGITAL MIXER Preliminary User Manual

7.2 .5 Home Screen: EQ Tab

The EQ tab displays all aspects of the channel equalizer and also displays a
detailed visual graph of the current EQ curve. This tab can also be accessed
directly by pressing the “View” button in the top panel Equalizer section.

1. If the currently selected channel is an input, the channel equalizer contains
four bands, with various aspects of each band adjusted by encoders 2-5.

2. If the currently selected channel is a bus, the channel equalizer contains six
bands, with various aspects of each band adjusted by encoders 1-6.

3. On the equalizer screen, the various encoders are always tied to the various
equalizer bands, and the Layer up/down keys are used to toggle whether the
four/six encoders adjust:

• Gain

• Frequency

• Q (Bandwidth)

• Equalizer Mode

Page 1 (Gain)

1. Adjust the 1st encoder to set the frequency of the channel low-cut lter.

2. Tap the 1st encoder to toggle the low-cut lter in/out of the signal path.

3. Adjust the 2nd encoder to boost/cut the gain of the low band.

4. Adjust the 3rd encoder to boost/cut the gain of the low-mid band.

5. Adjust the 4th encoder to boost/cut the gain of the high-mid band.

7.2 .6 Home Screen: Sends Tab

The sends tab displays and controls all aspects of the channel sends to the sixteen
mix buses. Compared to the dedicated top panel send controls, this screen
oers additional functions such as send muting and simultaneous metering of
the selected channel’s sixteen sends. This tab can also be accessed directly by
pressing the “View” button in the top panel sends section.

The sends tab contains the following parameters that can be adjusted using the
six rotary-push encoders:

Page 1

1. Adjust the 1st encoder to set the level for the rst send of the currently
selected four-send group.

2. Tap the 1st encoder to mute the rst send of the currently selected
four-sendgroup.

3. Repeat process with the next three encoders for the other three sends in the
currently selected four-send group.

4. Adjust the 6th encoder to select which four sends to control with the screen
encoders, shifting focus two sends at a time.

5. Tap the 6th encoder to select which four sends to control with the screen
encoders, shifting focus four sends at a time.

Page 2

1. Adjust the 1st encoder to select where in the signal chain the send is
tapped from, for the rst two sends of the currently focused four sends.
Optionsinclude:

6. Adjust the 5th encoder to boost/cut the gain of the high band.

7. Tap the 6th encoder to toggle the EQ in/out of the signal path.

Page 2 (Frequency)

1. Works as above, but the encoders now adjust the frequency center points for
the dierent EQ bands.

Page 3 (Q)

1. Works as above, but the encoders now adjust the Q (bandwidth) for the
dierent EQ bands. Use a narrow slope for working with a specic frequency,
or use a more broad slope for general tone shaping.

Page 4 (Mode)

1. Mode: Works as above, but the encoders now adjusts the EQ mode for each
EQ band. Choices include:

• Low Cut

• Low Shelf

• Parametric Equalizer

• VEQ

• High Shelf

• High Cut

• Pre-EQ

• Post-EQ

• Pre-Fader

• Post-Fader

• Sub-Group

2. Adjust the 3rd encoder to perform the same operation for the second two
sends of the currently focused four sends.

3. Adjust the 6th encoder to select which four sends to control with the screen
encoders, shifting focus two sends at a time.

4. Tap the 6th encoder to select which four sends to control with the screen
encoders, shifting focus four sends at a time.

7.2 .7 Home Screen: Main Tab

The main tab displays and controls all aspects of the main bus assignments.

The main tab contains the following parameters that can be adjusted using the
six rotary-push encoders:

1. Adjust the 1st encoder to pan the selected channel within the main
stereooutput.

2. Tap the 1st encoder to assign the selected channel to the main stereo output.

3. Adjust the 2nd encoder to adjust the level of the currently selected channel
within the mono (center) bus.

4. Tap the 2nd encoder to assign the selected channel to the mono output
signal path. Use this function when craf ting an LCR mix as opposed to a
mono or stereo mix.

5. Tap the 5th encoder to solo/unsolo the currently selected channel.

6. Adjust the 6th encoder to set the fader level for the currently selec ted channel.

7. Tap the 6th encoder to mute/unmute the currently selected channel.

46 X32 DIGITAL MIXER Preliminary User Manual

7. 3 Meters Screen

The meters screen displays dierent groups of level meters for various signal
paths of the console, and is useful for quickly ascertaining if any channels need
level adjustment. Since there are no parameters to adjust for the metering
displays, none of the metering screens contain any “bottom-of-screen”
controlsthat would normally be adjusted by the 6 rotary encoders.

The meter screen contains the following separate screen tabs, each containing
level meters for the following signal paths:

1. Channel:

• Level meters and fader levels for the 32 input channels

• Gate response meters for the 16 input channels

• Gain reduction meters for the 16 input channels

2. Mix Bus:

• Level meters, fader levels, and gain reduction meters for the

16busmasters

• Level meters, fader levels, and gain reduction meters for the

6matrixoutputs

• Level meters, fader levels, and gain reduction meters for the stereo

main bus and the mono bus

3. Aux/FX:

• Level meters for the 6 auxiliary sends

• Level meters and fader levels for the 8 auxiliary returns

• Level meters and fader levels for the 4 stereo eects returns

4. In/Out:

• The 32 input channels

• The 8 auxiliary returns

• The 6 auxiliary sends

• The two rear panel digital outputs

• Monitor outputs

• The 16 rear panel analog outputs

• The P16 Ultranet outputs

47 X32 DIGITAL MIXER Preliminary User Manual

7.4 Routing Screen

The routing screen is where all signal patching is done, allowing you to route
internal signal paths to and from the physical input/output connectors located on
the console’s rear panel.

The routing screen contains the following separate tabs:

1. Home: Allows patching of physical inputs to the 32 input channels and
Auxinputs of the console.

2. Analog Out: Allows patching of internal signal paths to the console’s
16 rear-panel XLR outputs.

3. Aux Out: Allows patching of internal signal paths to the console’s
6 rear-panel ¼"/RCA auxiliary outputs.

4. P16 Out: Allows patching of internal signal paths to the 16 outputs of the
console’s 16-channel P16 Ultranet output.

5. Card Out: Allows patching of internal signal paths to the 32 outputs of the
XUF card.

6. AES50-A: Allows patching of internal signal paths to the 48 outputs of the
rear panel AES50-A output.

7. AES50-B: Allows patching of internal signal paths to the 48 outputs of the
rear panel AES50-B output.

None of the routing screen's tabs contains a secondary level of encoder functions.
When routing audio, the Layer up/down keys do not need to be used.

7.4 .1 Routing Screen: Home Tab

The routing screen’s home tab allows the user to patch the console’s physical
rear-panel inputs to the 32 input channels and Aux inputs of the console.

As a default, the console maps the console’s 32 rear-panel analog inputs to their
the respective 32 channel inputs that are accessed on input fader layers one
and two, and maps the rear panel line-level (auxiliary) inputs to the third input
faderlayer.

However, the home tab of the routing screen can be used to change this
default assignment and “crosspatch” dierent physical inputs to dierent
channel inputs, in banks of 8 channels at a time. This allows the user to create a
custom layout of channel inputs that diers from the order that the sources are
plugged into the rear panel, and is easier than physically re-patching physical
audiocables.

To assign various inputs to the console’s input channels, perform the
followingsteps:

1. Adjust the rst rotary encoder to selec t which 8-channel audio input
source feeds input channels 1-8 of the console. As the encoder is rotated,
thecurrently selected input will be highlighted in the vertical list of choices.

2. When the desired 8-channel source is selected, push the 1st encoder to
“connect” the currently selected 8-channel source. The selected source now
feeds input channels 1-8 of the console.

3. Input choices that can be assigned include:

• Local 1-8

• Local 9-16

• Local 17-24

• Local 25-32

• AES50-A 1-8

• AES50-A 9-16

• AES50-A 17-24

• AES50-A 25-32

• AES50-A 33-40

• AES50-A 41-48

• AES50-B 1-8

• AES5 0-B 9 -16

• AES50 -B 17-24

• AES50-B 25-32

• AES50-B 33-40

• AES50- B 41-48

• Card 1-8

• Card 9-16

• Car d 17-24

• Card 25-32

4. To assign an 8-channel source for the other input channels of the console
(9-16, 17-24, 25-32), simply repeat the process above, usingthe other four
rotary encoders on the same screen.

5. Choices for Aux In 1-4 include:

• Aux 1-4

• Local 1-4

• AES50-A 1-4

• AES50-B 1- 4

• Card 1-4

48 X32 DIGITAL MIXER Preliminary User Manual

7.4 . 2 Routing Screen: Analog Out Tab

The routing screen’s analog out tab allows the user to patch the console’s various
internal signal paths to the 16 analog XLR outputs that are located on the console
rear panel.

The X32 console allows for many dierent kinds of output signal paths, and this
screen is where these output paths are assigned to an actual physical rear panel
output so that the signal path can be patched to their eventual destination
(suchas the front-of-house PA speakers or a powered stage monitor).

To assign the various output paths to the rear panel XLR outputs, perform the
following steps:

1. Adjust the 1st encoder to select which of the 16 rear panel analog outs you
wish to assign an output signal path to.

2. Adjust the 3rd encoder to select an output path “category”.
These categories include:

• O

• Main (LRC) Mix

• Mix Bus Outputs

• Matrix Outputs

• Direct Outs

• Monitor

3. Adjust the 4th encoder to select a specic output path, including:

5. Adjust the 5th encoder to select the signal tap point for the output
assignment. This determines where in the audio signal path the source is
“tapped” as it is sent to the physical rear panel output. The available signal
tap points include:

• Input

• Pre-EQ

• Pre-Fader

• Post-Fader

6. Tap the 5th encoder to assign the selected signal tap point.

7. Adjust the 6th encoder to adjust the amount of digital line delay applied to
the output path as it is sent to the rear-panel physical output. As the amount
of delay is adjusted, the current delay time is displayed in three dierent
units of measurement: Feet, Meters, and Milliseconds.

8. Tap the 6th encoder to toggle delay on/o. The “delay” label illuminates
when the delay is inserted into the signal path.

TIP: Applying a delay to an output signal is typically done when the console
is used in a “multi-zone” P.A. speaker setup, where some PA speakers are
located near the stage and a second set of speakers are located further back
within the audience. By applying an appropriate amount of delay only to
the speakers located near the stage, the audience hears the audio from the
closer/further speakers at the same time, insuring maximum time-alignment
and sound quality. The console assumes an operating temperature of 20°C/68°F
whencalculating the delay times.

• O

• Main L

• Main R

• Main C/M

• Any of the 16 Mix Outputs

• Any of the 6 matrix outputs

• Any of the 32 direct outputs

• Any of the 8 Auxiliary Outputs

• Any of the FX Direct Outputs

• Monitor L

• Monitor R

• Talkback

4. Tap the 4th encoder to assign the selected output path,
completing the process.

7.4 . 3 Routing Screen: Aux Out Tab

The route screen’s aux out tab allows the user to patch an internal signal
path (such as a mix output used as an eects send) to the 6 separate ¼"/RCA
auxiliaryoutputs.

Since these six outputs can have a wide variety of signal paths assigned to them,
they can be used for a wide variety of tasks, such as:

1. Feeding an external eects processor when the internal eects
areinsucient

2. Patching a specic console signal path into an outboard recorder

3. Feeding the analog or digital audio inputs of a nearby video recorder

To make an assignment as described above, perform the following steps:

4. Adjust the 1st encoder to select which auxiliary outputs to assign a source
for. Choices include:

• Aux Out 1

• Aux Out 2

• Aux Out 3

• Aux Out 4

• Aux Out 5

• Aux Out 6

• AES/EBU (Digital) Out L

• AES/EBU (Digital) Out R

49 X32 DIGITAL MIXER Preliminary User Manual

5. Adjust the 3rd encoder to select for coarse range

• Insert

• Main (LRC)

• Mix Bus

• Matrix

• Direct Out

• Monitor

6. Adjust 4th encoder to select specic signal path to feed the selected physical
output. Choices include:

• Insert Point

• Main L

• Main R

• Main C/M

• Any of the 16 Mix Outputs

• Any of the 6 matrix outputs

• Any of the 32 direct outputs

• Any of the 8 Auxiliary Outputs

• Any of the FX Direct Outputs

7.4.4 Routing Screen: P16 Tab

The routing screen’s P16 tab allows the user to route various console signal paths
to the rear panel P16 Ultranet output. The Ultranet output allows for 16 channels
of audio to be sent, in digital form, to various accessories such as a personal
monitoring distribution box.

Using the P16 routing screen, the user can congure the P16 output to carry not
only the main LR mix, but also various audio “stems” of program material sources
from a bus send mix, such as a stereo drum mix, stereo keyboards, guitars,
bass, vocals, etc. Musicians on stage would then be free to each craft their own
personal mix of these musical stems, all delivered from the FOH position to stage
over a single Ethernet cable.

To select which audio signals are sent to the P16 bus, perform the followingsteps:

1. Adjust the 1st encoder to select which of the 16 channels in the P16 bus you
wish to select an audio source for.

2. Adjust the 3rd encoder to select a category of audio source to send to the
currently selec ted P16 channel. These categories include:

• Insert

• Main (LRC)

• Mix Bus

• Matrix

• Direct Out

• Monitor L

• Monitor R

• Talkback

7. Tap the 4th encoder to assign the selected output path,
completingtheprocess.

8. Adjust the 5th encoder to select the signal tap point for the output
assignment. Choices include:

• Input

• Pre-EQ

• Pre-Fader

• Post-Fader

9. Tap the 5th encoder to complete the signal tap point assignment.

• Monitor

3. Adjust the 4th encoder to select which specic signal path to feed to the
currently selected P16 output. Choices include:

• O

• Main L

• Main R

• Main C/M

• Any of the 16 Mix Outputs

• Any of the 6 matrix outputs

• Any of the 32 direct outputs

• Any of the 8 Auxiliary Outputs

• Any of the FX Direct Outputs

• Monitor L

• Monitor R

• Talkback

4. Tap the 4th encoder to assign the selected output path,
completing the process.

5. Adjust the 5th encoder to select the signal tap point for the output assignment.
This determines where in the audio signal path the source is “tapped” as it is
sent to the P16 output. The available signal tap point sinclude:

• Input

• Pre-EQ

• Pre-Fader

• Post-Fader

6. Tap the 5th encoder to complete the signal tap point assignment.

50 X32 DIGITAL MIXER Preliminary User Manual

7.4 . 5 Routing Screen: Card Output Tab:

The routing screen’s card tab allows the user to patch various signal paths to
the physical inputs and outputs of the XUF card. The XUF’s signal path provides
32channels of inputs and 32 channels of outputs. The 32 card inputs can be used
as alternate sources for the two input fader layers, switchable in banks of 8.

To assign an output path to the option card, perform the following steps:

1. Adjust the 1st encoder to select which 8-channel output path to send to the
rst 8 outputs of the card. Choices include:

• Local 1-8

• Local 9-16

• Local 17-24

• Local 25-32

• AES50-A 1-8

• AES50-A 9-16

• AES50-A 17-24

• AES50-A 25-32

• AES50-A 33-40

• AES50-A 41-48

• AES50-B 1-8

• AES5 0-B 9 -16

• AES50 -B 17-24

• AES50-B 25-32

• AES50-B 33-40

• AES50- B 41-48

• Card 1-8

• Card 9-16

• Car d 17-24

• Card 25-32

• Out 1-8

• Out 9 -16

• P16 1-8

• P16 9-16

• Aux 1-6/Mon

2. Tap the 1st encoder to assign the selected output path,
completing the process.

7.4 . 6 Routing Screen: AES50-A and AES50-B Tabs:

The routing screen’s AES50-A and AES50-B tabs allow the user to patch various
console output paths to the outputs of the dual AES50 connectors. These AES50
connectors can feed other AES50 equipped devices such as a digital stagebox or
standalone multi-track recorder.

The console contains two separate AES50 connectors, an “A” connector and a
“B” connector. These dual connectors allow for an increased level of exibility in
networking the console with various AES50 based equipment.

Each of the two AES50 screens contains the same following sets of parameters
that can be adjusted. To assign various console signal paths to the AES50
connectors, perform the following steps:

1. Adjust the 1st encoder to select an 8-channel signal path that will be sent to
the rst 8 channels of the AES50 connectors output. Choices include:

• Local 1-8

• Local 9-16

• Local 17-24

• Local 25-32

• AES50-A 1-8

• AES50-A 9-16

• AES50-A 17-24

• AES50-A 25-32

• AES50-A 33-40

• AES50-A 41-48

• AES50-B 1-8

• AES5 0-B 9 -16

• AES50 -B 17-24

• AES50-B 25-32

• AES50-B 33-40

• AES50- B 41-48

• Card 1-8

• Card 9-16

• Car d 17-24

• Card 25-32

• Out 1-8

• Out 9 -16

• P16 1-8

3. Repeat the process with encoders 2-4 to select output paths for the other
24channels of card outputs.

• P16 9-16

• Aux 1-6/Mon

2. Tap the 1st encoder to connec t the currently selected signal path to the
AES50 pathway.

3. Repeat the above process for the other ve sets of 8-channel AES50 outputs.

The AES50-B tab works exactly the same as the AES50-A screen, but instead
selects sources sent to the output of the console’s AES50-B connector.

51 X32 DIGITAL MIXER Preliminary User Manual

7. 5 Setup Screen

The setup screen oers various controls for global, high-level functions of
the console such as display adjustments, sample rates and synchronization,
usersettings, and network conguration.

The setup screen contains the following separate tabs:

1. Global: This screen oers adjustments for various global preferences of how
the console operates.

2. Cong: This screen oers adjustments for sample rates and synchronization,
as well as conguring high-level settings for signal path buses.

3. Remote: This screen oers dierent controls for setting up the
console as a control surface for various DAW recording sof tware on a
connectedcomputer.

4. Network: This screen oers dierent controls for attaching the console to a
standard Ethernet network.

5. DCA Groups: This screen oers controls for various aspects of the console’s
DCA groups.

6. Card: This screen selects between the USB and FireWire connectors, and also
selects the input/output conguration.

None of the setup screen’s tabs contain a secondary level of encoder functions,
sothe Layer up/down keys do not need to be used for these screens.

7.5 .1 Setup Screen: Global Tab:

7.5 . 2 Setup Screen: Cong Tab:

The setup screen’s cong tab allows adjustment of various audio-related settings,
such as the console’s base sample rate and use of an internal or external digital
clock. It also oers choices for high-level global settings for how signal path
buses operate.

To adjust the various settings of the cong tab, perform the following steps:

1. Adjust the 1st encoder to select between Console, Show Data, and Libraries
for initialization.

2. Tap the 1st encoder to initialize the console back to its factory state.

• An “are you sure” message will appear. Use the left Page Select key to

cancel out of the operation, or the right key to conrm the operation
and initialize the console.

3. The console’s current rmware is displayed in the rst column of the main
color screen.

• If/when a rmware update is available for the console, the user simply

needs to download the new rmware le to the root level of a USB
thumb drive, attach the thumb drive to the console, and then reboot.
The console will see the rmware le and an update will be done
automatically while booting.

4. Adjust the 2nd encoder to select the digital sample rate of the console.
Choices include:

• 48 kHz

The setup screen’s global tab allows the user to adjust various global controls of
the console, such as display brightness and contrast, the panning mode used by
channels, text languages, and more.

1. To make adjustments in the global screen, perform the following steps:

2. Adjust the rst encoder to select various console settings for pop-up
messages and assorted preferences.

3. Tap the 1st encoder to turn the currently selected set ting on/o.

4. Adjust the 2nd encoder to select settings for linking multiple
consolechannels.

5. Tap the 2nd encoder to turn the currently selected setting on/o.

6. Adjust the 3rd encoder to set the console’s panning mode, which aects how
channel panning is performed in the stereo eld. The two choices are:

• LR + Mono: This is the default mode of the console. In this mode,

channels can be panned between the left and right mix outputs, as well
as assigned to the separate mono mix bus. In this mode, the Center/
Mono bus is not aected by from the pan control.

• LCR enable: In this mode, the signal is panned from Left over Center

to Right. This behavior is emulated by the faders on the Main tab,
abehavior that is more intuitive than on other consoles. Note that in
this mode, the denition of “mono” changes since the setup is no longer
mono, but rather a setup consisting of Left-Center-Right.

7. Adjust the 4th encoder to set the brightness of the various LED lights of the
console, from a range of 1-100.

• 44 .1 kH z

5. Tap the second encoder to assign the currently selected sample rate.

Tip: Note that the sample rate of the console will be the same sample rate for
any audio recorded to the onboard stereo USB recorder, as well as the sample
rate output by the AES/EBU connector that may get patched into an outboard
recorder. Thus, it is often benecial to select a sample rate that is appropriate for
the medium that recorded audio will eventually be used on.

If the program material being recorded is audio only, with no video component,
then it usually makes sense to set a sample rate of 44.1 kHz. This will ensure that
any audio recorded is compatible with the 44.1 kHz sample rate of commercial
audio CDs.

If the program material being recorded is audio that is meant to accompany
video, then it usually makes sense to set a sample rate of 48 kHz. This will ensure
that any audio recorded is compatible with the 48 kHz sample rate of the various
audio formats used on a video DVD.

6. Adjust the 3rd encoder to set the word clock synchronization of the
console to use its internal digital clock, or slave to an external digital clock.
Choicesfor the clock signal include:

• Internal clock

• External clock from the AES50-A port

• External clock from the AES50-B port

• XUF card

8. Adjust the 5thth encoder to set the brightness of the color screen
(maindisplay), from a range of 1-100.

9. Adjust the 6th encoder to set the brightness of the individual LCD screens
(channel display) above each input and output channel, from a range
of1-100.

52 X32 DIGITAL MIXER Preliminary User Manual

Note that the graphics at the top of the screen will always display a green led
when the console has achieved proper “digital lock”, from either its own internal
clock or a valid external clock.

7. Tap the 4th encoder to cycle through the dierent settings for the console’s

internal date and time settings.

8. Adjust the 4th encoder to set the value for the currently selected

date/timesetting.

9. Adjust the 5th encoder to select the console’s “Bus Pre-Conguration”.

Thissettings allows the mix bus outputs to be congured in various
combinations of:

• Pre-fader, variable output auxiliary sends

• Post-Fader, variable output auxiliary sends

• Fixed-output sub groups

10. Choices include:

• 8 pre-fader auxiliary sends, 8 post-fader auxiliary sends,

and no sub-groups

• 8 pre-fader auxiliary sends, 4 post-fader auxiliary sends,

and 4 sub-groups

• 6 pre-fader auxiliary sends, 4 post-fader auxiliary sends,

and 6 sub-groups

• 4 pre-fader auxiliary sends, 4 post-fader auxiliary sends,

and 8 sub-groups

• 10 pre-fader auxiliary sends, 6 post-fader auxiliary sends,

and 0 sub-groups

11. Tap the 5th encoder to assign the currently selected conguration.

As the conguration is selected, a display on the right-hand side of the color
screen changes to show the currently selected conguration.

7.5.3 Setup Screen: Remote Tab:

The setup screen’s remote tab allows setting up the console as a control surface
for various DAW recording software on a connected computer. With its large
complement of motorized faders, the console can act as an excellent controller
for various DAW software, allowing the user to make level adjustments quickly
and easily without using a mouse.

To adjust the various remote settings, perform the following steps:

1. Tap the 1st encoder to enable the console’s top panel Remote button.
Thisswitches various console hardware, such as the bus faders, tocontrol
computer DAW software instead of the console’s internal audiopath.

2. Adjust the 2nd encoder to select the specic control surface protocol used,
inconjunction with the target DAW software. Choices include:

• Mackie Control: Use this protocol to control any DAW software that is

compatible with a Mackie Control hardware control surface.

• HUI: Use this protocol to control any D.A.W. software that is compatible

with a HUI hardware control surface, such as Pro Tools.

3. Tap the 2nd encoder to assign the currently selected control surface protocol.

4. Adjust the 5th encoder to select whether the remote function uses the MIDI
In and OUT jacks or the XUF card's MIDI.

5. Tap the 5th encoder to conrm the selection.

6. Adjust the 6th encoder to adjust various MIDI-based operations for the
console. Choices include:

• MIDI In/Out: This toggles the MIDI input and outputs for the console

on/o.

• Card MIDI: Allows MIDI transmission through the XUF card.

• USB In/Out: This toggles the console’s USB ports on/o.

• RTP (Real-time Transport Protocol): This toggles on/o the console’s

ability to interface with an Ethernet-based MIDI system.

• Enable MIDI scene recall: This toggles on/o the console’s response to

incoming MIDI messages for switching console scenes.

7. Tap the 6th encoder to toggle the currently selected MIDI option
on/o. Thiscan be useful if you want to ensure that any connected MIDI
transmitters cannot interfere with the console.

7.5 . 4 Setup Screen: Network Tab:

The setup screen’s network tab contains settings used when connecting the
console to a standard Ethernet network. The user can set parameters such as
using a xed IP address or having one assigned, as well as setting up the Ethernet
and subnet mask settings.

To set the network address for the console, perform the following steps:

1. Adjust the 1st encoder to select which specic network eld to adjust.
Choices include:

• IP Address

• Subnet Mask

• Gateway

2. Adjust encoders 2, 3, 4, and 5 to set the 4 numerical elds to be adjusted,
forthe selected network eld.

3. Tap the 6th encoder to assign the adjusted settings.

53 X32 DIGITAL MIXER Preliminary User Manual

7.5.5 Setup Screen: DCA Tab

The setup screen’s DCA tab allows setup of the console’s digitally controlled
ampliers grouping feature, also known as DCAs.

A DCA group is a grouping function, made possible by the console’s digital
operation, where individual input channels can be grouped together and
controlled with a single output fader on the right-hand side of the console.
Unlikethe traditional sub grouping function found on analog consoles,
aDCA group does not combine the dierent input channels into a common
sub-mix. Instead, the individual input channels still retain their original routing
characteristics, but their level adjustments are all commonly controlled. On the
DCA screen, the user can make useful adjustments such as assigning real names
to the DCA groups (such as “drums” or “background vocals”), as well as assigning
colors to them that are then reected in the console’s multicolor channel
LCDscreens.

To adjust the various DCA settings, perform the following steps:

1. Adjust the 1st encoder to select which of the eight DCA groups you wish
toedit.

2. Tap the 1st encoder to enter the “edit” page for the currently highlighted
DCA, where its color, icon, and name can be adjusted.

On the DCA edit page, perform the following steps:

1. Adjust the 1st encoder to set the color for the currently selec ted DCA group.

• The selected color will be shown in the LCD screen above the selected

DCA’s output fader, on the right hand side of the console. For example,
if DCA#5 is assigned the color red, the LCD screen above output fader #5
will illuminate in red.

2. Adjust the 2nd encoder to select the graphical icon for the DCA. A large
variety of clip-art is available to represent various input sources and
outputdestinations.

3. Adjust the 3rd encoder to select a name from a list of common preset names
(snippets), for the currently selec ted DCA groups.

4. Tap the 3rd encoder to assign the currently highlighted preset text (snippet)
to the DCA.

5. Adjust the 4th encoder to move the text entr y cursor forward/backward,
inthe DCA’s name eld.

6. Tap the 4th encoder to issue a “backspace” command, deleting the currently
highlighted character.

7. Adjust the 5th encoder to select a letter, number, or symbol to enter into the
DCA’s name eld

8. Tap the 5th encoder to insert the currently highlighted letter, number,
orsymbol into the DCA's name eld.

9. Adjust the 6th encoder to selec t whether the text entry choices oer capitals,
normal characters, or numbers and symbols.

10. Tap the 6th encoder to exit the DCA editing page, and save the current
parameters to the DCA.

54 X32 DIGITAL MIXER Preliminary User Manual

7.6 Libraries Screen

The libraries screen allows loading and saving of commonly used setups for the
channel inputs, eects processors, and routing scenarios.

The libraries screen contains the following separate tabs:

1. Channel: This tab allows the user to load and save commonly used

combinations of the channel DSP eects.

2. Eects: This tab allows the user to load and save commonly used eects

processor presets.

3. Routing: This tab allows the user to load and save commonly used signal

routings they have set up.

7.6 .1 Libraries Screen: Channel Tab

The library screen’s channel tab allows you to load and save commonly used
combinations of the channel DSP eects. For example, once you have dialed in
a combination of equalization and compression that works well for a particular
singer, you can save the channel DSP chain as a preset for later recall.

To adjust the various settings on the channel tab, perform the following steps:

1. Adjust the 1st encoder to navigate among which specic elements of

the input channel can be recalled when loading an input channel preset.
Choicesinclude:

• Head Amp (Microphone Preamplier)

• Conguration

9. Tap the 6th encoder to export the currently highlighted preset to an
attached USB drive.

• When the 6th encoder is tapped, an “Export Preset to

USBdriveappears”.

• Adjust the 1st encoder to scroll among the currently available

presets to export, then tap the rst encoder to select the currently
highlightedpreset.

• Adjust and tap encoders 4-6 to apply a custom name to the preset as it

is exported.

• Tap the 2nd encoder to cancel out of the export operation.

7.6 . 2 Libraries Screen: Eects Tab

The library screen’s eects tab allows you to load and save presets for the various
onboard eects processors.

To adjust the various settings on the FX tab, perform the following steps:

1. Adjust the 1st encoder to navigate among which of the eight eects slots to
load or save a preset.

• As you navigate among the eight eects slots, the specic eect

processor loaded into each slot will display on the screen as both a name
and icon.

2. To save and load presets, as well as import/export them, follow the same
procedures as detailed in the Libraries Screen: Channel Tab

• Gate

• Compressor

• Equalizer

• Sends

2. Tap the 1st encoder to turn the currently selected element on/o in the
recalllist.

3. Adjust the 2nd encoder to scroll among a list of input channel presets.

4. Tap the 2nd encoder to load the currently highlighted preset and make it
active on the currently selected console channel.

5. Adjust the 3rd encoder to scroll among a list of channel preset slots to save
the current state of the currently selected console channel.

6. Tap the 3rd encoder to save the currently selected channel’s state, to the
currently selected preset slot.

• When the 3rd encoder is tapped, a preset naming screen appears.

Adjustand tap encoders 4-6 to apply a custom name to the preset
before saving it, then tap the 6th encoder to complete the save process.

7. Tap the 4th encoder to delete a preset from the currently highlighted
presetslot.

8. Tap the 5th encoder to import a preset from an attached USB drive.

• When the 5th encoder is tapped, an “import preset from USB”

screenappears. Adjust the 1st encoder to navigate among the contents
of the USB drive, and then tap the 1st encoder to selec t the currently
highlighted preset folder.

7.6 . 3 Libraries Screen: Routing Tab

The library screen’s routing tab allows you to load and save presets of the
console’s signal routings. This can be useful for repeating specic routing
scenarios that occur over and over on a regular basis, such as when using the
console for a weekly club gig or worship service.

To adjust the various settings on the routing tab, perform the following steps:

1. Adjust the 1st encoder to navigate among which specic console signal paths
will be recalled when loading a routing preset. Choices include:

• Channel Inputs

• Analog Out

• Auxiliary Out

• P16 (Ultranet) Out

• Card Out

• AES50 Out

2. Tap the 1st encoder to turn the currently selected element on/o in the
recalllist.

3. To save and load presets, as well as import/export them, follow the same
procedures as detailed in the Libraries Screen: Channel Tab.

• When the preset le has been imported, tap the 2nd encoder to leave

the screen.

55 X32 DIGITAL MIXER Preliminary User Manual

7.7 Eects Screen

The eects screen controls various aspects of the eight internal eects
processors. On this screen, the user can select specic types of eects for
the eight internal eec ts processors, congure their input and output paths,
monitortheir levels, and adjust the various eects parameters.

The home screen contains the following separate tabs:

1. Home: The home screen provides a general overview for all eight eects
processors, displaying what eect has been inserted in each of the eight slots,
as well as displaying input/output paths for each slot and the I/O signal levels.

2. FX1-8: These eight duplicate screens display all relevant data for the eight
separate eects processors, allowing the user to adjust all parameters for
the selected eect.

7.7.1 Eects Screen: Home Tab

The eects screen’s home tab provides a high-level overview of the eight eect
processor slots, giving the user “at-a-glance” feedback on what eects they
have assigned to the slots, the console source and destination for each processor,
andthe input/output levels for each processor.

To make adjustment on the eects screen’s home tab, perform the
followingsteps:

1. Adjust the 1st encoder to select the input source for the currently highlighted
eect block. Signal path choices include:

• Insert Send

• Mix Bus 1-16

2. Tap the 1st encoder to assign the currently selec ted input source.

3. Adjust the 2nd encoder to select the input source for the right side of the
currently highlighted eect block.

4. Tap the 2nd encoder to assign the currently selected input source.

TIP: To congure an eect as mono input and stereo output, set both input
sources to the same signal path.

5. Adjust the 5th encoder to scroll among the dierent available audio eects.
Choices include:

1. Hall Reverb 14. Rotary Speaker 27. Dual Enhancer

2. Plate Rever b 15. Tremolo/Panner 28. Stereo Enhancer

3. Vintage Reverb 16. Delay & Ch amber 29. Dual Exciter

4. Vintage R oom 17. Chorus & Chambe r 30. Ster eo Exciter

5. Ambience 18. Flanger & Chamber 31. Stereo Imager

6. Gated Reve rb 19. Delay & Chorus 32. Dual Gui tar Amp

7. Reverse Reverb 20. Delay & Flanger 33. Stereo Gui tar Amp

8. Stereo De lay 21. Dual Graphic EQ 34. Dual Tube Stage

9. 3-tap delay 22. Ste reo Graphic EQ 35. Stereo Tube Stage

10. Stereo chor us 23. Dual TruEQ 36. Dual Pitc h

11. Stereo Flanger 24. Stereo TruEQ 37. Ste reo Pitch

12. Stereo Phaser 25. Wave Designer

13. Mood Filter 26. Precision Limiter

6. Tap the 5th encoder to assign the selected eect to the currently highlighted
eects slot.

7. Adjust the 6th encoder to scroll among the eight eects slots, to select one
for editing.

8. Tap the 6th encoder to go to the edit page for the currently highlighted
eects slot.

7.7. 2 Eects Screen: FX 1-8 Tabs:

The eect editor tab allows you to edit the parameters for the specic eect
processor assigned to the corresponding eects slot.

In order to more closely simulate the look and feel of the outboard processors
that are no longer necessary with a digital console, the individual eects
processor screen provides a graphical representation of the eect processor’s real
world physical counterpart. This provides greater ease of use to the user than a
simple text list of parameters.

To make adjustment on the FX screen’s editing tab, per form the following steps:

1. Adjust the six rotary encoders to change the various eect parameters
shown at the bottom of the screen.

2. Use the Layer up/down buttons to switch the rotary encoders to a second
set of parameters for eects that contain more than six adjustable
parameterstotal.

3. When the eect processor has been edited to your satisfaction, push the 6th
encoder to go back to the FX home tab (or simply resume the mixing duties
in general).

4. See the FX Descriptions chapter for details on specic parameters.

TIP: For the Graphic EQ eects, tap the 1st encoder to implement the “Graphic EQ
on Faders” function. This allows you to boost-cut the dierent EQ bands using the
8 console output faders, 8 faders at a time, with the relevant EQ bands displayed
on the channel LCD screens.

56 X32 DIGITAL MIXER Preliminary User Manual

7.8 Mute Group Screen

The mute group screen allows for quick assignment and control of the console’s
6mute groups, and oers t wo separate functions:

1. It mutes the active screen during the process of assigning channels to mute
groups. This ensures that no channels are accidentally muted during the
assignment process during a live performance.

2. It oers an additional interface for muting/unmuting the mute groups in
addition to the dedicated mute group buttons at the bottom of the console.

When activated, the mute screen only covers the bottom portion of the
main display, allowing the middle portion to continue displaying its usual
screencontent.

To assign channels to one of the 6 mute groups, perform the following steps:

1. Press the Mute Group button to switch the main display to the mute
groupsview.

2. Press and hold the desired mute group button (1-6) on the lower right hand
corner of the console.

3. While holding the mute group button, press the select keys of any input or
output channel, on any layer, that you wish to assign to the mute group.

4. When you have assigned all the desired channels to the mute group,
releasethe dedicated mute group button. The individual channel mute
buttons will resume their normal function.

To use the mute groups screen to mute/unmute the groups, perform the
following steps:

1. Tap any of the six encoders to mute the corresponding group, and thus mute
all channels that are assigned to that mute group.

2. Tap the encoder of a currently muted group to “un-mute” the mute group.

3. When nished working with mute groups, tap the Mute Group screen button
to exit the mute groups screen. The entire screen will again display its full set
of controls for whatever page it was previously on.

57 X32 DIGITAL MIXER Preliminary User Manual

7.9 Utility Screen

The utility screen is a supplemental screen designed to work in conjunc tion
with the other screens that may be in view at any particular moment. The utility
screen is never seen by itself, it always exists in the context of another screen.

To reinforce this point, when the utility screen button is pressed, it illuminates at
the same time that another screen button is also illuminated, showing you which
screen it is providing extra utilities for. For most screens, pressing the utility
button simply acts as a shortcut to a page that can be navigated to by other
means. In a few cases, a utility page provides extra utility functions not seen
anywhere else.

The utility but ton works in the following manner with the other screens on
theconsole:

Channel Preamp Screen:

1. Home Page: Takes the user directly to the channel tab of the library screen.

2. Cong Page: Provides an interface for assigning a custom color, icon, and
name to the input or output channel.

• Adjust and tap the 6 encoders to assign a color, name, and icon to the

currently selec ted input or output channel. Tap the 6th encoder to exit
and save the changes.

• By assigning custom names to each channel, which are then displayed

in the channel LCD displays, the console achieves superior user­friendliness. For example, Input 1 can display “kick drum” and show a
kick drum icon, while output channel 5 can display “Tom’s monitor mix”
and show an icon of stage monitor.

3. All other pages: Takes the user directly to the channel tab of the
libraryscreen.

USB Screen: Takes the user directly to the “select folder” tab of the USB screen.

Monitor/Talkback Screens: There are no utility functions for any of the

dierent pages of the monitor screen.

Scenes Page: Provides an interface for copying, pasting, loading, and saving
dierent scenes in the scene list. Adjust and tap the six rotary encoders to
perform these functions.

Custom Screen: There are no utility functions for any of the dierent pages of
the custom screen.

Meters Screen: There are no utility functions for any of the dierent pages of
the meters screen.

Routing Screen: Takes the user directly to the routing tab of the library screen.

Setup Screen: There are no utility functions for any of the dierent pages of the

setup screen.

Library Screen: There are no utility functions for any of the dierent pages of
the library screen.

Eects Screen: Takes the user directly to the eects tab of the library screen.

58 X32 DIGITAL MIXER Preliminary User Manual

“View” Based Screens

The screens described in the following sections are all “View” based screens.
Theyare navigated to by pressing the “View” button in various sections of the
console top panel.

7.10 Monitor/Talkback Screens:

The monitor screen is selected by pressing the “View” button of the top panel’s
monitor section, as well as the “View” button of the top panel’s talkback section.
The screen controls various aspects of the console’s solo bus, control room
outputs, and talkback section.

The monitor/talkback screen contains the following separate tabs:

Monitor: This screen controls various solo options, dimming, speaker delay,
andsources for the control room output.

Talkb ack A: This screen controls various adjustments for the talkback A path
ofconsole.

Talkb ack B: This screen controls various adjustments for the talkback B path
ofconsole.

Oscillator: This screen oers various controls for the onboard oscillator and how
it is routed throughout the console.

7.10.1 Monitor/Talkback Screen: Monitor Tab:

The monitor tab controls various console options related to the solo bus, aswell
as the console’s control room outputs. These options include various solo
settings, speaker dimming, speaker delay, and selection of sources for the control
room output.

To adjust the various settings on the monitor tab, perform the following steps:

1. Adjust the 1st encoder to change the gain of the monitor signal. This digital

gain stage occurs as a rst preliminary level control, before the top panel’s
analog-based monitor level control. A display above the encoder shows the
currently set gain value in dB.

• A multi-segment level meter is displayed on the color screen to allow for

proper gain staging of the monitor signal.

• Mix Bus AFL/PFL: This toggles the AFL/PFL setting for the mix

buses when they are soloed (as opposed to the soloing of a single
inputchannel).

• DCA Group AFL: This puts the contents of a soloed DCA group into after-

fader listen mode when the solo button is pressed on a DCA channel.

• Use Master Fader: This allows the Main Fader/mute button to control the

solo/mon output.

3. Tap the 2nd encoder to select and assign the currently chosen solo option.

4. Adjust the 3rd encoder to adjust the amount of digital delay that is applied to
the control room signal path. The display on the screen will show the current
amount of delay in feet, meters, and milliseconds.

5. Tap the 3rd encoder to toggle the delay function on/o.

TIP: The delay function is useful for aligning the sound of audio monitored
through headphones or speakers used at the Front-of-House position with audio
that is coming from the stage location.

By delaying the control room audio, it can be brought into alignment with
the slightly delayed audio that has to travel from the stage to the Front of
Houseposition.

6. Adjust the 4th encoder to set the amount of volume reduction that occurs
when the control room bus has its “dim” function enabled. The amount of
volume reduction ranges from -40 dB to 0 dB (no change).

7. Tap the 4th encoder to toggle the dim function on/o.

8. Adjust the 5th encoder to adjust the volume trim for the source currently
feeding the control room bus, allowing it to be level/matched with other
sources. The amount of trim can be adjusted from -20 dB to +20 dB.

9. Tap the 5th encoder to toggle the control room between mono and stereo
operation. This is very useful in a studio context for checking how a mix
sounds when played back on a mono speaker such as a clock radio.

10. Adjust the 6th encoder to select what specic signal source to monitor in the
control room bus. Choices include:

• O (No source)

2. Adjust the 2nd encoder to scroll through the various solo methods
availableto the console when audio is routed to the solo bus.
Availableoptions include:

• Exclusive (Last): In this mode, pressing another solo but ton disengages

the previous solo.

• Solo Follows Select: When this method is selected, the audio of the

currently selec ted channel will automatically be sent to the solo bus.
Since a user will often select a channel to adjust its dedicated DSP
controls, this method is useful because the audio of the channel will
now already be feeding the solo bus where it can be monitored with
headphones in a live sound environment.

• Select Follows Solo: When this method is selected, any channel that is

soloed will automatically become the currently selected channel.

• Channel Solo AFL: With this method, the channel and select button do

not have any correlation to each other. When a channel’s solo button
is pressed, its audio is sent to the solo bus in “after-fader listen” mode,
reecting the current level of the channel fader and any channel DSP
that has been applied.

• LR Bus

• LR + C/M

• LR PFL (pre-fader listen solo bus)

• LR AFL (af ter-fader listen solo bus)

• Auxiliary returns 5/6

• Auxiliary returns 7/8

11. Tap the 6th encoder to activate the signal source that has been chosen.

59 X32 DIGITAL MIXER Preliminary User Manual

7.10. 2 Monitor/Talkback Screen: Talkback Tabs:

The talkback tabs oer various adjustments for the talkback paths of the console,
such as destination of the talkback signal and more.

To adjust the various settings on the Talkback A tab, perform the following steps:

1. The screen displays a multi-segment level meter showing the signal strength
of the talkback signal as it has currently been set. It also displays a multi­segment gain reduction meter, showing the user how much compression has
been automatically applied to the talkback signal to keep its level even to
the recipient.

2. Tap the 1st encoder to enable the talkback circuit. The internal/external
talkback microphone will now transmit audio to the Talkback A path’s
assigned destination.

3. Tap the 2nd encoder to switch the talkback circuit from the internal talkback
to the external microphone connector. A 2nd tap of the encoder switches the
console back to using the internal talkback microphone.

4. Adjust the 3rd encoder to set the gain of the talkback A signal. This is an
additional gain stage that follows the initial gain stage set by the top panel
Talk Level knob.

5. Tap the 3rd encoder to toggle on/o the talkback circuit’s “auto-dim”
function. This function is useful in a studio setting, and will automatically
dim the control room outputs when the talkback circuit is active.
Thisprevents a feedback loop from occurring between the talkback
microphone and the nearby studio monitors.

6. Adjust the 4th encoder to scroll through the various talkback destinations,
which include:

• Mix Bus 1-16

• LR Bus

• Center/Mono Bus

7. Tap the 4th encoder to activate any talkback destination when it is currently
selected. Multiple talkback destinations can be selected, allowing the
talkback signal to reach many destinations at the same time.

8. Tap the 5th encoder to toggle the dedicated top-panel talkback buttons
between latching and non-latching operation.

9. Adjust the 6th encoder to adjust the brightness of the lamp that is connected
to the console’s top-panel lamp connec tor.

7.10. 3 Monitor/Talkback Screen: Oscillator Tab:

The oscillator tab oers controls for the console’s onboard oscillator, a very handy
tool that can be used for setting up PA systems and testing various signal ow
paths without the need for a live source feeding a microphone. Settings include
oscillator type, frequency, volume, and routing destinations.

To adjust the various settings on the Oscillator tab, perform the following steps:

1. Adjust the 1st encoder to set the level of the onboard oscillator.

2. Tap the 1st encoder to toggle the onboard oscillator on/o.

• The color screen displays a multi-segment level meter that show the

current level of the oscillator.

3. Adjust the 2nd encoder to set the frequenc y of the primary
onboardoscillator.

4. Adjust the 3rd encoder to set the frequency of the alternate
onboardoscillator.

5. Tap the 3rd encoder to alternate between the 2 onboard oscillators.

6. Adjust the 4th encoder to select the type of oscillator to be used.
Choicesinclude:

• Sine Wave

• Pink Noise

• White Noise

7. Tap the 4th encoder to engage the selected oscillator type.

8. Adjust the 6th encoder to select a destination for the onboard oscillator.
Choices include:

• Mix Bus 1-16

• Main L Bus

• Main R Bus

• Main L+R Bus

• Main Center/Mono

• Matrix Outputs 1-6

9. Tap the 6th encoder to assign the selected oscillator destination.

10. Tap the 6th encoder to toggle the attached lamp on/o.

All controls for the talkback B tab work as described above, but pertain to the
talkback B signal path.

60 X32 DIGITAL MIXER Preliminary User Manual

7.11 USB Screen

The USB screen controls various aspects of the console’s onboard audio le
player/recorder, allowing the user to record stereo audio to an attached
USBdrive, as well as playback audio les from the drive through the console.

The USB screen contains the following separate tabs:

Home: This screen provides a general overview of the USB record/playback
interface.

Cong: This screen allows conguration of the various parameters associated
with recording to and playback from the USB drive, such as audio paths,
recordfolders, etc.

7.11.1 USB Screen: Home Tab:

The USB screen’s home tab provides a general over view of the recording/playback
process for audio les residing on the attached USB drive. It oers a basic set of
transport controls, as well as metering and a list of les available for playback.

To adjust the various settings on the USB screen’s home tab, perform the
following steps:

1. Tap the 1st encoder to stop playback of the audio le.

2. Tap the 2nd encoder to play back audio from the currently loaded audio le.

3. Tap the 3rd encoder to rewind the audio.

4. Tap the 4th encoder to fast forward the audio.

5. Tap the 5th encoder to record audio from the currently congured audio
path, to the attached USB drive.

6. Rotate the 6th encoder to select an audio track from the currently attached
USB drive.

7.11. 2 USB Screen: Conguration Tab

The conguration tab allows setting up all aspec ts of the stereo recorder. In this
screen, one can select audio paths to feed to the recorder and adjust the level of
incoming audio.

To adjust the various settings on the USB screen’s conguration tab, perform the
following steps:

1. Tap the 1st encoder to select a folder to save the recorded audio les to.

• A pop-up window appears, displaying all available folders on the

attached drive.

• Rotate the rst encoder to select an available folder.

• Tap the rst encoder to select the currently highlighted folder.

• Tap the 2nd encoder to select the folder and return to the

maininterface.

2. Rotate the 2nd encoder to adjust the input trim for the currently selected
channel of the stereo recorder. A stereo input meter on the lef t side of the
screen shows the current input level.

3. Tap the 2nd encoder to select the left or right input of the stereo recorder for
further conguration.

4. Rotate the 3rd encoder to select the category of input to feed to the currently
selected channel of the stereo recorder. Choices include:

• Main (LRC)

• Mix Bus

• Matrix

• Direct Out

7. Tap the 6th encoder to begin playback of the selected audio le.

A list of available audio les is displayed on the right hand side of the screen.
When the currently loaded track nishes playback, the next track in the list will
begin playback. This allows assorted audio tracks on the USB drive to be played
back in sequence and used as “break music” during a break in the band’s set.

The USB screen’s home tab also contains the following helpful displays:

• Stereo meter displays for the recorder input level

• Stereo output meters for the playback level of the le currently

playingback

• A list of available tracks on the attached USB drive

• Monitor

61 X32 DIGITAL MIXER Preliminary User Manual

5. Rotate the 4th encoder to select the specic signal source to feed the
currently selec ted channel of the stereo recorder. Choices include:

• Main L

• Main R

• Main C/M

• Any of the 16 Mix Bus Outputs

• Any of the 6 matrix outputs

• Any of the 32 direct outputs

• Direct Outputs Aux 1-8

• Any of the FX Direct Outputs

• Monitor L

• Monitor R

• Talkback

6. Rotate the 5th encoder to select the signal tap point that the selec ted audio
path is tapped from when feeding currently selected channel of the stereo
recorder. Choices include:

• Pre EQ

• Post EQ

• Pre-Fader

• Post-Fader

7. Tap the 6th encoder to toggle the “playback folder” mode on/o.

• When playback folder mode is OFF, the transport will stop after playing

the currently selected audio le. This is useful for situations like
triggering audio cues or sound eects in a theatrical setting.

• When playback folder mode is ON, the transpor t will continue playing

back all audio les residing in the currently selec ted folder one by one.
This is useful for playing back several songs during a break in the main
set, allowing the attached USB drive to act as a source for “break music”.

62 X32 DIGITAL MIXER Preliminary User Manual

7.12 Assign Screen

The assing screen allows setup for the 4 user-assignable rotary encoders and
eight user-assignable buttons. Using this screen, the console operator can assign
3 sets of 12 custom controls to be available for adjustment at all times.

The assign screen contains the following separate tabs:

Home: This screen provides a general overview of the 12 assigned controls for all
three control sets at the same time.

Set A: This screen allows assignment of dierent console parameters to the
12custom controls for set A.

Set B: Works as described above but for custom controls set B.

Set C: Works as described above but for custom controls set C.

7.12.1 Assign Screen: Home Tab

The assign screen’s “home” tab provides a visual overview of the 12 assigned
controls for all three sets at the same time.

The home tab oers visual feedback of the controls that have been assigned to
all three sets of custom controls, without having to bank between the three sets
one-by-one or relying on the abbreviated syntax shown in the custom control’s
dedicated LCD displays.

To adjust the various settings on the home tab, perform the following steps:

1. Rotate any of encoders 1-5 to move screen focus to the dierent custom

assignable encoders and buttons in the A, B, and C sets. The controls
currently selec ted with each of the four encoders are highlighted with a
green outline.

2. Tap any of encoders 1-5 to switch to the edit screen for the specic custom

control that was highlighted on the home tab screen.

7.12 .2 Assign Screen: Set A Tab

The “Set A” tab allows mapping of specic console parameters to the 8 assignable
buttons and 4 assignable rotary encoders. Using this screen, the user can map
the exact parameters that are most useful to them to the desired controls, in the
desired order.

To adjust the various settings on the set A tab, perform the following steps:

1. Adjust the 1st encoder to select the color used for the LCD screens within that
set.

2. Adjust the 2nd encoder to select which of the 12 assignable controls in set A
you wish to map a parameter to. Choices include encoders 1-4 and buttons
5-12.

3. Adjust the 3rd encoder to scroll through a list of parameter categories
that the selected assignable control can be mapped to. Choices for the
buttonsinclude:

• Not Assigned

• Jump to Page

• Mute Channel

• Inserts

• Eect button

• MIDI

• Remote

Choices for the encoders include:

• Not Assigned

• Panorama

• Sends

• Dynamics

• FX Parameters

• MIDI

• Remote

4. Tap the 3rd encoder to assign the selected.

5. Adjust the 4th encoder to scroll through a list of parameters that can be
mapped to the currently selected assignable control.

6. Tap the 4th encoder to assign the selected parameter.

7. Adjust the 5th encoder to select from additional parameters that can be
mapped to the assignable controls.

Assign Screen: Set B Tab and Set C tabs

The Assign screen’s “Set B” and “Set C” tabs works as described above, but are
used to congure the set B and set C controls instead of the set A controls.

63 X32 DIGITAL MIXER Preliminary User Manual

7.13 Scenes Screen

The scenes screen allows setup for saving and recalling dierent memory scenes
of the console. The comprehensive recallability of the console (including gain
settings for the digitally controlled mic preamps) is one of the most powerful
aspects of the console.

The scenes screen contains the following separate tabs:

HOME: This screen contains a general overview of the scenes contained in the
console, along with their custom names and what parameters are included in
each scene.

MIDI: This screen allows the console to associate dierent scenes with incoming
and outgoing MIDI messages, allowing the console’s scene changes to control or
be controlled by external MIDI equipment.

PARAMETER SAFE: This screen congures which console parameters are and are
not saved/switched with the console scenes.

CHANNEL SAFE: This screen congures which console channels are and are not
changed when a console scene change occurs.

7.13.1 Scenes Screen: Home Tab

The scenes screen’s home tab shows a general overview of the scenes that
have been congured in the console, along with their custom names and what
parameters are included in each scene.

For a setting where scenes are used heavily and are very critical (such as a theater
performance), this would be a good screen to leave on at all times so that the
console operator can be completely sure, at all times, what scene the console
currently resides on and what scene will come up next when the “Go” button
ispressed.

To adjust the various settings on the home tab, perform the following steps:

1. Rotate the 1st encoder to scroll among the available scenes in the scenes list,
which is displayed on the left side of the color screen.

2. Tap the 1st encoder to “go” to the currently selected scene in the list,
switching the console to the state it was in when that scene was stored

3. Rotate the 2nd encoder to select a scene in the list to be “skipped”
whencycling through scenes using the Prev and Nex t buttons.

4. Tap the 2nd encoder to complete the “skip” command on the currently
selected scene. That scene will now be skipped when scrolling through
thelist.

5. Rotate the 3rd encoder to scroll back through recent changes.

6. Tap the 3rd encoder to undo the recent change.

7. Rotate the 4th encoder to select a slot to save a new scene.

8. Tap the 4th encoder to complete the save operation. The console’s current
state will be overwritten on the scene number that was selected with
theencoder.

9. Rotate the 6th encoder to select which aspects of the console’s routing
are made “safe” from a scene change, and will be unaected by any scene
changes that occur. Routing choices that can be safed include:

• Routing

• Output Patch

• Mic Preamp Gain (HA, short for head-amplier)

• Conguration

• Channel Processing

• Mix Buses

• Eects

• Talkback

10. Tap the 6th encoder to select any of the above choices as the encoder
rotation is used to select them. Multiple categories can be selected at the
same time.

7.13 .2 Scenes Screen: MIDI Tab

This MIDI tab of the scenes screen allows the console to associate dierent
scenes with incoming and outgoing MIDI messages, allowing the console’s scene
changes to control or be controlled by external MIDI equipment.

For instance, the user could congure the console to issue a MIDI program
change message as each new scene is recalled, with the outgoing MIDI message
triggering a new scene of a MIDI-equipped lighting controller.

Conversely, the user could congure the console to change scenes in response
to an incoming MIDI program change message, allowing the console to
switch to a new audio scene when a new scene is recalled on a MIDI-equipped
lightingcontroller.

To adjust the various settings on the MIDI tab, perform the following steps:

1. Rotate the 1st encoder to select a scene to edit.

2. Tap the 2nd encoder to “safe” the console from any incoming MIDI messages,
preventing the console from switching scenes in response to MIDI data.

3. Rotate the 3rd encoder to select what type of MIDI event is transmitted by
the console when a scene change is issued. The choices include:

• O (No MIDI event)

• MIDI program change

• MIDI control change

• Note

4. Encoders 4,5 and 6 adjust the channel, number, and velocity (if applicable).

The color screen displays the MIDI data associated with the currently
selectedscene.

64 X32 DIGITAL MIXER Preliminary User Manual

7.13 .3 Scenes Screen: Parameter Safe Tab

The scenes screen’s “parameter safe” tab congures which console parameters
are and are not saved/switched with the console scenes. This is very useful
when the operator has certain parameters that they wish to remain in control
of, andwould never want to have altered during a scene change, for example,
themic pre gains on the input channels.

To adjust the various settings on the Parameter Safe tab, perform the
followingsteps:

1. Rotate any of the rst 4 encoders to navigate among the checkboxes in the
color screen, which represent various console areas that can be isolated from
scene changes.

2. Tap any of the rst 4 encoders to selec t the console areas that have been
selected with the encoders. In each of the four columns, multiple console
areas can be selected and isolated from scene changes.

The following areas of the console can be isolated from scene changes, and are
divided up into 4 columns on the color screen:

Column 1: Input Channels

• HA (Head Amp/Microphone Preamp)

• Conguration

• Channel Equalizer

• Channel Gate/Compressor

• Channel Insert

• Channel Groups

• Fader, Pan, Mute, Mix Ons

Column 2: Input Channels

• Mix sends 1-16

Column 3: Mix Buses

• Mix sends 1-16

• Conguration

• Equalizer

• Compressor

• Insert

• Groups

• Fader, Pan, Mute, Matrix Ons

Column 4: Console

7.13 .4 Scenes Screen: Channel Safe Tab

The scenes screen’s “channel safe” tab congures which console channels are
and are not changed when a console scene change occurs. This allows the
user to “protect” certain channels from ever changing during a scene change,
givingthem as much control as possible for key audio sources.

For example, in a theater context, the console operator may have dialed in just
the right EQ and compressor settings and channel volume for the voice of the lead
actor, and does not wish to have them altered when the console changes scenes
and alters various parameters.

To adjust the various settings on the Channel Safe tab, perform the
followingsteps:

1. Rotate any of the 6 encoders to navigate among the check boxes in the color
screen, which represent various groups of channels that can be isolated from
scene changes.

2. Tap any of the 6 encoders to select the console areas that have been
highlighted with the encoders. In each of the 6 columns, multiple console
areas can be selected and isolated from scene changes.

The following areas of the console can be isolated from scene changes, and are
divided up into six columns on the color screen:

Column 1: Channels

• Input Channels 1-16

Column 2: Channels

• Input Channels 17-32

Column 3: Buses

• Aux 1-8

• FX 1L through 4R

Column 4: Returns

• Mix 1-16

Column 5: Main/Matrix/Groups

• Matrix 1-6

• LR Bus

• Center/Mono Bus

• DCA groups 1-8

Column 6: Eects Slots

• FX 1-8

• Conguration

• Solo

• Routing

• Output Patch

65 X32 DIGITAL MIXER Preliminary User Manual

Block Diagram

PHONES

OUT

MONITOR L

OUT

MONITOR R

OUT

OUT

MIX 1-16

FADER

MUTE

INSERT

COMP/

EXPAN

EQ

6-BAND

COMP/

EXPAN

INSERT

MIX 1–16

SOLOMATRIX

1 2 5 6

L R C L R

MAIN

1 2 15 16

MIX BUS

GENERATE

GAIN

SINE WAVE

PINK NOISE

WHITE NOISE

OSCILLATOR

USB

PLAY

USB

MEMORY

RECORDER

USB MEMORY

REC

LEVEL

USB

REC

USB RECORDER

Post Fader

Pre Fader

EQ

Pre EQ Post EQ

GAIN

KEY-IN

SOLO

Post Fader

MUTE

GAIN

Matrix 1,3,5

mute

stereo

LCR

PAN (LR)

FADER

MUTE

INSERT

INSERT

Post Fader

Post Fader

Matrix 2,4,6

mute

COMP/

EXPAN

EQ

4-BAND

COMP/

EXPAN

DUCK

GATE/

CUT

LOW

DELAY

mono

FADER

MUTE

INSERT

Post Fader

PAN (LR)

GAIN

PAN (LCR)

LCR

mono

stereo

stereo

mute

mute

stereo

Mix 1,3...15

Mix 2,4...16

Post Pan

PAN (LCR)

Post Fader

GAIN

SOLO

MUTE

Pre Fader

EQ

KEY-IN

Post EQ

Pre EQ

EQ

KEY-IN

Pre HP/Pre Gate/Post Gate/Pre EQ/Post EQ/Pre Fader/Post Fader/Post Pan L

Pre HP/Pre Gate/Post Gate/Pre EQ/Post EQ/Pre Fader/Post Fader/Post Pan L

Pre HP/Pre Gate/Post Gate/Pre EQ/Post EQ/Pre Fader/Post Fader/Post Pan R

INSERT

MAIN LRC

GAIN

FADER

Pre HP/Pre Gate/Post Gate/Pre EQ/Post EQ/Pre Fader/Post Fader/Post Pan R

OUT

MAIN LRC

COMP/

EXPAN

EQ

6BAND

COMP/

EXPAN

stereo

LCR

PAN (LR)

MUTE

EQ

4BAND

ATT

Post Fader

Pre Fader

EQ

Pre EQ Post EQ

mono

KEY-IN

Post Fader

MUTE

SOLO

GAIN

Matrix 1,3,5

mute

mute

stereo

Mix 1,3...15

Post Pan

PAN (LCR)

Post Fader

GAIN

MUTE

Pre Fader

Pre EQ/Pre Fader/Post Fader/Post Pan L

Pre EQ

FADER

MUTE

INSERT

Post Fader

Post Fader

INSERT

Matrix 2,4,6

mute

mute

Mix 2,4...16

Pre EQ/Pre Fader/Post Fader/Post Pan R

1-6

MATRIX

LCR

GAIN

FADER

SOLO

Pre EQ/Pre Fader/Post Fader/Post Pan L

Pre EQ/Pre Fader/Post Fader/Post Pan R

OUT

MATRIX 1-6

COMP/

EXPAN

EQ

6BAND

COMP/

EXPAN

stereo

PAN (LR)

MUTE

Post Fader

Pre Fader

EQ

Pre EQ Post EQ

mono

Post Pan

Post Fader

Pre Fader

stereo

KEY-IN

SOLO

Post Fader

mute

Mix 1,3...15

PAN (LCR)

GAIN

MUTE

GAIN

MONITOR SOURCE IN

2

MONITOR

mute

Mix 2,4...16

SOLO

Pre Fader/Post Fader/Post Pan L

Pre Fader/Post Fader/Post Pan L

Pre Fader/Post Fader/Post Pan R

Pre Fader/Post Fader/Post Pan R

GAIN

GAIN

D/A

DELAY

MONO

+

GAIN

DIM

FX OUT L

EFFECT

31 BAND GEQ

FX IN L

EFFECTS 1-8

AUX OUT 1-6

OUT 1-16

D/A

D/A

D/A

DELAY

SOLO / SOURCE

FX OUT R

31 BAND GEQ

FX IN R

MONITOR LR OUT

L+C/R+C MIX

ON

GAIN

A/D

TALKBACK

P16 BUS

AES/EBU OUT

COMP

(16ch)

L+C OUT

R+C OUT

+

+

+48V

A/D

CH 1–32

DSP

PATCH

USB

USB

REC

PLAY

FX 1-8 OUT (L / R)

Block Diagram

ATT

32

8 x 2

FX 1-8 IN (L / R)

8 x 2

INSERT RETURN

INSERT SEND

PRE LOW CUT OUT

323232

6

6

16

16

MIX 1-16 INSERT SEND

MATRIX 1-6 INSERT SEND

MIX 1-16 INSERT RETURN

MATRIX 1-6 INSERT RETURN

POST FADER OUT

AUX Returns 1–8

32

3

3

16

PATCH CUE

MIX 1-16 OUT

MAIN LRC INSERT SEND

MAIN LRC INSERT RETURN

AUX Returns 7–8 by default on USB Play

8

6

3

MAIN LRC OUT

MATRIX 1-6 OUT

MAIN LRC PRE EQ OUT

3

2

2

MONITOR LR OUT

MONITOR SOURCE IN

MONITOR L+C/R+C OUT

2

GAIN

STEREO FX RETURNS 1 L/R – 8 L/R

8 x 2

40

I/O

PATCH

A/D

A/D

PHANTOM

+48V

(1-32)

INPUT

AUX

RETURN

(1-6)

(48ch IN)

AES-50 A

(48ch IN)

AES-50 B

DELAY

SLOT

GAIN

(32ch IN)

GAIN

AES-50 A

(48ch OUT)

AES-50 B

(48ch OUT)

GAIN

SLOT

(32ch OUT)

16

16

66 X32 DIGITAL MIXER Preliminary User Manual

8. Specications

Processing

Number of input processing channels 32 input channels, 8 aux channels, 8 fx return channels
Internal eects engines, true-stereo / mono 8/16
Internal total recall scenes (incl. preamp and fader) 100
Signal processing 40-bit oating point
A/D-D/A conversion 24-bit @ 44.1 / 48 kHz, 114 dB dynamic range
I/O latency (console input to output) 0.8 ms
Network latency (stagebox in > console > stagebox out) 1.1 ms

Connectors

XLR inputs, programmable mic preamp, designed by MIDAS 32
Talkback mic input, XLR 1
RCA inputs/outputs 2/2
XLR outputs 16
Monitoring outputs XLR / ¼" TRS balanced 2/2
Aux inputs/outputs, ¼" TRS balanced 6/6
Phones outputs, ¼" TRS 2 (stereo)
Digital AES/EBU output, XLR 1
AES50 ports, Supermac 2
Expansion card 32 channel audio input/output, various standards
P-16 connec tor, Ultranet (no power supplied) 1
MIDI inputs / outputs 1/1
USB Type A, top panel, for audio and data export/import 1
USB Type B, rear panel, for remote control 1
Ethernet, RJ45, rear panel, for remote control 1

Mic Input Characteristics

Design MIDAS

THD + noise, 20 dB gain, 0 dBu out < 0.006% A-weighted
Input impedance XLR, unbal. / bal. 5 kΩ / 10 kΩ
Non clip maximum input level, XLR +23 dBu
Phantom Power, switchable per input 48 V
Equivalent input noise level, XLR (input shor ted) -128 dBu
CMRR, XLR, @ 20 dB gain (typical) > 70 dB
CMRR, XLR, @ 40 dB gain > 80 dB

67 X32 DIGITAL MIXER Preliminary User Manual

Input/Output Characteristics

Frequency range, @ 48 kHz sample rate, 0 dB to -1 dB 10 Hz - 22 kHz
Dynamic range, analog in to analog out (typical) 106 dB
A/D dynamic range, preamp and converter (typical) 109 dB
D/A dynamic range, converter and output 108 dB
Cross talk rejection @ 1 kHz, adjacent channels 100 dB
Output level, XLR, nom./max. +4 dBu / +21 dBu
Output impedance, XLR, unbal. / bal. 75 Ω / 75 Ω
Input impedance TRS Jack, unbal. / bal. 20 kΩ / 40 kΩ
Non clip maximum input level, TRS +16 dBu
Nominal output level, TRS +4 dBu / +16 dBu
Output impedance, TRS, unbal. / bal. 150 Ω / 300 Ω
Phones output impedance / level 40 Ω / +25 dBm (stereo)
Residual noise level, XLR and TRS -87 dBu A-weighted

Display

Main screen 7", 800 x 480, 262k color TFT
Channel LCD screen 128 x 64, LCD with RGB color backlight
Main meter 24-segment (-57 dB to clip)

Power

Switch-mode power supply Autorange 100-240 V (50/60 Hz)
Power consumption 120 W

Physical

Dimensions 35.4 x 20.8 x 7.9" / 900 x 528 x 200 mm
Weight 45.4 lbs / 20.6 kg

68 X32 DIGITAL MIXER Preliminary User Manual

527.05 mm

900.23 mm

Dimensions

900.23 mm

Top view

527.05 mm

22.00 mm

Side view Back view

169.46 mm

221.33 mm

69 X32 DIGITAL MIXER Preliminary User Manual

FEDERAL COMMUNICATIONS
COMMISSION COMPLIANCE
INFORMATION

X32 DIGITAL MIXER

Responsible Party Name: MUSIC Group Services US Inc.

Address: 18912 North Creek Parkway,

Suite 200 Bothell, WA 98011,
USA

Phone/Fax No.: Phone: [phone]

Fax: [phone]

X32 DIGITAL MIXER

complies with the FCC rules as mentioned in the followingparagraph:

This equipment has been tested and found to comply with the limits for a ClassB
digital device, pur suant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a par ticular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to tr y to correct the
interference by one or more of the followingmeasures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician forhelp.

This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any inter ference received, including inter ference that may
cause undesired operation.

Important information:

Changes or modications to the equipment not expressly approved by MUSIC Group
can void the user’s authority to use the equipment.

We Hear You
