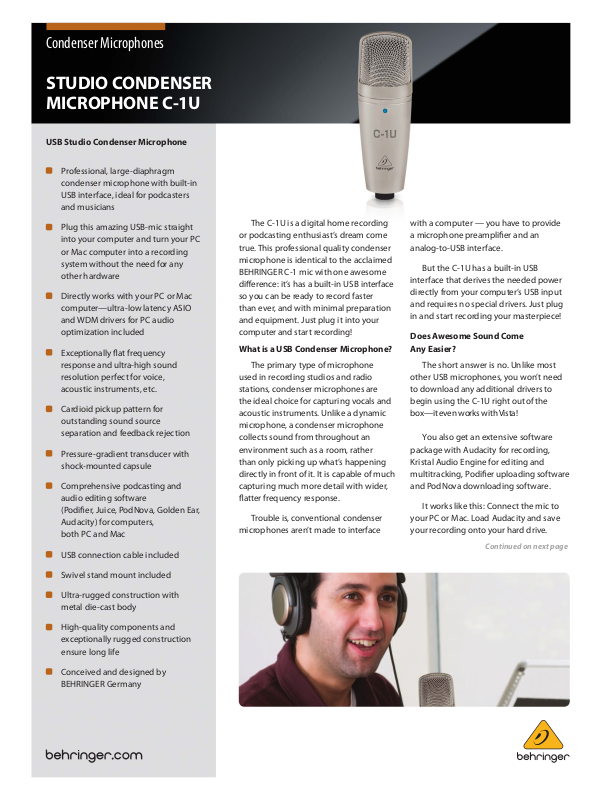

Condenser Microphones
STUDIO CONDENSER
MICROPHONE C-1U
USB Studio Condenser Microphone
Professional, large-diaphragm
condenser microphone with built-in
USB interface, ideal for podcasters
and musicians
Plug this amazing USB-mic straight
into your computer and turn your PC
or Mac computer into a recording
system without the need for any
other hardware
Directly works with your PC or Mac
computer—ultra-low latency ASIO
and WDM drivers for PC audio
optimization included
Exceptionally at frequency
response and ultra-high sound
resolution perfect for voice,
acoustic instruments, etc.
Cardioid pickup pattern for
outstanding sound source
separation and feedback rejection
Pressure-gradient transducer with
shock-mounted capsule
Comprehensive podcasting and
audio editing software
(Podier, Juice, PodNova, Golden Ear,
Audacity) for computers,
both PC and Mac
USB connection cable included
The C-1U is a digital home recording
or podcasting enthusiast’s dream come
true. This professional quality condenser
microphone is identical to the acclaimed
BEHRINGER C-1 mic with one awesome
dierence: it’s has a built-in USB interface
so you can be ready to record faster
than ever, and with minimal preparation
and equipment. Just plug it into your
computer and start recording!
What is a USB Condenser Microphone?
The primary type of microphone
used in recording studios and radio
stations, condenser microphones are
the ideal choice for capturing vocals and
acoustic instruments. Unlike a dynamic
microphone, a condenser microphone
collects sound from throughout an
environment such as a room, rather
than only picking up what’s happening
directly in front of it. It is capable of much
capturing much more detail with wider,
atter frequency response.
Trouble is, conventional condenser
microphones aren’t made to interface
with a computer — you have to provide
a microphone preamplier and an
analog-to-USB interface.
But the C-1U has a built-in USB
interface that derives the needed power
directly from your computer’s USB input
and requires no special drivers. Just plug
in and start recording your masterpiece!
Does Awesome Sound Come
Any Easier?
The short answer is no. Unlike most
other USB microphones, you won’t need
to download any additional drivers to
begin using the C-1U right out of the
box—it even works with Vista!
You also get an extensive software
package with Audacity for recording,
Kristal Audio Engine for editing and
multitracking, Podier uploading software
and PodNova downloading software.
It works like this: Connect the mic to
your PC or Mac. Load Audacity and save
your recording onto your hard drive.
Continued on next page
Swivel stand mount included
Ultra-rugged construction with
metal die-cast body
High-quality components and
exceptionally rugged construction
ensure long life
Conceived and designed by
BEHRINGER Germany
STUDIO
CONDENSER
MICROPHONE C-1U
Now load the included Kristal software and
you can edit your recording or add tracks.
Now you’re ready to upload your work onto
the Web via Podier.
The transducer,
protected beneath
woven steel casing,
is where the C-1U
collects sound
When the C-1U is
receiving phantom
power, the blue LED
will light
Ultra-rugged
die-cast body
construction ensures
years of reliable use
Sound That Astounds
Getting started with the C-1U may
seem like child’s play, but this pro-caliber
microphone is anything but a toy.
It has an exceptionally at frequency
response and pristine sonic resolution
that ensures content-rich audio that is as
natural sounding as the original source.
The cardioid pickup pattern provides
unparalleled sound source separation
and feedback rejection. The C-1U’s ultra
low-noise, transformerless FET input
circuitry can handle extreme dynamics,
all the way up to 136 dB, with ruler-at
frequency response from 40 Hz to 20 kHz.
That means that even if the special guest
Typical Set-Up
USB mic
Soundcard Line In
USB Cable
Computer
Page 2 of 2
on your next podcast happens to be a
revved-up jet engine, this workhorse mic
will not distort!
Here’s Why You Need a C-1U…
• Far better sound quality than the
dynamic microphones you’re probably
using now
• With its built-in USB interface and
comprehensive software package, just
plug in and start laying down tracks
• You don’t have to download any new
drivers, and it’s perfectly compatible with
Windows XP/Vista and Mac
• Includes swivel stand mount and
carrying case
MP3 Player
Soundcard Phone Out
HPX4000
Plug in the
included USB cable at
USB OUT
Specications
Transducer type condenser, 16 mm (0.63")
Polar pattern cardioid
Frequency response 40 Hz to 20 kHz
Max. SPL (1 % THD @ 1 kHz) 136 dB
Connector USB connector type B
Power supply 5 V, max. 50 mA (via USB)
Dimensions Ø shaft: 2.1", length: 6.7"
Ø shaft: 54 mm, length: 169
mm
Weight (net) approx. 1.17 lbs / 0.53 kg
Please no te these sp ecific ations ar e preliminar y and conce ptual in nat ure, and as suc h are subje ct
to change a s produc t developm ent progre sses. Th is informa tion is sup plied for ma rket rese arch
purpo ses only and i s not to be made p ublic in any ma nner. This doc ument is so lely the pro perty o f
The MUSIC G roup, or one of i ts subsid iaries, an d must be sur rendere d upon requ est of the ow ner.
