Behringer BUC400 User Manual

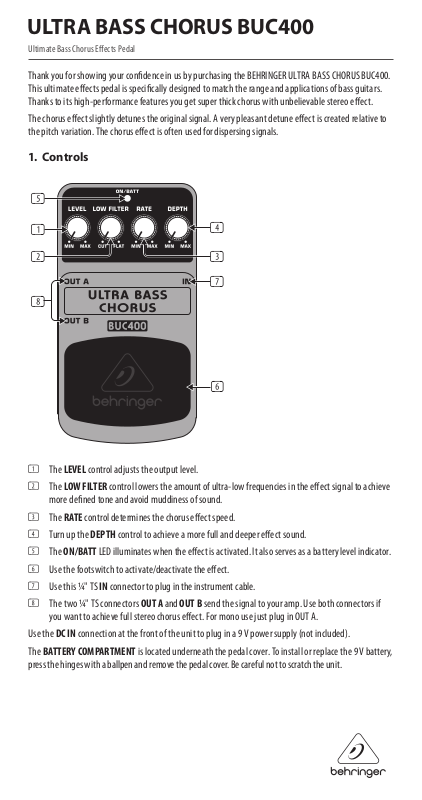

ULTRA BASS CHORUS BUC400

Ultimate B ass Chorus Eec ts Pedal

Thank you for show ing your condence in us by purchasing the BEHRINGER ULTRA BASS CHORUS BUC400.
This ultimate eects pedal is specically designed to match the r ange and applications of bass guitars.
Thanks to it s high-performance features you get super thic k chorus with unbelievable stereo e ect.

The chorus eect slightly detunes the original signal. A very pleasant detune eect is created relative to
the pitch variation. The chorus eec t is often used for dispersing signals.

1. Controls

(5)

(1)

(4)

(3)(2)

(7)

(8)

(6)

(1) The LEVEL control adjust s the output level.

(2) The LOW FILTER control lowers the amount of ult ra-low frequencies in the eec t signal to achieve

more dened tone and avoid muddiness of sound.

(3) The RAT E control determines the chorus eect speed.

(4) Turn up the DEPTH control to achieve a more f ull and deeper eect sound.

(5) The ON /BATT LED illuminates when the eect is ac tivated. It also serves as a batter y level indicator.

(6) Use the foot switch to activate/deac tivate the eect.

(7) Use this ¼" TS IN connector to plug in the ins trument cable.

(8) The two ¼" TS connec tors OUT A and OUT B send the signal to your amp. Use both connector s if

you want to achieve f ull stereo chorus eect. For mono use just plug in OUT A.

Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery,
press the hin ges with a ballpen and remove th e pedal cover. Be careful not to sc ratch the unit.

ULTRA BASS CHOR US BUC400

◊ The BUC400 has no on/o switc h. As soon as you inser t the jack into the in connector,

the BUC400 begins running. When not using the BUC4 00, remove the jack from the in
connec tor. This exte nds the life of the bat tery.

The SERIAL NUMBER is located at the bottom.

2. Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories.
Do not service produc t yourself. Contact our qualied ser vicing personnel for servicing or repairs,
especially w hen power supply cord or plug is damaged.

3. Warranty

Please regis ter your new BEHRINGER equipment right after your purchase by visiting
http://behringer.com and read the terms and conditions of our warrant y carefully.

4. Specications

In

Connec tor ¼" TS

Impedanc e 500 kΩ

Out A

Connec tor ¼" TS

Impedanc e 1 kΩ

Out B

Connec tor ¼" TS

Impedanc e 1 kΩ

Power Supply

9 V𝌂, 100 mA r egulated

BEHRINGER PSU-SB

U.S./Canada 120 V~, 6 0 Hz

China/Ko rea 220 V~, 50 Hz

U.K./Austra lia 240 V~, 50 Hz

Europe 230 V~, 50 Hz

Japan 100 V~, 50 - 60 Hz

Power conne ctor 2 mm DC jack,
negative center

Batter y 9 V type 6LR 61

Power consumption 30 mA

Physical/Weight

Dimensio ns approx. 2  ⁄ x 2 ¾ x 4 ⁄"
(H x W x D) approx. 5 4 x 70 x 12 3 mm

Weight appr ox. 0.73 lbs / 0.33 kg

BEHRING ER is constant ly strivin g to maintain the
highes t professio nal standard s. As a result of t hese eff orts,
modifi cations may be m ade from tim e to time to exis ting
produc ts withou t prior notice . Specific ations and app earance
may there fore diff er from thos e listed or show n.

TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. BEHRINGER IS PART OF THE
MUSIC GROUP (MUSIC-GROUP.COM). ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSICGROUP ACCEPTS NO LIABILITY FOR ANY LOSS
WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN.
COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS
ONLY. FULLFILLERSAND RESELLERS ARE NOT AGENTS OF MUSICGROUP AND HAVE ABSOLUTELY NO AUTHORITY TO BIND MUSICGROUP BY ANY EXPRESS OR
IMPLIED UNDERTAKING OR REPRESENTATION. THIS MANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCED OR TRANSMITTED IN ANY FORM
OR BY ANY MEANS, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS
WRITTEN PERMISSION OF MUSICGROUPIPLTD. ALL RIGHTS RESERVED. © 2012 MUSICGroupIPLtd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town,
Tortola, British Virgin Islands

FEDERAL COMMUNICATIONS
COMMISSION COMPLIANCE INFORMATION

ULTRA BASS CHORUS BUC400

Responsible Party Name: MUSIC Group Services US Inc.

Address: 18912 North Creek Parkway,

Suite 200 Bothell, WA 98011,
USA

Phone Number: Phone: [phone]

ULTRA BASS CHORUS BUC400

complies with the FCC rules as mentioned in the followingparagraph:

This equipment has been tested and found to comply with the limits for a ClassB digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the followingmeasures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician forhelp.

This device complies with Par t 15 of the FCC rules. Operation is subject to the following
two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.

Important information:

Changes or modications to the equipment not expressly approved by MUSIC Group can void
the user’s authority to use the equipment.
