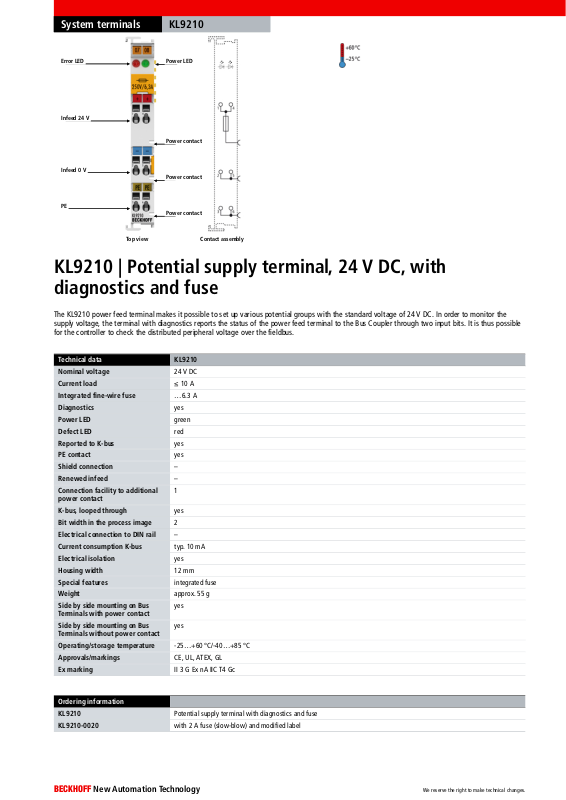

BECKHOFF KL9210 Technical data

System terminals

KL9210

Error LED

Power LED

Power contact

Power contact

Power contact

Infeed 24 V

Infeed 0 V

PE

Top view

Contact assembly

KL9210 | Potential supply terminal, 24 V DC, with
diagnostics and fuse

The KL9210 power feed terminal makes it possible to set up various potential groups with the standard voltage of 24 V DC. In order to monitor the
supply voltage, the terminal with diagnostics reports the status of the power feed terminal to the Bus Coupler through two input bits. It is thus possible
for the controller to check the distributed peripheral voltage over the fieldbus.

Technical data KL9210

Nominal voltage 24 V DC
Current load ≤ 10 A
Integrated fine-wire fuse …6.3 A
Diagnostics yes
Power LED green
Defect LED red
Reported to K-bus yes
PE contact yes
Shield connection –
Renewed infeed –
Connection facility to additional

power contact

1

K-bus, looped through yes
Bit width in the process image 2
Electrical connection to DIN rail –
Current consumption K-bus typ. 10 mA
Electrical isolation yes
Housing width 12 mm
Special features integrated fuse
Weight approx. 55 g
Side by side mounting on Bus

Terminals with power contact

yes

Side by side mounting on Bus
Terminals without power contact

yes

Operating/storage temperature -25…+60 °C/-40…+85 °C
Approvals/markings CE, UL, ATEX, GL
Ex marking II 3 G Ex nA IIC T4 Gc

Ordering information

KL9210 Potential supply terminal with diagnostics and fuse
KL9210-0020 with 2 A fuse (slow-blow) and modified label

System terminals KL9210

Error LED Power LED

Power contact

Power contact

Power contact

Infeed 24 V

Infeed 0 V

PE

Top view Contact assembly

System terminals

KL9210
