Page 1

Mode S Transponder

Manual DV15104.03

with ADS-B

BXT6513-(0XX)

Becker Avionics GmbH • Baden-Airpark B108 • 77836 Rheinmünster • Germany

Installatio n and Operation

Issue 03 November 2016 Article-No. 0647.225-071

 +49 (0) 7229 / 305-0 • Fax +49 (0) 7229 / 305-217

http://www.becker-avionics.com • E-mail: info@becker-avionics.com

Page 2

Installation and Operation

Preface

Dear Customer,

Thank you for purchasing a Becker Avionics product. We are pleased that you have chosen our product and we are confident that it will meet your expectations.

For development and manufacturing of our product, the guidelines for highest quality and reliability have been borne in m ind, supplemented by selection of high quality material, res ponsible production and testing in accordance to the ISO 9001 and DIN EN 9100 standards.

Our competent customer support department will respond on any technical question you may have. Please do not hesitate to contact us at any time.

Transponder Design

BXT6513

with EM module

BXT6513

with mounting tray and backshell

2 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 3

Document: DV15104.03 / issue 03 Article Number 0647.225-071

1.7

Added: Technical details. Added: Equipment details for configuration and

2.5

Added: Details about configuration and interf ac es.

2.8

Updated: More details for configuration tasks.

List of Effective Pages and Changes

Only technical relevant modifications are described in this table.

Cover Page 11/2016 Introduction 11/2016 Chapter 1 – 4 11/2016

Installation and Operation

Issue Page No.:

1-64 all Updated: Descriptions aligned about technical capability.

-- all Added: New variant.

-- 1.4 Added: Descriptions about functionalities.

-- 1.8

Section /

Chapter

2.6

2.9

Description

Updated: Environmental Conditions, Certification statements.

documentation.

Added: Description Software Update.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 3

Page 4

Installation and Operation

Table of Contents

1. General Description ..................................................................................................................... 11

1.1. Introduction .................................................................................................................................. 12

1.2. Purpose of Equipment ................................................................................................................. 13

1.3. Variants Overview ....................................................................................................................... 14

1.3.1. Software Status ................................................................................................................. 14

1.4. Scope of Functionality ................................................................................................................. 14

1.4.1. Fixed and Non-Volatile Data ............................................................................................. 14

1.4.2. Diversity ............................................................................................................................. 15

1.4.3. Mode S .............................................................................................................................. 15

1.4.4. ADS-B (Automatic Dependent Surveillance-Broadcast) ................................................... 16

1.4.5. Supported Transponder Messages ................................................................................... 17

1.4.6. Interfaces ........................................................................................................................... 18

1.4.7. Built-In Test ....................................................................................................................... 18

1.5. Safety-Conscious Utilization ........................................................................................................ 19

1.6. Restriction for Use ....................................................................................................................... 19

1.7. Technical Data ............................................................................................................................. 20

1.7.1. General Characteristics ..................................................................................................... 20

1.7.2. Dimensions & Weight ........................................................................................................ 21

1.7.3. Software ............................................................................................................................ 22

1.7.4. Hardware ........................................................................................................................... 22

1.7.5. Continued Airworthiness ................................................................................................... 22

1.7.6. Environmental Conditions ................................................................................................. 23

1.7.7. Certifications...................................................................................................................... 24

1.8. Order Code .................................................................................................................................. 26

1.8.1. BXT6513-(0XX) ................................................................................................................. 26

1.8.2. Accessories ....................................................................................................................... 26

1.8.3. Spare Parts ....................................................................................................................... 27

2. Installation .................................................................................................................................... 29

2.1. Packaging, Transport, Storage .................................................................................................... 29

2.1.1. Packaging Material and Transport .................................................................................... 29

2.2. Device Assignment ...................................................................................................................... 30

2.2.1. Scope of Delivery .............................................................................................................. 30

2.2.2. Additional Required Equipment......................................................................................... 30

2.2.3. Type Plate ......................................................................................................................... 31

2.2.4. Software Data Plate .......................................................................................................... 32

2.2.5. Meaning of Status LEDs ................................................................................................... 32

2.3. Mounting Requirements .............................................................................................................. 33

2.3.1. Mounting Distance ............................................................................................................ 33

2.3.2. Grounding .......................................................................................................................... 34

2.3.3. Cable Installation ............................................................................................................... 34

2.3.4. Recommended Crimp Tools ............................................................................................. 34

2.3.5. Antenna Cables ................................................................................................................. 35

2.3.6. Antenna Installation ........................................................................................................... 36

2.4. Dimensions .................................................................................................................................. 37

2.4.1. Transponder BXT6513-(0XX) ........................................................................................... 37

2.4.2. BXT6513-(0XX) with Mounting MT6533 ........................................................................... 38

2.4.3. BXT6513-(0XX) with Mounting MT 6533 and Bac kshell BS6533 ...................................... 39

2.5. Electrical Installation .................................................................................................................... 40

2.5.1. Connector P1 .................................................................................................................... 40

2.5.2. Connector P2 .................................................................................................................... 42

2.5.3. Connector TOP, BOT (Antenna) ....................................................................................... 44

2.5.4. Connector USB ................................................................................................................. 44

2.5.5. Connector EM ................................................................................................................... 44

2.5.6. Service Connector (optional) ............................................................................................. 44

2.6. Interfaces ..................................................................................................................................... 45

2.6.1. ARINC 429 Input Labels ................................................................................................... 45

2.6.2. ARINC 429 Output Labels ................................................................................................. 46

2.7. Unit Configuration ........................................................................................................................ 46

2.7.1. General Architecture (example) ........................................................................................ 47

4 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 5

Installation and Operation

2.7.2. Single Unit Installation ...................................................................................................... 48

2.7.3. Dual Unit Installation ......................................................................................................... 48

2.7.4. Unit Installation Number.................................................................................................... 48

2.7.5. Data Source Configuration ............................................................................................... 48

2.7.6. Single Unit Installation - Antenna Diversity ....................................................................... 50

2.7.7. Dual Unit Installation - Antenna Diversity ......................................................................... 51

2.7.8. Single Unit Installation – Single Controller........................................................................ 52

2.7.9. Single Unit Installation – Dual Controller .......................................................................... 52

2.7.10. Burst Mode - Single Unit Installation ................................................................................. 53

2.7.11. Transmitter Disable ........................................................................................................... 53

2.8. Configuration Data ...................................................................................................................... 54

2.8.1. Configuration of BXT6513-(0XX) with EM module ........................................................... 54

2.8.2. Configuration of BXT6513-(0XX) with internal memory .................................................... 54

2.9. Software Update ......................................................................................................................... 55

2.9.1. PC Requirements .............................................................................................................. 55

2.9.2. Software Update Installation ............................................................................................. 55

2.10. Aircraft Wiring .............................................................................................................................. 56

2.11. Post Installation Check ................................................................................................................ 57

2.11.1. Mechanical Installation and Wiring Check ........................................................................ 57

2.11.2. Power Supply .................................................................................................................... 57

2.11.3. Antenna Check ................................................................................................................. 57

2.11.4. Interference Check ............................................................................................................ 58

2.11.5. Mode S Ground Test......................................................................................................... 58

2.11.6. Error / Failure Indication.................................................................................................... 58

3. Operating Instructions ................................................................................................................ 59

3.1. Device Description ...................................................................................................................... 59

3.1.1. Device Assignment ........................................................................................................... 59

3.1.2. Packing, Transport, Storage ............................................................................................. 59

3.1.3. Scope of Delivery .............................................................................................................. 59

3.1.4. Type Plate ......................................................................................................................... 59

3.2. Start-up ........................................................................................................................................ 60

3.2.1. Built In Tests (BIT) ............................................................................................................ 60

3.3. Operating..................................................................................................................................... 60

3.3.1. Operating with OEM Con troll er ......................................................................................... 60

3.4. Read Out and Reset Error Flags ................................................................................................ 60

4. Index ............................................................................................................................................. 64

Figure 1: Block Diagram – Mode S Transponder Concept ..................................................................................... 15

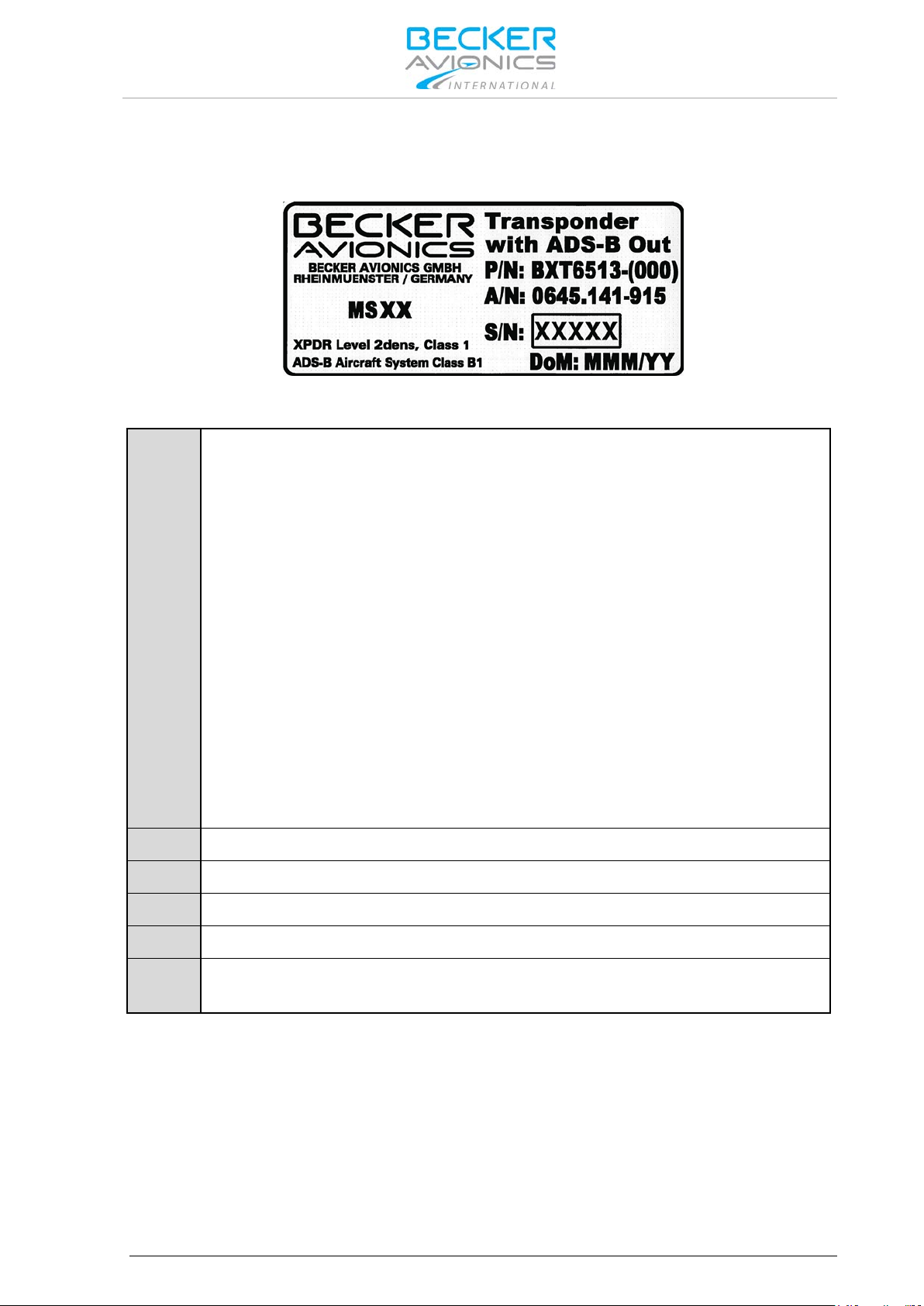

Figure 2: Type plate (example) .............................................................................................................................. 31

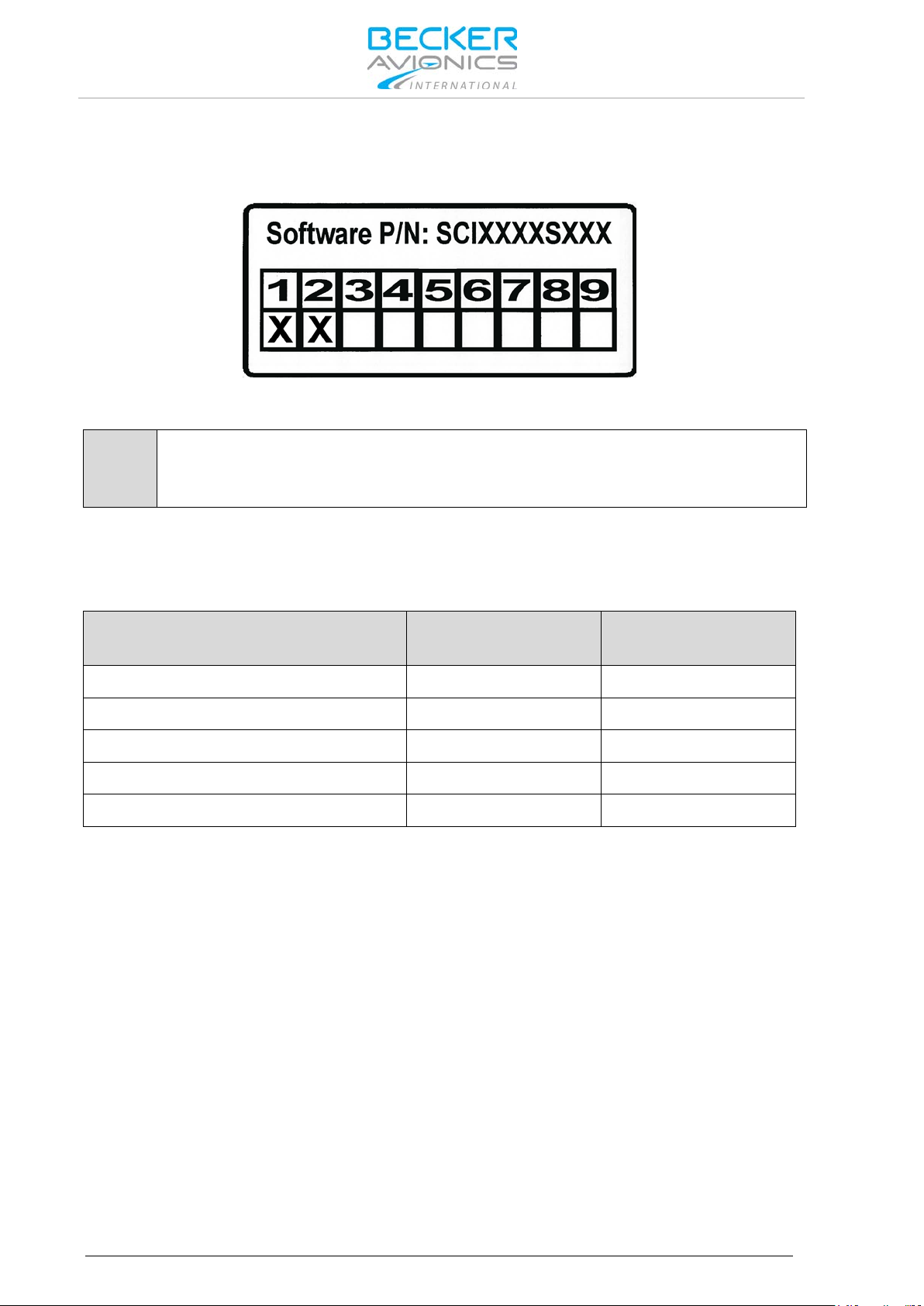

Figure 3: Software data plate (example) ................................................................................................................ 32

Figure 4: BXT6513-(0XX) mounting area ............................................................................................................... 33

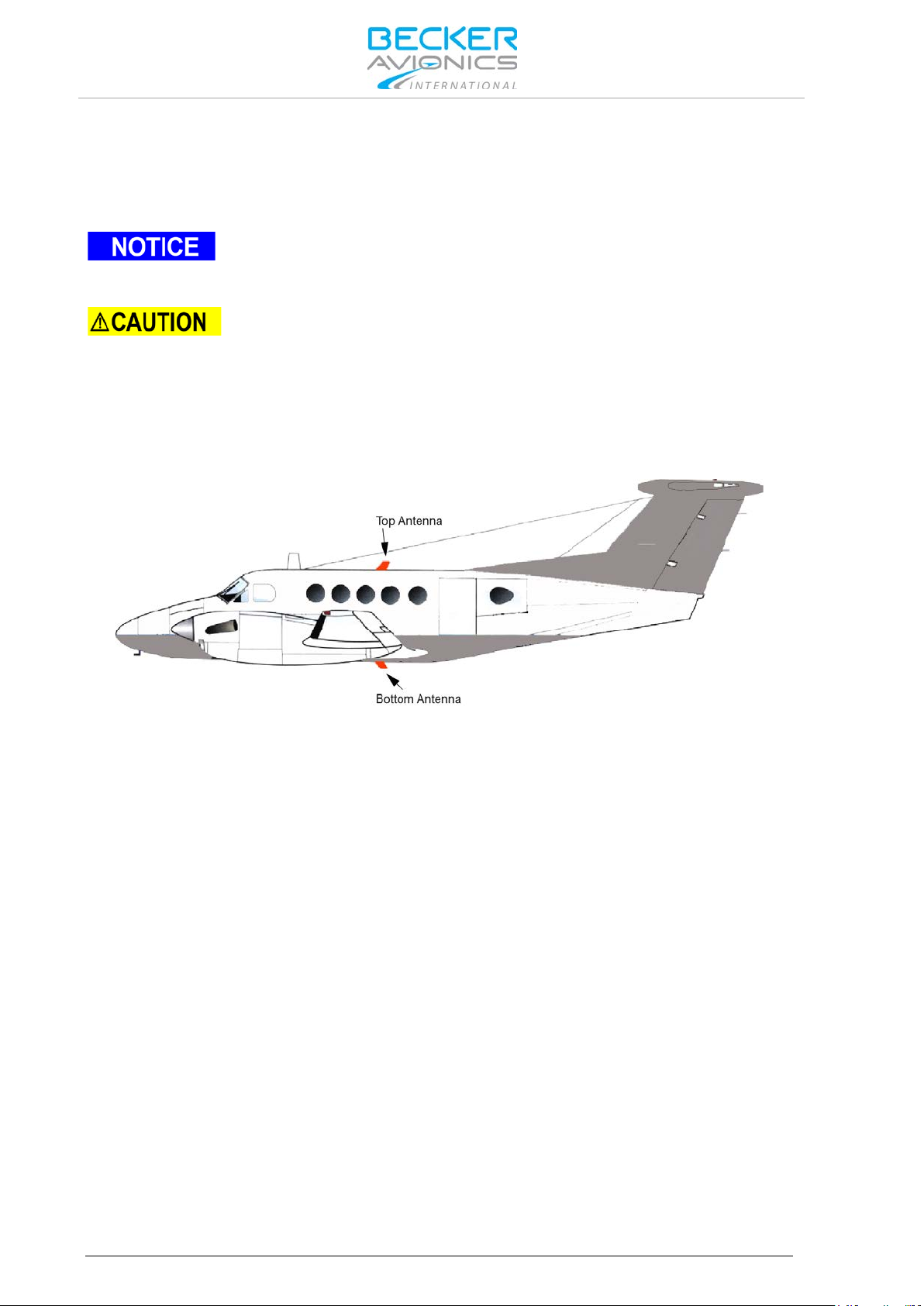

Figure 5: Antenna Installation (Diversity) ............................................................................................................... 36

Figure 6: BXT6513-(0XX) ...................................................................................................................................... 37

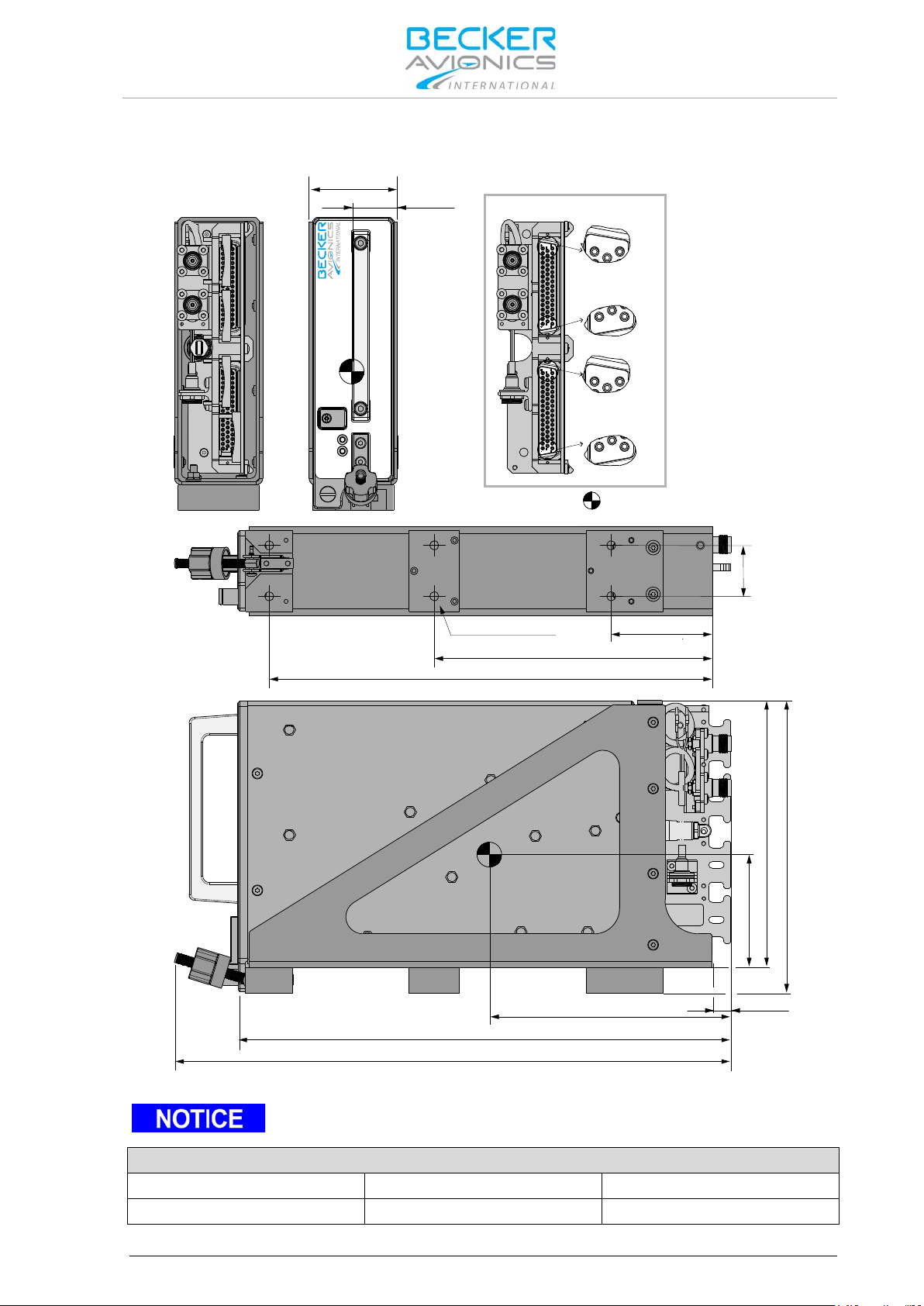

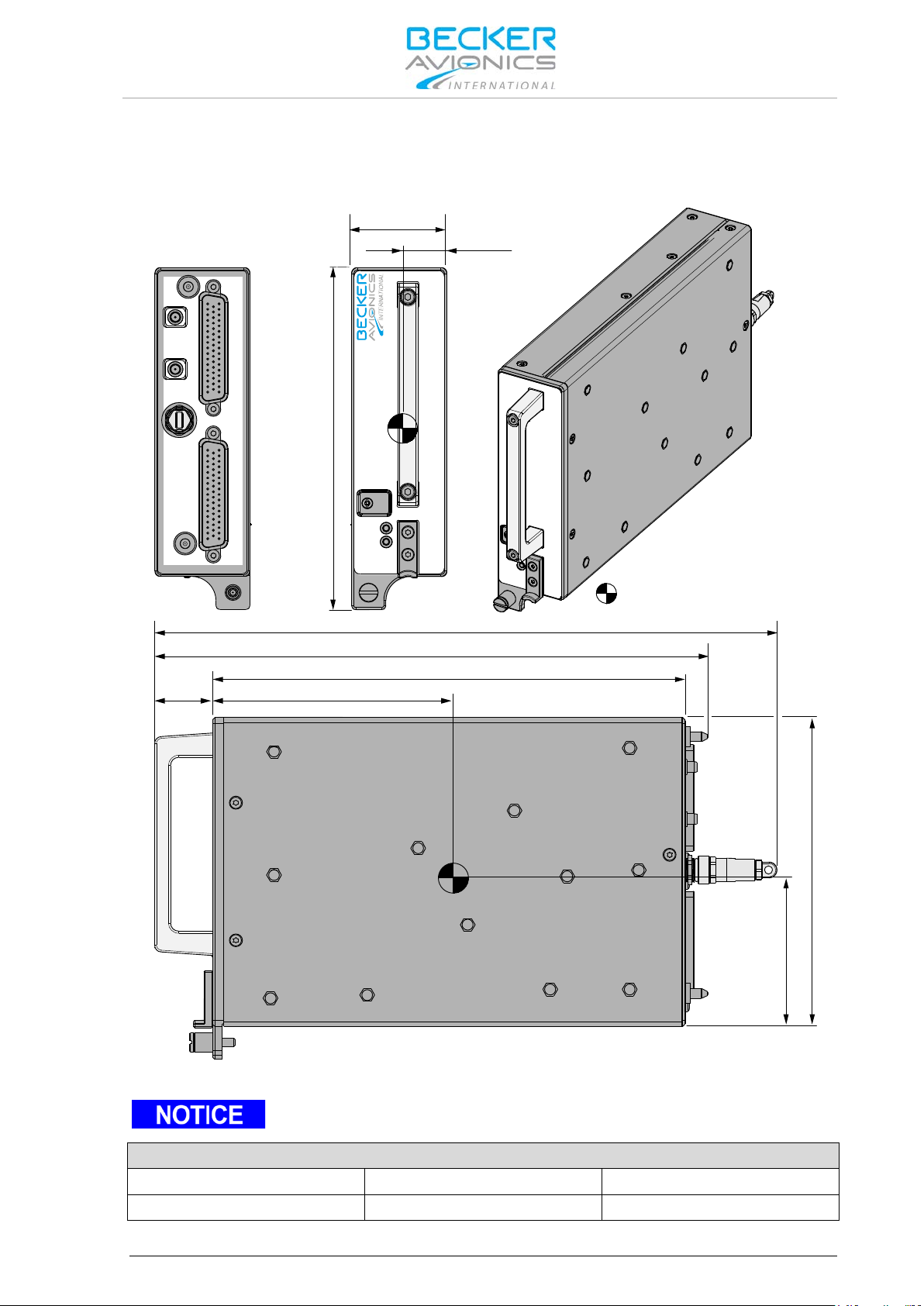

Figure 7: BXT6513-(0XX) with Mounting Tray MT6533 ......................................................................................... 38

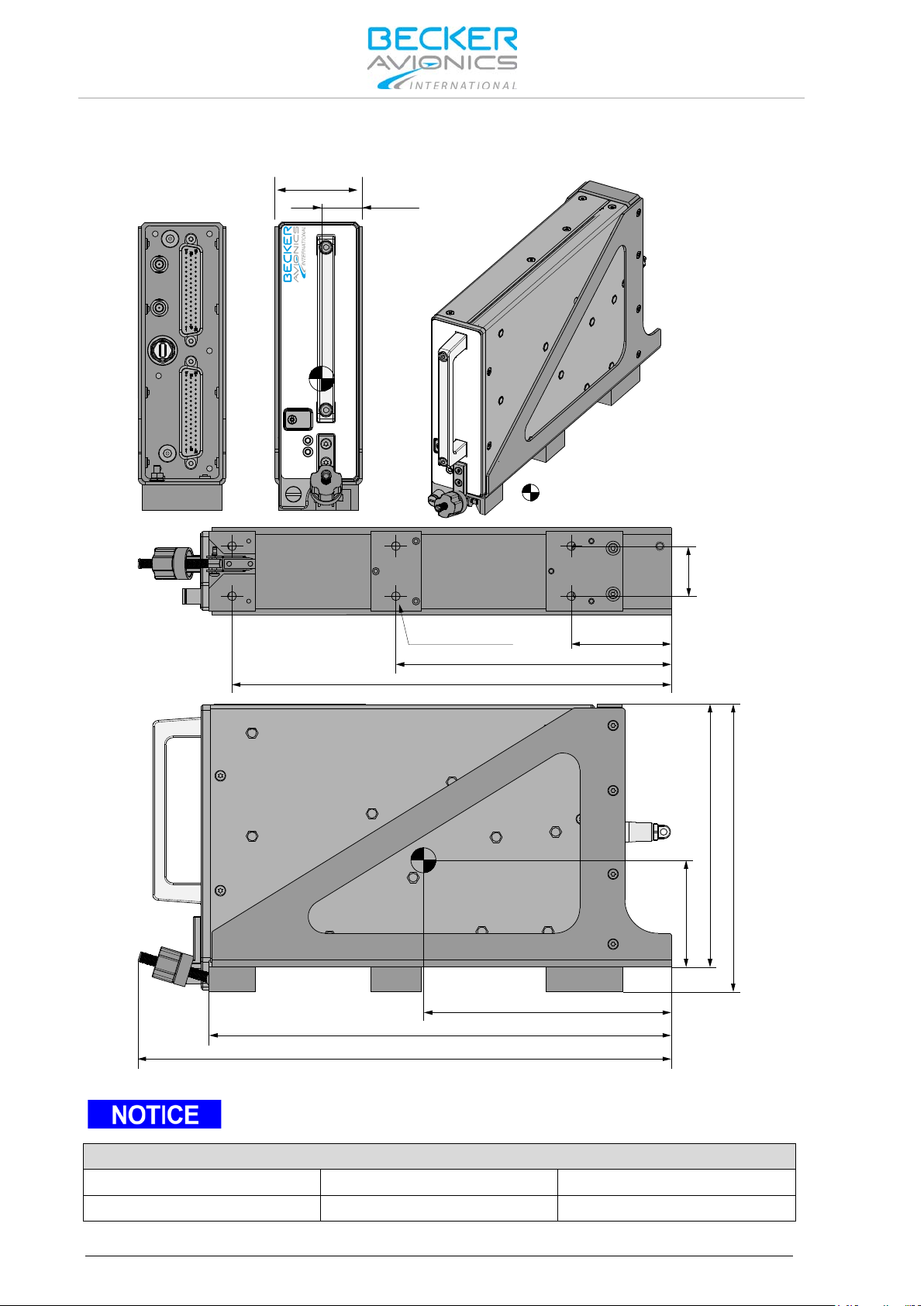

Figure 8: BXT6513-(0XX) with Mounting Tray MT6533 and Backshell BS6533 .................................................... 39

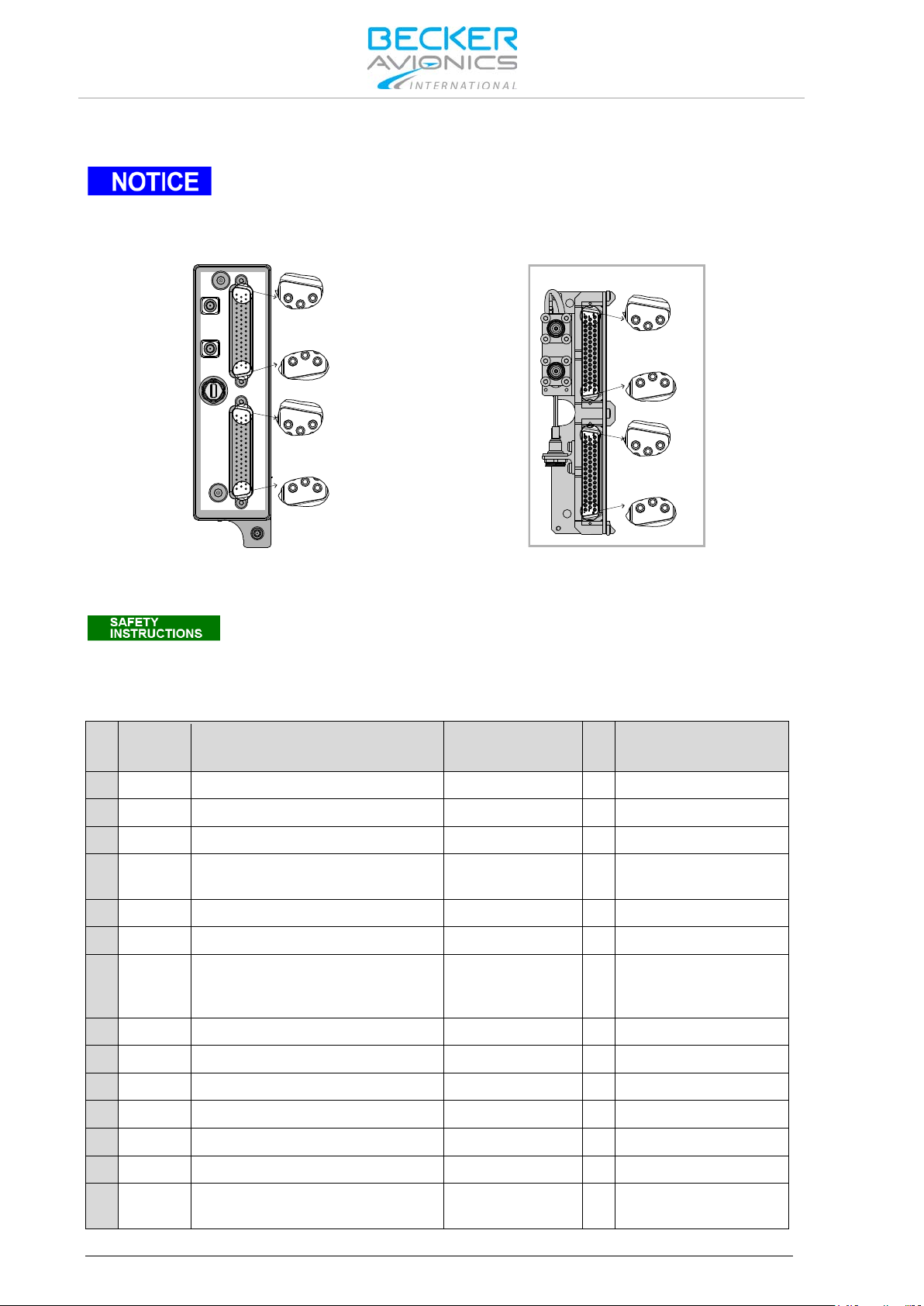

Figure 9: BXT6513-(0XX) connector layout ........................................................................................................... 40

Figure 10: BS6533 connector layout (backshell).................................................................................................... 40

Figure 11: Service Connector inside the Aircraft .................................................................................................... 44

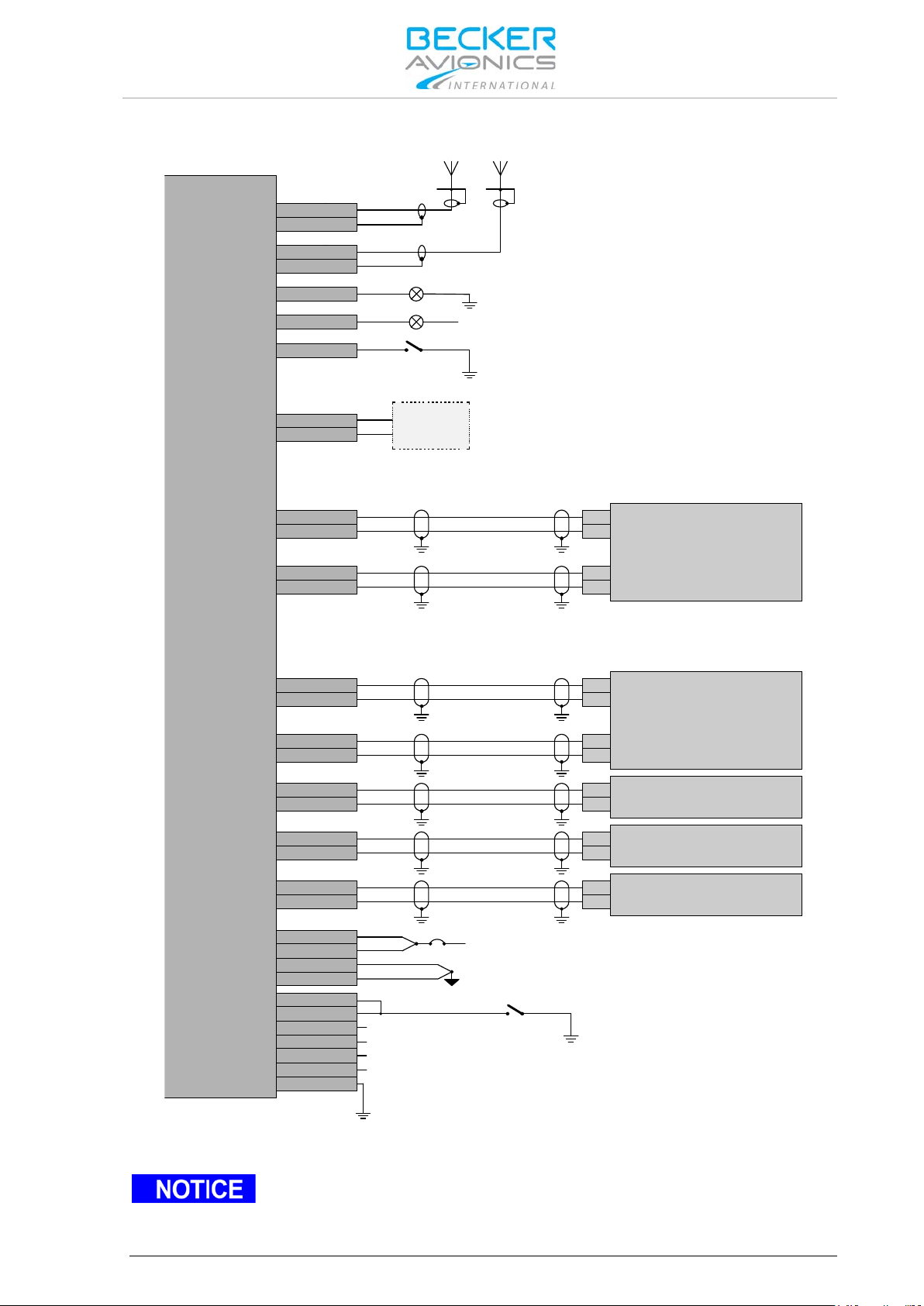

Figure 12: Wiring Diagram (example) .................................................................................................................... 47

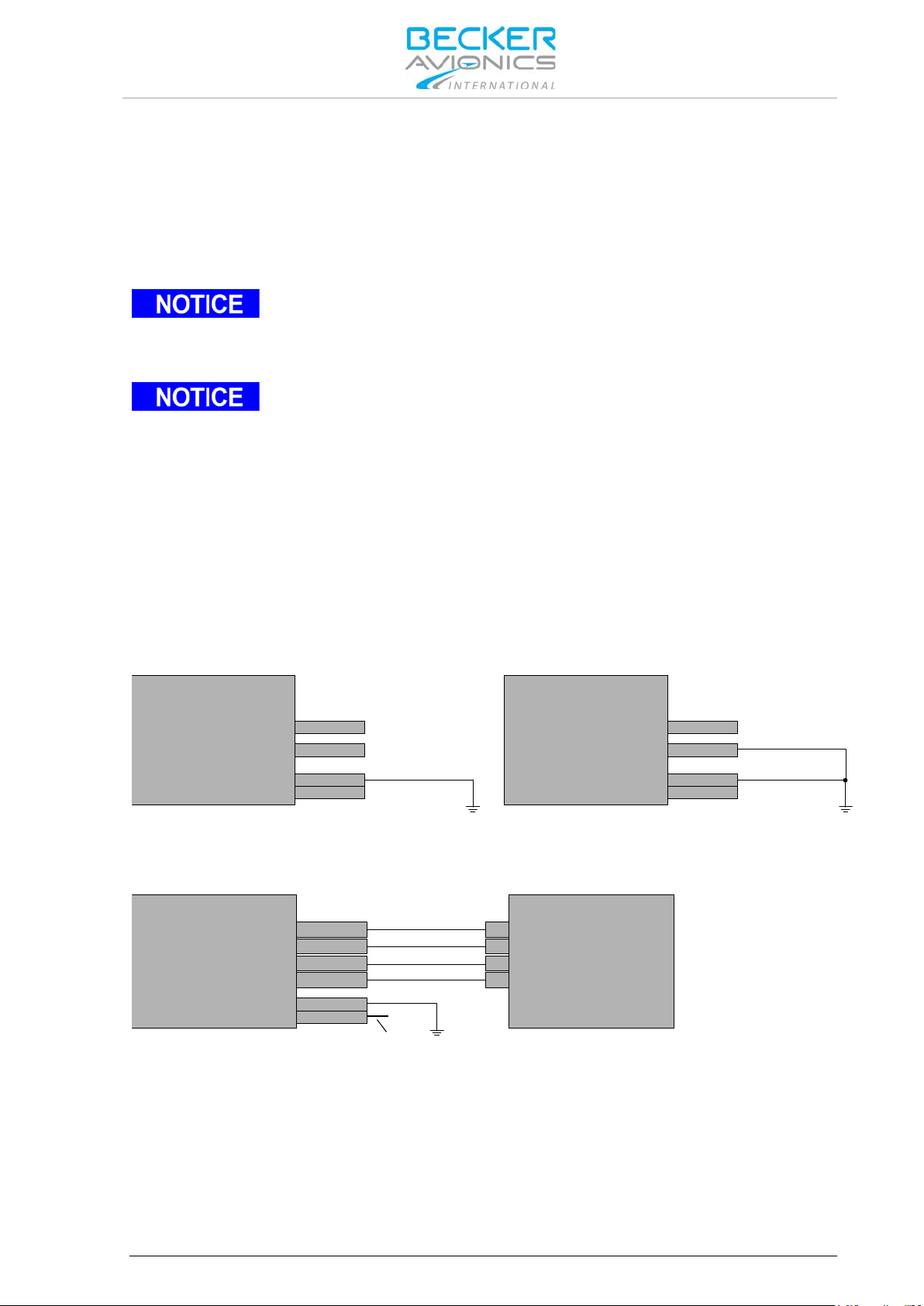

Figure 13: Single Unit Installation .......................................................................................................................... 48

Figure 14: Dual Unit Installation ............................................................................................................................. 48

Figure 15: Dual Unit Installation, Data Source = External Memory Module ........................................................... 49

Figure 16: External Memory Module via Backshell ................................................................................................ 49

Figure 17: Single Unit Installation, Data Source = Internal Memory ....................................................................... 50

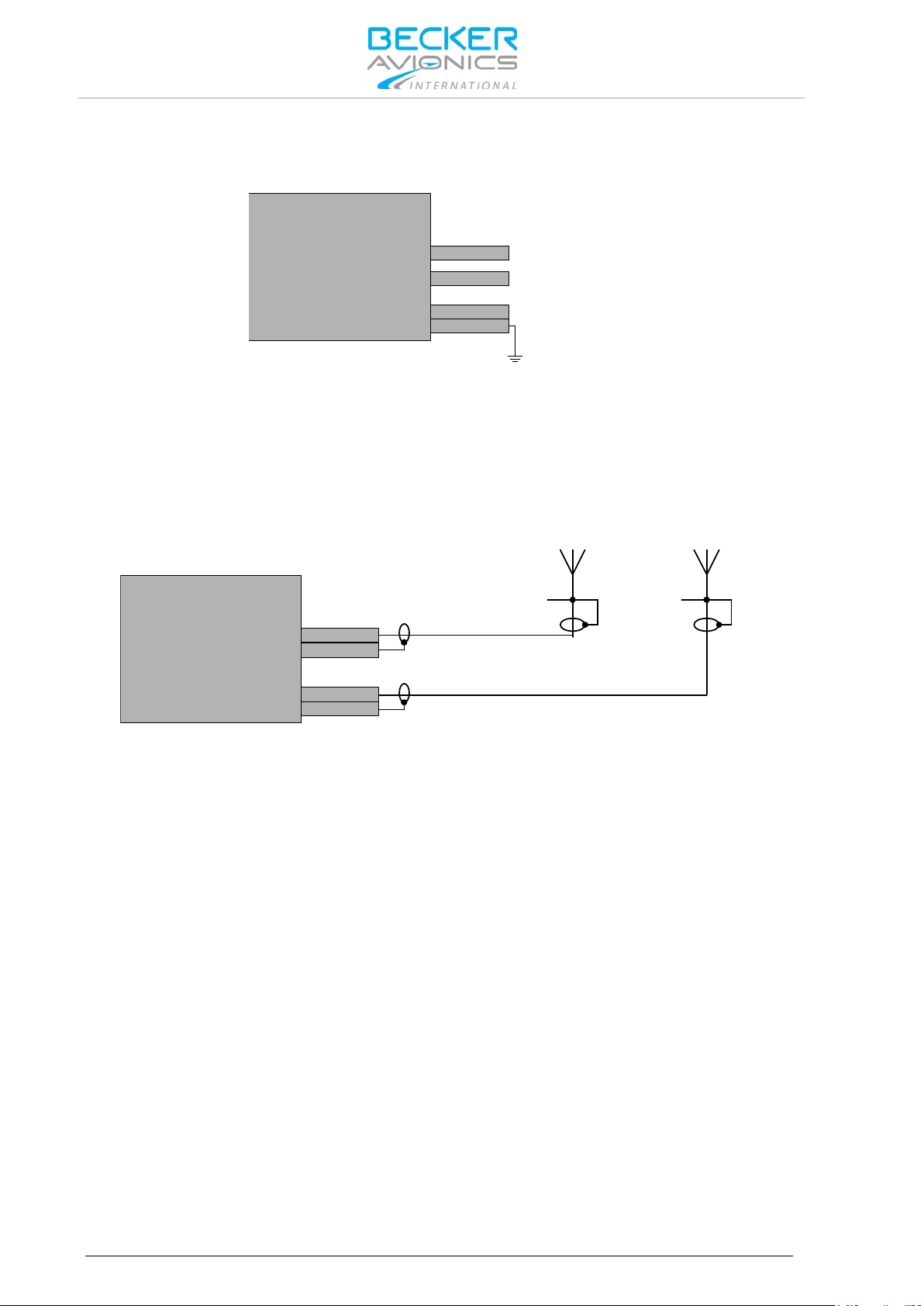

Figure 18: Single Unit Installation - Antenna Diversity ........................................................................................... 50

Figure 19: Dual Unit Installation - Antenna Diversity .............................................................................................. 51

Figure 20: Single Unit Installation - Single Controller ............................................................................................. 52

Figure 21: Single Unit Installation – Dual Controller ............................................................................................... 52

Figure 22: Single Unit Installation – Dual Controller ............................................................................................... 53

Figure 23: Software update – Aircraft Installation .................................................................................................. 55

Figure 24: Software update – Laboratory Installation ............................................................................................. 56

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 5

Page 6

Installation and Operation

List of Abbreviations

Aircraft Address (24-bit ICAO)

Alternating Current ACAS

Airborne Collision Avoidance System

ADLP

Airborne Data Link Processor

ADC

Air Data Computer

ADS-B

Automatic Dependent Surveillance-Broadcast

ARINC

Aeronautical Radio Inc.

ATCRBS

Air Traffic Control Radar Beacon System

AWG

American Wire Gauge

CAN

Controller Area Network

CBIT

Continuous Built-In Test

Direct Current

Downlink Format

DME

Distance Measurement Equipment

External Memory

Extended Squitter

EUROCAE

European Organisation for Civil Aviation Equipment

FAA

Federal Aviation Administration

FCC

Flight Control Computer

FMC

Flight Management Computer

FLS

Field Loadable Software

GND

Ground (electrical)

GNSS

Global Navigation Satellite System

GPS

Global Positioning System

IBIT

Initiated Built-In Test

ICAO

International Civil Aviation Organization

Identifier

I/O

Inputs/Outputs

Internet Protocol

IRS

Inertial Reference System

LED

Light Emitting Diode

MCP

Mode Control Panel

MSL

Mean Sea Level

NAV

Navigation

PBIT

Power-On Built-In Test

Personal Computer

Radio Frequency

RTCA

Radio Technical Commission for Aeronautics Inc.

Receiver, Receive

Surveillance Identifier

Software

List of Abbreviations

Altitude Code

6 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 7

List of Abbreviations

TCAS

Traffic Alert and Collision Avoidance System

Transmitter

USB

Universal Serial Bus

VHF

Very High Frequency

XPDR

Transponder

Units

Ampere

Milliampere

°C

Degree Celsius

Centimeter

dBm

Power Ratio In Decibel

Decibel

Foot, feet

Gram

Kilogram

kHz

Kilohertz

km/h

Kilometer Per Hour

Knots

MHz

Megahertz

Mbps

Mega Bits Per Second

Millimeter

Newton Meter

Ohm (Ω)

Resistance

Second

Volt

Millivolt

Watt

Milliwatt

Inch

Units

Installation and Operation

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 7

Page 8

Installation and Operation

Indicates a hazardous situation which, if not avoided, will result in death or

Indicates a hazardous situation which, if not avoided, could result in death or

Indicates a hazardous situation which, if not avoided, could result in minor or

Is used to address practices not related to physical injury.

Safety instructions (or equivalent) signs indicate specific safety-related

General Safety Definitions

serious injury.

moderate injury.

instructions or procedures.

8 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 9

Disposal

The packaging material is inflammable, if it is disposed of improperly by burning,

Material

Suitable for recycling

Disposal

Metal

yes

Plastics

yes

Circuit boards

yes

The user is responsible for protective covers and/or additional safety measures

Installation and Operation

toxic fumes may develop.

This product contains m aterials that fall under the special disposal r egulation, which corresponds to the EC directive for dangerous disposal material. We recommend disposing of the respective materials in accordance with the respecti vely valid env ironmental laws. The following table states the materials suitable for recycling and the materials which have to be disposed of separately.

Dispose of the circuit boards:

• Disposal via a technical waste dump which is allowed to take on e.g. electrolytic aluminium capacitors. Do under no circumstances dump the circuit boards with normal waste dump.

Warranty Conditions

User Conversions and Changes are Not Permitted.

Any change made by the u ser excludes any liabilit y on our part (excluding th e work described in th is manual).

• The device must not be opened.

• Do not make any modifications to the device, except for those described in the

manual.

• Make connections to the inputs, outputs and interfaces only in the manner described in the manual.

• Fix the devices according to the mounting instructions. We cannot provide any guarantee for other mounting methods.

Conditions of Utilization

General Introductory Notes

With this dev ice you bought a product which was manufactured and tested before deliv ery with the utmost care.

Please take your tim e to read the follo wing notes which you ought to follo w closely during ins tallation and operation.

Unless, all claim s under the warranty will becom e void and a reduced service lif e or even damages must be expected.

in order to prevent damages to persons and electric accidents.

Additional Conditions of Utilization

Please refer to "Safety-Conscious Utilization", page 19.

Non Warranty Clause

We checked the co nte nts o f this publication for compliance with the ass ocia ted h ar d a nd s of t ware. We can, however, not exclude discrepancies and do therefore not accept any liability for the exact compliance. The inform ation in th is publication is regularl y checked, nec essar y corrections wil l be part of the subsequent publications.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 9

Page 10

Installation and Operation

Blank Page

10 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 11

General Description

Introduction

1. General Description

In this chapter you can read about:

Introduction.................................................................................................................................. 12

1.1.

1.2. Purpose of Equipment ................................................................................................................. 13

1.3. Variants Overview ....................................................................................................................... 14

1.3.1. Software Status ................................................................................................................. 14

1.4. Scope of Functionality ................................................................................................................. 14

1.4.1. Fixed and Non-Volatile Data ............................................................................................. 14

1.4.2. Diversity ............................................................................................................................ 15

1.4.3. Mode S .............................................................................................................................. 15

1.4.4. ADS-B (Automatic Dependent Surveillance-Broadcast) ................................................... 16

1.4.5. Supported Transponder Messages .................................................................................. 17

1.4.6. Interfaces .......................................................................................................................... 18

1.4.6.1. ARINC 429 ............................................................................................................ 18

1.4.6.2. Logical Inputs/Outputs ........................................................................................... 18

1.4.6.3. Status and Control Ports ....................................................................................... 18

1.4.6.4. Internal and External Memor y ............................................................................... 18

1.4.7. Built-In Test ....................................................................................................................... 18

1.5. Safety-Conscious Utilization ....................................................................................................... 19

1.6. Restriction for Use ....................................................................................................................... 19

1.7. Technical Data ............................................................................................................................ 20

1.7.1. General Characteristics .................................................................................................... 20

1.7.2. Dimensions & Weight........................................................................................................ 21

1.7.3. Software ............................................................................................................................ 22

1.7.4. Hardware .......................................................................................................................... 22

1.7.5. Continued Airwort hi nes s ................................................................................................... 22

1.7.6. Environmental Conditions ................................................................................................. 23

1.7.7. Certifications ..................................................................................................................... 24

1.7.7.1. FCC Approval ........................................................................................................ 25

1.8. Order Code.................................................................................................................................. 26

1.8.1. BXT6513-(0XX) ................................................................................................................. 26

1.8.2. Accessories ....................................................................................................................... 26

1.8.3. Spare Parts ....................................................................................................................... 27

This manual descr ibes t he operation and insta llation of the rem ote contr olled BX T6513-(0XX) Mode S Transponder. The ID label on your device shows the part number for identification purposes (see "Type Plate", page 31).

Before starting operation of the unit(s) please read this manual carefully, with particular attention to the description referring to your device(s).

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 11

Page 12

General Description

DV15104.04

DV15104.03

General X X

Installation X X

Operation X X

Theory of Operation

N/A

Maintenance and Repair

N/A

Illustrated Parts List

N/A

Modification and Changes

N/A

Circuit Diagrams

N/A

Certifications X N/A

Attachments X N/A

Introduction

1.1. Introduction

The technical information in this document apply to the described product BXT6513-(0XX).

The manuals “Maintenance and Repair” (M&R), “Installat ion a nd Operation (I&O) contain the follo win g sections:

Section

M&R

I&O

12 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 13

Actual generation of each ADS-B message type and data within each message

General Description

Purpose of Equipment

1.2. Purpose of Equipment

The BXT6513-(0XX) transponder is designed as a remote c ontrolled single bloc k unit and is intended for installation in aircraft avionics bay.

BXT6513-(0XX) is a transponder which provides to other stations Mode A/C/S messages as well ADS-B Extended Squitter functionality (ES).

BXT6513-(0XX) is a remote controlled unit, which does not include a control panel. It can receive commands and provides data through a set of standard interfaces.

Features:

• Control Interface ARINC 429.

• Mode A - in this mode, the 4096 character code is sent as a reply to interrogation from

a ground station.

• Mode C - in this mode, the encoded altitude is sent in addition to the mode A reply.

o Data range for 25 ft resolution: -1000… 50187 ft. o Data range for 100 ft resolution: -1000… 126750 ft. o The altitude information must be delivered from an external device.

• Mode S - interrogations are selective and Mode S transponders will respond to a single directed interrogation from ground stations or another aircraft with ICAO 24-bit address.

• ADS-B Broadcast-Only System, transmit:

o Airborne Position Message, o Surface Position Message, o Airborne Velocity Message, o Aircraft Identification and C ateg ory Message, o Aircraft Operational Status Mes sage, o Extended Squitter Aircraft Status Message.

• Diversity - operation with two antennas (top and bottom), required for installation in aircrafts with gross mass in excess of 5700 kg or a maximum cruising true airspeed in excess of 175 kt (324 km/h).

• Support of the SI code (Surveillance Identifier).

• Register capability for elementary surveillance (ELS) and enhanced surveillance (EHS).

• Data link capability.

• GPS receiver connection capability.

• Selftests (BITs) are integrated in the transponder.

depends on availability of navigation data and GPS capabilities.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 13

Page 14

General Description

13 - (0XX)

Identifier

000 – Diversity

Model

Variants Overview

1.3. Variants Overview

Within the part number, the meaning of "BXT6513-(0XX)" is:

1.3.1. Software Status

Details please see "Software Data Plate", page 32.

010 – Single antenna

1.4. Scope of Functionality

BXT6513-(0XX) is a transponder providing downlink of aircraft information and single antenna and diversity antenna installations. For single antenna one shall be installed on the bottom side. For diversity one antenna is installed on the top side, and the other on the bottom side of the aircraft fuselage (detailed type description see "Type Plate", page 31).

The BXT6513-(0XX) operates on rad ar frequencies; r eceiving ground radar and ACAS inter rogations and replies via its transmitter with coded pulse packages on 1090 MHz. A special position identification pulse (SPI) can be added for a period of 18 seconds to each pulse package after activation of the dedicated discrete signal input on the unit.

The BXT6513-(0XX) meets Mode S Enhanced Surveillance (EHS) requirements.EHS parameters require additional interface with other aircraft systems and the BXT6513-(0XX). Aircraft that can provide the list of eight Do wnlink Aircraft Param eters (DAPs) listed in BDS regis ters 4.0, 5.0 and 6.0 are considered to be Mode S EHS capable. Aircraft that cannot provide these parameters will be considered as, not EHS capable.

1.4.1. Fixed and Non-Volatile Data

The BXT6513-(0XX) configuration is stored in a non-volatile memory. There are two possibilities where to store configuration data:

• Use the internal memory

• Use the external memory module EM6100.

The selection of equipment configuration source is done by hardware configuration (see “Unit Configuration", page 46).

14 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 15

XPDR Receiver

bottom

Interrogation/

Processing

XPDR Receiver

top

XPDR

Transmitter

Antenna Switch

ADS-B Out message ADLP Control&Status Configuration Suppression Line

General Description

Scope of Functionality

1.4.2. Diversity

Antenna diversity reduce t he potential for antenna "shading ", and helps to prevent target drop out in each situation.

BXT6513-(000) is capable to oper ate with two antennas (top an d bottom), required for insta llation in aircrafts with gross mass in excess of 5700 kg or a maximum cruising true airspeed in excess of 175 kt (324 km/h).

1.4.3. Mode S

BXT6513-(0XX) as Mode S transponder is an airborne part of Mode S Secondary Surveillance Radar system which detects ground interrogations arriving at 1030 MHz signal frequency, processes them and generates responses at 1090 MHz signal frequency.

Figure 1: Block Diagram – Mode S Transponder Concept

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 15

Page 16

General Description Scope of Functionality

1.4.4. ADS-B (Automatic Dependent Surveillance-Broadcast)

ADS-B is a GPS based t ec hno logy to define and provide aircr af t rele vant data. To support ADS-B Out, the aircraft needs a certified GPS receiver as the position so urce, and this device to send the ADS-B data. This data can be received by other air- and ground stations.

The Automatic Dependent Surveillance-Broadcast Out (ADS-B Out) function provides position, velocity and status data on the transpon der f or broadcasting as extended squitters (ES). When data is available, it is transmitted at specific periods and enable other participants to determine current position, velocity and status of the aircraft without interrogation.

BXT6513-(0XX) is an ADS-B class B1 or B1S (airc raft broadcast only) Mode S trans ponder capable for automatically sending out ADS-B data like:

• ( BD S 0,5) Airborne Position Message.

o SPI. o Emergency Indicator. o Barometric Altitude. o Quality Indicator (NIC). o Latitude (Airborne Position). o Longitude (Airborne Posit io n).

• ( BD S 0,6) Surface Position Message.

o Quality Indicator (NIC). o Latitude (Surface Position). o Longitude (Surface Position). o Surface Ground Speed. o Surface Ground Track.

• ( BD S 0,8) Aircraft ID and Category Message.

o Aircraft Identification & Categorie.

• ( BD S 0,9) Airborne Velocity.

o Airborne Ground Velocity. o Geometric to Barometric Altitude Difference. o Geometric Vertical Speed.

• ( BD S 6,1) Emergency/Priorit y Status.

o Squawk Code. o Emergency Status.

• ( BD S 6,5) Aircraft Operational Status Message, Airbor ne a nd Surface.

o Quality Indicator (NACp, NACv and GVA). o Quality Indicator (SIL and SDA). o Version Indicator. o Surface Length/Width. o Surface Antenna Offset.

16 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 17

1.4.5. Supported Transponder Messages

BXT6513 supports the following Binary Data Selector (BDS) registers.

General Mode S Registers:

• ( BD S 1,0) Data Link Capability Report.

• ( BD S 1,7) Common Usage GICB Capability Report.

• (BDS 1,8 to 1,C) Mode S Specific Servic es G IC B Capability Report.

Elementary Surveillanc e Reg ister s:

• ( BD S 2,0) Flight ID.

• ( BD S 2,1) Aircraft Registration.

Enhanced Surveillance Registers:

• ( BD S 4,0) Selected Vertical Intention Report (except Vertical Mode).

• ( BD S 5,0) Track and Turn Report.

• ( BD S 6,0) Heading and Speed Report.

Extended Squitter/ADS-B Registers:

• ( BD S 0,5) Airborne Position Message.

• ( BD S 0,6) Surface Position Message.

• ( BD S 0,8) Aircraft ID and Category Message.

• ( BD S 0,9) Airborne Velocity.

• ( BD S 6,1) Emergency/Priority Status.

• ( BD S 6,5) Aircraft Operational Status Message, Airborne.

• ( BD S 6,5) Aircraft Operational Status Mes s age, Surf ac e.

General Description

Scope of Functionality

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 17

Page 18

General Description

We recommend the usage of the External Memory module EM6100 as data

Scope of Functionality

1.4.6. Interfaces

1.4.6.1. ARINC 429 The ARINC 429 specification is a standard how avionics equipment and systems communicate on

aircraft. The specification defines:

• Electrical characteristics,

• Word structures,

• Protocol for bus communication.

Electrical and data form at charac terist ics ar e defined f or a two-wire serial bus with one transm itter and up to 20 receivers. This simple architecture provides a highly reliable transfer of data. The bus is capable of operating at a speed of 100 kbit/s.

For detailed information about ARINC 429 specifications please refer to: www.arinc.com.

Copyright Note ARINC: ARINC429 is a privately copy written specification developed to provide interchange ability and interoperability of line replaceable units (LRUs) in commercial aircraf t. ARINC stands for Aeronaut ical Radio, I nc.

1.4.6.2. Logical Inputs/Outputs The hardware design of BXT6513-(0XX) provides a subset of inputs and outputs required for

transponder operation.

1.4.6.3. Status and Control Ports The hardware design of BXT6513-(0XX) provides a subset of ports for provide information about

transponder status and for controlling.

1.4.6.4. Internal and External Memory An internal or exter nal memory is used as configuration data s ource, saving aircr aft data installation

and configuration data. On start-up BXT6513-(0XX) reads from this non-volatile memory configuration data which include

parameters specif ic to the actual airc raft and inst allation. Typicall y, an external mem ory (EM) is used. If BXT6513-(0XX) is replaced e.g. for maintenance, so the new BXT6513-(0XX) can be assembled with the external m emor y module in t his wa y it is g uarantee d that a ll relev ant data is availa ble for fast & easy exchange.

source.

1.4.7. Built-In Test

BXT6513-(0XX) has advanced Built-In-Test. It monitors most of internal circuits against failures.

18 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 19

• The installation of the BXT6513-(0XX) into an aircraft may be carried out

Excessive pulses on the DC bus of the aircraft may cause damage on electrical

It is the responsibility of the installer to ensure the ADS-B Out system is

• Installation of BXT6513-(0XX) is limited to configurations where the aircraft

1.5. Safety-Conscious Utilization

For safe operation of the product the following notes have to be observed:

only by an authorized installation company. The country regulations always have to be observed.

• Use the product only within the specified conditions, see "Technical Data" page 20.

• Circuit breaker:

o Use the recommended fuses in the power line to protect the application,

see "Technical Data", page 20.

circuits of any installed instrument.

compliant with current national regulations e.g. AC 20-165B and to ensure compatibility between the BXT6513 and the ADS-B Out position source equipment.

General Description

Safety-Conscious Utilization

1.6. Restriction for Use

is equipped with an ARINC-743A compliant GNSS receiver having an time mark output, the transponder is configured to use the time mark signal and time mark output of the GNSS receiver is connected to the corresponding input of the transponder.

• Installation of BXT6513-(0XX) is limited to configurations where the aircraft has Weight-On-Wheels/Ground Sensor, the transponder is configured to use Weight-On-Wheels/Ground Sensor input and Weight-OnWheels/Ground Sensor is connect ed to the correspond ing input of the transponder.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 19

Page 20

General Description

BXT6513-(0XX)

Specifications

Supply voltage

28 VDC (18.0...32.2 VDC)

Emergency voltage

18 VDC min.

Power consumption

27 W max.

Recommended external fuse protection

3 A

RF port

Impedance

50 Ω

Transmitter frequency

1090 ± 1 MHz

Transmitter power

min. 125 W at antenna terminal

Receiver frequency

1030 MHz

Mode A/C sensitivity

-73 ± 4 dBm at antenna terminal

Mode S sensitivity

-74 ± 3 dBm at antenna terminal

Interrogations - Mode

Mode A, C, A/S All Call, C/S All Call, Replay rate capability

Mode A/C

Continuous: 500 replies per second

Mode S

60 long replies per second

Squitter

Short (56 bits): Acquisition

Long (112 bits): Identification

Interface

Control Interface

ARINC 718A, 3x ARINC 429 In

Air Data Computer

ARINC 706, 2x ARINC 429 In

ADLP

ARINC 718A, 1x ARINC 429 In, 1x ARINC 429 Out

FCC

ARINC 701, 1x ARINC 429 In

FMC

ARINC 702, 1x ARINC 429 In

Technical Data

1.7. Technical Data

1.7.1. General Characteristics

Mode S (DF=0, 4, 5, 11, 16, 20, 21)

Peak (100 ms): 1200 replies per second

12 short and 6 long replies in 100 ms 4 short and 4 long replies in 25 ms 2 short and 2 long replies in 1.6 ms

Airborne Position Airborne Velocity Surface Position Aircraft Operational Status Extended Squitter Aircraft Status Custom messages (TYPE=23)

20 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 21

BXT6513-(0XX)

Specifications

IRS

ARINC 704, 1x ARINC 429 In

GNSS

ARINC 743A, 1x ARINC 429, 1x Time Mark (differential)

Radio Altimeter

ARINC 707, 1x ARINC 429 In

Data concentrator

2x ARINC 429 In

Data output

ARINC 718A, 2x ARINC 429 Out

Field Loadable Software

ARINC 826, 1x CANbus, 1x Discrete In

Mutual Suppression

ARINC 718A

IDENT

1x Discrete In

Standby

1x Discrete In

Control Port select

1x Discrete In

ADC select

1x Discrete In

Weight on Wheels

1x Discrete In

Ext. Squitter disable

1x Discrete In

Burst Mode

1x Discrete In

Reply indication

1x Discrete Out

Status

3x Discrete Out

Maintenance

1x USB (front panel)

Specifications

BXT6513-(0XX) only (HxWxD)

171 x 47.4 x 276 mm (6.73 x 1.87 x 10.87 in)

BXT6513-(0XX) depth with EM module

310 mm (12.21 in)

BXT6513-(0XX) with m ounting + backshell

172.5 x 52.4 x 331 mm (6.79 x 2.06 x 13.03 in) Weight

Transponder BXT6513-(0XX)

≤ 1.6 kg (3.53 lb)

Mounting tray MT6533-(000)

≤ 0.50 kg (1.10 lb)

Backshell BS6533-(100)

≤ 0.3 kg (0.66 lb)

External memory module EM6100

≤ 0.018 kg (0.04 lb)

General Description

Technical Data

1.7.2. Dimensions & Weight

(HxWxD)

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 21

Page 22

General Description Technical Data

1.7.3. Software

As a result of the safety assessment process the failure condition of the BXT6513-(0XX) was determined to be Category MAJOR.

As the failure condition of the software used in the BXT6513-(0XX) was categorized MAJOR, the Design Assurance Level (DAL) of the unit is determine to be Level C according DO-178C.

1.7.4. Hardware

The Complex Electronic Hardware (CEH) included into BXT6513-(0XX) has been designed in

accordance with

EUROCAE/RTCA Document ED-80/DO-254; “Design Assurance Guidance for

Airborne Electronic Hardware”. And satisfy criteria of:

Hardware Assurance Level (HAL) C

1.7.5. Continued Airworthiness

• The BXT6513-(0XX) maintenance is defined as "on condition" only.

• No scheduled or regular maintenance of this product is required.

22 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 23

Characteristics

Section

Cat.

Condition

Intended for installation in non-pressurized Intended for installation in non-pressurized

In-flight Loss of Cooling

No test

Non-temperature controlled or partially Humidity

Severe humidity environment

Tested for standard operational shock and

Standard vibrations test:

Robust vibrations test: Helicopters with

Explosion Proofness

No test

Water Proofness

No test

Fluids Susceptibility

No test

Sand and Dust

No test

Fungus Resistance Compliance performed Salt Spray

No test

Deflection for magnetic compass is ≤ 1°, if

28 VDC equipment installed in aircrafts

DC current ripple

No test

Inrush current

No test

High degree of protection against damage

28 VDC equipment with no battery or

General Description

Technical Data

1.7.6. Environmental Conditions

BXT6513-(0XX) was tested in accordance with ED-14G/DO-160G under consideration of listed environmental categories and conditions:

and non-controlled temperature location of

Temperature 4 B2

an aircraft that is operated at altitudes up to 25 000 ft (7620 m) MSL.

-45…70 °C.

Altitude 4 F1

Temperature Variation 5 B

Operational Shocks and Crash Safety 7 B

Vibration 8 SMB2

8 U2FF1

but controlled temperature location of an aircraft that is operated at altitudes up to 55 000 ft (16 800 m) MSL

temperature controlled internal sections of the aircraft

crash safety

• sine vibration curve M

• random vibration curve B2

unknown frequencies, Zone 1a and 2: fuselage, instrument panel, console and equipment rack

Fungus Resistance 13 F

Magnetic Effect 15 Z

Power Input 16 B

Voltage Spike 17 A

Audio Freq. Conducted Susceptibility 18 Z

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 23

by Analysis

unit is installed with a distance of ≤0.3 m.

supplied with engine-driven alternator/rectifiers or DC generators where a battery of significant capacity is floating on DC bus all the time.

by voltage spikes

battery small compared with the capacity of the DC generator

Page 24

General Description

Characteristics

Section

Cat.

Condition

Equipment for which interference-free Compliant to high intensity radiated fields

Located in areas where apertures are Lightning Induced Transients

Pin test waveform set A, level 3. Cable Lightning Direct Effect s

No test

Icing

No test

Installed, repaired or operated in an Fire, Flammability

No test

Part Number

EASA Approval

BXT6513-(0XX)

EASA.21O.10058306

Specifications

ETSO

C112d – Level 2 dens, Class 1

ED12C / DO178C

DAL C

ED80 / DO-254

DAL C

ICAO

Annex 10, Vol IV

MOPS

RTCA/DO-160G, EUROCAE ED-73E,

Technical Data

Induced Signal Susceptibility 19 CCX

operation is required; installed on aircraft where severe coupling occurs due to long wire runs

Radio Frequency Susceptibility 20 RR

Emission of Radio Frequency Energy 21 M

associated with the normal environment.

significant and not directly in view of radio receiver’s antenna.

Susceptibility

Electrostatic Discharge 25 A

22 A3E3XX

bundle test waveform set E, level 3

aerospace environm ent

BXT6513-(0XX) is fulfilling the related requirements of AC20-158A and AC20-136B.

1.7.7. Certifications

The Remote Controlled Mode S Transponder BXT6513 is certified.

BXT6513-(0XX) meets the requirements of:

(single antenna: Level 2 ens) C166b Class B1

(single antenna: Class B1S)

EUROCAE ED-102A

24 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 25

General Description

Technical Data

1.7.7.1. FCC Approval

Radiofrequency radiation exposure in formation:

This equipment com plies with FC C rad iatio n exp osure lim its set f orth f or an uncontr olled enviro nm ent. This equipment should be installed and operated with minimum distance of 50 cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates , uses, and can radiate ra dio frequency energ y and, if not installed an d used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipm ent in a residential area is likel y to cause harmful interfe rence in which case the user will be required to correct the interference at his own expense.

NOTE: This device complies with Part 15 of the FCC Rules [and with Industry Canada licence-exempt

RSS standard(s)]. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause

undesired operation. NOTE: Changes or modifications made to this equipment not expressl y approved by Beck er Avionics may

void the FCC authorization to operate this equ ipment.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 25

Page 26

General Description

Qty

Transponder

BXT6513-(000): XPDR (class1, Level 2 dens) /ADS-B Out (B1)

Article No. 0645.141-915

BXT6513-(010): XPDR (class1, Level 2 ens) /ADS-B Out (B1S)

Article No. 0649.732-915

Qty

External Memory

EM6100-(000) External memory

Article-No. 0608.270-921

Qty

Configuration Equipment

EMP Kit, Config urati on Set External Memory

Article-No. 0649.961-954 1

CANbus Kit, Configurat ion Set

on request

Qty

Mounting Equipment

Mounting tray MT6533-(000)

Article-No. 0635.952-264

Backshell BS6533-(100) for MT6533

Article-No.0645.168-284

Backshell BS6533-(110) single antenna for MT6533

Article-No.0649.767-284

Qty

Antenna

BXT6513-(0XX) accept all types of transponder antennas.

Qty

Connector Kit

CK6513-(100):

Article-No. 0647.551-954

Qty

Available Documentation

BXT6513-(0XX) Installation and Operation, English

Article-No. 0647.225-071

BXT6513-(0XX) Maintenance and Repair, English

Article-No. 0647.233-071

EMP Extended Memory Programmer User Manual, English

Article-No. 0648.655-071

ARINC 826 Data Loader Manual

Article-No.0649.562 071

ICD Manual (Interface Control Document), English

on request

FLS Manual, English

on request

Order Code

1.8. Order Code

1.8.1. BXT6513-(0XX)

1.8.2. Accessories

• Programming module

• EM Programmer (software on USB stick)

• USB cable

• CAN USB-adapter

• EM Programmer & ARINC Data Loader on USB stick

Please use only antennas which are certified to one of the following TSOs:

(E)TSO-C66() (E)TSO-C74() (E)TSO-C112()

90°TNC connector kit for 311201 ECS coax cable

26 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 27

Qty

Repair Kit

RK6533-(100): Repair Kit for the BS6533-(100)

Article-No. 0647.195-954

1.8.3. Spare Parts

General Description

Order Code

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 27

Page 28

General Description Order Code

Blank Page

28 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 29

The packaging material is inflammable, if it is disposed of improperly by

Packaging, Transport, Storage

Installation

2. Installation

This manual must be available close to the device during the performance of all tasks. Careful planning should be applied to achieve the desired per formance and reliability from the product.

Any deviations from the installation instructions prescribed in this document are under own responsibility.

In this chapter you can read about:

Packaging, Transport, Storage ................................................................................................... 29

2.1.

2.2. Device Assignment ..................................................................................................................... 30

2.3. Mounting Requirements .............................................................................................................. 33

2.4. Dimensions.................................................................................................................................. 37

2.5. Electrical Installation ................................................................................................................... 40

2.6. Interfaces..................................................................................................................................... 45

2.7. Unit Configuration ....................................................................................................................... 46

2.8. Configuration Data ...................................................................................................................... 54

2.9. Software Update ......................................................................................................................... 55

2.10. Aircraft Wiring .............................................................................................................................. 56

2.11. Post Installation Check ................................................................................................................ 57

2.1. Packaging, Transport, Storage

Visually inspect the package contents for signs of transport damage.

2.1.1. Packaging Material and Transport

The packaging materia l can be kept and reused in the case of a return shipment. Improper or f aulty packaging may lead to transport damages.

Make sure to transport the device always in a safe manner and with the aid of suitable lifting equipment if necess ary. Do nev er use th e elec tric connections f or lifting. Before t he trans port , a clean, level surface should be prepared to place the device on. The electric connections may not be damaged when placing the device.

First Device Checkup

• Check the device for signs of transport damages.

• Please verify if the indications on the type plate correspond to your purchas e order.

• Check if the equipment is complete ("Scope of Delivery", page 30).

Storage

If you do not wish to mount and insta ll the de vic e immedi atel y, mak e sure to s tore it in a dr y and clean environment. Make sure that the device is not stored near strong heat sources and that no metal chippings can get into the device.

burning, toxic fumes may develop.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 29

Page 30

Installation Device Assignment

2.2. Device Assignment

This manual is valid for the following devices:

• BXT6513-(0XX) + supplement

2.2.1. Scope of Delivery

• Manuals o Installation and Operation manual

• Transponder o BXT6513-(0XX)

2.2.2. Additional Required Equipment

Details see "Accessories", page 26.

• EASA Form One

• Mounting kit MT6533, mandatory to meet the conditions for certification

• Backshell BS6533, mandatory to meet the conditions for certification

• Connectors + cables

• Antennas + antenna cables

• External Memory module (depends on configuration)

• Configuration set

• Control unit (controlling and operating BXT6513-(0XX))

30 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 31

PN:

Example Type designation:

SN:

Unique number of the particular device

AN:

Article number (=order number)

DoM:

Date of Manufacturing

Mode state

Compliance and Certifications

2.2.3. Type Plate

The device type is defined by the type plate (on the housing): Example:

Figure 2: Type plate (example)

Explanation:

BXT = Remote Controlled Transponder with ADS-B out 6513 = Model number

Options:

-(000): Diversity

-(010): Single antenna Functionality:

XPDR class 1: Output power at antenna ≥125 W Level 2: Surveillance and Comm-A/B d: Diversity e: Extended squitter n: Enhanced surveillance s: Surveillance identifier code (SI)

ADS-B class

B1: Aircraft broadcast only B1S: Aircraft broadcast only, single antenna

Installation

Device Assignment

Corresponding to the displayed text and logos

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 31

Page 32

Installation

Example description:

Device Status

ERR

Off

off

Initializing

off

Failure of any of basic function(s)

off

Operating, minor failures reported

Operating, no error

off

Device Assignment

2.2.4. Software Data Plate

The software state is defined by the software data plate (on the housing): Example:

Figure 3: Software data plate (example)

Explanation:

The labelling on this data plate example shows: Software status of the device = software package version 2.

2.2.5. Meaning of Status LEDs

The two front panel LEDs indicate basic information about overall equipment status.

(LED yellow)

(LED green)

32 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 33

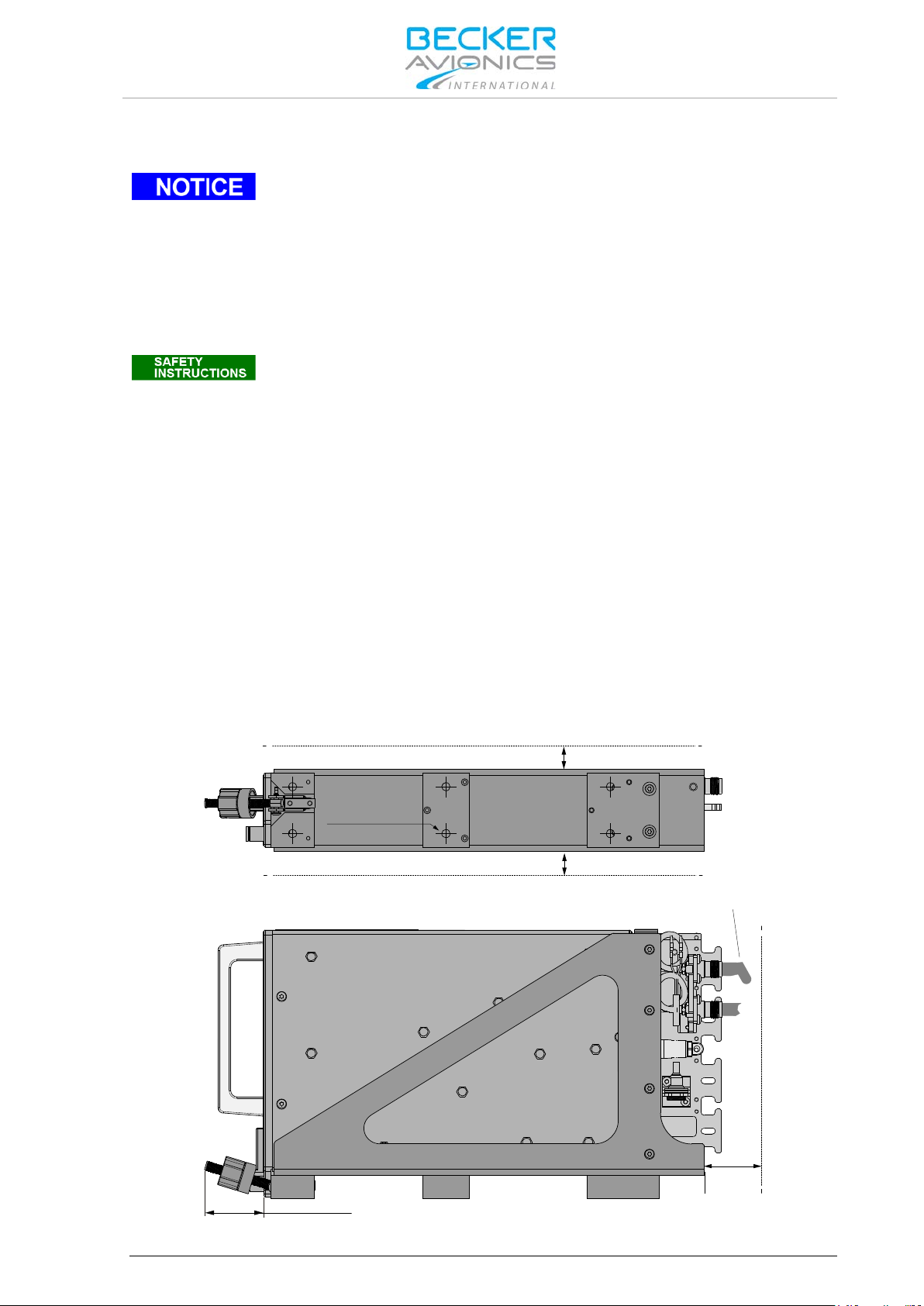

The installation of the BXT6513-(0XX) into an aircraft may be carried out only by

The device must not be opened.

37.8 (1.48)

min 30

(1.18)

cabling area

air circulation min 15 (0.59)

RF cable bending radius

min R20

6x Ø5.3 (Ø0.21)

Mounting Requirements

Installation

2.3. Mounting Requirements

an authorized installation company. The country regulations always have to be observed.

Antenna and cable installations on pressurized cabin aircraft require FAA/EASA approved installation design and engineering substantiation data whenever such installations incorporate alteration (penetration) of the cabin pres s ure ves sel b y connector holes and/or mounting arrangements. Use of existing bulkhead connectors previously approved by other means is permissible without additional

BXT6513-(0XX) is mounted to the airframe using the dedicated mounting which consists of a mounting tray MT6533) and a backshell (BS6533). The mounting tray provides fixing the BXT6513-(0XX) to the aircraft s tructure. The backshell provides fix ing for cable harness. Details see "Dimensions", page 37.

Fixing the mounting tray MT6533 to the airframe:

2.3.1. Mounting Distance

approval.

When installing the device, make sure the heat dissipators of the device receive sufficient air. Ensure air circulation gaps as spec if ied , see “Mounting Distance”, page 33.

The mounting place shall be at least 30 cm from the magnetic aircraft compass, to avoid any interference to the magnetic compass.

Make sure that the mounting plate is not exposed to external temperature influences.

• Use six M5 (metric) or size 10 (imperial) screws with countersunk head. o Minimum torque for fixing screws should be 2.5 Nm.

• Torque for ground stud nut should be normally 1.5 Nm (max. 1.7 Nm).

Dimensions mm (in ch)

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 33

Figure 4: BXT6513-(0XX) mounting area

Page 34

Installation

Make sure that the grounding contact area is adequate and that the connection has

Cable cross section – Crimp tool

Connector / cable cross section

Crimp tool category

(for the D-Sub connectors)

Crimps

CONEC part number: 360X10329X

Positioner

for CONEC pins – part number 360X20069X

Insertion/Removal tool

CONEC part number: 360X12009X

Mounting Requirements

2.3.2. Grounding

low resistance and low inductance. Never use a grounding point on paint-coated surfaces!

The mounting tray (MT6533) must be connected to the aircraft electrical frame. Use the dedicated grounding stud at the rear part of the mounting.

The grounding stud is marked on the mounting tray.

• Wire cross section: min. 4 mm

• Length: max.150 mm (6 in).

2.3.3. Cable Installation

• General requirements (except power wires)

o Use only shielded cables. o Connect each shield to the ground individually (no series connections). o Connect all cable shields at both ends, ensuring large contact areas! o Cable routing should be kept as short and as direct as practical. o Avoid sharp bends to prevent cable break and defects of insulation. o Avoid routing close to sharp edges to prevent cable break and defects of

insulation due to vibration hand ling th e cable.

o Avoid routing cables near power sources o Avoid routing cables near aircraft control cables. o Avoid routing antenna cables near DME, TCAS, radar altimeter, and ADF

• Shielded cables

• Signal cables for configuration inputs

antenna cables (allow min. 12 inch separation)

o Wire cross section (cable shield – ground): min. AWG 24 (0.25 mm o Shield connection length: max. 75 mm (3 in).

o Wire cross section (signal cables – ground): AWG 24 (0.25 mm

o Length: max. 150 mm (6 in).

2.3.4. Recommended Crimp Tools

Please always verify the use of the suited positioner (insert) in the c r imping pliers

34 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

to guarantee a reliable wired connection.

Page 35

It is recommended that "Top" & "Bottom" antenna cables are of the same type

cable type

max. loss

max. cable length

RG400

0.5 dB/m

6 m

RG142

0.42 dB/m

7.14 m

RG393

0.29 dB/m

10.3 m

ECS310801

0.11 dB/m

27 m

ECS310701

0.10 dB/m

30 m

2.3.5. Antenna Cables

The antenna installation needs to comply with following limitations:

• The total attenuation of a connection between any antenna and the equipment,

including cables, connectors, microwave switch (if used), etc. shall not be more than 3 dB.

• The connection attenuation difference between antennas shall not be greater than

0.5 dB.

• The signal delay of a connection between any antenna and the equipment shall not be

greater than 75 ns.

• The signal delay difference between antennas shall not be greater than 20 ns.

and have similar length.

2.3.5.1. Attenuation: Cable length vs coax cable type Data below shall be used as guideline only.

Installation

Mounting Requirements

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 35

Page 36

Installation

Penetration of the pressurised cabin on a pressurised aircraft requires additional

Radiation risk:

Mounting Requirements

2.3.6. Antenna Installation

For antenna installation, refer always to the manufacturer´s maintenance documentation for the aircraft. Carry out the antenna installation in accordance with AC 43.12-2A Chapter 3.

data, which are not contained in this installation manual.

The picture shows a typical location for top and bottom antenna installation for Diversity Mode S transponder.

A safe distance to the installed antenna must be ensured by corresponding installation measures around human body damage (e.g. at the eyes) and/or avoid the inflammation of combustible materials by radiated energy.

Figure 5: Antenna Installation (Diversity)

Transponder antennas should be installed as far away as practical from:

• Other antennas,

• Sha do wing prod uc ed b y other inst allat ions on the surface of the aircraft body,

• Exhaust path of the engine(s),

• Landing gear doors or other openings.

• Check the skin panels for sufficient bonding before the antenna installation.

• Separate the transponder antennas from DME and TCAS as much as possible

(approx. 1.8 m or 6 feet as guideline).

• Generally, transponder antennas should not be closer to the XPDR transceiver installed as 3 ft. Otherwise RF interference may occur.

• Mount the main antenna on the bottom of the aircraft fuselage in a vertical position, same as the top antenna. Horizontal separation of both antennas should not exceed

7.6 meters (25 ft).

• Follow the manufacturer´s installation instruction for the antenna to ensure achieving maximum performance of the BXT6513-(0XX).

• If existing antennas on the aircraft will be used an inspection of the area between antenna and the aircraft skin is highly recommended to avoid negative effects of possible corrosion in this area.

• On composite aircraft, add sufficient ground plane material.

36 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 37

USB

ERR

TOPBOTEM

P2 P1

CENTER OF GRAVITY

120 (4.72)

276 (10.87)

310 (12.21)

47.4

(1.87)

(0.87)

74 (2.91)

154.5 (6.08)

171 (6.73)

28.8

(1.13)

235.4 (9.27)

Allowable deviation for dimensions without tolerances: DIN ISO 2768 T1 C

xx...6 (±0.3)

>30...120 (±0.8)

>400...1000 (±2.0)

>6...30 (±0.5)

>120...400 (±1.2)

>1000...2000 (±3.0)

2.4. Dimensions

2.4.1. Transponder BXT6513-(0XX)

Installation Dimensions

Dimensions mm (in ch)

Figure 6: BXT6513-(0XX)

"Center of Gravity" for BXT6513-(0XX) with EM module.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 37

Page 38

Installation

USB

OK ERR

CENTER OF GRAVITY

263 (10.36)

64 (2.52)

172.5 (6.79)

157.5 (6.20)

277 (10.91)

319 (12.56)

148 (5.95)

165 (6.5)

(1.18)

60 (2.36)6x Ø5.3 (Ø0.21)

52.4

(2.06)

(0.94)

Allowable deviation for dimensions without tolerances: DIN ISO 2768 T1 C

xx...6 (±0.3)

>30...120 (±0.8)

>400...1000 (±2.0)

>6...30 (±0.5)

>120...400 (±1.2)

>1000...2000 (±3.0)

Dimensions

2.4.2. BXT6513-(0XX) with Mounting MT6533

Dimensions mm (in ch)

Figure 7: BXT6513-(0XX) with Mounting Tray MT6533

"Center of Gravity" for BXT6513-(0XX) with EM module and mounting.

38 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 39

USB

OK ERR

CENTER OF GRAVITY

263 (10.36)

67 (2.64)

172.5 (6.79)

157.5 (6.20)

292.8 (11.53)

331 (13.03)

144 (5.67)

11.3

(0.45)

165 (6.5)

(1.18)

60 (2.36)6x Ø5.3 (Ø0.21)

52.4

(2.06)

(1.06)

Backshell without cable clamps

Allowable deviation for dimensions without tolerances: DIN ISO 2768 T1 C

xx...6 (±0.3)

>30...120 (±0.8)

>400...1000 (±2.0)

>6...30 (±0.5)

>120...400 (±1.2)

>1000...2000 (±3.0)

2.4.3. BXT6513-(0XX) with M ounti ng MT6533 and Backshell BS6533

Installation Dimensions

Dimensions mm (in ch)

Figure 8: BXT6513-(0XX) with Mounting Tray MT6533 and Backshell BS6533

"Center of Gravity" for BXT6513-(0XX) with EM module, mounting and backshell.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 39

Page 40

Installation

For installations in a more severe electromagnetically environment use shielded

TOPBOTEM

P2 P1

Backshell without cable clamps

Figure 9: BXT6513-(0XX) connector layout

Figure 10: BS6533 connector l ay out (backshell)

Reserved Pins shall not be connected.

Signal

Pin Name

Function

I/O

Remarks

CAX0B

Reserved

- factory only

C4XXIB0

XPDR Control, Port A, Line B

ARINC 429

C4XXIB1

GNSS Data, Line B

ARINC 429/RS422

configurable,

C4XXIB2

ADC/Altitude Encoder, Port A,

ARINC 429/RS422

configurable

CIX2

Reserved

- factory only

CIX3

XPDR Standby

Discrete

CIX0

XPDR Reply

Discrete

Low active, ≈ 200 ms

CIX1

Ident Activation

Discrete

Low active, < 3.5 V

C429IA0

FMC, Line A

ARINC 429

I 10

C429IB0

FMC, Line B

ARINC 429

I 11

C429IA1

Reserved

- factory only

C422IN0

Time Mark, inverting

RS422

Line B

C422IP0

Time Mark, non-inverting

RS422

Line A

CSI1

Configuration Source Select

Discrete

data source

Electrical Installation

2.5. Electri cal In st all at i on

cable connectors and a common shielding for the transponder interwiring. Detailed information according electrical signals and wiring are available in

ICD manual; please see “Order Code”, “Available Documentation” page 26.

2.5.1. Connector P1

name

Line B

after every generated reply.

40 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

configuration

Page 41

Signal

Pin Name

Function

I/O

Remarks

CRDY

System Status

Discrete

Low active, < 1.0 V

PGND

Ground

Supply Return

PGND

Ground

Supply Return

- 18

CAX0A

Reserved

- factory only

C4XXIA0

XPDR Control, Port A, Line A

ARINC 429

C4XXIA1

GNSS Data, Line A

ARINC 429/RS422

configurable

C4XXIA2

ADC/Altitude Encoder, Port A,

ARINC 429/RS422

configurable

C429XB0

XPDR Data, Port A, Line B

ARINC 429

C429XA0

XPDR Data, Port A, Line A

ARINC 429

GND

Ground

Signal Return

- 25

C429XB1

Reserved

- factory only

C429XA1

Reserved

- factory only

C429XB2

Reserved

- factory only

C429XA2

Reserved

- factory only

GND

Ground

Signal Return

CSI0

Configuration Source Selection

Discrete

data source

CSI2

XPDR Source/Dest ina tion s elec t

Discrete

unit number (No.1,

SUPP

DC Power Supply

28 VDC aircraft

I 33

SUPP

DC Power Supply

28 VDC aircraft

C3V3

External Memory Module supply

Supply

CSDA

External Memory Module data

Data

I/O

CSCL

External Memory Module clock

Clock

O 37

GND

Ground

Signal Return

CCANN0

CAN Bus, Port 0

CAN

I/O

CCANP0

CAN Bus, Port 0

CAN

I/O

C4XXIA3

ADC/Altitude Encoder, Port B,

ARINC 429/RS422

configurable

C4XXIB3

ADC/Altitude Encoder, Port B,

ARINC 429/RS422

configurable

GND

Ground

Signal Return

CSIX

Mutual Suppression

ARINC 718A

I/O

CIHL0

Weight on Wheel Sensor

Discrete

active State

C429IB1

Reserved

- factory only

name

Line A

Installation

Electrical Installation

Line A

Line B

configuration

No.2) in dual installations

power

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 41

configurable, (High or Low active)

Page 42

Installation

Signal

Pin Name

Function

I/O

Remarks

GND

Ground

Signal Return

CSI3

Transmitter Test Inhibit

Discrete

active if strapped to

CI10

ADC/Altitude Encoder Port Sel ec t

Discrete

Source selection

CI11

Reserved

- factory only

CILLI

Reserved

- factory only

Signal

Pin Name

Function

I/O

Remarks

CAX1B

Reserved

- factory only

CI9

Reserved

- factory only

CIX7

Reserved

- factory only

CIX6

ADS-B Function Status

Discrete

I/O

Closed = ADS-B

CIX4

Reserved

- factory only

CIX5

Burst mode enable

Discrete

Low = Enabled

C429XB7

XPDR Data, Port B, Line B

ARINC 429

O 8

C429XA7

XPDR Data, Port B, Line A

ARINC 429

O 9

C429XB6

Reserved

- factory only

C429XA6

Reserved

- factory only

C429XB5

ADLP Output, Line B

ARINC 429

C429XA5

ADLP Output, Line A

ARINC 429

O 13

C232X

Reserved

- factory only

C429XB4

Reserved

- factory only

C429XA4

Reserved

- factory only

C429XB3

Reserved

- factory only

C429XA3

Reserved

- factory only

C4XXIA4

XPDR Control, Port B, Line A

ARINC 429

I 19

C4XXIB4

XPDR Control, Port B, Line B

ARINC 429

C4XXIB5

XPDR Control, Port C, Line B

ARINC 429

C4XXIB6

Reserved

- factory only

CI8

XPDR Control Port Select

C4XXIB7

Reserved

- factory only

Electrical Installation

name

2.5.2. Connector P2

name

GND.

Low = Port B High= Port A

position data receiving, (max. drain = 100 mA)

Open = No valid position data available.

High = Disabled

42 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 43

Signal

Pin Name

Function

I/O

Remarks

GND

Ground

Signal Return

CLRXN

Ethernet Receive

10/100BASE-TX

I/O

CLTXN

Ethernet Transmit

10/100BASE-TX

I/O

C429IA7

Data Concentrator, Port A,

ARINC 429

I/O 28

C429IA6

Radio Altimeter/Data

ARINC 429

I/O

configurable

GND

Ground

Signal Return

- 30

C429IA5

IRS, Port A

ARINC 429

I 31

C429IA4

Reserved

- factory only

C429IA3

FCC/MCP Data, Port A

ARINC 429

I 33

C429IA2

ADLP, Port A

ARINC 429

Data from ADLP

CAX1A

Reserved

- factory only

GND

Ground

Signal Return

- 36

C4XXIA5

XPDR Control, Port C, Line A

ARINC 429

I 37

C4XXIA6

Reserved

- factory only

CIX13

Extended Squitter Disable

Discrete

Low = Disabled

C4XXIA7

Reserved

- factory only

CIX14

Software Update Enable

Discrete

High = Normal operation

CLRXP

Ethernet Receive

10/100BASE-TX

I 42

GND

Ground

Signal Return

CLTXP

Ethernet Transmit

10/100BASE-TX

C429IB7

Data Concentrator, Port A,

ARINC 429

I/O 45

C429IB6

Radio Altimeter/Data

ARINC 429

I/O

configurable

GND

Ground

Signal Return

C429IB5

IRS, Port B

ARINC 429

C429IB4

Reserved

- factory only

C429IB3

FCC/MCP Data, Port A

ARINC 429

Data from FCC/MCP

C429IB2

ADLP, Port B

ARINC 429

Data from ADLP

name

Line A

Concentrator, Port B, Line A

Installation

Electrical Installation

High = Enabled

Low = Update enabled.

Line B

Concentrator, Port B, Line B

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 43

Page 44

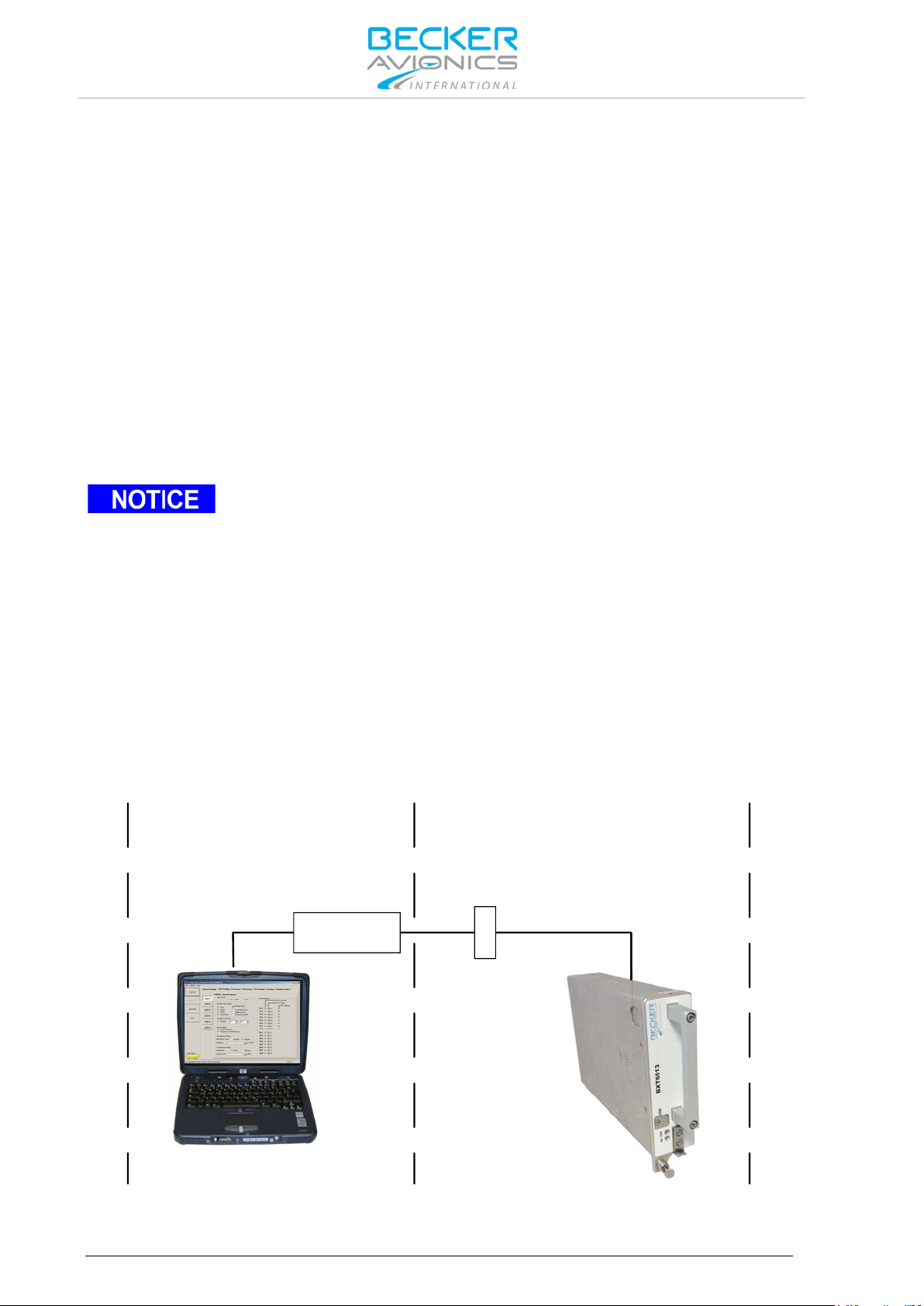

Installation

• External memory module EM6100 connection is done via backshell.

oftware + Adapter

CAN-BusAdapter

(USB)

CANbus Kit Installation

Service Connector

CAN-Bus

Electrical Installation

2.5.3. Connector TOP, BOT (Antenna)

• Type: BMA female at the rear side of the unit (transformed into TNC by the backshell BS6533).

• Antenna cable: low-loss cable.

• Signal: bi-directional

2.5.4. Connector USB

• Only for service operation

• Type: USB 2.0 Micro B

• Cable: Max. cable length: 5 m (15 ft)

• Data transfer: Bidirectional data exchange

2.5.5. Connector EM

Connection for external memory, if installed.

• Please mount a dust cup on EM connector (BXT rear side) if this connector is not used.

For example:

• Internal memory is used.

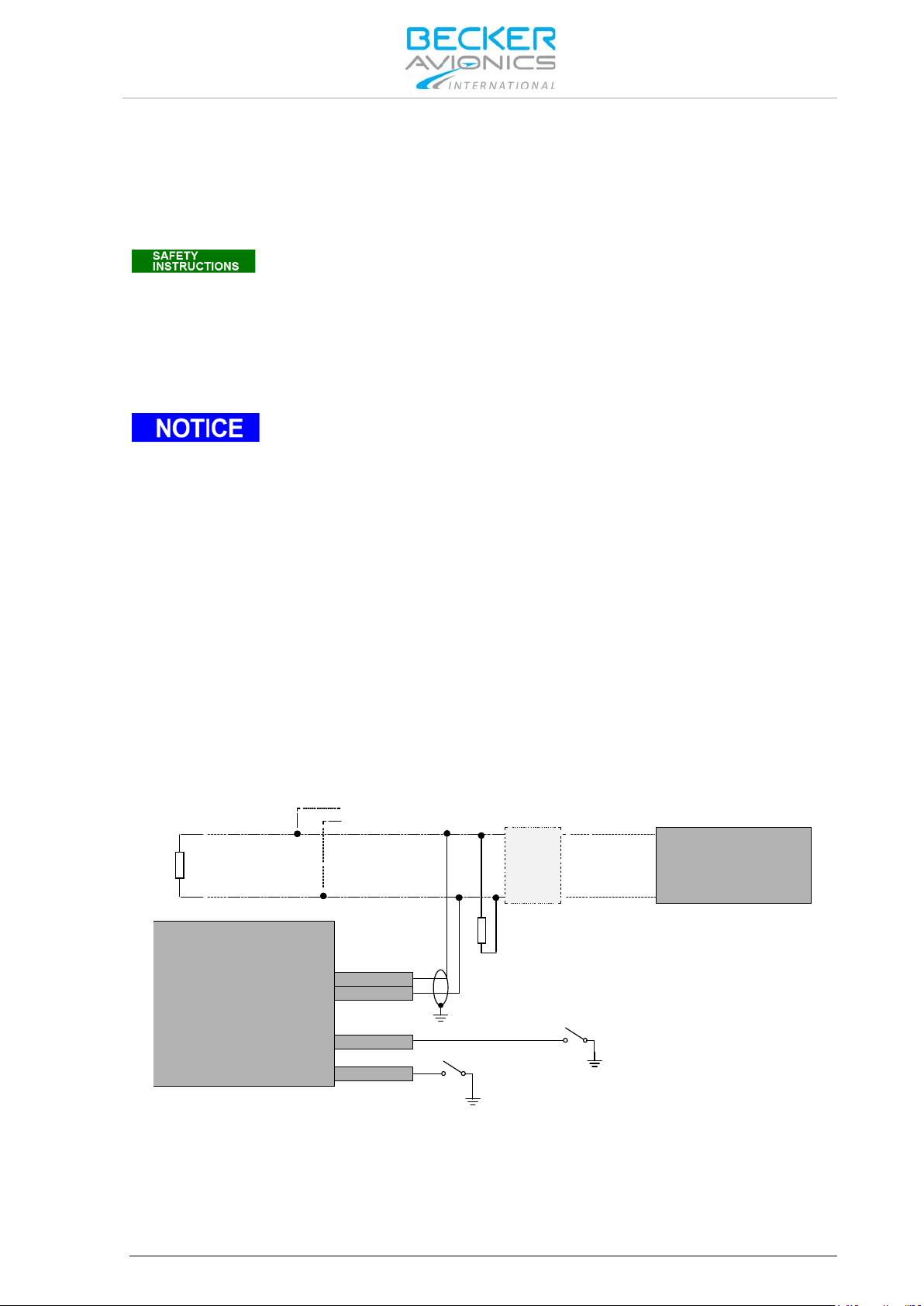

2.5.6. Service Connector (optional)

Becker Avionics recom mend the installation of a service connector. This allows the configuration of the BXT6513-(0XX) after installation inside the aircraft.

2.5.6.1. Service connector inside the aircraft Pinout service connector (Dsub, 9pol.) see "Figure 12: Wiring Diagram (example)" page 47.

Figure 11: Service Connector inside the Aircraft

44 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 45

Parameter

Label

XPDR control

016 or 031

Selected altitude

102

GNSS track angle

103

GNSS latitude

110

GNSS longitude

111

GNSS ground speed

112

GNSS latitude fine

120

GNSS longitude fine

121

GNSS horizontal integrity limit

130

GNSS vertical figure of merit

136

UTC fine

140

UTC

150

Radio altitude

164

GNSS vertical velocity

165

North-south velocity

166

East-west velocity

174

Altitude

203

Mach number

205

Indicated airspeed

206

True airspeed

210

Altitude rate

212

Flight ID

233…237 or 360

Baro correction

234

GNSS horizontal figure of merit

247

Ground speed

312

True track angle

313

True heading

314

Magnetic heading

320

Roll angle

325

Track angle rate

335

Inertial vertical velocity

365

GNSS altitude, HA E

370

2.6. Interfaces

2.6.1. ARINC 429 Input Labels

Installation

Interfaces

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 45

Page 46

Installation

Parameter

Label

XPDR control

016 or 031

Flight ID

233…237

Mode S address

275, 276

Maintenance

350, 353, 354

GA equipment identification

371

Equipment identification

377

Configuration

Set to

Air Data Source Config urati on

Single

Air Data Format and Resolution

ARINC 429

Air Data Port A Selection

Dedicated port

Ground Sensor Enable

Enable, active low

XPDR Control Port A Selection

Dedicated port

TCAS Interface Enable

Disable

ADLP Interface Enable

Enable

FMC Input Selection

Dedicated port

GNSS Receiver Input Selection

Dedicated port

GNSS Data Format

ARINC 743A

Unit Configuration

2.6.2. ARINC 429 Output Labels

2.7. Unit Configuration

The figure "General Architecture (example)", page 47 shows an example of a single unit installation including:

• Power supply without separate switch,

• Configuration from internal memory,

• Single ADC conformant to ARINC 706,

• FMC,

• ADLP,

• GNSS sensor conformant to ARINC 743A,

• Weight-on-wheels switch, active low,

• Indicators for system status and transponder reply,

• Standby switch,

• Dual antenna (Diversity).

Relevant configuration settings:

• Service Connector (optional).

46 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 47

OUT-A OUT-B

TMARK-P TMARK-N

OUT-A OUT-B

IN-A IN-B

TOP-IN

GND

BOT-IN

GND

C4XXIA1 C4XXIB1

C422IP0 C422IP1

C429IA2 C429IB2

C429IA0 C429IB0

C4XXIA2 C4XXIB2

C4XXIA0 C4XXIB0

SUPP

SUPP PGND PGND

CIX3 CIX4 CIX5 CSI3 CSI2 CSI1 CSI0

C429XA5 C429XB5

CRDY

CIX0

CIHLO

TOP-IN TOP-OUT

BOT-IN BOT-OUT

P1-20 P1-3

P1-13 P1-12

P2-33 P2-50

P1-9 P1-10

P1-21 P1-4

P1-19 P1-2

P1-32 P1-33 P1-16 P1-17

P1-6 P2-5 P2-6 P1-47 P1-31 P1-14 P1-30

P2-12 P2-11

P1-15 P1-7 P1-44

WoW switch, (closed on ground)

Operating Standby

Do not connect Do not connect Do not connect Do not connect

3 A

+28 VDC

+28 VDC Power Supply Ground

Top Antenna BottomAntenna

GNSS Sensor

ADLP

Flight Management

Computer

ADC

Control Panel

BXT6513-(XXX)

CCANP0 CCANN0

P1-39 P1-38

Service Connector (optional)

Dsub, 9pol, female

Detailed information about wiring is available in ICD manual; please see “Order

2.7.1. General Architecture (example)

Installation

Unit Configuration

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 47

Figure 12: Wiring Diagram (example)

Code”, “Available Documentation” page 26.

Page 48

Installation

SUPP SUPP

PGND PGND

P1-32 P1-33

P1-16 P1-17

Avionic Master Switch

+28 VDC

Supply Ground

other

equipment

3 A

BXT6513-(XXX)

SUPP SUPP

PGND PGND

P1-32 P1-33

P1-16 P1-17

Avionic Master Switch

+28 VDC

Supply Ground

other

equipment

3 A

BXT6513-(XXX) 2

SUPP SUPP

PGND PGND

P1-32 P1-33

P1-16 P1-17

Supply Ground

3 A

BXT6513-(XXX) 1

Unit installation number

unit 1

unit 2

P1 pin31

do not connect

GND

Data source

Internal memory

External memory

P1 pin14

do not connect

GND

P1 pin30

GND

do not connect

Unit Configuration

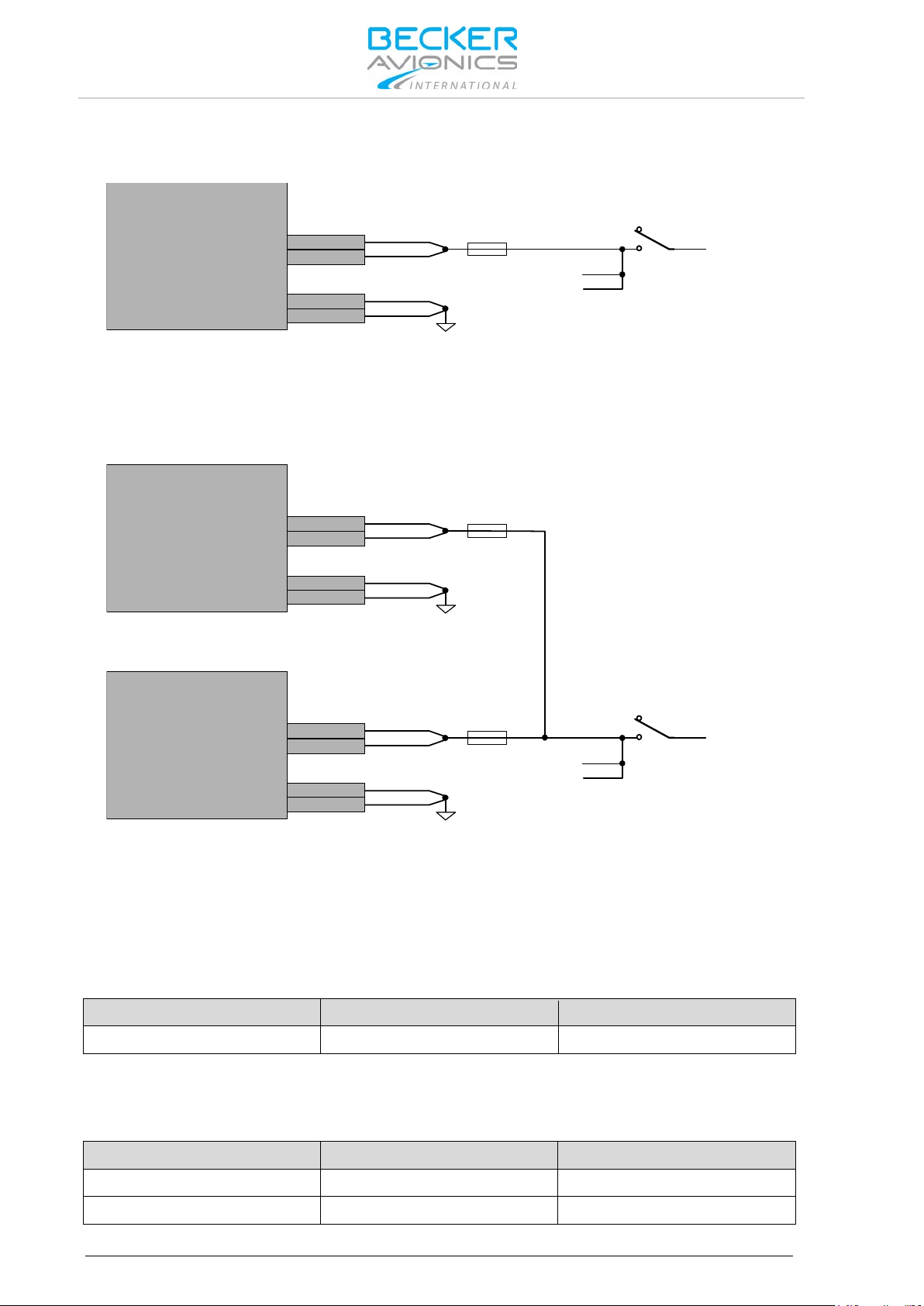

2.7.2. Single Unit Installation

Electrical connections:

2.7.3. Dual Unit Installation

Electrical connections:

Figure 13: Single Unit Installation

2.7.4. Unit Installation Number

In a single unit installation set the installation number to 1. In a dual unit installation set the installation number for one unit to 1 and for the other unit to 2.

2.7.5. Data Source Configuration

Select the data source:

48 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Figure 14: Dual Unit Installation

Page 49

Do not install two External Memory modules at same unit. The External Memory

In dual unit installations with External Memory module as a configuration data

CSI3 CSI2

CSI1 CSI0

P1-47 P1-31

P1-14 P1-30

Do not connect Do not connect

Do not connect

BXT6513-(XXX) 1

CSI3 CSI2

CSI1 CSI0

P1-47 P1-31

P1-14 P1-30

Do not connect

BXT6513-(XXX) 2

C3V3 CSCL

CSDA GND

P1-35 P1-37

P1-34 P1-36

CSDA GND

C3V3 CSCL

green

black

red

yellow

BXT6513-(XXX) EM FIX CPL

(with EM6100)

CSI1 CSI0

P1-14 P1-30

Do not connect

Installation

Unit Configuration

2.7.5.1. External Memory Module External memory interface s igna ls are avai lab le at P1 connector and EM connector. If the External Memory module EM6100 is used as configuration data source the mechanical

installation is as per description:

• Backshell installation (fix the EM6100 module to the pre-assembled connector at the back shell. Please note, use a cable connection as short as practical but not longer than 150 mm).

module must always be installed when it is defined as configuration data source

Data Source Configuration", page 48.

(see "

source, each unit needs its own External Memory module. In case of dual unit installation, it is the responsibility of the installer to provide

correlated data to each unit. Please make sure that configuration data of both units match to the aircraft and installation. Aircraft properties include:

• Mode S address

• Maximum airspeed

• Aircraft registration

• Aircraft category

• Length and width code

Electrical connections:

Figure 15: Dual Unit Installation, Data Source = External Memory Module

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 49

Figure 16: External Memory Module via Backshell

Page 50

Installation

CSI3 CSI2

CSI1 CSI0

P1-47 P1-31

P1-14 P1-30

Do not connect Do not connect

Do not connect

Signal ground

BXT6513-(XXX)

GND

BOT GND

TOP-IN TOP-OUT

BOT-IN BO

T-OUT

Top Antenna

BottomAntenna

BXT6513-(XXX)

Unit Configuration

2.7.5.2. Internal Memory Electrical connections:

Figure 17: Single Unit Installatio n, Data Source = Internal Memory

2.7.6. Single Unit Installation - Antenna Diversity

Electrical connections:

Figure 18: Single Unit Installation - Antenna Diversity

50 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 51

GND

BOT GND

TOP-IN TOP-OU

BOT

-IN

BOT-OUT

CIX4 CIX3

P2-5 P1-6

Top Antenna

Microwave switch

Unit 1 ON Unit 2 ON

BottomAntenna

+28 VDC

BXT6513-(XXX) 1

GND

BOT GND

TOP-IN TOP-OUT

BOT-IN BOT-OUT

CIX4 CIX3

P2-5 P1-6

BXT6513-(XXX) 2

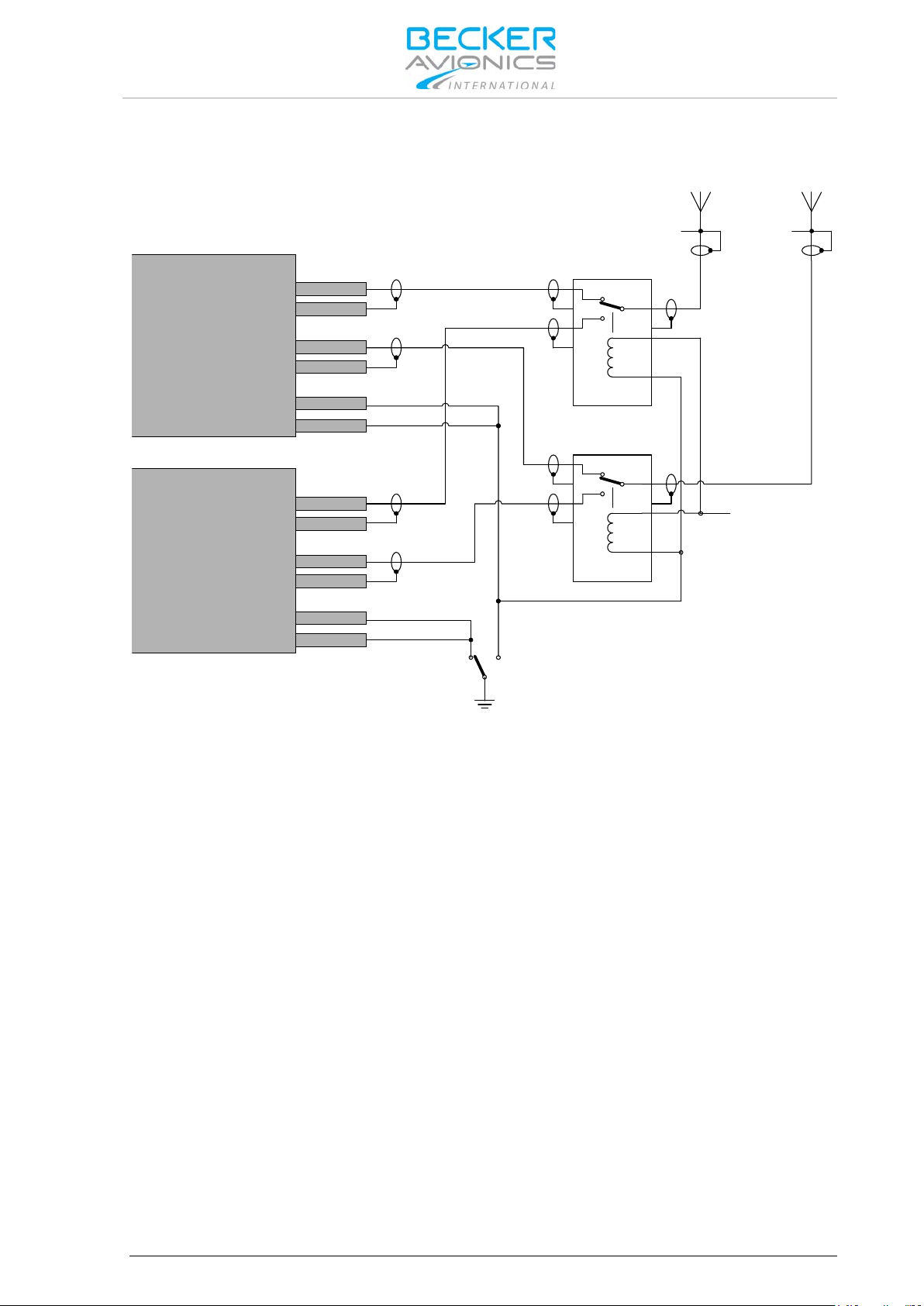

2.7.7. Dual Unit Installation - Antenna Diversity

Electrical connections:

Installation

Unit Configuration

Figure 19: Dual Unit Installation - Antenna Diversity

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 51

Page 52

Installation

Option

Set to

XPDR Control Port A Selection

Dedicated Port

CI8

CIX5

C4XXIA0 C4XXIB0

P1-19 P1-2

P1-22 P2-6

OUT-A OUT-B

BXT6513-(XXX)

Controller

Do not connect Do not connect

Option

Set to

XPDR Control Port A Selection

Dedicated Port

XPDR Control Port B Selection

Dedicated Port

CIX5

CI8

P2-6 P2-22

C4XXIA0 C4XXIB0

P1-19 P1-2

C4XXIA4 C4XXIB4

P2-18 P2-19

BXT6513-(XXX)

Do not connect

Controller 1

Controller 2

OUT

-A

OUT-B

Controller1

Controller2

OUT-A OUT-B

Unit Configuration

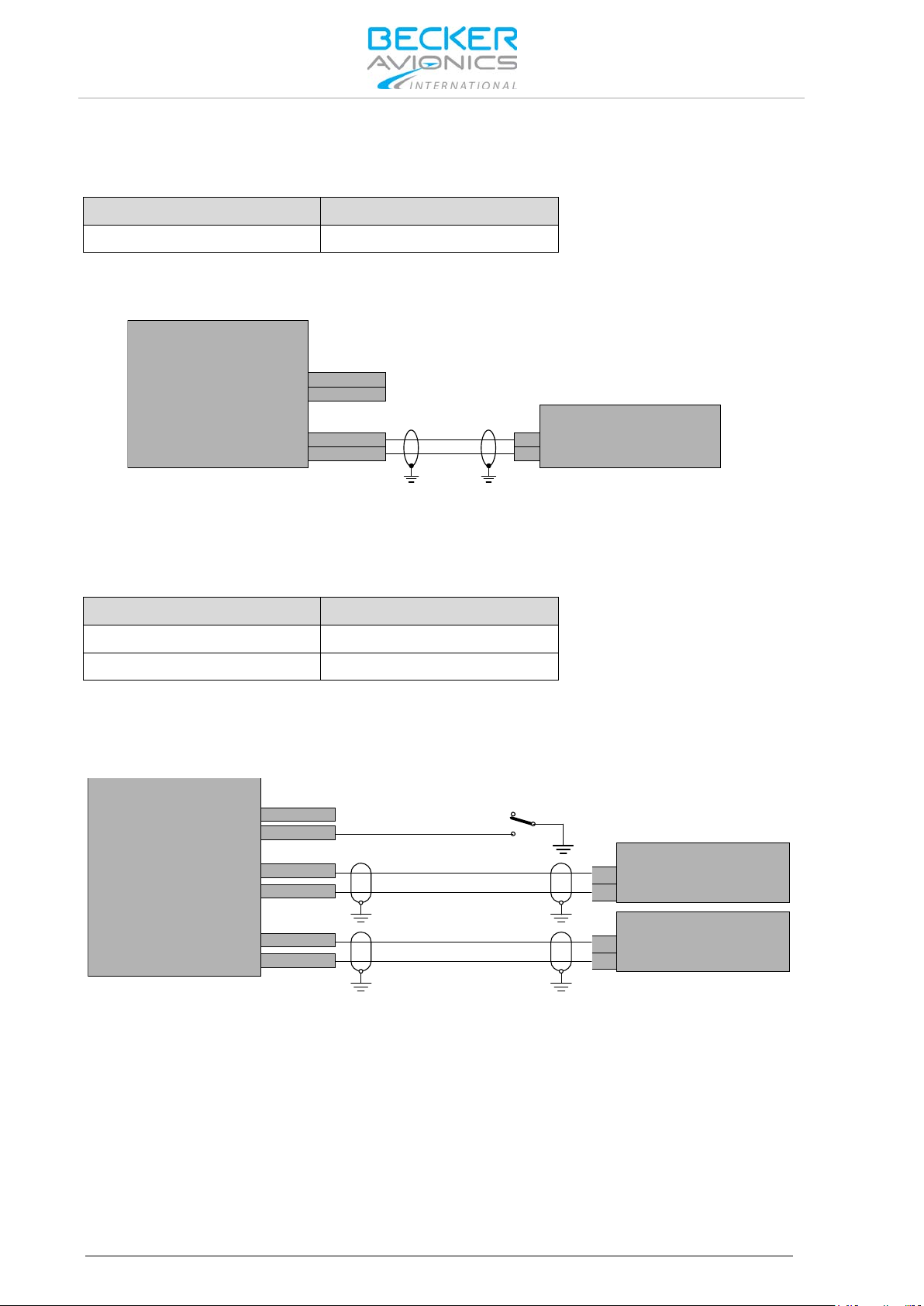

2.7.8. Single Unit Installation – Single Controller

Relevant configuration settings:

Electrical connections:

Figure 20: Single Unit Installation - Single Controller

2.7.9. Single Unit Installation – Dual Controller

Relevant configuration settings:

Electrical connections: With open switch, Controller 1 controls the transponder function.

With closed switch, Controller 2 controls the transponder function.

Figure 21: Single Unit Installation – Dual Controller

52 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 53

Option

Set to

XPDR Control Port A Selection

Dedicated Port

XPDR Control Port B Selection

Dedicated Port

CIX5

CIX3

CI8

CSI2

P2-6

P1-6

P2-22

P1-31

C4XXIA0 C4XXIB0

P1-19 P1-2

C4XXIA4 C4XXIB4

P2-18 P2-19

BXT6513-(XXX)

OUT-A OUT-B

Controller1

Controller2

OUT-A OUT-B

C4XXIA5 C4XXIB5

P2-36 P2-20

other Controller

OUT-A OUT-B

Do not connect

Standby

Operation

Remarks

P1 pin47

enable

do not connect

Normal configuration

P1 pin47

disabled

GND

No transmissions from equipment – for

Installation

Unit Configuration

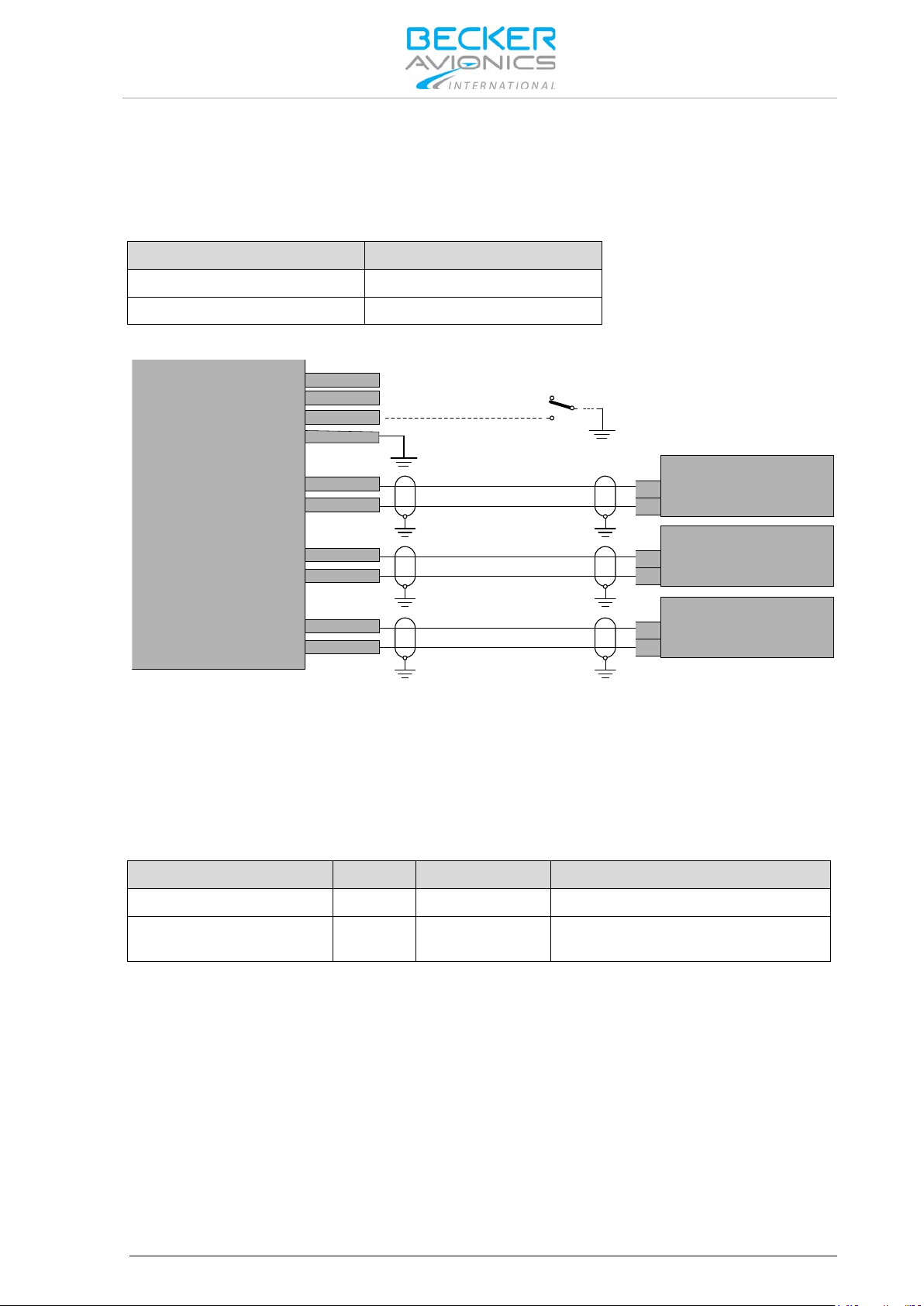

2.7.10. Burst Mode - Single Unit Installation

The burst mode allows for up to three sources to control the transponder operation. The selection of the active source is dynamic. The operation in burst mode depends on “XPDR Burst Mode Control” option.

Relevant configuration settings:

Figure 22: Single Unit Installation – Dual Controller

2.7.11. Transmitter Disable

This input is relevant for several tests during shop maintenance. Leave this input open in all installations. Relevant configuration settings:

tests only

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 53

Page 54

Installation

• We recommend the usage of the External Memory module EM6100 as data base memory.

Configuration Data

2.8. Configuration Data

The BXT6513-(0XX) must be configured with the characteristic aircraft data. The BXT6513-(0XX) configuration is stored in a non-volatile memory. There are two possibilit ies where to store or load configuration data (see "Data Sour ce Configuration"

page 48):

• Usage of the internal memory or

• Usage of an external memory module.

source.

• The usage of the internal memory as configuration data storage can only be approved when customers have and maintain an own data base memory.

• It is a condition to store the current configuration data in the customer data

2.8.1. Configuration of BXT6513-(0XX) with EM module

The configuration parameters of the BXT6513-(0XX) with EM module can be set via two ways:

• CANbus interface at BXT6513-(0XX) to program EM6100 which is connected to BXT6513-(0XX) via "CANbus Kit".

• Pr ogram EM6100 by PC directly via "EMP Kit".

Detailed information are available in "EMP Extended Memory Programmer User Manual" and "ARINC 826 Data Loader Manual", please see “Order Code”, “Available Documentation” page 26.

2.8.2. Configuration of BXT6513-(0XX) with internal memory

• The usage of the internal memory as configuration data storage can only be approved when customers have and maintain an own data base memory.

• It is a condition to store the current configuration data in the customer data

base memory.

• In case the internal memory is used a service connector needs to be placed at a suitable place inside the aircraft to be able to configure the device without

Detailed information are available in "EMP Extended Memory Programmer User Manual" and "ARINC 826 Data Loader Manual", please see “Order Code”, “Available Documentation” page 26.

For wiring example - service connection - see also "Figure 23: Software update – Aircraft Installation" page 55.

removing it.

54 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 55

Information about software and configurable hardware versions are available via

CCANP0 CCANN0

CIX14 P2-40

Update Control closed=enable

P1-39 P1-38

CAN-H

120 Ω

other CAN device

CAN-L

BXT6513-(XXX)

CAN-bus adapter

CIHL0 P1-44

weight on wheel switch

Service Connector

(optional)

Dsub, 9pol, female

Installation

Software Update

2.9. Software Update

The BXT6513-(0XX) provides an int erface for Field Loadable Sof tware (FLS). This inter face enables in-field loading of equipment software and unit configuration.

Details in "FLS Manual" (Field Loadable Software); please see “Order Code”, “Available Documentation” page 26.

• A software update may be carried out only by authorized aircraft maintenance personnel.

• Aircraft maintenance personnel are responsible for proper marking of performed changes.

• After update procedure the ID plates on the BXT6513-(100) have to be changed.

2.9.1. PC Requirements

Windows Vista, Windows .NET Framework are trademarks of Microsoft Corporation.

maintenance USB connector (for details refer ICD manual chapter "Configurable items identification”).

• MS Vista SP2 or newer with installed .NET Framework 4.5.

• ARINC 665 Data Loader application

(recommended ARINC 826 Data Loader version 3.6.34.0 or higher available on request).

• C AN interf ac e - PCAN USB (details how to install PCAN USB interface see http://www.peak-system.com).

2.9.2. Software Update Installation

2.9.2.1. Software Update – Aircraft Installation The BXT6513-(0XX) software update can be done without removing equipment from installation.

Note: If only one BXT6513 +one PC with cable length < 2 m is used, the topology without 120 Ω resistor may be used, see "Figure 24: Software update – Laboratory Installation" page 56.

Figure 23: Software update – Aircraft Installation

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 55

Page 56

Installation

CCANP0 CCANN0

CIX14 P2-40

CIHL0

P1-44

Update Control closed=enable

weight on wheel switch

Length ≤ 2 m

P1-39 P1-38

CAN-H CAN-L

BXT6513-(XXX)

Software Data Loader

(ARINC 826)

When in-field loading of software is enabled, the equipment does not perform

Installation of the unit varies according to aircraft and equipment design. It is

Aircraft Wiring

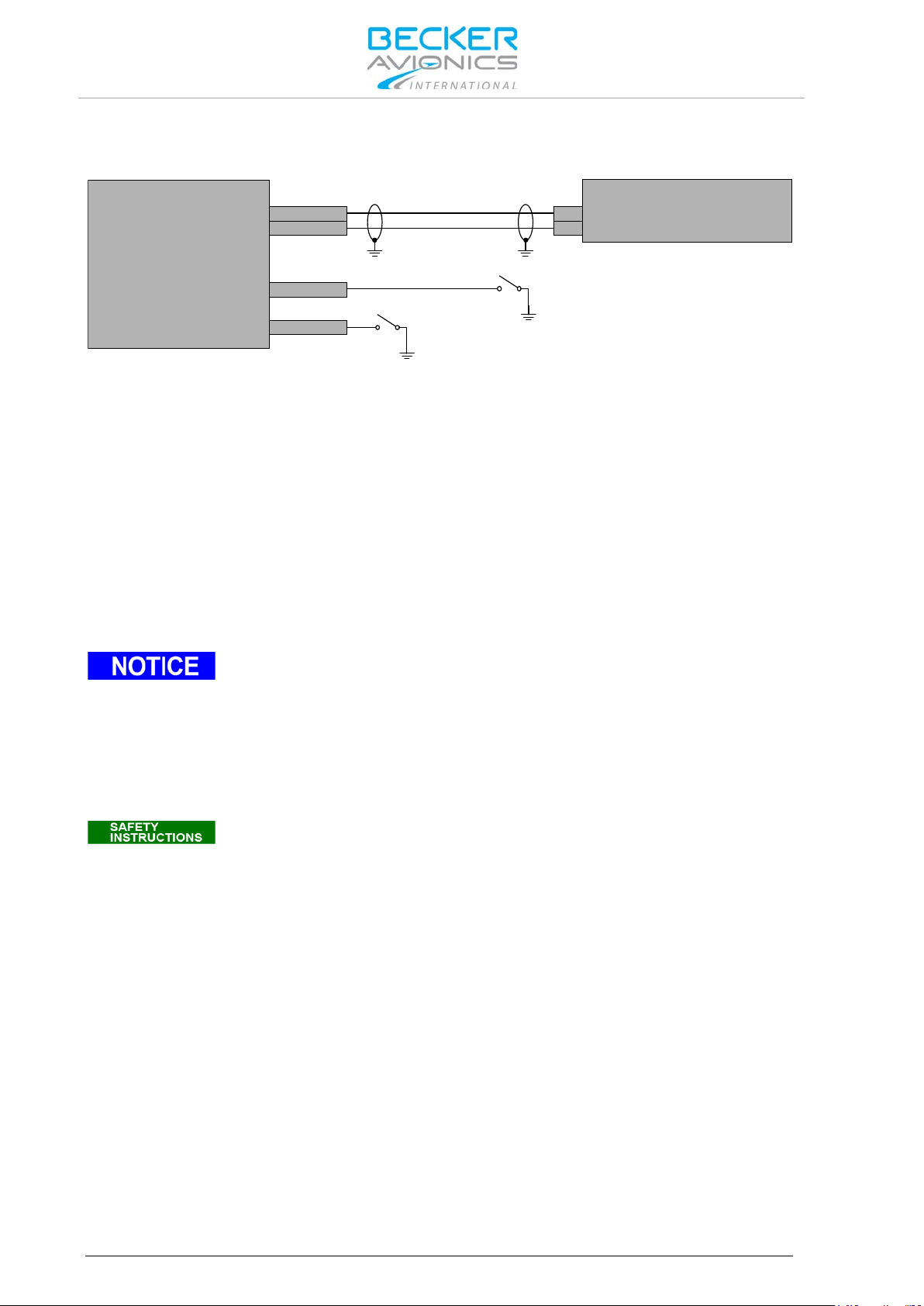

2.9.2.2. Software Update – Laboratory Installation

Figure 24: Software update – Laboratory Installation

• D eta iled inf ormation about required equipm ent, wiring, FLS interface and upd ate procedure in "ICD Manual (Interface Control Document)".

• It is recommended as a minimum to perform “Mode S ground test (for details see "Mode S Ground Test", page 58).

Details in "FLS Manual" (Field Loadable Software); please see “Order Code”, “Available Documentation” page 26.

The equipment enables Field Loadable Software (FLS) only at power-on when following conditions are provided:

• FLS function enable input is active.

• If "weight-on-wheels" input is enabled in equipment configuration and it reports "on-

the-ground" state.

Details in "FLS Manual" (Field Loadable Software); please see “Order Code”, “Available Documentation” page 26.

normal operations.

2.10. Aircraft Wiring

See "General Architecture (example)", page 47.

therefore only possible to provide general guidelines in this section.

56 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 57

It is assumed that the installation and configuration has been done before the

2.11. Post Installation Check

Installation

Post Installation Check

"Post Installation Check" will be carried out.

Once the unit is installed completely a test procedure to verify system functionality. Ensure compliance with authority requ ired procedures. Refer to the insta llation order of the minor chang e document or use an own approved test protocol. The following text provides guidance for such tests.

2.11.1. Mechanical Installation and Wiring Check

• Verify all cables are securely fixed and shields connected properly to signal ground.

• Check the movement of aircraft controls to verify there is no interference.

• Verify all screws are tight, check if all connections are mechanically secured.

2.11.2. Power Supply

• Check the power supply lines and confirm correct polarity. Don´t apply reverse voltage!

• Confirm that the aircraft power supply is within the specified limits, with and without a running engine.

2.11.3. Antenna Check

• Applying portable reflectometer or network analyzer measure the voltage standing wave ratio (VSWR) at the transponder end of antenna aircraft installation.

• The measured VSWR at frequencies 1030MHz and 1090MHz shall not exceed 1.5:1.

DV15104.03 Issue 03 November 2016 BXT6513-(0XX) 57

Page 58

Installation

Aircraft System

Function

NOT OK

DME

Audio

Generators / Inverters

GPS System

Compass 1

ADF

VHF / NAV 1 all channels

VHF / NAV 2 all channels

Marker Beacon

Motor(s)

Engine Instruments

Storm scope

Transponder

Air Data Computer

Autopilot and Servos

Post Installation Check

2.11.4. Interference Check

• Check the unit while engine is running and powered on all other avionics/ electrical systems on the aircraft, to verify that no significant interference exists.

• Check also that the unit does not cause significant interference with other systems.

The instal ler´s standard t est proc edure ma y use for the int erferenc e check and the followin g table can be taken as a ref erence. Depen ding on the individual avionic s ystems insta lled in the a ircraft, it m ight be necessary to extend the following checklist accordingly.

For the remaining avionic equipment repeat all interference checks during a flight and include all equipment not previously checked out on ground.

2.11.5. Mode S Ground Test

After successful completion of the previously described post installation checks perform a Mode S ground test. (Refer to FAR 43 Appendix F or EASA C S-ACNS). The part 145 co mpany approv ed test protocol shall finally be used.

An experienced test s etup conf iguration shall a lso be arrange d, otherwise r efer to the user instruction of your specific test equipment.

2.11.6. Error / Failure Indication

It is possible to read out and reset error flags for details contact Becker Avionics Customer Service.

Error / Failure List for details contact Becker Avionics Customer Service.

58 BXT6513-(0XX) DV15104.03 Issue 03 November 2016

Page 59

Operating Instructions

Device Description

3. Operating Instructions

In this chapter you can read about:

Device Description ...................................................................................................................... 59

3.1.
