Operating instructions
>>> INDEX
Index
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
Index 2
Safety information 5
The Traffic Assist 7
Contents of the operating guide 7
Use 7
Navigation 7
Telephone* 8
Unpacking the Traffic Assist 8
Checking the delivery 8
Delivery contents 8
Complaints procedure 9
Handling the packaging 9
Description of unit 9
Traffic Assist - basic unit 9
Cable for power supply from
cigarette lighter 10
Battery 10
USB connection cable 10
Unit bracket 10
Accessories 10
Mains power supply unit 10
Information about
documentation 11
Quick start guide 11
Operating instructions 11
Registration 11
Repairs 11
Emissions and disposal 11
Overview Traffic Assist 12
General operation 15
Maintenance and care 15
Battery quality declaration 16
Display quality declaration 16
Start-up 16
Power supply 16
Using the battery 17
Connection for the cigarette lighter 17
Connection to the mains outlet 18
Connecting power supply 18
TMC antenna* 18
GPS-antenna 18
Unit antenna 18
Memory card 19
Inserting memory card 19
Ejecting memory card 19
Unit bracket 19
Fitting the unit bracket 20
On the windscreen 20
Adjusting the unit holder’s position 21
Attaching the Traffic Assist 21
Removing the Traffic Assist 21
Switching the Traffic Assist on/off 21
Switching on 21
Switching off 22
Basic information about the
touch screen 23
Operation 23
Calibration 23
Basic information about the menus 23
The main menu 23
Entries made with the entry menu 24
Entering characters 25
Accepting proposals 25
Scrolling through the lists 25
Special characters and umlauts 26
Other character sets 26
Entering numbers 27
Switching between upper and
lower case 27
Deleting characters 27
Inserting spaces 27
The Becker key 28
Content Manager 28
Installing the Content Manager 28
Starting the Content Manager 29
Faults 30
Navigation mode 31
What is navigation? 31
Selecting navigation 32
Fast access mode 32
Configuration of fast access mode 32
The destination list 32
Icons used 33
Using fast access mode 33
Start with existing destination 33
Scrolling through stored destinations 33
Displaying or editing a destination 33
Home address 34
Calling up the destination input menu 34
2
INDEX >>>
The destination input menu 34
Configuration of the destination
input menu 35
Enter address 35
Select Point of Interest 35
Personal destinations 35
Contacts 35
Select on map 35
Enter geo-coordinates 35
Route planning 35
Entering the address 35
Selecting a country 36
Selecting an address and starting
route guidance 36
Points of interest 41
Point of interest in the vicinity 41
Point of interest near to an address 42
Point of interest near to destination 43
Entering a point of interest directly 43
Calling telephone numbers for
points of interest* 43
Additional point of interest
information 44
Selecting a destination from
Personal destinations 44
Editing Personal destinations 44
Selecting a destination from Contacts 45

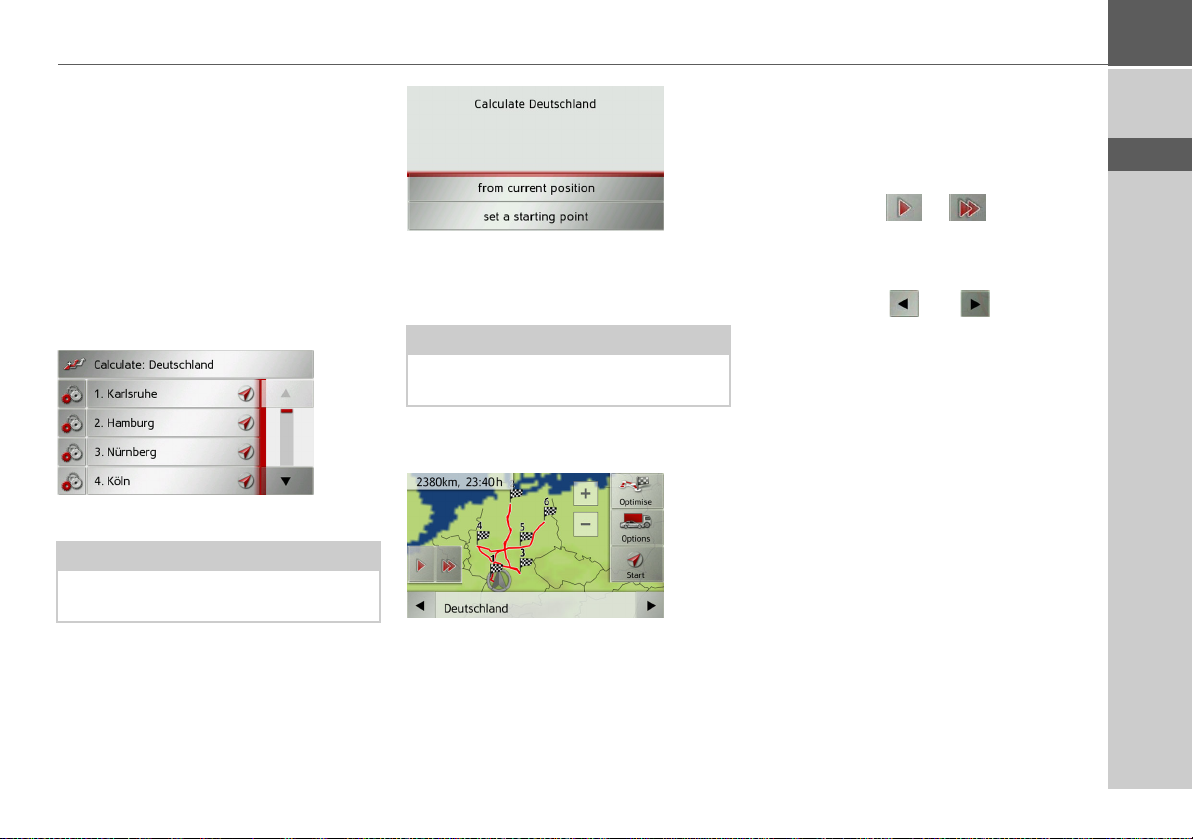

Route planning 46
Creating a new route 48
Editing a route 48
Optimising a route 49
Selecting a destination from the map 49
Coordinate entry 50
Navigation settings 51
The Guidance info button 52
The Route options button 53
Time-dependent route guidance 53
Avoiding particular types of road 54
The TMC button* 54
The Map view button 55
Autozoom 57
Setting POI categories 57
The Warnings button 58
The Driver alerts button* 58
The Speed info button 59
The Voice guidance button 60
The Voice button 61
The Volume button 61
The Format button 61
The Time button 62
The Blocked roads button 62
The Reset button 64
Traffic announcements
using TMC* 64
Displaying TMC messages on
the map* 65
Using TMC* 65
Reading a message* 66
Display the relevant road in the map* 66
Taking announcements into
consideration when calculating routes* 67
Automatic recalculation* 67
Manual recalculation* 67

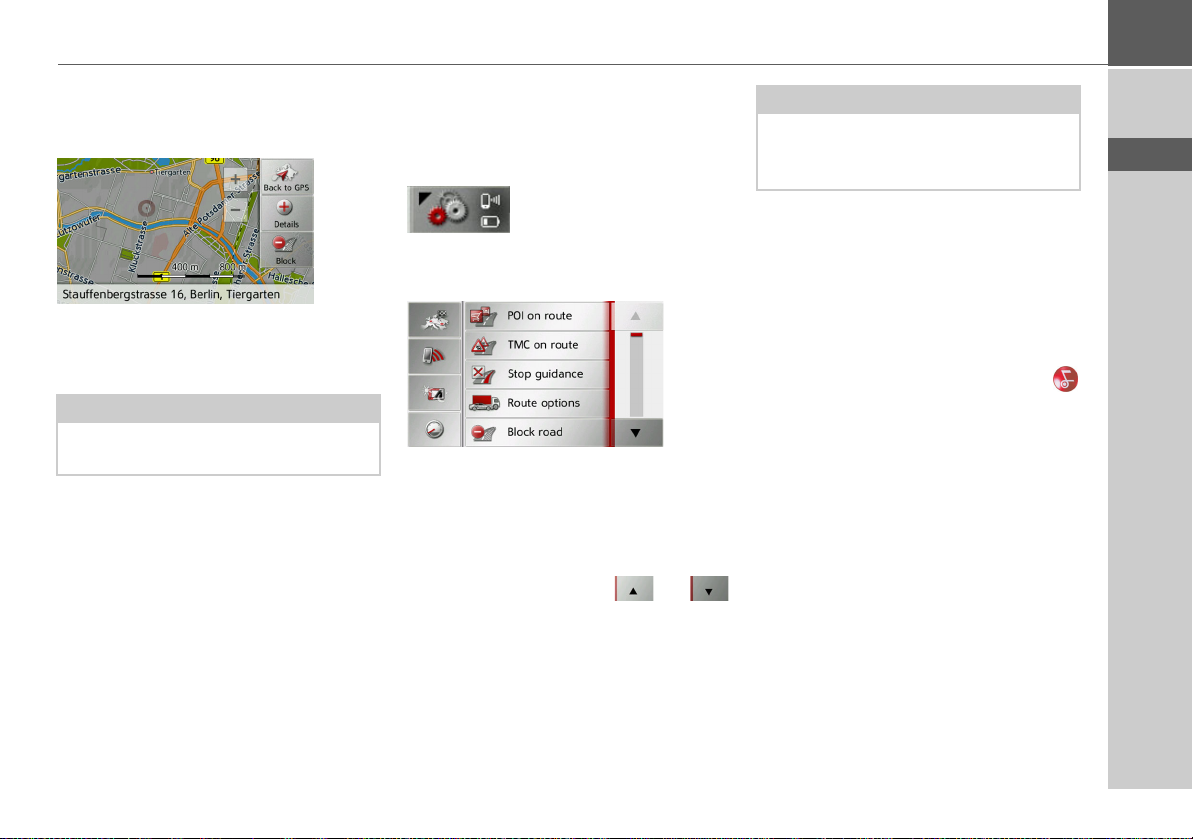

The map display 68
Calling up the map display 68
Structure of the map display 68
Map display without route guidance 68
Map display with route guidance 68
Spilt screen with route guidance 70
Route guidance with arrow display 71
Map display with Junction View 71
Using the map display 72
Repeating the last announcement 72
Changing the announcement volume 72
Map zooming 72
Moving the map 73
Map display options 73
Point of interest on the route 74
TMC on the route* 75
Cancel route guidance 75
Changing route options 75
Block route 76
Switching the map mode 76
Changing the map orientation 77
Route calculator* 77
Setting day/night display 79
Entering a destination 79
Enter/delete waypoint 79
Displaying the entire route 80
Displaying the destination list 82
Skipping destination 83
Displaying current position 83
Saving a position 84
Calling up the telephone* 84
Switching off the display 84
Defining fast access buttons 85
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
3
>>> INDEX
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
TELEPHONE MODE* 86
Calling up the telephone mode 86
Telephone menu 87
Dialing a number 87
Phonebook 88
Number lists 90
Icons used 90
Scrolling in the number list 90
Dialing an available number 91
Displaying or editing entries 91
Lists loaded from cell phone 91
Connecting Bluetooth telephones 92
Calling up a device list 92
Automatic connection 93
Searching for cell phones 93
Connecting from device lists 94
Connecting a mobile phone 94
Disconnecting a connected telephone 94
Telephone calls 95
Establishing a call 95
Accepting a call 95
Ending a call 96
During a call 96
Telephone settings 97
Switching Bluetooth on and off 98
Automatic connection 98
Visibility 98
Automatic call acceptance 98
Telephone volume 99
Updating phonebook 99
Bluetooth name 99
Settings 100
Selecting system settings 100
The system settings menu 100
Operation 100
Selection options 100
Closing the settings menu 100
The individual menu items 101
Battery 101
Day/night display 101
Calibration 102
Brightness 102
Language 102
Automatic on/off 103
Sounds 103
Setting the colour 104
Factory settings 104
Information 104
My XTRAS 105
Specialist words 106
Keywords 107
Technical Data 110
NOTICE 111
EU Declaration of Conformity 111
Disposal of the unit 112
Disposal of the battery 113
Duty to supply information according
to battery legislation (BattV) 113
Removing the battery 113
The information and data contained in
these documents are subject to change
without prior notice.
No part of these documents may be reproduced or transmitted for any purpose
without express written permission from
HARMAN/BECKER Automotive
Systems GmbH . All technical information, drawings etc. are subject to copyright
law.
© Copyright 2009, HARMAN/BECKER
Automotive Systems GmbH
All rights reserved.
4
Safety information
SAFETY INFORMATION >>>
!Safety information
• The unit may only be operated if the traffic situation allows for this and if you are absolutely certain that you yourself,
your fellow passengers or other road users will not be put at risk, encumbered or disturbed by this.
• The rules of applicable road traffic acts must be observed at all times. Destinations may only be input when the vehicle is
stationary.
• The navigational system is only an aid. The data/details provided may in some cases be incorrect. The driver must always
decide whether to follow the details given or not. We accept no liability for the navigational system issuing incorrect
details. As a result of traffic routing changes and deviating data, inaccurate or incorrect instructions may be given. Drivers
should always pay attention to the actual road signs and traffic control. In particular, the navigational system cannot be
used as a means of orientation in cases of poor visibility.
• The unit may only be used for its intended purpose. The volume of the navigational system should be set so that noises
outside the vehicle can still be heard.
• The unit should be switched off immediately if faults occur (e.g. development of smoke or smells).
• For safety reasons, the unit may only be opened by a specialist. Please contact your local stockist if you require repairs.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
5
> H
> SK
>>> SAFETY INFORMATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
• The mains voltages (V) indicated on the mains charger, the car charger adapter and the unit must not be exceeded. Failure
to observe this can result in destruction of the unit and the charger as well as explosion of the rechargeable battery.
• Never open the unit or the rechargeable battery. Any modification to the unit is also impermissible and renders the type
approval invalid.
• Use only genuine BECKER original accessories. This will ensure that all the relevant regulations are complied with and
damage to health and property is avoided. Dispose of defective units and the rechargeable battery according to the
applicable legal requirements.
• No warranty is granted in the case of improper use. These safety instructions also apply to genuine BECKER original
accessories.
> H
> SK
6
The Traffic Assist
Contents of the operating guide
This operating guide describes the units
Traffic Assist Z112, Traffic Assist Z113
and Traffic Assist Z116.
At some places in this operating guide
there are differences between the various
units. Differences are indicated by means
of an asterisk and a corresponding footnote.
Functions that are only available as an option are also indicated with an asterisk (*)
and a corresponding footnote. The optional functions can be activated later for
a fee via the Content Manager.
Use
The Traffic Assist is a powerful PND
(Personal Navigation Device) for use in
vehicles and closed spaces. The unit and
the accessories are to be protected against
moisture and dirt.
The Traffic Assist can be used as:
• navigational unit
• *Via a cell phone with Bluetooth® as a
very comfortable hands-free unit.
THE TRAFFIC ASSIST >>>
Navigation
Thanks to GPS = Global Positioning System, you no longer need to spend hours
searching through road atlases.
Once outside buildings, the receiver antenna integrated in the unit gives you continuous access to navigational possibilities. Depending on reception, you may
not be able to use the navigational function inside buildings.
Your Traffic Assist is equipped with
TMC**. TMC gives you the option of
receiving traffic announcements. You will
then be informed of any traffic problems.
The system plans an alternative route
automatically or on request to avoid
traffic problems, depending on the
setting.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
*Only applies to the Traffic Assist Z116 **Does not apply to the Traffic Assist Z112
> PL
> CZ
> H
> SK
7
>>> THE TRAFFIC ASSIST
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Telephone*
Your Traffic Assist is equipped with Bluetooth® wireless technology. Via Bluetooth®, you may connect to a cell phone
that is equipped with Bluetooth® wireless
technology. Your Traffic Assist can then
be used as a very comfortable hands-free
unit. In addition, you also have the option
of reading out the mobile phone's address
book or phonebook.
Unpacking the Traffic Assist
Note:
Your Traffic Assist is supplied in stable
packaging. Do not unpack the unit in full
if you discover any serious damage to the
packaging or its content. If this happens,
please contact your local stockist.
Checking the delivery
Before the Traffic Assist is started up, the
delivery should be checked to ensure that
it is complete and in the correct condition
(see also page 12).
> Carefully unpack the content of the
package and check it.
Delivery contents
1
4
1
Traffic Assist.
2
Unit holder with carrier plate
3
USB cable
4
Motor vehicle adapter power supply
12/24 V for cigarette lighters with
built-in TMC antenna**
5
DVD containing the Content
Manager and the operating guide
(not illustrated).
3
2
> CZ
> H
> SK
8
*Only applies to the Traffic Assist Z116 **Does not apply to the Traffic Assist Z112
THE TRAFFIC ASSIST >>>
Complaints procedure
Please contact your local stockist if you
have any complaints. The unit can also be
sent directly to Harman/Becker in its original packaging.
Handling the packaging
Keep the original packaging in a dry place,
at least for the warranty period.
Note:
The packaging should be disposed of correctly in accordance with national disposal guidelines. The packaging must not be
burnt. Depending on the country to
which the unit is supplied, it may be possible for local stockists to accept packaging.
Description of unit
The Traffic Assist consists of the basic
unit Traffic Assist and the accessories included in the delivery.
You will find photos of the individual
parts under:
• "Overview Traffic Assist" on page 12
Note:
The basic unit and accessories must not
be opened or modified in any way.
Traffic Assist - basic unit
The basic unit contains all the electronics:
• an integrated antenna,
• a TMC receiver for the reception of
traffic messages**,
• a touchscreen,
• an integrated loudspeaker for the output of messages during navigation and
telephone calls*,
• a microphone*.
On the side of the unit, there are also various connections and ports.
You will find more details of the unit
under:
• See “Technical Data” on page 110.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Only applies to the Traffic Assist Z116 **Does not apply to the Traffic Assist Z112
> CZ
> H
> SK
9
>>> THE TRAFFIC ASSIST
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
Cable for power supply from cigarette lighter
This cable allows the unit to be connected
up to the car's cigarette lighter.
The power supply must satisfy the following requirements:
• DC current 12/24 volts
0.5 amps
Battery
When depleted, the integrated rechargeable battery can be recharged by connecting the Traffic Assist to the power supply.
For this purpose, connect the unit via a car
power adapter to a 12/24 V socket in a vehicle or via the optional mains power supply unit to the 230 V mains.
Note:
You can charge the Traffic Assist via the
car charger cable included in the scope of
delivery or via the optionally-available
mains power supply unit.
When the Traffic Assist is connected to a
PC, it is supplied with power via the PC
and does not consume battery power.
USB connection cable
With the USB connection cable provided,
it is possible to connect the Traffic Assist
to a standard PC with a USB interface.
The 2GB flash memory of the Traffic Assist and a micro SD card that can be inserted may be addressed via the PC like a
removable medium.
Unit bracket
The Traffic Assist can be mounted in the
vehicle using the unit bracket.
Accessories
Mains power supply unit
This power supply allows connection of
the Traffic Assist to a mains outlet.
Requirements for power supply:
Alternating current
• 100-240 V
0.3 Amps
50-60 Hertz
> SK
10
THE TRAFFIC ASSIST >>>
Information about documentation
Quick start guide
The Quick Start Guide is designed to provide a brief introduction to operating your
Traffic Assist. The most important basic
functions of the Traffic Assist are explained in the Quick Start Guide.
Operating instructions
A comprehensive explanation of the Traffic Assist functionalities is contained in
these operating instructions.
Registration
You can register your product using our
software service, we will then inform you
of any new updates and other news.
You can register online on the Becker
homepage www.mybecker.com.
The “Software update” menu item is located under “SERVICE/SUPPORT“.
Repairs
The unit must not be opened if damaged.
Please contact your local stockist.
Emissions and disposal
Information on emissions, electromagnetic compatibility and disposal can be found
in "NOTICE" on page 111.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
11
> CZ
> H
> SK
>>> OVERVIEW TRAFFIC ASSIST
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
1
4
Overview Traffic Assist
Scope of supply
1 Traffic Assist - PND (Personal Navigation Device)
2 USB connection cable
3 Unit holder with carrier plate
4 Cables for voltage supply via the vehicle’s cigarette lighter
(12/24 volt) with built-in TMC antenna**
2
3
> SK
12
**Does not apply to the Traffic Assist Z112
OVERVIEW TRAFFIC ASSIST >>>
> D
2
> GB
> F
> I
1
Front of unit with controls and displays
1 Becker button ( )
Press = Back function in most applications
Press and hold = Calls up the main menu
2 Touch screen showing the main menu selected
3 Touch screen key
Press = activates the corresponding key command
4 Microphone*
*Only applies to the Traffic Assist Z116
3
4
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
13
>>> OVERVIEW TRAFFIC ASSIST
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
1 2 3 4
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
Top of the unit
1 Switching the Traffic Assist on and off (standby)
14
Underside of the unit
2 Slot for Micro SD card
3 Mini USB port/connection for power supply
4 On/Off switch
General operation
Maintenance and care
The unit is maintenance-free.
For proper care, a commercially available
cleansing fluid for electrical devices may
be applied using a soft damp cloth.
!Danger!
Danger to life by electrocution. Always
switch off the unit and disconnect the
mains power supply unit before cleaning the unit, supplied components, or
accessories.
Note:
Do not use any aggressive or abrasive
substances or cloths which may damage
the surface.
The unit must not be exposed to water.
Your mobile navigation system was designed and manufactured with great care
and should be treated with equal care. You
will enjoy your mobile navigation system
for a long time to come if you observe the
recommendations listed in the following:
• Protect your mobile navigation unit
and the accessories from water and
moisture. If your unit has been exposed
to moisture, switch it off immediately
and disconnect the power supply. Allow
to dry at room temperature.
• Do not operate your mobile navigation
system in a dusty or dirty environment
and do not store it in such an environment.
• Do not store your mobile navigation
system in hot environments. High temperatures can shorten the service life of
electronic components in your unit,
damage the rechargeable batteries and
cause certain plastics to warp or melt.
GENERAL OPERATION >>>
• Do not store your mobile navigation
system in cold environments. During
operation, when the unit warms up to
operating temperature, moisture may
form internally, causing damage to electronic components.
• Do not drop your mobile navigation
system unit, protect it from shocks and
do not shake it. Improper handling can
damage components within the unit.
• Never use corrosive or aggressive chemicals, cleaning solutions or aggressive
detergents for cleaning.
All the above information applies equally
to the mobile navigation system, the rechargeable battery, the mains charging
and car power adapters as well as all accessories. Should one of these parts not work
properly, please contact your authorised
dealer.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
15
> CZ
> H
> SK
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Battery quality declaration
The capacity of the rechargeable battery in
your mobile navigation system decreases
with every charging/discharging cycle.
Improper storage at excessively high or
low temperatures may also cause a gradual
deterioration of capacity. Consequently,
the operating time may be substantially
reduced even in the case of a fully charged
battery.
The rechargeable battery is designed such
that it should certainly still be possible for
it to be charged and discharged after 6
months of operation of your mobile navigation system.
Display quality declaration
In some cases, for technical reasons, a few
discoloured dots (pixels) may be visible on
the display. Some pixels may also appear
brighter or darker. However, such instances do not represent a product flaw.
Start-up
Once the Traffic Assist has been unpacked
and checked for damage, the unit can be
started up. The individual start-up stages
are:
• connect to power supply
• Switching on the unit
• Ensuring antenna reception (if navigation is desired)
Power supply
Note:
You can charge the Traffic Assist via the
car charger cable included in the scope of
delivery or via the optionally-available
mains power supply unit.
When the Traffic Assist is connected to a
PC, it is supplied with power via the PC
and does not consume battery power.
> CZ
> H
> SK
16
GENERAL OPERATION >>>
Using the battery
The internal power supply is via the integrated rechargeable battery. The rechargeable battery is maintenance-free and does
not require any particular care.
Note:
Note that if the battery is completely discharged, it may take up to a minute before the device can be switched on again.
Note:
In the event of a defective battery, please
contact your authorised dealer. Please do
not attempt to remove the battery yourself.
Connection for the cigarette lighter
Note:
If the cigarette lighter has recently been
used and is still hot, wait until the lighter
socket has cooled down.
Connect the power supply via the vehicle
battery and the cable provided for the cigarette lighter as follows:
> Hold the connector of the connecting
cable and push it all the way into the
connecting socket on the Traffic Assist
without using excessive force.
> Insert the adapter into the cigarette
lighter.
Note:
When the engine is switched off, the
power supply slowly discharges the vehicle battery via the cigarette lighter!
Do not therefore operate the Traffic Assist for long periods with the engine
switched off.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
17
> CZ
> H
> SK
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
Connection to the mains outlet
!Danger!
Ensure that you do not have wet hands
and that the power supply unit is dry.
Only connect the power supply unit to
a permissible mains power supply.
Connecting power supply
Connection to the public mains grid is
achieved using the optionally available
mains power supply unit. Please proceed
as follows to connect to the mains:
> Hold the connector and push it all the
way into the connecting socket in the
Traffic Assist without using excessive
force.
> Insert the plug of the power supply unit
into the socket.
Note:
Remove the power supply unit when not
using the Traffic Assist for longer periods
of time.
TMC antenna*
The supplied TMC antenna is integrated
into the cable for power supply.
The TMC antenna runs in parallel with
the the cigarette lighter cable in the delivered condition.
If the TMC reception is poor, you must
remove the cable of the TMC antenna
from the cable for the cigarette lighter.
You can then use the supplied suction cup
to attach the TMC antenna to the windshield.
Note:
The TMC antenna must be installed in
such a way that it does not distract you
while driving.
GPS-antenna
Unit antenna
The GPS antenna is integrated into the
housing.
Note:
The integrated GPS antenna is of limited
suitability for use in vehicles with antiglare windows (metalised thermo-glass or
metal foil, indicated by the window label
- SIGLA SOL, SIGLA CHROM, SIGLA, KOOL-OF, SUNGATE, etc.) and
vehicles with fine-meshed heating wires
in the windows.
> H
> SK
18
*Does not apply to the Traffic Assist Z112
GENERAL OPERATION >>>
Memory card
Your Traffic Assist has a slot for a micro
SD memory card.
As the map data is stored in an internal
memory on the Traffic Assist, the slot for
a Micro SD memory card is used for updates.
The memory card can also be used for
supplementing the map data.
The card slot is located on the left on the
underside of the unit. The card slot is
equipped with a spring-actuated locking
and ejector mechanism.
Inserting memory card
> Remove the memory card from its
packaging without touching or soiling
the contact bar.
> Hold the memory card so that the con-
tact strip is facing towards the rear of
the unit.
> Guide the memory card into the card
slot.
> Exert a little pressure and slide the
memory card into the card slot until it
snaps in.
Ejecting memory card
The card slot ejects the card so that you
can pull it out with two fingers.
> Use your finger to gently press the
memory card against the spring force
into the card slot and then release it.
The card is ejected.
> Remove the memory card and place it
in the packaging while ensuring not to
touch contact bar.
Unit bracket
The Traffic Assist can be attached directly
to the windscreen with the unit holder.
Note:
The Traffic Assist and unit bracket must
not be exposed to long periods of direct
sunlight. Temperatures inside the
of +70 C and higher may damage
the bracket.
vehicle
parts of
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
19
> CZ
> H
> SK
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
1
2
1
Suction surface
2
Lever
3
Base
4
Fastening screw
5
Carrier plate
6
Release button
6
Fitting the unit bracket
Note:
Fasten the unit holder such that your
field of vision is not impaired when the
Traffic Assist is installed and ensure that
the unit is outside the deployment area of
the airbag.
Ensure that the electrical connection cable does not hamper you from accessing
the vehicle's controls.
Clean the attachment surface on the
windscreen to ensure that it is clean and
free of grease. Do not use greasy or soapy
3
4
5
cleaning agents.
On the windscreen
The unit holder can be attached directly
to the windscreen using the suction mechanism.
> With the holder disassembled, place the
fastening screw on the ball of the base
2
. Then press the carrier plate onto
the ball and tighten the fastening screw
4
slightly.
> Select a suitable spot to attach.
> Press the base with its suction sur-
1
face against the windscreen. Turn
the unit holder such that the carrier
plate is positioned roughly in the desired viewing direction.
> Press the lever down.
The holder has attached itself firmly to the
windscreen. It can now be adjusted with
precision. In order to remove it, operate
3
the lever again.
2
3
> CZ
> H
> SK
20
GENERAL OPERATION >>>
Adjusting the unit holder’s position
> Loosen the fastening screws until
the carrier plate can be moved without using excessive force.
> Move the carrier plate to the re-
quired position and hold it in this position.
> Tighten the fastening screws
enough that the Traffic Assist is held securely in place when the vehicle is in
motion.
5
4
5
4
Attaching the Traffic Assist
> Position the Traffic Assist, with the at-
tachment point on the bottom of the
housing, onto the carrier plate .
> Without using excessive force, press the
Traffic Assist onto the carrier plate .
The Traffic Assist locks into place.
5
5
Removing the Traffic Assist
Press the button on top of the carrier plate
5
and remove the Traffic Assist from the
carrier plate using your free hand.
Switching the Traffic Assist on/off
Using the On/Off switch you can
switch the Traffic Assist on or off completely.
Using the button on the top of the
Traffic Assist you can place the unit in
sleep mode or switch it on again from
sleep mode.
2
2
1
1
Switching on
> Set the On/Off switch on the underside
of the unit to On.
> Press the button on the top of the Traf-
fic Assist.
The unit is switched on. The manufacturer's logo appears on the touchscreen.
When the Traffic Assist is started for the
first time, the language selection is displayed automatically.
Using the buttons, it is possible to scroll through the list in the direction of the relevant arrow.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
21
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> Press the button for the required lan-
guage.
> The selection is confirmed by pressing
OK.
> Then select the desired voice.
Note:*
Voices with a (TTS) tag support the textto-speech function (e.g. announcing
roads).
A short example announcement is given.
> Confirm your selection by pressing the
OK button.
The following prompt appears shortly afterwards:
> If you agree to the request contained in
this prompt, press the
Note:
Use of the Traffic Assist is only permitted
in accordance with the national road traffic regulations applicable at the time.
OK button.
Switching off
You can switch the unit off at any time.
> Press the button on the top of the Traf-
fic Assist.
The Traffic Assist switches to sleep mode.
> To switch off the Traffic Assist com-
pletely, set the On/Off switch on the
underside of the unit to Off.
Note:
We recommend that you place the Traffic Assist in sleep mode in the event of
short interruptions to operation (of up to
a week).
This significantly reduces the switch-on
time and the Traffic Assist finds the satellites required for navigation much faster.
If route guidance was active when sleep
mode is activated, it is automatically resumed if the Traffic Assist is switched
back on again within approx. 4 hours.
> CZ
> H
> SK
22
*Only applies to the Traffic Assist Z116
GENERAL OPERATION >>>
Basic information about the touch screen
The Traffic Assist is fitted with a touch
screen.
Note:
To ensure that the display's surface is not
damaged, you may only touch it with
your fingers or a blunt, non-smearing object.
Operation
When you touch a button on the touchscreen, the button in question is briefly
shown outlined in red to confirm the selection.
If you touch a button that is not active at
the moment, a short signal tone sounds.
Calibration
If the touch screen starts responding imprecisely and e.g. buttons have to
be touched off-centre in order to be actuated, calibration should be undertaken.
The calibration function is started from
the Settings menu (see also page 102).
Basic information about the menus
During operations, you are assisted by
various menus and entry windows.
The main menu
The top menu level is the main menu.
The individual applications are started
from the main menu.
You will find information about the individual applications in the corresponding
main chapters.
In addition to the individual applications,
the main menu also contains further information and operating options.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
23
> CZ
> H
> SK
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*You can tell whether a telephone is already connected by the symbol on the
Phone button.
1
1
Telephone connected
2
Telephone not connected
2
A satellite symbol on the left-hand side of
Select destination button indicates
the
whether there is currently any GPS reception.
1
1
GPS reception
2
No GPS reception
2
If route guidance is already active, the current destination address and a button for
cancelling route guidance will be displayed between the two rows of buttons.
1
Press the button to cancel route guid-
1
ance to the displayed destination directly
in the main menu.
Entries made with the entry menu
Some applications require entries to be
made via the entry menu. The entry menu
is operated in a similar way to a keypad.
The character entered on the keypad is
displayed in the top line of the entry
menu. The central area is used to enter
characters. Help functions are provided in
the right line. Descriptions of how to operate the menu are provided below.
> CZ
> H
> SK
24
*Only applies to the Traffic Assist Z116
GENERAL OPERATION >>>
Entering characters
Characters are entered by pressing the
keys in the central area.
Once the entry is complete, the process is
concluded by pressing the key and
the entry passed on to the Traffic Assist
for processing.
When a navigation destination is entered,
the Traffic Assist compares the data with
the stored data.
Only those letters that are still possible are
available for selection.
Characters that cannot be selected are displayed greyed out.
Accepting proposals
During entry, the Traffic Assist makes
proposals in the uppermost line.
The proposals take into account your usage habits. For instance, if you enter the
city of Hamburg often, then after you enter the letter “H” the proposal “Hamburg” is automatically displayed.
If no preferences are known for the letter
entered, then cities/locations suitable for
the entry are displayed as proposals.
> To accept the proposal, you may press
either the input field or the button.
Scrolling through the lists
If you have already entered some of the
letters of the selection you want, you can
use the selection list to display all the destinations containing the combination of
letters in question.
> To call up the selection list, press the
key.
Note:
The quantity of selection options is displayed in the form of the number on the
button. When there are more than 300
options, the precise number is not displayed.
In the list, all the entries corresponding to
the letters already entered are displayed.
The letters entered are coloured red in
the case of the individual entries.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
25
> H
> SK
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
The selection list appears.
> Press the arrow keys on the
right hand side of the screen to scroll
through the list.
> Press the destination you want.
The destination is adopted and the selection list is closed.
Special characters and umlauts
Special characters and umlauts do not
have to used when entering the names of
towns and streets. The Traffic Assist will
change entries from AE, OE and UE if
necessary.
> If, for example, you are looking for the
location "Würzburg", then simply press
"WUERZBURG" or "WURZBURG".
Special characters can be useful when
naming destinations and routes.
> In order to switch to the special charac-
ters keyboard, press the button marked
with an arrow.
The special characters keyboard is displayed.
> Enter the desired special character.
After you enter a character, the Traffic Assist automatically switches to the normal
input menu.
To exit the special character keypad without an entry, press the button marked
with the arrow.
Other character sets
Different character sets can be selected for
the keyboard of the Traffic Assist.
> Press the button marked with an arrow
repeatedly until the desired character set
is selected.
> SK
26
GENERAL OPERATION >>>
Entering numbers
Switch to the numbers keyboard in order
to enter figures.
> Press the button.
The numbers keyboard is displayed.
> In order to return again to the keyboard
for entering letters, press the button
marked with an arrow.
Switching between upper and lower case
During free text entry, it is possible to
switch between upper/lower case and the
automatic function.
> Press repeatedly on the button in the
top right-hand corner of the display until the desired method of entry is acti-
vated.
The inscription on the button symbolises
the method of entry.
• The button represents automat-
ic mode. This means that, on entry, the
first letter is automatically in upper case
and subsequently changes automatically
to lower case.
• The button represents the entry
of upper case letters.
• The button represents the entry
of lower case letters.
Deleting characters
To delete the last character, use the back
key.
> To delete the character to the left of the
cursor, press the key.
Inserting spaces
If you have an entry with two words, e.g.
for names of towns, the words should be
separated by a space.
> To enter a space, press the key.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
27
> SK
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
The Becker key
The key is integrated in the bottom
left hand corner of the casing.
It has various functions:
• Depending on the menu context, if
pressed briefly, you will be returned to
the previous entry level.
• The main menu is displayed by pressing
and holding the button.
Content Manager
The Content Manager is a PC-based application containing a number of important functions to help you manage the
content on your Traffic Assist.
With the Content Manager you can:
• back up the content saved on the Traffic
Assist to your PC and restore it later to
your Traffic Assist,
• install content stored on the DVD and
• download current content from the Internet and install it on the Traffic Assist.
To use the Content Manager, you will
need the USB cable provided as well as a
computer that meets the following minimum requirements:
Minimum
requirements
Operating system Windows XP
Processor 300 MHz clock
frequency
Main memory 256 MB
Free storage space 2GB
Installing the Content Manager
You can install the Content Manager on
your computer with the following steps:
> Insert the DVD containing the Content
Manager in the DVD drive of the computer.
> If the DVD does not start automatical-
ly, please start the "BECKERCMSETUP.EXE" file in the
"CONTENTMANAGER" directory
manually.
> Select a language from the list and then
click on
> Read the welcome page and click on
Next to continue.
> Select the installation folder. A default
installation folder is already specified.
To select another folder, either type in
the path name or click on
define another folder.
OK.
Browse and
> H
> SK
28
GENERAL OPERATION >>>
> Click on
procedure. Click on
Install to start the copying
Details to see the
details during copying.
The Content Manager is automatically
started immediately after installation. Remove the check mark from the box if you
do not want this.
This completes the installation procedure.
> Click on
Finish to exit the installation
program.
Starting the Content Manager
Execute the following actions to start the
Content Manager:
> Connect the USB interface of the Traf-
fic Assist directly to the USB port of the
computer using the USB cable provided.
> Switch on the Traffic Assist using the
button.
Note:
When you connect the Becker Traffic Assist to the PC for the first time, the PC installs all the necessary drivers and then
displays the message "Your unit is now
ready to use".
After a short time, the Traffic Assist is displayed as a removable storage medium on
the computer.
> Click on Start > All Programs on the
computer.
> Select
> Click on
Becker.
Content Manager.
When the Content Manager is started, the
program executes a number of steps before
you can start to manage your navigation
software content.
Each time the program is called, a connection is established to the Internet to check
whether a new version of the Content
Manager is available. If a new software
version is found, the Content Manager
gives you the option of installing it. We
recommend that you always agree to the
upgrade, if one is available. If a new software version is found, you have the following options:
•Click on
Yes to accept the new software
version. The new version is downloaded
and installed before you can start the
Content Manager.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
29
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
• Click on
ager with the version already installed.
• If the new version is a critical update,
the
the
version, otherwise you have to exit the
application.
When you insert the DVD in the DVD
drive of your PC, the Content Manager
automatically reads and catalogues the
DVD content (provided it has not already
been added to the content list).
If you have not yet made a backup of the
navigation unit, the Content Manager
will ask you each time it starts whether
you would like to make a complete or partial backup copy.
Note:
We recommend that you always create
the backup. Otherwise you will not be
able to restore the content in the event of
loss of data.
No to start the Content Man-
Exit button will be shown instead of
No button. You must install the new
Faults
Malfunctions in the operating system or
in the unit are displayed accordingly. If
the function you want cannot then be executed, you should restart the Traffic Assist using the On/Off switch.
If the messages reappear or the unit
does not function correctly for any other
reason, please contact your local stockist.
You can also try to find a solution to your
problem in the FAQ in the Support area
on the Becker homepage (www.mybecker.com).
Note:
Never attempt to open the unit yourself.
Please contact your authorised dealer if
you are unable to remedy the fault.
> CZ
> H
> SK
30
Navigation mode
What is navigation?
The term "navigation" (lat. navigare = to
travel by sea) is generally understood to
mean the location of a vehicle, the determination of the direction and distance
from the desired destination and the determination of the required route. Stars,
prominent landmarks, compass and satellites etc. are used as navigation aids.
With the Traffic Assist, the location is determined by the GPS receiver. The Global
Positioning System (GPS) was developed
during the 1970s by the US military as a
weapons guiding system.
GPS is based on a total of 24 satellites orbiting the Earth and emitting signals. A
GPS receiver receives these signals and
uses the signal times to calculate the distance to an individual satellite, and then
determines your current geographical position.
Signals from at least three satellites are required to determine your position; your
height above sea level can be calculated if
signals are received from four or more satellites.
The Traffic Assist determines the direction and distance from the destination using a navigation computer and a digital
street map held in its internal memory.
For safety reasons, route guidance is given
predominantly in spoken form. This is
supported by a direction indicator and a
map display on the touch screen.
NAVIGATION MODE >>>
!Safety instructions
• Road traffic regulations always take
priority. The navigation system is only
an aid. Errors may occur in individual
data items/entries. At all times, the
driver must decide whether or not to
heed the information provided.
We do not accept liability for erroneous data provided by the navigation
system.
• When first put into use it can take up
to 30 minutes to fix the position.
• Observation of traffic signs and local
traffic regulations must always take priority.
• Traffic guidance is restricted to passenger vehicles. Special driving recommendations and regulations for other
vehicles (e.g. commercial vehicles) are
not included.
• Destinations may only be entered
when the vehicle is stationary.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
31
> CZ
> H
> SK
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
Selecting navigation
Navigation mode is called up from the
main menu.
> In the main menu, press
destination
The fast access function is called up.
Note:
If an address is displayed between the two
rows of buttons, this means that route
guidance has already been started to the
displayed address.
.
Select
Fast access mode
In fast access mode, the most recent destinations and saved destinations are displayed and can be selected directly. The
menu for entering destinations can also be
called up using the fast access function.
Configuration of fast access mode
In fast access mode, the Enter destination
button for calling up the menu for entering destinations is displayed on the top
line.
If you have already entered your home address, you can start route guidance to your
home address in the second line.
The destination list containing the destinations most recently travelled to as well
as saved destinations is displayed in the
lines below this.
The destination list
The destination list displays, line by line,
all destinations available for fast dialling.
If you have already entered your home address, you can start route guidance to your
home address in the first line.
Each line of the destination list is divided
into two fields. Each list field is in the
form of a button. The destination is
shown on the right-hand button and the
properties of the destination are displayed
using the left icon.
Note:
Up to 200 of the most recent destinations
are automatically stored in the destination list. If the storage capacity is reached,
the oldest destination is automatically deleted to make room for a new destination. However, important destinations
can be protected.
If you select your home address and it has
not yet been defined, you will be requested to enter the address.
> SK
32
NAVIGATION MODE >>>
Icons used
The following icons are used in the destination list:
Icon Meaning
This destination is a standard
destination with no special
features.
This destination is protected.
If the destination memory is
full, this destination will not
automatically be deleted.
This can be performed manually, if required.
In the case of a protected entry, you can also determine
the position using the fast access function.
This destination is the current
home address.
Using fast access mode
Start with existing destination
The destinations available in fast access
mode are included in the destination list.
> Press the button for the desired destina-
tion to start route calculation.
The calculation begins.
When the calculation is complete, the
map appears and the route guidance begins.
Scrolling through stored destinations
Using the buttons, it is possible to scroll through the list in the direction of the relevant arrow.
Displaying or editing a destination
Any destination stored in fast access mode
can be displayed and edited.
> Press the button to the left of the de-
sired destination.
> A selection menu appears.
Option Meaning
Show details The data for the destina-
tion are displayed. From
this screen you can display the destination on
the map, display the
route or start the route
guidance.
Name entry The destination can be
renamed. If the destination is given a name it is
automatically protected.
Delete entry The destination is delet-
ed from the fast access
mode.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
33
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
Option Meaning
Protect entry The destination is pro-
tected against automatic
deletion. This function is
only available in the case
of unprotected destinations.
Remove
protection
Protection of the destination is disabled. This
function is only available
for protected destinations.
Move up The destination is moved
forwards by one position.
If the destination is
moved it is automatically
protected.
Move down The destination is moved
back by one position. If
the destination is moved
it is automatically protected.
Delete all
entries
All destinations (except
for the protected destinations and your home address) are deleted from
the list.
Home address
When you press the
Home button you
will be asked to enter an address if no
home address has yet been entered.
> Press
Yes to enter the address.
You can then enter a destination as described under “The destination input
menu” on page 34.
Note:
The menu items
Set current position
and Select from last destinations (fast
access mode) can also be used to select a
destination.
Calling up the destination input menu
The
Enter destination button can be used
to call up the destination input menu.
• See “The destination input menu” on
page 34.
The destination input menu
If fast destination selection is not required
or the planned destination is not yet included in fast access mode, you can enter
a new destination using the destination
input menu.
> In fast access mode, press the
destination
button at the top of the
screen.
The destination input menu will appear.
Enter
34
NAVIGATION MODE >>>
Configuration of the destination input menu
Enter address
The various steps from selecting an address to starting route guidance can be carried out using the
• See “Entering the address” on page 35.
Select Point of Interest
Points of interest such as airports and ferry
ports, restaurants, hotels, petrol stations
or public buildings can be selected and
route guidance started using the
Point of Interest
• See “Points of interest” on page 41.
Personal destinations
Using the
you can call up Google
est that have been imported into the Traffic Assist and start route guidance to one.
• See “Selecting a destination from Personal destinations” on page 44.
Enter address button.
Select
button.
Personal destinations button
TM
points of inter-
Contacts
Using the
up Microsoft
Contacts button you can call
® Outlook® contacts that
have been imported into the Traffic Assist
and start route guidance to the address
listed in the contact.
• See “Selecting a destination from Contacts” on page 45.
Select on map
With
Select on map, you can select a des-
tination directly on the map and start
route guidance.
• See “Selecting a destination from the
map” on page 49.
Enter geo-coordinates
The geographic coordinates for a destination can be entered and route guidance
started via the
Enter geo-coordinates
button.
• See “Coordinate entry” on page 50.
Route planning
A route with several waypoints can be
planned using the
Route planning but-
ton.
• See “Route planning” on page 46.
Entering the address
The Enter address button in the destination input menu opens the menu for entering addresses.
> In the destination input menu, press the
Enter address button.
The menu for entering addresses appears.
Note:
By pressing the Clear form button (top
right) you can delete all entered data
apart from the country.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
35
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
Selecting a country
You can select a country from those available using the button for the country of
destination. A country is adopted automatically in the address input menu after
selection. If a country of destination has
already been entered it will remain until
you select a different country.
Note:
By pressing the button next to the
country you can display country-specific
information such as the maximum permitted speed for the selected country.
> Press the button containing the country
of destination to access the country selection list.
The selection list will appear.
> Press the button for the desired country.
Note:
If required, press the arrow keys
on the right of the screen to
scroll through all available countries of
destination.
Selecting an address and starting route guidance
You can enter the exact destination address in the address input menu.
The following settings can be made in the
address input menu:
•Town
• Postcode
• Street and house number
• Junctions as an orientation aid
It is also possible to:
• search for a point of interest near to the
address entered (
be entered as described under “Point of
interest near to an address” on page 42,
• save the destination in fast access mode,
• show the route on the map,
• start the route guidance straight away.
POI search). This can
> SK
36
NAVIGATION MODE >>>
Selecting a town
The destination can be entered by either
using the name or ZIP code.
If you enter the letters of a location, the
Traffic Assist displays proposals (See “Accepting proposals” on page 25.). If you do
not want to accept the proposal, just enter
the other letters of the location you want.
The Traffic Assist excludes all impossible
letter combinations and ZIP codes and activates only letter fields or numerical fields
that lead to an existing location or ZIP
code.
> Select the option of entering the town
or postcode.
> Enter the letters of the destination town
or the numbers of the postcode consecutively.
Note:
If two words need to be entered you must
separate them with the character .
When sufficient letters have been entered
it will automatically switch to a list from
which you can select the town. However,
you can switch to the list before this by
pressing the button.
Note:
If you have entered a postcode, the name
of the town will be hidden in the input
menu to start with. If you then enter the
street name, the name of the town will
then also be displayed.
Using the town list
Once a few letters of the desired town
have been entered you can display a list of
all the towns with the relevant letter combinations or this list will be displayed automatically.
> Press the button on the right of
the screen to call up the list.
You can scroll through the displayed list
using the buttons.
> Press the button for the required town.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
37
> SK
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Selecting the street
In the Street menu field the street and
house number can be entered separately
using a letter and number field.
The Traffic Assist excludes all impossible
letter combinations and activates only
those letters that could give an existing
street name.
A house number can only be chosen once
the street has been selected and if house
numbers are included in the data.
> Enter the letters of the destination street
consecutively.
When sufficient letters have been entered
it will automatically switch to a list from
which you can select the street. However,
you can switch to the list before this by
pressing the button.
Using the street list
Once a few letters of the desired street
have been entered you can display a list of
all the streets with the relevant letter combinations or this list will be displayed automatically.
> Press the button on the right of
the screen to call up the street list.
You can scroll through the displayed list
using the buttons.
> Press the button containing the desired
street.
Selecting the Intersection
After entering the destination town and
street, you can enter a junction so as to
further limit the choice.
Note:
Instead of entering a junction, you can
also enter a house number. However, it is
not possible to enter both at the same
time.
> Press the
The input menu for the name of the junction will appear.
> Enter the name of the junction.
Once a few letters of the desired street
have been entered a list will automatically
be displayed.
> Press the button for the desired street.
Intersection button.
> CZ
> H
> SK
38
NAVIGATION MODE >>>
Selecting a house number
After entering the destination town and
street, you can enter a house number so as
to further limit the choice.
Note:
Instead of entering the house number,
you can also enter a junction. However, it
is not possible to enter both at the same
time.
> Press
No.
The input menu for the house number
will appear.
> Enter the house number and then press
the button.
Displaying the route
Once the address has been entered, the address input menu allows the route to the
destination to be displayed on the map.
> Press the
Show route button to display
the route on the map.
The route is calculated.
You can start the route guidance directly
from this screen using the
Start button.
The other options on this screen are described under “Displaying the entire
route” on page 80.
Storing a destination
In the address input menu, the
Save but-
ton opens a menu where a name can be
entered for the specified destination.
If the desired name has been entered and
has been pressed to accept it, the
destination is transferred to fast access
mode and protected.
Starting navigation (trace)
The
Start button starts the route guid-
ance.
All data entered thus far is processed when
calculating the route.
> Press
Start to start the route guidance.
The route is calculated. The map will then
be displayed and the route guidance will
begin.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
39
> H
> SK
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Note:
The symbols above the progress bar refer
to restrictions that you may have activated (e. g. unpaved roads, toll roads).
*The symbol next to the progress
bar indicates that the time-dependent
route guidance described in “The Route
options button” on page 53 is active.
If the route guidance is already running
you will be asked whether the new destination should replace the old destination
or if the new destination should be regarded as a waypoint.
> Select
Add as stopover or Replace old
destination
.
If the route guidance is already running
and a waypoint has already been entered
you will be asked whether the new destination should replace the old destination
or the waypoint.
> Select
Replace stopover or Replace
old destination
.
Note:
If there is no GPS signal when the route
is calculated, the following will be displayed:
When a GPS signal is available, the route
calculation will start automatically.
When the
Last position button is
pressed, the last known position is used
and the route calculated from this position.
> CZ
> H
> SK
40
*Only applies to the Traffic Assist Z116
NAVIGATION MODE >>>
Points of interest
Points of interest (POI) are included in
the map and can be displayed there.
Points of interest include airports and ferry ports, restaurants, hotels, petrol stations, public buildings. You can use points
of interests as navigation destinations.
Note:
You can only select points of interest in
the area in question if the GPS reception
is adequate for determining a position.
Otherwise, the last position stored will be
used.
> Press
> Press the
Enter destination in the fast ac-
cess menu.
Select Point of Interest but-
ton.
You can choose between:
• a point of interest in the vicinity,
• a point of interest near to an address,
• a point of interest near to a destination,
or
• entering a point of interest directly.
Point of interest in the vicinity
> Press the
Press the arrow keys to scroll
through the list displayed.
> Select one of the available categories.
POI nearby button.
Note:
You can also press the All categories button. An input menu will then open and
you can enter the name of a point of interest directly and confirm it.
For some categories, e.g. petrol stations, a
further selection menu is displayed in
which you can narrow down the choice
further, e.g. by brand.
If you have selected the category, any
points of interest belonging to the relevant
category and available within the area in
question will now be displayed.
The name, distance as the crow flies and
the address is displayed for each entry.
> Select the desired point of interest.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
41
> SK
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
You will now receive additional information about your chosen destination.
> Press the
Start button to begin route
guidance to the point of interest direct-
ly.
In addition, the selected point of interest
can be:
• displayed on the map (
• saved in fast access mode (
On map),
Save),
• used for displaying a route to the POI
(
Show route),
• *if a telephone is connected and a
phone number is available by pressing
the button with the symbol.
Point of interest near to an address
> Press
POI near location.
> Select the desired country.
> In the
City or Code field, enter the
town where you wish to search for a
point of interest.
Note:
If you have already entered an address,
this address will appear by default.
> Press the
> Press the
POI search button.
Select category button.
Note:
You can also press the
Select POI button.
An input menu will then open and you
can enter the name of a point of interest
directly and confirm it.
The points of interest categories available
for the entered town are displayed.
> Select the desired point of interest as de-
scribed under “Point of interest in the
vicinity” on page 41.
> Press the
Start button to begin route
guidance to the point of interest straight
away.
However, you can also store your chosen
point of interest in fast access mode
(
Save) or display the route to the point of
interest (
Show route).
Press the button next to your chosen point of interest to display any additional information about the destination.
> H
> SK
42
*Only applies to the Traffic Assist Z116
NAVIGATION MODE >>>
Point of interest near to destination
> Press the
POI nearby button.
The categories available near to the destination are displayed.
> Select the desired point of interest as de-
scribed under “Point of interest in the
vicinity” on page 41.
Entering a point of interest directly
> Press the
POI search by name button.
> Enter the desired point of interest or
part of the name.
> Press the button.
The Traffic Assist displays in a list all the
points of interest corresponding to the
name entered.
Note:
The search radius is limited to
50 kilometers from your current position.
> Select the desired destination from the
list.
You will now receive additional information about your chosen destination.
> Press the
Start button to begin route
guidance to the point of interest straight
away.
However, you can also display your chosen point of interest on the map (
map
), store it in fast access mode (Save)
On
or display the route to the point of interest
(
Show route).
Calling telephone numbers for points of interest*
You can dial directly telephone numbers
specified in the information on a point of
interest
The prerequisite here is that a cell phone
is connected via Bluetooth with the Traffic Assist.
> Press the button with the symbol
shown at the bottom of the point of interest information screen.
The call will be initiated.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
*Only applies to the Traffic Assist Z116
> SK
43
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Additional point of interest information
Any additional information that is provided for a point of interest can also be
displayed.
To display the additional information,
press the
More button shown at the bot-
tom of the point of interest information
screen.
You can scroll through the displayed text
using the arrow buttons shown.
Selecting a destination from Personal destinations
You can call up GoogleTM points of interest that have been imported into the
Traffic Assist and start route guidance to
one.
Note:
To display custom Google™ points of
interest, the Google
stored in the
iGO8\content\userdata\mydest directory of the Traffic Assist.
> Press the
fast access mode.
> Press the
ton.
™ KML files must be
Enter destination button in
Personal destinations but-
A list of the available destinations will be
displayed.
Press the arrow buttons to
scroll through the list displayed.
Note:
If the list contains numerous entries, it
may be a good idea to search for the desired destination by selecting
entry
and using the input menu.
Search
A maximum of 1000 destinations can be
imported.
Newly imported destinations are filed at
the start of the list.
> Select the desired destination.
Route guidance to the selected destination
will be initiated.
> CZ
> H
> SK
Editing Personal destinations
> In the list of your own destinations,
press the button in front of the destination that you wish to edit.
44
NAVIGATION MODE >>>
Select
Delete entry if you wish to delete
the destination from the list.
Select
Delete all entries if you wish to de-
lete the entire list.
Select
Show details if you wish to display
details about the destination.
Press the
Start button to begin route guid-
ance to the destination straight away.
You can also display your chosen destination on the map (
access mode (
the destination (
On map), store it in fast
Save), display the route to
Show route) or call the
number if a telephone is connected and a
phone number is available by pressing the
button with the symbol*.
Selecting a destination from Contacts
You can call up Microsoft® Outlook®
contacts that have been imported into the
Traffic Assist and start route guidance to
one.
Note:
The Microsoft® Outlook® contacts are
imported via the Content Manager.
Up to 2000 contacts can be imported.
> Press the
fast access mode.
> Press the
Enter destination button in
Contacts button.
An input menu appears if there are more
than 10 contacts. If there are fewer than
10 entries, a list of contacts is displayed
straight away.
> Select the first letter of the desired entry
in the input menu.
> Press the button when the desired
name is displayed in the top line.
If there are 5 or fewer entries available
with the letter combination entered, a list
containing these entries will automatically
be displayed.
Note:
You can also have a list corresponding to
the entered letter combination displayed
before then. To do so, press in the
input menu.
> Select the desired entry from the list.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Only applies to the Traffic Assist Z116
> CZ
> H
> SK
45
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Press the
Start button to begin route guid-
ance to the address displayed for this contact straight away.
You can also display the address shown for
the contact on the map (
in fast access mode (
route to the destination (
call the number* displayed if a phone
number is provided (button with the
symbol).
If there are a number of addresses provided for the chosen contact, you can select
one of them after pressing the button .
If there are a number of phone numbers
provided for the chosen contact, you can
select one of them after pressing the but-
2
ton .
1
2
Save), display the
On map), store it
Show route) or
1
Route planning
The route planning menu allows you to
create and select individual routes. To do
this, enter the individual destination
points for the desired route. It is then possible to travel to these points consecutively
without having to enter any further information. You can also optimise the destination points entered and in so doing
change their order.
> Press
> Press the
In the route menu you can create a new
route by pressing the
button. Previously stored routes are
shown in a list below this.
Enter destination in fast access
mode.
Route planning button.
Create new route
Note:
If no routes have yet been stored, the
route menu is empty.
Scrolling through stored routes
> Press the arrow keys on the
right of the screen to scroll through the
stored routes.
Editing stored routes
You can add additional stages to a stored
route, change the name of the route or delete it.
> Press the button in front of the
route you wish to edit.
> CZ
> H
> SK
46
*Only applies to the Traffic Assist Z116
NAVIGATION MODE >>>
By pressing
Add stage you can now add a
stage to the route.
After pressing
Rename route you can give
the route a new name.
Pressing
Delete route will allow you to de-
lete the route from the stored routes.
Selecting and starting a route
> Press a route to select it.
The route is loaded and displayed in the
stage menu.
> Press the top button.
Note:
You can also select a leg of the route. The
route is started as of this leg.
> Select the start point or your current
position as the start point for route
guidance.
Note:
If a start point is selected, this is only used
to view a route.
The individual stages are calculated.
A map of the stages will then be displayed.
> Press the
Start button to start guidance
for this route.
You can call up the route options using
the
Options button.
You can optimise the order of the destinations to be travelled to by pressing the
Optimise button.
By pressing the or button you
can simulate the entire route quickly or
slowly. You can stop the simulation by
tapping the screen.
You can use the and buttons in
the bottom line to scroll through the individual stages in the route. As you scroll,
each stage is shown.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
47
> H
> SK
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
Creating a new route
> In the route menu, press
route
.
Create new
You can now enter an intermediate destination as described under “The destination input menu” on page 34 (
address
Personal destinations
on map
, Select Point of Interest
, Contacts, Select
or Enter geo-coordinates). You
Enter
also have the option of quickly selecting a
destination using the
destinations
button.
> In the input menu, press the
Select from last
Add but-
ton to accept the relevant intermediate
destination.
> Press
Add stage to enter further inter-
mediate destinations as described
above.
> When you have entered all intermediate
destinations, press the
Done button.
> Give the route a name of your choice.
The stage menu for the new route will be
displayed.
Editing a route
> Select the route you wish to edit.
> Press the button in front of the
stage you wish to edit.
The edit menu will be displayed. The following options are available:
Option Meaning
Show details The data relating to the
intermediate destination
is displayed. From this
screen, you can display
the intermediate destination on the map.
Move up The stage is moved for-
wards by one position.
Move down The stage is moved back-
wards by one position.
Delete stage The stage is deleted from
the route.
> SK
48
NAVIGATION MODE >>>
Option Meaning
Replace
stage
You can replace the selected stage with another
intermediate destination.
Optimising a route
If you have entered several destinations for
a route, you can use the Traffic Assist to
optimise the order of the destinations for
the journey distance. The route stored is
retained even after optimization, however.
Call up the map display for the stages of
the route.
> Press
The route is optimised and recalculated.
The optimised route is displayed.
Optimise.
Selecting a destination from the map
You can select a destination straight from
the map.
> Press
> Press the
The map display appears.
Note:
You may need to make the area larger using the zoom buttons and in order
to find the desired point. You can also
move the map to the desired point.
Enter destination in fast access
mode.
Select on map button.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
49
> H
> SK
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> Press the desired point lightly on the
surface of the screen.
A flashing red cross will be displayed at
this point.
Note:
By pressing the Back to GPS button you
can display your current position again.
You can block the road for route guidance as described under “The Blocked
roads button” on page 62 by pressing the
Block button.
> Press the
Details button.
Where available, the address of your chosen point is displayed.
> Press the
Start button to begin route
guidance to your chosen destination
straight away.
You can also search for points of interest
in the vicinity of your chosen point using
the
POI nearby button.
However, you can also store your chosen
point in fast access mode (
the route to the point of interest (
route
).
Save) or display
Show
Coordinate entry
You can also enter your destination using
geographic coordinates.
> Press
> Press
> Using select the value you wish to
> Using the two buttons indicated by
Enter destination in fast access
mode.
Enter geo-coordinates in the
navigation menu.
1
2
3
2
change.
1
select the direction required for the geographic longitude and latitude (east/
west or north/south).
> SK
50
NAVIGATION MODE >>>
> Then enter the desired values using the
buttons to .
You can enter coordinates in three different ways.
The following formats can be used:
• Degrees Minutes Seconds.Decimal sec-
onds e.g. 42°52’46.801“
• Degrees Minutes.Decimal minutes e.g.
48° 53.56667'
• Decimal degrees e.g. 48.89277778
Notes:
• The coordinates entered must correspond to WGS84 (World Geodetic
System 1984).
• If you press button your current geographic position will be entered into
the fields.
> Press the button.
Where possible, an address matching the
coordinates will be displayed. You can
view the destination on the map, store it,
display the route to the destination or start
the route guidance straight away.
3
Navigation settings
The navigation settings contain all the settings that are relevant to the navigation
functions.
Note:
All your settings must be confirmed by
pressing the OK button. Using the
button, you can exit the current menu at
any time without having changed anything.
> In the main menu, press
Settings.
This will take you to the navigation settings menu.
Configuration
Various pages containing functions are
available in the menu:
You can go to the next or previous page of
the settings by pressing the and
buttons.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> Press the
Navigation settings button.
> H
> SK
51
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
The Guidance info button
In the Guidance info settings window you
can select which additional information
you would like displayed during route
guidance.
> Press the
settings menu.
The Guidance info settings window appears.
The following settings are available:
Setting Meaning
Lane info When this function is en-
Guidance info button in the
abled, a small arrow indicates which lane you
should move into in the
case of multi-lane roads.
Setting Meaning
Signposts When this function is en-
abled, you will also receive information at motorway intersections
regarding the road signs
which you should follow.
Country info When this function is en-
abled, you will automatically receive generally applicable traffic
information for the relevant country when you
cross a national border
(e.g. speed limits).
Junction
*
View
If this function is activated, you will see realistic
views of the current lane
situation, if available, at
many motorway intersections.
Note:
This information can only be displayed if
it is contained in the map material.
> Press the relevant button to switch the
required function on or off .
> Confirm your selection by pressing the
OK button.
> SK
52
*Function can be retrofitted via the Content Manager.
NAVIGATION MODE >>>
The Route options button
You can edit your driving profile in the
Route options settings window. The settings made here have an effect on the
route selection and on the calculation of
the estimated journey times.
> Press
The Route options settings window appears.
> Select the mode of travel after pressing
Route options in the settings
menu.
the button next to
Vehicle.
This setting affects the calculation of the
estimated time of arrival and for the setting 'bicycle', for example, it blocks the
motorway.
> After pressing the button next to
type
select one of the following options.
Route
Option Meaning
Economical
route
With this option, the
most economical route in
terms of travel time and
mileage is calculated taking into consideration
further parameters such
as gradients, for example.
Fast route With this option, the
fastest route in terms of
travel time is calculated.
Short route With this option, the
shortest route in terms of
mileage is calculated.
Easy route With this option, a route
with as few manoeuvres
as possible is calculated.
This may result in large
detours.
Time-dependent route guidance
If this function is switched on ( ), information (statistical information) on the
possible speed on certain segments at certain times of the day is also taken into account in the route calculation, provided
this is available (currently only in Germany, France and United Kingdom). This
provides a more accurately calculated arrival time and may even result in a different route being selected.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
*Only applies to the Traffic Assist Z116
> SK
53
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Avoiding particular types of road
After pressing the button next to
Avoid
you can exclude various types of road, e.g.
motorways, ferries and toll roads, from
the route calculation.
You can set one of the following options
for each of these road types.
Option Meaning
Permitted With this option, the
road type in question is
included in calculating
the route.
Avoid With this option, the
road type in question is
avoided where possible.
Prohibited With this option, the
road type in question is
not included in calculating the route.
> Confirm your selection by pressing the
OK button.
The TMC button*
You can configure settings for the reception of traffic announcements in the
TMC settings window.
> Press
The TMC settings window appears.
TMC in the settings menu.
Setting Meaning
Auto-select
station
Choose whether to run
an automatic search for
the station with the best
reception (function
switched on ).
Press the arrow buttons
to activate the automatic station search. The
currently tuned TMC
station is displayed in
the adjacent field. This
can only be set if the
Auto-select station
function is switched off.
> CZ
> H
> SK
54
*Does not apply to the Traffic Assist Z112
NAVIGATION MODE >>>
Setting Meaning
Rerouting This button allows you
to choose whether the
route change should be
made
Never,
Automatically or
Manually. (See “Taking
announcements into
consideration when calculating routes*” on
page 67.) The setting
Never is equivalent to
switching off the TMC
function.
> Confirm your settings by pressing the
OK button.
The Map view button
You can select whether the map is to be
displayed in 3D or 2D mode, in a split
screen with 3D or 2D display or in arrow
mode.
*You can also select whether or not 3D
buildings available in towns should be displayed in 3D mode.
Further setting options are available to
you in the extended settings.
> Press the
tings menu.
The Map view settings window appears.
Map view button in the set-
1 2 3
4
5
> Press the button or to select
4 5
whether to use 2D or 3D mode.
> Press the button to select the entire
1
map.
> Press the button for a split screen.
2
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Function can be retrofitted via the Content Manager.
> CZ
> H
> SK
55
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> Press the button for arrow mode.
3
Switching 3D buildings on/off*
You can select whether or not 3D buildings available in towns should be displayed in 3D mode.
Note:
This function is only available in 3D
mode.
> Press the
3D Buildings button in the
map mode menu and turn the function
on or off .
Map with 3D buildings activated.
> Confirm your setting by pressing the
OK button.
To call up the extended settings, press the
Advanced button.
The following setting options are available
in the extended settings:
Auto zoom
•
You can select how the map changes
when approaching an action point or at
different speed.
•
Select POI categories
You can select which symbols are displayed for points of interest on the map.
•
Street names 2D/Street names 3D
You can select whether the street names
should be displayed ( ) or not ( ) in
3D or 2D mode.
•
2D heading up
You can select whether the map should
always be orientated to the direction of
travel ( ) or to the north ( ) in 2D
mode.
> CZ
> H
> SK
56
*Function can be retrofitted via the Content Manager.
NAVIGATION MODE >>>
Autozoom
> Press the
Auto zoom button in the ex-
tended settings.
Pressing the
Auto zoom button switches
the zoom function on ( ) or off ( ).
When the zoom function is switched on,
you can select whether the autozoom action should be weak, medium or strong.
Setting POI categories
You can select which POI symbols are to
be displayed on the map.
> Press the
Select POI categories button
in the extended settings.
Selecting
Show all POIs displays all points
of interest on the map.
Selecting
Show no POIs displays no
points of interest on the map.
Selecting
then pressing the
User defined selection and
Select POIs button al-
lows you to determine for yourself in the
menu which then appears whether each
individual points of interest category is
displayed or not.
> You can then switch the display of en-
tire categories on ( ) or off ( ).
After pressing the button beside a
category you can switch subcategories in
further menus on or off.
> Confirm all your settings by pressing
OK button.
the
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
57
> CZ
> H
> SK
>>> NAVIGATION MODE
The Warnings button
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
In the Warnings settings window you can
select which warnings are to be displayed
by the Traffic Assist or which warnings are
to be output.
> Press the
Warnings button in the set-
tings menu.
The Warnings settings window appears.
The following setting options are then
available:
Driver alerts*
•
You can have signs displayed, for
example for dangerous curves or steep
gradients, provided this information is
stored in the map data.
•
Speed info
You can select whether speed limits are
displayed in parallel to the navigation.
You can also receive an audible warning
about exceeding the speed limit.
•
Danger spots*
You can receive a warning about danger
points such as permanent speed checks.
Note:
There is no standardised rule in Europe
on the use of this function (warning
about speed checks). Please check the legal situation in the respective country.
In Germany, for example, it is an offence
to use this function while driving.
The Driver alerts button*
You can have signs displayed, e.g. for dangerous curves or steep gradients, provided
this information is stored in the map data.
In addition, you can define whether the
display of the sign is also to be accompanied by a warning sound.
> Press the
Driver alerts button in the set-
tings menu.
The Driver alerts settings window appears.
The available signs are divided into 4 categories. The four categories can be enabled
or disabled individually.
The warning sound can be set individually
for each of the four categories by pressing
the symbol with the bell ( warning
sound switched on).
> H
> SK
58
*Function can be retrofitted
NAVIGATION MODE >>>
The following signs are available in the individual categories:
•
Curve warnings
This category includes warning signs
that relate to sharp curves.
•
General warnings
This category includes all other warning
signs, such as steep gradients, falling
rocks.
•
Traffic regulations
This category includes other traffic
regulations, such as no passing zones.
• Informatory road signs
This category contains the available information signs.
> Confirm your settings by pressing the
OK button.
The Speed info button
The Speed info settings window allows
you to display speed limits parallel to the
navigation. You can also be warned
against exceeding the speed limit by an
acoustic warning.
Note:
This information can only be displayed if
it is contained in the map material.
!Danger!
The information in the map material
may be incorrect as a result of shortterm changes (road works, for example).
The traffic situation and the local road
signs take precedence over the navigation system information.
> Press
The Speed info settings window appears.
Speed info in the settings menu.
The following settings are available.
To select settings always press the field
next to the setting that you wish to
change.
Setting Meaning
Show signs Select whether speed lim-
its are never displayed, always displayed or only
displayed if the limit is
exceeded.
In city Select the amount over
the speed limit at which
you would like to receive
an acoustic warning
within built-up areas.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
59
> H
> SK
>>> NAVIGATION MODE
Setting Meaning
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Out of city Select the amount over
the speed limit at which
you would like to receive
an acoustic warning outside built-up areas.
Conditional
speed limits
Select whether you
would like to receive an
acoustic warning with regard to speed limits
which only apply during
rainy or snowy conditions, or at particular
times ( function
switched on).
> Confirm your selection by pressing the
OK button.
The Voice guidance button
In the Voice guidance settings window
you can make settings relating to the voice
guidance of the Traffic Assist.
> Press the
settings menu.
The Voice guidance settings window appears.
The following setting options are then
available:
Voice
•
You can select the voice that will make
the navigation announcements for the
language that has been set.
Voice guidance button in the
•
Volume
You can select the standard volume for
voice announcements for each start of
the Traffic Assist, or switch off voice announcements completely.
•
Announce streets*
Using the Announce streets button
you can switch the announcement of
the names of streets into which you are
to turn on ( ) or off ( ).
Note:
This function is not available for all languages/voices. If the function is not available, the button cannot be selected.
•
Announce ETA
Using the Announce ETA button you
can switch the automatic announcement of the estimated time of arrival on
( ) or off ( ).
> CZ
> H
> SK
60
*Does not apply to the Traffic Assist Z112
NAVIGATION MODE >>>
The Voice button
In the Voice settings window you can set
the voice that will make the navigation announcements for the language that has
been set.
> Press
Voice in the settings menu.
The Voice settings window appears.
> Select the desired voice.
Note:*
Voices with a (TTS) tag support the textto-speech function (e.g. announcing
roads).
A short example announcement is given.
> Confirm your selection by pressing the
OK button.
The Volume button
With the Volume settings window, you
can set the standard volume for voice announcements for each start of the Traffic
Assist, or switch off voice announcements
completely. Depending on the situation,
this setting can be fitted into the map display.
> Press
Volume in the settings menu.
The Volume settings window appears.
> Select the desired volume using the
and buttons.
> Press the button to switch off the
voice output completely.
> Confirm your settings by pressing the
OK button.
The Format button
In the Format settings window you can
set the measurement units to be used for
times and distances.
> Press
The Format settings window appears.
Press the field next to
tween the 12 hour clock and the 24 hour
clock.
Press the field next to
between kilometres and miles.
> Confirm your settings by pressing the
Format in the settings menu.
Time to switch be-
Distance to switch
OK button.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Does not apply to the Traffic Assist Z112
> CZ
> H
> SK
61
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
The Time button
You can select the time zone relevant for
your location in the Time settings window. This setting is important for the correct calculation of the estimated time of
arrival.
> Press
Time in the settings menu.
The Time settings window appears.
Using the button next to
can set whether the time zone should be
set automatically by Traffic Assist or not
(automatic mode on automatic mode
off ).
Time zone you
If the automatic function is switched off,
you can select the desired time zone by
pressing the button below
Pressing the button below
saving time
allows you to select whether
Time zone.
Daylight
daylight saving time should be set automatically by Traffic Assist or whether you
switch daylight saving time on and off
yourself.
The Blocked roads button
In the Blocked roads settings window you
can unblock previously permanently
blocked roads (See “Blocking route sections/roads” on page 81.) or modify the
block (time and days of week of block).
> Press the
settings menu.
A window is displayed containing the
roads that have previously been blocked.
Note:
To delete all blocked roads from the list,
press the Delete all blockings button followed by the
that then appears.
Blocked roads button in the
Yes button in the display
> H
> SK
62
NAVIGATION MODE >>>
> Select the blocked road you want.
> Press the
Clear form button to delete
the road from the list.
or
> Press the
Change button to modify the
block.
You can now set whether or not the road
should be blocked for each day of the
week.
> Press the buttons with the days on
which the road should not be blocked
(the clock symbol under the day disappears).
> Confirm your settings by pressing the
OK button.
or
> Press the button under one of the
days and set up to two times when the
road should be blocked.
1 1 1 1
2 2 2 2
> Using the buttons set the first peri-
1
od when the road is to be blocked on
this day.
> Using the buttons set the second pe-
2
riod when the road is to be blocked on
this day if necessary.
Note:
Press the Block 24 h button to set a block
for an entire day.
Press the
Use setting for... button to also
use the block on other days.
> Confirm your settings by pressing the
OK button.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
63
> CZ
> H
> SK
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
The Reset button
You can reset the navigation settings to
their factory settings.
The settings will then be reset. The fast access mode data, stored routes, blocked
routes, voice and home address are retained.
> Press the Reset button.
> Press the
The navigation settings are reset to their
factory settings.
Yes button.
Traffic announcements using TMC*
Your Traffic Assist can receive traffic announcements (TMC announcements)
from radio stations. The TMC antenna
and the power supply need to be connected to the carrier plate for this.
Note:
TMC is not available in all countries
(currently only Belgium, Germany, Denmark, France, Italy, the Netherlands,
Austria, Sweden, Switzerland and Spain).
Traffic announcements are transmitted by
radio stations via the TMC (Traffic Message Channel) in addition to the radio
programme and are received and analysed
by the navigation system. Receiving traffic
announcements is free of charge.
Note:
As the traffic announcements are transmitted by radio stations, we cannot assume responsibility for the completeness
or accuracy of the announcements.
Austria: The location and event code was
made available by ASFINAG and BMVIT.
The Traffic Assist constantly checks
whether there are any relevant announcements for the route that has been set. All
traffic problems that have been received
are shown on the map.
If the continuous checks determine that a
traffic announcement is relevant to route
guidance, the unit can automatically recalculate a new route to the destination
(See “The TMC button*” on page 54.)
> CZ
> H
> SK
64
*Does not apply to the Traffic Assist Z112
NAVIGATION MODE >>>
Displaying TMC messages on the map*
Current TMC messages are displayed on
the map graphically. Sections of the route
where there are traffic problems are highlighted blue. Arrows indicating the traffic
direction which is affected by the traffic
problem continue to be displayed.
In addition to the coloured mark, a warning sign is displayed on the stretch of road
affected.
Using TMC*
Once you have connected the Traffic Assist to the carrier plate and the TMC antenna is connected, your Traffic Assist will
receive up-to-date traffic announcements
and dynamic route calculation will be enabled (traffic jam diversion). You can also
view traffic announcements directly.
Settings for TMC can be made as described under “The TMC button*” on
page 54.
> In the main menu, press
2
1
3
TMC.
You can scroll through the list using the
arrow keys on the right-hand
edge of the screen.
The following is displayed for each traffic
announcement:
1
The type of problem and the distance
as the crow flies from the current position
2
The road number (motorway, A-road
or district road) and the section of
road with traffic direction
3
The duration of the problem
If a TMC message lies on your route, the
message is indicated by the sign .
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
The message list appears.
*Does not apply to the Traffic Assist Z112
> CZ
> H
> SK
65
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Reading a message*
> Press on the desired message in the list.
The message display appears.
> Press the arrow buttons to
scroll in the messages.
> Press the button to return to the
message list.
If a message lies on your route as shown in
the example, by pressing the
message
button you can process this
Consider
message.
If you wish to recalculate the route, press
Yes button.
the
The route is recalculated and, if possible,
a detour is calculated.
If you wish to cancel the change, you can
call up the relevant message again and
then press the
Ignore message button.
Another prompt will appear, which you
must reply
Yes to. The route is then recal-
culated without taking into account the
message in question.
Display the relevant road in the map*
> Press the button in the message
display.
The relevant road can be seen in the map.
By pressing the
List view button you can
return to the message display.
You can use the and buttons in
the bottom line to scroll through all the
messages in the message list and show
them on the map.
Using the
Consider button you can deter-
mine for each message whether the stretch
of road to which the message relates will
be avoided in the route calculation.
If you have blocked a stretch of road
(
Consider) you can remove this block by
pressing the
Ignore button.
> CZ
> H
> SK
66
*Does not apply to the Traffic Assist Z112
NAVIGATION MODE >>>
Taking announcements into consideration when calculating
routes*
Your Traffic Assist can take traffic announcements into consideration when
calculating a route. You have the option of
setting this function to automatic, manual
or never under “The TMC button*” on
page 54.
Automatic recalculation*
If the traffic on your route is obstructed,
the Traffic Assist checks whether an expedient detour of the obstruction is possible.
If an expedient detour is possible, then an
alternative route is calculated and you are
guided via the alternative route.
Manual recalculation*
If a traffic announcement affects your
route, a window with detailed information on the traffic announcement appears.
If you wish to calculate a detour around
the traffic problem, press
message
message
Note:
When you select Consider message,
then an alternative route is not generally
calculated. This only occurs if it is expedient with regard to saving time and the
distance to be driven.
You can change the setting selected again
at any time in the message list.
If after the selection of
message
that an expedient alternative route is possible, the following display appears.
Note:
This display may also appear if, for instance, a previously obstructed route is
now free again.
, or alternatively Ignore
.
the Traffic Assist determines
Consider
Consider
The display provides you with an overview of the alternative route calculated.
The red route or route marked blue for an
obstruction shows the previous route. The
route marked yellow displays the alternative route calculated.
In the right section of the display, you can
see how much the route changes and how
much time you will likely save if you use
the alternative route.
> Now press the button, to use the
alternative route or the button to
keep the previous route instead.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Does not apply to the Traffic Assist Z112
> CZ
> H
> SK
67
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
The map display
The map display is used primarily for
route guidance. However, you can also use
the map display without route guidance to
show your current position and, for example, to receive warnings about exceeding
the speed limit.
Calling up the map display
The map display is called up automatically when you start route guidance.
Without route guidance, you can call up
the map display from the main menu.
> In the main menu, press
Show map.
The map display will then appear and, if
GPS reception is available, will show your
current position.
If route guidance is already active, the
map will be displayed with route guidance.
Structure of the map display
The structure depends on the settings
made in “Switching the map mode” on
page 76 or in “The Map view button” on
page 55 and whether route guidance is active or not.
Map display without route guidance
7
5
6 4
If the navigation is not active, almost the
whole area of the touch screen will be taken up by the map.
1
2
3
1
Speed limit on the road currently being driven on (display not available
for all roads), signs for the driver
alerts will also be displayed
2
Zoom buttons
3
Power level/telephone status*
4
Button for calling up the options
5
Vehicle position
6
Current road
7
Information box (if displayed) showing vehicle speed and altitude above
sea level
Map display with route guidance
14
13
12
11
8
9
10
1
Speed limit on the road currently be-
7
6
ing driven on (display not available
for all roads)
2
Driver alerts (optional)
3
Zoom buttons
1
2
3
4
5
68
*Only applies to the Traffic Assist Z116
4
Power level/telephone status*
5
Button for calling up the options
6
Traffic lane recommendation (only
appears on some multi-lane roads;
green arrows = recommended lanes)
Note:
Following the traffic lane recommendations allows you to perform the next driving manoeuvre without changing lanes.
7
Vehicle position
8
Current road, or road to which the
next driving manoeuvre leads
9
Distance to next driving manoeuvre
10
Next driving manoeuvre
11
Calls up volume settings
12
Displays TMC messages for the
route**
13
Displays POIs along the route
14
Estimated time of arrival, remaining
journey time and remaining distance
to the destination or, if displayed, vehicle speed and altitude above sea level
Your current position is displayed on the
map via the position icon.
During route guidance you can have information displayed.
1
2
3
On the left of the screen, press the button
1
. The display alternates between:
• Information about the destination or
waypoint (estimated time of arrival,
2
remaining journey time and remaining
distance to destination/waypoint).
• Display of your current speed and altitude above sea level .
3
NAVIGATION MODE >>>
Information is also displayed in the bottom left corner in the preview area.
The next manoeuvre is displayed as an arrow, with a distance indication underneath it. If two driving manoeuvres are to
be performed in succession within a short
time, another smaller arrow indicating the
second driving manoeuvre is displayed
above the first arrow.
You can adjust the volume of the navigation announcements by pressing the button with the speaker symbol in the preview area (See “Changing the
announcement volume” on page 72.).
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Only applies to the Traffic Assist Z116 **Does not apply to the Traffic Assist Z112
> CZ
> H
> SK
69
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
