Page 1
Operating instructions
Page 2
>>> INDEX

Index

> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
Index 2 Safety information 5 The Traffic Assist 7
Use 7
Navigation 7
Unpacking the Traffic Assist 7
Checking the delivery 7 Delivery contents 8 Complaints procedure 8 Handling the packaging 8
Description of unit 8
Traffic Assist - basic unit 9 Cable for power supply from cigarette lighter 9 Battery 9 USB connection cable 9 Unit bracket 9 Accessories 10
Mains power supply unit 10 External GPS antenna 10 Headset 10
Information about documentation 10
Quick start guide 10 Operating instructions 10
Registration 11 Repairs 11 Emissions and disposal 11
Overview Traffic Assist 12 General operation 15
Maintenance and care 15 Battery quality declaration 16 Display quality declaration 16 Start-up 16 Power supply 16
Using the battery 17 Connection for the cigarette lighter 17 Connection to the mains outlet 18
Connecting power supply 18
GPS-antenna 18
Unit antenna 18 Connecting up external antenna 18
Memory card 19
Inserting memory card 19 Ejecting memory card 19
Unit bracket 19
Fitting the unit bracket 20
On the windscreen 20
Moving the unit holder 21 Attaching the Traffic Assist 21 Removing Traffic Assist 21
Switching the Traffic Assist on/off 21
Switching on 21 Switching off 22
Basic information about the touch screen 22
Operation 23 Calibration 23
Basic information about the menus 23
The main menu 23 Entries made with the entry menu 23

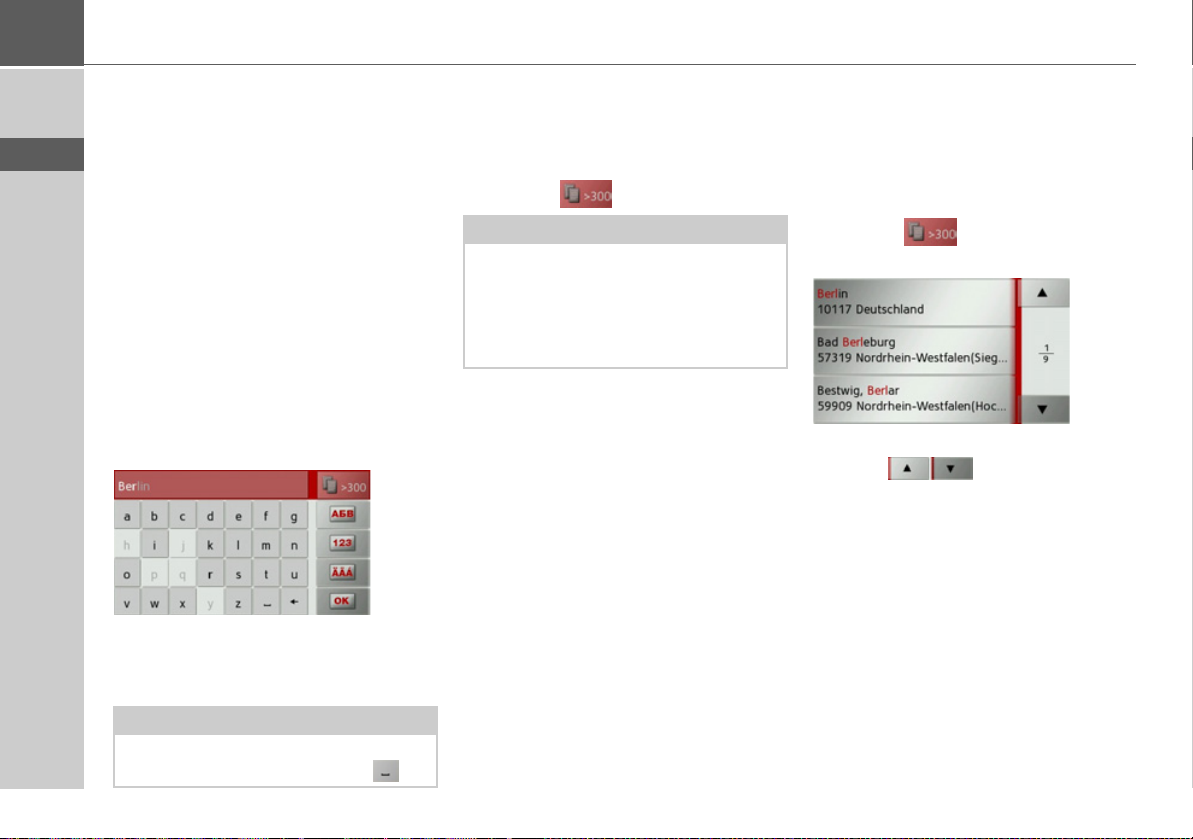

Entering characters 24 Scrolling through the lists 24 Special characters and umlauts 24 Other character sets 25 Entering numbers 25 Switching between upper and lower case 26 Deleting characters 26 Inserting spaces 26
The Becker key 26
Content Manager 27
Installing the Content Manager 27 Starting the Content Manager 28
Faults 29
> SK
2
*Applies only to the Traffic Assist Z 103
Page 3
INDEX >>>
Navigation mode 30
What is navigation? 30 Selecting navigation 31 Fast access mode 31
Configuration of fast access mode 31

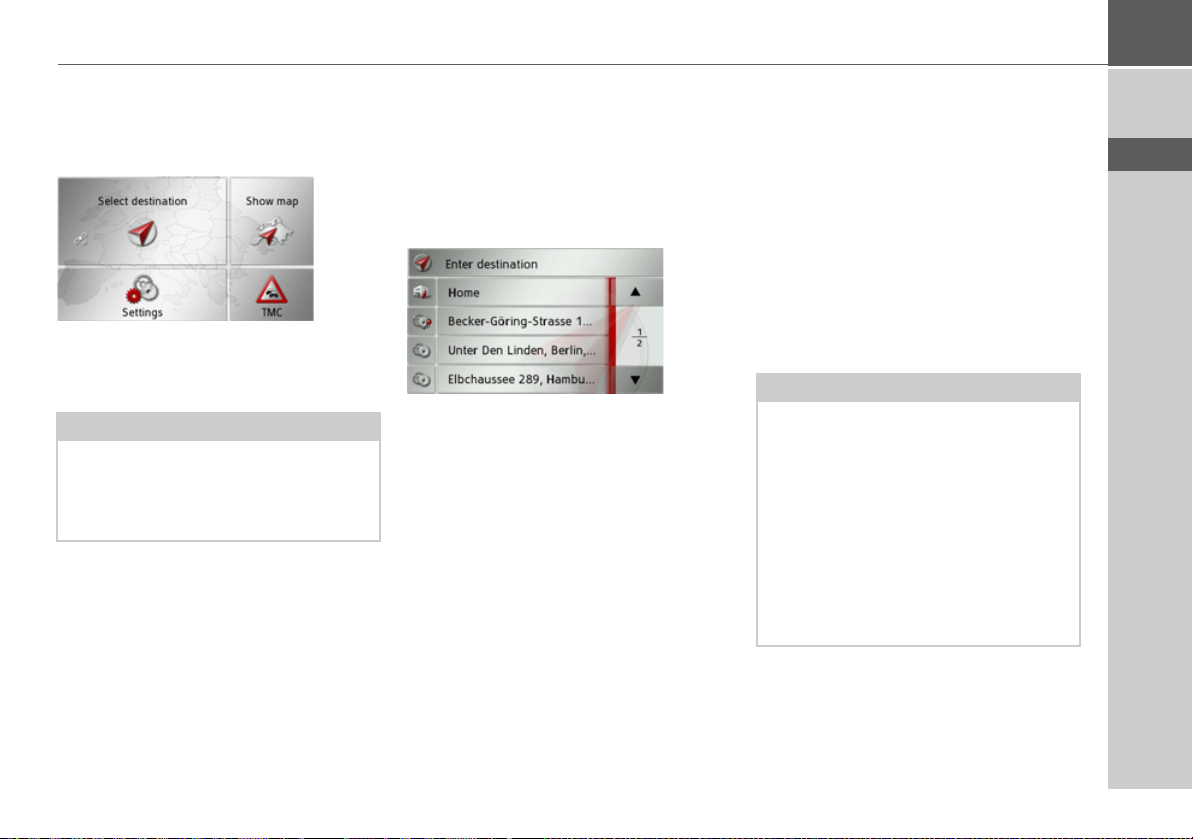

The destination list 31 Icons used 32
Using fast access mode 32
Start with existing destination 32 Scrolling through stored destinations 32 Displaying or editing a destination 32 Home address 33 Calling up the destination input menu 33

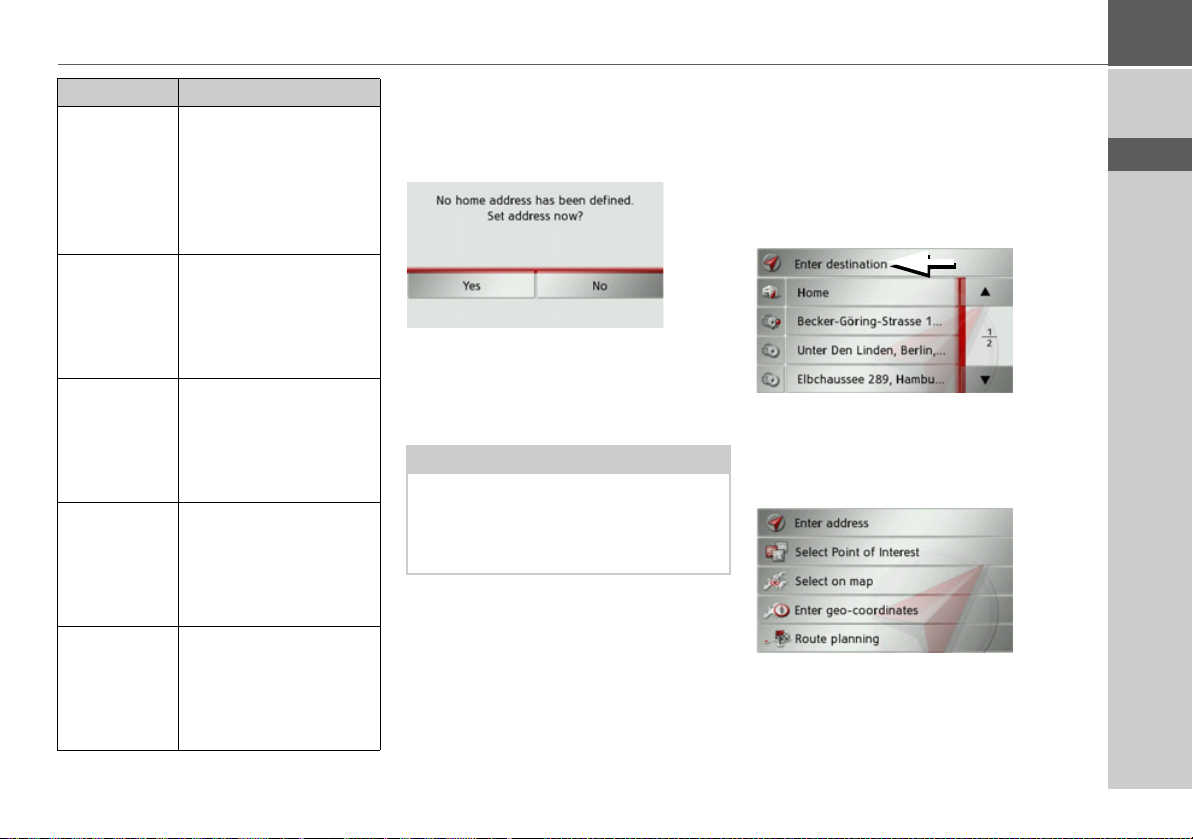

The destination input menu 33
Configuration of the destination input menu 34

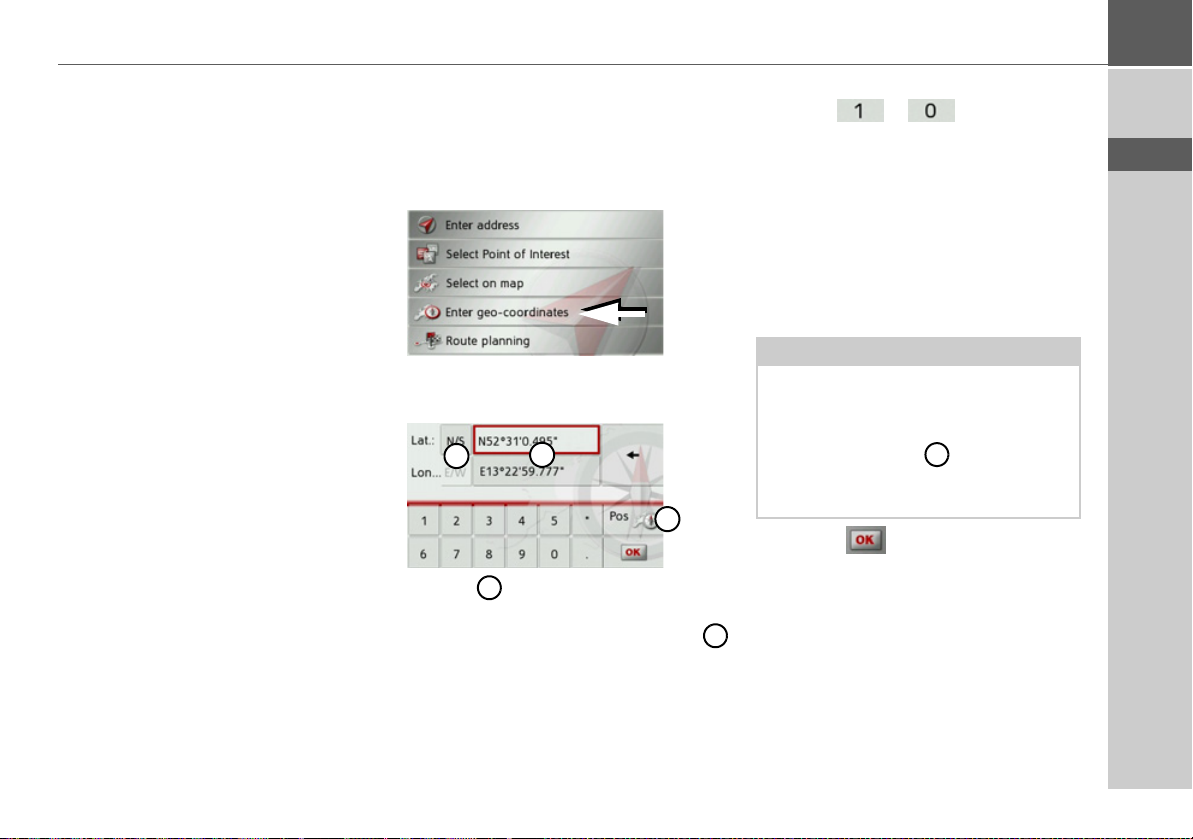

Enter address 34 Select Point of Interest 34 Select on map 34 Enter geo-coordinates 34 Route planning 34

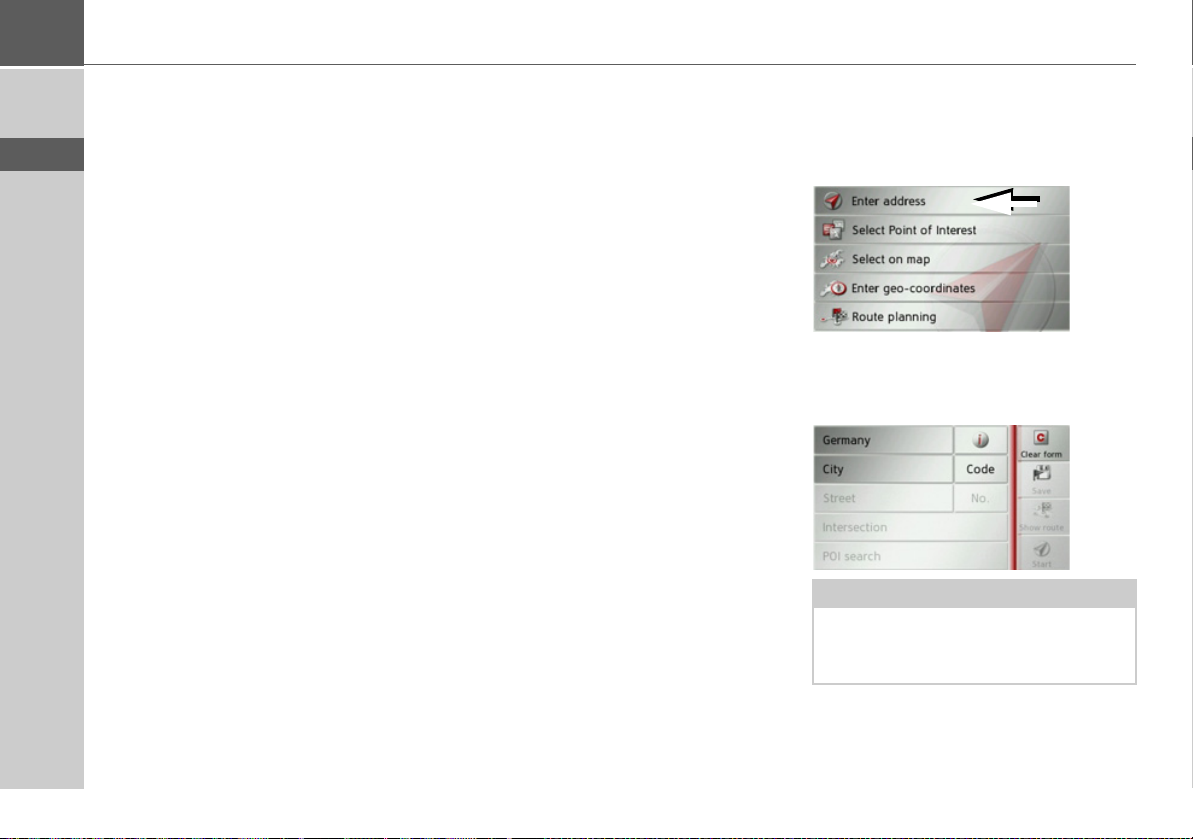

Entering the address 34

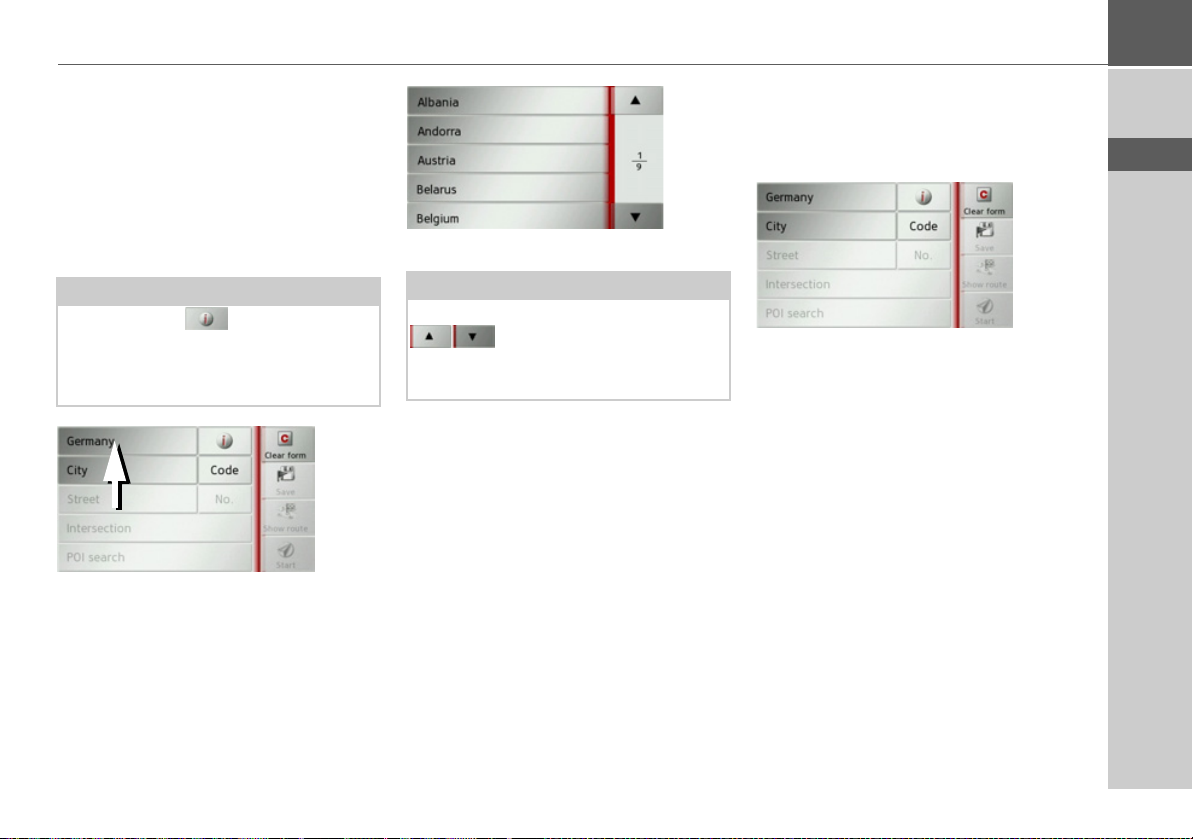

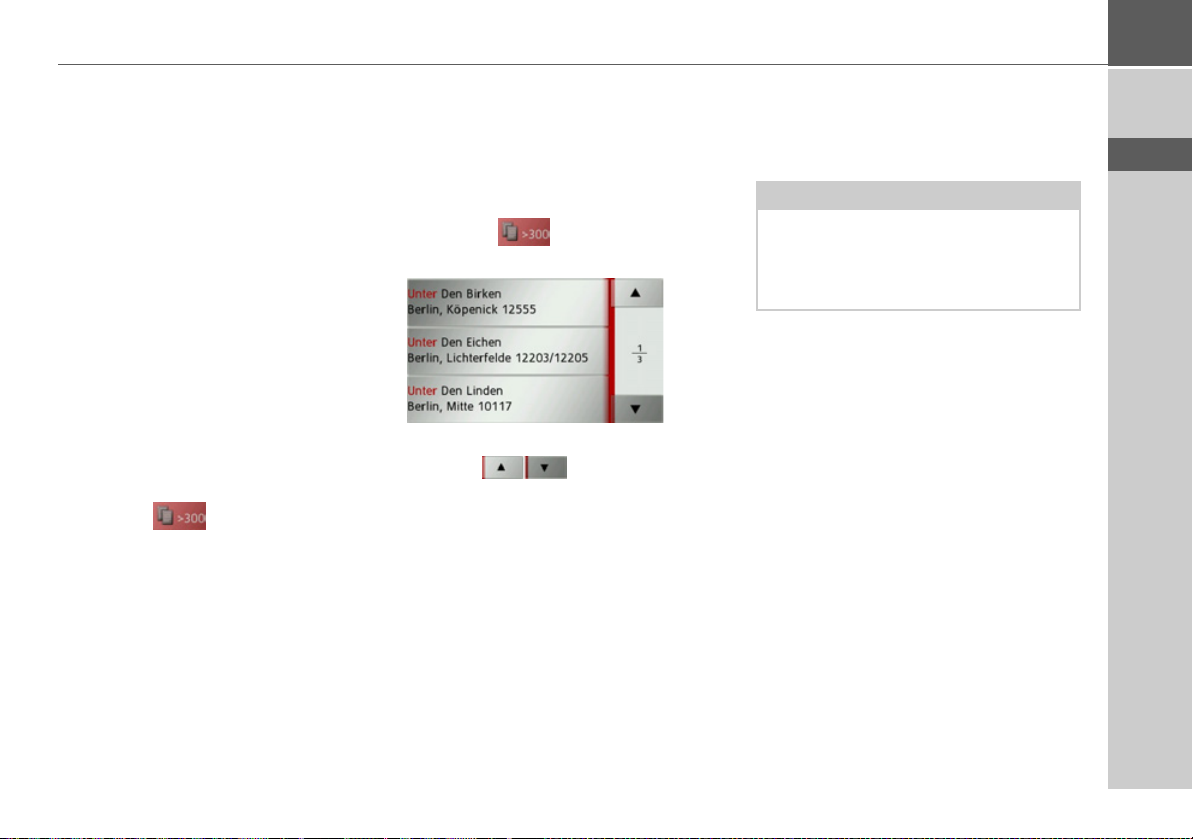

Selecting a country 35 Selecting an address and starting route guidance 35

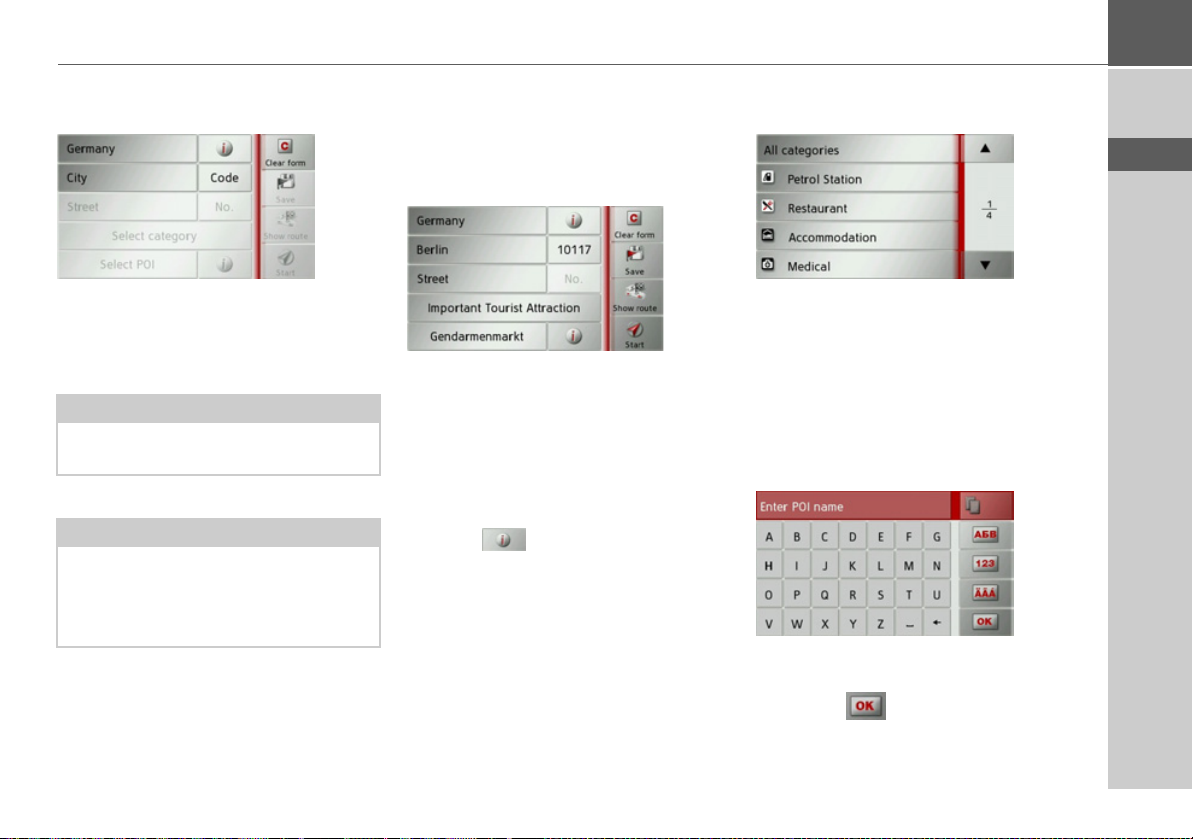

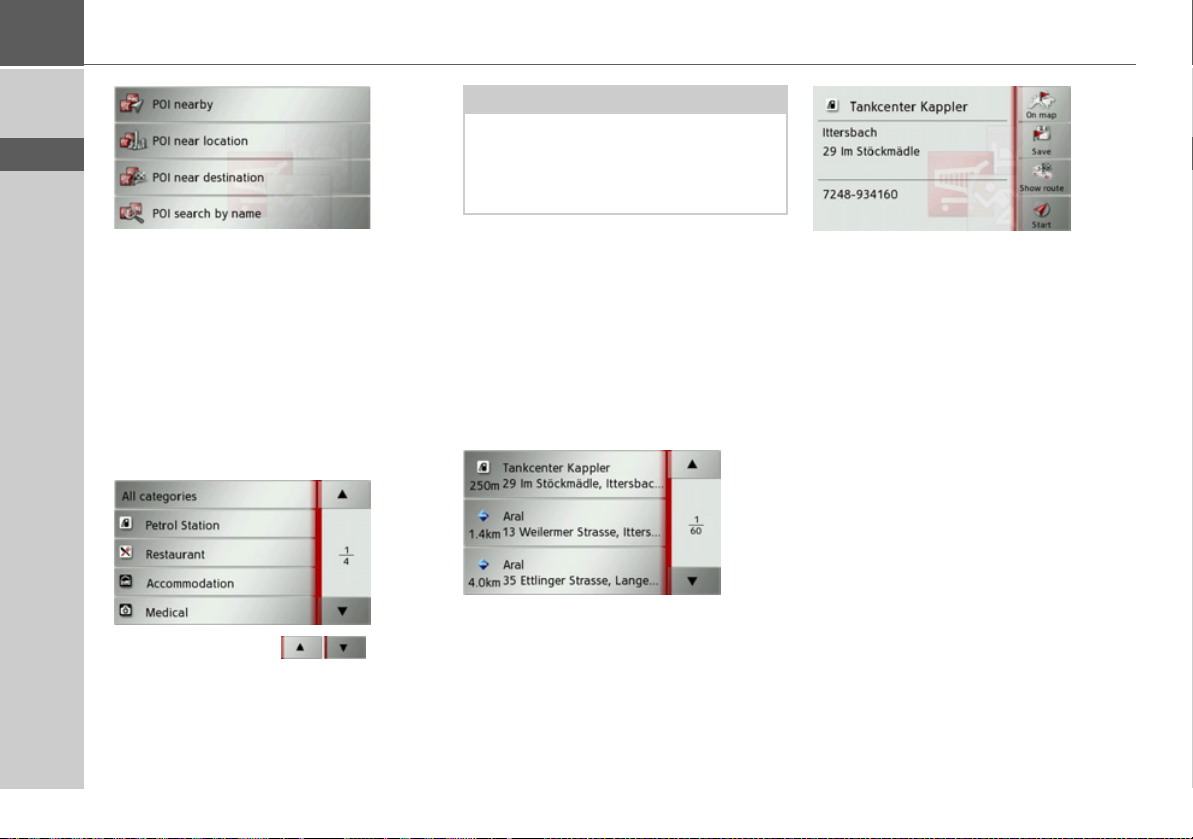

Points of interest 39
Point of interest in the vicinity 40 Point of interest near to an address 41 Point of interest near to destination 41 Entering a point of interest directly 41
Selecting a destination from the map 42 Coordinate entry 43 Route planning 44
Creating a new route 45 Editing a route 46 Optimising a route 46

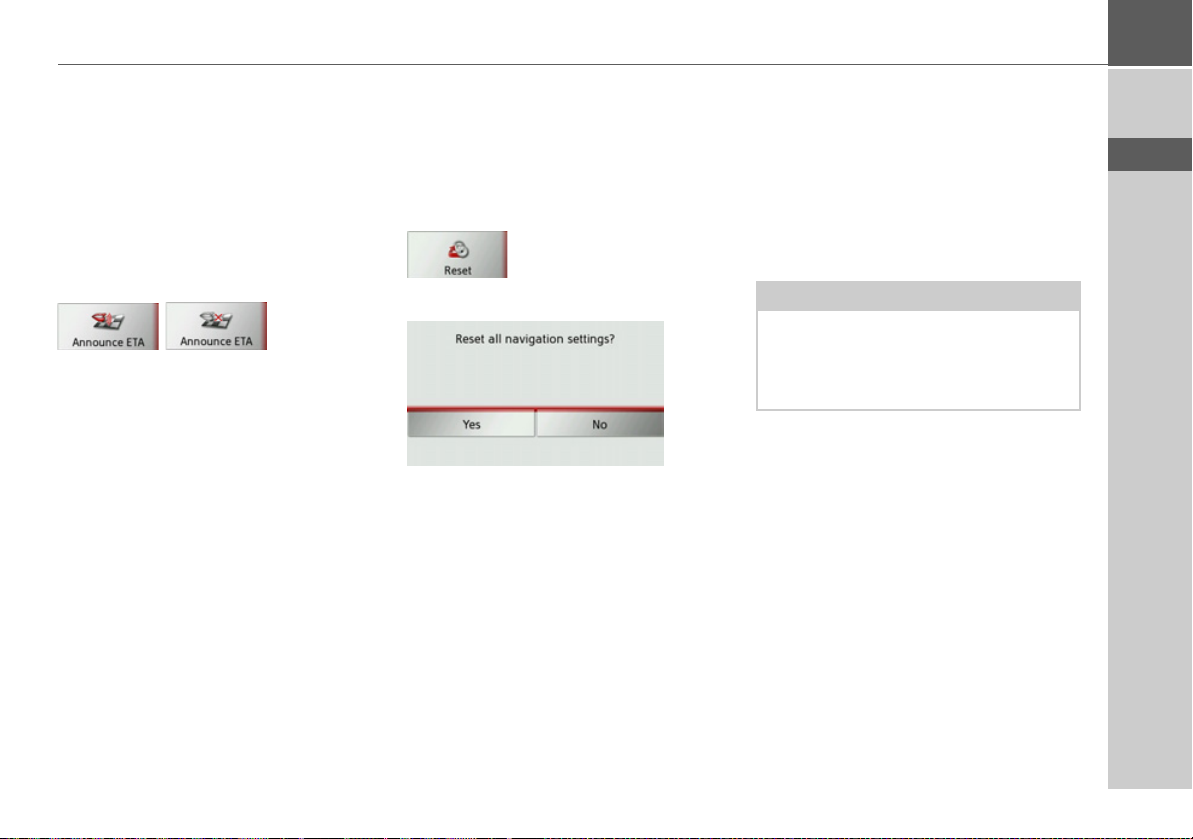

Navigation settings 47

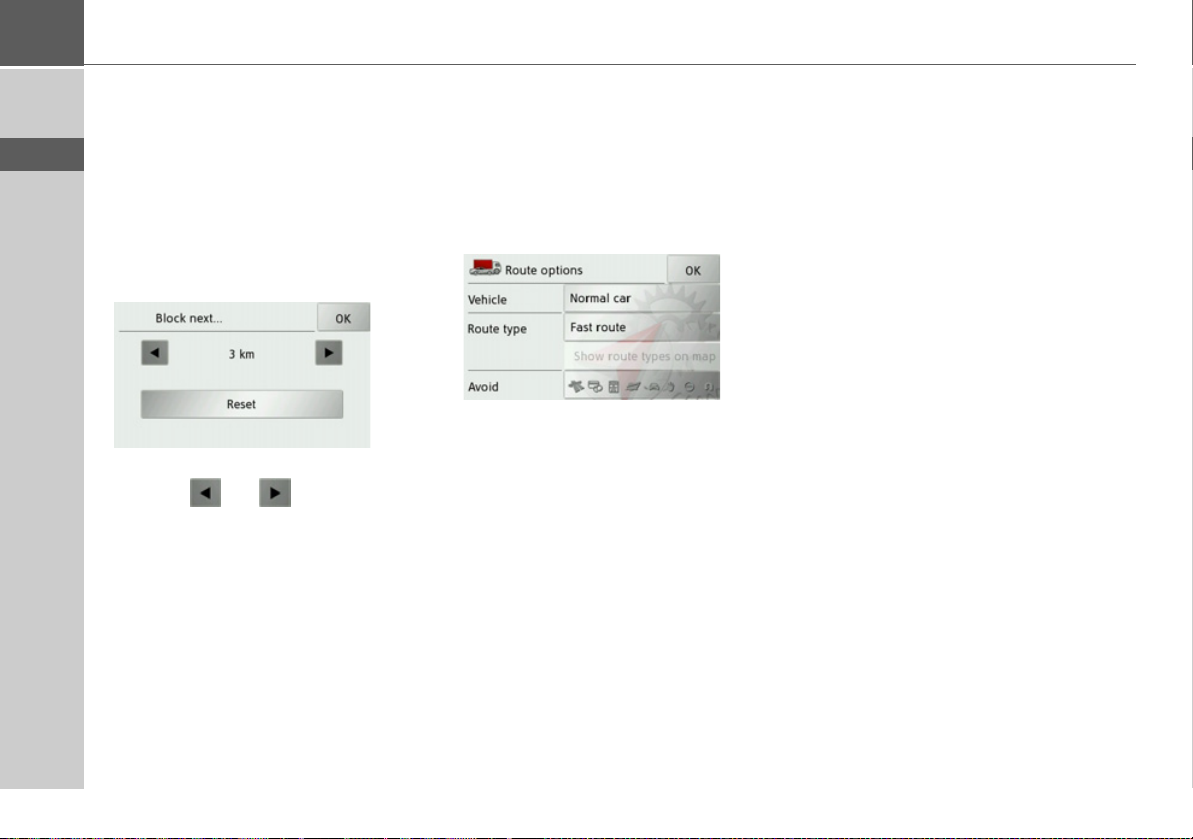

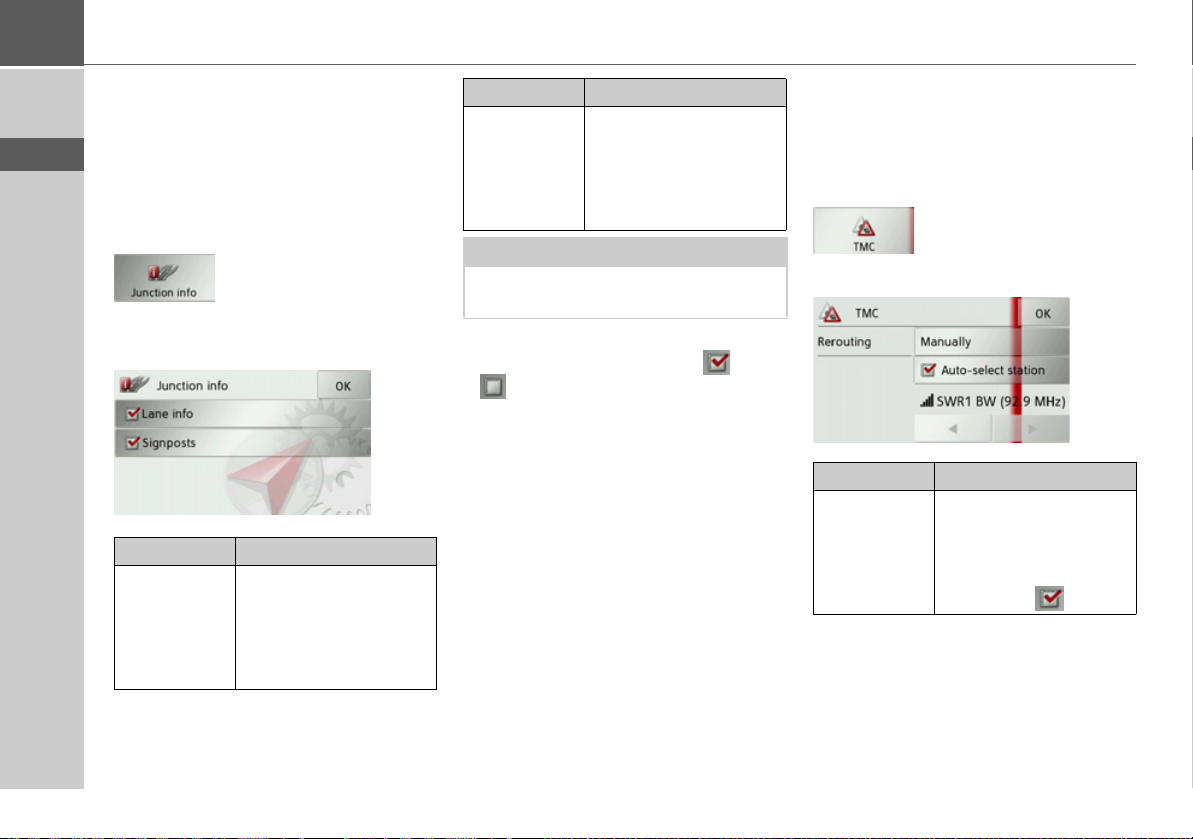

The Travel info button 47 The Route options button 48 The Junction info button 50 The TMC button* 50 The Map info button 51 The Speed info button 52 The Voice button 53 The Format button 53 The Volume button 54 The Time button 54 The Announce ETA button 55 The Reset button 55

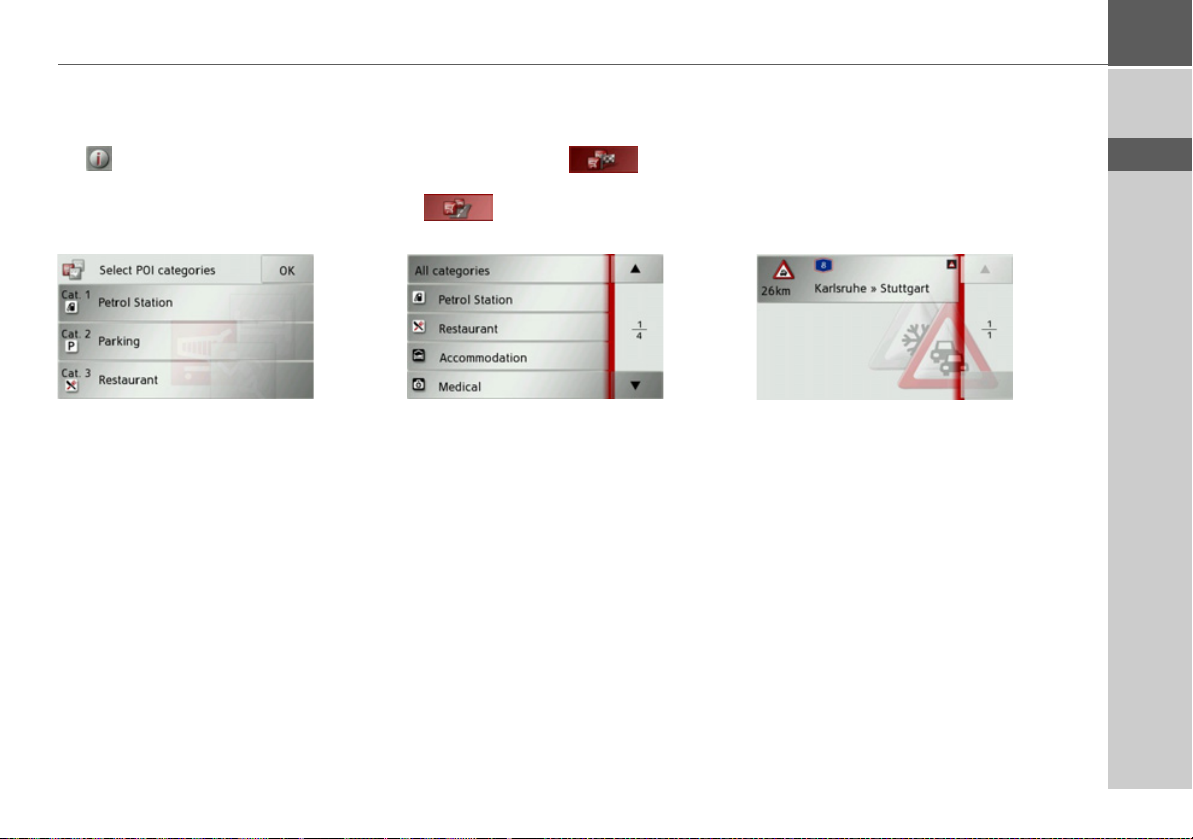

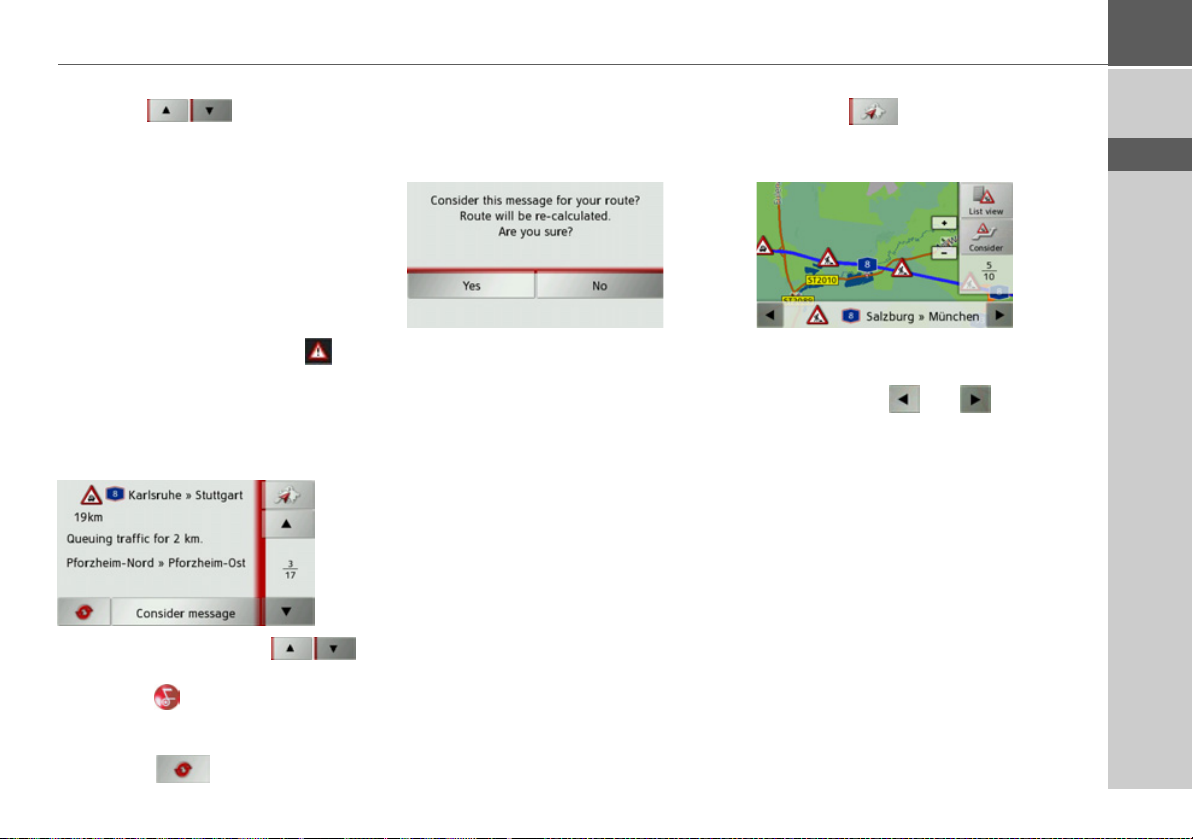

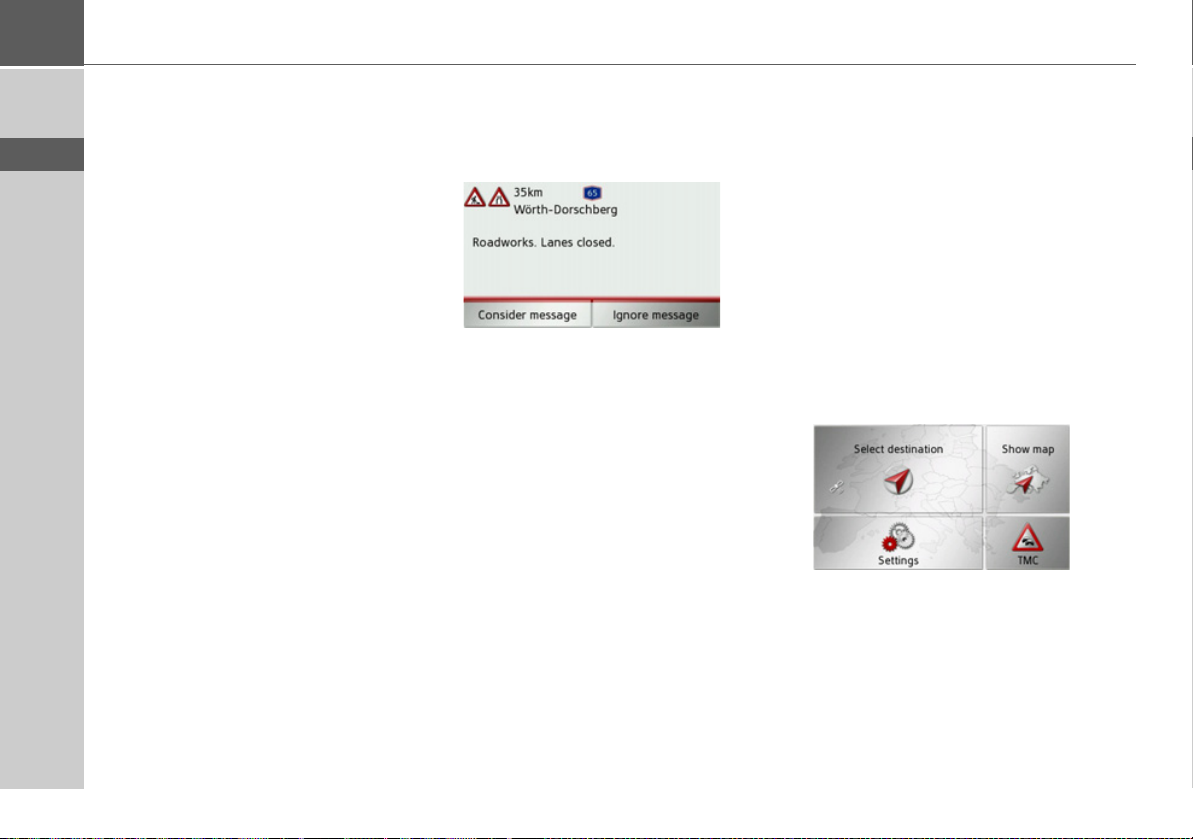

Traffic announcements using TMC* 55
Displaying TMC messages on the map* 56 Using TMC* 56
Reading a message* 57 Display the relevant road in the map* 57
Taking announcements into consideration when calculating routes* 58
Automatic recalculation* 58 Manual recalculation* 58
The map display 58

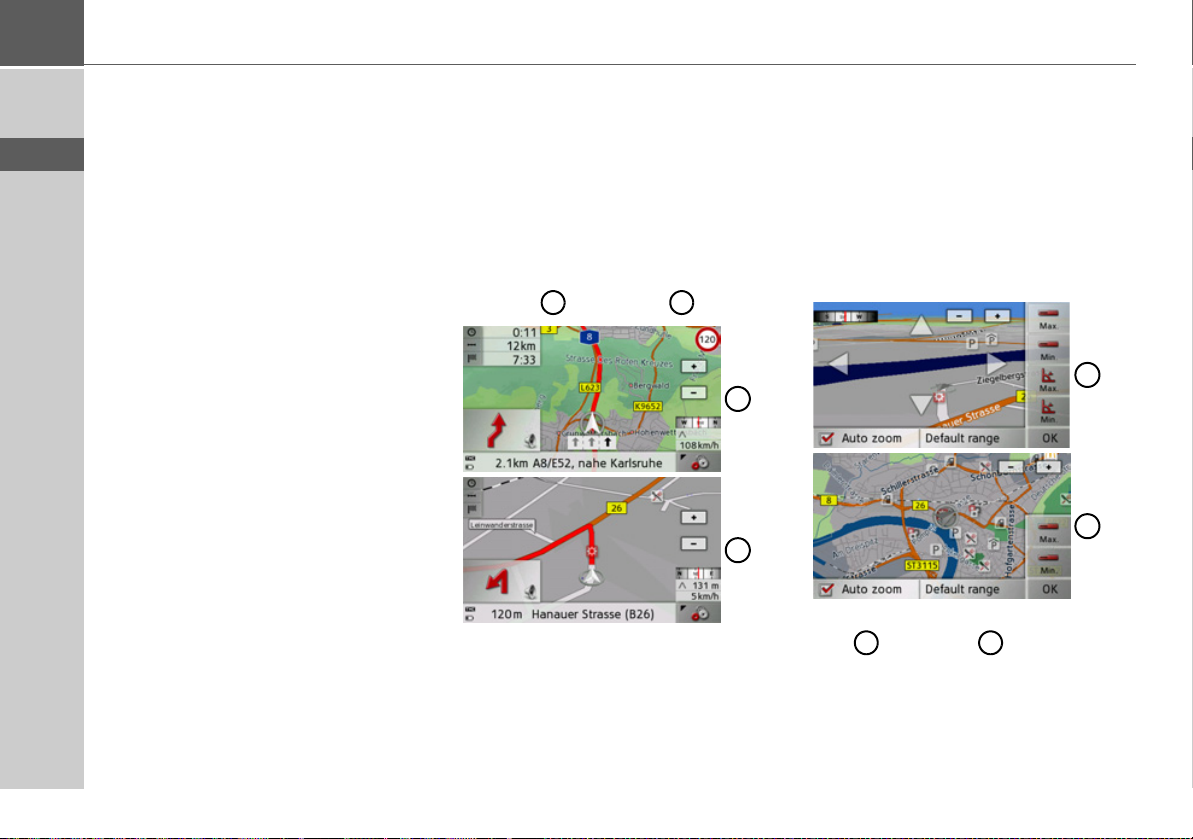

Calling up the map display 58 Structure of the map display 59
Map display without route guidance 59 Map display with route guidance 59 Route guidance with arrow display 60
Using the map display 61
Repeating the last announcement 61 Changing the announcement volume 61 Map zooming 62 Moving the map 62
Map display options 62
Cancel route guidance 63 Enter/delete waypoint 63 Displaying the entire route 64 Displaying the destination list 65 Selecting 2D/3D mode 66 Changing zoom steps and map angle 66 Changing the orientation of the map (2D) 67 Displaying current position 68 Point of interest on the route 68 TMC on the route* 69 Block route 70 Changing route options 70
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
*Applies only to the Traffic Assist Z 103
3
Page 4
>>> INDEX
Settings 71
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK

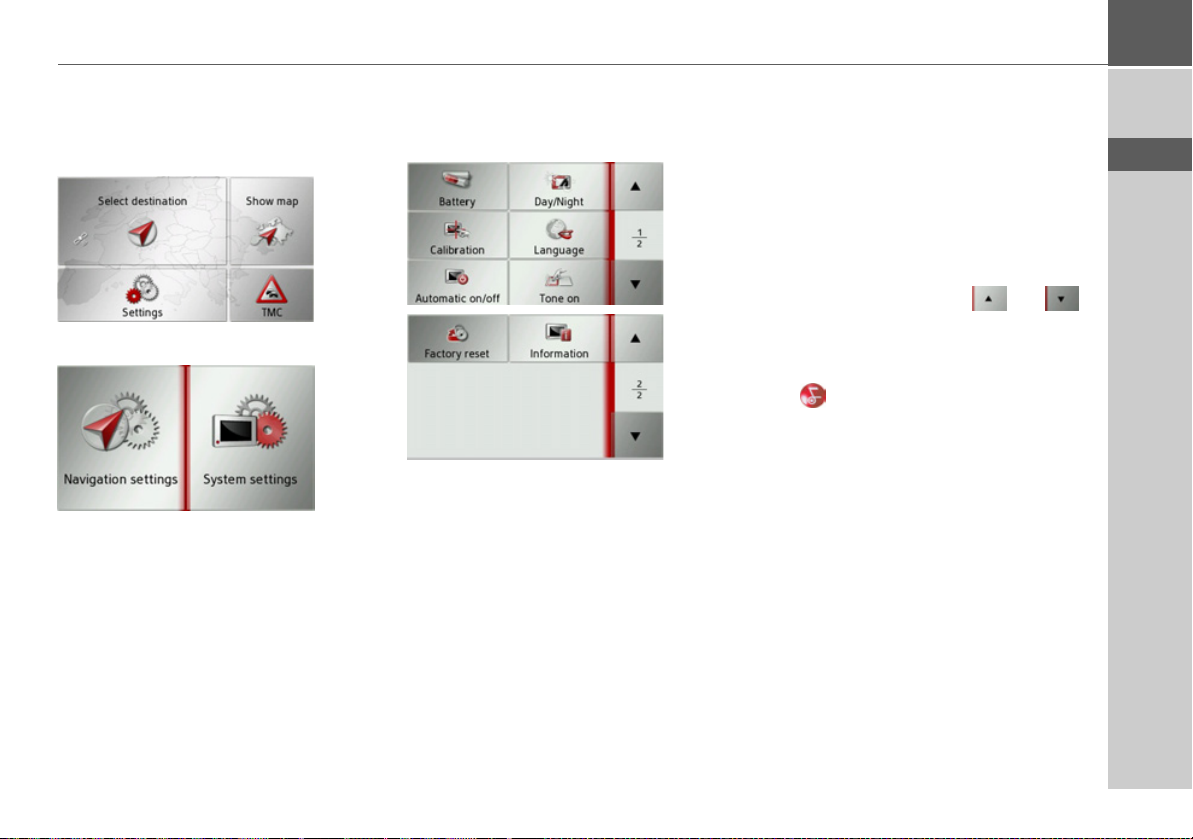

Selecting system settings 71
The system settings menu 71 Operation 71
Selection options 71 Closing the settings menu 71
The individual menu items 72

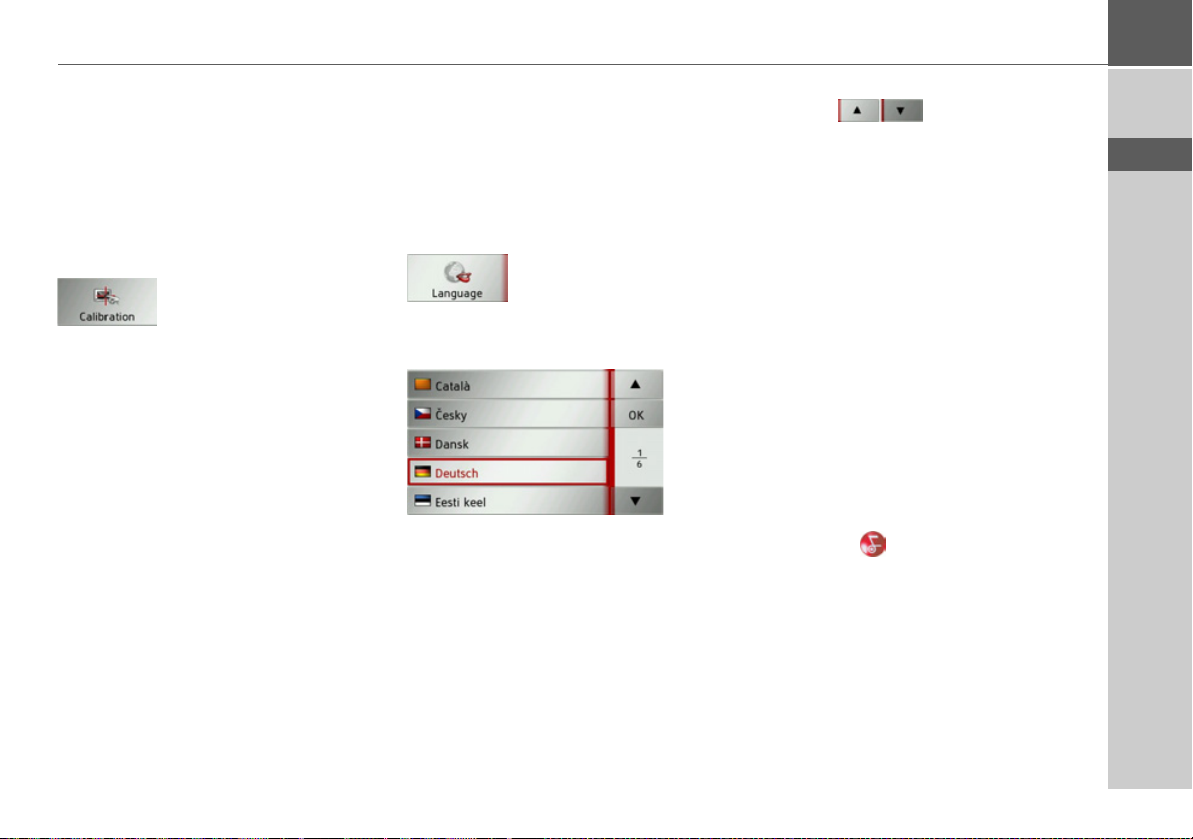

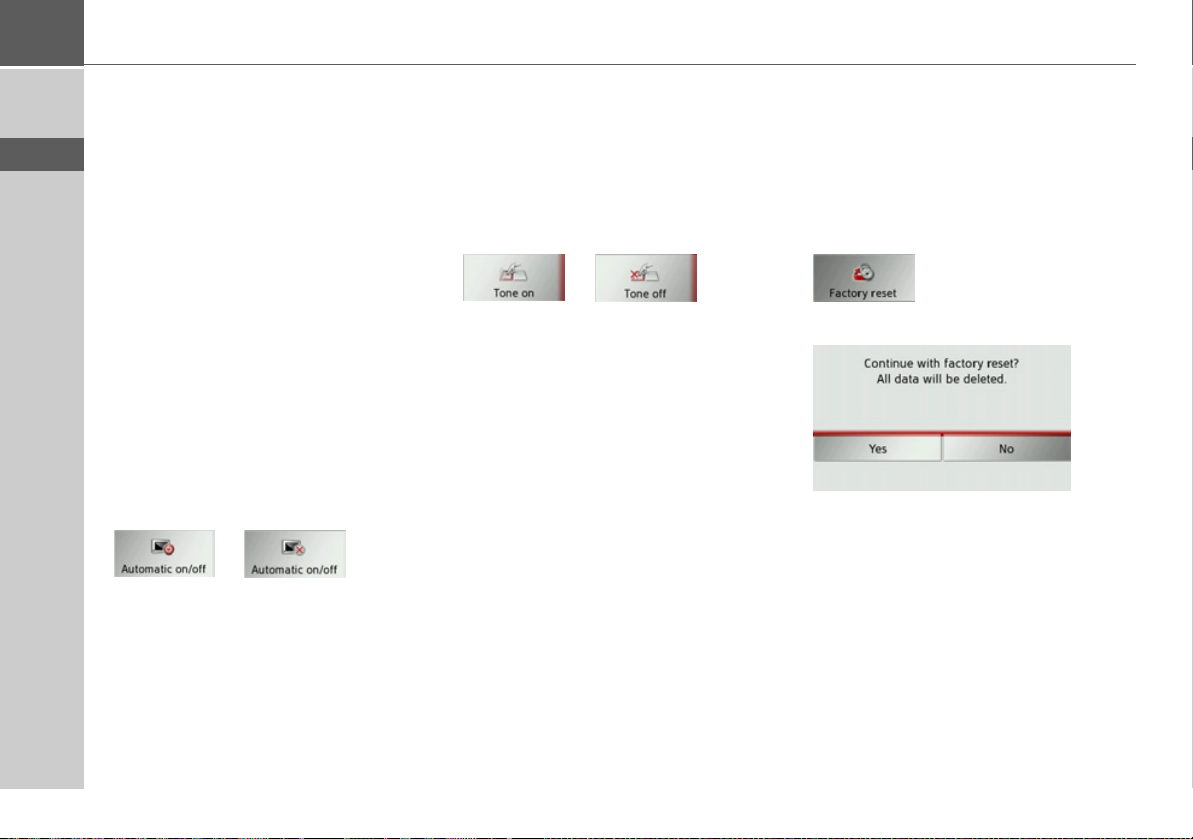

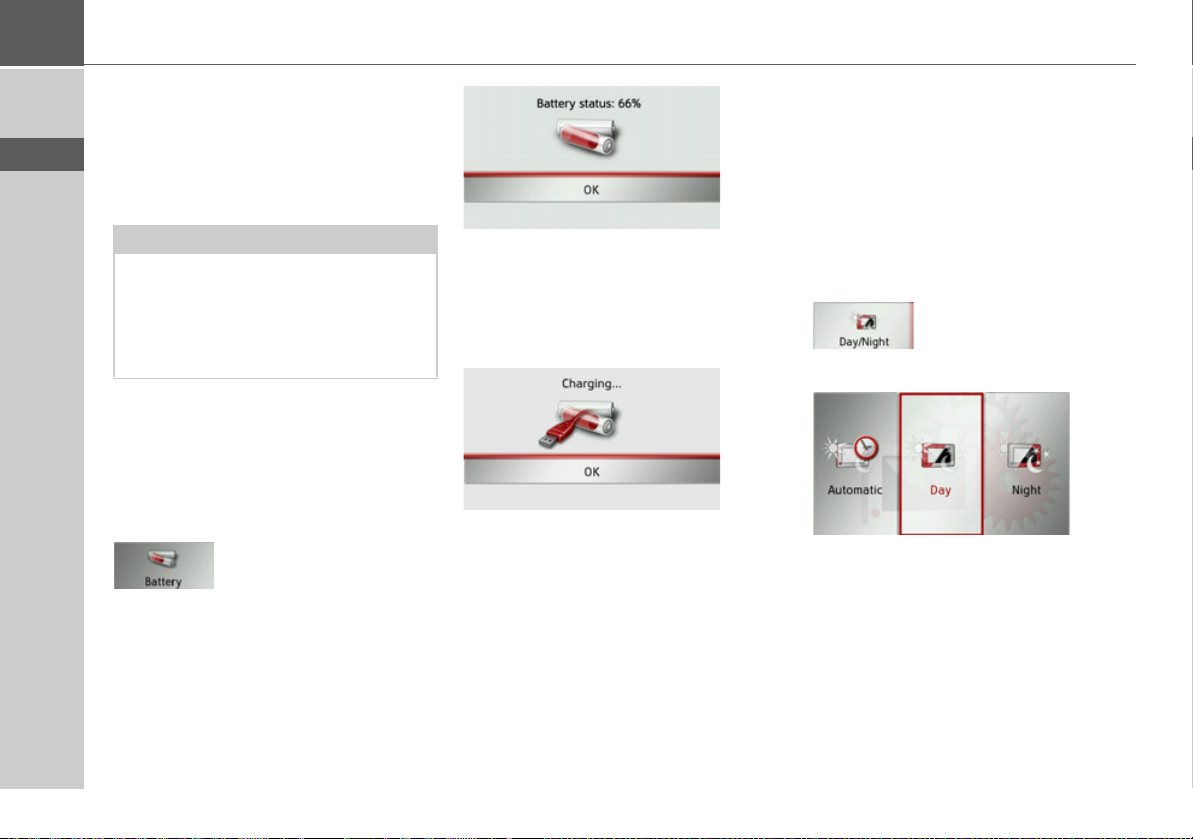

Battery 72 Day/night display 72 Calibration 73 Language 73 Automatic on/off 74 Sounds 74 Factory settings 74 Information 75
Specialist words 76 Keywords 77 Technical Data 80 NOTICE 81
EU Declaration of Conformity 81 Disposal of the unit 82 Disposal of the battery 83
Duty to supply information according to battery legislation (BattV) 83

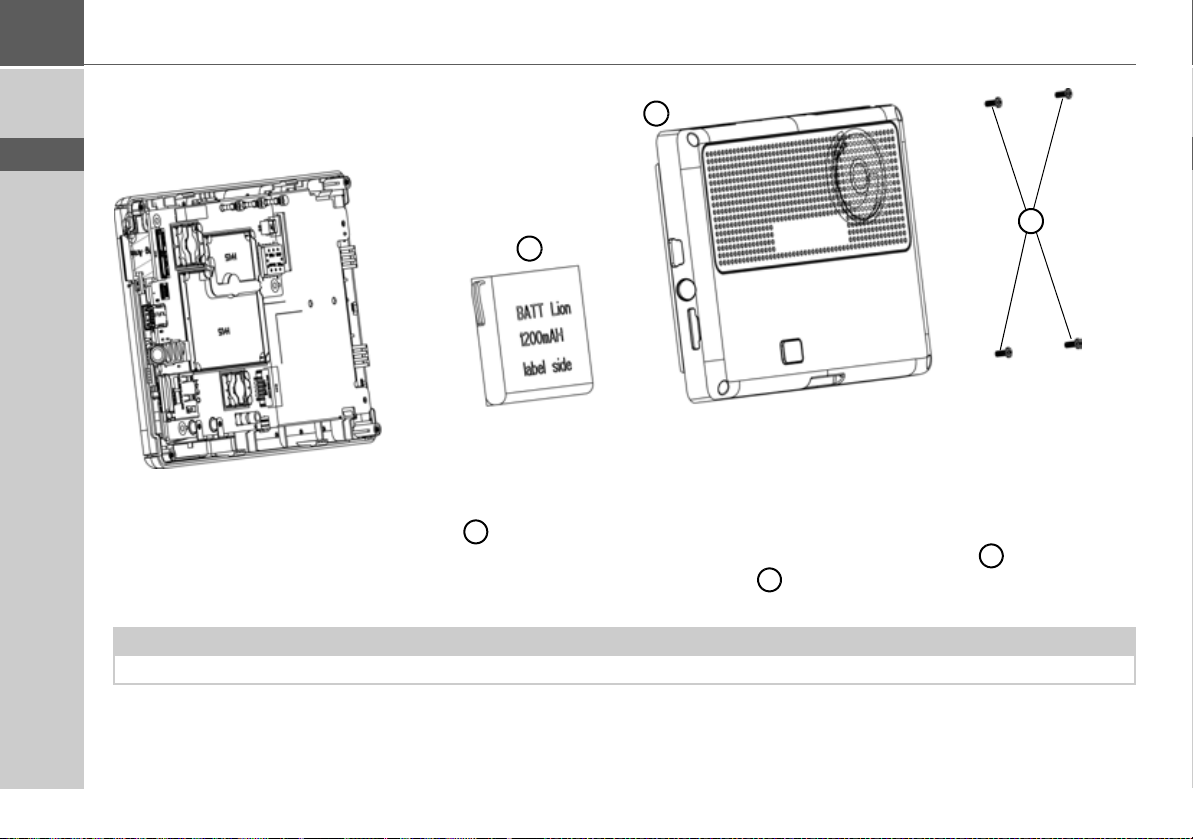

Removing the battery 83
The information and data contained in these documents are subject to change without prior notice. No part of these documents may be repro­duced or transmitted for any purpose without express written permission from HARMAN/BECKER Automotive Systems GmbH . All technical informa­tion, drawings etc. are subject to copyright law. © Copyright 2009, HARMAN/BECKER Automotive Systems GmbH All rights reserved.
4
*Applies only to the Traffic Assist Z 103
Page 5

Safety information

SAFETY INFORMATION >>>
!Safety information
• The unit may only be operated if the traffic situation allows for this and if you are absolutely certain that you yourself, your fellow passengers or other road users will not be put at risk, encumbered or disturbed by this.
• The rules of applicable road traffic acts must be observed at all times. Destinations may only be input when the vehicle is stationary.
• The navigational system is only an aid. The data/details provided may in some cases be incorrect. The driver must always decide whether to follow the details given or not. We accept no liability for the navigational system issuing incorrect details. As a result of traffic routing changes and deviating data, inaccurate or incorrect instructions may be given. Drivers should always pay attention to the actual road signs and traffic control. In particular, the navigational system cannot be used as a means of orientation in cases of poor visibility.
• The unit may only be used for its intended purpose. The volume of the navigational system should be set so that noises outside the vehicle can still be heard.
• The unit should be switched off immediately if faults occur (e.g. development of smoke or smells).
• For safety reasons, the unit may only be opened by a specialist. Please contact your local stockist if you require repairs.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
5
> H
> SK
Page 6
>>> SAFETY INFORMATION
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
• The mains voltages (V) indicated on the mains charger, the car charger adapter and the unit must not be exceeded. Failure to observe this can result in destruction of the unit and the charger as well as explosion of the rechargeable battery.
• Never open the unit or the rechargeable battery. Any modification to the unit is also impermissible and renders the type approval invalid.
• Use only genuine BECKER original accessories. This will ensure that all the relevant regulations are complied with and damage to health and property is avoided. Dispose of defective units and the rechargeable battery according to the applicable legal requirements.
• No warranty is granted in the case of improper use. These safety instructions also apply to genuine BECKER original accessories.
> H
> SK
6
Page 7

The Traffic Assist

Use
The Traffic Assist is a powerful PND (Personal Navigation Device) for use in vehicles and closed spaces. The unit and the accessories are to be protected against moisture and dirt.

Navigation

Thanks to GPS = Global Positioning Sys­tem, you no longer need to spend hours searching through road atlases. Once outside buildings, the receiver an­tenna integrated in the unit gives you con­tinuous access to navigational possibili­ties. Depending on reception, you may not be able to use the navigational func­tion inside buildings. When used in vehi­cles, you may not be able to adequately re­ceive GPS data depending on how the Traffic Assist is installed. In such cases, you will have to connect up an external antenna (does not fall within the scope of supply). Your Traffic Assist is equipped with TMC*. TMC gives you the option of receiving traffic announcements. You will then be informed of any traffic problems. The system plans an alternative route automatically or on request to avoid traffic problems, depending on the setting.
THE TRAFFIC ASSIST >>>

Unpacking the Traffic Assist

Note:
Your Traffic Assist is supplied in stable packaging. Do not unpack the unit in full if you discover any serious damage to the packaging or its content. If this happens, please contact your local stockist.

Checking the delivery

Before the Traffic Assist is started up, the delivery should be checked to ensure that it is complete and in the correct condition (see also page 12). > Carefully unpack the content of the
package and check it.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
*Applies only to the Traffic Assist Z 103
> H
> SK
7
Page 8
>>> THE TRAFFIC ASSIST
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL

Delivery contents

1
4
1
Traffic Assist, the mobile navigation system
2
Unit holder
3
USB cable
4
12/24 V car power adapter for ciga­rette lighter
5
DVD containing the Content Manager and the operating guide (not illustrated).
3

Complaints procedure

Please contact your local stockist if you have any complaints. The unit can also be sent directly to Harman/Becker in its orig­inal packaging.
2

Handling the packaging

Keep the original packaging in a dry place, at least for the warranty period.
Note:
The packaging should be disposed of cor­rectly in accordance with national dispos­al guidelines. The packaging must not be burnt. Depending on the country to which the unit is supplied, it may be pos­sible for local stockists to accept packag­ing.

Description of unit

The Traffic Assist consists of the basic unit Traffic Assist and the accessories in­cluded in the delivery. You will find photos of the individual parts under:
• "Overview Traffic Assist" on page 12
Note:
The basic unit and accessories must not be opened or modified in any way.
> CZ
> H
> SK
8
Page 9
THE TRAFFIC ASSIST >>>

Traffic Assist - basic unit

The basic unit contains all the electronics:
• an integrated antenna,
• a TMC receiver for the reception of traffic messages*,
• a touchscreen,
• An integrated loudspeaker for the out­put of messages during navigation.
On the side of the unit, there are also var­ious connections and ports. You will find more details of the unit under:
• See “Technical Data” on page 80.

Cable for power supply from cigarette lighter

This cable allows the unit to be connected up to the car's cigarette lighter. In addition, the TMC messages are also received via this cable.* The power supply must satisfy the follow­ing requirements:
• DC current 12/24 volts
0.5 amps

Battery

When depleted, the integrated rechargea­ble battery can be recharged by connect­ing the Traffic Assist to the power supply. For this purpose, connect the unit via a car power adapter to a 12/24 V socket in a ve­hicle or via the optional mains power sup­ply unit to the 230 V mains.
Note:
You can charge the Traffic Assist via the car charger cable included in the scope of delivery or via the optionally-available mains power supply unit. When the Traffic Assist is connected to a PC, it is supplied with power via the PC and does not consume battery power.

USB connection cable

You can connect the Traffic Assist to a standard personal computer having a USB interface using the USB connecting cable provided. The 2 GB flash memory of the Traffic Assist and any micro SD card can then be addressed via the PC like a removable storage medium.

Unit bracket

The Traffic Assist can be mounted in the vehicle using the unit bracket.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
*Applies only to the Traffic Assist Z 103
9
Page 10
>>> THE TRAFFIC ASSIST
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL

Accessories

Mains power supply unit
This power supply allows connection of the Traffic Assist to a mains outlet. Requirements for power supply: Alternating current
• 100-240 V
0.2 Amps 50-60 Hertz
External GPS antenna
You can use an external antenna to im­prove reception in vehicles where only limited GPS reception is available (not in­cluded in the scope of supply). Please con­tact your local stockist for more informa­tion. Details of the connection can be found under "Connecting up external antenna" on page 18.
Headset
When using the Traffic Assist, commer­cially available headphones with a 3.5 mm jack or adapter can be connected (not in­cluded).
!Danger!
Prevention of damage to hearing
The use of headphones or ear­phones over a relatively long
period of time at a high vol­ume may cause permanent damage to your hearing. Conformity with the limits for sound pressure laid down in the standard NF EN 50332-1:2000 as required by French Article L. 5232-1 is guaranteed.
Note:
Headphones must not be used while driving. Comply with the local national laws and regulations.

Information about documentation

Quick start guide

The Quick Start Guide is designed to pro­vide a brief introduction to operating your Traffic Assist. The most important basic functions of the Traffic Assist are ex­plained in the Quick Start Guide.

Operating instructions

A comprehensive explanation of the Traf­fic Assist functionalities is contained in these operating instructions.
> CZ
> H
> SK
10
Page 11

Registration

You can register your product using our software service, we will then inform you of any new updates and other news. You can register online on the Becker homepage www.mybecker.com.
THE TRAFFIC ASSIST >>>
> D
> GB
> F
> I
The “Software update” menu item is lo­cated under “SERVICE/SUPPORT“.

Repairs

The unit must not be opened if damaged. Please contact your local stockist.

Emissions and disposal

Information on emissions, electromagnet­ic compatibility and disposal can be found in "NOTICE" on page 81.
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
11
Page 12
>>> OVERVIEW TRAFFIC ASSIST
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
1
4

Overview Traffic Assist

Scope of supply
1 Traffic Assist - PND (Personal Navigation Device) 2 USB connection cable 3 Unit bracket 4 Cable for power supply from car's cigarette lighter (12/
24 volts)
2
3
> SK
12
Page 13
OVERVIEW TRAFFIC ASSIST >>>
> D
1
> GB
> F
> I
3
Front of unit with controls and displays
1 Touch screen showing the main menu selected 2 Touch screen key
Press = activates the corresponding key command
3 Becker button ( )
Press = Back function in most applications Press and hold = switches Traffic Assist on and off
2
4
Rear of unit
4 Point for connecting up an external antenna
(external antenna not included in the scope of supply)
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
13
Page 14
>>> OVERVIEW TRAFFIC ASSIST
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
1
2
3
Left side of unit
1 SD card slot 2 3.5 mm socket for headphones (headphones not included in
scope of delivery)
3 Mini-USB port
4
5
Top of unit
4 Reset button
Bottom of unit
5 Contacts for connecting the carrier plate
14
Page 15

General operation

Maintenance and care

The unit is maintenance-free. For proper care, a commercially available cleansing fluid for electrical devices may be applied using a soft damp cloth.
!Danger!
Danger to life by electrocution. Always switch off the unit and disconnect the mains power supply unit before clean­ing the unit, supplied components, or accessories.
Note:
Do not use any aggressive or abrasive substances or cloths which may damage the surface. The unit must not be exposed to water.
Your mobile navigation system was de­signed and manufactured with great care and should be treated with equal care. You will enjoy your mobile navigation system for a long time to come if you observe the recommendations listed in the following:
• Protect your mobile navigation unit and the accessories from water and moisture. If your unit has been exposed to moisture, switch it off immediately and disconnect the power supply. Allow to dry at room temperature.
• Do not operate your mobile navigation system in a dusty or dirty environment and do not store it in such an environ­ment.
• Do not store your mobile navigation system in hot environments. High tem­peratures can shorten the service life of electronic components in your unit, damage the rechargeable batteries and cause certain plastics to warp or melt.
GENERAL OPERATION >>>
• Do not store your mobile navigation system in cold environments. During operation, when the unit warms up to operating temperature, moisture may form internally, causing damage to elec­tronic components.
• Do not drop your mobile navigation system unit, protect it from shocks and do not shake it. Improper handling can damage components within the unit.
• Never use corrosive or aggressive chem­icals, cleaning solutions or aggressive detergents for cleaning.
All the above information applies equally to the mobile navigation system, the re­chargeable battery, the mains charging and car power adapters as well as all acces­sories. Should one of these parts not work properly, please contact your authorised dealer.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
15
> CZ
> H
> SK
Page 16
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL

Battery quality declaration

The capacity of the rechargeable battery in your mobile navigation system decreases with every charging/discharging cycle. Improper storage at excessively high or low temperatures may also cause a gradual deterioration of capacity. Consequently, the operating time may be substantially reduced even in the case of a fully charged battery. The rechargeable battery is designed such that it should certainly still be possible for it to be charged and discharged after 6 months of operation of your mobile navi­gation system.

Display quality declaration

In some cases, for technical reasons, a few discoloured dots (pixels) may be visible on the display. Some pixels may also appear brighter or darker. However, such in­stances do not represent a product flaw.

Start-up

Once the Traffic Assist has been unpacked and checked for damage, the unit can be started up. The individual start-up stages are:
• connect to power supply
• Switching on the unit
• Ensuring antenna reception (if naviga­tion is desired)

Power supply

Note:
You can charge the Traffic Assist via the car charger cable included in the scope of delivery or via the optionally-available mains power supply unit. When the Traffic Assist is connected to a PC, it is supplied with power via the PC and does not consume battery power.
> CZ
> H
> SK
16
Page 17
GENERAL OPERATION >>>

Using the battery

The internal power supply is via the inte­grated rechargeable battery. The recharge­able battery is maintenance-free and does not require any particular care.
Note:
Note that if the battery is completely dis­charged, it may take up to a minute be­fore the device can be switched on again.
Note:
In the event of a defective battery, please contact your authorised dealer. Please do not attempt to remove the battery your­self.

Connection for the cigarette lighter

Note:
If the cigarette lighter has recently been used and is still hot, wait until the lighter socket has cooled down.
Connect the power supply via the vehicle battery and the cable provided for the cig­arette lighter as follows: > Hold the USB socket at the corrugated
grip area and push it into the connect­ing socket on the Traffic Assist or into the connecting socket on the carrier plate as far as the stop, without using ex­cessive force.
> Insert the adapter into the cigarette
lighter.
Note:
When the engine is switched off, the power supply slowly discharges the vehi­cle battery via the cigarette lighter! Do not therefore operate the Traffic As­sist for long periods with the engine switched off.
Note*:
The TMC messages are received via the cable for the cigarette lighter. Messages can therefore only be received if the cable is connected.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Applies only to the Traffic Assist Z 103
> CZ
> H
> SK
17
Page 18
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK

Connection to the mains outlet

!Danger!
Ensure that you do not have wet hands and that the power supply unit is dry. Only connect the power supply unit to a permissible mains power supply.
Connecting power supply
Connection to the public mains grid is achieved using the optionally available mains power supply unit. Please proceed as follows to connect to the mains: > Open the cover on the left side of the
unit of the Traffic Assist.

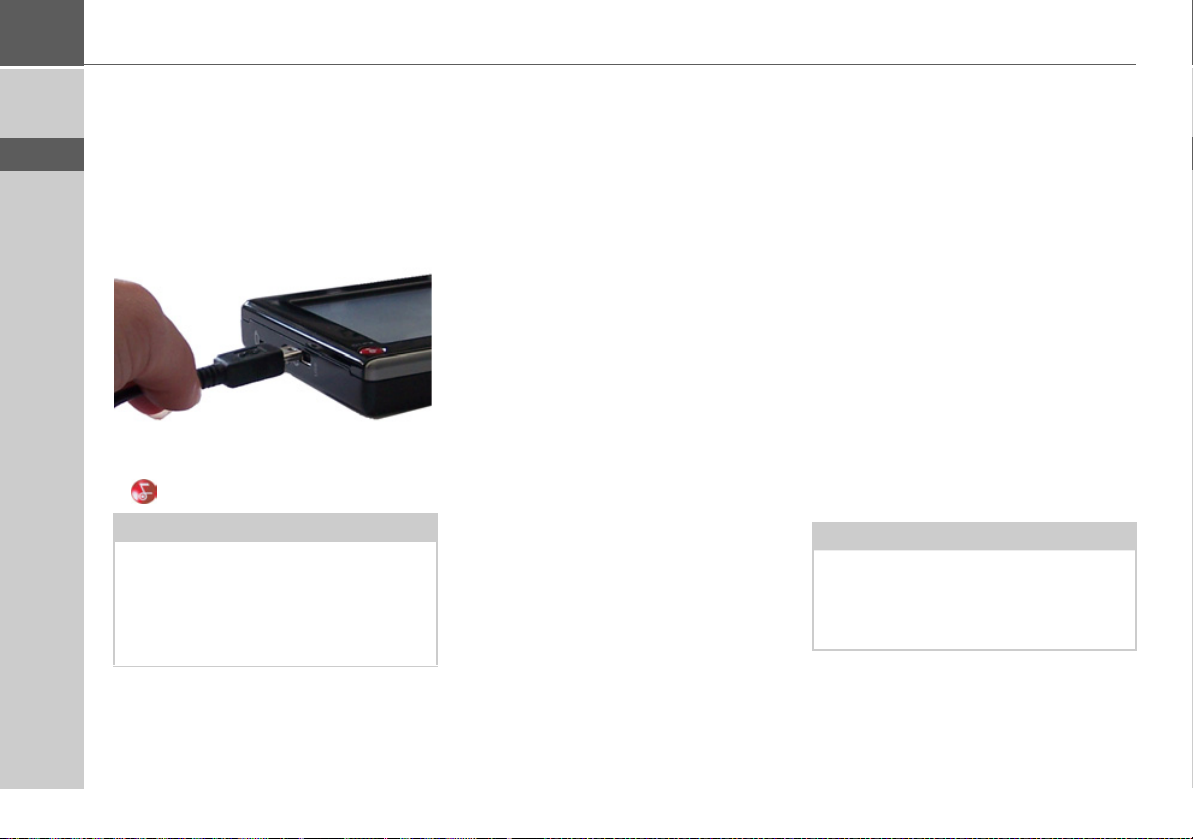

> Hold the USB connector at the corru-
gated grip area and push it into the con­necting socket of the Traffic Assist as far as the stop without employing excessive force.
> Insert the plug of the power supply unit
into the socket.
Note:
Remove the power supply unit when not using the Traffic Assist for longer periods of time.

GPS-antenna

Unit antenna

The GPS antenna is integrated into the housing.
Note:
The integrated GPS antenna is not suita­ble for use in vehicles with anti-glare win­dows (metalised thermo-glass or metal foil, indicated by the window label - SIG­LA SOL, SIGLA CHROM, SIGLA, KOOL-OF, SUNGATE, etc.) and vehi­cles with fine-meshed heating wires in the windows. If this is the case, use an external GPS an­tenna. Please consult your local specialist dealer.

Connecting up external antenna

To enable reception under adverse recep­tion conditions, an external GPS antenna can be connected (not included). For this purpose, a closable connecting socket is located on the rear of the housing. If no external antenna is connected, this con­nection must always be closed again.
> Open the closure by pulling gently on
its upper surface.
> Connect the external antenna using the
optionally available adapter.
18
Page 19
GENERAL OPERATION >>>

Memory card

Your Traffic Assist has a slot for a Micro SD memory card. As the card data is stored on an internal memory in the Traffic Assist, the slot for the Micro SD memory card is only used for updates.
The card slot is located on the left side of the unit. The card slot is equipped with a spring-actuated locking and ejector me­chanism.

Inserting memory card

> Remove the memory card from its
packaging without touching or soiling the contact bar.
> Hold the memory card so that the con-
tact bar faces towards the front of the unit.
> Guide the memory card into the card
slot.
> Exert a little pressure and slide the
memory card into the card slot until it snaps in.

Ejecting memory card

The card slot ejects the card so that you can pull it out with two fingers. > Use your finger to gently press the
memory card against the spring force into the card slot and then release it.
The card is ejected. > Remove the memory card and place it
in the packaging while ensuring not to touch contact bar.

Unit bracket

The Traffic Assist can be attached directly to the windscreen with the unit holder.
Note:
The Traffic Assist and unit bracket must not be exposed to long periods of direct sunlight. Temperatures inside the of +70 C and higher may damage the bracket.
vehicle
parts of
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
19
> CZ
> H
> SK
Page 20
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
1
2
1
Suction surface
2
Lever
3
Base
4
Fastening screw
5
Carrier plate
6
Clip
6

Fitting the unit bracket

Note:
Fasten the unit holder such that your field of vision is not impaired when the Traffic Assist is installed and ensure that the unit is outside the deployment area of the airbag. Ensure that the electrical connection ca­ble
does not hamper you from accessing the vehicle's controls. Clean the attachment surface on the windscreen to ensure that it is clean and free of grease. Do not use greasy or soapy
3
4
5
cleaning agents.
On the windscreen
The unit holder can be attached directly to the windscreen using the suction mech­anism. > Move the carrier plate onto the four
retaining clips of the base .
> Select a suitable spot to attach. > Press the base with its suction sur-
1
face against the windscreen. Turn the unit holder such that the carrier plate is positioned roughly in the de­sired viewing direction.
> Press the lever down. The holder has attached itself firmly to the windscreen. It can now be adjusted with precision. In order to remove it, operate
2
the lever again.
5
3
3
2
> CZ
> H
> SK
20
Page 21
GENERAL OPERATION >>>

Moving the unit holder

> Unscrew the fastening screw until
the carrier plate can be moved with­out excessive force.
> Move the carrier plate to the re-
quired position and hold it in this posi­tion.
> Tighten the fastening screw suffi-
ciently so that the Traffic Assist is held securely in place when the vehicle is in motion.
5
4
5
4

Attaching the Traffic Assist

> Position the Traffic Assist, with the at-
tachment points on the bottom of the housing, on the carrier plate .
> Press the Traffic Assist onto the carrier
plate without using excessive force
5 6
until the clip engages in the at-
tachment point.
5

Removing Traffic Assist

Press the clip of the unit holder with your finger and use your free hand to take the unit out of the unit holder.
6

Switching the Traffic Assist on/off

The unit is switched on and off using the key .

Switching on

> Press the key for a few seconds. The unit is switched on. The manufactur­er's logo appears on the touch screen.
When the Traffic Assist is started for the first time, the language selection is dis­played automatically.
Using the buttons, it is possi­ble to scroll through the list in the direc­tion of the relevant arrow. > Press the button for the required lan-
guage.
> The selection is confirmed by pressing
OK.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
21
> SK
Page 22
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
The following prompt appears shortly af­terwards:
> If you agree to the request contained in
this prompt, press the
Note:
Use of the Traffic Assist is only permitted in accordance with the national road traf­fic regulations applicable at the time.
OK button.

Switching off

You can switch the unit off at any time. > Press the button for a few seconds.
If you do not operate any controls Traffic Assist enters sleep mode after 5 seconds. > Press the
Traffic Assist off completely.
Note:
We recommend that you place the Traf­fic Assist in sleep mode in the event of short interruptions to operation (of up to a week). This significantly reduces the switch-on time and the Traffic Assist finds the satel­lites required for navigation much faster.
Complete off button to switch

Basic information about the touch screen

The Traffic Assist is fitted with a touch screen.
Note:
To ensure that the display's surface is not damaged, you may only touch it with your fingers or a blunt, non-smearing ob­ject.
> CZ
> H
> SK
22
Page 23
GENERAL OPERATION >>>

Operation

When you touch a button on the touch­screen, the button in question is briefly shown outlined in red to confirm the se­lection. If you touch a button that is not active at the moment, a short signal tone sounds.

Calibration

If the touch screen starts responding im­precisely and e.g. buttons have to be touched off-centre in order to be actu­ated, calibration should be undertaken. The calibration function is started from the Settings menu (see also page 73).

Basic information about the menus

During operations, you are assisted by various menus and entry windows.

The main menu

The top menu level is the main menu. The individual applications are started from the main menu.
You will find information about the indi­vidual applications in the corresponding main chapters.

Entries made with the entry menu

Some applications require entries to be made via the entry menu. The entry menu is operated in a similar way to a keypad.
The character entered on the keypad is displayed in the top line of the entry menu. The central area is used to enter characters. Help functions are provided in the right line. Descriptions of how to op­erate the menu are provided below.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
23
> CZ
> H
> SK
Page 24
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
Entering characters
Characters are entered by pressing the keys in the central area.
Once the entry is complete, the process is concluded by pressing the key and the entry passed on to the Traffic Assist for processing. When a navigation destination is entered, the Traffic Assist compares the entry with the set of data. The Traffic Assist then only makes those letters which are possible available for se­lection. The non-selectable characters are shown in a lighter font.
Scrolling through the lists
If you have already entered some of the letters of the selection you want, you can use the selection list to display all the des­tinations containing the combination of letters in question.
> To call up the selection list, press the
key.
Note:
The quantity of selection options is dis­played in the form of the number on the button. When there are more than 300 options, the precise number is not dis­played. In the list, all the entries corresponding to the letters already entered are displayed. The letters entered are coloured red in the case of the individual entries.
The selection list appears.
> Press the arrow keys on the
right hand side of the screen to scroll through the list.
> Press the destination you want. The destination is adopted and the selec­tion list is closed.
Special characters and umlauts
Special characters and umlauts do not have to used when entering the names of towns and streets. The Traffic Assist will change entries from AE, OE and UE if necessary. > If, for example, you are looking for the
location "Würzburg", then simply press
"WUERZBURG" or "WURZBURG". Special characters can be useful when naming destinations and routes.
> SK
24
Page 25
GENERAL OPERATION >>>
> In order to switch to the special charac-
ters keyboard, press the button marked
with an arrow. The special characters keyboard is dis­played.
> Enter the desired special character. In order to exit the special characters key­board, press the button marked with an arrow.
Other character sets
Different character sets can be selected for the keyboard of the Traffic Assist.
> Press the button marked with an arrow
repeatedly until the desired character set is selected.
Entering numbers
Switch to the numbers keyboard in order to enter figures. > Press the button. The numbers keyboard is displayed.
> In order to return again to the keyboard
for entering letters, press the button marked with an arrow.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
25
> CZ
> H
> SK
Page 26
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
Switching between upper and lower case
During free text entry, it is possible to switch between upper/lower case and the automatic function.
> Press repeatedly on the button in the
top right-hand corner of the display un­til the desired method of entry is acti-
vated. The inscription on the button symbolises the method of entry.
• The button represents automat-
ic mode. This means that, on entry, the
first letter is automatically in upper case
and subsequently changes automatically
to lower case.
• The button represents the entry
of upper case letters.
• The button represents the entry
of lower case letters.
Deleting characters
To delete the last character, use the back key.
> To delete the character to the left of the
cursor, press the key.
Inserting spaces
If you have an entry with two words, e.g. for names of towns, the words should be separated by a space.
> To enter a space, press the key.

The Becker key

The key is integrated in the bottom left hand corner of the casing.
It has various functions:
• Pressing and holding the button switch­es the Traffic Assist on or off.
• depending on the menu context, if pressed briefly, you will be returned to the previous entry level.
> SK
26
Page 27
GENERAL OPERATION >>>

Content Manager

The Content Manager is a PC-based application containing a number of important functions to help you manage the content on your Traffic Assist. With the Content Manager you can:
• back up the content saved on the Traffic Assist to your PC and restore it later to your Traffic Assist,
• install content stored on the DVD and
• download current content from the Internet and install it on the Traffic Assist.
To use the Content Manager, you will need the USB cable provided as well as a computer that meets the following minimum requirements:
Minimum requirements
Operating system Windows XP Processor 300 MHz clock
frequency Main memory 256 MB Free storage space 2GB

Installing the Content Manager

You can install the Content Manager on your computer with the following steps: > Insert the DVD containing the Content
Manager in the DVD drive of the computer.
> If the DVD does not start
automatically, please start the "BECKERCMSETUP.EXE" file in the "CONTENTMANAGER" directory manually.
> Select a language from the list and then
click on
> Read the welcome page and click on
Next to continue.
> Select the installation folder. A default
installation folder is already specified. To select another folder, either type in the path name or click on define another folder.
OK.
Browse and
> Click on
procedure. Click on
details during copying. The Content Manager is automatically started immediately after installation. Remove the check mark from the box if you do not want this. This completes the installation procedure. > Click on
program.
Install to start the copying
Details to see the
Finish to exit the installation
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
27
> SK
Page 28
>>> GENERAL OPERATION
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK

Starting the Content Manager

Execute the following actions to start the Content Manager: > Connect the USB interface of the
Traffic Assist directly to the USB port of the computer using the USB cable provided.
> Switch on the Traffic Assist using the
button.
Note:
When you connect the Becker Traffic Assist to the PC for the first time, the PC installs all the necessary drivers and then displays the message "Your unit is now ready to use".
After a short time, the Traffic Assist is displayed as a removable storage medium on the computer.
> Click on Start > All Programs on the
computer.
> Select > Click on
Becker.
Content Manager.
When the Content Manager is started, the program executes a number of steps before you can start to manage your navigation software content. Each time the program is called, a connection is established to the Internet to check whether a new version of the Content Manager is available. If a new software version is found, the Content Manager gives you the option of installing it. We recommend that you always agree to the upgrade, if one is available. If a new software version is found, you have the following options:
• Click on
Yes to accept the new software
version. The new version is downloaded and installed before you can start the Content Manager.
• Click on
No to start the Content
Manager with the version already installed.
• If the new version is a critical update, the
Exit button will be shown instead of
the
No button. You must install the new
version, otherwise you have to exit the application.
When you insert the DVD in the DVD drive of your PC, the Content Manager automatically reads and catalogues the DVD content (provided it has not already been added to the content list). If you have not yet made a backup of the navigation unit, the Content Manager will ask you each time it starts whether you would like to make a complete or partial backup copy.
Note:
We recommend that you always create the backup. Otherwise you will not be able to restore the content in the event of loss of data.
28
Page 29

Faults

Malfunctions in the operating system or in the unit are displayed accordingly. If the desired function cannot then be exe­cuted, the Traffic Assist must be restarted using the reset button. If the messages reappear or the unit does not function correctly for any other reason, please contact your local stockist. You can also try to find a solution to your problem in the FAQ in the Support area on the Becker homepage (www.mybeck­er.com).
Note:
Never attempt to open the unit yourself. Please contact your authorised dealer if you are unable to remedy the fault.
GENERAL OPERATION >>>
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
29
> PL
> CZ
> H
> SK
Page 30
>>> NAVIGATION MODE

Navigation mode

What is navigation?

> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
The term "navigation" (lat. navigare = to travel by sea) is generally understood to mean the location of a vehicle, the deter­mination of the direction and distance from the desired destination and the de­termination of the required route. Stars, prominent landmarks, compass and satel­lites etc. are used as navigation aids. With the Traffic Assist, the location is de­termined by the GPS receiver. The Global Positioning System (GPS) was developed during the 1970s by the US military as a weapons guiding system. GPS is based on a total of 24 satellites or­biting the Earth and emitting signals. A GPS receiver receives these signals and uses the signal times to calculate the dis­tance to an individual satellite, and then determines your current geographical po­sition.
Signals from at least three satellites are re­quired to determine your position; your height above sea level can be calculated if signals are received from four or more sat­ellites. The Traffic Assist determines the direc­tion and distance from the destination us­ing a navigation computer and a digital street map held in its internal memory. For safety reasons, route guidance is given predominantly in spoken form. This is supported by a direction indicator and a map display on the touch screen.
!Safety instructions
• Road traffic regulations always take priority. The navigation system is only an aid. Errors may occur in individual data items/entries. At all times, the driver must decide whether or not to heed the information provided. We do not accept liability for errone­ous data provided by the navigation system.
• When first put into use it can take up to 30 minutes to fix the position.
• Observation of traffic signs and local traffic regulations must always take pri­ority.
• Traffic guidance is restricted to passen­ger vehicles. Special driving recom­mendations and regulations for other vehicles (e.g. commercial vehicles) are not included.
• Destinations may only be entered when the vehicle is stationary.
> CZ
> H
> SK
30
Page 31
NAVIGATION MODE >>>

Selecting navigation

Navigation mode is called up from the main menu.
> In the main menu, press
destination
The fast access function is called up.
Note:
If an address is displayed between the two rows of buttons, this means that route guidance has already been started to the displayed address.
.
Select

Fast access mode

In fast access mode, the most recent desti­nations and saved destinations are dis­played and can be selected directly. The destination input menu can also be ac­cessed using the fast access function.

Configuration of fast access mode

In fast access mode, the Enter destination button for calling up the destination input menu is displayed on the top line. If you have already entered your home ad­dress, you can start route guidance to your home address in the second line. The destination list containing the desti­nations most recently travelled to as well as saved destinations is displayed in the lines below this.
The destination list
The destination list displays, line by line, all destinations available for fast dialling. If you have already entered your home ad­dress, you can start route guidance to your home address in the first line. Each line of the destination list is divided into two fields. Each list field is in the form of a button. The destination is shown on the right-hand button and the properties of the destination are displayed using the left icon.
Note:
Up to 250 of the most recent destinations are automatically stored in the destina­tion list. If the storage capacity is reached, the oldest destination is automatically de­leted to make room for a new destina­tion. However, important destinations can be protected. If you select your home address and it has not yet been defined, you will be request­ed to enter the address.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
31
> SK
Page 32
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK

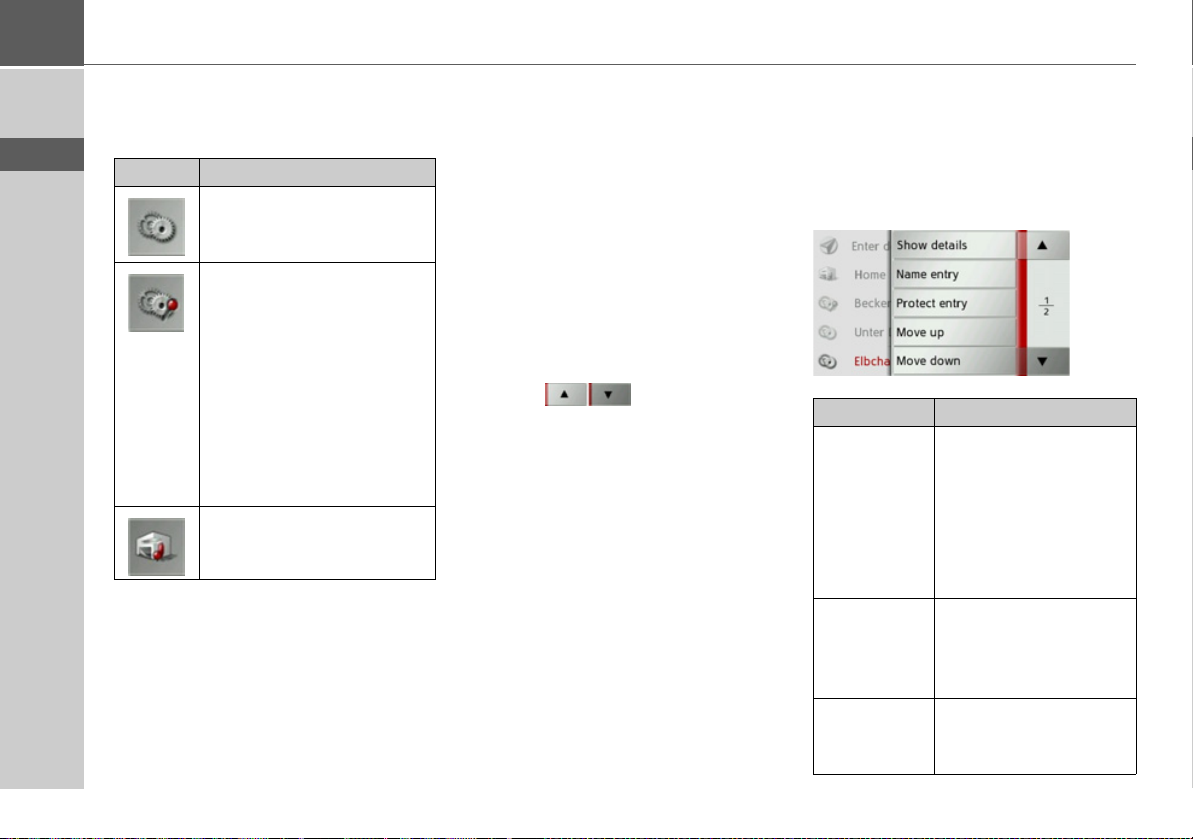

Icons used
The following icons are used in the desti­nation list:
Icon Meaning
This destination is a standard destination with no special features.
This destination is protected. If the destination memory is full, this destination will not automatically be deleted. This can be performed manu­ally, if required. In the case of a protected en­try, you can also determine the position using the fast ac­cess function.
This destination is the current home address.

Using fast access mode

Start with existing destination
The destinations available in fast access mode are included in the destination list. > Press the button for the desired destina-
tion to start route calculation. The calculation begins. When the calculation is complete, the map appears and the route guidance be­gins.
Scrolling through stored destinations
Using the buttons, it is possi­ble to scroll through the list in the direc­tion of the relevant arrow. The current list page and the total number of pages appear between the buttons.
Displaying or editing a destination
Any destination stored in fast access mode can be displayed and edited. > Press the button to the left of the de-
sired destination.
> A selection menu appears.
Option Meaning
Show details The data for the destina-
tion are displayed. From this screen you can dis­play the destination on the map, display the route or start the route guidance.
Name entry The destination can be
renamed. If the destina­tion is given a name it is automatically protected.
Delete entry The destination is delet-
ed from the fast access mode.
32
Page 33
NAVIGATION MODE >>>
Option Meaning
Protect entry The destination is pro-
tected against automatic deletion. This function is only available in the case of unprotected destina­tions.
Remove protection
Protection of the destina­tion is disabled. This function is only available for protected destina­tions.
Move up The destination is moved
forwards by one position. If the destination is moved it is automatically protected.
Move down The destination is moved
back by one position. If the destination is moved it is automatically pro­tected.
Delete all entries
All destinations (includ­ing protected destina­tions and your home ad­dress) are deleted from the list.
Home address
When you press the
Home button you
will be asked to enter an address if no home address has yet been entered.
> Press
Yes to enter the address.
You can then enter a destination as de­scribed under “The destination input menu” on page 33.
Note:
The menu items
Set current position
and Select from last destinations (fast access mode) can also be used to select a destination.
Calling up the destination input menu
The
Enter destination button can be used
to call up the destination input menu.
• See “The destination input menu” on page 33.

The destination input menu

If fast destination selection is not required or the planned destination is not yet in­cluded in fast access mode, you can enter a new destination using the destination input menu.
> In fast access mode, press the
destination
button at the top of the
screen.
The destination input menu will appear.
Enter
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
33
Page 34
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ

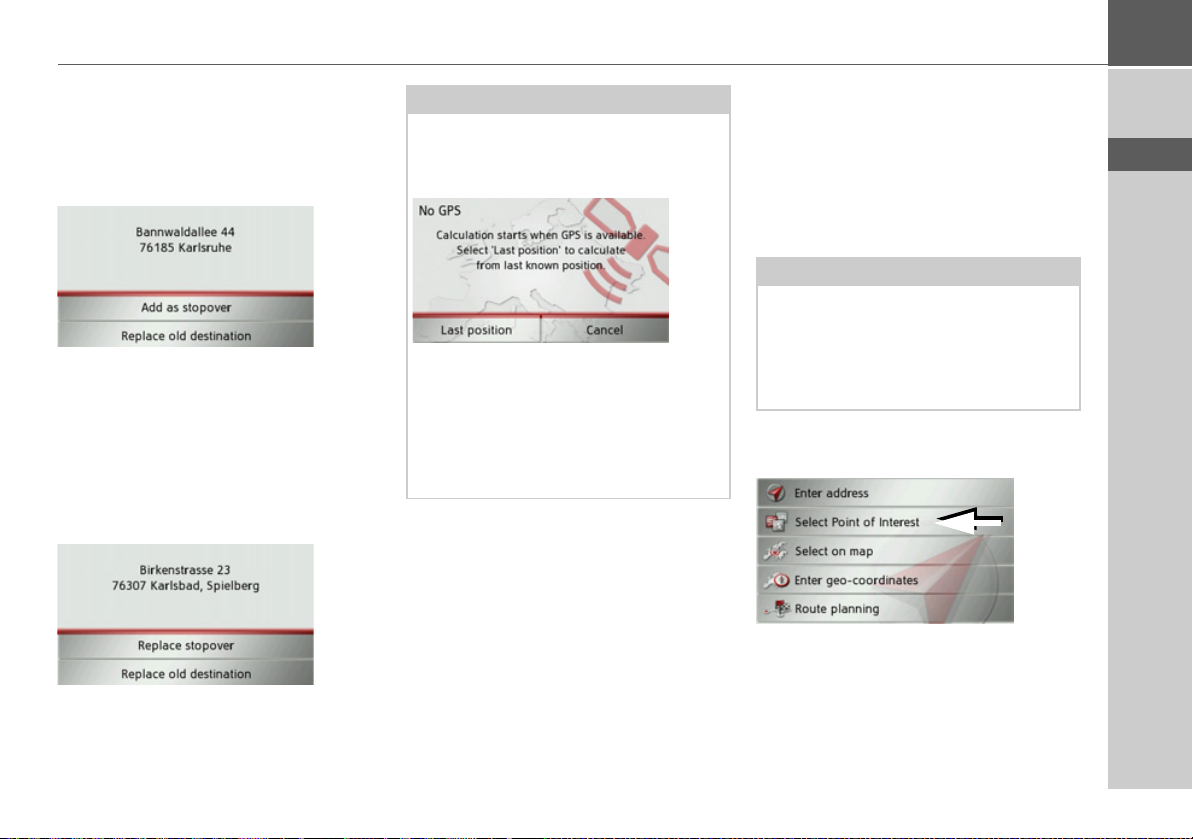

Configuration of the destination input menu

Enter address
The various steps from selecting an ad­dress to starting route guidance can be car­ried out using the
• See “Entering the address” on page 34.
Select Point of Interest
Points of interest such as airports and ferry ports, restaurants, hotels, petrol stations or public buildings can be selected and route guidance started using the
Point of Interest
• See “Points of interest” on page 39.
Select on map
With
Select on map, you can select a des-
tination directly on the map and start route guidance.
• See “Selecting a destination from the map” on page 42.
Enter address button.
Select
button.
Enter geo-coordinates
The geographic coordinates for a destina­tion can be entered and route guidance started via the
Enter geo-coordinates
button.
• See “Coordinate entry” on page 43.

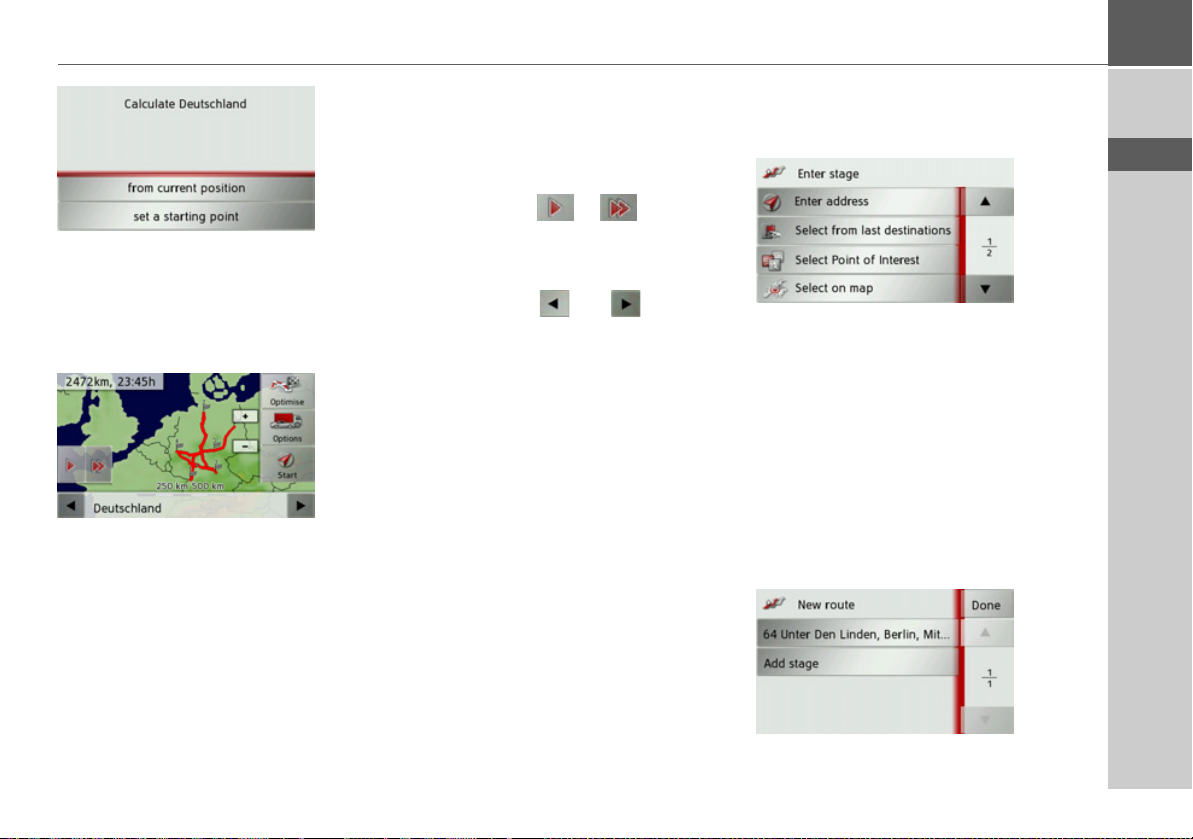

Route planning
A route with several waypoints can be planned using the
Route planning but-
ton.
• See “Route planning” on page 44.

Entering the address

The Enter address button in the destina­tion input menu opens the menu for en­tering addresses.
> In the destination input menu, press the
Enter address button.
The menu for entering addresses appears.
Note:
By pressing the Clear form button (top right) you can delete all entered data apart from the country.
> H
> SK
34
Page 35
NAVIGATION MODE >>>
Selecting a country
You can select a country from those avail­able using the button for the country of destination. A country is adopted auto­matically in the address input menu after selection. If a country of destination has already been entered it will remain until you select a different country.
Note:
By pressing the button next to the country you can display country-specific information such as the maximum per­mitted speed for the selected country.
> Press the button containing the country
of destination to access the country se­lection list.
The selection list will appear.
> Press the button for the desired country.
Note:
If required, press the arrow keys
on the right of the screen to scroll through all available countries of destination.
Selecting an address and starting route guidance
You can enter the exact destination ad­dress in the address input menu.
The following settings can be made in the address input menu:
•Town
• Postcode
• Street and house number
• Junctions as an orientation aid
It is also possible to:
• search for a point of interest near to the address entered ( be entered as described under “Point of interest near to an address” on page 41,
• save the destination in fast access mode,
• show the route on the map,
• start the route guidance straight away.
POI search). This can
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
35
> SK
Page 36
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
Selecting a town
The destination town can be specified by entering the name or postcode. When you enter the first letter of a town one of the largest towns will automatically be displayed. If you do not wish to accept the suggestion simply enter the subse­quent letters of the desired town. The Traffic Assist excludes all impossible letter combinations and postcodes and ac­tivates only those letters and numbers that could give the name of an existing town or postcode.
> Select the option of entering the town
or postcode.
> Enter the letters of the destination town
or the numbers of the postcode consec­utively.
Note:
If two words need to be entered you must separate them with the character .
When sufficient letters have been entered it will automatically switch to a list from which you can select the town. However, you can switch to the list before this by pressing the button.
Note:
If you have entered a postcode, the name of the town will be hidden in the input menu to start with. If you then enter the street name, the name of the town will then also be displayed.
Using the town list
Once a few letters of the desired town have been entered you can display a list of all the towns with the relevant letter com­binations or this list will be displayed au­tomatically. > Press the button on the right of
the screen to call up the list.
You can scroll through the displayed list using the buttons. > Press the button for the required town.
36
Page 37
NAVIGATION MODE >>>
Selecting the street
In the Street menu field the street and house number can be entered separately using a letter and number field. The Traffic Assist excludes all impossible letter combinations and activates only those letters that could give an existing street name. A house number can only be chosen once the street has been selected and if house numbers are included in the data.
> Enter the letters of the destination street
consecutively.
When sufficient letters have been entered it will automatically switch to a list from which you can select the street. However, you can switch to the list before this by pressing the button.
Using the street list
Once a few letters of the desired street have been entered you can display a list of all the streets with the relevant letter com­binations or this list will be displayed au­tomatically. > Press the button on the right of
the screen to call up the street list.
You can scroll through the displayed list using the buttons. > Press the button containing the desired
street.
Selecting the Intersection
After entering the destination town and street, you can enter a junction so as to further limit the choice.
Note:
Instead of entering a junction, you can also enter a house number. However, it is not possible to enter both at the same time.
> Press the The input menu for the name of the junc­tion will appear. > Enter the name of the junction. Once a few letters of the desired street have been entered a list will automatically be displayed. > Press the button for the desired street.
Intersection button.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
37
> CZ
> H
> SK
Page 38
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
Selecting a house number
After entering the destination town and street, you can enter a house number so as to further limit the choice.
Note:
Instead of entering the house number, you can also enter a junction. However, it is not possible to enter both at the same time.
> Press
No.
The input menu for the house number will appear. > Enter the house number and then press
the button.

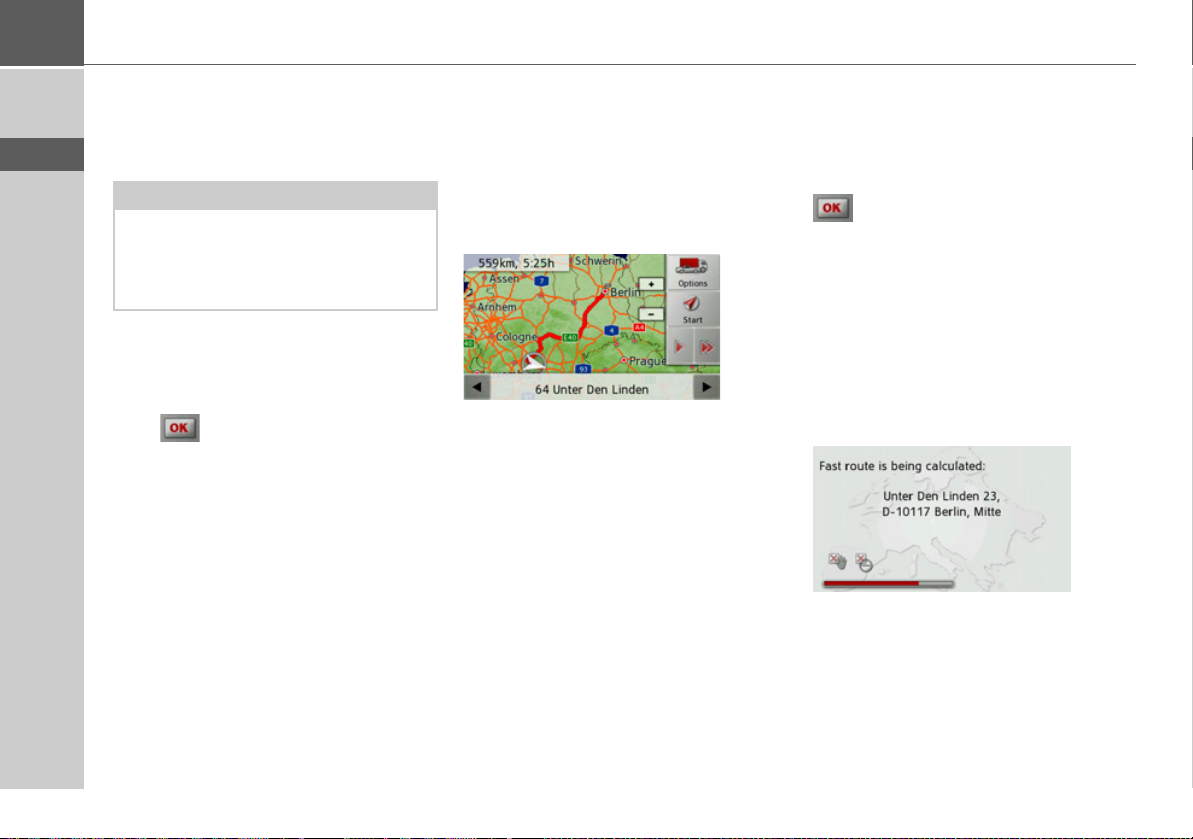

Displaying the route
Once the address has been entered, the ad­dress input menu allows the route to the destination to be displayed on the map. > Press the
Show route button to display
the route on the map.
The route is calculated.
You can start the route guidance directly from this screen using the
Start button.
The other options on this screen are de­scribed under “Displaying the entire route” on page 64.
Storing a destination
In the address input menu, the
Save but-
ton opens a menu where a name can be entered for the specified destination. If the desired name has been entered and
has been pressed to accept it, the destination is transferred to fast access mode and protected.
Starting navigation (trace)
The
Start button starts the route guid-
ance. All data entered thus far is processed when calculating the route. > Press
Start to start the route guidance.
The route is calculated. The map will then be displayed and the route guidance will begin.
> H
> SK
38
Page 39
NAVIGATION MODE >>>
If the route guidance is already running you will be asked whether the new desti­nation should replace the old destination or if the new destination should be regard­ed as a waypoint.
> Select
Add as stopover or Replace old
destination
.
If the route guidance is already running and a waypoint has already been entered you will be asked whether the new desti­nation should replace the old destination or the waypoint.
> Select
Replace stopover or Replace
old destination
.
Note:
If there is no GPS signal when the route is calculated, the following will be dis­played:
When a GPS signal is available, the route calculation will start automatically. When the
Last position button is
pressed, the last known position is used and the route calculated from this posi­tion.

Points of interest

Points of interest (POI) are included in the map and can be displayed there. Points of interest include airports and fer­ry ports, restaurants, hotels, petrol sta­tions, public buildings. You can use points of interests as navigation destinations.
Note:
You can only select points of interest in the area in question if the GPS reception is adequate for determining a position. Otherwise, the last position stored will be used.
> Press
> Press the
Enter destination in the fast ac-
cess menu.
Select Point of Interest but-
ton.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
39
Page 40
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
You can choose between:
• a point of interest in the vicinity,
• a point of interest near to an address,
• a point of interest near to a destination, or
• entering a point of interest directly.
Point of interest in the vicinity
> Press the
POI nearby button.
Press the arrow keys to scroll through the list displayed. > Select one of the available categories.
Note:
You can also press the All categories but­ton. An input menu will then open and you can enter the name of a point of in­terest directly and confirm it.
For some categories, e.g. petrol stations, a further selection menu is displayed in which you can narrow down the choice further, e.g. by brand.
If you have selected the category, any points of interest belonging to the relevant category and available within the area in question will now be displayed.
The name, distance as the crow flies and the address is displayed for each entry. > Select the desired point of interest.
You will now receive additional informa­tion about your chosen destination. > Press the
Start button to begin route
guidance to the point of interest direct-
ly. However, you can also display your cho­sen point of interest on the map (
map
), store it in fast access mode (Save)
On
or display the route to the point of interest (
Show route).
> SK
40
Page 41
NAVIGATION MODE >>>
Point of interest near to an address
> Press
POI near location.
> Select the desired country. > In the
City or Code field, enter the
town where you wish to search for a point of interest.
Note:
If you have already entered an address, this address will appear by default.
> Press the
Select category button.
Note:
You can also press the
Select POI button.
An input menu will then open and you can enter the name of a point of interest directly and confirm it.
The points of interest categories available for the entered town are displayed. > Select the desired point of interest as de-
scribed under “Point of interest in the vicinity” on page 40.
> Press the
Start button to begin route
guidance to the point of interest straight
away. However, you can also store your chosen point of interest in fast access mode (
Save) or display the route to the point of
interest (
Show route).
Press the button next to your cho­sen point of interest to display any addi­tional information about the destination.
Point of interest near to destination
> Press the
POI nearby button.
The categories available near to the desti­nation are displayed. > Select the desired point of interest as de-
scribed under “Point of interest in the vicinity” on page 40.
Entering a point of interest directly
> Press the
POI search by name button.
> Enter the desired point of interest or
part of the name.
> Press the button. The Traffic Assist displays in a list all the points of interest corresponding to the
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
41
Page 42
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
name entered. > Select the desired destination from the
list.
You will now receive additional informa­tion about your chosen destination. > Press the
Start button to begin route
guidance to the point of interest straight
away. However, you can also display your cho­sen point of interest on the map (
map
), store it in fast access mode (Save)
On
or display the route to the point of interest (
Show route).

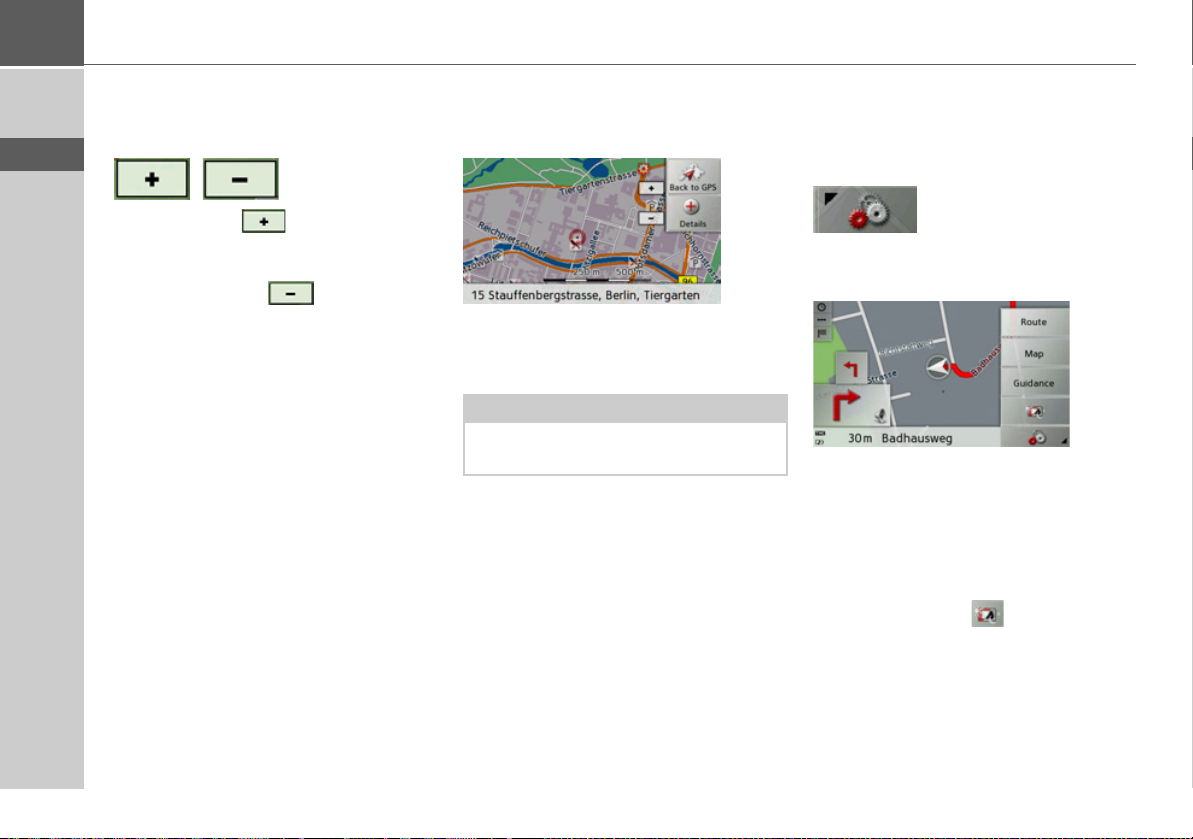

Selecting a destination from the map

You can select a destination straight from the map.
> Press
> Press the
The map display appears.
Note:
You may need to make the area larger us­ing the zoom buttons and in order to find the desired point. You can also move the map to the desired point.
Enter destination in fast access
mode.
Select on map button.
> Press the desired point lightly on the
surface of the screen. A flashing red cross will be displayed at this point.
Note:
By pressing the Back to GPS button you can display your current position again.
> Press the
Details button.
Where available, the address of your cho­sen point is displayed. > Press the
Start button to begin route
guidance to your chosen destination
straight away. You can also search for points of interest
42
Page 43
NAVIGATION MODE >>>
in the vicinity of your chosen point using the
POI nearby button.
However, you can also store your chosen point in fast access mode ( the route to the point of interest (
route
).
Save) or display
Show

Coordinate entry

You can also enter your destination using geographic coordinates.
> Press
> Press
> Using select the value you wish to
> Using the two buttons indicated by
Enter destination in fast access
mode.
Enter geo-coordinates in the
navigation menu.
1
2
3
2
change.
1
select the direction required for the geo­graphic longitude and latitude (east/ west or north/south).
> Then enter the desired values using the
buttons to . You can enter coordinates in three differ­ent ways. The following formats can be used:
• Degrees Minutes Seconds.Decimal sec-
onds e.g. 42°52’46.801“
• Degrees Minutes.Decimal minutes e.g.
48° 53.56667'
• Decimal degrees e.g. 48.89277778
Notes:
• The coordinates entered must corre­spond to WGS84 (World Geodetic System 1984).
• If you press button your current ge-
3
ographic position will be entered into the fields.
> Press the button. Where possible, an address matching the coordinates will be displayed. You can view the destination on the map, store it, display the route to the destination or start the route guidance straight away.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
43
> SK
Page 44
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL

Route planning

The route planning menu allows you to create and select individual routes. To do this, enter the individual destination points for the desired route. It is then pos­sible to travel to these points consecutively without having to enter any further infor­mation. You can also optimise the desti­nation points entered and in so doing change their order.
> Press
> Press the
In the route menu you can create a new route by pressing the button. Previously stored routes are shown in a list below this.
Enter destination in fast access
mode.
Route planning button.
Create new route
Note:
If no routes have yet been stored, the route menu is empty.
Scrolling through stored routes
> Press the arrow keys on the
right of the screen to scroll through the stored routes.
Editing stored routes
You can add additional stages to a stored route, change the name of the route or de­lete it. > Press the button in front of the
route you wish to edit.
By pressing
Add stage you can now add a
stage to the route. After pressing
Rename route you can give
the route a new name. Pressing
Delete route will allow you to de-
lete the route from the stored routes.
Selecting and starting a route
> Press a route to select it. The route is loaded and displayed in the stage menu.
> Press the top button.
> CZ
> H
> SK
44
Page 45
NAVIGATION MODE >>>
> Select the start point or your current
position as the start point for route
guidance. The individual stages are calculated. A map of the stages will then be displayed.
> Press the
Start button to start guidance
for this route.
You can call up the route options using the
Options button.
You can optimise the order of the destina­tions to be travelled to by pressing the
Optimise button.
By pressing the or button you can simulate the entire route quickly or slowly. You can stop the simulation by tapping the screen. You can use the and buttons in the bottom line to scroll through the indi­vidual stages in the route. As you scroll, each stage is shown.
Creating a new route
> In the route menu, press
route
.
Create new
You can now enter an intermediate desti­nation as described under “The destina­tion input menu” on page 33 (
address on map
, Select Point of Interest, Select
or Enter geo-coordinates). You
Enter
also have the option of quickly selecting a destination using the
destinations
button.
> In the input menu, press the
Select from last
Add but-
ton to accept the relevant intermediate destination.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
45
> CZ
> H
> SK
Page 46
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> Press
Add stage to enter further inter-
mediate destinations as described above.
> When you have entered all intermediate
destinations, press the
Done button.
> Give the route a name of your choice. The stage menu for the new route will be displayed.
Editing a route
> Select the route you wish to edit. > Press the button in front of the
stage you wish to edit.
The edit menu will be displayed. The fol­lowing options are available:
Option Meaning
Show details The data relating to the
intermediate destination is displayed. From this screen, you can display the intermediate destina­tion on the map.
Move up The stage is moved for-
wards by one position.
Move down The stage is moved back-
wards by one position.
Delete stage The stage is deleted from
the route.
Replace stage
You can replace the se­lected stage with another intermediate destination.
Optimising a route
If you have entered several destinations for a route, you can use the Traffic Assist to optimise the order of the destinations for the journey distance. Call up the map display for the stages of the route.
> Press
Optimise.
The route is optimised and recalculated.
The optimised route is displayed.
> CZ
> H
> SK
46
Page 47
NAVIGATION MODE >>>

Navigation settings

The navigation settings contain all the set­tings that are relevant to the navigation functions.
Note:
All your settings must be confirmed by pressing the button, you can exit the current menu at any time without having changed any­thing.
> In the main menu, press
OK button. Using the
Settings.
This will take you to the navigation set­tings menu.
Configuration
Various pages containing functions are available in the menu:
The Travel info button
In the Travel info settings window, you can set which additional information you would like displayed during route guid­ance. > Press
Travel info in the settings menu.
The Travel info settings window appears.
The following settings are available:
Info main destination
• Display of the estimated time of arrival (ETA), distance still to be travelled and time to arrival at your main destination.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> Press the
Navigation settings button.
You can go to the next or previous page of the settings by pressing the and buttons.
> CZ
> H
> SK
47
Page 48
>>> NAVIGATION MODE
•
Info next destination
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
Display of the estimated time of arrival, distance still to be travelled and time to arrival at your waypoint.
•
Country info
When this function is activated you will automatically receive generally applica­ble traffic information for the relevant country when you cross a national bor­der (e.g. speed limits).
> Press the relevant button to switch the
required function on or off .
> Confirm your selection by pressing the
OK button.
The Route options button
You can edit your driving profile in the Route options settings window. The set­tings made here have an effect on the route selection and on the calculation of the estimated journey times. > Press
Route options in the settings
menu.
The Route options settings window ap­pears.
> Select the mode of travel after pressing
the button next to
Vehicle.
This setting affects the calculation of the estimated time of arrival and for the set­ting 'bicycle', for example, it blocks the motorway.
> After pressing the button next to
type
select one of the following options.
Route
Option Meaning
Optimal route With this option, the op-
timum route in terms of travel time and mileage is calculated.
Fast route With this option, the
fastest route in terms of travel time is calculated.
Short route With this option, the
shortest route in terms of mileage is calculated.
Easy route With this option, a route
with as few manoeuvres as possible is calculated. This may result in large detours.
> H
> SK
48
Page 49
NAVIGATION MODE >>>

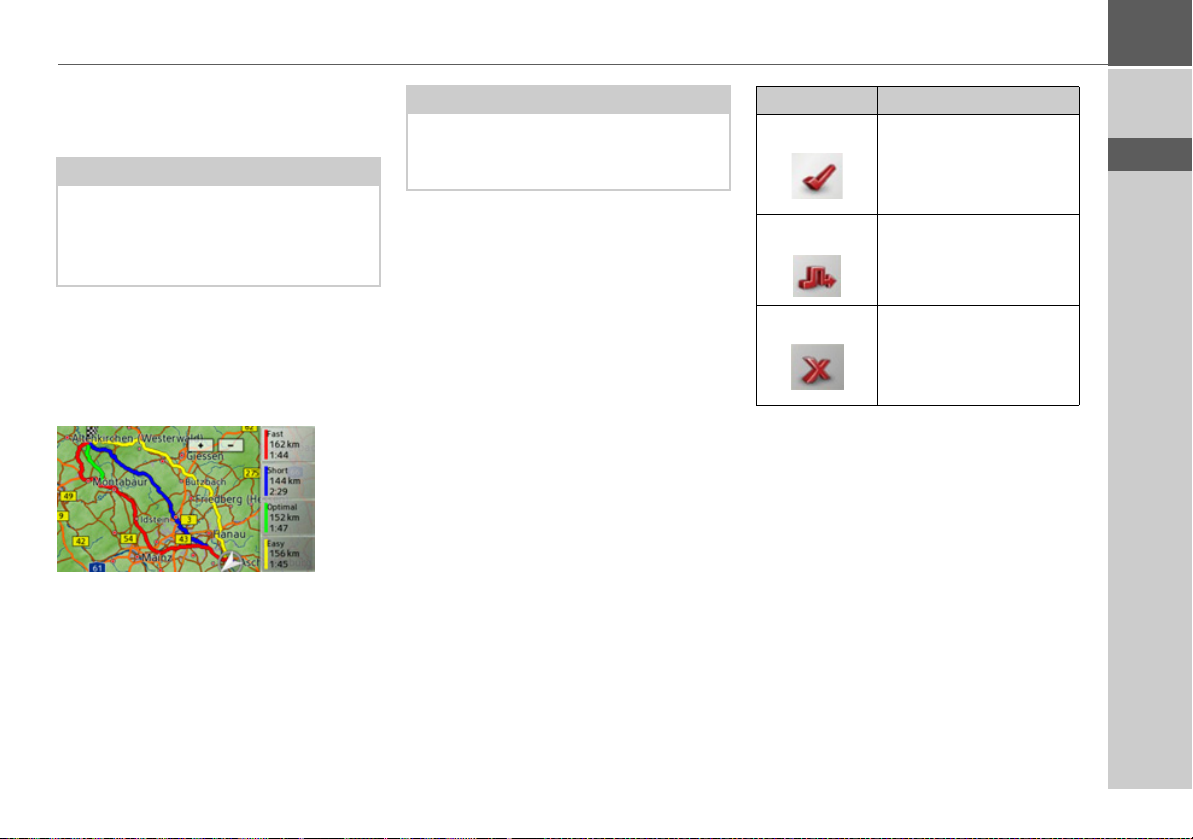

Displaying different route types
You can use the Traffic Assist to display previously described routes.
Note:
This function can only be selected if route guidance is already active or the route option setting was called up from a destination input window.
> Press the
Show route types on map
button. After a short time, the map will appear. The individual routes are calculated one after another and marked on the map.
The area on the right-hand side shows the colour key for the individual routes, the mileage for each route and the estimated driving time.
Note:
Please note that, in many cases, the fastest route will overlay a simple or optimum route.
You can select the desired route by press­ing one of the buttons.
Avoiding particular types of road
After pressing the button next to
Avoid
you can exclude various types of road, e.g.
motorways, ferries and toll roads, from
the route calculation. You can set one of the following options for each of these road types.
Option Meaning
Permitted With this option, the
road type in question is included in calculating the route.
Avoid With this option, the
road type in question is avoided where possible.
Prohibited With this option, the
road type in question is not included in calculat­ing the route.
> Confirm your selection by pressing the
OK button.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
49
> H
> SK
Page 50
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
The Junction info button
In the Junction info settings window you can turn on or off the help available for complex turnings, such as motorway in­tersections or certain multi-lane roads. > Press
Junction info in the settings
menu.
The Junction info settings window ap- pears.
Setting Meaning
Lane info When this function is en-
abled, a small arrow indi­cates which lane you should move into in the case of multi-lane roads.
Setting Meaning
Signposts When this function is en-
abled, you receive infor­mation regarding traffic signing which you should follow.
Note:
This information can only be displayed if it is contained in the map material.
> Press the required option to turn the
corresponding function on or off
.
> Confirm your selection by pressing the
OK button.
The TMC button*
You can configure settings for the recep­tion of traffic announcements in the TMC settings window. > Press
TMC in the settings menu.
The TMC settings window appears.
Setting Meaning
Auto-select station
Choose whether to run an automatic search for the station with the best reception (function switched on ).
> H
> SK
50
*Applies only to the Traffic Assist Z 103
Page 51

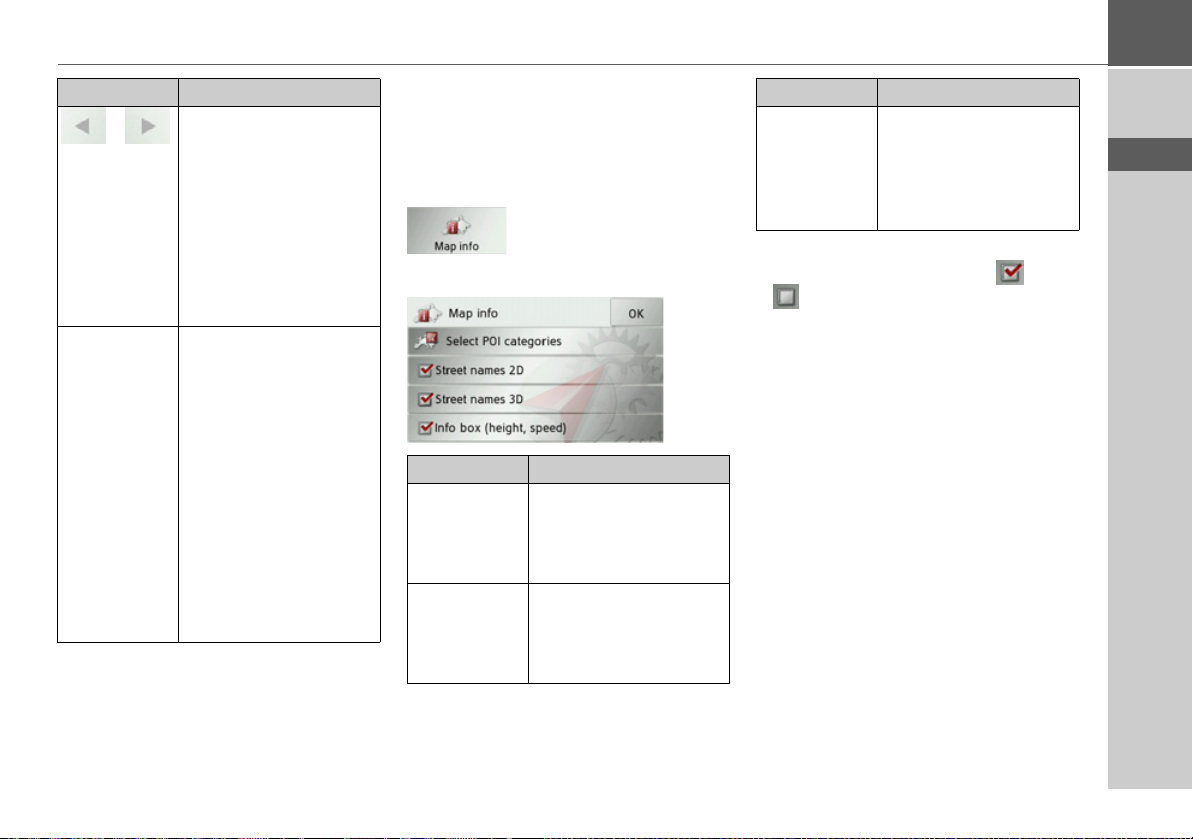

NAVIGATION MODE >>>
Setting Meaning
Press the arrow buttons
to activate the automatic station search. The cur­rently tuned TMC sta­tion is displayed in the adjacent field. This can only be set if the
select station
Auto-
function is
switched off.
Rerouting This button allows you
to choose whether the route change should be made
Never, Automatically or Manually. (See “Taking
announcements into consideration when cal­culating routes*” on page 58.) The setting
Never is equivalent to
switching off the TMC function.
> Confirm your settings by pressing the
OK button.
The Map info button
In the Map info settings window, you can configure settings for additional informa­tion in the map display. > Press
Map info in the settings menu.
The Map info settings window appears.
Setting Meaning
Street names 2D
When you switch this option on, all street names are displayed on the map in 2D mode.
Street names 3D
When you switch this option on, all street names are displayed on the map in 3D mode.
Setting Meaning
Info box (height, speed)
When you switch this option on, the vehicle speed and the altitude are displayed in a small box on the map.
> Press the required option to turn the
corresponding function on or off
. You can also decide whether symbols should be displayed on the map to repre­sent points of interest and which ones to use. > Press the
Select POI categories button.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
51
> SK
Page 52
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL

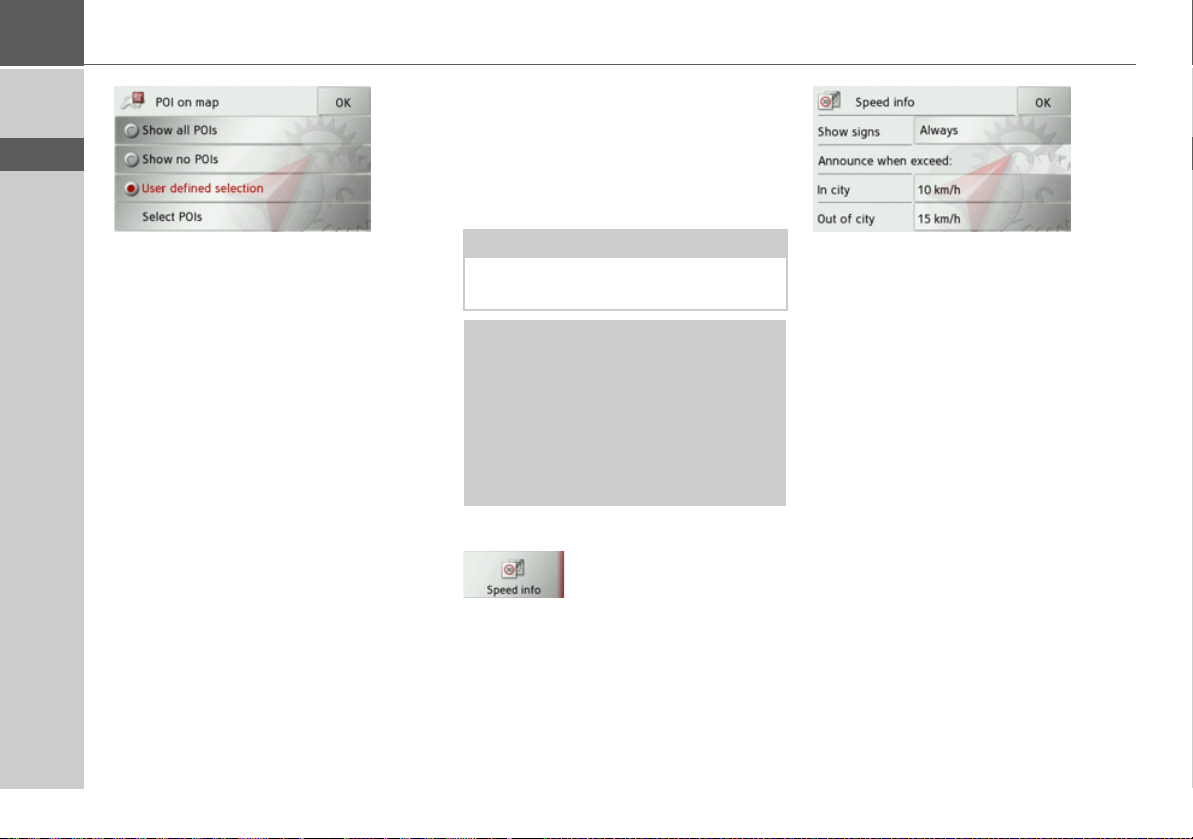

Selecting
Show all POIs displays all points
of interest on the map. Selecting
Show no POIs displays no
points of interest on the map. By selecting then pressing the
User defined selection and
Select POIs button, you
can, in the menu which then appears, de­termine for yourself whether each individ­ual points of interest category is displayed or not.
> Confirm all your settings by pressing
the
OK button.
The Speed info button
The Speed info settings window allows you to display speed limits parallel to the navigation. You can also be warned against exceeding the speed limit by an acoustic warning.
Note:
This information can only be displayed if it is contained in the map material.
!Danger!
The information in the map material may be incorrect as a result of short-term changes (road works, for example). The traffic situation and the local road signs take precedence over the navigation system information.
> Press
The Speed info settings window appears.
Speed info in the settings menu.
The following settings are available.
> CZ
> H
> SK
52
Page 53
NAVIGATION MODE >>>
To select settings always press the field next to the setting that you wish to change.
Setting Meaning
Show signs Select whether speed lim-
its are never displayed, al­ways displayed or only displayed if the limit is exceeded.
In city Select the amount over
the speed limit at which you would like to receive an acoustic warning within built-up areas.
Out of city Select the amount over
the speed limit at which you would like to receive an acoustic warning out­side built-up areas.
> Confirm your selection by pressing the
OK button.
The Voice button
In the Voice settings window you can set the voice that will make the navigation an­nouncements for the language that has been set. > Press
Voice in the settings menu.
The Voice settings window appears.
> Select the desired voice. A short example announcement is given. > Confirm your selection by pressing the
OK button.
The Format button
In the Format settings window you can set the measurement units to be used for times and distances. > Press
Format in the settings menu.
The Format settings window appears.
Press the field next to
Time to switch be-
tween the 12 hour clock and the 24 hour clock. Press the field next to
Distance to switch
between kilometres and miles. > Confirm your settings by pressing the
OK button.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
53
> CZ
> H
> SK
Page 54
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ

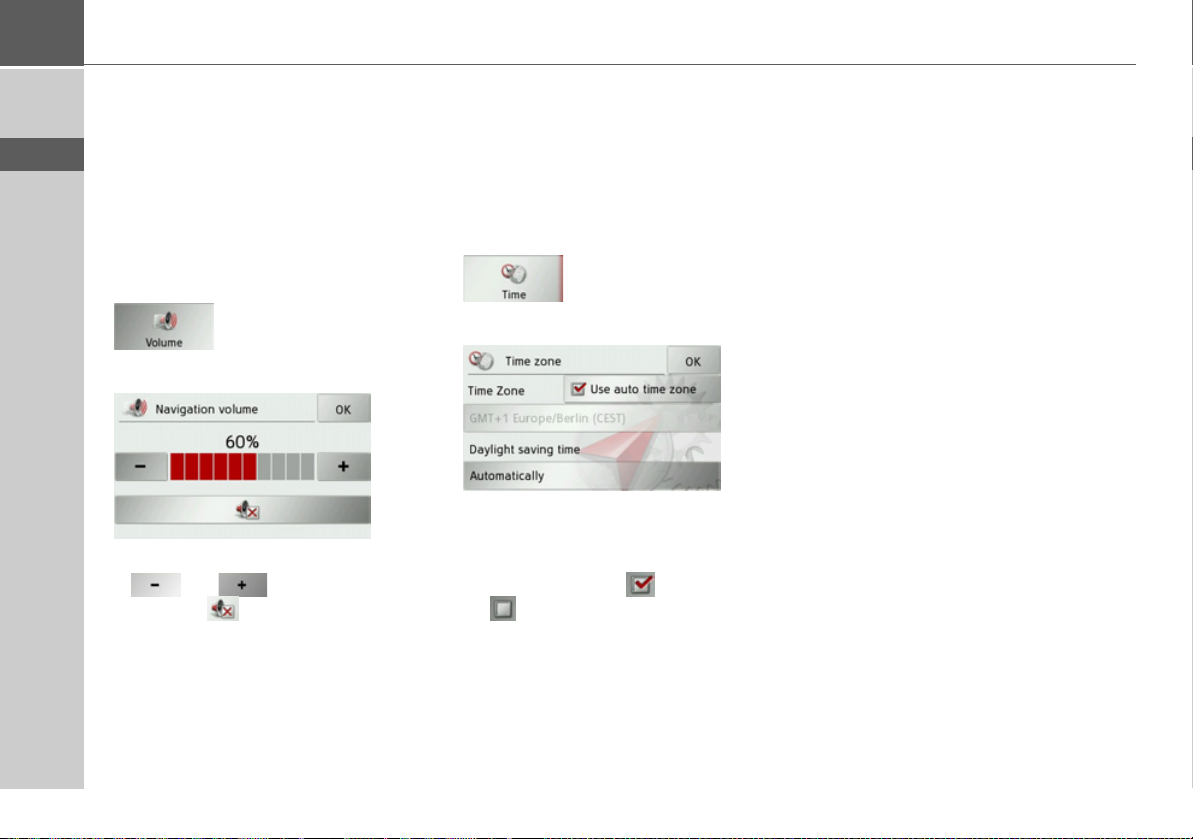

The Volume button
With the Volume settings window, you can set the standard volume for voice an­nouncements for each start of the Traffic Assist, or switch off voice announcements completely. Depending on the situation, this setting can be fitted into the map dis­play. > Press
Volume in the settings menu.
The Volume settings window appears.
> Select the desired volume using the
and buttons.
> Press the button to switch off the
voice output completely.
> Confirm your settings by pressing the
OK button.
The Time button
You can select the time zone relevant for your location in the Time settings win­dow. This setting is important for the cor­rect calculation of the estimated time of arrival. > Press
Time in the settings menu.
The Time settings window appears.
Using the button next to
Time zone you
can set whether the time zone should be set automatically by Traffic Assist or not (automatic mode on automatic mode off ).
If the automatic function is switched off, you can select the desired time zone by pressing the button below Pressing the button below
saving time
allows you to select whether
Time zone.
Daylight
daylight saving time should be set auto­matically by Traffic Assist or whether you switch daylight saving time on and off yourself.
> H
> SK
54
Page 55
NAVIGATION MODE >>>
The Announce ETA button
You can switch the automatic announcement of the estimated time of arrival on or off using the button. > Press
Depending on the previous setting, the function will be switched on or off.
• Left icon: Function on
• Right icon: Function off
Announce ETA in the settings
menu.
Announce ETA
The Reset button
You can reset the navigation settings to their factory settings. The settings will then be reset. The fast ac­cess mode data, stored routes and home address are retained.
> Press the
> Press the
The navigation settings are reset to their factory settings.
Reset button.
Yes button.

Traffic announcements using TMC*

Provided the charger cable for the cigarette lighter is connected to the integrated TMC antenna, your Traffic Assist can receive traffic announcements from radio stations.
Note:
TMC is not available in all countries (currently only Belgium, Germany, Den­mark, France, Italy, the Netherlands, Austria, Sweden, Switzerland and Spain).
Traffic announcements are transmitted by radio stations via the TMC (Traffic Mes­sage Channel) in addition to the radio programme and are received and analysed by the navigation system. Receiving traffic announcements is free of charge.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Applies only to the Traffic Assist Z 103
> CZ
> H
> SK
55
Page 56
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Note:
As the traffic announcements are trans­mitted by radio stations, we cannot as­sume responsibility for the completeness or accuracy of the announcements. Austria: The location and event code was made available by ASFINAG and BM­VIT.
The Traffic Assist constantly checks whether there are any relevant announce­ments for the route that has been set. All traffic problems that have been received are shown on the map. If the continuous checks determine that a traffic announcement is relevant to route guidance, the unit can automatically re­calculate a new route to the destination (See “The TMC button*” on page 50.)

Displaying TMC messages on the map*

Current TMC messages are displayed on the map graphically. Sections of the route where there are traffic problems are high­lighted blue. Arrows indicating the traffic direction which is affected by the traffic problem continue to be displayed.
In addition to the coloured mark, a warn­ing sign is displayed on the stretch of road affected.

Using TMC*

Once you have connected the TMC an­tenna, your Traffic Assist will receive cur­rent traffic announcements and dynamic route calculation will be enabled (traffic jam diversion). You can also view traffic announcements directly. Settings for TMC can be made as de­scribed under “The TMC button*” on page 50.
> In the main menu, press
TMC.
> CZ
> H
> SK
56
The message list appears.
*Applies only to the Traffic Assist Z 103
Page 57
NAVIGATION MODE >>>
You can scroll through the list using the arrow keys on the right-hand edge of the screen.
The road number (motorway, A-road or district roads), the distance as the crow flies from your current position, the sec­tion of road with traffic direction, if appli­cable, and the type of problem are dis­played in each traffic message. If a TMC message lies on your route, the message is indicated by the sign .
Reading a message*
> Press on the desired message in the list. The message display appears.
> Press the arrow buttons to
scroll in the messages.
> Press the button to return to the
message list. To update the display of the announce­ments, press .
If a message lies on your route as shown in the example, by pressing the
message
button you can process this
Consider
message.
If you wish to recalculate the route, press
Yes button.
the The route is recalculated and, if possible, a detour is calculated. If you wish to cancel the change, you can call up the relevant message again and then press the
Ignore message button.
Another prompt will appear, which you must reply
Yes to. The route is then recal-
culated without taking into account the message in question.
Display the relevant road in the map*
> Press the button in the message
display.
The relevant road can be seen in the map.
By pressing the
List view button you can
return to the message display. You can use the and buttons in the bottom line to scroll through all the messages in the message list and show them on the map. Using the
Consider button you can deter-
mine for each message whether the stretch of road to which the message relates will be avoided in the route calculation. If you have blocked a stretch of road (
Consider) you can remove this block by
pressing the
Ignore button.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
*Applies only to the Traffic Assist Z 103
57
Page 58
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Taking announcements into con­sideration when calculating routes*
Your Traffic Assist can take traffic an­nouncements into consideration when calculating a route. You have the option of setting this function to automatic, manual or never under “The TMC button*” on page 50.
Automatic recalculation*
If your route is affected by a traffic prob­lem, a detour is calculated to bypass the problem as quickly as possible.
Manual recalculation*
If a traffic announcement affects your route, a window with detailed informa­tion on the traffic announcement appears.
If you wish to calculate a detour around the traffic problem, press
message message
You can change your chosen setting at any time in the message list.
, or alternatively Ignore .
Consider

The map display

The map display is used primarily for route guidance. However, you can also use the map display without route guidance to show your current position and, for exam­ple, to receive warnings about exceeding the speed limit.

Calling up the map display

The map display is called up automatical­ly when you start route guidance. Without route guidance, you can call up the map display from the main menu.
> In the main menu, press
Show map.
> CZ
> H
> SK
58
*Applies only to the Traffic Assist Z 103
Page 59
NAVIGATION MODE >>>
The map display will then appear and, if GPS reception is available, will show your current position. If route guidance is already active, the map will be displayed with route guid­ance.

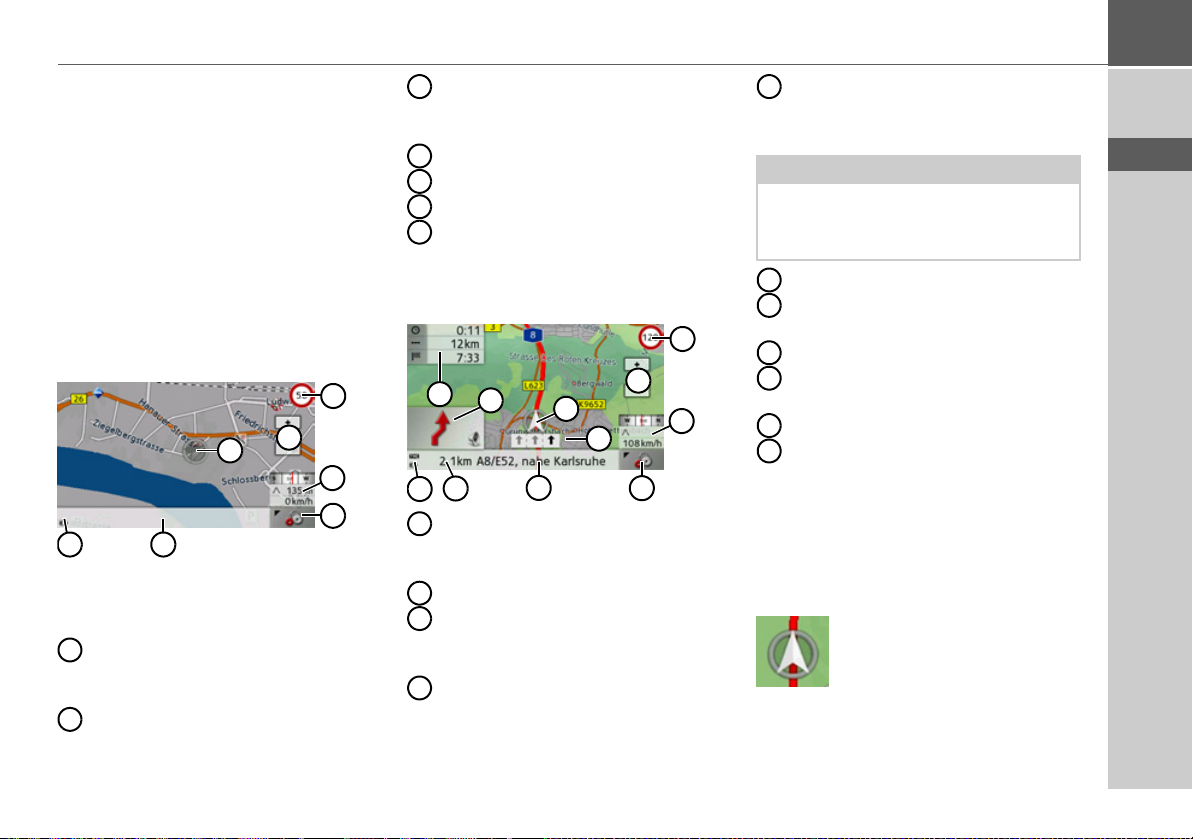

Structure of the map display

The structure depends on whether route guidance is active or not.
Map display without route guidance
1
2
6
3
4
57
If the navigation is not active, almost the whole area of the touch screen will be tak­en up by the map.
1
Speed limit on the road currently be­ing driven on (display not available for all roads)
2
Zoom buttons
3
Information box showing compass, vehicle speed and altitude above sea level
4
Button for calling up the options
5
Current road
6
Vehicle position
7
Display power level / Display TMC setting*
Map display with route guidance
11
10
8
9
1
Speed limit on the road currently be-
6
7
2
5
4
ing driven on (display not available for all roads)
2
Zoom buttons
3
Information box showing compass, vehicle speed and altitude above sea level
4
Button for calling up the options
5
Traffic lane recommendation (only appears on some multi-lane roads; black arrows = recommended lanes)
Note:
Following the traffic lane recommenda­tions allows you to perform the next driv­ing manoeuvre without changing lanes.
6
Vehicle position
7
Current road, or road to which the
1
next driving manoeuvre leads
8
Distance to next driving manoeuvre
9
Display power level / Display TMC setting*
3
10
Next driving manoeuvre
11
Estimated time of arrival, remaining journey time and remaining distance
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
to destination
> FIN
When navigation is active, your current position is displayed on the map via the position icon.
> TR
> GR
> PL
> CZ
> H
*Applies only to the Traffic Assist Z 103
> SK
59
Page 60

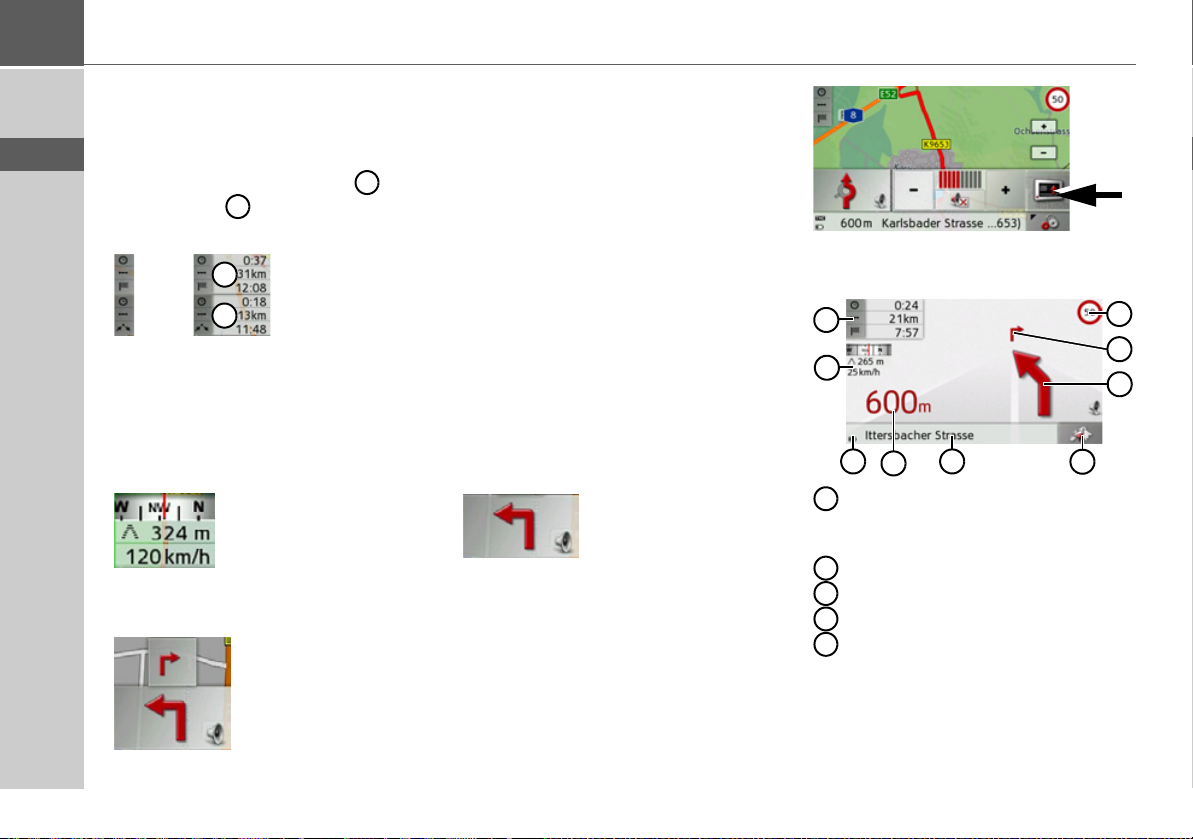

>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
On the left of the screen, you can show or hide the information (estimated time of arrival, remaining journey time and re­maining distance to destination/way­point) to the main destination and to the waypoint . The left-hand screen
2
1
section shows the hidden information.
1
2
The information box at the right edge of the display shows a compass, your current speed and the altitude above sea level. The information box can be turned on and off, as described under “The Map info but­ton” on page 51 .
Information is also displayed in the bot­tom left corner in the preview area.
row, with a distance indication under­neath it. If two driving manoeuvres are to be performed in succession within a short time, another smaller arrow indicating the second driving manoeuvre is displayed above the first arrow. You can adjust the volume of the naviga­tion announcements by pressing the pre­view area (See “Changing the announce­ment volume” on page 61.) You can also switch from route guidance with map dis­play to arrow display.
Route guidance with arrow display
You can start up route guidance with just arrows from the route guidance with map display.
> Press the preview area.
> Press the button with the arrow icon.
The display will change to arrow display.
9
8
7
1
Speed limit on the road currently be-
5
6
4
ing driven on (display not available for all roads)
2
Next driving manoeuvre but one
3
Next driving manoeuvre
4
Switch to map display
5
Current road, or road to which the next driving manoeuvre leads
1
2
3
> H
> SK
The next manoeuvre is displayed as an ar-
60
*Applies only to the Traffic Assist Z 103
Page 61
6
Distance to next driving manoeuvre
7
Display power level / Display TMC setting*
8
Information box showing compass, vehicle speed and altitude above sea level
9
Estimated time of arrival, remaining journey time and remaining distance to destination
By pressing the button or you can leave the arrow display.
4

Using the map display

Repeating the last announcement
During route guidance, the system an­nounces important information, e. g. the next driving manoeuvre. The last an­nouncement can be repeated with updat­ed information.
> Press the preview area while route guid-
ance is active. The last announcement is repeated with updated information. The volume is also displayed.
Changing the announcement volume
The volume of announcements can be ad­justed.
> Press the preview area while route guid-
ance is active and the toolbar deactivat-
ed.
NAVIGATION MODE >>>
The bar display indicates the volume. > Press or to increase or de-
crease the volume.
> Press in order to mute the an-
nouncements.
The button will now have a red border. > Press again in order to cancel the
mute function.
!Warning.
Always adjust the volume so that you can still hear any ambient noise while driving.
The bar display disappears again automat­ically after a short while if no button is pressed.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
*Applies only to the Traffic Assist Z 103
> SK
61
Page 62
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Map zooming
The map can be zoomed into in steps via the zoom buttons.
> Press zoom in to “zoom in on the
map” and therefore to get closer to the details displayed.
> Press zoom out to “zoom out
from the map” and therefore to obtain a larger overview.
Moving the map
You can move the map to any point.
> To do this, press the map briefly.
> Then press any point on the map and
move it in the required direction.
The map is then moved accordingly.
Note:
By pressing the
Back to GPS button you
can display your current position again.
You can also select a point as a destina­tion, as described under “Selecting a desti­nation from the map” on page 42.

Map display options

In the map display options, you can change the settings for route guidance, the map display and the route.
On the map display, press the button on the bottom right.
This brings up the options menu for the map display. The
Guidance, Map and Route buttons
are now available. Selecting one of these menu options will display more buttons to call up the various settings. You can also use the button to switch the display into and out of night mode.
> CZ
> H
> SK
62
Page 63
NAVIGATION MODE >>>
Guidance button:
The following options are available:
• Cancel route guidance.
• Enter/delete a waypoint.
• Display the entire route.
• If several destinations have been entered (route planning), display a destination list.
Map button:
The following options are available:
• Switch between 2D and 3D map dis­play.
• Change the zoom steps and the map an­gle in 3D mode.
• Change the orientation of the map in 2D mode.
• Display the current position.
Route button:
The following options are available:
• Select a POI on the route.
• Display TMC messages located on the route.*
• Block a route ahead.
• Change the route options.
Cancel route guidance
You can cancel active route guidance. > Open the options menu for the map
display.
> Press the > Press the
Guidance button. Stop guidance button.
This cancels route guidance to all destina­tions.
Enter/delete waypoint
With this function, you can enter a way­point or delete an entered waypoint. > Open the options menu for the map
display.
> Press the > Press the
Guidance button. Add stopover button.
You can now enter a destination as a way­point as described under “The destination input menu” on page 33 (
Select Point of Interest, Select on map
Enter address,
or Enter geo-coordinates). You also have the option of quickly selecting a destina-
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
*Applies only to the Traffic Assist Z 103
63
Page 64

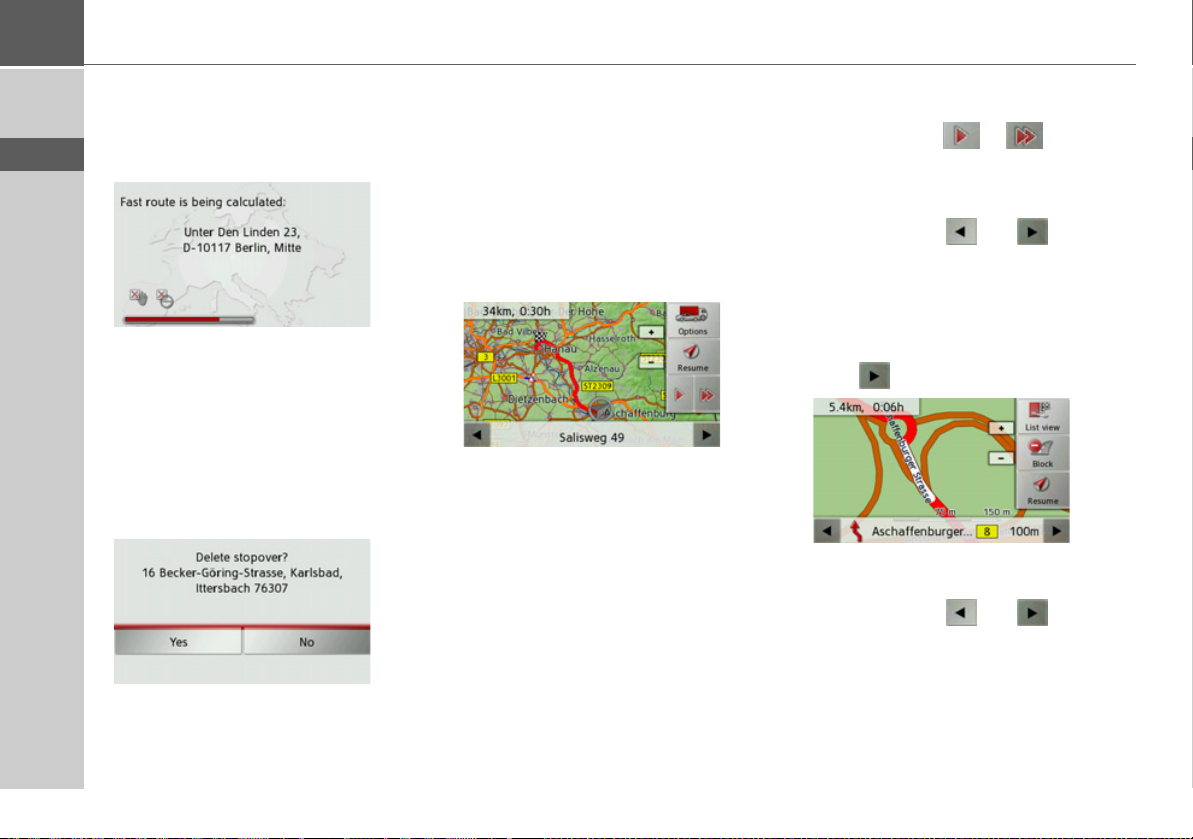

>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
tion using the
destinations
button.
Select from last
Once you have entered the desired way­point, the route is recalculated.
The entered waypoint is marked on the map with a yellow flag.
Deleting a waypoint
> Open the options menu for the map
display.
> Press the > Press the
Guidance button. Delete stopover button.
Displaying the entire route
You can display the entire route to the destination on the map. You also have the option of viewing the complete set of di­rections. > Open the options menu for the map
display.
> Press the > Press the
Guidance button. Show route button.
The entire route is displayed.
You can set the route options by pressing
Options button.
the By pressing the or button you can simulate the entire route quickly or slowly. You can stop the simulation by tapping the screen. You can use the and buttons in the bottom line to scroll through all the directions.
Directions
> With the entire route displayed, press
the button.
The first point in the directions is dis­played on the map. You can use the and buttons to scroll through all the directions.
> CZ
> H
> SK
> Press the
The waypoint is deleted.
64
Yes button.
Page 65
NAVIGATION MODE >>>
To block individual route sections, select
Block. The Traffic Assist then calculates a
sensible diversion to avoid the blocked section.
Note:
If the route section is more than 10 kilo­metres long, you can choose, in another menu, whether to block the entire section or just part of it.
You can also display a list version of the directions by pressing the
List view but-
ton.
> Press the arrow buttons on
the right of the screen to browse
through the list. If you press an entry in the directions, it will be displayed on the map.
Displaying the destination list
If a planned route with a number of desti­nations is active, you can display the entire route with all the destinations on the map or in a list. > Open the options menu for the map
display.
> Press the > Press the
Guidance button. Itinerary button.
The planned route is displayed on the map. By pressing the or button you can simulate the entire route quickly or slowly. You can stop the simulation by tapping the screen.
You can use the and buttons in the bottom line to scroll through the indi­vidual stages in the route. As you scroll, each stage is shown. You can block the displayed stage by se­lecting
Clear form.
Press
List view to display the stages in the
route as a list.
The individual stages in the route are dis­played as a list. To return to the route guidance, press the top button. To edit one of the stages, press the button next to the stage.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
65
> H
> SK
Page 66
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
The following options are then available:
•Use
Show details to display informa-
tion regarding the selected stage.
•Use
Move up and Move down to
change the order of the stages.
•Use
Delete stage to delete the selected
stage.
•Use Start guidance to start guidance for the selected stage.
Selecting 2D/3D mode
You can switch the map display between 3D and 2D display. > Open the options menu for the map
display.
> Press the > Press the
the
Map button.
3D button for 3D display or
2D button for 2D display.
The map changes to the selected display (2D view or 3D view) ).
1 2
1
2
Changing zoom steps and map angle
You can choose which zoom steps the map should be changed to when the next manoeuvre is approaching. You can also set the map angle in 3D mode. > Open the options menu for the map
display.
> Press the Map button. > Press the
Map view button.
1
2
Depending on the current display (3D
1 2
view or 2D view ) the settings op­tions are different. If you have changed the settings, press
OK
to save them. To reset the options to the basic setting, press the
Default range button.
66
Page 67
NAVIGATION MODE >>>
To leave the settings menu without mak­ing any changes, press the button.

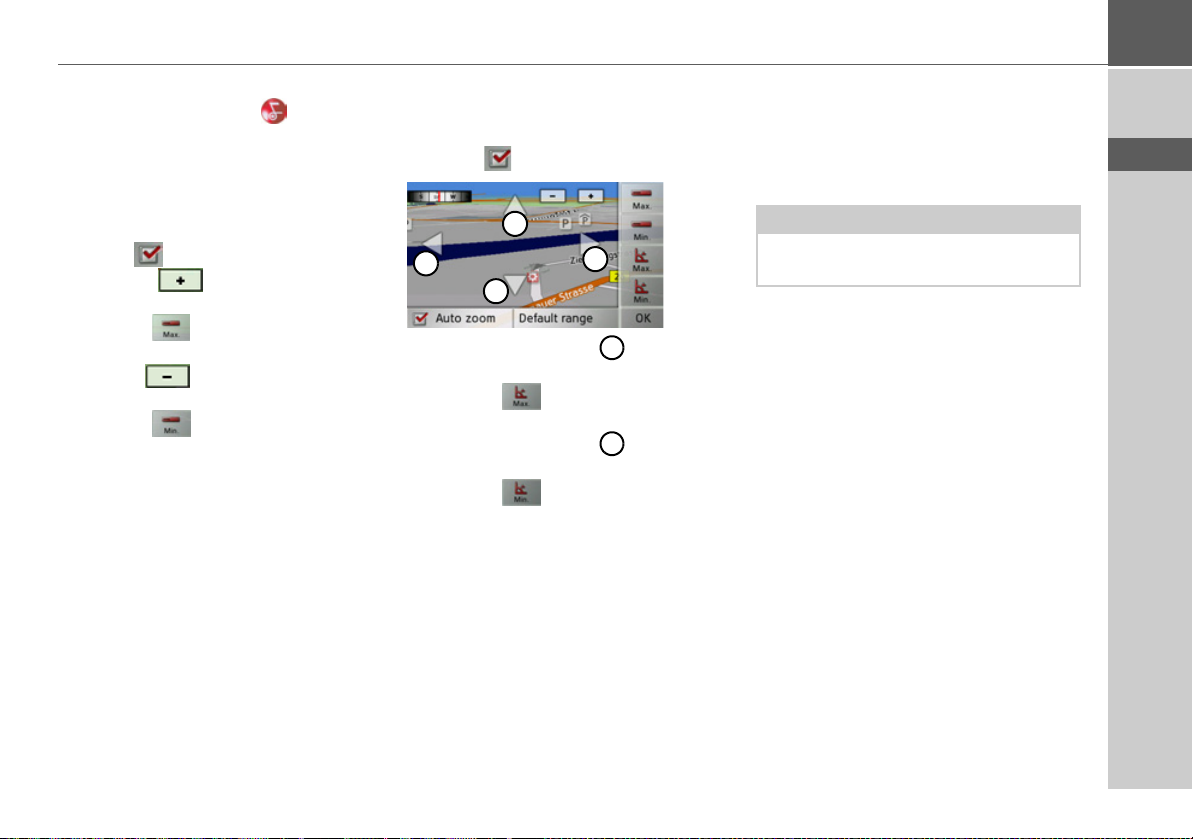

Setting options
You can select the areas where the dis­played map should be zoomed. This set­ting can only be changed if the Autozoom function ( ) is turned on. > Press the button to select the
smallest desired zoom step.
> Press the button to save the set-
ting.
> Press the button to select the larg-
est desired zoom step.
> Press the button to save the set-
ting.
In the 3D display, you can set the angle of inclination of the map display. This set­ting can only be changed if the Autozoom function ( ) is turned on.
1
1
1
> Use the arrow buttons to set the de-
1
1
sired maximum angle of inclination.
> Press the button to save the set-
ting.
> Use the arrow buttons to set the de-
1
sired minimum angle of inclination.
> Press the button to save the set-
ting.
Changing the orientation of the map (2D)
You can select whether the map should al­ways be orientated to the direction of trav­el, or to the North.
Note:
This function is only available in 2D mode.
> Open the options menu for the map
display.
> Press the > Press the
Map button. North up or Heading up but-
ton. The display of the map will change ac­cordingly.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
67
> CZ
> H
> SK
Page 68
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
Displaying current position
You can display your current position and store this position. You can also display information concerning the current GPS reception and the current country. > Open the options menu for the map
display.
> Press the > Press the
Map button. Position info button.
The current position is displayed. If possi­ble, an address is displayed. If no address is available for the current position, the geographic coordinates are displayed. You can return to the map using the
map
button.
By pressing
Save you can store your cur-
On
rent position in the fast access list.
By pressing the
Country info button you
can display country-specific information such as the maximum permitted speed for the country you are currently in.
By pressing
GPS info you can view infor-
mation regarding the GPS reception.
You can see how many satellites are being received, and whether the satellite recep­tion is good enough for navigation. The current time and the geographic position are also displayed.
Point of interest on the route
During route guidance, you can display the points of interest located on the route. You can specify which categories of points of interest should be displayed, and you can also choose whether to display only the nearest POIs, all the POIs on the en­tire route, or only POIs near the destina­tion. > Open the options menu for the map
display.
> Press the > Press the
Route button. POI on route button.
The nearest points of interest for the three selected categories are displayed. The first distance indicated shows the dis­tance to the point of interest. The indica­tion on the right shows the detour re­quired to reach the point of interest.
> SK
68
Page 69
NAVIGATION MODE >>>
Press one of the points of interests to start route guidance to it. To display informa­tion regarding the point of interest, press the button next to it.
Setting categories
> Press the
Categories: button.
> Press the button for the category you
wish to change.
> Then select the desired category. > Confirm your changes by pressing the
OK button.
Point of interest near destination/on en­tire route
> In the point of interest on the route
menu, press the button to show POIs near the destination, or the
button for POIs on the entire
route.
> Select the desired category. > Then select the desired point of interest.
Route guidance to the selected point of in­terest is initiated.
TMC on the route*
You can view and edit TMC messages lo­cated on your route. > Open the options menu for the map
display.
> Press the > Press the
Route button. TMC on route button.
The TMC messages located on your route are displayed. Once you have selected a message you can decide e.g. whether or not to divert around the hold-up. Please also refer to the description in “Traffic announce­ments using TMC*” on page 55.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
*Applies only to the Traffic Assist Z 103
> CZ
> H
> SK
69
Page 70
>>> NAVIGATION MODE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
Block route
You can block a stretch of road ahead. This determines a certain stretch of road that should not be used. Traffic Assist then attempts to calculate a diversion. > Open the options menu for the map
display.
> Press the > Press the
Route button. Block button.
> Select the length of the desired block us-
ing the and buttons.
You can cancel the block by pressing the
Reset button.
> Confirm your selection by pressing the
OK button.
The route is recalculated.
Changing route options
You can modify the route options (route selection etc.) during route guidance. > Open the options menu for the map
display.
> Press the > Press the
Route button. Options button.
> Set the route options as described under
“The Route options button” on page 48.
After a change, the route is recalculated.
> CZ
> H
> SK
70
Page 71

Settings

Selecting system settings

You can change various basic settings for all applications on the Traffic Assist.
> In the main menu, press
Settings.

The system settings menu

You can select the various settings options from the system settings menu.
SETTINGS >>>

Operation

Selection options
Select the desired menu item by pressing the appropriate button. The functionality of the buttons varies depending on the se­lection and is described under “The indi­vidual menu items” on page 72. You can go to the next or previous page of the settings by pressing the and buttons.
Closing the settings menu
Press to close the settings menu.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> Press
The system settings menu is displayed.
System settings.
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
71
Page 72
>>> SETTINGS
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ

The individual menu items

Battery
Your Traffic Assist may be operated using an external power supply unit or an inte­grated rechargeable battery.
Note:
The current charging state is important when operating with a battery. If the bat­tery is low on power, it may not be possi­ble to continue navigation right to the destination.
The energy supply and status are shown on a display.
Displaying the power supply
You can call up the status display using the following button.
> Press the The status display appears and shows the power supply.
Battery button.
The power level is shown in the charge display. In the example, the battery still has around two-thirds charge. The charging operation is indicated by the mains socket symbol in the status display.
Closing the status display
Pressing the display and shows the settings menu.
OK button closes the status
Day/night display
You can set the Traffic Assist display to day, night or automatic. The automatic setting changes automati­cally between day and night display de­pending on the time, the current position and the time of year. You can call up the setting using the fol­lowing button:
> Press the
> Select from
The desired function is activated and the system settings are displayed.
Day/Night button.
Automatic, Day and Night.
> H
> SK
72
Page 73
SETTINGS >>>
Calibration
If the touch screen responds incorrectly when buttons are pressed, it needs to be calibrated.
Starting the calibration
You can start the calibration using the fol­lowing button:
> Press the
Calibration button.
The calibration procedure will be started. You will be guided through the procedure by means of text instructions.
Language
The texts on the touch screen can be dis­played in a variety of languages.
Opening language selection
You can choose between the various lan­guages using the following button:
> Press the
Language button.
The language selection appears.
The language selection shows the available languages in a list several pages long. Each list field is in the form of a button. Each button is labelled with the language name and the associated national flag.
Scrolling
Using the buttons, it is possi­ble to scroll through the list in the direc­tion of the relevant arrow. The current list page and the total number of pages appear between the buttons.
Selecting the language
> Press the button for the required lan-
guage. > The selection is confirmed by pressing
OK.
A prompt appears indicating that the soft­ware has been re-started, and you are asked whether you really want to change the language. > Confirm the prompt using
Yes.
Cancelling the language selection
Pressing the button cancels the lan­guage selection and shows the settings menu.
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
73
> CZ
> H
> SK
Page 74
>>> SETTINGS
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
Automatic on/off
The Traffic Assist can switch automatical­ly to sleep mode when the vehicle ignition is switched off. Prerequisite:
• The Traffic Assist must be connected to the vehicle cigarette lighter (see also page 17).
• The cigarette lighter is de-energized af­ter the ignition is switched off.
• The relevant function can be switched on at the Traffic Assist.
Switching the function on / off
> Press the
Automatic on/off button.
Depending on the previous setting, the function will be switched on or off. The current setting is shown by the icon.
• Left icon: The function is switched on, the Traffic Assist switches off automati­cally.
• Right icon: The function is switched off, the Traffic Assist does not switch off automatically.
Sounds
You can switch the Traffic Assist signal tone on and off. This also includes the clicking of the touch screen buttons. > Press the
Tone on or Tone off button.
Depending on the previous setting, the signal tones are switched on or off.
• Left icon: Tones switched on
• Right icon: Tones switched off
Factory settings
You can reset your Traffic Assist to the factory settings. This deletes the following amended data: Stored destinations, stored routes, the home address, images, videos etc. stored in the internal memory.
> Press the
> Press the
Factory reset button.
Yes button.
The Traffic Assist is reset to the factory settings.
74
Page 75

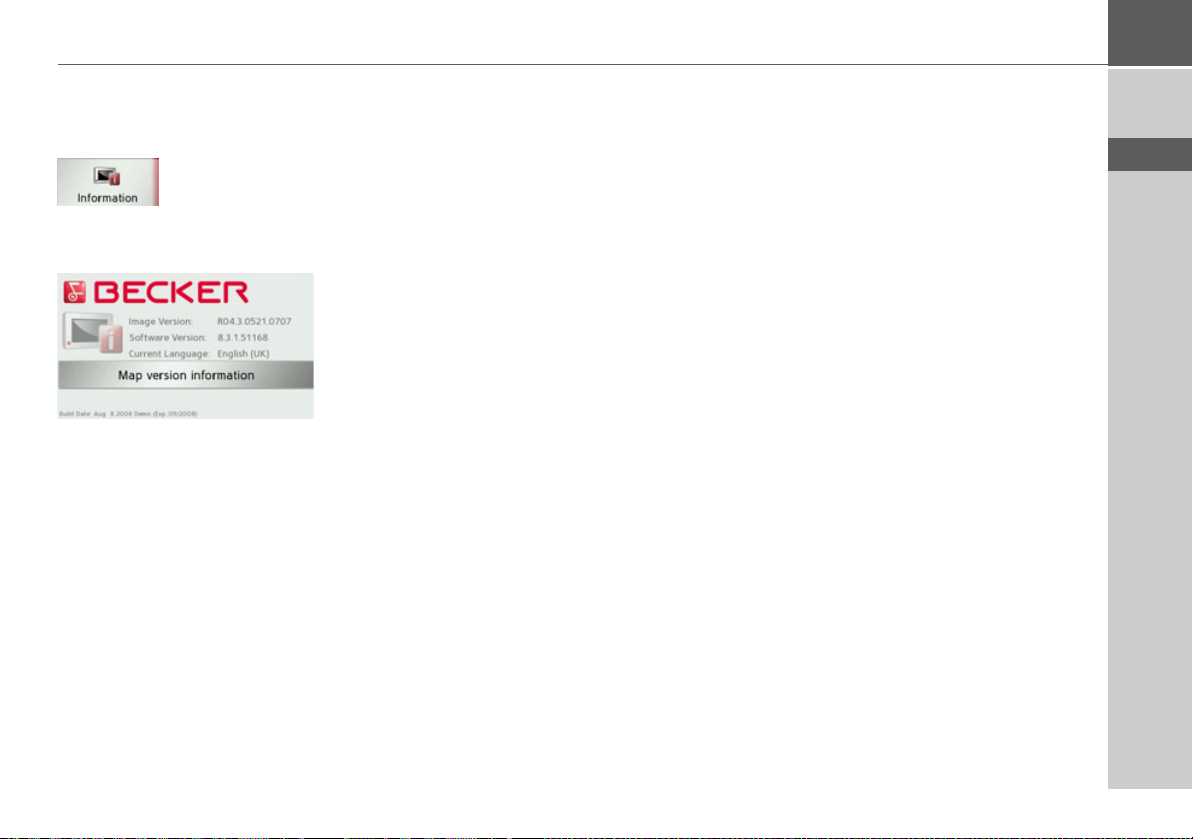

Information
The following button displays informa­tion regarding the Traffic Assist.
> Press the The information display appears.
Information button.
SETTINGS >>>
> D
> GB
> F
> I
> E
> P
> NL
> DK
Note in particular the product designa­tion and the software version. Always quote these details in enquiries to the serv­ice provided by Harman/Becker.
Map version information button dis-
The plays information relating to the installed map data.
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
75
Page 76
>>> SPECIALIST WORDS

Specialist words

GMT
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
(Greenwich Mean Time) Central European Time The standard time at 0 degrees of longi­tude (the longitude which passes through Greenwich, Great Britain). This time is used worldwide for the synchronisation of data collection.
GPS
(Global Positioning System) GPS determines your actual geographical position by the use of satellites. It is based on 24 satellites which orbit the Earth and emit signals. The GPS receiver receives these signals and calculates the distance to each satellite from the running time dif­ferences and thus evaluates its actual cur­rent position in terms of geographical length and width. In order to determine the position, signals from at least three sat­ellites are required, and the fourth one al­lows the height to be determined.
SD Card
(Secure Digital) The Secure Digital Card was developed in 2001 by SanDisk on the basis of the older MMC standard. An SD card is a re-writa­ble change-over storage card.
Stylus
A stylus is an input pointer which is used for the operation of touch-screens, mobile phones or PDAs. The stylus consists basically of a plastic pointer with a softer plastic core. The sleeve is hard and can be gripped and the softer core emerges at the tip and is de­signed to touch the screen as softly as pos­sible (i.e. without the danger of scratching the screen). The stylus is more accurate than operation using the fingers, since only the thin tip touches the screen. In addition, dirty marks on the screen caused by finger prints are avoided.
TMC*
(Traffic Message Channel) Traffic announcements transmitted by most FM stations via RDS. Basis for dy­namic navigation.
USB
(Universal Serial Bus) The Universal Serial Bus (USB) is a bus sytem for interconnection of a computer with external USB peripherals for the ex­change of data.
> CZ
> H
> SK
76
*Applies only to the Traffic Assist Z 103
Page 77

Keywords

KEYWORDS >>>
Numerics
2D display . . . . . . . . . . . . . . . . . . . . .66
3D display
. . . . . . . . . . . . . . . . . . . . .66
A
Arrow display . . . . . . . . . . . . . . . . . .60
B
Block . . . . . . . . . . . . . . . . . . . . . . . . .70
Block route
. . . . . . . . . . . . . . . . . . . . 70
C
Content Manager . . . . . . . . . . . . . . . 27
installing
starting Coordinate entry Country information Current position
. . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . . . . . .28
. . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . .48
. . . . . . . . . . . . . . . . 68
D
Daylight saving time . . . . . . . . . . . . . 54
Destination from map Destination input Destination input menu
Configuration Destination list Destination memory
changing
scrolling Destinations
Entering
protected
Standard
storing Directions Displaying the route
. . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . .38
. . . . . . . . . . . . . . . . . . . . . 64
. . . . . . . . . . . . 42
. . . . . . . . . . . . . . . 33
. . . . . . . . . .33
. . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . .31
. . . . . . . . . .38, 64
E
Entering a town . . . . . . . . . . . . . . . . . 36
Entering an address
. . . . . . . . . . . . . . 35
F
Factory settings . . . . . . . . . . . . . . . . .55
Fast access
Icons
. . . . . . . . . . . . . . . . . . . . . .32
Fast route Ferries
. . . . . . . . . . . . . . . . . . . . . .48
. . . . . . . . . . . . . . . . . . . . . . . . 49
G
Geographic coordinates . . . . . . . . . . . 43
GMT
. . . . . . . . . . . . . . . . . . . . . . . . . 76
GPS
. . . . . . . . . . . . . . . . . . . . . . . . . .76
GPS reception
. . . . . . . . . . . . . . . . . .68
H
Home address . . . . . . . . . . . . . . . . . . 33
House number
. . . . . . . . . . . . . . . . . . 38
I
Intended use . . . . . . . . . . . . . . . . . . . .5
J
Journey time . . . . . . . . . . . . . . . . . . . 60
Junction
. . . . . . . . . . . . . . . . . . . . . . .37
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
77
> H
> SK
Page 78
>>> KEYWORDS
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
L
Last announcement . . . . . . . . . . . . . 61
Lists
Destination list Street list Town list
. . . . . . . . . . . . . 31
. . . . . . . . . . . . . . . . . . 37
. . . . . . . . . . . . . . . . . . 36
M
Main menu . . . . . . . . . . . . . . . . . . . 23
Map
displaying zoom in
zoom out Map angle Map display Map orientation Map view Measurement units Memory card Motorways
. . . . . . . . . . . . . . . . . 58
. . . . . . . . . . . . . . . . 42, 62
. . . . . . . . . . . . . . . 42, 62
. . . . . . . . . . . . . . . . . . . . 66
. . . . . . . . . . . . . . . . . . . 58
. . . . . . . . . . . . . . . . 67
. . . . . . . . . . . . . . . . . . . . . 51
. . . . . . . . . . . . . . 53
. . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . 49
N
Navigation . . . . . . . . . . . . . . . . . . . . 30
cancelling start
New destination
. . . . . . . . . . . . . . . . . 63
. . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . . 33
O
Optimum route . . . . . . . . . . . . . . . . 48
P
Points of interest
entered directly in the vicinity near destination near to an address on the route
Position display
. . . . . . . . . . . . . 41
. . . . . . . . . . . . . . 40
. . . . . . . . . . . . . 41
. . . . . . . . . . . 41
. . . . . . . . . . . . . . . 68
. . . . . . . . . . . . . . . . 42
R
Restrictions
Ferries
. . . . . . . . . . . . . . . . . . . . 49
Motorways Toll roads
Route guidance
cancelling
start Route options Route planning Route types
. . . . . . . . . . . . . . . . 49
. . . . . . . . . . . . . . . . . 49
. . . . . . . . . . . . . . . . . 63
. . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . 48, 70
. . . . . . . . . . . . . . 34, 44
. . . . . . . . . . . . . . . . . . . 49
S
Safety information . . . . . . . . . . . . . . . 5
Safety instructions Satellites SD card Selecting a country Selecting a destination
Selecting a town Selecting the street Setting the volume
. . . . . . . . . . . . . . . . . . . . . . 68
. . . . . . . . . . . . . . . . . . . . . . 19
Entering an address
. . . . . . . . . . . . . . 30
. . . . . . . . . . . . . . 35
. . . . . . . . . . 35
. . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . 37
. . . . . . . . . . . . . . 61
> CZ
> H
> SK
78
Page 79
KEYWORDS >>>
Settings
Navigation
System Short route Simple route Speed limit Street names Stylus
. . . . . . . . . . . . . . . . . . . . . . . . . 76
Switching the Traffic Assist on System settings
. . . . . . . . . . . . . . . . .47
. . . . . . . . . . . . . . . . . . . .71
. . . . . . . . . . . . . . . . . . . . 48
. . . . . . . . . . . . . . . . . . .48
. . . . . . . . . . . . . . . . . . . . 52
. . . . . . . . . . . . . . . . . . . 51
. . . . .21
. . . . . . . . . . . . . . . . .71
T
Time format . . . . . . . . . . . . . . . . . . .53
Time of arrival Time zone TMC
. . . . . . . . . . . . . . . . . . . . . .50, 55
Display on the map
on the route
Recalculating routes Toll roads Traffic information
. . . . . . . . . . . . . . . . . .60
. . . . . . . . . . . . . . . . . . . . .54
. . . . . . . . . . 56
. . . . . . . . . . . . . . . . 69
. . . . . . . . . . 58
. . . . . . . . . . . . . . . . . . . . .49
. . . . . . . . . . . . . .48
U
USB . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Using fast access mode
. . . . . . . . . . . .32
V
Voice . . . . . . . . . . . . . . . . . . . . . . . . .53
W
Warnings
Speed limit
Waypoint
delete
. . . . . . . . . . . . . . . . .52
. . . . . . . . . . . . . . . . . . . . .63
. . . . . . . . . . . . . . . . . . . . .64
Z
Zoom steps . . . . . . . . . . . . . . . . . . . . 66
> D
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
79
> H
> SK
Page 80
>>> TECHNICAL DATA

Technical Data

• Dimensions:
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
(W x H x D) in mm 125,3 x 82,4 x 17,6
• Weight:
168 grams
• Processor:
400 MHz Processor CISC-architecture
• Screen:
4.3 Inch Touch-Screen with 24 Bit colour depth 16,7 Mio Colours Low reflection values
• Storage:
2 GB Flash Storage 64 MB SD-RAM
• Micro SD Card Reader:
Support up to 4 GB FAT 32 formatted
• USB Interface:
USB Client 2.0 MINI USB
• Headphone output:
3.5 mm Stereo Socket
• 1 Internal speakers:
2 Watt max.
• Power supply voltage:
LPS (Limited Power Source) 5 Volt / 1A via USB connection
• AC Adapter (not included):
100 - 240 Volt
0.2 Ampere 50 - 60 Hz Output Voltage 5Volt
> PL
> CZ
> H
> SK
80
Page 81

NOTICE

Dear customer,
In conformance with current EC guidelines, any person may operate this unit. This unit con­forms to the current valid European or harmonised national standards. This designation is your guarantee that the unit conforms to the applicable specifications regarding electromag­netic compatibility. This means that interference with other electrical/electronic devices caused by the unit, or interference with this unit caused by other electrical/electronic devices, is largely prevented.
Z103/Z102
NOTICE >>>
> D
> GB
> F
> I
The EC type-approval mark (E13) issued by Luxembourg's Road Traffic Registra­tion Authority in accordance with European Directive ECE-R10 governing the EMC of motor vehicles in its current version authorises installation and operation of the unit in motor vehicles (classes L, M, N and O).

EU Declaration of Conformity

Harman/Becker Automotive Systems GmbH declares herewith that Traffic Assist conforms to the basic requirements of the applicable EU guidelines and in particular conforms to the basic requirements and the other relevant regulations of the R&TTE Directive 1999/5/EU.
You can find a comprehensive EU Declaration of Conformity on our website http://www.mybecker.com under the "Downloads" area for the respective product.
Z905
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
> SK
81
Page 82
>>> NOTICE

Disposal of the unit

> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
Customer information on the disposal of electrical and electronic devices (private households)
In accordance with the self-imposed principles of Harman/Becker Automotive Systems Gm­bH, the product has been developed and made from high-quality, recyclable materials and components. This symbol on the product and/or accompanying documents means that at the end of their life electrical and electronic products must be disposed of separately from domestic waste. Please take these products to communal collecting points or recycling centres for processing and salvage of materials. The units will be accepted there free of charge. The proper disposal of this product helps protect the environment and prevents harmful ef­fects on humans and the environment which could result from improper handling. More detailed information on the nearest collecting point or the nearest recycling centre can be obtained from your local council.
For commercial customers in the European Union
Please contact your dealer or supplier if you would like to dispose of this electrical/electronic equipment.
> TR
> GR
> PL
> CZ
> H
> SK
Information on disposal in countries outside of the European Union
This symbol is only valid within the European Union.
82
Page 83

Disposal of the battery

NOTICE >>>
> D

Duty to supply information according to battery legislation (BattV)

Batteries must not be disposed of in household waste. It is the duty of the user to return used batteries. Please only dispose of batteries via specialised dealers or at battery collection points. In this way, you make a positive contribution to environmental protection. Since 1998, German battery legislation obligates all citizens to dispose of used batteries exclusively via the retail or at collection points specially equipped for this purpose (statutory obligation to return). It is the duty of the retail and of manufacturers to take back these batteries free of charge and to correctly recycle them or to dispose of them as hazardous waste (statutory obligation to take back). If you wish to return your batteries to us, please send them, with adequate postage, to the following address:
Harman/Becker Automotive Systems GmbH
- Battery recycling ­Becker-Göring-Straße 16 16 D- 76307 Karlsbad- Ittersbach
The lithium ion battery in the Traffic Assist is marked with the adjacent symbol, consisting of a crossed-out waste bin, and the type of battery used.
Removing the battery
Before you hand in your old unit for disposal, the battery must first be removed.
Note:
Please note that in following the removal instructions for the battery described here, your unit may be destroyed. You should only remove the battery if your unit is old and is to be handed in for disposal.
Lithium ion
> GB
> F
> I
> E
> P
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
> H
83
> SK
Page 84
>>> NOTICE
> D
> GB
> F
> I
> E
> NL
> DK
> S
> N
> FIN
> TR
> GR
> PL
> CZ
2
1
3
> Completely discharge the battery (leave the unit switched on with no power suppply until it automatically switches off). > Unscrew and remove the 4 housing screws using a small cross-slot screwdriver. > Lever off the rear of the housing using a flat-blade screwdriver (levering at the slits at the side of the housing). > Lever off the battery (bonded to the circuit board) using a flat-blade screwdriver.
1
2
3
> Pull out the plug of the batttery connecting cable.
Note:
Do not reconnect a unit that you have opened to the power supply.
> H
> SK
84
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
