BEA IS40, IS40P User Manual
COMBINED ACTIVE INFRARED / MICROWAVE AND ACTIVE INFRARED ONLY SENSOR
“The Peak Of Detection”
1 Description
IS40
2 Specications
MICROWAVE FIELD ADJUSTMENT
LED INDICATORS
- The IS40 uses
Microwave
technology for
activation and
Active Infrared
technology
for presence
detection.
IS40 / IS40P
USER’S GUIDE
IS40P
- The IS40P uses Active Infrared (IR)
technology for presence detection only
and the activation relay can be triggered
by entering or exiting the IR eld.
DESCRIPTION SPECIFICATION
TECHNOLOGY MICROWAVE (IS40 Only) INFRARED
RADIATED FREQUENCY 24.175 GHz 875nm
RADIATED POWER DENSITY < 5 mW/cm² < 250mW/m²
DETECTION MODE Motion Motion & Presence
MAXIMUM DETECTION FIELD 13’ x 16’ (4m x 5m) (10’ x 10’) 3m x 3m
OUTPUT HOLD TIME 0.5 sec. to 9 sec. 0.5 sec.
REACTION TIME 100ms 250ms
MINIMUM TARGET SPEED 2 in/sec (5cm/sec) in sensor axis 0 in/sec (0cm/sec)
LED SIGNAL Green Red
ANTENNA TILT ANGLE -8° to 22° (relative to sensor front face) N/A
SENSOR TILT ANGLE 15° to 45°
SUPPLY VOLTAGE
MAIN FREQUENCY 50 to 60Hz
POWER CONSUMPTION < 2W
RELAY OUTPUT
- Max. Voltage
- Max. Current
- Max Switching Power
INSTALLATION HEIGHT 8’ to 16’ (2.5m to 5m)
TEMPERATURE RANGE -22°F ( -30°C) to + 140°F (60°C)
PROTECTION DEGREE NEMA-4
NORM CONFORMITY Electromagnetic compatibility (EMC) according to 2004/108/EEC, R&TTE: 1999/5/EC
DIMENSIONS (D X W X H) 5 in. X 4 in. X 3.75 in. (127mm x 102mm x 96mm)
MATERIAL
- Housing
- Face
COLOR
- Housing
- Face
CABLE LENGTH 32 feet (10m)
75.5371.01 EN 20080505 (75.5370) Page 1 of 6
2 Relays with switch-over contact (voltage free)
12 to 24VAC ± 10%
12 to 24VDC +30% / -5%
60 VDC / 125 VAC
1A (resistive)
30W (DC) / 60VA (AC)
ABS
Polycarbonate
Black
Transparent Purple
3 Precautions
15°
15°
30°
30°
C
E
I
L
I
N
G
W
A
L
L MOUNT
When the angle of the sensor is
chosen, tighten the screws firmly.
Mounting height: 16 ft.
Sensitivity: 9
Microwave field angle: 30°
M
O
U
N
T
3.25
6.50
9.75
13.00
19.70
16.30
3.25
0
3.25 6.506.50
ft.
ft.
20∞
45∞
30∞
This device IS NOT intended for use as a safety sensor.
Shut off all power before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian/vehicle trafc around the area.
Always stop pedestrian/vehicle trafc through the doorway when performing tests that may result in unexpected reactions by the door.
ESD electrostatic discharge: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board ensure
you dissipate your body’s charge.
Always check placement of all wiring before powering up to insure that moving parts will not catch any wires and cause damage to
equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10 / 19) upon completion of installation.
DO NOT attempt any internal repair of the sensor. All repairs and/or component replacements must be performed by BEA Inc. Unau-
thorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty.
4 Installation Tips
The sensor must be
rmly fastened to
prevent vibration.
DO NOT cover the sensor.
The sensor must not have
any object likely to move or
vibrate in its sensing eld.
5 Wiring
POWER (VAC / DC) ACTIVATION RELAY PRESENCE RELAY
LABEL
12-24 12-24 COM NO NC COM NO NC
COLOR
RED BLACK WHITE GREEN YELLOW
WHITE W/BLACK
STRIPE
GREEN W/BLACK
STRIPE
YELLOW W/BLACK
6 Installation

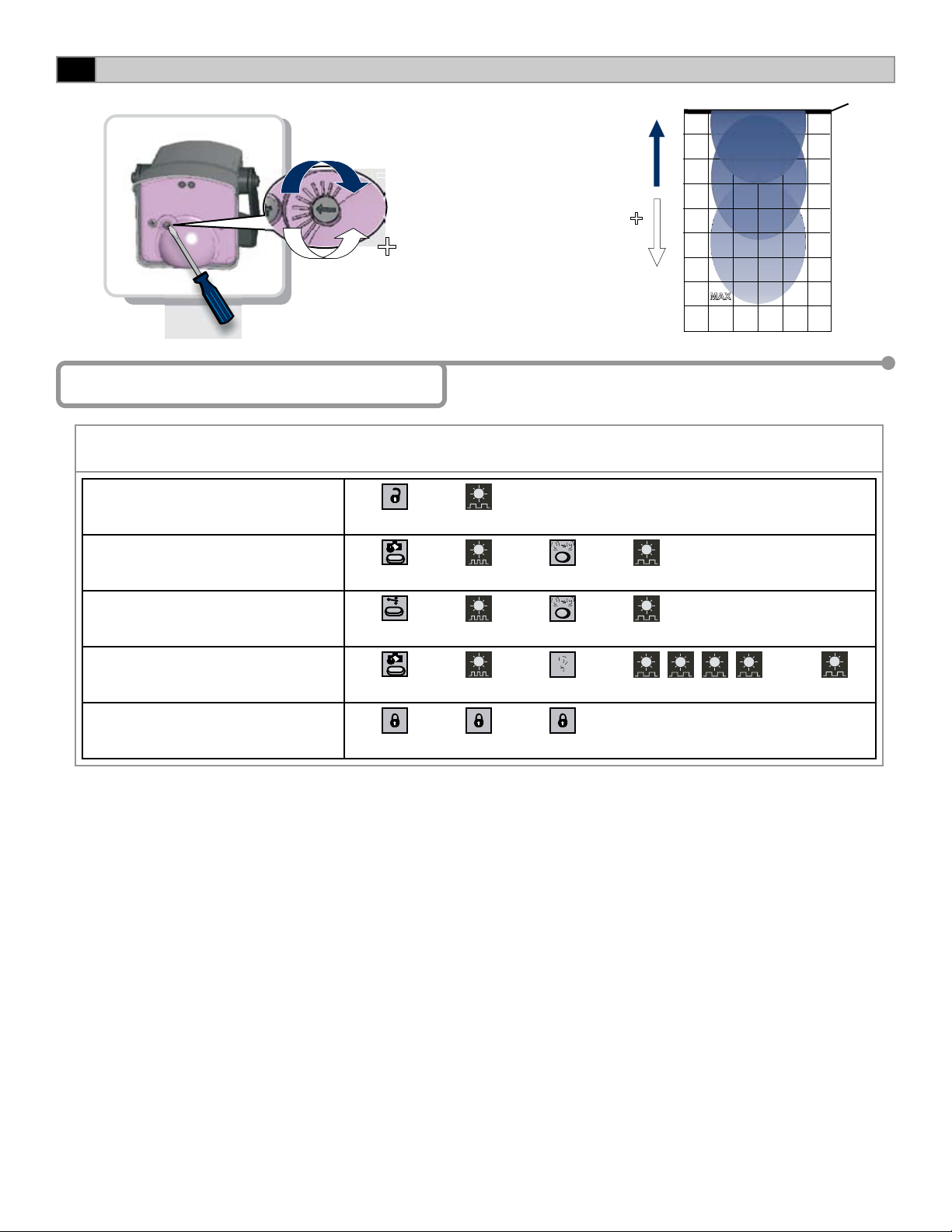

1 Sensor Tilt Angle
It is important to adjust sensor angle rst to position IR eld correctly. Then adapt angle of radar eld by using tilt angle adjustment screw.
NOTE: To obtain an IR pattern that’s
straight down (closest to the
door thershold); wall mounted
sensors need to be set at
20º, while sensors that are
extended out from the wall
should be set at around 15º.
STRIPE
Page 2 of 6 75.5371.01 EN 20080505 (75.5370)
