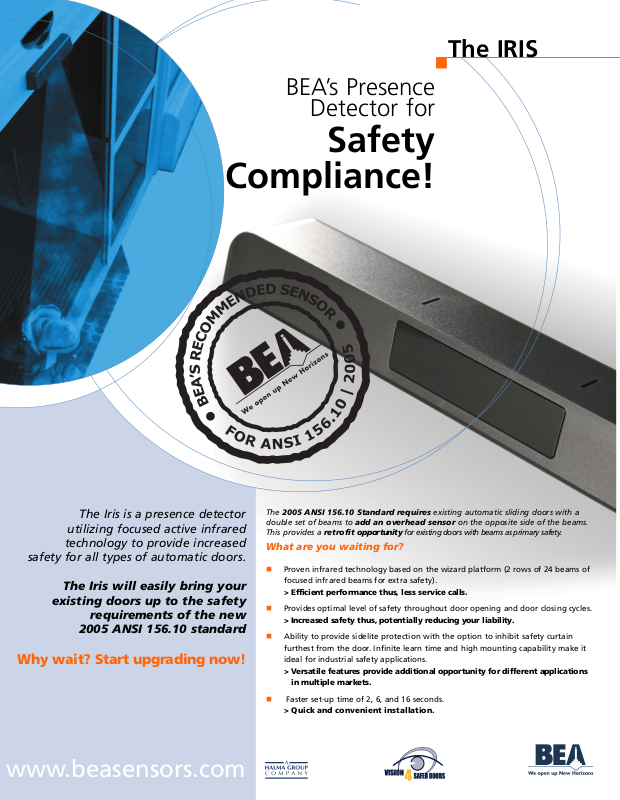

BEA Iris Presence Detector User Manual

BEA’s Presence

Detector for

Safety

Compliance!

The IRIS

The Iris is a presence detector

utilizing focused active infrared

technology to provide increased

safety for all types of automatic doors.

The Iris will easily bring your

existing doors up to the safety

requirements of the new

2005 ANSI 156.10 standard

Why wait? Start upgrading now!

www.beasensors.com

The 2005 ANSI 156.10 Standar
double set of beams to add an over
This provides a

What ar

n Proven infrared technology based on the wizard platform (2 rows of 24 beams of

focused infrared beams for extra safety).

> Efficient performance thus, less service calls.

n Provides optimal level of safety throughout door opening and door closing cycles.

> Increased safety thus, potentially reducing your liability.

n Ability to provide sidelite protection with the option to inhibit safety curtain

furthest from the door. Infinite learn time and high mounting capability make it
ideal for industrial safety applications.

> V

in multiple markets.

n Faster set-up time of 2, 6, and 16 seconds.

> Quick and convenient installation.

retrofit opportunity for existing doors with beams as primary safety.

e you waiting for?

ersatile featur

es pr

d requires

ovide additional oppor

existing automatic sliding doors with a

head sensor

on the opposite side of the beams.

ent applications

tunity for dif

fer

1

2

4

6 7

8

3

5

Iris Components

1

Cable

2

Mounting Screws

3

Manual Set-up Push Buttons

4

Presence Sensor

5

Cover

6

LED Indicator

7

I.R. Remote Receiver

8

Front Lenses

Iris Applications

Threshold Safety for Sliding Door Sidelite Safety for Sliding Door

1

2

Contact Information

BEA Inc.
RIDC Park West
100 Enterprise Drive
Pittsburgh PA, 15275
Phone [phone]
Fax [phone]
Toll Free 1.800.523.2462

BEA West
2401 Pine Street
Los Angeles, CA 91767
Phone [phone]
Fax [phone]
Toll Free 1.877.232.9378

APPROACH SIDE

n The Iris provides optimal safety around the threshold of an

automatic sliding door with 2 rows of 24 focused infrared spots.
The application above shows the Iris installed as additional overhead
safety sensor (as required by the upcoming 2005 ANSI 156.10 standard)
on an automatic sliding door equipped with an existing double set of
beams and a set of motion detectors.

Additional Safety for Swinging Door

3

APPROACH SIDE

n The Iris can be mounted in the ceiling thus eliminating the

need for extra beams at the end of the guide rail.

n The Iris has the ability to inhibit the safety curtain furthest

from the door for sidelite protection. Different lenses are
available for a customized detection zone. The application
above shows the Wizard installed as primary detection and
safety sensor and the Iris used as sidelite protection sensor.
The ISSL accessory is recommended for that specific installation.

Iris Accessories

WMB

mounting bracket for
ceiling mounting

concealed application

Remote Control

for easy and accurate

setup of the Iris

Spotfinder

for precise positioning
of the infrared curtains
in front of the door

3 lenses set (left, center and right)

for custom sidelite detection zones

WCA

for recessed and

ISLL
