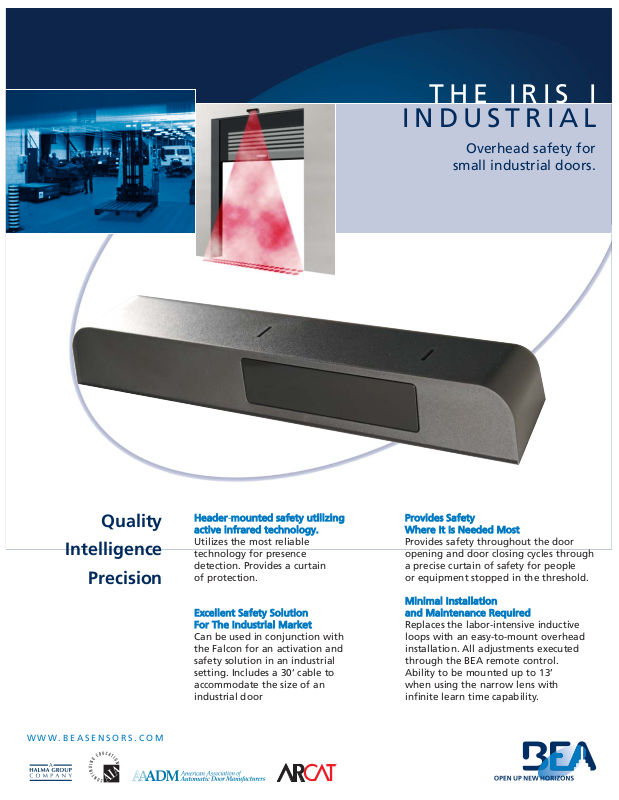

Header-mmounted safety utilizing
active infrared technology.
Utilizes the most reliable
technology for presence
detection. Provides a curtain
of protection.
Excellent Safety Solution
For The Industrial Market
Can be used in conjunction with
the Falcon for an activation and
safety solution in an industrial
setting. Includes a 30’ cable to
accommodate the size of an
industrial door
Overhead safety for
small industrial doors.
®
Provides Safety
Where It Is Needed Most
Provides safety throughout the door
opening and door closing cycles through
a precise curtain of safety for people
or equipment stopped in the threshold.
Minimal Installation
and Maintenance Required
Replaces the labor-intensive inductive
loops with an easy-to-mount overhead
installation. All adjustments executed
through the BEA remote control.
Ability to be mounted up to 13’
when using the narrow lens with
infinite learn time capability.
Quality
Intelligence
Precision
WWW.BEASENSORS.COM
THE IRIS I
INDUSTRIAL
1
2
4
3
5
Contact Information
BEA Inc.
RIDC Park West
100 Enterprise Drive
Pittsburgh PA, 15275
Phone +1.412.249.4100
Fax +1.888.523.2462
Toll Free 1-800.523.2462
BEA West
2401 Pine Street
Los Angeles, CA 91767
Phone +1.909.596.3011
Fax +1.909.596.5411
Toll Free 1-877.232.9378
Provides threshold safety up to 13’ on small Industrial doors.
Provides optimal safety around the threshold of an
automatic sliding door with 2 rows of 24 focused
infrared spots.
EagleHM SuperScan Falcon FlexIR
24Vac Bodymount BodyGuard Matrix
1
2
3
4
Cable
Mounting Screws
Manual Set-up Push Buttons
Presence Sensor
Cover
LED Indicator
I.R. Remote Receiver
Front Lenses
5
DIMENSIONAL DRAWINGS
APPLICATIONS
RELATED PRODUCTS
COMPONENTS
6
7
WWW.BEASENSORS.COM
6
7
Overhead safety for
small industrial doors.
8
8
TECHNICAL SPECS
Supply voltage
12V (– 5%) to 24V (+10%) AC/DC
Mains frequency
50 - 60 Hz
Power consumption
< 3 W
Mounting height
6’8” TO 13’
2-ccolor LED
RED (presence detection)
ORANGE (signal saturation,
error)
Temperature
range
-22°F to +131°F
Degree of protection
IP54
Norm conformity
EMC 89/336/EEC
Dimensions
10.3” (L) x 2.2”(H) x 1.43” (D)
Weight
8 oz.
Housing material
ABS + LURAN S
Minimum l
ength of cable
30’ (9 m) 9 conductor (10IRIS-I)
Range of Remote Control
16’
Detection mode
Presence
Response time
< 128ms
Technology
Focused active infrared and
self-monitored microprocessor
Spot diameter (standard)
4” max
Number of spots
24 or 12 spots by curtain
Number of curtains
2
Detection field
(@ 7’ Ht.)
Width Depth
Wide
6’6” 13.75”
Narrow
3’3” 13.75”
Angle
From - 4° to + 4° (adjustable)
Output specification Relay
Max. contact voltage
42V AC/ DC
Max. contact current
1A (resistive)
Max. switching power
30W (DC) / 60VA (AC)
Output holdtime
1s (fixed)
