6” ESCUTCHEON
9.25“
235mm
F
C B C
C
B C
A
A
A
A
E
1.75”
44.5mm
D
D
E
X
X

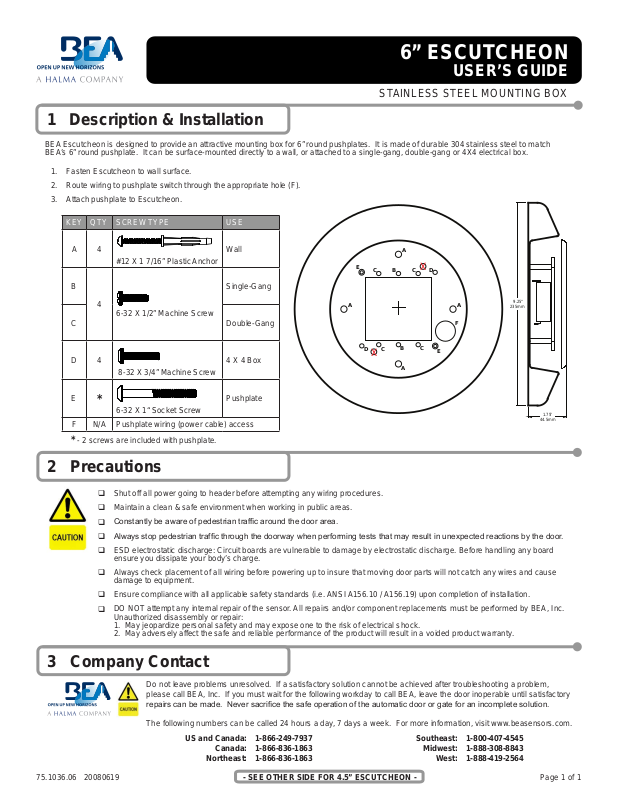

USER’S GUIDE
STAINLESS STEEL MOUNTING BOX
1 Description & Installation
BEA Escutcheon is designed to provide an attractive mounting box for 6” round pushplates. It is made of durable 304 stainless steel to match
BEA’s 6” round pushplate. It can be surface-mounted directly to a wall, or attached to a single-gang, double-gang or 4X4 electrical box.
1. Fasten Escutcheon to wall surface.
2. Route wiring to pushplate switch through the appropriate hole (F).
3. Attach pushplate to Escutcheon.
KEY QTY SCREW TYPE USE
A 4
B
C Double-Gang
D 4
E
F N/A Pushplate wiring (power cable) access
* - 2 screws are included with pushplate.
#12 X 1 7/16” Plastic Anchor
4
6-32 X 1/2” Machine Screw
8-32 X 3/4” Machine Screw
*
6-32 X 1“ Socket Screw
2 Precautions
Shut off all power going to header before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian trafc around the door area.
Always stop pedestrian trafc through the doorway when performing tests that may result in unexpected reactions by the door.
ESD electrostatic discharge: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board
ensure you dissipate your body’s charge.
Always check placement of all wiring before powering up to insure that moving door parts will not catch any wires and cause
damage to equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10 / A156.19) upon completion of installation.
DO NOT attempt any internal repair of the sensor. All repairs and/or component replacements must be performed by BEA, Inc.
Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty.
Wall
Single-Gang
4 X 4 Box
Pushplate
3 Company Contact
75.1036.06 20080619 - SEE OTHER SIDE FOR 4.5” ESCUTCHEON - Page 1 of 1
Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem,
please call BEA, Inc. If you must wait for the following workday to call BEA, leave the door inoperable until satisfactory
repairs can be made. Never sacrice the safe operation of the automatic door or gate for an incomplete solution.
The following numbers can be called 24 hours a day, 7 days a week. For more information, visit www.beasensors.com.
US and Canada:
Canada:
Northeast:
1-866-249-7937
1-866-836-1863
1-866-836-1863
Southeast:
Midwest:
West:
1-800-407-4545
1-888-308-8843
1-888-419-2564
4.5” ESCUTCHEON
D
D
6.93“
176mm
1.61”
41mm
A A
A
A
C C
C
C
B
B
X
X
USER’S GUIDE
STAINLESS STEEL MOUNTING BOX
1 Description & Installation
BEA Escutcheon is designed to provide an attractive mounting box for 4.5” round pushplates. It is made of durable 304 stainless steel to match
BEA’s 4.5” round pushplate. It can be surface-mounted directly to a wall, or attached to a single-gang or double-gang box.
1. Fasten Escutcheon to wall surface.
2. Route wiring to pushplate switch through the large square hole.
3. Attach pushplate to Escutcheon.
KEY QTY SCREW TYPE USE
A 4
B
C Double-Gang
D 2
NOTE: Socket screws are inserted into appropriate holes
#12 X 1 7/16” Plastic Anchor
4
6-32 X 1/2” Machine Screw
6-32 X 1 1/4“ Socket Screw
/ posts for attaching the pushplate. The other two
holes / posts are used to suppport the pushplate.
Wall
Single-Gang
Pushplate
2 Precautions
Shut off all power going to header before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian trafc around the door area.
Always stop pedestrian trafc through the doorway when performing tests that may result in unexpected reactions by the door.
ESD electrostatic discharge: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board
ensure you dissipate your body’s charge.
Always check placement of all wiring before powering up to insure that moving door parts will not catch any wires and cause
damage to equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10 / A156.19) upon completion of installation.
DO NOT attempt any internal repair of the sensor. All repairs and/or component replacements must be performed by BEA, Inc.
Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty.
3 Company Contact
75.1036.06 20080619 - SEE OTHER SIDE FOR 6” ESCUTCHEON - Page 1 of 1
Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem,
please call BEA, Inc. If you must wait for the following workday to call BEA, leave the door inoperable until satisfactory
repairs can be made. Never sacrice the safe operation of the automatic door or gate for an incomplete solution.
The following numbers can be called 24 hours a day, 7 days a week. For more information, visit www.beasensors.com.
US and Canada:
Canada:
Northeast:
1-866-249-7937
1-866-836-1863
1-866-836-1863
Southeast:
Midwest:
West:
1-800-407-4545
1-888-308-8843
1-888-419-2564
