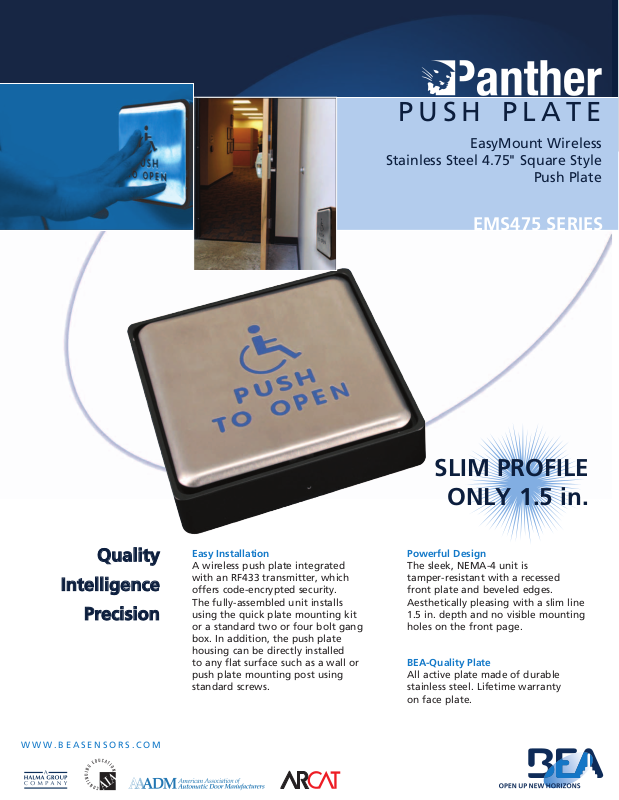

P U S H P L A T E
EasyMount Wireless
Stainless Steel 4.75" Square Style
Push Plate
EMS475 SERIES
QQuuaalliittyy
IInntteelllliiggeennccee
PPrreecciissiioonn
W W W . B E A S E N S O R S . C O M
Easy Installation
A wireless push plate integrated
with an RF433 transmitter, which
offers code-encrypted security.
The fully-assembled unit installs
using the quick plate mounting kit
or a standard two or four bolt gang
box. In addition, the push plate
housing can be directly installed
to any flat surface such as a wall or
push plate mounting post using
standard screws.
SLIM PROFILE
ONLY 1.5 in.
Powerful Design
The sleek, NEMA-4 unit is
tamper-resistant with a recessed
front plate and beveled edges.
Aesthetically pleasing with a slim line
1.5 in. depth and no visible mounting
holes on the front page.
BEA-Quality Plate
All active plate made of durable
stainless steel. Lifetime warranty
on face plate.
D I M E N S I O N A L D R A W I N G S
0
31
21.5
03
1
21.5
1.
63
24.1
Front View
.12 in.
5
130 mm.
.12 in.
5
130 mm.
Side View
1.42 in.
36.1 mm.
MS475 Housing
E
llows for direct mounting
A
without mounting kit or gang
box.
3D Perspective
T E C H N I C A L S P E C S
Outer Dimensions
(Housing Assembly)
5.12 in. (W) x 5.12 in. (H)
x 1.42 in. (D)
Mounting Options
EasyMount kit
Standard single gang box
Standard double gang box
Flat surface direct mounting
without mounting kit or gang
box
Transmitter Operation
Wireless design
433 Mhz digital frequency
Rolling code encrypted
for security
FCC IC part 15 approved
P U S H P L A T E
EasyMount Wireless
Stainless Steel 4.75" Square Style
Push Plate
EMS475 SERIES
C O M P O N E N T S
4
1
1
Front Plate
2
RF 433 Transmitter Board
3
2
A P P L I C A T I O N S
Slight pressure applied to anywhere on the all-active
plate will open the low energy door.
E M S 4 7 5 S E R I E S
10EMS475 - Text only
W W W . B E A S E N S O R S . C O M
10EMS475L - Logo only
10EMS4751 - Text and Logo
Finish
16 gauge, 304 2B stainless steel
face plate with:
Brush finish
Powder coat with clear coat
3
Housing
4
Mounting Bracket
