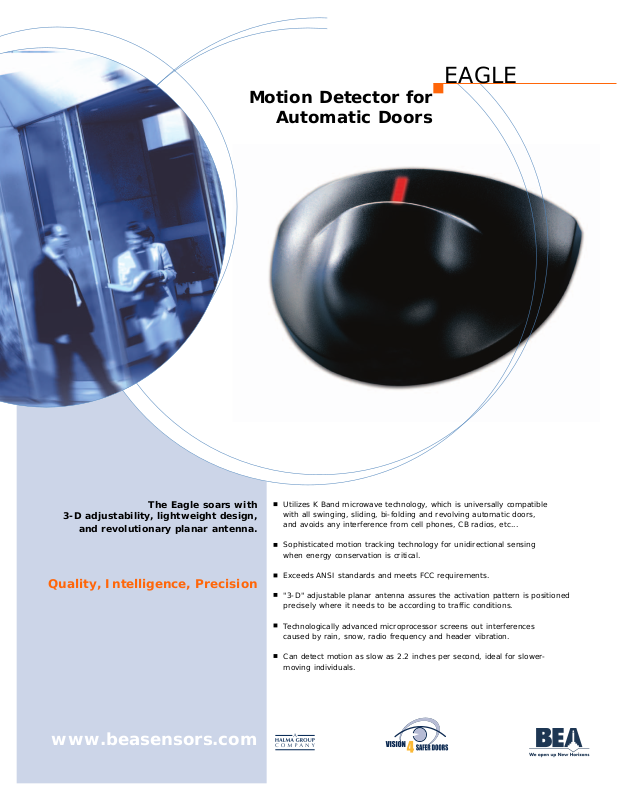

BEA Eagle User Manual
Motion Detector for
Automatic Doors
EAGLE
The Eagle soars with
3-D adjustability, lightweight design,
and revolutionary planar antenna.
Quality, Intelligence, Precision
www.beasensors.com
es K Band microwave technology, which is universally compatible
Utiliz
with all swinging, sliding, bi-folding and revolving automatic doors,
and avoids any interference from cell phones, CB radios, etc...
Sophisticated motion tracking technology for unidirectional sensing
when energy conservation is critical.
Exceeds ANSI standards and meets FCC requirements.
"3-D" adjustable planar antenna assures the activ
precisely where it needs to be according to traffic conditions.
echnologically advanced microprocessor screens out interferences
T
caused by rain, snow, radio frequency and header vibration.
Can detect motion as slow as 2.2 inches per second, ideal for slower
moving individuals.
ation pattern is positioned
-
1
2
6
9
3
4
7
8
Eagle Technical Specifications
Color: Black (ready to paint)
Power Consumption: <2W
Max contact voltage: 60VDC/125V
Max contact connect: 1 A (resistance)
Max switching power: 30W
Detection Area: Wide pattern 12' w
(3.96m) to 6'6" d (1.98m)
Narrow pattern 6'6" w
(1.98m) to 8' d (2.43m)
Dimensions: 4 ¾" w (120mm) x 3 1/8" h
(80mm) 2" d (50mm)
Frequency Emitted: 24.125 GHz
Manual Adjustments: Sensitivity
Orientation of antenna
Wide and narrow pattern
Material: ABS plastic
Mounting Height: Up to 10' (3m)
Power Supply: Output rela
Technology: Microw
Temperature Range: -30 F (-35 C) to +131 F (55 C)
Tilt Angle: From 0 to 90 v
From -30 to 30 later
Weight: 7 oz. (198g)
y 12 to 24V AC/DC 10%
ave and Microprocessor
ertical
al
EAGLE COMPONENTS
1
Removable plug connector
5
2
Remote controlled receiver
3
Serial communication connector
4
LED (detection indication)
5
Sensitivity adjustment buttons
6
Antenna bracket front adjustment
7
Planar antenna (wide or narrow)
8
Rotating drum for lateral adjustment
9
Remote Control
Applications
The Eagle’
can detect people approaching the door from odd angles.
The Eagle offers extra immunity protection for precise
activation zones needed on swinging doors.
s flat antenna provides a stable detection that
Contact Information
BEA Inc.
RIDC Park West
100 Enterprise Drive
Pittsburgh PA, 15275
Phone +1.412.249.4100
ax +1.888.523.2462
F
Toll Free 1-800.523.2462
Bodyguard LO Linx 24Vac Bodymount SBK30 Eagle Rain Cover
BEA West
2401 Pine Street
Los Angeles, CA 91767
Phone +1.909.596.3011
ax +1.909.596.5411
F
Toll Free 1-877.232.9378
www.beasensors.com
The Eagle pro
field, excellent for revolving doors.
vides a v
ery wide and deep activation
