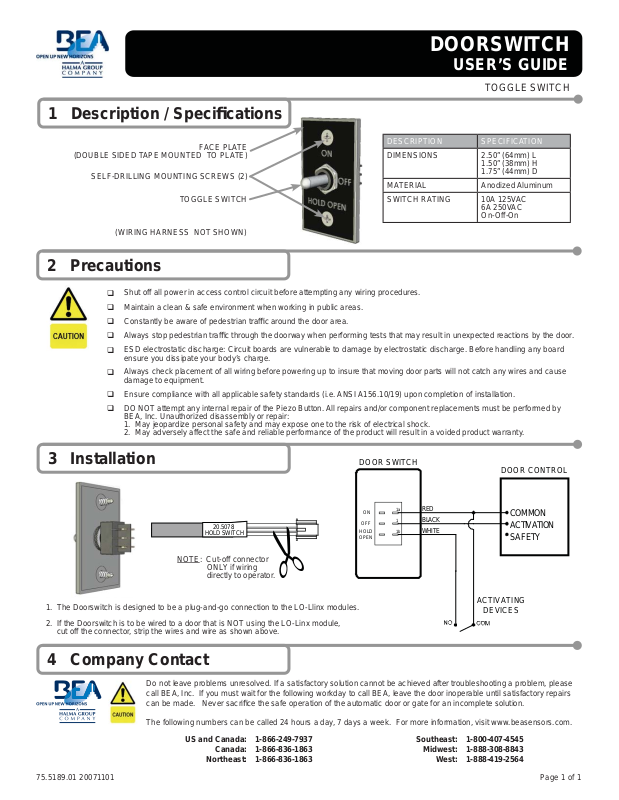

1 Description / Specifi cations

DOORSWITCH

USER’S GUIDE

TOGGLE SWITCH

(DOUBLE SIDED TAPE MOUNTED TO PLATE)

SELF-DRILLING MOUNTING SCREWS (2)

TOGGLE SWITCH

(WIRING HARNESS NOT SHOWN)

2 Precautions

Shut off all power in access control circuit before attempting any wiring procedures.



Maintain a clean & safe environment when working in public areas.



Constantly be aware of pedestrian traffi c around the door area.



Always stop pedestrian traffi c through the doorway when performing tests that may result in unexpected reactions by the door.



ESD electrostatic discharge: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board



ensure you dissipate your body’s charge.
Always check placement of all wiring before powering up to insure that moving door parts will not catch any wires and cause



damage to equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10/19) upon completion of installation.



DO NOT attempt any internal repair of the Piezo Button. All repairs and/or component replacements must be performed by



BEA, Inc. Unauthorized disassembly or repair:

1. May jeopardize personal safety and may expose one to the risk of electrical shock.

2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty.

FACE PLATE

DESCRIPTION SPECIFICATION

DIMENSIONS 2.50” (64mm) L

1.50” (38mm) H

1.75” (44mm) D
MATERIAL Anodized Aluminum
SWITCH RATING 10A 125VAC

6A 250VAC
On-Off-On

3 Installation

20.5078

HOLD SWITCH

NOTE: Cut-off connector

ONLY if wiring
directly to operator.

1. The Doorswitch is designed to be a plug-and-go connection to the LO-Llinx modules.

2. If the Doorswitch is to be wired to a door that is NOT using the LO-Linx module,
cut off the connector, strip the wires and wire as shown above.

4 Company Contact

Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem, please
call BEA, Inc. If you must wait for the following workday to call BEA, leave the door inoperable until satisfactory repairs
can be made. Never sacrifi ce the safe operation of the automatic door or gate for an incomplete solution.

The following numbers can be called 24 hours a day, 7 days a week. For more information, visit www.beasensors.com.

US and Canada:

Canada:

Northeast:

1-866-249-7937
1-866-836-1863
1-866-836-1863

DOOR SWITCH

ON

OFF

HOLD
OPEN

1a

1
1b

RE D
BLACK
WHITE

Southeast:

Midwest:

West:

DOOR CONTROL

COMMON
ACTIVATION
SAFETY

ACTIVATING

DEVICES

1-800-407-4545
1-888-308-8843
1-888-419-2564

75.5189.01 20071101 Page 1 of 1
