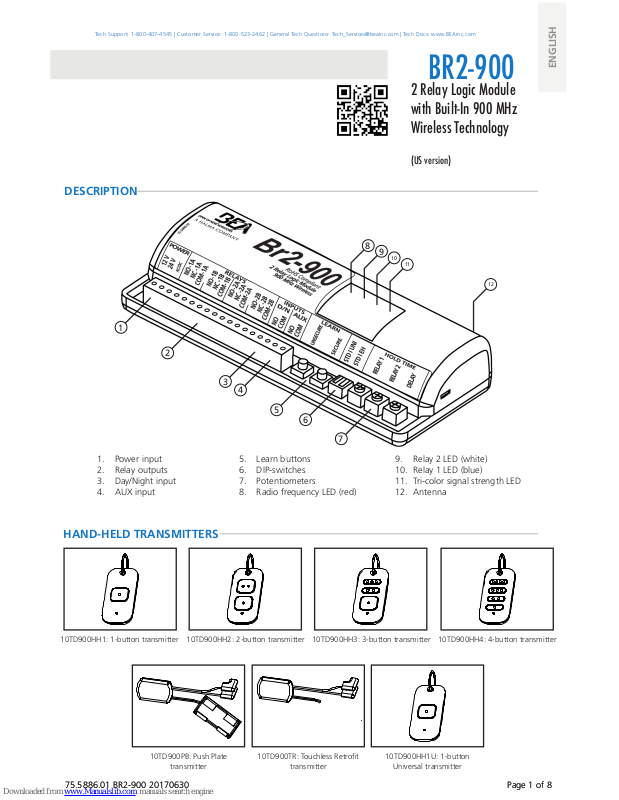

TROUBLESHOOTING
Br2-900 will not
react to any inputs

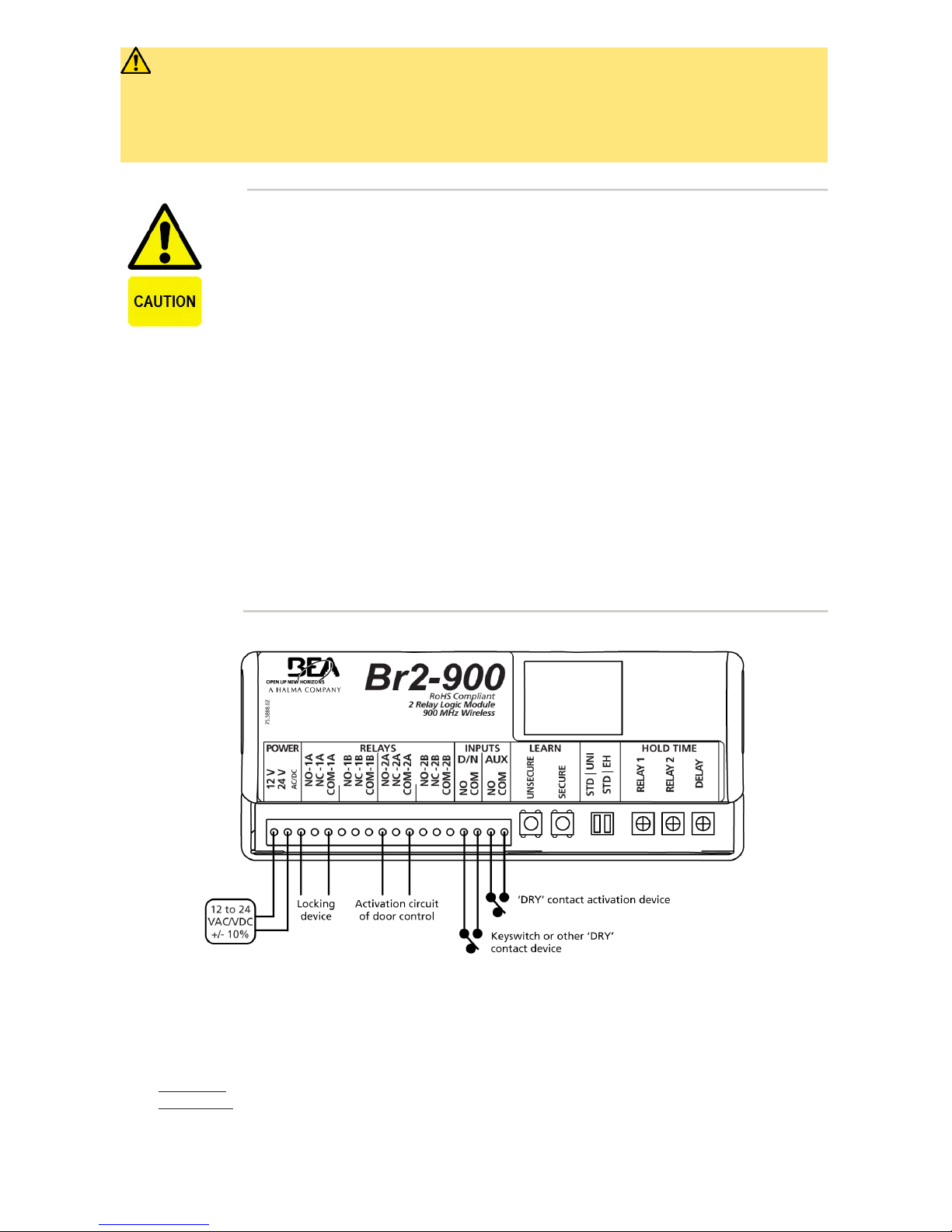

Incorrect power Verify power supply of 12 – 24
VAC/VDC +/-10% is wired to
correct terminals

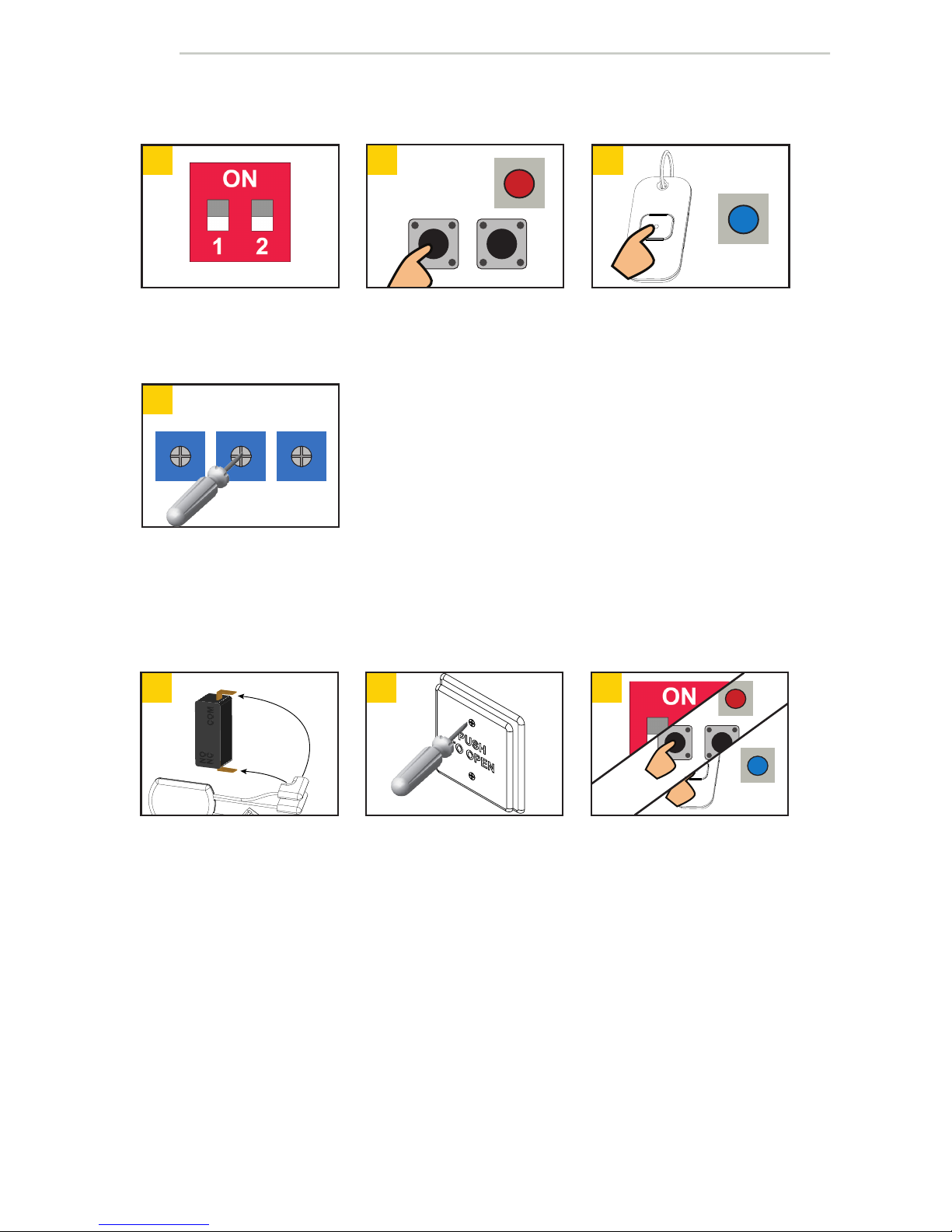

Not programmed Ensure a Br2-900 is programmed
with wireless transmitter

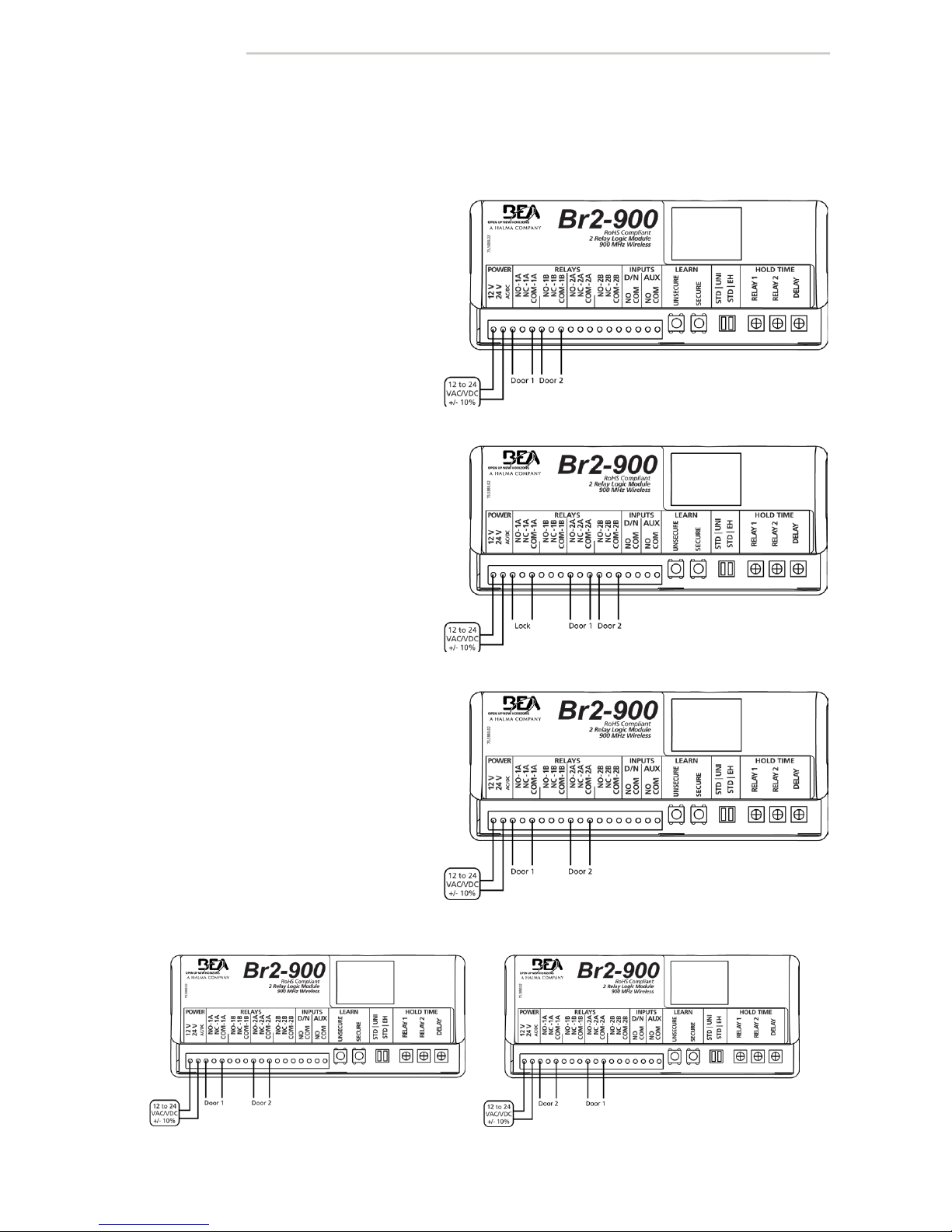

Incorrect wiring Verify wiring
Defective Br2-900 Replace Br2-900
Br2-900 has no
output
Incorrect output devices Ensure proper devices are
connected to outputs
Incorrect wiring Verify wiring
Incorrect settings Verify programming and
potentiometer settings
Defective Br2-900 Replace Br2-900
Red LED on receiver
flickering; unable to
program
Push Plate is stuck Disconnect push plates to
determine which one is stuck (LED
should go out)
Faulty transmitter

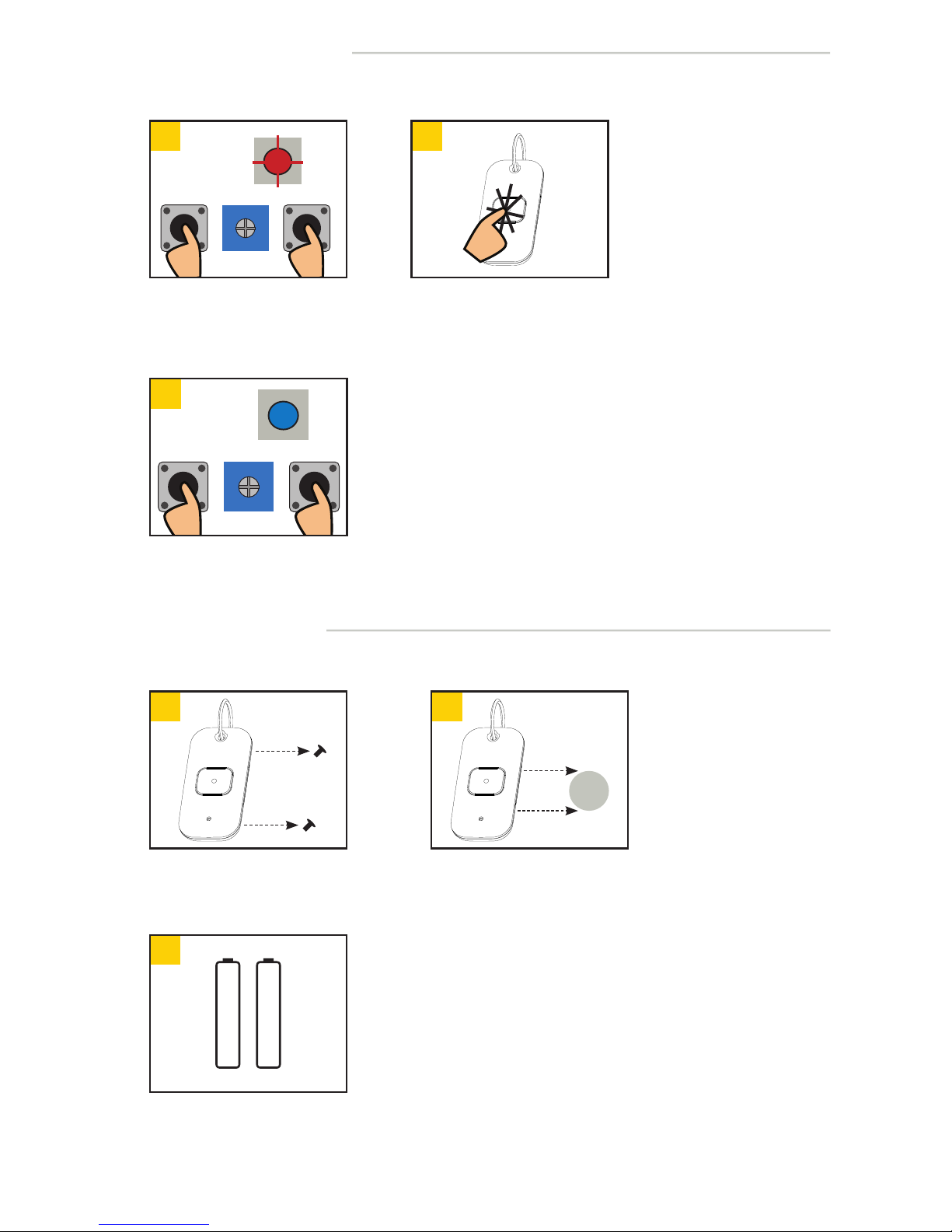

If LED does not go out, remove
transmitter batteries to determine
which is faulty, replace transmitter
Weak signal Antenna positioned poorly Position antenna outside of door
header
TECHNICAL SPECIFICATIONS
Supply Voltage 12 – 24 VAC / VDC ±10%
Current Consumption 45 mA DC
75 mA AC
Frequency 908 – 918 MHz (frequency hopping)
Emitted radio power -25 dBm (TX)
Power consumption 0.5 – 1.5 W
Programmable transmitters per receiver 75
Temperature Rating -22 °F – 158 °F (-30 °C – 70 °C)
Input
Day / Night (24hr)
AUX
DRY contact
DRY contact
Contact Rating
Relay 1 DPDT / Relay 2 DPDT 2 A @ 30 VDC or 2 A @ 24 VAC
LEDs blue (relay 1 activation)
white (relay 2 activation)
red (radio frequency / learn)
tri-color (signal strength)
Certification FCC, IC
Dimensions 5.2" (W) x 1" (H) x 2.2" (D)
(133 mm x 25 mm x 55 mm)
Housing ABS (white translucent)
Specifications are subject to change without prior notice.
All values measured in specific conditions.
