CONTROL SYSTEM 3-INPUT SWITCH
INSTALLATION INSTRUCTIONS
1
Dear customer,
Congratulations on your purchase of a Bazooka Audio Input Control System. At Bazooka, we are fanatics
about accurate music reproduction. Your selection of our products for your sound system indicates that
quality sound is also important to you too. At SAS, we take great pride in manufacturing revolutionary audio
products, and through the years of engineering expertise, hand craftsmanship and critical testing
procedures, we have created this high-performance input switcher. We hope that you will take as much
pride in owning and using one of these high-quality audio products as we do designing and manufacturing
them.
When properly installed and operated, your Bazooka will give you years of clean
uninterrupted sound reproduction. Therefore, we urge you to take a few minutes to carefully read through
this manual. It will explain all of the features of your amplifier and help insure trouble free installation.
Sound can be deceiving. Over time your hearing comfort level adapts to higher volumes of sound. What may
have sounded normal can actually be too loud and harmful to your hearing. Guard against this by setting your
equipment at a safe level before your hearing adapts.
To establish a “safe level”,
Start with your volume control at a low setting.
Slowly increase the volume control until you can hear comfortably, clearly and without
distortion.
Once you have established a comfortable “sound level”, make a note of this position and do not go
above this setting
Taking a minute to do this will help prevent your hearing from being damaged and allow you to enjoy listening
to music throughout your lifetime.
Audio Input Control System
2
SAFETY PRECAUTIONS
Fuse amplifiers power wire at the battery.
Be sure to fuse the power wire within 6” of the vehicles battery. This will protect the vehicle and CSS-3I in
case of a short circuit between the CSS-3I and battery.
Use high grade wire connectors.
To ensure maximum power transfer and secure safe connections, it is recommended to use high grade
barrier spades (for connection at amplifier if applicable) and terminal rings (for connection at battery).
Do not run any wires underneath vehicle.
Exposed wires have a chance of being cut or damaged. It is best to run all wires through the vehicle under
the carpet and/or side panels. This lends to a cleaner installation and less risk of damage.
Use caution when mounting the CSS-3I.
Remember there are many electrical wires, gas lines, vacuum lines, brake lines as well as a gas tank in the
automobile. Make sure you know where they are when mounting the amplifier to avoid puncturing lines,
shorting wires or drilling holes in the gas tank.
Run signal wires away from electrical wires.
To avoid possibility of induced noise from the vehicles electrical system (i.e. popping noises or engine noise),
run wires away from the vehicles electrical wiring.
Make all ground wires as short as possible and at the same point.
In order to reduce the chance of ground loops (i.e. engine noise), make the grounding wire as short as
possible to reduce the wire's resistance. Also, when using multiple components, make sure all units are
grounded at the same point.
Avoid sharp edges when running the wires.
To avoid the possibility of power, signal or speaker shorts, be careful not to allow the CSS-3I wires to come in
contact with sharp edges. Use a grommet to protect the wire when running through the fire wall .
3
FEATURES AND BENEFITS
Multiple Source Inputs
The CSS-3I’s allows for two low level inputs (RCA’s) and one Stereo 3.5mm stereo input jack (MP3 or iPod). This
gives the flexibility to choose what source input you wish to play through your amplifier.
Source Thru-puts
We have included source thru-puts for the inputs A & B. This allows you to pass the same source signal to
another CCS-3I or additional amplifiers in the system.
Remote Turn-on
Automatically turns the CSS-3I on when connected to the head unit's remote output. The CSS-3I will turn on
and off with the head unit along with the amplifier attached to the CSS-3I.

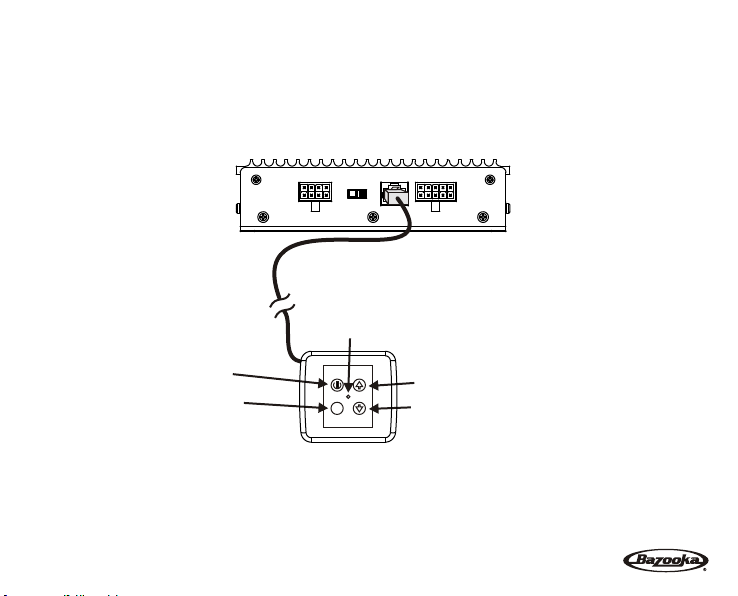

CSR Input Jack
A remote input jack has been provided for connection with optional CSR-W or CSR-I Power, Source and Volume
Control. The CSR’s allow independent control of source inputs and the volume of the amplifier(s) connected
to the CSS-3I.
Adjustable Level Control for A & B Level Inputs
Independent level matching between each input source and the power amplifier. This allows you to adjust
each source input to optimize the overall level to the connected amplifier.
4
MOUNTING LOCATION
Before you start the installation, it will be necessary to find a mounting location for the unit. Find a location
in which the CSS-3I will receive adequate ventilation in order to dissipate the heat it develops during
operation. Do not mount in the engine compartment.

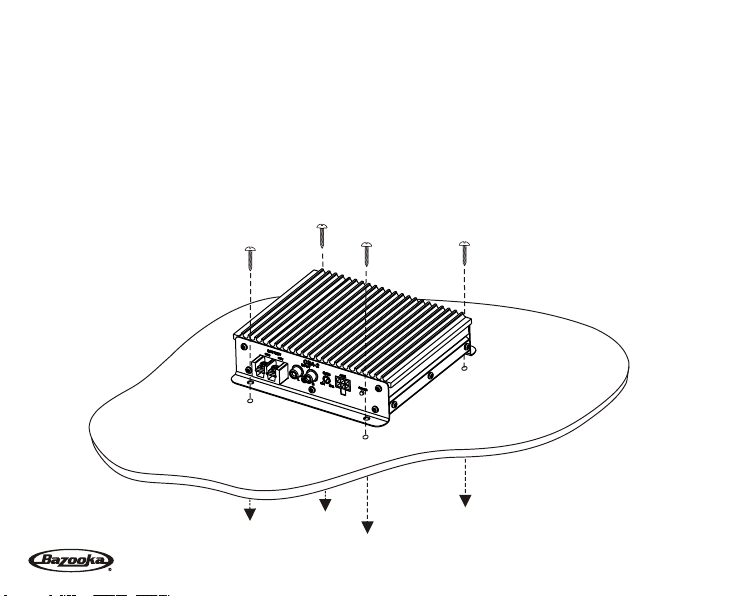

Select the location in which you wish to mount the CSS-3I. Use caution when mounting the CSS-3I, there are
many wires, gas lines, vacuum lines, brake lines as well as a gas tank in the automobile. Make sure you know
where they are when mounting the unit to avoid puncturing lines, shorting wires or drilling holes in the gas
tank. Once you are ready, use a pencil to mark the mounting holes in the bottom panel. After you have marked
the locations of the holes move CSS-3I out of the way and drill small starter holes to make the tapping screws
easier to install. Use provided screws to tighten down the CSS-3I.
5

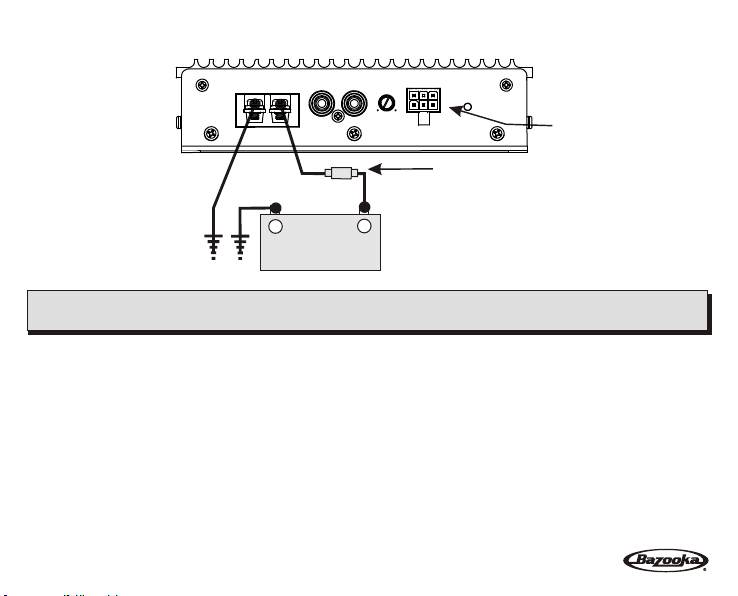

POWER CONNECTIONS
IMPORTANT! Before making any connections, disconnect the vehicles battery until the installation is
completed to avoid possible damage to the electrical system.
BAZOOKABAZOOKA
The Power button on the CSR-W or
CS R-I tu rns an y a mpl ifi er
connected to the Orange wire “ON”
or “OFF”. Please note that the
CSS-3I itself must be powered
“ON” from the radio as explained
below.
R
3.5mm
Stereo Input
Input A
Level A
CSS-3I
Audio Input Control System
Thru-put A
Output to Amp
L
L
R
CSR-W or CSR-I
L
R
Input B
Level B
Status
Thru-put B
L
R
HIGH LEVEL INPUT
FILTER
HPF/FULL
SEL
L
RJ-45
Power
R
BLUE WIRE FROM CSA-2’S
SPEAKER OUTPUT
WIRE HARNESS
ORANGE WIRE
SWITCHED +12V OUTPUT
YELLOW WIRE
+12V INPUT
REMOTE
SPEAKER OUTPUT
BLACK WIRE
GROUND

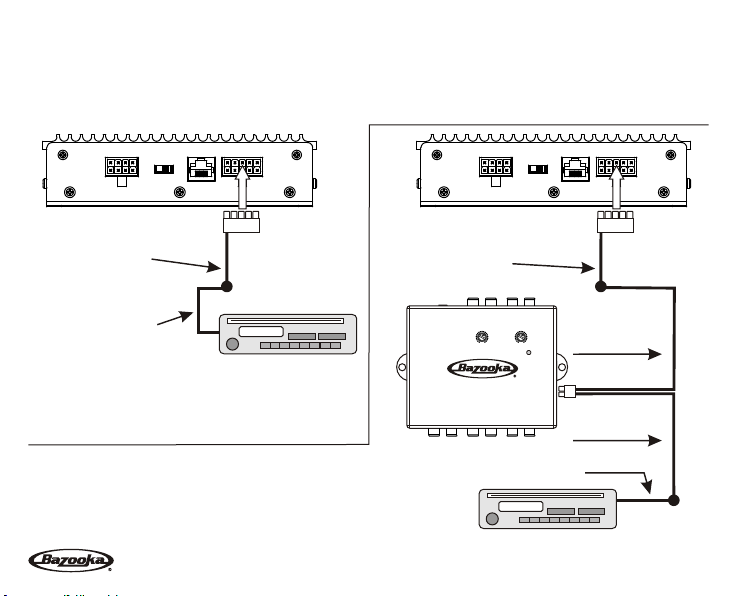

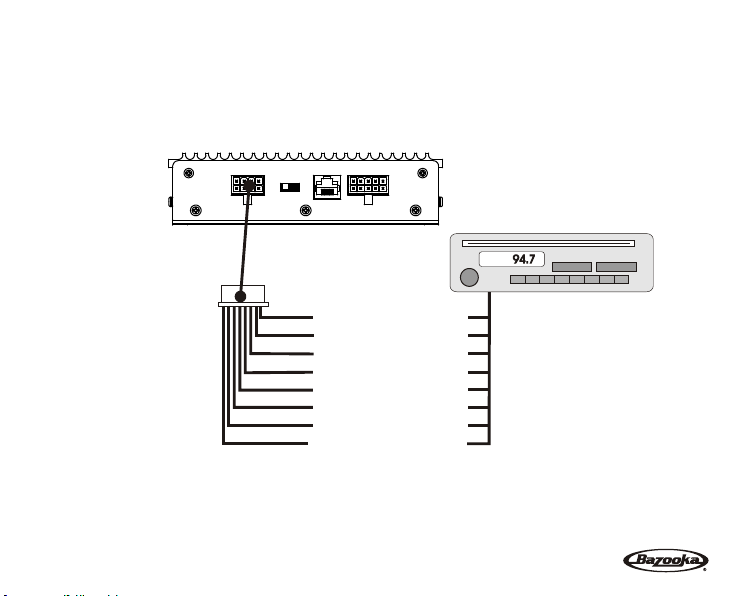

The Radio's Remote Wire turns
the CSS-3I On and Off as well as
any amplifiers connected to the
switched orange wire. Think of
the Radio as a master power
switch for the entire system.
RADIO'S REMOTE
TURN-ON OUTPUT
94.794.7
BLUE WIRE
SWITCHED +12V INPUT
++
BATTERY
BATTERY
+12V
+12V
--
GROUNDGROUND
6

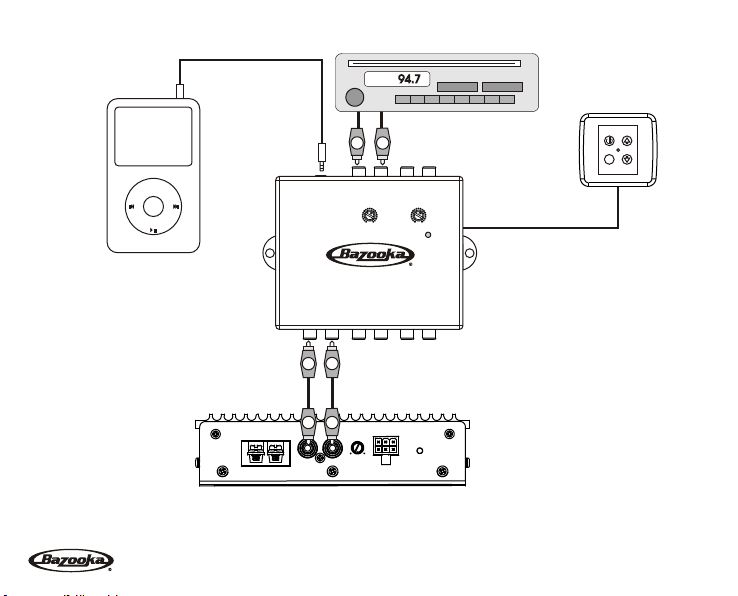

SIGNAL CONNECTIONS AND ADJUSTMENTS USING THE CSR-W
To make these connections, we recommend high quality RCA cables, which are available at your local Bazooka
retailer. Run signal wires away from electrical wires to avoid possibility of induced noise from the vehicles
electrical system (i.e. popping noises or engine noise).
INPUT “A”
LL
RR
RR
LL
INPUT “B”
SEL
CSR-W
INPUT A INPUT B INPUT C
MENU
INPUT “C”
Level Controls for “A” & “B”
allow you to adjust each
source input to optimize the
o v er al l l e ve l t o th e
connected amplifier.
OUTPUT AMPLIFIER (CSA-2 SHOWN)
GND
BATTERY
3.5mm
Input A
Stereo Input
Level A
CSS-3I
Audio Input Control System
Thru-put A
Output to Amp
L
L
R
RR
LL
LL
RR
CSA-2
INPUT
+12V
GAIN
MIN
MAX
L
R
L
R
Input B
Level B
Status
Thru-put B
L
R
AUX
POWER
The overall output volume of the attached
amplifier can be adjusted “UP” or “Down”
RJ-45
Power
R
The source selection is made by pressing the
“SEL” button momentarily. Each press of the
“SEL” button allows you to toggle through
inputs “A” to “C”.
PLEASE NOTE: If input “C” is used (i.e. Mp3 or
iPod), then it becomes the default selection
when plugged in.
L
R
7
SIGNAL CONNECTIONS AND ADJUSTMENTS USING THE CSR-I
To make these connections, we recommend high quality RCA cables, which are available at your local Bazooka
retailer. Run signal wires away from electrical wires to avoid possibility of induced noise from the vehicles
electrical system (i.e. popping noises or engine noise).
INPUT “A”
LL
RR
RR
L
R
GND
BATTERY
3.5mm
Stereo Input
Audio Input Control System
Output to Amp
L
R
RR
LL
LL
RR
CSA-2
INPUT
+12V
MIN
L
R
Thru-put A
L
GAIN
Input A
Level A
CSS-3I
MAX
R
Input B
Level B
Status
Thru-put B
L
R
AUX
POWER
OUTPUT AMPLIFIER (CSA-2 SHOWN)
LL
L
RJ-45
Power
R
INPUT “B”
The source selection is made by pressing the
“SEL” button momentarily. Each press of the
“SEL” button allows you to toggle through
inputs “A” to “C”.
INPUT A INPUT B INPUT C
PLEASE NOTE: If input “C” is used (i.e. Mp3 or
iPod), then it becomes the default selection
when plugged in.
8
Level Controls for “A” & “B”
allow you to adjust each
source input to optimize the
o v er al l l e ve l t o th e
connected amplifier.
The overall output volume of
the attached amplifier can be
adjusted “UP” or “Down”
SEL
AUX
CSR-I
MENU
INPUT “C”

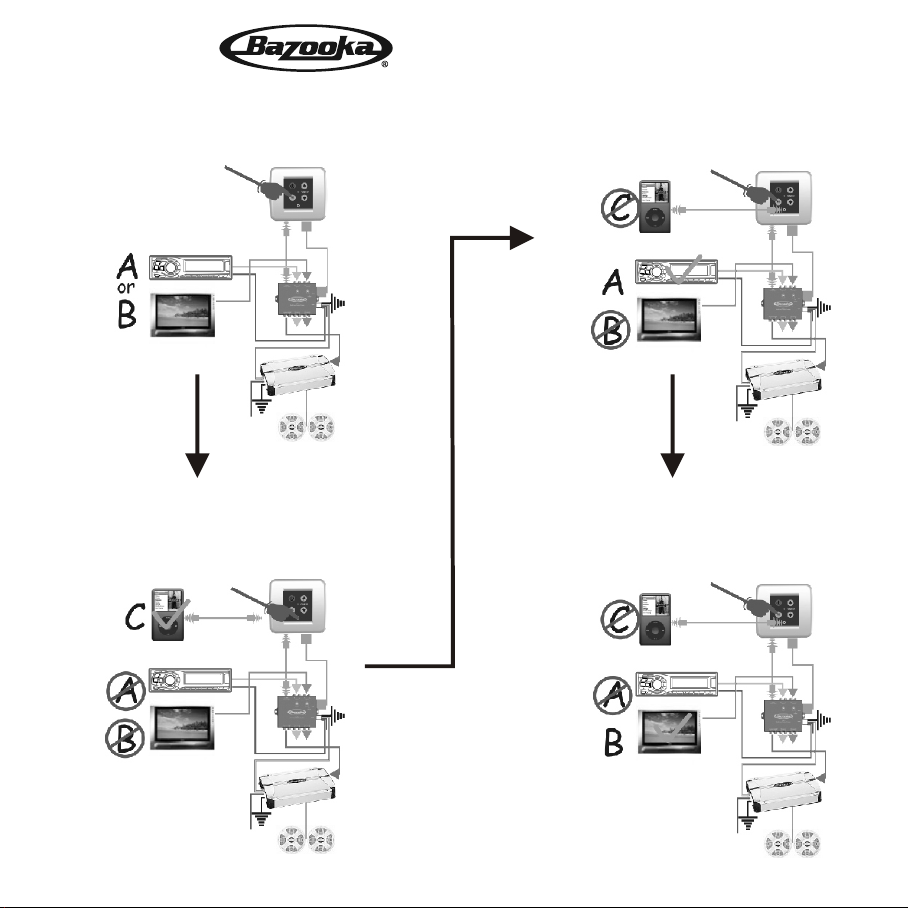

USING CSS-3I FOR MULTIPLE ROOM APPLICATIONS
The following example shows how multiple CSS-3I’s can be connected to share one input source. The CD
Player (Input A) signal is passed to the second CSS-3I so that when “Input A” is selected, the CD player can be
played through the system in the second room.
SEL
R
Input B
Level B
Thru-put B
L
Status
CSR-I
L
R
AUX
LL
RR
L
R
3.5mm
Input A
Stereo Input
Output to Amp
L
Level A
CSS-3I
Audio Input Control System
Thru-put A
L
R
RJ-45
Power
L
R
Input B
Level B
RJ-45
Status
SEL
AUX
CSR-I
Power
Thru-put B
L
R
R
MENU
INPUT “C”
INPUT “A”
3.5mm
Stereo Input
Output to Amp
L
RR
R
Input A
Level A
CSS-3I
Audio Input Control System
Thru-put A
L
R
LL
L
R
RR
CSA-2
RR
LL
RR
AUX
GAIN
POWER
MIN
MAX
R
GND
BATTERY
LL
LL
INPUT
+12V
L
OUTPUT AMPLIFIER (CSA-2 SHOWN)
RR
LL
LL
GND
BATTERY
RR
CSA-2
AUX
INPUT
+12V
GAIN
POWER
MIN
MAX
L
R
OUTPUT AMPLIFIER (CSA-2 SHOWN)
9
MENU
INPUT “C”
TROUBLE SHOOTING THE SYSTEM
We have put together this trouble-shooting guide if you experience problems after installing the CSS-3I.
Please keep in mind that the majority of problems incurred are caused by improper installation and not the
equipment itself. In addition, there are many components in the system that could cause various signal
problems such as inducted electrical noise and engine noise.
Before you can properly address the problem, you must first find the component that is causing the problem.
This will take patience and a process of elimination.
LOOK FOR.... SOLUTION
No Output
Low Output
Engine Noise
Music Stops Playing (Possible Amplifier Problem)
Blown fuse Replace
Bad RCA Cable(s) Replace
+12V at power wire Check connection
+12V at remote wire Check connection
Grounding point clean and tight Check for ground w/meter
Head Unit's fader not in center position Set to center position
Check level adjustments Re-adjust
Bad RCA cable(s) Replace
Improper level setting Re-adjust
Grounding points are clean and tight Check for ground w/meter
Ground all components at same point Ground at same point
Try different grounding point Change for better ground
Bad RCA cable(s) Replace
Use High Quality shielded RCA cables Rejects inducted noise
Low Vehicle charging system and/or battery Fix and/or replace
Speaker short Check speakers connection for short circuit
Speaker grounding out Make sure speaker wires do not touch ground
Impedance too low Check speaker impedance (Min 2 ohm Stereo)
Overheating Check mounting location for Adequate air Circulation
Speaker impedance too low
10
SPECIFICATIONS
CSS-3I
Inputs:
Low Level (RCA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Pairs
3.5mm Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Stereo
Outputs:
Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Pair
Thru-put “A” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Pair
Thru-put “B” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Pair
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Hz-100KHz
S/N Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >77dB
THD (Thru-put A & B). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.001%
THD (Output to Amplifier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.02%
Input Jack for CSR Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RJ-45
Battery Voltage Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5VDC-16VDC
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2A x1
Due to continuing product improvement, specifications subject to change without notice.
11
LIMITED WARRANTY
Southern Audio Services, Inc., warrants all products to be free from defects in material and workmanship
for a period of one (1) year from the date of purchase. In the event the product is not as warranted, SAS’ sole
obligation shall be to repair or replace the defective product at SAS’ option: SAS limits its obligation under
any implied warranties under state laws to a period not to exceed the limited warranty period. SAS and its
authorized BAZOOKA® dealers specifically disclaim liability for any incidental or consequential damages.
Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusions may not
apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from
state to state.
What is covered: This warranty covers all defects in materials or workmanship (parts and labor) in the
product.
What is not covered: This warranty does not cover the following:
1. Damages occurring during shipment of the product to SAS for repair
(Claims must be presented to the carrier).
2. Damages caused by accident, abuse, negligence, misuse or improper
Operation or installation.
3. Damages caused by an act of God, including without limitation, fire, flood
Storm or other acts of nature.
4. Any product, which has a serial number, defaced, altered, modified, or
removed.
5. Any product that has been altered or modified without SAS’ consent.
12
How to obtain warranty services:
1. You are responsible for delivery of the product to an authorized BAZOOKA® dealer or contact SAS at
1-800-THE-TUBE for a Return Authorization number. The Return Authorization number must be clearly
written on the outside of the box. Freight must be prepaid to SAS. Warranty replacement parts will be
returned freight prepaid. The entire enclosure may be returned for warranty service, but return will be
freight collect.
2. You must provide proof of the date of purchase of the product. If proof of purchase is not provided,
original date of manufacture will be used to determine warranty period.
3. You must package the product securely to avoid damage during shipment.
4. After acquiring a Return Authorization number, ship to the address below. Please complete this section
and retain for your records.
Model(s) purchased _______________________________________________________________________
Serial number(s) _________________________________________________________________________
Date Purchased __________________________________________________________________________
Dealer’s name ___________________________________________________________________________
13
14
If you have any questions contact the Bazooka Mobile Audio tech dept. at:
SAS, BAZOOKA, BASS TUBES and LISTEN TO YOUR EARS are registered trademarks of Southern Audio Services INC. © Southern Audio Services INC. All Rights Reserved
Phone: 225-272-7135 Fax: 225-272-9844
Email - tech@bazooka.com Website - www.bazooka.com
Rev. 6.11.09
If you have any questions contact the
Bazooka Mobile Audio tech dept. at:
Phone: 225-272-7135 Fax: 225-272-9844
Email - tech@bazooka.com Website - www.bazooka.com

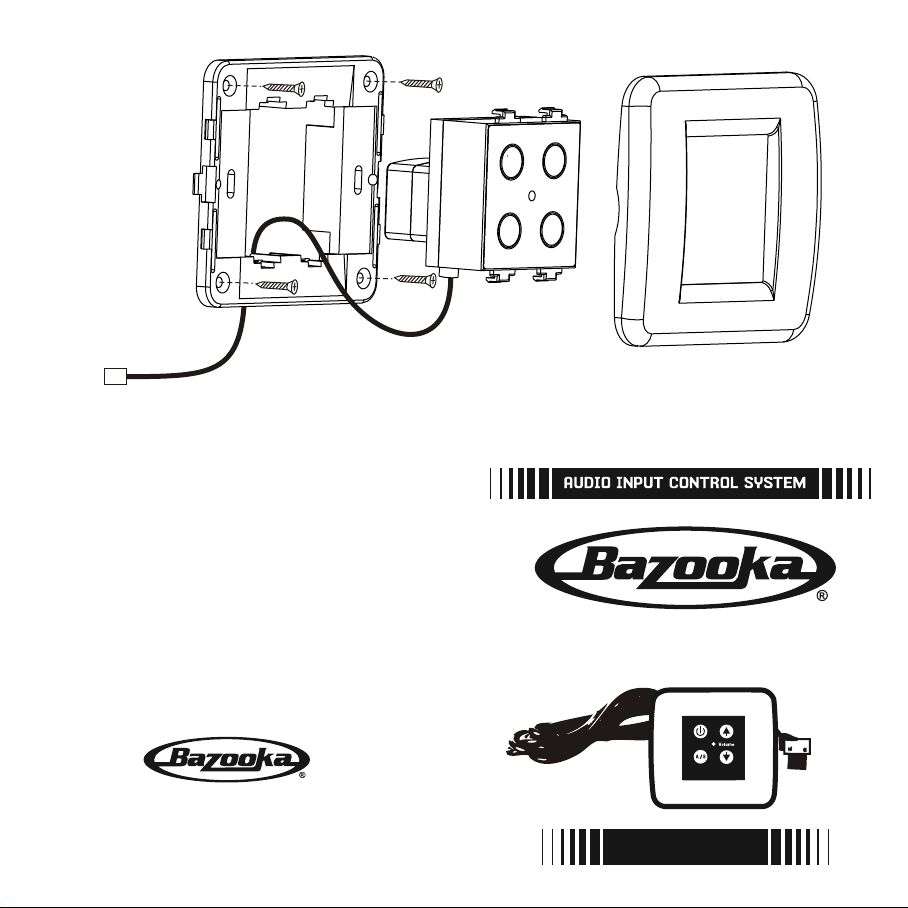

CONTROL SYSTEM REMOTE
INSTALLATION INSTRUCTIONS
CSR-W / CSR-I
Waterproof & Interior
Remote Sequence of Operation
Depressing the
SEL button toggles
A/B/C ( “C” being
the 3.5 input jack.)
Connecting the 3.5
jack automatically
switch’s the source
to “C”
Depressing the
SEL button toggles
the source to “A”
Again depressing the
SEL button toggles
the source to “B” and
depressing it a third
time back to “C”
2 CHANNEL 100 WATT AMPLIFIER
INSTALLATION INSTRUCTIONS
1
Dear customer,
Congratulations on your purchase of a Bazooka high-performance amplifier. At Bazooka, we are fanatics
about accurate music reproduction. Your selection of our products for your sound system indicates that
quality sound is also important to you too. At SAS, we take great pride in manufacturing revolutionary audio
products, and through the years of engineering expertise, hand craftsmanship and critical testing
procedures, we have created this high-performance series of amplifiers. We hope that you will take as much
pride in owning and using one of these high-quality audio products as we do designing and manufacturing
them.
When properly installed and operated, your Bazooka CSA amplifier will give you years of clean uninterrupted
sound reproduction. Therefore, we urge you to take a few minutes to carefully read through this manual. It
will explain all of the features of your amplifier and help insure trouble free installation.
Sound can be deceiving. Over time your hearing comfort level adapts to higher volumes of sound. What may
have sounded normal can actually be too loud and harmful to your hearing. Guard against this by setting your
equipment at a safe level before your hearing adapts.
To establish a “safe level”,
Start with your volume control at a low setting.
Slowly increase the volume control until you can hear comfortably, clearly and without
distortion.
Once you have established a comfortable “sound level”, make a note of this position and do not go
above this setting
Taking a minute to do this will help prevent your hearing from being damaged and allow you to enjoy listening
to music throughout your lifetime.
2
SAFETY PRECAUTIONS
Fuse amplifiers power wire at the battery.
Be sure to fuse the power wire within 6” of the vehicles battery. This will protect the vehicle and amplifier
in case of a short circuit between the power amplifier and battery.
Use high grade wire connectors.
To ensure maximum power transfer and secure safe connections, it is recommended to use high grade
barrier spades (for connection at amplifier if applicable) and terminal rings (for connection at battery).
Do not run any wires underneath vehicle.
Exposed wires have a chance of being cut or damaged. It is best to run all wires through the vehicle under
the carpet and/or side panels. This lends to a cleaner installation and less risk of damage.
Use caution when mounting amplifier.
Remember there are many electrical wires, gas lines, vacuum lines, brake lines as well as a gas tank in the
automobile. Make sure you know where they are when mounting the amplifier to avoid puncturing lines,
shorting wires or drilling holes in the gas tank.
Run signal wires away from electrical wires.
To avoid possibility of induced noise from the vehicles electrical system (i.e. popping noises or engine noise),
run wires away from the vehicles electrical wiring.
Make all ground wires as short as possible and at the same point.
In order to reduce the chance of ground loops (i.e. engine noise), make the grounding wire as short as
possible to reduce the wire's resistance. Also, when using multiple components, make sure all units are
grounded at the same point.
Avoid sharp edges when running the wires.
To avoid the possibility of power, signal or speaker shorts, be careful not to allow the amplifiers wires to
come in contact with sharp edges. Use a grommet to protect the wire when running through the fire wall .
3
FEATURES AND BENEFITS
Thermal Protection
To protect the amplifier circuitry against damage caused by prolonged exposure to high temperatures, a
thermal protection circuit is activated if the amplifier reaches excessively high operating temperature.
Once the thermal circuit is activated, the amplifier will shut down to cool off. The amplifier will
automatically turn back on once it cools down to a safe operating temperature.
Short Circuit Protection
The circuit protects the amplifier from damage due to a short found in the speakers or wiring. If one of the
speakers or its wiring comes in contact with ground, the amplifier will shut down. To resume normal
operation, correct the problem and turn the head unit off, then back on. The amplifier will reset and play
again.
Built-in Crossover
The “CSA” amplifier includes a built-in High Pass crossover @ 150Hz. The switchable crossover is set 150Hz to
filter low frequencies
Remote Turn-on
Automatically turns amplifier on when connected to the head unit's remote output. The amplifier will turn on
and off with the head unit to save current consumption.
Remote Input Jack
A remote input jack has been provided for connection with optional CSR-W Power and Volume Control. Allows
independent remote volume control of amplifier. CSR-W is available in our Amplifier Kit, Tower Kit or
Transom Kit.
Adjustable Input Sensitivity
Allows you to fine-tune the level matching between your source and the power amplifier.
4
MOUNTING LOCATION
Before you start the installation, it will be necessary to find a mounting location for the amplifier. Find a
location in which the amplifier will receive adequate ventilation in order to dissipate the heat it develops
during operation. Do not mount in the engine compartment.
Select the location in which you wish to mount the amplifier. Use caution when mounting amplifier, there are
many wires, gas lines, vacuum lines, brake lines as well as a gas tank in the automobile. Make sure you know
where they are when mounting the amplifier to avoid puncturing lines, shorting wires or drilling holes in the
gas tank. Once you are ready, use a pencil to mark the mounting holes in the bottom panel. After you have
marked the locations of the holes move amplifier out of the way and drill small starter holes to make the
tapping screws easier to install. Use provided screws to tighten down the amplifier.
5
POWER CONNECTIONS
BATTERY
GND
--
GROUNDGROUND
IMPORTANT! Before making any connections, disconnect the vehicles battery until the installation is
completed to avoid possible damage to the electrical system.
+12V
L
BATTERY
BATTERY
+12V
+12V
CSA-2
INPUT
AUX
GAIN
MIN
MAX
R
++
POWER
OPTIONAL OUTPUT FOR
OPTIONAL OUTPUT FOR
FAST-BTAH WIRE HARNESS
FAST-BTAH WIRE HARNESS
15A IN-LINE POWER FUSE
15A IN-LINE POWER FUSE
MOUNTED WITHIN 6”
MOUNTED WITHIN 6”
FROM BATTERY
FROM BATTERY
(REQUIRED - NOT PROVIDED)(REQUIRED - NOT PROVIDED)
(NOT PROVIDED)
(NOT PROVIDED)
Connect the amplifier to the vehicles battery.
Make your power connections using a 8 gauge power wire for your connections. Strip one end of the wire
and attach a barrier spade. Located the terminal on the amplifier marked “+12V”. Loosen screw terminal
and connect the wire end with barrier spade and tighten. Use caution to make sure no stray wire strands
come in contact with surrounding terminals causing short circuits. Run the wire to the vehicles battery.
Insert a in-line 15 AMP fuse within 6” of the vehicle’s battery to protect the electrical system and amplifier
against short circuits and/or power surges. Connect to the battery’s positive (+) terminal.
Connect the ground terminal of the amplifier to the vehicles chassis ground.
For the ground connection, use an 8 gauge wire (black) with a barrier spade attached and connect to the
terminal marked “GND”. Use a ground ring terminal on the remaining end of the wire and connect the wire to
the vehicles chassis. Keep the length of the cable as short as possible, preferably less than 6".
6
Connect the remote terminal of the amplifier to a switchable +12V source.
This connection allows the amplifier to be turned on and off with the power control of the radio or CSS-3I. If
the radio has a REMOTE output terminal, connect it to the amplifier's terminal marked “TURN-ON” (using a 16
gauge wire or heavier). Now when the radio or CSS-3I is turned on, the amplifier will automatically turn on.
BAZOOKABAZOOKA
HIGH LEVEL INPUT
FILTER
HPF/FULL
BLUE WIRE
FROM SPEAKER OUTPUT
WIRE HARNESS
RADIO'S REMOTE
TURN-ON OUTPUT
REMOTE TURN ON WIRE
SINGLE AMPLIFIER/SOURCE CONNECTION
SPEAKER OUTPUT
REMOTE
94.794.7
REMOTE TURN ON WIRE
CSS-3I CONNECTION
BLUE WIRE FROM CSA-2’S
SPEAKER OUTPUT
WIRE HARNESS
3.5mm
Stereo Input
Output to Amp
L
R
7
HIGH LEVEL INPUT
L
R
Input A
Level A
CSS-3I
Audio Input Control System
Thru-put A
L
R
TURN-ON OUTPUT
BAZOOKABAZOOKA
FILTER
HPF/FULL
REMOTE
L
R
Input B
Level B
RJ-45
Status
Power
Thru-put B
L
R
RADIO'S REMOTE
94.794.7
SPEAKER OUTPUT
ORANGE WIRE
FROM CSS-3I’S
WIRE HARNESS
BLUE WIRE
FROM CSS-3I’S
WIRE HARNESS
SIGNAL CONNECTIONS

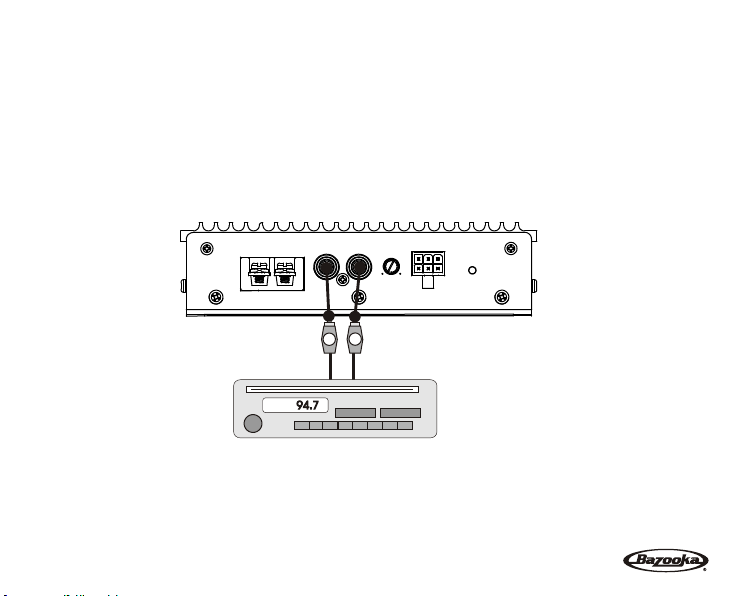

Connect the RCA output of the head unit or CSS-3 Audio Input Control Switch.
The amplifier can be connected directly to your single input source such as CD Player, or with the optional
CSS-3 Audio Input Switch you can connect to multiple input sources. The following diagrams show both
configurations depending on your system configuration.
To make these connections, we recommend high quality RCA cables, which are available at your local Bazooka
retailer. Run signal wires away from electrical wires to avoid possibility of induced noise from the vehicles
electrical system (i.e. popping noises or engine noise).
BATTERY
+12V
GND
L
LL
SIGNAL CONNECTIONS USING SINGLE SOURCE INPUT
CSA-2
INPUT
AUX
GAIN
MIN
MAX
R
RR
POWER
8
SIGNAL CONNECTIONS
SOURCE #1
(INPUT C)
MENU
GND
SIGNAL CONNECTIONS USING THE OPTIONAL CSS-3I
WITH MULTIPLE SOURCE INPUT
BATTERY
3.5mm
Stereo Input
Output to Amp
L
LL
LL
CSA-2
INPUT
+12V
L
RR
R
Input A
Level A
CSS-3I
Audio Input Control System
Thru-put A
L
R
RR
RR
GAIN
MIN
MAX
R
9
LL
L
R
CSS-3I
AUX
R
Input B
Level B
Thru-put B
L
POWER
L
Status
R
SOURCE #2
(INPUT A)
RJ-45
Power
CSR-W or CSR-I
SEL
HIGH LEVEL CONNECTIONS (OPTIONAL)
High Level inputs have been included to connect the amplifier to a radio without low-level outputs (i.e. factory
radio). This connection will allow you to connect directly to the speaker output of the radio with out the need
of an external adapter.
BAZOOKABAZOOKA
HIGH LEVEL INPUT
FILTER
HPF/FULL
SPEAKER OUTPUT
REMOTE
WHITE/BLACK
WHITE
GRAY/BLACK
GRAY
GREEN/BLACK
GREEN
PURPLE/BLACK
PURPLE
10
LEFT -
LEFT +
RIGHT -
RIGHT +
(NOT USED)
(NOT USED)
(NOT USED)
(NOT USED)
SPEAKER CONNECTIONS
Make the speaker connections using speaker wire that is at least 16 gauge or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential for strong bass
response. When connecting, make sure that positive (+) from the amplifier is connected to the positive (+) of
the speaker, and the same for negative (-).

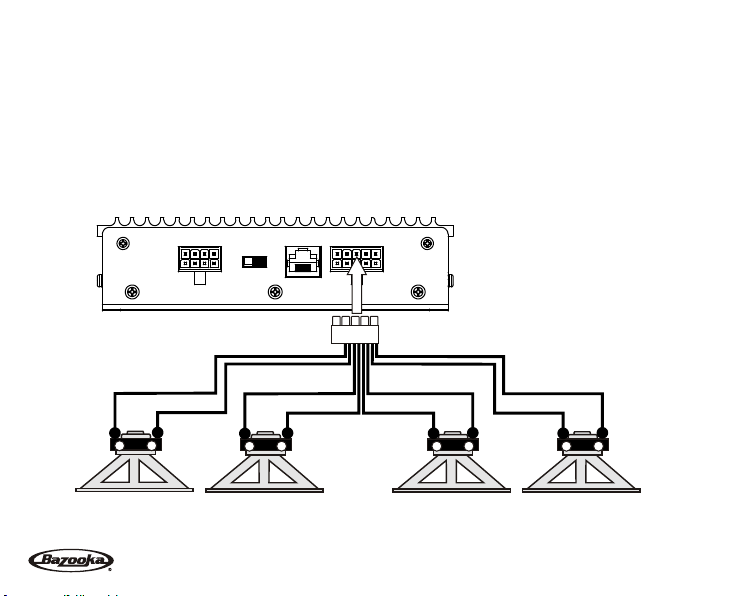

Eight wires from the harness are used to connect four speakers (4 ohm each). If you decide to use only two
speakers, tape the unused wires so they do not come in contact with each other or chassis ground.
WHITE = L+
WHITE/BLACK = L-
--
++
(4 Ohm Minimum)
HIGH LEVEL INPUT
BAZOOKABAZOOKA
FILTER
HPF/FULL
REMOTE
WHITE = L+
WHITE/BLACK = L-
--
++
(4 Ohm Minimum)
SPEAKER OUTPUT
11
GRAY/BLACK = R-
GRAY = R+
++
(4 Ohm Minimum)
GRAY/BLACK = R-
GRAY = R+
--
--
++
(4 Ohm Minimum)
REMOTE CONTROL / CSR-W (OPTIONAL)
Before connecting the remote, it will be necessary to find a mounting location that will be easy to access
for adjustment. Once you select your mounting location, you will need to run the control wire from the
remote to the amplifier. To avoid possibility of induced noise from the vehicle's’s electrical system (i.e.
popping noises or engine noise), run the cable from the remote to the amplifier away from the vehicle's's
electrical wiring.
BAZOOKABAZOOKA
POWER
ON/OFF
SOURCE SELECTION
(NOT USED)
THIS FUNCTION IS ONLY ACTIVE
WHEN USED WITH THE CSS-3I.
HIGH LEVEL INPUT
FILTER
HPF/FULL
POWER INDICATOR L.E.D.
SEL
SPEAKER OUTPUT
REMOTE
VOLUME UP
VOLUME DOWN
12
ACTIVATING THE X-OVER
The “CSA-2” amplifier is equipped with a built-in 150Hz High Pass crossover network allowing you limit
low frequencies to your speakers. To activate the crossover, slide the “FILTER” switch to the “HPF”
position.
MOVE THE FILTER SWITCH
TO THE “HPF” POSITION
TO ACTIVATE THE X-OVER
HIGH LEVEL INPUT
BAZOOKABAZOOKA
FILTER
HPF/FULL
SPEAKER OUTPUT
REMOTE

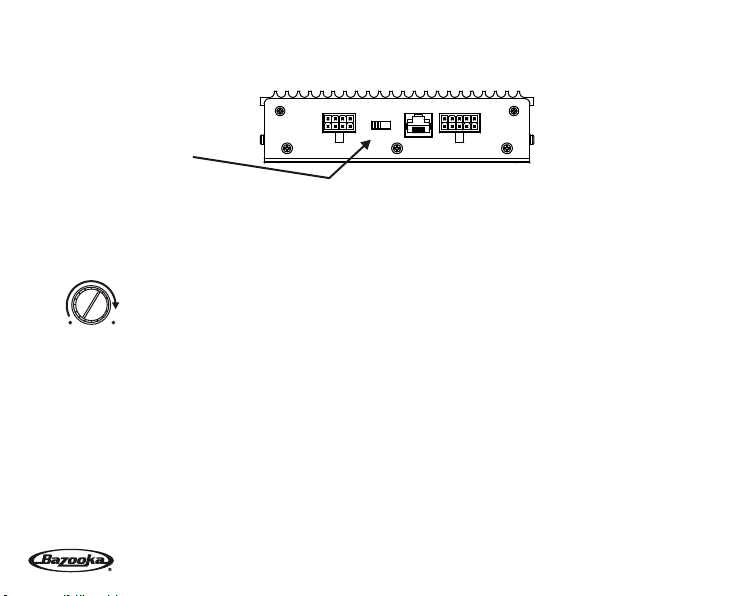

FINE TUNE THE SYSTEM
Fine tune the amplifier's input sensitivity.
GAIN
MIN MAX
This is not a volume control and you will not get more power out of the amplifier in the maximum position! It
may seem to deliver more output, but actually the system is only playing louder faster as you turn the volume
control on the radio. Ideally, to properly level match the system the goal is to achieve maximum output from
the amplifier without distortion at about 3/4 of the volume control.
To determine if the amplifier’s gain is set properly, turn the system on and slowly increase the volume
control. You should be able to use about 3/4 volume before the system gets loud but not distorting. It is very
important when making these adjustments that you do not over drive the speakers (at point of distortion)
this will cause permanent damage to the speakers. If you are unable to achieve 3/4 volume before distortion
you will need to adjust gain control (in this case you would reduce the gain). The gain controls should be
adjusted very slowly. It may help to have another person to assist you by adjusting the gain controls while
you listen for distortion.
The gain sensitivity control for the “CSA” amplifier is located on the side panel. This
gain control has been included to allow adjustment to properly match the output of
the radio. This is one of the most misunderstood adjustments. By rotating the control
in the clockwise direction, the amplifier‘s input will become more sensitive and the
music will play louder.
13
TROUBLE SHOOTING THE SYSTEM
We have put together this trouble-shooting guide if you experience problems after installing the amplifier.
Please keep in mind that the majority of problems incurred are caused by improper installation and not the
equipment itself. In addition, there are many components in the system that could cause various signal
problems such as inducted electrical noise and engine noise.
Before you can properly address the problem, you must first find the component that is causing the problem.
This will take patience and a process of elimination.
LOOK FOR.... SOLUTION
No Output
Low Output
Engine Noise
Music Stops Playing
Blown fuse Replace
Bad RCA Cable(s) Replace
+12V at power terminal Check connection
+12V at remote terminal Check connection
Grounding point clean and tight Check for ground w/meter
Head Unit's fader not in center position Set to center position
Check level adjustments Re-adjust
Bad RCA cable(s) Replace
Improper level matching Re-adjust
Grounding points are clean and tight Check for ground w/meter
Ground all components at same point Ground at same point
Try different grounding point Change for better ground
Bad RCA cable(s) Replace
Use High Quality shielded RCA cables Rejects inducted noise
Low Vehicle charging system and/or battery Fix and/or replace
Speaker short Check speakers connection for short circuit
Speaker grounding out Make sure speaker wires do not touch ground
Impedance too low Check speaker impedance (Min 2 ohm Stereo)
Overheating Check mounting location for Adequate air Circulation
Speaker impedance too low
14
SPECIFICATIONS
CSA-2
Output Power @ 14.4 VDC :
4 ohm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30W x 2
2 ohm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50W x 2
Frequency Response (-3dB). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Hz-40KHz
S/N Ratio (A-weight) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >75dB
THD (A-weight) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3%
Low Input Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mV-2.2V
Hi Input Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5V
Crossover Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HP/FULL
Crossover Freq. (Fixed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150Hz
Jack for Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Battery Voltage Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5VDC-16VDC
Fuse Required (Not Included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25A x1
Due to continuing product improvement, specifications subject to change without notice.
15
LIMITED WARRANTY
Southern Audio Services, Inc., warrants all products to be free from defects in material and workmanship
for a period of one (1) year from the date of purchase. In the event the product is not as warranted, SAS’ sole
obligation shall be to repair or replace the defective product at SAS’ option: SAS limits its obligation under
any implied warranties under state laws to a period not to exceed the limited warranty period. SAS and its
authorized BAZOOKA® dealers specifically disclaim liability for any incidental or consequential damages.
Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusions may not
apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from
state to state.
What is covered: This warranty covers all defects in materials or workmanship (parts and labor) in the
product.
What is not covered: This warranty does not cover the following:
1. Damages occurring during shipment of the product to SAS for repair
(Claims must be presented to the carrier).
2. Damages caused by accident, abuse, negligence, misuse or improper
Operation or installation.
3. Damages caused by an act of God, including without limitation, fire, flood
Storm or other acts of nature.
4. Any product, which has a serial number, defaced, altered, modified, or
removed.
5. Any product that has been altered or modified without SAS’ consent.
16
How to obtain warranty services:
1. You are responsible for delivery of the product to an authorized BAZOOKA® dealer or contact SAS at
1-800-THE-TUBE for a Return Authorization number. The Return Authorization number must be clearly
written on the outside of the box. Freight must be prepaid to SAS. Warranty replacement parts will be
returned freight prepaid. The entire enclosure may be returned for warranty service, but return will be
freight collect.
2. You must provide proof of the date of purchase of the product. If proof of purchase is not provided,
original date of manufacture will be used to determine warranty period.
3. You must package the product securely to avoid damage during shipment.
4. After acquiring a Return Authorization number, ship to the address below. Please complete this section
and retain for your records.
Model(s) purchased _______________________________________________________________________
Serial number(s) _________________________________________________________________________
Date Purchased __________________________________________________________________________
Dealer’s name ___________________________________________________________________________
17
18
If you have any questions contact the Bazooka Mobile Audio tech dept. at:
SAS, BAZOOKA, BASS TUBES and LISTEN TO YOUR EARS are registered trademarks of Southern Audio Services INC. © Southern Audio Services INC. All Rights Reserved
Phone: 225-272-7135 Fax: 225-272-9844
Email - tech@bazooka.com Website - www.bazooka.com
Rev. 6.11.09
Loading...
