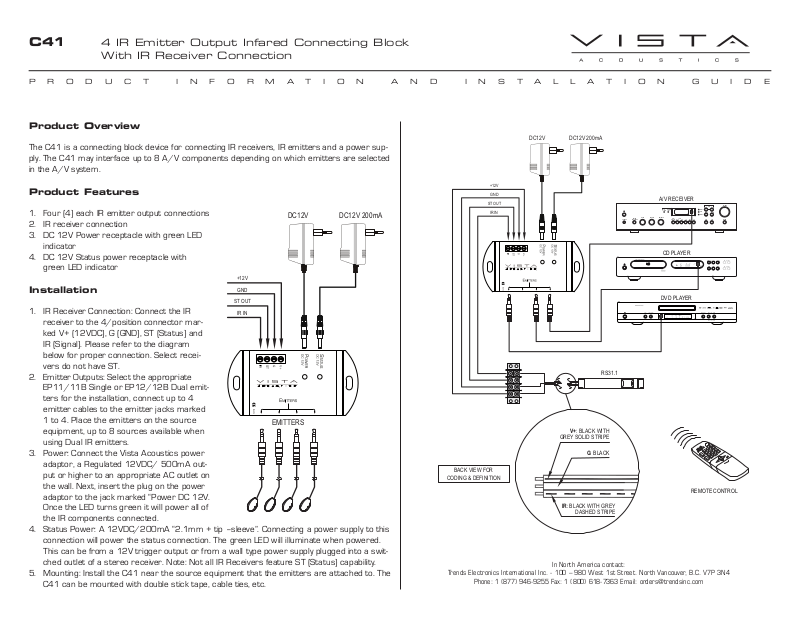

Bazooka C41 Installation Manual

C41 4 IR Emitter Output Infared Connecting Block

With IR Receiver Connection

PRODUCT INFORMATION AND INSTALLATION GUIDE

Product Overview

DC12V 200mA

RS31.1

V+: BLACK WITH

GREY SOLID STRIPE

G: BLACK

IR: BLACK WITH GREY

DASHED STRIPE

In North America contact:

A/V RECEIVER

FM

CENTER

STEREO

TUNE

BALANCE

TREBLE

BASS

EXTRA

SPEAKERS

PHONES

CompactDiscPlayer

VIDEO

TAPE 1

VCR

TAPE 2

MONITOR

CD PLAYER

AUX

LD

SEC

MIN

VOLUME

TUNE

SEARCH

TUNE

MODE STORE

PRESET

MONO

CD

AM

FM

PLAYPAUSE

SKIP

STOP

RANDOM

678
9
10

SCAN

REPEAT

OPEN

TIME

DVD PLAYER

REMOTE CONTROL

The C41 is a connecting block device for connecting IR receivers, IR emitters and a power sup­ply. The C41 may interface up to 8 A/V components depending on which emitters are selected
in the A/V system.

Product Features

1. Four (4) each IR emitter output connections

DC12V DC12V 200mA

2. IR receiver connection

3. DC 12V Power receptacle with green LED
indicator

4. DC 12V Status power receptacle with
green LED indicator

+12V

Installation

GND

ST OUT

1. IR Receiver Connection: Connect the IR

IR IN

receiver to the 4/position connector mar­ked V+ (12VDC), G (GND), ST (Status) and
IR (Signal). Please refer to the diagram
below for proper connection. Select recei­vers do not have ST.

2. Emitter Outputs: Select the appropriate
EP11/11B Single or EP12/12B Dual emit­ters for the installation, connect up to 4
emitter cables to the emitter jacks marked
1 to 4. Place the emitters on the source

EMITTERS

equipment, up to 8 sources available when
using Dual IR emitters.

3. Power: Connect the Vista Acoustics power
adaptor, a Regulated 12VDC/ 500mA out­put or higher to an appropriate AC outlet on
the wall. Next, insert the plug on the power
adaptor to the jack marked “Power DC 12V.
Once the LED turns green it will power all of
the IR components connected.

4. Status Power: A 12VDC/200mA “2.1mm + tip –sleeve”. Connecting a power supply to this
connection will power the status connection. The green LED will illuminate when powered.
This can be from a 12V trigger output or from a wall type power supply plugged into a swit­ched outlet of a stereo receiver. Note: Not all IR Receivers feature ST (Status) capability.

5. Mounting: Install the C41 near the source equipment that the emitters are attached to. The
C41 can be mounted with double stick tape, cable ties, etc.

DC12V

+12V

GND

ST OUT

IR IN

BACK VIEW FOR

CODING & DEFINITION

Trends Electronics International Inc. - 100 – 980 West 1st Street. North Vancouver, B.C. V7P 3N4

Phone: [phone] Fax: [phone] Email: [e-mail]
