Baxter OV520E1, OV520E2, OV520G1, OV520G2 Manual

Download

Page 1

Operator

Manual

ML-132577 OV520G1

ML-132576 OV520G2

ML-132578 OV520E2

ML-132579 OV520E1

OV520 ROTATING RACK OVEN WITH

SMART TOUCH

Model Number: ___________

Serial Number: ___________

Date of Installation: ___________

Baxter Mfg, a Division of ITW FEG, LLC • 19220 State Route 162 East • Orting, WA 98360-9236

Phone: (360) 893-5554 • Fax: (360) 893-1337

www.baxtermfg.com

CONTROL

FORM 36764 Rev. D (September 2022)

Page 2

IMPORTANT FOR YOUR SAFETY

POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION CAN BE OBTAINED FROM THE LOCAL GAS SUPPLIER.

IMPORTANT

IN THE EVENT A GAS ODOR IS DETECTED, SHUT DOWN UNITS AT MAIN SHUTOFF VALVE AND CONTACT THE LOCAL GAS COMPANY OR GAS SUPPLIER FOR SERVICE.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.

IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE THIS DEVICE.

KEEP AREA AROUND OVEN CLEAR OF COMBUSTIBLES. DO NOT OBSTRUCT COMBUSTION AND VENTILATION OPENINGS ON THE OVEN.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.

– 2 –

Page 3

GENERAL ................................................................................................................................................ 5

INSTALLATION ....................................................................................................................................... 5

Warranty ............................................................................................................................................. 5

OPERATION ........................................................................................................................................... 5

Basic Operation ............................................................................................................................... 5

Rack Loading ................................................................................................................................... 6

Rack Unloading ............................................................................................................................... 6

Operating Modes ................................................................................................................................ 7

Auto Mode ...................................................................................................................................... 7

Manual Mode ................................................................................................................................. 7

Smart™ Touch Toolbox ................................................................................................................. 7

Display Screen Buttons ...................................................................................................................... 8

Auto Mode Buttons ......................................................................................................................... 8

Manual Mode Buttons .................................................................................................................... 9

Classic Manual Mode Display and Buttons .................................................................................. 10

Toolbox Buttons .............................................................................................................................11

Miscellaneous Screens .................................................................................................................11

Using Auto Mode .............................................................................................................................. 12

Creating a Recipe ........................................................................................................................ 12

Using a Recipe ............................................................................................................................. 17

Viewing a Recipe in Progress ...................................................................................................... 17

Manual Mode .................................................................................................................................... 18

Using Manual Mode ..................................................................................................................... 18

Using Classic Manual Mode ......................................................................................................... 20

Using Smart Touch Toolbox Mode .................................................................................................... 20

User Manual Screen .................................................................................................................... 20

Data Exchange Screen ................................................................................................................ 21

Client Parameters Screen ............................................................................................................ 21

Parameters Table ......................................................................................................................... 22

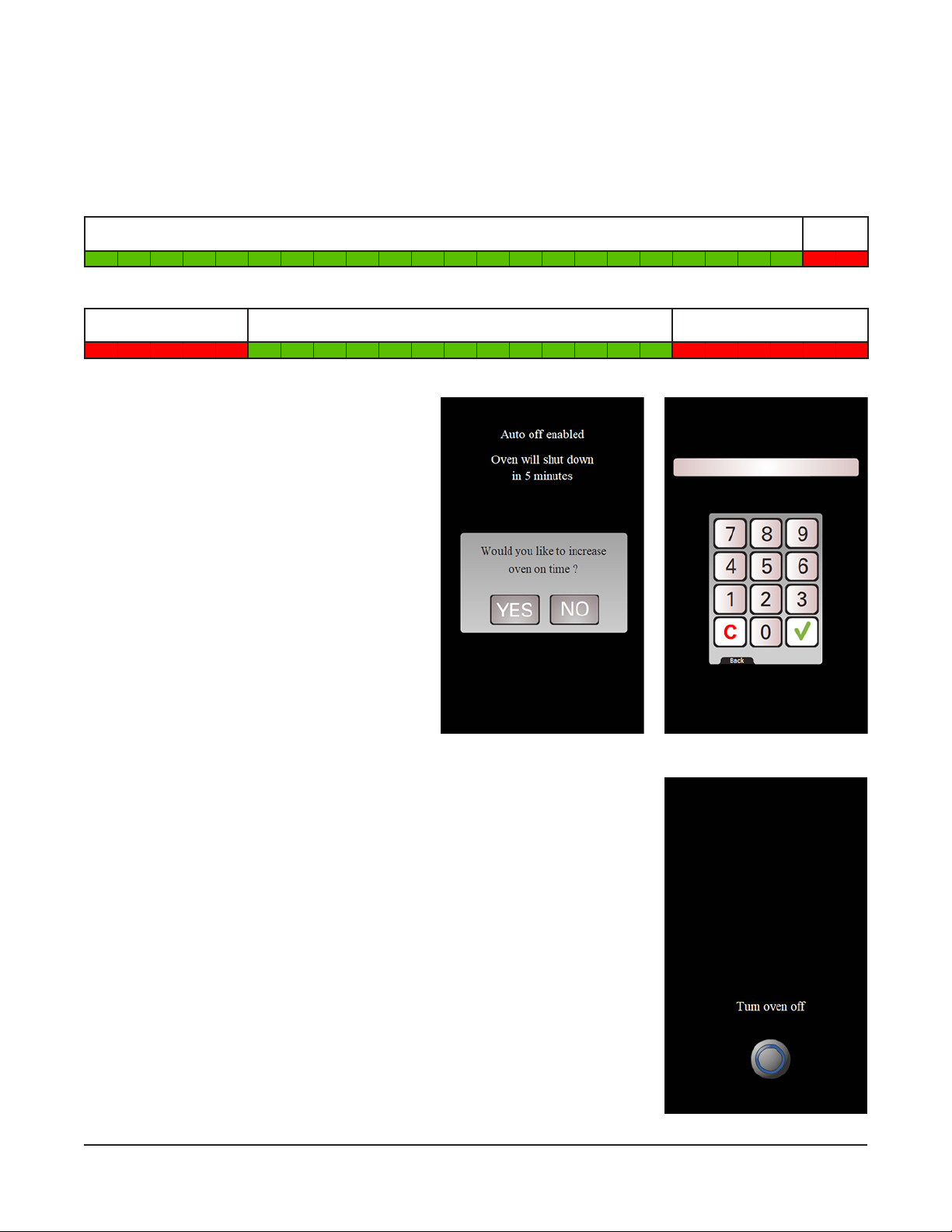

Auto O󰀨 ........................................................................................................................................ 23

Shutdown .......................................................................................................................................... 24

Restarting Oven ................................................................................................................................ 24

TROUBLESHOOTING ......................................................................................................................... 25

Burners Will Not Light on Gas Oven ................................................................................................. 25

Other Troubleshooting Topics ........................................................................................................... 25

Error Screen Information .................................................................................................................. 25

CLEANING ............................................................................................................................................ 27

– 3 –

Page 4

MAINTENANCE .................................................................................................................................... 28

General ............................................................................................................................................ 28

As Needed ................................................................................................................................... 28

Daily ............................................................................................................................................. 28

Weekly ........................................................................................................................................ 28

Monthly ......................................................................................................................................... 28

Bi-Monthly .................................................................................................................................... 28

Annually ....................................................................................................................................... 28

Preventive Maintenance ................................................................................................................... 28

Service And Parts Information .......................................................................................................... 28

OWNER PREVENTIVE MAINTENANCE PROCEDURE .................................................................. 29

Introduction ....................................................................................................................................... 29

Tools Used for Inspection Procedure ........................................................................................... 29

Preventive Maintenance Procedure ................................................................................................. 29

Inspect Oven Lamps .................................................................................................................... 29

Clean and Vacuum Components and Control/Burner Compartment Area (Gas Only) ................ 30

Rack Lift and Rotation Assemblies ............................................................................................... 30

Inspect Door Components ........................................................................................................... 31

Inspect Air Louvers ....................................................................................................................... 33

Inspect Cavity Vent ...................................................................................................................... 33

Visually Inspect Electrical Connections ........................................................................................ 33

Verify Ignition Module Safety Lockout Functions (Gas Only) ....................................................... 34

Verify Operation of Steam ............................................................................................................ 35

– 4 –

Page 5

OPERATION AND CARE OF

MODEL OV520 RACK OVEN

RETAIN THIS MANUAL FOR FUTURE REFERENCE

GENERAL

The Baxter OV520 Rack Oven accommodates a roll-in rack. It is equipped with the Smart Touch™ control for baking, roasting, and/or steaming applications. A mechanism in the oven ceiling picks up and rotates the rack during the baking/cooking cycle.

• Model OV520G1 is rated at 180,000 Btu/hr, natural or propane gas.

• Model OV520G2 is rated at 275,000 Btu/hr, natural or propane gas.

• Model OV520E1 is rated at 25.7 - 34.2kW.

• Model OV520E2 is rated at 38.5 - 51.3kW.

All instructions herein related to shutdown and restart procedures, cleaning, maintenance and any other service work are prepared to be used by trained personnel and should not be used by anyone who is not

properly qualied.

INSTALLATION

See appropriate OV520E/OV52G Installation Manual.

WARRANTY

To activate warranty, the Baxter OV520-series Rack Oven must have a startup performed by an authorized Baxter servicer.

Failure to follow use, care, cleaning, and/or maintenance instructions in this Operator Manual may void any product warranty provided by Baxter.

OPERATION

BASIC OPERATION

For best results, the oven must be preheated to bake temperature before baking begins.

1. The door must be closed for oven to heat. The rack carrier will lift and rotate only during timed bake.

NOTE: The rack carrier will be in the unload position from the last bake. If the rack carrier was moved out of the home position, the rack carrier will lift and turn to the unload position when the door is opened.

2. Press the POWER button below the user display screen to turn the oven on.

– 5 –

Page 6

3. The oven will preheat to the default preheat temperature. See Client Parameters for information about setting the default preheat temperature. See Auto Mode or Manual Mode for instructions on how to adjust the temperature.

4. For optimum steaming capability, allow 30 minutes after the oven has reached the set temperature for the steam system to charge.

5. The oven is now ready for baking operations.

The oven and its parts are hot. To prevent burns, use hot pads or protective mitts

when loading or unloading the oven.

Hot air and steam are released from the oven interior when the loading door is

opened. To avoid burns, open the door slowly and keep clear of the opening.

6. To adjust bake settings, see the Auto Mode or Manual Mode sections.

7. After the oven is preheated and the product is ready to bake, slowly open the door and load the rack onto the oven carrier.

8. Close the door and touch the Start button. The rack will lift and rotate.

9. The oven will beep after the set time ends. Touch Stop or open the door to silence the beeper.

10. Open door. Allow the rack carrier to stop and lower. The rack can now be removed.

RACK LOADING

1. Type B and C rack carriers are equipped with stops on both ends. For B lifts, ensure stop ap is in

the up position to load the rack on the rack carrier. For C lifts, push rack stop to the left after rack is loaded. Note: C carriers for single rack ovens only have one stop. Push rack in until rack hits rear stop.

2. Roll the rack into the oven so the end brackets channel onto the rack carrier. When using racks equipped with pan stops, load racks so stops will prevent movement of trays toward user when racks are unloaded. Position pans so they do not extend beyond the rack. If the pans extend beyond the rack, it may cause the rack to get jammed when rotating.

3. Close the loading door. The rack carrier will lift and rotate only during timed bake.

The oven and its parts are hot. To prevent burns, use hot pads or protective mitts

when loading or unloading the oven.

Hot air and steam are released from the oven interior when the loading door is

opened. To avoid burns, open the door slowly and keep clear of the opening.

RACK UNLOADING

1. Touch Stop and/or open the loading door to silence the beeper.

2. Wait for the rack carrier to stop and lower.

3. For B lifts, push the rack stop down to unload the rack from the rack carrier. For C lifts, push rack stop to the right to open.

4. Roll the rack from the rack carrier.

5. Close the loading door.

– 6 –

Page 7

OPERATING MODES

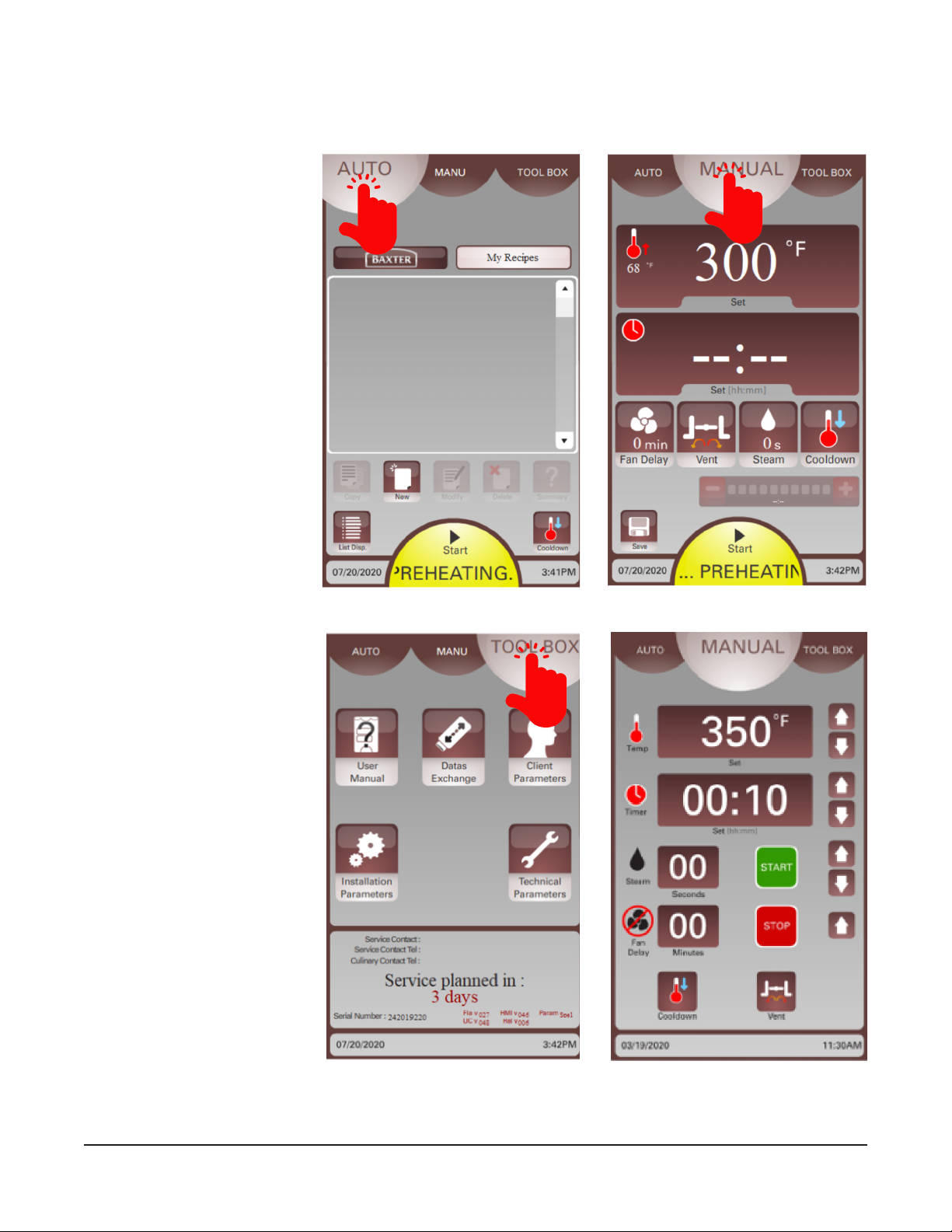

The user display screen will default to the mode selected in the Client Parameters. Touch the mode at the top of the screen to change the mode.

Auto Mode

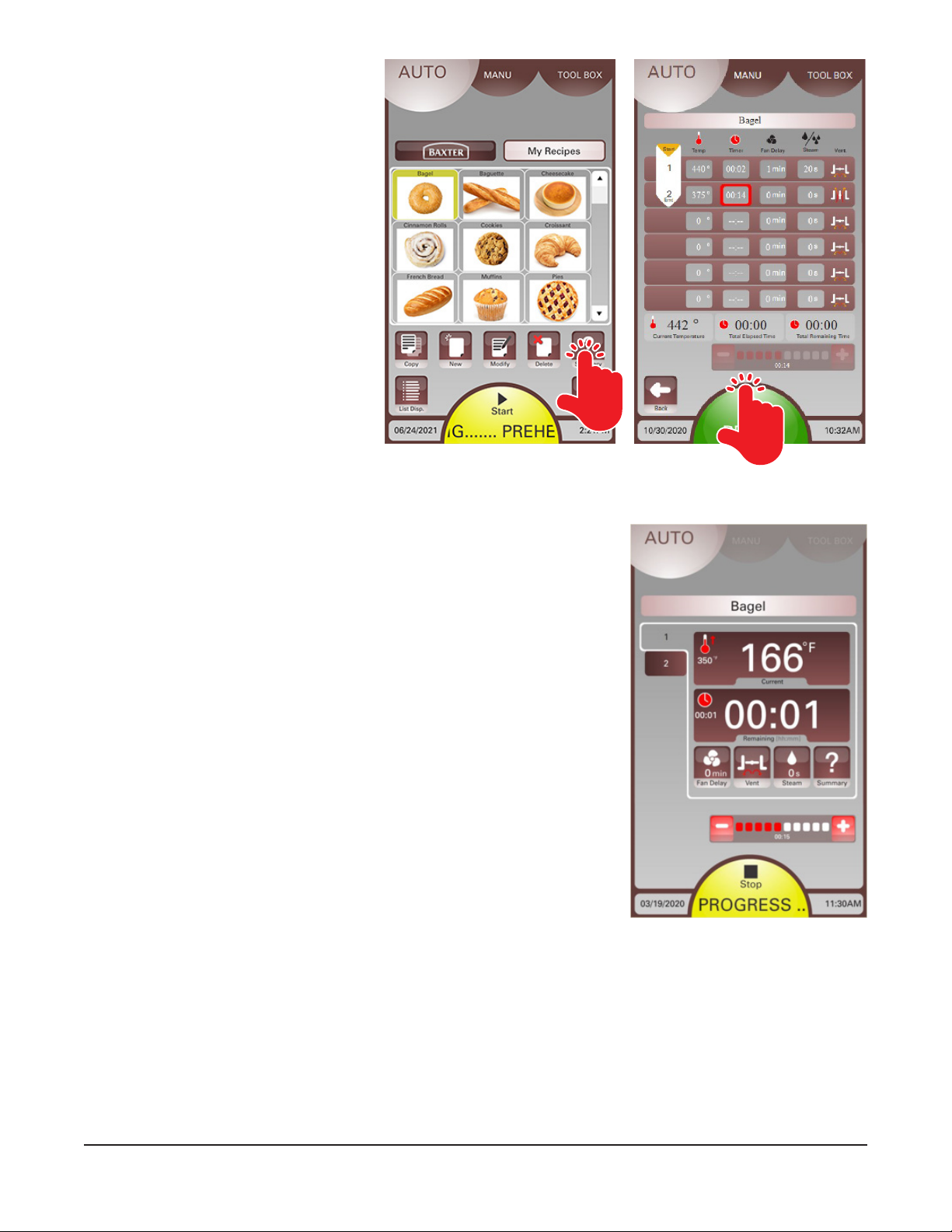

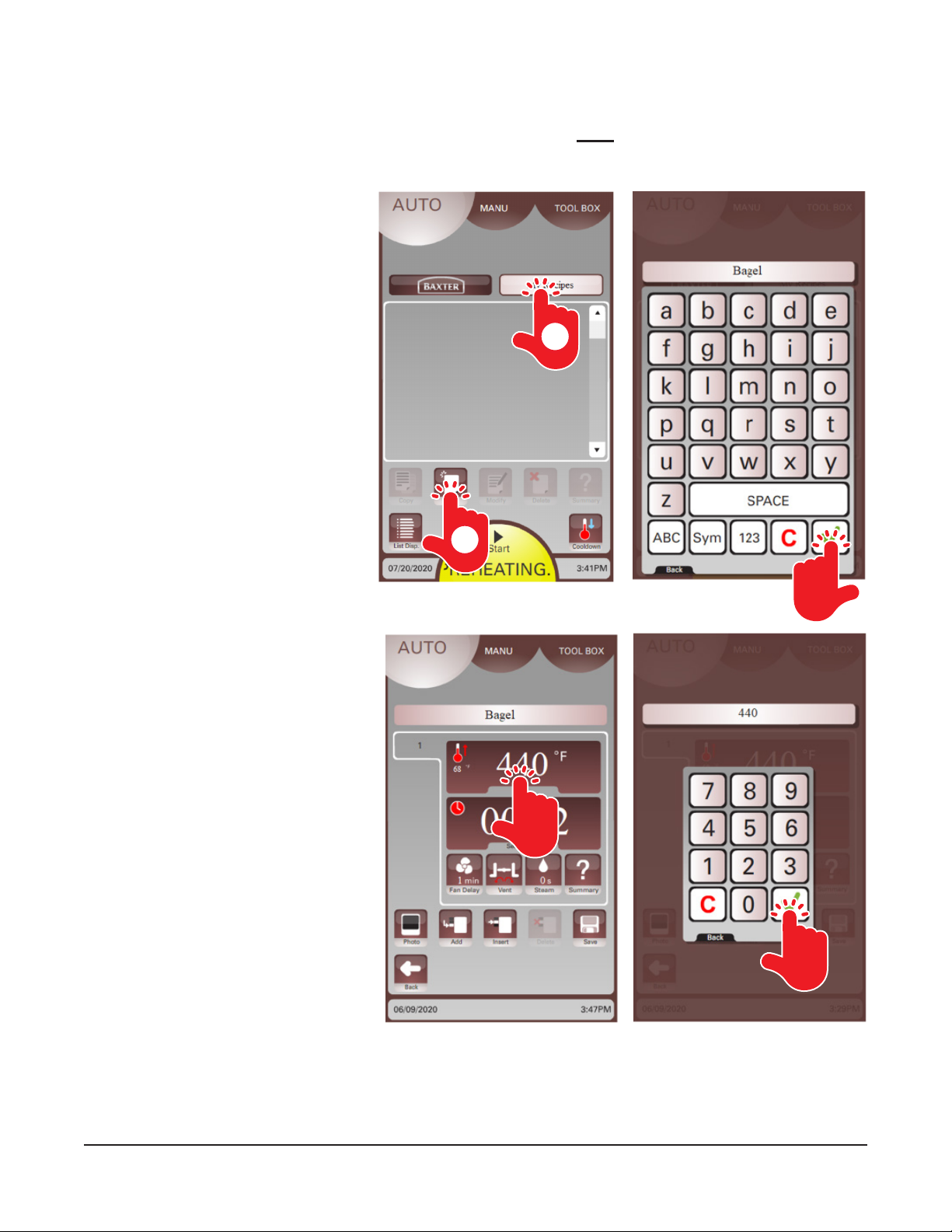

Touch AUTO at the top of the screen to access Smart Touch Auto Mode operation (Fig. 1). Recipes can have 1–6 steps.

Manual Mode

Touch MANUAL at the top of the screen to access Smart Touch Manual Mode operation (Fig.

2). Manual Mode operation can

be used for single-step recipes.

Smart™ Touch Toolbox

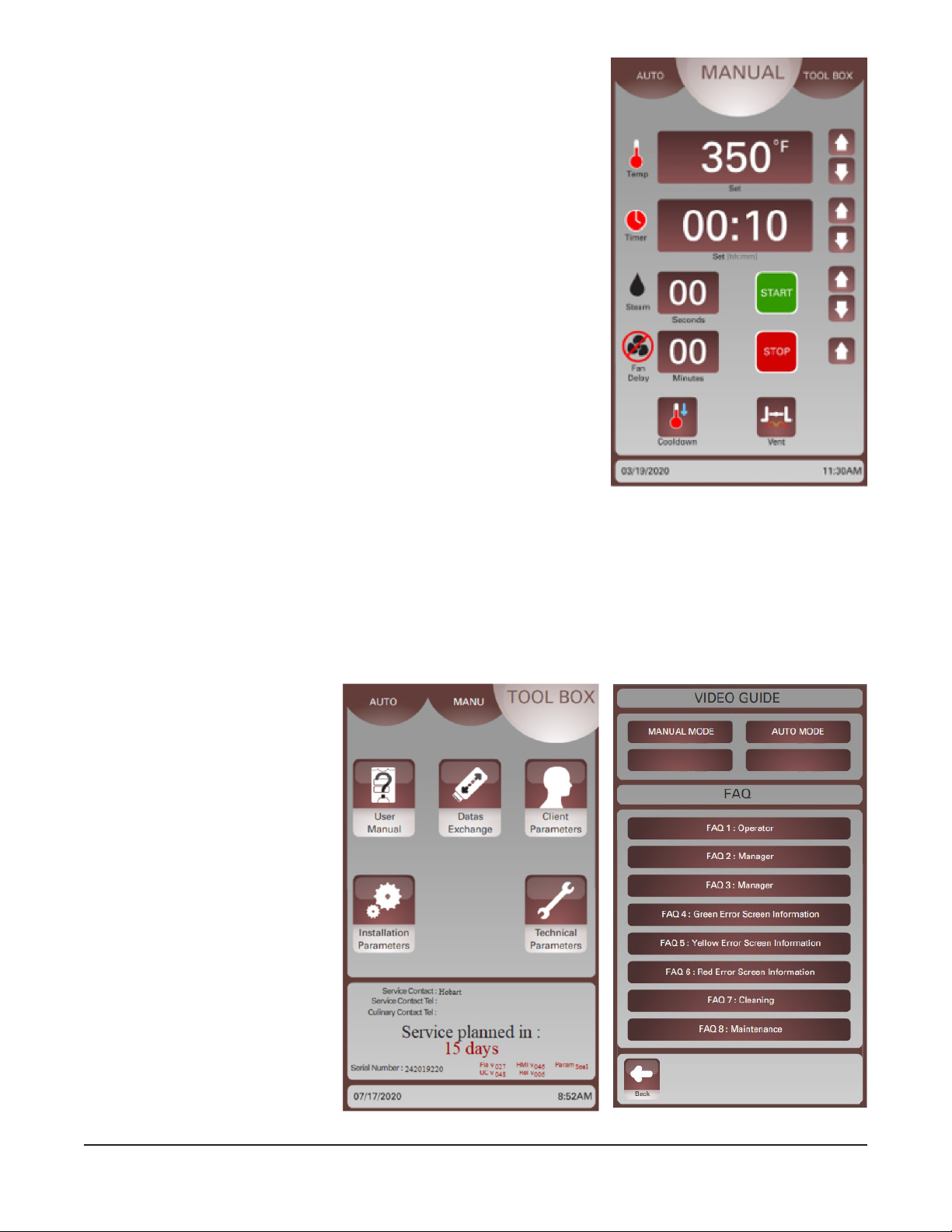

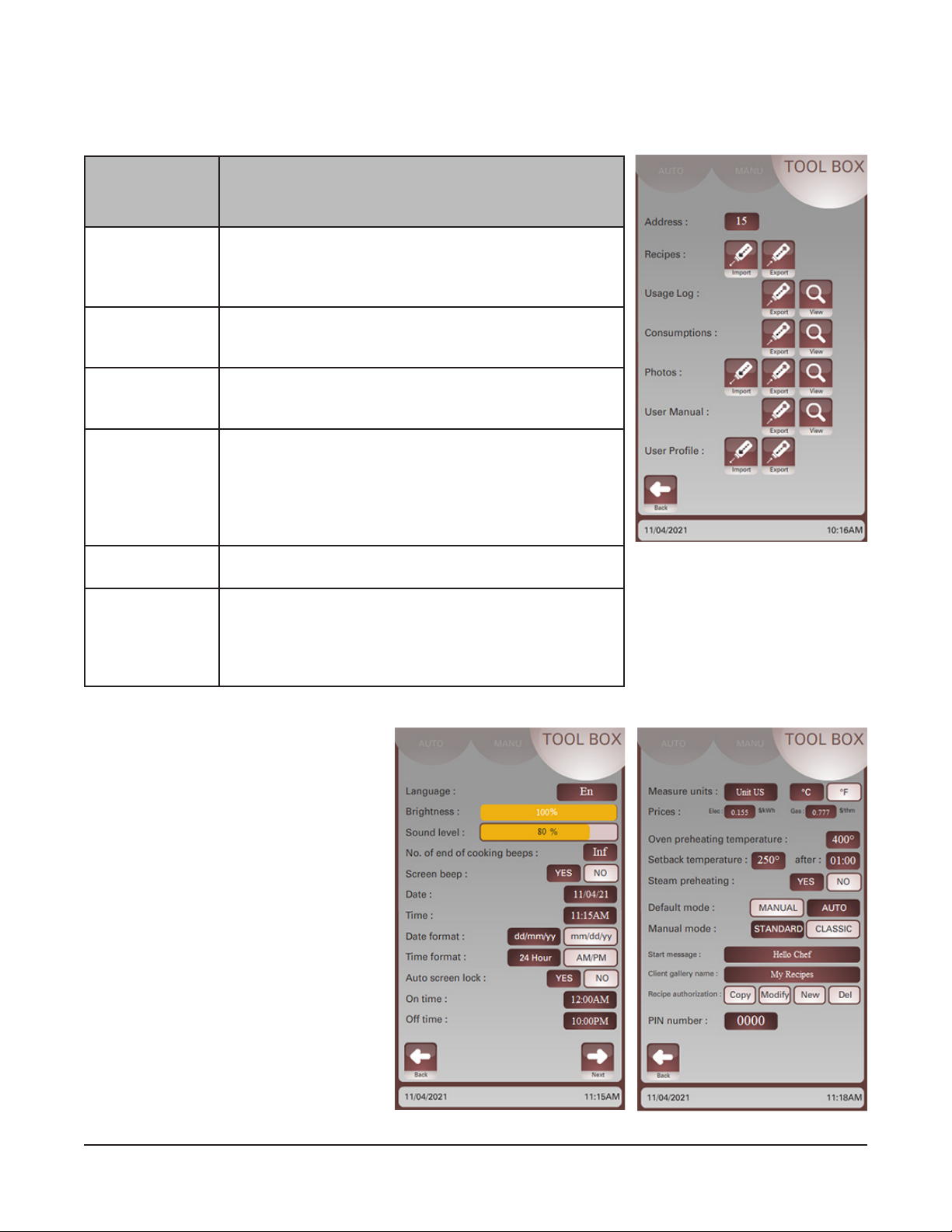

To access the Smart Touch Toolbox, touch Toolbox (Fig. 3). This mode accesses the User Manual, Data Exchange, and Client Parameters.

NOTE: The Smart Touch control can also be adjusted to operate in Classic Manual Mode (Fig. 4). This mode emulates the traditional Baxter keypad control.

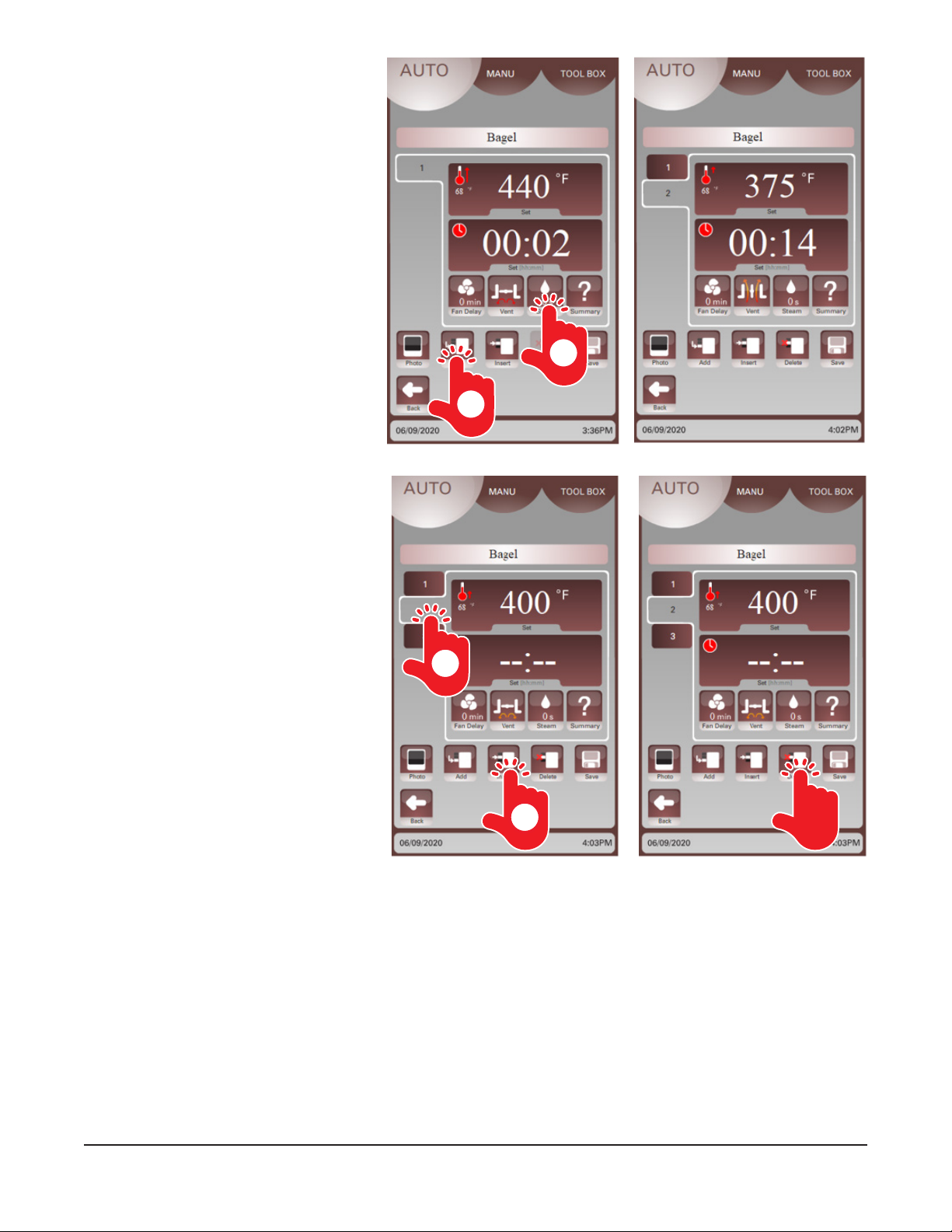

Fig. 1 Fig. 2

Fig. 3 Fig. 4

– 7 –

Page 8

DISPLAY SCREEN BUTTONS

The Auto and Manual modes are adjusted by touching the various buttons on the display. Review the charts below for information about each button.

Auto Mode Buttons

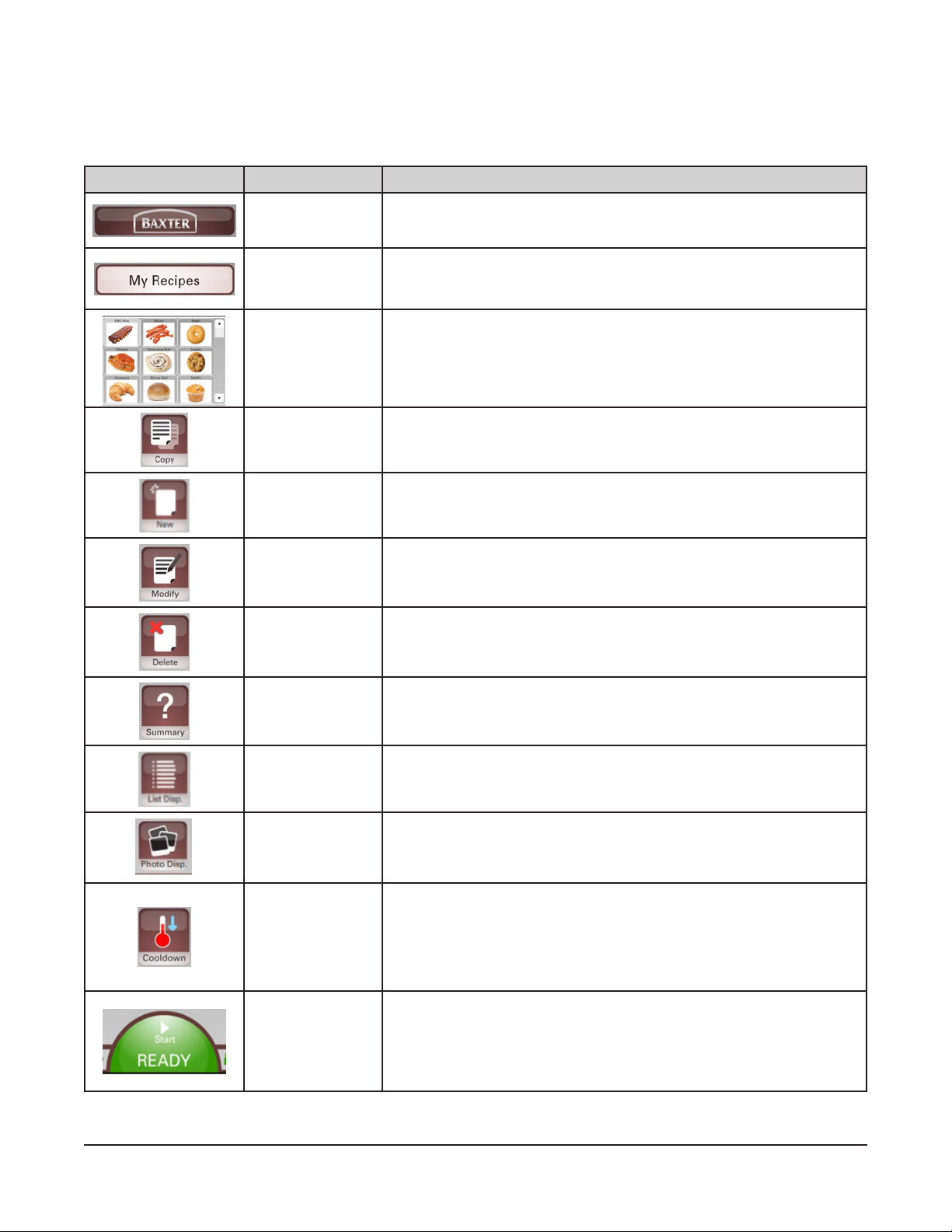

BUTTON NAME ACTION

Baxter Recipes

My Recipes

Recipe Selector

Copy Touch to copy a recipe.

New Touch to create a new recipe.

Modify Touch to modify a recipe.

Delete Touch to delete an existing recipe from My Recipes.

Shows preset Baxter recipes. These can be copied to My Recipes

and then modied.

Location of customer recipes. Recipes can be copied, created,

modied, or deleted here.

Shows list of all recipes as images. Touch up/down arrow to scroll pages. Select recipe by touching desired recipe image.

Summary

List Display

Photo Display

Cooldown

Start

Touch to enable preheating when a recipe is selected and review all steps and bake/cook parameters of a recipe.

Touch to view all recipes in a list view alphabetically. Toggles to Photo Display when touched.

Touch to view all recipes in as images. Toggles to List Display when touched.

Touch to access keypad for temperature adjustments and to start a cooldown process.

NOTE: Start button at the bottom of the display will turn blue and scroll COOLING during a cooldown cycle. Cooldown temperature must be set to a minimum of 25°F below oven temperature.

Touch Start to initiate a bake/cook cycle and all parameters. Oven status will display.

Green Start button means oven is preheated.

Yellow Start button means oven is preheating.

– 8 –

Page 9

BUTTON NAME ACTION

Stop Touch Stop to end a bake/cook cycle in process.

Touch end to nish a bake/cook cycle.

End

NOTE: After bake/cook time ends, touch time display to add time using the keypad.

Manual Mode Buttons

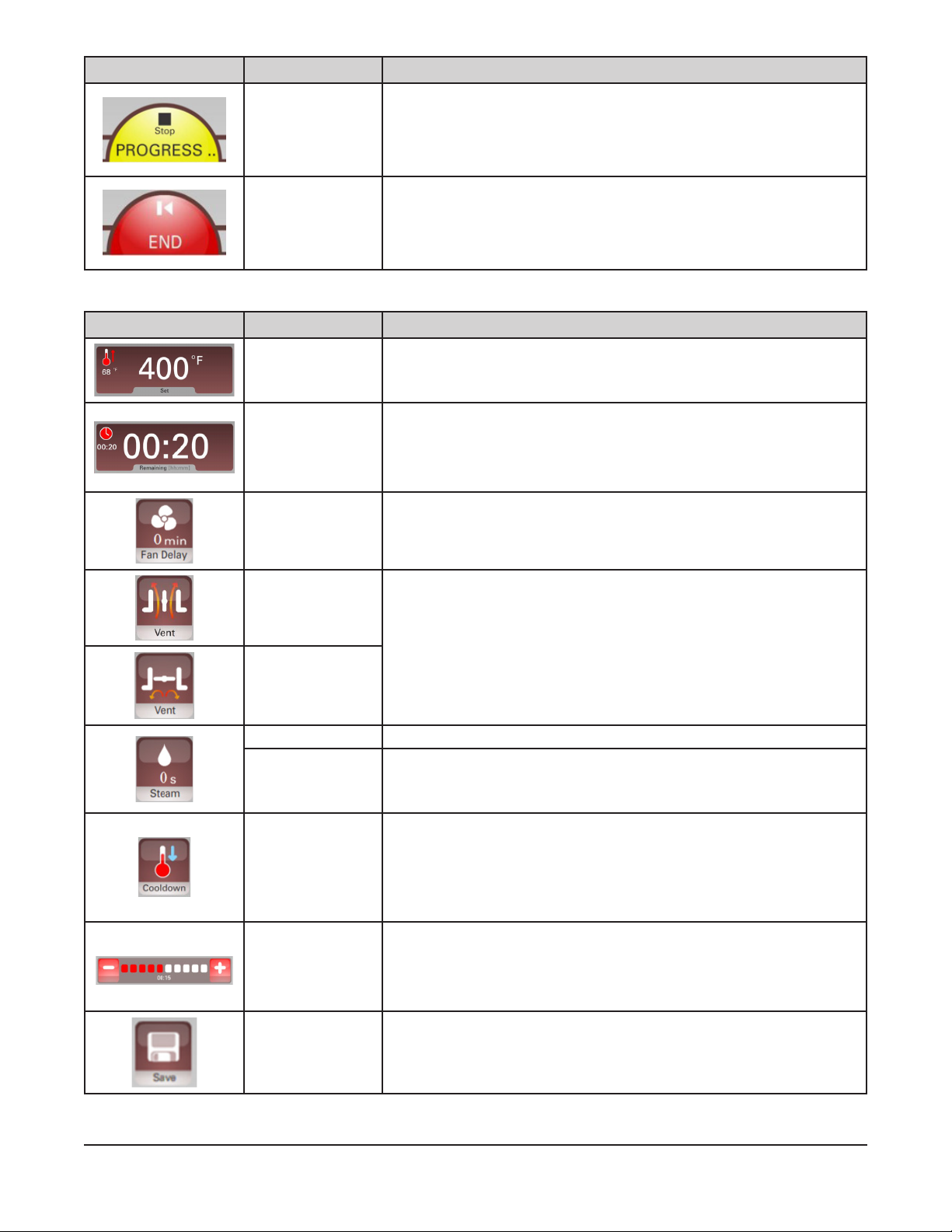

BUTTON NAME ACTION

Temperature Setting Display

Timer Setting Display

Shows set and current temperature. Touch the window to access the keypad for temperature adjustment. Temperature can be adjusted at any time.

Shows set and remaining time. Touch the window to access keypad for timer adjustment.

NOTE: After bake/cook time ends, touch time display to add time using the keypad.

Fan Delay

Vent (Open)

Vent (Closed)

Steam Burst Touch to access keypad and set steam time.

Steam Pulse

Cooldown

Add/Subtract Time

Shows the Fan Delay Time for the current step in a recipe. Touch the button to access keypad to change fan delay time.

Allows the cavity vent to be opened or closed during a recipe or step. When the button is touched, the icon toggles indicating the opened or closed setting. This feature can be programmed into a step or manually adjusted by touching the button while a recipe is running.

Touch and hold the Steam button for 3 seconds to access pulse steam mode. Touch again to access keypad and set steam time and interval.

Touch to access keypad for temperature adjustments and to start a cooldown process.

NOTE: Start button at the bottom of the display will turn blue and scroll COOLING during a cooldown cycle. Cooldown temperature must be set to a minimum of 25°F below oven temperature.

Touch + / - to change time during a bake/cook cycle. Time is added to the last step.

NOTE: After bake/cook time ends, touch time display to add time using the keypad.

Save Touch to save current one-step recipe in My Recipes.

– 9 –

Page 10

BUTTON NAME ACTION

Touch Start to initiate a bake/cook cycle and all parameters. Oven status will display.

Start

Stop Touch Stop to end a bake/cook cycle in process.

End

Green Start button means oven is preheated.

Yellow Start button means oven is preheating.

Touch End to nish a bake/cook cycle.

NOTE: After bake/cook time ends, touch time display to add time using the keypad.

Classic Manual Mode Display and Buttons

DISPLAY/BUTTON NAME ACTION

Shows set temperature. Use arrows to adjust

Temperature Display

Timer Display

temperature. Temperature can be adjusted at any time. Touch window to display current temperature.

Shows set and remaining time. Use arrows to adjust time. Touch window to display set time during a bake/cook cycle.

Steam Display Shows set steam time. Use arrows to set steam time.

Fan Delay Display Shows fan delay time. Use arrows to set fan delay time.

Arrows Use arrows next to each display to adjust settings.

Adjust temperature to desired lower temperature using temperature down arrow and touch Cooldown button.

Cooldown

Vent (Open/Closed) Touch button to open or close the vent.

Start

Touch the Stop button to end a cooldown process.

NOTE: Cooldown temperature must be set to a minimum of 25°F below oven temperature.

Touch Start to initiate a bake/cook cycle and all functions.

Green Start button means oven is preheated.

Yellow Start button means oven is preheating.

Stop Touch Stop to end a current bake/cook cycle.

– 10 –

Page 11

Toolbox Buttons

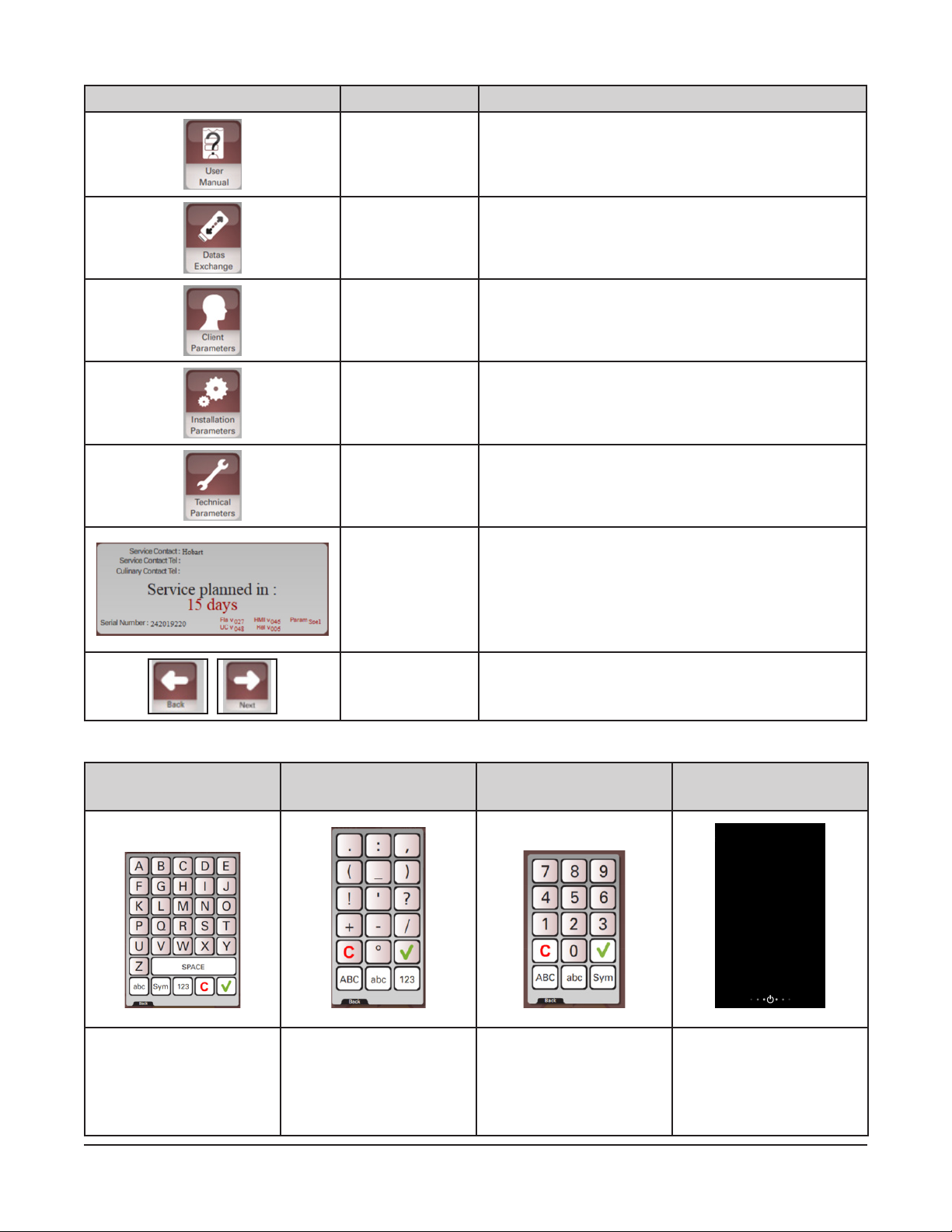

BUTTON NAME ACTION

User Manual

Touch to access:

• User Manual

• Auto and Manual mode training animations

• Frequently Asked Questions (FAQ)

Datas Exchange

Client Parameters

Installation Parameters

Technical Parameters

Maintenance Information

Touch to access the Datas Exchange screen.

Default Password = 0000.

Touch to enter Client Parameters screen.

Default Password = 0000.

For use by Baxter authorized servicers only.

This area of the display shows:

• Service contact information

• Culinary contact information

• Service planned countdown

• Serial number

• Software versions

Screen Arrows Use Back or Next arrow to cycle through screens.

Miscellaneous Screens

Standard Keyboard Symbol Keypad 123 Keypad

Toggle caps and lower case by touching abc button.

Use for 13 symbols. Use for numbers. Touch screen to resume

Energy Savings

Setback Mode

normal operation.

See Client Parameters for setback time and temperature.

– 11 –

Page 12

USING AUTO MODE

The Auto Mode guides the user through all the oven features for recipe setup. A recipe is a set of baking/

cooking instructions (temperature, bake, steam, and fan delay settings) that the operator denes for any

baking/cooking operation. Recipes created in the Manual Mode CAN be saved. Use Auto Mode when creating recipes to save and for multi-step recipes.

Creating a Recipe

1. On the user display, touch the AUTO button at the top and then Touch the My Recipes button (Fig. 5).

2. Touch the New button (Fig. 5) to create a new recipe. A keyboard should be displayed.

3. Enter the recipe name using the keyboard (Fig. 6). Touch the

green check mark when nished.

The recipe name should appear above the recipe window.

4. Touch the Temperature window (Fig. 7) to set the desired temperature for this step of the recipe. A keypad should be displayed.

5. Enter the desired temperature on the keypad (Fig. 8). Touch the green check mark button when finished. The recipe window should appear with the set temperature.

Fig. 5

Fig. 6

Fig. 7 Fig. 8

– 12 –

Page 13

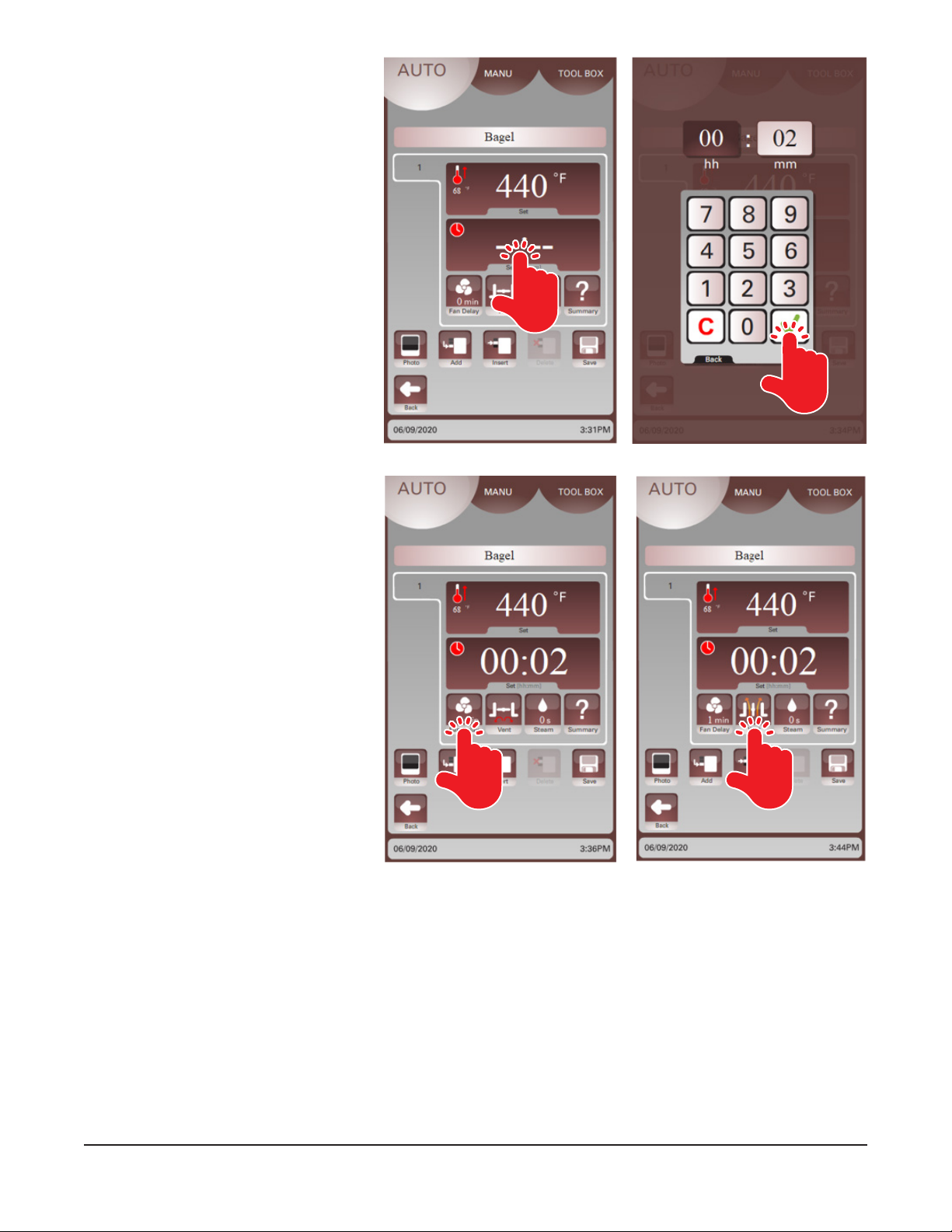

6. Touch the Time window (Fig. 9) to set the desired bake/cook time for this step of the recipe. A keypad should be displayed.

7. Enter the desired bake/cook time on the keypad (Fig. 10). Touch the

green check mark when nished.

The recipe window should appear with the set bake/cook time.

8. Touch the Fan Delay button (Fig. 11) and enter the fan delay time using the keypad. The recipe window should appear with the set fan delay time.

Fig. 9 Fig. 10

9. Touch the Vent button (Fig. 12) to open the vent for the total time in the current step. The recipe window should appear with the desired vent icon.

Fig. 11 Fig. 12

– 13 –

Page 14

10. Touch the Steam button (Fig. 13) and enter the steam time using the keypad. The recipe window should appear with the set steam time.

11. Touch the Add button (Fig. 13) to add another step after the current step to the recipe. The recipe window should be displayed with a step 2 window (Fig. 14).

12. Repeat steps 4 through 10 above to set the temperature, time, fan delay, vent position, and steam time for this step of the recipe.

13. Touch the Insert button to add a step BEFORE a current step (Fig. 15).

14. Touch the number tab (Fig. 15) in the recipe window to switch between steps in a recipe.

15. Touch the Delete button (Fig. 16) to remove a current step.

Fig. 13

Fig. 15 Fig. 16

Fig. 14

– 14 –

Page 15

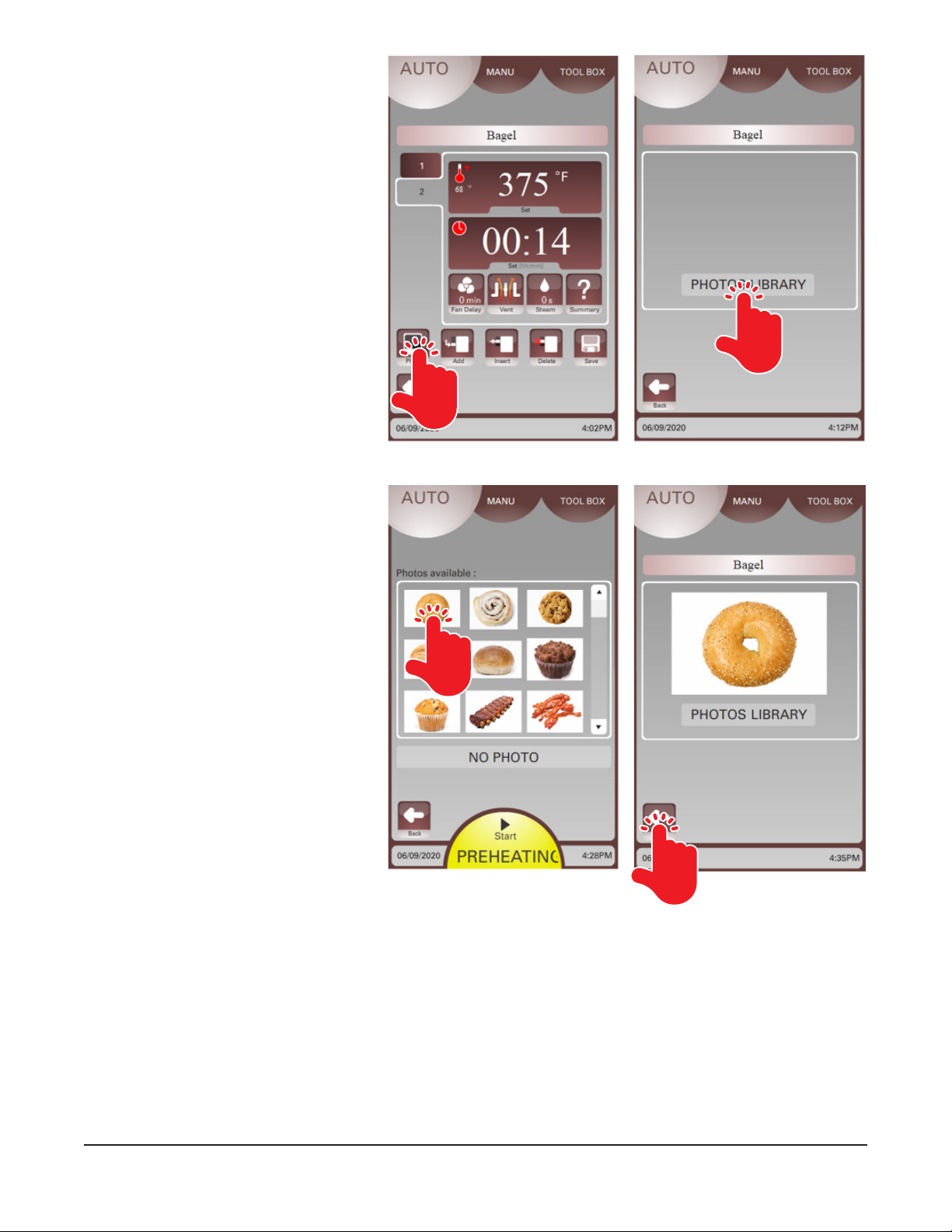

16. Touch the Photo button (Fig. 17) to add an image from the Photos Library to the recipe. The Photos Library window should be displayed.

17. Touch the Photos Library button (Fig. 18). Available photos should be displayed.

18. Use the up and down arrows to view images. Touch the photo (Fig. 19) when you have made a selection.

Fig. 17 Fig. 18

19. The selected image will be displayed. Touch the back arrow (Fig. 20) to return to the recipe window.

Fig. 20Fig. 19

– 15 –

Page 16

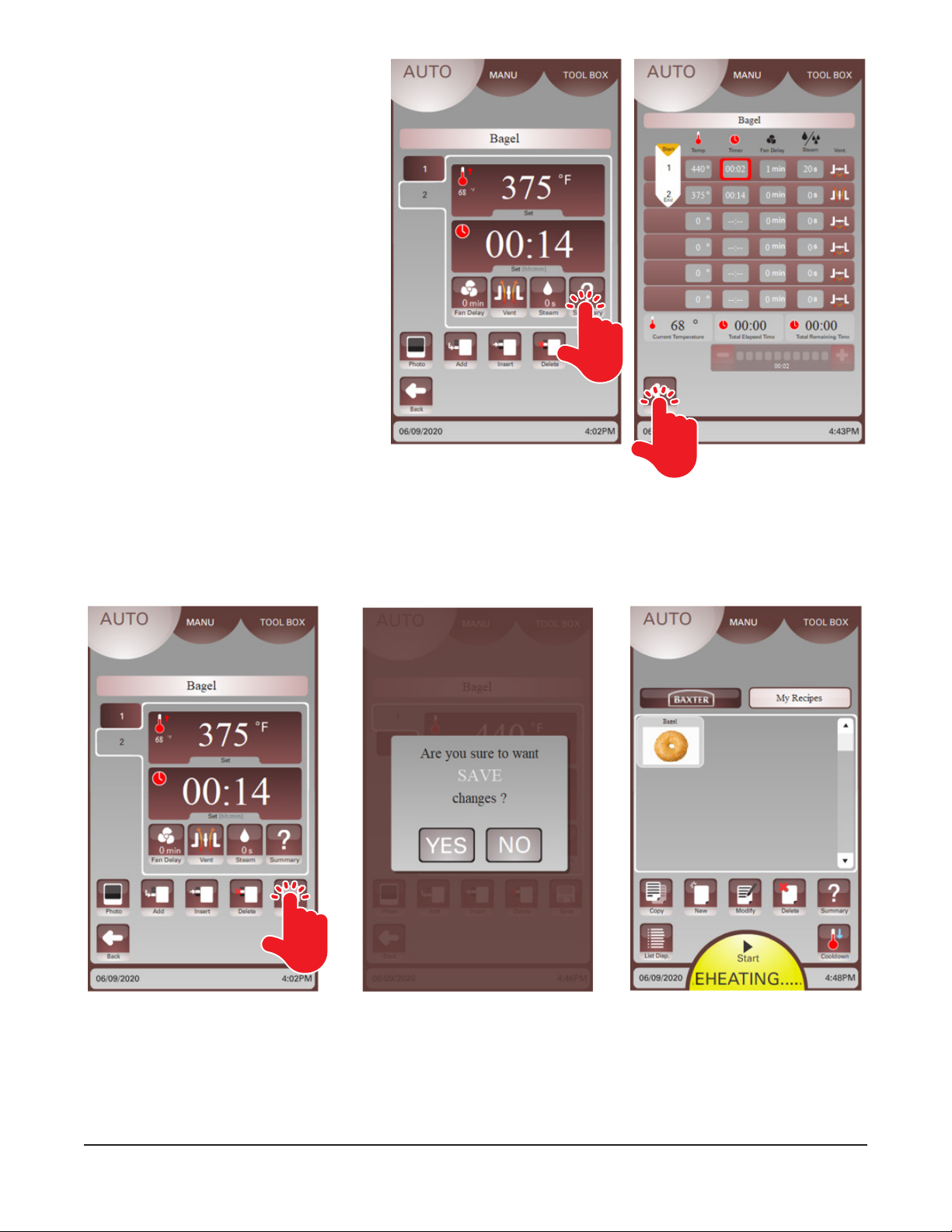

20. Touch the Summary button to review all steps (Fig. 21). The Summary Review window will appear.

NOTE: The Summary Review window will display all settings for each step in a recipe and the total elapsed time and remaining time in a recipe.

21. After reviewing all steps, touch the back arrow (Fig. 22).

22. Touch the Save button (Fig. 23) to save to the My Recipes library.

Fig. 22Fig. 21

23. Touch Yes to conrm or No to edit or review the recipe (Fig. 24).

24. The recipe will now be displayed in the My Recipes window (Fig. 25).

Fig. 23

Fig. 24

– 16 –

Fig. 25

Page 17

Using a Recipe

Preset recipes are available under the Baxter button and custom created recipes are available under My Recipes. Recipes can be viewed by photos or by a list.

NOTE: Recipes can be modied before

starting the bake/cook cycle. Consider whether the recipe should be copied

rst before modifying.

Select the recipe by touching the photo or name in the list. The summary button can be pressed to review the recipe (Fig. 26). Touch Start to begin the recipe (Fig. 27).

NOTE: A green Start button indicates the oven is preheated. A yellow Start button indicates the oven is preheating. The border color around the recipe icon will change with the start button color.

Fig. 26

Fig. 27

Viewing a Recipe in Progress

The display screen will show the progress of an actively running recipe (Fig. 28). The recipe name, current and set temperature, remaining and set time, fan delay time, vent status, and steam time will be displayed. The recipe step is shown by the number on the left side of the window. The Stop button will scroll the words IN PROGRESS. The entire recipe can be viewed by touching the Summary button (Fig. 26).

NOTE: The Summary Review window (Fig. 27) will display all settings for each step in a recipe and the total elapsed time and remaining time in a recipe.

During the bake/cook cycle, time can be added or subtracted by touching the + / - add/subtract time button.

NOTE: After bake/cook time ends, touch the time display window to add time using the keypad.

Touch the Stop button to end a bake/cook cycle in progress.

Fig. 28

– 17 –

Page 18

MANUAL MODE

The Manual Mode guides the user through a simplied setup process without using a saved recipe. Manual

Mode can be used for single-step recipes. This can save time and be easier to use than the Auto Mode.

NOTE: The Manual Mode process can be congured in the Client Parameters to operate in Manual or

Classic Manual mode.

• Manual Mode - The user will have access to manually enter temperature, time, steam, fan delay vent options; change time during bake/cook cycle; save one-step recipes; stop bake/cook cycle while in process; and end bake/cycle in process.

• Classic Mode - This mode emulates the traditional Baxter controls for ovens. The user will have access to manually enter temperature, time, steam, fan delay, and vent options, and stop bake/ cook cycle in process.

Using Manual Mode

1. On the user display, touch the MANUAL button at the top.

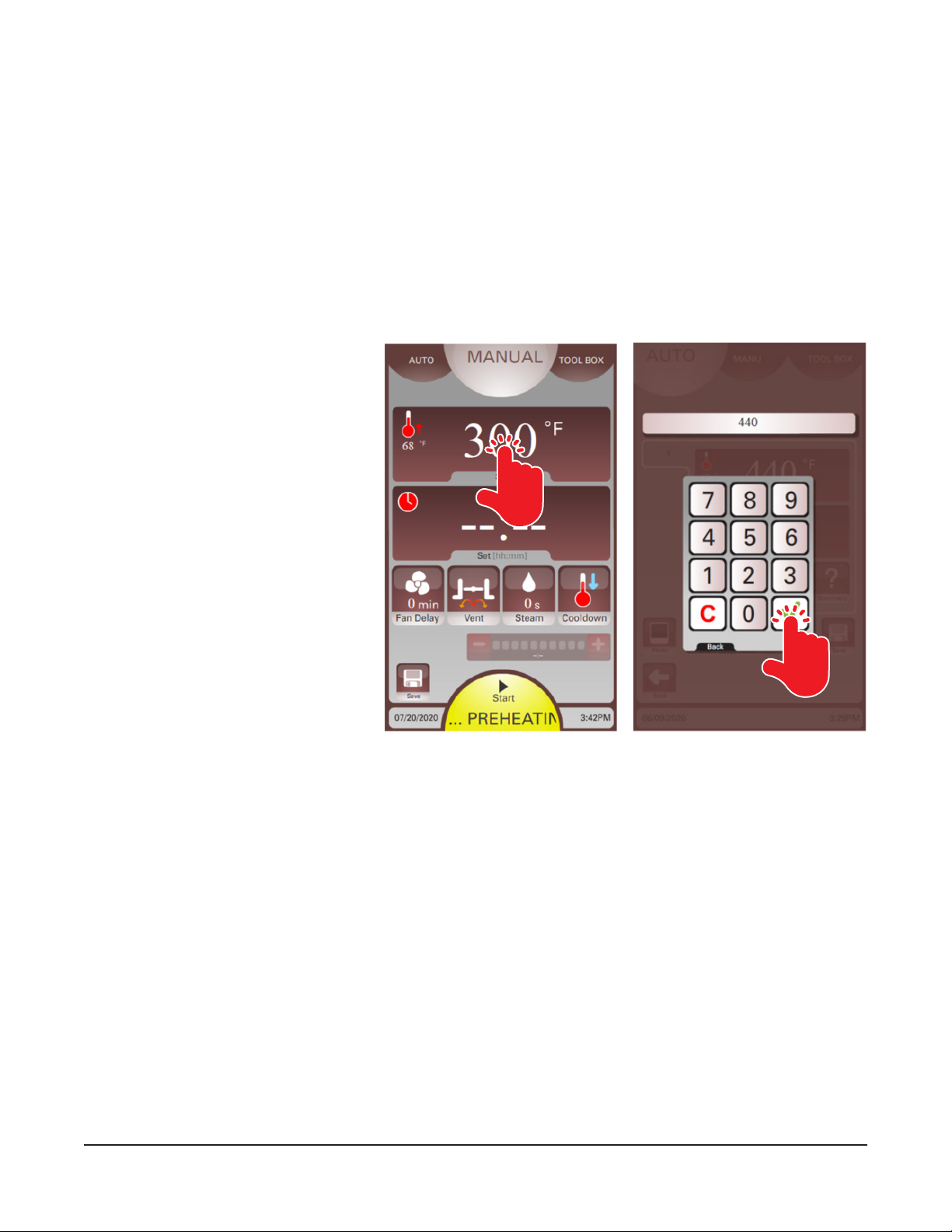

2. Touch the Temperature Setting Display (Fig. 29) to set the desired temperature. A keypad should be displayed.

3. Enter the desired temperature on the keypad (Fig. 30). Touch the green check mark button

when nished. The Manual Mode

screen should appear with the set temperature.

Fig. 29

– 18 –

Fig. 30

Page 19

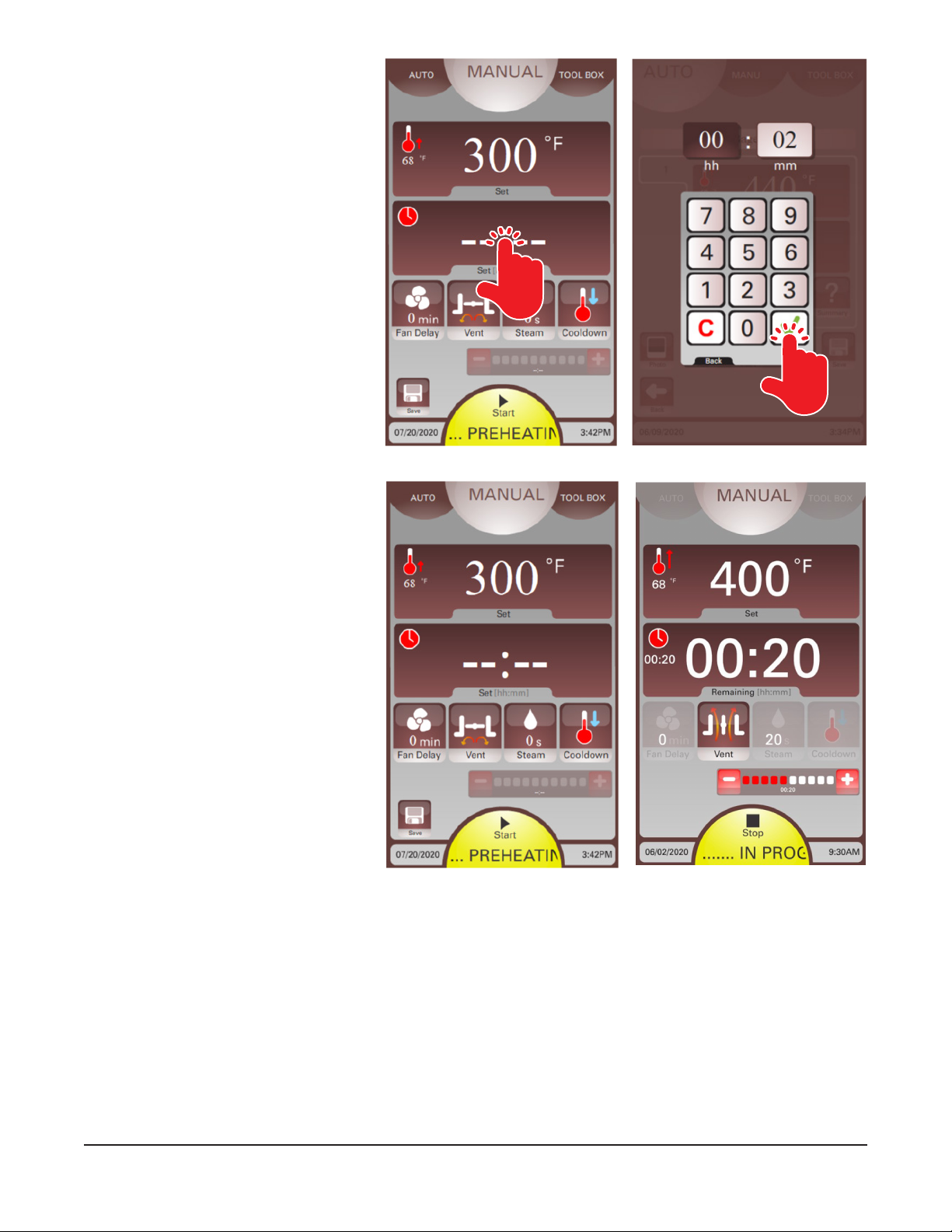

4. Touch the Timer Setting Display (Fig. 31) to set the desired bake/ cook time. A keypad should be displayed.

5. Enter the desired bake/cook time on the keypad (Fig. 32). Touch the

green check mark when nished.

The Manual Mode screen should appear with the set bake/cook time.

6. Touch the Fan Delay button (Fig. 33) and enter the fan delay time using the keypad.

7. Touch the Vent button (Fig. 33) to toggle the vent open or closed.

8. Touch the Steam button (Fig. 33) and enter the steam time using the keypad.

NOTE: If the oven temperature is too high for the current operation, touch the Cooldown button to access the temperature setting and start a cooldown process. The Start button will turn blue during a cooldown process.

NOTE: If desired, touch the Save button to save these bake/cook settings in My Recipes. See Creating a Recipe in Auto Mode for more details.

9. Touch Start to begin the bake/cook cycle.

Fig. 31

Fig. 33 Fig. 34

Fig. 32

NOTE: A green Start button indicates the oven is preheated. A yellow Start button indicates the oven is

preheating.

NOTE: During the bake/cook cycle, time can be added or subtracted by touching the + / - add/subtract time button.

NOTE: After bake/cook time ends, touch the time display window to add time using the keypad.

10. Touch the Stop button (Fig. 34) to end a bake/cook cycle in progress.

– 19 –

Page 20

Using Classic Manual Mode

NOTE: The Manual Mode process can be congured in the Client

Parameters to operate in Classic Manual Mode.

1. On the user display, touch the MANUAL button at the top. The Classic Manual Mode should display (Fig. 35).

2. Touch the Arrow buttons next to the Temperature Display, Timer Display, Steam Display, and Fan Delay Display to adjust the settings.

3. Touch the Vent button to toggle the vent setting open or closed.

NOTE: If the oven temperature is too high for the current operation, adjust the temperature down using the temperature down arrow and touch the Cooldown button. Touch the Stop button to end the cooldown process.

4. Touch Start to begin the bake/cook cycle.

NOTE: A green Start button indicates the oven is preheated. A yellow Start button indicates the oven is preheating.

NOTE: During the bake/cook cycle, settings can be adjusted any time by touching the Arrow buttons.

NOTE: During the bake/cook cycle, touch the Temperature Display to show the current oven temperature. Touch the Timer Display to view the set time.

Fig. 35

5. Touch the Stop button to end a bake/cook cycle in progress.

USING SMART TOUCH TOOLBOX MODE

This Smart Touch Toolbox Mode (Fig. 36) is used to access the User Manual, Data Exchange, and Client Parameters Screens. The Installation Parameters and Technical Parameters are for use by Baxter authorized servicers only.

User Manual Screen

The User Manual Screen (Fig. 37) provides access to the user manual, auto and manual mode training animations and FAQ. Touch MANUAL MODE or AUTO MODE to view animations on how to use each mode. Touch the FAQ to review information about the topics listed. Touch the Back Arrow button to return to the Toolbox screen.

Fig. 36

– 20 –

Fig. 37

Page 21

Data Exchange Screen

The Data Exchange Screen is used to allow the user to import and export various data types via Universal Serial Bus (USB) drive. Touch the button on the screen for the data parameter to import, export, or view. Insert the USB drive before touching any buttons. See the table below for information about each data type.

Data

Exchange

Additional Information

Parameter

Recipes Recipes can be imported and exported via a USB drive.

Any existing recipes will be erased that have the same name. See Smart Touch Perconal Computer (PC) Software manual for PC-based recipe management.

Usage Log Press view button to see a history of recipe usage or

manual mode usage. History can be exported to a USB

as a .csv le.

Consumptions Consumptions can be exported as a .csv le and viewed

on a computer in Excel or Smart Touch PC Software. See Smart Touch PC Software manual for instructions.

Photos Photos can be imported and exported via a USB drive.

Importing photos will erase any photo with the same name. Each image will have two photos saved. One for the recipe image and one for the welcome screen. See Smart Touch PC Software manual for PC-based photo management.

User Manual The FAQ User Manual can be exported and viewed on a

computer or printed.

User Prole The oven’s User Prole can be imported and exported

via a USB drive. User Prole information includes

recipes, photos, client parameters, and maintenance contacts. See Smart Touch PC Software manual for PCbased oven management.

Fig. 38

Touch the Back Arrow button to return to the Toolbox screen.

Client Parameters Screen

The Client Parameters Screen is used with default operation settings for the oven. There are two screens (Fig. 39 and Fig. 40). Touch the Next and Arrow buttons to navigate through the screens. Refer to the Parameters Table for details about each setting.

Fig. 39 Fig. 40

– 21 –

Page 22

Parameters Table

PARAMETER DESCRIPTION DEFAULT

Language Language selection English (En) English (En)

Brightness Adjust screen brightness 100% 10 - 100% Sound level Sound level adjustment 80% 0 - 100% No. of end of cooking beeps Adjust the number of beeps at the end of

a bake/cook cycle

Screen beep Turn o󰀨/on screen beeps when touched Yes Yes = On

Date Set current date - Time Set current time - Date format Set the format the date is displayed on

the screen

Time format Set the format the time is displayed on

the screen Auto screen lock Enables/disable screen lock No Yes or No On Time Start of time range that oven can be

used. O󰀨 Time End of time range that oven can be

used.

Note: If O󰀨 time equals On time, the

feature is disabled. Measure units Temperature unit selection °F °F or °C Prices Set the dollar value of the unit of power Elec: [$0.15/kWh]

Oven preheat temperature Default preheat temperature 400°F 50 -525°F Setback temperature Temperature setback value 250°F 50 –300°F Steam preheating N/A N/A N/A Default mode Default mode oven will start on Manual Manual or Auto Manual mode Default manual mode Classic Standard or

Start message Welcoming message when oven is

energized Client gallery name Default client recipe name My Recipes Up to 26

Recipe authorization Enables/disables recipe copy, modify,

new, or delete recipes Pin number Pin number to access Client Parameters 0000 0000 - 9999

Innite 1 -11

mm/dd/yy mm/dd/yy

AM/PM AM/PM

12:00 AM All time.

10:00 PM All time.

Gas: [$1/therm]

Hello Chef Up to 26

All enabled Enable or

RANGE or

VALUE

Spanish (Esp)

French (Fr)

11 = Innite

No = O󰀨

dd/mm/yy

24 Hour

Classic

characters

disable

– 22 –

Page 23

Auto O󰀨

The Auto On/Auto O󰀨 times shown in Client parameters allow the user to set a useable time frame for the

oven. If the oven is outside of these times, the oven will shut down automatically.

NOTE: This feature can be disabled by setting both values to 12:00AM.

Example #1: The default ON value of 12:00AM and OFF value of 10:00PM allows the oven to be used from 12am to 10pm.

12AM 1AM 2AM 3AM 4AM 5AM 6AM 7AM 8AM 9AM 10AM 11AM 12PM 1PM 2PM 3PM 4PM 5PM 6PM 7PM 8PM 9PM 10PM 11PM

ON OFF

Example #2: ON value of 5:00AM and OFF value of 6:00PM allows the oven to be used from 5am to 6pm.

12AM 1AM 2AM 3AM 4AM 5AM 6AM 7AM 8AM 9AM 10AM 11AM 12PM 1PM 2PM 3PM 4PM 5PM 6PM 7PM 8PM 9PM 10PM 11PM

OFF ON OFF

When the oven is ON and reaches the Auto OFF

time the following “Auto O󰀨” screen (Fig. 41)

will appear with an audible alarm. To continue to use the oven, press YES and enter the Client password (Default: 0000) and press the green check mark (Fig. 42). This will allow the oven to operate for another hour. After an hour the

“Auto O󰀨” screen (Fig. 41) will reappear asking

if you would like to continue using the oven.

If you are done using the oven you can turn

the oven o󰀨.

Fig. 41 Fig. 42

If ve minutes has expired on the “Auto O󰀨” screen (Fig. 41) the screen the right (Fig. 43) will appear. If you are done using the oven, turn the oven o󰀨. To use the oven again turn the oven o󰀨 and back on.

– 23 –

Fig. 43

Page 24

SHUTDOWN

The rack oven and its parts are hot. Use care when operating, servicing, or cleaning

the rack oven.

Hot air and steam are released from the oven interior when the loading door is

opened. To avoid burns, open the door slowly and keep clear of the opening.

NOTE: Before restarting a gas oven, the power switch and the gas burner valve must be o󰀨 for a minimum

of 5 minutes.

1. Remove all remaining product.

NOTE: Vent can be used to evacuate steam from oven.

2. Allow the oven to cool, then press the POWER ON/OFF button. If desired, quicker cooldown time can be accomplished through the use of the Cooldown button.

3. Clean the baking chamber. See Cleaning page 27.

4. For lengthy shutdowns, disconnect the main power and shut o󰀨 the gas and water supply.

RESTARTING OVEN

NOTE: Before restarting a gas oven, power switch and gas burner valve must be o󰀨 for a minimum of

5 minutes.

1. Press the POWER ON/OFF button to turn the oven on.

2. Adjust temperature as required.

– 24 –

Page 25

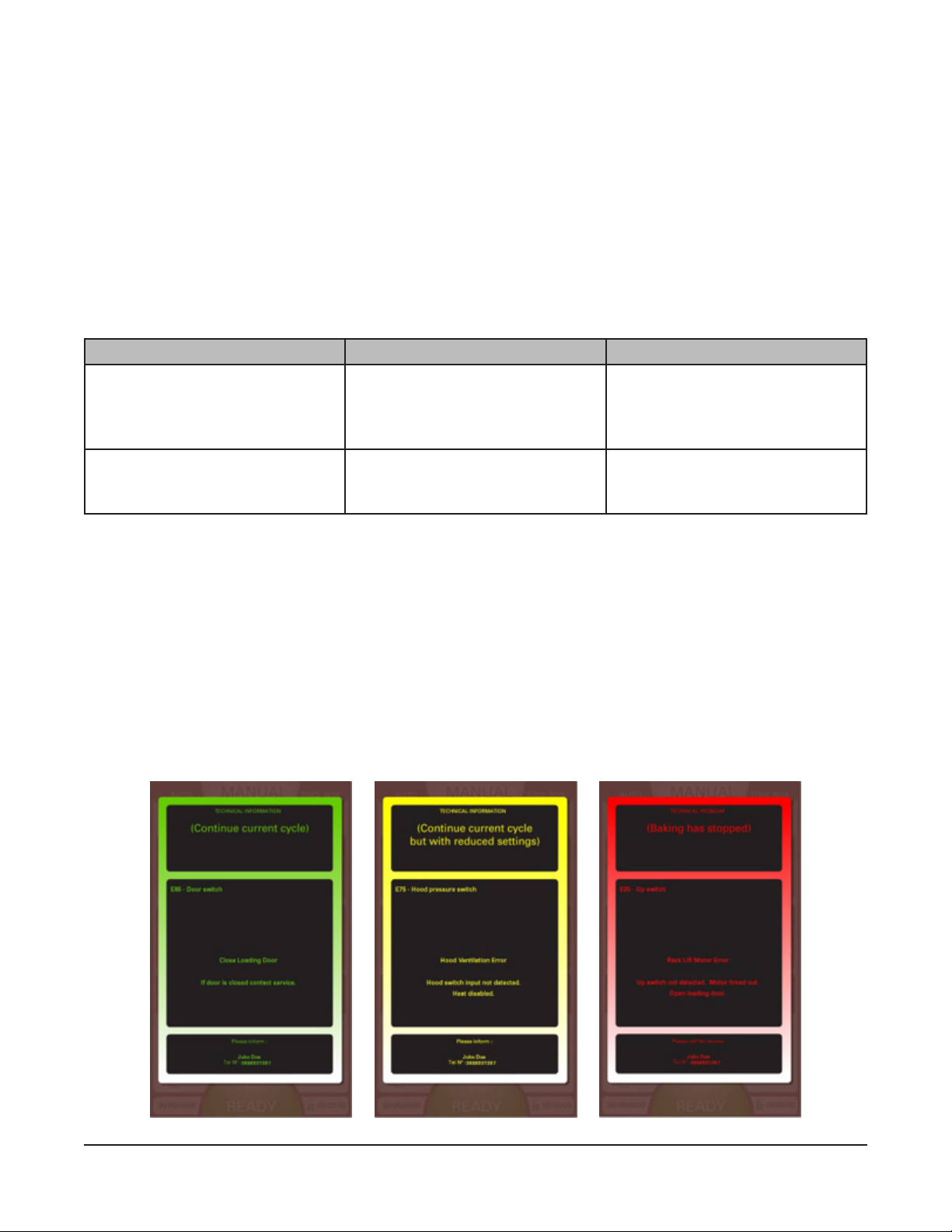

TROUBLESHOOTING

BURNERS WILL NOT LIGHT ON GAS OVEN

1. Check that the loading door is shut and the door switch is actuated.

2. Press the OFF button to turn the oven o󰀨 and wait 5 minutes.

3. Make sure the gas shuto󰀨 valve and gas valve are in the ON position.

4. Press the ON button to turn the oven back on.

If the above suggestions do not remedy the problem, contact a Baxter authorized service o󰀩ce.

CLEANING

Disconnect the electrical power to the machine and follow lockout / tagout procedures.

There may be multiple circuits. Be sure all circuits are disconnected.

The rack oven and its parts are hot. Use care when operating, servicing or, cleaning

the rack oven.

Hot air and steam are released from the oven interior when the loading door is

opened. To avoid burns, open the door slowly and keep clear of the opening.

• Allow the oven to cool.

• Clean the outside of the oven daily with a clean, damp cloth.

• Remove rack(s) and clean as you would any cooking utensil. Use warm, soapy water, and a brush. Rinse with clear water and dry with a clean cloth.

• Use care when cleaning around sensitive interior parts such as probes, sensors, or the rotating mechanism.

• Using a clean cloth and warm, soapy water, wash the stainless steel interior of the oven. Rinse with clear water and dry with a clean cloth.

• Gently scrape heavy buildup o󰀨 door glass. Residue can be removed with a glass cleaner when

oven is cool.

• Clean hood lters (if equipped) with soap and warm water.

• Do not use oven cleaners or steel wool on stainless steel surfaces. Never spray down the oven with water or steam.

• Never use cleaners that contain chlorine. Chlorine corrodes stainless steel.

– 27 –

Page 28

MAINTENANCE

Disconnect the electrical power to the machine and follow lockout / tagout procedures.

There may be multiple circuits. Be sure all circuits are disconnected.

The rack oven and its parts are hot. Use care when operating, servicing, or cleaning

the rack oven.

Hot air and steam are released from the oven interior when the loading door is

opened. To avoid burns, open the door slowly and keep clear of the opening.

GENERAL

As Needed

• Inspect the area around the oven. The area must be free and clear from combustibles. There must

be no obstructions to the air ow.

Daily

• Clean exterior (See Cleaning page 27).

Weekly

• Clean the oven interior and remove loose debris (See Cleaning page 27).

• Clean the windows.

• Empty grease catcher (if equipped).

Monthly

• Clean exhaust hood lters (if equipped) with soap and water.

Bi-Monthly

• Owner Preventive Maintenance (PM) Procedure.

Annually

• On gas ovens, check the ue to be sure it is free of obstructions.

PREVENTIVE MAINTENANCE

The OV520 Rack Oven must be kept on a regular preventive maintenance schedule. Ovens require

specic preventive maintenance based on usage and environmental factors. The failure to have the oven

properly maintained by following recommended preventive maintenance procedures may result in higher repair costs, shortened equipment life, or unsafe operating conditions.

It is the owner’s responsibility to make sure preventive maintenance is performed on the rack oven. This

will ensure continued safe and reliable operation. Contact an authorized Baxter service o󰀩ce to provide

this skilled service for you.

SERVICE AND PARTS INFORMATION

Contact your Baxter authorized service o󰀩ce.

– 28 –

Page 29

OWNER PREVENTIVE MAINTENANCE PROCEDURE

INTRODUCTION

This customer PM section includes procedures to inspect for proper operation and cleaning of components. Owner Preventive Maintenance Procedures are written for gas ovens. They can also be used for electric ovens by omitting the steps that refer to components found only on gas ovens. To maintain the safety and performance of bakery ovens, a program of scheduled periodic maintenance must be implemented. It is the sole responsibility of the user to establish, schedule, and enforce such a program. Although the service interval will vary depending on the environment in which the equipment is operating, it is recommended that PM be performed and all safety devices are checked at a minimum of 12-month intervals. Check with

the authority having local jurisdiction if there are specic maintenance requirements specied by local,

state, or national codes. A convenient PM Checklist is provided at the end of this section.

NOTE: This PM procedure does not discuss repair or replacement of components. Upon completion of

the PM procedure, you will need to contact a qualied servicer for any needed repairs.

Tools Used for Inspection Procedure

• Standard set of hand tools

• Vacuum cleaner - shop vac

PREVENTIVE MAINTENANCE PROCEDURE

Disconnect the electrical power from the machine and follow lockout / tagout

procedures. There may be multiple circuits. Be sure all circuits are disconnected.

Shut o󰀨 the gas before servicing the unit.

Certain procedures in this section may require electrical test or measurements while power is applied to the machine. Exercise extreme caution at all times. If test points are not easily accessible, disconnect power and follow lockout/tagout procedures, attach test equipment, and reapply power to test.

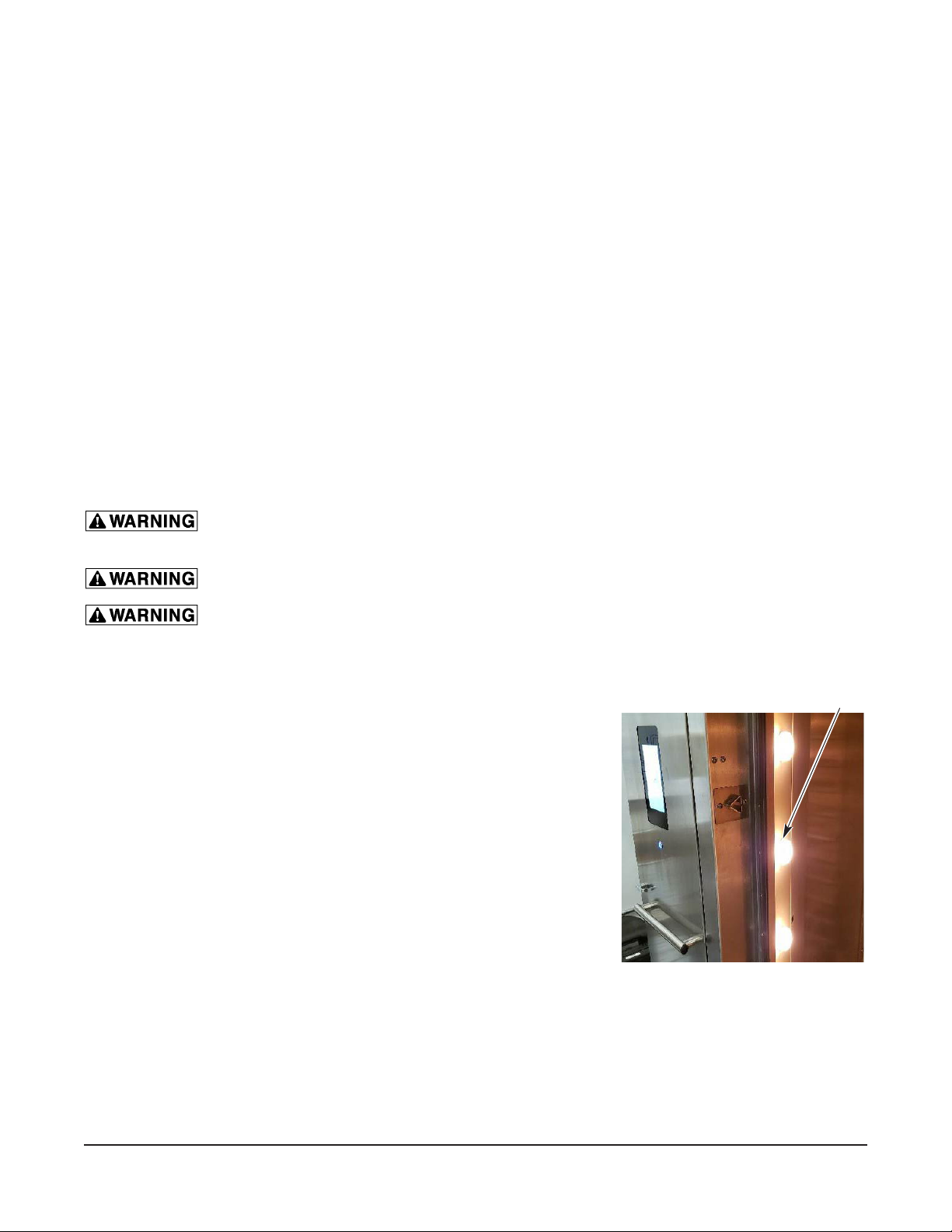

Lamps

Inspect Oven Lamps

1. Lamps should be on when oven is powered.

2. If not, replace lamps (Fig. 47).

A. Remove lens cover by turning out of lamp

housing.

B. Remove oven lamp by turning lamp out of

lamp socket.

3. Reverse the procedure to install new lamps.

Fig. 47

– 29 –

Page 30

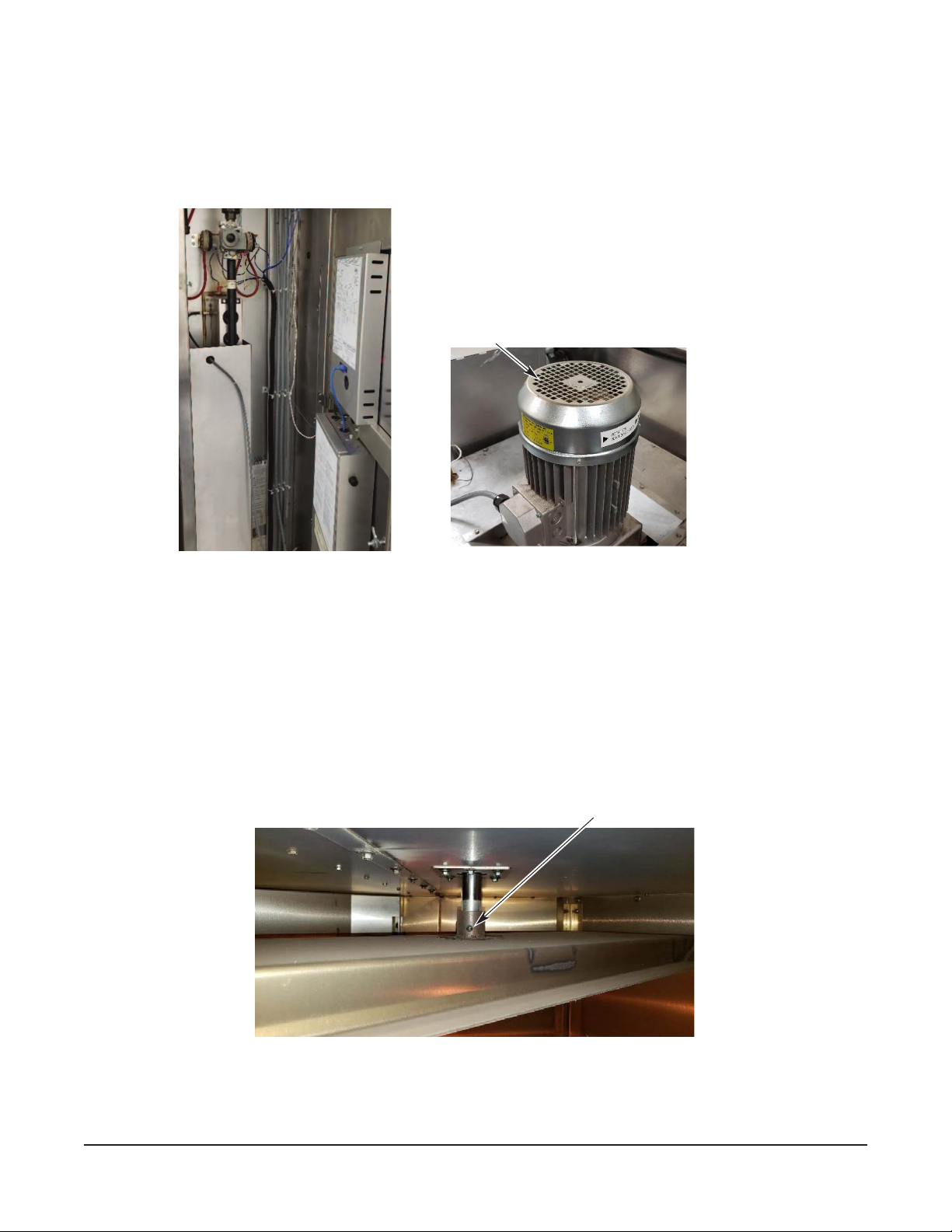

Clean and Vacuum Components and Control/Burner Compartment Area (Gas Only)

1. Clean the control/burner compartment (Fig. 48) area of dust and/or lint accumulation.

2. Vacuum the control/burner compartment oor of dust and/or lint accumulation.

3. Gain access to the top of oven and clean dust that may have accumulated on top of circulation blower

motor (Fig. 49) and motor cooling fan.

Burner Compartment

Clean Area

Fig. 48

Rack Lift and Rotation Assemblies

1. Check rack lift assembly for proper operation.

A. Open door. Rack lift should lower to correct height of rack and be in forward loading position

to accept rack entry.

B. The oven rack should be easily rolled in and out of oven and the wheels completely o󰀨 the

oven oor when raised.

2. Tighten all set screws in carrier (Fig. 50).

A. Check and tighten all set screws on carrier.

Fig. 49

Set Screws

Fig. 50

– 30 –

Page 31

Inspect Door Components

1. Check loading door latch.

A. Check door gasket for good condition. If door gasket

needs replacement, contact your local Baxter authorized

service o󰀩ce.

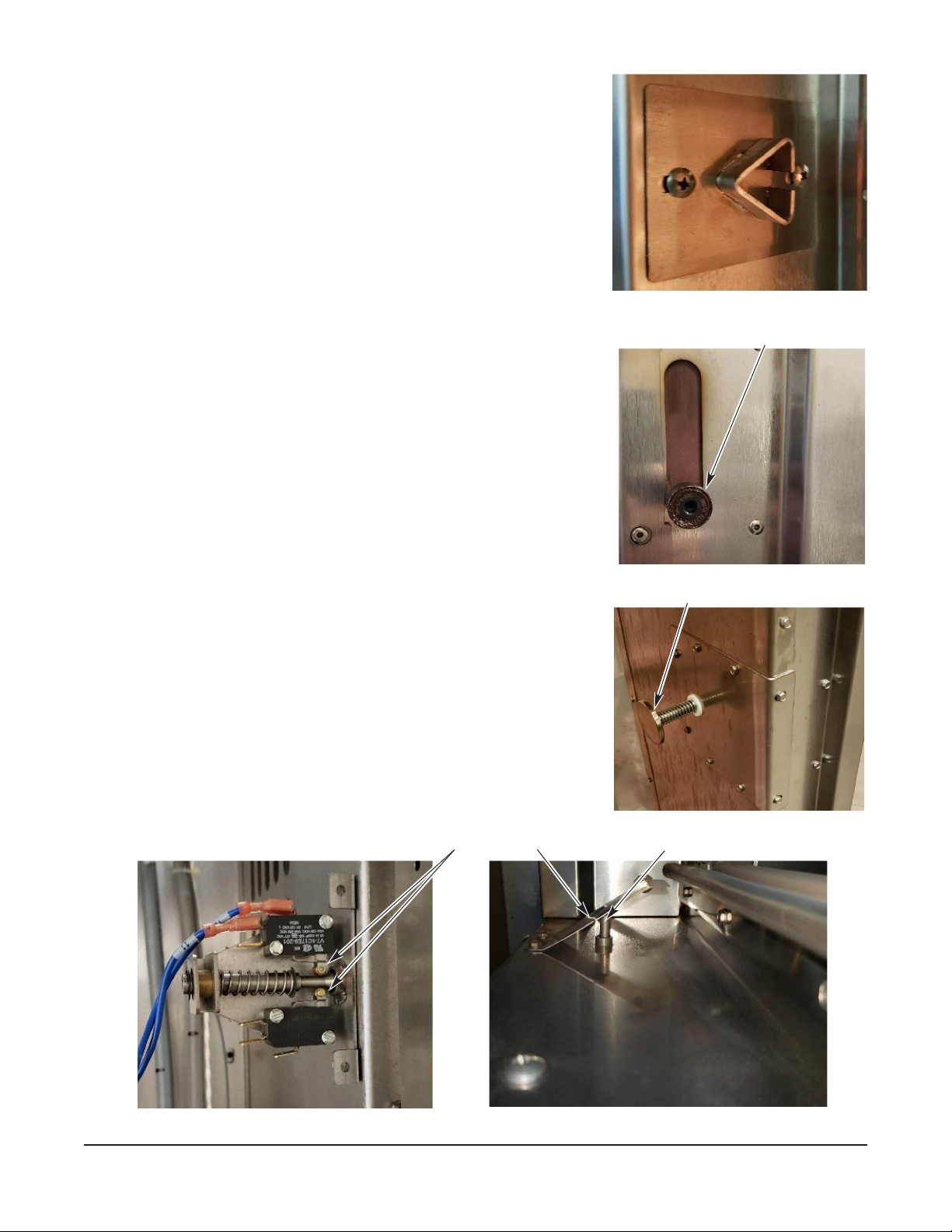

B. Check that the loading door lock ramps are clean (Fig. 51)

and rollers on the door move up and down and spin freely (Fig. 52).

C. Adjust latch ramps in or out by loosening the

two screws. DO NOT REMOVE THEM. Slide ramp in or out to loosen or tighten door (Fig. 51).

D. Tighten screws.

2. Check door sweep.

A. The door sweep should hit the oor evenly across door

width when door is in the closed position.

B. Turn oven on.

C. If air (or steam) blows out from underneath the door, door

will need to be adjusted. If door sweep needs replacement or adjustment, contact your local Baxter authorized

service o󰀩ce.

3. Check interior door release (Fig. 53) for proper operation.

4. Check door switch for proper operation.

Door Lock Ramp

Fig. 51

Door Roller

Fig. 52

Interior Door Release

A. When door switch actuator rod is in the open position

(door open), the door switch rollers should be positioned on the small part of the rod (Fig. 54).

Door Switch Rollers

Bracket

Fig. 53

Rod

Fig. 54

– 31 –

Page 32

5. Check door handle operation.

A. Pull out on door handle (Fig. 55) to open door, then push door shut (Fig. 56). If the door is too

hard to open or close, see door lock ramps adjustment (Fig. 51).

Lock Pin

Fig. 55

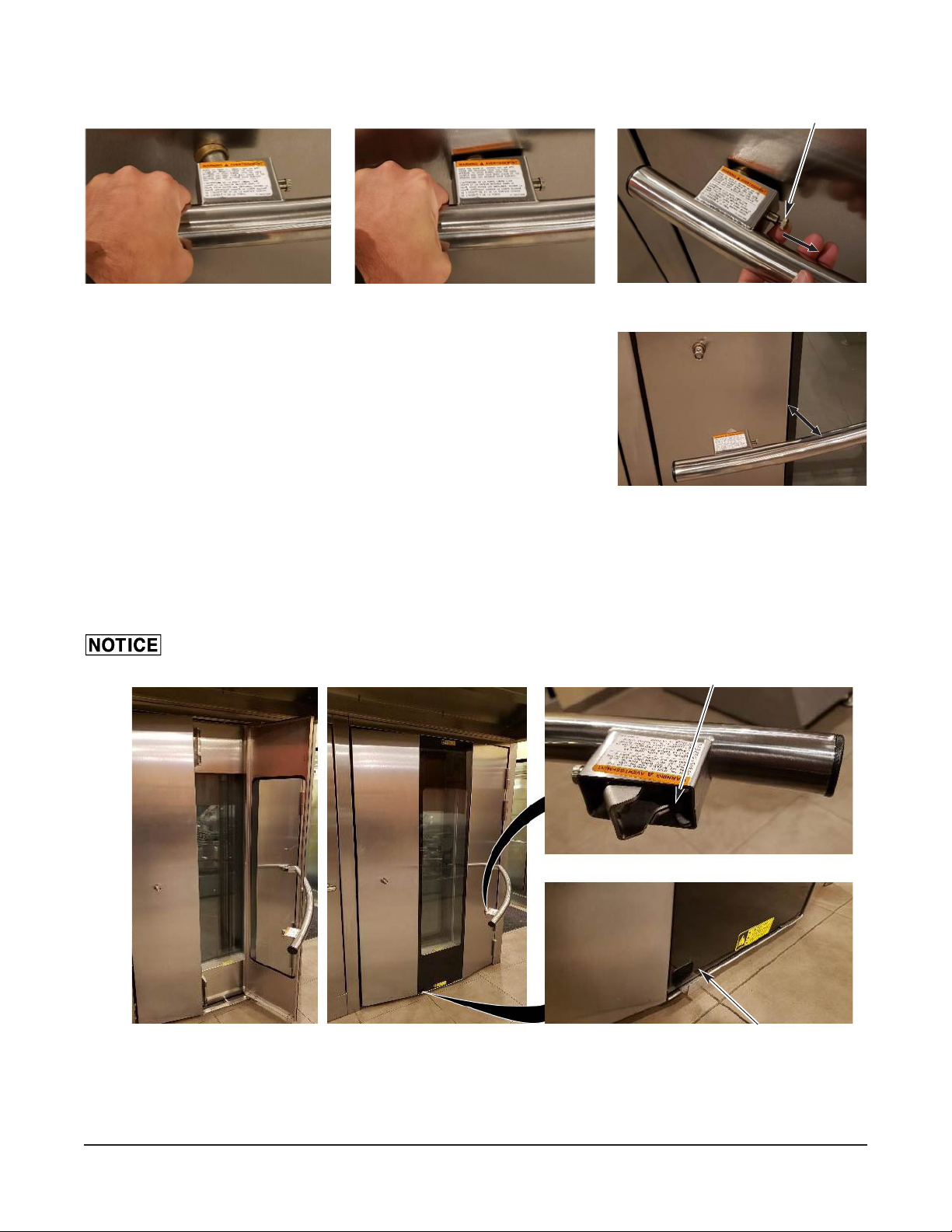

6. Clean door glass.

A. With the loading door shut, pull door handle lock pin out

(Fig. 57).

B. Pull door handle out (Fig. 58).

C. Swing handle open (Fig. 59).

NOTE: Make sure not to dent door on hinged side.

D. Check that there is no residue buildup on the handle lock

mechanism (Fig. 59).

NOTE: The handle for the glass is located at the top or bottom of glass depending on door hinge

side.

E. Pull out on handle (Fig. 59) to open glass door. If glass door needs to be adjusted, contact your

local Baxter authorized service o󰀩ce.

Failure to contact service for glass door adjustment may result in the glass breaking.

Fig. 56

Fig. 57

Fig. 58

Lock Mechanism

Fig. 59

– 32 –

Door Glass Handle

Page 33

F. To close the glass door, simply push shut.

G. To close handle, the lock mechanism needs to be in the

unlock orientation (Fig. 60).

NOTE: If lock is not in the unlock orientation, pull lock pin

out and rotate lock to the unlock orientation.

H. Place lock box over hex bolt and slowly push

handle into door (Fig. 60). Check to see if the handle latch engaged by opening door (Fig. 61). Repeat if necessary.

Hex Bolt

Lock Pin

Inspect Air Louvers

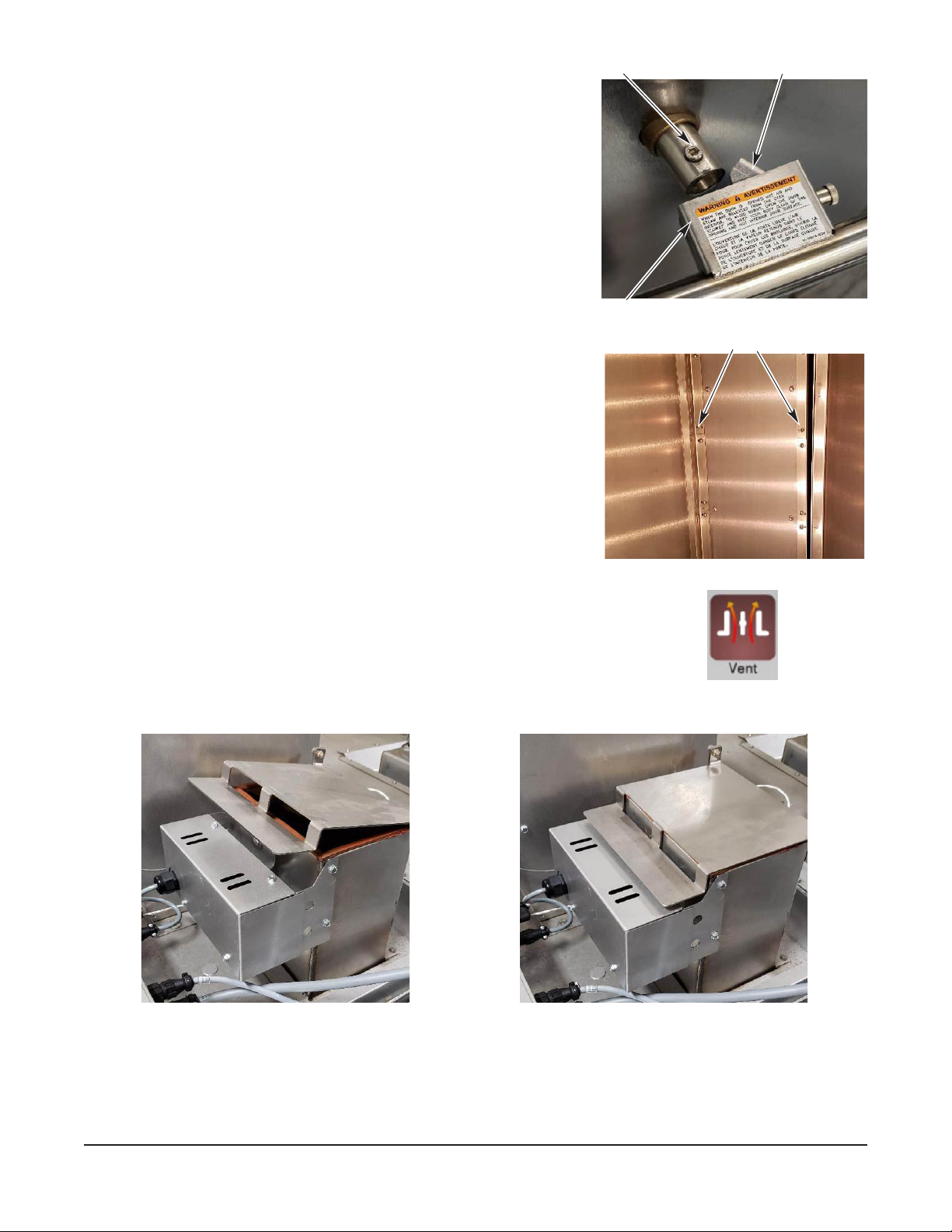

1. Check air louvers (shutters) (Fig. 61) inside oven and

tighten any loose screws.

2. Check oven interior and tighten or replace loose or missing

panel screws. Also check oor anchors.

Inspect Cavity Vent

1. Check cavity vent for proper operation.

A. Touch Vent button (Fig. 62) on the control panel to

open vent and then touch VENT again to close vent.

B. Visually check that vent opens (Fig. 63) and closes

(Fig. 64) when button is touched.

C. Check that vent gasket is intact.

Vent Open

Vent Closed

Lock Box

Fig. 60

Shutters

Fig. 61

Fig. 62

Fig. 63

Fig. 64

Visually Inspect Electrical Connections

1. Inspect all wiring connections for discoloration. If discoloration is visible, contact your local Baxter

authorized service o󰀩ce.

– 33 –

Page 34

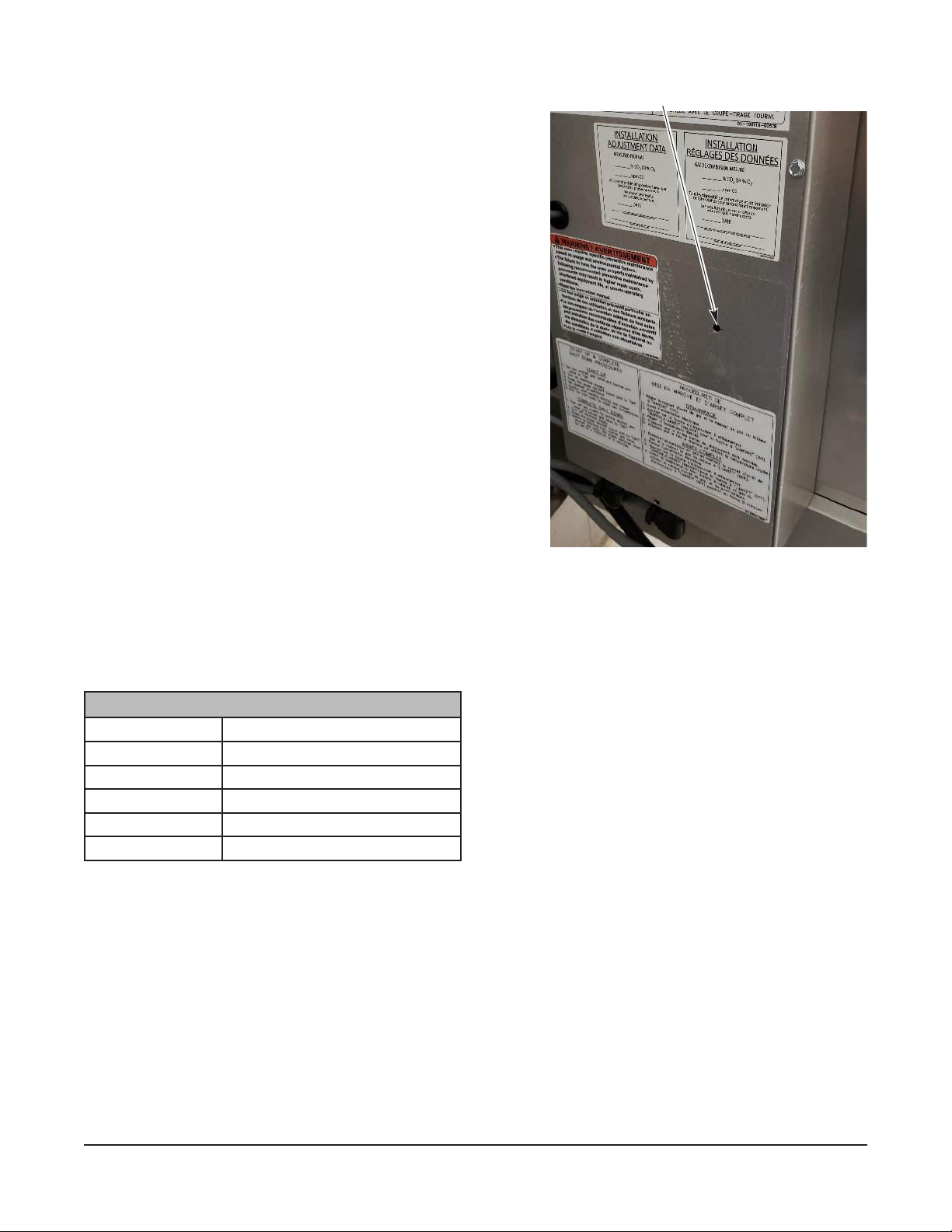

Verify Ignition Module Safety Lockout Functions (Gas Only)

1. Verify ignition module safety lockout functions.

A. Turn o󰀨 main gas supply to the oven.

B. Open control panel door to gain access to burner

compartment area.

C. Turn the oven on. Check that electrical breakers

are turned on.

D. Set the oven to call for heat and make sure

convection fan is running.

E. Observe Llight-Emitting Diode (LED) light through

hole in control box cover (Fig. 65). After trying to light the burner three times, the module should lockout. (See chart below.)

F. Turn o󰀨 the oven control for a minimum of 5

seconds and then turn the oven control back on.

G. Turn main gas supply to the oven back on.

H. Set the oven to call for heat, making sure

convection fan is running and the burner has

established a ame.

I. Turn o󰀨 main gas supply to the oven.

Observe LED through hole

Fig. 65

J. Observe LED light through hole in control box cover (Fig. 65). The ignition module should go

into lockout after three trials for ignition. (See chart below.)

K. If the proper results have been obtained, proceed to step 2; if not contact your local Baxter

authorized service o󰀩ce.

LED DIAGNOSTIC INDICATOR CODES

LED LED

LED O󰀨 No Fault

LED Illuminated Module Fault

‘1’ Flash Air Flow Fault ‘2’ Flash Flame Fault No Call for Heat ‘3’ Flash Ignition Module Lockout

– 34 –

Page 35

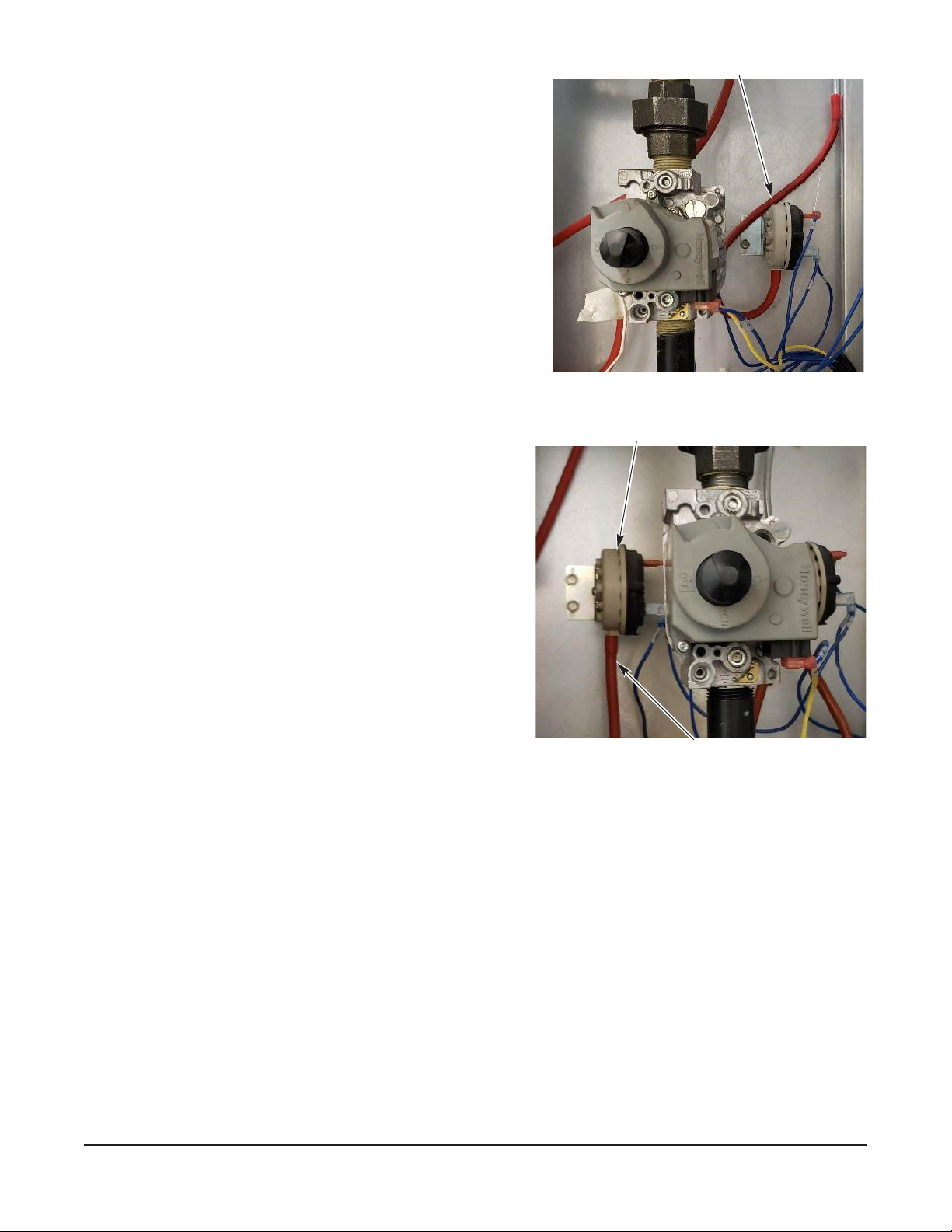

2. Verify hood exhaust air pressure switch (Fig. 66) operation.

A. Turn on main gas supply and set oven control

to call for heat and make sure convection fan is running.

B. Once ame is established, disconnect tubing

from hood pressure switch hose. Burner ame

should go out.

C. Reconnect tubing. Burner should establish a

ame. If not, contact your local Baxter authorized service o󰀩ce.

3. Verify draft inducer pressure switch (Fig. 67) operation.

A. Set oven control to call for heat and make sure

convection fan is running.

B. Once ame is established, disconnect tubing

from draft inducer pressure switch. Burner ame

should go out.

Draft Inducer Pressure Switch

C. Reconnect tubing. Burner should establish

a ame. If not, contact your local Baxter authorized service o󰀩ce.

Disconnect Tubing

Hood Exhaust Air Pressure Switch

Fig. 66

Verify Operation of Steam

1. Check steam system for proper operation.

A. Turn the water supply on.

B. Turn oven on and set to normal bake

temperature.

C. Allow oven to preheat for 30 minutes.

D. Set control to call for steam.

E. Observe operation. If steam is not observed,

contact your local Baxter authorized service

o󰀩ce.

Disconnect Tubing

Fig. 67

After completion of the owner PM procedure, you will need to contact a qualied servicer for any

needed repairs.

Keep a copy of the Owner Preventive Maintenance Checklist for your records.

– 35 –

Page 36

DEDEENSAYPOC

SREBMUNLAIRES/LEDOM

RENWODEDNEMMOCER

TSILKCEHCECNANETNIAMEVITNEVERP

SAG-SNEVOKCARYREKAB

.NAELCRONOITAREPOREPORPROFKCEHC

YRASSECENSAECIVRESROFLLAC

spmalnevotcepsnI

saerarenrubdnastnenopmocmuucavdnanaelC

seilbmessanoitatordnatfilkcartcepsnI

stnenopmocroodtcepsnI

srevuolriatcepsnI

tnevytivactcepsnI

snoitcennoclacirtceletcepsniyllausiV

snoitcnuftuokcolytefaseludomnoitingiyfireV

maetsfonoitarepoyfireV

√=

DETELPMOCSSECORP

:ycneuqerFMPylhtnom-iB

enaporPsaGlarutaNsaGfoepyT

.oNerotS:noitacoL

:detelpmoCetaD:rotcepsnI

:sriapeRyrasseceNrofdeifitoNecivreS

)etaD(

:stnemmoC

)erutangiSrotcepsnI(

FORM 36764 Rev. D (September 2022) PRINTED IN U.S.A.

– 36 –

Baxter OV520E1, OV520E2, OV520G1, OV520G2 Manual

TABLE OF CONTENTS

GENERAL

INSTALLATION

OPERATION

TROUBLESHOOTING

CLEANING

MAINTENANCE

OWNER PREVENTIVE MAINTENANCE PROCEDURE
