BAUMFOLDER
714XLT
SOUND COVER
INSTALLATION
© 1999 Printed in U.S.A. TP10302A
© 1999 BAUMFOLDER CORPORATION
All Rights Reserved
WARNING
• Do not operate this machine without all guarding in place.
• Do not make adjustments or perform maintenance on this machine with power on.
• Keep the machine and the work area clean and free of spills to prevent accidents.
• Be sure to replace any safety decals that may have been detached for any reason.
Baumfolder reserves the right to make changes in design or to make additions or
improvements in its products without imposing any obligation upon itself to install them on
its products previously manufactured. It is recommended that modifications to this
equipment not be made without the advice and express written consent of Baumfolder.
FOLDER IDENTIFICATION
MODEL NO: ________________________________ SERIAL NO: ______________________________
SALES AGENCY: _____________________________________________________________________
INSTALLED BY: _______________________________________________ DATE: ________________
PHONE NO: ________________________________
TP10302A PAGE 2
1.0 SOUND COVER INSTALLATION
INSTRUCTIONS
1) Getting Started
Its very important that you follow these instructions
in the sequence noted. Read the instructions carefully
before proceeding with the actual work.
WARNING
Make certain that the 714XLT is unplugged.
Do not plug the power cord into an AC outlet
until the XLT is fully re-assembled, adjusted and
ready to use. Unplug the XLT any time
disassembly is required.
Find a suitable table upon which to set the XLT if not
already mounted to the Baum USA optional carts
(P/N 55849-001 or 279-834-BG-01).

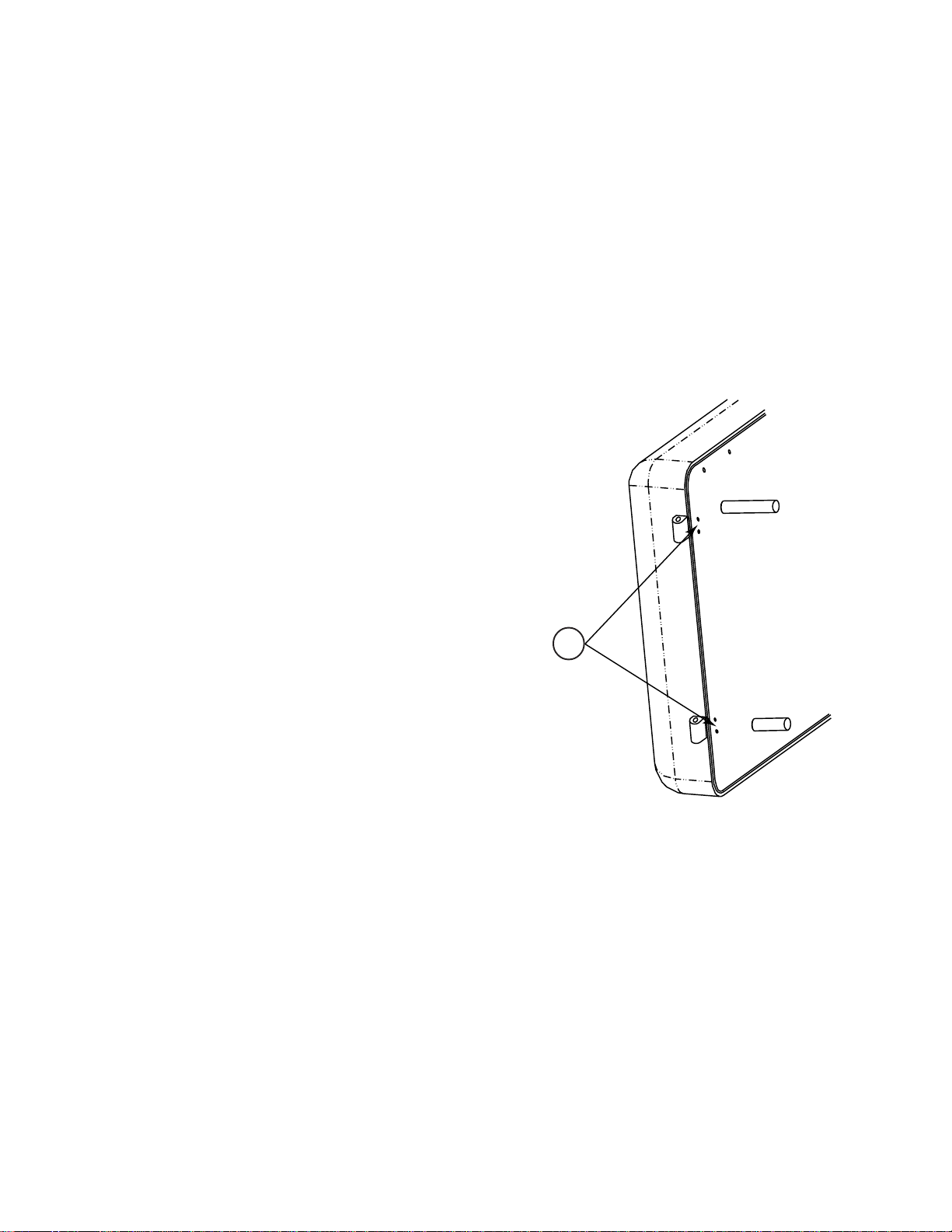

1) Locate and remove the plugs (4) on the back of the
non-operator side guard.(See figure 1, Item 1) These
holes are for mounting the rear sound cover door.
1
Figure 1
2) Remove the guard from the non-operator side by
removing the four button head screws; using a
an allen wrench.
3) Mount the bottom half of the hinge(Figure 2, Item 1)
to the hinge mounting bracket(Figure 2, Item 2) so that
the plastic side guard is clamped between them.(Figure
2, Item 3)
4) Make certain that the screws do not penetrate into
the opening for the hinge pin.
Set aside panel until re-installation operation.
3
2
1
Figure 2
PAGE 3 TP10302A
