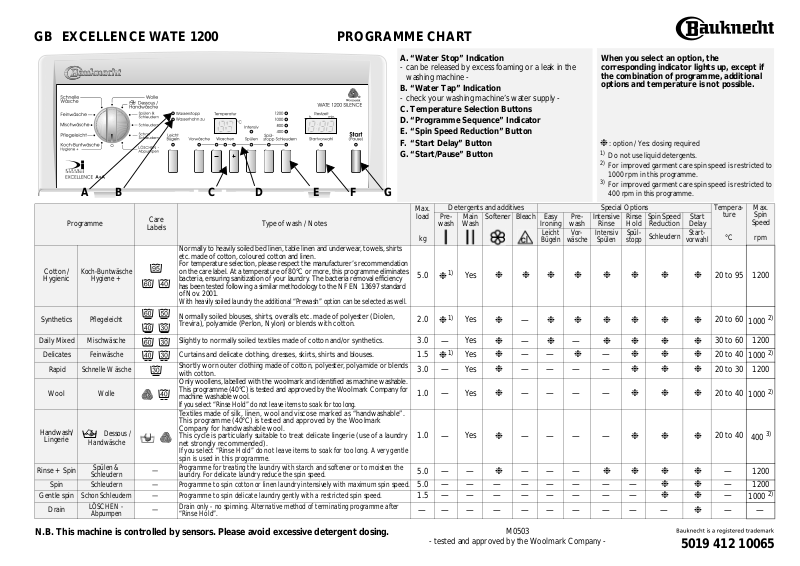

Bauknecht EXCELLENCE WATE 1200 PROGRAMME CHART

GB EXCELLENCE WATE 1200 PROGRAMME CHART

BFCAGD E

Programme

Cotton / Hygienic

Synthetics Pflegeleicht

Daily Mixed Mischwäsche

Delicates Feinwäsche

Rapid Schnelle Wäsche

Wool Wolle

Handwash/

Lingerie

Rinse + Spin

Spin Schleudern — Programme to spin cotton or linen laundry intensively with maximum spin speed.

Gentle spin Schon Schleudern — Programme to spin delicate laundry gently with a restricted spin speed.

Drain

Koch-Buntwäsche

Hygiene +

Dessous /

Handwäsche

Spülen &

Schleudern

LÖSCHEN -

Abpumpen

Care

Labels

—

Type of wash / Notes

Normally to heavily soiled bed linen, table linen and underwear , towels, shirts etc. made of cotton, coloured cotton and linen. For temperature selection, please respect the manufacturer’s recommendation on the care label. At a temperature of 80°C or more, this programme eliminates bacteria, ensuring sanitization of your laundry. The bacteria removal efficiency has been tested following a similar methodology to the NF EN 13697 standard of Nov. 2001.

With heavily soiled laundry the additional “Prewash” option can be se lected as we ll.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetics. Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Shortly worn outer clothing made of cotton, polyester, polyamide or blends with cotton.

Only woollens, labelled with the woolmark and identified as machine washable. This programme (40°C) is tested and approved by the Wo olmark Company for machine washable wool.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”. This programme (40°C) is tested and approved by the Woolmark Company for handwashable wool. This cycle is particularly suitable to treat delicate lingerie (use of a laundry net strongly recommended).

If you select “Rinse Hold” do not leave items to soak for too long. A very gentle spin is used in this programme.

Programme for treating the laundry with starch and softener or to moisten the laundry. For delicate laundry reduce the spin speed.

Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”.

A. “Water Stop” Indication

- can be released by excess foaming or a leak in the washing machine -

B. “Water Tap” Indication

When you select an option, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible.

- check your washing machine’s water supply -

C. Temperature Selection Buttons D. “Programme Sequence” Indicator E. “Spin Speed Reduction” Button F. “Start Delay” Button G. “Start/Pause” Button

Max.

load

5.0

2.0

3.0

1.5

3.0

1.0

5.0

1.5

Detergents and additives Special Options Tempera-

Pre-

Main

wash

❉

—

❉

—

Softener Bleach Easy

Wash

Yes

Yes Yes

Yes

—— —— — —— — — —

—— — —— — — —

Ironing

Leicht

Bügeln

Pre-

wash

Vor-

wäsche

❉❉❉❉❉❉ ❉ ❉

❉ ❉

❉

❉❉ ❉❉ ❉ ❉

—

❉

— ——

——— —

———

—

❉

: option / Yes: dosing required

Do not use liquid detergents.

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Intensive

Intensiv

Spülen

Rinse

Rinse Hold

Spül-

stopp

❉❉ ❉ ❉

—

❉❉ ❉ ❉❉ ❉

❉❉ ❉

❉❉ ❉ ❉

——— — —— — — — —

Spin Speed

Reduction

Schleudern

Start

Delay

Start-

vorwahl

❉❉ ❉❉

20 to 95 1200

20 to 60

30 to 60 1200 20 to 40

20 to 30 1200

20 to 40

❉

°C

Max.

Spin

Speed

rpm

1000

400

1200 1200

1000

ture

— —

— ——

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

M0503

- tested and approved by the Woolmark Company -

5019 412 10065

CONSUMPTION DATA

Programme

Temperature

Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)*

Cotton / Hygienic 95 5.0 49** 1.60 2:05

Cotton *** 60 5.0 48 0.85 2:15

Cotton 40 5.0 48 0.70 2:00 Synthetics 60 2.0 55** 0.80 1:30 Synthetics 40 2.0 50 0.50 1:15

Daily Mixed 40 3.0 45 0.45 1:00

Delicates 40 1.5 50 0.50 0:45

Rapid 30 3.0 35 0.40 0:30 Wool 40 1.0 55 0.60 0:45

Handwash / Lingerie 30 1.0 40 0.40 0:35

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account

the household conditions applicable at that time.

** To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the

pump drains the water out.

*** Reference programme for Energy label.

PREPARATION OF WASH CYCLE

1. Close the drum doors and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the

“MAX”

level

mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the

programme selector knob

to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the indicator light of the

“Start/Pause”

button flashes. The programme sequence and the predefined spin speed indication corresponding to the selected programme lights up.

The preselected temperature can be altered by pressing the “+” or “-” button.

SELECT THE DESIRED OPTION

When you select an option authorized by the programme, the corresponding indicator lights up, except if the combination of programme, additional options and temperature is not possible.

“Easy Ironing” button

• Can be used together with “Cotton”, “Synthetics” and “Daily Mixed” programmes to make ironing easier.

• Increases the water quantity in rinsing and the clothes are spun in a softer manner.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt).

“Intensive Rinse” button

• The amount of water is increased to ensure a more intensive rinse.

• This option is particularly suitable for areas with very soft water or washing linen laundry for people with skin allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

• This option is particularly recommended for the “Synthetics”, “Delicates” and “Daily Mixed” programmes.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

The programme with “Rinse Hold” stops

Note:

when the “Rinse Hold” indicator light flashes on the “Programme Sequence Indicator”.

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the programme will terminate automatically with the selected spin cycle.

• If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme and press the

“Start/Pause”

button again.

“Spin Speed Reduction” button

• Every programme has an automatically allocated maximum spin speed.

• Press the button to set another spin speed. If the spin speed “0” is selected, the final spin is

•

cancelled, but not the intermediate spins. The programme ends with a drain cycle.

START DELAY

The “Start Delay” button allows the user to run the machine at his convenience, for example at night when electricity is cheaper.

• Select programme, temperature and options.

• Press the “Start Delay” button several times to select the delay time by 1 to 19 hours;

•Press the

“Start/Pause”

indicator light of the

button. The

“Start/Pause”

button lights up and the lamp of the “Start Delay” button flashes.

• The time delay indication disappears when the programme starts and is replaced by the remaining time.

• The number of hours preselected can be reduced later by pressing the “Start Delay” button again.

To cancel the “Start Delay” option

• Turn the programme selector to the “ ” position.

• Reselect the desired programme and options and press the

“Start/Pause”

button.

PROGRAMME START

Turn on the tap and press the

“Start/Pause”

button. The indicator light of the

“Start/Pause”

button lights up. The indicator lamp shows the sequence reached by the programme. After starting the programme, the programme sequence indicator signals the Wash, Rinse and Spin phases.

: If there is a power interruption or if the

Note

appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

LID LOCK

For safety reasons, the lid is locked during certain phases of the cycle. At the end of the cycle or during an interruption, the lid unlocks automatically after about 1 minute.

RED INDICATIONS

“Water Stop”

Lighting up of the water stop indication can be caused by a leak in the appliance or hose. Please refer to the “Troubleshooting Guide” in the Instructions for Use.

“Water Tap Closed”

The appliance has no or insufficient water supply. Open the water tap; if the indication still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

END OF WASH CYCLE

• The remaining time is on “0: 00” and the “End” lamp lights up.

1. Turn the programme selector to the “ ”

position.

2. Turn the tap off.

Open the lid and the drum doors and unload

the machine.

CHANGE THE PROGRAMME OR OPTIONS DURING THE CYCLE

1. Select the new programme using the

programme selector. If necessary, select the additional options and the spin speed. The luminous indicator of the

“Start/Pause”

button flashes. Note: the “Start Delay” and “Prewash” options cannot be selected after a programme change.

Press the

“Start/Pause”

button. The new programme selected continues at the same position where the previous programme was interrupted.

Do not add detergent for this

Note:

programme.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1. Press the

“Start/Pause”

button. The light flashes.

2. After the desired pause, press again on the

“Start/Pause”

button.

CANCEL PROGRAMME

1. Set the programme selector to “Drain”.

2. Press the

“Start/Pause”

button to start the “Drain” programme.

5019 412 10065
