Setup Instructions
Unpack and lay out all of the parts in a large, clear area where you will have
room to assemble the pieces.
1. Fully extend the legs of the tripod apart
2. Under the plate of the tripod head is locking screw for the tripod head

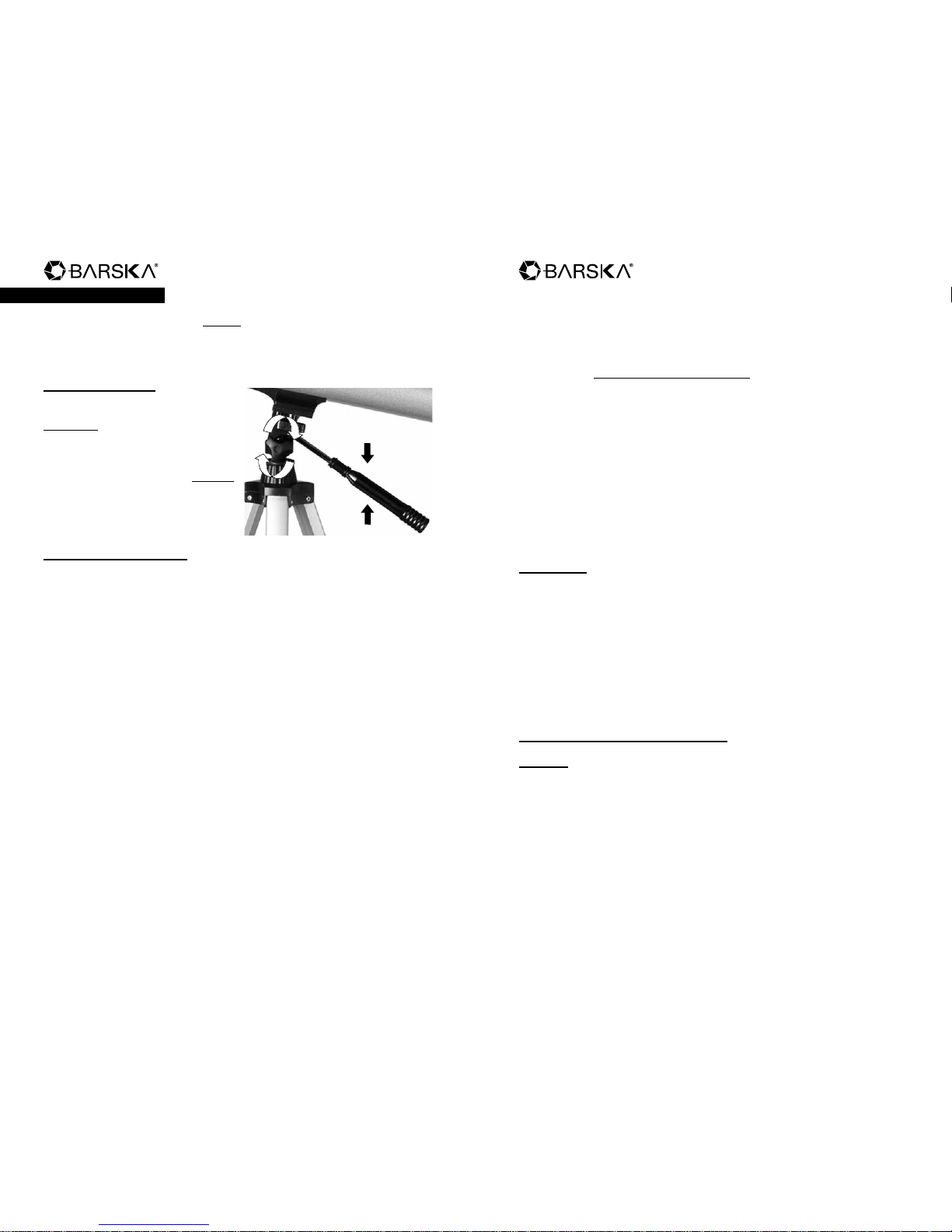

3. Place the telescope tube on the mount so that the screw in the mounting
platform lines up with the holes in the telescope
4. Keep telescope in place by tightening the mounting plate adjustment

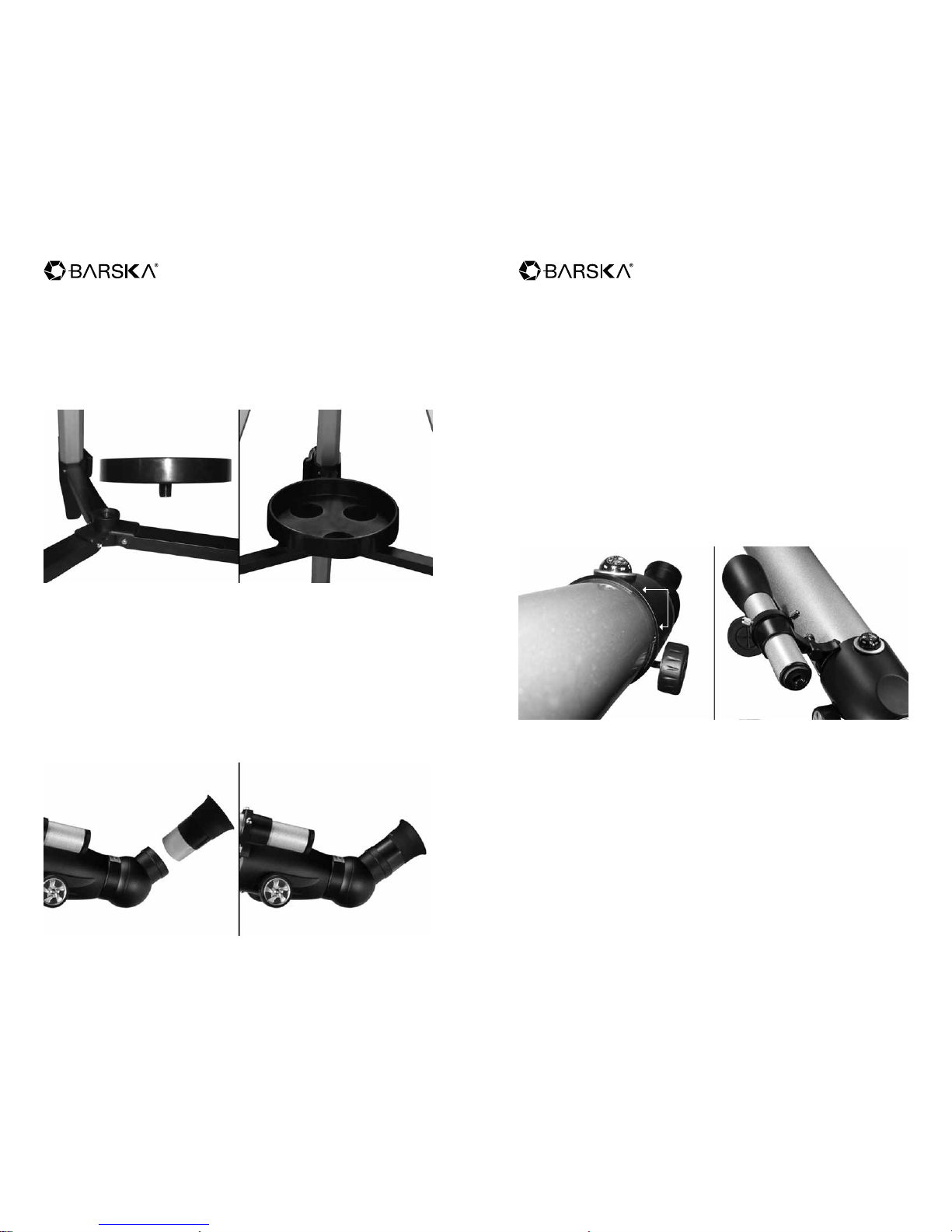

Initial set up is shown in the picture on the left. Should look like picture on the
right when nished.
5. Remove caps from telescope
Note: When mounting the parts ensure that the securing screws are not tightened
too tightly. Tightening too tightly could result in damage the parts or the internal
thread of the holders.
2
231 Power, 70060 Starwatcher Telescope
231 Power, 70060 Starwatcher Telescope
3
1.
Tripod Brace with Leg
Adjustment Screw
7. Eyepiece
2. Accessory Tray 8. Finderscope
3. Tripod Leg 9. Finderscope Bracket
4. Vertical Axis Handle 10. Telescope Main Body
5. Focus Knob 11. Objective Lens
6. Rotating Diagonal 12. Horizontal Axis Knob
CAUTION: DO NOT LOOK DIRECTLY AT THE
SUN. VIEWING THE SUN OR ANY LIGHT
SOURCE WITH THIS OPTICAL DEVICE CAN
CAUSE PERMANENT EYE DAMAGE.
1
3
4
6
5
8
9
10
11
2
7
12
