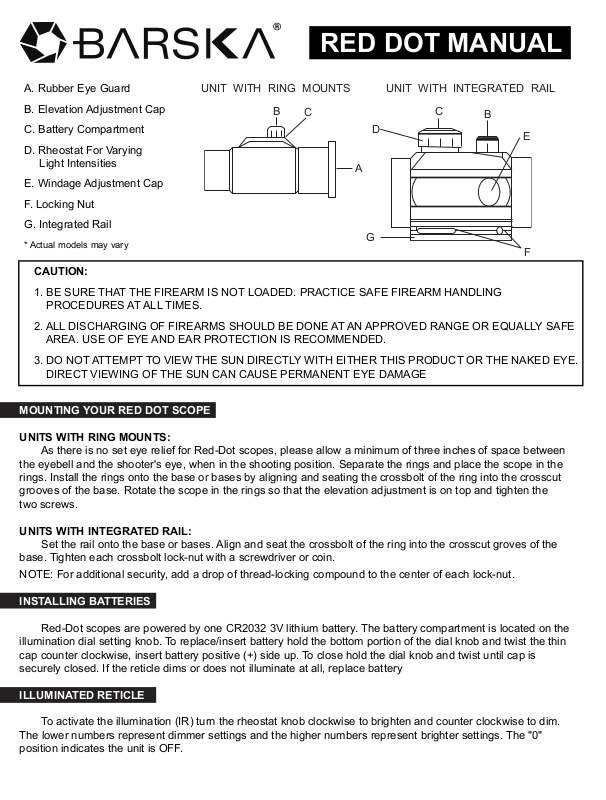

BARSKA Red Dot User Manual
UNIT WITH INTEGRATED RAILUNIT WITH RING MOUNTS
A
C
B
G
F
D
C
B
E
MOUNTING YOUR RED DOT SCOPE
UNITS WITH RING MOUNTS:
As there is no set eye relief for Red-Dot scopes, please allow a minimum of three inches of space between
the eyebell and the shooter's eye, when in the shooting position. Separate the rings and place the scope in the
rings. Install the rings onto the base or bases by aligning and seating the crossbolt of the ring into the crosscut
grooves of the base. Rotate the scope in the rings so that the elevation adjustment is on top and tighten the
two screws.
UNITS WITH INTEGRATED RAIL:
Set the rail onto the base or bases. Align and seat the crossbolt of the ring into the crosscut groves of the
base. Tighten each crossbolt lock-nut with a screwdriver or coin.
NOTE: For additional security, add a drop of thread-locking compound to the center of each lock-nut.
INSTALLING BATTERIES
Red-Dot scopes are powered by one CR2032 3V lithium battery. The battery compartment is located on the
illumination dial setting knob. To replace/insert battery hold the bottom portion of the dial knob and twist the thin
cap counter clockwise, insert battery positive (+) side up. To close hold the dial knob and twist until cap is
securely closed. If the reticle dims or does not illuminate at all, replace battery
ILLUMINATED RETICLE
To activate the illumination (IR) turn the rheostat knob clockwise to brighten and counter clockwise to dim.
The lower numbers represent dimmer settings and the higher numbers represent brighter settings. The "0"
position indicates the unit is OFF.
A. Rubber Eye Guard
B. Elevation Adjustment Cap
C. Battery Compartment
D. Rheostat For Varying
Light Intensities
E. Windage Adjustment Cap
F. Locking Nut
G. Integrated Rail
* Actual models may vary
CAUTION:
1. BE SURE THAT THE FIREARM IS NOT LOADED. PRACTICE SAFE FIREARM HANDLING
PROCEDURES AT ALL TIMES.
2. ALL DISCHARGING OF FIREARMS SHOULD BE DONE AT AN APPROVED RANGE OR EQUALLY SAFE
AREA. USE OF EYE AND EAR PROTECTION IS RECOMMENDED.
3. DO NOT ATTEMPT TO VIEW THE SUN DIRECTLY WITH EITHER THIS PRODUCT OR THE NAKED EYE.
DIRECT VIEWING OF THE SUN CAN CAUSE PERMANENT EYE DAMAGE
RED DOT MANUAL
8/11BC199
BARSKA® Optics, as manufacturer, warrants this new precision optical product to be free of original
defects in materials and/or workmanship for the length of time specified by this warranty. This warranty
does not include damage caused by abuse, improper handling, installation, maintenance, normal
wear-and-tear, unauthorized repairs or modifications and tampering in anyway.
This warranty is limited to the original purchaser and is not transferable. This warranty applies only to
products purchased in the United States of America and Canada.
In the event of a defect within 30 days, the consumer must return the defective unit to the BARSKA
dealer (the place of purchase) at his/her own expense.
Beyond 30 days, BARSKA products should be sent to the following address for warranty repairs.
Products must be packed carefully and sturdily to prevent damage in transit, and returned freight
prepaid to:
BARSKA® OPTICS
1721 WRIGHT AVE.
LA VERNE, CA 91750
For additional and updated information please visit our website at www.barska.com
Please email info@barska.com or call 1.888.666.6769 for Return Merchandise Number (RMA#)
before any returns.
NOTE: All merchandise received without a valid RMA # will be returned to shipper at his/her own
expense.
Please include all of the following when returning BARSKA products for service and/or replacement:
1. Please write your complete details (Name, Address, Telephone #, E-mail address, RMA#, etc.)
2. Purchase receipt or Proof of Purchase. (Original/Copy)
3. A brief explanation of the defect.
4. A Check/Money Order of $15.00 to cover inspection, shipping and handling.
*Please allow 6-8 weeks for delivery.
This product will either be replaced or repaired at the discretion of the warrantor. If it's a discontinued
item, we will replace the product with an equivalent product. Should the repair not be covered by this
warranty, an estimate will be sent for your approval. Non-warranty repairs or refurbishing of your optical
products are always provided at a reasonable cost.
BARSKA® Optics shall not be liable for any consequential, incidental and/or contingent damages
whatsoever. We will not pay shipping, insurance or transportation charges from you to us, or any import
fees, duties and or taxes. This warranty supersedes all previous BARSKA® Optics warranties.
ONE YEAR LIMITED WARRANTY
RED DOTS
©2011 BARSKA®| La Verne, CA 91750 | USA | www.barska.com
ZEROING
With the scope mounted, rest the gun on a solid support. Remove the windage and elevation adjustment
screw caps from the scope. Sight along the barrel and aim at a target 50 to 100 yards away. Sight through your
Red-Dot scope and use the windage and elevation adjustments to align the lighted reticle with the target as
seen along the barrel.
NOTE: Each click of adjustment changes bullet strike at a shooting distance of 100 yards by the amount
indicated by the following formula: Divide the distance (number of yards) by 100. The resulting number, when
multiplied by the click value stated on the windage and elevation dial plates, will yield the actual click value of
the scope at the shooting distance.
FORMULA:Distance / 100 = N N x Stated Click Value = Actual Click Value
RED DOT MANUAL
