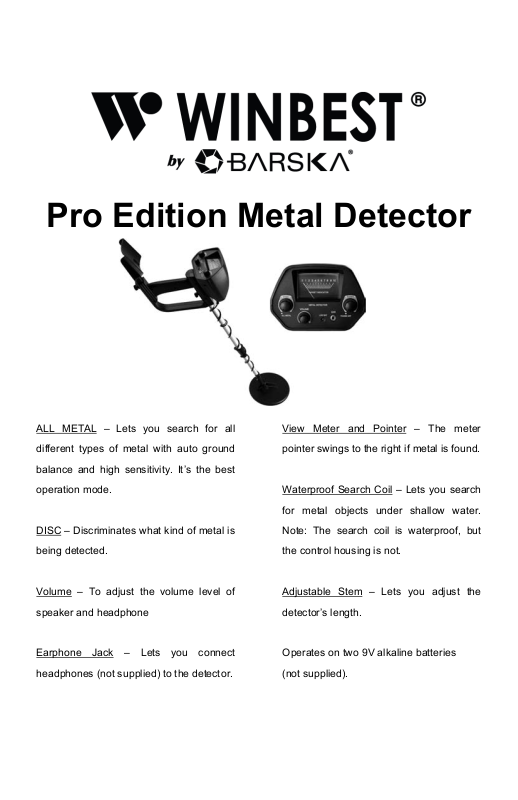

BARSKA BE11638 User Manual
Pro Edition Metal Detector
ALL METAL – Lets you search for all
different types of metal with auto ground
balance and high sensitivity. It’s the best
operation mode.
DISC – Discriminates what kind of metal is
being detected.
Volume – To adjust the volume level of
speaker and headphone
Earphone Jack – Lets you connect
headphones (not supplied) to the detector.
View Meter and Pointer – The meter
pointer swings to the right if metal is found.
Waterproof Search Coil – Lets you search
for metal objects under shallow water.
Note: The search coil is waterproof, but
the control housing is not.
Adjustable Stem – Lets you adjust the
detector’s length.
Operates on two 9V alkaline batteries
(not supplied).
CONTENTS
Features……………………………………………………………………...
3
Preparation
Parts of the detector………………………………………………….……
4
Assembling the detector……………………………………………..……
5
Adjusting the search coil…………………………………………………..
6
Installing the batteries ………………………………………….…………
6
Using the headphones ……………………………………………………
7
Functions and Indications
Parts of the control box ………………………………………………
8
Displays……………………………………………………………………
9
Operation
Using the detector ……………………………………………………...…
10
Search coil sweeping hints……………………….……………………….
11
Factors that affect the detecting………………………….………………
11
Care and maintenance ………………………………………..………….
12
Warranty ………………………………………………………..………….
13
3
FEATURES
With your metal detector, you can hunt for coins, relics, jewelry, gold,
and silver just about anywhere. This metal detector is versatile and easy
to use. Features include:
Two Operation Modes: All Metal, Disc
ALL METAL – Lets you search for all different types of metal with auto
ground balance and high sensitivity. It’s the best operation mode.
DISC – Discriminates what kind of metal is being detected.
Volume – To adjust the volume level of speaker and headphone
Earphone Jack – Lets you connect headphones (not supplied) to the
detector.
View Meter and Pointer – The meter pointer swings to the right if metal
is found.
Waterproof Search Coil – Lets you search for metal objects under
shallow water.
Note: The search coil is waterproof, but the control housing is not.
Adjustable Stem – Lets you adjust the detector’s length.
Operates on two 9V alkaline batteries (not supplied).
TREASER HUNTER’S CODE OF ETHICS
A few basic rules you should follow while using your detector
• Always get permission before searching any site
• Respect the rights and property of others
• Observe all national, state and local laws when treasure hunting
• Never destroy historical or archaeological treasures. If you are
not sure about an object you have found, contact a museum or
historical society in your area.
• Leave the land and vegetation as is, and fill in any holes you dig.
• Use the detector only in safe areas
• Dispose of any junk you may find, only in approved areas. Do not
leave it for the next treasure hunter find.
PARTS OF THE DETECTOR
Control Box
Search Coil
Adjustable Stem
Arm Rest
4
5
PREPARATION
ASSEMBLING THE DETECTOR
Assembling th e d etecto r is easy and requires no special tools. Just follow
these steps.
1. Unscrew the knobs on the search coil and remove the knobs and
the connector. Insert the smaller ste m and align the holes on the
search coil bracket and the stem. Push the connector through the
holes, then replace and tighten the knobs.
2. Loosen the stem’s lock nut (connected
with the handle) in the direction of the
arrow. Then insert the smaller stem into
the big stem connected with the handle.
Turn the stem’s lock nut in the reverse
direction of the arrow to lock it in place.
3. Insert the latch on the top of the handle into the assembly hole on
the bottom of the control box. Then slightly push the control box in the
direction of IN on the handle to fix the latch in place.
4. Tighten the fixing screw.
5. Insert the search coil cable plug into the five pin
jack on the front control box’s housing.
Lock Nut
Assembly Hole
Fixing Screw
Latch
Control Box
