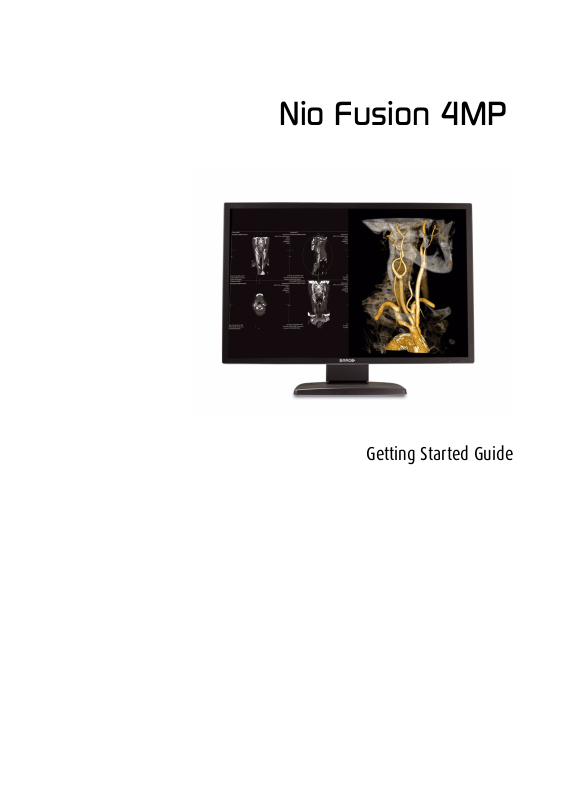

Barco Nio Fusion 4MP Getting Started Manual

Nio Fusion 4MP

Getting Started Guide

(This page intentionally left blank.)

2

Copyright notice

This document is copyrighted. All rights are reserved. Nor this
document, nor any part of it, may be reproduced or copied in any form
or by any means - graphical, electronic, or mechanical including
photocopying, taping or information storage and retrieval systems ­without written permission of Barco

© 2006 Barco N.V. All rights reserved.

3

Table of Contents

Table of Contents

Preface ....................................................................................... 5

Environmental information................................................................. 9

Safety Instructions............................................................................. 10

Explanation of symbols..................................................................... 13

Introduction ............................................................................. 15

Display parts, controls and connectors............................................. 16

Front............................................................................................ 16

Rear............................................................................................. 17

Connectors.................................................................................. 19

Display installation .................................................................. 23

Installation precautions..................................................................... 24

Connecting the signal cables............................................................ 25

Cable routing ..................................................................................... 28

Vesa-mount installation.................................................................... 29

Where to get more information .............................................. 31

Troubleshooting .......................................................................35

General tips........................................................................................ 36

Warranty Statement ................................................................41

4

Preface

5

Table of Contents

Notice

Although every attempt has been made to achieve technical accuracy in
this document, we assume no responsibility for errors that may be
found. Our goal is to provide you with the most accurate and usable
documentation possible; if you discover errors, please let us know.

BarcoView software products are the property of BarcoView. They are
distributed under copyright by Barco N.V. or BarcoView, LLC., for use only
under the specific terms of a software license agreement between
Barco N.V. or BarcoView LLC. and the licensee. No other use, duplication,
or disclosure of a BarcoView software product, in any form, is
authorized.

The specifications of BarcoView products are subject to change without
notice.

Trademarks

All trademarks and registered trademarks are property of their
respective owners.

FCC Compliance Information (display)

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

6

Table of Contents

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for
help.

Canadian notice

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe A est conforme à la norme NMB­003 du Canada.

FCC Compliance Information (display controller)

CLASS B:

This Barco Graphics Controller complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

1. this device must accept any interference received, including
interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with manufacturer’s instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

7

Table of Contents

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for
help.

The use of shielded cables for connection of the monitor to the
graphics card is required to ensure compliance with FCC regula­tions. Changes or modifications to this unit not expressly
approved by Barco could void the user’s authority to operate this
equipment.

8

Environmental information

Environmental information

Disposal Information

The lamps inside the display contain mercury. Do not throw the display
in the trash. Dispose of it as required by local ordinances or regulations.

This equipment has required the extraction and use of natural resources
for its production. It may contain hazardous substances for health and
environment.

In order to avoid the dissemination of those substances in the
environment and to diminish the pressure on natural resources, we
encourage you to use the appropriate take-back systems.

Those systems will reuse or recycle most of the materials of your end­of-life equipment in a sound way.

The crossed-out wheeled bin symbol invites you to use those
systems.

If you need more information on the collection, reuse and
recycling systems, please contact your local or regional waste
administrator.

You can also contact us for more information on the environmental
performances of our products.

9

Safety Instructions

Safety Instructions

General Recommendations

Read the safety and operating instructions before operating the display.

Retain safety and operating instructions for future reference.

Adhere to all warnings on the display and in the operating instructions
manual.

Follow all instructions for operation and use.

Electrical shock

Type of protection (electrical):

Display with external power supply: Class III equipment

Degree of safety (flammable anesthetic mixture):

Equipment not suitable for use in the presence of a flammable
anesthetic mixture with air or with oxygen or nitrous oxide.

Non-patient care equipment

Equipment primarily for use in a health care facility that is intended for
use where contact with a patient is unlikely.

Power connection - display with external power supply

• Power requirements: The display must be powered using a
medical approved 24 VDC SELV power supply.

• The medical approved DC power supply must be powered by the
AC mains voltage.

10

Safety Instructions

Power cords:

• Utilize a UL-listed detachable power cord, 3-wire, type SJ or
equivalent, 18 AWG min., rated 300 V min., provided with a
hospital-grade type plug 5-15P configuration for 120V
application, or 6-15P for 240V application.

• Do not overload wall outlets and extension cords as this may
result in fire or electric shock.

• Mains lead protection (U.S.: Power cord): Power cords should be
routed so that they are not likely to be walked upon or pinched
by items placed upon or against them, paying particular
attention to cords at plugs and receptacles.

Water and moisture

Never expose the display to rain or moisture.

Never use the display near water - e.g. near a bathtub, washbasin,
swimming pool, kitchen sink, laundry tub or in a wet basement.

Ventilation

Do not cover or block the ventilation openings in the cover of the set.
When installing the display in a cupboard or another closed location,
heed the necessary space between the set and the sides of the
cupboard.

Installation

Place the display on a flat, solid and stable surface that can support the
weight of at least 3 displays. If you use an unstable cart or stand, the
display may fall, causing serious injury to a child or adult, and serious
damage to the equipment.

More warnings in the Installation chapter.

11

Safety Instructions

Operating precautions

Continuous operation of the display with the same image may result in
some image sticking on the LCD panel. Over 10 hours operation with the
same image content is not recommended.

Switching on DPMS on display and PC and activating a good screen saver
may decrease the risk of image sticking (image retention).

This apparatus conforms to:

CE (LVD 73/23/EEC), IEC 60950-1, UL 60950-1,
CAN/CSA C22.2 No. 60950-1 (c-UL), EN 60950-1 DEMKO,
CCC GB4943-1995

National Scandinavian Deviations for Cl. 1.7.2 :

Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun
pistorasiaan"
Norway: "Apparatet må tilkoples jordet stikkontakt"
Sweden: "Apparaten skall anslutas till jordat uttag"

12

Explanation of symbols

Explanation of symbols

Symbols on the display and / or power supply

On the display or power supply, you may find the following symbols

Indicates the display is approved according to
the CE regulations

Indicates the display is approved according to
the UL regulations

or

Indicates the display is approved according to
the c-UL regulations

or

Indicates the display is approved according to
the DEMKO regulations

Indicates the display is approved according to
the CCC regulations

Indicates the USB connectors on the display

Indicates this apparatus must not be thrown
in the trash but must be recycled, according
to the European WEEE (Waste Electrical and
Electronic Equipment) directive

13

Explanation of symbols

Symbols used throughout the manual:

Warning: Risk of
injury to human
beings

Important notice or
remark

Hint, tip Additional

Caution: Risk of
damage to the
product

Note

information

14

Introduction

15

Display parts, controls and connectors

Display parts, controls and connectors

Front

The front controls are soft touch keys.

When you touch any of them while no on-screen display (OSD) is on the
screen, the front illumination is switched on for a few seconds.

When you touch a key again while the illumination is on, the function of
the key is executed.

Figure 1: Front view

1. Left/Down touch key

To move down or decrease values in the OSD.

2. Right/Up touch key

To move up or increase values in the OSD.

3. Enter touch key

16

13452

Display parts, controls and connectors

To display the OSD (on-screen display). In the OSD, this button acts
as Enter button to make selections.

4. Standby touch key

To put the display in standby mode.

5. Power LED

Indicates the display’s power status.

Green: Display is on (when enabled in the OSD).

Orange: Display is in Standby power-saving mode.

Off: Display is disconnected from the power or the LED’s on state is

disabled in the OSD.

Note: When the LED is disabled in the OSD, it will still be
activated (green) when the display is on but does not receive any
video signal.

Rear

Figure 2: Rear view

1

2
3

4

5

6

17

Display parts, controls and connectors

1. Connector compartment cover.

Detach to get access to the signal connectors.

2. Slots for security cable (e.g., Kensington lock).

3. (Not visible on drawing) Push-button to release the panel unit

from the display stand. This button is located on the rear of the
panel. You must release the panel unit from the display stand in
case you wish to attach the panel unit to a VESA mount stand.

4. Display stand neck cover. Detach it before connecting the signal

cables to route the cables neatly.

5. Cable duct covers. Push them down and open them before

connecting the signal cables to route the cables neatly.

6. Push-button to unlock the display height adjust mechanism.

When the display is shipped, the display height mechanism is
locked to prevent damage during shipping. To unlock the
mechanism and adjust the display height, press the push-button
while pushing down the display panel. Then slowly release the
display panel.

18

Connectors

Display parts, controls and connectors

R

Figure 3: Connectors rear

L

1

2

3

4
5

6

7

8

Figure 4: Connectors front

1. Sealed connector. Not used.

19

Display parts, controls and connectors

Do not remove the seal.

2. USB upstream connector (to PC).

3. USB downstream connector.

If the display’s USB upstream connector is connected to the PC USB
bus, you can use the USB downstream connector to connect
peripheral USB devices.

USB 2.0 devices are supported.

4. +5 Vdc, 0.25 A power output for accessories.

5. +3.3 Vdc, 0.25 A auxiliary power output.

6. “Left” DVI (digital) video input. See note below.

7. “Right” DVI (digital) video input. See note below.

8. USB downstream connectors

If the display’s USB upstream connector at the rear is connected to
the PC USB bus, you can use these USB downstream connectors to
connect peripheral USB devices.

USB 2.0 devices are supported.

Note: The MDNC-4130 disposes of 2 video inputs. You can
connect both video inputs or just one input.

• When both inputs are used (DuoView), the signal on the “left”
DVI connector (6) is shown on the left side of the screen and the
signal on the “right” DVI connector (7) is shown on the right side
of the screen. The video resolution of both signals must not
exceed 1280x1600 pixels if you wish to display both signals
seamlessly side by side. If the video resolution is higher, you can
select to display only one input instead of both.

• When only one input is used (Single View), the signal on the
used DVI connector is displayed in the center of the screen. It
doesn’t matter which DVI input you use. The video resolution
must not exceed 2560x1600.

Note: For plug-and-play graphic boards (e.g., MXRT-2100) the
output resolution of the graphic board(s) is determined by the

20

Display parts, controls and connectors

setting in the Preferred Input function in the on-screen display
(Settings menu). After changing this setting you need to reboot
the PC for the graphic board(s) to change the output resolution
accordingly.

21

Display parts, controls and connectors

22

Display installation

23

Installation precautions

Installation precautions

Caution:
The display weighs about 20 kg. To avoid back injury,
unpack, install and handle the display with 2 persons.

Precautions

• Keep your original packaging. It is designed for this display and
is the ideal protection during transport.

• Avoid reflections in the flat panel to reduce eye strain.

• Place the display on a strong and stable table or desk.

• Keep the display away from heat sources and provide enough
ventilation around the display.

• Do not use the display in direct sunlight.

• Do not scratch or apply pressure to the LCD panel. This may
damage the panel permanently.

24

Connecting the signal cables

Connecting the signal cables

To connect the signal cables to the display:

1. Unpack the display and put it on a solid flat surface.

2. Make sure the computer is turned off.

3. To get access to the connectors, remove the connector

compartment cover (1).

To remove the cover, gently pull one side of the cover backward to
put the cover clips under stress. Then one by one, starting at the
side where you are pulling, release the 4 cover clips by pressing
with the other hand on top of the cover where the clips are
located (see drawing below).

4. To facilitate cable routing afterwards, remove the display stand

neck cover (2). Therefore, first tilt the display panel in upright
position. Then lift and pull backward the neck cover.

5. Also to facilitate cable routing afterwards, open both cable duct

covers (3).

Figure 5: Remove covers before connecting signal cables

1

2

3

25

Connecting the signal cables

6. Connect the signal cables:

4
5

R

Figure 6: Signal cable connections

•For Single View mode, connect one end of a DVI cable to any of
the DVI inputs of the display (4) or (5). Connect the other end of
the DVI cable to the DVI connector of the graphic board.

•For DuoView mode, connect Head1 of the graphic board to the
“left” DVI connector (5) and connect Head2 to the “right” DVI
connector (4).

Note: When connecting a plug-and-play graphic board: After
connecting the cables and starting up the display, make sure to
select the proper setting in the Preferred Input function, in the
Settings on-screen menu. After changing this setting, you must
reboot the PC so that the graphic board adapts to the new setting.

L

6

7

8

9

• Connect the display’s USB upstream connector (6) to a PC USB
downstream connector by means of a USB cable.

• Connect any USB device to one of the display’s USB downstream
connectors (7).

• Connect the DC power input (9) of the display to the supplied
external DC power supply. Connect the other end of the external

26

Connecting the signal cables

DC power supply (10) to a grounded power outlet by means of
the proper power cord delivered in the packaging.

9

10

Figure 7: External DC power supply

7. After routing the cables (see further), startup the display by

touching the touch key.

27

Cable routing

Cable routing

To route the cables:

Figure 8: Cable routing

1. Put the cables in the connector compartments in the provided

clips.

2. Route the cables alongside the neck and in the cable ducts in the

tilt & swivel foot.

3. Re-attach the connector compartment cover and neck cover. Close

the cable duct covers. Push the cable duct covers upward to lock
them.

28

Vesa-mount installation

Vesa-mount installation

Important:

• Use an arm that is approved by VESA (according to the VESA 100
mm standard).

• Use an arm that can support a weight of at least 20 kg (44.10
lbs).

To attach the panel unit to an arm stand:

1. Release the display panel from the display stand. Therefore, (1)

press the panel release button at the rear of the panel (not visible
on the drawing below). Next, (2) pull the panel forward and (3)
lift it from the stand.







2. Attach the panel firmly to the arm stand using 4 screws M4 x 10

mm.

3. You can mount the panel in landscape position or portrait position.

When mounted in landscape position, the BARCO logo must be

29

Vesa-mount installation

positioned at the bottom. When mounted in portrait position, the
BARCO logo must be positioned at the left side.

30

Where to get more information

31

Vesa-mount installation

Where to find more information

The following documentation is included with your system:

Document Location Information

Quick install
sheet

Online user
guide

Getting started
guide (PDF)

Online user
guide (PDF)

QAWeb Agent
user guide
(PDF)

System box Brief overview of the complete

system set-up

Installed on the PCDetailed description of the

graphic board control panels
and display controls and func­tions

System CD-ROM This booklet in PDF format

System CD-ROM Same information as the

online user guide on the PC,
but in printer-friendly PDF for­mat

System CD-ROM Description of the functions of

QAWeb Agent in printer­friendly PDF format

About the online user guide

The online user guide is installed on the system PC during the system
driver installation. To open the online user guide, select Start>Program
Files>Barco>Documentation>Nio online user guide from the Windows
Start menu.

The online user guide uses Java scripts to create the html pages. In
Windows XP, SP2, it is possible that Internet Explorer blocks them for
security reasons. To display the pages, proceed as follows:

• In Windows control panel, select Internet Options

• Select the Advanced tab

•In the Security section, check the option Allow active content

to run in files on My Computer

32

Vesa-mount installation

33

Vesa-mount installation

34

Troubleshooting

35

General tips

General tips

• If one display from a multi-head system exhibits problems, try
to eliminate the problem by switching video cables or power
supplies. In that way you can find out if the problem resides in
the display or not.

Configuring the Windows desktop

Note: In order to configure the Windows Desktop of your NIO
F

USION 4MP you must be logged in using an account with

administrator privileges.

If you are using a color display in conjunction with your Barco grayscale
display(s) or you should configure your desktop before setting the
resolution of the your Barco grayscale display(s).

Note: If you are using Barco Coronis Color displays and have
selected the one of the two Static Gray palette modes for them,
you should follow these guidelines also.

Recommended Configuration

The recommended configuration for best grayscale image quality when
using a color display in conjunction with your high-resolution grayscale
display(s) is to set the color display as the primary monitor of the
Windows desktop. Then set the colors setting on the “Settings” tab of
the Windows Display Control Panel to the highest possible color depth
(e.g. 32 bits-per-pixel “true color”) supported by the color display’s
controller.

The colors setting for your high-resolution grayscale displays should
default to 256 colors (8 bits per pixel). You should set the palette mode
for the your high-resolution grayscale displays to Static Gray palette
with NO system colors. This guarantees that the all of the 256 gray
levels available for GDI graphics will be present. This also eliminates the

36

General tips

danger that colors will change when focus moves among different
applications.

However, if you are using the Color to Gray Compatibility palette mode,
the color setting for your high-resolution grayscale displays should
default to True Color (32 bits per pixel). Even though this palette mode
supports 32 bit True Color, Barco recommends that when using a using a
color display in conjunction with your high-resolution grayscale
display(s) that you still set the color display as the primary monitor of
the Windows desktop.

Setting the resolution of your NIO FUSION 4MP

Note: In order to set the resolution of your NIO FUSION 4MP you
must be logged in using an account with administrator privileges.

1. Open the “Windows Display Control Panel” by one of the two

methods below:

a) Start > Settings > Control Panel > Display

or

b) Open the “Display Properties Control Panel” by right

clicking in an empty area on the desktop, then select
Properties.

2. Click on the Settings tab.

3. Select the rectangle that represents the Barco Coronis display

whose settings you wish to change.

Note: If you are using the VGA capabilities of your MXRT-2100
display controller, the resolution for the first display may be set to
a VGA resolution of “640 x 480” pixels with 16 colors and a default
refresh rate. If your MXRT-2100 controller is not running VGA, the
display may not be enabled yet. To enable the display, check the
“Extend my Windows desktop onto this monitor” checkbox, but
do NOT click the Apply button at this time.

If you installed your Nio Fusion 4MP drivers in SingleView mode
(default for Windows 2000) there will be one rectangle for the

37

General tips

virtual display representing the two heads controlled by each
MXRT-2100 display controller.

If you installed your Nio Fusion 4MP drivers in DualView mode
(default for Windows XP) there will be a rectangle representing
each head controlled by each MXRT-2100 display controller. This
will be true even if you have only one display connected to your
MXRT-2100 controller. Both displays of a display controller cannot
be enabled at the same time unless their display properties
match. If necessary detach the second display of the MXRT-2100
display controller you are working with by right clicking on the

rectangle that represents it, deselect Attached and click the
Apply button.

Note: Since Windows will not let you detach the primary display

connected to a particular controller, you may need to temporarily
make another display the primary display

4. For the display which is still attached click Click on the Advanced

Button.

5. Select the Adapter tab and then click on the List All Modes

button. Select the resolution and refresh rate that your Nio Fusion
4MP display supports from the dialog box and click OK.

Note: In the Adapter box, the Adapter string shows if this
display is the First View or the Second View attached to the display
controller. Please make a note of this, so that you can arrange the
displays in the correct order later if necessary.

6. Click OK on the bottom of the Adapter Control Panel. If the “OK”

button on the bottom of the Adapter Control Panel is not visible,
press the TAB key once and then press CTRL+Enter to select OK.

7. Click OK in the “Windows will now apply your new desktop

settings” dialog box. Your Nio Fusion 4MP display should now
synchronize and display the Windows desktop.

8. Click Yes when asked, “Your desktop has been reconfigured. Do

you want to keep these settings?”

38

General tips

To set the resolution of the second display attached to the
BarcoMed display controller you are working with, go back to the
“Settings” tab of the “Display Properties Control Panel”. If
necessary attach the second display you detached in step 2 above,
by right clicking on the rectangle that represents it and selecting
Attached.

Now repeat steps 5-8 above for this display.

If you are using a Quad-Head Configuration repeat all of the above
steps for the two displays on the second display controller.

Note: If you have a single display configuration and you have
enabled DualView, Windows will not allow you to attach the
second head. This is normal and not a bug.

After enabling DualView and setting the resolutions in a Quad­Head Configuration you may need to drag the heads into the
proper position in the window on the “Settings” tab, so that the
arrangement in the window on the “Settings” tab matches the
physical arrangement of your configuration.

39

General tips

40

Warranty Statement

41

General tips

ARTICLE 1: SERVICES

BarcoView warrants that the equipment will be free of defects in workmanship or material for the
warranty period.

Notwithstanding the provisions of clause 2, repair and replacement of defects in material and/or
workmanship under this warranty shall be accomplished in our works in the following manner:

1.1 The Customer, upon the occurrence of any equipment failure, shall contact BarcoView Customer
Support Center (or an authorized service center) by telephone, fax or e-mail and shall provide the
applicable Customer Support person with a complete description of the problem being encountered,
including the model and serial number of the equipment in which the problem has arisen.

1.2 The Customer Support person shall diagnose the problem experienced by the Customer and shall
advise the Customer on how to proceed. Customer Support may ask to return the faulty equipment or
faulty subassemblies to the BarcoView Customer Support Center (or an authorized service center) for
repair activities. The Customer shall ask for a RMA or RAN number to a BarcoView Customer Support
Center (or an authorized service center).

1.3 The Customer shall return, freight prepaid, the defective equipment or subassemblies for repair to
the BarcoView Customer Support Center (or an authorized service center).

1.4 Replacement parts used shall be new or equivalent to new parts for the revision level of the
equipment. The warranty period for the replacement parts will expire at the same moment as the
original warranty period of the equipment. All parts replaced hereunder and returned to BarcoView (or
an authorized service center) shall become the property of BarcoView (or the authorized service
center).

1.5 The repaired equipment shall be returned to the Customer, by regular freight, at BarcoView's
charge.

ARTICLE 2: ITEMS EXCLUDED FROM WARRANTY

The warranty described herein shall not include the following:

2.1 Any hardware or software item procured from a source other than BarcoView or their official agent
or distributor and integrated by Customer or a third party into BarcoView supplied equipment.

2.2 Any host configuration not explicitly supported by BarcoView.

2.3 All software installed on the system, whether they are acquired from BarcoView or third party. An
exception is made for software delivered by BarcoView that would prove to be a cause for the
malfunctioning of the hardware covered under this Agreement.

2.4 Normal wear and tear, use under circumstances exceeding specifications, abuse, unauthorized
repair or alternation, lack of proper maintenance.

2.5 Any failures resulting from an accident, negligence (such as but not limited to removing or deleting
system files & licensed software product files), misuse, circuit failure or any change, damage due to
fire, water, thunder or lightning, power failure or fluctuation, disruption of communication lines or due
to force majeure, or any reason foreign to the equipment.

2.6 Any specific services or procedures, asked for by Customer, related to verification of repaired
equipment.

ARTICLE 3: OBLIGATIONS OF THE CUSTOMER

42

General tips

Customer hereby assumes the following obligations as partial consideration for BarcoView performance
of its requirements under the warranty condition; failure by Customer to meet its obligations under this
paragraph shall excuse BarcoView's performance hereunder:

3.1 Customer shall not expose BarcoView personnel to any unsafe working conditions.

3.2 Repairs to equipment under warranty resulting from improper maintenance or repair performed by
the Customer, or its officers, agents, employees, or representatives, shall be borne by the Customer at
its additional cost and expense.

3.3 The customer is responsible for installing the BarcoView equipment in an environment for which it
was intended. If there is an indication that the equipment was used - even temporary - outside its
specifications, BarcoView is entitled not to perform warranty repairs and terminate the warranty
agreement. Any actions that have been taken by BarcoView in this respect, may be invoiced to the
Customer at normal pricing.

ARTICLE 4: MODIFICATIONS OR CHANGES TO THE EQUIPMENT

Customer may make additions to the equipment only with explicit written consent of BarcoView.

Any attempt to do so, voids the warranty.

ARTICLE 5: DISCLAIMER OF WARRANTIES

Barcoview disclaims all warranties, expressed or implied, including all implied warranties of
merchantability and fitness for a particular purpose.

ARTICLE 6: LIMITATION OF LIABILITY

Barcoview shall not under any circumstances be liable to customer or any third party for direct, indirect,
incidental, special or consequential damages, such as but not limited to, damage to or loss of tangible
or intangible property or equipment, loss of profits or revenues, cost of capital, cost of purchase of
replacement goods, or claims of customers of user for service interruptions. The liability of BarcoView
for manufacturing, sale, delivery, resale, installation, operation or suitability for use of any products or
services covered by or furnished under this warranty condition, whether arising out of contract,
negligence, strict tort, warranty or otherwise, shall not exceed the price of the item or items of goods
or services upon which such liability is based.

ARTICLE 7: FORCE MAJEURE

Either party shall be released from performance of its obligations under this agreement to the extent,
and for so long as, the performance of this agreement is impeded by reason of force majeure. For the
purposes of this clause the expression “force majeure” means, but shall not be limited to, industrial
dispute, fire, mobilization, requisition, embargo, currency transfer prohibitions, insurrection, lack of
means of transport, restrictions of the use of energy, and generally any circumstances which are
beyond the control of the parties and hinder performance by one party of his obligations.

ARTICLE 8: GENERAL

8.1 Customer acknowledges its understanding that all software and electronic devices, including
BarcoView products are subject to possible error, mechanical or electrical failure, and should not be
relied upon in inappropriate applications or without proper backup and/or other safety precautions
whenever personal injury or property damage may result from failure or error of the product.

8.2 BarcoView shall not be responsible for machine failure and/or its failure to render service or
maintenance due to causes beyond its reasonable control.

43

K5902002 - 01

October 2006

www.barco.com
