Barco 2100, 2100 LC User Manual

BARCO PROJECTION SYSTEMS

DATA

2100

R9001070

OWNER'S MANUAL

Rev. : 04

Art. No. :R5975696Date: 140798

Due to constant research, the information in this manual is subject
to change without notice.

Produced by BARCO NV, July 1998
All rights reserved.

Trademarks are the rights of their respective owners.

Printed in Belgium

Table of contents

WARNINGS & SAFETY INSTRUCTIONS ............................................................................................................................................. 1-1

AVERTISSEMENTS & PRESCRIPTIONS DE SECURITE ....................................................................................................................... 1-1

Remarque sur la Sécurité ............................................................................................................................................................ 1-2

Notice on Safety .......................................................................................................................................................................... 1-3

Instructions pour linstallation....................................................................................................................................................... 1-2

Installation Instructions ................................................................................................................................................................ 1-3

Prescriptions de securite générales. .......................................................................................................................................... 1-6

Sécurité ........................................................................................................................................................................................ 1-6

General Safety Instructions......................................................................................................................................................... 1-7

On safety ..................................................................................................................................................................................... 1-7

LInstallation .................................................................................................................................................................................. 1-8

Entretien et Réparation ................................................................................................................................................................ 1-8

On Installation .............................................................................................................................................................................. 1-9

On Servicing ................................................................................................................................................................................ 1-9

Nettoyage ................................................................................................................................................................................... 1-10

Ré-emballage ............................................................................................................................................................................. 1-10

On Cleaning ................................................................................................................................................................................ 1-11

On Repacking ............................................................................................................................................................................. 1-11

Eclairage ..................................................................................................................................................................................... 1-12

On Illumination ........................................................................................................................................................................... 1-13

UNPACKING & DIMENSIONS ............................................................................................................................................................... 2-1

Unpacking..................................................................................................................................................................................... 2-2

Projector Dimensions ................................................................................................................................................................... 2-3

Battery Installation in the RCU...................................................................................................................................................... 2-4

INSTALLATION GUIDELINES .............................................................................................................................................................. 3-1

Installation Guidelines .................................................................................................................................................................. 3-2

Environment ................................................................................................................................................................................. 3-2

What about Ambient Light ? ......................................................................................................................................................... 3-2

Which Screen Type? ................................................................................................................................................................... 3-3

What Image Size? How Big should the Image be? .................................................................................................................... 3-3

Where to Install the Projector?..................................................................................................................................................... 3-4

How to Install a Projection Lens? ................................................................................................................................................ 3-6

5975696 BARCODATA 2100 140798

1-1

Table of contents

INSTALLATION SET UP ...................................................................................................................................................................... 4-1

LOCATION AND FUNCTION OF CONTROLS ...................................................................................................................................... 5-1

Front Panel Terminology .............................................................................................................................................................. 5-2

Control Panel Terminology ........................................................................................................................................................... 5-4

a. Local Keypad ........................................................................................................................................................................... 5-4

b. Remote Control ......................................................................................................................................................................... 5-4

POWER CONNECTION ........................................................................................................................................................................ 6-1

Power (Mains) Cord Connection ................................................................................................................................................. 6-2

Fuses ........................................................................................................................................................................................... 6-2

Switching ON ............................................................................................................................................................................... 6-2

Lamp Life Time ............................................................................................................................................................................. 6-4

Switching to Stand-by. ................................................................................................................................................................ 6-4

Switching OFF ............................................................................................................................................................................. 6-4

INPUT CONNECTIONS ......................................................................................................................................................................... 7-1

Signal Input Connection to the Projector. .................................................................................................................................... 7-2

Connecting a Video Source to the BNC Input (source 1) ........................................................................................................... 7-3

Connecting a Video Source to the Cinch Input (source 2) ......................................................................................................... 7-4

Connecting a S-Video Source to the 4-pin mini DIN Input (source 3) ......................................................................................... 7-5

Connecting a RGB Analog Source to Source 4 or 5 .................................................................................................................. 7-6

Connecting a RGB3S Analog Source to Source 4 or 5. ............................................................................................................. 7-8

Connecting a computer, e.g. IBM PC (or compatible), Apple Macintosh to the RS 232 Input of the Projector. ......................... 7-9

Set Up of the Baud Rate for Communication with a Computer. ................................................................................................. 7-9

Connecting a RCVDS 800 or RCVDS 05 to the BARCODATA 2100. ....................................................................................... 7-10

Connecting a VS05 to the BARCODATA 2100. ........................................................................................................................ 7-10

Connecting an IR Remote Receiver 800 to the BARCODATA 2100. ........................................................................................ 7-10

CONTROLLING ................................................................................................................................................................................... 8-1

How to Use the RCU? .................................................................................................................................................................. 8-2

Projector Address ........................................................................................................................................................................ 8-3

How to Display a Projector Address? ......................................................................................................................................... 8-4

How to Program an Address into the RCU? ............................................................................................................................... 8-4

1-2

5975696 BARCODATA 2100 140798

Table of contents

Picture Controls with Direct Access. .......................................................................................................................................... 8-4

Sound Controls with Direct Access. ........................................................................................................................................... 8-5

The Pause Key ............................................................................................................................................................................. 8-6

The Mute Key ............................................................................................................................................................................... 8-6

START UP OF THE ADJUSTMENT MODE ........................................................................................................................................... 9-1

Adjustment Mode ......................................................................................................................................................................... 9-2

RANDOM ACCESS ADJUSTMENT MODE ......................................................................................................................................... 10-1

Starting Up the Random Access Adjustment Mode .................................................................................................................. 10-2

File Service................................................................................................................................................................................. 10-3

Load File ..................................................................................................................................................................................... 10-4

Edit File ....................................................................................................................................................................................... 10-5

Rename .................................................................................................................................................................................... 10-10

Copy ......................................................................................................................................................................................... 10-11

Delete ....................................................................................................................................................................................... 10-12

File Options ............................................................................................................................................................................... 10-13

Picture Tuning .......................................................................................................................................................................... 10-13

Sync SLOW/FAST ................................................................................................................................................................... 10-14

Still Video.................................................................................................................................................................................. 10-14

Color Balance ........................................................................................................................................................................... 10-15

Gamma ..................................................................................................................................................................................... 10-16

Audio Tuning ............................................................................................................................................................................ 10-17

Volume, Bass, Balance, Treble ............................................................................................................................................... 10-17

Mute .......................................................................................................................................................................................... 10-18

Lock [OFF/AUDIO A/AUDIO B/AUDIO C].................................................................................................................................. 10-18

Fade ......................................................................................................................................................................................... 10-19

Geometry.................................................................................................................................................................................. 10-20

Shift .......................................................................................................................................................................................... 10-20

Size .......................................................................................................................................................................................... 10-21

Zoom ........................................................................................................................................................................................ 10-22

Blanking .................................................................................................................................................................................... 10-23

Scale [1:1] ................................................................................................................................................................................ 10-25

5975696 BARCODATA 2100 140798

1-3

Table of contents

INSTALLATION ................................................................................................................................................................................. 11-1

Starting Up the Installation Mode ............................................................................................................................................... 11-2

Configuration .............................................................................................................................................................................. 11-3

Internal Patterns ......................................................................................................................................................................... 11-3

SERVICE MODE ................................................................................................................................................................................ 12-1

Starting Up the Service Mode .................................................................................................................................................... 12-2

Identification ............................................................................................................................................................................... 12-5

Change Password ..................................................................................................................................................................... 12-6

How to Enable or Disable the Password Function ? ................................................................................................................ 12-6

How to Change the Password ? ............................................................................................................................................... 12-7

Change Projector Address ........................................................................................................................................................ 12-8

Change Baudrate PC .................................................................................................................................................................. 12-8

Reset Lamp Runtime .................................................................................................................................................................. 12-9

Lamp Run Time History ............................................................................................................................................................ 12-10

Preset Input Balance ................................................................................................................................................................ 12-11

Change Language .................................................................................................................................................................... 12-12

75 W Termination ..................................................................................................................................................................... 12-13

Dimming .................................................................................................................................................................................... 12-13

I2C Diagnosis. .......................................................................................................................................................................... 12-14

OPTIONAL EQUIPMENT .................................................................................................................................................................... 14-1

IR Receiver 800.......................................................................................................................................................................... 14-2

Hardwired RCU. ......................................................................................................................................................................... 14-2

RCVDS 800 / RCVDS 05............................................................................................................................................................ 14-3

VS05 .......................................................................................................................................................................................... 14-3

Interface ..................................................................................................................................................................................... 14-4

Adapter and Communication Cables ......................................................................................................................................... 14-4

Ceiling Mount Kit CM50............................................................................................................................................................... 14-4

Appendix A : Standard Source Set Up Files. ................................................................................................................................... A-1

Appendix B : Battery Replacement in the RCU. ................................................................................................................................. B-1

Appendix C : Focusing the Lens ....................................................................................................................................................... C-1

1-4

5975696 BARCODATA 2100 140798

Table of contents

Appendix D : Lens Cleaning Procedure .............................................................................................................................................D-1

Appendix E : Source numbers 90 - 99 .............................................................................................................................................. E-1

Appendix F : Lenses .......................................................................................................................................................................... F-1

5975696 BARCODATA 2100 140798

1-5

WARNINGS

AVERTISSEMENTS

Safety Instructions

Prescriptions de sécurité

On Safety

sécurité

On Installation

installation

On Servicing

entretien et réparation

On Cleaning

nettoyage

On Repacking

re-emballage

Safety Instructions

On Illumination

éclairage

5975696 BARCODATA 2100 140798

1-1

Presciptions de sécurité

Remarque sur la Sécurité

Les projecteurs sont fabriqués conformément aux exigences des
normes de sécurité internationales EN60950, UL 1950 et CSA C22.2
No. 950. Ces normes de sécurité sont imposées aux équipements de
la technologie informatique incluant les équipements électriques.

Ces normes de sécurité imposent des exigences importantes sur
lemploi des composantes, des matériaux et de lisolation dont la
sécurité est critique, afin de protéger lutilisateur contre le risque
dune décharge électrique et davoir accès aux parties sous tension.
Les normes de sécurité aussi imposent des limitations concernant la
hausse de la température interne et externe, les niveaux de radiation,
la stabilité et la force mécanique, la construction du cadre métallique
à lintérieure et la protection contre les risques dincendie.

Les épreuves auxquelles léquipement a été subi assurent la sécurité
totale de lutilisateur, même lorsque léquipement ne fonctionne pas
normalement.

Instructions pour linstallation

Lire ce manuel complètement avant de mettre lappareil en fonction­nement et le conserver pour consultation ultérieure.

Linstallation et les réglages préliminaires devraient être faits par du
personnel qualifié BARCO ou par des agents autorisés du service
BARCO.

DONNÉES POUR LE PROPRIÉTAIRE

Le numéro de pièce et le numéro de série sont situés à lavant du
projecteur. Copier ces numéros dans les espaces prévus ci-des­sous. Se référer à ces numéros chaque fois que vous consultez
votre agent BARCO concernant cet appareil.

NUMERO DE PIECE :

NUMERO DE SERIE :

AGENT :

1-2

5975696 BARCODATA 2100 140798

Safety Instructions

Notice on Safety

Projectors are built in accordance with the requirements of the
international safety standards EN60950, UL 1950 and CSA C22.2 No.
950, which are the safety standards of information technology
equipment including electrical business equipment.

These safety standards impose important requirements on the use
of safety critical components, materials and isolation, in order to
protect the user or operator against the risk of electric shock and
energy hazard, and having access to live parts.
Safety standards also impose to the internal and external tempera­ture rises, radiation levels, mechanical stability and strength, enclo­sure construction and protection against risk of fire.

Simulated single fault condition testing ensures the safety of the
equipment to the user even when the equipment's normal operation
fails.

Installation instructions

Before operating your projector please read this manual thoroughly,
and retain it for future reference.

Installation and preliminary adjustments should be performed by
qualified BARCO personnel or authorized BARCO service dealers.

OWNERS RECORD

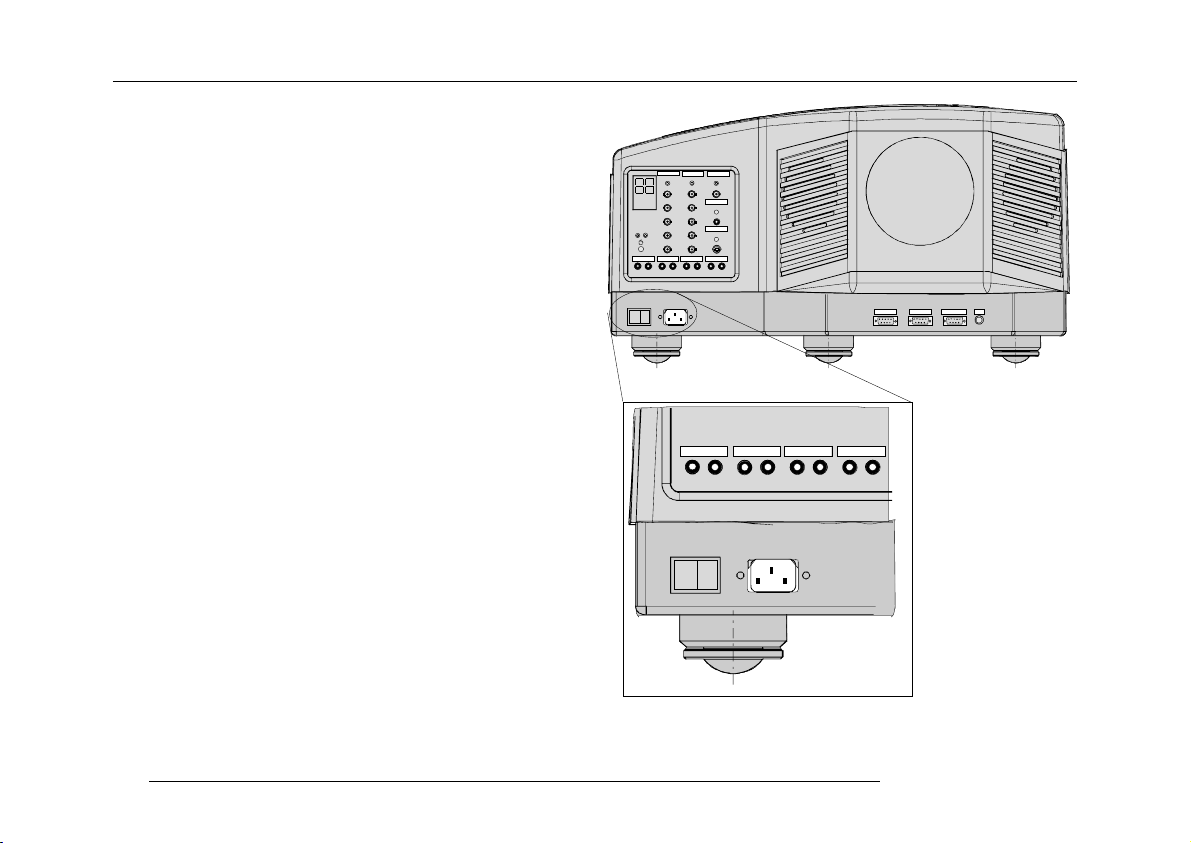

The part number and serial number are located at the front of the
projector. Record these numbers in the spaces provided below.
Refer to them whenever you call upon your BARCO dealer regarding
this product.

PART NUMBER:

SER. NUMBER:

DEALER:

5975696 BARCODATA 2100 140798

1-3

Presciptions de sécurité

ATTENTION

RISQUE D'ELECTRO­CUTION NE PAS OUVRIR

ATTENTION : AFIN DE REDUIRE LE RISQUE DE CHOCS
ELECTRIQUES, NE PAS ENLEVER LE COUVERCLE (OU LE DOS)

IL N'Y A PAS DE PIECES REPARABLES PAR L'UTILISATEUR A
L'INTERIEUR

LE SERVICE NE PEUT ETRE EFFECTUE QUE PAR DU PERSONNEL
QUALIFIÉ

Léclair avec une tête de flèche dans un
triangle indique à lutilisateur que les pièces à
lintérieur de lappareil présentent un risque de
chocs électriques.

POUR EVITER DES RISQUES DINCENDIE OU DE CHOCS ELECTRIQUES, NE PAS EXPOSER
CE PROJECTEUR A LA PLUIE OU A LHUMIDITE

Fédéral communication commission (FCC statement)

Cet équipement a été testé et trouvé conforme aux limites imposées
aux appareils digitaux de classe B, selon la section 15 des règles
FCC. Ces limites sont conçues pour fournir une protection raison­nable contre les interférences lorsque lutilisation doit se faire dans
un environnement commercial. Cet équipement génère, utilise et peut
émettre de lénergie aux fréquences radio, et sil nest pas installé

1-4

Le point dexclamation dans un triangle indique
à lutilisateur que des instructions de fonctionne­ment et/ou de service sont comprises dans la
documentation technique de cet équipement.

AVERTISSEMENT

et utilisé conformément aux instructions du manuel, il peut créer des
interférences désavantageuses dans les communications radio.
Lutilisation de cet équipement dans des zones résidentielles peut
créer des interférences. Le cas échéant, lutilisateur devra prendre
toutes les mesures requises pour les amoindrir, à ses propres frais.

5975696 BARCODATA 2100 140798

Safety Instructions

The lightning flash with an arrowhead within
a triangle is intended to tell the user that parts
inside this product are risk of electrical shock
to persons.

To prevent fire or electrical shock hazard, do not expose this projector to rain or

Federal communication commission (FCC statement)

This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio

5975696 BARCODATA 2100 140798

The exclamation point within a triangle is in­tended to tell the user that important operating
and/or servicing instructions are included in the
technical documentation for this equipment.

Warning

moisture

frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

1-5

Presciptions de sécurité

Instructions pour lutilisateur :

Si cet équipement cause des interférences de radio ou de télévision,
lutilisateur peut essayer de corriger les interférences en appliquant
une ou plusieurs de les mesures suivantes :

- Ré-orienter lantenne radio ou télévision.

- Déplacer l équipement concernant le récepteur.

- Brancher l appareil sur une autre prise de telle sorte que lappareil
et le récepteur se trouvent sur différents circuits électriques.

. Fixer les connecteurs des câbles a léquipement au moyen des vis.

Remarque :
Lutilisation de câbles blindés est exigée afin dobserver les règles
de la section 15 des règles FCC et EN55022

Prescriptions de sécurité générales.

* Lire toutes les prescriptions de sécurité et de fonctionnement avant

dutiliser cet appareil.

* Le manuel de prescriptions de sécurité et de fonctionnement doit

être conservé pour consultation ultérieure.

* Il faut respecter tous les avertissements mentionnés sur le projec-

teur et dans les manuels.

* Suivre fidèlement toutes les prescriptions dutilisation et de fonction-

nement de cet équipement.

SECURITE

* Cet équipement doit fonctionner sur une source à courant alternatif.
Ce projecteur peut être branché sur un système à IT courant.
* Cet appareil est équipé dun connecteur à trois broches dont une
mise à la terre. Le connecteur nest adapté quà des prises de courant

du type avec terre. Ceci est une mesure de sécurité. Si le connecteur
ne sadapte pas dans la prise, contacter votre électricien pour
remplacer la prise non valable. Ne pas compromettre le but du
connecteur de terre.
Avertissement pour les utilisateurs : CE PROJECTEUR DOIT ÊTRE MIS
À LA TERRE avec le cordon secteur fourni.
(Si le cordon secteur n'est pas correct, consulter votre revendeur.)

A. Cordon dalimentation avec connecteur CEE7

Les couleurs des fils du cordon dalimentation
sont codées comme suit :

Vert et jaune : terre
Bleu : neutre
Brun : sous tension

(actif)

B. Cordon dalimentation avec connecteur ANSI 73.11

Les couleurs des fils du cordon dalimentation
sont codées comme suit :

Vert/Jaune : terre
Blanc : neutre
Noir : actif

* Ne rien laisser en appui sur le cordon dalimentation. Ne pas placer

ce cordon là où des personnes risques de marcher dessus.

1-6

5975696 BARCODATA 2100 140798

Instructions to the user :

if this equipment does cause interference to radio or television
reception, the user may try to correct the interference by one or more
of the following measures :

- Re-orientation of the receiving antenna for the radio or television.

- Relocate the equipment with respect to the receiver.

- Plug the equipment into a different outlet so that the equipment and

receiver are on different branch circuits.

 Fasten cables connectors to the equipment by mounting screws.

Safety Instructions

power outlet. This is a safety feature. If you are unable to insert the
plug into the outlet, contact your electrician to replace your

obsolete outlet. Do not defeat the purpose of the grounding-type

plug.

WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE
GROUNDED (EARTHED) via the supplied 3 conductor AC power
cable.
(If the supplied power cable is not the correct one, consult your
dealer.)

A. Mains lead (AC Power cord) with CEE 7

plug:

Note :

The use of shielded cables is required to comply within the limits
of Part15 of FCC rules and EN55022.

General safety instructions.

* All the safety and operating instructions should be read before using

this unit.

* The operating instructions manual should be retained for future

reference.

* All warnings on the projector and in the documentation manuals

should be adhered to.

* All instructions for operating and use of this equipment must be

followed precisely.

ON SAFETY

* This product should be operated from an AC power source.

This projector may be connected to an IT-power system.

* This product is equipped with a 3-wire grounding plug, a plug having

a third (grounding) pin. This plug will only fit into a grounding-type

5975696 BARCODATA 2100 140798

The colors of the mains lead are colored in
accordance with the following code:

Green-and-yellow: Earth (safety

earth)

Blue: Neutral
Brown: Live

B. Power cord with ANSI 73.11 plug:

The wires of the power cord are colored in
accordance with the following code.

Green/yellow: ground
White: neutral
Black: live

1-7

Presciptions de sécurité

* Pour débrancher le cordon, le tirer par le connecteur, jamais par le

cordon lui-même.

* Si on utilise une rallonge, vérifier que le total des courants des

appareils raccordés à cette rallonge ne dépasse pas la capacité
nominale du câble de rallonge. Vérifier aussi que la somme des
consommations des appareils raccordés à la prise murale ne
dépasse pas 15 ampères.

* Ne jamais introduire un objet quelconque dans lappareil à travers

les fentes du boîtier, car ils pourraient être en contact avec des
points de tension dangereux ou court-circuiter des pièces, ce qui
pourrait entraîner un risque dincendie ou de choc électrique.

* Ne jamais répandre un liquide quelconque sur lappareil. Si un liquide

ou un objet solide tombe dans le boîtier, débrancher lappareil et le
faire vérifier par du personnel qualifié avant de reprendre lutilisa­tion.

* Foudre - Pour une protection supplémentaire de cet appareil vidéo

lors dun orage ou sil nest pas employé et laissé sans surveillance
pendant de longues périodes, le débrancher de la prise murale. Ceci
évite tout endommagement au projecteur par la foudre ou par des
impulsions sur le secteur.

* Avant de débrancher le projecteur, réduire la chaleur de la lampe

en commutant le projecteur en mode dattente et laisser refroidir la
lampe du projecteur pendant 15 minutes au moins. Puis le projecteur
peut être débranché par linterrupteur secteur.

LInstallation

* Ne pas utiliser le projecteur à proximité deau.

* Nutiliser que le cordon dalimentation fourni avec votre projecteur.

Bien quils se ressemblent, dautres cordons dalimentation nont
pas subi des tests de sécurité dans lusine et pour cette raison ils
ne peuvent pas être utilisés pour actionner le projecteur. Si vous
avez besoin dun cordon dalimentation de remplacement, contac­tez votre agent.

* Les fentes et les ouvertures pourvues dans le boîtier et au dos ou

sur le fond, sont destinées à la ventilation. Pour assurer un
fonctionnement fiable du projecteur et le protéger de toute sur­chauffe, ses ouvertures ne doivent être ni obstruées ni recouver­tes. Les ouvertures ne devraient jamais être obstruées en plaçant
lappareil sur un lit, un divan, un tapis ou toute autre surface similaire.
Lappareil ne devrait jamais être placé près ou au-dessus dun
radiateur ou autre source de chaleur. Ce projecteur ne doit pas être
installé dans une installation encastrée ou fermée, sauf si une
ventilation suffisante est assurée.

* Laisser suffisamment despace autour du projecteur et ne pas

obstruer la circulation de lair. Ne pas mettre des feuilles libres ou
dautres objets plus près de 11 cm du projecteur.

Entretien et Réparation

Ne pas essayer de réparer le projecteur vous-même, puisque ouvrir
le boîtier ou lenlèvement des blindages peuvent vous exposer à une
puissance électrique dangereuse et au risque dune décharge
électrique.

* Ne pas placer le projecteur sur un chariot, un support ou une table

instable. Le projecteur risquerait de tomber causant des dégâts
sérieux au projecteur.

1-8

5975696 BARCODATA 2100 140798

* Do not allow anything to rest on the power cord. Do not locate this

product where persons will walk on the cord.

Safety Instructions

* Do not use this projector near water.

* To disconnect the cord, pull it out by the plug. Never pull the cord

itself.

* If an extension cord is used with this product, make sure that the

total of the ampere ratings on the products plugged into the
extension cord does not exceed the extension cord ampere rating.
Also make sure that the total of all products plugged into the wall
outlet does not exceed 15 amperes.

* Never push objects of any kind into this product through cabinet slots

as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electrical shock.

* Never spill liquid of any kind on the product. Should any liquid or solid

object fall into the cabinet, unplug the set and have it checked by
qualified service personnel before resuming operations.

* Lightning - For added protection for this video product during a

lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will prevent
damage to the projector due to lightning and AC power-line surges.

* To reduce the lamp heat of the projector, switch the projector first

to stand-by and let the projector lamp cool down for at least 15
minutes. Then the projector may be switched off with the power
switch.

On Installation

* Do not place this projector on an unstable cart, stand, or table. The

projector may fall, causing serious damage to it.

5975696 BARCODATA 2100 140798

* Use only the power cord supplied with your projector. While

appearing to be similar, other power cords have not been safety
tested at the factory and may not be used to power the projector.
For a replacement power cord, contact your dealer.

* Slots and openings in the cabinet and the sides are provided for

ventilation; to ensure reliable operation of the projector and to
protect it from overheating, these openings must not be blocked or
covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. T h i s
prod-uct should never be placed near or over a radiator or heat
register.This projector should not be placed in a built-in installation
or enclosure unless proper ventilation is provided.

* Do not block the projector cooling fans or free air movement under

and around the projector. Loose papers or other objects may not
benearer to the projector than 4" on any side.

On Servicing

Do not attempt to service this projector yourself, as opening or
removing covers may expose you to dangerous voltage potential and

1-9

Presciptions de sécurité

Contacter le service technique qualifié dans les cas suivants :

- Si le cordon secteur ou la prise de courant est endommagé ou

effiloché.

- Si on a répandu du liquide dans le projecteur.

- Si lappareil a été exposé à la pluie ou à de leau.

- Si l appareil ne fonctionne pas normalement, bien que les instruc-

tions soient correctement suivies. Ne régler que les commandes
décrites dans les instructions de fonctionnement, car un mauvais
réglage dautres commandes peut entraîner des dégâts et souvent
nécessiter un travail important par un technicien qualifié pour

remettre lappareil en conditions de fonctionnement nor-

mal.

- Si lappareil est tombé ou si le boîtier est endommagé.

- Si lappareil présente des changements nets de performance,

indiquant un besoin de réparation.

Pièces de rechange - Lorsquon a besoin des pièces de rechange,
veiller à ce que le technicien de service utilise des pièces dorigine
BARCO ou des pièces équivalentes autorisées qui ont les mêmes
caractéristiques que la pièce dorigine BARCO. Un remplacement par
des pièces de rechange non autorisées peut nuire à la performance
et la fiabilité, entraîner incendies, chocs électriques ou dautres
dangers. Lutilisation de pièces de rechange non autorisées peut
annuler la garantie.

Vérification de sécurité - Lorsquun service ou une réparation sur
ce projecteur est terminé, demander au technicien de service de faire
les vérifications de sécurité pour sassurer que le projecteur est en
bon état de fonctionnement.

1-10

Le projecteur emploie une lampe halogène à vapeurs métalliques de
575 W. Remplacer la lampe par une lampe de projection quelconque
peut causer la surchauffe ou une qualité de limage inacceptable.
Nutiliser que des lampes de projection indiquées par BARCO ou un
agent autorisé de BARCO ou un service.

Nettoyage

Débrancher lappareil de la prise avant tout nettoyage. Ne pas utiliser
des détergents liquides ou des aérosols. Utiliser un chiffon humide
pour le nettoyage.

Pour garder au boîtier son aspect neuf, le nettoyer régulièrement
avec un chiffon doux. Des tâches tenaces peuvent être enlevées
avec un chiffon humidifié par une solution de détergent doux. Ne
jamais utiliser des solvants forts, tels que du thinner ou du benzène,
ni des produits de nettoyage abrasifs, car ils pourraient endommager
le boîtier.

Pour garantir les meilleures performance et définition, les objectifs de
projection sont spécialement traités avec un revêtement anti-reflets.
En conséquence : éviter de toucher les objectifs. Pour enlever la
poussière de lobjectif, utiliser un chiffon sec et doux. Ne pas utiliser
de chiffon humide, de solution détergente ou de diluant. Respecter
la méthode de nettoyage des objectifs indiquée dans lannexe D au
manuel d'utilisateur.

Ré-emballage

Conserver lemballage et les produits demballage dorigine, ils seront
dun précieux secours sil avère utile dexpédier le projecteur. Pour
une protection maximale, ré-emballer lappareil de la même manière
quà lusine.

5975696 BARCODATA 2100 140798

Safety Instructions

risk of electric shock! Refer all projector service to a qualified BARCO
service center.

Call for service in the following conditions :

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled into the projector.

- If the product has been exposed to rain or water.

- If the product does not operate normally when the operating
instructions are followed.

Adjust only those controls that are covered by the operating
in-structions since improper adjustment of the other controls may
result in damage and will often require extensive work by a qualified
technician to restore the product to normal operation;

- If the product has been dropped or the cabinet has been damaged;

- If the product exhibits a distinct change in performance, indicating
a need for service.

Replacement parts - When replacement parts are required, be
sure the service technician has used original BARCO replacement
parts or authorized replacement parts which have the same char­acteristics as the BARCO original part. Unauthorized substitutions
may result in degraded performance and reliability, fire, electric shock
or other hazards. Unauthorized substitutions may void warranty.

Safety check - Upon completion of any service or repairs to this
projector, ask the service technician to perform safety checks to
determine that the projector is in proper operating condition.

The projecor uses a 575 W metal halide projection lamp. Replacing
the projection lamp with any other projection lamp can cause
overheating or unacceptable image quality. Use only the projection
lamps specified by BARCO, or an authorized BARCO dealer or
service center.

On Cleaning

Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

To keep the cabinet looking brand-new, periodically clean it with a soft
cloth. Stubborn stains may be removed with a cloth lightly dampened
with mild detergent solution. Never use strong solvents, such as
thinner or benzine, or abrasive cleaners, since these will damage the
cabinet.

To ensure the highest optical performance and resolution, the
projection lenses are specially treated with an anti-reflective coating,
therefore : avoid touching the lens. To remove dust on the lens, use
a soft dry cloth. Do not use a damp cloth, detergent solution, or thinner.
Follow the lens cleaning procedure on Appendix D in the Owners
Manual.

On Repacking

Save the original shipping carton and packing material; they will come

5975696 BARCODATA 2100 140798

1-11

Presciptions de sécurité

Eclairage

Pour garantir la meilleure qualité possible de limage projetée, il est
essentiel que léclairage ambiant incident sur lécran soit réduit au
strict minimum.

Lors de linstallation du projecteur et de lécran, il faut veiller à éviter
toute exposition directe de lécran à la lumière ambiante. Eviter tout
éclairage perturbateur sur lécran par des rayons du soleil ou des
éclairages fluorescents.
Lutilisation dun éclairage ambiant contrôlable, tel quun spot incan­descent ou un variateur de lumière est recommandée pour obtenir un
éclairage correct de la pièce. Dans la mesure du possible veiller à ce
que les parois et le sol de la pièce dans laquelle le projecteur doit être
installé soient non-réfléchissants et de couleur foncée. Des surfa­ces brillantes réfléchissent et diffusent la lumière ambiante et par
conséquent réduisent le contraste de limage sur lécran.

1-12

5975696 BARCODATA 2100 140798

in handy if you ever have to ship your projector. For maximum
protection, repack your set as it was originally packed at the factory.

On Illumination

In order to obtain the best quality for the projected image, it is essential
that the ambient light which is allowed to fall on the screen be kept
to an absolute minimum.

When installing the projector and screen, care must be taken to avoid
exposure to ambient light directly on the screen. Avoid adverse
illumination on the screen from direct sunlight or fluorescent lighting
fixtures.

The use of controlled ambient lighting, such as incandescent spot light
or a dimmer, is recommended for proper room illumination. Where
possible, care should also be taken to ensure that the floors and walls
of the room in which the projector is to be installed are non-reflecting,
dark surfaces. Brighter surfaces will tend to reflect and diffuse the
ambient light and hence reduce the contrast of the projected image
on the screen.

Safety Instructions

5975696 BARCODATA 2100 140798

1-13

Unpacking & Dimensions

UNPACKING

DIMENSIONS

BATTERY INSTALLATION ON THE RCU

5975696 BARCODATA 2100 140798

2-1

Unpacking & Dimensions

Pull

To open

Unpacking

To open the banding, pull on the clip as shown in the first drawing.

Take the projector out of its shipping carton and place it on a table.
For transportation, the projector is mounted on a wooden board with 3 bolts (M5). Use a 8 mm wrench
to remove these bolts.
When using the projector as a table mounted configuration, always mount the 3 plastic supporting feet
by turning in into the provided holes (see drawing on next page).

Save the original shipping carton and packing material, they will come in handy if you ever have to ship
your projector. For maximum protection, repack your projector as it was originally packed at the factory.

Contents of the shipped box :

- 1 BARCODATA 2100

- 1 remote control unit RCU + 1 9V battery

- 1 power cable with outlet plug type CEE7 or ANSI 73.11.

- 1 owners manual.

- 1 installation manual.

- 3 plastic supporting feet.

- 2 supporting feet extensions for 100% off-axis projection.

2-2

1

23

4

5975696 BARCODATA 2100 140798

5

Projector Dimensions

(units : mm)

603

225 245 67.5

194.9

Unpacking & Dimensions

141

335

141.2
55

20

35

5

405 200.5

641.5

278

127

63

224

250

5975696 BARCODATA 2100 140798

220

2-3

Unpacking & Dimensions

Battery Installation in the RCU.

A battery (not yet installed to save the battery life time) is delivered inside the plastic bag with the power
cord. Before using the RCU, start first the battery installation procedure.
Remove the battery cover on the backside of the remote control by pushing the indicated handle a little
to the bottom of the RCU. Lift up the top side of the cover at the same time (fig. 1).

Insert the new 9 V battery in the lower compartment and connect the battery to the contact plate.
Insert the battery into the lower compartment and put the cover back.

Note : projector address has to be programmed on the RCU before using the RCU (see chapter
'Controlling').

2-4

Contact
plate

Battery

310a.DRW

Insert here the 'Insert card
RCU' which you can cut out
on the last page of this manual.

fig.2

fig.1

5975696 BARCODATA 2100 140798

Installation Guidelines

INSTALLATION GUIDELINES

Environment

What about Ambient Light?

Which Screen Type?

What Image Size? How Big should the Image be?

5975696 BARCODATA 2100 140798

Where to Install the Projector?

How to Install the Projector?

3-1

Installation Guidelines

Installation Guidelines

Careful consideration of things as image size, ambient light level, projector placement and type of screen to use are critical to the optimum
use of the projection system.

* Environment

Do not install the projection system in a site near heat sources such
as radiators or air ducts, or in a place subject to direct sunlight,
excessive dust or humidity. Be aware that room heat rises to the
ceiling; check that temperature near the installation site is not
excessive.

* What about Ambient Light ?

The ambient light level of any room is made up of direct or indirect
sunlight and the light fixtures in the room. The amount of ambient light
will determine how bright the image will appear. So, avoid direct light
on the screen.
Windows that face the screen should be covered by opaque drapery
while the set is being viewed. It is desirable to install the projecting
system in a room whose walls and floor are of non-reflecting material.
The use of recessed ceiling lights and a method of dimming those
lights to an acceptable level is also important. Too much ambient light
results in a wash out of the projected image. That appears as less
contrast between the darkest and lightest parts of the image. With
bigger screens, the wash out becomes more important. As a general
rule, darken the room to the point where there is just sufficient light
to read or write comfortably. Spot lighting is desirable for illuminating
small areas so that interference with the screen is minimal.

3-2

5975696 BARCODATA 2100 140798

* Which Screen Type?

Screen width

There are two major categories of screens used for projection
equipment. Those used for front projected images and those for rear
projection applications.

Screens are rated by how much light they reflect (or transmit in the
case of rear projection systems) given a determined amount of light
projected toward them. The GAIN of a screen is the term used. Front
and rear screens are both rated in terms of gain. The gain of screens
range from a white matte screen with a gain of 1 (x1) to a brushed
aluminized screen with a gain of 10 (x10) or more. The choice
between higher and lower gain screens is largely a matter of
personal preference and another consideration called the Viewing
angle.

In considering the type of screen to choose, determine where the
viewers will be located and go for the highest gain screen possible.
A high gain screen will provide a brighter picture but reduce the
viewing angle.

For more information about screens, contact your local screen
supplier.

* What Image Size? How Big should the Image be?

The BARCODATA 2100 is designed for projecting an image size from

1.00m (3.2ft) to 6.00m (20ft) with a aspect ratio of 4 to 3.

Installation Guidelines

5975696 BARCODATA 2100 140798

3-3

Installation Guidelines

* Where to Install the Projector?

Definitions of the Abbreviation on drawings

B = Distance between ceiling and top of the screen or
between floor and bottom of the screen.

A = Correction value, distance between bottom side of
projector and middle of the lens. Value to be subtracted from
B to obtain the correct installation position. (A value is a
constant value for all screen widths and type of lenses. A
= 200 mm or 7.874")

CD = Total distance between projector and ceiling or projector
and floor.

SW = Screen width.

SH = Screen height (image height).

PD = Projector Distance, distance between screen and
projector.

Inputs and computer video format input compatibility :

VIDEO and S-VIDEO
RGB ANALOG with STANDARD SYNC (SYNC ON GREEN or

SEPARATE SYNC)

RGB ANALOG with TRI-LEVEL SYNC (SYNC ON GREEN or
SEPARATE SYNC)
All computer sources with resolutions up to 1024 x 768 pixels

3-4

5975696 BARCODATA 2100 140798

Installation Guidelines

Ceiling mounting of the BARCODATA 2100

(70% off-axis projection)

Ceiling

B

PD

SH

Screen

Screen

SW

Optica l axis pr ojection lens

SIDE VIEW

BOTTOM VIEW

BACK VIEW

Ceiling

SH

CD

A

Projec tor

CD = B + (SW x 0.22 5) - A

Table mounting of the BARCODATA 2100

(70% off-axis projection)

Screen

SH

B

Screen

SW

Optical axis projection lens

PD

Floor

SIDE VIEW

BOTTOM VIEW

BACK VIEW

SW

SH

CD = B + (SW x 0.225) - A
CD = height of table + supporti ng feet

Projector

A

CD

5975696 BARCODATA 2100 140798

Floor

SW

3-5

Installation Guidelines

Table mounting of the BARCODATA 2100

(100% off-axis projection)

Screen

SH

B

Screen

SW

PD

Floor

SIDE VIEW

BOTTOM VIEW

BACK VIEW

SW

SH

To install the projector
100 % off-axis, con­sult a qualified serv-

3-6

Floor

CD = B - A
CD = height of table + supporting feet

Proj ector

A

CD

ice technician.

* How to Install a Projection Lens?

The BARCODATA 2100 is supplied without any lens.
The following lens is available :

SD(1.2:1) - Video
SD(1.2:1)
SD(1.7:1)

How to install the lens on the BARCODATA 2100?

Remove the foam rubber in the opening of the lens holder.

- Take the new lens out of its shipping carton and remove the lens
covers.

- Turn the lens into the lens holder by turning clockwise.

- Focus the lens (see appendix C) and secure the correct position
with the fastener ring by turning this ring clockwise.

* How to Install the Projector?

Ceiling mount or table mount?
To install the BARCODATA 2100, it is recommended that the BARCO
mounting kits which are specially designed for this function be used
at all times.

BARCO ceiling support CM50.
CM50 with pulley system, Order number : R9827990.
CM50 without pulley system, Order number : R9827991.

Note : The CM50 in combination with the adapter plate can
only be used for 70 % OFF-AXIS projection.

5975696 BARCODATA 2100 140798

Always use the BARCO ceiling support to attach your BARCODATA
2100 to the ceiling.
The installation instruction for this support is enclosed in the packet
of the set.

Note : A ceiling mount adapter plate is needed to mount the projector
to the ceiling mount support. BARCO order number : R9829450.

When using the adapter plate and the CM50 to mount the BD2100 to
the ceiling, only 70% off-axis projection is possible.

BARCO projection table.

BARCO's projection table provides adjustable height and offers a
stable surface for the projector
Order number R9827740.

Installation Guidelines

5975696 BARCODATA 2100 140798

3-7

INSTALLATION SET UP

Projector Configuration

Installation Set Up

5975696 BARCODATA 2100 140798

4-1

Installation Set Up

The BARCODATA 2100 can be installed to project images in four
different configurations : front/table, front/ceiling, rear/table and
rear/ceiling.

5HDU&HLOLQJ

)URQW&HLOLQJ

5 H D U 7DEOH

4-2

)URQW7DEOH

5975696 BARCODATA 2100 140798

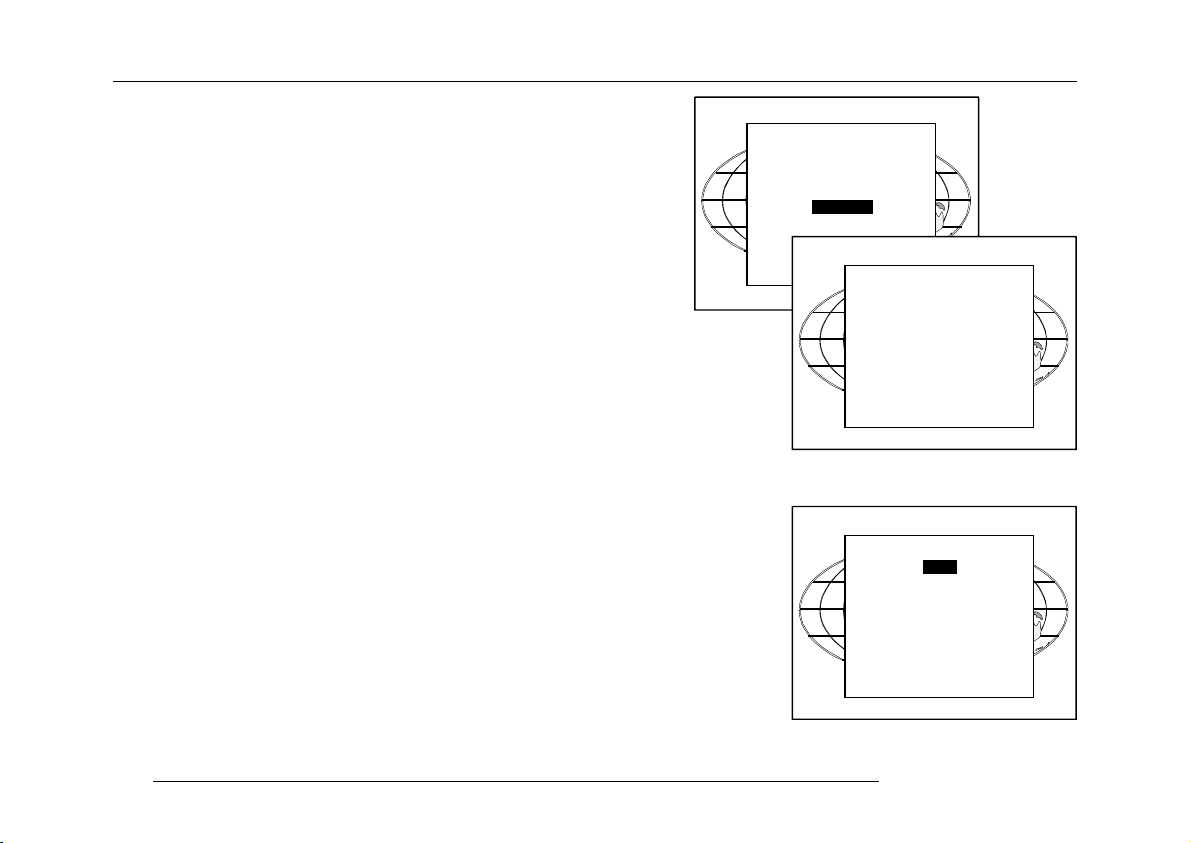

To change the Configuration, enter the adjustment mode by pushing ADJUST or ENTER.
Highlight Installation by pushing the control disk up or down and press ENTER to select.
The installation menu will be displayed.

ENTER displays the Installation menu.
EXIT returns to operational mode.

Highlight Configuration by pushing the control disk up or down and press ENTER to
select. The configuration menu will be displayed.

Installation Set Up

ADJUSTMENT MODE

Select a path from below :

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

Select with é or ê

then <ENTER>

<EXIT> to return.

INSTALLATION

ENTER displays the Configuration menu.
EXIT returns to the path selection menu.
ADJUST retuns to operational mode.

The actual selected configuration will be highlighted.
Push the control disk up or down to select the corresponding configuration with
regard to the projector environment. Press ENTER to confirm your selection.

ENTER to confirm the selection.
EXIT returns to the installation menu.
ADJUST retuns to operational mode.

5975696 BARCODATA 2100 140798

CONFIGURATION

INTERNAL PATTERNS

Select with é or ê

then <ENTER>

<EXIT> to return.

CONFIGURATION

FRONT/TABLE

FRONT/CEILING

REAR/TABLE

REAR/CEILING

Select with é or ê

then <ENTER>

<EXIT> to return.

4-3

Location and Functions of Control

LOCATION AND FUNCTION OF CONTROLS

Front Panel Terminology

Local Keypad

Remote Control

5975696 BARCODATA 2100 140798

5-1

Location and Functions of Control

Front Panel Terminology

5-2

SOURCE 5

RGBH/CV

RGBH/CV

RR

G

G

BB

H/C

H/C

IR

VV

AUDIO IN C

AUDIO OUT

L - R L - R L - R L - R

0

I

1

AUDIO IN B AUDI O IN A

2 15 16

SOURCE 1SOURCE 4

VIDEO

SOURCE 2

VIDEO

3

SOURCE 3

S VIDEO

IR

AUDIO OUT AUDIO IN C AUDIO IN B

L - R

5 6 7 8

4

SOURCE 5

RGBH/CV

R

G

BB

H/C

V

L - R

11

RGBH/CV

R

G

H/C

V

L - R

10

SOURCE 1SOURCE 4

VIDEO

SOURCE 2

VIDEO

SOURCE 3

S VIDEO

AUDIO IN A

L - R

RS 232 IN

Read instructions before

connecting peripheral s

RS 232 O U T COMM PORT

17

hardwi red

remote

CTRL

18

9121314

5975696 BARCODATA 2100 140798

Location and Functions of Control

Power switch : '1' = on, '0' = off

1

Power input : switchable between 120 VAC and
230 VAC

2

IR receiver : receiver for control signals transmitted from
the RCU.

3

Diagnostics code : a) source number
b) error code : a two digit error code is displayed when

4

something goes wrong inside the projector.

Source 5 : RGB H/C V input : RGB analog input with

5

standard sync on 5 BNC connectors. The sync can be
sync on green, composite sync, separate sync (H & V) or
3 level sync.

Source 4 : RGB H/C V input : RGB analog input with

6

standard sync on 5 BNC connectors. The sync can be
sync on green, composite sync or separate sync (H & V)

Source 1 : Video input (composite video) on BNC

7

connector. Allows a video tape recorder, video camera,
color receiver/monitor, etc. having a video line output to be
connected to the projector.

Source 2 : Video input on Cinch (RCA) connector.

8

Allows a video tape recorder, video camera, color re­ceiver/monitor, etc. having a video line output to be
connected to the projector.

10

11

12

13

14

15

16

17

AUDIO IN : 3 audio inputs on 2 Cinch (RCA) connectors
for audio (L-R).

MUTE LED : lit up when mute key is pressed.

AUDIO OUT : 2 x Cinch (RCA) stereo audio output.

Projector mode indication : indicates the status of

the projector.

no light : power switch is not pressed.
red light : power switch is pressed, projector in

stand by mode.

green light : projector in operational mode.

IR-Acknowledged : (green LED) IR signals are rec­ognized.
IR-Received : (red LED) IR signals are received without
knowing for which projector.

RS232 IN : to allow communication with external com­puter, e.g. IBM PC or compatible, Macintosh ...

RS232 OUT : used to connect to next projector, RS232IN
plug (communication link for PC or MAC to the next
projector).

Communication port : allows communication with
the 800 peripherals.

Source 3 : S-Video on 4-pin mini-DIN connector. Sepa-

9

rate Y/C (luma-chroma) signal inputs for higher quality

5975696 BARCODATA 2100 140798

playback of Super VHS signals.

18

CTRL : remote input for wired remote control.

5-3

Location and Functions of Control

Control Panel Terminology

a. Local Keypad

Getting access

The keypad is located behind a door, screened with
the name of the projector.

To open the door, push once on the indicated side
of the door and turn it to the right side of the
projector.

b. Remote Control

This remote control includes a battery powered infrared (IR) trans­mitter that allows the user to control the projector remotely.
This remote control is used for source selection, control,
adaptation and set up. It includes automatic storing of :

- picture controls (Brightness, Sharpness...)

- settings

5-4

Other functions of the remote control are :

- switching between standby and operational mode.

- switching to "pause" (blanked picture, full power for immediate
restarting)

- direct access to all connected sources.

- variable adjustment speed : when pushing continuously on the
arrow keys or the picture keys, the adjustment will be executed
in an accelerated fashion.

5975696 BARCODATA 2100 140798

Location and Functions of Control

Local keypad











Remote Control (RCU)



$'-









STANDBY







SHARPN



TEXT

PHASE

ENTER

COLOR

TINT

EXIT

PAUSE

BRIGHTN

CONTRAST















$''5



67%<





3$86(

087(



0

9





7

8

6

5

43

1

2

­+

75(%/(

-

+

%$66

7(;7

-

3+$6(

-

6+$531(66

-

-

&2/25

-

%5,*+71(66

-

&2175$67

-

%$/$ 1&(

-

92/80(

(;,7

(17(5

)5((=

7,17











+



+

+

+

+

+

+

+



5975696 BARCODATA 2100 140798



5-5

Location and Functions of Control

Terminology

Back light key : when activated, all keys will lit up and

1

visible in the dark.

ADJ. : ADJUST key, to enter the adjustment mode or for

2

quick exit in the adjustment mode.

Address key (sunk key), to enter the address of the

3

projector (between 0 and 9). Press the recessed address
key with a pencil, followed by pressing one digit button
between 0 and 9.

STBY : stand by button - to start projection when the

4

5

PAUSE : to stop projection for a short time, press 'PAUSE'.
The image disappears but full power is retained for imme­diate restarting.

6

MUTE : to interrupt the sound reproduction.

7

Digit buttons : direct input selection.

Sound controls : use these buttons to obtainthe desired

sound reproduction (see also 'Controlling').

8

power switch is switched on.

- to switch off the projector with­out switching off the power
switch.

PHASE : used to remove instability of the image.

10

TEXT : when adjusting one of the image, e.g. controls during

11

a meeting, the displayed bar scale can be removed by
pressing 'TEXT' key first. To re-display the bar scale on the
screen, press 'TEXT' key again. 'TEXT' key only active in
operational mode.

FREEZ : press to freeze the projected image.

12

ENTER : to start up the adjustment mode or to confirm an

13

adjustment or selection in the adjustment mode.

EXIT : to leave the adjustment mode or to scroll upwards

14

when in the adjustment mode.

Control Disk : To make menu selections when in the

15

adjustment mode. Also allows to increment or decrement an
adjustment in the adjustment mode.
Control Disk Up = up arrow in the menus
Control Disk Down = down arrow in the menus
Control Disk to the Right = arrow to the right on the menus
Control Disk to the Left = arrow to the left on the menus

RC operating indication : lights up when a button on the

16

remote control is pressed. (This is a visual indicator to
check the operation of the remote control)

5-6

Picture controls : use these buttons to obtain the desired

9

picture analog level (see also 'Controlling').

5975696 BARCODATA 2100 140798

POWER CONNECTION

Power Connection

5975696 BARCODATA 2100 140798

6-1

Power Connection

Power (Mains) Cord Connection

Use the delivered power cord to connect your projector to the wall
outlet. Plug the female power connector into the male connector at
the front of the projector.

The power voltage for the projector is indicated on the identification
plate on the rear of the projector.
The projector input voltage is internally switchable between 230 Vac
and 120Vac. Consult a qualified service technician to adapt the input
voltage to the correct voltage on the wall outlet.
This projector may be connected to an IT-power system.

Fuses

Warning
For continued protection against fire hazard :

- replace with the same type of fuse.

- refer replacement to qualified service personnel

Fuse type : T16 AH/125V Order no. : B370076

Switching ON

Use the power switch to switch on.

When '0' is visible, the projector is switched off.
When '1' is visible, the projector is switched on.

SOURCE 5

SOURCE 1SOURCE 4
VIDEO

RGBH/CVRGBH/CV

R

R

SOURCE 2

GG

VIDEO

BB

SOURCE 3

H/C

H/C

IR

AUDIO OUT AUDIO IN C AUDIO IN B AUDIO IN A

L - R L - R L - R L - R

0I

VV

AUDIO OUT

S VIDEO

AUDIO IN C

L - R L - R L - R L - R

0I

AUDIO IN B AUDIO IN A

RS 23 2 IN RS 232 OUT

Read instructions before

connecting peripherals

COMM PORT

hardwired

remote
CTRL

6-2

5975696 BARCODATA 2100 140798

When switching on with the power switch, the projector starts in the
stand by mode. The projector mode indication lamp is red.

To start image projection, press the 'Stand by' button on the local
keypad or on the remote control. The projector mode indication lamp
will be green.

SOURCE 5

R

G

B

SOURCE 4

RGBH/CVRGBH/CV

R

G

B

Power Connection

SOURCE 1

VIDEO

SOURCE 2

VIDEO









STANDBY



TEXT



SHARPN TINT BRIGHTN



PHASE

ENTER

COLOR

5975696 BARCODATA 2100 140798

EXIT

PAUSE

CONTRAST

Stand by button

IR

H/C

H/C

SOURCE 3

S VIDEO

VV

3$86(

(;,7

(17(5

7(;7

)5((=

-

+

3+$6(

-

+

0

6+$531(66

-

+

7,17

8

-

+

6

&2/25

-

+

4

%5,*+71(66

-

+

21

&2175$67

-

+

+

%$/$1&(

-

+

+

92/80(

AUDIO OUT AUDIO IN C AUDIO IN B

L - R

L - R

L - R

Projector mode indication lamp

AUDIO IN A

L - R

$'-

$''5

67%<

087(

9

7

5

3

-

75(%/(

-

%$66

6-3

Power Connection

Lamp Lifetime

30 hours before end of lamp lifetime, the following message will scroll over the screen for 1
minute. This message will be repeated every 30 minutes. Press EXIT to remove the message
before the minute is over.
When the end of the lamp lifetime is reached, the following message, with the exact run time
is displayed on the screen.

Lamp run time is 1000* hours. Operating the lamp longer than 1000 *hours may damage the
projector. Please replace the lamp.

When OK (ENTER) is pressed to go on, the warning will be repeated
every 30 min.

Article

Numbre

Dimming / Lamp

Drive Mode

Lamp

Lifetime

Remaining
Lamp run
time: 20 hours

* The total lifetime of the lamp for a safe operation is depending on
the type of lamp and on the operating mode. The different values are
shown in Table 1.
Do not use it longer. Replace always with a same type of lamp. Call
a BARCO authorized service technician for lamp replacement.

Warning : Using a lamp for more than Lamp Lifetime
is dangerous, the lamp could explode.

Note: Switching the projector OFF and ON again,
adds 45 minutes to the lamp run time.

Switching to Stand-by.

When the projector is running and you want to go to stand-by, press
the stand-by key.

Caution : Before powering down the projector, switch the projector
to stand-by and let the projector lamp cool down until the fans stop
blowing (or for at least 15 minutes).

6-4

R9829510 Dimming 1000

R9829600

R9829740 Dimming 4000

Economic

Normal

3500
2000

Switching OFF

To switch off:

- press first STANDBY key and let cool down until the fans
stop blowing ( or at least 15 min).

- switch off the projector with the power switch.

5975696 BARCODATA 2100 140798

Connections

INPUT CONNECTIONS

Connecting a Video Source to the Video Input

Connecting a S- Video Source to the S- Video Input

Connecting a RGB Analog Source to the RGB Analog Input

Connecting a Component Video Source to the RGB Inputs.

Peripheral Equipment Connection

Connecting a Computer

Connecting a RCVDS800 or RCVDS05

5975696 BARCODATA 2100 140798

Connecting a VS05

Connecting an IR Remote Receiver 800

7-1

Connections

Signal Input Connection to the Projector.

The following sources can be connected to the projector :

- Composite Video

- S-Video

- RGBS or RGsB

- RGBHV

- RGB3S or RG3sB

- Component Video

Source input Input type Digit button on Audio input

RCU (lock is off)

source 1 Comp. Video 1 A
source 2 Comp. Video 2 B
source 3 S-Video 3 C
source 4 RGB (*) 4 B
source 5 RGB (*) 5 C
source 4 RGB3S (**) 6 B
source 5 RGB3S (**) 7 C
source 4 RGB[CV] (***) 8 B
source 5 RGB[CV] (***) 9 C

(*) RGB with separate sync (composite or hor. or vert.
sync) or with sync signals on green.
(**) RGB with Tri-level sync
(***) RGB with composite video as sync signal.

7-2

5975696 BARCODATA 2100 140798

Connections

Connecting a Video Source to the BNC Input (source 1)

Coposite video signals from a VCR, OFF air signal decoder, etc. ...

1 x BNC 1.0Vpp ± 3 dB

Connect the audio input signals to the AUDIO A input when the audio
lock is OFF (see also chapter "Controlling")

Video Input Selection :

Press digit button 1 on the RCU.

SOURCE 5
RGBH/CV

IR

AUDIO OUT A UDI O IN C AUDIO IN B

L - R L - R L - R L - R

Audio amp lifier

RGBH/CV

R

G

B

H/C

VV

R

G

B

H/C

SOURCE 1SOURCE 4

VIDEO

SOURCE 2

VIDEO

SOURCE 3

S VIDEO

AUDIO IN A

TV tuner, e. g.
TVDM 40 stereo

5975696 BARCODATA 2100 140798

VCR

7-3

Connections

Connecting a Video source to the Cinch (RCA) input (source 2)

Coposite video signals from a VCR, OFF air signal decoder, etc. ...

1 x Cinch (RCA) 1.0Vpp ± 3 dB

Connect the audio input signals to the AUDIO A input when the audio
lock is OFF (see also chapter "Controlling")

Video Input Selection :

Press digit button 2 on the RCU.

SOURCE 5
RGBH/CV

IR

AUDIO OUT AUDIO IN C

L - R

Audio amplifier

RGBH/CV

R

G

B

H/C

VV

L - R

R

G

B

H/C

AUDIO IN B

L - R

SOURCE 1SOURCE 4

VIDEO

SOURCE 2

VIDEO

SOURCE 3

S VIDEO

AUDIO IN A

L - R

TV tuner, e.g.
TVDM 40 stereo

7-4

VCR

5975696 BARCODATA 2100 140798

Connecting a S-Video Source to the 4-pin mini DIN Input (source 3)

Connections

Separate Y-luma/C-chroma signals for higher quality playback of
Super VHS signals..
1 x 4 pins plug

pin configuration :

1 ground luminance
2 ground chrominance
3 luminance 1.0 Vpp ± 3 dB
4 chrominance 282 mVpp ± 3 dB

Connect the audio input signals to the AUDIO A input when the audio
lock is OFF (see also chapter "Controlling")

S-Video Input Selection :

Press digit button 3 on the RCU.

IR

AUDIO OUT

L - R

Audio ampli fier

SOURCE 5
RGBH/CV

AUDIO IN C

L - R

RGBH/CV

RR

G

BB

H/C

VV

G

H/C

AUDIO IN B

L - R

SOURCE 1SOURCE 4

VIDEO

SOURCE 2

VIDEO

SOURCE 3

S VIDEO

AUDIO IN A

L - R

S-VHS VCR

5975696 BARCODATA 2100 140798

7-5

Connections

Connecting a RGB Analog Source to Source 4 or 5

RGB analog input terminals with automatic sync detection. Sync can
be separate Horizontal and Vertical sync (RGB-HV), Composite sync
(RGB-S) or Sync signals on green(RGsB).

Always use an interface when a computer and local monitor have to
be connected to the projector. Recommended interfaces to be
applied:

Universal analog interface.

Order number : R9826100.

RGB 120 MHz analog interface.

Order number : R9826570.

VGA interface

Order number 120V : R9828079.
Order number 230V : R9828070

MAC interface

Order number 120V : R9828059
Order number 230V : R9828050

MAGIK interface

Order number 120V : R9828129
Order number 230V : R9828120

RGBS/RGsB analog : 5 x BNC

Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB

1 Vpp ± 3 dB if sync on green
Vert. sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. sync / Composite sync : 1 Vpp to 4 Vpp ± 3 dB

IR

AUDIO OU T

L - R

To audio ampli fier

SOURCE 5
RGBH/CV

AUDIO IN C

L - R

H/C

V

R

G

B

RGBH/CV

R

G

B

H/C

V

AUDIO IN B

L - R

BARCO interface

SOURCE 1SOURCE 4

VIDEO

SOURCE 2

VIDEO

SOURCE 3

S VIDEO

AUDIO IN A

L - R

All inputs are non-floating inputs.

7-6

5975696 BARCODATA 2100 140798

All input signals can be 75 ohm terminated via soft switches (see also
Service mode).

Connect the possible audio input signals for source 4 to the AUDIO
B input when the audio lock is OFF and for source 5 to the AUDIO C
input when the audio lock is OFF (see also chapter "Controlling")

RGB Input Selection :

For source 4, press digit button 4 on the RCU.
For source 5, press digit button 5 on the RCU.

If the sync input is a composite video signal, select the inputs as
follows :

For source 4, press digit button 8 on the RCU.
For source 5, press digit button 9 on the RCU.

Connections

5975696 BARCODATA 2100 140798

7-7

Connections

Connecting a RGB3S Analog Source to Source 4 or 5.

Connect your RGB signals with Tri-level sync, e.g. a professional
VCR to the RGB input terminals of source 4 or source 5.

RGB3S/RG3sB analog : 5 x BNC

Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB

1 Vpp ± 3 dB if Tri-level sync on green
Vert. Tri-level sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. Tri-level sync / Composite Tri-level sync:

1 Vpp to 4 Vpp ± 3 dB

All input signals can be 75 ohm terminated via soft switches (see also
Service mode).

Connect the possible audio input signals for source 4 to the AUDIO
B input when the audio lock is OFF and for source 5 to the AUDIO C
input when the audio lock is OFF (see also chapter "Controlling")

Input Selection :

For source 4, press digit button 6 on the RCU.
For source 5, press digit button 7 on the RCU.

IR

AUDIO OUT

L - R

To aud io amplifier

SOURCE 5
RGBH/CV

AUDIO IN C

L - R

RGBH/CV

RR

G

B

H/C

VV

G

B

H/C

A U D IO IN B

L - R

SOURCE 1SOURC E 4

VIDEO

SOURCE 2

VIDEO

SOURCE 3

S VIDEO

AU D IO IN A

L - R

To audio input B or
audio input C

7-8

5975696 BARCODATA 2100 140798

Connecting a Computer, e.g. IBM PC (or
compatible), Apple Macintosh to the RS 232 Input
of the Projector.

Connections

The BARCODATA 2100 projector has a RS232 port that allows it to
communicate with a computer.

Applications : remote control and data communications.

a) remote control :

- easy adjustment of projector via IBM PC (or compat­ible) or MAC connection.

- allow storage of multiple projector configurations and
set ups.

- wide range of control possibilities.

- address range from 0 to 255.

b) data communications :

- sending data to the projector or copying the data from
the projector to a hard memory device.

Set Up of the Baud Rate for Communication with
a Computer.

See 'Change Baudrate PC' in chapter 'Service mode'.

RS 232 IN

RS 232 OUT

RS232 connection

Read instructions before

connecting peripherals

COMM PORT CTRL

To ne xt projector
RS232 IN

hardwired

remote

5975696 BARCODATA 2100 140798

7-9

Connections

Connecting a RCVDS 800 or RCVDS 05 to the
BARCODATA 2100.

- Up to 10 inputs with one RCVDS800 or 20 inputs with the RCVDS
05 and 90 inputs when RCVDS's are linked via the expansion
module.

- Serial communication with the projector.

- Remote control buttons on the RCVDS to control the BARCODATA
2100 (source selection and analog settings).

- The selected source number will be displayed on a 2 digit display
and the selected input module will be indicated with a LED on the
rear.

For more information about the use of :
the RCVDS 800, consult the owner's manual, order number :
R5975004.
the RCVDS 05, consult the owner's manual, order number : R5975765.

Connecting a VS05 to the BARCODATA 2100.

The VS05 can switch up to 5 Composite Video sources, 3 Super
Video sources and 1 RGB analog or component video source to the
BARCODATA 2100. In addition, the audio signal proper to the source,
can be switched to an audio amplifier.
Order number : R9827890

For more information about the use of the VS05, consult the VS05
owner's manual, BARCO order number : R5975245.

Connecting an IR Remote Receiver 800 to the
BARCODATA 2100.

This infrared red receiver unit makes it possible to control the
BARCODATA 2100 from another room.
There is a communication line cable between the IR receiver and the
projector or the RCVDS. The control information from the RCU can
now be sent to the IR Remote Receiver 800.
The IR Remote Receiver 800 displays the selected source on a 7­segment display.
Order number : R9827515.

Communication c a ble

IR Remote Receiver 800

Screen

BARCODATA 2100

Projection room Control room

7-10

5975696 BARCODATA 2100 140798

CONTROLLING

How to Use the RCU

Projector Address

How to Display a Projector Address

How to Program an Address into the RCU

Picture Controls with Direct Access

Sound Controls with Direct Access

Controlling

5975696 BARCODATA 2100 140798

The Pause Key

The Mute Key

8-1

Controlling

The BARCODATA 2100 can be controlled with

a. the RCU
b. the hardwired RCU (cable is not included)
c. the local keypad.

Controlling the projector with the RCU and the hardwired RCU is equal.

How to Use the RCU?

a) Point the front of the RCU to the reflective screen surface.

Ceiling

IR sensor

Screen

RCU

b) RCU used in a hardwired configuration.

I

0

Cable not included

Plug one end of the remote cable in the connector on the bottom of
the RCU and the second side in the connector in the front panel of
the BARCODATA 2100 labelled 'CTRL'.

8-2

5975696 BARCODATA 2100 140798

Controlling

c) Point the front of the RCU directly at one of the IR sensors of the
projector.

IR sensor

SOURCE 1

SOURCE 5

SOURCE 4
RGBH/CV

VIDEO

RGBH/CV

RR

SOURCE 2

GG

VIDEO

B

B

H/C H/C

SOURCE 3

IR

S VIDEO

VV

AUDIO IN C

AUDIO OUT

AUDIO IN B AUD IO IN A

45°

0I

ADJ EXIT

ADDR

STBY MUTETEXT

9

10

78

65

43
21

L - R L - R L - R L - R

(17(5

)5((=

+

­SHARPNESS

­+

TINT

­+

COLOR

+

-

BRIGHTNESS

­+

CONTRA ST

Front of projector

45°

RCU

hardwired

Read instructions before

remote

connecting peripherals

COMM PORT

RS 232 OUT

CTRL

RS 232 IN

Table

Rear of projector

45°

45°

ADJ EXIT

ADDR

(17(5

STBYMUTE TEXT

)5((=

-

+

109

SHARPNESS

­+

7

TINT

8

­+

65

COLOR

-

+

43

BRIGHTNESS

-+

21

CONTRAST

RCU

When using the wireless remote control, make sure you are within
the effective operating distance (30m (100ft) in a straight line). The
remote control unit will not function properly if strong light strikes the
sensor window or if there are obstacles between the remote control
unit and the projector IR sensor.

Projector Address

a. Software Set Up of the Projector Address.

See 'Change projector address' in chapter 'Service mode'.

Every projector requires an individual address between 0 and 255
which can be set in the Service mode.
Only projectors with addresses between 0 and 9 can be
controlled with the RCU.

b. How to Control the Projector or Projectors.

The projector's address may be set to any value between 0 and 255.
When the address is set, the projector can be controlled now :

- RCU for addresses between 0 and 9.

- computer, e.g. IBM PC (or compatible), Apple MAC, etc. for
addresses between 0 and 255.

Note : a projector will respond to a RCU set to an address of '0'
regardless of what address is set in the projector itself.

c. Using the RCU.

Before using the RCU, its is necessary to enter the projector address
into the RCU (only when that address is between 1 and 9). The
projector with the corresponding address will listen to that specific
RCU.
When address 0, 'zero address' is programmed into the RCU, every
projector, without exception will listen to the commands given by this
RCU.

5975696 BARCODATA 2100 140798

8-3

Controlling

How to Display a Projector Address?

Press the ADDRESS key (recessed key on the RCU) with a pencil. The projector's address
will be displayed in a 'Text box'. This text box disappears after a few seconds.
To continue using the RCU, it is necessary to enter the same address with the digit buttons
(address between 0 and 9). For example : if the Address key displays projector address
003, then press "3" digit button on the RCU to set the RCU's address to match the projector's
address.

How to Program an Address into the RCU?

Press the ADDRESS key (recessed key on the RCU) with a pencil and enter the address
with the digit buttons. That address can be any digit between 0 and 9.
When programming '0', zero address, the RCU will control any projector regardless of
the projector's address. This feature allows multiple projectors with different addresses
to be controlled by a single RCU.

Picture Controls with Direct Access.

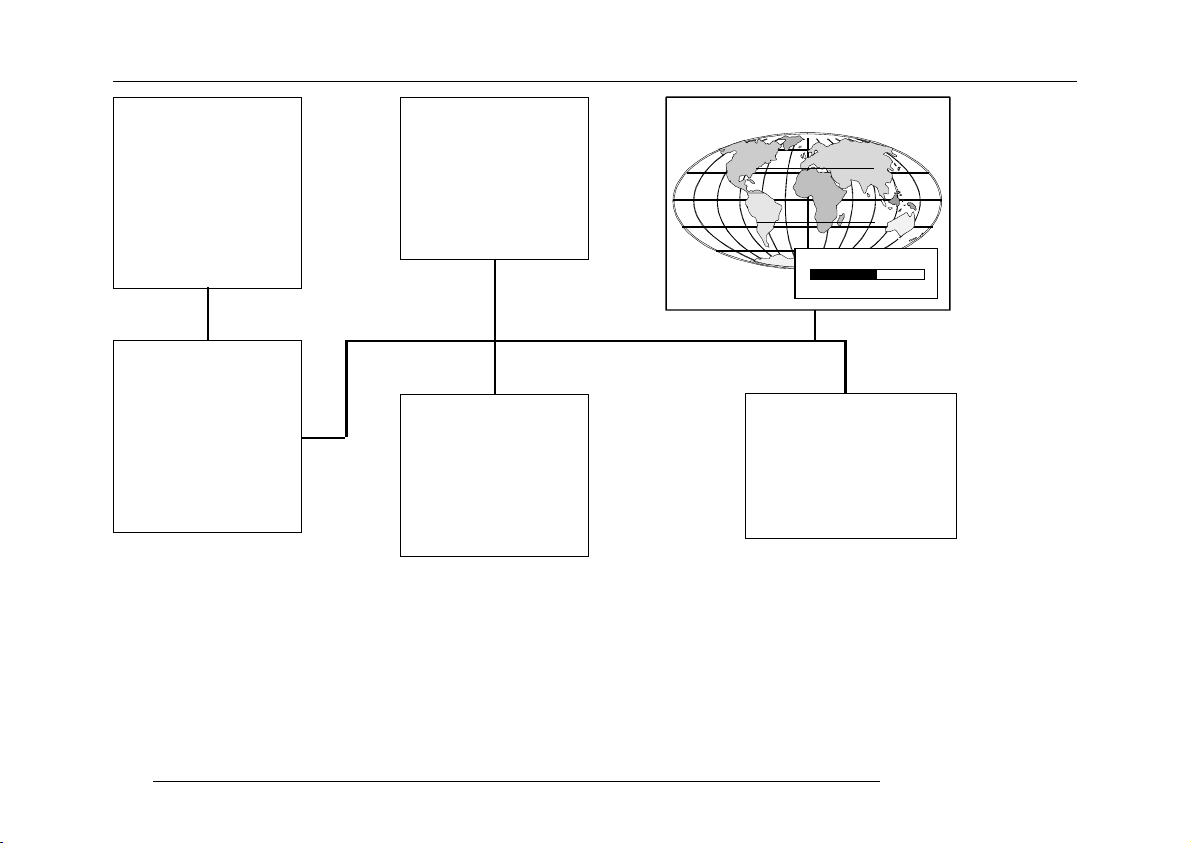

When an image control is pressed, a text box with a bar scale, icon and function name
of the control, e.g. 'brightness...' appears on the screen (only if text is ON). See example
screen. The length of the bar scale and the value of the numeric indication indicate the
current memorized setting for this source. The bar scale changes as the + or - buttons
of the control on the RCU are pressed or the + or - buttons on the local keypad.

Brightness Control

A correct 'brightness' setting is important for good image reproduction.
Use the + button for a higher brightness.
Use the - button for a lower brightness.

8-4

PROJECTOR ADDRESS

001

BRIGHTNESS

0

5975696 BARCODATA 2100 140798

10050

Controlling

Contrast Control

A correct 'contrast' setting is important for good image reproduction.
Adjust the contrast to the level you prefer, according to room lighting
conditions.
Use the + button for a higher contrast.
Use the - button for lower contrast.

Color Saturation

Color saturation is only active for Video and S-Video. Adjust the color
intensity of the picture.
Use the + button for richer colors.
Use the - button for lighter colors.

Tint Control

Tint is only active for Video and S-Video when using the NTSC 4.43
or NTSC 3.58 system.
Use the + button
Use the - button.

Sound Controls with Direct Access.

When a sound control is pressed, a text box with a bar scale, icon
and function name of the control, e.g. 'volume...' appears on the
screen (only if text is ON). See example screen. The length of the
bar scale indicates the current memorized setting for this source. The
bar scale changes as the + or - buttons of the control are pressed.
The picture controls can only be adjusted with the RCU.

Sharpness Control.

Use the + button for a sharper picture.
Use the - button for a softer picture.

Phase Control

Use the Phase key to adjust the phase. Within the total adjustment
range there are 2 or 3 areas where the phase is correctly aligned.

VOLUME

0

10050

5975696 BARCODATA 2100 140798

8-5

Controlling

Volume Control

Volume control adjusts the volume.
Use the + button for a higher volume.
Use the - button for a lower volume.

Bass Control

Bass control adjusts the bass level (low tones).
Use the + button for more low tones.
Use the - button for less low tones.

Treble Control

Treble control adjusts the treble level (high tones).
Use the + button for more high tones.
Use the - button for less hight tones.

Balance Control

The balance control adjust the sound level between the left and the
right box.
Use the + button for a higher sound level on the right box than on the
left one.
Use the - button for a higher sound level on the left box than on the
right one.

The Pause Key

When the Pause key is pressed, the image projection is stopped but
the projector remains with full power for immediate restart. The
sound is not interrupted.
The display on front of the projector will show a 'P'.
To restart the image reproduction :

- press pause key,

- press exit key or

- select a source number.

The Mute Key

When the Mute key is pressed, the sound reproduction is stopped.
The image is still displayed.
To restart the sound reproduction, press the Mute key again.

8-6

5975696 BARCODATA 2100 140798

Start Up of the Adjustment Mode

START UP OF THE ADJUSTMENT MODE

5975696 BARCODATA 2100 140798

9-1

Start Up of the Adjustment Mode

Adjustment Mode

All source set ups, picture tunings and geometry are made while in the 'Adjustment mode'
. Press the ADJUST or ENTER key to enter the 'Adjustment mode'.

You are now in the 'Adjustment mode'. The control disk (RCU) or '+ or '-' keys (local
keypad) are used to make menu selections and also for adjustments. The ENTER and

EXIT keys are used to move forward and backward through the menu structure. The
ADJUST key can be used to terminate the adjustment mode while any path selection

menu is displayed.

There are 4 possible paths to follow once in the Adjustment mode. They are :

Installation - Installation should be selected when the projector is
relocated in a new configuration.

Random Access - Random Access should be selected if the user
is used to set up a source.

Service - Service should be selected if the user intends to change
general settings such as password, language, address, etc.or some
service actions as reset lamp run time, etc. or get set-up information.

ADJUSTMENT MODE

Select a path from below :

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

Select with ê or é

then <ENTER>

<EXIT> to return.

9-2

5975696 BARCODATA 2100 140798

Some items in the Adjustment mode are password protected. While selecting such an
item, the projector asks to enter your password (Password protection is only available
when the password strap on the controller module is ON, see 'Change password' in
chapter 'Service mode'.

Your password contains 4 digits.

Enter the digits with the numeric keys.
Example : 2 3 1 9
The first digit position is highlighted. Enter with the numeric keys. The highlighted square
jumps to the next position. Continue until all 4 digits are filled in.

When your password is correct, you get access to the selected item.
When your password is wrong. The error message "Invalid password" is displayed
on the screen. Press ENTER to continue and to return to the Service menu.

Start Up of the Adjustment Mode

PASSWORD

ENTER PASSWORD

----

Use numeric keys

<EXIT> to return

Error

Factory programmed password : 0 0 0 0

Once the password is correctly entered, all other password protected items are
accessible without re-entering your password.

When re-entering the Adjustment mode, it will be nessary to enter your password again
when selecting a password protected item.

5975696 BARCODATA 2100 140798

Invalid password

<EXIT> to return

9-3

Random Access Adjustment Mode

RANDOM ACCESS ADJUSTMENT MODE

File Service

Picture Tuning

Audio Tuning

Geometry

5975696 BARCODATA 2100 140798

10-1

Random Access Adjustment Mode

Starting Up the Random Access Adjustment Mode

Push the control disk up or down to highlight 'Random Access' and then press ENTER.

RANDOM ACCESS

ADJUSTMENT MODE

FILE SERVICE

PICTURE TUNING

AUDIO TUNING

GEOMETRY

Select with é or ê

then <ENTER>

<EXIT> to return.

ADJUSTMENT MODE

Select a path from below :

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

Select with é or ê

then <ENTER>

<EXIT> to return.

10-2

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with é or ê

then <ENTER>

<EXIT> to return.

PICTURE TUNING

SYNC [SLOW]
STILL VIDEO [ON]
COLOR BALANCE

GAMMA

LUMINANCE DELAY

CTI[ON]

Select with é or ê

then <ENTER>

<EXIT> to return.

AUDIO TUNING

VOLUME

BALANCE

BASS

TREBLE

MUTE [OFF]

LOCK [SOURCE 1]

FADE

Select with é or ê

then <ENTER>

<EXIT> to return.

GEOMETRY

SHIFT

SIZE

ZOOM

BLANKING

SCALE [1:1]

Select with é or ê

then <ENTER>

<EXIT> to return.

5975696 BARCODATA 2100 140798

Random Access Adjustment Mode

File Service

Before using a new source, a correct file has to be installed. The

File annotation :

xxxxxxxx.xxx x xxxxXxxxxi

projector's memory contains a list of files corresponding to the most
used sources. When the new source corresponds with one of these
files, the file can be loaded and saved for future use. When there
is a little difference, the file can also be loaded and than edited until
the source specs are reached.

xxx : file extension, first character is C (for custom made
files) or S (for standard files).
The second and third character is used for a following
number (=file index)
file index for custom files : 00 to 63.

xxxxxxxx : base name, 8 characters.

Highlight File Service by pushing the control disk up or down and press ENTER to
select. The File service menu will be displayed.

ENTER displays the File Service menu;
EXIT returns to the Path selection menu.
ADJUST returns to operational mode.

The following file manupulations are possible :

- Load : installation of a file for a new source.

- Edit : editing a loaded file to the source specs.

- Rename : renaming a file.

- Copy : copying a file to a new file.

- Delete : deleting an existing file.

- Options : way of displaying the file annotation and sort possibilities.

i or blank : i = interlaced, blank = not
interlaced

xxxxXxxxx : active pixel rating

x : source number

RANDOM ACCESS

ADJUSTMENT MODE

FILE SERVICE

PICTURE TUNING

AUDIO TUNING

GEOMETRY

Select with or

then <ENTER>

<EXIT> to return.

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Select with é or ê

then <ENTER>

<EXIT> to return.

5975696 BARCODATA 2100 140798

10-3

Random Access Adjustment Mode

Load File

Push the control disk up or down to select LOAD and press ENTER
to display the Load menu.
The Load menu displays the corresponding files depending on the
installed filter.

This filter can be "Fit" or "All". To change the filter, push the control
disk to the right to select "filter list" (filter list will be hightlighted) and
press ENTER to toggle the annotation between brackets.

"All" : all files that can be loaded will be displayed.
"Fit" : only the best fitting files will be displayed (with a distinction of
± 2 lines and line duration distinction of ± 300 ns)

Push the control disk up or down to select the most fitting file and press
ENTER to select.
When scrolling through the files, the image will be adapted according
the settings of the selected file (on line adaptation). When the best
fitting image is displayed, press ENTER to select this file. A confirm
Load file menu will be displayed with the new created file and the on
which the new file is based on.
Press ENTER to confirm your new creations or EXIT to return to the
load file menu.

If the displayed image is not yet as it has to be, select the most
corresponding file and go to the Edit menu to change the file settings.

During a load file, the actual active file is displayed next to the
indication 'Active file'.

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

FILTER LIST [All]

Filename Src Resolution

----------------------------------------------------­pal.s01 1 675x278i
pal.c01 1 675x278i
secam.s03 3 675x278i

----------------------------------------------------­Active file : pal.c50

Select with é or ê , ç

<ENTER> to accept

<ENTER> to confirm

LOAD FILE

<EXIT> to return.

CONFIRM

LOAD FILE

Create file

pal.c02

based on file

pal.s01?

<EXIT> to return

10-4

5975696 BARCODATA 2100 140798

Edit File

The Edit file menu makes it possible to change the settings of the file
according to the real settings of the connected source. Consult the
source specification before entering the data.
To start up the EDIT menu, push the control disk up or down to select
EDIT in the FILE menu and press ENTER.
Select the file which must be edited (mostly the active file) and press
ENTER.

The Edit file adaptation menu will be displayed.

The following items can be adjusted :
Total quantity horizontal pixels
Active quantity horizontal pixels
Horizontal shift in pixels
Horizontal period in µs (is automatically adapted during the installation
of a file with LOAD)
Total vertical lines (is automatically adapted during the installation of

5975696 BARCODATA 2100 140798

Random Access Adjustment Mode

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

EDIT FILE

Filename S rc Resolution

----------------------------------------------------­pal.s01 1 675x278i
pal.c01 1 675x278i
secam.s03 3 675x278i

----------------------------------------------------­Active file : pal.c50

Select with é or ê

then <ENTER>

<EXIT> to return.

EDIT FILE

HORIZONTAL
TO TA L 854 pixels
ACTIVE 675 pixels
SHI FT +114 pixels
PERIOD 63.7 µs
VERTICAL (field)
TO TA L 312 lines
ACTIVE 278 lines
SHI FT +21 lines
INTERLACED [on]
READ AMDS
OPTIONS

ê , é , ç , è ,<ENTER>, <EXIT>

10-5

Random Access Adjustment Mode

a file with LOAD)
Active vertical lines
Vertical shift in lines
Interlaced : toggle on/off (is automatically set to its correct position
during the installation of a file with LOAD)

All settings can individually be changed. Push the control disk key
up or down to select an item. The color of the selected item will change
and follow one of the three methods to change the value.

a. press ENTER to activate the digits and enter directly with the

numeric keys on the RCU or local keypad the new value or

b. press ENTER to activate the digits. Push the control disk key to the

right or to the left to select the changing digit. Push the control disk
key up or down to scroll to desired digit. When finished press
ENTER to confirm.

c. counting up or down by pushing the control disk key to the right

or to the left.

To have a better view during an adjustment of the 'active' file, select
"Horizontal" or "Vertical" by pushing the control disk up or down and
press ENTER.
A full image is displayed with the settings on the left side.
To change the values, highlight (color change) first the changing
value by pushing the control disk up or down and continue by pushing
the control disk to the left or to right to count up or down.

10-6

5975696 BARCODATA 2100 140798

How to find the correct values for the displayed item?

During the installation of a file with LOAD, the horizontal period, the
total number of vertical lines and the interlaced mode are automatically
measured and filled in in the menu table. These values will be available
when starting up the EDIT procedure of an active file.
Select first "Horizontal" and press ENTER to display a full image.

Random Access Adjustment Mode

(',7),/(+RUL]RQWDO

7RWDO
SL[HOV

$FWLYH
SL[HOV

6KLIW
SL[HOV

3HULRG
6

862

If the value for "Horizontal total pixels" is wrong, sampling mistakes
(small vertical bars in the projected image) will be seen in the image.
Select "Total" and adjust the pixel quantity. Adjust for zero bars (hint
: if the number of bars increase, adjust in the other way).

The active pixels : determine the width of the window on the screen.
This value is normally given in the source specifications. If not, adjust
until full image is displayed (no missing pixels).

Horizontal shift : to shift the image on the screen.

When changing the horizontal shift setting in the 'Edit' menu, the
horizontal shift and horizontal size setting in 'geometry' are reseted.

Horizontal period : already filled in with the correct value when active
file.

Press EXIT to return to the normal Edit file menu.

5975696 BARCODATA 2100 140798

(',7),/(+RU L]R QWDO 

7RWDO
SL[HOV

$FWLYH
SL[HOV

6KLIW
SL[HOV

3HULRG
6

863

éé

10-7

Random Access Adjustment Mode

Select "Vertical" by pushing the control disk key up or down and
press ENTER. The full image is displayed.

The "Vertical Total lines" are already filled when an active file is
selected to be edited.

The "Active lines" : number of horizontal lines determining the height
of the projected image. This value is normally given in the specification
of the source. If not, adjust until full image height is displayed (no
missing lines)

Vertical shift : shift the image up and down (push control disk up or
down) on the screen until the correct image position is obtained.

When changing the vertical shift setting in the 'Edit' menu, the
vertical shift and vertical size settings in 'geometry' are reseted.

Interlaced [On] or [Off] : this selection is automatically filled when
active file has to be edited. If the image is wrong due to
mismeasurement, use the ENTER key to toggle between [On] and
[Off]. (for interlaced images, 1 frame contains 2 fields).

Read AMDS

AMDS = automatic mode detection & synchronisation
During the installation of a file with LOAD, the system automatically
measured the horizontal period, the total vertical lines and the
interlaced mode.
When selecting Read AMDS, the system remeasures the above
indicated items.

(',7),/(9HUWLFDOILHOG

7RWDO
OLQ HV

$FWLY H
OLQ HV

6KLI W
OLQ HV

,QWHUODFHG
>2Q@

864

10-8

5975696 BARCODATA 2100 140798

Options

Random Access Adjustment Mode

Source number : The source number of a non-active source can be
changed to any other source number. This makes it possible to create
already a file for future source numbers.

Clamp pulse width : The width of the clamp pulse
Can be any value between 10 and 100. Change the value by pushing
the control disk to the left or to the right.

Clamp pulse delay : Clamping determines the black level of the signal.
The clamp pulse can be related to the leading edge of the sync pulse.
Can be any value between 2 and 512. Change the value by pushing
the control disk to the left or to the right.

Field polarity inverted : Default [No]
This function is used for interlaced images. Both rasters of the image
could be shifted in a wrong way (double lines are visilble in the image).
This can be corrected by inverting the field polarity to [Yes]
Use the ENTER key to toggle berween [No] and [Yes].

Vertical refresh [sync/async] : The way of updating the image
information on the LCD panels. For moving images, the vertical
refresh has to be done on a synchronous way, for still images,
asynchronous vertical refresh is possible.

Frame delay [On/Off] : default [On]
When [On] : there is a delay between input signal and displayed image
of 1 frame.
When [Off] : minimum delay between input signal and displayed
image. Only posible the 'Vertical refresh' is done synchronous and
the projector is mounted in a ceiling mounted configuration (installa­tion menu)
Press EXIT to leave the Edit File Option menu.

Sync
pulse

Clamp
pulse

EDIT FILE OPTIONS

SOURCE NUMBER 1
CLAMP PULSE WIDTH 44
CLAMP PULSE DELAY 24
FIELD POLARITY INVERTED [No]
VERTICAL REFRESH [Async]
FRAME DELAY [On]

Select with é or ê

<ENTER> to toggle

è or ç to change value

<EXIT> to return

leading edge

trailing edge

Clamp
pulse

Clamp pulse
delay

width

5975696 BARCODATA 2100 140798

10-9

Random Access Adjustment Mode

Rename

To change the name of a selected file.
Use the control disk to select RENAME and press ENTER. The Rename
selection menu will be displayed.

Use the control disk to select a file name and press ENTER to select.

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

The Rename menu will be displayed with the selected file name
already filled in in the 'From file name :' area and in the 'To file name
:' area.

Press ENTER to select the separate characters. Push the control disk
to the right or to the left to select the desired character. Change that
characters by pushing the control disk up or down. Numeric
characters can be entered directly with numeric keys on the RCU.
Press ENTER to confirm. The renamed file is entered in the list of files.
Press EXIT to return to the Rename menu selection. No changes are
made.

10-10

RENAME FILE

Filename S rc Resolution

----------------------------------------------------­pal .s01 1 675x278i
pal .c01 1 675x278i
secam .s03 3 675x278i

----------------------------------------------------­Active file : pal.c50

Select with é or ê

<ENTER> to accept

<EXIT> to return.

RENAME FILE

Frome file name :

pal.s01

To file name :

demo.s10

Select with è or ç

Reprogram with é or ê

or numeric keys

<ENTER> to confirm

<EXIT> to return

5975696 BARCODATA 2100 140798

Copy

To copy a selected file into a new file.
Use the control disk to select COPY and press ENTER. The Copy
selection menu will be displayed.
Use the control disk to select a file name and press ENTER to select.

Random Access Adjustment Mode

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

The Copy menu will be displayed with the selected file name already
filled in in the 'From file name :' area and in the 'To file name :' area.

Press ENTER to select the separate characters. Push the control disk
to the right or to the left to select the desired character. Change that
characters by pushing the control disk up or down. Numeric
characters can be entered directly with numeric keys on the RCU.
Press ENTER to confirm. The copied file is entered in the list of files.
Press EXIT to return to the Copy selection menu. No copies are made.

If the file extension already exists, a confirmation menu will be
displayed to ask the user to overwrite the existing file by the new file.

5975696 BARCODATA 2100 140798

Filename Src Resolution

----------------------------------------------------­pal.s01 1 675x278i
pal.c01 1 675x278i
secam.s03 3 675x278i

----------------------------------------------------­Active file : pal.c50

COPY FILE

Frome file name :

xga_60.s03

To file name :

xga_60.c14

Select with è or ç

Reprogram with é or ê

or numeric keys

<ENTER> to confirm

<EXIT> to return

COPY FILE

Select with é or ê

<ENTER> to accept

<EXIT> to return.

CONFIRM

COPY FILE

Replace file:

"ntsc.c14"

To file name :

"xga_60.c14" ?

<ENTER> to confirm

<EXIT> to return

10-11

Random Access Adjustment Mode

Delete

To delete a selected file out of the list of files.
Use the control disk to select DELETE and press ENTER. The delete
selection menu will be displayed.

Push the control disk up or down to select a file and press ENTER.
If [All] is selected, your password has to be entered before all files
will be deleted.
A confirmation menu "Delete file 'file name'?" is displayed. When you

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Filen ame Src Resolution

----------------------------------------------------­pal.s01 1 675x278i
pal.c01 1 675x278i
secam.s03 3 675x278i
[All]

----------------------------------------------------­Active file : pal.c50

Select with é or ê

<ENTER> to accept

<EXIT> to return.

DELETE FILE

want to delete the file, press ENTER. If you do not want to delete the
file, press EXIT.
Note : the active file cannot be deleted.

10-12

CONFIRM

DELETE FILE

Delete file:

pal.c01?

<ENTER> to confirm

<EXIT> to return

5975696 BARCODATA 2100 140798

File Options

Use the control disk to select OPTIONS and press ENTER. The option
selection menu will be displayed.

Random Access Adjustment Mode

FILE SERVICE

LOAD

EDIT

RENAME

COPY

DELETE

OPTIONS

Press ENTER to toggle between [name] and [index]
[name] : The files in the file list will be sorted on the file name.
[index] : The files in the file list will be sorted on the file extension.

Picture Tuning

Highlight Picture Tuning by pushing the control disk up or down and
press ENTER to select.
The Picture Tuning menu will be displayed.
The next items are available :

- sync slow/fast

- still video

- color balance

- gamma

5975696 BARCODATA 2100 140798

RANDOM ACCESS

ADJUSTMENT MODE

FILE SERVICE

PICTURE TUNING

AUDIO TUNING

GEOMETRY

FILE OPTIONS

FILE SORT [NAME]

Select with é or ê

then <ENTER>

<EXIT> to return.

PICTURE TUNING

SYNC [SLOW]
STILL VIDEO [ON]
COLOR BALANCE

GAMMA

Select with é or ê

then <ENTER>

<EXIT> to return.

10-13

Random Access Adjustment Mode

Sync SLOW/FAST

Only active for sources 1, 2 and 3. When not source 1, 2 or 3, the following indication
will be given on the menu : Sync (-).
Highlight Sync by pushing the control disk up or down and press ENTER to toggle
between [SLOW] and [FAST].

PICTURE TUNING

SYNC [SLOW]

STILL VIDEO [ON]
COLOR BALANCE

GAMMA

The FAST position is used to compensate for unsteady sync pulses from older video
playback equipment. This is the default position. For more stable sources it is preferable
to use the SLOW position.

Still Video

This function is only used for stationary interlaced images.
Highlight Still Video by pushing the control disk up or down and press ENTER to toggle
between [ON] and [OFF].

Still Video : ON : the displayed image contains less jitter and gives a sharper image.
Still Video : OFF : for moving picture.

10-14

Select with é or ê

then <ENTER>

<EXIT> to return.

PICTURE TUNING

SYNC [SLOW]

STILL VIDEO [ON]

COLOR BALANCE

GAMMA

Select with é or ê

then <ENTER>

<EXIT> to return.

5975696 BARCODATA 2100 140798

Random Access Adjustment Mode

Color Balance

Highlight Color Balance by pushing the control disk up or down and
press ENTER to select the color balance selection menu.

The next choices are possible :

Fixed color balance :

- 3200 K (reddish)

- 6500 K (white)

- 9300 K (bluish)

Custom white balance.

Push the control disk up or down to select Fixed Color Balance or
Custom Color Balance.
If Fixed Color Balance is selected, use the control by pushing it to the
right or to the left to select one of the 3 prepogrammed color
temperatures.

When Custom Color Balance is selected, push the control disk up or
down to adjust red and push the control disk to the right or to the left
to adjust blue (range 0 to 2.5) in comparison with the green color
(value 1).

PICTURE TUNING

SYNC [SLOW]

STILL VIDEO [ON]

COLOR BALANCE

GAMMA

COLOR BALANCE

Fixed color balance

3200 6500 9300

Custom white balance

Select with ê , é , è , ç

then <ENTER>

<EXIT> to return.

For custom adjust

red with é or ê

blue with è or ç

GAIN RED

0

2.5

5975696 BARCODATA 2100 140798

10-15

Random Access Adjustment Mode

Gamma

With the gamma correction adjustment, it is possible to bring the details
in dark image parts more to the front (lower gamma values) or to
reduce the importance of these details (higher gamma values).

To change the gamma value, highlight Gamma by pushing the control
disk up or down and press ENTER.

PICTURE TUNING

SYNC [SLOW]
STILL VIDEO [ON]
COLOR BALANCE

GAMMA

GAMMA

12.4

10-16

5975696 BARCODATA 2100 140798

Audio Tuning

Highlight Audio Tuning by pushing the control disk up or down and
press ENTER to select.
The Audio Tuning menu will be displayed.
The next items are available :

- volume

- balance

- bass

- treble

- mute

- lock

- fade

Volume, Balance, Bass and Treble

When a sound control is selected by highlighting the item with the
control disk, a text box with a bar scale, icon and function name of
the control, e.g. 'Volume' appears on the screen (only when text is
ON). The length of the bar scale indicates the current memorized
setting for this source. For more information about the sound
controls, see 'Sound controls with direct access' in Chapter 'Control-

Random Access Adjustment Mode

RANDOM ACCESS

ADJUSTMENT MODE

FILE SERVICE

PICTURE TUNING

AUDIO TUNING

GEOMETRY

AUDIO TUNING

VOLUME

BALANCE

BASS

TREBLE

MUTE [OFF]

LOCK [SOURCE 1]

FADE

Select with é or ê

then <ENTER>

<EXIT> to return.

5975696 BARCODATA 2100 140798

10-17

Random Access Adjustment Mode

ling'.

Mute

Select 'Mute' to stop the sound reproduction. The image is still
displayed.
Highlight 'Mute' with the control disk and press ENTER to toggle

between Mute [on] or Mute [off].

Lock [OFF/AUDIO A/AUDIO B/AUDIO C]

Select 'Lock' by pushing the control disk up or down and press ENTER
to toggle between OFF, AUDIO A, AUDIO B, AUDIO C.
Lock [OFF] : the sound corresponding to the selected input source
will be reproduced (see table in chapter 'Connections')

Lock [audio a] : the sound corresponding to audio a input will be
reproduced independent the selected input source.

Lock [audio b] : the sound corresponding to audio b input will be
reproduced independent the selected input source.

Lock [audio c] : the sound corresponding to audio c input will be
reproduced independent the selected input source.

AUDIO TUNING

VOLUME

BALANCE

BASS

TREBLE

MUTE [OFF]

LOCK [SOURCE 1]

FADE

Select with é or ê

then <ENTER>

<EXIT> to return.

AUDIO TUNING

VOLUME

BALANCE

BASS

TREBLE

MUTE [OFF]

LOCK [SOURCE 1]

FADE

Select with é or ê

then <ENTER>

<EXIT> to return.

10-18

5975696 BARCODATA 2100 140798

Fade

Random Access Adjustment Mode

Select Fade by pushing the control disk up or down.
The fade can be adjusted between -15 and 15.
Fade on -15 : no sound reproduction on the external loudspeakers,
max on the internal loudspreaker with the same volume level as
adjusted with the volume control.
Fade on 15 : no sound reproduction on the internal loudspeakers but
max on the external loudspeakers with the same volume level as
adjusted with the volume control.

AUDIO TUNING

VOLUME

BALANCE

BASS

TREBLE

MUTE [OFF]

LOCK [SOURCE 1]

FADE

FADE

15

0-15

5975696 BARCODATA 2100 140798

10-19

Random Access Adjustment Mode

Geometry

Highlight Geometry by pushing the control disk up or down and press
ENTER to select the geometry selection menu.
The following adjustment are possible :

- horizontal and vertical image shift.

- horizontal and vertical image size

- zoom

- blanking

- scale [1:1]

Shift

Highlight Shift by pushing the control disk up or down and press
ENTER. A bar scale will be displayed.
The image can be shifted in a horizontal or vertical direction. Push
the control disk up or down to shift the image in a vertical direction.
Push the control disk to the right or to the left to shift the image in a
horizontal direction.

RANDOM ACCESS

ADJUSTMENT MODE

FILE SERVICE

PICTURE TUNING

AUDIO TUNING

GEOMETRY

GEOMETRY

SHIFT

SIZE

ZOOM

BLANKING

SCALE

Select with é or ê

then <ENTER>

<EXIT> to return.

GEOMETRY

SHIFT

SIZE

ZOOM

BLANKING

SCALE

Select with é or ê

then <ENTER>

<EXIT> to return.

10-20

5975696 BARCODATA 2100 140798

Random Access Adjustment Mode

Size

Highlight Size by pushing the control disk up or down and press

ENTER to select.
The size can be adjusted in a vertical or horizontal way.
Push the control disk to the right or to the left for a vertical resizing,
push the control disk up or down for a horizontal resizing.
The default value for both directions on the bar scale is 0.
When a negative value for the horizontal size, the image will be
smaller, when a positive value, the image will be larger.
When a negative value for the vertical size, the image will be less high,
when a positive value, the image will be higher.

GEOMETRY

SHIFT

SIZE

ZOOM

BLANKING

SCALE

Select with é or ê

then <ENTER>

<EXIT> to return.

Vertical size
adjustment

Horizontal size
adjustment

5975696 BARCODATA 2100 140798

10-21

Random Access Adjustment Mode

Zoom

Highlight Zoom by pushing the control disk up or down and press
ENTER to select.

Push the control disk to the right or forward to zoom in (more detail).
Push the control disk to the left or backward to zoom out (less detail).
A bar scale with number indicator which can go positive (zoom in)
or negative (zoom out).

Zoom in

-128 +1270

GEOMETRY

SHIFT

SIZE

ZOOM

BLANKING

SCALE [1:1]

Select with é or ê

then <ENTER>

<EXIT> to return.

Zoom in

10-22

Zoom out

Zoom out

-128

5975696 BARCODATA 2100 140798

+1270

Random Access Adjustment Mode

Blanking

Highlight Blanking by pushing the control disk up or down and press
ENTER to select.

Blanking adjustments affect only the edges of the projected image
and are used to frame the projected image on to the screen and to
hide or black out unwanted information (or noise). A 0 on the bar scale
indicates no blanking.

The Blanking can be switched [ON] or [OFF]. Select Blanking [xx] by
pushing the control disk up or down and press ENTER to toggle
between [ON] or [OFF].
When [OFF], the image is displayed without blanking. The installed
settings are still in memory for later use.

The following blanking corrections are possible :

- top blanking

- bottom blanking

- left blanking

- right blanking

- reset

When the banking ON/OFF toggle is in the OFF position and one of the
blanking adjustment is selected, the toggle jumps in the ON position.

When Reset is selected, the 4 blanking settings are set to zero. The
saved settings are erased.

Left bl anking

GEOMETRY

SHIFT

SIZE

ZOOM

BLANKING

SCALE [1:1]

BLANKING

BLANKING [ON]

BOTTOM

RIGHT

RESET

Select with é or ê

then <ENTER>

<EXIT> to return.

Top blank ing

Bottom blanking

TOP

LEFT

Right blanking

5975696 BARCODATA 2100 140798

10-23

Random Access Adjustment Mode

BLANKING

BLANKING [ON]

TOP

BOTTOM

LEFT

RIGHT

RESET

Select with é or ê

then <ENTER>

<EXIT> to return.

Adjustment of the blanking on the top of the image

Adjustment of the blanking on the bottom of the image

Correct by pushing the control disk up or down

Adjustment of the blanking on the left side

10-24

Adjustment of the blanking on the right side

Correct by pushing the control disk to the right or to the left

5975696 BARCODATA 2100 140798

Random Access Adjustment Mode

Scale [1:1]

When 'Scale 1:1' is selected, the real input signal without image
conversion is displayed on the screen witha resolution of 800 x 600
pixels. Parts of the image cannot be displayed and will be lost.
Press ENTER to toggle scale between [1:1] and [1:x]. When toggled
to [1:x] the full image will be displayed.

Note : When Scale [1:1], the blanking is OFF.

The indication Scale (-) is displayed on the menu when the pixel
frequency of the input source is higher than 68 MHz.

600 pixels

Scale [1:x]

Scale [1:1]

GEOMETRY

SHIFT

SIZE

ZOOM

BLANKING

SCALE [1:1]

Select with é or ê

then <ENTER>

<EXIT> to return.

5975696 BARCODATA 2100 140798

800 pixels

10-25

Random Access Adjustment Mode

10-26

5975696 BARCODATA 2100 140798

INSTALLATION

Configuration

Internal Patterns

Installation

5975696 BARCODATA 2100 140798

11-1

Installation

Starting Up the Installation Mode

Push the control disk up or down to highlight Installation and then
press ENTER.

ENTER continues to the Installation mode selection menu.
EXIT returns to operational mode.

The following item can be selected in the Installation mode :

Configuration : to set up the projector position.
Internal Patterns :

- outline

- color bars

- multiburst

- checker board

- purity

ADJUSTMENT MODE

Select a path from below :

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

INSTALLATION

CONFIGURATION

INTERNAL PATTERNS

Select with é or ê

then <ENTER>

<EXIT> to return.

11-2

5975696 BARCODATA 2100 140798

Configuration

Highlight "Configuration" by pushing the control disk up or down and
press ENTER to select.

For more information, see Projector configuration in chapter Instal­lation Set Up.

Internal Patterns

Installation

INSTALLATION

CONFIGURATION

INTERNAL PATTERNS

Select with é or ê

then <ENTER>

<EXIT> to return.

The projector is equipped with different internal patterns which can
be used for measurment purposes.
Highlight "Internal Patterns" by pushing the control disk up or down
and press ENTER to display the Internal Pattern selection menu.
The following test pattern are available :

- Outline

- Color Bars

- Multiburst

- Checker Board

- Purity

5975696 BARCODATA 2100 140798

INSTALLATION

CONFIGURATION

INTERNAL PATTERNS

INTERNAL PATTERNS

OUTLINE
COLOR BARS
MULTIBURST

CHECKER BOARD

PURITY

Select with é or ê

then <ENTER>

<EXIT> to return.

11-3

Installation

11-4

5975696 BARCODATA 2100 140798

SERVICE MODE

Identification

Change Password

Change Projector Address

Change Baudrate PC

Reset Lamp Run Time

Lamp Run Time History

Preset Input Balance

Change Language

Service Mode

5975696 BARCODATA 2100 140798

I²C Diagnosis

75 W Termination

Dimming

12-1

Service Mode

Starting Up the Service Mode

Push the control disk up or down to highlight Service and then press
ENTER.

Some items in the Service mode are password protected (when the
password function is active). Enter your password to continue. All
other password protected items are now also free available if you
stay in the adjustment mode.

The service menu is built-up in two parts which are connected
together with the 'more' item.
If the disered item is not in the list of the displayed menu, select more
with the control disk and push ENTER to display the other items in the
service menu.

ENTER continues to the Service mode selection menu.
EXIT returns to operational mode.

Remark: The item 'LAMP DRIVE MODE' in this menu can be replaced
by 'DIMMING' depending on the used lamp.
LAMP DRIVE MODE for the lamp with order number R9829600
DIMMING for lamps with order number R9829510 and R9829740.

ADJUSTMENT MODE

Select a path from below :

RANDOM ACCESS

INSTALLATION

SERVICE

Source 01

CHANGE PASSWORD

CHANGE PROJ. ADDRESS

CHANGE BAUDRATE PC

RESET LAMP RUNTIME

LAMP RUNTIME HISTORY

PRESET INPUT BALANCE

CHANGE LANGUAGE

SERVICE

IDENTIFICATION

MORE ...

Select with ê or é

then <ENTER>

<EXIT> to return.

SERVICE

75 Ω TERMINATION

DIMMING

I2C DIAGNOSIS

MORE ...

Select with ê or é

then <ENTER>

<EXIT> to return.

12-2

5975696 BARCODATA 2100 140798

SERVICE

IDENTIFICATION

CHANGE PASSWORD

CHANGE PROJ. ADDRESS

CHANGE BAUDRATE PC

RESET LAMP RUNTIME

LAMP RUNTIME HISTORY

PRESET INPUT BALANCE

MORE ...

Select with ê or é

then <ENTER>

<EXIT> to return.

BARCO

DATA 2100

Proj. address : 001

Soft. version : 3.0

Config : front/

ceiling

Baudrate PC : 9600

text : ON

Serial no.: 1010200

Run time : 100 h

Select with ê or é

then <ENTER>

<EXIT> to return.

CHANGE PASSWORD

Enter new password

0000

Select with ê or é

then <ENTER>

<EXIT> to return.

Service Mode

CHANGE PROJ. ADDRESS

Enter new address

001

Select with è or ç

Reprogram with ê or é

or numeric keys

<ENTER> to confirm

<EXIT> to return

SERVICE

CHANGE LANGUAGE

75 Ω TERMINATION

DIMMING

I2C DIAGNOSIS

MORE ...

Select with ê or é

then <ENTER>

<EXIT> to return.

5975696 BARCODATA 2100 140798

CHANGE BAUDRATE PC

9600
4800
2400
1200

600
300
150

75

Select with ê or é

then <ENTER>

<EXIT> to return.

PRESET

INPUT BALANCE

FILTER : XGA

BLACK BALANCE
WHITE BALANCE

Select with ê or é

then <ENTER>

adjust red with ê or é ,

blue with è or ç
<EXIT> to return.

RESET LAMP RUN TIME

Enter the

serial number

of the new lamp

0000000

Select with è or ç

Reprogram with é or ç

or numeric keys

<ENTER> to confirm

<EXIT> to return

LAMP RUNTIME HISTORY

Serial No Runtime

----------------------------------------------------­> 0111121 600 h

0110031 750 h
0110010 745 h

-----------------------------------------------------

<EXIT> to return

12-3

Service Mode

SERVICE

IDENTIFICATION

CHANGE PASSWORD

CHANGE PROJ. ADDRESS

CHANGE BAUDRATE PC

RESET LAMP RUNTIME

LAMP RUNTIME HISTORY

PRESET INPUT BALANCE

MORE ...

Select with ê or é

then <ENTER>

<EXIT> to return.

SERVICE

CHANGE LANGUAGE

75 W TERMINATION

DIMMING

I2C DIAGNOSIS

MORE ...

Select with ê or é

then <ENTER>

<EXIT> to return.

CHANGE LANGUAGE

ENGLISH

Select with ê or é

then <ENTER>

<EXIT> to return.

75 W TERMINATION

SOURCE 4 [ON]
SOURCE 5 [ON]

Select with ê or é

then <ENTER>

<EXIT> to return.

DIMMING

0 10050

I2C DIAGNOSIS

INPUT ANALOG T DA84 44 4 2H # # #
INPUT ANALOG PC F8574A 74H # # #
INPUT ANALOG PC F8574A 78H # # #
INPUT ANALOG T DA84 44 4 EH # # #
DECODER 88H # # #
LAMP DRIVER PCF8574A 72H # # #
AUDIO TEA6310T 80H # ##

DCA

12-4

5975696 BARCODATA 2100 140798

Identification

Service Mode

To display the Identification sreen, push the control disk up or down to highlight
Identification and press ENTER to display the Identification screen.

The Identification screen gives an overview of :

- type of projector

- projector address

- soft version

- installation configuration

- baud rate

- text ON

- projector serial number

- projector run time

- type of projector : BARCODATA 2100

- software version

- Proj. Address : to change the address of the projector, see Change Projector Address
in this chapter.

- Installation : possible installations :

* Front/Ceiling
* Front/Table
* Rear/Ceiling

* Rear/Table
To change the installation configuration follow the instructions in chapter Installation Set
Up.

SERVICE

IDENTIFICATION

CHANGE PASSWORD

CHANGE PROJ. ADDRESS

CHANGE BAUDRATE PC

RESET LAMP RUNTIME

LAMP RUNTIME HISTORY

PRESET INPUT BALANCE

MORE ...

Select with ê or é

then <ENTER>

<EXIT> to return.

5975696 BARCODATA 2100 140798

12-5

Service Mode

- Baud rate : transfer speed for communication with a IBM PC (or
compatible) or MAC. The baud rate of the projector must be the same
as the baud rate of the connected computer. When there is a
difference, consult Set up of the baud rate for commu­nication with a computer in chapter Connections.

Change Password

This item is password protected when the password strap is
installed.

How to Enable or Disable the Password Function ?

The password function is enabled when the password strap on the
controller module is installed.

To change the setting of the password strap, consult a qualified
service technician or an authorised BARCO service center.

- Projector Run Time : gives the total run time since the first start
up. All projectors leave the factory with a run time of approximately
24 hours.

- Projector Serial number : indicates the fabrication number of the
projector. This number can be useful when calling for technical
assistance.

12-6

5975696 BARCODATA 2100 140798

Service Mode

How to Change the Password ?

Highlight Change password by pushing the control disk up or down
and press ENTER to display the Change Password menu.

ENTER displays the Change Password menu
EXIT returns to the adjustment selection menu.

The old password is displayed and can be changed by entering the
digit with the numeric keys of the RCU or local keypath.

Press ENTER to save the new entered password.
Press EXIT if no changes have to be made.

SERVICE

IDENTIFICATION

CHANGE PASSWORD

CHANGE PROJ. ADDRESS

CHANGE BAUDRATE PC

RESET LAMP RUNTIME

LAMP RUNTIME HISTORY

PRESET INPUT BALANCE

MORE ...

CHANGE PASSWORD

Enter new password

0000

Select with ê or é

then <ENTER>

<EXIT> to return.

5975696 BARCODATA 2100 140798

12-7
