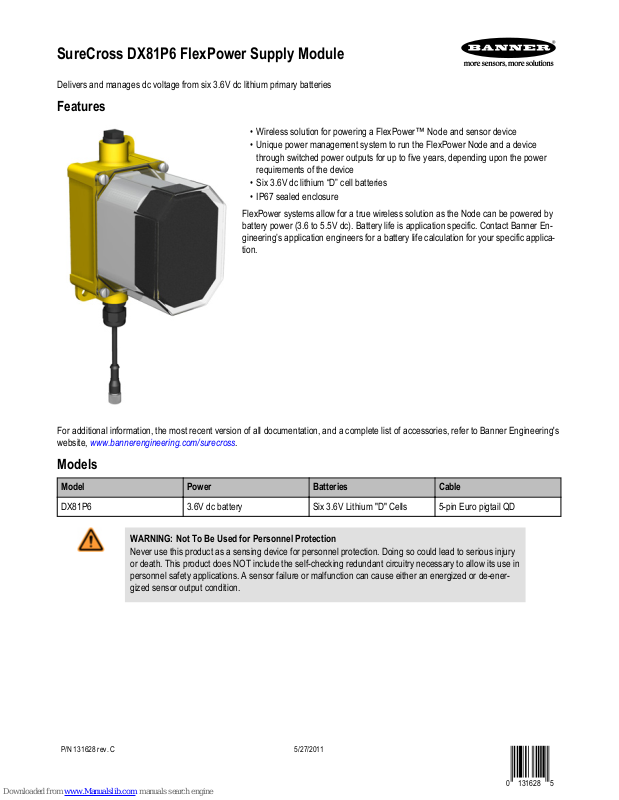

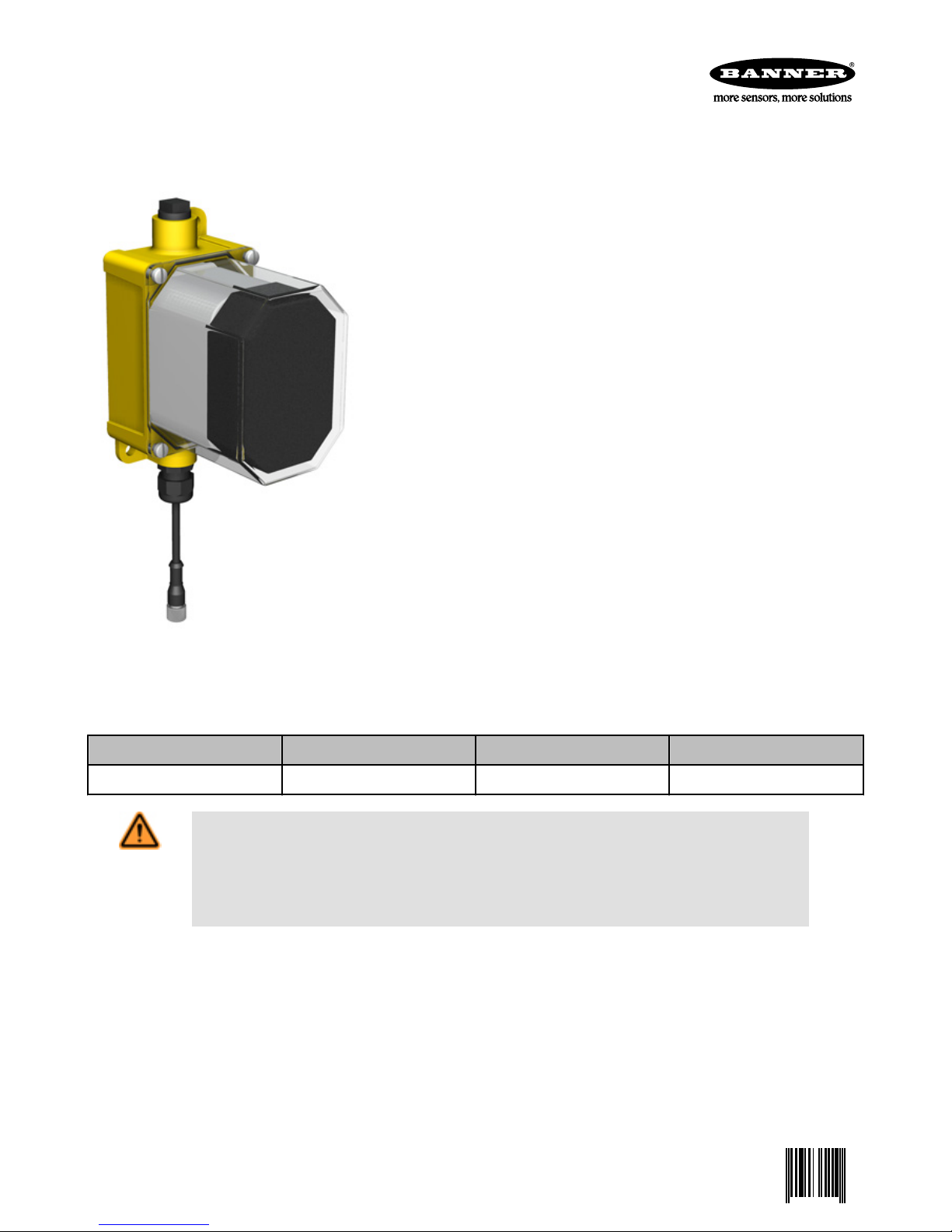

SureCross DX81P6 FlexPower Supply Module
0 131628 5
Delivers and manages dc voltage from six 3.6V dc lithium primary batteries
Features
• Wireless solution for powering a FlexPower™ Node and sensor device
• Unique power management system to run the FlexPower Node and a device
through switched power outputs for up to five years, depending upon the power
requirements of the device
• Six 3.6V dc lithium “D” cell batteries
• IP67 sealed enclosure
FlexPower systems allow for a true wireless solution as the Node can be powered by
battery power (3.6 to 5.5V dc). Battery life is application specific. Contact Banner Engineering’s application engineers for a battery life calculation for your specific application.
For additional information, the most recent version of all documentation, and a complete list of accessories, refer to Banner Engineering's
website, www.bannerengineering.com/surecross.
Models
Model Power Batteries Cable
DX81P6 3.6V dc battery Six 3.6V Lithium "D" Cells 5-pin Euro pigtail QD
WARNING: Not To Be Used for Personnel Protection
Never use this product as a sensing device for personnel protection. Doing so could lead to serious injury
or death. This product does NOT include the self-checking redundant circuitry necessary to allow its use in
personnel safety applications. A sensor failure or malfunction can cause either an energized or de-energized sensor output condition.
P/N 131628 rev. C 5/27/2011
Page 2
195.9
[7.71’’]
148.1
[5.83’’]
87.6
[3.45’’]
55.9
[2.20’’]
138.2
[5.44’’]
20.1
[0.79’’]
SureCross DX81P6 FlexPower Supply Module
Wiring Diagrams
5-pin Euro-Style Hookup for DX81
Only FlexPower™ DX80 devices may be powered from this supply.
Wire No. Wire Color Description DX80...C Terminal Labels
3 Blue dc common (GND) V-
5 Gray 3.6V dc B+
Do not apply more than 5.5V dc to the gray wire.

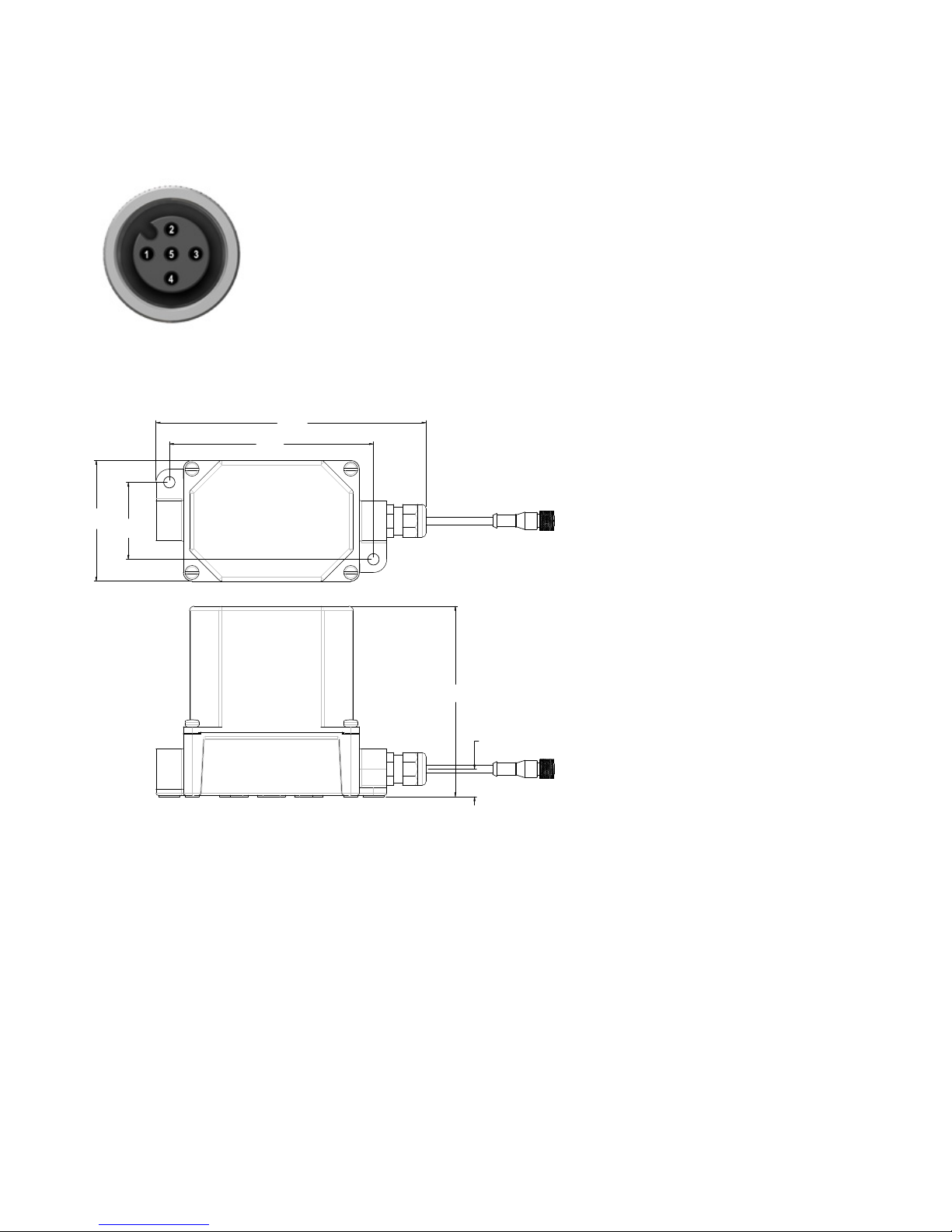

DX81P6 Dimensions
2 www.bannerengineering.com - tel: 763-544-3164 P/N 131628 rev. C
Page 3
SureCross DX81P6 FlexPower Supply Module
Specifications
General
Estimated Battery Life
114,000 mA·hours
Housing
Polycarbonate
Weight: 0.98 kg (2.15 lbs)
Mounting: 1/4-inch or M7 (M7 hardware included)
Max. Tightening Torque: 0.56 N·m (5 in·lbf)
Environmental
Environmental
Rating: IEC IP67; NEMA 6; (See UL section below for
any applicable UL specifications)
Operating Temperature: −40 to +85° C
Operating Humidity: 95% max. relative (non-condens-
ing)
Radiated Immunity: 10 V/m, 80-2700 MHz
(EN61000-6-2)
Refer to the SureCross™ DX80 Wireless I/O Network product manual, Banner p/n 132607, for installation and waterproofing instructions.
Operating the devices at the maximum operating conditions for extended periods can shorten the life of the device.
Wiring Access
One 1/2-inch NPT with 5-pin Euro-style 150mm pigtail
QD
Shock and Vibration
IEC 68-2-6 and IEC 68-2-7
Shock: 30g, 11 millisecond half sine wave, 18 shocks
Vibration: 0.5 mm p-p, 10 to 60 Hz
Warnings
The manufacturer does not take responsibility for the violation of any warning listed in this document.
Make no modifications to this product. Any modifications to this product not expressly approved by Banner Engineering could void the
user’s authority to operate the product. Contact the Factory for more information.
All specifications published in this document are subject to change. Banner reserves the right to modify the specifications of products without notice. Banner Engineering reserves the right to update or change documentation at any time. For the most recent version of
any documentation, refer to our website: www.bannerengineering.com. © 2006-2010 Banner Engineering Corp. All rights reserved.
Banner Engineering Corp Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of
shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture which, at the time it is returned
to the factory, is found to have been defective during the warranty period. This warranty does not cover damage or liability for misuse,
abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND
WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL
BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY
PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or
liabilities relating to any product previously manufactured by Banner Engineering Corp.
P/N 131628 rev. C www.bannerengineering.com - tel: 763-544-3164 3
