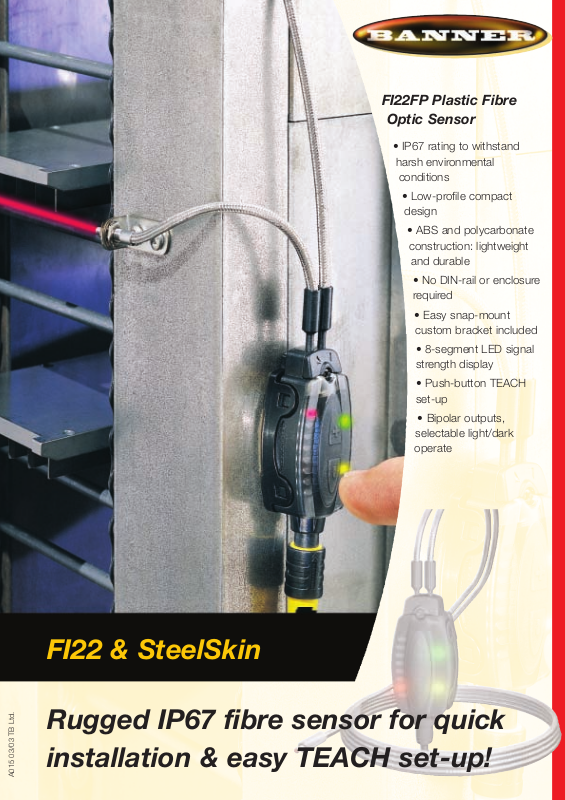

FI22FP Plastic Fibre
Optic Sensor
• IP67 rating to withstand
harsh environmental
conditions
• Low-profile compact
design
• ABS and polycarbonate
construction: lightweight
and durable
• No DIN-rail or enclosure
required
• Easy snap-mount
custom bracket included
• 8-segment LED signal
strength display
• Push-button TEACH
set-up
• Bipolar outputs,
selectable light/dark
operate
Rugged IP67 fibre sensor for quick
installation & easy TEACH set-up!
FI22 & SteelSkin
A015 03/03
TB Ltd.
TURCK BANNER Ltd.:
Sensors and equipment for industrial control and
automation:
• Inductive, magnet-inductive, photoelectric,
ultrasonic, capacitive, pressure and flow
sensors
• Ex interfaces
• Bus systems
• Temperature controls
• Cables and cordsets
• Safety systems
• Laser measurement and inspection devices
Turck Banner Ltd.
Stephenson Road, Leigh on Sea
Essex SS9 5LS
Phone: +44 1702 52 51 86
Fax: +44 1702 42 09 34
info@turckbanner.co.uk
www.turckbanner.co.uk
STEELSKIN™ plastic fibres
• Multi-core plastic optical fibre technology
• Easily bent for close embedding into machine profiles
without performance loss
• Braided stainless steel “skin” provides aesthetically
pleasing, low profile installation
Green Power
ON Indicator
Yellow Output
Conducting Indicator
Programming
Push Buttons
Bargraph Display
SETUP Status
Indicators:
Light Operate
Dark Operate
Delay
Fibre Ports
Switching Point
Braided stainless
steel sheathing
Multi-core
Advanced sensing features with push-button
TEACH modes: static, dynamic or single-point.
Custom
snap-on
bracket with
easy reference
setup instructions
is included
Stainless steel monocoil
reinforcing wire
Polyethylene jacket
