B&K Components Device Interface Protocol
Version 2.00.00

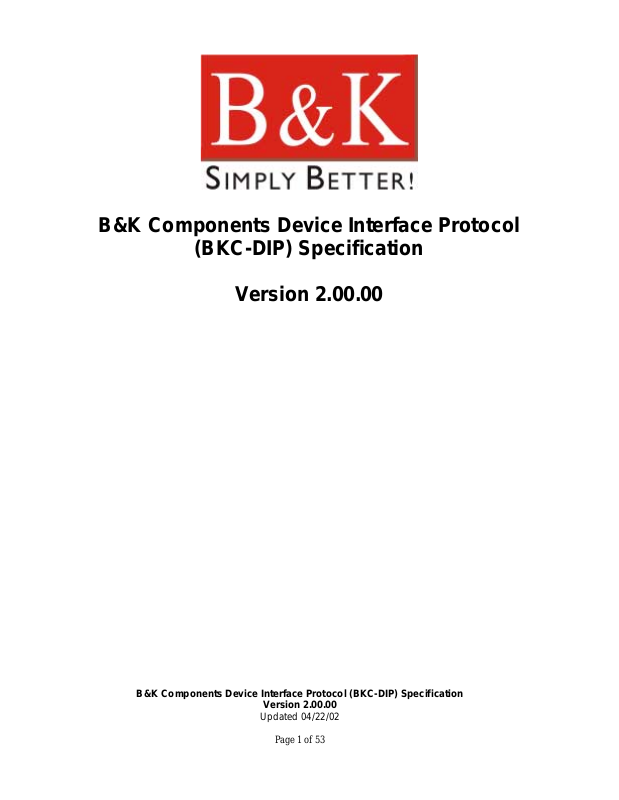

B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 1 of 53
Table of Contents
REVISION HISTORY ...................................................................................................................... 5
Version 2.00.00.............................................................................................................................................. 5
Version 1.02.01.............................................................................................................................................. 5
Version 1.02.00.............................................................................................................................................. 5
Version 1.01.xx.............................................................................................................................................. 5
INTRODUCTION ............................................................................................................................. 6
Overview........................................................................................................................................................ 6
Document Conventions................................................................................................................................ 6
Product Specific Appendices ....................................................................................................................... 6
Supported RS-232 Settings.......................................................................................................................... 6
Basic Protocol Syntax................................................................................................................................... 6
Begin/End Message Characters ().............................................................................................................. 7
ID, Receive or Transmit............................................................................................................................. 7
Delimiter Character ,.................................................................................................................................. 7
Checksum Delimiter ;................................................................................................................................. 7
Identifier SubIdentifier Delimiter .............................................................................................................. 8
Checksum................................................................................................................................................... 8
Tag Delimiter : ........................................................................................................................................... 9
NEW FEATURES OF BKC-DIP V2.0 VS. V1.0............................................................................ 10
8 alpha-numeric character tags................................................................................................................. 10
Changes to the Parser Allowing “ , : ; ( ) in Strings................................................................................ 10
Parser Synchronization............................................................................................................................. 10
Additional Intelligence require in Host Parser ......................................................................................... 11
SubIdentifiers Indicating Hardware Zone information .......................................................................... 12
Zone Specific specifier................................................................................................................................ 12
Macro specifier........................................................................................................................................... 12
Macro Trigger Command.......................................................................................................................... 12
Favorite Settings of a Preset...................................................................................................................... 12
Additional Reply Display formats............................................................................................................. 13
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 2 of 53
SUMMARY OF BKC-DIP COMMANDS ....................................................................................... 14
Host to B&K Device Commands Summary.............................................................................................14
G (get) command...................................................................................................................................... 14
S (set) Command...................................................................................................................................... 14
D (display) Command .............................................................................................................................. 15
X (executive) Command........................................................................................................................... 15
B&K Device to Host Commands Summary.............................................................................................16
E (echo) Command................................................................................................................................... 16
R (reply) Command.................................................................................................................................. 16
U (update) Command............................................................................................................................... 16
HARDWARE ZONES, CODE SETS AND ZONE IDS, LOGICAL ZONES .................................. 17
Hardware Zones......................................................................................................................................... 17
Code Sets, Zone IDs, and Logical Zones................................................................................................... 17
Code Sets.................................................................................................................................................. 17
Zone IDs................................................................................................................................................... 18
Logical Zones........................................................................................................................................... 18
Overlapping Code Sets/Zone IDs to Link................................................................................................. 19
Default CT 610 Example.......................................................................................................................... 19
More Complicated CT 610 Example........................................................................................................ 20
SubIdentifiers.............................................................................................................................................. 22
HOST TO B&K DEVICE COMMANDS......................................................................................... 25
G (get) Command....................................................................................................................................... 25
Presets: (receiveID, G, Pz=nn, identifier, ... identifier; cs16)................................................................... 25
System Settings: (receiveID, G, S, identifier, ... identifier; cs16)............................................................ 26
Zone Specific Settings: (receiveID, G, Zzz, identifier, ... identifier;cs16)................................................ 26
Macro Settings: (receiveID, G, Mt=mm, identifier, ... identifier;cs16) .................................................... 26
All Macro Settings: (receiveID, G, Mt, identifier, ... identifier;cs16) .................................................. 27
Tuner Station Settings: (receiveID, G, Tnn, identifier, ... identifier;cs16) ............................................... 27
Realtime Status: (receiveID, G, R, identifier, ... identifier; cs16)............................................................. 28
Override Settings: (receiveID, G, O, identifier, ... identifier;cs16) .......................................................... 28
Display Content: (receiveID, G, D, d;cs16).............................................................................................. 29
Format Specification: (receiveID, G, Ff; cs16) ........................................................................................ 29
Error Log Status: (receiveID, G, E, identifier, ... identifier; cs16)........................................................... 31
Favorite Settings of a Preset: (receiveID, G, A, identifier, ... identifier; cs16) ........................................ 31
S (set) Command ................................................................................................................ ........................ 32
Presets: (receiveID, S, Pz=nn, identifier = value, ... identifier = value; cs16).......................................... 32
System Settings: (receiveID, S, S, identifier=value,...identifier=value; cs16).......................................... 33
Zone Specific Settings: (receiveID, S, Zzz, identifier = value, ... identifier = value; cs16)...................... 33
Macro Settings: (receiveID, S, Mt, identifier = value, ... identifier = value; cs16) .................................. 33
Serial Macro ......................................................................................................................................... 34
Escape Characters in Serial Macros ................................................................................................. 34
IR Macro............................................................................................................................................... 34
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 3 of 53
Tuner Station Settings: (receiveID, S, Tnn, identifier = value, ... identifier = value; cs16)...................... 34
Favorite Settings of a Preset: (receiveID, S, A, identifier=value, ... identifier=value; cs16) ................... 35
Override Settings: (receiveID, S, O, identifier=value,...identifier=value; cs16)...................................... 35
Override Timeout................................................................................................................................. 36
IR Command : (receiveID, S, I, z=ir; cs16).............................................................................................. 37
Front Panel Commands: (receiveID, S, F, z=fp; cs16)............................................................................. 37
Error Logs: (receiveID, S, E, identifier=value,...identifier=value; cs16) ................................................. 38
D (display) Command ................................................................................................................................ 38
On Screen Display (O): (receiveID, D, O, Ttt, Mm, Xcc, Yrr, "text", ... Xrr, Ycc, "text"; cs16)(only
applicable to units with On Screen Display capabilities) ......................................................................... 38
Front Panel Display (F): (receiveID, D, F, Ttt, Xcc, Yrr,"text";cs16)...................................................... 40
LED display: (receiveID, D, L, Ttt, n=bitmap; cs16).............................................................................. 40
X (executive) Command ............................................................................................................................. 41
M (Macro Trigger) Command: (receiveID, M, t=mm, … ,t=mm;cs16)............................................... 43
B&K DEVICE TO HOST COMMANDS......................................................................................... 44
E (echo) Command..................................................................................................................................... 44
Implementing Software Flow Control using Echo Commands................................................................ 44
R (reply) Command.................................................................................................................................... 44
Reply from the Get Display command (transmitID, G, D, d; cs16)......................................................... 45
BKC-DIP V1.0 Compliant Display Reply............................................................................................46
BKC-DIP V2.0 Compliant Display Reply without Attributes.............................................................. 47
BKC-DIP V2.0 Compliant Display Reply with Attributes................................................................... 48
U (update) Command ................................................................................................................................. 50
Status message: (transmitID, U, S, n=“status message”;cs16)................................................................. 50
BKC-DIP Active message: (transmitID, U, S, 0=“BKC-DIP ACTIVE”;cs16) ................................... 50
IR message: (transmitID, U, I, z=ir;cs16)................................................................................................ 51
Front Panel message: (transmitID, U, F, z=ir;cs16) ................................................................................. 51
Realtime Status message: (transmitID, U, R, identifier=value;cs16)....................................................... 51
USE OF RECEIVE AND TRANSMIT IDS..................................................................................... 53
The Receive ID................................................................................................................. ........................... 53
The Transmit ID......................................................................................................................................... 53
A Multiple Unit Example........................................................................................................................... 53
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 4 of 53
Revision History

Version 2.00.00

1. New version of BKC-DIP with expanded capabilities and support for multi-hardware zone
devices. See section New Features of BKC-DIP V2.0 vs. V1.0 for details.
2. Override Parameters have diverged to be specific per product. Moved Override Parameters
section to Product Specific Appendices’ Appendix P.
3. Status Update Messages have been moved to the Product Specific Appencies’ Appendix Q
and further detailed.
4. Additional Format Specifiers have been added to support new commands. Refer to Format Specification: (receiveID, G, Ff; cs16) for more detail.

Version 1.02.01

1. Corrected examples for Set OSD Display command.
2. Correc ted note regar ding valid OSD row range.
3. Added note about 16:9 Aspect ratio interaction with OSD Display row specification.

Version 1.02.00

1. This is the first version of this documentation which is specified by version number.
2. This document includes augmentation to the original BKC-DIP V1.01 protocol and supercedes information found in “B&K Components Device Interface Protocol (BKC-DIP) V1.01 Protocol Document”.

Version 1.01.xx

1. Documentation earlier than Version 1.02.00 was not specified by a version number. This encompasses all documentation prior to 08/07/00. Prior documentation entitled “B&K Components Device Interface Protocol (BKC-DIP) V1.01 Protocol Document” described BKC-DIP Version 1.01 is therefore referred to as Version 1.01.xx here.
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 5 of 53

Introduction

Overview

The following is the specification and implementation details of the B&K Components Device Interface Protocol, BKC-DIP. BKC-DIP is an ASCII text based serial protocol. The electrical specification is RS-232, thus B&K Components' devices may be controlled by standard "COM" ports or similar serial devices. Thro ugh the use of Receive and Transmit IDs, multiple B&K Components units may be controlled on a common serial bus.

Document Conventions

All numbers are assumed to be hexadecimal
from 0 to F.
For example:
The number 19 is the hexadecimal numbe r 19 which is (1 x 16 25 decimal. Similarly, EA is the hexadecimal number EA which is (14 x 16 (10 x 16
may use the xxh notation to remind the reader that the number is implicitly hexadecimal where xx are the hexadecimal characters 0 - F. Thus the previous examples would be 19h and EAh respectively, the "h" indicating hexadecimal.
Italics indicate a non-literal string.
For example:
(00,G, P00, 0;cs16) cs16 indicates the calculated checksum and does NOT literally appear in the data stream.
Important concepts are denoted by NOTE:
0
) or 234 decimal. For clarity, some descriptions regarding numbers

Product Specific Appendices

Although all RS-232 capable B&K Components’ devices support the BKC-DIP protocol, implementation details vary according to product family. The examples used in this document are based on the CT 610 and REF 30 products. Make sure to consult the product specific appendices for the specific B&K Components’ unit being controlled.

Supported RS-232 Settings

The currently supported baud rates are: 1200, 2400, 9600, 14400, 19200, 28800, 38400, 57600, and 115200
The currently supported serial settings are N-8-1: N, no parity 8, eight bit data 1, one stop bit
Hardware flow control is not supported.

Basic Protocol Syntax

The B&K Components Device Interface Protocol (BKC-DIP) is an ASCII text based serial protocol. All commands follow the same basic format:
B&K Components Device Interface Protocol (BKC-DIP) Specification
. Hexadecimal (or Hex for short) characters range
Version 2.00.00
Updated 04/22/02
Page 6 of 53
1
) + (9 x 160) or
1
) +
(id, cc, ss, ... ; cs16)
where: ( indicates the start of a message
id is the Receive ID (for host to B&K unit commands) or Transmit ID (for B&K
unit to host commands)
, is the delimiter character cc is the command , is the delimiter character ss is the command specifier ; is the checksum delimiter cs16 is 16-bit (optional, but recommended) checksum ) indicates the end of a message
NOTE: Leading zeros may be omitted. NOTE: Upper and lower case characters may be used interchangeably. (00,G, P01; 01EB ) is
equivalent to (00,g, p1; 1FB )

Begin/End Message Characters ()

The ASCII open/close parenthesis characters "(" and ")" not occurring in a double quoted string indicate the beginning and the end of a BKC-DIP message respectively.
NOTE: Each time an open parenthesis character not occurring in a double quoted string is
received, the parsing engine's state is reset. In the event of the host and B&K
Component's device loses sync, the "(" will abort any previous state and the
communication will once again be in sync except under conditions detailed in New
Features of BKC-DIP V2.0 vs. V1.0.

ID, Receive or Transmit

The first token of each BKC-DIP message is an ID, which can be 00h – 7Fh. This allows up to 128 different units to be controlled on the same serial bus.
NOTE: The receive ID FFh is also supported as a “global” or “universal” receive ID. Any B&K
Components device on a serial channel would respond to commands with a receive ID of
FFh regardless of their specified receive ID. This is useful for determining if any B&K
Components devices are on a particular serial channel.
See section entitled Use of Receive and Transmit IDs for more details.

Delimiter Character ,

All members of a BKC-DIP message are delimited by "," an ASCII comma (with the exception of the checksum delimiter ";", see below).
NOTE: Unlike V1.0 BKC-DIP, commas are allowed in double quoted strings (such as text
strings as in "Comma, IS valid"). Refer to New Features of BKC-DIP V2.0 vs. V1.0 for
details.

Checksum Delimiter ;

The checksum of each message is optionally transmitted embedded in the message to assure data has not been corrupted during transmission. The checksum is the 4 digits hexadecimal digits (0-F) directly following the ";" delimiter. Software designed to parse BKC-DIP serial streams can easily detect the ";" delimiter, thus making message parsing simple.
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 7 of 53
NOTE: Unlike V1.0 BKC-DIP, semi-colons are allowed in double quoted strings (such as text
strings as in "Semi-colon; valid"). Refer to New Features of BKC-DIP V2.0 vs. V1.0
for details.

Identifier SubIdentifier Delimiter .

On units where multiple hardware zones can be “linked” using “Code Sets” to logical zones, such as the CT 610, identifiers from the unit may have addition SubIdentifiers. These SubIdentifiers are delimited from the identifier via an ASCII period, “.”.
An example reply which contains SubIdentifier Delimiters (and subsequently SubIdentifiers) is:
(0, R, G, P7=FF, 1.A=20, 1.B=18, 1.D.L=10; cs16)
This response containing Volume information for the current preset of Zone 7, P7=FF, indicates that there are 3 different hardware zones attached to the logical zone 7.
NOTE: For an in depth discussion of Har dware Zones vs. Logical Zones, see section Hardware Zones, Code Sets and Zone IDs, Logical Zones.

Checksum

The checksum itself is a 16 bit quantity calculated by summing all of the incoming ASCII characters up to and including the ";" checksum delimiter AND excluding the begin message "(".
For example, the checksum for the following message would be calculated as:
(00, G, P00; 01EA)
( begin message character, ignored in checksum calculation, reset checksum
0 checksum = checksum + 30h
0 checksum = checksum + 30h
, checksum = checksum + 2Ch G checksum = checksum + 47h , checksum = checksum + 2Ch P checksum = checksum + 50h
0 checksum = checksum + 30h
0 checksum = checksum + 30h
; checksum = checksum + 3Bh and signals to terminate checksum calculation and
that message checksum follows
Thus the calculated checksum would be 01EAh, which matches the message checksum indicating the received message is valid and uncorrupted.
NOTE: The checksum is optional but strongly recommended to assure the integrity of the
transmitted data. If the checksum is not transmitted, the checksum delimiter is
immediately followed by the end message ")".
For example:
(00, G, P00;) The checksum 01EA has been omitted
NOTE: Whitespace appearing outside of quotes is ignored, and does not enter into the checksum
calculation.
B&K Components Device Interface Protocol (BKC-DIP) Specification
Updated 04/22/02
Version 2.00.00
Page 8 of 53
For example, the following two commands both yield the same checksum, 01DFh.
(00, G, P00; 01EA) (00, G, P00; 01EA)
However, the following two commands yield different checksums because of the whitespace in the second title:
(00, S, P1, 0="Title";0 4 A6) (00, S, P1, 0=" Title " ;0 4E6) white space characters before and after Title

Tag Delimiter :

It is often useful to be able to determine which response from the B&K Component’s device corresponds to a particular command issued by the host. To facilitate this, an optional tag may be concatenated to the receive ID. This tag may be up to 8 alpha-numeric characters in length, and is then concatenated to the transmit ID of the message(s) generated by the unit.
A few examples to demonstrate the use of the tag:
(0:1234wxyz, G, P3=1, 0;053D) Get Z3 Preset 1, parameter 0 with tag
(0:1234wxyz,E,G,P3=1,053D;065A) Echo from unit with tag 1234wxyz
(0:1234wxyz,R,P3=1,0="His TV ";0897)Reply from unit with tag 1234wxyz
NOTE: The use of tags is optional. If no tag delimiter is detected in the received command, no
tag is appended in the response from the unit.
NOTE: Unlike V1.0 BKC-DIP, V2.0’s tag is 8 characters long, as opposed to only 4. Refer to
New Features of BKC-DIP V2.0 vs. V1.0 for details.
NOTE: Messages generated autonomously by the unit (such as “U” update commands) do no t
have tags associated with them.
NOTE: Unlike V1.0 BKC-DIP, colons are allowed in double quoted strings (such as text strings
as in "Colon : valid"). Refer to New Features of BKC-DIP V2.0 vs. V1.0 for details.
1234wxyz
(0,U,I,1=24;0261) Update IR command Z1 of 24 (Volume +), no tag
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 9 of 53

New Features of BKC-DIP V2.0 vs. V1.0

Several new features have been added to the BKC-DIP protocol. For those familiar with BKC­DIP V1.0, this section concisely lists all the new features now available. For those just becoming acquainted with BKC-DIP, you may want to note which features are not available in the B&K Components devices with V1.0 BKC-DIP implementations.
NOTE: If using this document with a BKC-DIP V1.0 device, please remember that the following
features do not apply. This will NOT be explicitly noted throughout the remainder of the
documentation.
The changes from protocol V1.0 to V2.0 are listed below.

8 alpha-numeric character tags

The optional tag which can be appended to the receive ID with a colon, “:” has been increased to 8 alpha-numeric characters as opposed to 4.

Changes to the Parser Allowing “ , : ; ( ) in Strings

Perhaps the most important change to BKC-DIP V2.0 from V1.0 is the augmented support for strings. In previous versions of BKC-DIP specific characters could only appear as protocol syntax and were not allowed in any other context, specifically strings.
In adding the new Serial Macro feature (see the Macro specifier section below), it was desirable to allow BKC-DIP commands to be emitted. This implied that entire BKC-DIP commands needed to be supported as a valid BKC-DIP string, which further implied that BKC-DIP delimiters (i.e. “ , : ; ( ) ) NOT be interpeted inside double quoted strings.
This further implied the addition of the escape character “\”, backslash to allow double quotes and the escape character itself to be embedded into strings.
A Serial Macro Set command follows as an example:
(0, S, M0=0, 0=1, 1=C4, 4=”(0:1234,S,P1=0,0=\”Title\”;)”;)
Notice the BKC-DIP command (0:1234,S,P1=0,0=”Title”;) as a string in the previous example.

Parser Synchronization

In V1.0 versions of BKC-DIP, any time the parser received an opening parenthesis, “(“, the parser state machine was reset. This implied that no matter what characters had previously be sent to the BKC-DIP device, sending a ( would begin a new BKC-DIP command.
The same still holds true with one very important exception: double quoted strings (which are delimited by the ASCII character “, 34). The V2.0 BKC-DIP parser holds state regarding finding a double quote character. When the parser finds a double quote it will not interpret any character until it finds a matching unescaped double quote. This implies that the parser could get into a state that a open parenthesis would not reset, namely if the parser is in the midst of a quoted string. The following examples will illustrate.
Let’s assume that a user wanted to set Zone 1 Preset 0’s title to extremely clever and descriptive word “Title ”. The user began typing the following:
(0, S, P1=0, 0=”Pit
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 10 of 53
It is then realized that the user has misspelled. With a V1.0 BKC-DIP parser, simply retyping the command would correct the issue as the parser would be reset upon receiving the openning “(“. However, that is not the case with the V2.0 parser, as the parser is currently in a state of accumulating characters for the string <“Pit> (the < and > characters added for clarity). The parser will not interpret the “(“ character as part of the BKC-DIP syntax, but merely more of the string <”Pit(>.

Additional Intelligence require in Host Parser

When developing a BKC-DIP V2.0 parser additional intelligence must be incorporated so BKC­DIP syntax is not interpreted when appearing in double quoted strings. The following is pseudo code for the state machine for such a parser:
BeginCommandState
If the character = ‘(‘
Reset state (i.e. checksum calculation
Next state = GetReceiveIDState
GetReceiveIDState
Add the character to the checksum calculation
If the character = ‘,’ or ‘:’
Indicates last character of ReceiveID
If the character = ‘:’
Next state = GetTagState
Else
Next state = FillCommandBufferState
Else
Add the character to the ReceiveID
GetTagState
Add the character to the checksum calculation
If the character = ‘,’
Indicates last character of the tag
Next state = FillCommandBufferState
Else
Add character to the tag
FillCommandBufferState
Add the character to the checksum calculation If the character = ‘“’ Next state = QuotedStringState Add character to command buffer
Convert the character to upper case
If the character = ‘;’ Indicates checksum possibly coming Next state = ChecksumState Else if the character = ‘(‘ Next state = Begi nCommandState
Add character to command buffer
QuotedStringState
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 11 of 53
Add the character to the checksum calculation If the character = ‘\’ Next state = CharacterEscapeState Else if the character = ‘”’ Next state = FillCommandBufferState Add character to command buffer
CharacterEscapeState
Add the character to the checksum calculation
Next state = QuotedStringState
Add character to command buffer
ChecksumState
If the character = ‘)’
Indicates completion of checksum
If checksum = calculated checksum or no checksum received
Further command parsing
Next state = BuildCommandState
Else
Add character to the checksum

SubIdentifiers Indicating Hardware Zone information

SubIdentifiers have been added to augment parameter identifiers to identify to which Hardware Zone the values is associated. These take the form of “.A”, “.B”, “.C”, etc. for stereo Hardware Zones and “D.L”, “D.R”, “E.L”, “E.R”, “F.L”, “F.R”, etc. for mono Hardware Zones. Please refer to the Hardware Zones, Code Sets and Zone IDs, Logic al Zones and SubIdentifiers sections later in this document for further details about Hardware Zones, Logical Zones, and SubIdentifiers.

Zone Specific specifier

Since new multi-zone devices have varying number of Logical Zones (based upon the System Settings for Zone IDs and Code Sets), the Zone Specific specifier, “Z”, has been added to Get and Set commands. Please refer to sections Zone Specific Settings: (receiveID, G, Zzz, identifier, ...
identifier;cs16) and Zone Specific Settings: (receiveID, S, Zzz, identifier = value, ... identifier = value; cs16) for more details.

Macro specifier

An additional specifier, M (for Macro), has been added to the Get and Set commands to allow Serial Macro configuration. Please refer to sections Macro Settings: (receiveID, G, Mt=mm,
identifier, ... identifier;cs16) and Macro Settings: (receiveID, S, Mt, identifier = value, ... identifier = value; cs16) for more details.

Macro Trigger Command

To allow BKC-DIP triggering of the new Macro features, the M command has been added to BKC-DIP. This allows a specific Macro (type and number) to be triggered via BKC-DIP. Please refer to M (Macro Trigger) Command: (receiveID, M, t=mm, … ,t=mm;cs16) section for more details.

Favorite Settings of a Preset

To allow an easy mechanism to Get/Set the favorite of a particular presets across several Logical Zones in a single command, the Favorite Command added to BKC-DIP. Please refer to Favorite
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 12 of 53
Settings of a Preset: (receiveID, G, A, identifier, ... identifier; cs16) and Favorite Settings of a Preset: (receiveID, S, A, identifier=value, ... identifier=value; cs16) for more details

Additional Reply Display formats

There are two new reply formats for Display Replies, in addtion to a BKC-DIP V1.0 compatible format. See sections BKC-DIP V1.0 Compliant Display Reply, BKC-DIP V2.0 Compliant
Display Reply without Attributes, and BKC-DIP V2.0 Compliant Display Reply with Attributes for more details.
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 13 of 54

Summary of BKC-DIP Commands

The following is a summary of the BKC-DIP commands and some brief examples. Each command is described in detail in the remainder of the document. The commands are broken in to two categories: Host to B&K Device Commands and B&K Device to Host Commands.

Host to B&K Device Commands Summary

G (get) command

Presets: (receiveID, G, Pz=nn, <identifier, ... identifier>; cs16)
(0,G,P1=3,1,2,3;cs16) Get Z1 Preset 3 parameters 1,2,3
(0,G,P2=7,4,5,6;cs16) Get Z2 Preset 7 parameters 4,5,6
System Settings: (receiveID, G, S,<identifier, ... identifier>; cs16)
(0,G,S,0,1,5;cs16) Get System parameters 0,1,5
Zone Specific Settings: (receiveID, G, Zzz, identifier, ... identifier;cs16)
(00, G, Z0;0204) Get Logical Zone 0’s settings.
Macro Settings: (receiveID, G, Mt=mm, identifier, ... identifier;cs16)
(00, G, M0=20;0296) Get Serial Macro 32’s settings
(0,G,M0;0187) Get All Serial Macros Tuner Station Se t tings: (receiveID, G, Tnn, <identifier, ... identifier>;cs16) (0,G,T12;cs16) Get Tuner channel 18 all parameters Realtime Status: (receiveID, G, R, <identifier, ... identifier>; cs16) (0,G,R,3;cs16) Get Realtime Status parameter 3 Override Settings: (receiveID, G, O, <identifier, ... identifier>; cs16)
(0,G,O,0;cs16) Get Override parameter 0 Display Content: (receiveID, G, D, d;cs16)
(0,G,D,O; cs16) Get current contents of the OSD
(0,G,D,F; cs16) Get current contents of the front panel display Error Log Status: (receiveID, G, E, <identifier,… identifier>;cs16)
(0,G,E,1;cs16) Get unused RAM Error Log status Format Specification: (receiveID, G, Ff; cs16)
(0,G,F1=0;cs16) Get Z1 Preset Format
(0,G,F2=0;cs16) Get Z2 Preset Format
(0,G,F1;cs16) Get System Format
(0,G,F2;cs16) Get Tuner Format
(0,G,F3;cs16) Get Realtime Format
(0,G,F4;cs16) Get Unit Specifier
(0,G,F5;cs16) Get Override Format
(0,G,F6;cs16) Get Error Log Format
(0,G,F1=7;cs16) Get Z1 Zone Specific Format
(0,G,F0=8;cs16) Get Type 0 Macro Format Favorite Settings of a Preset: (receiveID, G, A, identifier, ... identifier; cs16)
(0,G,A=10;01E9) Get Favorite Settings of Preset 10h (16 decimal)

S (set) Command

Presets: (receiveID, S, Pz=nn, identifier = value, ... identifier = value; cs16) (0,S,P1=B,0=”My Title”;cs16) Set Z1 Preset 11 parameter 0 (0,S,P2=4,1=60,2=18;cs16) Set Z2 Preset 4 parameters 1, 2 System Settings: (receiveID, S, S, identifier=value,...identifier=value; cs16) (0,S,S,0=”LASER”,9=15;cs16) Set System parameters 0 and 9 Zone Specific Settings: (receiveID, S, Zzz, identifier = value, ... identifier = value; cs16)
(1, S, Z7, 0=”Living Room”;cs16) Set Z7 Zone title Macro Settings: (receiveID, S, Mt, identifier = value, ... identifier = value; cs16)
(0,S,M0=A,5=”(0,S,S,0=\”Laser\”;)”;) Set Serial Macro
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 14 of 54
Tuner Station Se t tings: (receiveID, S, Tnn, identifier = value, ... identifier = value; cs16)
(0,S,T04,1=20;cs16) Set Tuner Channel 4 parameter 1 Override Settings: (receiveID, S, O, identifier = value, ... identifier = value; cs16)
(0,S,O,0=1;cs16) Set Override parameter 0 IR Command: (receiveID, S, I, z=ir; cs16)
(0,S,I,2=C4;cs16) Set IR Zone 2 command C4 Front Panel Commands: (receiveID, S, F, z=fp; cs16)
(0,S,F,1=0A;cs16) Set Front Panel Zone 1 command A Error Log Status: (receiveID, G, E, <identifier = value,… identifier = value>;cs16)
(0,S,E,1=0;cs16) Clear unused RAM Error log status Favorite Settings of a Preset: (receiveID, S, A, identifier=value, ... identifier=value; cs16)
(0,S,A=10,0=1,3=1,4=0; 0459 ) Set Preset 16 favorite in Z0 and Z3, not Z4

D (display) Command

OSD (O): (receiveID, D, O, Ttt, Mm, Xcc, Yrr, "text", ... Xrr, Ycc, "text"; cs16)
(0,D,O,T64, M0, X02, Y04, "Hello World";cs16)
T64 will clear the display after 64h * 100ms (10seconds)
X02 displayed text will start at row 02h (the third row)
Y04 displayed text will start at column 04h (the fifth column) Front Panel Display (F): (receiveID, D, F, Ttt, Xcc, Yrr,"text";cs16)
(0,d, f, t0, x0, y2, "Testing";cs16)
t0 display will NOT be clear by a timeout
x0 displayed text will start at row 00h (the first row)
y2 displayed text will start at column 02h (the third column) LED display: (receiveID, D, L, Ttt, n=bitmap; cs16)
(00, D, L, T00, 1=21; 0360) Set DOWN and REAR LEVEL LED on

X (executive) Command

NOTE: Please refer to the Appendix L of the appropriate Product Specific Appendices to note
implimentation details and of the executive commands.
Recall Preset Command: (receiveID, X, 0, z=nn; cs16)
(0,X,0,1=4;cs16) Recall Z1 Preset 4 to current preset Save Preset Command: (receiveID, X, 1, z=nn; cs16)
(0,X,1,2=9;cs16) Save current preset to Zone 2 Preset 9 Power State Command: (receiveID, X, 2, z=onOff; cs16)
(0,X,2,1=1;cs16) Turn Z1 power on
(0,X,2,2=0;cs16) Turn Z2 power off Noise Generator State Command: (receiveID, X, 3, onOff; cs16)
(0,X,3,1;cs16) Activate noise generator
(0,X,3,0;cs16) Deactivate noise generator Noise Steering Command: (receiveID, X, 4, index=onOff…, index=onOff; cs16)
(0,X,4,0=1,1=1,5=1;cs16) Noise output Left Front, Center, and Sub Noise Increment Command: (receiveID, X, 5; cs16)
(0,X,5;cs16) Increment noise output to next valid c hannel Cold Boot Command: (receiveID, X, 6; cs16)
(0,X,6;cs16) Cold Boot BKC-DIP device Factory Reset Command: (receiveID, X, 7; cs16)
(0,X,7;cs16) Factory Reset BKC-DIP device
WARNING!:
M0 text displayed over background color "blue screen"
Issuing a Factory Reset Command will destroy all user
modified data in the unit (preset, system settings, etc.).
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 15 of 54
Reinitialize BKC-DIP State Command: (receiveID, X, 8; cs16)
(0,X,8;cs16) Reinitialize BKC-DIP State parameters Test Tone State Command: (receiveID, X, 9, level; cs16)
(0,X,9,2;cs16) Test Tone on at –30.0 dB level
(0,X,9,0;cs16) Test Tone off Mute State Command: (receiveID, X, A, z=muteState; cs16)
(0,X,A,1=1;cs16) Mute Z1
(0,X,A,2=0;cs16) Unmute Z2

B&K Device to Host Commands Summary

E (echo) Command

(2, E, G, P1=00, 0228;0393) Echo from unit 02h for Get Z1 Preset 0 command

R (reply) Command

(2, R, P2=1,3=5;02D8) Reply from unit 02h Z2 Preset 1 parameter 3 info (0, R, D, F, 0="X FRONT PANEL XX ",80=1;cs16)
Reply from the Get Display command (transmitID, G, D, d; cs16)

U (update) Command

Status message: (transmitID, U, S, 0=“BKC-DIP ACTIVE”;cs16)
(0,U,S,0=”BKC-DIP ACTIVE”;cs16) Ready for BKC-DIP commands IR message: (transmitID, U, I, z=ir;cs16) (0,U,I,1=C4;cs16) Update to host from Zone 1 <Volume -> Front Panel message: (transmitID, U, F, z=ir;cs16)
(0,U,F,1=A;cs16) Update to host from Zone 1 front panel <Volume -> Realtime Status message: (transmitID, U, R, identifier=value;cs16)
(0,U,R,5=sample rate;cs16) Update from sample rate change
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 16 of 54

Hardware Zones, Code Sets and Zone I Ds, Logical Zones

In recent B&K Components’ devices, such as the CT 610, there is the concept of Hardware Zones and Logical Zones. This has implications with regards to BKC-DIP. In order to understand these parts of BKC-DIP, an understanding of Hardware and Software zones is required. This section describes the concepts of Hardware Zones, overlapping the assignments of Code Sets/Zone IDs to link command and control of Hardwar e Zones to form Logical Zones, and SubI dentifiers (which is how BKC-DIP presents Hardware Zone information).
NOTE: References to the B&K Components CT 610 will be used as examples since it is the first
B&K product to contain these features. Again, recall that BKC-DIP V1.0 is a subset of V2.0x featur es. Thus this sectio n has no meaning in BKC-DIP V1.0 products.

Hardware Zones

As the name implies, Hardware zones relate t o hardware. Thus a Hardware zone ca n be thought of as the output jacks of the Device. On the CT 610, for example, there are 6 (stereo) output zones lettered A – F. In some instances a stereo zone can be “split” into 2 mono zones which are further subspecified by “.L” or “.R” referring to the left or the right half respectively.
NOTE: Hardware Zones are referred to by letter. For example, the CT 610 6 stereo zone
outputs are referred to as A, B, C, D, E, and F respectively. As another example, if all 6 zones of a CT 610 were configured to be mono zones, they would be referred to as A.L, A.R, B.L, B.R, C. L, C.R, D.L, D.R, E.L, E .R, F.L, and F.R respe ctively.

Code Sets, Zone IDs, and Logical Zones

NOTE: The terms Code Set, Zone ID, and Logical Zone are synonomous.
The terms Code Set, Zone ID, and Logical Zones are synonomous, however various contexts typically use a specific terminology.
NOTE: Code Sets, Zone IDs, and Logical Zones are referred to by number. For example,
there are 9 the default Code Sets / Zone IDs / Logical Zones of the CT 610, which are 0, 3, 4, 11, 12, 13, 14, 15, and 16.

Code Sets

As in earlier B&K Components devices there are system parameters to allow command and control of individual Zones (ZA and ZB, previously Z1 and Z2). The term Code Set is primarily used in conjunction with Infa Red remotes and keypads. A Code Set is essentially a particular product ID associated with an IR remote. This Code Set is assigned to control a particular Hardware Zone (or Zones).
Currently, there are two types of Code Sets supported in the CT 610 and CT 310 associated with each Hardware Zone: Group and Individual. This implies that multiple remotes can uniquely control the same Hardware Zone.
NOTE: Code Sets are referred to by number. For example, there are 9 default Code Sets in
the CT 610:
Two Group Code Sets: 3 and 4
Six Individual Code Sets: 4, 11, 12, 13, 14, 15, and 16
B&K Components Device Interface Protocol (BKC-DIP) Specification
Version 2.00.00
Updated 04/22/02
Page 17 of 54
Loading...
+ 37 hidden pages
