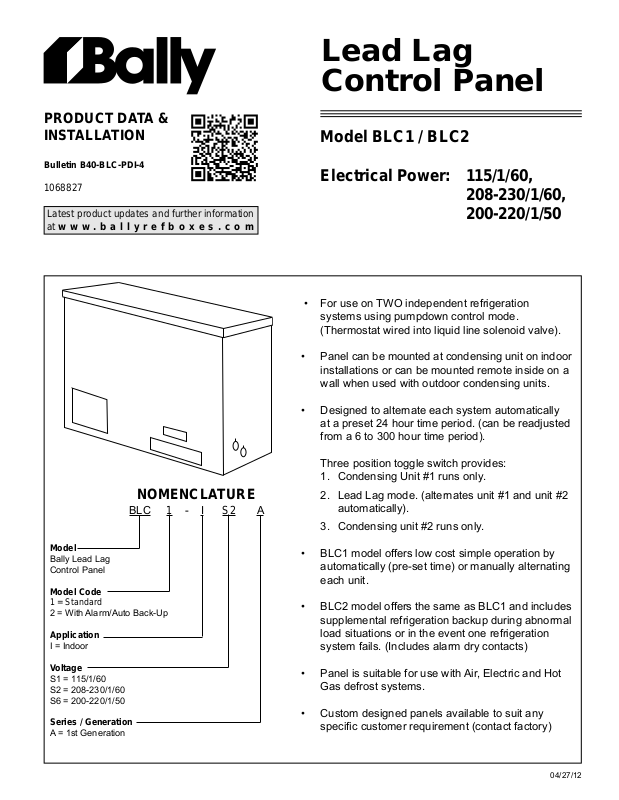

Bally Refrigerated Boxes BLC1 Installation Manual

PRODUCT DATA &
04/27/12
INSTALLATION
Bulletin B40-BLC-PDI-4
1068827
Lead Lag Control Panel
Model BLC1 / BLC2
Electrical Power: 115/1/60, 208-230/1/60,
Latest product updates and further information at www.ballyrefboxes.com
NOMENCLATURE
BLC 1 - I S2 A
200-220/1/50
• For use on TWO independent refrigeration systems using pumpdown control mode. (Thermostat wired into liquid line solenoid valve).
Panel can be mounted at condensing unit on indoor installations or can be mounted remote inside on a wall when used with outdoor condensing units.
• Designed to alternate each system automatically at a preset 24 hour time period. (can be readjusted from a 6 to 300 hour time period).
Three position toggle switch provides:
1. Condensing Unit #1 runs only.
2. Lead Lag mode. (alternates unit #1 and unit #2
automatically).
3. Condensing unit #2 runs only.
Model
Bally Lead Lag Control Panel
Model Code
1 = Standard
2 = With Alarm/Auto Back-Up
Application
I = Indoor
Voltage
S1 = 115/1/60 S2 = 208-230/1/60 S6 = 200-220/1/50
Series / Generation
A = 1st Generation
BLC1 model offers low cost simple operation by automatically (pre-set time) or manually alternating each unit.
BLC2 model offers the same as BLC1 and includes supplemental refrigeration backup during abnormal load situations or in the event one refrigeration system fails. (Includes alarm dry contacts)
Panel is suitable for use with Air, Electric and Hot Gas defrost systems.
Custom designed panels available to suit any specic customer requirement (contact factory)
BLC1
B40-BLC-PDI-4
- 2 -
04/27/12
PANEL LEAD-LAG WIRING -
BLC1
BLC1
B40-BLC-PDI-4
- 3 -
04/27/12

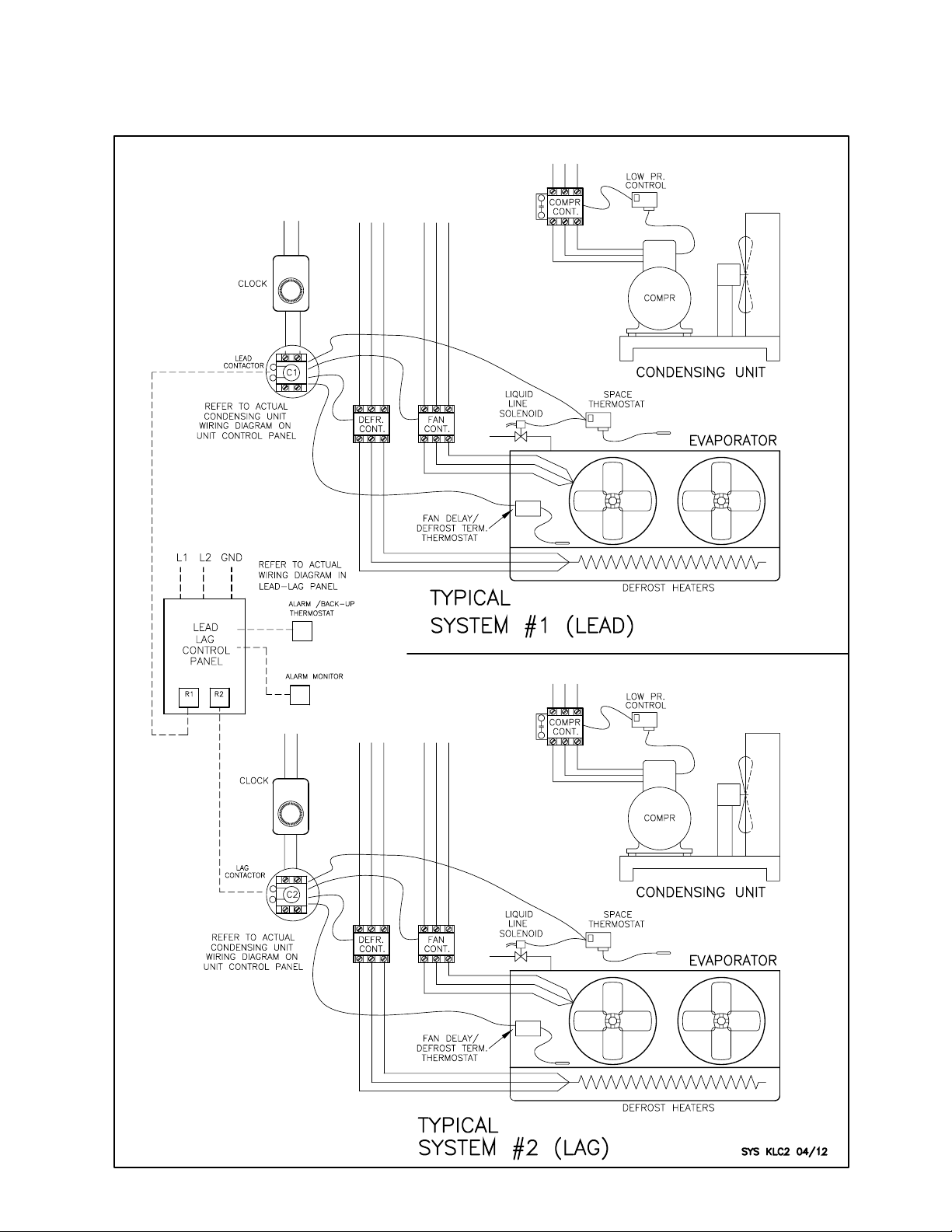

SYSTEM LEAD-LAG WIRING -
BLC1
