Page 1

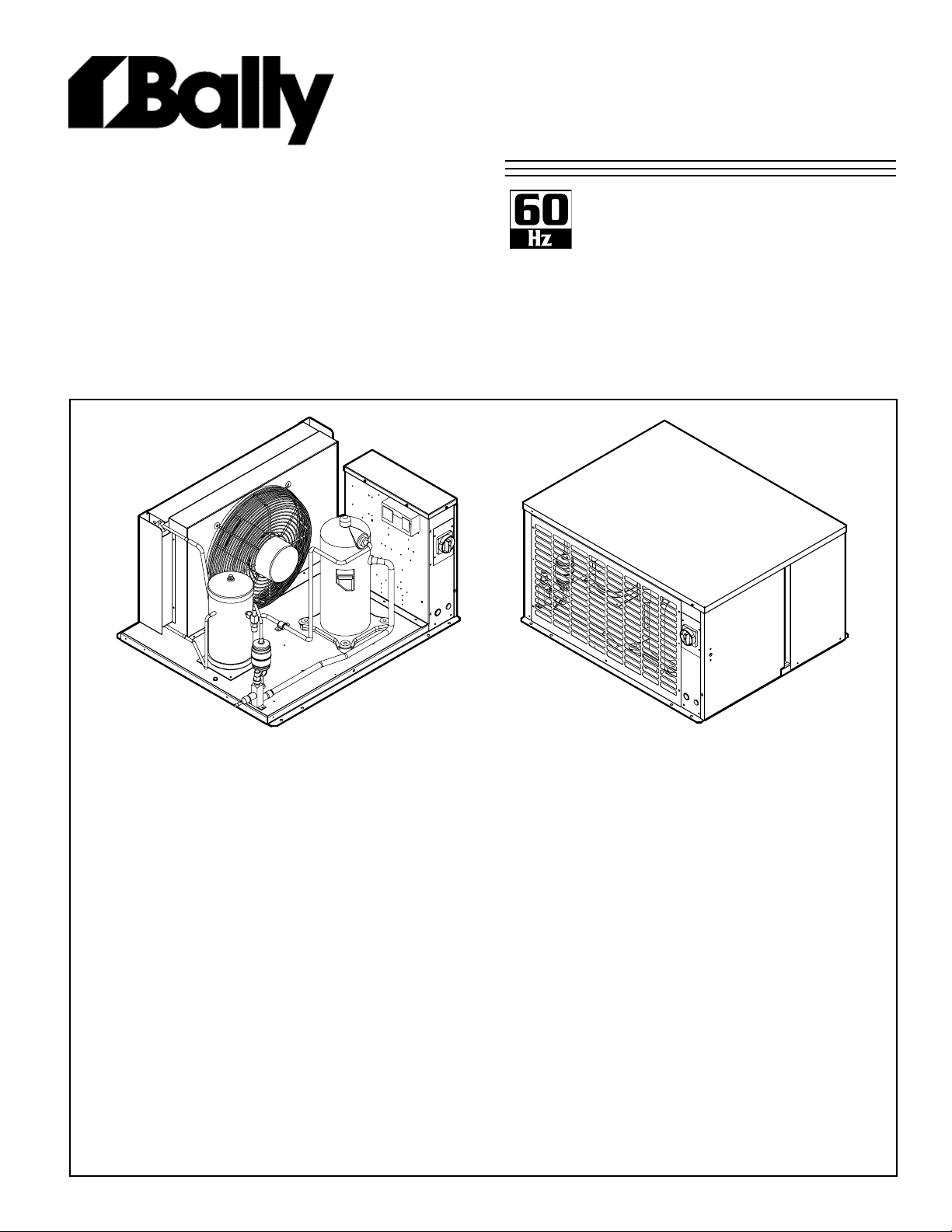

BEZ-Line Condensing Units

PRODUCT DATA & SPECIFICATIONS

Bulletin B40-BEZ-PDS-60-4

1087395

Indoor/Outdoor Air-Cooled Scroll

Condensing Units

1 to 15 HP - High, Medium and Low Temperature Refrigeration

Indoor Unit

Outdoor Unit

CONTENTS

Nomenclature................................................................................................................

Features........................................................................................................................

Capacity Data (Imperial and Metric)..............................................................................

Electrical Data...............................................................................................................

Dimensional Data..........................................................................................................

Specications................................................................................................................

Wiring Diagrams............................................................................................................

Generic Service Parts List.............................................................................................

Warranty........................................................................................................................

Project Information........................................................................................................

“As Built” Service Parts List...........................................................................................

Page

2 - 3

4 - 11

12 - 15

16 - 19

20 - 21

22 - 26

27 - 28

BACK

Page 2

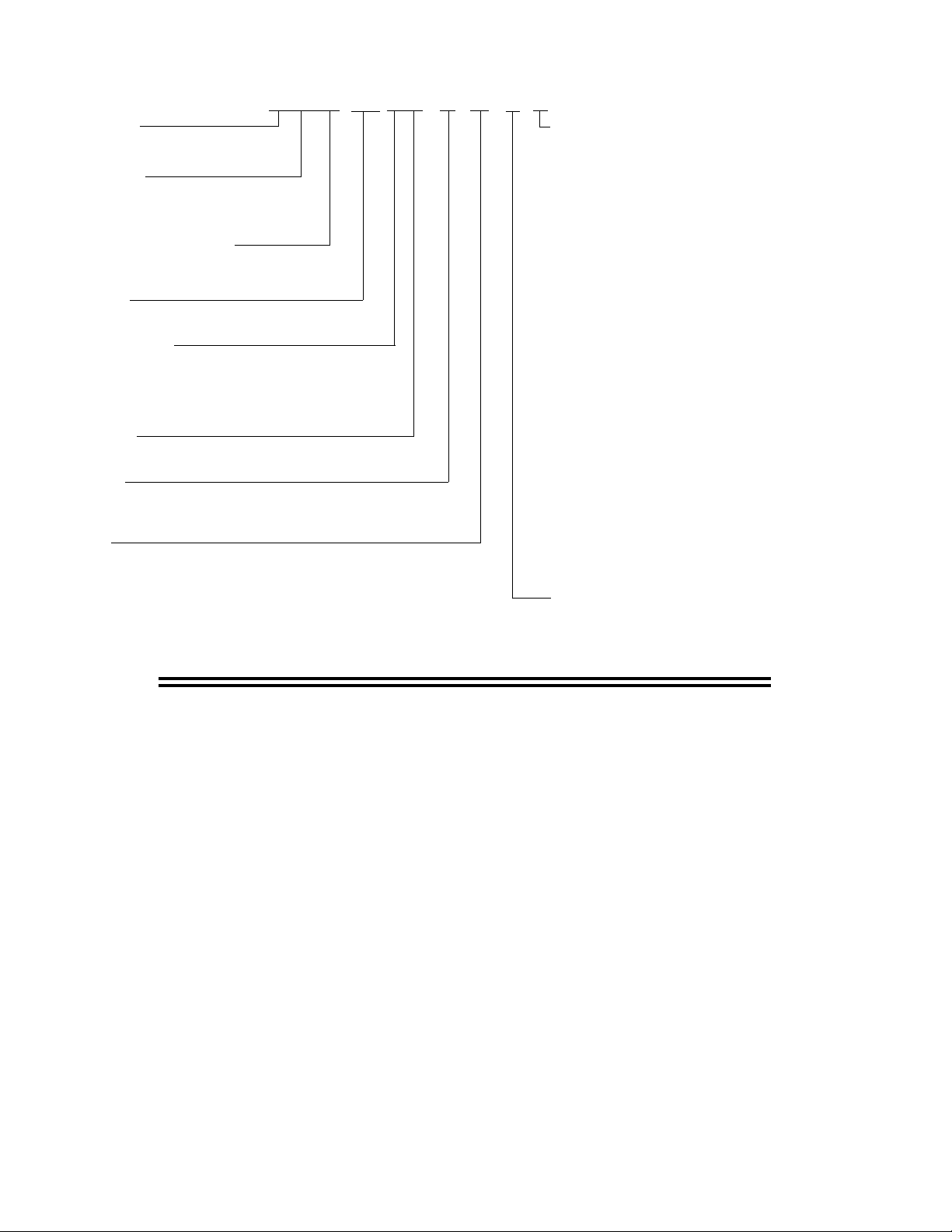

B E Z A 020 H 6 - H T4 B - A

Model Name

B = Bally

Model Series EZ = Excel Scroll Air Cooled

Condensing Unit Line

Compressor Manufacturer

A = Copeland T = Tecumseh

Nominal HP

010 - 150 = 1 - 15 HP

Application Range

H = High and Med Temp M = Med Temp E = Extended Medium Temperature L = Low Temp

Refrigerant*

2 = R22, 6 = R404A / R507

Enclosure

H = Outdoor I = Indoor

Voltage*

S2 = 208/230-1-60 S3 = 230-1-60 S6 = 200/220-1-50 S7 = 200-1-50 T3 = 208/230-3-60 T4 = 460-3-60 T5 = 575-3-60 T7 = 200/220-3-50 T9 = 380/400-3-50

NOMENCLATURE

Optional Feature Packages (Factory Mounted)

A = Standard Features (see below) B = Standard Features (see below) Plus Sealed Liquid Line Filter Drier and Sight Glass C = Standard Features (see below) Plus Sealed Liquid Line Filter Drier and Sight Glass Plus Suction Accumulator Plus Electric Defrost Kit D = Standard Features (see below) Plus Sealed Liquid Line Filter Drier and Sight Glass Plus Heated and Insulated Receiver E = Standard Features (see below) Plus Sealed Liquid Line Filter Drier and Sight Glass Plus Heated and Insulated Receiver Plus Suction Accumulator Plus Electric Defrost Kit F = Standard Features (see below) PlusSealedliquidlinelterdrierandsightglass Plus Electric Defrost Kit G = Standard Features (see below) PlusSealedliquidlinelterdrierandsightglass Plus Electric Defrost Kit Plus Heated and insulated receiver H = Standard Features (see below) Plus Sealed Liquid Line Filter Drier and Sight Glass Plus Timeclock J = Standard Features (see below) Plus Sealed Liquid Line Filter Drier and Sight Glass Plus Heated and insulated receiver

Plus Suction Accumulator

Series

B = Latest Catalog spec (2nd generation)

* subject to compressor availability

STANDARD FEATURES

Indoor Unit:

• Weatherproof electrical control box with compressor contactor and fused control circuit

• Welded hermetic scroll compressor

• Highefciencyenhancedtubeandn  

condenser design

• EnergyefcientPSCcondenserfanmotor

• Receiver with fusible plug and liquid shut off

valve

• Suction service valve

• Pre-formed copper tubing

• Liquid injection (low temp. models)

• Unit leak tested and shipped with Helium holding

charge

• Fixed high and low pressure control

• Receiver inlet and outlet shut off valve

(2 fan units)

• Discharge thermostat (Copeland models only) on applicable models only

Outdoor Unit: All Standard Features of Indoor Unit, Plus:

• Outdoor weather-resistant housing with removable hood

• Flooded head pressure control (non adjustable)

• Crankcase heater

• Fancyclingcontrolwithexhose(2fanunits)

- 2 -

Page 3

OPTIONAL FEATURE PACKAGES (Factory Mounted)

Package A:

• Standard Features (see pg. 2)

Package B:

• Standard Features (see pg. 2)

• PlusSealedLiquidLineFilterDrier&SightGlass

Package C:

• Standard Features (see pg. 2)

• PlusSealedLiquidLineFilterDrier&SightGlass

• Plus Suction Accumulator

• Plus Electric Defrost Kit

Package D:

• Standard Features (see pg. 2)

• PlusSealedLiquidLineFilterDrier&SightGlass

• Plus Heated and Insulated Receiver

Package E:

• Standard Features (see pg. 2)

• PlusSealedLiquidLineFilterDrier&SightGlass

• Plus Heated and Insulated Receiver

• Plus Suction Accumulator

• Plus Electric Defrost Kit

Package F:

• Standard Features (see pg. 2)

• PlusSealedliquidlinelterdrierandsightglass

• Plus Electric Defrost Kit

Package G:

 • Standard Features (see pg. 2)

• PlusSealedliquidlinelterdrierandsightglass

• Plus Electric Defrost Kit

• Plus Heated and insulated receiver

Package H:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier and Sight

Glass

• Plus Timeclock

Package J:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier and Sight

Glass

• Plus Heated and insulated receiver

• Plus Suction Accumulator

OPTIONAL FEATURES (Factory Mounted)

• Suction accumulator

• Suction accumulator with boil-out coil

• Discharge line Check valve

• Oil separator

• Oilseparatorc/woilreturnlter&solenoid

valve

• Adjustable head pressure control valves

• Receiver inlet ball valve

• Heated and Insulated receiver

• Over-sized receiver

• Sealedliquidlinelterdrier&sight-glass

• Ball valve - liquid line (shipped loose)

• Insulated suction lines

• Leg Kits

• Discharge air hood

• Adjustablelowpressurecontrolwithex

hose

• Compressor Circuit breaker

• Current sensing relay - for use with Oil

safety control (where applicable)

• Defrost heater contactor c/w fuse block

• Evaporator Fan contactor c/w fuse block

• Disconnect switch

• Disconnect Fusing

• Pump down toggle switch

• Lock out control circuit relay

• Hoffmann Speed control for condenser fan

 (replacesoodedvalve)

• Time delay relay for compressor

• Mechanical Time Clock

• Sub cooling circuit on 5 - 15 HP models

• Liquid line solenoid valve-(with standard

• Electronic Defrost Kit

• Electronic Voltage/Phase Monitor

230 volt coil)-shipped loose

-3 -

Page 4

BEZA

COPELAND

CONDENSING

UNIT

MODEL

BEZA020H2

Compressor

Model

ZB15KCE

BEZA025H2

Compressor

Model

ZB19KCE

BEZA030H2

Compressor

Model

ZB21KCE

BEZA035H2

Compressor

Model

ZB26KCE

BEZA040H2

Compressor

Model

ZB30KCE

BEZA050H2

Compressor

Model

ZB38KCE

BEZA060H2

Compressor

Model

ZB45KCE

SATURATED

SUCTION

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

45 (7.2) 28100 (8236) 27400 (8030) 26600 (7796) 25900 (7591) 25100 (7356) 24300 (7122) 23500 (6887)

40 (4.4) 25900 (7591) 25200 (7386) 24500 (7181) 23800 (6975) 23100 (6770) 22400 (6565) 21600 (6331)

35 (1.7) 23800 (6975) 23100 (6770) 22500 (6594) 21900 (6419) 21200 (6213) 20500 (6008) 19800 (5803)

30 -(1.1) 21700 (6360) 21200 (6213) 20600 (6038) 20000 (5862) 19400 (5686) 18800 (5510) 18100 (5305)

25 -(3.9) 19800 (5803) 19300 (5657) 18800 (5510) 18200 (5334) 17700 (5188) 17100 (5012) N/A N/A

45 (7.2) 32200 (9437) 31400 (9203) 30500 (8939) 29700 (8705) 28800 (8441) 27900 (8177) 26900 (7884)

40 (4.4) 29500 (8646) 28800 (8441) 28000 (8206) 27200 (7972) 26400 (7737) 25500 (7474) 24700 (7239)

35 (1.7) 27000 (7913) 26300 (7708) 25600 (7503) 24900 (7298) 24200 (7093) 23400 (6858) 22600 (6624)

30 -(1.1) 24700 (7239) 24100 (7063) 23400 (6858) 22700 (6653) 22100 (6477) 21300 (6243) 20600 (6038)

25 -(3.9) 22500 (6594) 21900 (6419) 21300 (6243) 20700 (6067) 20100 (5891) 19400 (5686) N/A N/A

45 (7.2) 42500 (12456) 41500 (12163) 40500 (11870) 39400 (11547) 38300 (11225) 37200 (10903) 36000 (10551)

40 (4.4) 39100 (11460) 38100 (11166) 37200 (10903) 36200 (10610) 35100 (10287) 34100 (9994) 33000 (9672)

35 (1.7) 35800 (10492) 34900 (10229) 34000 (9965) 33100 (9701) 32200 (9437) 31200 (9144) 30200 (8851)

30 -(1.1) 32700 (9584) 31900 (9349) 31000 (9086) 30200 (8851) 29300 (8587) 28400 (8324) 27500 (8060)

25 -(3.9) 29700 (8705) 29000 (8499) 28200 (8265) 27400 (8030) 26600 (7796) 25800 (7562) N/A N/A

45 (7.2) 48400 (14185) 47200 (13834) 45900 (13453) 44700 (13101) 43300 (12691) 42000 (12309) 40600 (11899)

40 (4.4) 44500 (13042) 43300 (12691) 42200 (12368) 41000 (12016) 39800 (11665) 38600 (11313) 37300 (10932)

35 (1.7) 40800 (11958) 39700 (11635) 38700 (11342) 37600 (11020) 36500 (10698) 35400 (10375) 34200 (10023)

30 -(1.1) 37300 (10932) 36300 (10639) 35400 (10375) 34400 (10082) 33400 (9789) 32300 (9467) 31300 (9174)

25 -(3.9) 34000 (9965) 33100 (9701) 32200 (9437) 31300 (9174) 30400 (8910) 29400 (8617) N/A N/A

45 (7.2) 55600 (16295) 54100 (15856) 52700 (15445) 51200 (15006) 49700 (14566) 48100 (14097) 46500 (13628)

40 (4.4) 51200 (15006) 49800 (14596) 48500 (14215) 47100 (13804) 45700 (13394) 44300 (12984) 42800 (12544)

35 (1.7) 47000 (13775) 45700 (13394)

30 -(1.1) 43000 (12603) 41800 (12251) 40700 (11928) 39500 (11577) 38300 (11225) 37100 (10873) 35900 (10522)

25 -(3.9) 39200 (11489) 38100 (11166) 37100 (10873) 36000 (10551) 34900 (10229) 33800 (9906) N/A N/A

45 (7.2) 68600 (20106) 66900 (19607) 65100 (19080) 63300 (18552) 61400 (17995) 59500 (17438) 57500 (16852)

40 (4.4) 63200 (18523) 61600 (18054) 59900 (17556) 58200 (17057) 56500 (16559) 54700 (16032) 52900 (15504)

35 (1.7) 58000 (16999) 56500 (16559) 55000 (16120) 53400 (15651) 51800 (15182) 50200 (14713) 48500 (14215)

30 -(1.1) 53000 (15533) 51700 (15152) 50200 (14713) 48800 (14302) 47300 (13863) 45800 (13423) 44300 (12984)

25 -(3.9) 48300 (14156) 47100 (13804) 45800 (13423) 44400 (13013) 43100 (12632) 41700 (12222) N/A N/A

45 (7.2) 83700 (24531) 81600 (23916) 79500 (23300) 77300 (22655) 75000 (21981) 72700 (21307) 70300 (20604)

40 (4.4) 76900 (22538) 75000 (21981) 73000 (21395) 71000 (20809) 68900 (20193) 66700 (19549) 64500 (18904)

35 (1.7) 70500 (20662) 68700 (20135) 66900 (19607) 65000 (19050) 63000 (18464) 61000 (17878) 58900 (17263)

30 -(1.1) 64400 (18875) 62800 (18406) 61100 (17907) 59300 (17380) 57500 (16852) 55600 (16295) 53700 (15739)

25 -(3.9) 58600 (17175) 57100 (16735) 55500 (16266) 53900 (15797) 52300 (15328) 50500 (14801) N/A N/A

R22 - HIGH TEMPERATURE

CAPACITY BTU/H (WATTS)

AMBIENT TEMPERATURE ° F ( ° C)

44500 (13042) 43200 (12661) 41900 (12280) 40600 (11899) 39200 (11489)

60Hz

- 4 -

Page 5

BEZA

COPELAND

R22 - HIGH TEMPERATURE

CAPACITY BTU/H (WATTS) (cont’d)

60Hz

CONDENSING

UNIT

MODEL

BEZA065H2

Compressor

Model

ZB50KCE

BEZA070H2

Compressor

Model

ZB58KCE

BEZA076H2

Compressor

Model

ZB66KCE

BEZA085H2

Compressor

Model

ZB76KCE

BEZA100H2

Compressor

Model

ZB88KCE

BEZA150H2

Compressor

Model

ZB114KCE

SATURATED

SUCTION

TEMP.

° F ° C

45 (7.2) 92300 (27052) 89900 (26348) 87500 (25645) 85000 (24912) 82400 (24150) 79700 (23359) 76900 (22538) 40 (4.4) 84600 (24795) 82400 (24150) 80200 (23505) 77800 (22802) 75400 (22098) 72900 (21366) 70200 (20574) 35 (1.7) 77300 (22655) 75300 (22069) 73200 (21454) 71000 (20809) 68700 (20135) 66400 (19461) 63900 (18728) 30 -(1.1) 70400 (20633) 68500 (20076) 66600 (19519) 64500 (18904) 62400 (18288) 60200 (17644) 57800 (16940) 25 -(3.9) 63900 (18728) 62200 (18230) 60400 (17702) 58400 (17116) 56400 (16530) 54300 (15914) 52100 (15270) 45 (7.2) 102200 (29953) 99500 (29162) 96700 (28341) 93800 (27491) 90800 (26612) 87700 (25703) 84500 (24766) 40 (4.4) 93900 (27521) 91400 (26788) 88800 (26026) 86100 (25234) 83300 (24414) 80400 (23564) 77400 (22685) 35 (1.7) 86000 (25205) 83700 (24531) 81300 (23828) 78800 (23095) 76200 (22333) 73500 (21542) 70600 (20692) 30 -(1.1) 78500 (23007) 76300 (22362) 74100 (21717) 71700 (21014) 69300 (20311) 66800 (19578) 64200 (18816) 25 -(3.9) 71300 (20897) 69300 (20311) 67300 (19725) 65100 (19080) 62800 (18406) 60500 (17732) 58000 (16999) 45 (7.2) 119800 (35111) 116900 (34261) 114000 (33411) 110900 (32503) 107800 (31594) 104700 (30686) 101400 (29719) 40 (4.4) 109900 (32210) 107300 (31448) 104600 (30657) 101800 (29836) 99000 (29015) 96100 (28165) 93100 (27286) 35 (1.7) 100500 (29455) 98100 (28751) 95600 (28019) 93100 (27286) 90500 (26524) 87900 (25762) 85100 (24941) 30 -(1.1) 91600 (26846) 89400 (26202) 87200 (25557) 84900 (24883) 82500 (24179) 80100 (23476) 77600 (22743) 25 -(3.9) 83300 (24414) 81300 (23828) 79200 (23212) 77100 (22597) 75000 (21981) 72700 (21307) 70400 (20633)

45 (7.2) 137900 (40416) 134500 (39420) 131000 (38394) 127400 (37339) 123700 (36254) 120000 (35170) 116200 (34056) 40 (4.4) 127200 (37280) 124000 (36342) 120800 (35404) 117500 (34437) 114100 (33441) 110600 (32415) 107000 (31360) 35 (1.7) 116900 (34261) 114000 (33411) 111000 (32532) 107900(31624) 104800 (30715) 101600 (29777) 98200 (28781) 30 -(1.1) 107000 (31360) 104400 (30598) 101600 (29777) 98800 (28957) 95900 (28107) 92900 (27227) 89800 (26319) 25 -(3.9) 97700 (28634) 95300 (27931) 92700 (27169) 90100 (26407) 87400 (25615) 84700 (24824) 81800 (23974) 45 (7.2) 154400 (45252) 150200 (44021) 146000 (42790) 141700 (41530) 137300 (40240) 132800 (38921) 128000 (37515) 40 (4.4) 143100 (41940) 139000 (40739) 134900 (39537) 130800 (38335) 126600 (37104) 122200 (35815) 117600 (34467) 35 (1.7) 131700 (38599) 127800 (37456) 30 -(1.1) 120500 (35317) 116800 (34232) 113000 (33118) 109300(32034) 105500 (30920) 101700 (29807) 97700 (28634) 25 -(3.9) 109500 (32093) 106000 (31067) 102500 (30041) 99000 (29015) 95600 (28019) 92000 (26964) 88400 (25909) 45 (7.2) 202800 (59420) 197100 (57750) 191500 (56110) 185900(54469) 180200 (52799) 174500 (51129) 168500 (49371) 40 (4.4) 186400 (54615) 181300 (53121) 176100 (51597) 171000 (50103) 165700 (48550) 160300 (46968) 154700 (45327) 35 (1.7) 170800 (50044) 166200 (48697) 161500 (47320) 156800 (45942) 151800 (44477) 146700 (42983) 141400 (41430) 30 (-1.1) 156100 (45737) 151900 (44507) 147600 (43247) 143100(41928) 138500 (40581) 133600 (39145) 128500 (37651) 25 (-3.9) 142200 (41665) 138300 (40522) 134300 (39350) 130100(38119) 125700 (36830) 121000 (35453) 115900 (33959)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

AMBIENT TEMPERATURE ° F ( ° C)

123900 (36313) 119900(35141) 115900 (33968) 111800 (32767) 107500 (31506)

- 5 -

Page 6

BEZA

COPELAND

R404A/R507 - MEDIUM TEMPERATURE

CAPACITY BTU/H (WATTS)

60Hz

COND. UNIT

MODEL

BEZA010M6

Compressor

Model

ZB10KCE

BEZA011M6

Compressor

Model

ZB11KCE

BEZA015M6

Compressor

Model

ZB13KCE

BEZA020M6

Compressor

Model

ZB15KCE

BEZA025M6

Compressor

Model

ZB19KCE

SAT. SUCTION

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

35 (1.7) 16300 (4777) 15600 (4572) 15000 (4396) 14200 (4162) 13500 (3957) 12800 (3751) 12000 (3517)

30 (-1.1) 15000 (4396) 14400 (4220) 13800 (4045) 13100 (3839) 12400 (3634) 11700 (3429) 11000 (3224)

25 (-3.9) 13800 (4045) 13200 (3869) 12600 (3693) 12000 (3517) 11400 (3341) 10800 (3165) 10100 (2960)

20 (-6.7) 12600 (3693) 12100 (3546) 11500 (3370) 11000 (3224) 10400 (3048) 9800 (2872) 9200 (2696)

15 (-9.4) 11500 (3370) 11000 (3224) 10500 (3077) 10000 (2931) 9500 (2784) 9000 (2638) 8400 (2462)

10 (-12.2) 10400 (3048) 10000 (2931) 9600 (2814) 9100 (2667) 8600 (2521) 8100 (2374) 7600 (2227)

5 (-15.0) 9400 (2755) 9000 (2638) 8700 (2550) 8200 (2403) 7800 (2286) 7400 (2169) 6900 (2022) 0 (-17.8) 8500 (2491) 8100 (2374) 7800 (2286) 7400 (2169) 7000 (2052) 6600 (1934) 6200 (1817)

-5 (-20.6) 7600 (2227) 7300 (2140) 7000 (2052) 6700 (1964) 6300 (1846) 5900 (1729) 5500 (1612)

-10 (-23.3) 6800 (1993) 6500 (1905) 6200 (1817) 5900 (1729) 5600 (1641) 5300 (1553) 4900 (1436) 35 (1.7) 19000 (5569) 18200 (5334) 17500 (5129) 16700 (4894) 15900 (4660) 15100 (4426) 14300 (4191) 30 (-1.1) 17400 (5100) 16700 (4894) 16000 (4689) 15300 (4484) 14600 (4279) 13900 (4074) 13100 (3839)

25 (-3.9) 15900 (4660) 15300 (4484) 14700 (4308) 14000 (4103) 13400 (3927) 12700 (3722) 12000 (3517)

20 (-6.7) 14500 (4250) 13900 (4074) 13400 (3927) 12800 (3751) 12200 (3576) 11600 (3400) 10900 (3195)

15 (-9.4) 13200 (3869) 12700 (3722) 12200 (3576) 11600 (3400) 11100 (3253) 10500 (3077) 9900 (2902)

10 (-12.2) 11900 (3488) 11500 (3370) 11000 (3224) 10500 (3077) 10000 (2931) 9500 (2784) 8900 (2608)

5 (-15.0) 10800 (3165) 10300 (3019) 9900 (2902) 9500 (2784) 9000 (2638) 8500 (2491) 8000 (2345)

0 (-17.8) 9600 (2814) 9300 (2726) 8900 (2608) 8500 (2491) 8000 (2345) 7500 (2198) 7100 (2081)

-5 (-20.6) 8600 (2521) 8300 (2433) 7900 (2315) 7500 (2198) 7100 (2081) 6600 (1934) 6200 (1817)

-10 (-23.3) 7600 (2227) 7300 (2140) 7000 (2052) 6600 (1934) 6200 (1817) 5800 (1700) 5300 (1553)

35 (1.7) 22600 (6624) 21700 (6360) 20700 (6067) 19700 (5774) 18700 (5481) 17600 (5158) 16500 (4836)

30 (-1.1) 20800 (6096) 19900 (5832) 19000 (5569) 18100 (5305) 17100 (5012) 16100 (4719) 15000 (4396) 25 (-3.9) 19000 (5569) 18200 (5334) 17400 (5100) 16500 (4836) 15600 (4572) 14700 (4308)

20 (-6.7) 17300 (5070) 16600 (4865) 15800 (4631) 15000 (4396) 14200 (4162) 13300 (3898) 12300 (3605)

15 (-9.4) 15800 (4631) 15100 (4426) 14400 (4220) 13600 (3986) 12800 (3751) 11900 (3488) 11000 (3224) 10 (-12.2) 14200 (4162) 13600 (3986) 12900 (3781) 12200 (3576) 11500 (3370) 10600 (3107) 9800 (2872)

5 (-15.0) 12800 (3751) 12200 (3576) 11600 (3400) 10900 (3195) 10200 (2989) 9400 (2755) 8600 (2521)

0 (-17.8) 11400 (3341) 10900 (3195) 10300 (3019) 9600 (2814) 8900 (2608) 8200 (2403) 7400 (2169)

-5 (-20.6) 10100 (2960) 9600 (2814) 9000 (2638) 8400 (2462) 7700 (2257) 7000 (2052) 6200 (1817)

-10 (-23.3) 8900 (2608) 8400 (2462) 7800 (2286) 7200 (2110) 6600 (1934) 5800 (1700) 5100 (1495)

35 (1.7) 24300 (7122) 23400 (6858) 22400 (6565) 21400 (6272) 20300 (5950) 19300 (5657) 18200 (5334)

30 (-1.1) 22500 (6594) 21600 (6331) 20600 (6038) 19700 (5774) 18800 (5510) 17800 (5217) 16800 (4924) 25 (-3.9) 20700 (6067) 19800 (5803) 19000 (5569) 18200 (5334) 17300 (5070) 16400 (4807) 15500 (4543)

20 (-6.7) 19000 (5569) 18200 (5334) 17400 (5100) 16700 (4894) 15900 (4660) 15000 (4396) 14200 (4162)

15 (-9.4) 17300 (5070) 16700 (4894) 15900 (4660) 15200 (4455) 14500 (4250) 13700 (4015) 13000 (3810)

10 (-12.2) 15800 (4631) 15200 (4455) 14500 (4250) 13900 (4074) 13200 (3869) 12500 (3664) 11800 (3458)

5 (-15.0) 14300 (4191) 13800 (4045) 13200 (3869) 12600 (3693) 12000 (3517) 11400 (3341) 10700 (3136) 0 (-17.8) 13000 (3810) 12500 (3664) 11900 (3488) 11400 (3341) 10800 (3165) 10300 (3019) 9700 (2843)

-5 (-20.6) 11700 (3429) 11200 (3283) 10800 (3165) 10300 (3019) 9800 (2872) 9300 (2726) 8700 (2550)

-10 (-23.3) 10500 (3077) 10100 (2960) 9600 (2814) 9200 (2696) 8800 (2579) 8300 (2433) 7800 (2286)

35 (1.7) 30400 (8910) 29100 (8529) 27900 (8177) 26700 (7825) 25400 (7444) 24100 (7063) 22800 (6682) 30 (-1.1) 28000 (8206) 26900 (7884) 25800 (7562) 24600 (7210) 23400 (6858) 22200 (6506) 21000 (6155)

25 (-3.9) 25800 (7562) 24800 (7268) 23700 (6946) 22700 (6653) 21600 (6331) 20500 (6008) 19300 (5657)

20 (-6.7) 23700 (6946) 22700 (6653) 21800 (6389) 20800 (6096) 19800 (5803) 18800 (5510) 17700 (5188)

15 (-9.4) 21600 (6331) 20800 (6096) 19900 (5832) 19000 (5569) 18100 (5305) 17200 (5041) 16200 (4748)

10 (-12.2) 19700 (5774) 18900 (5539) 18100 (5305) 17300 (5070) 16500 (4836) 15600 (4572) 14800 (4338)

5 (-15.0) 17900 (5246) 17200 (5041) 16500 (4836) 15700 (4601) 15000 (4396) 14200 (4162) 13400 (3927)

0 (-17.8) 16200 (4748) 15600 (4572) 14900

-5 (-20.6) 14600 (4279) 14000 (4103) 13400 (3927) 12800 (3751) 12200 (3576) 11600 (3400) 10900 (3195)

-10 (-23.3) 13100 (3839) 12600 (3693) 12000 (3517) 11500 (3370) 10900 (3195) 10300 (3019) 9700 (2843)

AMBIENT TEMPERATURE ° F ( ° C)

13700 (4015)

(4367) 14200 (4162) 13500 (3957) 12800 (3751) 12100 (3546)

- 6 -

Page 7

BEZA

COPELAND

R404A/R507 - MEDIUM TEMPERATURE (cont’d)

CAPACITY BTU/H (WATTS)

60Hz

COND. UNIT

MODEL

BEZA030M6

Compressor

Model

ZB21KCE

BEZA035M6

Compressor

Model

ZB26KCE

BEZA040M6

Compressor

Model

ZB30KCE

BEZA050M6

Compressor

Model

ZB38KCE

BEZA060M6

Compressor

Model

ZB45KCE

SAT. SUCT.

TEMP.

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

35 (1.7) 38100 (11166) 36600 (10727) 35100 (10287) 33600 (9848) 32100 (9408) 30600 (8968) 29000 (8499)

30 (-1.1) 35000 (10258) 33700 (9877) 32300 (9467) 30900 (9056) 29500 (8646) 28100 (8236) 26700 (7825)

25 (-3.9) 32100 (9408) 30900 (9056) 29700 (8705) 28400 (8324) 27100 (7943) 25800 (7562) 24400 (7151)

20 (-6.7) 29400 (8617) 28300 (8294) 27100 (7943) 26000 (7620) 24800 (7268) 23600 (6917) 22300 (6536)

15 (-9.4) 26800 (7855) 25800 (7562) 24700 (7239) 23700 (6946) 22600 (6624) 21500 (6301) 20400 (5979)

10 (-12.2) 24300 (7122) 23400 (6858) 22500 (6594) 21500 (6301) 20500 (6008) 19500 (5715) 18500 (5422)

5 (-15.0) 22000 (6448) 21200 (6213) 20400 (5979) 19500 (5715) 18600 (5451) 17700 (5188) 16700 (4894) 0 (-17.8) 19900 (5832) 19100 (5598) 18400 (5393) 17600 (5158) 16800 (4924) 15900 (4660) 15100 (4426)

-5 (-20.6) 17900 (5246) 17200 (5041) 16500 (4836) 15800 (4631) 15100 (4426) 14300 (4191) 13500 (3957)

-10 (-23.3) 16000 (4689) 15400 (4513) 14800 (4338) 14100 (4132) 13500 (3957) 12800 (3751) 12100 (3546) 35 (1.7) 43500 (12749) 41800 (12251) 40100 (11753) 38300 (11225) 36500 (10698) 34700 (10170) 32900 (9642) 30 (-1.1) 40100 (11753) 38500 (11284) 36900 (10815) 35300 (10346) 33700 (9877) 32000 (9379) 30300 (8880)

25 (-3.9) 36800 (10785) 35400 (10375) 33900 (9936) 32500 (9525) 30900 (9056) 29400 (8617) 27800 (8148)

20 (-6.7) 33700 (9877) 32400 (9496) 31100 (9115) 29700 (8705) 28300 (8294) 26900 (7884) 25500 (7474)

15 (-9.4) 30800 (9027) 29600 (8675) 28400 (8324) 27200 (7972) 25900 (7591) 24600 (7210) 23200 (6800)

10 (-12.2) 28000 (8206) 27000 (7913) 25800 (7562) 24700 (7239) 23600 (6917) 22400 (6565) 21100 (6184)

5 (-15.0) 25400 (7444) 24400 (7151) 23400 (6858) 22400 (6565) 21400 (6272) 20300 (5950) 19200 (5627)

0 (-17.8) 23000 (6741) 22100 (6477) 21200 (6213) 20200 (5920) 19300 (5657) 18300 (5363) 17300 (5070)

-5 (-20.6) 20700 (6067) 19900 (5832) 19100 (5598) 18200 (5334) 17400 (5100) 16500 (4836) 15500 (4543)

-10 (-23.3) 18500 (5422) 17800 (5217) 17100 (5012) 16300 (4777) 15500 (4543) 14700 (4308) 13900 (4074) 35 (1.7) 48800 (14302) 46900 (13746) 44800 (13130) 42800 (12544) 40700 (11928) 38600 (11313) 36400 (10668)

30 (-1.1) 45000 (13189) 43200 (12661) 41400 (12134) 39500 (11577) 37600 (11020) 35600 (10434) 33600 (9848)

25 (-3.9) 41400 (12134) 39700 (11635) 38000 (11137) 36300 (10639) 34500 (10111) 32700 (9584)

20 (-6.7) 37900 (11108) 36400 (10668) 34800 (10199) 33200 (9730) 31600 (9261) 29900 (8763) 28200 (8265)

15 (-9.4) 34600 (10141) 33200 (9730) 31700 (9291) 30300 (8880) 28800 (8441) 27300 (8001) 25700 (7532)

10 (-12.2) 31400 (9203) 30100 (8822) 28800 (8441) 27500 (8060) 26100 (7649) 24700 (7239) 23300 (6829)

5 (-15.0) 28400 (8324) 27200 (7972) 26000 (7620) 24800 (7268) 23600 (6917) 22300 (6536) 21000 (6155) 0 (-17.8) 25500 (7474) 24500 (7181) 23400 (6858) 22300 (6536) 21100 (6184) 20000 (5862) 18800 (5510)

-5 (-20.6) 22800 (6682) 21900 (6419) 20900 (6125) 19900 (5832) 18800 (5510) 17700 (5188) 16600 (4865)

-10 (-23.3) 20300 (5950) 19400 (5686) 18500 (5422) 17600 (5158) 16600 (4865) 15600 (4572) 14600 (4279) 35 (1.7) 60800 (17819) 58300 (17087) 55900 (16383) 53400 (15651) 50900 (14918) 48300 (14156) 45700 (13394) 30 (-1.1) 56100 (16442) 53800 (15768) 51600 (15123) 49300 (14449) 47000 (13775) 44600 (13072) 42200 (12368)

25 (-3.9) 51600 (15123) 49500 (14508) 47500 (13921) 45400 (13306) 43200 (12661) 41000 (12016) 38800 (11372)

20 (-6.7) 47300 (13863) 45400 (13306) 43500 (12749) 41600 (12192) 39600 (11606) 37600 (11020) 35500 (10404)

15 (-9.4) 43200 (12661) 41500 (12163) 39800 (11665) 38000 (11137) 36200 (10610) 34400 (10082) 32500 (9525)

10 (-12.2) 39400 (11547) 37900 (11108) 36300 (10639) 34700 (10170) 33000 (9672) 31300 (9174) 29600 (8675)

5 (-15.0) 35800 (10492) 34400 (10082) 32900 (9642) 31500 (9232) 30000 (8792) 28400 (8324) 26800 (7855)

0 (-17.8) 32300 (9467) 31100 (9115) 29800 (8734) 28500 (8353) 27100 (7943) 25700 (7532) 24200 (7093)

-5 (-20.6) 29100 (8529) 28000 (8206) 26800 (7855) 25600 (7503) 24400 (7151) 23100 (6770) 21800 (6389)

-10 (-23.3) 26100 (7649) 25100 (7356) 24100 (7063) 23000 (6741) 21900 (6419) 20700 (6067) 19500 (5715)

35 (1.7) 74000 (21688) 71100 (20838) 68200 (19988) 65200 (19109) 62200 (18230) 59200 (17351) 56100 (16442)

30 (-1.1) 68100 (19959) 65500 (19197) 62800 (18406) 60100 (17614) 57300 (16794) 54500 (15973) 51600 (15123) 25 (-3.9) 62600 (18347) 60200 (17644) 57700 (16911) 55200 (16178) 52700 (15445) 50100 (14683) 47400 (13892)

20 (-6.7) 57300 (16794) 55100 (16149) 52900 (15504) 50600 (14830) 48200 (14127) 45800 (13423) 43400 (12720)

15 (-9.4) 52300 (15328) 50300 (14742) 48300 (14156) 46200 (13540) 44000 (12896) 41800 (12251) 39600 (11606) 10 (-12.2) 47600 (13951) 45800 (13423) 43900 (12866) 42000 (12309) 40100 (11753) 38100 (11166) 36000 (10551)

5 (-15.0) 43100 (12632) 41500 (12163) 39800 (11665) 38100 (11166) 36300 (10639) 34500 (10111) 32600 (9555)

0 (-17.8) 39000 (11430) 37500 (10991) 36000 (10551)

-5 (-20.6) 35000 (10258) 33700 (9877) 32400 (9496) 30900 (9056) 29500 (8646) 28000 (8206) 26400 (7737)

-10 (-23.3) 31400 (9203) 30200 (8851) 29000 (8499) 27700 (8118) 26400 (7737) 25100 (7356) 23600 (6917)

AMBIENT TEMPERATURE ° F ( ° C)

30900 (9056)

34400 (10082) 32800 (9613) 31100 (9115) 29400 (8617)

- 7 -

Page 8

BEZA

COPELAND

COND. UNIT

MODEL

BEZA065M6

Compressor

Model

ZB50KCE

BEZA070M6

Compressor

Model

ZB58KCE

BEZA076M6

Compressor

Model

ZB66KCE

BEZA085M6

Compressor

Model

ZB76KCE

BEZA110M6

Compressor

Model

ZB95KCE

BEZA150M6

Compressor

Model

ZB114KCE

SAT. SUCT.

TEMP.

° F ° C 35 (1.7) 80800 (23681) 77500 (22714) 74100 (21717) 70700 (20721) 67200 (19695) 63600 (18640) 59900 (17556) 30 (-1.1) 74500 (21835) 71400 (20926) 68300 (20018) 65100 (19080) 61900 (18142) 58500 (17145) 55000 (16120) 25 (-3.9) 68400 (20047) 65600 (19226) 62800 (18406) 59800 (17526) 56700 (16618) 53600 (15709) 50400 (14771) 20 (-6.7) 62700 (18376) 60100 (17614) 57400 (16823) 54700 (16032) 51900 (15211) 49000 (14361) 46000 (13482) 15 (-9.4) 57200 (16764) 54800 (16061) 52400 (15358) 49800 (14596) 47200 (13834) 44500 (13042) 41700 (12222) 10 (-12.2) 52000 (15240) 49800 (14596) 47500 (13921) 45200 (13247) 42700 (12515) 40200 (11782) 37600 (11020)

5 (-15.0) 47000 (13775) 45000 (13189) 42900 (12573) 40700 (11928) 38400 (11254) 36100 (10580) 33600 (9848) 0 (-17.8) 42300 (12397) 40400 (11841) 38500 (11284) 36400 (10668) 34300 (10053) 32100 (9408) 29800 (8734)

-5 (-20.6) 37800 (11079) 36000 (10551) 34200 (10023) 32300 (9467) 30300 (8880) 28300 (8294) 26100 (7649)

-10 (-23.3) 33500 (9818) 31900 (9349) 30100 (8822) 28300 (8294) 26500 (7767) 24500 (7181) 22500 (6594) 35 (1.7) 87600 (25674) 83500 (24472) 79300 (23242) 75100 (22011) 70700 (20721) 66300 (19431) 61700 (18083) 30 (-1.1) 81000 (23740) 77200 (22626) 73400 (21512) 69400 (20340) 65400 (19168) 61300 (17966) 57000 (16706) 25 (-3.9) 74600 (21864) 71100 (20838) 67600 (19812) 63900 (18728) 60200 (17644) 56400 (16530) 52500 (15387) 20 (-6.7) 68400 (20047) 65200 (19109) 62000 (18171) 58600 (17175) 55200 (16178) 51600 (15123) 48000 (14068) 15 (-9.4) 62400 (18288) 59500 (17438) 56500 (16559) 53400 (15651) 50300 (14742) 47000 (13775) 43700 (12808) 10 (-12.2) 56700 (16618) 54000 (15826) 51300 (15035) 48500 (14215) 45600 (13365) 42600 (12485) 39500 (11577)

5 (-15.0) 51200 (15006) 48800 (14302) 46300 (13570) 43700 (12808) 41000 (12016) 38200 (11196) 35400 (10375) 0 (-17.8) 46000 (13482) 43700 (12808) 41400 (12134) 39000 (11430) 36600 (10727) 34000 (9965) 31400 (9203)

-5 (-20.6) 41000 (12016) 39000 (11430) 36800 (10785) 34600 (10141) 32300 (9467) 30000 (8792) 27600 (8089)

-10 (-23.3) 36300 (10639) 34400 (10082) 32400 (9496) 30400 (8910) 28200 (8265) 26100 (7649) 23800 (6975) 35 (1.7) 106400 (31184) 102200 (29953) 98000 (28722) 93700 (27462) 89400 (26202) 85000 (24912) 80500 (23593) 30 (-1.1) 97900 (28693) 94100 (27579) 90300 (26465) 86400 (25322) 82400 (24150) 78400 (22978) 74200 (21747) 25 (-3.9) 89900 (26348) 86500 (25352) 83000 (24326) 79400 (23271) 75800 (22216) 72100 (21131) 20 (-6.7) 82300 (24121) 79200 (23212) 76000 (22274) 72800 (21336) 69500 (20369) 66100 (19373) 62700 (18376) 15 (-9.4) 75100 (22011) 72300 (21190) 69400 (20340) 66500 (19490) 63500 (18611) 60400 (17702) 57300 (16794) 10 (-12.2) 68300 (20018) 65700 (19256) 63200 (18523) 60500 (17732) 57800 (16940) 55000 (16120) 52200 (15299)

5 (-15.0) 61900 (18142) 59600 (17468) 57300 (16794) 54900 (16090) 52400 (15358) 49900 (14625) 47300 (13863) 0 (-17.8) 55900 (16383) 53800 (15768) 51700 (15152) 49500 (14508) 47300 (13863) 45000 (13189) 42600 (12485)

-5 (-20.6) 50200 (14713) 48400 (14185) 46500 (13628) 44500 (13042) 42500 (12456) 40400 (11841) 38200 (11196)

-10 (-23.3) 45000 (13189) 43300 (12691) 41500 (12163) 39700 (11635) 37900 (11108) 35900 (10522) 33900 (9936) 35 (1.7) 121200 (35522) 116100 (34027) 110900 (32503) 105500 (30920) 100100 (29338) 94600 (27726) 88900 (26055) 30 (-1.1) 111900 (32796) 107200 (31419) 102400 (30012) 97500 (28576) 92600 (27140) 87500 (25645) 82300 (24121) 25 (-3.9) 103000 (30188) 98700 (28927) 94400 (27667) 89900 (26348) 85400 (25029) 80700 (23652) 75900 (22245) 20 (-6.7) 94500 (27696) 90600 (26553) 86700 (25410) 82700 (24238) 78500 (23007) 74300 (21776) 69900 (20487) 15 (-9.4) 86400 (25322) 83000 (24326) 79400 (23271) 75800 (22216) 72000 (21102) 68200 (19988) 64200 (18816) 10 (-12.2) 78800 (23095) 75700 (22186) 72500 (21249) 69200 (20281) 65800 (19285) 62400 (18288) 58800 (17233)

5 (-15.0) 71700 (21014) 68900 (20193) 66000 (19343) 63000 (18464) 60000 (17585) 56800 (16647) 53600 (15709) 0 (-17.8) 64900 (19021) 62400 (18288) 59800 (17526) 57200 (16764) 54400 (15944) 51600 (15123) 48700 (14273)

-5 (-20.6) 58500 (17145) 56300 (16501) 54000 (15826) 51600 (15123) 49200 (14420) 46600 (13658) 44000 (12896)

-10 (-23.3) 52600 (15416) 50600 (14830) 48500 (14215) 46400 (13599) 44100 (12925) 41900 (12280) 39500 (11577) 35 (1.7) 153100 (44858) 147100 (43100) 141100 (41342) 134900 (39526) 128600 (37680) 122100 (35775) 115500 (33842) 30 (-1.1) 141100 (41342) 135600 (39731) 130100 (38119) 124400 (36449) 118600 (34750) 112700 (33021) 106500 (31205) 25 (-3.9) 129600 (37973) 124700 (36537) 119600 (35043) 114400 (33519) 109100 (31966) 103600 (30355) 97900 (28685) 20 (-6.7) 118800 (34808) 114300 (33490) 109700 (32142) 104900 (30736) 100000 (29300) 94900 (27806) 89600 (26253) 15 (-9.4) 108400 (31761) 104300 (30560) 100100 (29329) 95700 (28040) 91200 (26722) 86500 (25345) 81700 (23938) 10 (-12.2) 98700 (28919) 94900 (27806) 91000 (26663) 87000 (25491) 82900 (24290) 78500 (23001) 74000 (21682)

5 (-15.0) 89400 (26194) 85900 (25169) 82400 (24143) 78700 (23059) 74800 (21916) 70800 (20744) 66600 (19514) 0 (-17.8) 80600 (23616) 77400 (22678) 74100 (21711)

-5 (-20.6) 72200 (21155) 69300 (20305) 66200 (19397) 63000 (18459) 59600 (17463) 56000 (16408) 52200 (15295)

-10 (-23.3) 64300 (18840) 61500 (18020) 58600 (17170) 55500 (16262) 52300 (15324) 48900 (14328) 45300 (13273) 35 (1.7) 177200 (51920) 170200 (49869) 163000 (47759) 155700 (45620) 148200 (43423) 140600 (41196) 132800 (38910) 30 (-1.1) 163600 (47935) 157200 (46060) 150600 (44126) 143800 (42133) 136900 (40112) 129800 (38031) 122600 (35922) 25 (-3.9) 150600 (44126) 144700 (42397) 138600 (40610) 132400 (38793) 126000 (36918) 119400 (34984) 112700 (33021) 20 (-6.7) 138200 (40493) 132700 (38881) 127200 (37270) 121400 (35570) 115500 (33842) 109400 (32054) 103200 (30238) 15 (-9.4) 126300 (37006) 121300 (35541) 116200 (34047) 110900 (32494) 105400 (30882) 99800 (29241) 94000 (27542) 10 (-12.2) 115000 (33695) 110400 (32347) 105700 (30970) 100800 (29534) 95800 (28069) 90600 (26546) 85200 (24964)

5 (-15.0) 104200 (30531) 100000 (29300) 95700 (28040) 91200 (26722) 86600 (25374) 81700 (23938) 76700 (22473) 0 (-17.8) 94000 (27542) 90100 (26399) 86200 (25257) 82000 (24026) 77700 (22766) 73200 (21448) 68500 (20071)

-5 (-20.6) 84300 (24700) 80800 (23674) 77100 (22590) 73300 (21477) 69300 (20305) 65100 (19074) 60700 (17785)

-10 (-23.3) 75100 (22004) 71900 (21067) 68500 (20071) 64900 (19016) 61100 (17902) 57200 (16760) 53100 (15558)

R404A/R507 - MEDIUM TEMPERATURE (cont’d)

CAPACITY BTU/H (WATTS)

AMBIENT TEMPERATURE ° F ( ° C)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

70700 (20715) 67100 (19660) 63300 (18547) 59300 (17375)

60Hz

68300 (20018)

-8 -

Page 9

BEZA

COPELAND

CONDENSING

UNIT

MODEL

BEZA020L6

Compressor

Model

ZF06K4E

BEZA025L6

Compressor

Model

ZF08K4E

BEZA030L6

Compressor

Model

ZF09K4E

BEZA035L6

Compressor

Model

ZF11K4E

BEZA045L6

Compressor

Model

ZF13K4E

SATURATED

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

0 -(17.8) 13200 (3869) 12700 (3722) 12200 (3576) 11700 (3429) 11200 (3283) 10700 (3136) 10200 (2989)

-5 -(20.6) 11900 (3488) 11500 (3370) 11100 (3253) 10600 (3107) 10200 (2989) 9700 (2843) 9300 (2726)

-10 -(23.3) 10800 (3165) 10400 (3048) 10000 (2931) 9600 (2814) 9200 (2696) 8800 (2579) 8500 (2491)

-15 -(26.1) 9700 (2843) 9400 (2755) 9100 (2667) 8700 (2550) 8400 (2462) 8000 (2345) 7700 (2257)

-20 -(28.9) 8700 (2550) 8500 (2491) 8100 (2374) 7800 (2286) 7500 (2198) 7200 (2110) 6900 (2022)

-25 -(31.7) 7800 (2286) 7600 (2227) 7300 (2140) 7000 (2052) 6700 (1964) 6400 (1876) 6200 (1817)

-30 (-34.4) 7000 (2052) 6700 (1964) 6500 (1905) 6200 (1817) 6000 (1758) 5700 (1671) 5500 (1612)

-35 -(37.2) 6100 (1788) 5900 (1729) 5700 (1671) 5500 (1612) 5300 (1553) 5000 (1465) 4800 (1407)

-40 (-40.0) 5400 (1583) 5200 (1524) 5000 (1465) 4800 (1407) 4500 (1319) 4300 (1260) 4200 (1231) 0 -(17.8) 16700 (4894) 16100 (4719) 15500 (4543) 14900 (4367) 14200 (4162) 13500 (3957) 12800 (3751)

-5 -(20.6) 15100 (4426) 14600 (4279) 14100 (4132) 13500 (3957) 12900 (3781) 12300 (3605) 11700 (3429)

-10 -(23.3) 13700 (4015) 13200 (3869) 12700 (3722) 12200 (3576) 11700 (3429) 11200 (3283) 10600 (3107)

-15 -(26.1) 12300 (3605) 11900 (3488) 11500 (3370) 11000 (3224) 10600 (3107) 10100 (2960) 9600 (2814)

-20 -(28.9) 11000 (3224) 10700 (3136) 10300 (3019) 9900 (2902) 9500 (2784) 9100 (2667) 8600 (2521)

-25 -(31.7) 9900 (2902) 9500 (2784) 9200 (2696) 8900 (2608) 8500 (2491) 8100 (2374) 7700 (2257)

-30 (-34.4) 8800 (2579) 8500 (2491) 8200 (2403) 7900 (2315) 7600 (2227) 7200 (2110) 6900 (2022)

-35 -(37.2) 7800 (2286) 7500 (2198) 7300 (2140) 7000 (2052) 6700 (1964) 6400 (1876) 6100 (1788)

-40 (-40.0) 6900 (2022) 6600 (1934) 6400 (1876) 6200 (1817) 5900 (1729) 5600 (1641) 5300 (1553) 0 -(17.8) 18400 (5393) 17700 (5188) 17000 (4982) 16300 (4777) 15600 (4572) 14800 (4338) 14100 (4132)

-5 -(20.6) 16700 (4894) 16100 (4719) 15500 (4543) 14800 (4338) 14200 (4162) 13500 (3957) 12800 (3751)

-10 -(23.3) 15100 (4426) 14600 (4279) 14000 (4103) 13500 (3957) 12900 (3781) 12300 (3605) 11700 (3429)

-15 -(26.1) 13600 (3986) 13100 (3839) 12700 (3722) 12200 (3576) 11700 (3429) 11100 (3253) 10600 (3107)

-20 -(28.9) 12200 (3576) 11800 (3458) 11400 (3341) 11000 (3224) 10500 (3077)

-25 -(31.7) 10900 (3195) 10600 (3107) 10200 (2989) 9800 (2872) 9400 (2755) 9000 (2638) 8600 (2521)

-30 (-34.4) 9700 (2843) 9400 (2755) 9100 (2667) 8800 (2579) 8400 (2462) 8100 (2374) 7700 (2257)

-35 -(37.2) 8600 (2521) 8300 (2433) 8100 (2374) 7800 (2286) 7500 (2198) 7100 (2081) 6800 (1993)

-40 (-40.0) 7600 (2227) 7300 (2140) 7100 (2081) 6800 (1993) 6600 (1934) 6300 (1846) 6000 (1758) 0 -(17.8) 22200 (6506) 21400 (6272) 20500 (6008) 19700 (5774) 18700 (5481) 17800 (5217) 16800 (4924)

-5 -(20.6) 20200 (5920) 19500 (5715) 18700 (5481) 17900 (5246) 17100 (5012) 16300 (4777) 15400 (4513)

-10 -(23.3) 18400 (5393) 17700 (5188) 17000 (4982) 16300 (4777) 15600 (4572) 14800 (4338) 14000 (4103)

-15 -(26.1) 16600 (4865) 16000 (4689) 15400 (4513) 14800 (4338) 14100 (4132) 13400 (3927) 12700 (3722)

-20 -(28.9) 14900 (4367) 14400 (4220) 13900 (4074) 13300 (3898) 12700 (3722) 12100 (3546) 11500 (3370)

-25 -(31.7) 13300 (3898) 12900 (3781) 12400 (3634) 12000 (3517) 11400 (3341) 10900 (3195) 10400 (3048)

-30 (-34.4) 11900 (3488) 11500 (3370) 11100 (3253) 10700 (3136) 10200 (2989) 9800 (2872) 9300 (2726)

-35 -(37.2) 10500 (3077) 10200 (2989) 9800 (2872) 9500 (2784) 9100 (2667) 8700 (2550) 8300 (2433)

-40 (-40.0) 9300 (2726) 9000 (2638) 8700 (2550) 8400 (2462) 8000 (2345) 7700 (2257) 7300 (2140) 0 -(17.8) 26500 (7767) 25500 (7474) 24500 (7181) 23400 (6858) 22400 (6565) 21300 (6243) 20100 (5891)

-5 -(20.6) 24000 (7034) 23100 (6770) 22200 (6506) 21200 (6213) 20300 (5950) 19300 (5657) 18300 (5363)

-10 -(23.3) 21700 (6360) 20900 (6125) 20000 (5862) 19200 (5627) 18300 (5363) 17400 (5100) 16500 (4836)

-15 -(26.1) 19500 (5715) 18700 (5481) 18000 (5275) 17200 (5041) 16500 (4836) 15700 (4601) 14800 (4338)

-20 -(28.9) 17400 (5100) 16800 (4924) 16100 (4719) 15400 (4513) 14700 (4308) 14000 (4103) 13300 (3898)

-25 -(31.7) 15500 (4543) 14900 (4367) 14300 (4191) 13700 (4015) 13100 (3839) 12500 (3664) 11900 (3488)

-30 (-34.4) 13700 (4015) 13200 (3869) 12700 (3722) 12200 (3576) 11700 (3429) 11100 (3253) 10600 (3107)

-35 -(37.2) 12000 (3517) 11600 (3400) 11100 (3253) 10700 (3136) 10300 (3019) 9900 (2902) 9500 (2784)

-40 (-40.0) 10400 (3048) 10100 (2960) 9700 (2843) 9400 (2755) 9000 (2638) 8700 (2550) 8400 (2462)

SUCTION

R404A/R507 - LOW TEMPERATURE

CAPACITY BTU/H (WATTS)

AMBIENT TEMPERATURE ° F ( ° C)

60Hz

10000 (2931) 9600 (2814)

- 9 -

Page 10

BEZA

COPELAND

CONDENSING

UNIT

MODEL

BEZA055L6

Compressor

Model

ZF15K4E

BEZA060L6

Compressor

Model

ZF18K4E

BEZA075L6

Compressor

Model

ZF24K4E

BEZA100L6

Compressor

Model

ZF33K4E

BEZA130L6

Compressor

Model

ZF40K4E

BEZA150L6

Compressor

Model

ZF48K4E

SATURATED

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

-5 -(20.6) 28700 (8411) 27700 (8118) 26600 (7796) 25400 (7444) 24300 (7122) 23100 (6770) 21800 (6389)

-10 -(23.3) 26000 (7620) 25000 (7327) 24100 (7063) 23100 (6770) 22000 (6448) 20900 (6125) 19800 (5803)

-15 -(26.1) 23400 (6858) 22600 (6624) 21700 (6360) 20800 (6096) 19900 (5832) 19000 (5569) 18000 (5275)

-20 -(28.9) 21000 (6155) 20300 (5950) 19500 (5715) 18800 (5510) 17900 (5246) 17100 (5012) 16200 (4748)

-25 -(31.7) 18800 (5510) 18200 (5334) 17500 (5129) 16800 (4924) 16100 (4719) 15400 (4513) 14600 (4279)

-30 (-34.4) 16800 (4924) 16200 (4748) 15600 (4572) 15000 (4396) 14400 (4220) 13700 (4015) 13100 (3839)

-35 -(37.2) 14900 (4367) 14400 (4220) 13900 (4074) 13300 (3898) 12800 (3751) 12200 (3576) 11600 (3400)

-40 (-40.0) 13100 (3839) 12700 (3722) 12200 (3576) 11800 (3458) 11300 (3312) 10800 (3165) 10300 (3019)

-5 -(20.6) 34700 (10170) 33400 (9789) 32200 (9437) 30800 (9027) 29500 (8646) 28200 (8265) 26800 (7855)

-10 -(23.3) 31400 (9203) 30300 (8880) 29200 (8558) 28000 (8206) 26800 (7855) 25600 (7503) 24400 (7151)

-15 -(26.1) 28300 (8294) 27300 (8001) 26400 (7737) 25300 (7415) 24300 (7122) 23200 (6800) 22200 (6506)

-20 -(28.9) 25400 (7444) 24600 (7210) 23700 (6946) 22800 (6682) 21900 (6419) 21000 (6155) 20100 (5891)

-25 -(31.7) 22700 (6653) 22000 (6448) 21300 (6243) 20500 (6008) 19700 (5774) 18900 (5539) 18100 (5305)

-30 (-34.4) 20200 (5920) 19600 (5744) 19000 (5569) 18300 (5363) 17600 (5158) 16900 (4953) 16200 (4748)

-35 -(37.2) 17900 (5246) 17300 (5070) 16800 (4924) 16200 (4748) 15600 (4572) 15000 (4396) 14400 (4220)

-40 (-40.0) 15700 (4601) 15200 (4455) 14700 (4308) 14200 (4162) 13700 (4015) 13200 (3869) 12700 (3722)

-5 -(20.6) 42600 (12485) 41100 (12046) 39600 (11606) 38100 (11166) 36400 (10668) 34800 (10199) 33000 (9672)

-10 -(23.3) 38500 (11284) 37200 (10903) 35800 (10492) 34500 (10111) 33000 (9672) 31500 (9232) 30000 (8792)

-15 -(26.1) 34600 (10141) 33400 (9789) 32300 (9467) 31100 (9115) 29800 (8734) 28500 (8353) 27200 (7972)

-20 -(28.9) 31000 (9086) 30000 (8792) 29000 (8499) 27900 (8177) 26800 (7855)

-25 -(31.7) 27600 (8089) 26700 (7825) 25900 (7591) 24900 (7298) 24000 (7034) 23000 (6741) 21900 (6419)

-30 (-34.4) 24500 (7181) 23700 (6946) 23000 (6741) 22100 (6477) 21300 (6243) 20400 (5979) 19500 (5715)

-35 -(37.2) 21600 (6331) 20900 (6125) 20200 (5920) 19500 (5715) 18800 (5510) 18000 (5275) 17200 (5041)

-40 (-40.0) 18900 (5539) 18300 (5363) 17700 (5188) 17100 (5012) 16400 (4807) 15800 (4631) 15000 (4396)

-5 -(20.6) 58300 (17087) 56100 (16442) 53900 (15797) 51600 (15123) 49400 (14478) 47000 (13775) 44700 (13101)

-10 -(23.3) 52800 (15475) 50900 (14918) 48900 (14332) 46900 (13746) 44900 (13159) 42900 (12573) 40800 (11958)

-15 -(26.1) 47600 (13951) 45900 (13453) 44200 (12954) 42400 (12427) 40600 (11899) 38800 (11372) 37000 (10844)

-20 -(28.9) 42700 (12515) 41200 (12075) 39600 (11606) 38100 (11166) 36500 (10698) 35000 (10258) 33400 (9789)

-25 -(31.7) 38000 (11137) 36600 (10727) 35300 (10346) 33900 (9936) 32600 (9555) 31200 (9144) 29900 (8763)

-30 (-34.4) 33500 (9818) 32300 (9467) 31100 (9115) 29900 (8763) 28800 (8441) 27600 (8089) 26500 (7767)

-35 -(37.2) 29200 (8558) 28100 (8236) 27100 (7943) 26100 (7649) 25000 (7327) 24100 (7063) 23100 (6770)

-40 (-40.0) 25100 (7356) 24200 (7093) 23200 (6800) 22300 (6536) 21400 (6272) 20600 (6038) 19800 (5803)

-5 -(20.6) 70700 (20721) 68200 (19988) 65600 (19226) 63000 (18464) 60200 (17644) 57400 (16823) 54500 (15973)

-10 -(23.3) 64100 (18787) 61900 (18142) 59600 (17468) 57200 (16764) 54800 (16061) 52300 (15328) 49700 (14566)

-15 -(26.1) 57900 (16970) 55900 (16383) 53900 (15797) 51900 (15211) 49700 (14566) 47500 (13921) 45100 (13218)

-20 -(28.9) 52100 (15270) 50400 (14771) 48600 (14244) 46800 (13716) 44900 (13159) 42900 (12573) 40800 (11958)

-25 -(31.7) 46700 (13687) 45200 (13247) 43600 (12778) 42000 (12309) 40400 (11841) 38600 (11313) 36700 (10756)

-30 (-34.4) 41600 (12192) 40300 (11811) 38900 (11401) 37500 (10991) 36000 (10551) 34500 (10111) 32800 (9613)

-35 -(37.2) 36800 (10785) 35600 (10434) 34400 (10082) 33200 (9730) 31900 (9349) 30500 (8939) 29000 (8499)

-40 (-40.0) 32200 (9437) 31200 (9144) 30200 (8851) 29100 (8529) 27900 (8177) 26600 (7796) 25300 (7415)

-5 -(20.6) 80700 (23652) 77700 (22773) 74600 (21864) 71400 (20926) 68100 (19959) 64600 (18933) 61100 (17907)

-10 -(23.3) 73000 (21395) 70400 (20633) 67600 (19812) 64800 (18992) 61800 (18113) 58700 (17204) 55600 (16295)

-15 -(26.1) 65800 (19285) 63500 (18611) 61100 (17907) 58500 (17145) 55900 (16383) 53200 (15592) 50300 (14742)

-20 -(28.9) 59100 (17321) 57000 (16706) 54900 (16090) 52700 (15445) 50300 (14742) 47900 (14039) 45400 (13306)

-25 -(31.7) 52900 (15504) 51100 (14977) 49200 (14420) 47200 (13834) 45200 (13247) 43000 (12603) 40800 (11958)

-30 (-34.4) 47200 (13834) 45600 (13365) 43900 (12866) 42200 (12368) 40300 (11811) 38400 (11254) 36400 (10668)

-35 -(37.2) 41900 (12280) 40500 (11870) 39000 (11430) 37500 (10991) 35900 (10522) 34200 (10023) 32400 (9496)

-40 (-40.0) 37200 (10903) 35900 (10522) 34600 (10141) 33300 (9760) 31800 (9320) 30300 (8880) 28700 (8411)

R404A/R507 - LOW TEMPERATURE (cont’d)

CAPACITY BTU/H (WATTS)

SUCTION

0 -(17.8) 31700 (9291) 30500 (8939) 29200 (8558) 28000 (8206) 26700 (7825) 25300 (7415) 24000 (7034)

0 -(17.8) 38200 (11196) 36800 (10785) 35300 (10346) 33900 (9936) 32400 (9496) 30900 (9056) 29300 (8587)

0 -(17.8) 47000 (13775) 45400 (13306) 43600 (12778) 41900 (12280) 40100 (11753) 38200 (11196) 36200 (10610)

0 -(17.8) 64000 (18757) 61600 (18054) 59100 (17321) 56600 (16589) 54000 (15826) 51400 (15064) 48700 (14273)

0 -(17.8) 77800 (22802) 74900 (21952) 72000 (21102) 69000 (20223) 66000 (19343) 62800 (18406) 59600 (17468)

0 -(17.8) 88800 (26026) 85400 (25029) 81900 (24004) 78400 (22978) 74700 (21893) 70800 (20750) 66900 (19607)

AMBIENT TEMPERATURE ° F ( ° C)

25700 (7532) 24500 (7181)

60Hz

- 10 -

Page 11

BEZT

TECUMSEH

CONDENSING

UNIT

MODEL

BEZT015M6

Compressor

Model

VSA9512

BEZT020M6

Compressor

Model

VSA9514

BEZT025M6

Compressor

Model

VSA9517

BEZT030M6

Compressor

Model

VSA9521

BEZT035M6

Compressor

Model

VSA9524

BEZT040M6

Compressor

Model

VSA9528

BEZT050M6

Compressor

Model

VSA9536

TEMPERATURE

R404A/R507 - MEDIUM TEMPERATURE

CAPACITY BTU/H (WATTS)

SATURATED

SUCTION

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

35 (1.7) 20700 (6065) 19900 (5831) 19100 (5596) 18300 (5362) 17400 (5098) 16500 (4835) 15600 (4571) 30 (-1.1) 18900 (5538) 18200 (5333) 17500 (5128) 16700 (4893) 15900 (4659) 15100 (4424) 14300 (4190) 25 (-3.9) 17300 (5069) 16700 (4893) 16000 (4688) 15300 (4483) 14600 (4278) 13800 (4043) 13100 (3838) 20 (-6.7) 15800 (4629) 15200 (4454) 14600 (4278) 14000 (4102) 13300 (3897) 12600 (3692) 11900 (3487) 15 (-9.4) 14400 (4219) 13800 (4043) 13300 (3897) 12700 (3721) 12100 (3545) 11500 (3370) 10900 (3194) 10 (-12.2) 13000 (3809) 12600 (3692) 12100 (3545) 11600 (3399) 11000 (3223) 10500 (3077) 9900 (2901)

5 (-15.0) 11800 (3457) 11400 (3340) 10900 (3194) 10500 (3077) 10000 (2930) 9500 (2784) 9000 (2637)

0 (-17.8) 10600 (3106) 10200 (2989) 9800 (2871) 9400 (2754) 9000 (2637) 8600 (2520) 8100 (2373) 35 (1.7) 24500 (7179) 23700 (6944) 22900 (6710) 22100 (6475) 21300 (6241) 20500 (6007) 19700 (5772) 30 (-1.1) 22400 (6563) 21600 (6329) 20900 (6124) 20100 (5889) 19400 (5684) 18600 (5450) 17800 (5215) 25 (-3.9) 20400 (5977) 19700 (5772) 19000 (5567) 18300 (5362) 17600 (5157) 16900 (4952) 16200 (4747) 20 (-6.7) 18600 (5450) 17900 (5245) 17300 (5069) 16600 (4864) 15900 (4659) 15300 (4483) 14600 (4278) 15 (-9.4) 16900 (4952) 16300 (4776) 15700 (4600) 15100 (4424) 14400 (4219) 13800 (4043) 13200 (3868)

10 (-12.2) 15400 (4512) 14800 (4336) 14200 (4161) 13700 (4014) 13100 (3838) 12500 (3663) 12000 (3516)

5 (-15.0) 13900 (4073) 13400 (3926) 12900 (3780) 12400 (3633) 11900 (3487) 11400 (3340) 10800 (3164)

0 (-17.8) 12700 (3721) 12200 (3575) 11700 (3428) 11300 (3311) 10800 (3164) 10300 (3018) 9800 (2871)

35 (1.7) 28900 (8468) 27900 (8175) 26900 (7882) 25900 (7589) 24900 (7296) 23800 (6973) 22800 (6680) 30 (-1.1) 27000 (7911) 26100 (7647) 25100 (7354) 24100 (7061) 23100 (6768) 22100 (6475) 21100 (6182)

25 (-3.9) 25200 (7384) 24200 (7091) 23300 (6827) 22400 (6563) 21400 (6270) 20500 (6007) 19500 (5714) 20 (-6.7) 23300 (6827) 22400 (6563) 21500 (6300) 20600 (6036) 19800 (5801) 18800 (5508) 17900 (5245)

15 (-9.4) 21500 (6300) 20600 (6036) 19800 (5801) 19000 (5567) 18100 (5303) 17300 (5069) 16400 (4805) 10 (-12.2) 19700 (5772) 18900 (5538) 18100 (5303) 17300 (5069) 16500 (4835) 15700 (4600) 14900 (4366)

5 (-15.0) 18000 (5274) 17300 (5069) 16500 (4835) 15800 (4629) 15100 (4424)

0 (-17.8) 16400 (4805) 15700 (4600) 15000 (4395) 14400 (4219) 13700 (4014) 13000 (3809) 12300 (3604)

35 (1.7) 36700 (10753) 35300 (10343) 33900 (9933) 32500 (9523) 31100 (9112) 29700 (8702) 28300 (8292) 30 (-1.1) 33800 (9903) 32500 (9523) 31200 (9142) 29900 (8761) 28500 (8351) 27200 (7970) 25900 (7589) 25 (-3.9) 31000 (9083) 29800 (8731) 28600 (8380) 27400 (8028) 26200 (7677) 24900 (7296) 23700 (6944) 20 (-6.7) 28400 (8321) 27300 (7999) 26200 (7677) 25100 (7354) 23900 (7003) 22800 (6680) 21700 (6358) 15 (-9.4) 25900 (7589) 24900 (7296) 23900 (7003) 22900 (6710) 21900 (6417) 20800 (6094) 19800 (5801) 10 (-12.2) 23600 (6915) 22700 (6651) 21800 (6387) 20800 (6094) 19900 (5831) 19000 (5567) 18000 (5274)

5 (-15.0) 21400 (6270) 20600 (6036) 19800 (5801) 18900 (5538) 18100 (5303) 17300 (5069) 16400 (4805)

0 (-17.8) 19400 (5684) 18600 (5450) 17900 (5245) 17100 (5010) 16400 (4805) 15700 (4600) 14900 (4366) 35 (1.7) 40700 (11925) 39200 (11486) 37700 (11046) 36200 (10607) 34600 (10138) 33100 (9698) 31500 (9230) 30 (-1.1) 37800 (11075) 36300 (10636) 34900 (10226) 33400 (9786) 32000 (9376) 30500 (8937) 29100 (8526) 25 (-3.9) 34900 (10226) 33500 (9816) 32200 (9435) 30800 (9024) 29400 (8614) 28100 (8233) 26700 (7823) 20 (-6.7) 32100 (9405) 30800 (9024) 29500 (8644) 28300 (8292) 27000 (7911) 25700 (7530) 24400 (7149)

15 (-9.4) 29400 (8614) 28200 (8263) 27000 (7911) 25800 (7559) 24600 (7208) 23400 (6856) 22200 (6505) 10 (-12.2) 26700 (7823) 25600 (7501) 24500 (7179) 23400 (6856) 22300 (6534) 21200 (6212) 20100 (5889)

5 (-15.0) 24200 (7091) 23200 (6798) 22200 (6505) 21200 (6212) 20200 (5919) 19200 (5626) 18100 (5303)

0 (-17.8) 21800 (6387) 20900 (6124) 20000 (5860) 19100 (5596) 18100 (5303) 17200 (5040) 16300 (4776)

35 (1.7) 47200 (13830) 45300 (13273) 43300 (12687) 41400 (12130) 39400 (11544) 37500 (10988) 35500 (10402) 30 (-1.1) 43800 (12833) 42000 (12306) 40200 (11779) 38400 (11251) 36600 (10724) 34800 (10196) 33000 (9669) 25 (-3.9) 40600 (11896) 38900 (11398) 37300 (10929) 35600 (10431) 33900 (9933) 32200 (9435) 30500 (8937) 20 (-6.7) 37500 (10988) 35900 (10519) 34400 (10079) 32800 (9610) 31300 (9171) 29700 (8702) 28100 (8233) 15 (-9.4) 34500 (10109) 33000 (9669) 31600 (9259) 30200 (8849) 28700 (8409) 27300 (7999) 25900 (7589) 10 (-12.2) 31500 (9230) 30200 (8849) 28900 (8468) 27600 (8087) 26300 (7706) 25000 (7325) 23700 (6944)

5 (-15.0) 28700 (8409) 27500 (8058) 26300 (7706) 25200 (7384) 24000 (7032) 22800 (6680) 21600 (6329)

0 (-17.8) 25900 35 (1.7) 59600 (17463) 57200 (16760) 54900 (16086) 52500 (15383) 50200 (14709) 47800 (14005) 45500 (13332) 30 (-1.1) 55200 (16174) 53000 (15529) 50900 (14914) 48700 (14269) 46500 (13625) 44200 (12951) 42000 (12306) 25 (-3.9) 51000 (14943) 49000 (14357) 46900 (13742) 44900 (13156) 42800 (12540) 40800 (11954) 38700 (11339) 20 (-6.7) 46900 (13742) 45000 (13185) 43100 (12628) 41200 (12072) 39300 (11515) 37400 (10958) 35500 (10402) 15 (-9.4) 42900 (12570) 41200 (12072) 39500 (11574) 37700 (11046) 36000 (10548) 34200 (10021) 32500 (9523) 10 (-12.2) 39100 (11456) 37500 (10988) 36000 (10548) 34400 (10079) 32800 (9610) 31200 (9142) 29600 (8673)

5 (-15.0) 35400 (10372) 34000 (9962) 32600 (9552) 31200 (9142) 29700 (8702) 28300 (8292) 26900 (7882)

0 (-17.8) 31900 (9347) 30600 (8966) 29400 (8614) 28100 (8233) 26900 (7882) 25600 (7501) 24400 (7149)

(7589) 24900 (7296) 23800 (6973) 22800 (6680) 21700 (6358) 20700 (6065) 19600 (5743)

AMBIENT TEMPERATURE ° F ( ° C)

14300 (4190) 13500 (3956)

60Hz

- 11 -

Page 12

BEZA

COPELAND

CONDENSING UNIT

MODEL

BEZA020H2- *

BEZA025H2- *

BEZA030H2- *

BEZA035H2- *

BEZA040H2- *

BEZA050H2- *

BEZA060H2- *

BEZA065H2- *

BEZA070H2- *

BEZA076H2- *

BEZA085H2- *

BEZA100H2- *

BEZA150H2- *

ELECTRICAL DATA

60Hz

COMPRESSOR

MODEL NO.

S2 ZB15KCE-PFV 208-230/1/60 15.7 61 1 1.1 20.7 35 T3 ZB15KCE-TF5 208-230/3/60 8.9 55 1 1.1 12.2 20 T4 ZB15KCE-TFD 460/3/60 5.0 27 1 0.6 6.9 15

S2 ZB19KCE-PFV 208-230/1/60 17.9 73 1 1.1 23.5 40 T3 ZB19KCE-TF5 208-230/3/60 10.0 63 1 1.1 13.6 20 T4 ZB19KCE-TFD 460/3/60 5.0 31 1 0.6 6.9 15 S2 ZB21KCE-PFV 208-230/1/60 20.7 100 1 2.1 28.0 45 T3 ZB21KCE-TF5 208-230/3/60 12.1 77 1 2.1 17.2 25 T4 ZB21KCE-TFD 460/3/60 6.1 39 1 1.1 8.7 15

S2 ZB26KCE-PFV 208-230/1/60 20.7 127 1 2.1 28.0 45 T3 ZB26KCE-TF5 208-230/3/60 13.9 88 1 2.1 19.5 30 T4 ZB26KCE-TFD 460/3/60 7.1 44 1 1.1 10.0 15

S2 ZB30KCE-PFV 208-230/1/60 26.8 132 1 2.1 35.6 60 T3 ZB30KCE-TF5 208-230/3/60 15.7 115 1 2.1 21.7 35 T4 ZB30KCE-TFD 460/3/60 7.5 47.5 1 1.1 10.5 15 T5 ZB30KCE-TFE 575/3/60 6.0 38 1 0.9 8.4 15

S2 ZB38KCE-PFV 208-230/1/60 31.1 175 1 2.1 41.0 70 T3 ZB38KCE-TF5 208-230/3/60 22.1 115 1 2.1 29.7 50 T4 ZB38KCE-TFD 460/3/60 9.6 63 1 1.1 13.1 20 T5 ZB38KCE-TFE 575/3/60 7.7 50 1 0.9 10.5 15

T3 ZB45KCE-TF5 208-230/3/60 22.5 156 1 2.1 30.2 50 T4 ZB45KCE-TFD 460/3/60 11.5 70 1 1.1 15.5 25 T5 ZB45KCE-TFE 575/3/60 9.2 56 1 0.9 12.4 20

T3 ZB50KCE-TF5 208-230/3/60 28.6 196 1 2.1 37.9 60 T4 ZB50KCE-TFD 460/3/60 15.0 100 1 1.1 19.9 30 T5 ZB50KCE-TFE 575/3/60 11.1 90 1 0.9 14.8 25

T3 ZB58KCE-TF5 208-230/3/60 32.1 195 1 2.1 42.2 70 T4 ZB58KCE-TFD 460/3/60 16.4 95 1 1.1 21.6 35 T5 ZB58KCE-TFE 575/3/60 12.9 80 1 0.9 17.0 25

T3 ZB66KCE-TF5 208-230/3/60 33.6 225 2 4.2 46.2 80 T4 ZB66KCE-TFD 460/3/60 17.5 114 2 2.2 24.1 40 T5 ZB66KCE-TFE 575/3/60 13.5 80 2 1.8 18.7 30

T3 ZB76KCE-TF5 208-230/3/60 41.4 239 2 4.2 56.0 90 T4 ZB76KCE-TFD 460/3/60 19.2 125 2 2.2 26.2 45 T5 ZB76KCE-TFE 575/3/60 13.8 80 2 1.8 19.1 30

T3 ZB88KCE-TF5 208-230/3/60 47.0 245 2 4.2 63.0 100 T4 ZB88KCE-TFD 460/3/60 22.1 125 2 2.2 29.8 50 T5 ZB88KCE-TFE 575/3/60 15.8 100 2 1.8 21.6 35

T3 ZB114KCE-TW5 208-230/3/60 58.6 340 2 7.2 80.5 125 T4 ZB114KCE-TWD 460/3/60 28.6 173 2 3.4 39.2 60

T5 ZB114KCE-TWE 575/3/60 23.6 132 2 2.8 32.3 50

POWER SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

CONDENSER FAN MO-

TOR

UNIT

* I = Indoor, H = Outdoor. Above listed RLA value is based on UL rating method and may differ from published compressor RLA data.

- 12 -

Page 13

BEZA

COPELAND

ELECTRICAL DATA (cont’d)

60Hz

CONDENSING UNIT

MODEL

BEZA010M6- *

BEZA011M6- *

BEZA015M6- *

BEZA020M6- *

BEZA025M6- *

BEZA030M6- *

BEZA035M6- *

BEZA040M6- *

BEZA050M6- *

BEZA060M6- *

BEZA065M6- *

BEZA070M6- *

BEZA076M6- *

BEZA085M6- *

BEZA110M6- *

BEZA150M6- *

S2 ZB10KCE-PFV 208-230/1/60 10.0 41 1 0.5 13.0 20

S2 ZB11KCE-PFV 208-230/1/60 10.0 45 1 1.1 13.6 20

S2 ZB13KCE-PFV 208-230/1/60 12.9 54 1 1.1 17.2 30

S2 ZB15KCE-PFV 208-230/1/60 15.7 61 1 1.1 20.7 35

T3 ZB15KCE-TF5 208-230/3/60 8.9 55 1 1.1 12.2 20

T4 ZB15KCE-TFD 460/3/60 5.0 27 1 0.6 6.9 15

S2 ZB19KCE-PFV 208-230/1/60 17.9 73 1 1.1 23.5 40

T3 ZB19KCE-TF5 208-230/3/60 10.0 63 1 1.1 13.6 20

T4 ZB19KCE-TFD 460/3/60 5.0 31 1 0.6 6.9 15

S2 ZB21KCE-PFV 208-230/1/60 20.7 100 1 2.1 28.0 45

T3 ZB21KCE-TF5 208-230/3/60 12.1 77 1 2.1 17.2 25

T4 ZB21KCE-TFD 460/3/60 6.1 39 1 1.1 8.7 15

S2 ZB26KCE-PFV 208-230/1/60 23.6 127 1 2.1 31.6 50

T3 ZB26KCE-TF5 208-230/3/60 13.9 88 1 2.1 19.5 30

T4 ZB26KCE-TFD 460/3/60 7.1 44 1 1.1 10.0 15

S2 ZB30KCE-PFV 208-230/1/60 26.8 132 1 2.1 35.6 60

T3 ZB30KCE-TF5 208-230/3/60 15.7 115 1 2.1 21.7 35

T4 ZB30KCE-TFD 460/3/60 7.5 47.5 1 1.1 10.5 15

T5 ZB30KCE-TFE 575/3/60 6.0 38 1 0.9 8.4 15

S2 ZB38KCE-PFV 208-230/1/60 31.1 175 1 2.1 41.0 70

T3 ZB38KCE-TF5 208-230/3/60 22.1 115 1 2.1 29.7 50

T4 ZB38KCE-TFD 460/3/60 9.6 63 1 1.1 13.1 20

T5 ZB38KCE-TFE 575/3/60 7.7 50 1 0.9 10.5 15

T3 ZB45KCE-TF5 208-230/3/60 22.5 156 1 2.1 30.2 50

T4 ZB45KCE-TFD 460/3/60 11.5 70 1 1.1 15.5 25

T5 ZB45KCE-TFE 575/3/60 9.2 56 1 0.9 12.4 20

T3 ZB50KCE-TF5 208-230/3/60 28.6 196 1 2.1 37.9 60

T4 ZB50KCE-TFD 460/3/60 15.0 100 1 1.1 19.9 30

T5 ZB50KCE-TFE 575/3/60 11.1 90 1 0.9 14.8 25

T3 ZB58KCE-TF5 208-230/3/60 32.1 195 1 2.1 42.2 70

T4 ZB58KCE-TFD 460/3/60 16.4 95 1 1.1 21.6 35

T5 ZB58KCE-TFE 575/3/60 12.9 80 1 0.9 17.0 25

T3 ZB66KCE-TF5 208-230/3/60 33.6 225 2 4.2 46.2 80

T4 ZB66KCE-TFD 460/3/60 17.5 114 2 2.2 24.1 40

T5 ZB66KCE-TFE 575/3/60 13.5 80 2 1.8 18.7 30

T3 ZB76KCE-TF5 208-230/3/60 41.4 239 2 4.2 56.0 90

T4 ZB76KCE-TFD 460/3/60 20.0 125 2 2.2 27.2 45

T5 ZB76KCE-TFE 575/3/60 13.8 80 2 1.8 19.1 30

T3 ZB95KCE-TW5 208-230/3/60 52.9 300 2 7.2 73.3 125

T4 ZB95KCE-TWD 460/3/60 26.4 150 2 3.4 36.4 60

T5 ZB95KCE-TWE 575/3/60 19.3 109 2 2.8 26.9 45

T3 ZB114KCE-TW5 208-230/3/60 62.9 340 2 7.2 85.8 150

T4 ZB114KCE-TWD 460/3/60 32.1 173 2

T5 ZB114KCE-TWE 575/3/60 23.6 132 2 2.8 32.3 50

COMPRESSOR

MODEL NO.

POWER SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

CONDENSER FAN

MOTOR

3.4 43.5 70

UNIT

* I = Indoor, H = Outdoor. Above listed RLA value is based on UL rating method and may differ from published compressor RLA data.

- 13 -

Page 14

BEZA

COPELAND

CONDENSING UNIT

MODEL

BEZA020L6- *

BEZA025L6- *

BEZA030L6- *

BEZA035L6- *

BEZA045L6- *

BEZA055L6- *

BEZA060L6- *

BEZA075L6- *

BEZA100L6- *

BEZA130L6- *

BEZA150L6- *

ELECTRICAL DATA (cont’d)

60Hz

COMPRESSOR

MODEL NO.

S2 ZF06K4E-PFV 208-230/1/60 13.6 61 1 0.5 17.5 30

T3 ZF06K4E-TF5 208-230/3/60 9.3 55 1 0.5 12.1 20

S2 ZF08K4E-PFV 208-230/1/60 16.4 73 1 1.1 21.6 35

T3 ZF08K4E-TF5 208-230/3/60 9.7 63 1 1.1 13.2 20

T4 ZF08K4E-TFD 460/3/60 5.0 39 1 0.6 6.9 15

S2 ZF09KCE-PFV 208-230/1/60 16.4 88 1 1.1 21.6 35

T3 ZF09KCE-TF5 208-230/3/60 11.1 77 1 1.1 15.0 25

T4 ZF09KCE-TFD 460/3/60 5.7 39 1 0.6 7.7 15

T5 ZF09KCE-TFE 575/3/60 4.3 31 1 0.5 5.9 15

S2 ZF11K4E-PFV 208-230/1/60 20.7 109 1 1.1 27.0 45

T3 ZF11K4E-TF5 208-230/3/60 13.6 88 1 1.1 18.1 30

T4 ZF11K4E-TFD 460/3/60 7.1 44 1 0.6 9.5 15

T5 ZF11K4E-TFE 575/3/60 5.0 34 1 0.5 6.8 15

S2 ZF13K4E-PFV 208-230/1/60 26.8 129 1 2.1 35.6 60

T3 ZF13K4E-TF5 208-230/3/60 15.0 99 1 2.1 20.9 35

T4 ZF13K4E-TFD 460/3/60 8.2 49.5 1 1.1 11.4 15

T5 ZF13K4E-TFE 575/3/60 8.2 40 1 0.9 11.2 15

S2 ZF15K4E-PFV 208-230/1/60 31.8 169 1 2.1 41.9 70

T3 ZF15K4E-TF5 208-230/3/60 21.4 123 1 2.1 28.9 50

T4 ZF15K4E-TFD 460/3/60 9.6 62 1 1.1 13.1 20

T5 ZF15K4E-TFE 575/3/60 7.9 50 1 0.9 10.8 15

T3 ZF18K4E-TF5 208-230/3/60 23.9 156 1 2.1 32.0 50

T4 ZF18K4E-TFD 460/3/60 9.3 70 1 1.1 12.7 20

T5 ZF18K4E-TFE 575/3/60 7.9 54 1 0.9 10.8 15

T3 ZF24K4E-TWC 208-230/3/60 30.0 189 1 2.1 39.6 70

T4 ZF24K4E-TWD 460/3/60 15.7 94 1 1.1 20.7 35

T5 ZF24K4E-TWE 575/3/60 8.9 74 1 0.9 12.0 20

T3 ZF33K4E-TWC 208-230/3/60 43.6 278 1 2.1 56.6 100

T4 ZF33K4E-TWD 460/3/60 21.1 127 1 1.1 27.5 45

T5 ZF33K4E-TWE 575/3/60 16.1 100 1 0.9 21.0 35

T3 ZF40K4E-TWC 208-230/3/60 45.0 350 2 4.2 60.5 100

T4 ZF40K4E-TWD 460/3/60 22.1 158 2 2.2 29.8 50

T5 ZF40K4E-TWE 575/3/60 20.0 125 2 1.8 26.8 45

T3 ZF48K4E-TWC 208-230/3/60 55.0 425 2 4.2 73.0 125

T4 ZF48K4E-TWD 460/3/60 24.3 187 2 2.2 32.6 50

T5 ZF48K4E-TWE 575/3/60 19.6 148 2 1.8 26.3 45

POWER SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

CONDENSER FAN

MOTOR

UNIT

* I = Indoor, H = Outdoor. Above listed RLA value is based on UL rating method and may differ from published compressor RLA data.

- 14 -

Page 15

ELECTRICAL DATA

BEZT

TECUMSEH

CONDENSING UNIT

MODEL

BEZT015M6- *

BEZT020M6- *

BEZT025M6- *

BEZT030M6- *

BEZT035M6- *

BEZT040M6- *

BEZT050M6- *

* I = Indoor, H = Outdoor. Above listed RLA value is based on UL rating method and may differ from published compressor RLA data.

T3 VSA9512ZXT 208-230-3/60 8.6 48.5 1 1.1 11.9 20

S2 VSA9514ZNA 208-230/1/60 15.6 83 1 1.1 20.6 35

T3 VSA9514ZXT 208-230-3/60 9.9 48.5 1 1.1 13.5 20

S2 VSA9517ZNA 208-230/1/60 20.5 83 1 1.1 26.7 45

T3 VSA9517ZXT 208-230-3/60 11.7 77.5 1 1.1 15.7 25

T3 VSA9521ZXT 208-230/3/60 12.4 80 1 2.1 17.6 30

T3 VSA9524ZXT 208-230-3/60 17.3 104 1 2.1 23.7 40

T3 VSA9528ZXT 208-230-3/60 16.8 96 1 2.1 23.1 40

T3 VSA9536ZXT 208-230-3/60 21.1 153 1 2.1 28.5 45

COMPRESSOR

MODEL NO.

POWER SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

CONDENSER FAN

MOTOR

60Hz

UNIT

- 15 -

Page 16

AIR

FLOW

DIMENSIONAL DATA (1 Fan Models Small Chassis)

INDOOR DIMENSIONS

AIR

FLOW

OUTDOOR DIMENSIONS

CONDENSING UNIT

MODEL

BEZA 020 H2 BEZA 025 H2

BEZA 010 M6

BEZA 011 M6 BEZA/T 015 M6

BEZA/T 020 M6

BEZA/T 025 M6

BEZA 020 L6

BEZA 025 L6

BEZA 030 L6

BEZA 035 L6

*Note: Dimensions for indoor models may be smaller by up to 3/8” (10 mm)

WIDTH

Base With Hood

Inches mm Inches mm Inches mm Inches mm

36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505

24 7/8 632 30 3/8 772 34 3/8 873 16 7/8 429 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505

36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505

NOTE: Discharge hood and legs are optional components

DEPTH

HEIGHT*

- 16 -

Page 17

DIMENSIONAL DATA (1 Fan Models Large Chassis)

AIR

FLOW

INDOOR DIMENSIONS

AIR

FLOW

OUTDOOR DIMENSIONS

CONDENSING UNIT

MODEL

BEZA 030 H2 BEZA 035 H2 BEZA 040 H2 BEZA 050 H2 BEZA 060 H2 BEZA 065 H2

BEZA 070 H2 BEZA/T 030 M6 BEZA/T 035 M6 BEZA/T 040 M6 BEZA/T 050 M6

BEZA 060 M6 BEZA 065 M6 BEZA 070 M6

BEZA 045 L6

BEZA 055 L6

BEZA 060 L6

BEZA 075 L6

BEZA 100 L6

*Note: Dimensions for indoor models may be smaller by up to 3/8” (10 mm)

WIDTH

Inches mm Inches mm Inches mm Inches mm

47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 55 5/8 1413 35 7/8 911 43 1092 41 7/8 1064 55 5/8 1413 35 7/8 911 43 1092 41 7/8 1064 55 5/8 1413 35 7/8 911 43 1092 41 7/8 1064 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 55 5/8 1413 35 7/8 911 43 1092 41 7/8 1064 55 5/8 1413 35 7/8 911 43 1092 41 7/8 1064 55 5/8 1413 35 7/8 911 43 1092 41 7/8 1064 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772

47 3/8 1203 32 7/8 835 43 1092 30 3/8 772 47 3/8 1203 32 7/8 835 43 1092 30 3/8 772

55 5/8 1413 35 7/8 911 43 1092 41 7/8 1064 55 5/8 1413 35 7/8 911 43 1092 41 7/8 1064

Base With Hood

DEPTH

HEIGHT*

NOTE: Discharge hood and legs are optional components

- 17 -

Page 18

DIMENSIONAL DATA (2 Fan Models Small Chassis)

MOUNTING HOLES

OPTIONAL AIR DISCHARGE HOOD A

ND LEGS

2 1/16 8 18 1/2 8 18 1/2 8 2 1/16

DEPTH

HEIGHT

WITH

WIDTH

HOOD

9/16 9/16

HEIGHT

MOUNTING

9/16 9/16

DEPTH

INDOOR DIMENSIONS

2 1/16 8 18 1/2 8 18 1/2 8 2 1/16

HOLES

WIDTH

OUTDOOR DIMENSIONS

CONDENSING UNIT

MODEL

BEZA 076 H2 BEZA 085 H2 BEZA 100 H2 BEZA 076 M6 BEZA 085 M6

BEZA 130 L6 BEZA 150 L6

*Note: Dimensions for indoor models may be smaller by up to 3/8” (10 mm)

WIDTH

Base With Hood

Inches mm Inches mm Inches mm Inches mm

68 5/8 1743 35 7/8 911 43 1092 41 7/8 1064 68 5/8 1743 35 7/8 911 43 1092 41 7/8 1064 68 5/8 1743 35 7/8 911 43 1092 41 7/8 1064 68 5/8 1743 35 7/8 911 43 1092 41 7/8 1064 68 5/8 1743 35 7/8 911 43 1092 41 7/8 1064 68 5/8 1743 35 7/8 911 43 1092 41 7/8 1064 68 5/8 1743 35 7/8 911 43 1092 41 7/8 1064

NOTE: Discharge hood and legs are optional components

- 18 -

DEPTH

HEIGHT*

Page 19

OPTIONAL AIR

DISCHARGE HOOD AND LEGS

DIMENSIONAL DATA (2 Fan Models Large Chassis)

HEIGHT

MOUNTING

3/4

DEPTH

INDOOR DIMENSIONS

HEIGHT

3/4

4 15/16 8 21 8 21 8 4 15/16

HOLES

WIDTH

3/4

DEPTH

3/4

OUTDOOR DIMENSIONS

CONDENSING UNIT

MODEL

BEZA 150 H2 BEZA 110 M6 BEZA 150 M6

*Note: Dimensions for indoor models may be smaller by up to 3/8” (10 mm)

WIDTH

Base With Hood

Inches mm Inches mm Inches mm Inches mm

75 7/8 1927 45 3/4 1162 59 1499 45 1/2 1156 75 7/8 1927 45 3/4 1162 59 1499 45 1/2 1156

75 7/8 1927 45 3/4 1162 59 1499 45 1/2 1156

NOTE: Discharge hood and legs are optional components

WITH HOOD

MOUNTING

4 15/16 8 21 8 21 8 4 15/1

DEPTH

HOLES

WIDTH

HEIGHT*

- 19 -

Page 20

BEZA

COPELAND

CONDENSING

UNIT

MODEL

BEZA020H2

BEZA025H2

BEZA030H2

BEZA035H2

BEZA040H2

BEZA050H2

BEZA060H2

BEZA065H2

BEZA070H2

BEZA076H2

BEZA085H2

BEZA100H2

BEZA150H2

BEZA010M6

BEZA011M6

BEZA015M6

BEZA020M6

BEZA025M6

BEZA030M6

BEZA035M6

BEZA040M6

BEZA050M6

BEZA060M6

BEZA065M6

BEZA070M6

BEZA076M6

BEZA085M6

BEZA110M6

BEZA150M6

BEZA020L6

BEZA025L6

BEZA030L6

BEZA035L6

BEZA045L6

BEZA055L6

BEZA060L6

BEZA075L6

BEZA100L6^

BEZA130L6

BEZA150L6

^ Options may be limited. Consult factory for details.

SUCTION (OD) LIQUID (OD) INDOOR OUTDOOR

Inches mm Inches mm Lbs. Kgs Lbs. Kgs Lbs. Kgs

7/8 22 3/8 10 13 6 280 127 300 136

7/8 22 3/8 10 16 7.3 290 132 320 145

7/8 22 1/2 13 25 11.3 380 172 410 186

7/8 22 1/2 13 25 11.3 380 172 415 188

1 1/8 29 1/2 13 25 11.3 390 177 420 191

1 1/8 29 1/2 13 25 11.3 390 177 425 193

1 1/8 29 5/8 16 35 15.9 430 195 470 213

1 1/8 29 5/8 16 35 15.9 465 211 510 231

1 3/8 35 5/8 16 35 15.9 470 213 515 234

1 3/8 35 5/8 16 62 28.1 580 263 635 288

1 3/8 35 5/8 16 62 28.1 590 268 645 293

1 5/8 41 7/8 22 87 39.5 845 383 790 358

5/8 16 3/8 10 5.2 2.4 190 86 200 91

5/8 16 3/8 10 11 4.9 265 120 285 129

7/8 22 3/8 10 11 4.9 265 120 285 129

7/8 22 3/8 10 11 4.9 280 127 300 136

7/8 22 1/2 13 14 6.3 290 132 320 145

7/8 22 1/2 13 22 9.9 380 172 410 186

7/8 22 1/2 13 22 9.9 380 172 415 188

1 1/8 29 1/2 13 22 9.9 390 177 420 191

1 1/8 29 1/2 13 22 9.9 390 177 425 193

1 1/8 29 5/8 16 30 13.8 430 195 470 213

1 1/8 29 5/8 16 30 13.6 465 211 510 231

1 3/8 35 5/8 16 30 13.6 470 213 515 234

1 3/8 35 5/8 16 54 24.5 580 263 635 288

1 3/8 35 5/8 16 54 24.5 590 268 645 293

1 3/8 35 7/8 22 76 34.5 745 338 690 313

1 5/8 41 7/8 22 76 34.5 845 383 790 358

7/8 22 3/8 10 11 4.9 290 132 315 143

7/8 22 3/8 10 14 6.3 310 141 335 152

7/8 22 3/8 10 14 6.3 390 177 425 193

7/8 22 1/2 13 14 6.3 400 181 430 195

1 1/8 29 1/2 13 22 9.9 400 181 435 197

1 1/8 29 1/2 13 22 9.9 400 181 440 200

1 1/8 29 1/2 13 30 13.8 450 204 485 220

1 3/8 35 5/8 16 30 13.8 460 209 495 225

1 3/8 35 5/8 16 48 21.8 500 227

1 3/8 35 5/8 16 54 24.5 670 304 725 329

1 3/8 35 5/8 16 54 24.5 690 313 745 338

UNIT CONNECTIONS

SPECIFICATIONS

RECEIVER

CAPACITY

90% FULL

APPROX. SHIPPING WEIGHT

545 247

- 20 -

Page 21

BEZT

TECUMSEH

CONDENSING

UNIT

MODEL

SPECIFICATIONS

UNIT CONNECTIONS

SUCTION (OD) LIQUID (OD) INDOOR OUTDOOR

Inches mm Inches mm Lbs. Kgs Lbs. Kgs Lbs. Kgs

RECEIVER CAPACITY

90% FULL

APPROX. SHIPPING WEIGHT

BEZT015M6

BEZT020M6

BEZT025M6

BEZT030M6

BEZT035M6

BEZT040M6

BEZT050M6

^ Options may be limited. Consult factory for details.

7/8 22 3/8 10 11 4.9 305 138 285 129

7/8 22 3/8 10 11 4.9 310 141 290 132

7/8 22 1/2 13 14 6.3 335 152 305 138

7/8 22 1/2 13 22 9.9 425 193 395 179

7/8 22 1/2 13 22 9.9 430 195 400 181

1 1/8 29 1/2 13 22 9.9 450 204 420 191

1 1/8 29 1/2 13 22 9.9 455 206 425 193

- 21 -

Page 22

TYPICAL SYSTEM WIRING DIAGRAM

208-230/1/60 Unit with 230V Air Defrost Evaporator

- 22 -

Page 23

TYPICAL SYSTEM WIRING DIAGRAM

208-230/3/60 Unit with 230V Electric Defrost Evaporator

- 23 -

Page 24

TYPICAL SYSTEM WIRING DIAGRAM

208-230/3/60 Unit with Two (2) 230V Electric Defrost Evaps

- 24 -

Page 25

TYPICAL SYSTEM WIRING DIAGRAM

208-230/3/60 Unit with 230V Electric Defrost Evaps

- 25 -

Page 26

TYPICAL SYSTEM WIRING DIAGRAM

460/3/60 Unit with Two (2) 460V Electric Defrost Evaps

- 26 -

Page 27

BEZA

COPELAND

GENERIC SERVICE PARTS LIST

MODEL CONDENSER

BEZA020H2

BEZA025H2

BEZA030H2

BEZA035H2

BEZA040H2

BEZA050H2

BEZA060H2

BEZA065H2

BEZA070H2

BEZA076H2

BEZA085H2

BEZA100H2

BEZA150H2

BEZA010M6

BEZA011M6

BEZA015M6

BEZA020M6

BEZA025M6

BEZA030M6

BEZA035M6

BEZA040M6

BEZA050M6

BEZA060M6

BEZA065M6

BEZA070M6

BEZA076M6

BEZA085M6

BEZA100M6

BEZA110M6

BEZA150M6

BEZA020L6

BEZA025L6

BEZA030L6

BEZA035L6

BEZA045L6

BEZA055L6

BEZA060L6

BEZA075L6

BEZA100L6

BEZA130L6

BEZA150L6

1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A

1078726 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563

1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1085368 N/A N/A 1087002 1076754 1087002 1076754 1087003 1076754

1088420 N/A N/A 1088430 1088116 1087070 1088116 1087071 1088116

1079523 N/A N/A 1078535 1077321 N/A N/A N/A N/A

1081643 N/A N/A 1084927 1079563 N/A N/A N/A N/A

1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A

1078726 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563

1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1085368 N/A N/A 1087002 1076754 1087002 1076754 1087003 1076754

1088420 N/A N/A 1088430 1088116 1087070 1088116 1087071 1088116

1081644 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A

1078726 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A

1078726 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563

1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1085368 N/A N/A 1087002 1076754 1087002 1076754 1087003 1076754

115/1/60

MOTORS BLADES MOTORS BLADES MOTORS BLADES MOTORS BLADES

208-230/1/60, 208-230/3/60,

200-220/1/50, 200-220/3/50

460/1/60, 460/3/60,

380-400/1/50, 380-400/3/50

575/3/60

- 27 -

Page 28

BEZT

TECUMSEH

MODEL CONDENSER

BEZT015M6

BEZT020M6

BEZT025M6

BEZT030M6

BEZT035M6

BEZT040M6

BEZT050M6

1081643 N/A N/A 1084927 1079563 N/A N/A N/A N/A

1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A

1078726 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563

1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

GENERIC SERVICE PARTS LIST

60Hz

115/1/60

MOTORS BLADES MOTORS BLADES MOTORS BLADES MOTORS BLADES

208-230/1/60, 208-230/3/60,

200-220/1/50, 200-220/3/50

460/1/60, 460/3/60,

380-400/1/50, 380-400/3/50

575/3/60

- 28 -

Page 29

NOTES

- 29 -

Page 30

NOTES

- 30 -

Page 31

Finished Goods Warranty

The terms and conditions as described below in the General Warranty Policy cover all products manufactured by National Refrigeration.

GeneraL Warranty PoLiCy

Subject to the terms and conditions hereof, the Company warrants all Products, including Service Parts, manufactured by the Company to be free of defects in material or workmanship, under normal use and application for a period of one (1) year from the original date of installation, or eighteen

(18)monthsfromthedateofshipmentfromtheCompany,whicheveroccursrst.Anyreplacement

part(s) so supplied will be warranted for the balance of the product’s original warranty. The part(s) to be replaced must be made available in exchange for the replacement part(s) and reasonable proof of the original installation date of the product must be presented in order to establish the effective date of the warranty, failing which, the effective date will be based upon the date of manufacture plus thirty (30) days. Any labour, material, refrigerant, transportation, freight or other charges incurred in connection with the performance of this warranty will be the responsibility of the owner at the current rates and prices then in effect. This warranty may be transferred to a subsequent owner of the product.

this Warranty does not CoVer

(a)Damagescausedbyaccident,abuse,negligence,misuse,riot,re,ood,orActsofGod(b)damages

caused by operating the product in a corrosive atmosphere (c) damages caused by any unauthorized alteration or repair of the system affecting the product’s reliability or performance (d) damages caused by improper matching or application of the product or the product’s components (e) damages caused by failing to provide routine and proper maintenance or service to the product (f) expenses incurred for the erecting, disconnecting, or dismantling the product (g) parts used in connection with normal maintenance,

suchasltersorbelts(h)productsnolongeratthesiteoftheoriginalinstallation(i)productsinstalled

or operated other than in accordance with the printed instructions, with the local installation or building codes and with good trade practices (j) products lost or stolen.

No one is authorized to change this WARRANTY or to create for or on behalf of the Company any other obligation or liability in connection with the Product(s). There is no other representation, warranty or condition in any respect, expressed or implied, made by or binding upon the Company other than the above or as provided by provincial or state law and which cannot be limited or excluded by such law, nor will we be liable in any way for incidental, consequential, or special damages however caused.

Theprovisionsofthisadditionalwrittenwarrantyareinadditiontoandnotamodicationoforsubtraction

from the statutory warranties and other rights and remedies provided by Federal, Provincial or State laws.

PROJECT INFORMATION

Sy st em

Mo de l Number Da te of Start-Up

Se ri al Number Se rv ice Contracto r

Re fr igerant Ph on e

El ec trical Supply Fa x

- 31 -

Page 32

“AS BUILT” SERVICE PARTS LIST

Service Parts List

Label

To Be Attached

HERE

General Sales, Parts & Service Manufacturing & Engineering

135 Little Nine Drive, Morehead City, NC 28557

252-240-2829 • 1-800-24-BALLY • FAX: 252-240-0384 e-mail: ballysales@ballyrefboxes.com • www.ballyrefboxes.com

Due to Manufacturer’s policy of continuous product improvement, the Manufacturer reserves the right to make changes without notice.

DISTRIBUTED BY:
