BEZ-Line

®

08/14/12

Condensing Units

PRODUCT DATA &
SPECIFICATIONS

Bulletin B40-BEZ-PDS-60-6

1087395

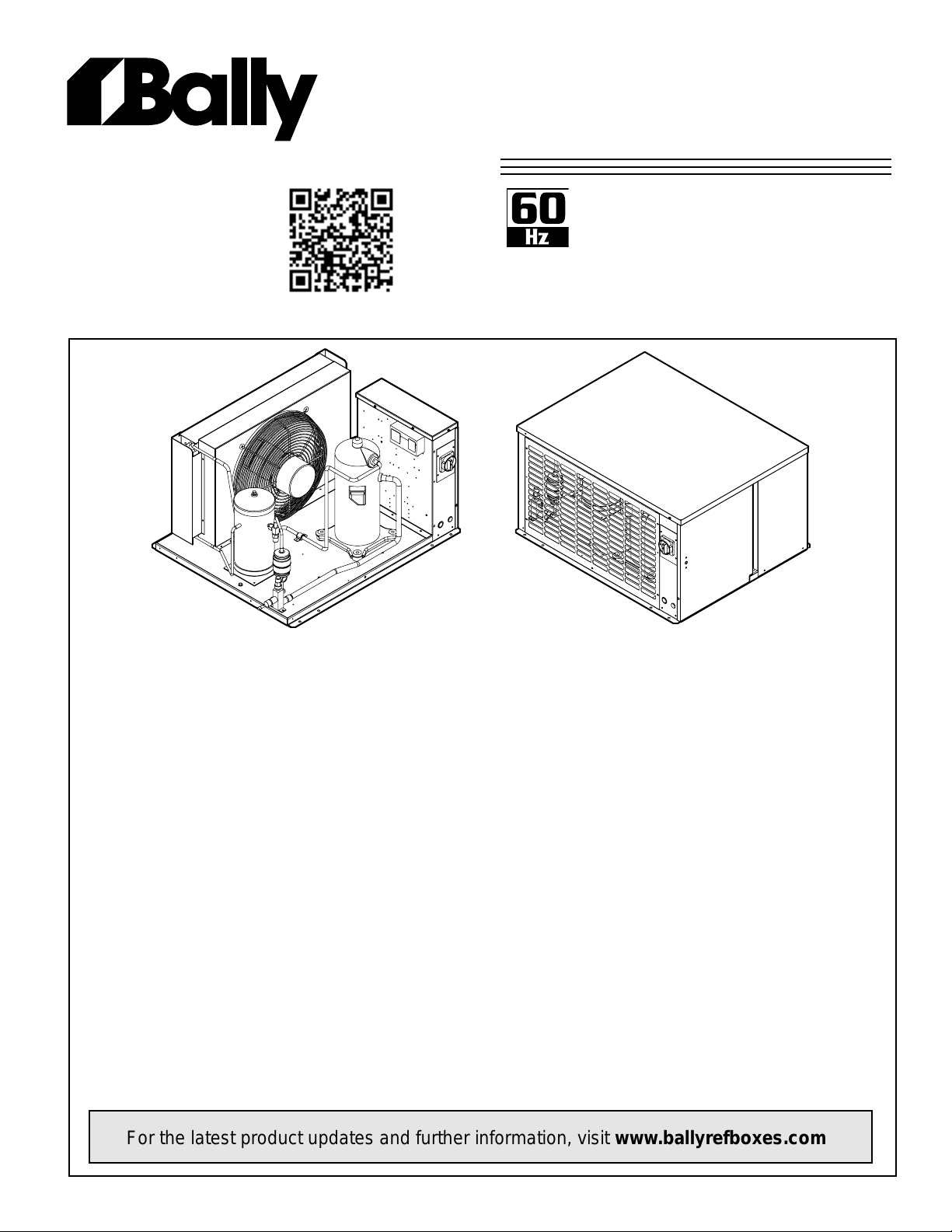

Indoor/Outdoor
Air-Cooled Scroll

Condensing Units

1 to 15 HP -
High, Medium and Low
Temperature Refrigeration

Indoor Unit Outdoor Unit

CONTENTS

Page

Nomenclature................................................................................................................

Features and Options...................................................................................................

Capacity Data (Imperial and Metric)..............................................................................

Electrical Data...............................................................................................................

Dimensional Data..........................................................................................................

Specications................................................................................................................

Wiring Diagrams............................................................................................................

EC Motor Application.....................................................................................................

EC Motor Electrical Data...............................................................................................

EC Motor Wiring Diagrams............................................................................................

Generic Service Parts List.............................................................................................

Warranty........................................................................................................................

Project Information........................................................................................................

“As Built” Service Parts List...........................................................................................

2

2 - 3

4 - 15
16 - 19
20 - 23
24 - 25
26 - 30
31 - 33
34 - 35
36 - 37

38
39
39

BACK

For the latest product updates and further information, visit www.ballyrefboxes.com

B E Z A 020 M 6 - H T4 B - A

B40-BEZ-PDS-60-6

- 2 -

08/14/12

Model Name

B = Bally

Model Series
EZ = Excel Scroll Air Cooled

Condensing Unit Line

Compressor Manufacturer

A = Copeland
T = Tecumseh

Nominal HP

010 - 150 = 1 - 15 HP

Application Range

H = High and Med Temp
M = Med Temp
E = Extended Medium T emperature
L = Low Temp

Refrigerant*

2 = R22, 6 = R404A / R507
8 = R404A / R507, R22, R407C

Enclosure

H = Outdoor
I = Indoor

Voltage*

S2 = 208/230-1-60 S3 = 230-1-60
S6 = 200/220-1-50 S7 = 200-1-50
T3 = 208/230-3-60 T4 = 460-3-60
T5 = 575-3-60 T7 = 200/220-3-50
T9 = 380/400-3-50

* subject to compressor availability

NOMENCLATURE

Optional Feature Packages (Factory Mounted)

A = Standard Features (see below)
B = Standard Features (see below)
Plus Sealed Liquid Line Filter Drier and Sight Glass
C = Standard Features (see below)
Plus Sealed Liquid Line Filter Drier and Sight Glass
Plus Suction Accumulator
Plus Electric Defrost Kit
D = Standard Features (see below)
Plus Sealed Liquid Line Filter Drier and Sight Glass
Plus Heated and Insulated Receiver
E = Standard Features (see below)
Plus Sealed Liquid Line Filter Drier and Sight Glass
Plus Heated and Insulated Receiver
Plus Suction Accumulator
Plus Electric Defrost Kit
F = Standard Features (see below)
PlusSealedliquidlinelterdrierandsightglass
Plus Electric Defrost Kit
G = Standard Features (see below)
PlusSealedliquidlinelterdrierandsightglass
Plus Electric Defrost Kit
Plus Heated and insulated receiver
H = Standard Features (see below)
Plus Sealed Liquid Line Filter Drier and Sight Glass
Plus Timeclock
J = Standard Features (see below)
Plus Sealed Liquid Line Filter Drier and Sight Glass
Plus Heated and insulated receiver

Plus Suction Accumulator

Series

B = Latest Catalog spec (2nd generation)

STANDARD FEATURES

Indoor Unit:

• Weatherproof electrical control box with
compressor contactor and fused control circuit

• Copeland or Tecumseh scroll compressor

• Highefciencyenhancedtubeandn  

condenser design

• EnergyefcientPSCcondenserfanmotor

• Receiver with fusible plug and liquid shut off

valve

• Suction service valve

• Pre-formed copper tubing

• Liquid injection (low temp. models)

• Unit leak tested and shipped with Helium holding

charge

• Fixed high and low pressure control

• Receiver inlet and outlet shut off valve

(2 fan units)

• Discharge thermostat on applicable models only

Outdoor Unit: All Standard Features of
Indoor Unit, Plus:

• Outdoor weather-resistant housing with
removable hood

• Flooded head pressure control (non
adjustable)

• Crankcase heater

• Fancyclingcontrolwithexhose(2fanunits)

OPTIONAL FEATURE PACKAGES (Factory Mounted)

B40-BEZ-PDS-60-6

- 3 -

08/14/12

Package A:

• Standard Features (see pg. 2)

Package B:

• Standard Features (see pg. 2)

• PlusSealedLiquidLineFilterDrier&SightGlass
Package C:

• Standard Features (see pg. 2)

• PlusSealedLiquidLineFilterDrier&SightGlass

• Plus Suction Accumulator

• Plus Electric Defrost Kit
Package D:

• Standard Features (see pg. 2)

• PlusSealedLiquidLineFilterDrier&SightGlass

• Plus Heated and Insulated Receiver
Package E:

• Standard Features (see pg. 2)

• PlusSealedLiquidLineFilterDrier&SightGlass

• Plus Heated and Insulated Receiver

• Plus Suction Accumulator

• Plus Electric Defrost Kit

Package F:

• Standard Features (see pg. 2)

• PlusSealedliquidlinelterdrierandsightglass

• Plus Electric Defrost Kit

Package G:

• Standard Features (see pg. 2)

• PlusSealedliquidlinelterdrierandsightglass

• Plus Electric Defrost Kit

• Plus Heated and insulated receiver

Package H:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier and Sight

Glass

• Plus Timeclock

Package J:

• Standard Features (see pg. 2)

• Plus Sealed Liquid Line Filter Drier and Sight

Glass

• Plus Heated and insulated receiver

• Plus Suction Accumulator

OPTIONAL FEATURES (Factory Mounted)

• Suction accumulator

• Suction accumulator with boil-out coil

• Discharge line Check valve

• Oil separator

• Oilseparatorc/woilreturnlter&

solenoid valve

• Adjustable head pressure control valves

• Receiver inlet ball valve

• Heated and Insulated receiver

• Over-sized receiver

• Sealedliquidlinelterdrier&sight-glass

• Ball valve - liquid line (shipped loose)

• Insulated suction lines

• Leg Kits

• Discharge air hood

• Sub cooling circuit on 5 - 15 HP models

• Liquid line solenoid valve-(with standard

230 volt coil)-shipped loose

• Variable speed EC motors as head

pressure control (see page 31 for details)

• Adjustablelowpressurecontrolwithex

hose

• Compressor Circuit breaker

• Current sensing relay - for use with oil

safety control (where applicable)

• Defrost heater contactor c/w fuse block

• Evaporator Fan contactor c/w fuse block

• Disconnect switch

• Disconnect Fusing

• Pump down toggle switch

• Lock out control circuit relay

• Hoffmann Speed control for condenser fan

 (replacesoodedvalve)

• Time delay relay for compressor

• Mechanical T ime Clock

• Electronic Defrost Kit

• Electronic Voltage/Phase Monitor

• QuickVac Evacuation and Refrigerant

Recovery Valves

BEZA

B40-BEZ-PDS-60-6

- 4 -

08/14/12

COPELAND

CONDENSING

UNIT

MODEL

BEZA010H8

Compressor

Model

ZS09KAE

BEZA011H8

Compressor

Model

ZS11KAE

BEZA015H8

Compressor

Model

ZS13KAE

BEZA020H8

Compressor

Model

ZB15KCE

BEZA025H8

Compressor

Model

ZB19KCE

BEZA030H8

Compressor

Model

ZB21KCE

BEZA035H8

Compressor

Model

ZB26KCE

BEZA040H8

Compressor

Model

ZB30KCE

BEZA050H8

Compressor

Model

ZB38KCE

BEZA060H8

Compressor

Model

ZB45KCE

BEZA065H8

Compressor

Model

ZB50KCE

SATURATED

SUCTION

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

45 (7.2) 18800 (5510) 18300 (5360) 17800 (5220) 17300 (5070) 16800 (4920) 16300 (4780) 15800 (4630)
40 (4.4) 17200 (5040) 16800 (4920) 16300 (4780) 15900 (4660) 15400 (4510) 15000 (4400) 14500 (4250)
35 (1.7) 15700 (4600) 15300 (4480) 14900 (4370) 14500 (4250) 14100 (4130) 13700 (4020) 13300 (3900)
30 -(1.1) 14300 (4190) 14000 (4100) 13600 (3990) 13300 (3900) 12900 (3780) 12500 (3660) 12100 (3550)
25 -(3.9) 13100 (3840) 12700 (3720) 12400 (3630) 12100 (3550) 11700 (3430) 11400 (3340) 11000 (3220)
45 (7.2) 21700 (6360) 21200 (6210) 20600 (6040) 20000 (5860) 19400 (5690) 18800 (5510) 18300 (5360)
40 (4.4) 19900 (5830) 19400 (5690) 18900 (5540) 18400 (5390) 17800 (5220) 17300 (5070) 16700 (4890)
35 (1.7) 18200 (5330) 17800 (5220) 17300 (5070) 16800 (4920) 16300 (4780) 15800 (4630) 15300 (4480)
30 -(1.1) 16700 (4890) 16200 (4750) 15800 (4630) 15400 (4510) 14900 (4370) 14500 (4250) 14000 (4100)
25 -(3.9) 15200 (4450) 14800 (4340) 14400 (4220) 14000 (4100) 13600 (3990) 13200 (3870) 12800 N/A
45 (7.2) 24500 (7180) 23900 (7000) 23200 (6800) 22600 (6620) 21900 (6420) 21200 (6210) 20600 (6040)
40 (4.4) 22500 (6590) 21900 (6420) 21300 (6240) 20700 (6070) 20100 (5890) 19500 (5710) 18900 (5540)
35 (1.7) 20600 (6040) 20100 (5890) 19600 (5740) 19000 (5570) 18400 (5390) 17900 (5250) 17300 (5070)
30 -(1.1) 18900 (5540) 18400 (5390) 17900 (5250) 17400 (5100) 16900 (4950) 16400 (4810) 15800 (4630)
25 -(3.9) 17200 (5040) 16800 (4920) 16300 (4780) 15900 (4660) 15400 (4510) 14900 (4370) 14400 (4220)
45 (7.2) 28100 (8236) 27400 (8030) 26600 (7796) 25900 (7591) 25100 (7356) 24300 (7122) 23500 (6887)
40 (4.4) 25900 (7591) 25200 (7386) 24500 (7181) 23800 (6975) 23100 (6770) 22400 (6565) 21600 (6331)
35 (1.7) 23800 (6975) 23100 (6770) 22500 (6594) 21900 (6419) 21200 (6213) 20500 (6008) 19800 (5803)
30 -(1.1) 21700 (6360) 21200 (6213) 20600 (6038) 20000 (5862) 19400 (5686) 18800 (5510) 18100 (5305)
25 -(3.9) 19800 (5803) 19300 (5657) 18800 (5510) 18200 (5334) 17700 (5188) 17100 (5012) N/A N/A
45 (7.2) 32200 (9437) 31400 (9203) 30500 (8939) 29700 (8705) 28800 (8441) 27900 (8177) 26900 (7884)
40 (4.4) 29500 (8646) 28800 (8441) 28000 (8206) 27200 (7972) 26400 (7737) 25500 (7474) 24700 (7239)
35 (1.7) 27000 (7913) 26300 (7708) 25600 (7503) 24900 (7298) 24200 (7093) 23400 (6858) 22600 (6624)
30 -(1.1) 24700 (7239) 24100 (7063) 23400 (6858) 22700 (6653) 22100 (6477) 21300 (6243) 20600 (6038)
25 -(3.9) 22500 (6594) 21900 (6419) 21300 (6243) 20700 (6067) 20100 (5891) 19400 (5686) N/A N/A
45 (7.2) 42500 (12456) 41500 (12163) 40500 (11870) 39400 (11547) 38300 (1
40 (4.4) 39100 (11460) 38100 (11166) 37200 (10903) 36200 (10610) 35100 (10287) 34100 (9994) 33000 (9672)
35 (1.7) 35800 (10492) 34900 (10229) 34000 (9965) 33100 (9701) 32200 (9437) 31200 (9144) 30200 (8851)
30 -(1.1) 32700 (9584) 31900 (9349) 31000 (9086) 30200 (8851) 29300 (8587) 28400 (8324) 27500 (8060)
25 -(3.9) 29700 (8705) 29000 (8499) 28200 (8265) 27400 (8030) 26600 (7796) 25800 (7562) N/A N/A
45 (7.2) 48400 (14185) 47200 (13834) 45900 (13453) 44700 (13101) 43300 (12691) 42000 (12309) 40600 (11899)
40 (4.4) 44500 (13042) 43300 (12691) 42200 (12368) 41000 (12016) 39800 (11665) 38600 (11313) 37300 (10932)
35 (1.7) 40800 (11958) 39700 (11635) 38700 (11342) 37600 (11020) 36500 (10698) 35400 (10375) 34200 (10023)
30 -(1.1) 37300 (10932) 36300 (10639) 35400 (10375) 34400 (10082) 33400 (9789) 32300 (9467) 31300 (9174)
25 -(3.9) 34000 (9965) 33100 (9701) 32200 (9437) 31300 (9174) 30400 (8910) 29400 (8617) N/A N/A
45 (7.2) 55600 (16295) 54100 (15856) 52700 (15445) 51200 (15006) 49700 (14566) 48100 (14097) 46500 (13628)
40 (4.4) 51200 (15006) 49800 (14596) 48500 (14215) 47100 (13804) 45700 (13394) 44300 (12984) 42800 (12544)
35 (1.7) 47000 (13775) 45700 (13394) 44500 (13042) 43200 (12661) 41900 (12280) 40600 (11899) 39200 (11489)
30 -(1.1) 43000 (12603) 41800 (12251) 40700 (11928) 39500 (11577) 38300 (11225) 37100 (10873) 35900 (10522)
25 -(3.9) 39200 (11489) 38100 (11166) 37100 (10873) 36000 (10551) 34900 (10229) 33800 (9906) N/A N/A
45 (7.2) 68600 (20106) 66900 (19607) 65100 (19080) 63300 (18552) 61400 (17995) 59500 (17438) 57500 (16852)
40 (4.4) 63200 (18523) 61600 (18054) 59900 (17556) 58200 (17057) 56500 (16559) 54700 (16032) 52900 (15504)
35 (1.7) 58000 (16999) 56500 (16559) 55000 (16120) 53400 (15651) 51800 (15182) 50200 (14713) 48500 (14215)
30 -(1.1) 53000 (15533) 51700 (15152) 50200 (14713) 48800 (14302) 47300 (13863) 45800 (13423) 44300 (12984)
25 -(3.9) 48300 (14156) 47100 (13804) 45800 (13423) 44400 (13013) 43100 (12632) 41700 (12222) N/A N/A
45 (7.2) 83700 (24531) 81600 (23916) 79500 (23300) 77300 (22655) 75000 (21981) 72700 (21307) 70300 (20604)
40 (4.4) 76900 (22538) 75000 (21981) 73000 (21395) 71000 (20809) 68900 (20193) 66700 (19549) 64500 (18904)
35 (1.7) 70500 (20662) 68700 (20135) 66900 (19607) 65000 (19050) 63000 (18464) 61000 (17878) 58900 (17263)
30 -(1.1) 64400 (18875) 62800 (18406) 61100 (17907) 59300 (17380) 57500 (16852) 55600 (16295) 53700 (15739)
25 -(3.9) 58600 (17175) 57100 (16735) 55500 (16266) 53900 (15797) 52300 (15328) 50500 (14801) N/A N/A
45 (7.2) 92300 (27052) 89900 (26348) 87500 (25645) 85000 (24912) 82400 (24150) 79700 (23359) 76900 (22538)
40 (4.4) 84600 (24795) 82400 (24150) 80200 (23505) 77800 (22802) 75400 (22098) 72900 (21366) 70200 (20574)
35 (1.7) 77300 (22655) 75300 (22069) 73200 (21454) 71000 (20809) 68700 (20135) 66400 (19461) 63900 (18728)
30 -(1.1) 70400 (20633) 68500 (20076) 66600 (19519) 64500 (18904) 62400 (18288) 60200 (17644) 57800 (16940)
25 -(3.9) 63900 (18728) 62200 (18230) 60400 (17702) 58400 (17116) 56400 (16530) 54300 (15914) 52100 (15270)

TEMP.

CAPACITY DATA -

R22

HIGH TEMPERATURE

CAPACITY BTU/H (WATTS)

AMBIENT TEMPERATURE °F (°C)

R22

60Hz

1225) 37200 (10903) 36000 (10551)

table continues on next page >>>

BEZA

B40-BEZ-PDS-60-6

- 5 -

08/14/12

COPELAND

CAPACITY DATA -

R22

HIGH TEMPERATURE (cont’d)

60Hz

CONDENSING

UNIT

MODEL

BEZA070H8

Compressor

Model

ZB58KCE

BEZA076H8

Compressor

Model

ZB66KCE

BEZA085H8

Compressor

Model

ZB76KCE

BEZA110H8

Compressor

Model

ZB95KCE

BEZA150H8

Compressor

Model

ZB114KCE

SATURATED

SUCTION

TEMP.

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

45 (7.2) 102200 (29953) 99500 (29162) 96700 (28341) 93800 (27491) 90800 (26612) 87700 (25703) 84500 (24766)
40 (4.4) 93900 (27521) 91400 (26788) 88800 (26026) 86100 (25234) 83300 (24414) 80400 (23564) 77400 (22685)
35 (1.7) 86000 (25205) 83700 (24531) 81300 (23828) 78800 (23095) 76200 (22333) 73500 (21542) 70600 (20692)
30 -(1.1) 78500 (23007) 76300 (22362) 74100 (21717) 71700 (21014) 69300 (20311) 66800 (19578) 64200 (18816)
25 -(3.9) 71300 (20897) 69300 (20311) 67300 (19725) 65100 (19080) 62800 (18406) 60500 (17732) 58000 (16999)
45 (7.2) 119800 (35111) 116900 (34261) 114000 (33411) 110900 (32503) 107800 (31594) 104700(30686) 101400 (29719)
40 (4.4) 109900 (32210) 107300 (31448) 104600 (30657) 101800 (29836) 99000 (29015) 96100 (28165) 93100 (27286)
35 (1.7) 100500 (29455) 98100 (28751) 95600 (28019) 93100 (27286) 90500 (26524) 87900 (25762) 85100 (24941)
30 -(1.1) 91600 (26846) 89400 (26202) 87200 (25557) 84900 (24883) 82500 (24179) 80100 (23476) 77600 (22743)
25 -(3.9) 83300 (24414) 81300 (23828) 79200 (23212) 77100 (22597) 75000 (21981) 72700 (21307) 70400 (20633)
45 (7.2) 137900 (40416) 134500 (39420) 131000 (38394) 127400 (37339) 123700 (36254) 120000 (35170) 116200 (34056)
40 (4.4) 127200 (37280) 124000 (36342) 120800 (35404) 117500 (34437) 114100 (33441) 110600 (32415) 107000 (31360)
35 (1.7) 116900 (34261) 114000 (33411) 111000 (32532) 107900 (31624) 104800 (30715) 101600(29777) 98200 (28781)
30 -(1.1) 107000 (31360) 104400 (30598) 101600 (29777) 98800 (28957) 95900 (28107) 92900 (27227) 89800 (26319)
25 -(3.9) 97700 (28634) 95300 (27931) 92700 (27169) 90100 (26407) 87400 (25615) 84700 (24824) 81800 (23974)
45 (7.2) 174300 (51080) 169800 (49760) 165100 (48390) 160400 (47010) 155500 (45570) 150500 (44110) 145300 (42580)
40 (4.4) 160200 (46950) 155900 (45690) 151600 (44430) 147100 (43110) 142500 (41760) 137800 (40390) 132900 (38950)
35 (1.7) 146700 (42990) 142700 (41820) 138700 (40650) 134400 (39390) 130100 (38130) 125600 (36810) 121000 (35460)
30 -(1.1) 133800 (39210) 130100 (38130) 126300 (37010) 122300 (35840) 118200 (34640) 113900 (33380) 109500 (32090)
25 -(3.9) 121600 (35640) 118100 (34610) 114500 (33560) 110800 (32470) 106800 (31300) 102800 (30130) 98600 (28900)
45 (7.2) 202800 (59420) 197100 (57750) 191500 (56110) 185900 (54469) 180200 (52799) 174500 (51129) 168500 (49371)
40 (4.4) 186400 (54615) 181300 (53121) 176100 (51597) 171000 (50103) 165700 (48550) 160300 (46968) 154700 (45327)
35 (1.7) 170800 (50044) 166200 (48697) 161500 (47320) 156800 (45942) 151800 (44477) 146700 (42983) 141400 (41430)
30 (-1.1) 156100 (45737) 151900 (44507) 147600 (43247) 143100 (41928) 138500 (40581) 133600 (39145) 128500 (37651)
25 (-3.9) 142200 (41665) 138300 (40522) 134300 (39350) 130100 (38119) 125700 (36830) 121000 (35453) 115900 (33959)

CAPACITY BTU/H (WATTS)

AMBIENT TEMPERATURE °F (°C)

R22

BEZA

B40-BEZ-PDS-60-6

- 6 -

08/14/12

COPELAND

CONDENSING

UNIT

MODEL

BEZA010H8

Compressor

Model

ZS09KAE

BEZA011H8

Compressor

Model

ZS11KAE

BEZA015H8

Compressor

Model

ZS13KAE

BEZA020H8

Compressor

Model

ZB15KCE

BEZA025H8

Compressor

Model

ZB19KCE

BEZA030H8

Compressor

Model

ZB21KCE

BEZA035H8

Compressor

Model

ZB26KCE

BEZA040H8

Compressor

Model

ZB30KCE

SATURATED

SUCTION

TEMP.

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)
45 (7.2) 17300 (5070) 16700 (4890) 16300 (4780) 15800 (4630) 15300 (4480) 14800 (4340) 14300 (4190)

40 (4.4) 15800 (4630) 15400 (4510) 14900 (4370) 14500 (4250) 14000 (4100) 13600 (3990) 13200 (3870)
35 (1.7) 14400 (4220) 14000 (4100) 13600 (3990) 13200 (3870) 12900 (3780) 12500 (3660) 12100 (3550)
30 (-1.1) 13100 (3840) 12800 (3750) 12400 (3630) 12100 (3550) 11700 (3430) 11400 (3340) 11000 (3220)
25 (-3.9) 11900 (3490) 11600 (3400) 11200 (3280) 10900 (3190) 10600 (3110) 10300 (3020) 10000 (2930)
20 (-6.7) 10700 (3140) 10400 (3050) 10100 (2960) 9900 (2900) 9600 (2810) 9300 (2730) 9000 (2640)
15 (-9.4) 9500 (2780) 9300 (2730) 9100 (2670) 8800 (2580) 8600 (2520) 8300 (2430) 8000 (2340)
10 (-12.2) 8500 (2490) 8300 (2430) 8100 (2370) 7800 (2290) 7600 (2230) 7400 (2170) 7100 (2080)
45 (7.2) 20200 (5920) 19600 (5740) 19000 (5570) 18500 (5420) 17900 (5250) 17300 (5070) 16700 (4890)
40 (4.4) 18500 (5420) 18000 (5280) 17500 (5130) 17000 (4980) 16500 (4840) 15900 (4660) 15400 (4510)
35 (1.7) 16900 (4950) 16500 (4840) 16000 (4690) 15600 (4570) 15100 (4430) 14600 (4280) 14100 (4130)
30 (-1.1) 15400 (4510) 15000 (4400) 14600 (4280) 14200 (4160) 13800 (4040) 13300 (3900) 12900 (3780)
25 (-3.9) 14000 (4100) 13600 (3990) 13300 (3900) 12900 (3780) 12500 (3660) 12100 (3550) 11700 (3430)
20 (-6.7) 12600 (3690) 12300 (3600) 11900 (3490) 11600 (3400) 11300 (3310) 10900 (3190) 10600 (3110)
15 (-9.4) 11300 (3310) 11000 (3220) 10700 (3140) 10400 (3050) 10100 (2960) 9800 (2870) 9500 (2780)
10 (-12.2) 10000 (2930) 9800 (2870) 9500 (2780) 9300 (2730) 9000 (2640) 8700 (2550) 8400 (2460)
45 (7.2) 22700 (6650) 22000 (6450) 21300 (6240) 20700 (6070) 20000 (5860) 19400 (5690) 18700 (5480)
40 (4.4) 20800 (6100) 20200 (5920) 19600 (5740) 19100 (5600) 18500 (5420) 17900 (5250) 17300 (5070)
35 (1.7) 19100 (5600) 18500 (5420) 18000 (5280) 17500 (5130) 17000 (4980) 16400 (4810) 15900 (4660)
30 (-1.1) 17400 (5100) 16900 (4950) 16400 (4810) 16000 (4690) 15500 (4540) 15000 (4400) 14500 (4250)
25 (-3.9) 15800 (4630) 15400 (4510) 14900 (4370) 14500 (4250) 14100 (4130) 13600 (3990) 13200 (3870)
20 (-6.7) 14200 (4160) 13900 (4070) 13500 (3960) 13100 (3840) 12700 (3720) 12300 (3600) 11900 (3490)
15 (-9.4) 12800 (3750) 12400 (3630) 12100 (3550) 11800 (3460) 11400 (3340) 11000 (3220) 10700 (3140)
10
45 (7.2) 26700 (7820) 25900 (7590) 25100 (7360) 24300 (7120) 23400 (6860) 22500 (6590) 21600 (6330)
40 (4.4) 24500 (7180) 23800 (6980) 23000 (6740) 22200 (6510) 21400 (6270) 20600 (6040) 19700 (5770)
35 (1.7) 22400 (6560) 21700 (6360) 21000 (6150) 20300 (5950) 19500 (5710) 18700 (5480) 17900 (5250)
30 (-1.1) 20400 (5980) 19800 (5800) 19100 (5600) 18400 (5390) 17700 (5190) 17000 (4980) 16200 (4750)
25 (-3.9) 18500 (5420) 17900 (5250) 17300 (5070) 16700 (4890) 16000 (4690) 15300 (4480) 14600 (4280)
20 (-6.7) 16700 (4890) 16200 (4750) 15600 (4570) 15000 (4400) 14400 (4220) 13800 (4040) 13100 (3840)
15 (-9.4) 15100 (4430) 14600 (4280) 14000 (4100) 13500 (3960) 12900 (3780) 12300 (3600) 11700 (3430)
10 (-12.2) 13500 (3960) 13100 (3840) 12600 (3690) 12100 (3550) 11500 (3370) 11000 (3220) 10400 (3050)
45 (7.2) 30300 (8880) 29400 (8620) 28400 (8320) 27400 (8030) 26300 (7710) 25300 (7410) 24100 (7060)
40 (4.4) 27600 (8090) 26700 (7820) 25900 (7590) 24900 (7300) 24000 (7030) 23000 (6740) 21900 (6420)
35 (1.7) 25000 (7330) 24200 (7090) 23400 (6860) 22600 (6620) 21700 (6360) 20800 (6100) 19900 (5830)
30 (-1.1) 22500 (6590) 21800 (6390) 21100 (6180) 20300 (5950) 19600 (5740) 18800 (5510) 17900 (5250)
25 (-3.9) 20200 (5920) 19600 (5740) 18900 (5540) 18200 (5330) 17600 (5160) 16900 (4950) 16100 (4720)
20 (-6.7) 18100 (5300) 17500 (5130) 16900 (4950) 16300 (4780) 15700 (4600) 15100 (4430) 14400 (4220)
15 (-9.4) 16100 (4720) 15600 (4570) 15000 (4400) 14500 (4250) 14000 (4100) 13400 (3930) 12900 (3780)
10 (-12.2) 14300 (4190) 13800 (4040) 13300 (3900) 12900 (3780) 12400 (3630) 12000 (3520) 11500 (3370)
45 (7.2) 40000 (11720) 38800 (11370) 37600 (11020) 36300 (10640) 35000 (10260) 33700 (9880) 32300 (9470)
40 (4.4) 36400 (10670) 35300 (10350) 34200 (10020) 33100 (9700) 31900 (9350) 30700 (9000) 29500 (8650)
35 (1.7) 33100 (9700) 32100 (9410) 31100 (9110) 30000 (8790) 29000 (8500) 27900 (8180) 26800 (7850)
30 (-1.1) 30000 (8790) 29100 (8530) 28100 (8240) 27200 (7970) 26200 (7680) 25200 (7390) 24200 (7090)
25 (-3.9) 27000 (7910) 26200 (7680) 25400 (7440) 24500 (7180) 23700 (6950) 22800 (6680) 21900 (6420)
20 (-6.7) 24300 (7120) 23600 (6920) 22800 (6680) 22100 (6480) 21300 (6240) 20500 (6010) 19700 (5770)
15 (-9.4) 21800 (6390) 21100 (6180) 20500 (6010) 19800 (5800) 19100 (5600) 18400 (5390) 17600 (5160)
10 (-12.2) 19400 (5690) 18800
45 (7.2) 46200 (13540) 44900 (13160) 43600 (12780) 42100 (12340) 40700 (11930) 39100 (11460) 37500 (10990)
40 (4.4) 42600 (12480) 41300 (12100) 40000 (11720) 38700 (11340) 37300 (10930) 35800 (10490) 34300 (10050)
35 (1.7) 38900 (11400) 37700 (11050) 36500 (10700) 35200 (10320) 33900 (9940) 32500 (9520) 31100 (9110)
30 (-1.1) 35300 (10350) 34200 (10020) 33000 (9670) 31800 (9320) 30600 (8970) 29300 (8590) 28000 (8210)
25 (-3.9) 31800 (9320) 30800 (9030) 29700 (8700) 28600 (8380) 27500 (8060) 26300 (7710) 25000 (7330)
20 (-6.7) 28600 (8380) 27700 (8120) 26700 (7820) 25700 (7530) 24600 (7210) 23500 (6890) 22400 (6560)
15 (-9.4) 25700 (7530) 24900 (7300) 24000 (7030) 23100 (6770) 22100 (6480) 21100 (6180) 20100 (5890)
10 (-12.2) 23300 (6830) 22500 (6590) 21700 (6360) 20900 (6130) 20000 (5860) 19200 (5630) 18200 (5330)
45 (7.2) 51400 (15060) 49900 (14620) 48400 (14180) 46900 (13740) 45300 (13280) 43700 (12810) 42000 (12310)
40 (4.4) 47000 (13770) 45600 (13360) 44200 (12950) 42800 (12540) 41400 (12130) 39900 (11690) 38300 (11220)
35 (1.7) 42800 (12540) 41500 (12160) 40300 (11810) 39000 (11430) 37600 (11020) 36200 (10610) 34800 (10200)
30 (-1.1) 38800 (11370) 37700 (11050) 36500 (10700) 35300 (10350) 34100 (9990) 32800 (9610) 31600 (9260)
25 (-3.9) 35100 (10290) 34000 (9960) 33000 (9670) 31900 (9350) 30800 (9030) 29600 (8670) 28500 (8350)
20 (-6.7) 31600 (9260) 30700 (9000) 29700 (8700) 28700 (8410) 27700 (8120) 26600 (7800) 25600 (7500)
15 (-9.4) 28400 (8320) 27500 (8060) 26600 (7800) 25700 (7530) 24800 (7270) 23800 (6980) 22900 (6710)
10 (-12.2) 25400 (7440) 24600 (7210) 23800 (6980) 22900 (6710) 22100 (6480) 21200 (6210) 20400 (5980)

CAPACITY DATA -

HIGH / MEDIUM TEMPERATURE

CAPACITY BTU/H (WATTS)

(-12.2) 11400 (3340) 1110

0 (3250) 10800 (3170) 10500 (3080) 10100 (2960) 9800 (2870) 9400 (2750)

(5510) 18200 (5330) 17600 (5160) 17000 (4980) 16400 (4810) 15700 (4600)

R407C

R407C

60Hz

AMBIENT TEMPERATURE °F (°C)

table continues on next page >>>

NOTE: The capacities shown above are rated at dew point. The dew point is a saturation point and is the condition (pressure and temperature) at

whichagasbeginstocondense.SinceR407Chassignicantglide,thesaturatedgasandsaturatedliquidtemperaturesarenotthesame.

It is important that all components of a system are selected correctly

BEZA

B40-BEZ-PDS-60-6

- 7 -

08/14/12

COPELAND

CAPACITY DATA -

R407C

HIGH / MEDIUM TEMPERATURE (cont’d)

60Hz

CONDENSING

UNIT

MODEL

BEZA050H8

Compressor

Model

ZB38KCE

BEZA060H8

Compressor

Model

ZB45KCE

BEZA065H8

Compressor

Model

ZB50KCE

BEZA070H8

Compressor

Model

ZB58KCE

BEZA076H8

Compressor

Model

ZB66KCE

BEZA085H8

Compressor

Model

ZB76KCE

BEZA110H8

Compressor

Model

ZB95KCE

BEZA150H8

Compressor

Model

ZB114KCE

NOTE: The capacities shown above are rated at dew point. The dew point is a saturation point and is the condition (pressure and temperature) at

whichagasbeginstocondense.SinceR407Chassignicantglide,thesaturatedgasandsaturatedliquidtemperaturesarenotthesame.

It is important that all components of a system are selected correctly

SATURATED

SUCTION

TEMP.

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35.0) 100 (37.8) 105 (40.6) 110 (43.3)
45 (7.2) 65200 (19110) 63500 (18610) 61700 (18080) 59900 (17550) 57900 (16970) 55800 (16350) 53700 (15740)

40 (4.4) 59900 (17550) 58300 (17090) 56600 (16590) 54800 (16060) 53000 (15530) 51100 (14980) 49100 (14390)
35 (1.7) 54700 (16030) 53200 (15590) 51700 (15150) 50000 (14650) 48300 (14160) 46600 (13660) 44800 (13130)
30 (-1.1) 49800 (14590) 48400 (14180) 47000 (13770) 45500 (13330) 43900 (12870) 42300 (12400) 40700 (11930)
25 (-3.9) 45200 (13250) 43900 (12870) 42600 (12480) 41200 (12070) 39800 (11660) 38300 (11220) 36800 (10780)
20 (-6.7) 40800 (11960) 39700 (11630) 38400 (11250) 37200 (10900) 35900 (10520) 34500 (10110) 33200 (9730)
15 (-9.4) 36700 (10760) 35700 (10460) 34600 (10140) 33400 (9790) 32300 (9470) 31100 (9110) 29900 (8760)
10 (-12.2) 32900 (9640) 32000 (9380) 31000 (9090) 30000 (8790) 28900 (8470) 27900 (8180) 26800 (7850)
45 (7.2) 77000 (22570) 75000 (21980) 72900 (21360) 70800 (20750) 68600 (20100) 66400 (19460) 64000 (18760)
40 (4.4) 70300 (20600) 68500 (20080) 66600 (19520) 64600 (18930) 62600 (18350) 60500 (17730) 58400 (17120)
35 (1.7) 64000 (18760) 62300 (18260) 60600 (17760) 58800 (17230) 57000 (16700) 55100 (16150) 53100 (15560)
30 (-1.1) 58200 (17060) 56600 (16590) 55100 (16150) 53400 (15650) 51700 (15150) 49900 (14620) 48100 (14100)
25 (-3.9) 52700 (15440) 51300 (15030) 49900 (14620) 48300 (14160) 46800 (13720) 45100 (13220) 43400 (12720)
20 (-6.7) 47600 (13950) 46300 (13570) 45000 (13190) 43600 (12780) 42100 (12340) 40600 (11900) 39000 (11430)
15 (-9.4) 42900 (12570) 41700 (12220) 40400 (11840) 39100 (11460) 37700 (11050) 36300 (10640) 34900 (10230)
10 (-12.2) 38500 (11280) 37300 (10930) 36100 (10580) 34900 (10230) 33600 (9850) 32300 (9470) 30900 (9060)
45 (7.2) 87100 (25530) 84500 (24760) 81800 (23970) 79100 (23180) 76200 (22330) 73300 (21480) 70300 (20600)
40 (4.4) 79700 (23360) 77300 (22650) 74900 (21950) 72300 (21190) 69700 (20430) 67000 (19640) 64300 (18840)
35 (1.7) 72600 (21280) 70500 (20660) 68200 (19990) 65900 (19310) 63500 (18610) 61000 (17880) 58500 (17140)
30 (-1.1) 65900 (19310) 64000 (18760) 61900 (18140) 59800 (17530) 57600 (16880) 55300 (16210) 52900 (15500)
25 (-3.9) 59600 (17470) 57900 (16970) 56000 (16410) 54000 (15830) 52000 (15240) 49900 (14620) 47700 (13980)
20 (-6.7) 53700 (15740) 52100 (15270) 50400 (14770) 48600 (14240) 46700 (13690) 44700 (13100) 42600 (12480)
15 (-9.4) 48200 (14130) 46700 (13690) 45100 (13220) 43400 (12720) 41600 (12190) 39800 (11660) 37800 (11080)

(-12.2) 43000 (12600) 41600 (12190) 40100 (11750) 38500 (11280) 36800 (10780) 35100 (10290) 33300 (9760)

10
45 (7.2) 97200 (28490) 94500 (27700) 91600 (26850) 88600 (25970) 85400 (25030) 82100 (24060) 78700 (23060)
40 (4.4) 89000 (26080) 86400 (25320) 83800 (24560) 81000 (23740) 78000 (22860) 74900 (21950) 71600 (20980)
35 (1.7) 81200 (23800) 78800 (23090) 76300 (22360) 73700 (21600) 70900 (20780) 68000 (19930) 64900 (19020)
30 (-1.1) 73800 (21630) 71600 (20980) 69300 (20310) 66800 (19580) 64200 (18820) 61400 (17990) 58500 (17140)
25 (-3.9) 66900 (19610) 64900 (19020) 62700 (18380) 60300 (17670) 57800 (16940) 55200 (16180) 52400 (15360)
20 (-6.7) 60400 (17700) 58500 (17140) 56400 (16530) 54200 (15880) 51800 (15180) 49300 (14450) 46700 (13690)
15 (-9.4) 54400 (15940) 52500 (15390) 50600 (14830) 48500 (14210) 46200 (13540) 43800 (12840) 41300 (12100)
10 (-12.2) 48700 (14270) 47000 (13770) 45100 (13220) 43100 (12630) 40900 (1
45 (7.2) 113400(33230) 110500 (32380) 107500 (31510) 104500 (30630) 101300 (29690) 98100 (28750) 94700 (27750)
40 (4.4) 103400(30300) 100700 (29510) 98000 (28720) 95100 (27870) 92200 (27020) 89200 (26140) 86100 (25230)
35 (1.7) 94000 (27550) 91500 (26820) 89000 (26080) 86400 (25320) 83700 (24530) 80900 (23710) 78000 (22860)
30 (-1.1) 85200 (24970) 82900 (24300) 80600 (23620) 78200 (22920) 75700 (22190) 73100 (21420) 70500 (20660)
25 (-3.9) 77000 (22570) 74900 (21950) 72800 (21340) 70600 (20690) 68200 (19990) 65900 (19310) 63400 (18580)
20 (-6.7) 69400 (20340) 67500 (19780) 65500 (19200) 63500 (18610) 61300 (17970) 59100 (17320) 56900 (16680)
15 (-9.4) 62400 (18290) 60600 (17760) 58800 (17230) 56900 (16680) 54900 (16090) 52900 (15500) 50900 (14920)
10 (-12.2) 55900 (16380) 54300 (15910) 52600 (15420) 50800 (14890) 49000 (14360) 47200 (13830) 45300 (13280)
45 (7.2) 131000(38390) 127400 (37340) 123800 (36280) 120000 (35170) 116200 (34050) 112300 (32910) 108400 (31770)
40 (4.4) 119800 (35110) 116500 (34140) 113200 (33180) 109700 (32150) 106200 (31120) 102700 (30100) 99100 (29040)
35 (1.7) 109200(32000) 106200 (31120) 103200 (30240) 100000 (29310) 96800 (28370) 93600 (27430) 90300 (26460)
30 (-1.1) 99300 (29100) 96500 (28280) 93800 (27490) 90900 (26640) 88000 (25790) 85000 (24910) 82000 (24030)
25 (-3.9) 90000 (26380) 87500 (25640) 85000 (24910) 82400 (24150) 79700 (23360) 77100 (22600) 74300 (21780)
20 (-6.7) 81300 (23830) 79100 (23180) 76800 (22510) 74400 (21800) 72000 (21100) 69600 (20400) 67100 (19660)
15 (-9.4) 73300 (21480) 71200 (20870) 69200 (20280) 67000 (19640) 64900 (19020) 62700 (18380) 60500 (17730)
10 (-12.2) 65800 (19280) 64000
45 (7.2) 168000(49240) 163300 (47860) 158400 (46420) 153400 (44960) 148300 (43460) 143000 (41910) 137600 (40330)
40 (4.4) 152900(44810) 148500 (43520) 144000 (42200) 139300 (40820) 134500 (39420) 129600 (37980) 124600 (36520)
35 (1.7) 138600(40620) 134600 (39450) 130400 (38220) 126100 (36960) 121600 (35640) 117100 (34320) 112400 (32940)
30 (-1.1) 125300(36720) 121600 (35640) 117700 (34490) 113700 (33320) 109600 (32120) 105400 (30890) 101100 (29630)
25 (-3.9) 113000(33120) 109500 (32090) 105900 (31040) 102200 (29950) 98400 (28840) 94500 (27700) 90500 (26520)
20 (-6.7) 101400(29720) 98200 (28780) 94900 (27810) 91500 (26820) 87900 (25760) 84300 (24710) 80600 (23620)
15 (-9.4) 90800 (26610) 87800 (25730) 84700 (24820) 81500 (23890) 78300 (22950) 74900 (21950) 71500 (20950)
10 (-12.2) 81000 (23740) 78200 (22920) 75300 (22070) 72400 (21220) 69300 (20310) 66200 (19400) 63100 (18490)
45 (7.2) 191800(56210) 186400 (54630) 180800 (52990) 175100 (51320) 169300 (49620) 163400 (47890) 157300 (46100)
40 (4.4) 175100(51320) 170100 (49850) 165000 (48360) 159800 (46830) 154400 (45250) 148900 (43640) 143200 (41970)
35 (1.7) 159400(46720) 154800 (45370) 150100 (43990) 145300 (42580) 140300 (41120) 135300 (39650) 130100 (38130)
30 (-1.1) 144700(42410) 140500 (41180) 136100 (39890) 131700 (38600) 127100 (37250) 122500 (35900) 117700 (34490)
25 (-3.9) 130900(38360) 127000 (37220) 123100 (36080) 119000 (34880) 114800 (33640) 110500 (32380) 106100 (31090)
20 (-6.7) 118000(34580) 114500 (33560) 110900 (32500) 107100 (31390) 103200 (30240) 99300 (29100) 95300 (27930)
15 (-9.4) 106100(31090) 102800 (30130) 99500 (29160) 96100 (28160) 92500 (27110) 88900 (26050) 85200 (24970)
10 (-12.2) 95000 (27840) 92000 (26960) 89000 (26080) 85800 (25150) 82600 (24210) 79200 (23210) 75800 (22210)

CAPACITY BTU/H (WATTS)

(18760) 62100 (18200) 60200 (17640) 58300 (17090) 56300 (16500) 54300 (15910)

R407C

AMBIENT TEMPERATURE °F (°C)

1990) 38600 (11310) 36200 (10610)

BEZA

B40-BEZ-PDS-60-6

- 8 -

08/14/12

COPELAND

CAPACITY DATA -

MEDIUM TEMPERATURE

R404A

R507

60Hz

COND. UNIT

MODEL

BEZA010H8

Compressor

Model

ZS09KAE

BEZA011H8

Compressor

Model

ZS11KAE

BEZA015H8

Compressor

Model

ZS13KAE

BEZA020H8

Compressor

Model

ZB15KCE

BEZA025H8

Compressor

Model

ZB19KCE

SAT. SUCT.

TEMP.

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

40 (4.4) 17900 (5250) 17300 (5070) 16600 (4860) 16000 (4690) 15300 (4480) 14600 (4280) 13900 (4070)
35 (1.7) 16300 (4780) 15700 (4600) 15100 (4430) 14500 (4250) 13900 (4070) 13300 (3900) 12700 (3720)
30 (-1.1) 14800 (4340) 14300 (4190) 13800 (4040) 13200 (3870) 12700 (3720) 12100 (3550) 11500 (3370)
25 (-3.9) 13500 (3960) 13000 (3810) 12500 (3660) 12000 (3520) 11500 (3370) 11000 (3220) 10500 (3080)
20 (-6.7) 12200 (3580) 11800 (3460) 11400 (3340) 10900 (3190) 10500 (3080) 10000 (2930) 9530 (2790)
15 (-9.4) 11100 (3250) 10700 (3140) 10300 (3020) 9920 (2910) 9510 (2790) 9090 (2660) 8660 (2540)
10 (-12.2) 10000 (2930) 9700 (2840) 9360 (2740) 9000 (2640) 8630 (2530) 8260 (2420) 7880 (2310)

5 (-15.0) 9080 (2660) 8770 (2570) 8460 (2480) 8150 (2390) 7820 (2290) 7490 (2200) 7140 (2090)
0 (-17.8) 8180 (2400) 7910 (2320) 7620 (2230) 7350 (2150) 7070 (2070) 6770 (1980) 6460 (1890)

-5 (-20.6) 7330 (2150) 7090 (2080) 6850 (2010) 6600 (1930) 6350 (1860) 6090 (1780) 5820 (1710)

-10 (-23.3) 6520 (1910) 6310 (1850) 6100 (1790) 5880 (1720) 5660 (1660) 5430 (1590) 5190 (1520)
40 (4.4) 21100 (6180) 20300 (5950) 19600 (5740) 18800 (5510) 18000 (5280) 17200 (5040) 16300 (4780)
35 (1.7) 19200 (5630) 18500 (5420) 17800 (5220) 17100 (5010) 16400 (4810) 15600 (4570) 14900 (4370)
30 (-1.1) 17500 (5130) 16900 (4950) 16300 (4780) 15600 (4570) 14900 (4370) 14300 (4190) 13600 (3990)
25 (-3.9) 16000 (4690) 15400 (4510) 14800 (4340) 14200 (4160) 13600 (3990) 13000 (3810) 12300 (3600)
20 (-6.7) 14500 (4250) 14000 (4100) 13500 (3960) 12900 (3780) 12400 (3630) 11800 (3460) 11300 (3310)
15 (-9.4) 13200 (3870) 12700 (3720) 12300 (3600) 11800 (3460) 11300 (3310) 10800 (3170) 10300 (3020)
10 (-12.2) 12000 (3520) 11600 (3400) 11100 (3250) 10700 (3140) 10300 (3020) 9810 (2880) 9330 (2730)

5 (-15.0) 10800 (3170) 10500 (3080) 10100 (2960) 9710 (2850) 9310 (2730) 8900 (2610) 8480 (2490)
0 (-17.8) 9780 (2870) 9450 (2770) 9110 (2670) 8780 (2570) 8420 (2470) 8060 (2360) 7690 (2250)

-5 (-20.6) 8780 (2570) 8480 (2490) 8190 (2400) 7890 (2310) 7580 (2220) 7270 (2130) 6930 (2030)

-10 (-23.3) 7820 (2290) 7560 (2220) 7310 (2140) 7050 (2070) 6770 (1980) 6490 (1900) 6180 (1810)
40 (4.4) 23500 (6890) 22600 (6620) 21700 (6360) 20800 (6100) 19900 (5830) 19000 (5570) 18100 (5300)
35 (1.7) 21400 (6270) 20600 (6040) 19800 (5800) 19000 (5570) 18200 (5330) 17300 (5070) 16500 (4840)
30 (-1.1) 19600 (5740) 18800 (5510) 18100 (5300) 17400 (5100) 16600 (4860) 15800 (4630) 15000 (4400)
25 (-3.9) 17900 (5250) 17200 (5040) 16500 (4840) 15800 (4630) 15200 (4450) 14400 (4220) 13700 (4020)
20 (-6.7) 16300 (4780) 15700 (4600) 15100 (4430) 14400 (4220) 13800 (4040) 13200 (3870) 12500 (3660)
15 (-9.4) 14800 (4340) 14300 (4190) 13700 (4020) 13200 (3870) 12600 (3690) 12000 (3520) 11400 (3340)
10 (-12.2) 13400 (3930) 13000 (3810) 12500 (3660) 12000 (3520) 11500 (3370) 1

5 (-15.0) 12200 (3580) 11700 (3430) 11300 (3310) 10900 (3190) 10400 (3050) 9960 (2920) 9470 (2780)
0 (-17.8) 11000 (3220) 10600 (3110) 10200 (2990) 9850 (2890) 9450 (2770) 9030 (2650) 8590 (2520)

-5 (-20.6) 9880 (2900) 9540 (2800) 9210 (2700) 8870 (2600) 8520 (2500) 8150 (2390) 7760 (2270)

-10 (-23.3) 8810 (2580) 8520 (2500) 8220 (2410) 7930 (2320) 7610 (2230) 7290 (2140) 6940 (2030)
40 (4.4) 26300 (7710) 25200 (7390) 24200 (7090) 23100 (6770) 22000 (6450) 20900 (6130) 19700 (5770)
35 (1.7) 24300 (7120) 23400 (6860) 22400 (6560) 21400 (6270) 20300 (5950) 19300 (5660) 18200 (5330)
30 (-1.1) 22500 (6590) 21600 (6330) 20600 (6040) 19700 (5770) 18800 (5510) 17800 (5220) 16800 (4920)
25 (-3.9) 20700 (6070) 19800 (5800) 19000 (5570) 18200 (5330) 17300 (5070) 16400 (4810) 15500 (4540)
20 (-6.7) 19000 (5570) 18200 (5330) 17400 (5100) 16700 (4890) 15900 (4660) 15000 (4400) 14200 (4160)
15 (-9.4) 17300 (5070) 16700 (4890) 15900 (4660) 15200 (4450) 14500 (4250) 13700 (4020) 13000 (3810)
10 (-12.2) 15800 (4630) 15200 (4450) 14500 (4250) 13900 (4070) 13200 (3870) 12500 (3660) 11800 (3460)

5 (-15.0) 14300 (4190) 13800 (4040) 13200 (3870) 12600 (3690) 12000 (3520) 11400 (3340) 10700 (3140)
0 (-17.8) 13000 (3810) 12500 (3660) 11900 (3490) 11400 (3340) 10800 (3170) 10300 (3020) 9700 (2840)

-5 (-20.6) 11700 (3430) 11200 (3280) 10800 (3170) 10300 (3020) 9800 (2870) 9300 (2730) 8700 (2550)

-10 (-23.3) 10500 (3080) 10100 (2960) 9600 (2810) 9200 (2700) 8800 (2580) 8300 (2430) 7800 (2290)
40 (4.4) 32800 (9610) 31500 (9230) 30100 (8820) 28800 (8440) 27400 (8030) 26000 (7620) 24600 (7210)
35 (1.7) 30400 (8910) 29100 (8530) 27900 (8180) 26700 (7820) 25400 (7440) 24100 (7060) 22800 (6680)
30 (-1.1) 28000 (8210) 26900 (7880) 25800 (7560) 24600 (7210) 23400 (6860) 22200 (6510) 21000 (6150)
25 (-3.9) 25800 (7560) 24800 (7270) 23700 (6950) 22700 (6650) 21600 (6330) 20500 (6010) 19300 (5660)
20 (-6.7) 23700 (6950) 22700 (6650) 21800 (6390) 20800 (6100) 19800 (5800) 18800 (5510) 17700 (5190)
15 (-9.4) 21600 (6330) 20800 (6100) 19900 (5830) 19000 (5570) 18100 (5300) 17200 (5040) 16200 (4750)
10 (-12.2) 19700 (5770) 18900 (5540) 18100 (5300) 17300 (5070) 16500 (4840) 15600 (4570) 14800 (4340)

5 (-15.0) 17900 (5250) 17200 (5040) 16500 (4840) 15700 (4600) 15000 (4400) 14200 (4160) 13400 (3930)
0 (-17.8) 16200 (4750) 15600 (4570) 14900 (4370) 14200 (4160) 13500 (3960) 12800 (3750) 12100 (3550)

-5 (-20.6) 14600 (4280) 14000 (4100) 13400 (3930) 12800 (3750) 12200 (3580) 11600 (3400) 10900 (3190)

-10 (-23.3) 13100 (3840) 12600 (3690) 12000 (3520) 11500 (3370) 10900 (3190) 10300 (3020) 9700 (2840)

CAPACITY BTU/H (WATTS)

R404A R507

AMBIENT TEMPERATURE °F (°C)

1000 (3220) 10400 (3050)

table continues on next page >>>

BEZA

B40-BEZ-PDS-60-6

- 9 -

08/14/12

COPELAND

COND. UNIT

MODEL

BEZA030H8

Compressor

Model

ZB21KCE

BEZA035H8

Compressor

Model

ZB26KCE

BEZA040H8

Compressor

Model

ZB30KCE

BEZA050H8

Compressor

Model

ZB38KCE

BEZA060H8

Compressor

Model

ZB45KCE

SAT. SUCT.

TEMP.

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

40 (4.4) 41200 (12070) 39700 (11630) 38100 (11170) 36400 (10670) 34800 (10200) 33100 (9700) 31400 (9200)
35 (1.7) 38100 (11166) 36600 (10727) 35100 (10287) 33600 (9848) 32100 (9408) 30600 (8968) 29000 (8499)
30 (-1.1) 35000 (10258) 33700 (9877) 32300 (9467) 30900 (9056) 29500 (8646) 28100 (8236) 26700 (7825)
25 (-3.9) 32100 (9408) 30900 (9056) 29700 (8705) 28400 (8324) 27100 (7943) 25800 (7562) 24400 (7151)
20 (-6.7) 29400 (8617) 28300 (8294) 27100 (7943) 26000 (7620) 24800 (7268) 23600 (6917) 22300 (6536)
15 (-9.4) 26800 (7855) 25800 (7562) 24700 (7239) 23700 (6946) 22600 (6624) 21500 (6301) 20400 (5979)
10 (-12.2) 24300 (7122) 23400 (6858) 22500 (6594) 21500 (6301) 20500 (6008) 19500 (5715) 18500 (5422)

5 (-15.0) 22000 (6448) 21200 (6213) 20400 (5979) 19500 (5715) 18600 (5451) 17700 (5188) 16700 (4894)
0 (-17.8) 19900 (5832) 19100 (5598) 18400 (5393) 17600 (5158) 16800 (4924) 15900 (4660) 15100 (4426)

-5 (-20.6) 17900 (5246) 17200 (5041) 16500 (4836) 15800 (4631) 15100 (4426) 14300 (4191) 13500 (3957)

-10 (-23.3) 16000 (4689) 15400 (4513) 14800 (4338) 14100 (4132) 13500 (3957) 12800 (3751) 12100 (3546)
40 (4.4) 47100 (13800) 45200 (13250) 43400 (12720) 41500 (12160) 39500 (11580) 37600 (11020) 35600 (10430)
35 (1.7) 43500 (12749) 41800 (12251) 40100 (11753) 38300 (11225) 36500 (10698) 34700 (10170) 32900 (9642)
30 (-1.1) 40100 (11753) 38500 (11284) 36900 (10815) 35300 (10346) 33700 (9877) 32000 (9379) 30300 (8880)
25 (-3.9) 36800 (10785) 35400 (10375) 33900 (9936) 32500 (9525) 30900 (9056) 29400 (8617) 27800 (8148)
20 (-6.7) 33700 (9877) 32400 (9496) 31100 (9115) 29700 (8705) 28300 (8294) 26900 (7884) 25500 (7474)
15 (-9.4) 30800 (9027) 29600 (8675) 28400 (8324) 27200 (7972) 25900 (7591) 24600 (7210) 23200 (6800)
10 (-12.2) 28000 (8206) 27000 (7913) 25800 (7562) 24700 (7239) 23600 (6917) 22400 (6565) 21100 (6184)

5 (-15.0) 25400 (7444) 24400 (7151) 23400 (6858) 22400 (6565) 21400 (6272) 20300 (5950) 19200 (5627)
0 (-17.8) 23000 (6741) 22100 (6477) 21200 (6213) 20200 (5920) 19300 (5657) 18300 (5363) 17300 (5070)

-5 (-20.6) 20700 (6067) 19900 (5832) 19100 (5598) 18200 (5334) 17400 (5100) 16500 (4836) 15500 (4543)

-10 (-23.3) 18500 (5422) 17800 (5217) 17100 (5012) 16300 (4777) 15500 (4543) 14700 (4308) 13900 (4074)
40 (4.4) 52800 (15470) 50600 (14830) 48500 (14210) 46300 (13570) 44000 (12900) 41700 (12220) 39400 (11550)
35 (1.7) 48800 (14302) 46900 (13746) 44800 (13130) 42800 (12544) 40700 (11928) 38600 (11313) 36400 (10668)
30 (-1.1) 45000 (13189) 43200 (12661) 41400 (12134) 39500 (1
25 (-3.9) 41400 (12134) 39700 (11635) 38000 (11137) 36300 (10639) 34500 (10111) 32700 (9584) 30900 (9056)
20 (-6.7) 37900 (11108) 36400 (10668) 34800 (10199) 33200 (9730) 31600 (9261) 29900 (8763) 28200 (8265)
15 (-9.4) 34600 (10141) 33200 (9730) 31700 (9291) 30300 (8880) 28800 (8441) 27300 (8001) 25700 (7532)
10 (-12.2) 31400 (9203) 30100 (8822) 28800 (8441) 27500 (8060) 26100 (7649) 24700 (7239) 23300 (6829)

5 (-15.0) 28400 (8324) 27200 (7972) 26000 (7620) 24800 (7268) 23600 (6917) 22300 (6536) 21000 (6155)
0 (-17.8) 25500 (7474) 24500 (7181) 23400 (6858) 22300 (6536) 21100 (6184) 20000 (5862) 18800 (5510)

-5 (-20.6) 22800 (6682) 21900 (6419) 20900 (6125) 19900 (5832) 18800 (5510) 17700 (5188) 16600 (4865)

-10 (-23.3) 20300 (5950) 19400 (5686) 18500 (5422) 17600 (5158) 16600 (4865) 15600 (4572) 14600 (4279)
40 (4.4) 65600 (19230) 63000 (18460) 60400 (17700) 57700 (16910) 55000 (16120) 52200 (15300) 49400 (14480)
35 (1.7) 60800 (17819) 58300 (17087) 55900 (16383) 53400 (15651) 50900 (14918) 48300 (14156) 45700 (13394)
30 (-1.1) 56100 (16442) 53800 (15768) 51600 (15123) 49300 (14449) 47000 (13775) 44600 (13072) 42200 (12368)
25 (-3.9) 51600 (15123) 49500 (14508) 47500 (13921) 45400 (13306) 43200 (12661) 41000 (12016) 38800 (11372)
20 (-6.7) 47300 (13863) 45400 (13306) 43500 (12749) 41600 (12192) 39600 (11606) 37600 (11020) 35500 (10404)
15 (-9.4) 43200 (12661) 41500 (12163) 39800 (11665) 38000 (11137) 36200 (10610) 34400 (10082) 32500 (9525)
10 (-12.2) 39400 (11547) 37900 (11108) 36300 (10639) 34700 (10170) 33000 (9672) 31300 (9174) 29600 (8675)

5 (-15.0) 35800 (10492) 34400 (10082) 32900 (9642) 31500 (9232) 30000 (8792) 28400 (8324) 26800 (7855)
0 (-17.8) 32300 (9467) 31100 (9115) 29800 (8734) 28500 (8353) 27100 (7943) 25700 (7532) 24200 (7093)

-5 (-20.6) 29100 (8529) 28000 (8206) 26800 (7855) 25600 (7503) 24400 (7151) 23100 (6770) 21800 (6389)

-10 (-23.3) 26100 (7649) 25100 (7356) 24100 (7063) 23000 (6741) 21900 (6419) 20700 (6067) 19500 (5715)
40 (4.4) 80000 (23450) 76900 (22540) 73800 (21630) 70600 (20690) 67400 (19750) 64100 (18790) 60700 (17790)
35 (1.7) 74000 (21688) 71100 (20838) 68200 (19988) 65200 (19109) 62200 (18230) 59200 (17351) 56100 (16442)
30 (-1.1) 68100 (19959) 65500 (19197) 62800 (18406) 60100 (17614) 57300 (16794) 54500 (15973) 51600 (15123)
25 (-3.9) 62600 (18347) 60200 (17644) 57700 (16911) 55200 (16178) 52700 (15445) 50100 (14683) 47400 (13892)
20 (-6.7) 57300 (16794) 55100 (16149) 52900 (15504) 50600 (14830) 48200 (14127) 45800 (13423) 43400 (12720)
15 (-9.4) 52300 (15328) 50300 (14742) 48300 (14156) 46200 (13540) 44000 (12896) 41800 (12251) 39600 (11606)
10 (-12.2) 47600 (13951) 45800 (13423) 43900 (12866) 42000 (12309) 40100 (11753) 38100 (11166) 36000 (10551)

5 (-15.0) 43100 (12632) 41500 (12163) 39800 (11665) 38100 (11166) 36300 (10639) 34500 (10111) 32600 (9555)
0 (-17.8) 39000 (11430) 37500 (10991) 36000 (10551) 34400 (10082) 32800 (9613) 31100 (9115) 29400 (8617)

-5 (-20.6) 35000 (10258) 33700 (9877) 32400 (9496) 30900 (9056) 29500 (8646) 28000 (8206) 26400 (7737)

-10 (-23.3) 31400 (9203) 30200 (8851) 29000 (8499) 27700 (8118) 26400 (7737) 25100 (7356) 23600 (6917)

CAPACITY DATA -

R404A

R507

MEDIUM TEMPERATURE (cont’d)

CAPACITY BTU/H (WATTS)

R404A R507

AMBIENT TEMPERATURE °F (°C)

1577) 37600 (11020) 35600 (10434) 33600 (9848)

60Hz

table continues on next page >>>

BEZA

B40-BEZ-PDS-60-6

- 10 -

08/14/12

COPELAND

COND. UNIT

MODEL

BEZA065H8

Compressor

Model

ZB50KCE

BEZA070H8

Compressor

Model

ZB58KCE

BEZA076H8

Compressor

Model

ZB66KCE

BEZA085H8

Compressor

Model

ZB76KCE

BEZA110H8

Compressor

Model

ZB95KCE

BEZA150H8

Compressor

Model

ZB114KCE

SAT. SUCT.

TEMP.

° F ° C

40 (4.4) 87300 (25590) 83700 (24530) 80100 (23470) 76400 (22390) 72600 (21280) 68700 (20130) 64700 (18960)
35 (1.7) 80800 (23681) 77500 (22714) 74100 (21717) 70700 (20721) 67200 (19695) 63600 (18640) 59900 (17556)
30 (-1.1) 74500 (21835) 71400 (20926) 68300 (20018) 65100 (19080) 61900 (18142) 58500 (17145) 55000 (16120)
25 (-3.9) 68400 (20047) 65600 (19226) 62800 (18406) 59800 (17526) 56700 (16618) 53600 (15709) 50400 (14771)
20 (-6.7) 62700 (18376) 60100 (17614) 57400 (16823) 54700 (16032) 51900 (15211) 49000 (14361) 46000 (13482)
15 (-9.4) 57200 (16764) 54800 (16061) 52400 (15358) 49800 (14596) 47200 (13834) 44500 (13042) 41700 (12222)
10 (-12.2) 52000 (15240) 49800 (14596) 47500 (13921) 45200 (13247) 42700 (12515) 40200 (11782) 37600 (11020)

5 (-15.0) 47000 (13775) 45000 (13189) 42900 (12573) 40700 (11928) 38400 (11254) 36100 (10580) 33600 (9848)
0 (-17.8) 42300 (12397) 40400 (11841) 38500 (11284) 36400 (10668) 34300 (10053) 32100 (9408) 29800 (8734)

-5 (-20.6) 37800 (11079) 36000 (10551) 34200 (10023) 32300 (9467) 30300 (8880) 28300 (8294) 26100 (7649)

-10 (-23.3) 33500 (9818) 31900 (9349) 30100 (8822) 28300 (8294) 26500 (7767) 24500 (7181) 22500 (6594)
40 (4.4) 94500 (27700) 90100 (26410) 85600 (25090) 80900 (23710) 76200 (22330) 71400 (20930) 66500 (19490)
35 (1.7) 87600 (25674) 83500 (24472) 79300 (23242) 75100 (22011) 70700 (20721) 66300 (19431) 61700 (18083)
30 (-1.1) 81000 (23740) 77200 (22626) 73400 (21512) 69400 (20340) 65400 (19168) 61300 (17966) 57000 (16706)
25 (-3.9) 74600 (21864) 71100 (20838) 67600 (19812) 63900 (18728) 60200 (17644) 56400 (16530) 52500 (15387)
20 (-6.7) 68400 (20047) 65200 (19109) 62000 (18171) 58600 (17175) 55200 (16178) 51600 (15123) 48000 (14068)
15 (-9.4) 62400 (18288) 59500 (17438) 56500 (16559) 53400 (15651) 50300 (14742) 47000 (13775) 43700 (12808)
10 (-12.2) 56700 (16618) 54000 (15826) 51300 (15035) 48500 (14215) 45600 (13365) 42600 (12485) 39500 (11577)

5 (-15.0) 51200 (15006) 48800 (14302) 46300 (13570) 43700 (12808) 41000 (12016) 38200 (11196) 35400 (10375)
0 (-17.8) 46000 (13482) 43700 (12808) 41400 (12134) 39000 (11430) 36600 (10727) 34000 (9965) 31400 (9203)

-5 (-20.6) 41000 (12016) 39000 (11430) 36800 (10785) 34600 (10141) 32300 (9467) 30000 (8792) 27600 (8089)

-10 (-23.3) 36300 (10639) 34400 (10082) 32400 (9496) 30400 (8910) 28200 (8265) 26100 (7649) 23800 (6975)
40 (4.4) 115200 (33760) 110600 (32410) 106000 (31070) 101300 (29690) 96500 (28280) 91700 (26870) 86800 (25440)
35 (1.7) 106400 (31184) 102200 (29953) 98000 (28722) 93700 (27462) 89400 (26202) 85000 (24912) 80500 (23593)
30 (-1.1) 97900 (28693) 94100 (27579) 90300 (26465) 86400 (25322) 82400 (24150) 78400 (22978) 74200 (21747)
25 (-3.9) 89900 (26348) 86500 (25352) 83000 (24326) 79400 (23271) 75800 (22216) 72100 (21131) 68300 (20018)
20 (-6.7) 82300 (24121) 79200 (23212) 76000 (22274) 72800 (21336) 69500 (20369) 66100 (19373) 62700 (18376)
15 (-9.4) 75100 (2201
10 (-12.2) 68300 (20018) 65700 (19256) 63200 (18523) 60500 (17732) 57800 (16940) 55000 (16120) 52200 (15299)

5 (-15.0) 61900 (18142) 59600 (17468) 57300 (16794) 54900 (16090) 52400 (15358) 49900 (14625) 47300 (13863)
0 (-17.8) 55900 (16383) 53800 (15768) 51700 (15152) 49500 (14508) 47300 (13863) 45000 (13189) 42600 (12485)

-5 (-20.6) 50200 (14713) 48400 (14185) 46500 (13628) 44500 (13042) 42500 (12456) 40400 (11841) 38200 (11196)

-10 (-23.3) 45000 (13189) 43300 (12691) 41500 (12163) 39700 (11635) 37900 (11108) 35900 (10522) 33900 (9936)
40 (4.4) 131000 (38390) 125300 (36720) 119600 (35050) 113800 (33350) 107800 (31590) 101800 (29830) 95600 (28020)
35 (1.7) 121200 (35522) 116100 (34027) 110900 (32503) 105500 (30920) 100100 (29338) 94600 (27726) 88900 (26055)
30 (-1.1) 111900 (32796) 107200 (31419) 102400 (30012) 97500 (28576) 92600 (27140) 87500 (25645) 82300 (24121)
25 (-3.9) 103000 (30188) 98700 (28927) 94400 (27667) 89900 (26348) 85400 (25029) 80700 (23652) 75900 (22245)
20 (-6.7) 94500 (27696) 90600 (26553) 86700 (25410) 82700 (24238) 78500 (23007) 74300 (21776) 69900 (20487)
15 (-9.4) 86400 (25322) 83000 (24326) 79400 (23271) 75800 (22216) 72000 (21102) 68200 (19988) 64200 (18816)
10 (-12.2) 78800 (23095) 75700 (22186) 72500 (21249) 69200 (20281) 65800 (19285) 62400 (18288) 58800 (17233)

5 (-15.0) 71700 (21014) 68900 (20193) 66000 (19343) 63000 (18464) 60000 (17585) 56800 (16647) 53600 (15709)
0 (-17.8) 64900 (19021) 62400 (18288) 59800 (17526) 57200 (16764) 54400 (15944) 51600 (15123) 48700 (14273)

-5 (-20.6) 58500 (17145) 56300 (16501) 54000 (15826) 51600 (15123) 49200 (14420) 46600 (13658) 44000 (12896)

-10 (-23.3) 52600 (15416) 50600 (14830) 48500 (14215) 46400 (13599) 44100 (12925) 41900 (12280) 39500 (11577)
40 (4.4) 165400 (48470) 158900 (46570) 152300 (44630) 145500 (42640) 138600 (40620) 131600 (38570) 124400 (36460)
35 (1.7) 153100 (44858) 147100 (43100) 141100 (41342) 134900 (39526) 128600 (37680) 122100 (35775) 115500 (33842)
30 (-1.1) 141100 (41342) 135600 (39731) 130100 (38119) 124400 (36449) 118600 (34750) 112700 (33021) 106500 (31205)
25 (-3.9) 129600 (37973) 124700 (36537) 119600 (35043) 114400 (33519) 109100 (31966) 103600 (30355) 97900 (28685)
20 (-6.7) 118800 (34808) 114300 (33490) 109700 (32142) 104900 (30736) 100000 (29300) 94900 (27806) 89600 (26253)
15 (-9.4) 108400 (31761) 104300 (30560) 100100 (29329) 95700 (28040) 91200 (26722) 86500 (25345) 81700 (23938)
10 (-12.2) 98700 (28919) 94900 (27806) 91000 (26663) 87000 (25491) 82900 (24290) 78500 (23001) 74000 (21682)

5 (-15.0) 89400 (26194) 85900 (25169) 82400 (24143) 78700 (23059) 74800 (21916) 70800 (20744) 66600 (19514)
0 (-17.8) 80600 (23616) 77400 (22678) 74100 (2171

-5 (-20.6) 72200 (21155) 69300 (20305) 66200 (19397) 63000 (18459) 59600 (17463) 56000 (16408) 52200 (15295)

-10 (-23.3) 64300 (18840) 61500 (18020) 58600 (17170) 55500 (16262) 52300 (15324) 48900 (14328) 45300 (13273)
40 (4.4) 191300 (56060) 183700 (53840) 175900 (51550) 168000 (49240) 159900 (46860) 151700 (44460) 143300 (42000)
35 (1.7) 177200 (51920) 170200 (49869) 163000 (47759) 155700 (45620) 148200 (43423) 140600 (41196) 132800 (38910)
30 (-1.1) 163600 (47935) 157200 (46060) 150600 (44126) 143800 (42133) 136900 (40112) 129800 (38031) 122600 (35922)
25 (-3.9) 150600 (44126) 144700 (42397) 138600 (40610) 132400 (38793) 126000 (36918) 119400 (34984) 112700 (33021)
20 (-6.7) 138200 (40493) 132700 (38881) 127200 (37270) 121400 (35570) 115500 (33842) 109400 (32054) 103200 (30238)
15 (-9.4) 126300 (37006) 121300 (35541) 116200 (34047) 110900 (32494) 105400 (30882) 99800 (29241) 94000 (27542)
10 (-12.2) 115000 (33695) 110400 (32347) 105700 (30970) 100800 (29534) 95800 (28069) 90600 (26546) 85200 (24964)

5 (-15.0) 104200 (30531) 100000 (29300) 95700 (28040) 91200 (26722) 86600 (25374) 81700 (23938) 76700 (22473)
0 (-17.8) 94000 (27542) 90100 (26399) 86200 (25257) 82000 (24026) 77700 (22766) 73200 (21448) 68500 (20071)

-5 (-20.6) 84300 (24700) 80800 (23674) 77100 (22590) 73300 (21477) 69300 (20305) 65100 (19074) 60700 (17785)

-10 (-23.3) 75100 (22004) 71900 (21067) 68500 (20071) 64900 (19016) 61100 (17902) 57200 (16760) 53100 (15558)

CAPACITY DATA -

R404A

R507

60Hz

MEDIUM TEMPERATURE (cont’d)

CAPACITY BTU/H (WATTS)

80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

1) 72300 (21190) 69400 (20340) 66500 (19490) 63500 (18611) 60400 (17702) 57300 (16794)

R404A R507

1) 70700 (20715) 67100 (19660) 63300 (18547) 59300 (17375)

AMBIENT TEMPERATURE °F (°C)

BEZA

B40-BEZ-PDS-60-6

- 11 -

08/14/12

COPELAND

CONDENSING

UNIT

MODEL

BEZA020L6

Compressor

Model

ZF06K4E

BEZA025L6

Compressor

Model

ZF08K4E

BEZA030L6

Compressor

Model

ZF09K4E

BEZA035L6

Compressor

Model

ZF11K4E

BEZA045L6

Compressor

Model

ZF13K4E

BEZA055L6

Compressor

Model

ZF15K4E

SATURATED

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

-5 -(20.6) 11900 (3488) 11500 (3370) 11100 (3253) 10600 (3107) 10200 (2989) 9700 (2843) 9300 (2726)

-10 -(23.3) 10800 (3165) 10400 (3048) 10000 (2931) 9600 (2814) 9200 (2696) 8800 (2579) 8500 (2491)

-15 -(26.1) 9700 (2843) 9400 (2755) 9100 (2667) 8700 (2550) 8400 (2462) 8000 (2345) 7700 (2257)

-20 -(28.9) 8700 (2550) 8500 (2491) 8100 (2374) 7800 (2286) 7500 (2198) 7200 (2110) 6900 (2022)

-25 -(31.7) 7800 (2286) 7600 (2227) 7300 (2140) 7000 (2052) 6700 (1964) 6400 (1876) 6200 (1817)

-30 (-34.4) 7000 (2052) 6700 (1964) 6500 (1905) 6200 (1817) 6000 (1758) 5700 (1671) 5500 (1612)

-35 -(37.2) 6100 (1788) 5900 (1729) 5700 (1671) 5500 (1612) 5300 (1553) 5000 (1465) 4800 (1407)

-40 (-40.0) 5400 (1583) 5200 (1524) 5000 (1465) 4800 (1407) 4500 (1319) 4300 (1260) 4200 (1231)

-5 -(20.6) 15100 (4426) 14600 (4279) 14100 (4132) 13500 (3957) 12900 (3781) 12300 (3605) 11700 (3429)

-10 -(23.3) 13700 (4015) 13200 (3869) 12700 (3722) 12200 (3576) 11700 (3429) 11200 (3283) 10600 (3107)

-15 -(26.1) 12300 (3605) 11900 (3488) 11500 (3370) 11000 (3224) 10600 (3107) 10100 (2960) 9600 (2814)

-20 -(28.9) 11000 (3224) 10700 (3136) 10300 (3019) 9900 (2902) 9500 (2784) 9100 (2667) 8600 (2521)

-25 -(31.7) 9900 (2902) 9500 (2784) 9200 (2696) 8900 (2608) 8500 (2491) 8100 (2374) 7700 (2257)

-30 (-34.4) 8800 (2579) 8500 (2491) 8200 (2403) 7900 (2315) 7600 (2227) 7200 (2110) 6900 (2022)

-35 -(37.2) 7800 (2286) 7500 (2198) 7300 (2140) 7000 (2052) 6700 (1964) 6400 (1876) 6100 (1788)

-40 (-40.0) 6900 (2022) 6600 (1934) 6400 (1876) 6200 (1817) 5900 (1729) 5600 (1641) 5300 (1553)

-5 -(20.6) 16700 (4894) 16100 (4719) 15500 (4543) 14800 (4338) 14200 (4162) 13500 (3957) 12800 (3751)

-10 -(23.3) 15100 (4426) 14600 (4279) 14000 (4103) 13500 (3957) 12900 (3781) 12300 (3605) 11700 (3429)

-15 -(26.1) 13600 (3986) 13100 (3839) 12700 (3722) 12200 (3576) 11700 (3429) 11100 (3253) 10600 (3107)

-20 -(28.9) 12200 (3576) 11800 (3458) 11400 (3341) 11000 (3224) 10500 (3077) 10000 (2931) 9600 (2814)

-25 -(31.7) 10900 (3195) 10600 (3107) 10200 (2989) 9800 (2872) 9400 (2755) 9000 (2638) 8600 (2521)

-30 (-34.4) 9700 (2843) 9400 (2755) 9100 (2667) 8800 (2579) 8400 (2462) 8100 (2374) 7700 (2257)

-35 -(37.2) 8600 (2521) 8300 (2433) 8100 (2374) 7800 (2286) 7500 (2198) 7100 (2081) 6800 (1993)

-40 (-40.0) 7600 (2227) 7300 (2140) 7100 (2081) 6800 (1993) 6600 (1934) 6300 (1846) 6000 (1758)

-5 -(20.6) 20200 (5920) 19500 (5715) 18700 (5481) 17900 (5246) 17100 (5012) 16300 (4777) 15400 (4513)

-10 -(23.3) 18400 (5393) 17700 (5188) 17000 (4982) 16300 (4777) 15600 (4572) 14800 (4338) 14000 (4103)

-15 -(26.1) 16600 (4865) 16000 (4689) 15400 (4513) 14800 (4338) 14100 (4132) 13400 (3927) 12700 (3722)

-20 -(28.9) 14900 (4367) 14400 (4220) 13900 (4074) 13300 (3898) 12700 (3722) 12100 (3546) 11500 (3370)

-25 -(31.7) 13300 (3898) 12900 (3781) 12400 (3634) 12000 (3517) 1

-30 (-34.4) 11900 (3488) 11500 (3370) 11100 (3253) 10700 (3136) 10200 (2989) 9800 (2872) 9300 (2726)

-35 -(37.2) 10500 (3077) 10200 (2989) 9800 (2872) 9500 (2784) 9100 (2667) 8700 (2550) 8300 (2433)

-40 (-40.0) 9300 (2726) 9000 (2638) 8700 (2550) 8400 (2462) 8000 (2345) 7700 (2257) 7300 (2140)

-5 -(20.6) 24000 (7034) 23100 (6770) 22200 (6506) 21200 (6213) 20300 (5950) 19300 (5657) 18300 (5363)

-10 -(23.3) 21700 (6360) 20900 (6125) 20000 (5862) 19200 (5627) 18300 (5363) 17400 (5100) 16500 (4836)

-15 -(26.1) 19500 (5715) 18700 (5481) 18000 (5275) 17200 (5041) 16500 (4836) 15700 (4601) 14800 (4338)

-20 -(28.9) 17400 (5100) 16800 (4924) 16100 (4719) 15400 (4513) 14700 (4308) 14000 (4103) 13300 (3898)

-25 -(31.7) 15500 (4543) 14900 (4367) 14300 (4191) 13700 (4015) 13100 (3839) 12500 (3664) 11900 (3488)

-30 (-34.4) 13700 (4015) 13200 (3869) 12700 (3722) 12200 (3576) 11700 (3429) 11100 (3253) 10600 (3107)

-35 -(37.2) 12000 (3517) 11600 (3400) 11100 (3253) 10700 (3136) 10300 (3019) 9900 (2902) 9500 (2784)

-40 (-40.0) 10400 (3048) 10100 (2960) 9700 (2843) 9400 (2755) 9000 (2638) 8700 (2550) 8400 (2462)

-5 -(20.6) 28700 (8411) 27700 (8118) 26600 (7796) 25400 (7444) 24300 (7122) 23100 (6770) 21800 (6389)

-10 -(23.3) 26000 (7620)

-15 -(26.1) 23400 (6858) 22600 (6624) 21700 (6360) 20800 (6096) 19900 (5832) 19000 (5569) 18000 (5275)

-20 -(28.9) 21000 (6155) 20300 (5950) 19500 (5715) 18800 (5510) 17900 (5246) 17100 (5012) 16200 (4748)

-25 -(31.7) 18800 (5510) 18200 (5334) 17500 (5129) 16800 (4924) 16100 (4719) 15400 (4513) 14600 (4279)

-30 (-34.4) 16800 (4924) 16200 (4748) 15600 (4572) 15000 (4396) 14400 (4220) 13700 (4015) 13100 (3839)

-35 -(37.2) 14900 (4367) 14400 (4220) 13900 (4074) 13300 (3898) 12800 (3751) 12200 (3576) 11600 (3400)

-40 (-40.0) 13100 (3839) 12700 (3722) 12200 (3576) 11800 (3458) 1

CAPACITY DATA -

R404A

R507

60Hz

LOW TEMPERATURE

SUCTION

0 -(17.8) 13200 (3869) 12700 (3722) 12200 (3576) 11700 (3429) 11200 (3283) 10700 (3136) 10200 (2989)

0 -(17.8) 16700 (4894) 16100 (4719) 15500 (4543) 14900 (4367) 14200 (4162) 13500 (3957) 12800 (3751)

0 -(17.8) 18400 (5393) 17700 (5188) 17000 (4982) 16300 (4777) 15600 (4572) 14800 (4338) 14100 (4132)

0 -(17.8) 22200 (6506) 21400 (6272) 20500 (6008) 19700 (5774) 18700 (5481) 17800 (5217) 16800 (4924)

0 -(17.8) 26500 (7767) 25500 (7474) 24500 (7181) 23400 (6858) 22400 (6565) 21300 (6243) 20100 (5891)

0 -(17.8) 31700 (9291) 30500 (8939) 29200 (8558) 28000 (8206) 26700 (7825) 25300 (7415) 24000 (7034)

CAPACITY BTU/H (WATTS)

25000 (7327) 24100 (7063) 23100 (6770) 22000 (6448) 20900 (6125) 19800 (5803)

R404A

AMBIENT TEMPERATURE °F (°C)

R507

1400 (3341) 10900 (3195) 10400 (3048)

1300 (3312) 10800 (3165) 10300 (3019)

table continues on next page >>>

BEZA

B40-BEZ-PDS-60-6

- 12 -

08/14/12

COPELAND

CONDENSING

UNIT

MODEL

BEZA060L6

Compressor

Model

ZF18K4E

BEZA075L6

Compressor

Model

ZF24K4E

BEZA100L6

Compressor

Model

ZF33K4E

BEZA130L6

Compressor

Model

ZF40K4E

BEZA150L6

Compressor

Model

ZF48K4E

SATURATED

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

0 -(17.8) 38200 (11196) 36800 (10785) 35300 (10346) 33900 (9936) 32400 (9496) 30900 (9056) 29300 (8587)

-5 -(20.6) 34700 (10170) 33400 (9789) 32200 (9437) 30800 (9027) 29500 (8646) 28200 (8265) 26800 (7855)

-10 -(23.3) 31400 (9203) 30300 (8880) 29200 (8558) 28000 (8206) 26800 (7855) 25600 (7503) 24400 (7151)

-15 -(26.1) 28300 (8294) 27300 (8001) 26400 (7737) 25300 (7415) 24300 (7122) 23200 (6800) 22200 (6506)

-20 -(28.9) 25400 (7444) 24600 (7210) 23700 (6946) 22800 (6682) 21900 (6419) 21000 (6155) 20100 (5891)

-25 -(31.7) 22700 (6653) 22000 (6448) 21300 (6243) 20500 (6008) 19700 (5774) 18900 (5539) 18100 (5305)

-30 (-34.4) 20200 (5920) 19600 (5744) 19000 (5569) 18300 (5363) 17600 (5158) 16900 (4953) 16200 (4748)

-35 -(37.2) 17900 (5246) 17300 (5070) 16800 (4924) 16200 (4748) 15600 (4572) 15000 (4396) 14400 (4220)

-40 (-40.0) 15700 (4601) 15200 (4455) 14700 (4308) 14200 (4162) 13700 (4015) 13200 (3869) 12700 (3722)
0 -(17.8) 47000 (13775) 45400 (13306) 43600 (12778) 41900 (12280) 40100 (11753) 38200 (11196) 36200 (10610)

-5 -(20.6) 42600 (12485) 41100 (12046) 39600 (11606) 38100 (11166) 36400 (10668) 34800 (10199) 33000 (9672)

-10 -(23.3) 38500 (11284) 37200 (10903) 35800 (10492) 34500 (10111) 33000 (9672) 31500 (9232) 30000 (8792)

-15 -(26.1) 34600 (10141) 33400 (9789) 32300 (9467) 31100 (9115) 29800 (8734) 28500 (8353) 27200 (7972)

-20 -(28.9) 31000 (9086) 30000 (8792) 29000 (8499) 27900 (8177) 26800 (7855) 25700 (7532) 24500 (7181)

-25 -(31.7) 27600 (8089) 26700 (7825) 25900 (7591) 24900 (7298) 24000 (7034) 23000 (6741) 21900 (6419)

-30 (-34.4) 24500 (7181) 23700 (6946) 23000 (6741) 22100 (6477) 21300 (6243) 20400 (5979) 19500 (5715)

-35 -(37.2) 21600 (6331) 20900 (6125) 20200 (5920) 19500 (5715) 18800 (5510) 18000 (5275) 17200 (5041)

-40 (-40.0) 18900 (5539) 18300 (5363) 17700 (5188) 17100 (5012) 16400 (4807) 15800 (4631) 15000 (4396)
0 -(17.8) 64000 (18757) 61600 (18054) 59100 (17321) 56600 (16589) 54000 (15826) 51400 (15064) 48700 (14273)

-5 -(20.6) 58300 (17087) 56100 (16442) 53900 (15797) 51600 (15123) 49400 (14478) 47000 (13775) 44700 (13101)

-10 -(23.3) 52800 (15475) 50900 (14918) 48900 (14332) 46900 (13746) 44900 (13159) 42900 (12573) 40800 (11958)

-15 -(26.1) 47600 (13951) 45900 (13453) 44200 (12954) 42400 (12427) 40600 (11899) 38800 (11372) 37000 (10844)

-20 -(28.9) 42700 (12515) 41200 (12075) 39600 (11606) 38100 (11166) 36500 (10698) 35000 (10258) 33400 (9789)

-25 -(31.7) 38000 (11137) 36600 (10727) 35300 (10346) 33900 (9936) 32600 (9555) 31200 (9144) 29900 (8763)

-30 (-34.4) 33500 (9818) 32300 (9467) 31

-35 -(37.2) 29200 (8558) 28100 (8236) 27100 (7943) 26100 (7649) 25000 (7327) 24100 (7063) 23100 (6770)

-40 (-40.0) 25100 (7356) 24200 (7093) 23200 (6800) 22300 (6536) 21400 (6272) 20600 (6038) 19800 (5803)
0 -(17.8) 77800 (22802) 74900 (21952) 72000 (21102) 69000 (20223) 66000 (19343) 62800 (18406) 59600 (17468)

-5 -(20.6) 70700 (20721) 68200 (19988) 65600 (19226) 63000 (18464) 60200 (17644) 57400 (16823) 54500 (15973)

-10 -(23.3) 64100 (18787) 61900 (18142) 59600 (17468) 57200 (16764) 54800 (16061) 52300 (15328) 49700 (14566)

-15 -(26.1) 57900 (16970) 55900 (16383) 53900 (15797) 51900 (15211) 49700 (14566) 47500 (13921) 45100 (13218)

-20 -(28.9) 52100 (15270) 50400 (14771) 48600 (14244) 46800 (13716) 44900 (13159) 42900 (12573) 40800 (11958)

-25 -(31.7) 46700 (13687) 45200 (13247) 43600 (12778) 42000 (12309) 40400 (11841) 38600 (11313) 36700 (10756)

-30 (-34.4) 41600 (12192) 40300 (11811) 38900 (11401) 37500 (10991) 36000 (10551) 34500 (10111) 32800 (9613)

-35 -(37.2) 36800 (10785) 35600 (10434) 34400 (10082) 33200 (9730) 31900 (9349) 30500 (8939) 29000 (8499)

-40 (-40.0) 32200 (9437) 31200 (9144) 30200 (8851) 29100 (8529) 27900 (8177) 26600 (7796) 25300 (7415)
0 -(17.8) 88800 (26026) 85400 (25029) 81900 (24004) 78400 (22978) 74700 (21893) 70800 (20750) 66900 (19607)

-5 -(20.6) 80700 (23652) 77700 (22773) 74600 (21864) 71400 (20926) 68100 (19959) 64600 (18933) 61100 (17907)

-10 -(23.3) 73000 (21395) 70400 (20633) 67600 (19812) 64800 (18992) 61800 (18113) 58700 (17204) 55600 (16295)

-15 -(26.1) 65800 (19285) 63500 (18611) 61100 (17907) 58500 (17145) 55900 (16383) 53200 (15592) 50300 (14742)

-20 -(28.9) 59100 (17321) 57000 (16706) 54900 (16090) 52700 (15445) 50300 (14742) 47900 (14039) 45400 (13306)

-25 -(31.7) 52900 (15504) 51100 (14977) 49200 (14420) 47200 (13834) 45200 (13247) 43000 (12603) 40800 (11958)

-30 (-34.4) 47200 (13834) 45600 (13365) 43900 (12866) 42200 (12368) 40300 (11811) 38400 (11254) 36400 (10668)

-35 -(37.2) 41900 (12280) 40500 (11870) 39000 (11430) 37500 (10991) 35900 (10522) 34200 (10023) 32400 (9496)

-40 (-40.0) 37200 (10903) 35900 (10522) 34600 (10141) 33300 (9760) 31800 (9320) 30300 (8880) 28700 (8411)

SUCTION

CAPACITY DATA -

R404A

LOW TEMPERATURE (cont’d)

CAPACITY BTU/H (WATTS)

100 (9115) 29900 (8763) 28800 (8441) 27600 (8089) 26500 (7767)

R404A

R507

R507

60Hz

AMBIENT TEMPERATURE °F (°C)

BEZT

B40-BEZ-PDS-60-6

- 13 -

08/14/12

TECUMSEH

CAPACITY DATA -

MEDIUM TEMPERATURE

R404A

R507

60Hz

CONDENSING

UNIT

MODEL

BEZT010M6

Compressor

Model

VSA9490

BEZT011M6

Compressor

Model

VSA9510

BEZT015M6

Compressor

Model

VSA9512

BEZT020M6

Compressor

Model

VSA9514

BEZT025M6

Compressor

Model

VSA9517

BEZT030M6

Compressor

Model

VSA9521

SATURATED

SUCTION

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)
40 (4.4) 18300 (5360) 17600 (5160) 16900 (4950) 16100 (4720) 15400 (4510) 14700 (4310) 13900 (4070)

35 (1.7) 16800 (4920) 16100 (4720) 15500 (4540) 14800 (4340) 14100 (4130) 13400 (3930) 12700 (3720)
30 (-1.1) 15400 (4510) 14800 (4340) 14100 (4130) 13500 (3960) 12900 (3780) 12300 (3600) 11700 (3430)
25 (-3.9) 14000 (4100) 13500 (3960) 12900 (3780) 12300 (3600) 11800 (3460) 11200 (3280) 10600 (3110)
20 (-6.7) 12800 (3750) 12300 (3600) 11700 (3430) 11200 (3280) 10700 (3140) 10200 (2990) 9690 (2840)
15 (-9.4) 11600 (3400) 11100 (3250) 10700 (3140) 10200 (2990) 9750 (2860) 9280 (2720) 8810 (2580)
10 (-12.2) 10400 (3050) 10100 (2960) 9660 (2830) 9250 (2710) 8840 (2590) 8420 (2470) 7990 (2340)

5 (-15.0) 9390 (2750) 9050 (2650) 8700 (2550) 8350 (2450) 7990 (2340) 7610 (2230) 7230 (2120)

0 (-17.8) 8400 (2460) 8120 (2380) 7810 (2290) 7510 (2200) 7190 (2110) 6860 (2010) 6520 (1910)
40 (4.4) 20500 (6010) 19600 (5740) 18700 (5480) 17900 (5250) 17100 (5010) 16300 (4780) 15500 (4540)
35 (1.7) 18900 (5540) 18100 (5300) 17300 (5070) 16500 (4840) 15700 (4600) 14900 (4370) 14200 (4160)
30 (-1.1) 17500 (5130) 16700 (4890) 15900 (4660) 15200 (4450) 14400 (4220) 13700 (4020) 13000 (3810)
25 (-3.9) 16100 (4720) 15400 (4510) 14700 (4310) 14000 (4100) 13300 (3900) 12600 (3690) 11900 (3490)
20 (-6.7) 14800 (4340) 14100 (4130) 13500 (3960) 12800 (3750) 12200 (3580) 11600 (3400) 10900 (3190)
15 (-9.4) 13400 (3930) 12800 (3750) 12300 (3600) 11700 (3430) 11100 (3250) 10500 (3080) 9990 (2930)
10 (-12.2) 12100 (3550) 11600 (3400) 11100 (3250) 10600 (3110) 10000 (2930) 9560 (2800) 9060 (2660)

5 (-15.0) 10700 (3140) 10300 (3020) 9860 (2890) 9420 (2760) 8990 (2630) 8560 (2510) 8140 (2390)

0 (-17.8) 9280 (2720) 8940 (2620) 8590 (2520) 8240 (2410) 7890 (2310) 7540 (2210) 7190 (2110)
40 (4.4) 22700 (6650) 21800 (6390) 20900 (6130) 20000 (5860) 19100 (5600) 18100 (5300) 17100 (5010)
35 (1.7) 20900 (6130) 20100 (5890) 19300 (5660) 18500 (5420) 17600 (5160) 16700 (4890) 15900 (4660)
30 (-1.1) 19200 (5630) 18500 (5420) 17800 (5220) 17000 (4980) 16200 (4750) 15500 (4540) 14600 (4280)
25 (-3.9) 17600 (5160) 16900 (4950) 16300 (4780) 15600 (4570) 14900 (4370) 14200 (4160) 13500 (3960)
20 (-6.7) 16000 (4690) 15500 (4540) 14900 (4370) 14300 (4190) 13700 (4020) 13000 (3810) 12400 (3630)
15 (-9.4) 14600 (4280) 14100 (4130) 13600 (3990) 13000 (3810) 12500 (3660) 11900 (3490) 11300 (3310)
10 (-12.2) 13300 (3900) 12800 (3750) 12300 (3600) 1

5 (-15.0) 12000 (3520) 11600 (3400) 11200 (3280) 10700 (3140) 10300 (3020) 9820 (2880) 9320 (2730)

0 (-17.8) 10900 (3190) 10500 (3080) 10100 (2960) 9720 (2850) 9300 (2730) 8870 (2600) 8430 (2470)
40 (4.4) 26800 (7850) 26000 (7620) 25100 (7360) 24200 (7090) 23400 (6860) 22500 (6590) 21700 (6360)
35 (1.7) 24600 (7210) 23800 (6980) 22900 (6710) 22100 (6480) 21300 (6240) 20500 (6010) 19700 (5770)
30 (-1.1) 22500 (6590) 21700 (6360) 20900 (6130) 20200 (5920) 19400 (5690) 18600 (5450) 17900 (5250)
25 (-3.9) 20500 (6010) 19800 (5800) 19100 (5600) 18300 (5360) 17600 (5160) 16900 (4950) 16200 (4750)
20 (-6.7) 18700 (5480) 18000 (5280) 17300 (5070) 16700 (4890) 16000 (4690) 15300 (4480) 14600 (4280)
15 (-9.4) 17000 (4980) 16400 (4810) 15800 (4630) 15100 (4430) 14500 (4250) 13900 (4070) 13200 (3870)
10 (-12.2) 15400 (4510) 14900 (4370) 14300 (4190) 13700 (4020) 13200 (3870) 12600 (3690) 12000 (3520)

5 (-15.0) 14000 (4100) 13500 (3960) 13000 (3810) 12500 (3660) 11900 (3490) 11400 (3340) 10900 (3190)

0 (-17.8) 12700 (3720) 12300 (3600) 11800 (3460) 11400 (3340) 10900 (3190) 10400 (3050) 9880 (2900)
40 (4.4) 32400 (9500) 31200 (9140) 30100 (8820) 28900 (8470) 27700 (8120) 26400 (7740) 25100 (7360)
35 (1.7) 29900 (8760) 28800 (8440) 27700 (8120) 26600 (7800) 25500 (7470) 24300 (7120) 23100 (6770)
30 (-1.1) 27500 (8060) 26500 (7770) 25500 (7470) 24500 (7180) 23400 (6860) 22400 (6560) 21300 (6240)
25 (-3.9) 25300 (7410) 24400 (7150) 23500 (6890) 22500 (6590) 21600 (6330) 20600 (6040) 19500 (5710)
20 (-6.7) 23200 (6800) 22400 (6560) 21600 (6330) 20700 (6070) 19800 (5800) 18900 (5540) 17900 (5250)
15 (-9.4) 21300 (6240) 20500 (6010) 19800 (5800) 19000 (5570) 18200 (5330) 17300 (5070) 16500 (4840)
10 (-12.2) 19400 (5690) 18800 (5510) 18100 (5300) 17300 (5070) 16600 (4860) 15800 (4630) 15100 (4430)

5 (-15.0) 17600 (5160) 17000 (4980) 16400 (4810) 15800 (4630) 15100 (4430) 14400 (4220) 13700 (4020)

0 (-17.8) 15900 (4660) 15400 (4510) 14800 (4340) 14300 (4190) 13700 (4020) 13100 (3840) 12500 (3660)
40 (4.4) 40200 (11780) 38800 (11370) 37300 (10930) 35900 (10520) 34400 (10080) 32800 (9610) 31200 (9140)
35 (1.7) 37000 (10840) 35800 (10490) 34500 (10110) 33200 (9730) 31800 (9320) 30400 (8910) 29000 (8500)
30 (-1.1) 34100 (9990) 32900 (9640) 31800 (9320) 30600 (8970) 29400 (8620) 28100 (8240) 26800 (7850)
25 (-3.9) 31300 (9170) 30300 (8880) 29200 (8560) 28200 (8260) 27100 (7940) 25900 (7590) 24700 (7240)
20 (-6.7) 28600 (8380) 27700 (8120) 26800 (7850) 25900 (7590) 24900 (7300) 23900 (7000) 22800 (6680)
15 (-9.4) 26100 (7650) 25300 (7410) 24500 (7180) 23700 (6950) 22800 (6680) 21900 (6420) 20900 (6130)
10 (-12.2) 23700 (6950) 23000 (6740) 22300 (6540) 21600 (6330) 20800 (6100) 20000 (5860) 19100 (5600)

5 (-15.0) 21500 (6300) 20900 (6130) 20300 (5950) 19600 (5740) 18900 (5540) 18100 (5300) 17300 (5070)

0 (-17.8) 19300 (5660) 18800 (5510) 18300 (5360) 17700 (5190) 17100 (5010) 16400 (4810) 15600 (4570)

CAPACITY BTU/H (WATTS)

R404A

AMBIENT TEMPERATURE °F (°C)

R507

1800 (3460) 11300 (3310) 10800 (3170) 10300 (3020)

table continues on next page >>>

BEZT

B40-BEZ-PDS-60-6

- 14 -

08/14/12

TECUMSEH

CAPACITY DATA -

R404A

R507

MEDIUM TEMPERATURE (cont’d)

60Hz

CONDENSING

UNIT

MODEL

BEZT035M6

Compressor

Model

VSA9524

BEZT040M6

Compressor

Model

VSA9528

BEZT050M6

Compressor

Model

VSA9536

BEZT060M6

Compressor

Model

VSA9544

SATURATED

SUCTION

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

40 (4.4) 43600 (12780) 41900 (12280) 40200 (11780) 38500 (11280) 36800 (10780) 35000 (10260) 33300 (9760)
35 (1.7) 40600 (11900) 39000 (11430) 37400 (10960) 35800 (10490) 34200 (10020) 32600 (9550) 31000 (9090)
30 (-1.1) 37600 (11020) 36200 (10610) 34700 (10170) 33200 (9730) 31700 (9290) 30200 (8850) 28700 (8410)
25 (-3.9) 34700 (10170) 33300 (9760) 32000 (9380) 30600 (8970) 29200 (8560) 27800 (8150) 26400 (7740)
20 (-6.7) 31800 (9320) 30500 (8940) 29300 (8590) 28000 (8210) 26800 (7850) 25500 (7470) 24200 (7090)
15 (-9.4) 29000 (8500) 27900 (8180) 26700 (7820) 25600 (7500) 24400 (7150) 23300 (6830) 22100 (6480)
10 (-12.2) 26300 (7710) 25300 (7410) 24300 (7120) 23200 (6800) 22200 (6510) 21200 (6210) 20100 (5890)

5 (-15.0) 23700 (6950) 22800 (6680) 21900 (6420) 21000 (6150) 20100 (5890) 19200 (5630) 18300 (5360)

0 (-17.8) 21300 (6240) 20600 (6040) 19800 (5800) 19000 (5570) 18200 (5330) 17400 (5100) 16700 (4890)
40 (4.4) 50700 (14860) 48600 (14240) 46600 (13660) 44500 (13040) 42400 (12430) 40300 (11810) 38200 (11200)
35 (1.7) 47300 (13860) 45300 (13280) 43400 (12720) 41400 (12130) 39500 (11580) 37500 (10990) 35600 (10430)
30 (-1.1) 44000 (12900) 42200 (12370) 40400 (11840) 38500 (11280) 36700 (10760) 34900 (10230) 33000 (9670)
25 (-3.9) 40800 (11960) 39100 (11460) 37500 (10990) 35800 (10490) 34100 (9990) 32300 (9470) 30600 (8970)
20 (-6.7) 37800 (11080) 36200 (10610) 34700 (10170) 33100 (9700) 31500 (9230) 29900 (8760) 28300 (8290)
15 (-9.4) 34800 (10200) 33400 (9790) 31900 (9350) 30500 (8940) 29100 (8530) 27600 (8090) 26100 (7650)
10 (-12.2) 31900 (9350) 30600 (8970) 29300 (8590) 28000 (8210) 26700 (7820) 25300 (7410) 24000 (7030)

5 (-15.0) 29000 (8500) 27900 (8180) 26700 (7820) 25500 (7470) 24300 (7120) 23100 (6770) 21900 (6420)

0 (-17.8) 26200 (7680) 25100 (7360) 24100 (7060) 23000 (6740) 22000 (6450) 20900 (6130) 19800 (5800)
40 (4.4) 64100 (18790) 61600 (18050) 59100 (17320) 56600 (16590) 54100 (15860) 51600 (15120) 49100 (14390)
35 (1.7) 59700 (17500) 57400 (16820) 55000 (16120) 52700 (15440) 50300 (14740) 47900 (14040) 45600 (13360)
30 (-1.1) 55400 (16240) 53200 (15590) 51000 (14950) 48800 (14300) 46600 (13660) 44400 (13010) 42200 (12370)
25 (-3.9) 51300 (15030) 49200 (14420) 47200 (13830) 45200 (13250) 43100 (12630) 41000 (12020) 38900 (11400)
20 (-6.7) 47300 (13860) 45400 (13310) 43500 (12750) 41600 (12190) 39700 (11630) 37800 (11080) 35800 (10490)
15 (-9.4) 43400 (12720) 41600 (12190) 39900 (11690) 38200 (11200) 36400 (10670) 34700 (10170) 32900 (9640)
10 (-12.2) 39600 (1

5 (-15.0) 36000 (10550) 34600 (10140) 33200 (9730) 31800 (9320) 30300 (8880) 28900 (8470) 27400 (8030)

0 (-17.8) 32500 (9520) 31200 (9140) 30000 (8790) 28800 (8440) 27500 (8060) 26200 (7680) 24900 (7300)
40 (4.4) 80800 (23680) 77700 (22770) 74500 (21830) 71300 (20900) 68000 (19930) 64600 (18930) 61200 (17940)
35 (1.7) 74700 (21890) 71900 (21070) 69000 (20220) 66100 (19370) 63100 (18490) 60000 (17580) 56900 (16680)
30 (-1.1) 68900 (20190) 66400 (19460) 63800 (18700) 61100 (17910) 58400 (17120) 55600 (16290) 52800 (15470)
25 (-3.9) 63500 (18610) 61200 (17940) 58800 (17230) 56400 (16530) 53900 (15800) 51400 (15060) 48800 (14300)
20 (-6.7) 58300 (17090) 56200 (16470) 54000 (15830) 51900 (15210) 49600 (14540) 47300 (13860) 45000 (13190)
15 (-9.4) 53400 (15650) 51500 (15090) 49500 (14510) 47500 (13920) 45500 (13330) 43400 (12720) 41300 (12100)
10 (-12.2) 48800 (14300) 47000 (13770) 45200 (13250) 43400 (12720) 41600 (12190) 39600 (11610) 37700 (11050)

5 (-15.0) 44500 (13040) 42900 (12570) 41200 (12070) 39500 (11580) 37800 (11080) 36000 (10550) 34300 (10050)

0 (-17.8) 40500 (11870) 38900 (11400) 37400 (10960) 35800 (10490) 34200 (10020) 32600 (9550) 30900 (9060)

CAPACITY BTU/H (WATTS)

1610) 38100 (11170) 36500 (10700) 34900 (10230) 33300 (9760) 31700 (9290) 30100 (8820)

R404A

AMBIENT TEMPERATURE °F (°C)

R507

BEZT

B40-BEZ-PDS-60-6

- 15 -

08/14/12

TECUMSEH

CAPACITY DATA -

LOW TEMPERATURE

R404A

R507

60Hz

CONDENSING

UNIT

MODEL

BEZT020L6

Compressor

Model

VSBG475

BEZT025L6

Compressor

Model

VSBG494

BEZT030L6

Compressor

Model

VSBG511

BEZA035L6

Compressor

Model

VSBG513

BEZT045L6

Compressor

Model

VSAG514

BEZT055L6

Compressor

Model

VSAG518

BEZT060L6

Compressor

Model

VSAG523

SATURATED

SUCTION

TEMPERATURE

° F ° C 80 (26.6) 85 (29.4) 90 (32.2) 95 (35) 100 (37.8) 105 (40.6) 110 (43.3)

0 -(17.8) 13500 (3960) 13000 (3810) 12500 (3660) 12100 (3550) 11600 (3400) 11000 (3220) 10500 (3080)

-5 -(20.6) 12200 (3580) 11800 (3460) 11300 (3310) 10900 (3190) 10400 (3050) 9990 (2930) 9510 (2790)

-10 -(23.3) 11000 (3220) 10600 (3110) 10200 (2990) 9820 (2880) 9420 (2760) 9010 (2640) 8580 (2510)

-15 -(26.1) 9850 (2890) 9510 (2790) 9170 (2690) 8820 (2580) 8460 (2480) 8100 (2370) 7720 (2260)

-20 -(28.9) 8800 (2580) 8490 (2490) 8190 (2400) 7890 (2310) 7570 (2220) 7250 (2120) 6910 (2030)

-25 -(31.7) 7820 (2290) 7550 (2210) 7290 (2140) 7010 (2050) 6740 (1980) 6460 (1890) 6170 (1810)

-30 (-34.4) 6920 (2030) 6690 (1960) 6450 (1890) 6220 (1820) 5970 (1750) 5730 (1680) 5480 (1610)

-35 -(37.2) 6090 (1780) 5880 (1720) 5680 (1660) 5480 (1610) 5270 (1540) 5070 (1490) 4850 (1420)

-40 (-40.0) 5320 (1560) 5150 (1510) 4980 (1460) 4800 (1410) 4630 (1360) 4450 (1300) 4270 (1250)
0 -(17.8) 15600 (4570) 15100 (4430) 14600 (4280) 14000 (4100) 13500 (3960) 12900 (3780) 12300 (3600)

-5 -(20.6) 14100 (4130) 13600 (3990) 13100 (3840) 12700 (3720) 12200 (3580) 11600 (3400) 11100 (3250)

-10 -(23.3) 12700 (3720) 12300 (3600) 11800 (3460) 11400 (3340) 11000 (3220) 10500 (3080) 10000 (2930)

-15 -(26.1) 11400 (3340) 11000 (3220) 10600 (3110) 10200 (2990) 9840 (2880) 9430 (2760) 9010 (2640)

-20 -(28.9) 10200 (2990) 9830 (2880) 9490 (2780) 9160 (2680) 8810 (2580) 8450 (2480) 8090 (2370)

-25 -(31.7) 9040 (2650) 8750 (2560) 8460 (2480) 8170 (2390) 7860 (2300) 7560 (2220) 7230 (2120)

-30 (-34.4) 8010 (2350) 7760 (2270) 7510 (2200) 7260 (2130) 6990 (2050) 6730 (1970) 6450 (1890)

-35 -(37.2) 7060 (2070) 6850 (2010) 6630 (1940) 6410 (1880) 6180 (1810) 5960 (1750) 5730 (1680)

-40 (-40.0) 6180 (1810) 6000 (1760) 5810 (1700) 5630 (1650) 5440 (1590) 5250 (1540) 5060 (1480)
0 -(17.8) 18700 (5480) 18000 (5280) 17400 (5100) 16700 (4890) 15900 (4660) 15200 (4450) 14400 (4220)

-5 -(20.6) 16900 (4950) 16300 (4780) 15700 (4600) 15100 (4430) 14400 (4220) 13800 (4040) 13100 (3840)

-10 -(23.3) 15200 (4450) 14700 (4310) 14200 (4160) 13600 (3990) 13000 (3810) 12400 (3630) 11800 (3460)

-15 -(26.1) 13600 (3990) 13200 (3870) 12700 (3720) 12200 (3580) 11700 (3430) 11200 (3280) 10600 (3110)

-20 -(28.9) 12100 (3550) 11800 (3460) 11400 (3340) 11000 (3220) 10500 (3080) 10100 (2960) 9570 (2800)

-25 -(31.7) 10800 (3170) 10500 (3080) 10100 (2960) 9780 (2870) 9400 (2750) 9000 (2640) 8580 (2510)

-30 (-34.4) 9540 (2800) 9270 (2720) 8990 (2630) 8680 (2540) 8370 (2450) 8030 (2350) 7670 (2250)

-35 -(37.2) 8400 (2460) 8180 (2400) 7950 (2330) 7700 (2260) 7420 (2170) 7140 (2090) 6840 (2000)

-40 (-40.0) 7370 (2160) 7190 (2110) 6990 (2050) 6790 (1990) 6570 (1930) 6340 (1860) 6080 (1780)
0 -(17.8) 20600 (6040) 19900 (5830) 19100 (5600) 18300 (5360) 17500 (5130) 16700 (4890) 15900 (4660)

-5 -(20.6) 18800 (5510) 18100 (5300) 17400 (5100) 16700 (4890) 16000 (4690) 15300 (4480) 14500 (4250)

-10 -(23.3) 17000 (4980) 16400 (4810) 15800 (4630) 15200 (4450) 14500 (4250) 13900 (4070) 13200 (3870)

-15 -(26.1) 15300 (4480) 14800 (4340) 14200 (4160) 13700 (4020) 13100 (3840) 12500 (3660) 11900 (3490)

-20 -(28.9) 13700 (4020) 13200 (3870) 12700 (3720) 12200 (3580) 1

-25 -(31.7) 12200 (3580) 11800 (3460) 11400 (3340) 10900 (3190) 10500 (3080) 10000 (2930) 9560 (2800)

-30 (-34.4) 10800 (3170) 10500 (3080) 10100 (2960) 9710 (2850) 9320 (2730) 8930 (2620) 8520 (2500)

-35 -(37.2) 9650 (2830) 9310 (2730) 8980 (2630) 8640 (2530) 8310 (2440) 7950 (2330) 7590 (2220)

-40 (-40.0) 8640 (2530) 8340 (2440) 8030 (2350) 7740 (2270) 7430 (2180) 7130 (2090) 6800 (1990)
0 -(17.8) 25200 (7390) 24400 (7150) 23600 (6920) 22700 (6650) 21800 (6390) 20800 (6100) 19800 (5800)

-5 -(20.6) 22900 (6710) 22200 (6510) 21400 (6270) 20600 (6040) 19800 (5800) 18900 (5540) 18000 (5280)

-10 -(23.3) 20800 (6100) 20100 (5890) 19400 (5690) 18700 (5480) 17900 (5250) 17100 (5010) 16200 (4750)

-15 -(26.1) 18700 (5480) 18100 (5300) 17500 (5130) 16800 (4920) 16100 (4720) 15400 (4510) 14600 (4280)

-20 -(28.9) 16700 (4890) 16200 (4750) 15700 (4600) 15100 (4430) 14400 (4220) 13800 (4040) 13100 (3840)

-25 -(31.7) 14900 (4370) 14400 (4220) 13900 (4070) 13400 (3930) 12900 (3780) 12300 (3600) 11600 (3400)

-30 (-34.4) 13100 (3840) 12700 (3720) 12300 (3600) 11900 (3490) 11400 (3340) 10900 (3190) 10300 (3020)

-35 -(37.2) 11400 (3340) 11100 (3250) 10800 (3170) 10400 (3050) 10000 (2930) 9560 (2800) 9070 (2660)

-40 (-40.0) 9870 (2890) 9650 (2830) 9390 (2750) 9080 (2660) 8750 (2560) 8370 (2450) 7950 (2330)
0 -(17.8) 31800 (9320) 30600 (8970) 29500 (8650) 28300 (8290) 27000 (7910) 25800 (7560) 24600 (7210)

-5 -(20.6) 28600 (8380) 27500 (8060) 26500 (7770) 25400 (7440) 24300 (7120) 23300 (6830) 22200 (6510)

-10 -(23.3) 25500 (7470)

-15 -(26.1) 22700 (6650) 21900 (6420) 21100 (6180) 20400 (5980) 19600 (5740) 18700 (5480) 17900 (5250)

-20 -(28.9) 20100 (5890) 19400 (5690) 18800 (5510) 18100 (5300) 17400 (5100) 16700 (4890) 16000 (4690)

-25 -(31.7) 17700 (5190) 17100 (5010) 16600 (4860) 16000 (4690) 15500 (4540) 14900 (4370) 14300 (4190)

-30 (-34.4) 15400 (4510) 15000 (4400) 14500 (4250) 14100 (4130) 13700 (4020) 13200 (3870) 12700 (3720)

-35 -(37.2) 13300 (3900) 13000 (3810) 12700 (3720) 12400 (3630) 12000 (3520) 11700 (3430) 1

-40 (-40.0) 11400 (3340) 11200 (3280) 11000 (3220) 10700 (3140) 10500 (3080) 10300 (3020) 10000 (2930)
0 -(17.8) 40900 (11990) 39500 (11580) 38000 (11140) 36500 (10700) 34900 (10230) 33200 (9730) 31400 (9200)

-5 -(20.6) 37200 (10900) 36000 (10550) 34700 (10170) 33200 (9730) 31700 (9290) 30200 (8850) 28500 (8350)

-10 -(23.3) 33700 (9880) 32600 (9550) 31400 (9200) 30100 (8820) 28700 (8410) 27300 (8000) 25700 (7530)

-15 -(26.1) 30300 (8880) 29300 (8590) 28200 (8260) 27100 (7940) 25800 (7560) 24500 (7180) 23100 (6770)

-20 -(28.9) 27000 (7910) 26200 (7680) 25300 (7410) 24200 (7090) 23100 (6770) 21900 (6420) 20600 (6040)

-25 -(31.7) 24000 (7030) 23300 (6830) 22400 (6560) 21500 (6300) 20600 (6040) 19500 (5710) 18300 (5360)

-30 (-34.4) 21100 (6180) 20500 (6010) 19900 (5830) 19100 (5600) 18200 (5330) 17300 (5070) 16200 (4750)

-35 -(37.2) 18500 (5420) 18100 (5300) 17500 (5130) 16900 (4950) 16100 (4720) 15300 (4480) 14400 (4220)

-40 (-40.0) 16200 (4750) 15800 (4630) 15400 (4510) 14900 (4370) 14300 (4190) 13600 (3990) 12800 (3750)

CAPACITY BTU/H (WATTS)

24600 (7210) 23700 (6950) 22800 (6680) 21900 (6420) 20900 (6130) 19900 (5830)

R404A

R507

AMBIENT TEMPERATURE °F (°C)

1700 (3430) 11200 (3280) 10700 (3140)

1300 (3310)

ELECTRICAL DATA

B40-BEZ-PDS-60-6

- 16 -

08/14/12

BEZA

COPELAND MODELS

60Hz

COPELAND

CONDENSING UNIT

MODEL

BEZA010H8-*

BEZA011H8-*

BEZA015H8-*

BEZA020H8-*

BEZA025H8-*

BEZA030H8-*

BEZA035H8-*

BEZA040H8-*

BEZA050H8-*

BEZA060H8-*

BEZA065H8-*

BEZA070H8-*

BEZA076H8-*

BEZA085H8-*

BEZA110H8-*

BEZA150H8-*

* I = Indoor, H = Outdoor. Above listed RLA value is based on UL rating method and may differ from published compressor RLA data.

S2B ZS09KAE-PFV 208-230/1/60 10.0 40.3 1 1.1 13.6 20

T3B ZS09KAE-TF5 208-230/3/60 8.0 55.4 1 1.1 11.1 15
T4B ZS09KAE-TFD 460/3/60 3.8 28 1 0.6 5.4 15

S2B ZS11KAE-PFV 208-230/1/60 12.6 55 1 1.1 16.9 25

T3B ZS11KAE-TF5 208-230/3/60 10.4 58 1 1.1 14.1 20
T4B ZS11KAE-TFD 460/3/60 4.3 28 1 0.6 6.0 15

S2B ZS13KAE-PFV 208-230/1/60 12.0 56 1 1.1 16.1 25

T3B ZS13KAE-TF5 208-230/3/60 9.7 58 1 1.1 13.2 20
T4B ZS13KAE-TFD 460/3/60 4.8 29 1 0.6 6.6 15

S2B ZB15KCE-PFV 208-230/1/60 15.7 61 1 1.1 20.7 35

T3B ZB15KCE-TF5 208-230/3/60 8.9 55 1 1.1 12.2 20
T4B ZB15KCE-TFD 460/3/60 5.0 27 1 0.6 6.9 15

S2B ZB19KCE-PFV 208-230/1/60 17.9 73 1 1.1 23.5 40

T3B ZB19KCE-TF5 208-230/3/60 10.0 63 1 1.1 13.6 20
T4B ZB19KCE-TFD 460/3/60 5.0 31 1 0.6 6.9 15

S2B ZB21KCE-PFV 208-230/1/60 20.7 100 1 2.1 28.0 45

T3B ZB21KCE-TF5 208-230/3/60 12.1 77 1 2.1 17.2 25
T4B ZB21KCE-TFD 460/3/60 6.1 39 1 1.1 8.7 15

S2B ZB26KCE-PFV 208-230/1/60 23.6 127 1 2.1 31.6 50

T3B ZB26KCE-TF5 208-230/3/60 13.9 88 1 2.1 19.5 30
T4B ZB26KCE-TFD 460/3/60 7.1 44 1 1.1 10.0 15

S2B ZB30KCE-PFV 208-230/1/60 26.8 132 1 2.1 35.6 60

T3B ZB30KCE-TF5 208-230/3/60 15.7 115 1 2.1 21.7 35
T4B ZB30KCE-TFD 460/3/60 7.5 47.5 1 1.1 10.5 15
T5B ZB30KCE-TFE 575/3/60 6.0 38 1 0.9 8.4 15

S2B ZB38KCE-PFV 208-230/1/60 31.1 175 1 2.1 41.0 70

T3B ZB38KCE-TF5 208-230/3/60 22.1 115 1 2.1 29.7 50
T4B ZB38KCE-TFD 460/3/60 9.6 63 1 1.1 13.1 20
T5B ZB38KCE-TFE 575/3/60 7.7 50 1 0.9 10.5 15
T3B ZB45KCE-TF5 208-230/3/60 22.5 156 1 2.1 30.2 50
T4B ZB45KCE-TFD 460/3/60 11.5 70 1 1.1 15.5 25
T5B ZB45KCE-TFE 575/3/60 9.2 56 1 0.9 12.4 20
T3B ZB50KCE-TF5 208-230/3/60 28.6 196 1 2.1 37.9 60
T4B ZB50KCE-TFD 460/3/60 15.0 100 1 1.1 19.9 30
T5B ZB50KCE-TFE 575/3/60 11.1 90 1 0.9 14.8 25
T3B ZB58KCE-TF5 208-230/3/60 32.1 195 1 2.1 42.2 70
T4B ZB58KCE-TFD 460/3/60 16.4 95 1 1.1 21.6 35
T5B ZB58KCE-TFE 575/3/60 12.9 80 1 0.9 17.0 25
T3B ZB66KCE-TF5 208-230/3/60 33.6 225 2 4.2 46.2 80
T4B ZB66KCE-TFD 460/3/60 17.5 114 2 2.2 24.1 40
T5B ZB66KCE-TFE 575/3/60 13.5 80 2 1.8 18.7 30
T3B ZB76KCE-TF5 208-230/3/60 41.4 239 2 4.2 56.0 90
T4B ZB76KCE-TFD 460/3/60 20.0 125 2 2.2 27.2 45
T5B ZB76KCE-TFE 575/3/60 13.8 80 2 1.8 19.1 30
T3B ZB95KCE-TW5 208-230/3/60
T4B ZB95KCE-TWD 460/3/60 31.4 150 2 3.4 42.7 70
T5B ZB95KCE-TWE 575/3/60 22.9 109 2 2.8 31.4 50
T3B ZB114KCE-TW5 208-230/3/60 65.0 340 2 7.2 88.5 150
T4B ZB114KCE-TWD 460/3/60 35.0 173 2 3.4 47.2 80
T5B ZB114KCE-TWE 575/3/60 25.7 132 2 2.8 34.9 60

COMPRESSOR

MODEL NO.

POWER
SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

61.4 300 2 7.2 84.0 125

CONDENSER

FAN MOTOR

UNIT

table continues on next page >>>

BEZA

B40-BEZ-PDS-60-6

- 17 -

08/14/12

COPELAND

ELECTRICAL DATA

COPELAND MODELS (cont’d)

60Hz

CONDENSING UNIT

MODEL

BEZA020L6- *

BEZA025L6- *

BEZA030L6- *

BEZA035L6-*

BEZA045L6- *

BEZA055L6- *

BEZA060L6- *

BEZA075L6- *

BEZA100L6- *

BEZA130L6- *

BEZA150L6- *

* I = Indoor, H = Outdoor. Above listed RLA value is based on UL rating method and may differ from published compressor RLA data.

S2 ZF06K4E-PFV 208-230/1/60 13.6 61 1 0.5 17.5 30
T3 ZF06K4E-TF5 208-230/3/60 9.3 55 1 0.5 12.1 20
S2 ZF08K4E-PFV 208-230/1/60 16.4 73 1 1.1 21.6 35
T3 ZF08K4E-TF5 208-230/3/60 9.7 63 1 1.1 13.2 20
T4 ZF08K4E-TFD 460/3/60 5.0 39 1 0.6 6.9 15
S2 ZF09KCE-PFV 208-230/1/60 16.4 88 1 1.1 21.6 35
T3 ZF09KCE-TF5 208-230/3/60 11.1 77 1 1.1 15.0 25
T4 ZF09KCE-TFD 460/3/60 5.7 39 1 0.6 7.7 15
T5 ZF09KCE-TFE 575/3/60 4.3 31 1 0.5 5.9 15
S2 ZF11K4E-PFV 208-230/1/60 20.7 109 1 1.1 27.0 45
T3 ZF11K4E-TF5 208-230/3/60 13.6 88 1 1.1 18.1 30
T4 ZF11K4E-TFD 460/3/60 7.1 44 1 0.6 9.5 15
T5 ZF11K4E-TFE 575/3/60 5.0 34 1 0.5 6.8 15
S2 ZF13K4E-PFV 208-230/1/60 26.8 129 1 2.1 35.6 60
T3 ZF13K4E-TF5 208-230/3/60 15.0 99 1 2.1 20.9 35
T4 ZF13K4E-TFD 460/3/60 8.2 49.5 1 1.1 11.4 15
T5 ZF13K4E-TFE 575/3/60 8.2 40 1 0.9 11.2 15
S2 ZF15K4E-PFV 208-230/1/60 31.8 169 1 2.1 41.9 70
T3 ZF15K4E-TF5 208-230/3/60 21.4 123 1 2.1 28.9 50
T4 ZF15K4E-TFD 460/3/60 9.6 62 1 1.1 13.1 20
T5 ZF15K4E-TFE 575/3/60 7.9 50 1 0.9 10.8 15
T3 ZF18K4E-TF5 208-230/3/60 23.9 156 1 2.1 32.0 50
T4 ZF18K4E-TFD 460/3/60 9.3 70 1 1.1 12.7 20
T5 ZF18K4E-TFE 575/3/60 7.9 54 1 0.9 10.8 15
T3 ZF24K4E-TWC 208-230/3/60 30.0 189 1 2.1 39.6 70
T4 ZF24K4E-TWD 460/3/60 15.7 94 1 1.1 20.7 35
T5 ZF24K4E-TWE 575/3/60 8.9 74 1 0.9 12.0 20
T3 ZF33K4E-TWC 208-230/3/60 43.6 278 1 2.1 56.6 100
T4 ZF33K4E-TWD 460/3/60 21.1 127 1 1.1 27.5 45
T5 ZF33K4E-TWE 575/3/60 16.1 100 1 0.9 21.0 35
T3 ZF40K4E-TWC 208-230/3/60 45.0 350 2 4.2 60.5 100
T4 ZF40K4E-TWD 460/3/60 22.1 158 2 2.2 29.8 50
T5 ZF40K4E-TWE 575/3/60 20.0 125 2 1.8 26.8 45
T3 ZF48K4E-TWC 208-230/3/60 55.0 425 2 4.2 73.0 125
T4 ZF48K4E-TWD 460/3/60 24.3 187 2 2.2 32.6 50
T5 ZF48K4E-TWE 575/3/60 19.6 148 2 1.8 26.3 45

COMPRESSOR

MODEL NO.

POWER
SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

CONDENSER FAN

MOTOR

UNIT

BEZT

B40-BEZ-PDS-60-6

- 18 -

08/14/12

TECUMSEH

ELECTRICAL DATA

TECUMSEH MODELS

60Hz

CONDENSING UNIT

MODEL

BEZT010M6-*
BEZT011M6-*
BEZT015M6-*

BEZT020M6-*

BEZT025M6-*

BEZT030M6-*

BEZT035M6-*
BEZT040M6-*

BEZT050M6-*
BEZT060M6-* T4B VSA9544ZXG 460/3/60 15.0 80.4 1 1.1 19.9 35

BEZT020L6-*

BEZT025L6-*

BEZT030L6-*

BEZT035L6-* T3B VSAG513ZXT 208-230/3/60 11.1 80.0 1 1.1 15.0 25
BEZT045L6-*

BEZT055L6-*
BEZT060L6-*

S2B VSA9490ZNA 208-230/1/60 11.7 50.7 1 1.1 15.7 25

T3B VSA9490ZXT 208-230/3/60 6.6 40.5 1 1.1 9.4 15

S2B VSA9510ZNA 208-230/1/60 13.4 65.9 1 1.1 17.9 30

T3B VSA9510ZXT 208-230/3/60 7.9 40.5 1 1.1 11.0 15

S2B VSA9512ZNA 208-230/1/60 13.3 65.9 1 1.1 17.7 30

T3B VSA9512ZXT 208-230/3/60 8.6 48.5 1 1.1 11.9 20

S2B VSA9514ZNA 208-230/1/60 15.6 83 1 1.1 20.6 35

T3B VSA9514ZXT 208-230/3/60 9.9 48.5 1 1.1 13.5 20
T4B VSA9514ZXG 460/3/60 4.5 25 1 0.6 6.2 15

S2B VSA9517ZNA 208-230/1/60 20.5 83 1 1.1 26.7 45

T3B VSA9517ZXT 208-230/3/60 11.7 77.5 1 1.1 15.7 25
T4B VSA9517ZXG 460/3/60 5.0 33.7 1 0.6 6.9 15

S2B VSA9512ZNA 208-230/1/60 20.9 101.6 1 2.1 28.2 45

T3B VSA9521ZXT 208-230/3/60 12.4 80 1 2.1 17.6 30
T4B VSA9512ZXG 460/3/60 6.6 38 1 1.1 9.4 15
T3B VSA9524ZXT 208-230/3/60 15.2 80 1 2.1 21.1 35
T4B VSA9524ZXG 460/3/60 6.7 40.8 1 1.1 9.5 15
T3B VSA9528ZXT 208-230/3/60 16.8 96 1 2.1 23.1 40
T4B VSA9528ZXG 460/3/60 10.7 47.5 1 1.1 14.5 25
T3B VSA9536ZXT 208-230/3/60 21.1 153 1 2.1 28.5 45
T4B VSA9536ZXG 460/3/60 11.0 72.9 1 1.1 14.9 25

S2B VSBG475ZNA 208-230/1/60 11.9 69.8 1 1.1 16.0 25

T3B VSAG475ZXT 208-230/3/60 8.7 77.5 1 1.1 12.0 20

S2B VSBG494ZNA 208-230/1/60 14.4 71.9 1 1.1 19.1 30

T3B VSAG494ZXT 208-230/3/60 11.1 80.0 1 1.1 15.0 25
T4B VSBG494ZXG 460/3/60 3.2 29.5 1 0.6 4.6 15

S2B VSBG511ZNA 208-230/1/60 15.5 83.6 1 1.1 20.5 35

T3B VSAG511ZXT 208-230/3/60 10.7 80.0 1 1.1 14.5 25
T4B VSAG511ZXG 460/3/60 5.0 40.8 1 0.6 6.9 15

T3B VSAG514ZXT 208-230/3/60 14.1 96.0 1 2.1 19.7 30
T4B VSAG514ZXG 460/3/60 6.1 48.3 1 1.1 8.7 15
T3B VSAG518ZXT 208-230/3/60 18.3 153.0 1 2.1 25.0 40
T4B VSAG518ZXG 460/3/60 8.8 73.0 1 1.1 12.1 20
T3B VSAG523ZXT 208-230/3/60 19.9 156 1 2.1 27.0 45
T4B VSAG523ZXG 460/3/60 10.4 80.4 1 1.1 14.1 20

COMPRESSOR

MODEL NO.

POWER
SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

CONDENSER

FAN MOTOR

UNIT

* I = Indoor, H = Outdoor. Above listed RLA value is based on UL rating method and may differ from published compressor RLA data.

DIMENSIONAL DATA - DRAWING #1

B40-BEZ-PDS-60-6

- 19 -

08/14/12

BEZ 60Hz

AIR

FLOW

(1 Fan Models Small Chassis)

INDOOR DIMENSIONS

AIR

FLOW

OUTDOOR DIMENSIONS

NOTE: Discharge hood and legs are optional components

REFER TO PAGE 23 FOR

DIMENSIONAL DATA FOR SPECIFIC MODELS

DIMENSIONAL DATA - DRAWING #2

B40-BEZ-PDS-60-6

- 20 -

08/14/12

BEZ 60Hz

AIR

FLOW

(1 Fan Models Large Chassis)

INDOOR DIMENSIONS

AIR

FLOW

OUTDOOR DIMENSIONS

NOTE: Discharge hood and legs are optional components

REFER TO PAGE 23 FOR

DIMENSIONAL DATA FOR SPECIFIC MODELS

DIMENSIONAL DATA - DRAWING #3

6

WIDTH

MOUNTING
HOLES

OPTIONAL AIR
DISCHARGE HOOD
A

ND LEGS

2 1/16 8 18 1/2 8 18 1/2 8 2 1/16

8

DEPTH

HEIGHT

WITH

WIDTH

HOOD

9/16 9/16

B40-BEZ-PDS-60-6

- 21 -

08/14/12

BEZ 60Hz

(2 Fan Models Small Chassis)

HEIGHT

MOUNTING

9/16 9/16

DEPTH

INDOOR DIMENSIONS

2 1/16 8 18 1/2 8 18 1/2 8 2 1/1

HOLES

OUTDOOR DIMENSIONS

NOTE: Discharge hood and legs are optional components

REFER TO PAGE 23 FOR

DIMENSIONAL DATA FOR SPECIFIC MODELS

DIMENSIONAL DATA - DRAWING #4

6

OPTIONAL
DISCHARGE HOOD

A

6

B40-BEZ-PDS-60-6

- 22 -

08/14/12

BEZ 60Hz

(2 Fan Models Large Chassis)

HEIGHT

MOUNTING

3/4

DEPTH

INDOOR DIMENSIONS

3/4

4 15/16 8 21 8 21 8 4 15/1

HOLES

WIDTH

ND LEGS

AIR

HEIGHT

10

MOUNTING

3/4

DEPTH

3/4

WITH
HOOD

4 15/16 8 21 8 21 8 4 15/1

HOLES

OUTDOOR DIMENSIONS

NOTE: Discharge hood and legs are optional components

REFER TO PAGE 23 FOR

DIMENSIONAL DATA FOR SPECIFIC MODELS

WIDTH

BEZA

B40-BEZ-PDS-60-6

- 23 -

08/14/12

COPELAND

DIMENSIONAL DATA

COPELAND MODELS

60Hz

CONDENSING

UNIT

MODEL

BEZA010H8 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA011H8 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA015H8 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA020H8 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA025H8 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA030H8 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZA035H8 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZA040H8 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZA050H8 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZA060H8 2 52 1/8 1324 35 7/8 911 43 1092 41 7/8 1064 52 1/8 1324 35 7/8 911 41 11/16 1059
BEZA065H8 2 52 1/8 1324 35 7/8 911 43 1092 41 7/8 1064 52 1/8 1324 35 7/8 911 41 11/16 1059
BEZA070H8 2 52 1/8 1324 35 7/8 911 43 1092 41 7/8 1064 52 1/8 1324 35 7/8 911 41 11/16 1059
BEZA076H8 3 65 1/8 1654 35 7/8 911 43 1092 41 7/8 1064 65 1/8 1654 35 7/8 911 41 11/16 1059
BEZA085H8 3 65 1/8 1654 35 7/8 911 43 1092 41 7/8 1064 65 1/8 1654 35 7/8 911 41 11/16 1059
BEZA110H8 4 75 7/8 1927 45 3/4 1162 59 1511 45 1/2 1156 75 7/8 1927 45 3/4 1162 45 17/32 1156
BEZA150H8 4 75 7/8 1927 45 3/4 1162 59 1511 45 1/2 1156 75 7/8 1927 45 3/4 1162 45 17/32 1156
BEZA020L6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA025L6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA030L6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA035L6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZA045L6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZA055L6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZA060L6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZA075L6 2 52 1/8 1324 35 7/8 911 43 1092 41 7/8 1064 52 1/8 1324 35 7/8 911 41 1
BEZA100L6 2 52 1/8 1324 35 7/8 911 43 1092 41 7/8 1064 52 1/8 1324 35 7/8 911 41 11/16 1059
BEZA130L6 3 65 1/8 1654 35 7/8 911 43 1092 41 7/8 1064 65 1/8 1654 35 7/8 911 41 11/16 1059
BEZA150L6 3 65 1/8 1654 35 7/8 911 43 1092 41 7/8 1064 65 1/8 1654 35 7/8 911 41 11/16 1059

DRAWING

#

(see table

below)

WIDTH

Inches mm Inches mm Inches mm Inches mm Inches mm Inches mm Inches mm

OUTDOOR MODELS INDOOR MODELS

Base With Hood

DEPTH

HEIGHT WIDTH DEPTH HEIGHT

1/16 1059

DIMENSIONAL DATA

BEZT

TECUMSEH MODELS

60Hz

TECUMSEH

CONDENSING

UNIT

MODEL

BEZT010M6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT011M6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT015M6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT020M6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT025M6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT030M6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZT035M6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZT040M6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZT050M6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZT060M6 2 52 1/8 1324 35 7/8 911 43 1092 41 7/8 1064 52 1/8 1324 35 7/8 911 41 11/16 1059

BEZT020L6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT025L6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT030L6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT035L6 1 36 3/8 924 30 3/8 772 34 3/8 873 19 7/8 505 36 3/8 924 30 3/8 772 19 1/2 495
BEZT045L6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZT055L6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767
BEZT060L6 2 43 7/8 1114 32 7/8 835 43 1092 30 3/8 772 43 7/8 1114 32 7/8 835 30 3/16 767

DRAWING

#

(see table

below)

WIDTH

Inches mm Inches mm Inches mm Inches mm Inches mm Inches mm Inches mm

OUTDOOR MODELS INDOOR MODELS

DEPTH

Base With Hood

DRAWING # PAGE #

1 18
2 19
3 20
4 21

HEIGHT WIDTH DEPTH HEIGHT

SPECIFICATIONS

B40-BEZ-PDS-60-6

- 24 -

08/14/12

BEZA

60Hz

COPELAND

CONDENSING

UNIT

MODEL

BEZA010H8 * 5/8 16 3/8 10 11 4.9 285 129 265 120
BEZA011H8 * 5/8 16 3/8 10 11 4.9 285 129 265 120
BEZA015H8 * 7/8 22 3/8 10 11 4.9 285 129 265 120
BEZA020H8 * 7/8 22 3/8 10 11 4.9 280 127 300 136
BEZA025H8 * 7/8 22 1/2 13 14 6.3 290 132 320 145
BEZA030H8 * 7/8 22 1/2 13 22 9.9 380 172 410 186
BEZA035H8 * 7/8 22 1/2 13 22 9.9 380 172 415 188
BEZA040H8 * 1 1/8 29 1/2 13 22 9.9 390 177 420 191
BEZA050H8 * 1 1/8 29 1/2 13 22 9.9 390 177 425 193
BEZA060H8 * 1 1/8 29 5/8 16 30 13.8 430 195 470 213
BEZA065H8 * 1 1/8 29 5/8 16 30 13.6 465 211 510 231
BEZA070H8 * 1 3/8 35 5/8 16 30 13.6 470 213 515 234
BEZA076H8 * 1 3/8 35 5/8 16 54 24.5 580 263 635 288
BEZA085H8 * 1 3/8 35 5/8 16 54 24.5 590 268 645 293
BEZA110H8 * 1 3/8 35 7/8 22 76 34.5 745 338 690 313
BEZA150H8 * 1 5/8 41 7/8 22 76 34.5 845 383 790 358

BEZA020L6 7/8 22 3/8 10 11 4.9 290 132 315 143
BEZA025L6 7/8 22 3/8 10 14 6.3 310 141 335 152
BEZA030L6 7/8 22 3/8 10 14 6.3 390 177 425 193
BEZA035L6 7/8 22 1/2 13 14 6.3 400 181 430 195
BEZA045L6 1 1/8 29 1/2 13 22 9.9 400 181 435 197
BEZA055L6 1 1/8 29 1/2 13 22 9.9 400 181 440 200
BEZA060L6 1 1/8 29 1/2 13 22 10.0 450 204 485 220
BEZA075L6 1 3/8 35 5/8 16 30 13.8 460 209 495 225

BEZA100L6^ 1 3/8 35 5/8 16 30 13.6 500 227 545 247

BEZA130L6 1 3/8 35 5/8 16 54 24.5 670 304 725 329
BEZA150L6 1 3/8 35 5/8 16 54 24.5 690 313 745 338

^ Options may be limited. Consult factory for details.

SUCTION (OD) LIQUID (OD) INDOOR OUTDOOR

Inches mm Inches mm Lbs. Kgs Lbs. Kgs Lbs. Kgs

UNIT CONNECTIONS

RECEIVER
CAPACITY

90% FULL *

APPROX. SHIPPING WEIGHT

* NOTE ON ALTERNATE REFRIGERANTS:

* PUBLISHED RECEIVER CAPACITY IS BASED ON

FOR ALERNATE REFRIGERANTS, MULTIPLY

R407C

1.10 1.15 1.00

R404A

R404A

R22

ON MODELS USING “8” AS REFRIGERANT CODE.

VALUE BY THE APPROPRIATE VALUE BELOW:

R507

SPECIFICATIONS

B40-BEZ-PDS-60-6

- 25 -

08/14/12

BEZT

TECUMSEH

CONDENSING

UNIT

MODEL

BEZT010M6 5/8 16 3/8 10 11 5.0 305 138 285 129

BEZT011M6 5/8 16 3/8 10 11 4.9 305 138 285 129
BEZT015M6 7/8 22 3/8 10 11 4.9 305 138 285 129
BEZT020M6 7/8 22 3/8 10 11 4.9 310 141 290 132
BEZT025M6 7/8 22 1/2 13 14 6.3 335 152 305 138
BEZT030M6 7/8 22 1/2 13 22 9.9 425 193 395 179
BEZT035M6 7/8 22 1/2 13 22 9.9 430 195 400 181
BEZT040M6 1 1/8 29 1/2 13 22 9.9 450 204 420 191
BEZT050M6 1 1/8 29 1/2 13 22 9.9 455 206 425 193
BEZT060M6 1 1/8 29 5/8 16 30 13.6 475 215 445 202

BEZT020L6 7/8 22 3/8 10 11 4.9 315 143 290 132

BEZT025L6 7/8 22 3/8 10 14 6.3 335 152 310 141

BEZT030L6 7/8 22 3/8 10 14 6.3 425 193 390 177

BEZT035L6 7/8 22 1/2 13 14 6.3 430 195 400 181

BEZT045L6 1 1/8 29 1/2 13 22 9.9 435 197 400 181

BEZT055L6 1 1/8 29 1/2 13 22 9.9 440 200 400 181

BEZT060L6 1 1/8 29 1/2 13 22 10.0 485 220 450 204

SUCTION (OD) LIQUID (OD) INDOOR OUTDOOR

Inches mm Inches mm Lbs. Kgs Lbs. Kgs Lbs. Kgs

UNIT CONNECTIONS

RECEIVER
CAPACITY

90% FULL

APPROX. SHIPPING WEIGHT

60Hz

TYPICAL SYSTEM WIRING DIAGRAM

B40-BEZ-PDS-60-6

- 26 -

08/14/12

BEZ 60Hz

208-230/1/60 Unit

with 230V Air Defrost Evaporator

TYPICAL SYSTEM WIRING DIAGRAM

B40-BEZ-PDS-60-6

- 27 -

08/14/12

BEZ 60Hz

208-230/3/60 Unit

with 230V Electric Defrost Evaporator

TYPICAL SYSTEM WIRING DIAGRAM

B40-BEZ-PDS-60-6

- 28 -

08/14/12

BEZ 60Hz

208-230/3/60 Unit

with Two (2) 230V Electric Defrost Evaps

TYPICAL SYSTEM WIRING DIAGRAM

B40-BEZ-PDS-60-6

- 29 -

08/14/12

BEZ 60Hz

208-230/3/60 Unit

with 230V Electric Defrost Evaps

TYPICAL SYSTEM WIRING DIAGRAM

B40-BEZ-PDS-60-6

- 30 -

08/14/12

BEZ 60Hz

460/3/60 Unit

with Two (2) 460V Electric Defrost Evaps

BEZ

B40-BEZ-PDS-60-6

- 31 -

08/14/12

EC MOTOR APPLICA TION

EC MOTORS

60Hz

EC Motors - Features and Benets

Air cooled condensing units utilizing electrically commu-

tatedmotor(ECmotor)technologyoffermanybenets;

ImprovedEfciency,ReducedSoundLevels,SpeedCon-

trol, Simplicity and Reliability.

Efciency

ECmotorsaremoreenergyefcientthanconventional

AC (PSC and shaded pole) motors. Unlike AC motors that

seeefciencydecreaseasthemotorspeedisdecreased,
anECmotorefciencyremainsconsistentthroughoutits

range of operation.
Head Pressure Control

EC motors make it easier to maintain stable head pres­sures when motor speeds are varied according to operat-

ingconditions.Whencomparedtoaconventionalooded

valve system, EC motors do a much better job maintaining
stable head pressures. System performance is further
enhanced with consistent liquid temperatures that ensure
optimized operation of the nozzle and TX valve in the
evaporator.
In colder climates, special consideration must be given to
the use of heated and insulated receivers and wind guard
protection on the condenser

Reduced Refrigerant Charge

System charges can be reduced by 30 – 40% by utilizing
variable speed EC motors to control head pressures. The
elimination of the head pressure control valve also elimi-

natestheneedforextrarefrigerantrequiredtooodthe

condenser.

Reduced Energy Consumption

When a system’s head pressure is controlled using a

oodedheadpressurecontrolvalve,thecondenserfan

motor runs at 100% fan speed all of the time. When head
pressure is controlled using an EC motor and the motor
speed is varied according to operating conditions, this
results in lower energy consumption of the motor.
There are also potential energy savings available from the
compressor by running with lower head pressure setting
controlled by a simple EC motor controller.

Theamountofenergytobesaveddependson;ambient

conditions, system operation conditions and head pres­sure set point.

Sound

As EC motor speeds vary for different operating conditions
they also offer reduced sound levels when compared to
conventional motor running full speed. Sound levels are
reduced on cooler days and in evenings.

Simplicity and Reliability

The installation and control of EC motors is very simple
compared to other methods of speed control used on
conventional AC motors. Lower running operating temper­atures and smooth transitional speed changes make EC
motors durable and reliable.

BEZ

Full RPM

!

B40-BEZ-PDS-60-6

- 32 -

08/14/12

EC MOTOR APPLICA TION

(cont’d)

EC MOTORS

60Hz

Variable Speed EC Condenser Fan Motors

ECM fan/motor combinations using DC motors with inte­gral AC to DC conversion allow direct connection to the AC

mainswithalltheenergysavingandcontrolbenetsofa

DC motor. Ideally, with multiple motors on the condenser,
all should simultaneously slow down /speed up together.
This provides for maximum energy savings and smoothest
head pressure control.

Important Warnings:
(Please read before handling motors)

1. When connecting the unit to the power supply,
dangerous voltages occur. Due to motor
capacitor discharge time, do not open the motor
within 5 minutes after disconnection of all phases.

2. With a Control voltage fed in or a set speed value
being saved, the motor will restart automatically
after a power failure.

3. Dangerous external voltages can be present at the
motor terminals even when the unit is turned off.

4. The Electronics housing can get hot.

5. The cycling on and off of EC motors should be
controlled by the DC control voltage (i.e. 0V DC
will turn motor off). Excessive cycling of the motor
by line voltage contactors may cause stress on
the motors and reduce the motor life.

Speed Adjustment Characteristics

The EC motor varies its speed linearly based on a 1-10V
input signal. At 10 VDC, the motor runs at full speed. At 0
to approx. 1 VDC, the motor turns off. A chart of the speed
control curve is shown below. The motor can be controlled
at any speed below its nominal RPM.

Control Signal

The input control signal is supplied by an external control
signal from a factory installed proportional pressure con­trol. Units with factory installed proportional pressure con­trols are adjusted with initial factory settings. These may

requirefurtheradjustmentstosuitlocaleldconditions.

Proportional Pressure Control (Factory Installed)
Units equipped with factory installed P352 controls use a
proportional/integral pressure controller to vary and main­tain the motor speed at the desired head pressure. The
controller has two main user adjustable features:

•HeadPressureSetpoint

•Throttlingrange

Leave the minimum Output setting at 0% and Jumpers
should be set for Direct Acting (do not re-adjust)

Module

User Adjust

Setpoint

Potentiometer

User Adjust

Throttling Range

Potentiometer

0%

Minimum

Output

Potentiometer

LED Indicator

(Percent of Output)

THROT
RANGE

OUTPU

Connector

MIN

T

Operation Mode

Jumper Positions

34
2
1

N

O

Integration DIP Switch

Direct

Acting

RPM

1

Control voltage [V dc]

Head Pressure Set Point

The head pressure set point potentiometer is adjustable
from 90-250 psig. This maintains a minimum condens­ing temp at the corresponding pressure set point. Typical
R404A set points are from 170-200 psig. (i.e. 78oF - 89oF
Condensing Temperature).
Note: Very low set points may cause the fan motors to run
full speed continually even if the condenser is properly
sized. The fans will turn off if the system pressure falls
below the desired set point.

10

BEZ

B40-BEZ-PDS-60-6

- 33 -

08/14/12

EC MOTOR APPLICA TION

(cont’d)

EC MOTORS

60Hz

Minimum Output

The minimum output potentiometer controls the minimum
signal sent to the motor and is factory set at 0%. It is ad­justable between 0 and 60% of the output range. If this is
adjusted to 50%, the motors will not start running until 5V
is applied to the motor. The motor will start running at 50%
of full speed. To maximize sound reduction and energy
savings and to provide the most stable control, it is recom­mended this setting be left at 0%.

Throttling range

The throttling range potentiometer controls how far the
system pressure deviates from the control set point to
generate a 100% output signal from the control and is ad­justable from 10 -100 psig. The throttling range determines
how quickly the motor will reach full speed when detecting
a change in head pressure. For example, if the set point
is 190 psig and the throttling range is 50 psig, when the
system pressure is below 190 psig, the fans will be off.
When the system pressure reaches 240 psig (190+50)
the fans will be at full speed. To make the fans ramp more
slowly the throttling range should be increased. To maxi-

mizesoundreductionandenergyefciencyandtoprovide

for the most stable control, it is recommended this setting
be left at 100 psig.

Direct Acting (DA) mode. Failure to ensure J1 jumper is
in direct acting mode will cause the system to trip on high
head pressure.

Integration constant

The integration constant switch provides ability to change
controller from a proportional only control to a propor­tional plus integral control. To provide the most respon­sive system and to maintain a stable head pressure, it is
recommended the integration setting be left on “fast” with
the Mode switch set to OFF (Proportional AND Integral
activated)

FAST (on)

3 4
2

1

O

N

MEDIUM (off)
SLOW (off)

OFF (set for PROPORTIONAL /
INTEGRAL MODE)

Reverse acting or direct acting mode of operation

The reverse acting/direct acting jumper is used to en­sure the controller responds correctly to the desired head
pressure. In Direct Acting (DA) mode, the motor speed
increases as the pressure rises above desired set point.
For proper condenser operation, this jumper MUST be in

Transducer Wiring

The P352PN controls use a P266 (P399,or P499) pres­sure transducer to generate a 0.5 to 4.5 VDC input signal.
The transducer is wired to the terminal block at the bottom
of the control as shown in the diagram below.

Interior View and Typical Wiring of P352PN Control

BEZA

B40-BEZ-PDS-60-6

- 34 -

08/14/12

COPELAND

ELECTRICAL DATA

COPELAND MODELS with EC MOTOR

EC MOTORS

60Hz

CONDENSING UNIT

MODEL

BEZA010H8- *
BEZA011H8- *
BEZA015H8- *
BEZA020H8- *
BEZA025H8- *
BEZA030H8- *
BEZA035H8- *
BEZA040H8- *
BEZA050H8- *

BEZA060H8- * T3B ZB45KCE-TF5 208-230/3/60 22.5 156 1 3.5 31.6 50
BEZA065H8- * T3B ZB50KCE-TF5 208-230/3/60 28.6 196 1 3.5 39.3 60
BEZA070H8- * T3B ZB58KCE-TF5 208-230/3/60 32.1 195 1 3.5 43.6 70
BEZA076H8- * T3B ZB66KCE-TF5 208-230/3/60 33.6 225 2 7.0 49.0 80
BEZA085H8- * T3B ZB76KCE-TF5 208-230/3/60 41.4 239 2 7.0 58.8 100
BEZA110H8- * T3B ZB95KCE-TW5 208-230/3/60 61.4 300 2 10.6 87.4 125
BEZA150H8- * T3B ZB114KCE-TW5 208-230/3/60 65.0 340 2 10.6 91.9 150

BEZA020L6- *
BEZA025L6- *
BEZA030L6- *
BEZA035L6- *
BEZA045L6- *
BEZA055L6- *

BEZA060L6- * T3B ZF18K4E-TF5 208-230/3/60 23.9 156 1 3.5 33.4 50
BEZA075L6- * T3B ZF24K4E-TWC 208-230/3/60 30.0 189 1 3.5 41.0 70
BEZA100L6- * T3B ZF33K4E-TWC 208-230/3/60 43.6 278 1 3.5 58.0
BEZA130L6- * T3B ZF40K4E-TWC 208-230/3/60 45.0 350 2 7.0 63.3 100
BEZA150L6- * T3B ZF48K4E-TWC 208-230/3/60 55.0 425 2 7.0 75.8 125

* I = Indoor, H = Outdoor.

S2B ZS09KAE-PFV 208-230/1/60 10.0 40.3 1 2.0 14.5 20
T3B ZS09KAE-TF5 208-230/3/60 8.0 55.4 1 2.0 12.0 20
S2B ZS11KAE-PFV 208-230/1/60 12.6 55 1 2.0 17.8 30
T3B ZS11KAE-TF5 208-230/3/60 10.4 58 1 2.0 15.0 25
S2B ZS13KAE-PFV 208-230/1/60 12.0 56 1 2.0 17.0 25
T3B ZS13KAE-TF5 208-230/3/60 9.7 58 1 2.0 14.1 20
S2B ZB15KCE-PFV 208-230/1/60 15.7 61 1 2.0 21.6 35
T3B ZB15KCE-TF5 208-230/3/60 8.9 55 1 2.0 13.1 20
S2B ZB19KCE-PFV 208-230/1/60 17.9 73 1 2.0 24.4 40
T3B ZB19KCE-TF5 208-230/3/60 10.0 63 1 2.0 14.5 20
S2B ZB21KCE-PFV 208-230/1/60 20.7 100 1 3.5 29.4 50
T3B ZB21KCE-TF5 208-230/3/60 12.1 77 1 3.5 18.6 30
S2B ZB26KCE-PFV 208-230/1/60 23.6 127 1 3.5 33.0 50
T3B ZB26KCE-TF5 208-230/3/60 13.9 88 1 3.5 20.9 30
S2B ZB30KCE-PFV 208-230/1/60 26.8 132 1 3.5 37.0 60
T3B ZB30KCE-TF5 208-230/3/60 15.7 115 1 3.5 23.1 35
S2B ZB38KCE-PFV 208-230/1/60 31.1 175 1 3.5 42.4 70
T3B ZB38KCE-TF5 208-230/3/60 22.1 115 1 3.5 31.1 50

S2B ZF06K4E-PFV 208-230/1/60 13.6 61 1 1.0 18.0 30
T3B ZF06K4E-TF5 208-230/3/60 9.3 55 1 1.0 12.6 20
S2B ZF08K4E-PFV 208-230/1/60 16.4 73 1 2.0 22.5 35
T3B ZF08K4E-TF5 208-230/3/60 9.7 63 1 2.0 14.1 20
S2B ZF09KCE-PFV 208-230/1/60 16.4 88 1 2.0 22.5 35
T3B ZF09KCE-TF5 208-230/3/60 11.1 77 1 2.0 15.9 25
S2B ZF11K4E-PFV 208-230/1/60 20.7 109 1 2.0 27.9 45
T3B ZF11K4E-TF5 208-230/3/60 13.6 88 1 2.0 19.0 30
S2B ZF13K4E-PFV 208-230/1/60 26.8 129 1 3.5 37.0 60
T3B ZF13K4E-TF5 208-230/3/60 15.0 99 1 3.5 22.3 35
S2B ZF15K4E-PFV 208-230/1/60 31.8 169 1 3.5 43.3 70
T3B ZF15K4E-TF5 208-230/3/60 21.4 123 1 3.5 30.3 50

COMPRESSOR

MODEL NO.

Above listed RLA value is based on UL rating method and may differ from published compressor RLA data.

POWER
SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

ECM

CONDENSER FAN

UNIT

100

BEZT

B40-BEZ-PDS-60-6

- 35 -

08/14/12

TECUMSEH

ELECTRICAL DATA

TECUMSEH MODELS with EC MOTOR

EC MOTORS

60Hz

CONDENSING UNIT

MODEL

BEZT010M6- *

BEZT011M6- *
BEZT015M6- *
BEZT020M6- *
BEZT025M6- *
BEZT030M6- *

BEZT035M6- * T3B VSA9524ZXT 208-230/3/60 15.2 80 1 3.5 22.5 35
BEZT040M6- * T3B VSA9528ZXT 208-230/3/60 16.8 96 1 3.5 24.5 40
BEZT050M6- * T3B VSA9536ZXT 208-230/3/60 21.1 153 1 3.5 29.9 50

BEZT020L6- *
BEZT025L6- *
BEZT030L6- *

BEZT035L6- *
BEZT045L6- * T3B VSAG514ZXT 208-230/3/60 14.1 96.0 1 3.5 21.1 35
BEZT055L6- * T3B VSAG518ZXT 208-230/3/60 18.3 153.0 1 3.5 26.4 40
BEZT060L6- * T3B VSAG523ZXT 208-230/3/60 19.9 156 1 3.5 28.4 45

S2B VSA9490ZNA 208-230/1/60 11.7 50.7 1 2.0 16.6 25
T3B VSA9490ZXT 208-230/3/60 6.6 40.5 1 2.0 10.3 15
S2B VSA9510ZNA 208-230/1/60 13.4 65.9 1 2.0 18.8 30
T3B VSA9510ZXT 208-230/3/60 7.9 40.5 1 2.0 11.9 15
S2B VSA9512ZNA 208-230/1/60 13.3 65.9 1 2.0 18.6 30
T3B VSA9512ZXT 208-230/3/60 8.6 48.5 1 2.0 12.8 20
S2B VSA9514ZNA 208-230/1/60 15.6 83 1 2.0 21.5 35
T3B VSA9514ZXT 208-230/3/60 9.9 48.5 1 2.0 14.4 20
S2B VSA9517ZNA 208-230/1/60 20.5 83 1 2.0 27.6 45
T3B VSA9517ZXT 208-230/3/60 11.7 77.5 1 2.0 16.6 25
S2B VSA9512ZNA 208-230/1/60 20.9 101.6 1 3.5 29.6 50
T3B VSA9521ZXT 208-230/3/60 12.4 80 1 3.5 19.0 30

S2B VSBG475ZNA 208-230/1/60 11.9 69.8 1 2.0 16.9 25
T3B VSAG475ZXT 208-230/3/60 8.7 77.5 1 2.0 12.9 20
S2B VSBG494ZNA 208-230/1/60 14.4 71.9 1 2.0 20.0 30
T3B VSAG494ZXT 208-230/3/60 11.1 80.0 1 2.0 15.9 25
S2B VSBG511ZNA 208-230/1/60 15.5 83.6 1 2.0 21.4 35
T3B VSAG511ZXT 208-230/3/60 10.7 80.0 1 2.0 15.4 25
T3B VSAG513ZXT 208-230/3/60 11.1 80.0 1 2.0 15.9 25

COMPRESSOR

MODEL NO.

POWER

SUPPLY

COMPRESSOR

RLA LRA QTY FLA MCA MOP

ECM

CONDENSER FAN

UNIT

BEZ

B40-BEZ-PDS-60-6

- 36 -

08/14/12

TYPICAL SYSTEM WIRING DIAGRAM

208-230/1/60 Unit with EC Motor

EC MOTORS

60Hz

BEZ

B40-BEZ-PDS-60-6

- 37 -

08/14/12

TYPICAL SYSTEM WIRING DIAGRAM

208-230/3/60 Unit with EC Motor

EC MOTORS

60Hz

BEZA

B40-BEZ-PDS-60-6

- 38 -

08/14/12

COPELAND

GENERIC SERVICE PARTS LIST -

COPELAND MODELS

MODEL CONDENSER

BEZA010H8 1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A
BEZA011H8 1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A
BEZA015H8 1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A
BEZA020H8 1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A
BEZA025H8 1081644 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563
BEZA030H8 1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA035H8 1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA040H8 1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA050H8 1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA060H8 1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA065H8 1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA070H8 1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA076H8 1085368 N/A N/A 1087002 1076754 1087002 1076754 1087003 1076754
BEZA085H8 1085368 N/A N/A 1087002 1076754 1087002 1076754 1087003 1076754
BEZA110H8 1088420 N/A N/A 1088430 1088116 1087070 1088116 1087071 1088116
BEZA150H8 1088420 N/A N/A 1088430 1088116 1087070 1088116 1087071 1088116

BEZA020L6 1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A
BEZA025L6 1081644 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A
BEZA030L6 1081644 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A
BEZA035L6 1081644 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563
BEZA045L6 1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA055L6 1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA060L6 1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA075L6 1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA100L6 1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZA130L6 1085368 N/A N/A 1087002 1076754 1087002 1076754 1087003 1076754
BEZA150L6 1085368 N/A N/A 1087002 1076754 1087002 1076754 1087003 1076754

115/1/60

MOTORS BLADES MOTORS BLADES MOTORS BLADES MOTORS BLADES

208-230/1/60, 208-230/3/60,

200-220/1/50, 200-220/3/50

460/1/60, 460/3/60,

380-400/1/50, 380-400/3/50

575/3/60

GENERIC SERVICE PARTS LIST -

BEZT

TECUMSEH MODELS

TECUMSEH

MODEL CONDENSER

BEZT010M6 1081643 N/A N/A 1084927 1079563 N/A N/A N/A N/A

BEZT011M6 1081643 N/A N/A 1084927 1079563 N/A N/A N/A N/A
BEZT015M6 1081643 N/A N/A 1084927 1079563 N/A N/A N/A N/A
BEZT020M6 1081643 N/A N/A 1084927 1079563 1084928 1079563 N/A N/A
BEZT025M6 1081644 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563
BEZT030M6 1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZT035M6 1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZT040M6 1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZT050M6 1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754
BEZT060M6 1076238 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

BEZT020L6 1081643 N/A N/A 1084927 1079563 N/A N/A N/A N/A

BEZT025L6 1081644 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563

BEZT030L6 1081644 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563

BEZT035L6 1081644 N/A N/A 1084927 1079563 1084928 1079563 1084929 1079563

BEZT045L6 1076235 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

BEZT055L6 1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

BEZT060L6 1076236 N/A N/A 1084930 1076754 1084930 1076754 1084931 1076754

115/1/60

MOTORS BLADES MOTORS BLADES MOTORS BLADES MOTORS BLADES

208-230/1/60, 208-230/3/60,

200-220/1/50, 200-220/3/50

460/1/60, 460/3/60,

380-400/1/50, 380-400/3/50

575/3/60

Finished Goods Warranty

B40-BEZ-PDS-60-6

- 39 -

08/14/12

The terms and conditions as described below in the General Warranty Policy cover all products
manufactured by National Refrigeration.

GeneraL Warranty PoLiCy

Subject to the terms and conditions hereof, the Company warrants all Products, including Service
Parts, manufactured by the Company to be free of defects in material or workmanship, under nor­mal use and application for a period of one (1) year from the original date of installation, or eighteen

(18)monthsfromthedateofshipmentfromtheCompany,whicheveroccursrst.Anyreplacement

part(s) so supplied will be warranted for the balance of the product’s original warranty. The part(s) to
be replaced must be made available in exchange for the replacement part(s) and reasonable proof
of the original installation date of the product must be presented in order to establish the effective
date of the warranty, failing which, the effective date will be based upon the date of manufacture plus
thirty (30) days. Any labour, material, refrigerant, transportation, freight or other charges incurred in
connection with the performance of this warranty will be the responsibility of the owner at the cur­rent rates and prices then in effect. This warranty may be transferred to a subsequent owner of the
product.

this Warranty does not CoVer

(a)Damagescausedbyaccident,abuse,negligence,misuse,riot,re,ood,orActsofGod(b)damages

caused by operating the product in a corrosive atmosphere (c) damages caused by any unauthorized
alteration or repair of the system affecting the product’s reliability or performance (d) damages caused
by improper matching or application of the product or the product’s components (e) damages caused by
failing to provide routine and proper maintenance or service to the product (f) expenses incurred for the
erecting, disconnecting, or dismantling the product (g) parts used in connection with normal maintenance,

suchasltersorbelts(h)productsnolongeratthesiteoftheoriginalinstallation(i)productsinstalled

or operated other than in accordance with the printed instructions, with the local installation or building
codes and with good trade practices (j) products lost or stolen.

No one is authorized to change this WARRANTY or to create for or on behalf of the Company any
other obligation or liability in connection with the Product(s). There is no other representation, warranty
or condition in any respect, expressed or implied, made by or binding upon the Company other than
the above or as provided by provincial or state law and which cannot be limited or excluded by such
law, nor will we be liable in any way for incidental, consequential, or special damages however caused.

Theprovisionsofthisadditionalwrittenwarrantyareinadditiontoandnotamodicationoforsubtraction

from the statutory warranties and other rights and remedies provided by Federal, Provincial or State laws.

PROJECT INFORMATION

System
Model Number Date of Start-Up
Serial Number Service Contractor
Refrigerant Phone
Electrical Supply Fax

“AS BUILT” SERVICE PARTS LIST

08/14/12

Service Parts List

Label

To Be Attached

HERE

DISTRIBUTED BY:

General Sales, Parts & Service Manufacturing & Engineering

135 Little Nine Drive, Morehead City, NC 28557

252-240-2829 • 1-800-24-BALLY • FAX: [phone]
e-mail: [e-mail] • www.ballyrefboxes.com

Due to Manufacturer’s policy of continuous product improvement,

the Manufacturer reserves the right to make changes without notice.
