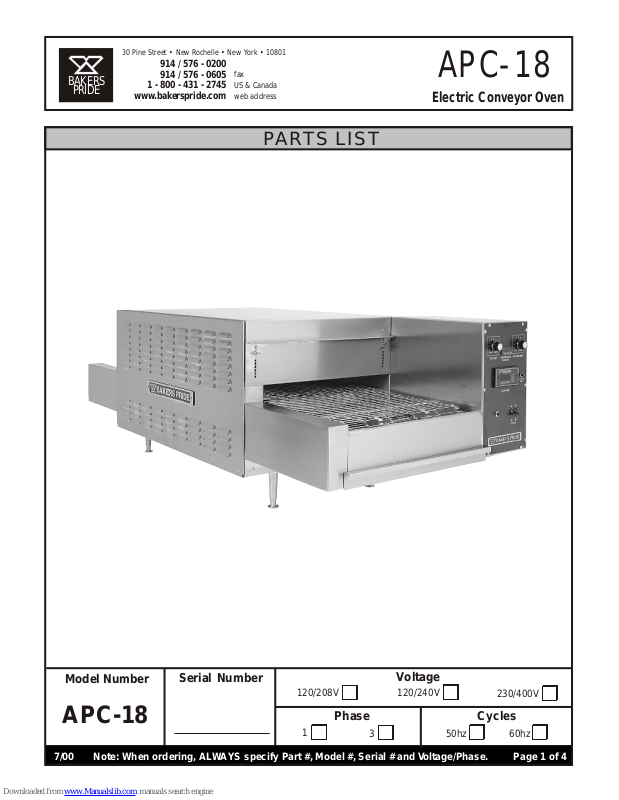

Page 1
BAKERS
PRIDE
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
PARTS LIST
APC-18
Electric Conveyor Oven
Model Number
Serial Number
APC-18
7/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 1 of 4
120/208V
1
Phase
3
Voltage
120/240V
50hz
230/400V
Cycles
60hz
Page 2
APC-18
Electric Conveyor Oven
Figure A FRONT VIEW
7
7
25
25
2
2
17
17
25
25
19
19
17
17
39
39
4
4
31
31
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
3
3
fax
US & Canada
web address
7
7
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
26
26
23
23
24
24
BAKERS
PRIDE
1
1
22
22
17
17
6
7
5
8
4
9
3
CONTROL
2
1
LIGHT DARK
TOP HEAT TEMPERATURE BOTTOM HEAT
12:30
MICRO-DRIVE
COOK TIME
POWER
3
2
LIGHT DARK
1
5
4
CONVEYOR
RESET
21
21
29
29
6
7
8
9
30
30
Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/00
22
22
5
5
20
20
2
2
Page 3
30 Pine Street • New Rochelle • New York • 10801
BAKERS
PRIDE
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
Figure B REAR VIEW
37
28
28
33
33
32
32
37
36
36
9
6
6
9
8
8
34
34
35
35
APC-18
Electric Conveyor Oven
27
5
5
27
12
38
38
12
13
13
16
16
14
14
15
15
30
30
10
10
11
11
Thermocouple, "J" Type (Temp. Sensor)
41
41
40
40
18
18
Item Part # Description Item Part # Description
1 B5032K Control Box Cover 22 S3194X Bushing, Duronze w/Flats (4)
2 B5036X Cover, Front & Rear (2) 23 L1121X Element, 208V/2KW (5)
3 B5037K Heat Shield, Receiving End 24 L1123X Element, 230V/2KW (5)
4 B5038K Heat Shield, Loading End 25 S3181X Idler Disk (2)
5 B5039K Outer Side Panel (2) 26 B3050K Element Support (Sensor Mount)
6 M1136X Motor Pick Up, Hall Effect 27 B5001T Loading Tray (Optional)
7 B5053X Tie Rod, 3/8" x 21 1/2" (2) 28 B5002T Receiving Tray (Optional)
8 M1131X Motor, 90VDC 29 B5079T Product Stop
9 M1252X Brush, Motor 30 U1043X Name Plate, Bakers Pride
10 S3178X Conveyor Belt, 18" 31 M1164X
11 S3124A Connecting Link, Conveyor Belt 32 M1181X Phase Control, 230V/20A
12 S3148X Chain, #25, 1/4" Pitch (Drive) 33 M1191X Phase Control, 380-440V
13 S3149A Master Link, #25 34 M1208X Fan, Large Axial, 208V
14 S1014Y Leg, 4" Adjustable (each) 35 M1193X Fan, Large Axial, 115V
15 S1014X Leg, 4" Adjustable (set/4) 36 M1228X Mercury Relay, 2 Pole, 208/240, 30A
16 S3179X Sprocket, 1/2" Bore (On Motor) 37 M1205X Mercury Relay, 3 Pole, 208V O/S
17 S3180X Sprocket, 3/4" Bore (6) 38 P1068X 5 Pole Terminal Block
18 S3146X Sprocket, 3/4" Bore (Drive Shaft) 39 P1105A Wire Clip, 1/8" Victor
19 B3069T Shaft, Idler 3/4" 40 B5055U Crumb Tray Assy., Rear
20 B3070T Shaft, Drive 3/4" 41 B5056U Crumb Tray Assy., Front
21 S3152X Shaft Collar
7/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 3 of 4
Page 4
APC-18
Electric Conveyor Oven
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
Figure C
13
13
9
9
CONTROL PANEL
1
1
5
4
2
2
4
4
5
5
8
8
3
2
LIGHT DARK
6
7
8
1
TOP HEAT TEMPERATURE BOTTOM HEAT
9
475
CONTROL
12:30
MICRO-DRIVE
COOK TIME
5
4
3
2
1
LIGHT DARK
CONVEYOR
RESET
OFF OFF
6
7
8
9
2
2
13
13
3
3
7
7
POWER
6
6
10
10
11
11
12
12
Item Part #
Description
Item Part # Description
1 B5040X Control Panel 8 M1143X Speed/Time Control, 115V
2 M1180X Potentiometer, Clarostat 9 M1230X Speed/Time Control, 240V
3 M1133X Circuit Breaker (Conveyor Reset) 10 M1229X Circuit Breaker, 4 Pole, 30A
4 M1239X
5 M1240X
Temperature Controller, CAL3200, "F"
Temperature Controller, CAL3200, "C"
11 M1219X Circuit Breaker, 3 Pole, 380/415-20A
12 M1198X Circuit Breaker, 2 Pole, 40A
6 P1127X Pilot Light, Amber 13 S1205X Knob, Control
7 U1174X Overlay, Conveyor
Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/00
