MR Flow Transmitter
RUN
Flow Transmitter
3500 PSI/241 BARS MAX
OIL
XMT-UM-00498-EN-02 (November 2013)
User Manual
MR Flow Transmitter
User Manual
CONTENTS
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Schematics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating the Meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Normal Operation (RUN) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Programming Operation (PROGRAM) Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cover Removal/Reinstallation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programming Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
List Item Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Numeric Value Entry Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programming Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cartridge Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
No LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
No Rate or Total Displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Unstable Flow Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Application Information, Liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Viscosity Eect (SUS/cSt) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Density Eect (specic gravity) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

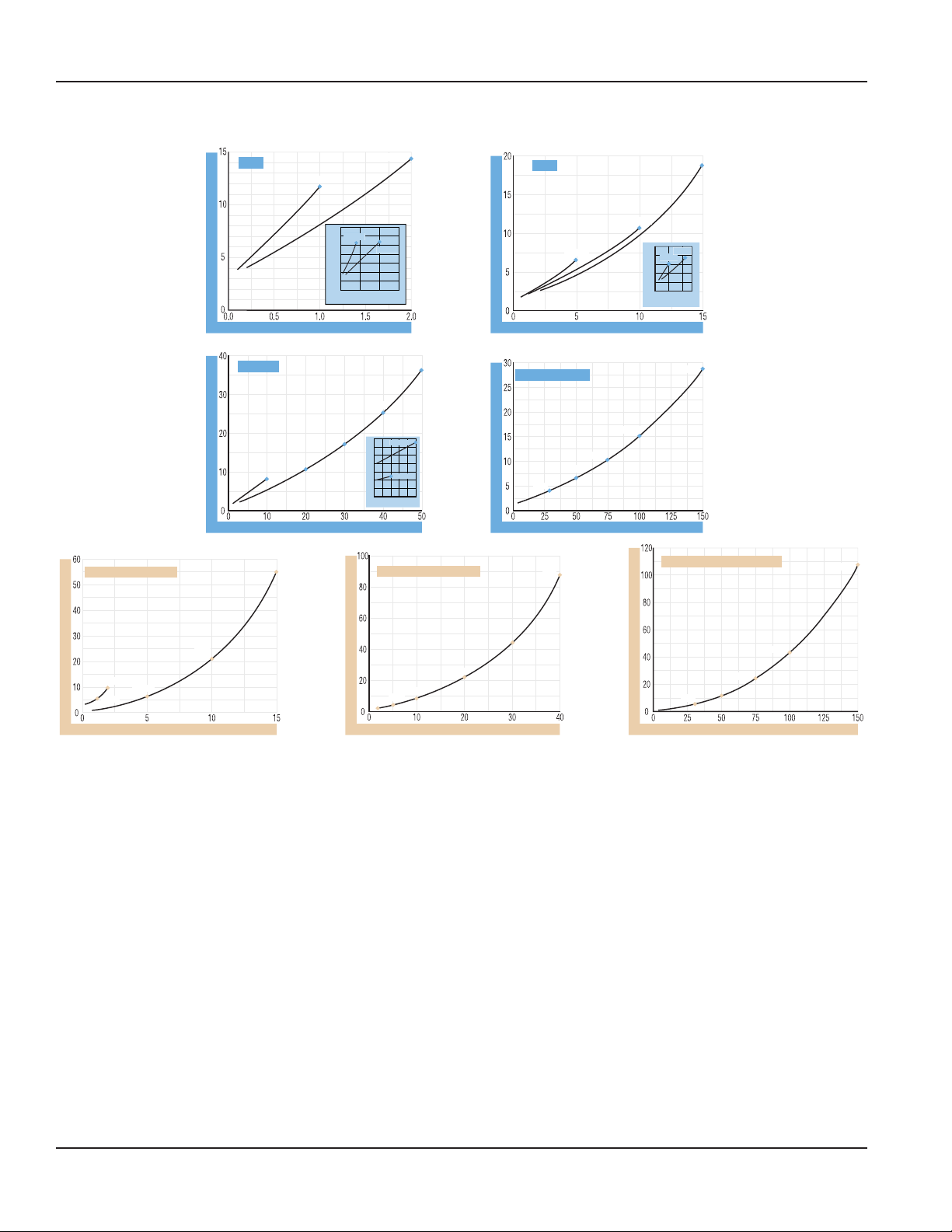

Flow vs Pressure Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Petroleum Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Phosphate Ester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Page iii November 2013
MR Flow Transmitter
API Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Water-Based Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Caustic and Corrosive Liquids. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Air/Compressed Gases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Air/Caustic and Corrosive Gases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
User Manual

INTRODUCTION

The MR flow transmitter is a state-of-the-art, microprocessor based variable area flow meter. It combines the rugged proven technology of a piston-type, variable area flow meter with solid state circuitry including:
• Non-contact sensor electronics
• Electronic signal conditioning circuit
• Digital flow rate and total indication
• Proportional analog output The product is sealed against industrial contamination by a NEMA 12 and 13 (IP 52/54) rated enclosure and is available for
either liquid or gas service.
The MR flow transmitter is capable of calculating and displaying both flow rate and total accumulated flow. The flow rate and total flow can be displayed in any of the user selectable measurement units. The monitor’s large 8 digit numeric liquid crystal display makes extended range viewing practical. The second 8 character alphanumeric display provides for selectable units viewing in RUN mode and prompts for variables in PROGRAM mode.
All MR flow transmitters come pre-calibrated from the factory. However, the unit may be adjusted by the user to meet specific system requirements. Calibration parameters are included for:
• Specific gravity compensation (all fluids)
• Viscosity compensation (petroleum-based fluids)
• Pressure and temperature compensation (pneumatic applications) All meters include an analog output that can be configured for 0…5V DC, 0…10V DC, or 4…20 mA current loop. Applications
for the MR flow transmitter include:
• Bearing lubrication
• Case drain verification
• Gun drill and machine cooling
• Pump flow outputs

SAFETY INFORMATION

The installation of this flow meter must comply with all applicable federal, state, and local rules, regulations, and codes.
Failure to read and follow these instructions can lead to misapplication or misuse of this product, resulting in personal injury and damage to equipment.

UNPACKING AND INSPECTION

Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment.
OTE:N If damage is found, request an inspection by the carrier's agent within 48 hours of delivery and file a claim with the
carries. A claim for equipment damage in transit is the sole responsibility of the purchaser.
Page 5 November 2013
MR Flow Transmitter

INSTALLATION

THIS PRODUCT SHOULD BE INSTALLED AND SERVICED BY TECHNICALLY QUALIFIED PERSONNEL TRAINED IN MAINTAINING INDUSTRIAL CLASS FLOW INSTRUMENTATION AND PROCESSING EQUIPMENT.
READ INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THE UNIT. IF YOU HAVE ANY QUESTIONS REGARDING PRODUCT INSTALLATION OR MAINTENANCE, CALL YOUR LOCAL SUPPLIER FOR MORE INFORMATION.
DISCONNECT ELECTRICAL POWER BEFORE OPENING WIRING ENCLOSURE. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND/OR DAMAGE TO THE EQUIPMENT.
ALL WIRING SHOULD BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE® AND MUST CONFORM TO ANY APPLICABLE STATE AND LOCAL CODES. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND/OR DAMAGE TO THE EQUIPMENT.
AIR/GAS METERS ARE NOT OXYGEN CLEANED. USE WITH OXYGEN MAY CAUSE HAZARDOUS OR EXPLOSIVE CONDITIONS THAT MAY CAUSE SERIOUS PERSONAL INJURY AND/OR DAMAGE TO THE EQUIPMENT.
THIS METER MAY CONTAIN RESIDUAL AMOUNTS OF TEST FLUID AT THE TIME OF SHIPMENT. THIS FLUID SHOULD BE REMOVED PRIOR TO INSTALLATION AS THE FLUID MAY BE INCOMPATIBLE OR HAZARDOUS WITH SOME LIQUIDS OR GASES. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE EQUIPMENT.
THIS STANDARD METER IS UNIDIRECTIONAL. ATTEMPTS TO FLOW FLUIDS IN THE OPPOSITE DIRECTION OF THE FLOW ARROW WILL RESULT IN THE METER ACTING AS A CHECK VALVE, CREATING A DEADHEADING SITUATION. IF THE DIFFERENTIAL PRESSURE MAGNITUDE IS GREAT ENOUGH, DAMAGE TO THE INTERNAL PARTS OF THE METER WILL RESULT.
User Manual

Installation Recommendations

The transmitter is a simple device to install. However, the following measures are recommended for reliable, trouble­free operation:
• Align pipe accurately. Piping should be accurately aligned and of correct length. The high pressure body of the transmitter can withstand shock and flow/pressure pulsation. However, the piping should be firmly supported by external mounting brackets, both upstream and downstream of the meter, to avoid any pipe flexing actions that could reduce meter life.
• Use rigid mounting. If the transmitter inlet or outlet are to be rigidly mounted, and the opposing port is to be connected to flexible hose, the end connected with the flexible hose must be rigidly mounted.
• Use Teflon® tape for sealing NPT fitting.
• Install unions. Install a union near the inlet or outlet of the transmitter. This will facilitate quick, easy meter removal and inspection during periodic maintenance procedures.
• Ensure the fluid is traveling in the direction of the flow arrow. See Figure 4.
OTE:N The MR flow transmitter display board can be rotated 180° for optimal viewing. Simply remove the MR flow
transmitter cover, disconnect the ribbon cable, rotate the display board 180°, reconnect the ribbon cable, and reinstall cover. See Figure 10 for cover screw tightening sequence.
• Use at least a 200 mesh (74 micron) filter. The transmitter will allow particulate to pass that would jam most valves and flow controls. Systems that do not have filtration should be equipped with at least a 200 mesh (74 micron) filter. Most hydraulic systems already have much finer filtration. Dirt, ferrous metal or sealing agents, such as Teflon® tape may lodge and cause malfunction. If the meter is jammed at a fixed position, follow cleaning and maintenance instructions.
• Do not use thread locking compounds as thread sealant.
• Do not install the transmitter near turbulence producing fittings such as elbows, reducers, or close coupled valves. The
transmitter does not require flow straighteners or special lengths of straight inlet/outlet piping to stabilize turbulent flow patterns. However, to assure maximum operational reliability, avoid installation of elbows, valves and/or reducers immediately adjacent to the meter inlet.
• Do not install the transmitter near fast-acting valves. Fast-acting valves have the potential to create high magnitude hydraulic pressure spikes. These spikes can damage the internal components of the meter, resulting in inaccuracies or malfunction.
• Do not allow unidirectional transmitters to be operated against the direction of the flow arrow. The standard transmitter is a unidirectional flow meter. The piston acts as a check valve to block flow in the reverse direction. This causes an excessive pressure differential, which can result in damage to internal meter components. The transmitter is also available in a modified design, which offers a reverse flow bypass feature to accommodate bidirectional flow.
OTE:N Transmitters with a reverse flow bypass feature are available. Consult factory for details.

Electrical Connections

Cable may be shortened or lengthened as required for proper installation. The cable is soldered directly to the electrical connector at the factory.
Cable replacement requires disassembly of the electrical connector.
2
3
421
Figure 1: 4-pin cable connection
3
1
4
DC Output Connection Loop Power Connection
No Connection (-) 4…20 mA Out
0V DC No Connection
(+) DC Power (+) 4…20 mA In
0…5 or 0…10V DC Output No Connection
Page 7 November 2013
Transmitter
Connector
MR Flow Transmitter
THE FLOW TRANSMITTER IS DESIGNED TO OPERATE ONLY ONE OF ITS THREE OUTPUTS AT A TIME (0…5V DC OR 0…10V DC OR 4…20 MA). CONNECTING MULTIPLE OUTPUTS SIMULTANEOUSLY WILL RESULT IN INACCURATE OUTPUT SIGNAL LEVELS.

Schematics

The transmitter can be wired in various configurations to allow interface with many different types of data collection and control instrumentation.
Schematics 1 & 2 (Figure 3) represent typical wiring for a target powered by either AC power or DC supply.
Schematics 3 & 4 (Figure 3) will be used when the flow transmitter is operated with loop-powered process indicators or data loggers that do not have external sensor excitation available.
Outlet Port
Display Board
MENU ENTER
RUN PROGRAM
RELAY 1 RELAY 2
Figure 2: Terminology
Sensor Board
External DC
Sensor Excitation
4-20 mA Input
421
Black
Green
3
Red
White
Schematic 1: 4…20 mA connection using targets power supply.
Sensor Excitation
421
Black
Green
3
Red
White
0-5 VDC Input
0-10 VDC Input
Ground
User Manual
Example:
Chart Recorder
Example:
Chart Recorder
Schematic 2: 0…5 Vdc or 0…10 Vdc connection using targets power supply.
421
Black
Green
3
Red
White
Excitation
Voltage
Fuse: 0.05 A Fast
4-20 mA Input (-)
4-20 mA Input (+)
Schematic 3: 4…20 mA connection using targets
external power supply.
Fuse: 0.05 A Fast
421
Black
Green
3
Red
White
Excitation
0-5 VDC Input
0-10 VDC Input
Ground
Voltage
Schematic 4: 0…5 Vdc or 0…10 Vdc connection using targets external power supply.
Example:
Chart Recorder
Example:
Chart Recorder
Figure 3: Wiring diagrams
Page 9 November 2013
MR Flow Transmitter
Fl ow Tra ns mi tt er
OIL
3500 PSI /241 BAR S MAX
Fl ow Tr an sm it te r
FLOW
Model H600A-000-MR S.N.: 78500 Date: 0412
Flow
Direction
Flow
Arrow
Inlet Port
Figure 4: Flow direction arrow

Installing the Transmitter

1. Disconnect the electrical power from the target system before making or changing any transmitter connections.
2. Use 0.05 A fast-acting fuse if non-current limited power sources are used.
3. Terminate cable shield connection at either DC ground or earth ground.
4. Mount the transmitter so uid is traveling in the direction of the ow arrow. See Figure 4.
5. Install unit in desired location. Use wrench on transmitter ats to hold the unit in place during installation. DO NOT TURN the transmitter using the wrench. See Figure 5.
6. After installation, rotate the transmitter by hand to view the display. See Figure 6.
7. Capture the zero ow position on the meter cone using the ZERO CAPTURE procedure.
Flow Tr an sm it te r
OIL
3500 PSI/2 41 B ARS MAX
Flow Tr an sm it te r
FLOW
Model H600A-000-MR S.N.: 78500 Date: 0412
Place wrench on transmitter ats on the same side plumbing is being tightened
Flow Tr an sm it te r
OIL
3500 PSI/2 41 B ARS MAX
Flow Tr an sm it te r
FLOW
Model H600A-000-MR S.N.: 78500 Date: 0412
Never place wrench on transmitter ats opposite plumbing being tightened
Figure 5: Installing the meter
Flow Tr an sm it te r
OIL
3500 PSI/24 1 BAR S MA X
Flow Tra ns mi tt er
FLOW
Model H600A-000-MR S.N.: 78500 Date: 0412
Place wrench on transmitter ats on the same side plumbing is being tightened
Flow Tr an sm it te r
OIL
3500 PSI/24 1 BAR S MA X
Flow Tra ns mi tt er
FLOW
Model H600A-000-MR S.N.: 78500 Date: 0412
User Manual
Never place wrench on transmitter ats opposite plumbing being tightened
Figure 6: Rotating meter
Page 11 November 2013
MR Flow Transmitter

OPERATION

Operating the Meter

The monitor has two modes of operation, referred to as RUN mode and PROGRAM mode as indicated on the display screen readout. Normal operation will be in the run mode. To access the program mode, press MENU until the first programming screen DISPLAY appears.
OTE:N PROGRAM appears on left side of display.
After programming the meter, a password may be entered to prevent unauthorized access to programming.

Normal Operation (RUN) Mode

During normal operation, the transmitter will show RUN on the left side of the display. In RUN mode the flow rate and total flow will alternate being shown as the default. The meter can also be set to show only flow rate or only flow total.
MENU ENTER
Programming
Buttons
Figure 7: Programming buttons
The four buttons have the following function in RUN mode:
MENU Selects programming mode.
No function.
No function.
ENTER The current total can be manually stored in the monitor's flash memory. Press and hold ENTER for 2
seconds. The display will respond with a flashing TOTALSVD and then will return to RUN mode.
RESET TOTAL To reset the monitor's total display, press MENU and ENTER simultaneously until TOTALRST starts to
flash. The TOTALRST will stop flashing and the display will return to RUN mode at the conclusion of the rest procedure.

Programming Operation (PROGRAM) Mode

The programming mode lets you change the configuration and adjust the calibration of the meter. The MR flow transmitter has two types of configuration changes accessible in program mode:
1. To view or change selections from a pre-dened list.
2. To view or change numeric entries.
During programming operation, the following four button functions are provided:
User Manual
MENU
Enters and exits programming mode. Press MENU once to change to programming mode. The mode indicator on the display will change from RUN to PROGRAM.
Press to scroll through the configuration choices in a bottom-to-top order. For numeric setup, this button increments numeric values.
Use to scroll through the configuration choices in a top-to-bottom order. For numeric setup, this button moves the active digit to the right.
ENTER Used to enter menus, to change configurations and to save programming information.
OTE:N If any input value exceeds the meter’s capabilities, the LIMIT indicator will begin to flash indicating an invalid entry.
Press ENTER once to return to the entry screen to reenter the value.

Cover Removal/Reinstallation

It is necessary to remove the MR flow transmitter cover to access the programming keys. Use a Phillips screwdriver to remove the four screws that hold the cover in place, turning them counterclockwise. When programming is completed, reinstall the cover. To properly seat the built-in cover gasket, tighten the cover screws clockwise in a crisscross pattern as shown in Figure 8.
4
2
Flow Transmitter
3500 PSI/241 BARS MAX
1
Figure 8: Cover screw tightening sequence
OIL
3

Programming Procedures

The MR flow transmitter has been programmed at the factory according to the specifications that were provided at the time of order. No further programming is required unless a change has occurred in the original specifications.
If programming is required, the MR flow transmitter allows two basic sets of programming procedures:
1. List Item Selection
2. Numeric Value Entry

List Item Selection Procedure

OTE:N If you are already in PROGRAM mode and the selection to be viewed or changed is already displayed, proceed to step
3 below. If you are in PROGRAM mode and the selection to be viewed or changed is not displayed, press or and repeat pressing until the desired selection appears. Proceed to step 3.
1. Press MENU. PROGRAM appears in the lower left-hand corner and DISPLAY appears.
2. Press or to move to the desired selection.
3. Press ENTER to view the current selection.
4. If the current selection is desired, press ENTER to confirm. The unit will automatically advance.
5. If current selection must change, press or to scroll through the available choices. Press ENTER to conrm your selection. The unit will automatically advance.
6. To exit programming, press MENU. The display will change to RUN mode.
Page 13 November 2013
MR Flow Transmitter

Numeric Value Entry Procedure

OTE:N If you are already in PROGRAM mode and the desired selection is displayed, proceed to step 3 below. If you are in
PROGRAM mode and the desired selection is not displayed, press or and repeat pressing until the desired selection appears. Proceed to step 3.
1. Press MENU. PROGRAM appears in the lower left-hand corner and DISPLAY appears.
2. Press or to move to the desired selection. The current numeric value for this selection appears in the upper section of the display.
3. If the current displayed value is desired, press ENTER. The left most programmable number begins to ash. Press ENTER again to conrm and keep the current setting. The unit will automatically advance.
4. If the current selection must change, press ENTER. The left most programmable number begins to ash. Use to scroll through the digits 0-9 and change the flashing digit to the desired value. Use to move the active digit to the right. Continue using the and until all desired digits are selected.
5. Press ENTER to conrm your selection. The unit will automatically advance.
6. To exit programming mode, press MENU. The display will change to RUN mode.

Programming Flow Chart

See the programming flow charts in “Application Information, Liquid” on page 19 for the menu structure of the MR flow transmitter and the available configuration selections.
Basic Programming Descriptions
Display Mode
The meter can display RATE (flow rate) or TOTAL (total accumulated flow) or alternate between BOTH rate and total. Its displayed name is DISPLAY and is viewed or changed using the List Item Selection Procedure.
Rate Units of Measure
The meter allows the selection of many common rate units. Its displayed name is RATE UNT and is viewed or changed using the List Item Selection Procedure.
Rate (Time) Interval
The meter allows selection of several intervals based on time. Its displayed name is RATE INT and is viewed or changed using the List Item Selection Procedure.
Total Units of Measure
If the total flow is being displayed, the units for the total must first be chosen. The monitor allows the choice of many common totalization units. Its displayed name is TOTL UNT and is viewed or changed using the List Item Selection Procedure.
Total Display Multiplier
The meter has the ability to accumulate the flow total in multiples of ten. For example, if the most desirable totalization unit is 1000 gallons, the monitor can easily be set up for this requirement. Once back in RUN mode, every time the total display increments by one digit the actual total would be an additional 1000 gallons. At 1000 total gallons the total display would read 1, at 3000 gallons the total display would read 3. This feature allows the unit to accumulate totals that would exceed the 8-digit display capacity. Table 2 lists the available selection choices. Its displayed name is TOTL EXP and is viewed or changed using the List Item Selection Procedure.
Exponent Totalizer Multiplier
E-2 x 0.01 (÷100) E-1 x 0.1 (÷100)
E0 x 1 (no multiplier) E1 x 10 E2 x 100 E3 x 1000 E4 x 10,000 E5 x 100,000 E6 x 1,000,000
Table 1: Total flow units
User Manual
Full Flow Rate
The full flow rate is used to span the meter. Its displayed name is FULL FLOW and is viewed or changed using the Numeric Value Entry Procedure.
Zero Capture
The zero position of the meter cone must be set when installing the meter. To capture the zero calibration position, press
ENTER at the ZERO CAP prompt. NO will display. Press either arrow key to change to YES, then press ENTER to capture zero.
Viscosity Units (Displayed for OIL meters only)
The Viscosity Units parameter is used in conjunction with Viscosity to perform viscosity correction for oil applications. The meter allows the selection of the viscosity units, SUS or cSt. Its displayed name is VIS UNIT and is viewed or changed using the List Item Selection Procedure.
Viscosity (Displayed for OIL meters only)
Viscosity is used in conjunction with Viscosity Units to perform viscosity correction for oil applications. Enter the viscosity in either SUS or cSt, depending on the viscosity units selected, of the oil that will be used. Its displayed name is VISCOSTY and is viewed or changed using the Numeric Value Entry Procedure.
Operating Pressure Unit (Displayed for GAS meters only)
Operating Pressure Units is used in conjunction with Operating Pressure in gas applications to compensate for the actual pressure being measured at the meter. The meter allows the selection of the operating pressure units, Bar or PSI. Its displayed name is PRESUNIT and viewed or changed using the List Item Selection Procedure.
Operating Pressure (Displayed for GAS meters only)
Operating Pressure is used in conjunction with Operating Pressure Units in gas applications to compensate for the actual pressure being measured at the meter. Enter the operating pressure in either Bar or PSI units, depending on the Operating Pressure Units selected. Its displayed name is OP PRES and is viewed or changed using the Numeric Value Entry Procedure.
Operating Temperature Unit (Displayed for GAS meters only)
Operating Temperature Units is used in conjunction with Operating Temperature in gas applications to compensate for the actual temperature of the gas being measured at the meter. The meter allows the selection of the operating temperature units, °F or °C. Its displayed name is TMP UNIT and is viewed or changed using the List Item Selection Procedure.
Operating Temperature (Displayed for GAS meters only)
Operating Temperature is used in conjunction with Operating Temperature Units in gas applications to compensate for the actual temperature of the gas being measured at the meter. Enter the operating temperature in either °F or °C, depending on the Operating Temperature Units selected. Its displayed name is OP TEMP and is viewed or changed using the Numeric Value Entry Procedure.
Specific Gravity Correction Factor
Specific Gravity is used to compensate for the specific gravity of the liquid or gas being measured with the meter. Its displayed name is SP GRAV and is viewed or changed using the Numeric Value Entry Procedure.
Damping
The Damping factor is increased to enhance the stability of the flow readings. Damping values are decreased to allow the flow meter to react faster to changing values of flow. This parameter can range from 0 to 99; factory default is 0. Its displayed name is DAMPING and is viewed or changed using the Numeric Value Entry Procedure.
Output Mode
The MR flow transmitter offers three analog output modes:
• 4…20 mA Output Signal
• 0…5 Volts DC Output Signal
• 0…10 Volts DC Output Signal The output mode selected is determined by the type of peripheral device being connected to the MR flow transmitter.
The displayed name is OUT MODE and is viewed or changed using the List Item Selection Procedure.
OTE:N Setup prompts and descriptors for configuring and calibrating the analog output will correspond to the output
mode selected.
Page 15 November 2013
MR Flow Transmitter
Password
Password protection prevents unauthorized users from changing programming information. Initially the password is set to all zeros. Its displayed name is PASSWORD and is viewed or changed using the Numeric Value Entry Procedure.
Restore Defaults
This feature allows you to restore factory calibration data. Its displayed name is RES DFLT. To restore factory calibration data, select YES, then press ENTER.
Advanced Programming Descriptions
Advanced programming allows the user access to re-configure the analog output. Calibration of the analog output is preset at the factory, but can be changed to customize calibration for your installation.
To access the Advanced Programming Options, press and hold MENU for approximately 3 seconds until DISPLAY is viewed on the display panel. The programming menus will begin with display mode DISPLAY and continue as described above through output mode OUT MODE.
After output mode has been entered, Advanced Programming starts with the following:
Calibration of Analog Output
This selection allows access to the calibration and testing of the analog output signal.
To test or change the analog output calibration, it is first necessary to change the default setting for CAL OUT? from NO to YES.
OTE:N Setup prompts and descriptors for configuring and calibrating the analog output will correspond to the output
mode selected. Refer to the Flow Chart.
1. At the CAL OUT? prompt press ENTER. NO will display.
2. To change to YES, press either arrow key.
3. The analog output will go to its minimum output level. A numeric value between 0-4000 will display. This is an internal number used to drive the analog output.
4. To increase the analog output signal level, press . To decrease the analog output signal level, press .
5. Press ENTER to store the setting.
6. The analog output will go to its maximum output level. A numeric value between 0-4000 will display. This is an internal number used to drive the analog output.
7. To increase the analog output signal level, press . To decrease the analog output signal level, press .
8. Press ENTER to store the setting.
9. The unit will advance to the analog output test mode. The analog output will go to its minimum output level. A numeric value of 0 will display. For test purposes, the analog output signal can be run up or down in increments of 1 milliamp or 1 volt, depending on the OUT MODE selected.
10. To increase the analog output signal level, press . To decrease the analog output signal level, press .
11. Press ENTER to exit the analog calibration mode.
12. The unit automatically advances to the PASSWORD feature.
Password
Password protection prevents unauthorized users from changing programming information. Initially the password is set to all zeros. Its displayed name is PASSWORD and is viewed or changed using the Numeric Value Entry Procedure f.
Restore Defaults
This feature allows you to restore factory calibration data. Its displayed name is RES DFLT. To restore factory calibration data, select YES, then press ENTER.
User Manual

MAINTENANCE

BEFORE ATTEMPTING TO REMOVE THE TRANSMITTER FROM THE LINE, CHECK THE SYSTEM TO CONFIRM THAT LINE PRESSURE HAS BEEN REDUCED TO ZERO PSI. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND/OR DAMAGE TO THE EQUIPMENT.
DISCONNECT ELECTRICAL POWER BEFORE REMOVING METER COVER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND/OR DAMAGE TO THE EQUIPMENT.

Cartridge Cleaning

1. Disconnect the transmitter cable.
2. Remove the meter from the line. Remove excess piping from the transmitter. See Figure 4 and Figure 5.
OTE:N It is not necessary to remove the aluminum housing from the transmitter to remove it from the line.
3. Thoroughly wipe o the entire transmitter surface using mild detergent or isopropyl alcohol.
DO NOT USE AROMATIC HYDROCARBONS, HALOGENATED HYDROCARBONS, KETONES OR ESTER BASED FLUIDS ON POLYCARBONATE LENS. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE TRANSMITTER.
4. Remove the inlet port cap, wave spring, retaining ring, and cone assembly from the transmitter body (Figure 9).
5. Gently push the body towards the outlet port.
6. The piston, inner magnet and transmitter spring are secured within the transmitter body with a retaining ring. Remove the retaining ring with a small screwdriver, then the internal components can be removed from the body (Figure 9).
OTE:N If internal parts do not slide freely from cartridge, use a wooden dowel inserted into the outlet port of the meter to
push parts out.
7. Place all parts on a clean work surface. Clean and inspect all parts. Replace any that appear worn or damaged. Check inlet port O-ring for damage and replace if required.
FIELD REPLACEMENT OF THE SPRING, METERING CONE AND/OR PISTON/MAGNET ASSEMBLY MAY RESULT IN CHANGES TO THE CALIBRATION OF THE FLOW METER.
8. Reassemble the transmitter by inserting the transmitter spring into the body, followed by the piston/inner magnet assembly. A slight compression of the piston against the spring is required during installation of the retaining ring.
9. Gently push body assembly into the outlet end of the transmitter enclosure. The at surface of the body output port should be ush with the transmitter enclosure opening.
10. With the transmitter positioned vertically on a at surface, inlet port facing up, install the transmitter cone assembly and wave spring into the body and secure with the inlet port end cap.
11. Reinstall transmitter to the line. Reconnect electrical power.

Inspection

1. Frequent inspection should be made. The environment and frequency of use should determine a schedule for maintenance checks. It is recommended that it should be at least once a year.
2. Perform visual, electrical, and mechanical checks on all components on a regular basis.
3. Visually check for undue heating evidence such as discoloration of wires or other components, damaged or worn parts, or leakage evidence such as water or corrosion in the interior.
4. Make sure all electrical connections are clean and tight and that the device is wired properly.
Page 17 November 2013
MR Flow Transmitter

TROUBLESHOOTING

No LCD Display

• For 4…20 mA operation, check for current flow in the loop.
• Check polarity of the current loop connections for proper orientation.
• For 0…5V or 0…10V operation, check for proper voltage being supplied to the unit.
• Check polarity of the supply voltage.
1
2
3
MENU ENTER
4
5
6
Figure 9: Cartridge components
RUN PROGRAM
RELAY 1 RELAY 2
7
Number Name
1 Body
2 Cone Assembly
3 Meter Spring
4 Piston Assembly
5 Retaining Spring
6 Cap
7 Wave Spring

No Rate or Total Displayed

• Check flow meter body and internal components for debris. Piston should move inside the tube freely.
• Check setup programming of flow meter.

Unstable Flow Reading

• This usually indicated pulsing or oscillation in the actual flow. Increase the DAMPING parameter to increase the filtering in order to provide a more stable display reading.
()
13
User Manual

APPLICATION INFORMATION, LIQUID

Viscosity Eect (SUS/cSt)
The design uses a precision machined, sharp- edged orifice and biasing calibration spring that assures operating stability and accuracy over the wide viscosity range common to many fluids. Generally, high flow models of each meter size provide good accuracy over a viscosity range of 40…500 SUS (4.2…109 cSt).
Density Eect (specic gravity)
Any fluid density change from stated standards has a proportional effect on meter accuracy. Corrections for more or less dense fluids can be made to standard scales using the following correction factor:
10.
Specic Gravity
0 876.
Specic Gravity
For water/water-based meters
For petroleum-based meters
Application Information Pneumatic
OTE:N Pressure and temperature readings must be taken at the flow meter inlet to ensure accurate correction factors.
The pneumatic flow meter is calibrated for air in standard cubic feet per minute (scfm) at 1.0 s.g. (70° F @ 100 psi), and liter per second (lps) at 1.0 s.g. (21° C @ 6.9 bar).
Pressure
Gauge
Pressure
Source
Temp
Figure 10: System schematic
Air Bleed O
To Equipment
Flow
Meter
Adjustable
Valve
DETERMINE FLOW RATES USING DIFFERENT PRESSURES & TEMPERATURES
Where f1 = Conversion Factor for Inlet Pressure
f2 = Conversion Factor for Inlet Pressure
f3 = Conversion Factor for Inlet Pressure
scfm actual
()
scfm indicated
=
fxfxf
2
Table 1–Temperature Correction Factor (f1) Operating Pressure
psig 25 50 75 100 125 150 175 200 225 250
BAR 1.7 3.5 5.2 6.9 8.6 10.4 12.1 13.8 15.5 17.2
kPa 172 345 517 689 862 1034 1207 1379 1551 1724
f
1
1.700 1.331 1.131 1.00 0.902 0.835 0.778 0.731 0.692 0.658
790 857
7 914
f
114 7
1
14 7=+..
psig
f
1
.
1 014=+
.
BAR
f
1
.
101 357=+
.
kPa
Table 2–Temperature Correction Factor (f2)
°F 10 30 50 70 90 110 130 150 170 190
°C –12.2 –1.1 9.9 21.0 32.1 43 54 65 76 88
f
2
0.942 0.962 0.981 1.00 1.018 1.037 1.055 1.072 1.090 1.107
Page 19 November 2013
530
293
fSpGr
3
= ..
MR Flow Transmitter
C
+°
F
+°
460
f
=
2
273
f
=
2
Table 3–Specific Gravity Correction Factor (f3)
Table 2: Conversion factors
OTE:N Table 2 is included to show the correction algorithms include in the program to perform pressure, temperature,
and specific gravity corrections. When configuring the MR flow transmitter, enter the actual operating pressure, temperature, and specific gravity values, not the correction factors.
Correction Factor
User Manual
LIQUIDS
Fluid
Specific
Gravity
Oil Water
Aluminum
Brass
T16 SST
T303 SST
Viton®
EPR
Nylon
Polycarbonate
Acetic Acid (Air Free) 1.06 0.909 0.971 C N R R R R C N R
Acetone 0.79 1.053 1.125 R R R R N R N R R
Alcohol Butyl (Butanol) 0.83 1.027 1.098 C C R R C R R R R
Alcohol Ethyl (Ethanol) 0.83 1.027 1.098 C C R R C R R N R
Ammonia 0.89 0.992 1.060 R C R R N R N C R
Benzine 0.69 1.127 1.204 C R R C R N N R R
Carbon Disulphide 1.26 0.834 0.891 R N R R R N N R R
Castor Oil 0.97 0.950 1.015 C R R C R N C C R
Cotton Seed Oil 0.93 0.970 1.037 C R R R R N R R R
Ethylene Glycol 50/50 1.12 0.884 0.945 R R R R R R R C R
Freon II 1.46 0.774 0.828 R R R R R N R R R
Gasoline 0.70 1.119 1.195 R R R R R N C R R
Glycerin 1.26 0.834 0.891 R R R R R R R C R
Kerosene 0.82 1.033 1.104 R R R R R N R R R
Liquid Propane (LPG) 0.51 1.310 1.400 R R R R R N N R R
Mineral Oil 0.92 0.976 1.042 R N R R R N R R R
Naphtha 0.76 1.074 1.147 R N R R R N C R R
Perchloroethylene 1.62 0.735 0.786 C N R R R N N N R
Petroleum Oil 0.876 1.000 1.068 R R R R R N R R R
Phosphate Ester 1.18 0.862 0.921 R R R R N R N R R
Phosphate Ester Base 1.26 0.833 0.891 R R R R N R N R R
Phosphoric Acid (Air Free) 1.78 0.701 0.749 N N R N R N R N R
Sea Water 1.03 0.922 0.985 N N C C N R R R R
Synthetic Petroleum Base 1.00 0.936 1.000 R C R R R N R R R
Water 1.00 0.936 1.000 N R R R N R R R R
Water Glycol 50/50 1.07 0.905 0.967 R R R R R N R R R
Water-in-oil 0.93 0.970 1.037 R R R R N R R R R
R–Recommended
N–Not Recommended
C–Consult Factory
Table 3: Liquids Fluid selection chart
Pyrex®
Page 21 November 2013
MR Flow Transmitter
LIQUIDS
Fluid
Specific
Gravity
Correction
Factor
Aluminum
Brass
T16 SST
T303 SST
Viton®
EPR
Nylon
Polycarbonate
Air 1.0 1.000 R R R R R R R R R
Argon (A) 1.38 1.175 R R R R R R R R R
Carbon Dioxide (CO2) 1.53 1.237 R R R R R R R R R
Freon 11 (CCI3F) 4.92 2.218 R R R R R R R R R
Freon 12 (CCI2F) 4.26 2.060 R R R R R R R R R
Helium (HE) 0.14 0.374 R R R R R R R R R
Hydrogen (H2) 0.07 0.265 R R R R R R R R R
Natural Gas 0.60 0.775 C C R C R N C R R
Nitrogen (N2) 0.97 0.985 C C R R R R C R R
Oxygen (O2) 1.10 1.049 R R R R R R R R R
Propane C3H8) 1.57 1.253 R R R R R N N R R
R–Recommended
N–Not Recommended
C–Consult Factory
Table 4: Gaseous fluid selection chart
D C
J
Pyrex®
B
G
Flo w Tra ns mi tt er
Model H600A-000-MR S.N.: 78500
FLOW
A
Date: 0412
3
421
I
RUN
Flow Transmitter
3500 PSI/241 BARS MAX
OIL
F E
H
K
Figure 11: Dimensions
User Manual
A
Nominal
Port Size
1/4
(SAE 6)
1/2
(SAE 10)
3/4
(SAE 12)
1
(SAE 16)
1-1/4
(SAE 20)
1-1/2
(SAE 24)
B
Length
in.
(mm)
6.60
(168)
6.60
(168)
7.20
(183)
7.20
(183)
12.20 (310)
12.20 (310)
C
Length
in.
(mm)
5.27
(134)
5.27
(134)
5.27
(134)
5.27
(134)
10.68 (271)
10.68 (271)
D
Length
in.
(mm)
6.41
(163)
6.41
(163)
7.04
(179)
7.04
(179)
11.65 (296)
11.65 (296)
E
Width
in.
(mm)
6.00
(152)
6.00
(152)
6.00
(152)
6.00
(152)
7.63
(194)
7.63
(194)
F
Width
in.
(mm)
3.23 (82)
3.23 (82)
3.60 (91)
3.60 (91)
4.84
(123)
4.84
(123)
Width
(mm)
3.00 (76)
3.00 (76)
3.00 (76)
3.00 (76)
3.82 (97)
3.82 (97)

SPECIFICATIONS

General

Accuracy ± 2% of full scale
Repeatability ± 1%
Threads SAE J1926/1, NPTF ANSI B2.2, BSPP IS01179
Temperature Range –20…240° F (–29…116° C)
Pressure Rating Aluminum/Brass Operating
Liquids: 3500 psi/241 bar maximum (3:1 safety factor) Gases: 1000 psi/69 bar maximum (10:1 safety factor)
Stainless Steel Operating Liquids (1/4…1/2"): 6000 psi/414 bar maximum (3:1 safety factor) Liquids (3/4…1-1/2"): 5000 psi/345 bar maximum (3:1 safety factor) Gases: 1500 psi/103 bar maximum (10:1 safety factor)
G
in.
H
Width
in.
(mm)
4.20
(107)
4.20
(107)
4.20
(107)
4.20
(107)
5.02
(128)
5.02
(128)
I
Depth
in.
(mm)
2.94 (75)
2.94 (75)
2.94 (75)
2.94 (75)
4.50
(114)
4.50
(114)
J
Offset
in.
(mm)
1.51 (38)
1.51 (38)
1.27 (32)
1.27 (32)
2.20 (56)
2.20 (56)
K
Hole
Dia. in.
(mm)
0.31 (8)
0.31 (8)
0.31 (8)
0.31 (8)
0.31 (8)
0.31 (8)
Page 23 November 2013
MR Flow Transmitter

Materials

All Meters Common Parts
Petroleum (Oil) Common Parts
Phosphate Ester (PE) Common Parts
Water-Based (WBF), Water, Air Common Parts
API Oil/Air/Caustic/ Corrosive Liquids and Gases Common Parts
2024 – T351 Anodized aluminum body, piston and cone C360 Brass body, piston and cone T303 Stainless body, 2024 – T351 Anodized aluminum piston and con (Oil, PE WBF, & Air meters) T303 Stainless body, C360 Brass piston and con (Water meters) T316 Stainless body, piston and cone
Spider Plate Retaining Ring Spring Retaining Spring Fasteners Internal Magnet Pressure Seals Enclosure Seal Lens
Spider Plate Retaining Ring Spring Retaining Spring Fasteners Internal Magnet Pressure Seals Enclosure Seal Lens
Spider Plate Retaining Ring Spring Retaining Spring Fasteners Internal Magnet Pressure Seals Enclosure Seal Lens
Spider Plate Retaining Ring Spring Retaining Spring Fasteners Internal Magnet Pressure Seals Enclosure Seal Lens
T316 SS SAE 1070/1090 Carbon Steel 302 SS SAE 1070/1090 Carbon Steel T303 SS Teflon® Coated Alnico 8 Viton® Silicon gasket Polycarbonate
T316 SS SAE 1070/1090 Carbon Steel 302 SS SAE 1070/1090 Carbon Steel T303 SS Teflon Coated Alnico 8 EPR Silicon gasket Polycarbonate
T316 SS T316 SS T302 SS T316 SS T303 SS Teflon Coated Alnico 8 Viton Silicone gasket Polycarbonate
T316 SS T316 SS T316 SS T316 SS T316 SS Teflon Coated Alnico 8 Viton Silicone gasket Polycarbonate
User Manual
High Cycle Applications: Pressure Fatigue Rating
Per NFPA/T2.6.1 R1 - 1991, C/90, the method of verifying rated fatigue pressure (or establishing the rated burst pressure, or both) of the pressure containing envelope conforms to NFPA/T2.6.1 R1, Fluid power systems and products – Method for verifying the fatigue and establishing the burst pressure ratings of the pressure containing envelope of a metal fluid power component.
Meter Size
1/4 2000 1×10
1/2 2000 1×10
3/4 1500 1×10
1 1500 1×10
1-1/4
1-1/2
Aluminum Brass Stainless Steel
RFP* Cycles RFP* Cycles RFP* Cycles
1000 1×10
1500 70×10
1000 1×10
1500 70×10
6
6
6
6
6
3
6
3
** 3000 1×10
** 3000 1×10
** 3000 1×10
** 3000 1×10
** 3000 1×10
** 3000 1×10
** 3000 1×10
** 3000 1×10
*RFP = Rated Fatigue Pressure **Consult Factory
6
6
6
6
6
6
6
6
Page 25 November 2013
MR Flow Transmitter
PASSWORD
FLOW 4MA
Password
Flow at 4 mA
MENU ENTER
RES DFLT
Reset to Default
No
Flow at 20 mA
Yes
4-20TEST
Test Output
Numeric Entry
FLOW 0V
Single Digit Increments
FLOW 5V
Flow at 0 Volts
Numeric Entry
0-5 TEST
Flow at 5 Volts
Flow at 5 Volts
Numeric Entry
Single Digit Increments
FLOW 0V
Flow at 0 Volts
FLOW 10V
Numeric Entry
0-10TEST
Flow at 10 Volts
Flow at 10 Volts
Numeric Entry
Single Digit Increments
Numeric Entry
FLOW20MA
Numeric Entry
Oil
OUT MODE
START
ZERO CAP
Zero Capture
TOTL UNT
Totalizer Unit
DISPLAY
Display Options
No
Yes
Gallons
Liters
Rate
Total
Million Gallons
Ft³
Both
Test
Meters³
VIS UNIT
Viscosity Unit
Million Liters
Acre Feet
Oil Barrel
Visc SUS
Visc CST
Liquor Barrel
RATE UNT
Rate Unit / Time
Mass
Gallons
Pounds
Kilograms
Liters
Million Gallons
Ft³
SP GRAV
TOTL EXP
Totalizer Exponent
E-2 = × 0.01 (÷100)
E-1 = × 0.1 (÷10)
Specic Gravity
Numeric Entry
E0 = × 1 (no multiplier)
E1 = × 10
E2 = × 100
E3 = × 1,000
E4 = × 10,000
VISCOSITY
Viscosity Value
Numeric Entry
Output Mode
E5 = × 100,000
E6 = × 1,000,000
4 - 20 mA
0 - 5 VDC
FULLFLOW
Full Flow Rate
Numeric Entry
0 - 10 VDC
Mass
RATE INT
Meters³
Million Liters
Acre Feet
Oil Barrel
Liquor Barrel
Pounds
Kilograms
Rate Time Unit
Seconds
Minutes
Hours
Days
CAL OUT?
Calibrate Output?
ADVANCED FUNCTION
Yes
Press and HOLD MENU
button until “PROGRAM”
No
Setting
SETTING NAME
appears.
PASSWORD
FLOW 4MA
Password
Flow at 4 mA
User Manual
MENU ENTER
RES DFLT
Reset to Default
No
Flow at 20 mA
Yes
4-20TEST
Test Output
Numeric Entry
Single Digit Increments
FLOW 0V
FLOW 5V
Flow at 0 Volts
Numeric Entry
0-5 TEST
Flow at 5 Volts
Flow at 5 Volts
Numeric Entry
Single Digit Increments
FLOW 0V
FLOW 10V
Flow at 0 Volts
Numeric Entry
0-10TEST
Flow at 10 Volts
Flow at 10 Volts
Numeric Entry
Single Digit Increments
Numeric Entry
FLOW20MA
Numeric Entry
Water
OUT MODE
Million Liters
TOTL EXP
Totalizer Exponent
Acre Feet
Oil Barrel
Output Mode
4 - 20 mA
0 - 5 VDC
0 - 10 VDC
E-2 = × 0.01 (÷100)
E-1 = × 0.1 (÷10)
E0 = × 1 (no multiplier)
E1 = × 10
E2 = × 100
E3 = × 1,000
Mass
Liquor Barrel
Pounds
Kilograms
E4 = × 10,000
E5 = × 100,000
E6 = × 1,000,000
RATE INT
Rate Time Unit
Seconds
Minutes
CAL OUT?
Calibrate Output?
FULLFLOW
Full Flow Rate
Hours
Days
Yes
No
Numeric Entry
Setting
SETTING NAME
appears.
Press and HOLD MENU
ADVANCED FUNCTION
button until “PROGRAM”
START
ZERO CAP
Zero Capture
TOTL UNT
Totalizer Unit
DISPLAY
Display Options
No
Yes
Gallons
Liters
Rate
Total
Million Gallons
Ft³
Both
Test
Meters³
SP GRAV
Million Liters
Specic Gravity
Acre Feet
Numeric Entry
Oil Barrel
Liquor Barrel
RATE UNT
Rate Unit / Time
Mass
Gallons
Pounds
Kilograms
Liters
Million Gallons
DAMPING
Display Damping
Numeric Entry
Ft³
Meters³
Page 27 November 2013
MR Flow Transmitter
PASSWORD
FLOW 4MA
Password
Flow at 4 mA
MENU ENTER
RES DFLT
Reset to Default
No
Flow at 20 mA
Yes
4-20TEST
Test Output
Numeric Entry
FLOW 0V
Single Digit Increments
FLOW 5V
Flow at 0 Volts
Numeric Entry
0-5 TEST
Flow at 5 Volts
Flow at 5 Volts
Numeric Entry
Single Digit Increments
FLOW 0V
Flow at 0 Volts
FLOW 10V
Numeric Entry
0-10TEST
Flow at 10 Volts
Flow at 10 Volts
Numeric Entry
Single Digit Increments
Numeric Entry
FLOW20MA
Numeric Entry
Air/Gases
START
PRESUNIT
Pressure Units
PSI
TOTL UNT
Totalizer Unit
Gallons
DISPLAY
Display Options
Rate
BAR
Liters
Total
Million Gallons
Ft³
Both
Test
Meters³
OP PRES
Operating Pressure
Million Liters
Acre Feet
Numeric Entry
Oil Barrel
Liquor Barrel
RATE UNT
Rate Unit / Time
Mass
Gallons
Pounds
Kilograms
Liters
TMP UNIT
Temperature Units
DEGREE F
Million Gallons
Ft³
Meters³
DEGREE C
TOTL EXP
Totalizer Exponent
Million Liters
Acre Feet
Oil Barrel
OP TEMP
Operating Temperature
Numeric Entry
E-2 = × 0.01 (÷100)
E-1 = × 0.1 (÷10)
E0 = × 1 (no multiplier)
E1 = × 10
E2 = × 100
E3 = × 1,000
Mass
Liquor Barrel
Pounds
Kilograms
SP GRAV
Specic Gravity
Numeric Entry
E4 = × 10,000
E5 = × 100,000
E6 = × 1,000,000
RATE INT
Rate Time Unit
Seconds
OUT MODE
Output Mode
4 - 20 mA
0 - 5 VDC
0 - 10 VDC
FULLFLOW
Full Flow Rate
Numeric Entry
CAL OUT?
Calibrate Output?
Yes
No
ZERO CAP
Zero Capture
No
Yes
Setting
SETTING NAME
ADVANCED FUNCTION
Press and HOLD MENU
button until “PROGRAM”
appears.
Minutes
Hours
Days

FLOW VS PRESSURE DROP

Petroleum Fluids

User Manual
PRESSURE DROP, PSI
1/4"
.02-.20
.05-.50
.10-1.0
FLOW, GPM
PRESSURE DROP, PSI
.20-2.0
1-1/4"/1-1/2"
5-50
3-30
FLOW, GPM
10-75
PRESSURE DROP, PSI
10-100
1/2"
0.1-1.0
0.2-2.0
10-150
0.5-5.0
FLOW, GPM
1-10
PRESSURE DROP, PSI
3.0"
1-15
PRESSURE DROP, PSI
FLOW, GPM
3/4"/ 1"
10-200
2-20
FLOW, GPM
20-300
3-30
4-40
10
0.5-5.0
5
0.2-2.0
0
0 10
5-50
1-10
1/2" Reverse Flow
0.2-2.0
PRESSURE DROP, PSI
0.1-1.0
0.5-5.0
FLOW, GPM
1-10
1-15
3/4"/1" Reverse Flow
0.5-5.0
1-10
PRESSURE DROP, PSI
0.2-2.0
4-40
3-30
2-20
FLOW, GPM
1-1/4"/1-1/2" Reverse Flow
PRESSURE DROP, PSI
3-30
5-50
FLOW, GPM
10-150
10-100
10-75
The pressure drop curves are valid for fluids with density and viscosity similar to factory test fluids. Fluids, especially with higher viscosity than theses test fluids, will yield a higher pressure drop through the flow meter and piping system per a given flow volume.
A system must have adequate fluidic horsepower available to move the system fluid at a prescribed rate at a pressure adequate to overcome all pressure reducing devices, including the flow meter.
Page 29 November 2013
MR Flow Transmitter

Phosphate Ester

1/2" Reverse Flow
PRESSURE DROP, PSI
PRESSURE DROP, PSI
1/4"
3/4"/ 1"
1-10
1-15
0.10-1.0
FLOW, GPM
2-20
FLOW, GPM
3-30
0.20-2.0
.02-.20
6
.05-.50
4
2
0
0.50.0
1/2"
1-10
0.5-5.0
PRESSURE DROP, PSI
4
0.1-1.0
2
0
0 1 2 2.5
1-15
0.2-2.0
FLOW, GPM
4-40
6
4
2
0
0 1 2 3 54
0.5-5.0
0.2-2.0
5-50
1-1/4" / 1-1/2"
PRESSURE DROP, PSI
10-100
10-75
5-50
3-30
10-150
FLOW, GPM
3/4"/1" Reverse Flow
4-40
1-1/4"/1-1/2" Reverse Flow
10-150
PRESSURE DROP, PSI
0.2-2.0
0.1-1.0
0.5-5.0
FLOW, GPM
1-10
PRESSURE DROP, PSI
0.2-2.0
0.5-5.0
1-10
2-20
FLOW, GPM
3-30
PRESSURE DROP, PSI
3-30
10-100
10-75
5-50
FLOW, GPM

API Oil

User Manual
PRESSURE DROP, PSI
PRESSURE DROP, PSI
1/4"
3/4" / 1"
.10-1.0
FLOW, GPM
2-20
FLOW, GPM
3-30
.20-2.0
4-40
PRESSURE DROP, PSI
PRESSURE DROP, PSI
1/2"
0.5-5.0
0.2-2.0
FLOW, GPM
1-1/4"/ 1-1/2"
3-30
FLOW, GPM
1-15
1-10
10-100
10-75
5-50
Page 31 November 2013
MR Flow Transmitter

Water-Based Fluids

PRESSURE DROP, PSI
1/4"
.10 -1.0
FLOW, GPM
PRESSURE DROP, PSI
.20-2.0
0.2-2.0
.05-.50
1-1/4"/ 1-1/2"
3-30
10-75
5-50
FLOW, GPM
PRESSURE DROP, PSI
10-100
1/2"
10-150
0.5-5.0
FLOW, GPM
PRESSURE DROP, PSI
1-10
3"
0.1-1.0
1-15
0.2-2.0
PRESSURE DROP, PSI
20-180
FLOW, GPM
3/4" / 1"
2-20
FLOW, GPM
20-275
3-30
4-40
0.5-5.0
5-50
1-10
0.2-2.0
1/2" Reverse Flow
0.2-2.0
PRESSURE DROP, PSI
0.1-1.0
0.5-5.0
1-10
FLOW, GPM
1-15
3/4"/1" Reverse Flow
PRESSURE DROP, PSI
1-10
0.5-5.0
0.2-2.0
2-20
FLOW, GPM
3-30
4-40
1-1/4"/1-1/2" Reverse Flow
PRESSURE DROP, PSI
3-30
5-50
10-150
10-100
10-75
FLOW, GPM

Water

User Manual
PRESSURE DROP, PSI
1/4"
.10 -1.0
FLOW, GPM
PRESSURE DROP, PSI
.20-2.0
0.2-2.0
.05-.50
1-1/4"/ 1-1/2"
3-30
10-75
5-50
FLOW, GPM
PRESSURE DROP, PSI
10-100
1/2"
10-150
0.5-5.0
FLOW, GPM
PRESSURE DROP, PSI
1-10
3"
0.1-1.0
1-15
0.2-2.0
PRESSURE DROP, PSI
5-50
FLOW, GPM
10-100
3/4" / 1"
15-150
3-30
2-20
FLOW, GPM
4-40
0.5-5.0
5-50
1-10
0.2-2.0

Caustic and Corrosive Liquids

1/4"
PRESSURE DROP, PSI
FLOW, GPM
3/4" / 1"
2-20
PRESSURE DROP, PSI
.10 -1.0
3-30
4-40
0.5-5.0
.20-2.0
0.1-2.0
1-10
PRESSURE DROP, PSI
1-1/4"/ 1-1/2"
PRESSURE DROP, PSI
1/2"
3-30
1-15
1-10
0.5-5.0
0.2-2.0
FLOW, GPM
10-100
10-75
5-50
FLOW, GPM
FLOW, GPM
Page 33 November 2013
MR Flow Transmitter

Air/Compressed Gases

25
1/4"
20
1-10
2-20
15
10
5
PRESSURE DROP, PSI
0.5-5
0
0 105 15 20 25 30
FLOW, SCFM
20
3/4" / 1"
15
10
3-25
5
10-100
15-150
5-50
25-250
PRESSURE DROP, PSI
0
0 10050 150 200 250
FLOW, SCFM
3-30
20
1/2"
15
10
5-50
3-25
10-100
15-150
5
PRESSURE DROP, PSI
0
0 5025 75 100 125 150
FLOW, SCFM
30
1-1/4"/ 1-1/2"
100-1000
25
20
15
10
5
PRESSURE DROP, PSI
0
0 400200 600 800 1000
40-400
20-200
80-800
60-600
FLOW, SCFM

Air/Caustic and Corrosive Gases

25
1/4"
20
15
10
5
PRESSURE DROP, PSI
0
0 105 15 20 25 30
20
3/4" / 1"
15
10
3-25
5
PRESSURE DROP, PSI
0
0 10050 150 200 250
FLOW, SCFM
10-100
5-50
FLOW, SCFM
15-150
2-20
3-30
25-250
20
1/2"
15
10
5-50
3-25
10-100
15-150
5
PRESSURE DROP, PSI
0
0 5025 75 100 125 150
FLOW, SCFM
30
1-1/4"/ 1-1/2"
100-1000
25
20
15
10
5
PRESSURE DROP, PSI
0
0 400200 600 800 1000
40-400
20-200
80-800
60-600
FLOW, SCFM
INTENTIONAL BLANK PAGE
User Manual
Page 35 November 2013
HEDLAND is a registered trademark of Badger Meter, Inc. Other trademarks appearing in this document are the property of their respective entities. Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specications without notice, except to the extent an outstanding con­tractual obligation exists. © 2013 Badger Meter, Inc. All rights reserved.
www.badgermeter.com
The Americas | Badger Meter | 4545 West Brown Deer Rd | PO Box 245036 | Milwaukee, WI 53224-9536 | 800-876-3837 | 414-355-0400 México | Badger Meter de las Americas, S.A. de C.V. | Pedro Luis Ogazón N°32 | Esq. Angelina N°24 | Colonia Guadalupe Inn | CP 01050 | México, DF | México | +52-55-5662-0882 Europe, Middle East and Africa | Badger Meter Europa GmbH | Nurtinger Str 76 | 72639 Neuen | Germany | +49-7025-9208-0 Czech Republic | Badger Meter Czech Republic s.r.o. | Maříkova 2082/26 | 621 00 Brno, Czech Republic | +420-5-41420411 Slovakia | Badger Meter Slovakia s.r.o. | R acianska 109/B | 831 02 Bratislava, Slovakia | +421-2-44 63 83 01 Asia Pacic | Badger Meter | 80 Marine Parade Rd | 21-04 Parkway Parade | Singapore 449269 | +65-63464836 China | Badger Meter | 7-1202 | 99 Hangzhong Road | Minhang District | Shanghai | China 201101 | +86-21-5763 5412 Legacy Document Number: 04-VAM-UM-00235
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
