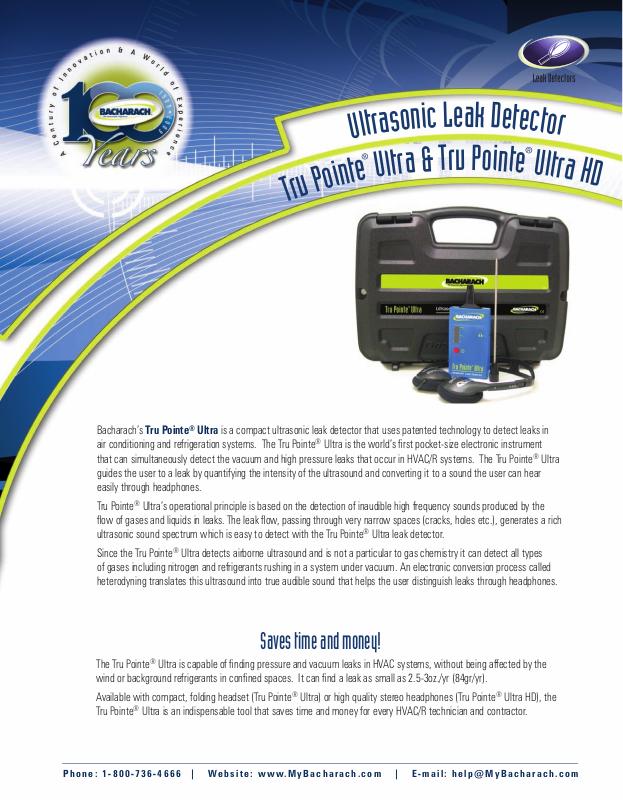

Bacharach’s Tru Pointe® Ultra is a compact ultrasonic leak detector that uses patented technology to detect leaks in
air conditioning and refrigeration systems. The Tru Pointe® Ultra is the world’s fi rst pocket-size electronic instrument
that can simultaneously detect the vacuum and high pressure leaks that occur in HVAC/R systems. The Tru Pointe® Ultra
guides the user to a leak by quantifying the intensity of the ultrasound and converting it to a sound the user can hear
easily through headphones.
Tru Pointe® Ultra’s operational principle is based on the detection of inaudible high frequency sounds produced by the
fl ow of gases and liquids in leaks. The leak fl ow, passing through very narrow spaces (cracks, holes etc.), generates a rich
ultrasonic sound spectrum which is easy to detect with the Tru Pointe® Ultra leak detector.
Since the Tru Pointe® Ultra detects airborne ultrasound and is not a particular to gas chemistry it can detect all types
of gases including nitrogen and refrigerants rushing in a system under vacuum. An electronic conversion process called
heterodyning translates this ultrasound into true audible sound that helps the user distinguish leaks through headphones.
Saves time and money!
The Tru Pointe® Ultra is capable of fi nding pressure and vacuum leaks in HVAC systems, without being affected by the
wind or background refrigerants in confi ned spaces. It can fi nd a leak as small as 2.5-3oz./yr (84gr/yr).
Available with compact, folding headset (Tru Pointe® Ultra) or high quality stereo headphones (Tru Pointe® Ultra HD), the
Tru Pointe® Ultra is an indispensable tool that saves time and money for every HVAC/R technician and contractor.
Phone: 1-800-736-4666 | Website: www.MyBacharach.com | E-mail: help@MyBacharach.com
Tru Pointe
®
Ultra Features & Benefi ts:
• Not affected by wind or the presence of other gases or high concentrations.
• Ten-step LED Bar Graph shows signal strength.
• On-the-fl y Sensitivity Adjustment aids in locating leaks quickly.
• True sound reproduction ensures fast recognition of leaks.
Tru Pointe® Ultra Specifi cations
Mechanical:
Dimensions: 5.5” (14cm) X 2.4” (61mm) X .875 (22.22mm)
Weight: 0.3lb (138gr) Includes Battery
Body Materials: Durable ABS
Audio Connector: 3.5mm Stereo
Electrical:
Airborne Sensor Sensitivity: -80db/V-µbar
Ultrasound Converter Type: Analog Controlled Heterodyne
Fequency response, Airborne: 34kHz to 42kHz
Heterodyne Filter: 4kHz
Heterodyne Oscillator: Analog
Controls: 1 Button
Sensitivity Control: Continually Variable Slide
Output, Audio: 0Hz to 4kHz
Output, Visual: 10 Segment Bar Graph
Battery Type: 9 Volt
Run Time: 80-120 hrs
Touch Probe- Helps convert sounds within valves or solids to airborne sound for the
®
Tru Pointe
Ultra to detect. (Patented).
Headset Options- Choice of compact, foldable headset or high-quality stereo headset;
®
choose Tru Pointe
SoundBlaster
®
- Ultrasonic Sound Generator. Artificially pressurizes rooms, tanks,
enclosures with sound that the
Ultra or Tru Pointe® Ultra HD.
Tru Pointe® Ultra
can detect thus locating where
they leak air, water or other fluids or gases.
Tru Pointe® Ultra & Tru Pointe® Ultra HD
Ordering Information
28-8000 Tru Pointe
28-8010 Tru Pointe
28-8001 Tru Pointe® Ultra HD Leak Detector Kit w/stereo headphones
28-8011 Tru Pointe
®
Ultra Leak Detector Kit w/folding headset
®
Ultra Leak Detector Kit w/folding headset & SoundBlaster
®
Ultra HD Leak Detector Kit w/stereo headphones & SoundBlaster®
®
DistributedDistributed By: By:
© Product Bulletin 4177 2010, Bacharach, Inc., all rights reserved. All information is subject to verifi cation.
Bacharach is a registered trademark of Bacharach, Inc.
2010 - REV. 0 Printed in U.S.A.
