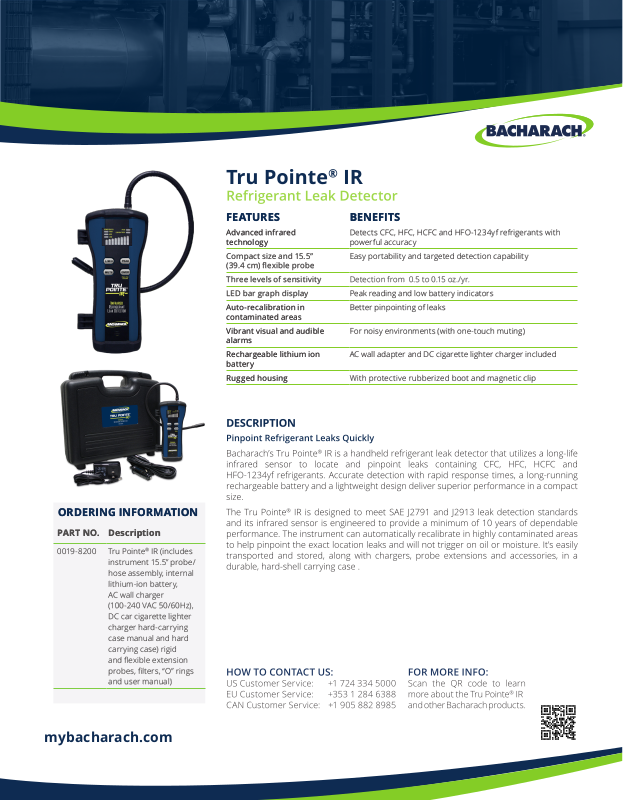

Bacharach Tru Pointe IR Specifications
FEATURES BENEFITS
Advanced infrared
technology
Compact size and 15.5”
(39.4 cm) exible probe
Three levels of sensitivity Detection from 0.5 to 0.15 oz./yr.
LED bar graph display Peak reading and low battery indicators
Auto-recalibration in
contaminated areas
Vibrant visual and audible
alarms
Rechargeable lithium ion
battery
Rugged housing With protective rubberized boot and magnetic clip
Detects CFC, HFC, HCFC and HFO-1234yf refrigerants with
powerful accuracy
Easy portability and targeted detection capability
Better pinpointing of leaks
For noisy environments (with one-touch muting)
AC wall adapter and DC cigarette lighter charger included
ORDERING INFORMATION
PART NO. Description
0019-8200 Tru Pointe® IR (includes
instrument 15.5” probe/
hose assembly, internal
lithium-ion battery,
AC wall charger
(100-240 VAC 50/60Hz),
DC car cigarette lighter
charger hard-carrying
case manual and hard
carr ying case) rigid
and exible extension
probes, lters, “O” rings
and user manual)
mybacharach.com
PRODUCT ATTRIBUTES DESCRIPTION DEFINITION
Sensor Type Infrared enhanced photo optics; 10 year average life
Gases Detected CFC, HFC, HCFC and blends, HFO-1234y f
Sensitivity Levels, Per SAE J2791 High 0.1 oz./year (4 g/year) and higher
Medium 0.25 oz./year (7 g/year) and higher
Low 0.50 oz./year (14 g/year) and higher
Response Time Less than 1 second
Accuracy Per EN 14624 (refer to manual for details)
Warm-Up Time 30 seconds; automatic calibration
Operating Temperature Range 32° F to 122° F (0° C to 50° C) at 75% RH
Alarms Visual (LED) and audible; low battery LED illuminates at 1 hr. remaining
Dimensions 3.75”w x 1.75”d x 7.5”h (plus 15.5” exible probe)
(9.52cm w x 4.45cm d x 19.05cm h (plus 39.37cm probe)
Weight 15.6 oz. including battery (442 g)
Power Rechargeable lithium-ion battery (included); 3.7VDC, 1880 mAH
Charge Time ≥ 4 hours @ 500mA
Run Time 8 hours on full battery charge, t ypical; with 10 minute auto-o
Housing Rubberized boot with rigid plastic housing, rubberized probe
Approvals SAE J1627, SAE J2791, SAE J2913; CE (pending); EN 14624
Warranty Instrument, IR Sensor - 1 Year
TRU POINTE® IR REPLACEMENT PARTS & ACCESSORIES
0019- 080 3 100–240 VAC Wall Charger
0019- 0802 12V DC Car Charger (cigarette lighter plug)
0019-0801 Filters (qty. 5) and “O” Ring (qty. 3) Kit
0019- 080 4 Replacement Rubberized Boot with Magnet
0019- 080 5 Replacement Probe Tip
0019- 080 6 Replacement Hard-Shell Carrying Case
0019-0808 Replacement Flexible Extension (9 inch, 22.9cm)
0019-0809 Replacement Rigid ‘Needle’ Extension (9 inch, 22.9cm)
Pittsburgh, PA USA | Dublin, IRE | Gloucester, UK | Standardsville, VA, USA | Toronto, CAN
