Bacharach Tru Pointe 1100 Owner's Manual
The Measurable Difference
Ultrasonic Leak Detector
®
Tru Pointe® 1100
Instruction 0028-9002
Operation and Maintenance
Rev. 1 - May 2010
WARRANTY
The Bacharach Tru Pointe® 1100 is warranted for one year to be free of manufacturing defects
adversely affecting performance. Should an instrument fail within the one year warranty period,
the unit will be repaired or replaced provided in the opinion of the factory, the instrument has not
been tampered with or abused.
If defective, return to the factory for repair and re-calibration. Maximum liability of Bacharach
shall be limited to replacement of unsatisfactory product.
Recommendations and product information are believed to be accurate, but the furnishing of it
does not constitute the making of a good process warranty of Seller.
Bacharach warrants that this product conforms to the Product Description contained in this
literature. Bacharach makes no other warranty, whether expressed or implied, including
warranties of merchantability or of fi tness for a particular purpose or application. No
statements or recommendations contained herein are to be construed as inducements to infringe
any relevant patent, now or hereafter in existence. Bacharach neither assumes nor authorizes
any representatives or other person to assume for it any obligation of liability other than such as
expressly set forth herein.
Under no circumstances shall Bacharach be liable for incidental, consequential or other
damages from any alleged negligence, breach of warranty, strict liability or any other
theory, arising out of the use or handling of this product.
Contents
1 About This Manual ...................................................................................... 1
2 Introduction ................................................................................................. 2
3 Specifi cations ............................................................................................. 3
4 Quick Start Guide .......................................................................................5
5 Operation .................................................................................................... 7
Warning Statements ....................................................................... 1
Caution Statements ........................................................................ 1
What’s in the Kit .............................................................................2
0028-8002 ...................................................................................... 2
0028-8012 ...................................................................................... 2
Physical Description .......................................................................4
Battery Installation .......................................................................... 5
Turning the Instrument On/Off ........................................................ 5
Airborne Leak Detection ................................................................. 5
Using the Tru Pointe
Touch Probe Applications ...............................................................6
Using the Modes ............................................................................7
Setting the Sensitivity ..................................................................... 8
Setting the Volume ......................................................................... 8
Selecting the Sensor ......................................................................8
Adjusting the Display ...................................................................... 8
Checking the serial number............................................................8
Airborne Applications......................................................................9
Leaks .............................................................................................. 9
Reducing Background Noise Interference......................................9
Recording Overall System Noise .................................................10
Taking a Baseline Reading ...........................................................10
Touch Probe Applications .............................................................10
Steam Traps ................................................................................. 10
Thermal Expansion Valves (TXV) ................................................ 11
Bearings and Moving Machinery .................................................. 11
Bearings... The First Test ............................................................. 12
Charting your results ....................................................................12
Vibration .......................................................................................13

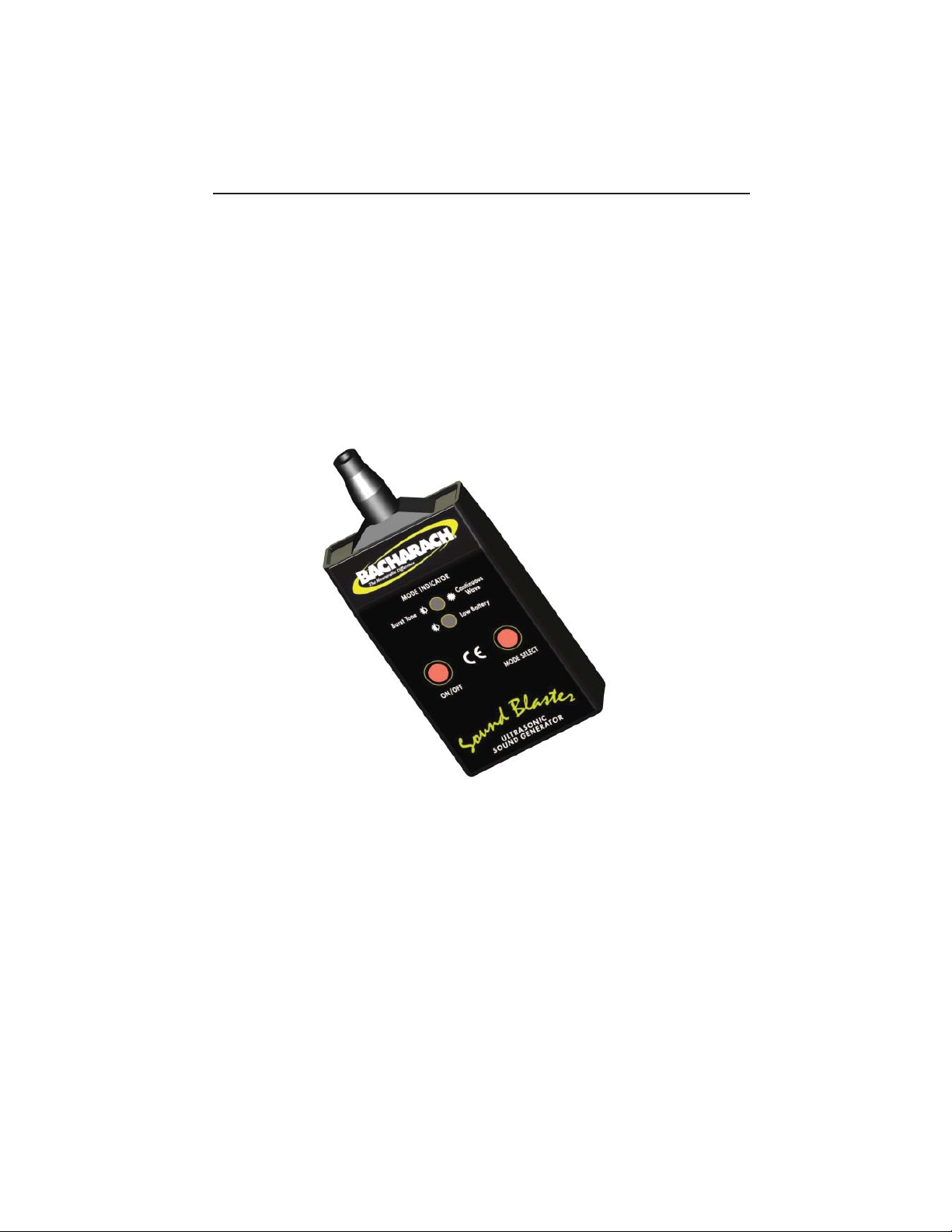

SoundBlaster® Sound Generator .................................................. 14
®
1100: ........................................................... 5
6 Principles of Operation .............................................................................15
5 Care and Service ...................................................................................... 16
Service .........................................................................................16
NOTES
Tru Pointe® 1100 Instruction 0028-9002
1 About This Manual
Thank you for investing in a Bacharach Tru Pointe® 1100 Ultrasonic Leak Detector.
To assure operator safety and the proper use of the Tru Pointe® 1100, please read the contents
of this manual, which provides important information on the operation and maintenance of the
detector.
Warning Statements
The use of the word WARNING (and the warning symbol
at left) in this manual denotes a potential hazard associated with the use of this equipment. It calls attention
to a procedure, practice, or condition, or the like, which
if not correctly performed or adhered to, could result in
personal injury or death.
Caution Statements
The use of the word CAUTION (and the caution symbol
at left) in this manual denotes a potential hazard associated with the use of this equipment. It calls attention
to a procedure, practice condition, or the like, which if
not correctly performed or adhered to, could result in
damage to the equipment.
1
Tru Pointe® 1100 Instruction 0028-9002
2 Introduction
Congratulations on your purchase of the Bacharach Tru Pointe® 1100 Ultrasonic Inspection
System. You have invested in the most sophisticated ultrasonic test instrument available.
The Tru Pointe® 1100 is the fi rst ultrasonic leak detector to feature digital controls and displays,
and no other ultrasonic detector can produce such accurate readings and consistent results in
repeated tests. Using patented signal processing, the Tru Pointe® provides the most precise
readings available.
The Tru Pointe® 1100 can detect pressurized leaks of compressed air, refrigerant, steam, and
nitrogen, as well as detecting vacuum leaks. The Touch Probe allows the quick detection of fl ow
abnormalities in pumps, steam traps and valves, as well as mechanical wear in bearings and
other moving machine parts. Noise patterns can be recorded and compared to previous readings
for an accurate record of noise patterns.
What’s in the Kit
0028-8002
Tru Pointe® 1100 Kit
Tru Pointe® 1100 ..................... 0028-7002
Instruction Manual .................. 0028-9002
Probe Wrench ........................ 0028-0023
Solid Touch Probe .................. 0028-0021
Heavy Duty Headset .............. 0028-0020
Carrying Case ........................ 0028-0014
6” Wave Guide ....................... 0028-0004
9v Battery ............................... 0204-0024
Warranty Card ........................ 0006-8825
0028-8012
Tru Pointe® 1100 Kit w/ SoundBlaster
Tru Pointe® 1100 ..................... 0028-7002
SoundBlaster® ........................ 0028-7006
Instruction Manual .................. 0028-9002
Probe Wrench ........................ 0028-0023
Solid Touch Probe .................. 0028-0021
Heavy Duty Headset .............. 0028-0020
Carrying Case ........................ 0028-0014
6” Wave Guide ....................... 0028-0004
9v Battery ............................... 0204-0024
Warranty Card ........................ 0006-8825
2
®
Tru Pointe® 1100 Instruction 0028-9002
3 Specifi cations
Physical
Dimensions 7.075”L X 2.4”W X .875”D (197.7
Overall Length 8.185” (207.8 mm)
Body Material Aluminium and ABS
Body Finish Anodized, Gold, and Black ABS
Connector 3.5 mm Stereo
Weight 0.5 lb. (233 g) including battery
Electrical
Sensitivity -80 db/V-μbar
Ultrasound Converter Type Digitally Controlled Heterodyne
Frequency Response, Airborne 34kHz to 42kHz
Frequency Response, Touch Probe 16kHz to 24kHz
Heterodyne Oscillator Digital
Heterodyne Filter 4kHz
Controls 4 Buttons
Digital Sensitivity Control 256 Steps
Digital Volume Control 256 Steps
Output, Audio 0Hz to 4kHz
Output, Visual 20 Element Bar Graph with
Signal Output Heterodyne
ON Indicator Digital Display
Low Battery Indicator Digital Display, BATT
Insuffi cient Battery Charge Automatic Shut-Down
Battery Type 9 Volt
Run Time 58-80 hours
mm X 61 mm X 22.22 mm)
Peak-Hold and Separate Alphanumeric Digital Display
3
Tru Pointe® 1100 Instruction 0028-9002
Physical Description
To begin using the Tru Pointe® 1100, fi rst take a moment to become familiar with the unit’s
controls.
ON/OFF
BAR GRAPH DISPLAY
TOUCH PROBE SENSOR
(INTERNAL)
AIRBORNE SENSOR &
FOCUSING CONE
HEADSET JACK
(SIDE)
UP/DOWN & SELECT
MODE SELECTOR
ALPHA-NUMERIC DISPLAY
Airborne Sensor Detects external ultrasonic sound traveling through
the air, such as pressurized gas leaks, vacuum leaks,
external system noise and the SoundBlaster®. The
optional nose cone narrows the sensor’s fi eld of view.
Touch Probe
Sensor
Detects internal system sounds such as internal valve
leaks, bearing wear and faulty steam traps.
Bar Graph Display Shows relative strength of detected signal in bar graph
format and includes a Peak/Hold feature.
Power Button Turns the Instrument On/Off
Alphanumeric
Display
Level/Mode indicator. Displays active mode, current
mode setting and numeric intensity reading. Also
indicates when battery power is low.
Mode Select Button Scrolls through menu options for adjustment/selection
Up Adjustment Increases a setting or scrolls through mode options
Down Adjustment Decreases a setting or scrolls through mode options
Headphone Jack For headphone plug
4
