PGM-IR Halogen Monitor
“Bagless” Portable Gas Monitor for Halogen Gases (Refrigerants)
Instruction 3015-5466
Operation and Maintenance
Rev. 10 – March 2016
Product Leadership • Training • Service • Reliability
Patent 6,590,690
Halogen Monitor (Bagless PGM-IR)
WARRANTY
Bacharach, Inc. warrants to Buyer that at the time of delivery this Product will be free from defects in material and manufacture
and will conform substantially to Bacharach Inc.'s applicable specifications. Bacharach's liability and Buyer's remedy under this
warranty are limited to the repair or replacement, at Bacharach's option, of this Product or parts thereof returned to Seller at the
factory of manufacture and shown to Bacharach Inc.'s reasonable satisfaction to have been defective; provided that written
notice of the defect shall have been given by Buyer to Bacharach Inc. within two (2) years after the date of delivery of this
Product by Bacharach, Inc.
Bacharach, Inc. warrants to Buyer that it will convey good title to this Product. Bacharach's liability and Buyer's remedy under
this warranty of title are limited to the removal of any title defects or, at the election of Bacharach, to the replacement of this
Product or parts thereof that are defective in title.
The warranty set forth in paragraph 1 does not apply to parts the Operating Instructions designate as having a limited shelf-life or
as being expended in normal use (e.g., filters).
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND ARE GIVEN AND ACCEPTED IN LIEU OF (I) ANY AND ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, IN CLUDING WITHOUT LIMITATIO N THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE: AND (II) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR
REMEDY IN CONTRACT OR TORT, WHETHER OR NOT ARISING FROM BACHARACH'S NEGLIGENCE, ACTUAL OR
IMPLIED. The remedies of the Buyer shall be limited to those provided herein to the exclusion of any and all other remedies
including, without limitation incidental or consequential damages. No agreement varying or extending the foregoing warranties,
remedies or this limitation will be binding upon Bacharach, Inc. unless in writing, signed by a duly authorized officer of
Bacharach.
Patent 6,590,690
Register your Warranty by Visiting
www.mybacharach.com
NOTICE
Product improvements and enhancements are continuous; therefore the specifications and information
contained in this document may change without notice.
Bacharach, Inc. shall not b e liable for errors containe d herein or for incidental or c onsequential damages
in connection with the furnishing, performance, or use of this material.
No part of this docum ent may be photocopie d, reproduced, or translated to a nother language without t he
prior written consent of Bacharach, Inc.
Copyright © 2005-2016, Bacharach, Inc., all rights reserved.
BACHARACH
®
is a registered trademark of Bacharach, Inc. All other trademarks, trade names,
service marks and logos referenced herein belong to their respective owners.
2 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
TABLE OF CONTENTS
1 INTRODUCTION .............................................................................................................................................. 5
1.1 How to Use This Manual ................................................................................................................................ 5
1.2 Warning Statements ...................................................................................................................................... 5
1.3 Caution Statements ....................................................................................................................................... 5
1.4 Hazard Symbols on Monitor .......................................................................................................................... 5
1.5 Safety Precautions ......................................................................................................................................... 6
1.5.1 Explosive Atmosphere ..................................................................................................................... 6
1.5.2 Misuse and Modifications to Monitor ............................................................................................. 6
1.5.3 Altitude Limit ................................................................................................................................... 6
1.5.4 Cleaning ........................................................................................................................................... 6
1.6 Features and Capabilities ............................................................................................................................... 6
1.7 Unpacking and Initial Checks ......................................................................................................................... 7
1.8 Functional Overview ...................................................................................................................................... 7
2 SPECIFICATIONS ............................................................................................................................................. 8
3 OPERATION .................................................................................................................................................... 9
3.1 Front Panel Display and Controls ................................................................................................................... 9
3.2 Connecting the Zero Air Filter Assembly ....................................................................................................... 9
3.3 Zero Air Filter Service Life ............................................................................................................................ 10
3.4 Connecting Gas-Sample, Exhaust and Purge Lines ...................................................................................... 11
3.4.1 Overview ....................................................................................................................................... 11
3.4.2 Connecting the Gas-Sample Line or Probe (Model 3015-5420) .................................................... 11
3.4.3 Connecting the Gas-Sample Probe 3015-5694 ............................................................................. 11
3.4.4 Connecting the Exhaust Line ......................................................................................................... 11
3.4.5 Connecting Zero Air Inlet to an External Purge Line (Optional) .................................................... 12
3.5 Gas Detector Operation ............................................................................................................................... 12
3.6 Battery Charging and Using ......................................................................................................................... 13
3.6.1 Charging the Battery ..................................................................................................................... 13
3.6.2 Using the Battery ........................................................................................................................... 13
3.7 Display Screens ............................................................................................................................................ 14
3.7.1 Initial Power ON ............................................................................................................................ 14
3.7.2 Data Display Screen ....................................................................................................................... 14
3.7.3 Function Screens ........................................................................................................................... 14
3.8 Working with System Faults ........................................................................................................................ 17
3.8.1 Functional Overview ..................................................................................................................... 17
3.8.2 Clearing / Silencing a Latched Fault Alarm .................................................................................... 17
3.8.3 Viewing the Faults Log .................................................................................................................. 17
3.8.4 Fault Codes .................................................................................................................................... 18
3.9 Working with the Gas Alarm (Area Monitoring) .......................................................................................... 19
3.9.1 Gas-Alarm Light ............................................................................................................................. 19
3.9.2 Silencing a Gas Alarm .................................................................................................................... 19
3.10 Working with the Gas Alarm (Leak Detector Option) .................................................................................. 19
3.10.1 Gas-Alarm Light Plus Audio Feedback ........................................................................................... 19
3.11 Clearing the PPM and Faults Data ............................................................................................................... 19
3.12 Working with the DIAG Function ................................................................................................................. 19
3.12.1 Overview ....................................................................................................................................... 19
3.12.2 Keypad Functions .......................................................................................................................... 19
3.12.3 First Diagnostic Screen .................................................................................................................. 20
3.12.4 Second Diagnostic Screen ............................................................................................................. 20
3.13 Working with the P-CHK Function ............................................................................................................... 21
3.13.1 Overview ....................................................................................................................................... 21
3.13.2 Keypad Functions .......................................................................................................................... 21
Instruction 3015-5466 (Rev 10) 3
Halogen Monitor (Bagless PGM-IR)
3.13.3 Screen Display ............................................................................................................................... 21
3.14 Print/Plot Logged Gas Levels ....................................................................................................................... 21

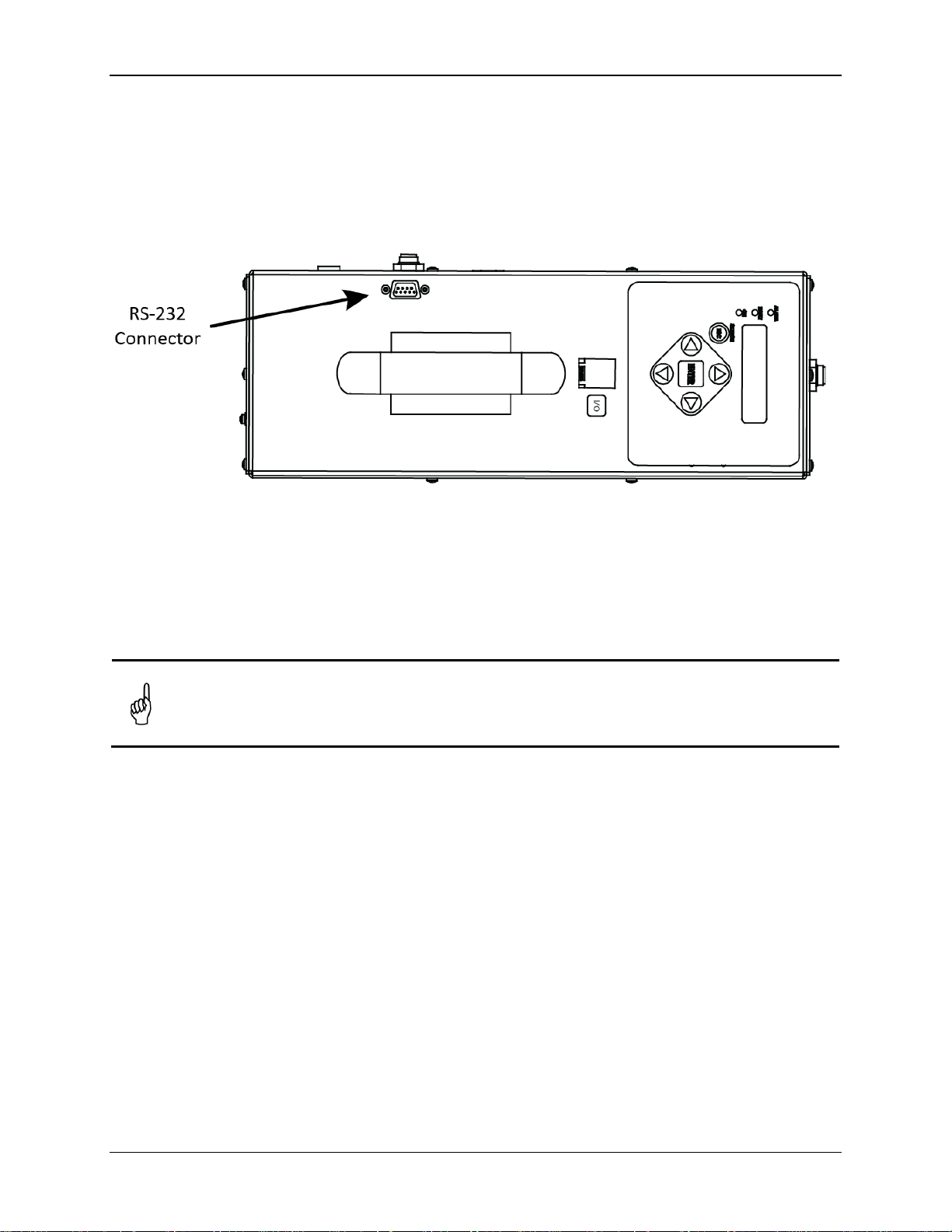

3.15 Downloading Stored Data to a Personal Computer ..................................................................................... 22
3.16 Importing Saved Data to a Spreadsheet ...................................................................................................... 24
4 MAINTENANCE ............................................................................................................................................. 25
4.1 Disassembly ................................................................................................................................................. 25
4.2 Internal Particulate / Hydrophobic Filter Replacement ............................................................................... 26
4.3 Updating Firmware ...................................................................................................................................... 27
4.4 Probe Filter Replacement ............................................................................................................................ 27
5 PARTS AND SERVICE ..................................................................................................................................... 28
5.1 Replacement Parts and Optional Accessories ............................................................................................. 28
5.2 Service Centers ............................................................................................................................................ 28
Declaration of Conformity ........................................................................................................................ 29
4 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
1 Introduction
1.1 How to Use This Manual
This manual provides important information on how to operate and service Bacharach’s Refrigerant Monitor. To
assure operator safety and the proper use of the monitor, please read, understand, and follow the contents of this
manual.
If you have a working knowledge of gas monitors, you will find this manual useful as a reference tool. If you are
new to the use of gas monitors, you can educate yourself about the principles of gas detection and the proper
operation of this device by reading this manual thoroughly.
1.2 Warning Statements
The use of the word WARNING in this manual denotes a potential hazard associated with the use of this
equipment. It calls attention to a procedure, practice, or condition, or the like, which if not correctly performed or
adhered to, could result in personal injury or death.
1.3 Caution Statements
The use of the word CAUTION in this manual denotes a potential hazard associated with the use of this
equipment. It calls attention to a procedure, practice, condition, or the like, which if not correctly performed or
adhered to, could result in damage to the equipment.
1.4 Hazard Symbols on Monitor
The following symbol indicates the need to consult this operating instruction manual when opening the enclosure.
WARNING: A potential risk exists if the operating instructions are not followed.
The following symbol indicates the presence of electric shock hazards when the enclosure is opened.
WARNING: To avoid risk of injury from electric shock, do not open the enclosure when power is
applied.
Instruction 3015-5466 (Rev 10) 5
Halogen Monitor (Bagless PGM-IR)
1.5 Safety Precautions
1.5.1 Explosive Atmosphere
Do not operate this equipment in the presence of flammable liquids, vapors or aerosols. Operation of any electrical
equipment in such an environment constitutes a safety hazard.
HAZARDOUS AREA WARNING: This instrument has not been designed to be intrinsically safe for
use in areas classified as hazardous locations. For your safety,
(classified) locations.
COMBUSTIBLE/FLAMMABLE GAS WARNING: This is NOT a safety device. Some gases which this
instrument can detect may be combustible/flammable. When properly configured, this instrument
is designed to alarm at concentrations that are lower than the explosive limit of the gas. As such, it
is the buyer’s responsibility to initiate an immediate planned response to any gas leaks as soon as
they are detected. This equipment should NEVER be used to measure or sample gases at or above
their respective lower explosive limits.
1.5.2 Misuse and Modifications to Monitor
The protection provided by the monitor may be impaired if the monitor is used in a manner not specified by
these instructions. Changes or modifications to this monitor will void the warranty.
DO NOT use it in hazardous
WARNING: A gas monitor is not to be used in any application that is beyond its intended purpose
or beyond the scope of its specifications. For details on appropriate use, refer to the general
description, application, and operation discussions in this manual. Before risking equipment
damage or personal injury, contact Bacharach if you are unsure of the validity of a particular gas
monitor application.
1.5.3 Altitude Limit
6,562 ft (2,000 m)
1.5.4 Cleaning
Clean the outside of the monitor’s case using a dry cloth — DO NOT use soap and water
1.6 Features and Capabilities
• Detects, measures, and displays the level of refrigerant gas in the area being monitored
• Measures all gases up to 10,000 ppm with a sensitivity of 1 ppm
• Automatically logs up to 200 gas readings that can be printed/plotted for analysis
• Eliminates false alarms with use of non-dispersive IR source and sample draw system
• Visual and audible gas alarm indictors that are turned ON when the detected gas level exceeds a user
defined trip-point
• Extensive self diagnostics, providing both visual and audible indications when a fault occurs
• Battery powered, providing a minimum of 8 hours of operation
6 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
1.7 Unpacking and Initial Checks
Your Refrigerant Monitor was carefully inspected at the factory before shipment, and packed so as to be highly
resistant to damage while in transport. When you receive the instrument, however, please unpack it promptly
and make a visual inspection to make sure that no damage has occurred during shipment. Also check that all
the following items have been received.
Included with
Item Part No.
External Filter Assembly (gas sample) 3015-5324 2 -
Soft Carrying Case with Shoulder Strap 3015-5700 1 1
Battery Pack and Charger Kit 3015-5743 1 1
Probe Assembly 3015-5694 - 1
Stainless Steel Tube 3015-5326 1 -
Instruction Manual 3015-5466 1 1
Elbow 3015-3234 1
Tubing 0003-6182 3 ft.
Coalescing Filter 3015-3071 -
3015-5722 1 -
Filter Assembly (zero air sample)
3015-5714 - 1
If damage was found, immediately file a claim with the carrier. If an item is missing, please contact the Service
Department for assistance (refer to Service Centers on page 28).
Refrigerant Monitor
3015-5420
Included with
Refrigerant Monitor
3015-5696
Part of probe
3015-5694, above
1.8 Functional Overview
The Bacharach Refrigerant Monitor is designed to detect, measure, and display the concentration of refrigerant
gas in the area being monitored. To ensure accurate gas measurements, the monitor self-zeros every 4 minutes
using an external supply of fresh air provided by activated carbon filtering.
During normal operation the Refrigerant Monitor displays both the current gas level and the peak gas level
detected on its front panel LCD. The monitor retains a log of previous readings that can be easily accessed at a
later time for analysis.
Front panel indicators and an audible alarm are provided to signal gas alarm and instrument fault conditions.
The audible alarm can temporarily be silenced by a push of a button, but will reactivate if the gas level is still
above the alarm trip point after a user-defined time period has elapsed.
The Refrigerant Monitor requires only minor periodic maintenance such as the occasional replacement of filters.
The monitor incorporates active diagnostics that continuously check the system for proper operation. A front
panel indicator is provided to alert an operator of system malfunctions, and fault codes are generated that
enable the operator to quickly identify the cause of the fault.
Instruction 3015-5466 (Rev 10) 7
Halogen Monitor (Bagless PGM-IR)
2 Specifications
Product Type .............................. Portable refrigerant gas monitor
Gas Library:
CFC: R-11, R-12, R-113, R-114, R-502, HFP
HFC: R-404a (HP62), R-407a, R-407c (AC9000), R-134a, R-410a (AZ20),
R-507 (AZ50), R-508b (SUVA95), R-236FA, R-125, R-245Fa, R-422a, R-422d,
R-427a, R-424a, R-426a, R-438a, R-407F, R-32
HCFC: R-22, R-123, R-124, R-500, R-503, R-401a (MP39), R-402a (HP80), R-402b (HP81),
R-408a, R-409a, R-23, R-21, R-227
HALON: H1301, H2402, H1211
Other: FA188, FC72, N1230, H1234YF, H1234ZE, N7100, N7200, N7300, N7600
Measuring Range ....................... All gases 0 to 10,000 ppm
Warm-Up Time .......................... 5 minutes
Detector Type ............................ Infrared, Non-Dispersive
Sensitivity ................................... 1 ppm
Accuracy .................................... ±1 ppm ± 10% of reading from 0-1000 ppm
R11, R22 and R113 are ±10 ppm ±15% of reading from 0-1000 ppm
Response Time ........................... 90% of response within 5 seconds; 100% in 7 seconds
Temperature Drift ...................... 1.5 ppm per degree C between purge cycles
System Noise ............................. Less than 40 dB(A) at 10 ft (3 m)
Operating Temp ......................... 32 to 122° F (0 to 50° C)
Ambient Humidity ...................... 5 to 90% RH (non-condensing)
Altitude Limit ............................. 6,562 ft (2,000 m)
Power ......................................... DC power pack, provides a minimum of 8 hours of operation
Power Consumption .................. 15 Watts
Front Panel 3 Indicator lights:
ON: Green LED flashes during warm-up, and then glows steady
during normal operation.
FAULT: Yellow LED flashes when there is a system fault.
ALARM: Red LED flashes when the gas level is above its alarm setting.
Audible Alarm ............................ Internal audible alarm programmable for any of the following conditions:
OFF, FAULT/ALARM, ALARM
Dimensions (DxLxW) .................. 9” x 14.5” x 5” (229 x 368 x 127 mm)
Weight ....................................... Less than 9 lbs (4 kg) including battery
Valid Calibration Period
to Specifications ......................... 12 months
Warranty .................................... 2 years from date of shipment
8 Instruction 3015-5466 (Rev 10)
3 Operation
3.1 Front Panel Display and Controls
Halogen Monitor (Bagless PGM-IR)
3.2 Connecting the Zero Air Filter Assembly
A Zero Air Filter Assembly must be installed to properly use the Bacharach Refrigerant Portable Monitor. The
following steps should be taken to install the filter.
1. Unfasten the Velcro on the front of the monitor soft case.
2. Slide the zero air filter into the front pocket. Route the tubing through the hole in the back of the
pocket, along the side of the housing.
3. Insert the elbow connector extending from the Charcoal Filter Assembly into the Zero Air Inlet on
the monitor.
4. Refasten the Velcro.
Instruction 3015-5466 (Rev 10) 9
Halogen Monitor (Bagless PGM-IR)
To connect the elbow connector to the zero air
filter PTC fitting, firmly push the elbow into the
hole in the center of the connector until it seats in
the connector. Refer to the figures at the left.
To remove the elbow from a PTC connector, push
and hold the spring-loaded collar inwards, then
simultaneously withdraw the tubing/elbow. Refer
to the figures at the right.
3.3 Zero Air Filter Service Life
The monitor will periodically (up to 4 minute intervals) draw clean air from an intake port on the side of the
chassis. The external zero air (charcoal) filter (P/N 3015-5722) must be connected to this purge port per Section
3.2 in order to scrub any ambient refrigerant present in the area of operation. When the filter is saturated and can
no longer absorb refrigerant, refrigerant can pass thru and create an offset on subsequent measurements, so
proper filter maintenance is important. The purge intake filter can operate continuously in a 10 ppm ambient for
up to 10 hours before measurement accuracy will be affected. For higher ambient levels the run time is reduced
proportionally. To avoid measurement errors Bacharach recommends the following purge filter replacement
intervals.
Approximate Ambient Refrigerant Level Filter Replacement Interval
0 ppm 6 months
5 ppm 250 hrs
10 ppm 200 hrs
20 ppm 150 hrs
100 ppm 100 hrs
The refrigerant monitor can detect a saturated filter during operation by sampling clean (0 ppm) air after the unit
has been purged in the presence of ambient refrigerant. A fault will occur (0100) if refrigerant is detected on the
purge port.
10 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
3.4 Connecting Gas-Sample, Exhaust and Purge Lines
3.4.1 Overview
A single gas-sample line needs to be run from the Refrigerant Monitor to the area to be monitored. If desired,
an optional exhaust line can be installed to vent refrigerant gas away from the monitor.
3.4.2 Connecting the Gas-Sample Line or Probe (Model 3015-5420)
To connect the gas-sample line to the monitor, simply push the tubing onto the elbow connector and attach the
elbow to the Gas Sample Port on the front of the monitor as shown in the illustration below.
The gas-sample line can be up to 50 ft (15.2 m) in length. All tubing bends should have a radius of no less than
5" to insure proper airflow. If kinks or obstructions occur in the line the monitor may not function properly.
NOTE: Every foot of tubing added to the sample probe increases the instrument response time by 1 second.
For best performance use the tubing provided with the instrument when possible.
The end of this line should be placed near the potential leak source and positioned to reduce the possibility of
mists, aerosols, oil, water, dust, or other contaminants being drawn into the monitor.
An ex
ternal filter (P/N 3015-5324) should be attached to the end of this line. See figure on page 11 for details.
3.4.3 Connecting the Gas-Sample Probe 3015-5694
If refrigerant monitor 3015-5696 was ordered the probe assembly is provided pre-assembled. Simply connect
the elbow to the gas sample port. See figure on page 11 for details.
3.4.4 Connecting the Exhaust Line
The optional exhaust line carries the exhausted gas sample away from the monitor. The exhaust line can be up
to 50 ft (15.2 m) in length. Ideally this line should terminate outdoors in a location that is not exposed to the
elements.
Connecting the Gas Sample Line or Probe
Instruction 3015-5466 (Rev 10) 11
Halogen Monitor (Bagless PGM-IR)
Connect the exhaust line to the monitor by firmly pushing the tubing into the Exhaust Port’s push-to-connect
(PTC) fitting. See below. If the exhaust line terminates outside the building, position the tubing so that no water
or moisture can enter the line. Note that this line does not require a termination filter.
To connect the exhaust line to the exhaust port’s
PTC fitting, firmly push the appropriate tubing into
the hole in the center of the connector until it seats
in the connector. Refer to the figures at the left.
To remove tubing from a PTC connector, push and
hold the spring-loaded collar inwards, then
simultaneously withdraw the tubing. Refer to the
figures at the right.
3.4.5 Connecting Zero Air Inlet to an External Purge Line (Optional)
If using the charcoal filter assembly a purge line is not required.
The purge line provides the same function as the charcoal filter, supplying clean air (0 ppm target gas
concentration) into the monitor for the purpose of purging the monitor and setting its baseline reading.
The zero air inlet can be up to 50 ft (15.2 m) in length. This line should terminate in an area known to contain
clean (0 ppm) air. To connect the purge line to the monitor, simply push the tubing into the Purge Air Inlet Port.
If the purge line terminates outside the building, position the tubing so that no water or moisture can enter the
line.
3.5 Gas Detector Operat ion
CAUTION: Operate the monitor in its horizontal position (handle facing upwards). Tilting the
monitor to a vertical position while in operation may cause inaccurate measurements to occur.
Turn ON the monitor as follows:
1. Lift up the shield located in front of the handle
2. Press the green power ON/OFF toggle switch.
3. Observe monitor’s firmware version is briefly displayed.
4. Observe the monitor starts counting down its warm-up period of
300 seconds (5 minutes).
Observe the following as the monitor makes gas measurements in the area being sampled:
• MEASURE indicates when the monitor is actively measuring the level of refrigerant gas at the sampling
point. The measurement cycle runs for 4 minutes.
A log of up to 200 previous measurements can be viewed using the PPM LOG function as described on
page 14.
• PURGE indicates when the monitor is resetting its infrared detector to a baseline of 0 ppm. The purge
cycle runs for 10 seconds.
Work with gas alarms and system faults as follows:
12 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
included in the replacement kit, as the new replacement battery and cable may differ from the
ALARM (red) light turns ON if the detected gas level exceeds a programmed alarm point.
An audible alarm also sounds if the AUDALRM function is activated. Pressing the front panel
SILENCE button turns OFF the audible alarm, but the ALARM light will continue to flash for as long
as the detected gas level is above the alarm point. The audible alarm will reactivate if the gas-alarm
condition is not cleared within the time period set by the SILENCE function (refer to text starting on
page 14).
FAULT (yellow) light turns ON if a fault occurs (see Fault Code list on page 18). An audible alarm also
sounds if the AUDALRM function is activated. Pressing the front panel SILENCE button turns OFF the
audible alarm, but the FAULT light continues to flash for as long as the fault is present. The audible
alarm will reactivate if the fault condition is not cleared within the time period set by the SILENCE
function (refer to page 14). Both the FAULT light and audible alarm will automatically turn OFF after
the cause of the fault has been eliminated. A log of the last 30 fault events can be viewed using the
monitor’s FAULTS function (page 17).
3.6 Battery Charging and Using
IMPORTANT: If you replace the original PGM-IR battery, refer to the installation instructions
original cable and battery.
IMPORTANT: Cables and sockets are sized appropriately. As general rules of thumb:
• Note the initial orientation of your power cable, and
• Never force a connector into a socket.
3.6.1 Charging the Battery
The monitor is powered by a rechargeable battery pack located in a pouch on the side of the monitor’s soft
carrying case. The battery pack can be recharged at any time, regardless of the battery’s current charge state. The
lithium-ion battery will likely be partially charged. However, you should fully charge the battery prior to operating
the PGM-IR. Refer to the battery manufacturer’s instruction sheet for the proper charging procedure.
3.6.2 Using the Battery
To properly use the battery, follow the steps below.
1. The PGM-IR is designed f o r a 16VDC input . S et batt ery voltage output to 16V (r ef er to the ba ttery
manufacturer’s instruction sheet for details).
2. The battery pack provided with your PGM-IR us es a power cable with a str aight connect or and a
90-degree elbow connec tor. The battery provided wit h your PGM-IR may differ s lightly from the
photos shown in this manual, however, the 90-degree elbow connector must ALWAYS be the
connector used to supply power to the PGM-IR. Refer to the figure below.
To PGM-IR
3. Ensure that the battery is powered ON per the instruction label on the battery pack.
4. Verify that the battery is properly connected to the PGM-IR (see above).
A fully charged battery pack will power the monitor for a minimum of 8 hours.
Instruction 3015-5466 (Rev 10) 13
Halogen Monitor (Bagless PGM-IR)
ALM ACK
>LOG INT AUDALRM
LOOP CLOCK
>GASTYPE SPILLVL
ALARMS DIAGNOS
VERSION x.xx
3.7 Display Screens
3.7.1 Initial Power ON
When the monitor is first powered ON, all front panel lights turn ON and a splash screen appears showing the
monitor’s current firmware revision level. After a brief moment the Warm Up screen is displayed along with the
front panel ON light (green) blinking.
The monitor requires 5 minutes to warm up from a cold start; after which, the ON light glows steady and the
Data Display screen appears.
FIRMWARE
WARM UP
3.7.2 Data Display Screen
During normal operation the Data Display screen shows when the monitor is performing the following functions:
ME
ASURE
indicates that the monitor is actively measuring the refrigerant gas level at the
sample point. To reset the peak value to zero, press the
PURGE is displayed when the monitor is resetting its infrared detector to a baseline ppm value
using fresh air that is being drawn in through the Purge Air Inlet Port. This purging process is
performed on an “as needed” basis, which is normally once every 6 to 8 minutes.
PRES CHK
done to ensure the accuracy of the gas measurement under varying atmospheric conditions. This
pressure check is performed every 30 minutes.
is displayed when the monitor is performing an atmospheric pressure check, which is
EN
TER
button.
3.7.3 Function Screens
The Function screens are used to set up the monitor and display stored data. From the Data Display screen,
press any one of the four arrow buttons to display the first Function Menu screen. Next, use the Keypad buttons
to move the arrow (>) until it points to the desired function, and then press the ENTER button to select that
function.
>PPM LOG FAULTS
LEAKLVL EVACLVL
>SILENCE
ZONETEMP
Once a function has been selected, use the Keypad to scroll through the displayed data or to change a
parameter associated with that function. Press ENTER to save any newly entered parameters. Press the ESC
button to return to the previous screen without saving.
Note that if no buttons are pressed within 90 seconds after selecting a function, the unit returns to the Data
Display screen.
14 Instruction 3015-5466 (Rev 10)
>P-CHK
Halogen Monitor (Bagless PGM-IR)
– Contains records of the last 200 measurements. Each
record shows the measurement’s date, time, and ppm level.
LOG INT
function. After all 200 locations are filled the newest entries overwrite
buttons to change the record number by
buttons to change the record
Clearing the PPM and
ALARMS –
,
,
–
.
.
DIAGNOS – Enters the dia gnostic f unctio n. Refer to section 3.13
–
.
500 PPM
REFRIGERANT
07/11/05 12:37
07/11/05 15:35
PPM LOG
Measurements are logged at an interval determined by the
the oldest entries.
Use the Keypad Up and Down
a factor of 1. Use the Right and Left
number by a factor of 10. Press ESC to return to the previous screen.
The PPM Log can be cleared per the Section “
Faults Data” on page 19.
Contains records of the last 30 alarm events, with the
monitor’s most recent alarm being shown when the Alarm screen is
first displayed. After 30 events have been recorded, the newest
record overwrites the oldest. Each record displays either LEAK, SPILL
or EVAC including the date and time the alarm occurred. Use any of
the Keypad buttons to scroll through the other alarm records. Press
ESC to return to the previous screen.
The ppm levels at which alarms occur are set using the LEAKLVL
SPILLLVL, and EVACLVL functions.
FAULTS
Contains records of the last 30 fault events. The most
recent event is displayed when the Fault screen is first displayed
After 30 events have been recorded, the newest record overwrites
the oldest. Each record lists an event’s numeric fault code (refer to
Section 3.8) plus the date and time at which the event occurred. Use
any of the Keypad buttons to scroll through the other fault events
Press ESC to return to the previous screen.
#025 7PPM @
#15 <1000> @
To the right, record #15 shows that a Purge Flow Fault (fault code
<1000>) occurred on 07/11/2005 at 12:37 PM.
on page 19.
GAS TYPE – Displays refrigerant gas as the gas being monitored. No
other gas types are available for selection.
LEAKLVL/RANGE
Sets the Leak Alarm level, adjustable from 1 to
1999 ppm. Factory default is 500 ppm. The Leak Alarm level cannot
be set higher than either the Spill or Evacuate Alarm levels. Use the
Keypad to set the desired Leak Alarm level, and then press ENTER to
save that level and return to the previous screen.
When the LEAK DETECTOR option is set in AUDALRM the user menu
will display the word RANGE in place of the word LEAKLVL. Adjust the
value to correspond to the maximum concentration to be detected
The instrument will beep and blink the ALARM light proportional to
the gas concentration present.
Instruction 3015-5466 (Rev 10) 15
SELECT GAS TYPE
EDIT LEAK LEVEL
Halogen Monitor (Bagless PGM-IR)
–
–
,
–
–
SQUELCH -
25 degC
5 PPM
0030 sec
07/11/05 15:30
OFF
0001 min
1000 PPM
EDIT SPILL LEVEL
700 PPM
SPILLLVL – Sets the Spill Alarm level, adjustable from no
lower than the Leak Alarm level to a maximum value of
1999 ppm, but not higher than the Evacuate Alarm level.
Factory default is 700 ppm. Use the Keypad to set the
desired Spill Alarm level, and then press ENTER to save that
level and return to the previous screen.
EVACLVL – Sets the Evacuate Alarm level, adjustable from no
lower than the Spill Alarm level to 1999 ppm. Factory default is 1000
ppm. Use the Keypad to set the desired spill level alarm level, and
then press ENTER to save that level and return to the previous
screen.
LOG INT
Sets the interval at which measurements are logged to
memory from 1 to 9999 minutes. Factory default is 1 minute. The
logged measurements can be viewed using the PPM LOG function.
Use the Keypad to enter the desired value, and then press ENTER to
save that value and return to the previous screen.
AUDALRM
Allows the monitor’s internal audible alarm to be
associated with any function of the monitoring system. Factory
default is OFF. Use the Keypad to select the desired audible alarm
function, and then press ENTER to save that value and return to the
previous screen.
Audible Alarm Settings: OFF, ANY ALARM, SYSTEM FAULT, LEAK
ALARM, SPILL ALARM, EVAC ALARM, MONITOR STOPPED, LEAK
DETECTOR.
NOTE: MONITOR STOPPED indicates there is a critical system fault
and the monitor is no longer functioning correctly.
CLOCK
Sets the monitor’s date and time. Use the Keypad to
enter the correct date and time, and then press ENTER to save those
values and return to the previous screen. Note that time is displayed
in a 24 hour format, while the date is displayed as mm/dd/yy.
EDIT EVAC LEVEL
LOG INTERVAL IS
AUDIBLE ALARM IS
SET DATE & TIME
SILENCE
Sets the length of time the internal audible alarm is
turned OFF when the front panel SILENCE button is pressed. The
factory default is 30 seconds. If the cause of the gas-alarm has not
been cleared at the end of this time period, the internal audible
alarm will reactivate. Use the Keypad to enter the desired time
period, and then press ENTER to save that value and return to the
previous screen.
Sets a value of between 0.0 and 100 ppm that prevents
the display of measurements below that value. Factory default is 0
ppm. For example, if the squelch setting is set to 5 ppm, then the
monitor will not display measurements that are below that value. Use
the Keypad to enter the desired value, and then press ENTER to save
that value and return to the previous screen.
ZONETEMP - Used to enter the temperature of the area being
monitored in °C, thus giving a more accurate ppm reading. The factory
default is 25°C. Use the
and then press
screen.
ENTER
16 Instruction 3015-5466 (Rev 10)
K
eypad
to enter the desired temperature,
to save that value and return to the previous
SILENCE TIMEOUT
SQUELCH BELOW
TEMP AT ZONE =
Halogen Monitor (Bagless PGM-IR)
–
latching operation. Use the up and down arrow keys to toggle
. To
combination of two or more faults, then continue to use the Keypad
12 SAMPLE FLOW
07/11/05 09:00
07/11/05 08:17
MANUAL
-0.02dif <1000>
1.000
CAL -
function is to be used ONLY with instructions from a Bacharach
Service Center. Factory default is 1.000.
P-CHK
manifold pressure and the stored ambient pressure in psia, along
with the difference between these two pressures and the current
fault code. Refer to Section
ALM ACK – The ALM ACK (alarm acknowledgement) function
programs the alarm light and audible alarm for latching or non-
between the two settings.
Non-latching (The alarm light and audible alarm will automatically
shut off when the gas level drops below its alarm set point).
Latching (The alarm light and audible alarm remain on and will not
shut off until the alarm condition is manually acknowledged.)
Used to change the monitor’s calibration factor. This
The Pressure Check function displays the current
3.13.
CALFACTOR
14.07 * AMB14.05
ALM ACK MODE
3.8 Working with System Faults
3.8.1 Functional Overview
If a system malfunction occurs (see Fault Code list, Page 18), the front panel FAULT light will flash and the audible
alarm, if activated (see AUDALRM function), will start beeping.
3.8.2 Clearing / Silencing a System Fault
The FAULT light and audible alarm will automatically turn OFF after the cause of the fault has been eliminated.
Pressing the SILENCE button while a fault condition still exists causes the internal audible alarm to turn OFF for a
period of time as set by the SILENCE function (refer to Function Screens on page 16). The front panel FAULT light
will continue to flash as a reminder that a fault condition still exists. At the end of the silence period if the cause
of the fault has not been corrected the audible-alarm circuit will reactivate.
3.8.3 Viewing the Faults Log
From the Data Display screen, press any of the Keypad buttons to display the first Function Menu screen. Next,
use the Keypad buttons to move the arrow (>) until it points to the FAULTS function, and then press the ENTER
button to display the Faults Log screen.
The Faults Log screen shows the monitor’s current fault status. If the
fault is still present when the FAULTS function is selected, then the
current cause of the fault is displayed along with the date and time it
occurred. If the cause of the fault has been cleared, then the Faults Log
screen will show <0000> along with the date and time the fault was
cleared. Use the Keypad buttons to scroll through the fault log. In the
screens shown to the left, record #03 shows that a Sample Flow Fault
(fault code <0800>) occurred on 07/11/2005 at 08:17 AM, while record
#04 shows that the fault was cleared on 07/11/2005 at 9:00 AM.
The cause of the fault is identified by a numeric fault code
the fault code into a text description of the fault, first press the ENTER
button and then use the Keypad buttons to scroll through the display
until the text description of the fault appears. If the fault code is a
#03 <0800> @
#04 <0000> @
convert
FAULT CODE<1800>
Instruction 3015-5466 (Rev 10) 17
Halogen Monitor (Bagless PGM-IR)
).
).
<
>
.
;
13 PURGE FLOW
buttons until all fault text descriptions have been displayed. For
example, the fault code <1800> represents the combination of both a
Sample Flow <0800> and a Purge Flow <1000> fault as shown to the
left.
The Fault Log can be cleared as described under the heading Clearing
the PPM and Faults Data (Section 3.11).
FAULT CODE<1800>
3.8.4 Fault Codes
Fault codes are additive. For example, a fault code of <0003> indicates that both a Box Temperature Fault
<0001> and a Bench Temperature Fault <0002> have occurred.
Code Type Description
<0001>
<0002>
<0004>
0080
<0100>
<0200>
<0400> A/D Fault
<0800>
<1000>
<4000>
<8000>
Box Temperature
Fault
Bench Temperature
Fault
Manifold Pressure
Fault
Over Range Fault
Zero Filter Fault
Gain Set Fault
Sample Flow Fault
Purge Flow Fault
Zero Range Fault
Clipping Fault
Enclosure temperature is outside normal range (or IR detector has failed
Check that the monitor is not being subjected to extreme temperatures.
Use the
Optical sensor is outside normal operating range (or IR detector has failed
Check that the monitor is not being subjected to extreme temperatures.
The manifold pressure is outside its normal operating range (or IR detector
has failed). Enter the DIAG function and record ALL data. Call the factory
with this information for further instructions.
Monitor exposed to a gas level that exceeded 65,000 ppm
Indicates contamination in the charcoal filter. The filter may need to be
changed.
The digipot autotune sequence has failed. This fault will only occur on first
boot up or after a firmware upgrade. Call the factory for further
instructions.
A fault has occurred in the analog-to-digital circuitry. Contact the factory
with this information for further instructions.
Check for a restriction in the gas-sample inlet or exhaust; a blocked internal
filter; or a failed pump.
Check for a restriction in the gas-sample exhaust; a blocked internal filter
or a failed pump. Once the purge air stream has been restored, the
monitor will return to normal operation after it completes a purge cycle.
The IR detector’s output voltage is out of tolerance. Enter the
and record all data. Call the factory with this information for further
instructions.
The detector voltage may be out of tolerance. Use the
check the IR detector voltage. Call the factory with this information for
further instructions.
DIAG function to check the Box Temperature.
DIAG
DIAG
function
function to
18 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
3.9 Working with the Gas Alarm (Area Monitoring)
3.9.1 Gas-Alarm Light
If the detected gas level reaches the gas-alarm level as set by the ALRMLVL function, the front panel ALARM
(red) light will flash and the audible alarm, if activated (refer to AUDALRM function in the Function Screens
section on page 15), will start beeping. The ALARM light and audible alarm will automatically turn OFF once the
detected gas level drops below the gas-alarm level.
3.9.2 Silencing a Latching Gas Alarm
Once the gas-alarm circuit has been triggered, all alarm-configured indicators remain turned ON (even after the
detected gas level returns to normal) if the ALM ACK function is set to MANUAL. Press the SILENCE button to clear
all gas-alarm indicators after the cause of the alarm has been cleared and the detected gas level has dropped
below all alarm levels. If the ALM ACK function is set to AUTO, the alarm-configured indicators will automatically
shut off when the gas level drops below its alarm set point.
Pressing the SILENCE button while the alarm circuit is activated causes the audible alarm to turn OFF for a period
of time as set by the SILENCE function. The front panel ALARM light will continue to flash as an indication that
an alarm condition still exists. At the end of the silence period if the detected gas level is still above the gasalarm level the audible alarm will reactivate.
3.10 Working with the Gas Alarm (Leak Detector Option)
3.10.1 Gas-Alarm Light Plus Audio Feedback
When the LEAK DETECTOR option is selected in the AUDALRM menu, the instrument provides a ticking sound via
the internal beeper and flashes the red ALARM LED at a rate proportional to the displayed reading. At 0 ppm the
rate is approximately 1 per second. The range over which the tick sound is scaled is set using the “RANGE” menu
(taking the place of the LEAKLVL menu option).
During a purge cycle the tic sound is suspended to let the operator know that the instrument is not sampling.
Purging typically completes in approximately four seconds.
If power is removed or the product turned off, “Leak Detector Mode” remains set.
It is not possible to silence the Gas Alarm when LEAK DETECTOR operation is selected.
3.11 Clearing the PPM and Faults Data
Up to 200 gas measurements and 30 fault events are stored by the monitor.
To clear stored data, first display the data to be cleared by selecting the PPM LOG or FAULTS function per
Section 3.7.3 on page 14. Next, press both the ENTER and Keypad Right buttons at the same time. A single, long
tone should be heard when the data has been successfully cleared.
3.12 Working with the DIAG Function
3.12.1 Overview
The DIAG function displays sensor data and status information useful to a service technician for troubleshooting
various fault conditions. Explanations of the data shown in these screens are given below.
3.12.2 Keypad Functions
From the Data Display screen, press any one of the Keypad buttons to display the first Function Menu screen.
Next, use the Keypad buttons to move the arrow (>) until it is next to the DIAG function, and then press ENTER
to display the first of two Diagnostic screens.
Instruction 3015-5466 (Rev 10) 19
Halogen Monitor (Bagless PGM-IR)
0.00004au 4.210v
Avg. Absorption Unit ∗ Detector Vo ltag e
29.05cD 14.58psi
Detector Temperature °C ∗ Pressure Reading
35.40cB 14.59psi
Noise Fault Code
Press the Keypad Up button to toggle between the First and Second Diagnostic screen.
3.12.3 First Diagnostic Screen
4.20885v <0000>
0.00075n <0000>
In the First Diagnostic screen, the user can toggle between displaying Sensor Voltage / Detector Temperature,
and Noise / Box Temperature by pressing the Keypad Right button.
Screen Item Description
Sensor Voltage This is the current peak-to-peak output of the IR detector. In the absence of gas
this value can range from 3.90000V to 4.50000V.
Noise The Noise value is a 16 point running average of the noise portion of the IR
detector’s output. This reading is valuable mainly when gas is NOT present.
Detector Temperature This is the current detector temperature in °C.
Box Temperature This is the current internal enclosure temperature in °C.
Bench Voltage Fault Cod e
Box Temperature °C ∗ Pressure Reading
Fault Code Current fault code. A value of <0000> indicates that no faults are being detected.
Pressure Reading This is the pressure as measured every purge cycle with the sample pump off and
the gas-sample inlet open. Its value is weather and altitude dependent and can
range from 10.0 to 15.5 PSIA.
Purge Valve Asterisk (∗)
The purge valve can be opened and closed by pressing the Keypad Left button. An
asterisk appears on the display when the purge valve is open causing the monitor
to draw air from its purge-air port.
3.12.4 Second Diagnostic Screen
0.1ppm 0.01
Screen Item Description
PPM Level
Parts Per Million Level is the current detected gas level, and is the volume
concentration referenced to standard temperature and pressure.
Average Absorption Unit
This is the optical absorbency. In the absence of gas the absorbency is
0.00000 au. When sampling gas, its value varies proportionally with the gas
concentration.
PPM Level µMole/Liter
µMoles/Liter This is the absolute concentration in micro-moles per liter of gas.
Detector Voltage
Purge Valve Asterisk (∗)
This is a running average of the IR detector’s sensor voltage.
The purge valve can be opened and closed by pressing the Keypad Left button.
An asterisk appears on the display when the purge valve is open causing the
monitor to draw air from its purge-air port.
20 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
-0.16dif <0000>
Pressure Difference Fault Code
2ndUNIT >PRINT
PLOT PC-DUMP
3.13 Working with the P-CHK Function
3.13.1 Overview
The P-CHK function (Pressure Check function) (see section 3.7.3 on page 16) is useful to a service technician for
troubleshooting a flow-fault problem. The monitor will trigger a flow fault if the pressure drop from ambient is
less than 0.2 psi during a purge cycle, and 0.5 psi during a measurement cycle.
3.13.2 Keypad Functions
From the Data Display screen, press both the Keypad Left and Right buttons at the same time to display the
first Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it points to the P-CHK
function, and then press ENTER to display the Pressure screen.
The Keypad Left button toggles the purge valve open and closed. Note that an asterisk (*) appears when the
purge valve is open causing the monitor to draw air from the purge-air bag.
The Keypad Down button toggles the pump ON and OFF.
Pressing the ENTER button stores the current manifold pressure shown on the left to the ambient pressure
shown on the right (must be done with the pump OFF).
3.13.3 Screen Display
14.59 AMB14.75
Current Manifold Pressure ∗ Stored Ambient Pressure
Screen Item Description
Current Manifold Pressure
Stored Ambient Pressure
Pressure Difference
Fault Code
Purge Valve Asterisk (∗)
Current manifold pressure in psia.
Stored ambient pressure in psia.
Difference between the current manifold pressure and the stored ambient pressure.
Current fault code (Page 18).
The purge valve can be opened and closed by pressing the Keypad Left button.
An asterisk appears on the display when the purge valve is open causing the
monitor to draw air from the purge-air bag.
3.14 Print/Plot Logged Gas Levels
A printout or plot of the last 200 ppm measurements can be made by connecting the optional Bacharach printer
and printer cable to the monitor as follows. (Refer to Replacement Parts section on page 28 for printer and cable
part numbers).
1. For a printout or plot to be made, the monitor must have been set up to record gas measurements using
the LOG INT function.
2. Interconnect the RS-232 connectors located on the printer and monitor.
3. If not already done, refer to the printer manual and set the printer’s communication parameters to:
• Data bit = 8
• Parity = None
• Baud rate = 19200
• Handshaking = DTR
4. From the Data Display screen, press any Keypad button to display the
first Function Menu screen.
Instruction 3015-5466 (Rev 10) 21
Halogen Monitor (Bagless PGM-IR)
Next, use the Keypad buttons to move the arrow (>) until it points to either PRINT to produce a printout,
or PLOT to generate a plot.
5. Press ENTER to start the print/plot process.
3.15 Downloading Stored Data to a Personal Computer
Using the monitor’s PC DUMP feature, the last 200 refrigerant gas readings that were stored in memory can be
downloaded to a personal computer in ASCII text, comma-delimited format, which can then be imported into
most spreadsheet programs for analysis.
The following describes how to download data to a computer using Windows HyperTerminal as the
communications program. If a different operating system and/or communications program is being used, then
consult the appropriate instruction manuals for those products.
22 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
1. Install serial data cable P/N 104-4027 (straight through, 6 foot, DB9 male to DB9 female) between the
computer’s COM port and the analyzer’s RS-232 connector. (For computers having a 25-pin COM port,
either use a 25-pin to 9-pin adapter, or use a serial cable with appropriate connectors on each end.)
2. At the computer, start HyperTerminal by doing one of the following:
• If HyperTerminal has already been set up to communicate with the Refrigerant Monitor, then click Start,
point to Programs, point to Accessories, point to Communications, click HyperTerminal, and double-click
the file name or icon that has been associated with the Refrigerant Monitor.
• If HyperTerminal has never been run in association with the Refrigerant Monitor, then a new
HyperTerminal connection needs to be made as follows:
a) Click Start; click Run. In the Run box type “hypertrm.exe” and click OK. The New Connection
dialog box should appear.
b) Type in a New Connection Name such as “C
”. Click OK to select the default icon (if desired,
2N2
select a different icon before clicking OK). The Connect To dialog box should appear.
c) Click the Connect using drop-down menu and choose the COM port to which the analyzer is
connected. Then click OK to display the COM Properties dialog box for that COM port.
d) Set Port Settings to:
- Bits per second: 19200
- Data bits: 8
- Parity: None
- Stop bits: 1
- Flow control: None
Then click OK to display HyperTerminal’s main window.
e) Click File; click Save. This creates a file with an .ht extension in the folder C:\Program
Files\Accessories\Hyper Terminal, using the name that was entered in Step b.
3. After HyperTerminal is running: click Transfer, click Capture Text, and then click Start to accept the default
drive\directory\filename to which all received data will be stored as an ASCII text file.
Note: By default, the captured text file will be stored on the hard drive at C:\Program
Files\Accessories\HyperTerminal\CAPTURE.TXT. If desired, click Browse to select a different drive,
directory and filename. The next time data is captured, it will be stored under the same location and
filename.
Tip: Changing the filename extension to “CSV” (comma separated variable) will allow the file to be directly
opened in the spreadsheet program. For example, double clicking the filename CAPTURE.CSV in Windows
Explorer will automatically start Microsoft Excel and load the file.
4. From the Data Display screen, press both the Keypad Left and Right buttons at the same time to display
the first Function Menu screen. Next, use the Keypad buttons to move the arrow (>) until it points to PCDUMP, and then press the ENTER button to begin the download process.
5. Observe that the Refrigerant Monitor’s screen goes blank and that HyperTerminal displays the data as it is
being received. After all data has been transmitted, the Refrigerant Monitor re-displays the Function
Menu screen.
6. To stop capturing data and save it, click Transfer, click Capture Text, click Stop.
7. HyperTerminal and the connection to the Refrigerant Monitor can now be closed.
Instruction 3015-5466 (Rev 10) 23
Halogen Monitor (Bagless PGM-IR)
3.16 Importing Saved Data to a Spreadsheet
A text file that was created as described in Section 3.15 Downloading Stored Data to a Personal Computer can be
imported into spreadsheet programs that are capable of importing comma-delimited files.
The following describes how to generate a spreadsheet from a comma-delimited text file using Microsoft Excel.
If you are using a different spreadsheet program, then please refer to its instruction manual for information on
how to import comma-delimited text files.
Tip: If the text file was saved with the filename extension “CSV” a spreadsheet will automatically be created
when that file is opened in Microsoft Excel.
1. Start Microsoft Excel.
2. Click File, and then click Open to display the Open dialog box.
3. Change the “Files of type:” to Text Files. Then navigate to the directory containing the text file to be
imported.
4. Double-click the desired filename to display the Text Import Wizard – Step 1 of 3 dialog box.
5. Select the Delimited radio button; then click Next to display the Text Import Wizard – Step 2 of 3 dialog
box.
6. Under Delimiters, select the Comma check box. Then click Next to display the Text Import Wizard – Step 3
of 3 dialog box.
a. Click Finish to create the spreadsheet.
7. The following is a sample spreadsheet showing the Date (month/day/year) and Time (24 hr format) the data was
recorded, and the recorded PPM refrigerant gas Level:
5/30/2007 8:00 0
5/30/2007 8:01 74
5/30/2007 8:02 74
5/30/2007 11:17 300
5/30/2007 11:18 300
5/30/2007 11:19 305
24 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
4 Maintenance
4.1 Disassembly
When servicing the parts inside the Refrigerant Monitor, disassemble the monitor’s metal chassis as follows:
Items Required:
• Medium Phillips head screwdriver
Procedure:
1. Remove monitor and its battery pack from the soft carrying case.
2. Unplug battery pack from monitor.
3. Remove a total of 10 screws from the locations shown in the illustrations below.
4. Carefully separate the metal chassis.
Instruction 3015-5466 (Rev 10) 25
Halogen Monitor (Bagless PGM-IR)
4.2 Internal Particulate / Hydrophobic Filter
Replacement
Items Required:
• Replacement filter (P/N 07-1654)
• Medium Phillips head screwdriver
Procedure:
1. Disassemble the monitor’s metal chassis per Section 4.1.
2. See illustration below and locate the internal particulate/hydrophobic filters.
NOTE: The third filter at the pump exhaust does not require periodic replacement.
3. Pull off tubing from both ends of filter and remove filter from instrument.
4. Attach tubing to new filter.
5. Reassemble monitor.
PARTICULATE/HYDROPHOBIC FILTERS
26 Instruction 3015-5466 (Rev 10)
Halogen Monitor (Bagless PGM-IR)
4.3 Updating Firmware
An RS-232 connector, located on the top panel, is used to update the monitor’s firmware. Reprogramming the
instrument with updated firmware should be done by qualified service technicians only using instructions provided
by Bacharach.
4.4 Probe Filter Replacement
Probe assembly 3015-5694 includes an inline coalescing filter 3015-3071. This filter should be replaced after
every 50 hours of use, or anytime liquid is drawn into the probe. The filter includes an arrow that indicates the
direction of flow. Replace the filter by gently pulling the tubing from each end. Orient the arrow so that it
points toward the elbow connected to the refrigerant monitor.
IMPORTANT: If liquid has entered the coalescing filter 3015-3071 to the point where it has soaked it,
the internal filters must also be changed. Disconnect the probe and dry it out with clean compressed
air. Failure to properly clean and dry the probe, along with changing the internal filter could result in
instrument damage and void the warranty.
For refrigerant monitor 3015-5420, replace the external filter 3015-5324 every 50 hours or anytime it becomes
contaminated with liquid.
Instruction 3015-5466 (Rev 10) 27
Halogen Monitor (Bagless PGM-IR)
0007-1654
Hydrophobic Filter (internal)
3015-5722
Replacement Input Charcoal Filter Assembly (for 3015-5420 Units)
3015-3071
Replacement Coalescing Filter (for probe 3015-5694)
3015-4239
Replacement Pump
3015-4721
Replacement IR Sensor Kit
3015-5847
Replacement Battery Charger (for 87 Wh battery 3015-5743)
0304-3469
Replacement Power Cord (AUS)
0304-3470
Replacement Power Cord (EU)
3015-5326
Stainless Steel Tube
0304-2743
Tubing 0.250” O.D. (25 ft.)
0024-1400
IrDA Printer (includes printer, roll of thermal paper, 4 x AA batteries, manual)
0024-1310
Thermal printer paper, 5 rolls
3015-5753
Manifold replacement fitting
Fax: 724-334-5723
Fax: +353 1 284 6389
Fax: 905-470-8963
5 Parts and Service
5.1 Replacement Parts and Optional Accessories
Replacement Parts
Part Number Item Description
3015-2906 External Filter (fits onto probe tip)
3015-5324 External Filter Assembly
3015-5714 Replacement Input Charcoal Filter Assembly (for 3015-5696 Units)
0003-6182 Probe Tubing (order by the foot)
0204-0020 Battery (for main PCB board)
3015-5743 Replacement Battery Pack/Charger Kit (on Units 3015-5420, 3015-5696, 3015-8000, and 3015-8003)
3015-5757 Replacement Cable (connects battery to PGM-IR)
0304-3471 Replacement Power Cord (UK)
0304-3466 Replacement Power Cord (US)
3015-5842 Charcoal Filter Purge Tubing Replacement Kit (Moisture exchange tubing assembly and instructions)
Optional Accessories
Part Number Item Description
0104-4027 Computer Communications Cable (DB9 male to DB9 female)
0006-8733 Thermal printer paper, 1 roll
3015-4214 Cable (DB9 to RJ45)
5.2 Service Centers
Service and replacement parts can be obtained by contacting the Bacharach Service Centers listed
below. Access http://mybacharach.com/rmaform/ on the web for return materials authorization.
United States
Bacharach, Inc.
621 Hunt Valley Circle
New Kensington, PA 15068 USA
Phone: 724-334-5051
Ireland
Bacharach - Europe
114A Georges Street Lower
Dun Laoghaire, Dublin, Ireland
Phone: +353 1 284 6388
Canada
Bacharach - Canada
20 Amber St. Unit #7
Markham, Ontario L3R SP4 Canada
Phone: 905-470-8985
28 Instruction 3015-5466 (Rev 10)
Loading...
