CONGRATULATIONS ON CHOOSING
OUR MACHINE
Your machine is the most advanced computerized household sewing machine. To fully enjoy all the features incorporated, we suggest that you study the manual.
PLEASE READ BEFORE USING THIS MACHINE
For safe operation
1.Be sure to keep your eye on the needle while sewing. Do not touch the handwheel, thread takeup lever, needle, or other moving parts.
2.Remember to turn off the power switch and unplug the cord when:
•Operation is completed
•Replacing or removing the needle or any other parts
•A power failure occurs during use
•Maintaining the machine
•Leaving the machine unattended.
3.Do not store anything on the foot controller.
4.Plug the machine directly into the wall. Do not use extension cords.
For a longer service life
1.When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine near a space heater, iron, halogen lamp, or other hot objects.
2.Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage the case and machine, and should never be used.
3.Do not drop or hit the machine.
4.Always consult the operation manual when replacing or installing any assemblies, the presser feet, needle, or other parts to assure correct installation.
For repair or adjustment
In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local authorized Baby Lock retailer.
The contents of this manual and specifications of this product are subject to change without notice. For additional product information and updates, visit our web site at www.babylock.com
————————————————————————————————————————————————————
Important Safety Instructions
Please read these safety instructions before attempting to use the machine. This machine is intended for household use.
DANGER - To reduce the risk of electric shock:
1Always unplug the machine from the electrical outlet immediately after using, when cleaning, when making any user servicing adjustments mentioned in this manual, or if you are leaving the machine unattended.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons.
2Always unplug the machine from the electrical outlet when removing covers, lubricating, or when making any adjustments mentioned in the instruction manual:
•To unplug the machine, switch the machine to the symbol “O” position to turn it off, then grasp the plug and pull it out of the electrical outlet. Do not pull on the cord.
•Plug the machine directly into the electrical outlet. Do not use an extension cord.
•Always unplug your machine if the power is cut.
3 Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or water is spilled on the unit. Return the machine to the nearest authorized retailer or service center for examination, repair, electrical or mechanical adjustment. While the machine is stored or in use if you notice anything unusual, such an odor, heat, discoloration or deformation, stop using the machine and immediately unplug the power cord.
4 Always keep your work area clear:
•Never operate the machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot control free from the build up of lint, dust, and loose cloth.
•Do not store objects on the foot controller.
•Do not use extension cords. Plug the machine directly into the electrical outlet.
•Never drop or insert any object into any opening.
•Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
•Do not use the machine near a heat source, such as a stove or iron; otherwise, the machine, power cord or garment being sewn may ignite, resulting in fire or an electric shock.
1
———————————————————————————————————————————————————
5 Special care is required when sewing:
•Always pay close attention to the needle. Do not use bent or damaged needles.
•Keep fingers away from all moving parts. Special care is required around the machine needle.
•Switch the sewing machine to the symbol “O” position to turn it off when making any adjustments in the needle area.
•Do not use a damaged or incorrect needle plate, as it could cause the needle to break.
•Do not push or pull the fabric when sewing, and follow careful instruction when freehand stitching so that you do not deflect the needle and cause it to break.
6 This machine is not a toy:
•Your close attention is necessary when the machine is used by or near children.
•Do not use outdoors.
7 For a longer service life:
•When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine near a space heater, iron, halogen lamp, or other hot objects.
•Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage the case and machine, and should never be used.
•Always consult the operation manual when replacing or installing any assemblies, the presser feet, needle, or other parts to assure correct installation.
8 For repair or adjustment:
•If the Light unit (light-emitting diode) is damaged, it must be replaced by authorized retailer.
•In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local authorized Baby Lock retailer.
Use this machine only for its intended use as described in this manual.
Use accessories recommended by the manufacturer as contained in this manual.
Save these instructions.
The contents of this manual and specifications of this product are subject to change without notice. For additional product information, visit our web site at www.babylock.com
2
————————————————————————————————————————————————————
Contents |
|
Important Safety Instructions .............................................................................................. |
1 |
Introduction ........................................................................................................................ |
6 |
Sewing Machine Features .................................................................................................... |
6 |
Accessories.......................................................................................................................... |
7 |
Included accessories ......................................................................................................................................... |
7 |
Optional accessories ......................................................................................................................................... |
8 |
Names of Machine Parts and Their Functions ..................................................................... |
9 |
Front view ......................................................................................................................................................... |
9 |
Needle and presser foot section ..................................................................................................................... |
10 |
Right-side/rear view ........................................................................................................................................ |
10 |
Operation buttons ........................................................................................................................................... |
11 |
Operation panel.............................................................................................................................................. |
12 |
GETTING READY |
13 |

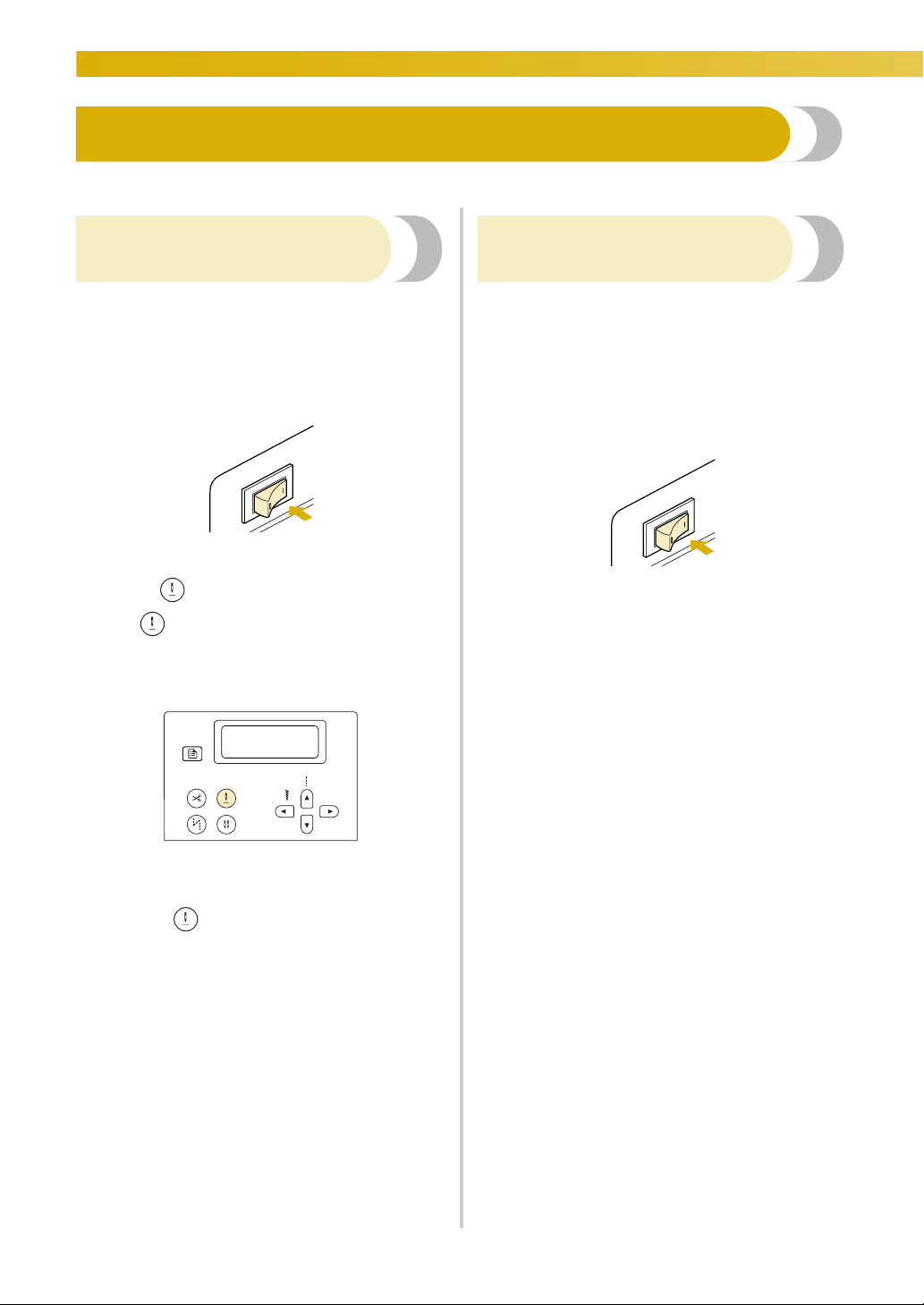

Turning the Machine On/Off............................................................................................. |
14 |
Power supply precautions ............................................................................................................................... |
14 |
Turning on the machine .................................................................................................................................. |
15 |
Turning off the machine .................................................................................................................................. |
15 |
Understanding the LCD Screens........................................................................................ |
16 |
Changing the Machine Settings ......................................................................................... |
17 |
Changing the settings ...................................................................................................................................... |
17 |
Adjusting the brightness of the LCD ............................................................................................................... |
19 |
Changing the screen language......................................................................................................................... |
19 |
Winding/Installing the Bobbin........................................................................................... |
20 |
Bobbin precautions ......................................................................................................................................... |
20 |
Winding the bobbin ........................................................................................................................................ |
20 |
Installing the bobbin ....................................................................................................................................... |
24 |
Upper Threading ............................................................................................................... |
26 |
Threading the upper thread ............................................................................................................................. |
26 |
Threading the needle ...................................................................................................................................... |
29 |
Threading the needle manually (without using the needle threader) ............................................................... |
31 |
Using the twin needle ..................................................................................................................................... |
31 |
Pulling up the bobbin thread........................................................................................................................... |
34 |
Replacing the Needle ........................................................................................................ |
35 |
Needle precautions ......................................................................................................................................... |
35 |
Needle types and their uses............................................................................................................................. |
36 |
Checking the needle ....................................................................................................................................... |
37 |
Replacing the needle....................................................................................................................................... |
37 |
Replacing the Presser Foot ................................................................................................ |
39 |
Presser foot precautions .................................................................................................................................. |
39 |
Replacing the presser foot ............................................................................................................................... |
39 |
Adjusting the pressure of the presser foot ....................................................................................................... |
41 |
Removing the presser foot holder ................................................................................................................... |
41 |

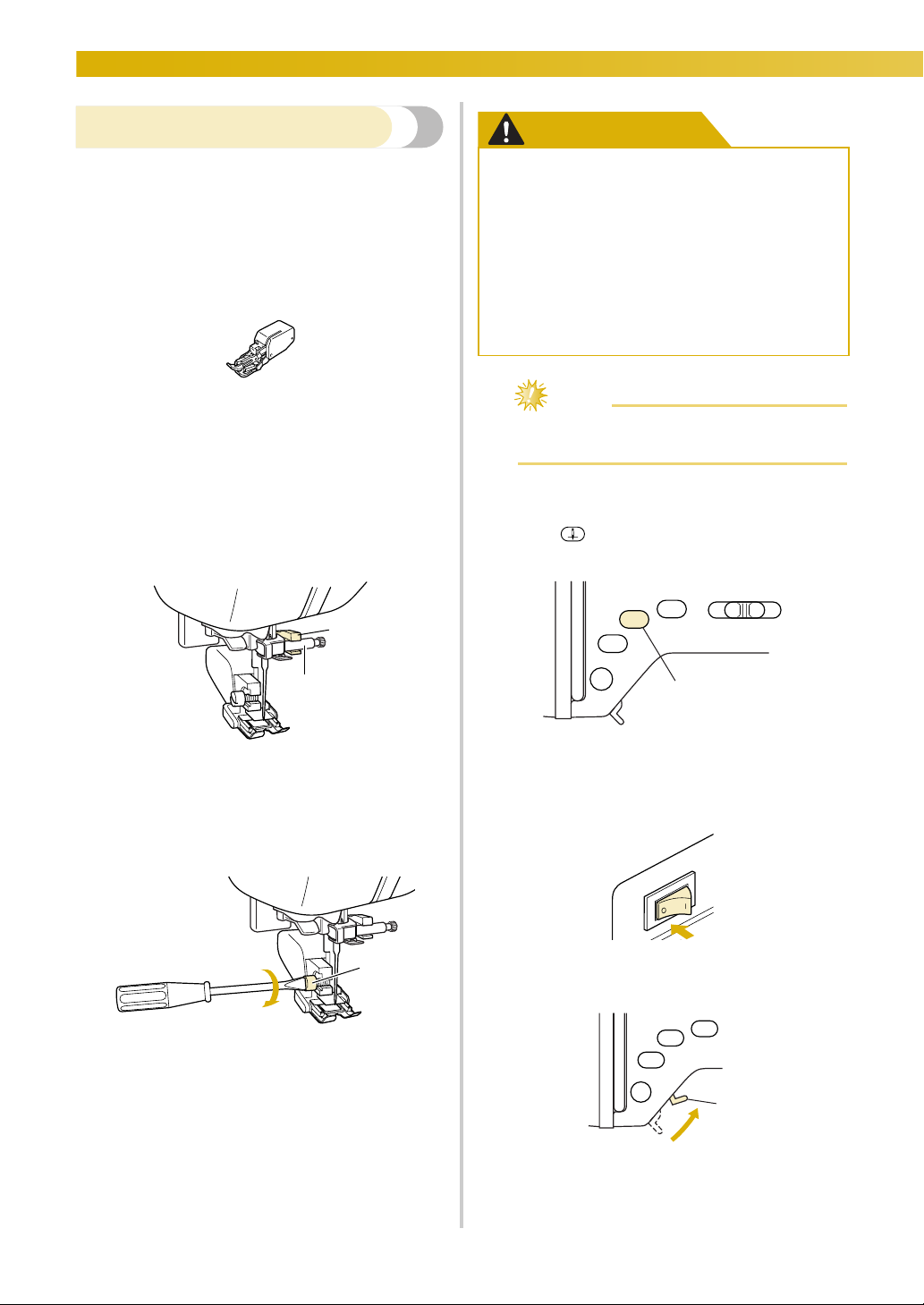

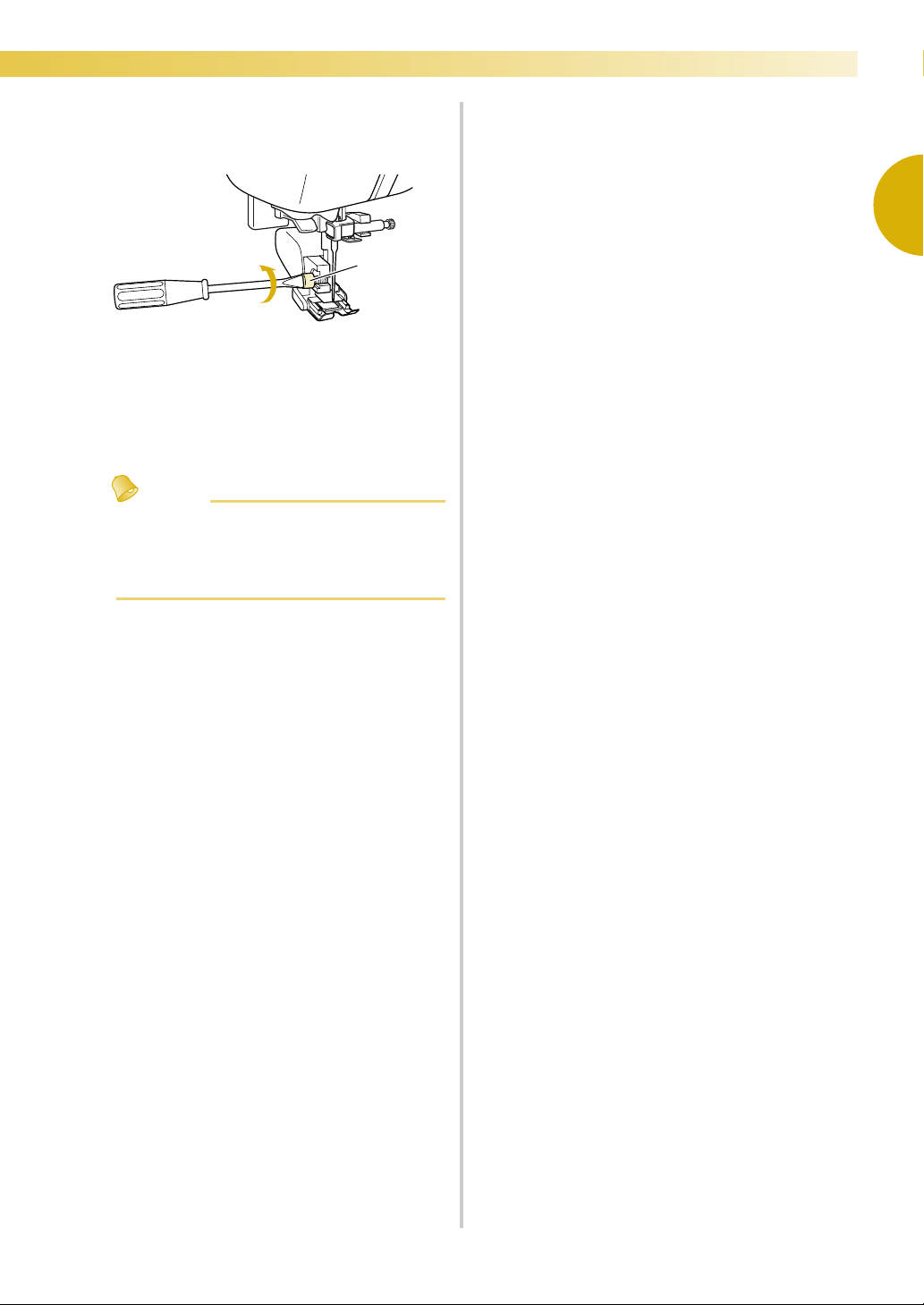

Using the walking foot .................................................................................................................................... |
42 |
Sewing Cylindrical or Large Pieces.................................................................................... |
44 |
Stitching cylindrical pieces.............................................................................................................................. |
44 |
Sewing large pieces of fabric ........................................................................................................................... |
44 |
3
———————————————————————————————————————————————————
SEWING BASICS |
47 |
Sewing............................................................................................................................... |
48 |
General sewing procedure .............................................................................................................................. |
48 |
Positioning the fabric ...................................................................................................................................... |
49 |
Starting to sew................................................................................................................................................. |
50 |
Securing the stitching ...................................................................................................................................... |
52 |
Cutting the thread ........................................................................................................................................... |
53 |
Adjusting the Thread Tension ............................................................................................ |
55 |
Changing the tension of the upper thread ....................................................................................................... |
55 |

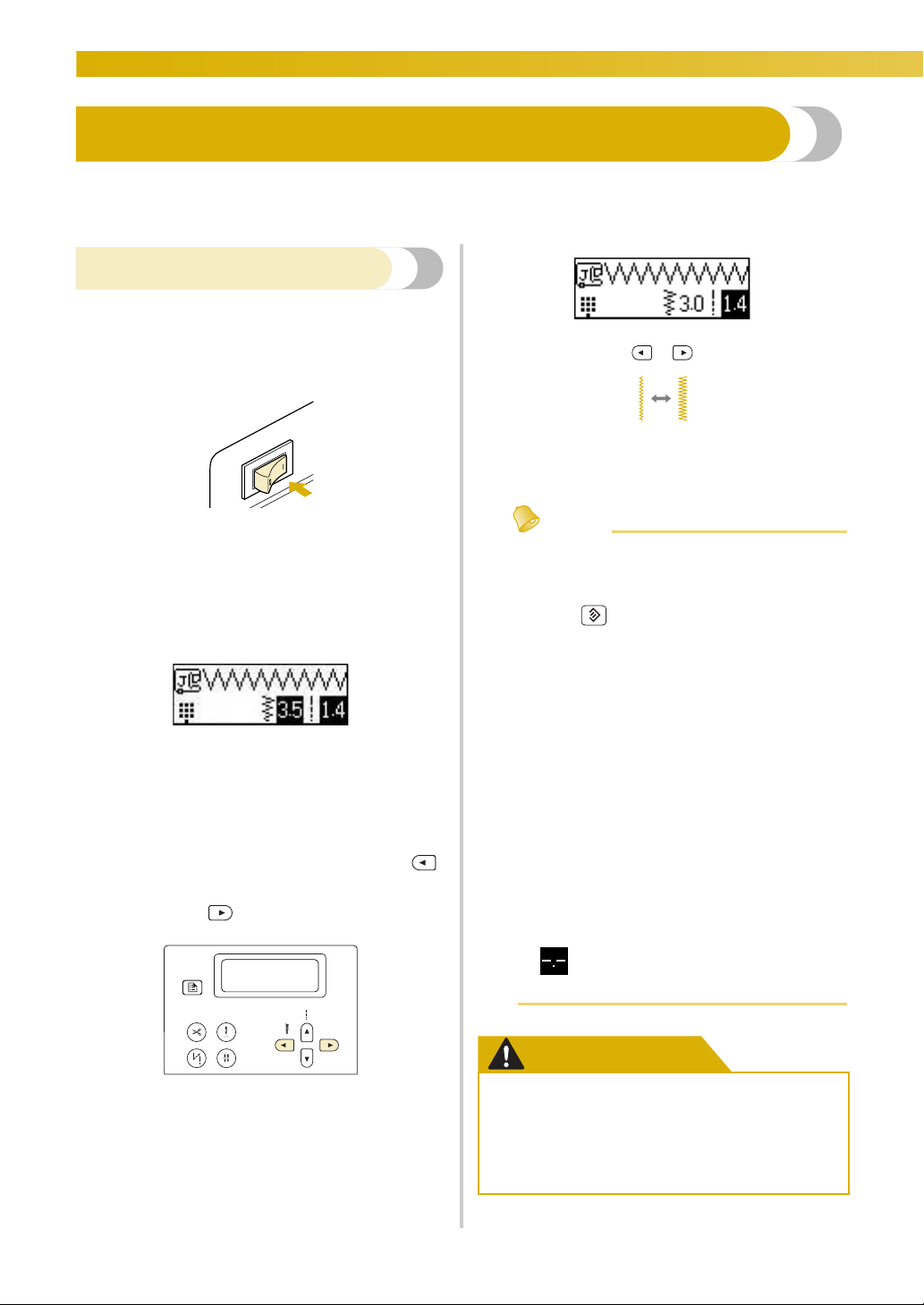

Adjusting the Stitch Width and Length .............................................................................. |
56 |
Adjusting the stitch width ................................................................................................................................ |
56 |
Adjusting the stitch length ............................................................................................................................... |
57 |
Useful Functions................................................................................................................ |
58 |
Changing the needle stop position ................................................................................................................. |
58 |
Automatically sewing reverse/reinforcement stitches ...................................................................................... |
58 |
Automatically cutting the thread .................................................................................................................... |
60 |
Saving stitch settings ....................................................................................................................................... |
61 |
Hands-free raising and lowering of the presser foot ........................................................................................ |
62 |
Useful Sewing Tips ............................................................................................................ |
63 |
Trial sewing .................................................................................................................................................... |
63 |
Changing the sewing direction ........................................................................................................................ |
63 |
Sewing curves ................................................................................................................................................. |
63 |
Sewing thick fabrics ........................................................................................................................................ |
64 |
Sewing thin fabrics.......................................................................................................................................... |
64 |
Sewing stretch fabrics...................................................................................................................................... |
64 |
Sewing leathers or vinyl fabrics ...................................................................................................................... |
65 |
Sewing an even seam allowance .................................................................................................................... |
65 |
UTILITY STITCHES |
67 |
Selecting Stitching ............................................................................................................. |
68 |
Selecting stitch types and patterns .................................................................................................................. |
68 |
Selecting stitching ........................................................................................................................................... |
70 |
Overcasting Stitches.......................................................................................................... |
74 |
Sewing overcasting stitches using overcasting foot “G” ................................................................................... |
74 |
Sewing overcasting stitches using zigzag foot “J”............................................................................................. |
75 |
Sewing overcasting stitches using the optional side cutter ............................................................................... |
76 |
Basic Stitching ................................................................................................................... |
78 |
Basting ............................................................................................................................................................ |
78 |
Basic stitching ................................................................................................................................................. |
79 |
Blind Hem Stitching .......................................................................................................... |
80 |
Buttonhole Stitching/Button Sewing.................................................................................. |
82 |

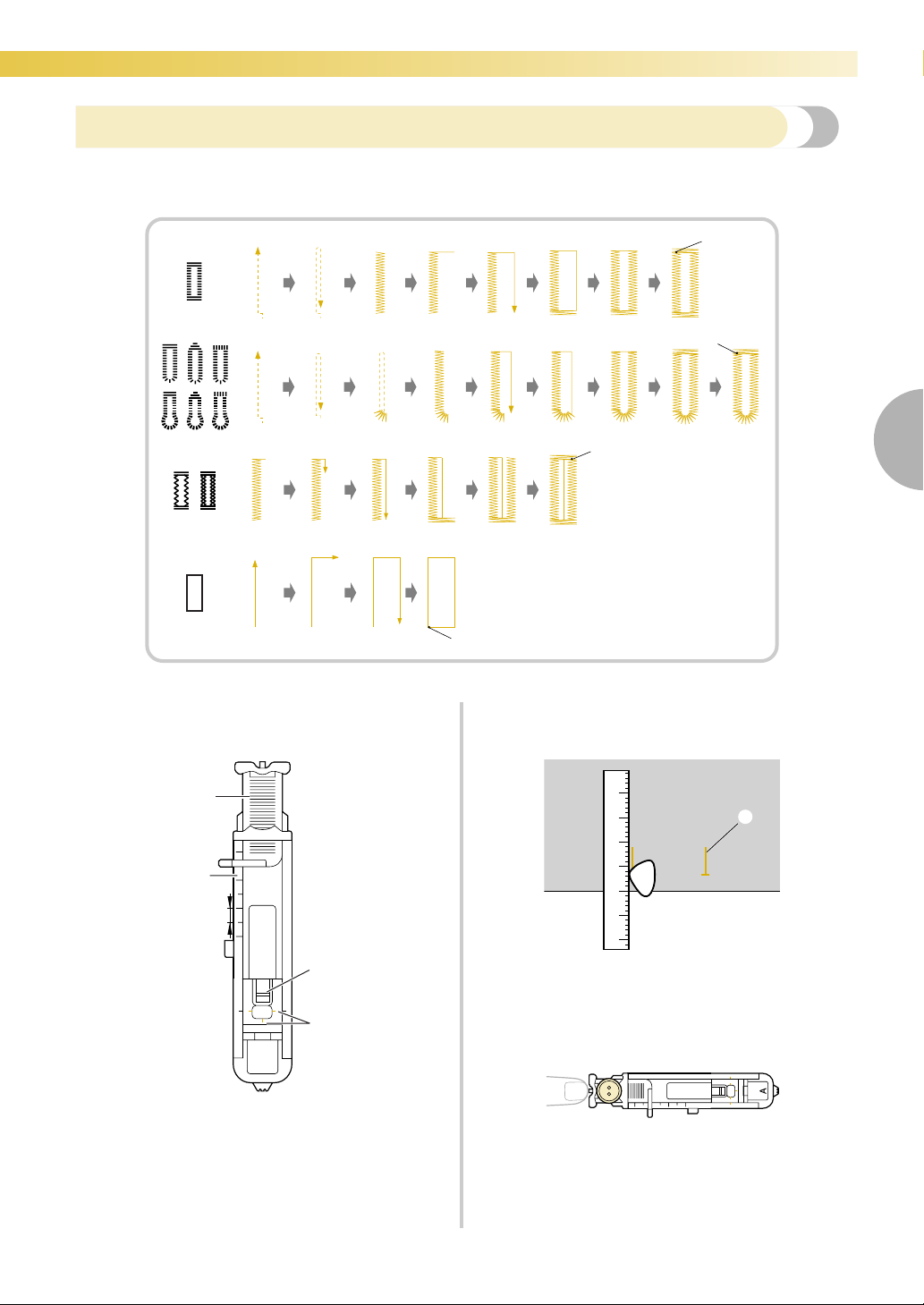

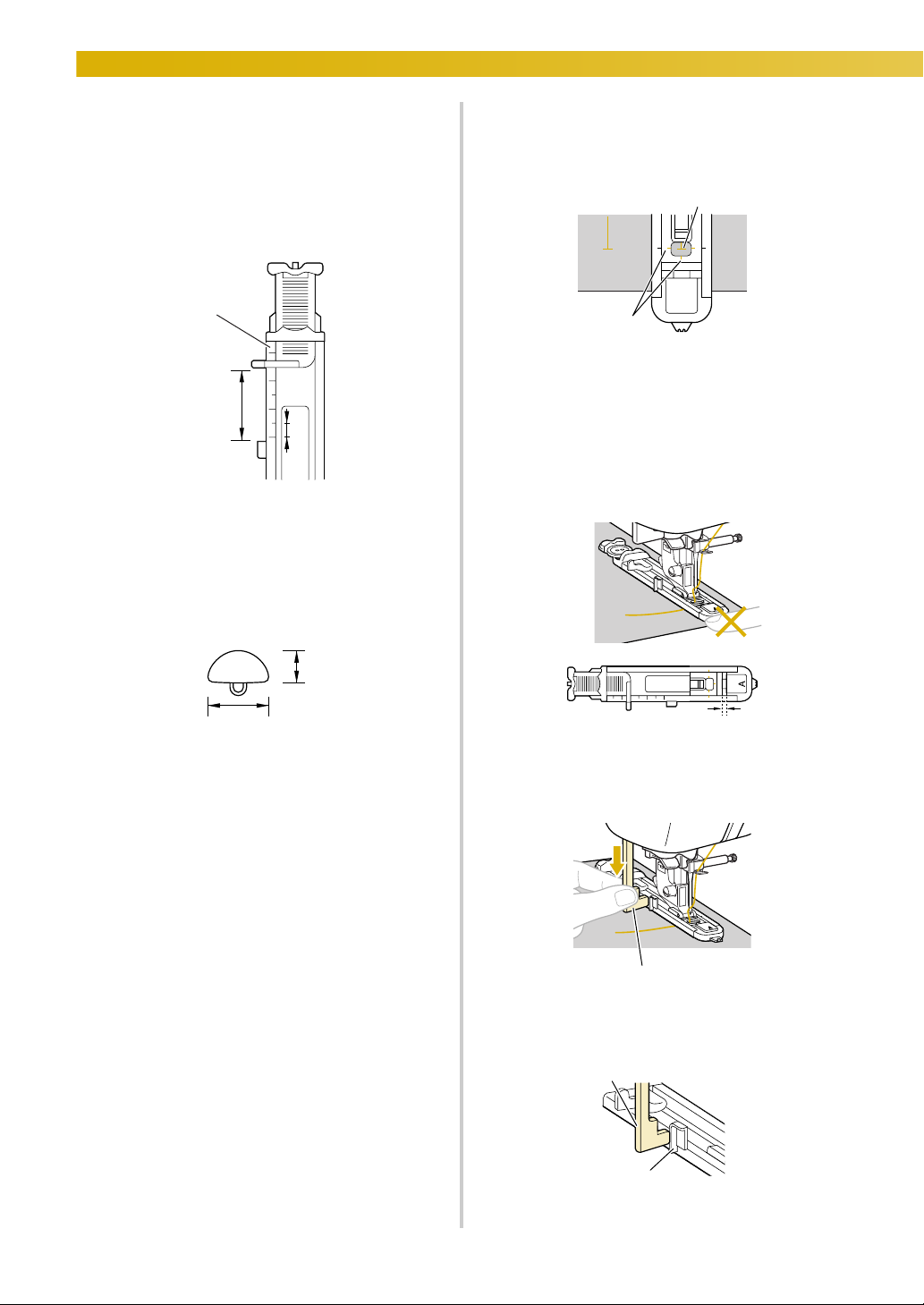

Buttonhole sewing .......................................................................................................................................... |
83 |

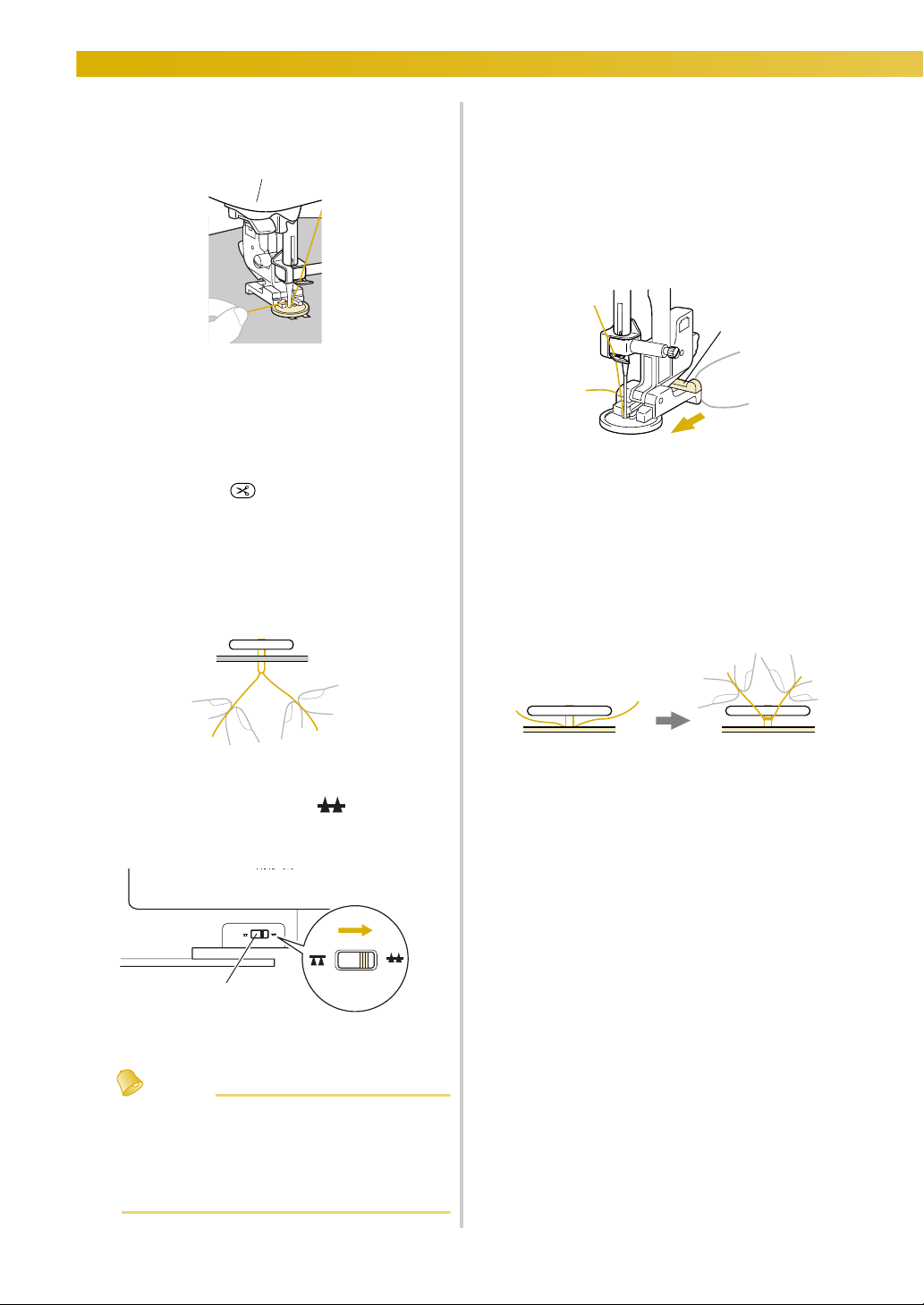

Button sewing ................................................................................................................................................. |
87 |
Zipper Insertion................................................................................................................. |
89 |

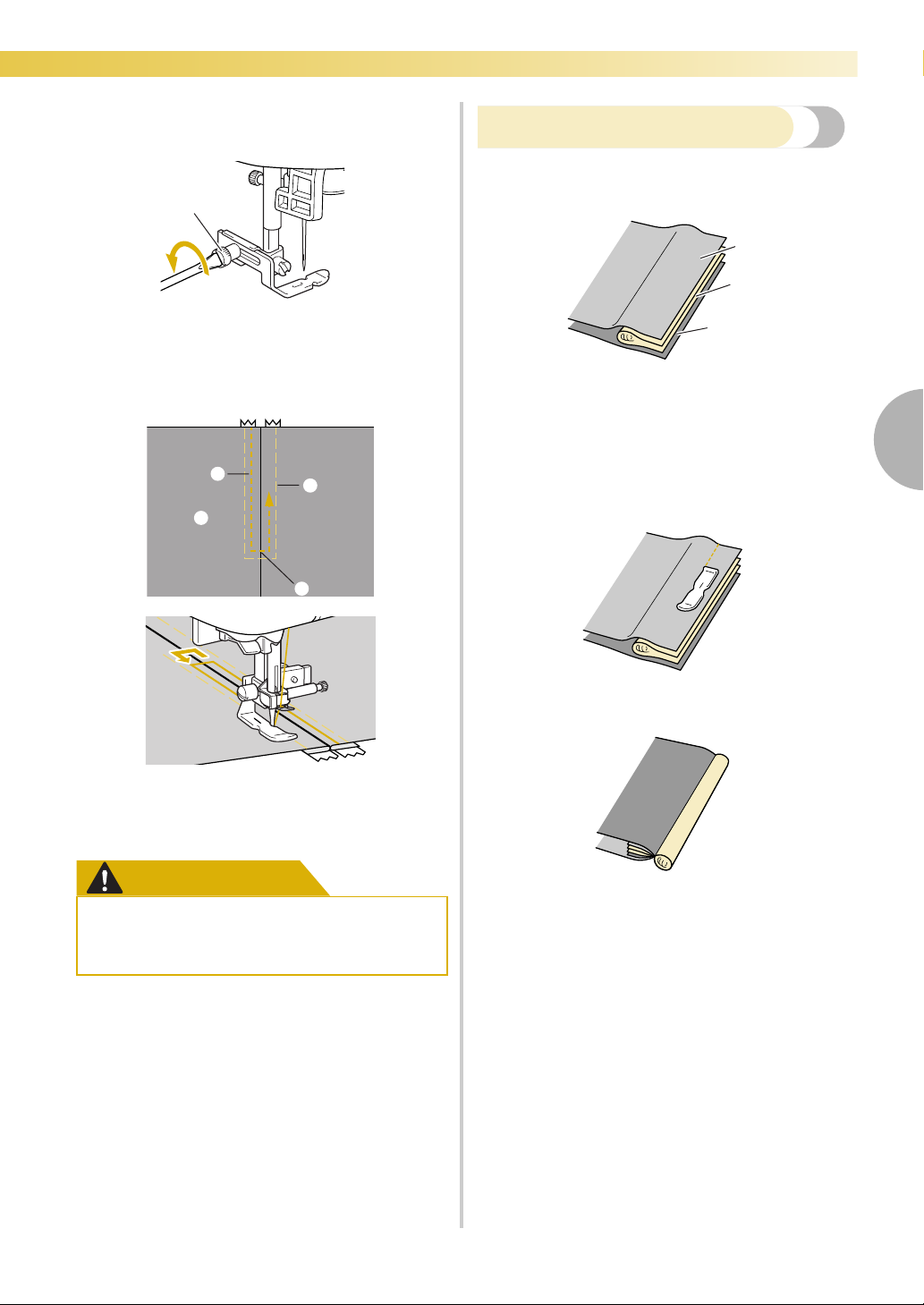

Inserting a centered zipper .............................................................................................................................. |
89 |
Inserting a side zipper ..................................................................................................................................... |
91 |
Zipper/piping Insertion ..................................................................................................... |
94 |
Inserting a centered zipper .............................................................................................................................. |
94 |
Inserting a piping ............................................................................................................................................ |
95 |
Sewing Stretch Fabrics and Elastic Tape ............................................................................ |
96 |
Stretch stitching............................................................................................................................................... |
96 |
Elastic attaching .............................................................................................................................................. |
96 |
4
————————————————————————————————————————————————————
Appliqué, Patchwork and Quilt Stitching .......................................................................... |
98 |
Appliqué stitching ........................................................................................................................................... |
99 |
Patchwork (crazy quilt) stitching .................................................................................................................. |
100 |
Piecing .......................................................................................................................................................... |
100 |
Quilting ........................................................................................................................................................ |
101 |
Free-motion quilting...................................................................................................................................... |
102 |
Satin stitching using the sewing speed controller .......................................................................................... |
103 |
Reinforcement Stitching .................................................................................................. |
105 |
Triple stretch stitching ................................................................................................................................... |
105 |
Bar tack stitching........................................................................................................................................... |
105 |
Darning......................................................................................................................................................... |
107 |
Eyelet Stitching................................................................................................................ |
109 |
Decorative Stitching........................................................................................................ |
110 |
Fagoting ........................................................................................................................................................ |
111 |
Scallop stitching ............................................................................................................................................ |
112 |
Smocking ...................................................................................................................................................... |
112 |
Shell tuck stitching ........................................................................................................................................ |
113 |
Joining .......................................................................................................................................................... |
114 |
Heirloom stitching ........................................................................................................................................ |
114 |
Sewing the Various Built-In Decorative Patterns............................................................. |
117 |
Sewing beautiful patterns .............................................................................................................................. |
117 |
Sewing patterns ............................................................................................................................................. |
117 |
Combining patterns ....................................................................................................................................... |
118 |
Repeat sewing patterns.................................................................................................................................. |
119 |
Checking the selected pattern ....................................................................................................................... |
119 |
Changing the pattern size .............................................................................................................................. |
120 |
Changing the stitch density ........................................................................................................................... |
121 |
Changing the pattern length .......................................................................................................................... |
122 |
Mirror imaging the pattern ............................................................................................................................ |
123 |
Saving patterns.............................................................................................................................................. |
124 |
Retrieving a pattern ....................................................................................................................................... |
124 |
Realigning the pattern ................................................................................................................................... |
125 |
APPENDIX |
127 |
Stitch Settings.................................................................................................................. |
128 |
Utility stitches ............................................................................................................................................... |
128 |
Other stitches................................................................................................................................................ |
134 |
Care and Maintenance .................................................................................................... |
138 |
Cleaning the machine surface ....................................................................................................................... |
138 |
Cleaning the race .......................................................................................................................................... |
138 |
Troubleshooting .............................................................................................................. |
140 |
Error messages .............................................................................................................................................. |
144 |
Nothing appears in the LCD .......................................................................................................................... |
145 |
Operation beep ............................................................................................................................................. |
145 |
Cancelling the operation beep ...................................................................................................................... |
145 |
Index ................................................................................................................................ |
147 |
5
———————————————————————————————————————————————————
Introduction
Thank you for purchasing this sewing machine. Before using this sewing machine, carefully read the “Important Safety Instructions” (page 1), and then study this manual for the correct operation of the various functions. In addition, after you have finished reading this manual, store it where it can quickly be accessed for future reference.
Sewing Machine Features
aEasy upper threading
Since the spool can be installed at the front of the sewing machine, the upper thread can easily be threaded. In addition, the needle can be threaded with a simple operation (page 26).
bAutomatic thread-cutting
The sewing machine can be set to automatically cut the thread at the end of the stitching (page 60).
cOne-touch lower threading
You can start sewing without pulling up the bobbin thread (page 24).
dSimple bobbin-winding
The bobbin can quickly and easily be wound with thread (page 20).
eBuilt-in stitches
You can select from the built-in stitches available, including utility stitches, character stitches and decorative stitches (page 70).

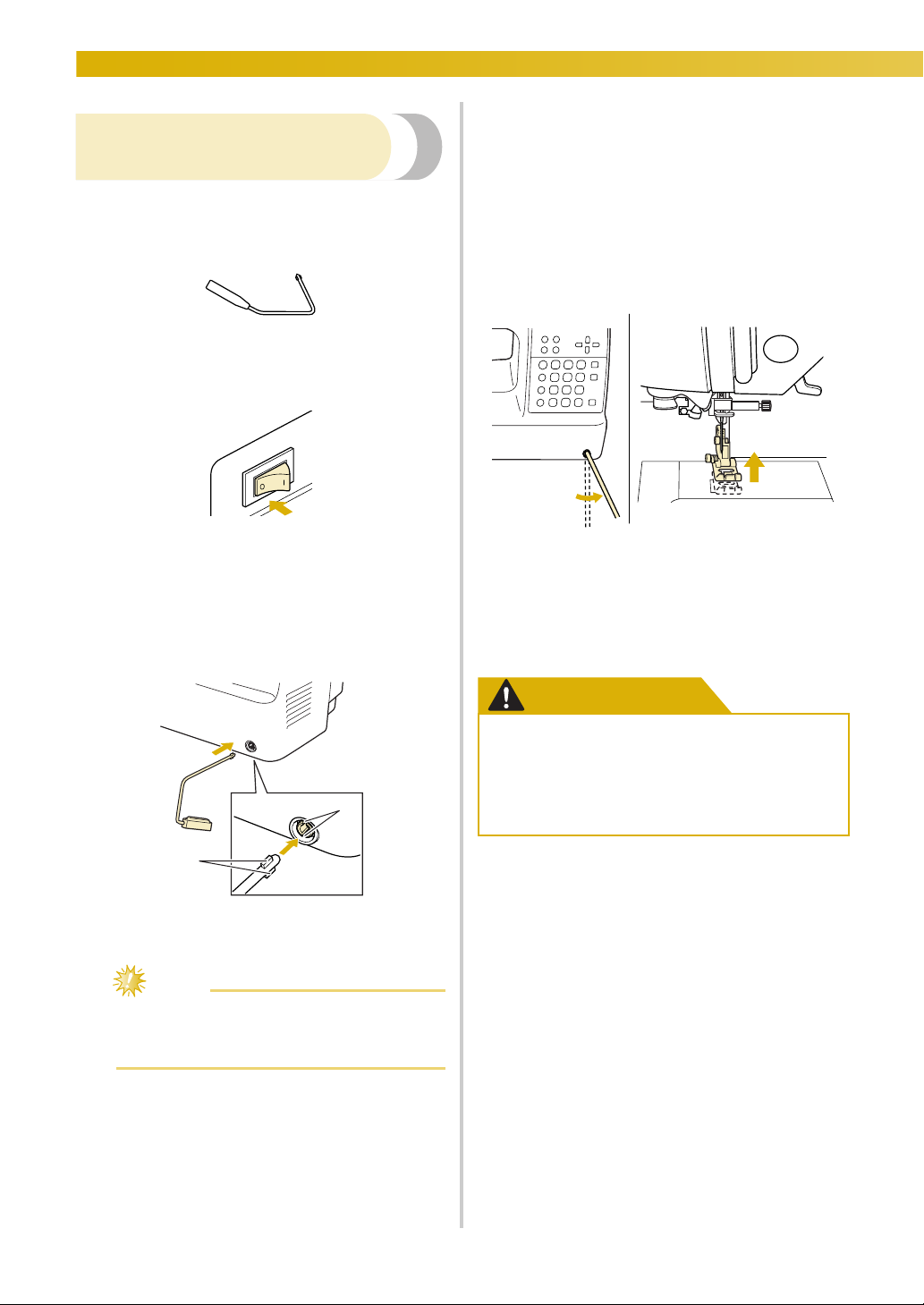

fKnee lifter
Use the knee lifter to raise and lower the presser foot with your knee, leaving both hands free to handle the fabric (page 62).
6
————————————————————————————————————————————————————
Accessories
After opening the box, check that the following accessories are included. If any item is missing or damaged, contact your retailer.
Included accessories
The following items should also be included in the box.
Note
(For U.S.A. only)
z Foot controller: Model N5V
This foot controller can be used on this machine model BLDC2.
z The screw for the presser foot holder is available through your authorized retailer.
(Part code: XA4813-051)
zThe organized accessory tray is available through your authorized retailer.
(Part code: XC4489-051)
■Attaching the stitch pattern plate
The stitch pattern plate shows the stitch numbers and the patterns available with each stitch mode. Attach the stitch pattern plate to the handle as shown in the illustration below.
Accessories 7
———————————————————————————————————————————————————
1. |
|
2. |
3. |
4. |
5. |
|
6. |
7. |
8. |
9. |
10. |
11. |
12. |
13. |
14. |
15. |
16.* |
17. |
18. |
19. |
|
20. |
21. |
22. |
23. |
24. |
25. |
26. |
27. |
28. |
|
|
29. |
|
30. |
31. |
|
32. |
33. |
34. |
|
|
|
*75/11 2 needles |
|
|
|
|
|
|
|
|
|
|
90/14 2 needles |
|
|
|
|
|
|
|
|
|
|
90/14 2 needles: Ball point needle (gold colored) |
|
|
|
|
|
|
||||
No. |
Part Name |
|
Part Code |
|
No. |
|
Part Name |
|
|
Part Code |
1 |
Buttonhole foot “A” |
|
XC2691-053 |
18 |
Cleaning brush |
|
X59476-051 |
|||
2 |
Overcasting foot “G” |
|
XC3098-051 |
19 |
Eyelet punch |
|
135793-001 |
|||
3 |
Monogramming foot “N” |
X53840-351 |
20 |
Screwdriver (large) |
|
XC8349-051 |
||||
4 |
Zipper foot “I” |
|
X59370-051 |
21 |
Screwdriver (small) |
|
X55468-051 |
|||
5 |
Zigzag foot “J” (on machine) |
XC3021-051 |
22 |
Spool cap (large) |
|
130012-054 |
||||
6 |
Blind stitch foot “R” |
|
X56409-051 |
23 |
Spool cap (medium)(2) |
X55260-153 |
||||
7 |
Button fitting foot “M” |
|
130489-001 |
24 |
Spool cap (small) |
|
130013-154 |
|||
8 |
Walking foot |
|
BLG-WI |
|
25 |
Extra spool pin |
|
XC4654-051 |
||
9 |
Quilting foot |
|
FA2 |
|
26 |
Spool net |
|
XA5523-050 |
||
10 |
Stitch guide foot “P” |
|
FA6 |
|
27 |
Foot controller |
|
XC6651-151 |
||
11 |
Adjustable zipper/piping foot |
FA9 |
|
28 |
Knee lifter |
|
XA6941-052 |
|||
12 |
Non stick foot |
|
FA8 |
|
29 |
Operation manual |
|
XE0415-001 |
||
13 |
Open toe foot |
|
FA7 |
|
30 |
Quick reference guide |
XE0416-001 |
|||
14 |
Seam ripper |
|
X54243-051 |
31 |
Hard case |
|
XC9701-053 |
|||
15 |
Bobbin (4) |
|
X52800-150 |
32 |
Accessory bag |
|
XC4487-051 |
|||
16 |
Needle set |
|
X58358-051 |
33 |
Disc-shaped screwdriver |
XC1074-051 |
||||
17 |
Twin needle |
|
X59296-151 |
34 |
Stitch pattern plate |
|
XE0545-001 |
Optional accessories
The following are available as optional accessories.
1. |
2. |
3. |
4. |
5. |
|
|
|
|
|
1. |
Side cutter |
4. |
1/4 inch quilting foot |
|
Part code: FA10 |
|
Part code: FA1 |
2. |
Quilting guide |
5. |
1/4 inch quilting foot with guide |
|
Part code: FA11 |
|
Part code: ESG-QGF |
3.Extension table
Part code: BLR-ET
Memo
z Visit your Baby Lock retailer for a complete listing of optional accessories available for your machine.
8
————————————————————————————————————————————————————
Names of Machine Parts and Their Functions
The names of the various parts of the sewing machine and their functions are described below. Before using the sewing machine, carefully read these descriptions to learn the names of the machine parts.
Front view
2
1 |
3 |
4
D
5
6
C
B
A
7
0
9
aThread guide plate
Pass the thread under the thread guide plate.
bThread guide cover
Pass the thread behind the thread guide cover when threading the upper thread.
cSpool pin
Place a spool of thread on the spool pin.
dBobbin winding thread guide and pretension disk
Pass the thread under this thread guide and around the pretension disk when winding the bobbin thread.
eTop cover
Open the top cover to place the spool of thread on the spool pin.
fBobbin winder
Use the bobbin winder when winding the bobbin.
gOperation panel
Use for stitch selection and various stitch functions. (page 12)
hKnee lifter mounting slot
Insert the knee lifter into the knee lifter mounting slot.
iOperation buttons and sewing speed controller
Use these buttons and the slide to operate the sewing machine. (page 11)
8
jFlat bed attachment with accessory compartment
Store presser feet and bobbins in the accessory compartment of the flat bed attachment. When sewing cylindrical pieces, remove the flat bed attachment.
kThread cutter
Pass the threads through the thread cutter to cut them.
lNeedle threader lever
Use the needle threader to thread the needle.
mThread take-up lever check window
Look through the window to check the position of the take-up lever.
nThread tension dial
Use the thread tension dial to adjust the tension of the upper thread.
Names of Machine Parts and Their Functions 9
———————————————————————————————————————————————————
Needle and presser foot section
aButtonhole lever
The buttonhole lever is used with the one-step buttonhole foot to create buttonholes.
bThread guide disk
Pass the thread through the thread guide disk when using the needle threader to thread the needle.
cNeedle bar thread guide
Pass the upper thread through the needle bar thread guide.
dNeedle plate
The needle plate is marked with guides to help sew straight seams.
eNeedle plate cover
Remove the needle plate cover to clean the bobbin case and race.
fBobbin cover
Open the bobbin cover to set the bobbin.
gFeed dogs
The feed dogs feed the fabric in the sewing direction.
hPresser foot
The presser foot applies pressure consistently on the fabric as sewing takes place. Attach the appropriate presser foot for the selected stitch.
iPresser foot holder
The presser foot is attached onto the presser foot holder.
Right-side/rear view
aPresser foot dial
Use the presser foot dial to adjust the amount of pressure that the presser foot applies to the fabric.
bHandle
Carry the sewing machine by its handle when transporting the machine.
cHandwheel
Turn the handwheel toward you to raise and lower the needle. The handwheel should be turned towards you (counterclockwise).
dAir vent
The air vent allows the air surrounding the motor to circulate. Do not cover the air vent while the sewing machine is being used.
eMain power switch
Use the main power switch to turn the sewing machine ON and OFF.
fFoot controller jack
Insert the plug on the end of the foot controller cable into the foot controller jack.
gPower supply jack
Insert the plug on the power cord into the power supply jack.
hFeed dog position switch
Use the feed dog position switch to lower the feed dogs.
iPresser foot lever
Raise and lower the presser foot lever to raise and lower the presser foot.
Memo
zRefer to pages 9 through 12 while you are learning to use your machine.
10
————————————————————————————————————————————————————
Operation buttons
The operation buttons help you to easily perform various basic sewing machine operations.
a“Start/Stop” button /
Press the “Start/Stop” button to start or stop sewing. The machine sews at a slow speed at the beginning of sewing while the button is depressed. When sewing is stopped, the needle is lowered in the fabric. For details, refer to “Starting to sew” (page 50).
The button lights up in green, red or orange, depending on how the sewing machine is being operated.
Green: |
When the machine is ready to start |
|
sewing or while it is sewing |
Red: |
When the machine is not ready to |
|
start sewing |
Orange: |
When the bobbin winder shaft is |
|
moved to the right for winding the |
|
bobbin thread onto the bobbin |
b“Reverse/Reinforcement Stitch” button
Press the “Reverse/Reinforcement Stitch” button to sew reverse stitches or reinforcement stitches. Reverse stitches are sewn by keeping the button pressed down to sew in the opposite direction. Reinforcement stitches are sewn by sewing 3 to 5 stitches on top of each other. For details, refer to “Securing the stitching” (page 52).
c“Needle Position” button
Press the “Needle Position” button to raise or lower the needle. Pressing the button twice sews one stitch.
d“Thread Cutter” button
Press the “Thread Cutter” button after stopping sewing to cut both the upper and the bobbin threads. For details, refer to “Cutting the thread” (page 53).
eSewing speed controller
Slide the sewing speed controller to adjust the sewing speed.
CAUTION
●Do not press (“Thread Cutter” button) after the threads have already been cut, otherwise the needle may break, the threads may become tangled or damage to the machine may occur.
Note
zDo not press (“Thread Cutter” button) if there is no fabric under the presser foot or while the machine is sewing, otherwise damage to the machine may occur.
zWhen cutting thread thicker than #30, nylon thread or other special threads, use the thread cutter on the side of the machine. For details, refer to “Cutting the thread” (page 53).
Names of Machine Parts and Their Functions 11
———————————————————————————————————————————————————
Operation panel
The operation panel, located on the front at the right of the sewing machine, consists of the LCD (liquid crystal display) and keys for specifying various sewing settings.
1
2
3
4
5
6
9
0
A
B
G
aLCD (liquid crystal display)
Settings for the selected stitch and error messages for incorrect operations appear in the LCD. Use keys b and g through r, described below, to display various items and select the settings. For details, refer to “Understanding the LCD Screens” (page 16).
bSettings key
Press this key to select sewing settings, such as for left/ right mirror imaging, or other settings such as the operation beep.
cNeedle stop position key
Press this key to select where the needle is positioned when the sewing machine is stopped.
dAutomatic thread cutting key
Press this key to select the automatic thread cutting setting. Press this key again to cancel the setting.
eAutomatic reverse/reinforcement stitch key
Press this key to select the automatic reverse/ reinforcement stitching setting. Press this key again to cancel the setting.
fNeedle mode selection key (single/twin)
Press this key to select the twin needle sewing setting. Each time this key is pressed, the setting switches between that for single needle sewing and for twin needle sewing.
gStitch width keys
Press or to adjust the stitch width setting.
hStitch length keys
Press or to adjust the stitch length setting.
8
7 C
D
E
F
H
■ Stitch mode keys (i-l)
i Preset utility stitch/saved pattern key
Press this key to select the utility stitch assigned to a numeric key or to retrieve a pattern that has been saved.
Each time this key is pressed, the machine switches between the preset utility stitch mode and the saved pattern mode.
jUtility stitch key
Press this key to select a straight stitch, zigzag stitch, buttonhole, blind hem stitch, or other stitches commonly used in garment sewing. Use the numeric keys to type in the number of the desired stitch.
kDecorative stitch key
Press this key to select a decorative stitch, satin stitch, cross-
stitch or decorative satin stitch. Each time this key is pressed, the stitch group switches between and .
lCharacter stitch key
Press this key to select a character stitch. Each time this key is pressed, the font switches to one of the three available.
mManual memory key
Press this key to save the adjusted stitch width and length settings.
nReset key
Press this key to reset the selected stitch to its original settings.
oMemory key
Press this key to save stitch patterns, such as combined patterns, in the sewing machine's memory.
pOK key
Press this key to apply the selection or perform the operation.
qCancel/clear key
Press this key to cancel the operation and return to the previous screen.
In addition, pressing this key removes the last pattern added when combining characters or decorative stitches.
rNumeric keys
Use these keys to quickly select one of the ten most often used stitches. When selecting other stitches, use these keys to type in the number of the desired stitch.
12
1 GETTING READY
The various preparations required before starting to sew are described in this chapter.
TTurning the Machine On/Off .................................................................................. |
14 |
Power supply precautions .................................................................................. |
14 |
Turning on the machine ..................................................................................... |
15 |
Turning off the machine ..................................................................................... |
15 |
Understanding the LCD Screens.............................................................................. |
16 |
Changing the Machine Settings ............................................................................... |
17 |
Changing the settings ......................................................................................... |
17 |
Adjusting the brightness of the LCD................................................................... |
19 |
Changing the screen language .............................................................................. |
19 |
Winding/Installing the Bobbin................................................................................. |
20 |
Bobbin precautions ............................................................................................ |
20 |
Winding the bobbin ........................................................................................... |
20 |
Installing the bobbin .......................................................................................... |
24 |
Upper Threading ..................................................................................................... |
26 |
Threading the upper thread................................................................................ |
26 |
Threading the needle.......................................................................................... |
29 |
Threading the needle manually (without using the needle threader).................. |
31 |
Using the twin needle ........................................................................................ |
31 |
Pulling up the bobbin thread.............................................................................. |
34 |
Replacing the Needle .............................................................................................. |
35 |
Needle precautions ............................................................................................ |
35 |
Needle types and their uses................................................................................ |
36 |
Checking the needle........................................................................................... |
37 |
Replacing the needle .......................................................................................... |
37 |
Replacing the Presser Foot ...................................................................................... |
39 |
Presser foot precautions..................................................................................... |
39 |
Replacing the presser foot.................................................................................. |
39 |

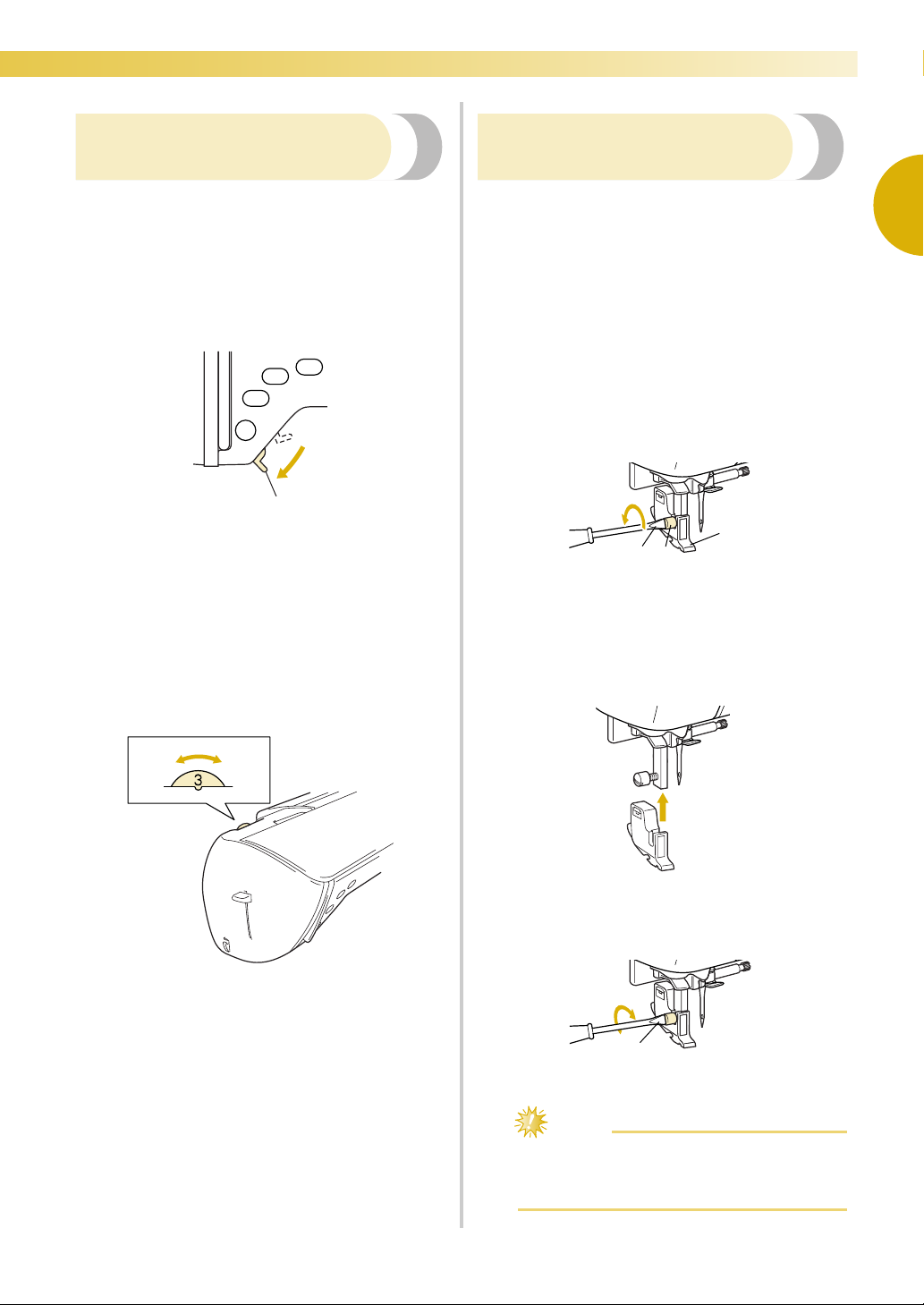

Adjusting the pressure of the presser foot .......................................................... |
41 |
Removing the presser foot holder ...................................................................... |
41 |
Using the walking foot ....................................................................................... |
42 |
Sewing Cylindrical or Large Pieces.......................................................................... |
44 |
Stitching cylindrical pieces................................................................................. |
44 |
Sewing large pieces of fabric.............................................................................. |
44 |
GETTING READY ————————————————————————————————————————————

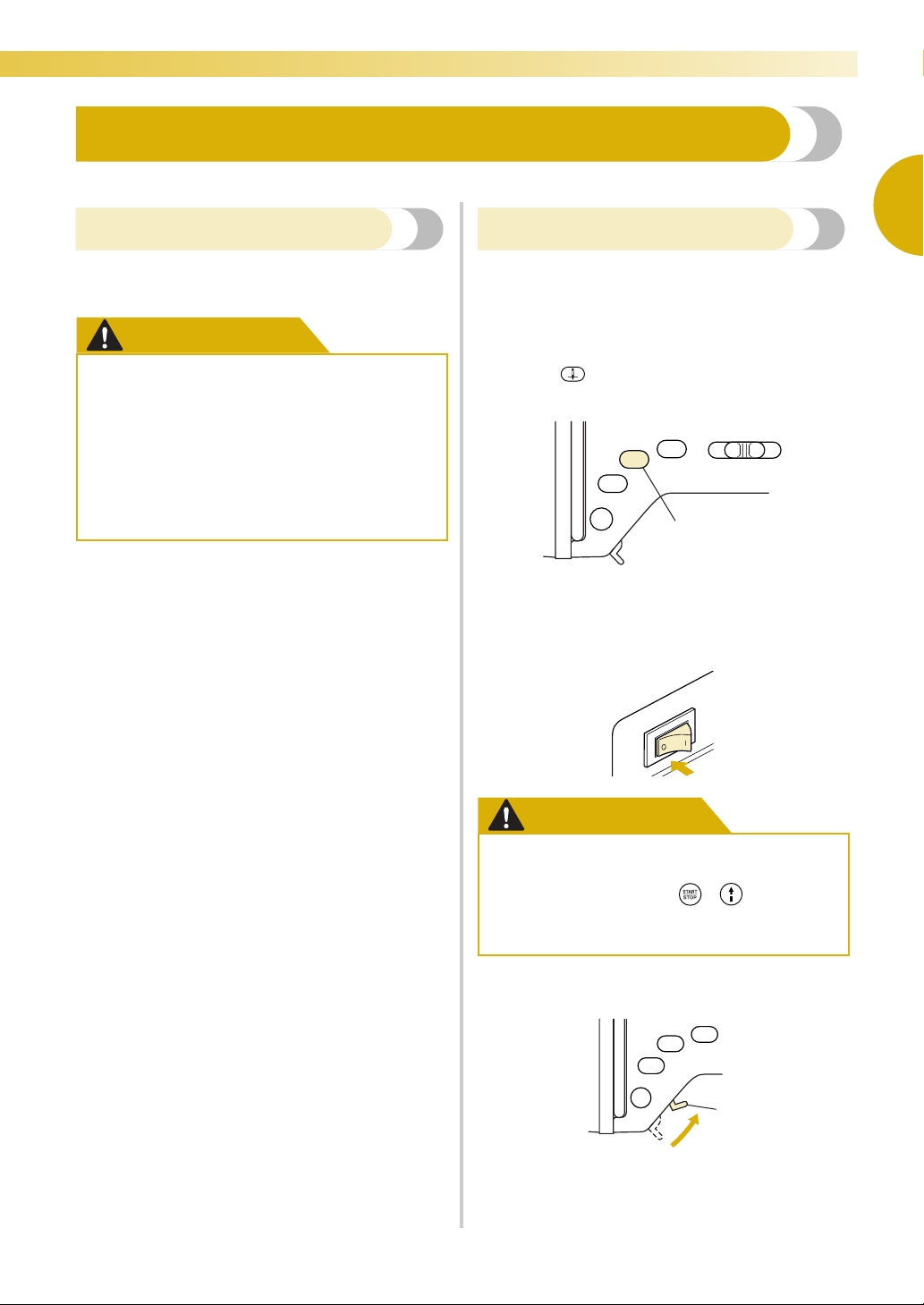

Turning the Machine On/Off
This section explains how to turn the sewing machine on and off.
Power supply precautions
Be sure to observe the following precautions concerning the power supply.
WARNING
●Use only regular household electricity for the power source. Using other power sources may result in fire, electric shock, or damage to the machine.
•Make sure that the plugs on the power cord are firmly inserted into the electrical outlet and the power supply jack on the machine.
•Do not insert the plug on the power cord into an electrical outlet that is in poor condition.
●Turn off the main power and remove the plug in the following circumstances:
•When you are away from the machine
•After using the machine
•When the power fails during use
•When the machine does not operate correctly due to a bad connection or a disconnection
•During electrical storms
CAUTION
●Use only the power cord included with this machine.
●Do not use extension cords or multi-plug adapters with many other appliances plugged in to them. Fire or electric shock may result.
●Do not touch the plug with wet hands. Electric shock may result.
●When unplugging the machine, always turn off the main power first. Always grasp the plug to remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.
●Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the cord and cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized retailer for repairs before continuing use.
●Unplug the power cord if the machine is not to be used for a long period of time. Otherwise a fire may result.
14
————————————————————————————————————————————————————
Turning on the machine
Prepare the included power cord.
aMake sure that the sewing machine is turned off (the main power switch is set to “”), and then plug the power cord into the power supply jack on the right side of the machine.
bInsert the plug of the power cord into a household electrical outlet.
1
a Power supply jack
cPress the right side of the main power switch on the right side of the machine (set it to “|”).
XThe sewing lamp and the LCD come on when the machine is turned on.
Turning off the machine
When you are finished using the sewing machine, |
|
turn it off. In addition, before transporting the sewing |
1 |
machine to another location, be sure to turn it off. |
aMake sure that the machine is not sewing.
bPress the left side of the main power switch on the right side of the machine (set it to “”).
XThe sewing lamp and the LCD go off when the machine is turned off.
cUnplugoutlet. the power cord from the electrical
Grasp the plug when unplugging the power cord.
dUnplugjack. the power cord from the power supply
Note
zIf a power outage occurs while the sewing machine is being operated, turn off the sewing machine and unplug the power cord. When restarting the sewing machine, follow the necessary procedure to correctly operate the machine.
(For U.S.A. only)
zThis appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.
Turning the Machine On/Off 15
GETTING READY ————————————————————————————————————————————
Understanding the LCD Screens
The LCD screen, located on the front at the right of the sewing machine, displays the settings for the selected stitch and error messages if operations are performed incorrectly.When the sewing machine is turned on, the LCD comes on and the following screen appears.
1 3
2 |
|
|
|
|
4 |
|
|
|
|
||
|
|
|
|||
|
|
|
|
|
5 |
|
|
|
|
|
aPresser foot that should be used
bStitch mode
cSelected stitch
dStitch length (mm)
eStitch width (mm)
Memo
zFor details on the error messages that appear when an operation is performed incorrectly, refer to “Error messages” (page 144).
16
————————————————————————————————————————————————————
Changing the Machine Settings
Various sewing machine operations and sewing settings can be changed.
Changing the settings
The general procedure for changing machine settings is described below.
aTurn on the sewing machine.
X The LCD comes on.
bPresspanel. (Settings key) in the operation
X The settings screen appears.
Press |
or |
(Stitch length keys) until the |
1 |
cstitch or machine attribute that you wish to set |
|
is displayed.
1
a Stitch length keys
dPress or (Stitch width keys) until the desired setting is selected.
X The setting is changed.
ePresskey). (OK key) or (Cancel/clear
X The initial stitch screen appears again.
Changing the Machine Settings 17
GETTING READY ————————————————————————————————————————————
■List of stitch or machine attributes
The stitch or machine attributes that can be set are listed below. For details on each attribute, refer to the corresponding reference page.
Attribute |
Icon |
Details |
Reference |
|
|
|
|
Check pattern |
|
Allows combined patterns to be checked. |
page 119 |
|
|
|
|
Mirror imaging |
|
Mirror images patterns along a vertical axis. |
page 123 |
|
|
|
|
Pattern length |
|
Adjusts the length of satin stitches. |
page 122 |
|
|
|
|
Pattern size |
|
Sets the size of patterns to be large or small. |
page 120 |
|
|
|
|
Repeated/ |
|
Specifies whether the pattern will be sewn once or |
page 119 |
single sewing |
|
repeatedly. |
|
|
|
||
|
|
|
|
Stitching |
|
Specifies the sewing density of the stitching. |
page 121 |
density |
|
||
|
|
|
|
|
|
|
|
Initial needle |
|
Select the straight stitch that is automatically selected |
- |
position |
|
when the machine is turned on. |
|
|
|
||
|
|
|
|
Stitch width |
|
Allows the stitch width to be adjusted with the sewing |
page 103 |
control |
|
speed controller. |
|
|
|
||
|
|
|
|
Language |
|
Allows the language used in the screens to be |
page 19 |
|
changed. |
||
|
|
|
|
|
|
|
|
Buzzer |
|
Specifies whether or not a beep is sounded with each |
page 145 |
|
operation. |
||
|
|
|
|
|
|
|
|
LCD brightness |
|
Adjusts the brightness of the LCD. |
page 19 |
|
|
|
|
Vertical pattern |
|
Adjusts the up and down position of the pattern. |
page 125 |
adjustment |
|
||
|
|
|
|
|
|
|
|
Memo
zThe icon shown highlighted above is the default setting.
zThe default display language is English.
18
————————————————————————————————————————————————————
Adjusting the brightness of the LCD
The brightness of the LCD can be adjusted.
aPress (Settings key) in the operation panel, and then press or (Stitch length keys) until is displayed.
XThe screen for changing the brightness of the LCD appears.
bTo make the LCD brighter, press (Stitch width key). To make the LCD darker, press (Stitch width key).
X The brightness of the LCD is changed.
cPresskey). (OK key) or (Cancel/clear
X The initial stitch screen appears again.
Changing the screen language
The language used in the screens that are displayed
can be changed to one of the many available.
1
aPress (Settings key) in the operation panel, and then press or (Stitch length keys) until the language is displayed.
XThe screen for changing the language of the screens appears.
bPress or (Stitch width keys) until the desired language is selected.
The language can be changed to one of the available: English, French, German, Dutch, Spanish, Italian, Danish, Norwegian, Finnish, Swedish, Portuguese, Russian, Japanese, Korean or others.
X The language of the screens is changed.
cPresskey). (OK key) or (Cancel/clear
X The initial stitch screen appears again.
Changing the Machine Settings 19
GETTING READY ————————————————————————————————————————————
Winding/Installing the Bobbin
This section describes how to wind the thread onto the bobbin, and then insert the bobbin thread.
Bobbin precautions
Be sure to observe the following precautions concerning the bobbin.
CAUTION
●Only use the bobbin (part code: X52800-150) designed specifically for this sewing machine. Use of any other bobbin may result in injuries or damage to the machine.
●The included bobbin was designed specifically for this sewing machine. If bobbins from other models are used, the machine will not operate correctly. Use only the included bobbin or bobbins of the same type (part code: X52800-150 ).
Actual size
11.5 mm (7/16 inch)
This model |
Other model |
Winding the bobbin
Wind the thread around the bobbin to prepare the bobbin thread.
1
a Bobbin winder
Memo
zThe order that the machine should be threaded for winding the bobbin is indicated by a broken line on the sewing machine. Be sure to thread the machine as indicated.
20
————————————————————————————————————————————————————
aTurn on the sewing machine.
bOpen the top cover.
cPlace the bobbin on the bobbin winder shaft so that the spring on the shaft fits into the notch in the bobbin.
Press down on the bobbin until it snaps into place.
1
2
aNotch
bBobbin winder shaft spring
dSlide the bobbin winder in the direction of the arrow until it snaps into place.
• / (“Start/Stop” button) lights up in orange.
eRemovespool pin.the spool cap that is inserted onto the
1
2
aSpool pin
bSpool cap
fPlace the spool of thread for the bobbin onto the spool pin.
Slide the spool onto the pin so that the spool is horizontal and the thread unwinds to the front
at the bottom.
1
•If the spool is not positioned so that the thread unwinds correctly, the thread may become tangled around the spool pin.
gSlide the spool cap onto the spool pin.
Slide the spool cap as far as possible to the right, as shown, with the rounded side on the left.
CAUTION
●If the spool or the spool cap is not positioned correctly, the thread may become tangled around the spool pin and the needle may break.
●Three spool cap sizes are available (large, medium and small), allowing you to choose a spool cap that best fits the size of spool being used. If the spool cap is too small for the spool being used, the thread may catch on the slit in the spool and the needle may break.
Winding/Installing the Bobbin 21
GETTING READY ————————————————————————————————————————————
Memo
zWhen sewing with fine, cross-wound thread, use the small spool cap, and leave a small space between the cap and the spool.
c b
a
aSpool cap (small)
bSpool (cross-wound thread)
cSpace
z When using thread that winds off quickly,
such as transparent nylon thread or metallic thread, place the spool net over the spool before placing the spool of thread onto the spool pin.
If the spool net is too long, fold it to fit the size of the spool.
When the spool net is used, the tension of the upper thread will slightly increase. Be sure to check the thread tension. For details, refer to “Adjusting the Thread Tension” (page 55).
1 2
3
4
aSpool net
bSpool
cSpool cap
dSpool pin
hWhile holding the thread near the spool with your right hand, as shown, pull the thread with your left hand, and then pass the thread behind the thread guide cover and to the front.
iPass the thread under the thread guide plate, and then pull it to the right.
1
a Thread guide plate
jPass the thread under the hook on the thread guide, and then wind it counterclockwise under the pretension disk.
1
1
a Thread guide and pretension disk
Note
zMake sure that the thread passes under the pretension disk.
1
a Thread guide cover
22
————————————————————————————————————————————————————
kWhile holding the thread with your left hand, wind the thread that was pulled out clockwise around the bobbin five or six times with your right hand.
Note
zMake sure that the thread between the spool and the bobbin is pulled tight.
zBe sure to wind the thread clockwise around the bobbin, otherwise the thread will become wrapped around the bobbin winder shaft.
lPass the end of the thread through the guide slit in the bobbin winder seat, and then pull the thread to the right to cut it.
1
aGuide slit in bobbin winder seat (with built-in cutter)
X The thread is cut to a suitable length.
CAUTION
●Be sure to cut the thread as described. If the bobbin is wound without cutting the thread using the cutter built into the slit in the bobbin winder seat, the thread may become tangled in the bobbin and the needle may bend or break when the bobbin thread starts to run out.

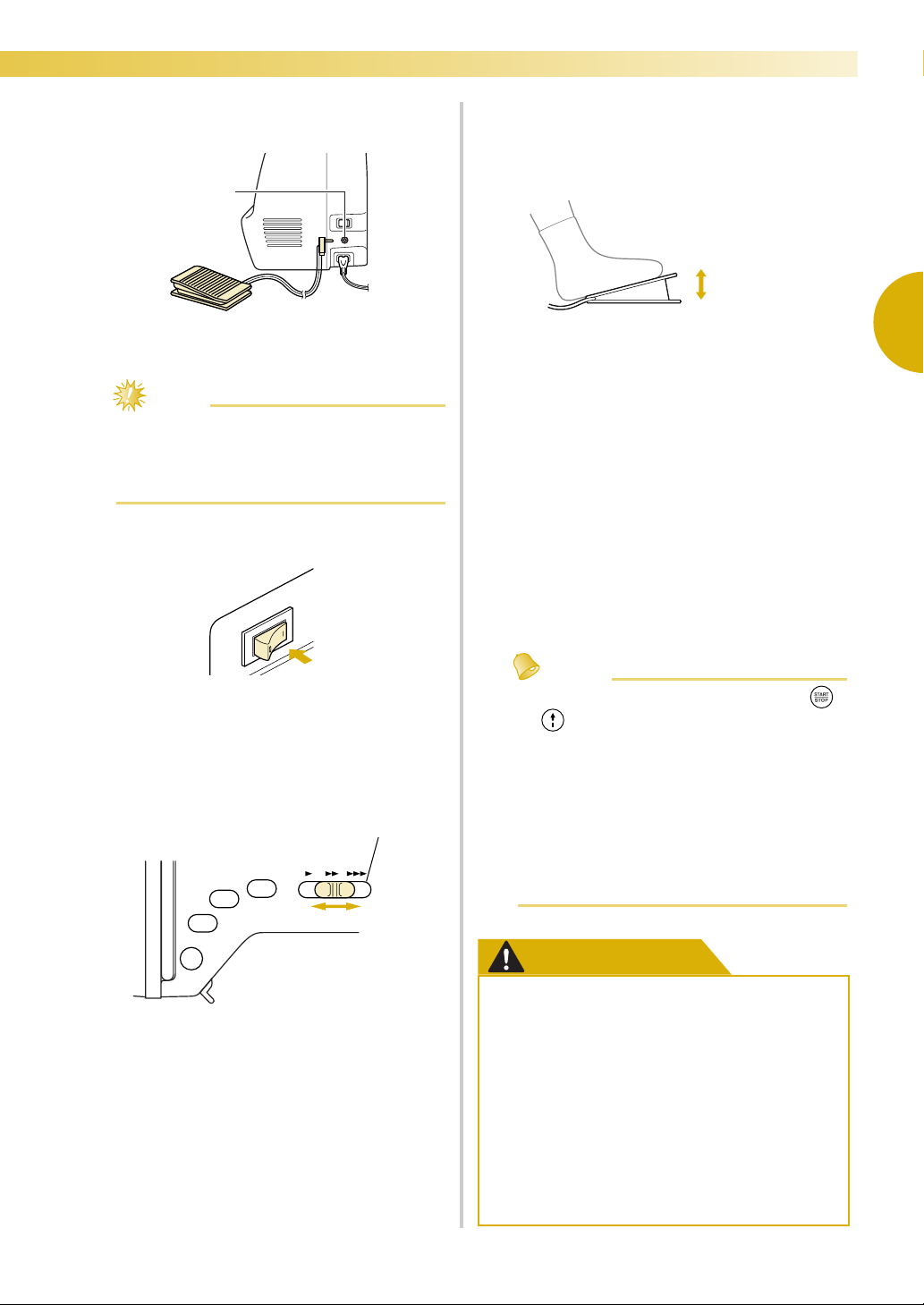

mSlide the sewing speed controller to the right to increase the bobbin winding speed and slide to left to decrease.
1
1
a Sewing speed controller
nPress / (“Start/Stop” button) once.
1
a “Start/Stop” button
•When the bobbin winding becomes slow,
press / (“Start/Stop” button) once to stop the machine.
CAUTION
●When the bobbin winding becomes slow, stop the machine, otherwise the sewing machine may be damaged.
oUse scissors to cut the end of the thread wound around the bobbin.
pSlide the bobbin winder shaft to the left.
Winding/Installing the Bobbin 23
GETTING READY ————————————————————————————————————————————
qRemove the bobbin from the shaft.
Memo
zWhen the sewing machine is started or the handwheel is turned after winding the bobbin, the machine will make a clicking sound; this is not a malfunction.
Installing the bobbin
Install the bobbin wound with thread.
CAUTION
●Use a bobbin that has been correctly wound with thread, otherwise the needle may break or the thread tension will be incorrect.
●The bobbin was designed specifically for this sewing machine. If bobbins from other models are used, the machine will not operate correctly. Use only the included bobbin or bobbins of the same type (part code: X52800-150).
Actual size
11.5 mm (7/16 inch)
This model |
Other model |
Memo
zThe order that the bobbin thread should be passed through the bobbin case is indicated by marks around the bobbin case. Be sure to thread the machine as indicated.
aSlide the bobbin cover latch to the right.
1 2
aBobbin cover
bLatch
X The bobbin cover opens.
bRemove the bobbin cover.
cHold the bobbin with your right hand and hold the end of the thread with your left.
• Be careful not to drop the bobbin.
dInsert the bobbin into the bobbin case so that the thread unrolls to the left.
• Be sure to insert the bobbin correctly.
CAUTION
●Be sure to install the bobbin so that the thread unwinds in the correct direction, otherwise the thread may break or the thread tension will be incorrect.
Memo
zThe order that the bobbin thread should be passed through the bobbin case is indicated by marks around the bobbin case. Be sure to thread the machine as indicated.
24
————————————————————————————————————————————————————
eLightly hold down the bobbin with your right hand, and then guide the thread as shown with your left hand.
CAUTION
●When installing the bobbin, be sure to hold it down with your finger. If the bobbin is not correctly installed, the thread tension will be incorrect.
fPass the thread through the slot as shown, and then pull the thread out toward the front.
1
a Cutter
X The cutter cuts the thread.
Note
zMake sure that the thread is correctly inserted through the tension-adjusting spring of the bobbin case. If it is not inserted correctly, reinsert the thread.
gReattach the bobbin cover.
Insert the tab in the lower-left corner of the bobbin cover, and then lightly press down on the right side.
2 1
1
X The lower threading is finished.
Next, thread the upper thread. Continue with the procedure in “Upper Threading” (page 26).
Memo
zYou can begin sewing without pulling up the bobbin thread. If you wish to pull up the bobbin thread before starting to sew, pull up the thread according to the procedure in “Pulling up the bobbin thread” (page 34).
1
a Tension-adjusting spring
Winding/Installing the Bobbin 25
GETTING READY ————————————————————————————————————————————
Upper Threading
In this section, the procedures for positioning the spool for the upper thread and threading the needle are described.
CAUTION
●When threading the upper thread, carefully follow the instructions. If the upper threading is not correct, the thread may become tangled and the needle may bend or break.
Memo
zThe order that the machine should be threaded is indicated by a solid line on the sewing machine. Be sure to thread the machine as indicated.
Threading the upper thread
Set the spool of thread on the spool pin, and then thread the machine.
aTurn on the sewing machine.
bRaisefoot. the presser foot lever to raise the presser
a
a Presser foot lever
Note
zIf the presser foot is not raised, the sewing machine cannot be threaded.
26
————————————————————————————————————————————————————
cPress (“Needle Position” button) once or twice to raise the needle.
1
a “Needle Position” button
XThe needle is correctly raised when the mark on the handwheel is at the top, as shown below. Check the handwheel and, if this
mark is not at this position, press (“Needle Position” button) until it is.
1
a Mark on handwheel
dOpen the top cover.
eRemovespool pin.the spool cap that is inserted onto the
1
2
aSpool pin
bSpool cap
fPlace the spool of thread onto the spool pin.
Slide the spool onto the pin so that the spool is horizontal and the thread unwinds to the front at the bottom.
1
gSlide the spool cap onto the spool pin.
Slide the spool cap as far as possible to the right, as shown, with the rounded side on the left.
CAUTION
●If the spool or the spool cap is not positioned correctly, the thread may become tangled around the spool pin and the needle may break.
●Three spool cap sizes are available (large, medium and small), allowing you to choose a spool cap that best fits the size of spool being used. If the spool cap is too small for the spool being used, the thread may catch on the slit in the spool and the needle may break.
Upper Threading 27
GETTING READY ————————————————————————————————————————————
hWhile holding the thread lightly with your right hand, pull the thread with your left hand, and then pass the thread behind the thread guide cover and to the front.
1
a Thread guide cover
iPass the thread under the thread guide plate, and then pull it up.
1
a Thread guide plate
jWhile using your right hand to lightly hold the thread passed under the thread guide plate, pass the thread through the thread path in the order shown below.
1
a Shutter
Note
zIf the presser foot has been lowered and the shutter is closed, the machine cannot be threaded. Be sure to raise the presser foot and open the shutter before threading the machine. In addition, before removing the upper thread, be sure to raise the presser foot and open the shutter.
zThis machine is equipped with a window that allows you to check the position of the take-up lever. Look through this window and check that the thread is correctly fed through the take-up lever.
kPassguide.the thread behind the needle bar thread
The thread can easily be passed behind the needle bar thread guide by holding the thread in your left hand, then feeding the thread with your right hand, as shown.
1
a Needle bar thread guide
Next, use the needle threader to thread the needle. Continue with the procedure in “Threading the needle” (page 29).
28
