Aztech DSL1015EN-L User Manual
USER MANUAL
v1.0
DSL1015EN(L)
4 Port ADSL 2/2+ Wireless N Modem Router
© Copyright 2010 All rights reserved.
No part of this document may be reproduced, republished, or retransmitted in any
form or by any means whatsoever, whether electronically or mechanically, including,
but not limited to, by way of photocopying, recording, information recording, or
through retrieval systems without the express written permission. We reserve
the right to revise this document at any time without the obligation to notify any
person and/or entity. All other company or product names mentioned are used for
identification purposes only and may be trademarks of their respective owners.
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED “AS IS,” BASIS.
THE MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY
REFERRED TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS,
IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, OR ANY WARRANTIES ARISING FROM COURSE OF
DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. IN NO EVENT WILL
THE SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT NOT LIMITED
TO DIRECT, INDIRECT, SPECIAL WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY,
OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS,
OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD
PARTY ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR
THE SOFTWARES, INCLUDING BUT NOT LIMITED TO THOSE RESULTING FROM
DEFECTS IN THE PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR
INACCURACY OF DATA OF ANY KIND, WHETHER BASED ON CONTRACT, TORT
OR ANY OTHER LEGAL THEORY, EVEN IF THE PARTIES HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK AS TO THE RESULTS
AND PERFORMANCE OF THE PRODUCT OR ITS SOFTWARE IS ASSUMED BY
CUSTOMER. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABLITY FOR DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE
LIABILITY OF EACH AND EVERY KIND IN RELATION TO THE PRODUCT OR ITS
SOFTWARE EXCEED THE AMOUNT PAID BY CUSTOMER FOR THE PRODUCT.
Table of Contents
About the Router 1
Minimum System Requirements 2
Package Contents 2
Device Overview 3
Front Panel 3
Back Panel 4
Getting Started 5
Planning Your Network 6
Remove or Disable Conflicts 7
Internet Sharing, Proxy, and Security Applications 7
Configuring TCP/IP Settings 8
Configuring Internet Properties 8
Removing Temporary Internet Files 9
Hardware Setup 10
Connecting to the Internet 10
Connecting via Quick Setup 10
About the Web User Interface 12
Accessing the Web User Interface 12
Menus 12
Quick Setup 13
Home Network Configuration 14
Local Area Network (LAN) Setup 14
DCHP Lease Information 15
Device Status 15
Statistics 16
Firewall Configuration 17
Firewall 17

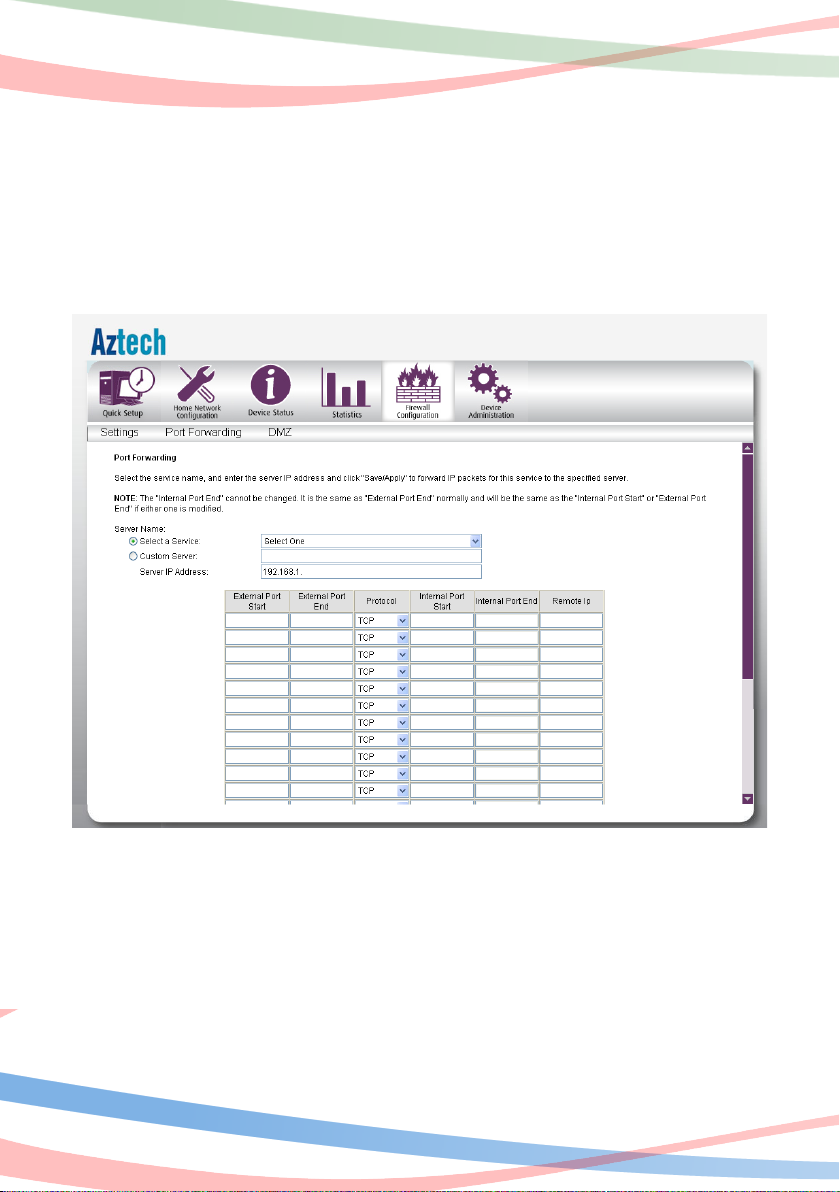

Port Forwarding 18
DMZ 19
Device Administration 20
System – Backup 20
Restore to Default 20
Update Settings 21
Reboot 21
User Password 22
Admin Mode 23
Accessing the Admin Mode Web User Interface 23
Menus 24
Device Info 24
Device Status 25
Device Statistics 26
Home Network 26
Local Area Network (LAN) Setup 26
Advanced Setup 28
WAN 28
DDNS 28
Quality of Service 31
Routing – Default Gateway 31
Static Route 32
DSL Settings 34
Port Mapping 35
Firewall 36

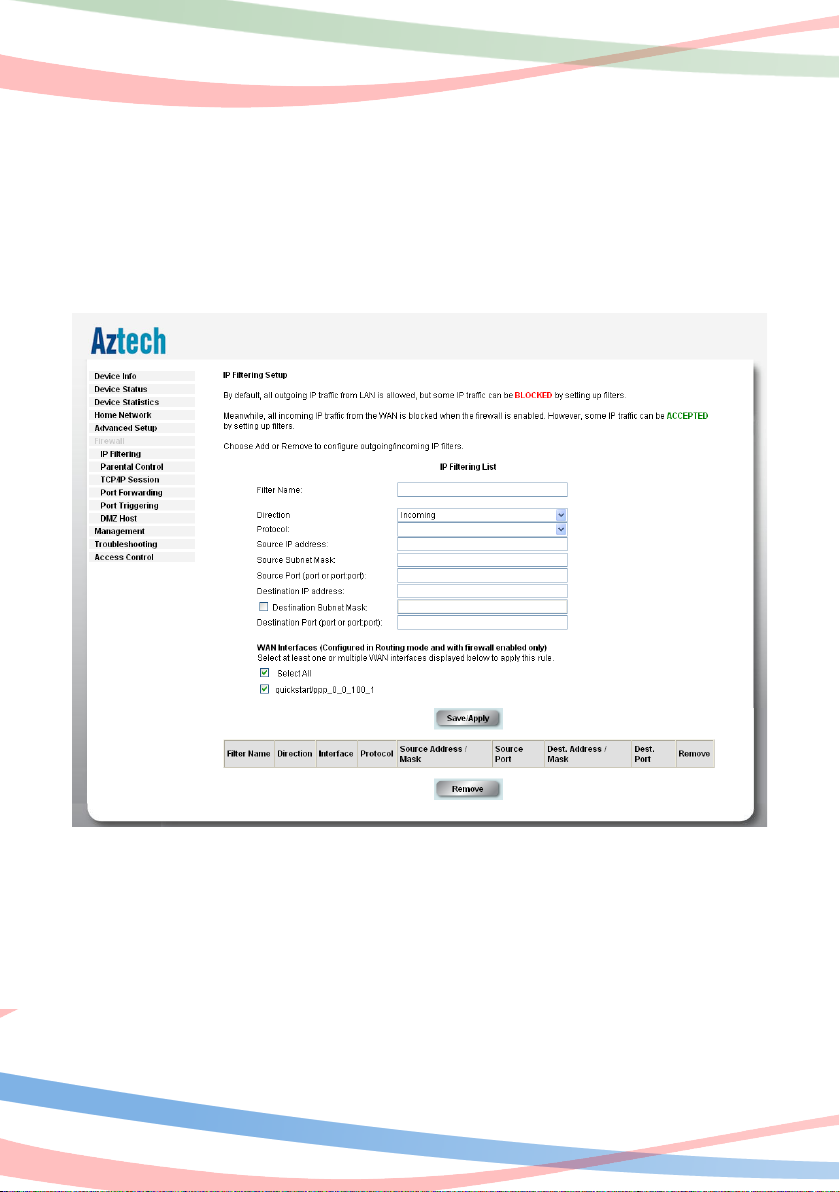

IP Filtering 36
Parental Control 37
TCP/IP Sessions 38
Port Forwarding 39
Port Triggering 40
DMZ Host 41
Management 42
Firmware Upgrade 42
Settings Update 43
Settings Backup 44
Restore Default 45
Save/Reboot 46
Internet Time 47
Troubleshooting 48
System Log 48
Diagnostics 49
Network Tools 50
Access Control 51
Services 51
Password Settings 51
Safety Precautions 53
About the Router
The Aztech DSL1015EN(L) ADSL2+ Wireless LAN 802.11b/g/n Advanced 4 Port
Managed Switch Gateway using a solution that fully complies with ADSL, ADSL2,
and ADSL2+ ITU standards. Aztech DSL1015EN(L) also supports the latest WiFi
Alliance standard 802.11n Spec. This next generation ADSL advanced gateway
will support Multiple Inputs and Multiple Outputs (MIMO) transmission at a
speed of up to 300Mbps wireless speed.
Targeted at the residential and SOHO users that desires high quality triple play
services, it is the ideal solution to provide a 6 in 1 device for both Wired and
Wireless connectivity via a ADSL2/2+ Modem support, Routing functionality
for multi-user sharing, 4 port 10/100 AutoMDI/MDIx Managed Switch for IPTV
deployment with QoS support, high speed 300 Mbps IEEE802.11n Wireless LAN
access point with backward compatibility to 802.11b/g clients, USB 2.0 host for
network storage attachment or printers.
Security is provided via double Stateful Packet Inspection and NAT based
firewall. Hardware accelerated AES/WEP/WPA/WPA2 based encryption/MAC
Address Filtering for Wireless links. Multiple session VPN Pass-through and
DMZ support provide additional security support for telecommuters as well as
allow flexibility while maintaining security against malicious hackers. Choices
of Dynamic DNS server give users the flexibility of hosting a web or an FTP
server with various domain names.
With Universal Plug and Play support, home networking becomes a breeze for
everyone in the family. Multi Port Range/Popular Application Forwarding makes
it even easier to select which application you want your network to allow while
ensuring your security at the same time.
1
2
Minimum System Requirements
Your computer must meet the following minimum requirements.
Any operating system can be used
•
Web Browser
•
CDROM drive
•
233MHz processor
•
Ethernet network adapter
•
An active DSL Internet account
•
Package Contents
Package contents are listed below. For any missing items, please contact your
dealer immediately. Product contents vary for different models
Modem Router Aztech DSL1015EN(L)
•
Power Adapter
•
DSL Microfilter (Optional)
•
Resource CD
•
Ethernet cable (RJ45)
•
Telephone cable (RJ11)
•
Easy Start Guide
•
Device Overview
Front Panel
Indicator Label Action Description
1 Power Off No power is supplied to the device
On - Steady Green Connected to an AC power supply
On - Steady Red Error on the device
2 Ethernet 1-4 Off No Ethernet connection
On - Steady Green Connected to an Ethernet Device
On - Blinking Green Transmitting/Receiving data
3 USB Host Off No USB device connected
On - Steady Green USB device connected
4 Wireless Off Wireless interface disabled
On - Steady Green Wireless Interface enabled
On - Blinking Green Transmitting/Receiving data
5 DSL Off No DSL signal
On - Blinking Establishing DSL connection
On - Steady Green DSL connection established
6 Internet Off No Internet Connection
On - Steady Green Internet connection established
On - Blinking Green Transmitting/Receiving data
On - Steady Red PPP authentication failure
3
4
Back Panel
Component Description
1 Antenna Sending/receiving wireless signals
2 Switch Switching the device on/off
3 Power Adapter Jack Connecting the power adapter
4 Reset Button Resetting the device, press for 2 seconds to reset
5 USB Port Connecting the USB Storage or Printer device
6 Ethernet Ports 1 - 4 Connecting with computers/devices through Ethernet
cable
7 DSL Connecting the telephone cable
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the
steps needed to complete the installation. Brief descriptions appear beside
each step. Detailed instructions are provided in the subsequent pages.
5
6
Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a network
diagram to help identify your network devices and plan out how to connect these
devices. The illustration below is an example of a network diagram.
Each port in the router can be used for different connections. For example:
E1 – Mom’s computer
•
E2 – Network Printer
•
E3 – Game Console
•
E4 – Ethernet Device
•
Wireless – Dad’s Computer
•
Wireless - My Smart Phone
•
To create a network diagram:
For wireless devices, identify the wireless devices you want to include
•
in the network.
For wired devices, identify which router port you want to use for each
•
device.
Remove or Disable Conflicts
To make sure the router installation moves on smoothly, you need to remove
or disable conflicts that may interfere the installation. Probable conflicts may
include:
Internet sharing applications
•
Proxy software
•
Security software
•
TCP/IP settings
•
Internet properties
•
Temporary Internet files
•
Internet Sharing, Proxy, and Security Applications
Internet sharing, proxy software, and firewall applications may interfere with
the router installation. These should be removed or disabled before start the
installation.
If you have any of the following or similar applications installed on your computer,
remove or disable them according to the manufacturer’s instructions.
Internet Sharing Applications
Microsoft Internet Sharing
•
Proxy Software
WinGate
•
WinProxy
•
Security Software
Symantec
•
Zone Alarm
•
7
8
Configuring TCP/IP Settings
Check if your computer uses the default TCP/IP settings.
To check the TCP/IP properties:
Select Start > Run. This opens the Run dialog box.
1.
Enter control ncpa.cpl and then click OK. This opens the Network
2.
Connections in your computer.
Right-click LAN and then select Properties. This opens the Local Area
3.
Connection Properties dialog box.
Select Internet Protocol (TCP/IP) and then click Properties. This opens
4.
the Internet Protocol (TCP/IP) dialog box.
Select Obtain an IP address automatically.
5.
Click OK to close the Internet Protocol (TCP/IP) dialog box.
6.
Click OK to close the Local Area Connection Properties dialog box.
7.
Configuring Internet Properties
To set the Internet Properties:
Select Start > Run. This opens the Run dialog box.
1.
Enter control inetcpl.cpl and then click OK. This opens Internet
2.
Properties.
Click Connections tab.
3.
In the Dial-up and Virtual Private Network settings pane, select Never
4.
dial a connection.
Click OK to close Internet Properties.
5.
Removing Temporary Internet Files
Temporary Internet files are files from Web sites that are stored in your
computer. Delete these files to clean the cache and remove footprints left by the
Web pages you visited.
To remove temporary Internet files:
Select Start > Run. This opens the Run dialog box.
1.
Enter control and then click OK. This opens Control Panel.
2.
Double-click Internet Options. This opens Internet Options.
3.
In the Temporary Internet Files pane, click Delete Cookies.
4.
Click Delete Files.
5.
Click OK to close Internet Properties.
6.
9
10
Hardware Setup
Connecting to the Internet
Connecting via Quick Setup
Launch the browser, the browser will bring you to the Credential Setup
1.
screen, click on SET UP NOW.
Input the username and password provided by the Internet Provider,
2.
and click on Connect.
Note: The username and password is normally printed on the Service Letter
Once Internet connection is established, the following screen will be
3.
shown. Just close the browser and open it again to start surfing the
Internet.
If it failed to connect to the internet, the following screen will be shown,
4.
click on SET UP NOW, re input your username and password and click
on Connect
11
12
About the Web User Interface
The Web User Interface is used to configure the basic router settings.
Accessing the Web User Interface
To access the Web User Interface:
Open your Internet browser.
1.
Type - in http://192.168.1.254 on the address bar and press Enter.
2.
Menus
The Web User Interface includes the following menus:
Quick Setup
•
Home Network Configuration
•
Device Status
•
Statistics
•
Firewall Configuration
•
Device Administration
•
Loading...
