About the Router
Your router offers an easy way of integrating your computer and other network devices
into a single network. Here are some of the benefits you can obtain from using the
router in your home or office:
Integrated Modem Feature Your router is an ideal solution for high speed Internet
connectivity. It is capable of handling the fastest data transfer speed from your
Internet provider and sharing this within your local network devices.
Top Notch Security Your router utilizes built-in firewall security to block service
attacks. For added flexibility, it can be modified to allow specific applications to
pass through while blocking intrusive threats at the same time.
Intuitive User Interface Applying changes on the router settings can be done
easily using a Web browser. The router uses a simplified user interface that allows
you to apply the configurations you want for the various features of the router.
Your router will serve as the central figure in establishing your local area network (LAN)
by using a combination of hardware and software. The hardware includes the cables,
wireless access points, and Ethernet ports that create the path to connect your devices.
The software part includes the applications that manage the flow of information in these
devices.
You can complete the basic installation and Internet connection within 8 minutes. Some
more time is needed if you intend to utilize more advanced functions but it can be worth
it. Advanced features like port forwarding will help you create your own web server to
store your Web site, Dynamic DNS allows you to access your network from the Internet,
and remote access enables you to configure your router settings from different locations.
Once installation is complete, it will be much more easier for you to enjoy voice
communication, high speed Internet, and data/audio/video sharing within your network.
Page 8 of 64
Requirements
Your computer must meet the following minimum requirements.
Any operating system can be used
Internet Explorer 4.0 or Netscape Navigator 3.02
233MHz processor
CD-ROM Drive
Ethernet network adapter
An active DSL Internet account
Package Contents
User Manual
Package contents are listed below. For any missing items, please contact your dealer
immediately. Product contents vary for different models.
Router
Ethernet cable
Telephone cable
Power Adapter
Easy Start Guide
Resource CD
POTS Splitter (optional)
Page 9 of 64
User Manual
Device Design
Page 10 of 64
User Manual
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the steps
needed to complete the installation. Brief descriptions appear beside each step. Detailed
instructions are provided in the subsequent pages.
Plan your Network
Remove/Disable
Setup the Router
Connect to the
Web Interface
Use Quick Start
Conflicts
Internet
You may need to check some
setting or disable some application
before installation.
Connect the telephone cables,
Ethernet cables, and power adaptor.
Use either the Quick Start or the
Setup Utility Wizard.
Resource CD
Use Setup Utility
Ready to Use
Page 11 of 64
User Manual
Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a network
diagram to help identify your network devices and plan out how to connect these
devices. The illustration below is an example of a network diagram.
To create a network diagram:
For wireless devices, identify the wireless devices you want to include in the
network
For wired devices, identify which router port you want to use for each device.
Page 12 of 64
User Manual
Remove or Disable Conflicts
To make sure the router installation moves on smoothly, you need to remove or disable
conflicts that may interfere the installation. Probable conflicts may include:
Internet sharing applications
Proxy software
Security software
TCP/IP settings
Internet properties
Temporary Internet files
Internet Sharing, Proxy, and Security Applications
Internet sharing, proxy software, and firewall applications may interfere with the router
installation. These should be removed or disabled before start the installation.
If you have any of the following or similar applications installed on your computer,
remove or disable them according to the manufacturer’s instructions.
Internet Sharing Applications Proxy Software Security Software
Microsoft Internet Sharing WinGate Symantec
WinProxy Zone Alarm
Page 13 of 64
User Manual
Configuring TCP/IP Settings
Check if your computer uses the default TCP/IP settings.
To check the TCP/IP properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control ncpa.cpl and then click OK. This opens the Network Connections in
your computer.
3. Right-click LAN and then select Properties. This opens the Local Area Connection
Properties dialog box.
4. Select Internet Protocol (TCP/IP) and then click Properties. This opens the Internet
Protocol (TCP/IP) dialog box.
5. Select Obtain an IP address automatically.
6. Click OK to close the Internet Protocol (TCP/IP) dialog box.
7. Click OK to close the Local Area Connection Properties dialog box.
Configuring Internet Properties
To set the Internet Properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control inetcpl.cpl and then click OK. This opens Internet Properties.
3. Click Connections tab.
4. In the Dial-up and Virtual Private Network settings pane, select Never dial a
connection.
5. Click OK to close Internet Properties.
Page 14 of 64
User Manual
Removing Temporary Internet Files
Temporary Internet files are files from Web sites that are stored in your computer. Delete
these files to clean the cache and remove footprints left by the Web pages you visited.
To remove temporary Internet files:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control and then click OK. This opens Control Panel.
3. Double-click Internet Options. This opens Internet Options.
4. In the Temporary Internet Files pane, click Delete Cookies.
5. Click Delete Files.
6. Click OK to close Internet Properties.
Page 15 of 64
User Manual
Setup the Device
When installing the router, find an area where there are enough electrical outlets for the
router, the main computer, and your other computer devices.
To setup the router:
1. Plug one end of the Ethernet cable from the router’s ETHERNET port and then plug
the other end into the Ethernet port in your computer.
2. If you have another device you need to connect through wire into the router, use
another piece of Ethernet cable. Plug one end of the Ethernet cable from the
computer’s Ethernet port and then plug the other end into an available Ethernet
port in the router.
3. Plug one end of the telephone cable from the POTS Splitter’s ADSL port and then
plug the other end into the router’s DSL port.
POTS Splitter
Your phone line carries with it both phone calls and Internet signals. When you are
using the Internet, the connection produces high-pitched tones that can affect your
voice calls when using the phone. Installing a Plain Old Telephone Service (POTS)
splitter separates the two signals and eliminates the noise.
To setup the telephone POTS Splitter:
a. Locate the phone jack in your house.
b. Insert the POTS Splitter into the phone jack.
c. Plug one end of the telephone cable from the POTS Splitter’s TEL port and then plug
the other end into the telephone.
4. Connect the power adapter from the router’s 12V 1A DC port into the electrical
outlet.
5. Switch ON.
Page 16 of 64
User Manual
Connecting to the Internet
There are two ways to connect to the Internet. You can either use the Web Interface or
the Utility Wizard.
Connecting Via Quickstart
To connect to the Internet via the Web Interface:
1. Open your browser.
2. On the address bar type http://192.168.1.1.
3. Enter the User name and Password, and then click OK. The default User name and
Password is
4. Select Quickstart.
admin
.
5. Enter the connection settings, country and click on Connect
Page 17 of 64
User Manual
Connecting Via the Setup Utility Wizard
The Setup Utility Wizard can be used to configure your router. However, this only runs on
Windows operating systems with a CD-ROM drive.
To connect to the Internet thru Setup Utility Wizard:
1. Insert the Resource CD into your CD-ROM.
2. If the utility does not launch automatically, select Start > Run, enter D:\Setup.exe
(where D: is your CD-ROM drive), and then click OK. This opens the Setup Utility.
3. Follow the on screen instructions to complete router and internet setup.
4. After a successful connection, on the router’s front panel, INTERNET lights up.
Page 18 of 64
User Manual
Connecting Wireless Devices
After you setup the device settings through the main computer, you can connect other
devices with wireless capabilities. Wireless devices relieve you from the task of laying
out cables and allow you to use the Internet connection from your router.
To the connect with wireless devices:
1. Turn on your wireless device.
2. Open the software you use to detect a wireless connection. This opens a window
to ask for the connection settings.
3. Enter the connection settings. These settings are defined in your router during
setup. For more details about wireless connections, please refer to Wireless Menu.
Page 19 of 64
User Manual
About the Web User Interface
The Web Interface is used to configure the router settings.
Accessing the Web User Interface
To access the Web User Interface:
1. Open your browser.
2. On the address bar type http://192.168.1.1
3. Enter the User name and Password, and then click OK. The default User name and
Password is
admin
.
Page 20 of 64
Menus
The Web User Interface includes the following menus:
Basic
Advanced
Basic
User Manual
Advanced
Page 21 of 64
User Manual
Basic
Home
Displays the summary and provides an overview of the operating parameters used in
your device.
Page 22 of 64
Quickstart
Quickstart is used to establish an internet connection.
User Manual
Page 23 of 64
User Manual
Advanced
WAN
WAN allows you to add, edit, or remove WAN connections.
New Connection
To create a new WAN connection:
1. Click WAN.
2. Click New Connection.
3. Enter the connection settings:
a. Enter the ATM PVC Configuration, QoS Setting, and then click Next.
Page 24 of 64
b. Select the Connection Type, Encapsulation, and then click Next.
c. Enable/Disable Bridge Service
User Manual
d. Check the settings. Click Back to apply modifications.
4. Click Save.
Page 25 of 64
User Manual
ADSL Modulation
The ADSL Modulation page allows you to select the modulation, the phone line pair and
the capability.
Connection Summary
Advanced Setup provides configuration options for other router functions. Provides a
view of the connections made and the status of the connections.
Page 26 of 64
LAN
LAN Configuration
LAN allows you to modify the settings for your local network.
User Manual
LAN Clients
Displays all the DHCP clients connected to the router.
Page 27 of 64
User Manual
Application
SNTP
Enable the SNTP client to automatically synchronize your time with a time server.
SNMP
Simple Network Management Protocol (SNMP) allows a management application to
retrieve statistics and status from the SNMP agent in this device.
DNS Server
DNS (Domain Name System) is an Internet service that translates domain names into IP
addresses. Because domain names are alphabetic, they are easier to remember.
However, the Internet is based on IP addresses. Therefore, each time you type a domain
name, a DNS service must translate the name into the corresponding IP address. For
example, the domain name www.example.com might translate to 198.105.232.4. The
DNS system consists of a network of DNS servers. If one DNS server does not know how
to translate a particular domain name, it asks another one and so on until the correct IP
address is returned.

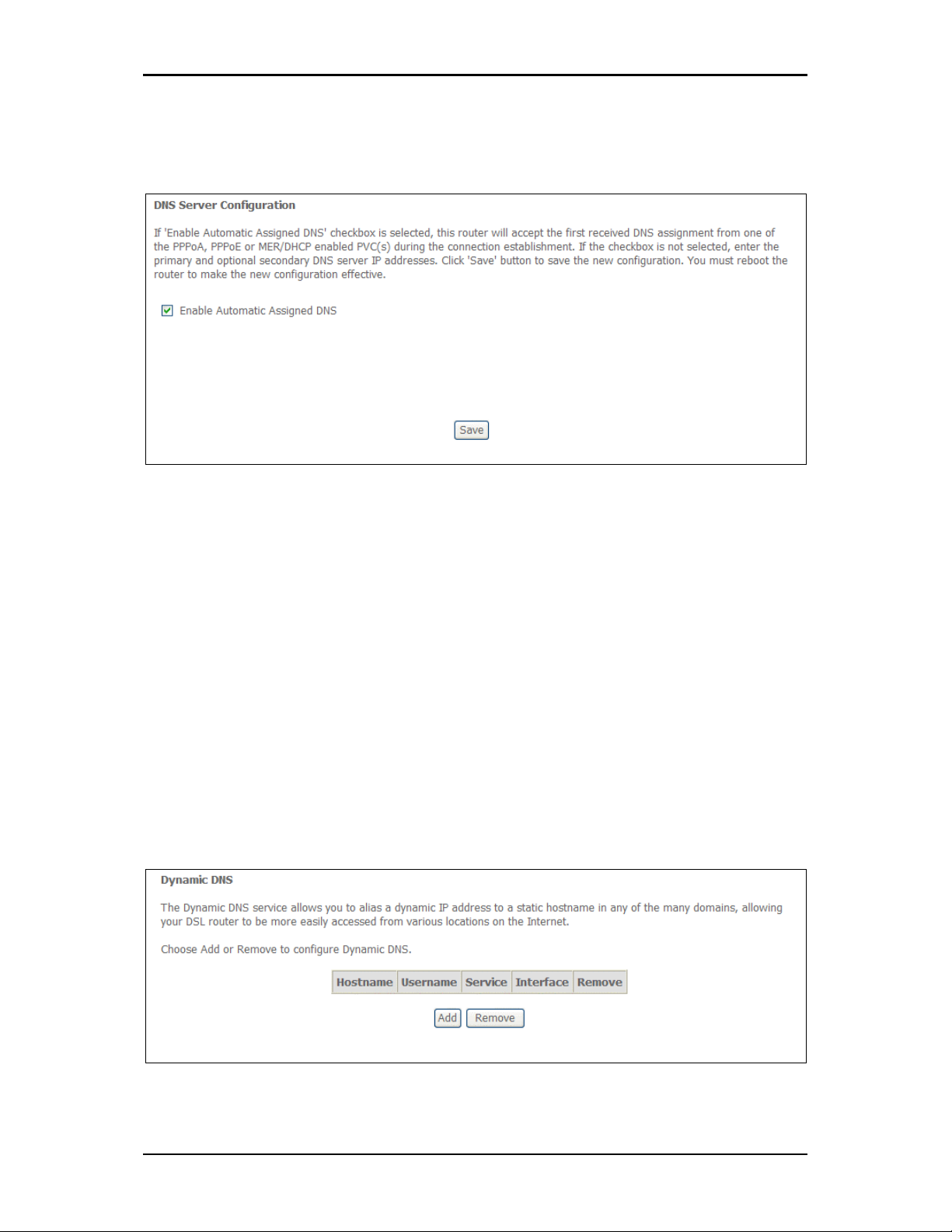

If you select the Enable Automatic Assigned DNS checkbox, the router will receive and
use the DNS Server assigned by your ISP.
Page 28 of 64
User Manual
To use your preferred DNS servers, disable the Enable Automatic Assigned DNS checkbox
and key in the IP address of your Primary DSN server. Adding a Secondary DNS server is
optional.
Dynamic DNS Client
The router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign
a fixed host and domain name to a dynamic Internet IP Address. It is useful when you
are hosting your own website, FTP server, or other server behind the router.
Before using this feature, you need to sign up for DDNS service providers. The router
supports these popular Dynamic DNS service providers:
www.dyndns.org
www.tzo.com
Click Add to create a Dynamic DNS setting.
Page 29 of 64
User Manual
Using DynDNS.org

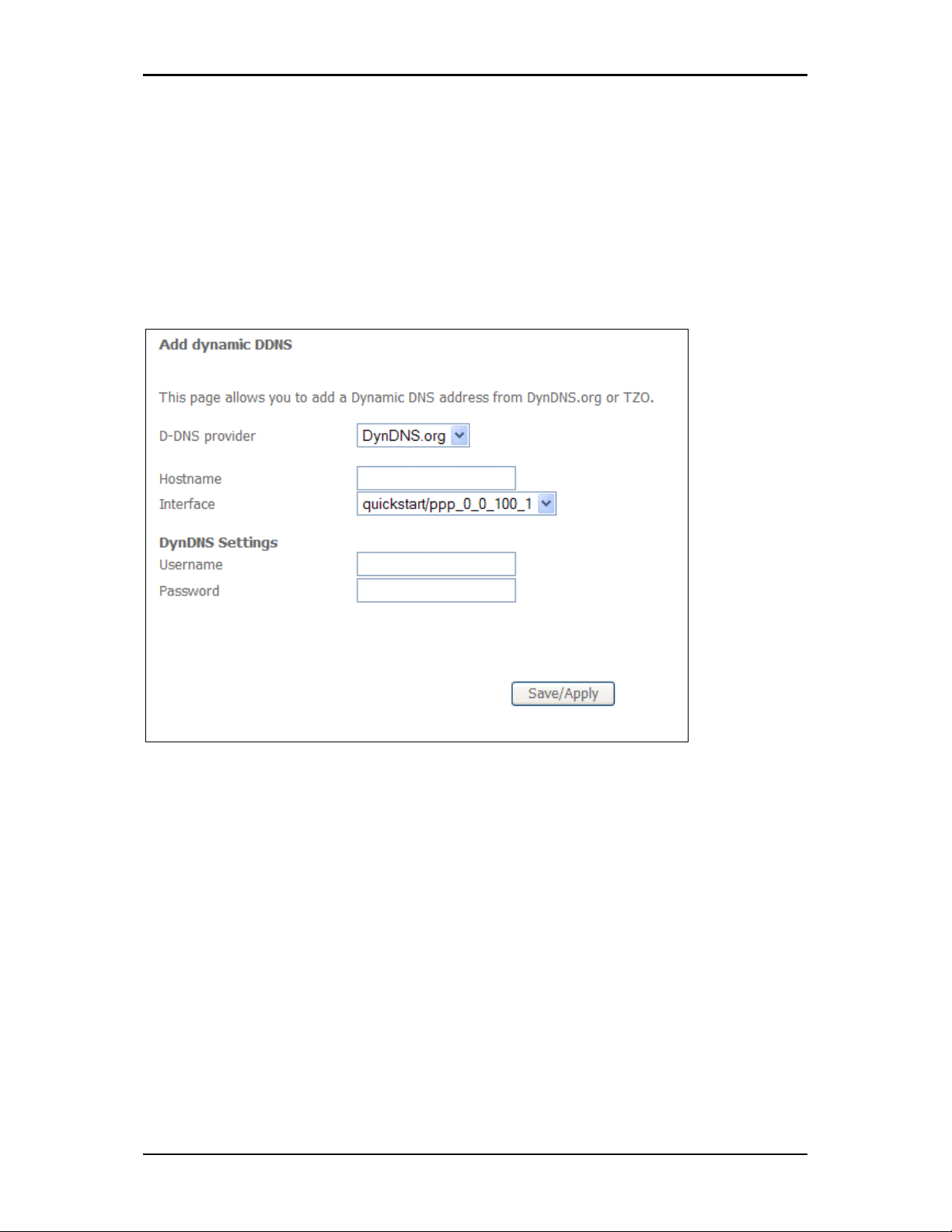

Key in the following parameters:
D-DNS provider Select DynDNS.org.
Hostname Enter the hostname.
Interface Select an interface.
DynDNS Settings Enter your dyndns.org Username and password.
Page 30 of 64
Using TZO
Key in the following parameters:
D-DNS provider Select TZO.
Hostname Enter the hostname.
Interface Select an interface.
TZO Settings Enter your TZO e-mail and key.
User Manual
Page 31 of 64
User Manual
Port Triggering
Some applications require that the specific ports in the router’s firewall be opened for
access by the remote parties. For instance, an application uses port 25 for requests and
port 113 for replies. If a computer on the LAN connects to port 25 on a remote server
hosting this application, using Port Triggering on the router, incoming connections to port
113 (from the remote server) could be redirected to the PC which initiated the request. A
maximum of 32 entries can be configured.
Click Add to setup Port Triggering.
Page 32 of 64
User Manual
Port Forwarding
Virtual Server allows you to direct incoming traffic from the Internet to a specific
computer in your local network. A maximum 32 entries can be configured.
Click Add to create a Virtual Server.
As an example, to setup a web server on a computer using 192.168.1.88 as its IP
Address, select HTTP as Service and enter 192.168.1.88 as the Server IP Address.
Otherwise if the service you want to setup is not available from the Select a Service
drop-down list, you can define your own Virtual Server.
Page 33 of 64
User Manual
Port Mapping
Port Mapping allows you to create groups composed of the various interfaces available in
your router.
Click Add to create a port mapping group.
Page 34 of 64
User Manual
DMZ Host
The DMZ host computer will receive all the IP packets from WAN that are not configured
to go to other computers through virtual servers or port forwarding.
TR069 Client
As a TR-069 capable router, the Internet service provider can remotely update the
settings of the device.
Page 35 of 64
User Manual
Access Control Services

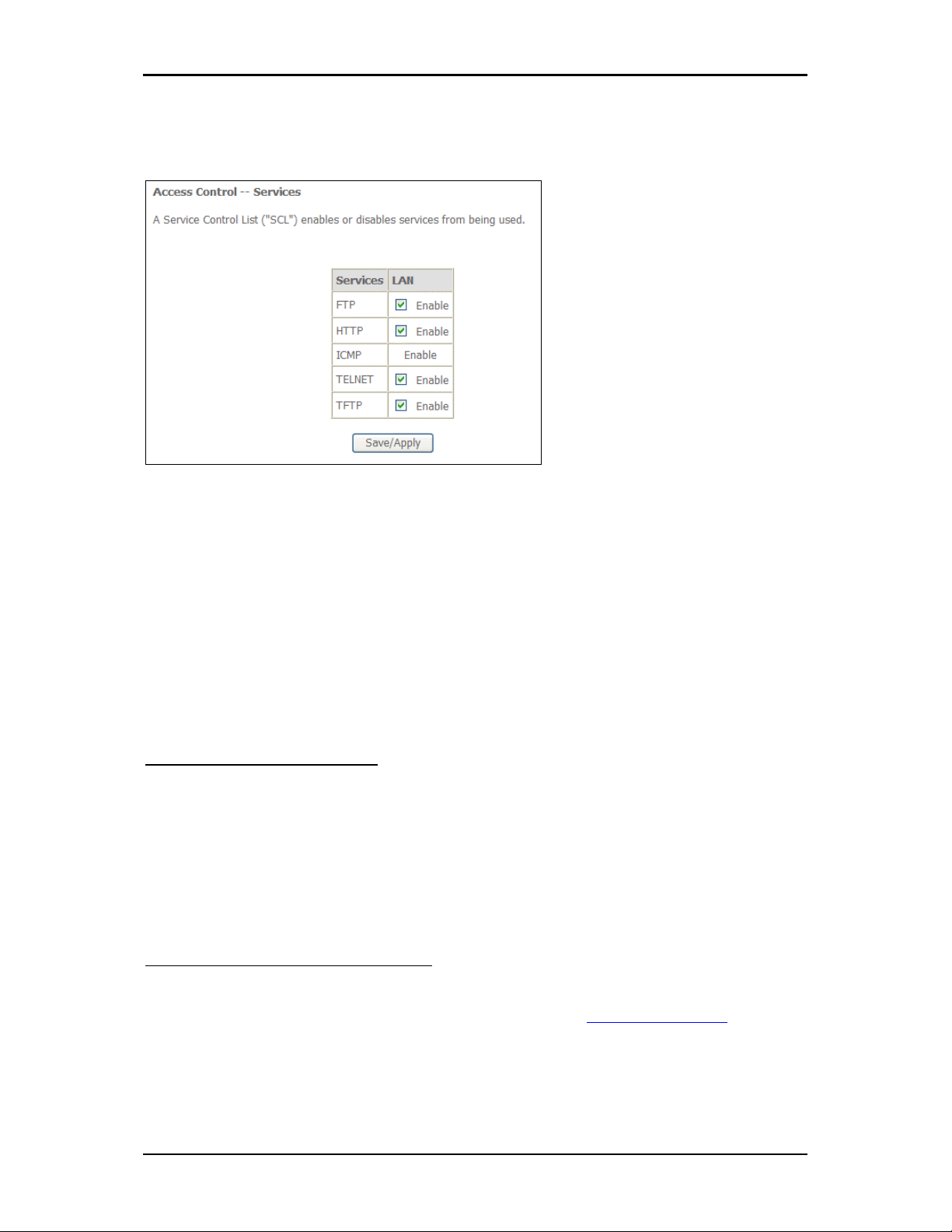

Select which Services to allow and whether to allow from the LAN or the WAN.
Print Server
The DSL1015EN is equipped with a USB Host print server on board. To use the print server
on the DSL1015EN, you need to accomplish the following tasks:
1. Install the printer drivers on the computer
2. Enable the DSL1015EN for Print Server
3. Add a network printer
INSTALL THE PRINTER DRIVERS
Printers using the USB port come with a software installation CD for installing the
printer drivers and applications. The drivers for the printers must be installed on the
computer first to prepare it to use the printer when it’s connected to the DSL1015EN.
Refer to the printer’s documentation on how to install the drivers.
ENABLE THE PRINT SERVER APPLICATION

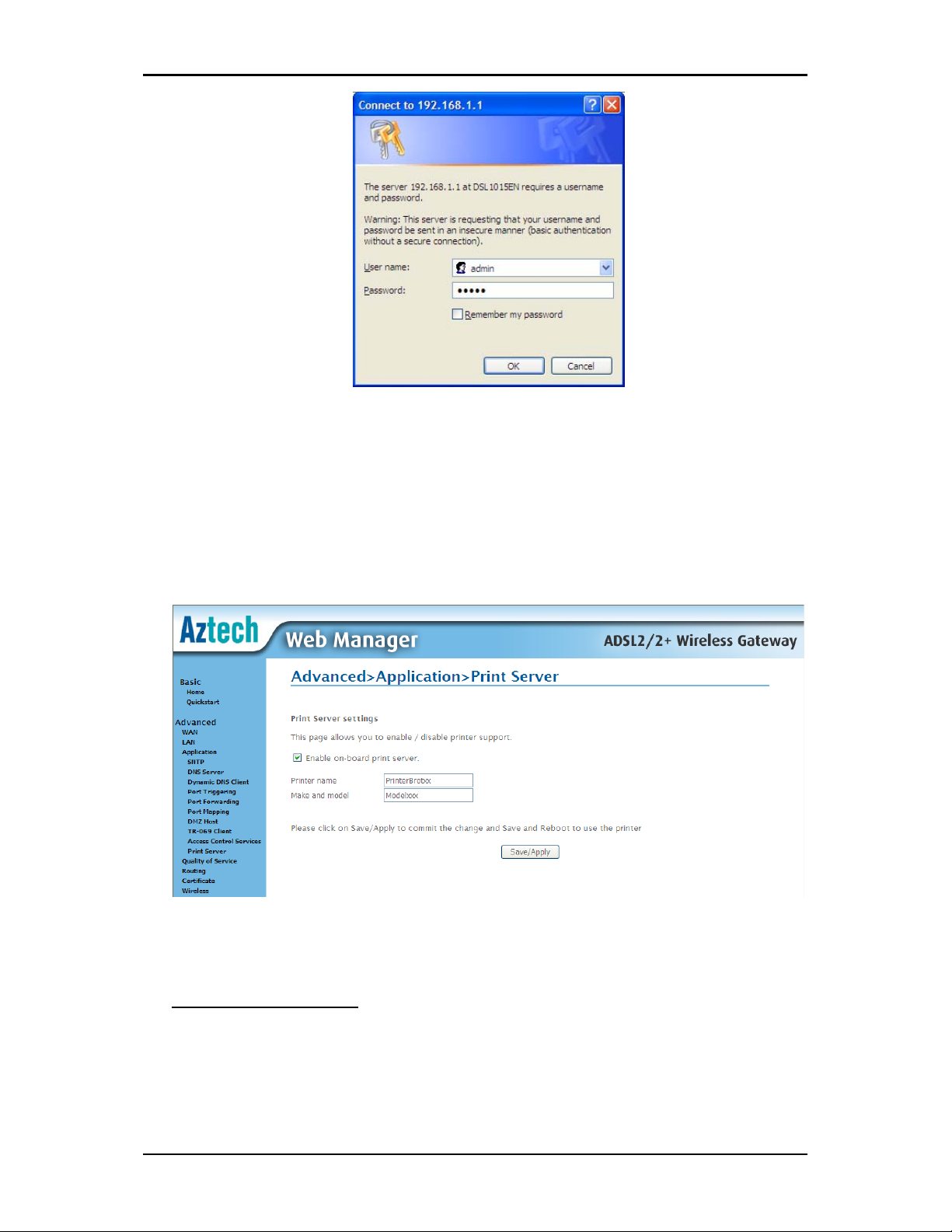

1. Open you Internet browser and log on to http://192.168.1.1
authentication page, type admin for both the username and password.
Page 36 of 64
, on the
2. Click on Application under Advanced and click on Print Server.
3. Click on Enable on-board print server.
User Manual
4. Input the Printer Name and Printer Make and Model on the fields.
5. To commit and save the changes, click on Save/Apply button.
CONNECTING THE PRINTER
1. Turn OFF the DSL1015EN.
2. Connect the Printer on the USB port and switch it ON.
Page 37 of 64
User Manual
ADD A NETWORK PRINTER
FOR WINDOWS XP
Before you continue, ensure that you’ve installed the printer drivers on this
computer and the printer is attached to the DSL1015EN.

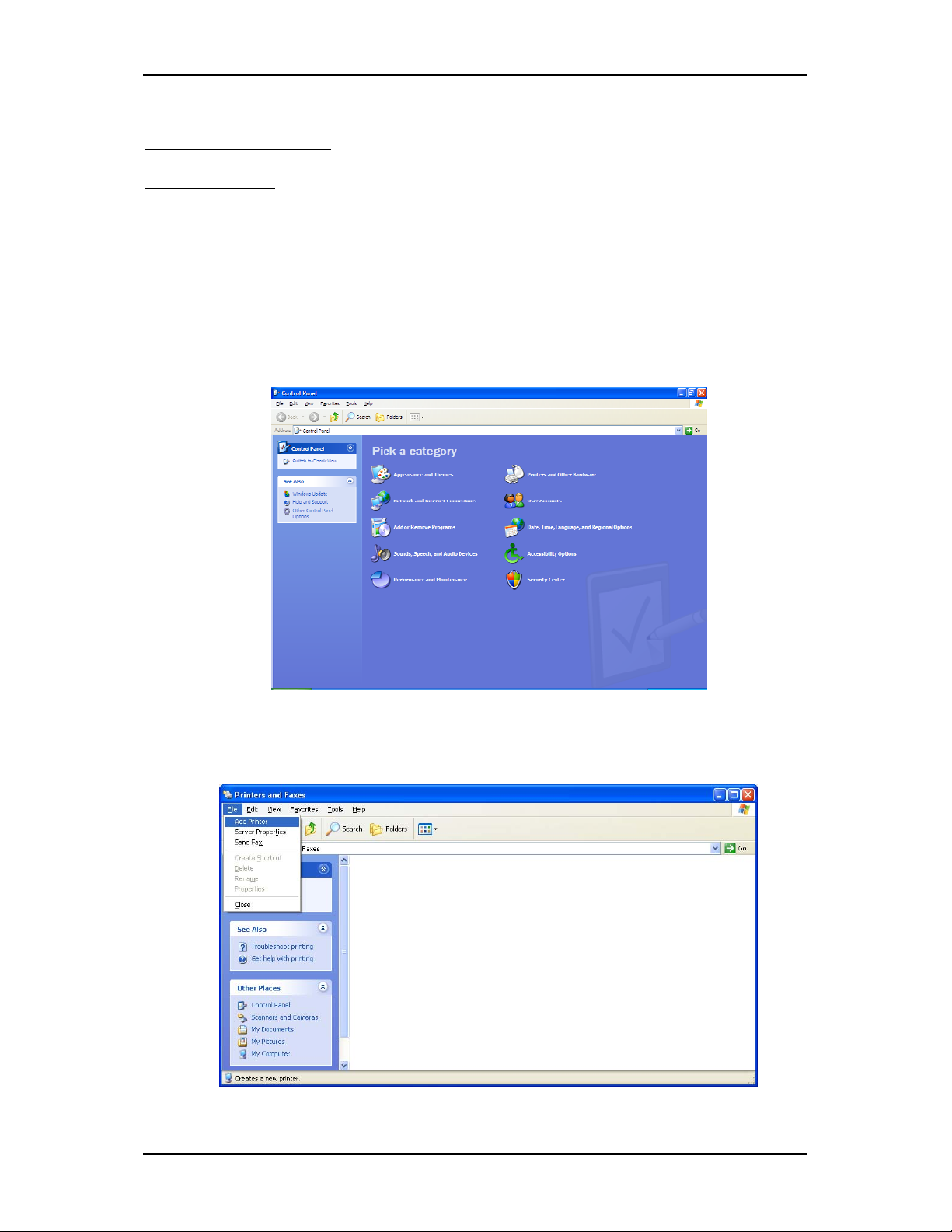

1. Click on the Start Button > Control Panel > Printers and Other Hardware > Printers
and Faxes.
2. Click on the File Menu > Add Printer.
Page 38 of 64
User Manual
3. Click on Next on the Add Printer Wizard page.
4. Choose A network printer, or a printer attached to another computer and click
Next, on the Local or Network Printer page.
5. Choose Connect to a printer on the Internet or on a home or office network:, on
the Specify a Printer page.
6. On the URL field, input the following and click Next.
printer the is This
earlier set
ve you'that name
4484476
txxPrinterBro/printers/:1.1//192.168.:http 631
Page 39 of 64
User Manual
7. Once the computer detects the printer on the Print Server, it will ask for the
printer manufacturer and model, a list of printers will be shown, select the your
printer from the list and click OK.
8. Click Finish, on the Completing the Add Printer Wizard page.
Page 40 of 64
User Manual
PRINTING A TEST PAGE AFTER INSTALLATION
1. Open the Printers and Faxes page from Control Panel.
2. Right click on the new printer and click on Properties.
3. Click on the Print Test Page button on the Printer properties page, the test page
will be printed on the network printer.
FOR WINDOWS VISTA
1. Click on the Start Button> Control Panel.
2. Click Printer under the Hardware and Sound category.
3. Click on Add a Printer.
Page 41 of 64
User Manual

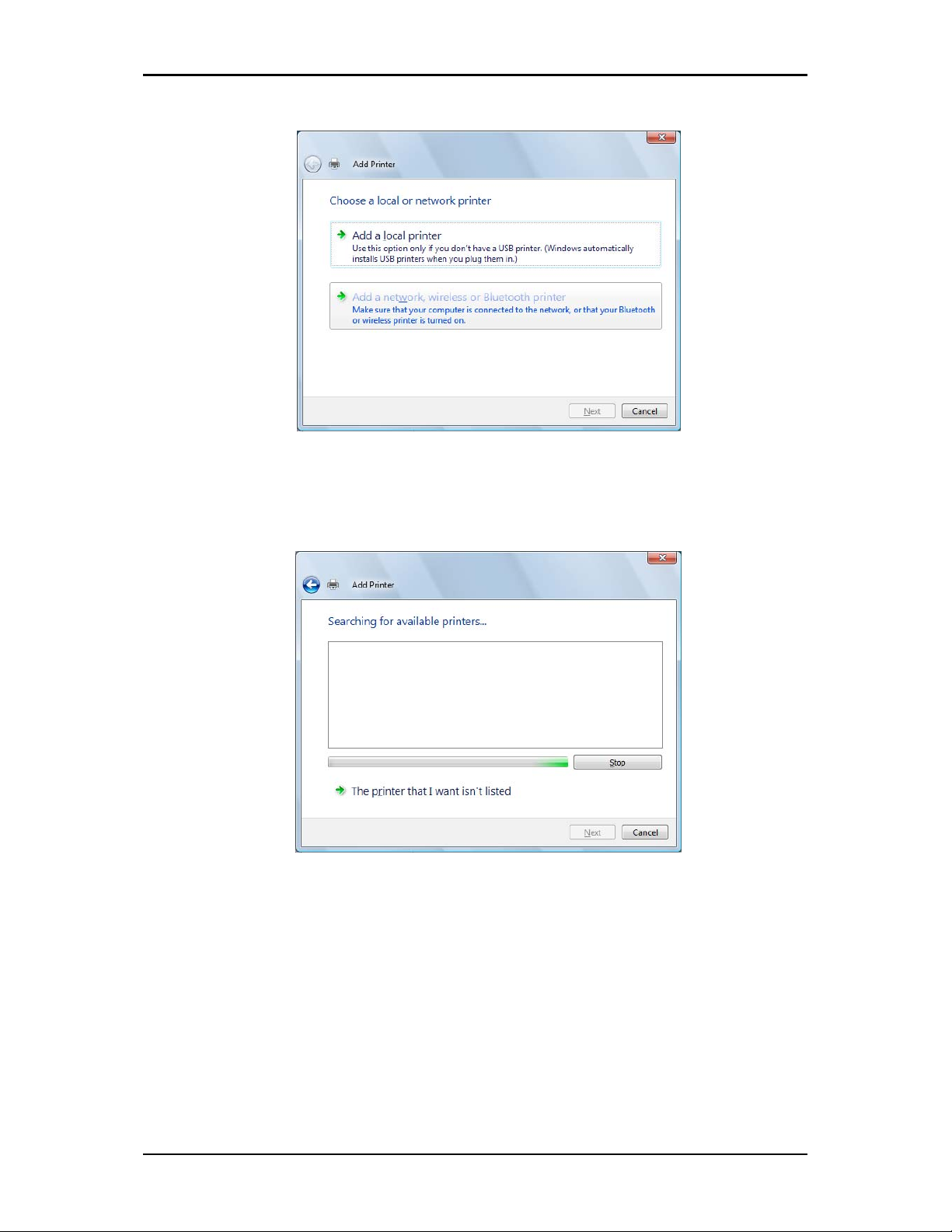

4. Click on Add a network, wireless or Bluetooth printer.
5. Click on Stop on Searching for available printers… page.
6. Click on The printer that I want isn’t listed.
7. Click on Select a shared printer by name on the Find a printer by name on TCP/IP
address, and input the following URL on the field and click on Next.
printer the is This
earlier set
ve you'that name
4484476
txxPrinterBro/printers/:1.1//192.168.:http 631
Page 42 of 64
User Manual
8. Once the computer detects the printer on the Print Server, it will ask for the
printer manufacturer and model, a list of printers will be shown, select the your
printer from the list and click OK.
9. Click Next on the Type a Printer Name page.
Page 43 of 64
User Manual
10. To print a test page click on Print a test page on the confirmation screen, click
Finish to complete the installation.
Notes:
1. USB Printers that supports IPP – Internet Printing Protocol are that only printers
that will work with the Print Server application on the DSL1015EN. Consult the
printer manufacturer for more information on your printer.
2. Scanning, Faxing and Photocopying functions on Multifunction printers are
currently not supported on the DSL1015EN, Print function is the only feature that
will work on these printers type when connected to the DSL1015EN.
3. Refrain from connecting a USB Hub on the USB port on the DSL1015EN.
Page 44 of 64
Quality of Service
Queue Config
Click Add to create a QoS Queue Configuration.
User Manual
Page 45 of 64
User Manual

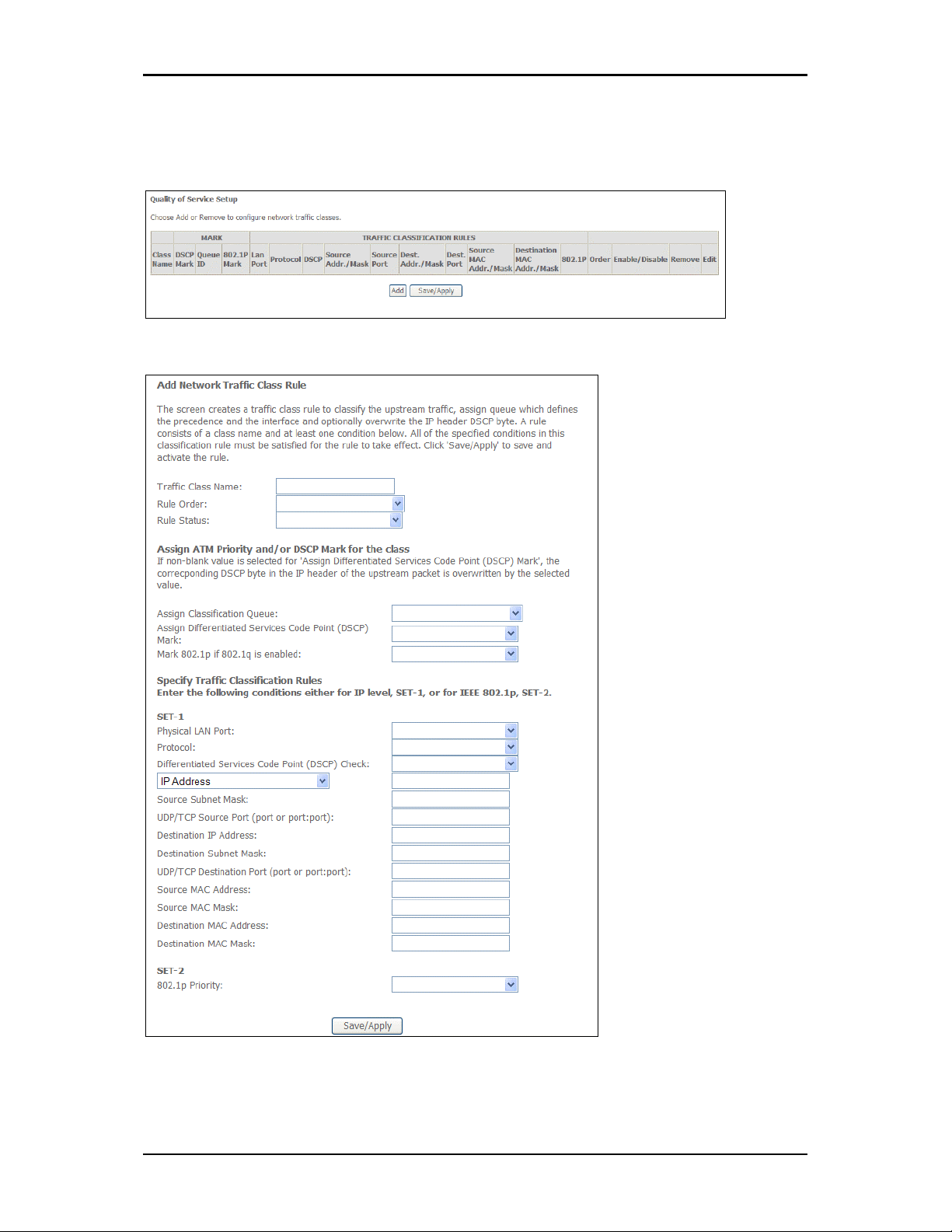

QoS Classification
You can add or remove QoS Classification rules.
Click Add to create a Network Traffic Class Rule.
Page 46 of 64
User Manual
Routing
Default Gateway
The Enable Automatic Assigned Default Gateway checkbox is ticked by default. The router
will accept the first received Default Gateway assignment from one of the PPPoA, PPPoE
or MER/DHCP enabled PVC(s).
Static Route
If your LAN consists of multiple subnets and you want to manually define the data
transmitting paths, Static Route is to be used.
Page 47 of 64
User Manual
To create a new Static Route, click Add. The Routing-Static Route Add page will shows up.
The key settings for adding a new Static Route are explained:
Destination Network Address Enter the network address to which the data packets
are to be sent.
Subnet Mask Enter the subnet mask for this destination.
Use Gateway IP Address If you wish to use a specific gateway to reach the
destination network, select this checkbox and then enter the IP address of the
gateway.
Use Interface If you wish to use a particular WAN interface, select the checkbox
and select the interface.
Click Save/Apply to take effect the settings.
To delete the entry from the routing table list, click its corresponding Remove button.
IPSec
Your router supports the authentication and encryption of data packets.

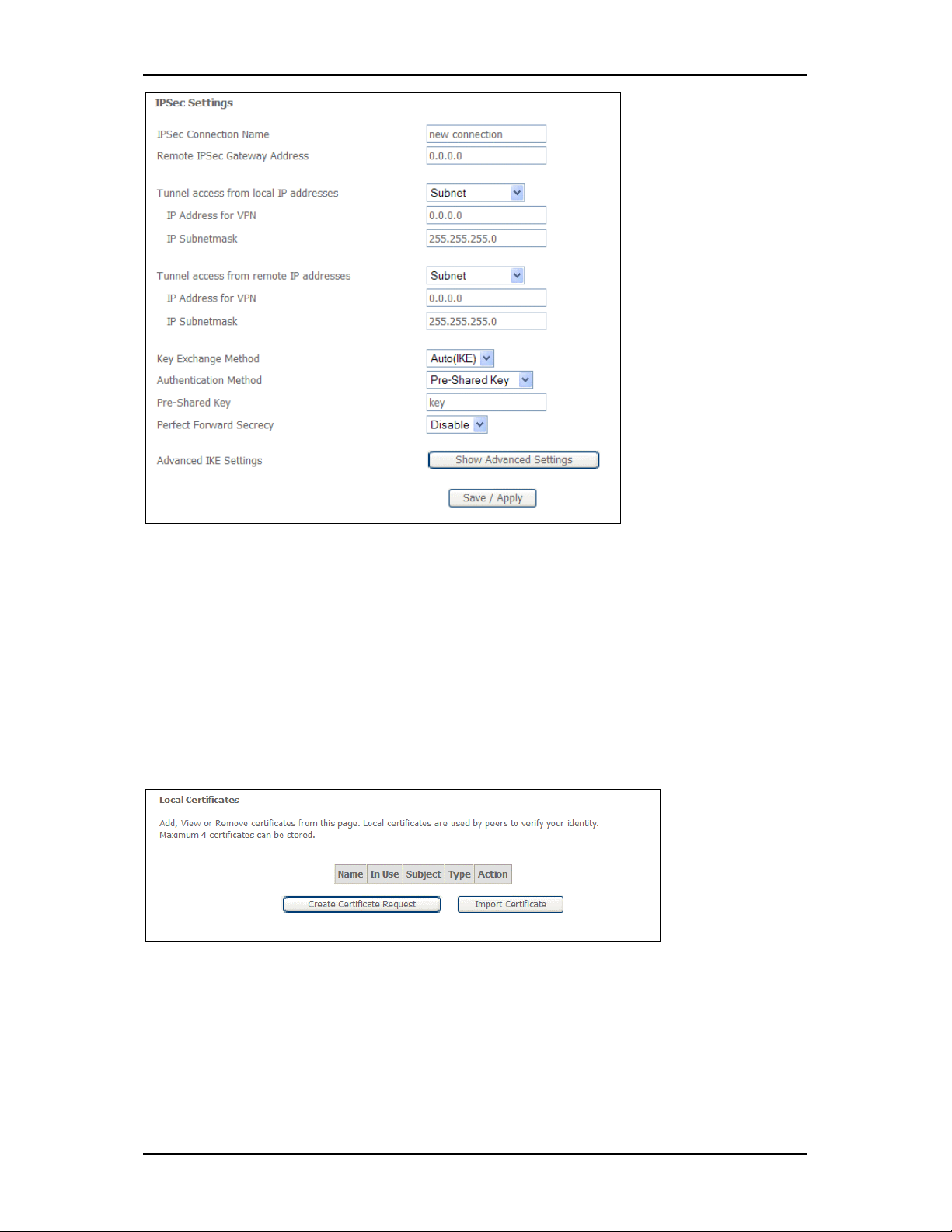

Click Add New Connection to create an IPSec Setting.
Page 48 of 64
User Manual
Certificate
Certificates are used to verify the identity of you and your peers. You can either create or
import a Certificate Request.
Local
Page 49 of 64
User Manual
Create Certificate Request
Import Certificate
Page 50 of 64
Trusted CA

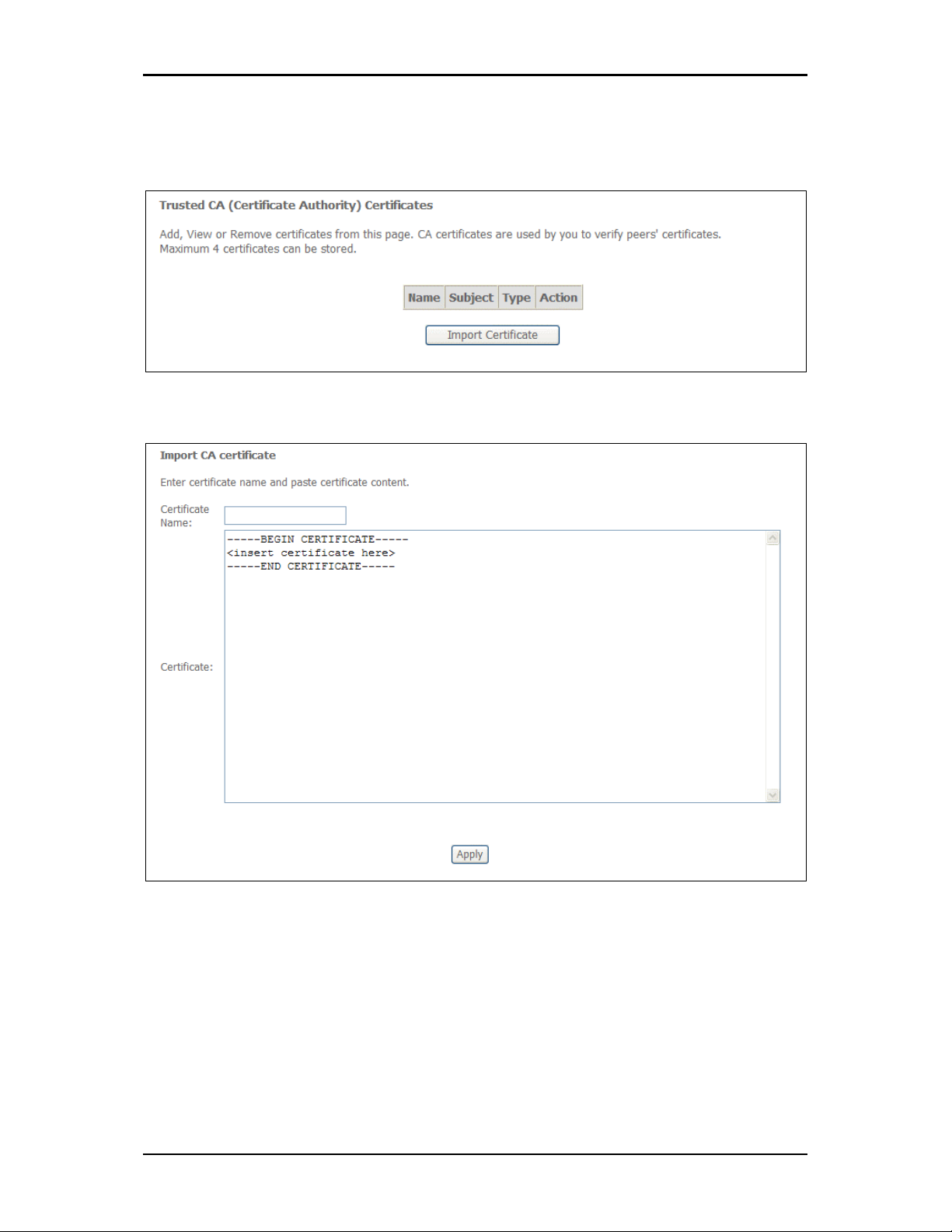

Trusted CA is used to verify the certificate of your peers.
Click Import Certificate.
User Manual
Page 51 of 64
User Manual
Wireless
Setup
The Setup page allows you to enable the wireless network and configure its basic
settings.
Security
The router supports all the popular wireless security protocols.
Page 52 of 64
User Manual
Management

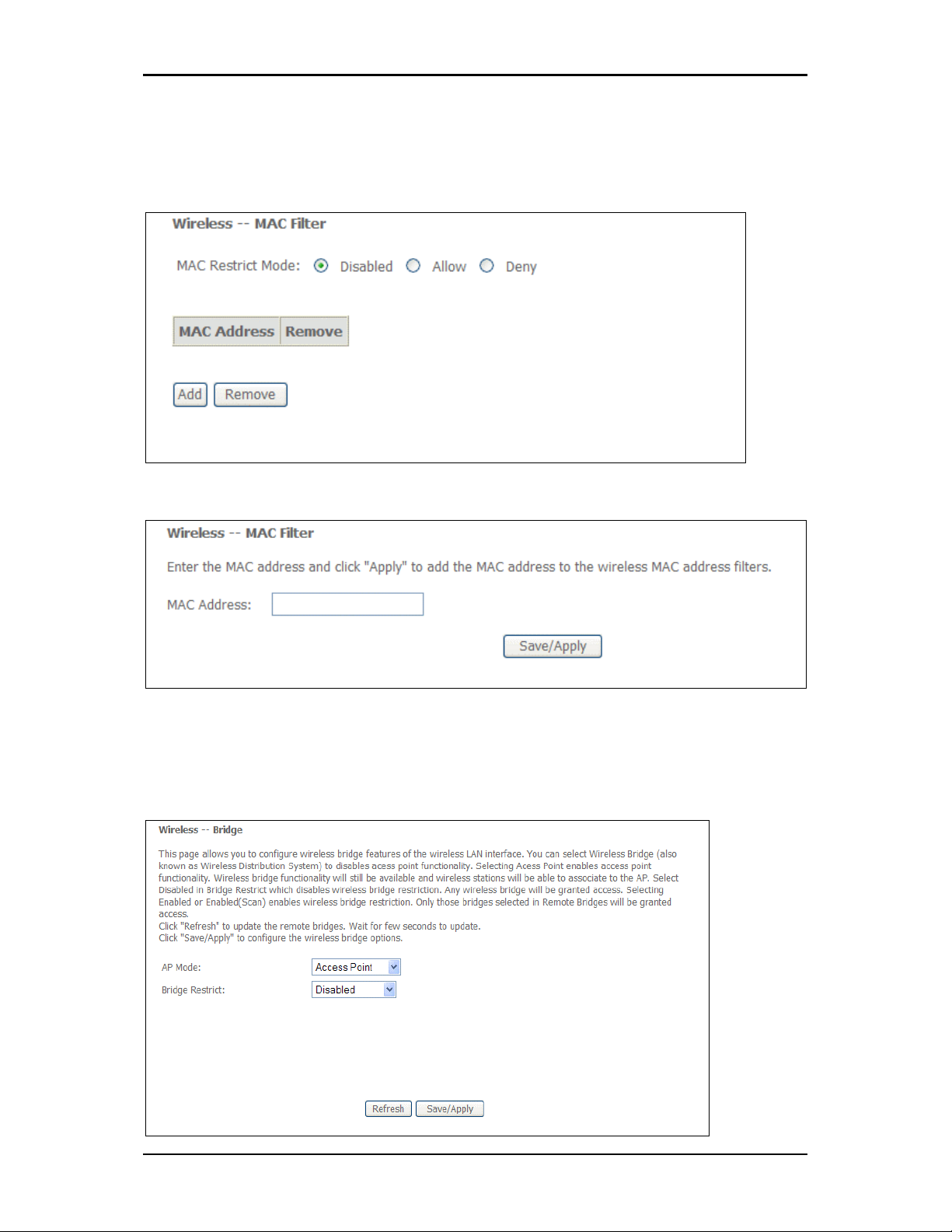

Wireless Management allows you to add or remove the MAC Address of devices which
will be allowed or denied access to the wireless network.
Click Add to add a MAC Address.
WDS
WDS allows you to configure the router’s access point as a bridge.
Page 53 of 64
User Manual
Station Info
Station Info scans wireless stations and displays their status.
Page 54 of 64
User Manual
Diagnostics
The router has a diagnostic feature to test your DSL connection. You can use the
diagnostic menu to perform the following test functions from the router.
Testing the connection to your local network
Testing the connection to your DSL service provider.
Testing the connection to your Internet service provider.
Page 55 of 64
User Manual
Security
Access IP Control
The Access IP Control Mode is disabled by default.
To allow remote management based on an authorized IP address, select Enable and click
Add.
Key in the IP address of the PC from which a user will be allowed to access the web
configuration menu.
Click Save/Apply to take effect the settings. Then the IP Address will be added into the
table list.
To delete the existing IP address, tick the Remove checkbox next to the selected IP
address in the table list and click then Remove.
Page 56 of 64
User Manual
Status
Connection Status
Connection status displays a statistical summary of the data transaction for each
connection.
Modem Status
Modem Status displays a statistical summary of the ADSL connection.
Page 57 of 64
User Manual
Local Network Statistics

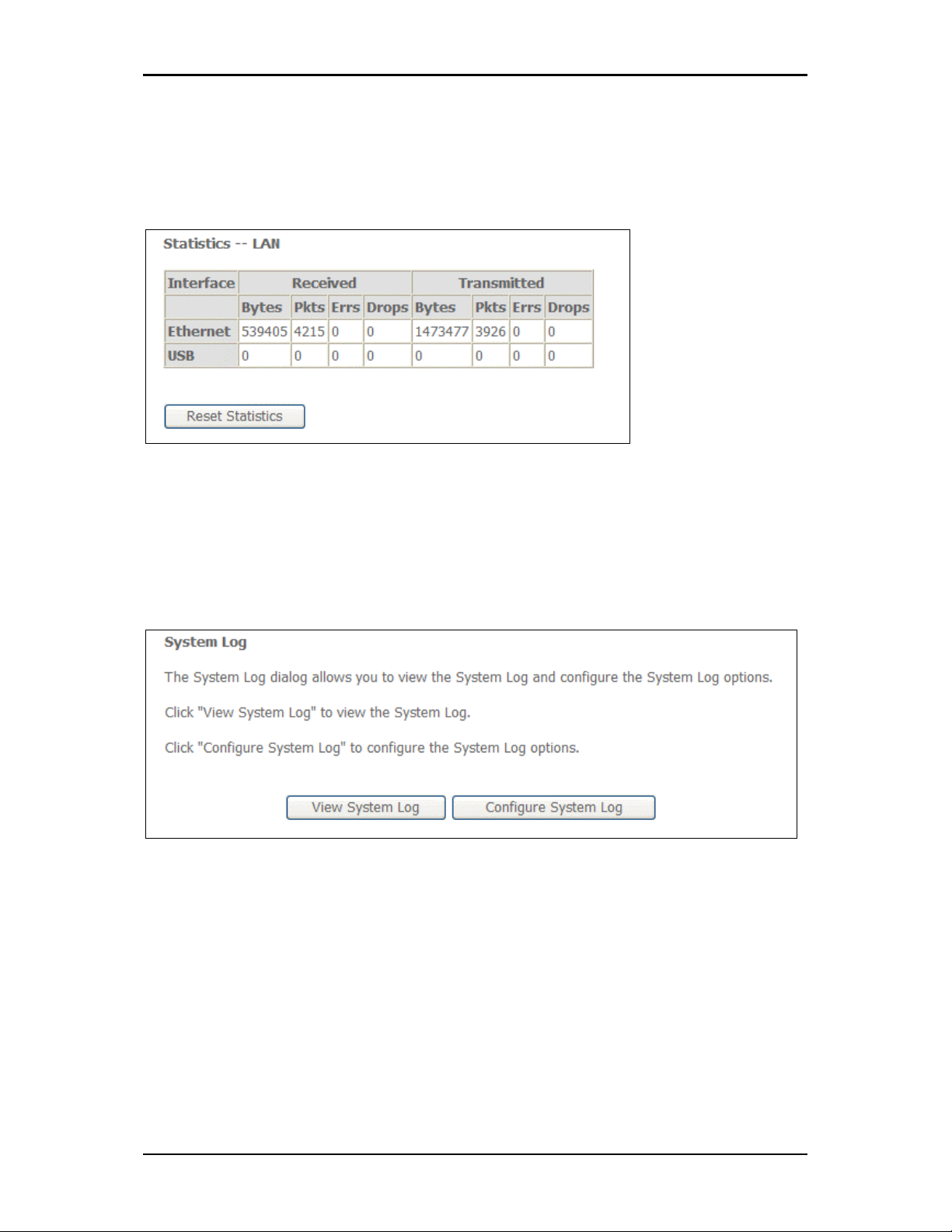

LAN displays a statistical summary of the data transaction for each interface.
System Log
This feature provides you a comprehensive list of log entries reporting events which you
have configured for viewing.
To view the log, click View System Log.
Remote Log
Remote Log page allows you to send the events on the router to a remote syslog system.
Page 58 of 64
User Manual
DHCP Clients
DHCP clients page displays all the DHCP clients connected to the router.
Product Information
Shows information about the product’s model number, firmware, firmware build and
software version.
Page 59 of 64
User Manual
USB Device
The USB port on the DSL1015EN is capable of sharing the contents of your USB storage
device to the network. The following steps should be accomplished to share your files on
the network.
1. Ensure that the DSL1015EN is OFF, connect the USB storage device and switch
it ON.

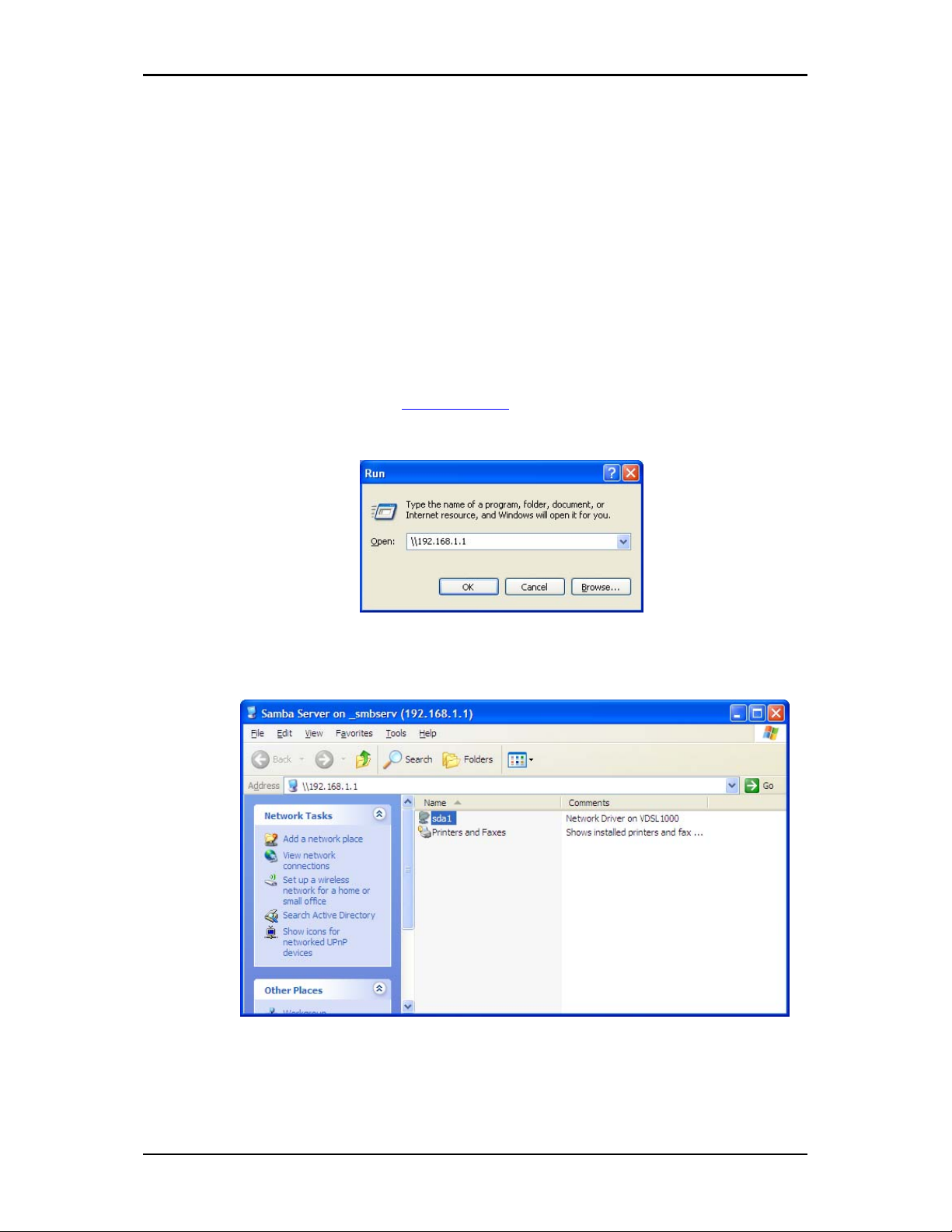

2. Once the DSL1015EN is ready, you can access the files from your windows
explorer, this can be done by clicking on the Start Button> Run.
3. On the Open box, type: \\192.168.1.1
a username and password, type admin for both the username and password.
4. From windows explorer, you will see a folder called sda1, this is the folder
containing the files from your USB storage device.
and click on OK. If there is a prompt for
Page 60 of 64
SAFELY REMOVING THE USB STORAGE DEVICE FROM THE DSL1015EN
User Manual
1. Open you Internet browser and log on to http://192.168.1.1
, on the
authentication page, type admin for both the username and password.

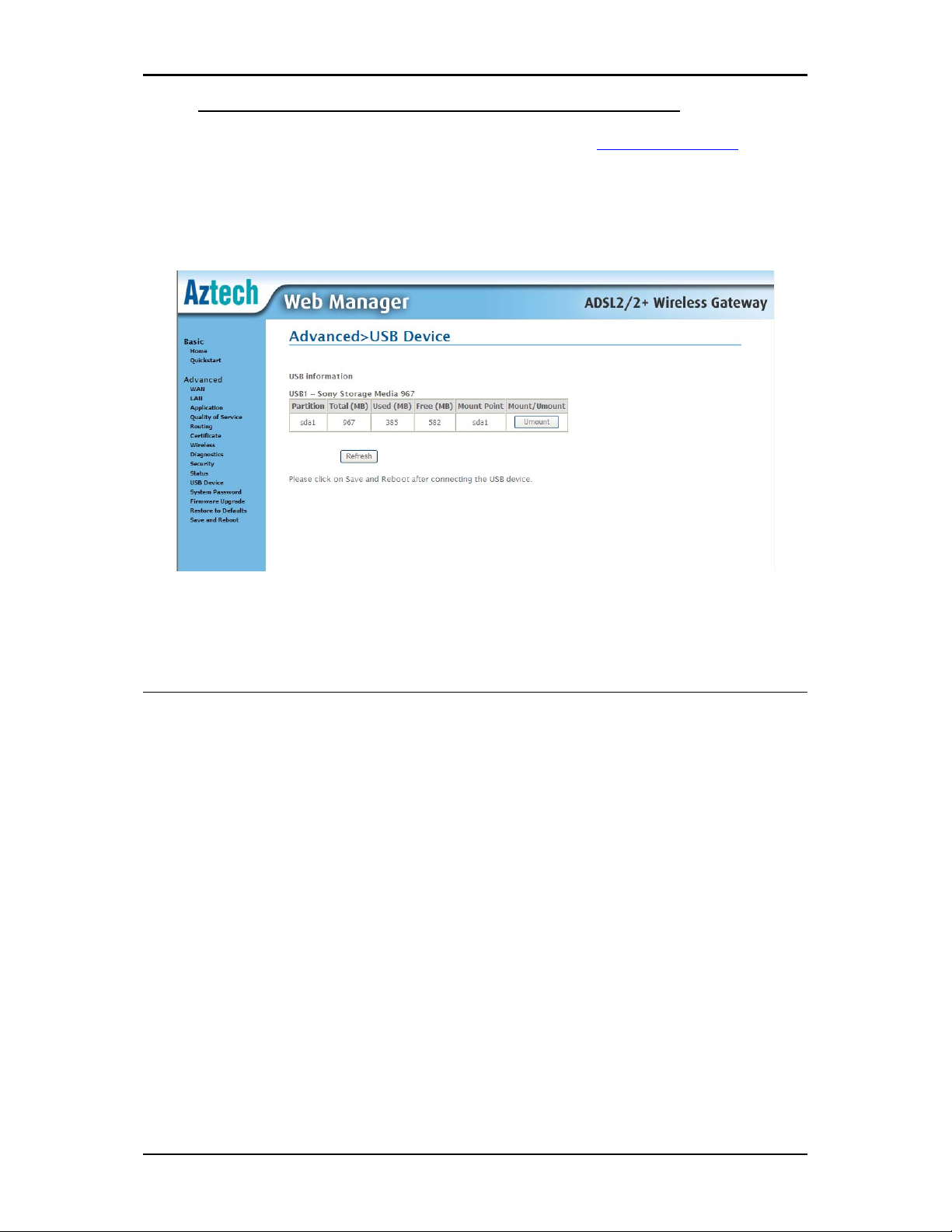

2. Click on USB Device under Advanced and click on the Umount button from
the USB Information page.
3. You can safely remove the device once you see the Mount button
displayed on the table for USB Information.
Note:
1. The USB Storage feature on the DSL1015EN can only support devices that are
formatted with FAT/FAT32 file systems. NTFS and other file systems are currently
not supported.
Page 61 of 64
User Manual
System Password

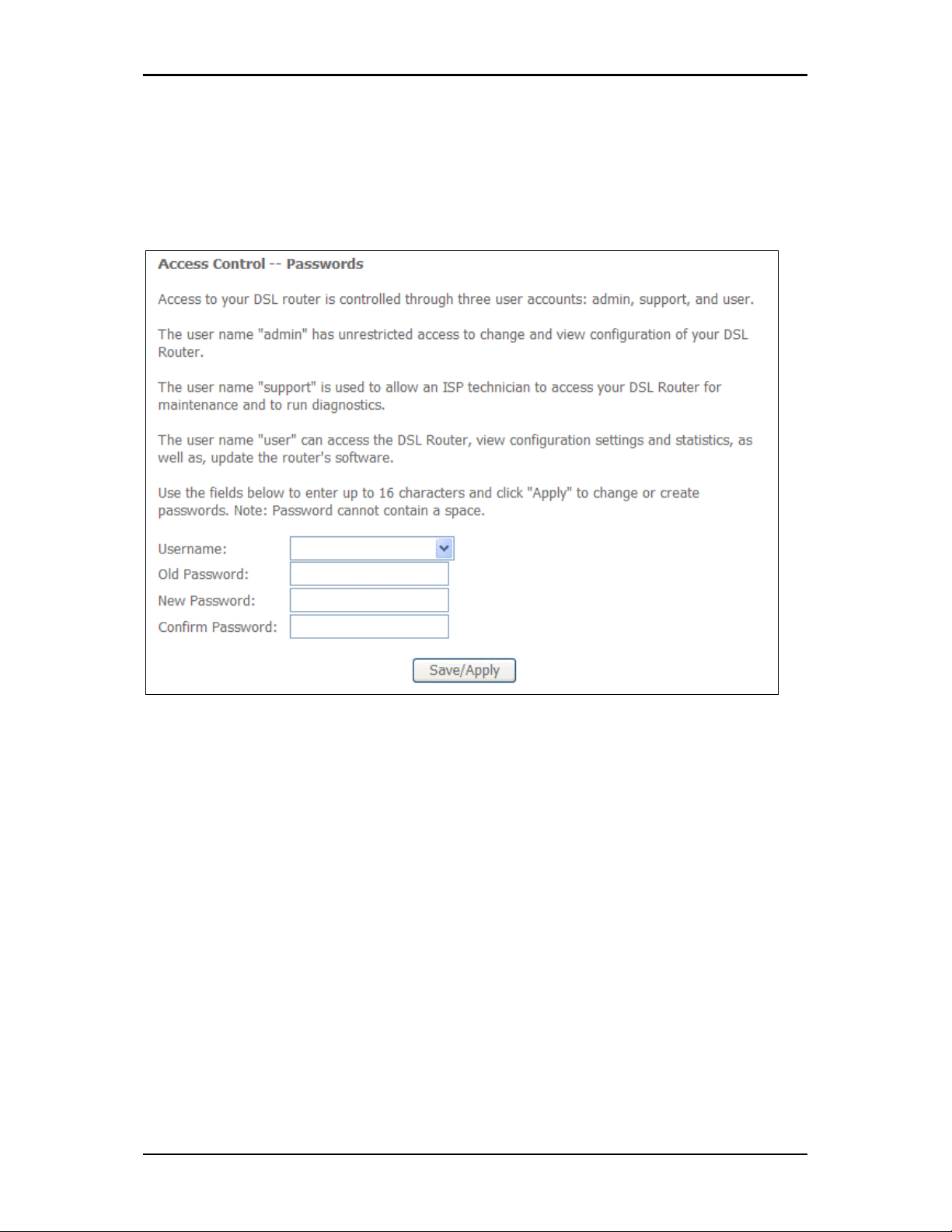

When you configure the router through an Internet browser, the system requires you to
enter your user name and password to validate your access permission. By default, the
Username is set to “admin” and the Password to “admin”.
Page 62 of 64
User Manual
Firmware Upgrade

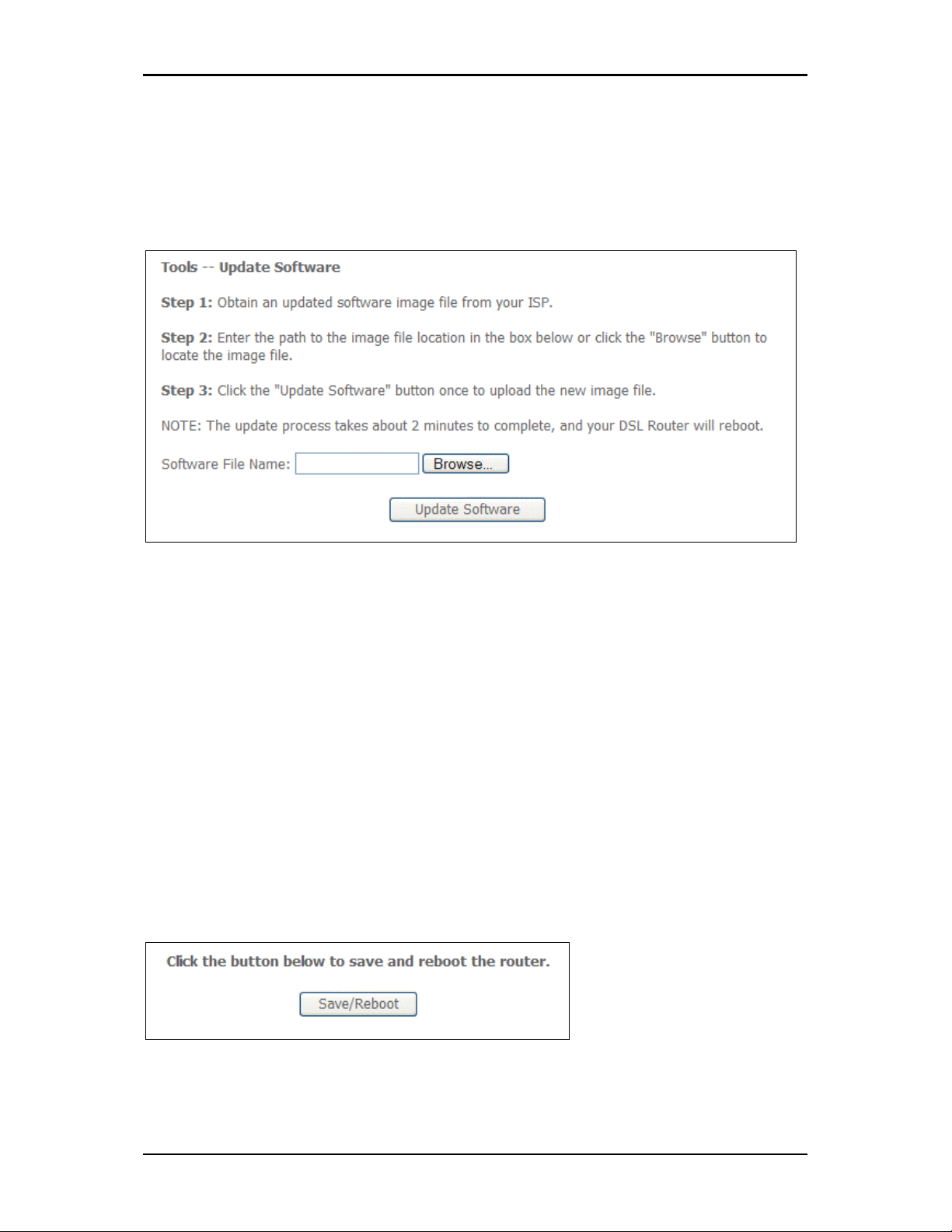

The router’s software is stored in the FLASH memory and can be upgraded as new
software is released. Click Browse to locate the software file and then click Update
Software.
Restore to Defaults
This page allows you to do the following:
Backup router Settings
Restore router Settings
Restore original router factory settings
Save/Reboot
This feature allows the router to enable new network configuration to take effect or to
clear problems with the modem router’s network connection.
Page 63 of 64
User Manual
Safety Precautions
Do not open, service, or change any component.
Only qualified technical specialists are allowed to service the equipment.
Observe safety precautions to avoid electric shock
Check voltage before connecting to the power supply. Connecting to the wrong
voltage will damage the equipment.
Page 64 of 64
Loading...
